A multi-criteria decision-making method based on triangular interval-valued fuzzy numbers and the VIKOR method

Abstract

In many cases, complex problems cannot be accurately described by precise numerical values. Fuzzy theory provides a suitable tool for solving these problems. However, if decision makers cannot reach an agreement on the method for defining linguistic variables based on fuzzy sets, TIVFNs (triangular interval-valued fuzzy numbers) can provide more accurate modeling. Therefore, solving fuzzy MCGDM (multiple criteria group decision-making) problem with an unknown expert weight and criterion weight in TIVFNs has become an important research direction. In this paper, TIVF-VIKOR (triangular interval-valued fuzzy VIKOR) method, which is suitable for the environment of TIVFNs, is proposed to solve the problem of fuzzy MCGDM. To achieve this goal, the TIVF-VIKOR method is innovatively adopted similarity and coefficient of variation are combined to calculate expert weight, and deviation maximization method based on divergence matrix is used to calculate criterion weight. VIKOR method is used to find the compromise solutions, which are converted into the form of binary connection number, and the optimal compromise solution is obtained after ranking. The proposed method is applied to the problem of machine fault detection, and the validity and feasibility of the method are illustrated. Compared with the TOPSIS∖ELECTRE method, the ranking results of the three methods are equivalent, and the fluctuation of the TIVF-VIKOR method is more distinct.

Keywords

Triangular interval-valued fuzzy numbers multiple criteria group decision-making binary connection number VIKOR method

1 Introduction

Multiple criteria group decision-making (MCGDM) problem is to invite decision makers (DMs) to evaluate alternative plans according to numerous criterions. MCGDM with imprecision, subjectivity or vagueness, among which evaluation ratings and criteria weights are displayed by linguistic terms and transferred into fuzzy numbers, belongs to fuzzy MCGDM [1 –4]. The combination of fuzzy MCGDM and multi-field research has gradually penetrated into people’s lives. With the development of society, decision-making problems have become increasingly complex, and people’s decision-making ability has been enhanced but remain limited [5]. Therefore, how to make MCGDM in fuzzy number environment is becoming more and more concerned for researchers.

Due to the uncertainty of information and other factors, it is difficult for DMs to describe the complex reality with accurate values. Then Zadeh [6] first proposed the concept of fuzzy set (FS) in 1965 to express qualitative decision information. In 1986, Atanassov [7, 8] defined the intuitionistic fuzzy set (IFS) and mentioned membership degree and non-membership degree. Pythagorean fuzzy set (PFS) is an extended form of IFS, which was proposed by Yager [9] in 2013. It is defined that the sum of squares of membership degree and non-membership degree is less than or equal to 1. IFS and PFS have been frequently used to handle imprecise data and vague expression in practical MCGDM, however, it is difficult for them to describe complex information with uncertainty [10, 11]. And triangular interval-valued fuzzy numbers (TIVFNs) can express this kind of information very well. The upper and lower bounds of triangular fuzzy numbers (TFNs) combined with interval-valued numbers (IVNs) will consider more parameter information and express decision information more accurately. Subsequently, many researchers proposed to use TIVFNs to represent linguistic variables. Ren [12] adapt TIVFNs to solve the multi-criteria problem of groundwater resources management decision; Li [13] used TIVFNs to solve the problem of multi-objective planning and carried out feasibility analysis through examples; By using intuitionistic triangular fuzzy sets (TFS) and interval intuitionistic triangular plus fuzzy mixed aggregation operators, Robinson [14] sorted the alternatives and studies the multi-attribute decision making problem; Stanujkic [15] proposed an extended MULTIMOORA method suitable for TIVFNs to solve the design and selection decision of crushing circuit, then Stanujkic [16] extended the MOORA method by proposing the weighted average operator of de-fuzzing TIVFNs; Garg [17] proposed some operators based on TIVFNs, such as intuitionistic fuzzy ordered weighted average and intuitionistic fuzzy mixed average operators based on Frank norm algorithm, to solve fuzzy multi-criterion decision problems. TIVFNs is an effective tool to describe vague information. Researchers are increasingly concerned about the combination of TIVFNs and fuzzy multi-criteria decision making methods.

There are many specific methods for MCGDM. ELECTRE (Elimination and Choice Translating Reality), TOPSIS (Technique for Order Preference by Similarity to an Ideal Solution), VIKOR (Visekriterijumska Optimizacija I Kom-promisno Resenje) and so on are effective tools to solve such problems [18 –20]. Benayoun [21] proposed ELECTRE method for the first time, but due to ambiguity and subjectivity, this method is not reasonable in the final ranking. Aiming at properly dealing with the uncertainty of the decision process, an interval extension of both ELECTRE TRI and TOPSIS is proposed by Micale [22]. For MCGDM problem, Ashtiani [23] transformed the linguistic variable into the form of TIVFNs and proposed the relevant TOPSIS method, but changed the TIVFNs into the form of IVNs in the process of calculation. The VIKOR method has more advantages than the other methods in selecting the compromise solution. The VIKOR method is characterized by a trade-off between the maximum group utility of the majority (aggregation of all criterions) and the minimum individual regret of the opponent (each criterion) [24 –26]. The VIKOR method [27] was developed for multi-criteria optimization of complex systems (Opricovic, 1998). Wang [28] combined the original VIKOR model with a triangular fuzzy neutrosophic set to propose the triangular fuzzy neutrosophic VIKOR method, the calculation procedure of the method is given. Wu [29] proposed extend VIKOR method based on IVNs to solve the problem of green supplier selection. Based on the optimal weight vector of fuzzy measure represented by Shapley value, Rani [30] discussed VIKOR technology of relevant multi-criterion decision making problem in interval intuitionistic fuzzy environment. Wan [31] solved the MCGDM problem by combining the triangular fuzzy weighted average operator with VIKOR method. At present, there are few studies on the combination of TIVFNs and VIKOR method, and the existing VIKOR method cannot solve the problem in TIVFNs.

Previous studies have made significant progress, but some problems and challenges exist [32 –37]. Firstly, the numerical representation of uncertain linguistic variable information. In literature [23], although the linguistic variables are converted to TIVFNs, it is simplified to be calculated in the form of IVNs. Secondly, the determination of weight information when expert weight and criterion weight are unknown. When the MCGDM problem is solved in literature [12], its criterion weight is given by experts directly based on experience. Thirdly, the improvement of the VIKOR method in different numerical cases. Literature [31] considers the case where the values are TFNs, but does not discuss the VIKOR method in the condition of TIVFNs. In view of the above situation, this paper proposes a VIKOR method in the context of TIVFNs to make fuzzy multi-criterion decision. Expert weights are obtained by the variation coefficient method based on similarity, and the criterion weights are calculated by combining a divergence matrix and maximum deviation method. VIKOR method is used to find the compromise solutions, which are converted into the form of binary connection number, and the descending order is performed to obtain the optimal compromise solution.

The remainder of this paper is organized as follows: Section 2 briefly reviews the basic concepts of this paper. Section 3 proposes a VIKOR method that is based on TIVFNs and details its steps. Section 4 gives an example and demonstrates the feasibility and effectiveness of the method. Section 5 presents the conclusions of this paper and future research directions.

2 Preliminaries

In this section, some basic concepts will be presented.

2.1 Triangular interval-valued fuzzy numbers (TIVFNs)

Definition 1. Interval-valued fuzzy sets

The interval-valued fuzzy set A [23] defined on (- ∞ , ∞) is expressed as: $A = {(x, [μ_{A}^{L} (x), μ_{A}^{U} (x)])}$ $μ_{A}^{L}, μ_{A}^{U} : X \to [0, 1] \forall x \in X, μ_{A}^{L} ⩽ μ_{A}^{U}$ (1) ${\bar{μ}}_{A} (x) = [μ_{A}^{L} (x), μ_{A}^{U} (x)]$ $A = {(x, {\bar{μ}}_{A} (x)), x \in (- \infty, \infty)}$ where $μ_{A}^{L} (x)$ is the lower limit of the degree of membership and $μ_{A}^{U} (x)$ is the upper limit of the degree of membership.

Figure. 1 x′ of the interval-valued fuzzy set A. Therefore, the minimum membership value of x′ and maximum membership value of x′ are $μ_{A}^{L} (x)$ and $μ_{A}^{U} (x)$ , respectively.

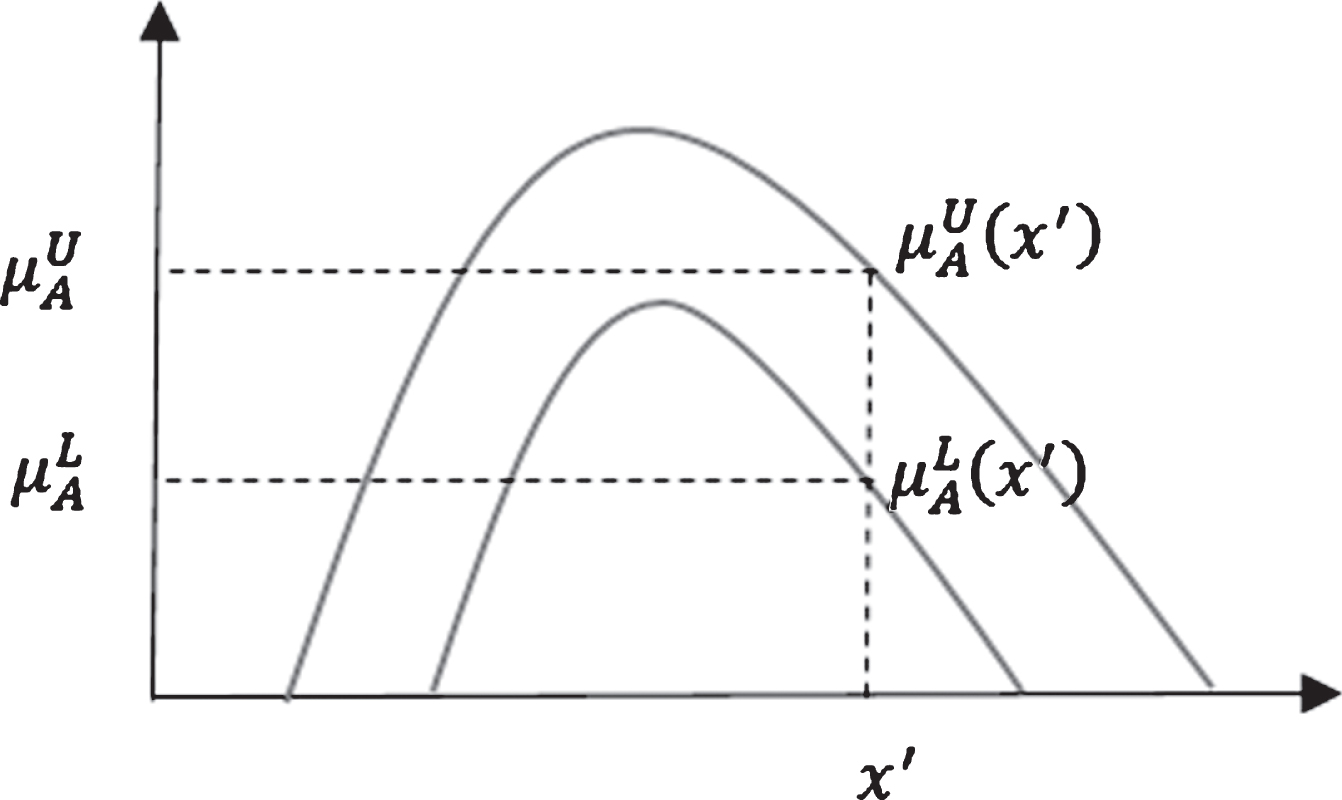

Fig. 1

An interval-valued fuzzy set.

Definition 2. The TIVFNs

A triangular interval-valued fuzzy number [38] can be presented as $A = [f^{L}, f^{M}, f^{U}] = [(f^{L -}, f^{L +}) | w_{A}^{L}, f^{M}, (f^{U -}, f^{U +}) | w_{A}^{U} = 1]$ , where f^L, f^M, f^U indicate the lower component for A, the middle component for A and the upper component of A, respectively. Additionally, f^L ⩽ f^M ⩽ f^U.

As shown in Fig. 2 is expressed in TIVFNs.

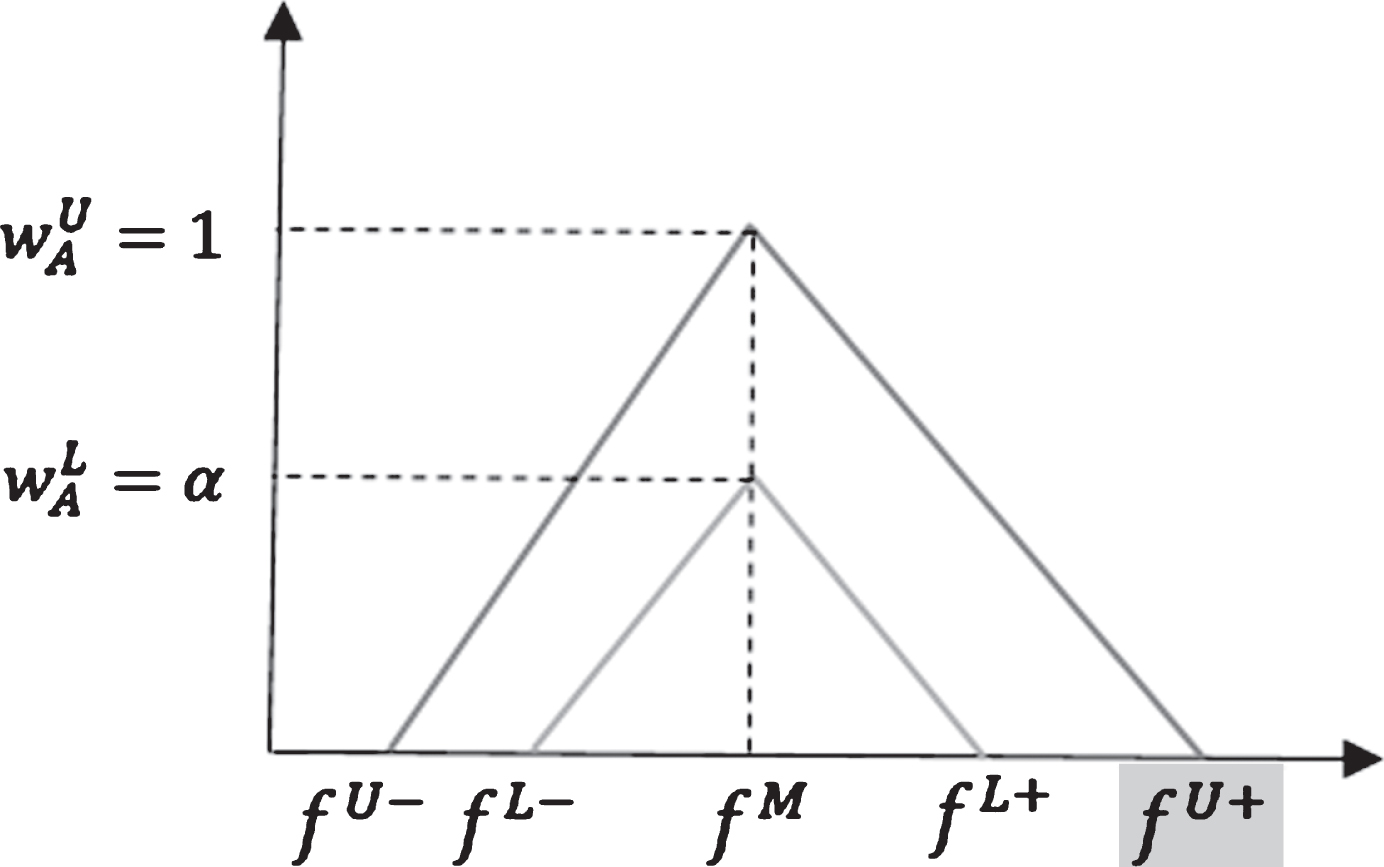

Fig. 2

A triangular interval-valued fuzzy number.

The related relations in an interval-valued fuzzy number are shown in the lemmas as follows.

Lemma 2.1. If f^L- = f^L+ = f^M = f^U- = f^U+, then A is a crisp value.

Lemma 2.2. If f^L- = f^L+ and f^U- = f^U+, then A is a triangular fuzzy number.

Lemma 2.3. If $w_{A}^{L} = w_{A}^{U} = 1$ , then A is referred to as called a general triangular interval-valued fuzzy number (refer to Fig. 3).

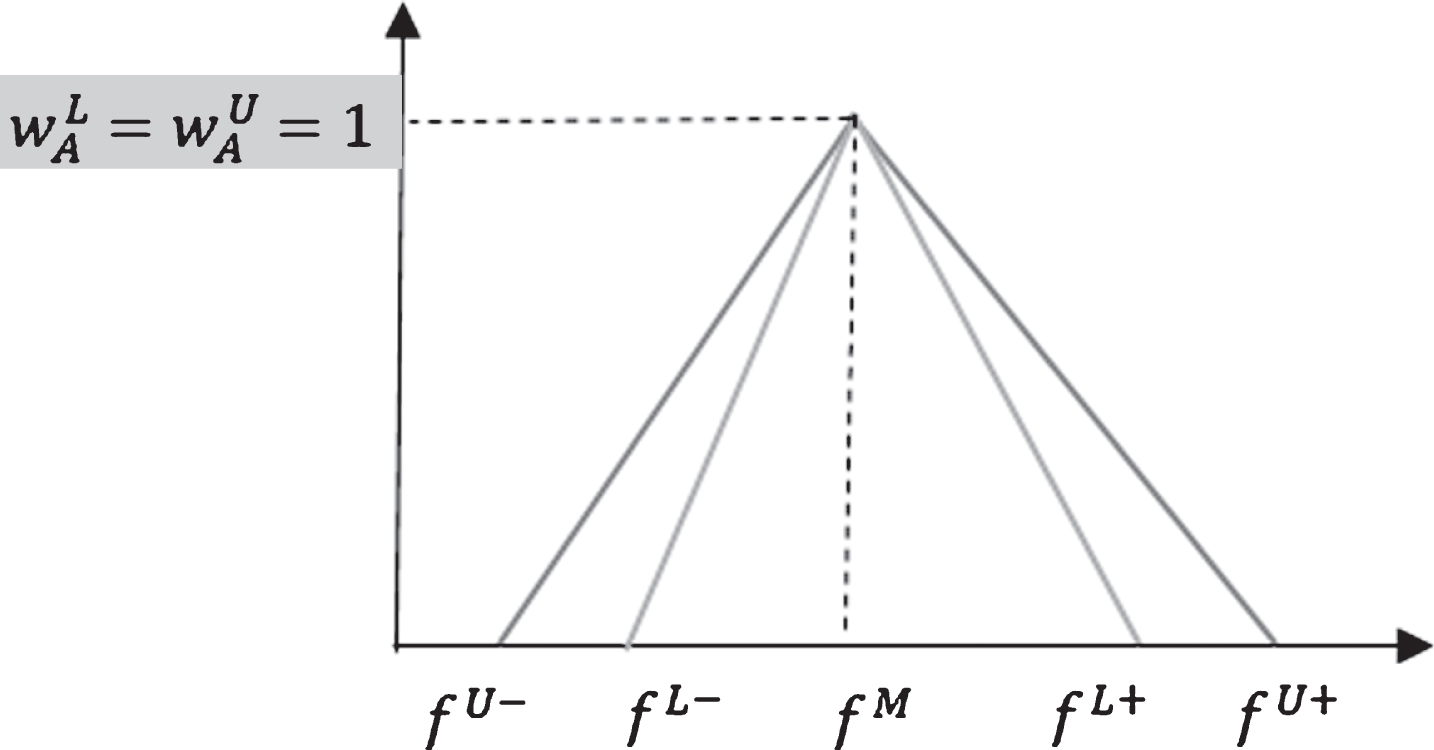

Fig. 3

A general triangular interval-valued fuzzy number.

2.2 VIKOR method

The VIKOR method has been developed as an MCGDM method to solve a discrete multicriteria problem with noncommensurable and conflicting criteria [39]. The method focuses on ranking and selecting from a set of alternatives, and determines compromise solution for a problem with conflicting criteria, which can help decision makers obtain a final decision [40].

For example, considering IVNs, let A ={ A₁, A₂, … A_n } be the set of the alternative plan, let C ={ C₁, C₂, … C_m } be the criteria of n alternatives, let $[f_{ij}^{L}, f_{ij}^{U}]$ be the jth criteria value of the ith alternative and let w_j be the weight of criteria. The steps [32] of the VIKOR method are briefly described as follows:

Step 1. The positive ideal solution and the negative ideal solution are obtained.

$\begin{matrix} f^{*} & = {f_{1}^{*}, f_{2}^{*}, \dots, f_{n}^{*}} \\ = {({maxf}_{ij}^{U} | j \in I) or ({minf}_{ij}^{L} | j \in J)} \end{matrix}$ (2)

$\begin{matrix} f^{-} & = {f_{1}^{-}, f_{2}^{-}, \dots, f_{n}^{-}} \\ = {({maxf}_{ij}^{L} | j \in I) or ({minf}_{ij}^{U} | j \in J)} \end{matrix}$ (3) where I represents the set of cost-oriented evaluation criteria, and J represents the set of benefit-oriented evaluation criteria. f^* is positive ideal solution, and f^- is negative ideal solution.

Step 2. Calculate the maximum group utility S_i and the minimum individual regret R_i.

$\begin{matrix} S_{i} & = [S_{i}^{L}, S_{i}^{U}] S_{i}^{L} \\ = \sum_{j \in I} w_{j} (\frac{f_{j}^{*} - f_{ij}^{U}}{f_{j}^{*} - f_{j}^{-}}) + \sum_{j \in J} w_{j} (\frac{f_{ij}^{L} - f_{j}^{*}}{f_{j}^{-} - f_{j}^{*}}) S_{i}^{L} \\ = \sum_{j \in I} w_{j} (\frac{f_{j}^{*} - f_{ij}^{L}}{f_{j}^{*} - f_{j}^{-}}) + \sum_{j \in J} w_{j} (\frac{f_{ij}^{U} - f_{j}^{*}}{f_{j}^{-} - f_{j}^{*}}) \end{matrix}$ (4)

$\begin{matrix} R_{i} & = [R_{i}^{L}, R_{i}^{U}] R_{i}^{L} \\ = \max {w_{j} (\frac{f_{j}^{*} - f_{ij}^{U}}{f_{j}^{*} - f_{j}^{-}}) | j \in I, w_{j} (\frac{f_{ij}^{L} - f_{j}^{*}}{f_{j}^{-} - f_{j}^{*}}) | j \in J} R_{i}^{U} \\ = \max {w_{j} (\frac{f_{j}^{*} - f_{ij}^{L}}{f_{j}^{*} - f_{j}^{-}}) | j \in I, w_{j} (\frac{f_{ij}^{U} - f_{j}^{*}}{f_{j}^{-} - f_{j}^{*}}) | j \in J} \end{matrix}$ (5)

Step 3. Calculate the value of the compromise measure Q_i.

$\begin{matrix} Q_{i} & = [Q_{i}^{L}, Q_{i}^{U}] Q_{i}^{L} \\ = v \frac{S_{i}^{L} - S^{*}}{S^{-} - S^{*}} + (1 - v) \frac{R_{i}^{L} - R^{*}}{R^{-} - R^{*}} Q_{i}^{U} \\ = v \frac{S_{i}^{U} - S^{*}}{S^{-} - S^{*}} + (1 - v) \frac{R_{i}^{U} - R^{*}}{R^{-} - R^{*}} \end{matrix}$ (6)

Where $S^{*} = {minS}_{i}^{L}$ , $S^{-} = {maxS}_{i}^{U}$ , $R^{*} = {minR}_{i}^{L}$ and $R^{-} = {minR}_{i}^{U}$ . v is introduced as weight for the strategy of “the majority of criteria” (or “the maximum group utility”), whereas 1 - v is the weight of the individual regret. In general, v = 0.5.

Step 4. Rank the alternatives by Q_i.

Rank the alternatives by sorting in descending order by the value of Q_i, then obtain the optimal compromise solution [41 –43].

The obtained compromise solution can be accepted by the all decision makers because it provides a maximum group utility of the “majority” (represented by min S, Eq. (4)), and a minimum individual regret of the “opponent” (represented by min R, Eq. (5)). The VIKOR method is an effective tool in MCGDM.

2.3 Similarity measures and divergence measure

Definition 3. Similarity measures

The similarity measure [44] is a common method for evaluating the fuzzy comprehensive evaluation principle. Assuming a total of m rows, calculate the similarity of the jth index, where x_i and y_i are the two points of the jth row, and all values of row m are pare to calculate the similarity, the average similarity of the jth term is:

$\begin{matrix} {\bar{m}}_{j} = & \frac{2}{m (m + 1)} \sum_{i = 1}^{m} \frac{1}{1 + \sqrt{{(x_{i} - y_{i})}^{2}}}, \\ j = 1, 2, 3 \dots n \end{matrix}$ (7)

Additionally, $\frac{m (m + 1)}{2}$ pairs of similarity exist between m rows.

Definition 4. Divergence measure

Consider the interval-valued number B = [b^-, b⁺] as an example. Define the divergence matrix [45] value K = (k_ij) _m*n as follows:

$\begin{matrix} {\underline{k}}_{ij} & = \sum_{k = 1}^{n} (b_{ki}^{-} - {\bar{b}}_{i}^{-}) (b_{kj}^{-} - {\bar{b}}_{j}^{-}) {\bar{k}}_{ij} \\ = \sum_{k = 1}^{n} (b_{ki}^{+} - {\bar{b}}_{i}^{+}) (b_{kj}^{+} - {\bar{b}}_{j}^{+}) k_{ij} = [k_{ij}^{-}, k_{ij}^{+}] \\ = [\min ({\underline{k}}_{ij}, {\bar{k}}_{ij}), \max ({\underline{k}}_{ij}, {\bar{k}}_{ij})] \end{matrix}$ (8)

Assume two interval value points: A = [a^-, a⁺] and B = [b^-, b⁺]. For Eq. (8) to be qualified as a valid divergence measure for an interval-valued number, it must satisfy the axiom K (A, B) = K (B, A).

2.4 Binary connection number

Definition 5. Binary connection number

An association number is a structural function given by set pair analysis. The commonly used associative number includes binary associative number, ternary associative number and quaternion contact number [46, 47]. Association numbers with more than 3 elements are referred to as multivariate association numbers [48 –50]. This paper primarily applies binary association number, whose general form is u = a + bi, (a > 0, b ∈ R, i ∈ [- 1, 1]), where the value of i is uncertain. Binary association number operation rules:

Let u₁ = a₁ + b₁i and u₂ = a₂ + b₂i be two binary connection numbers:

u₁ + u₂ = (a₁ + a₂) + (b₁ + b₂) · i, i ∈ [- 1, 1]

u₁ · u₂ = a₁ · a₂ + (a₁ · b₂ + a₂ · b₁ + b₁ · b₂) · i, i ∈ [- 1, 1]

λ · u₁ = λ · a₁ + (λ · b₁) · i, i ∈ [- 1, 1]

$u_{1}^{λ} = a_{1}^{λ} + [{(a_{1} + b_{1})}^{λ} - a_{1}^{λ}] \cdot i, i \in [- 1, 1], λ ⩾ 0$

$\frac{u_{1}}{u_{2}} = \frac{a_{1}}{a_{2}} + (\frac{a_{2} b_{1} - a_{1} b_{2}}{a_{2} \cdot (a_{2} + b_{2})}) \cdot i, i \in [- 1, 1]$

Transformation of common type attribute values to binary association numbers:

(1) Transformation between IVNs and binary connection number [51]

Let IVNs X = [x^-, x⁺], and let $a = \frac{x^{-} + x^{+}}{2}, b = \frac{x^{-} - x^{+}}{2}$ , Therefore $u = \frac{x^{-} + x^{+}}{2} + \frac{x^{-} - x^{+}}{2} i, i \in [- 1, 1]$ (9)

Equation (9) is the formula of the transformation from an IVNs to a binary connection number.

(2) Transformation of TFNs and binary relation number [52]

Let the TFNs Y = [y^L, y^M, y^U], and let $a = \frac{y^{L} + y^{M} + y^{U}}{3}$ , and $b = \frac{2 y^{U} - y^{L} - y^{M}}{3}$ . Therefore $u = \frac{y^{L} + y^{M} + y^{U}}{3} + \frac{2 y^{U} - y^{L} - y^{M}}{3} i, i \in [- 1, 1]$ (10)

Equation (10) is the formula of the transformation from TFNs to a binary connection number.

(3) Transformation between TIVFNs and a binary relation number

Let the t TIVFNs Z = [(z^L-, z^L+) ; z^M ; (z^U-, z^U+)] and let

$\begin{matrix} a & = & \frac{\frac{z^{L -} + z^{L +}}{2} + z^{M}}{2} + \frac{\frac{z^{U -} + z^{U +}}{2} + z^{M}}{2}, \\ b & = & \frac{\sqrt{{(z^{L -} - a)}^{2} + {(z^{L +} - a)}^{2}} + {| z^{M} - a |}^{2} + \sqrt{{(z^{U -} - a)}^{2} + {(z^{U +} - a)}^{2}}}{3} . Therefore \\ u = \frac{\frac{z^{L -} + z^{L +}}{2} + z^{M}}{2} + \frac{\frac{z^{U -} + z^{U +}}{2} + z^{M}}{2} \\ + \frac{\sqrt{{(z^{L -} - a)}^{2} + {(z^{L +} - a)}^{2}} + {| z^{M} - a |}^{2} + \sqrt{{(z^{U -} - a)}^{2} + {(z^{U +} - a)}^{2}}}{3} \cdot i \end{matrix}$ (11)

Equation (11) is the formula of the transformation from TIVFNs to a binary connection number.

3 Triangular Interval-Valued Fuzzy VIKOR (TIVF-VIKOR) Method for MCGDM Problems

In this section, we propose the Triangular Interval-Valued Fuzzy VIKOR (TIVF-VIKOR) Method to solve MCGDM problems.

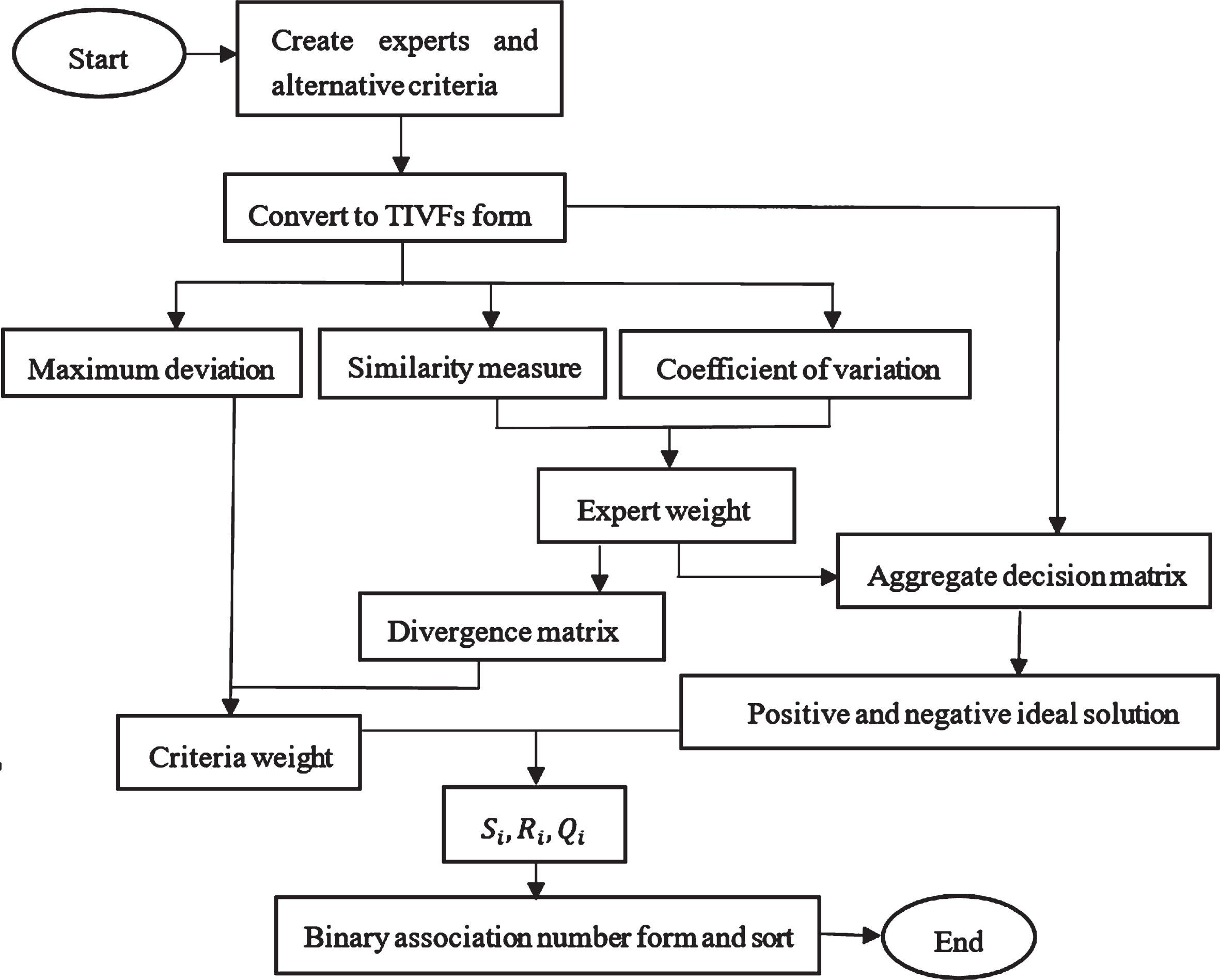

The total framework of the TIVF-VIKOR method is shown in Fig. 4. The specific steps of the TIVF-VIKOR method are described in this section.

Fig. 4

Framework of TIVF-VIKOR method.

3.1 Develop alternatives and criterions

In the decision-making problem, assume that an expert committee that is composed of t individuals E ={ E₁, E₂, E₃, …, E_t }. We need choose the most appropriate alternative from n alternatives A ={ A₁, A₂, A₃, … A_n } under the influence of m criterions C ={ C₁, C₂, C₃, …, C_m }.

In fuzzy MCGDM problems, the performance evaluation value and criterion weight are usually expressed by fuzzy numbers [37 –40]. A fuzzy number is a convex fuzzy set that defines real numbers from a given interval, where each number has a member value between 0 and 1. This paper takes the standard value and the standard weight value as the linguistic variable. The concept of linguistic variables are very useful when addressing situations that are too complex or ill-defined to be properly described in traditional quantitative expressions [41 –43]. These linguistic variables can be converted into TIVFNs as shown in Table 1 and Table 2.

Table 1
Definitions of linguistic variables for the ratings

Very Poor (VP) [(0,0);0;(1,1.5)]

Poor (P) [(0,0.5);1;(2.5,3.5)]

Moderately Poor (MP) [(0,1.5);3;(4.5,5.5)]

Fair (F) [(2.5,3.5);5;(6.5,7.5)]

Moderately Good (MG) [(4.5,5.5);7;(8.5,9)]

Good (G) [(5.5,7.5);9;(9.5,10)]

Very Good (VG) [(8.5,9.5);10;(10,10)]

Very Poor (VP)	[(0,0);0;(1,1.5)]
Poor (P)	[(0,0.5);1;(2.5,3.5)]
Moderately Poor (MP)	[(0,1.5);3;(4.5,5.5)]
Fair (F)	[(2.5,3.5);5;(6.5,7.5)]
Moderately Good (MG)	[(4.5,5.5);7;(8.5,9)]
Good (G)	[(5.5,7.5);9;(9.5,10)]
Very Good (VG)	[(8.5,9.5);10;(10,10)]

Table 2

Definitions of linguistic variables for the importance of each criterion

Very Low (VL)	[(0,0);0;(0.1,0.15)]
Low (L)	[(0,0.05);0.1;(0.25,0.35)]
Medium Low (ML)	[(0,0.15);0.3;(0.45,0.55)]
Medium (H)	[(0.25,0.35);0.5;(0.65,0.75)]
Medium High (MH)	[(0.45,0.55);0.7;(0.85,0.9)]
High (H)	[(0.55,0.75);0.9;(0.95,1)]
Very High (VH)	[(0.85,0.95);1;(1,1)]

3.2 Calculate the weight of decision experts

Due to the uncertainty of information, the lack of experience and the inaccuracy of human knowledge, decision experts cannot accurately estimate alternatives without considering various criterions [44]. Due to the ability of TIVFNs to address uncertainty, decision experts use TIVFNs to express their views. The detailed form of TIVFNs is f = [(f^L-, f^L+) ; f^M ; (f^U-, f^U+)]. This paper innovatively adopts the method of combining the similarity and coefficient of variation to obtain the weight of decision experts. The specific steps are detailed as follows:

Convert the linguistic variables into the corresponding TIVFNs according to Table 1.

The mean area method is used to calculate the mean value ${\bar{f}}_{ij}$ of the TIVFNs.

{\bar{f}}_{ij} = (f_{ij}^{L} + 2 * f_{ij}^{M} + f_{ij}^{U}) / 4

(12) where,

f_{ij}^{L}

and

f_{ij}^{U}

are represented by the mean value, namely

\begin{matrix} f_{ij}^{L} = (f_{ij}^{L -} + f_{ij}^{L +}) / 2 \\ f_{ij}^{U} = (f_{ij}^{U -} + f_{ij}^{+}) / 2 \end{matrix}

Calculate the average similarity of the jth index according to Equation (7).

Calculate the similarity variance of the jth index. The formula of similarity variance is expressed as follows:

V_{j} = \sqrt{\frac{1}{m - 1} \sum_{i = 1}^{m} {({\bar{a}}_{ij} - {\bar{a}}_{j})}^{2}}, j = 1, 2, 3 \dots n

(13)

Additionally, ${\bar{a}}_{ij} = \sum_{i = 1}^{m} \frac{1}{1 + \sqrt{(x_{i} - y_{i})^{2}}}, j = 1, 2, \dots n$ , x_i and y_i are two common points and x_i ≠ y_i, that is x and y are different.

Calculate the variation coefficient of the jth index. The calculation formula of the variation coefficient M_j is expressed as: $M_{j} = \frac{V_{j}}{{\bar{a}}_{j}}, j = 1, 2, 3 \dots n$ (14)

Preform normalization to obtain the expert weight: $\emptyset_{j} = \frac{M_{j}}{\sum_{j = 1}^{n} M_{j}}, j = 1, 2, 3 \dots n$ (15)

3.3 Obtain the weighted synthetic decision matrix

Considering the influence of different experts, the weight of decision experts and the importance of each criterion, we construct a weighted normalized fuzzy decision matrix [45 –47].

The TIVFNs are f = [(f^L-, f^L+) ; f^M ; (f^U-, f^U+)]. Using the formula, the weighted normalized fuzzy decision matrix W_ij can be expressed as follows: $W_{ij} = f_{ij} * \emptyset_{j}, i = 1, 2, \dots, m; j = 1, 2, \dots, n$ (16)

3.4 Calculate the weight of criterions

According to the weighted divergence matrix, the maximum deviation method is used to determine the weight of the criteria. First, the values of the linguistic variables are converted to TIVFNs, and the weight of different criteria is obtained using the divergence measure calculation formula and combining with the deviation maximization. The specific steps are detailed as follows:

Convert the linguistic variable into the corresponding TIVFNs according to Table 2.

The TIVFNs are transformed into IVNs, and the weighted interval criterion matrix is obtained.

Convert TIVFNs (f = [(f^L-, f^L+) ; f^M ; (f^U-, f^U+)]) to an interval-valued number (b = (b^-, b⁺)): $\begin{matrix} b^{+} = \frac{\frac{f^{L +} + f^{L -}}{2} + f^{M}}{2} \\ b^{-} = \frac{\frac{f^{U +} + f^{U -}}{2} + f^{M}}{2} \end{matrix}$ (17)

Use Equation (8) to convert the weighted interval criterion matrix to a divergence matrix.

The maximum deviation method is employed to obtain the weight of a criterion.

For criteria C_j, $D_{ij} (w_{j}) = \sum_{l = 1}^{m} d (b_{ij}, b_{lj}) w_{j}$ represents the deviation between alternative A_i and all other schemes, and $D_{j} (w_{j}) = \sum_{i = 1}^{m} D_{ij} (w_{j}) = \sum_{i = 1}^{m} \sum_{l = 1}^{m} d (b_{ij}, b_{lj}) w_{j}$ represents the total deviation between all alternatives and other alternatives. $D (w_{j}) = \sum_{j = 1}^{n} D_{j} (w_{j}) = \sum_{j = 1}^{n} \sum_{i = 1}^{m} \sum_{l = 1}^{m} d (b_{ij}, b_{lj}) w_{j}$ represents the total deviation of all indicators against all alternatives.

The following deviation maximization model is constructed: ${\begin{matrix} maxD (w_{j}) = \sum_{j = 1}^{n} \sum_{i = 1}^{m} \sum_{l = 1}^{m} d (b_{ij}, b_{lj}) w_{j} \\ s . t \sum_{j = 1}^{n} w_{j}^{2} = 1, w_{j} ⩾ 0, j = 1, 2, \dots, n \end{matrix}$ (18)

Construct Lagrange subfunction:

$L (w_{j}, λ) = \sum_{j = 1}^{n} \sum_{i = 1}^{m} \sum_{l = 1}^{m} d (b_{ij}, b_{lj}) w_{j} + λ (\sum_{j = 1}^{n} w_{j}^{2} - 1)$ (19)

$Make {\begin{matrix} \frac{\partial L (w_{j}, λ)}{\partial w_{j}} = \sum_{i = 1}^{m} \sum_{l = 1}^{m} d (b_{ij}, b_{lj}) + 2 λ w_{j} = 0 \\ \frac{\partial L (w_{j}, λ)}{\partial λ} = \sum_{j = 1}^{n} w_{j}^{2} - 1 = 0 \end{matrix}$ (20)

Solve the model to obtain: ${\begin{matrix} 2 λ = \sqrt{\sum_{j = 1}^{n} {(\sum_{i = 1}^{m} \sum_{l = 1}^{m} d (b_{ij}, b_{lj}))}^{2}} \\ w_{j} = \frac{\sum_{i = 1}^{m} \sum_{l = 1}^{m} d (b_{ij}, b_{lj})}{\sqrt{\sum_{j = 1}^{n} {(\sum_{i = 1}^{m} \sum_{l = 1}^{m} d (b_{ij}, b_{lj}))}^{2}}} \end{matrix}$ (21)

After normalization, we obtain: $w_{j} = \frac{\sum_{i = 1}^{m} \sum_{l = 1}^{m} d (b_{ij}, b_{lj})}{\sum_{j = 1}^{n} \sum_{i = 1}^{m} \sum_{l = 1}^{m} d (f_{ij}, b_{lj})}$ (22)

3.5 Determine the positive ideal solution and negative ideal solution

The positive ideal solution and negative ideal solution are expressed as:

$\begin{matrix} f^{*} & = {f_{1}^{*}, f_{2}^{*}, \dots, f_{n}^{*}} \\ = {(\underset{ij}{maxf} | j \in I) or (\underset{ij}{minf} | j \in J)} \end{matrix}$ (23)

$\begin{matrix} f^{-} & = {f_{1}^{-}, f_{2}^{-}, \dots, f_{n}^{-}} \\ = {(\underset{ij}{maxf} | j \in I) or (\underset{ij}{minf} | j \in J)} \end{matrix}$ (24) where I represents the set of cost-oriented evaluation criteria, and J represents the set of benefit-oriented evaluation criteria. f^* is a positive ideal solution, and f^- is a negative ideal solution.

3.6 Calculate the maximum group utility S_i, minimum individual regret R_i and compromise measure Q_i.

The calculation formula of the maximum group utility S_i is expressed as follows:

$\begin{matrix} S_{i} & = [(S_{i}^{L -}, S_{i}^{L +}); S_{i}^{M}; (S_{i}^{U -}, S_{i}^{U +})] \\ S_{i}^{L -} & = \sum_{j \in I} w_{j} (\frac{f_{j}^{*} - f_{ij}^{L -}}{f_{j}^{*} - f_{j}^{-}}) + \sum_{j \in J} w_{j} (\frac{f_{ij}^{L -} - f_{j}^{*}}{f_{j}^{*} - f_{j}^{-}}) \\ S_{i}^{L +} & = \sum_{j \in I} w_{j} (\frac{f_{j}^{*} - f_{ij}^{L +}}{f_{j}^{*} - f_{j}^{-}}) + \sum_{j \in J} w_{j} (\frac{f_{ij}^{L +} - f_{j}^{*}}{f_{j}^{*} - f_{j}^{-}}) \\ S_{i}^{M} & = \sum_{j \in I} w_{j} (\frac{f_{j}^{*} - f_{ij}^{M}}{f_{j}^{*} - f_{j}^{-}}) + \sum_{j \in J} w_{j} (\frac{f_{ij}^{M} - f_{j}^{*}}{f_{j}^{*} - f_{j}^{-}}) \\ S_{i}^{U -} & = \sum_{j \in I} w_{j} (\frac{f_{j}^{*} - f_{ij}^{U -}}{f_{j}^{*} - f_{j}^{-}}) + \sum_{j \in J} w_{j} (\frac{f_{ij}^{U -} - f_{j}^{*}}{f_{j}^{*} - f_{j}^{-}}) \\ S_{i}^{U +} & = \sum_{j \in I} w_{j} (\frac{f_{j}^{*} - f_{ij}^{U +}}{f_{j}^{*} - f_{j}^{-}}) + \sum_{j \in J} w_{j} (\frac{f_{ij}^{U +} - f_{j}^{*}}{f_{j}^{*} - f_{j}^{-}}) \end{matrix}$ (25)

The calculation formula of the minimum individual regret R_i is expressed as follows:

$\begin{matrix} R_{i} & = & [(R_{i}^{L -}, R_{i}^{L +}); R_{i}^{M}; (R_{i}^{U -}, R_{i}^{U +})] \\ R_{i}^{L -} & = & \max {w_{j} (\frac{f_{j}^{*} - f_{ij}^{L -}}{f_{j}^{*} - f_{j}^{-}}) | j \in I, w_{j} (\frac{f_{ij}^{L -} - f_{j}^{*}}{f_{j}^{*} - f_{j}^{-}}) | j \in J} \\ R_{i}^{L +} & = & \max {w_{j} (\frac{f_{j}^{*} - f_{ij}^{L +}}{f_{j}^{*} - f_{j}^{-}}) | j \in I, w_{j} (\frac{f_{ij}^{L +} - f_{j}^{*}}{f_{j}^{*} - f_{j}^{-}}) | j \in J} \\ R_{i}^{M} & = & \max {w_{j} (\frac{f_{j}^{*} - f_{ij}^{M}}{f_{j}^{*} - f_{j}^{-}}) | j \in I, w_{j} (\frac{f_{ij}^{M} - f_{j}^{*}}{f_{j}^{*} - f_{j}^{-}}) | j \in J} \\ R_{i}^{U -} & = & \max {w_{j} (\frac{f_{j}^{*} - f_{ij}^{U -}}{f_{j}^{*} - f_{j}^{-}}) | j \in I, w_{j} (\frac{f_{ij}^{U -} - f_{j}^{*}}{f_{j}^{*} - f_{j}^{-}}) | j \in J} \\ R_{i}^{U +} & = & \max {w_{j} (\frac{f_{j}^{*} - f_{ij}^{U +}}{f_{j}^{*} - f_{j}^{-}}) | j \in I, w_{j} (\frac{f_{ij}^{U +} - f_{j}^{*}}{f_{j}^{*} - f_{j}^{-}}) | j \in J} \end{matrix}$ (26)

The calculation formula of the compromise measure Q_i is expressed as follows:

$\begin{matrix} Q_{i} & = [(Q_{i}^{L -}, Q_{i}^{L +}); Q_{i}^{M}; (Q_{i}^{U -}, Q_{i}^{U +})] \\ Q_{i}^{L -} & = v \frac{S_{i}^{L -} - S^{*}}{S^{-} - S^{*}} + (1 - v) \frac{R_{i}^{L -} - R^{*}}{R^{-} - R^{*}} \\ Q_{i}^{L +} & = v \frac{S_{i}^{L +} - S^{*}}{S^{-} - S^{*}} + (1 - v) \frac{R_{i}^{L +} - R^{*}}{R^{-} - R^{*}} \\ Q_{i}^{M} & = v \frac{S_{i}^{M} - S^{*}}{S^{-} - S^{*}} + (1 - v) \frac{R_{i}^{M} - R^{*}}{R^{-} - R^{*}} \\ Q_{i}^{U -} & = v \frac{S_{i}^{U -} - S^{*}}{S^{-} - S^{*}} + (1 - v) \frac{R_{i}^{U -} - R^{*}}{R^{-} - R^{*}} \\ Q_{i}^{U +} & = v \frac{S_{i}^{U +} - S^{*}}{S^{-} - S^{*}} + (1 - v) \frac{R_{i}^{U +} - R^{*}}{R^{-} - R^{*}} \end{matrix}$ (27)

3.7 The compromise measure of TIVFNs form is transformed into binary relation number form according to Equation (11). Q_i is reduced in order and the optimal compromise solution is obtained

4 Application

4.1 An illustrative example

In this section, we use an example to demonstrate the application of the VIKOR method in TIVFNs. This section provides an illustrative example of how to sort the sources of the machine fault in the industrial process, which is adapted from reference [21] to verify the feasibility of this method. Machines may break down in parts A₁, A₂, A₃ and A₄. The criterions and indicators to be considered are C₁(the fault influence degree), C₂(the search cost), C₃(the human action ability), C₄(the fault occurrence frequency) and C₅(the fault repair time). The three experts (DM1∖DM2∖DM3) assess the importance of the criterions and the importance of alternatives based on each criteria. The goal is to determine the search order of the fault parts of the machine, find the first fault parts to be searched, and reduce the loss caused by the machine fault. Assuming that the weight of the experts and criterions are unknown, the data are expressed in the form of TIVFNs converted by linguistic variables. Each DM has proposed separate evaluation linguistic variables, which are used to evaluate the performance and importance according to the linguistic variables shown in Table 3 and Table 4, respectively.

Table 3
Importance of criterion

DM1 DM2 DM3

C ₁ VH VH VH

C ₂ H H MH

C ₃ H MH MH

C ₄ VH H VH

C ₅ M MH M

	DM1	DM2	DM3
C ₁	VH	VH	VH
C ₂	H	H	MH
C ₃	H	MH	MH
C ₄	VH	H	VH
C ₅	M	MH	M

Table 4

Decision makers’ assessments based on each criterion

Decision makers	Alternatives	Criterion
		DM1	DM2	DM3
C ₁	A ₁	VG	G	MG
	A ₂	G	G	MG
	A ₃	VG	G	VG
	A ₄	G	VG	MG
C ₂	A ₁	VG	MG	F
	A ₂	VG	VG	MG
	A ₃	MG	G	VG
	A ₄	F	F	VG
C ₃	A ₁	VG	G	G
	A ₂	VG	VG	G
	A ₃	G	MG	VG
	A ₄	F	MG	MG
C ₄	A ₁	VG	G	VG
	A ₂	VG	VG	MG
	A ₃	G	VG	VG
	A ₄	G	F	VG
C ₅	A ₁	VG	VG	VG
	A ₂	MG	MG	G
	A ₃	G	G	MG
	A ₄	MG	G	F

Step 1. Convert the linguistic variables to TIVFNs and normalize the value.

Step 2. Equations (11)–(15) are used to calculate the weight of experts, as shown in Table 5.

Table 5

Weight of experts

∅_j	∅₁	∅₂	∅₃
Value	0.331397	0.356246	0.312357

Step 3. Equation (16) used to obtain the weighted synthetic decision matrix.

Step 4. Equations (8), (18), (19), (20), (21) and (22) are used to calculate the weight of the criterions, as shown in Table 6.

Table 6

Weight of criterion

w _j	w ₁	w ₂	w ₃	w ₄	w ₅
Value	0.317525	0.24321	0.142128	0.131618	0.165519

Step 5. Equations (23) and (24) are used to determine the positive ideal solution and the negative ideal solution. The results are shown in Table 7.

Table 7

Positive ideal solution and negative ideal solution of alternatives

	Positive ideal solution	Negative ideal solution
A ₁	[(5.200874,6.200874);7.369477;(8.194259;9.040985)]	[(8.5,9.5);10;(10,10)]
A ₂	[(4.812357,6.124714);7.624714;(8.468536,9.656179)]	[(7.562929,8.875286);9.687643;(9.8438215,10)]
A ₃	[[(5.187643,7.0128146);8.375286;(9.031465,9.821877)]	[(7.505809,8.837206);9.668603;(9.834302,10)]
A ₄	[(3.837206,4.837206);6.337206;(7.502905,8.280893)]	[(6.256381,7.587778);8.731532;(9.209588,9.843822)]

Step 6. Equations (25)–(27) are used to calculate the maximum group utility S_i, minimum individual regret R_i and compromise measure Q_i. The results are shown in Table 8 and Table 9.

Table 8

Maximum group utility S_i and minimum individual regret R_i

	S _i	R _i
A ₁	[(0.40463,0.48177);0.546726;(0.576323,0.70508)]	[(0.165519,0.165519);0.165519;(0.176353,0.265815)]
A ₂	[(0.517713,0.518975);0.519228;(0.519986,0.534347)]	[(0.160353,0.169559);0.173292;(0.187972,0.215591)]
A ₃	[(0.4865,0.498883);0.5183;(0.608183,0.671637)]	[(0.307314,0.308875);0.311424;(0.312611,0.317525)]
A ₄	[(0.468633,0.478633);0.481788;(0.499293,0.519686)]	[(0.317525,0.317525);0.317525;(0.317525,0.317525)]

Table 9

Compromise measure Q_i

	Q _i
A ₁	[(0.0.128374);0.236489;(0.339737,1)]
A ₂	[(0,0.121265);0.16266;(0.318324,1)]
A ₃	[(0,0.10988);0.287136;(0.588007,1)]
A ₄	[(0,0.097938);0.128837;(0.300276,0.5)]

Step 7. Equation (11) is used to convert Q_i of TIVFNs into binary association number form. The results are shown in Table 10.

Table 10

Q_i of binary association number form

	Q _i
A ₁	0.34092 + 0.38842i
A ₂	0.32045 + 0.404884i
A ₃	0.387005 + 0.410782i
A ₄	0.20541 + 0.206696i

The value range of i is [- 1, 1]. i = -0.2, i = 0.5 and i = 1 are randomly selected, the result of sorting is the same as that of A₃ > A₁ > A₂ > A₄. Therefore, A₃ is the best compromise option for the alternatives, it is the fault source that should be first diagnosed.

4.2 Sensitivity analysis

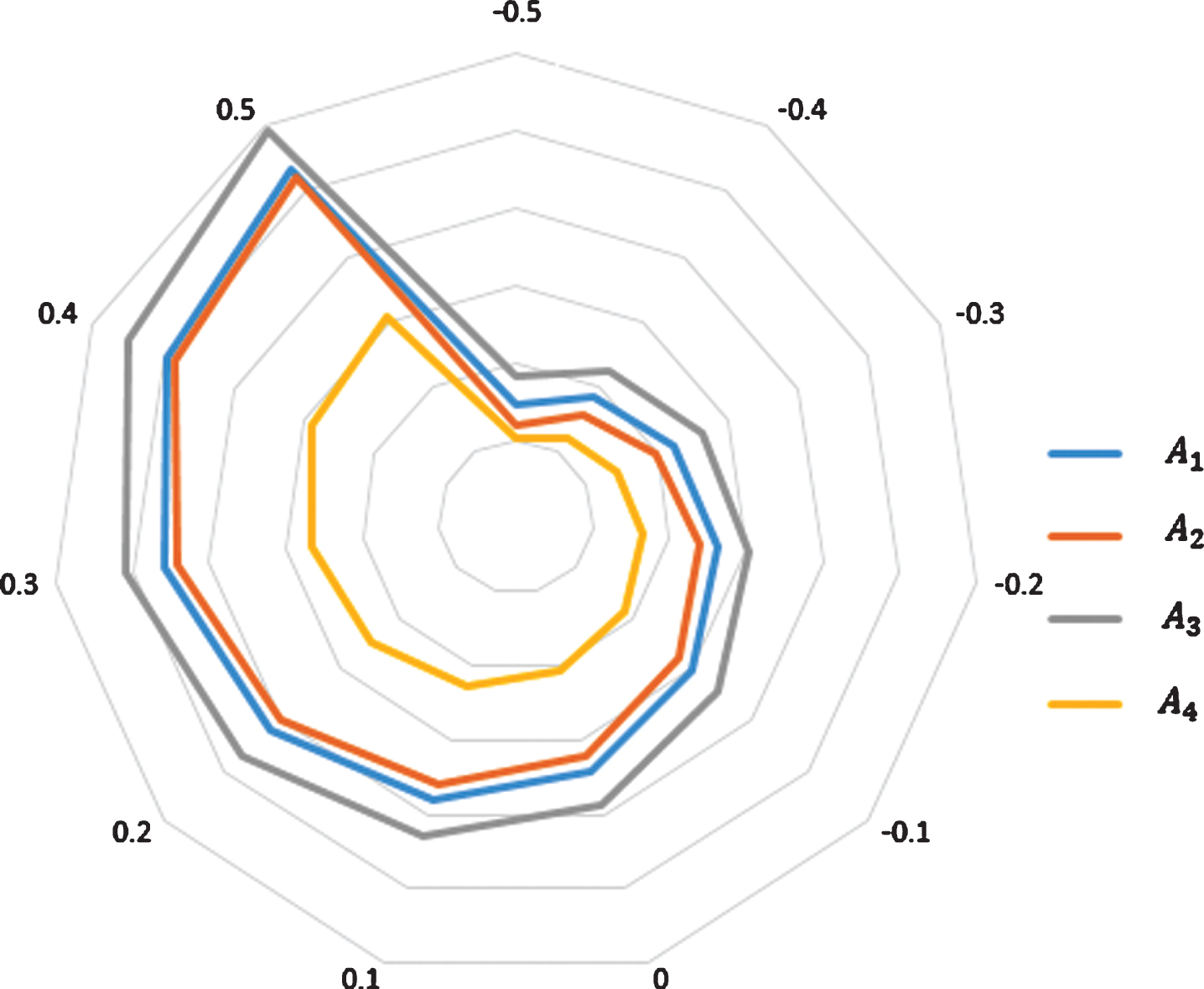

As different DMs may have different decision-making attitudes, the selection of parameter values may also be different. In order to consider the influence of different parameter values on the decision results, sensitivity analysis will be carried out by setting different parameter i. According to the definition of binary connection number, parameter i can choose a number in [- 1, 1]. Different values of i correspond to different values of Q_i, as shown in Table 11 and Fig. 5.

Table 11
Different values of i correspond to different values of Q_i

i A ₁ A ₂ A ₃ A ₄ Ranking

–0.5 0.14671 0.118008 0.181614 0.102062 A₃ > A₁ > A₂ > A₄

–0.4 0.185552 0.158496 0.222692 0.122732 A₃ > A₁ > A₂ > A₄

–0.3 0.224394 0.198985 0.26377 0.143401 A₃ > A₁ > A₂ > A₄

–0.2 0.263236 0.239473 0.304849 0.164071 A₃ > A₁ > A₂ > A₄

–0.1 0.302078 0.279962 0.345927 0.18474 A₃ > A₁ > A₂ > A₄

0 0.34092 0.32045 0.387005 0.20541 A₃ > A₁ > A₂ > A₄

0.1 0.379762 0.360938 0.428083 0.22608 A₃ > A₁ > A₂ > A₄

0.2 0.418604 0.401427 0.469161 0.246749 A₃ > A₁ > A₂ > A₄

0.3 0.457446 0.441915 0.51024 0.267419 A₃ > A₁ > A₂ > A₄

0.4 0.496288 0.482404 0.551318 0.288088 A₃ > A₁ > A₂ > A₄

0.5 0.53513 0.522892 0.592396 0.308758 A₃ > A₁ > A₂ > A₄

i	A ₁	A ₂	A ₃	A ₄	Ranking
–0.5	0.14671	0.118008	0.181614	0.102062	A₃ > A₁ > A₂ > A₄
–0.4	0.185552	0.158496	0.222692	0.122732	A₃ > A₁ > A₂ > A₄
–0.3	0.224394	0.198985	0.26377	0.143401	A₃ > A₁ > A₂ > A₄
–0.2	0.263236	0.239473	0.304849	0.164071	A₃ > A₁ > A₂ > A₄
–0.1	0.302078	0.279962	0.345927	0.18474	A₃ > A₁ > A₂ > A₄
0	0.34092	0.32045	0.387005	0.20541	A₃ > A₁ > A₂ > A₄
0.1	0.379762	0.360938	0.428083	0.22608	A₃ > A₁ > A₂ > A₄
0.2	0.418604	0.401427	0.469161	0.246749	A₃ > A₁ > A₂ > A₄
0.3	0.457446	0.441915	0.51024	0.267419	A₃ > A₁ > A₂ > A₄
0.4	0.496288	0.482404	0.551318	0.288088	A₃ > A₁ > A₂ > A₄
0.5	0.53513	0.522892	0.592396	0.308758	A₃ > A₁ > A₂ > A₄

As shown in Table 11 and Fig. 5, 11 numbers within the value range are selected and found: with the value of parameter i that affects the ranking order, the total ranking results are stable; and the optimal plan A₃ remains unchanged. In summary, the TIVF-VIKOR method proposed in this paper is relatively insensitive to the parameter i.

Fig. 5

Different values of i correspond to different values of Q_i.

Through sensitivity analysis, it can also be concluded that the ranking result of the proposed method is relatively stable when the parameter i changes. The method has excellent stability and is less affected by parameter change. In other words, the TIVF-VIKOR method proposed in this paper has strong robustness.

4.3 Comparative analysis

To verify the effectiveness of the proposed method, we compare this method with the literature [22] (ELECTRE method) and [24] (TOPSIS method) and obtain the same ranking result: A₃ > A₁ > A₂ > A₄. The decision method proposed in this paper is effective.

As shown in Fig. 6, the TIVF-VIKOR method substantially fluctuates when the ranking results of others method are equivalent. The method that we proposed by summarizing existing research results and effectively addressing TIVFNs information in decision-making problems, where the expert weight and criterion weight are unknown.

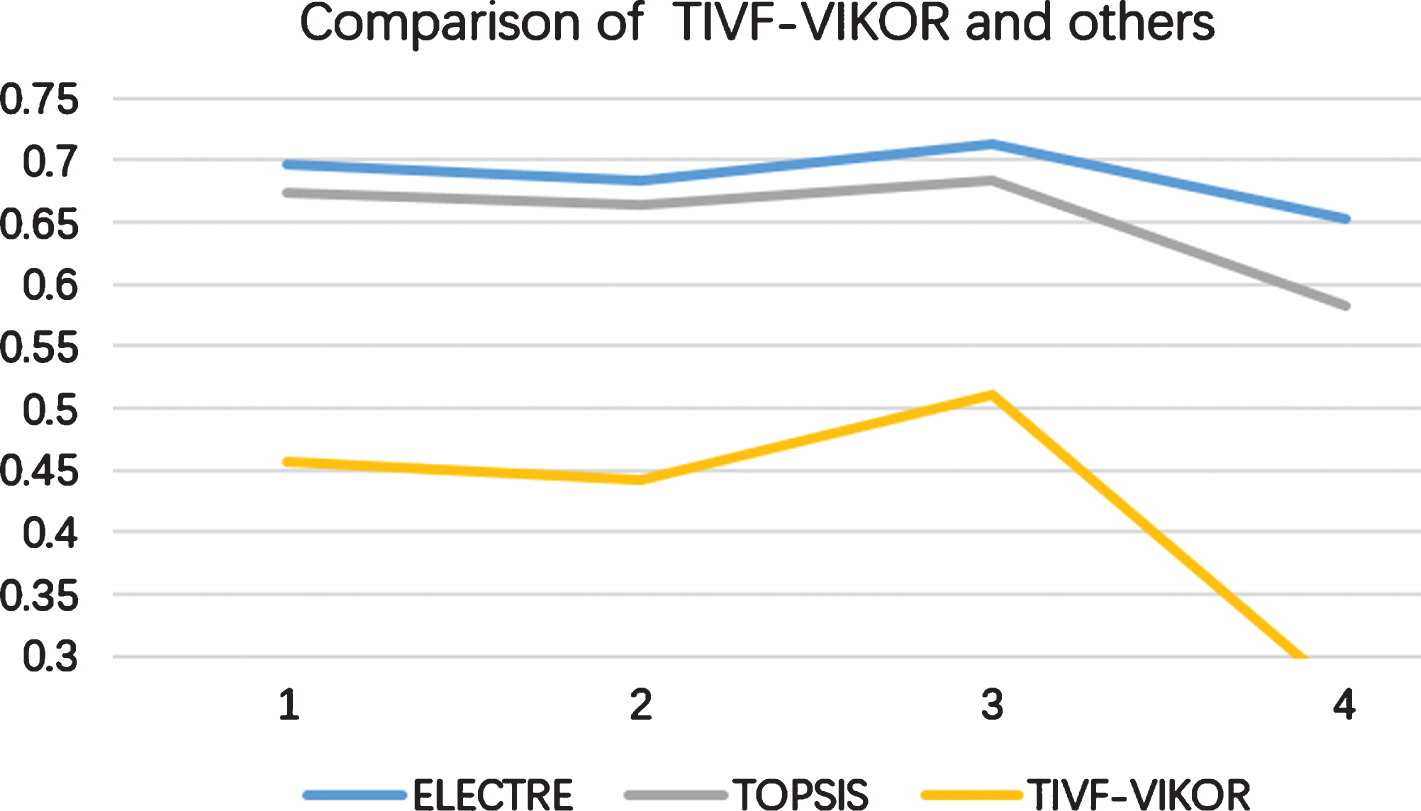

Fig. 6

Comparison of TIVF-VIKOR and others method.

5 Conclusions

In some cases, it is difficult to convert many linguistic variables to precise values. TIVFNs are a suitable tool for solving this problem. The VIKOR method is an effective method that considers all criterions and yield the optimal compromise solution. In this paper, we primarily introduce the basic concepts of the TIVFNs, VIKOR method, similarity, divergence and binary connection number, and propose the VIKOR method in the environment of TIVFNs. The TIVF-VIKOR method is innovatively adopted similarity and coefficient of variation are combined to calculate expert weight, and deviation maximization method based on divergence matrix is used to calculate criterion weight. VIKOR method is used to find the compromise solutions, which are converted into the form of binary connection number, and the optimal compromise solution is obtained after ranking. An example of machine failure diagnosis is provided to verify the method. The validity and feasibility of the proposed method are shown by a sensitivity analysis and TOPSIS∖ELECTRE method comparative analysis. In the future research, the method can be extended to supplier selection, power equipment location and other research fields.

Footnotes

Acknowledgments

This project was supported by Key R & D project of Shandong Province, China (2019GGX101026).

References

Chen

, Liu

and Pei

, An approach to multiple attribute group decision making based on linguistic intuitionistic fuzzy numbers, International Journal of Computational Intelligence Systems 8(4) (2015), 747–760.

Vinodh

and Vimal

K.E.K.

, Thirty criteria based leanness assessment using fuzzy logic approach, International Journal of Advanced Manufacturing Technology 60(9–12) (2012), 1185–1195.

Shen

K.W.

and Wang

J.Q.

, Z-VIKOR method based on a new weighted comprehensive distance measure of Z-number and its application, IEEE Transactions on Fuzzy Systems (99) (2018), 1–1.

Gorzalczany

M.B.

, A method of inference in approximate reasoning based on interval-valued fuzzy sets, Fuzzy Sets and Systems 21 (1987), 1–17.

, Dong

, Herrera

, Herrera-Viedma

and Martínez

, Personalized individual semantics in computing with words for supporting linguistic group decision making, An application on consensus reaching, Information Fusion 33 (2017), 29–40.

Zadeh

L.A.

, Fuzzy sets, Inf Control 8(3) (1965), 338–353.

Atanassov

, Intuitionistic Fuzzy Sets, Fuzzy Sets and Systems 20 (1986), 87–96.

Atanassov

, More on Intuitionistic Fuzzy Sets, Fuzzy Sets and Systems 33 (1989), 37–46.

Yager

R.R.

, Pythagorean fuzzy subsets. In: W. Pedrycz M. Reformat eds. Proc Joint IFSA World Congress and NAFIPS Annual Meeting, Edmonton, Canada: IEEE (2013), 57–61.

10.

Hong

D.H.

and Lee

, Some algebraic properties and a distance measure for interval-valued fuzzy numbers, Information Sciences 148 (2002), 1–10.

11.

Saini

, Bajaj

R.K.

, Gandotra

and Dwivedi

R.P.

, Multi-criteria decision making with triangular intuitionistic fuzzy number based on distance measure & parametric entropy approach, Procedia Computer Science 125 (2018), 34–41. doi: 10.1016/j.procs.2017.12.007.

12.

Ren

, Lu

, Zhao

and Xia

, An interval-valued triangular fuzzy modified multi-attribute preference model for prioritization of groundwater resources management, Journal of Hydrology (2018), doi: https://doi.org/10.1016/j.jhydrol.2018.04.069

13.

Chunquan

L.i.

, A fuzzy multi-objective linear programming with interval-typed triangular fuzzy numbers, Open Mathematics (2019), doi: https://doi.org/10.1515/math-2019-0048

14.

Robinson

P.J.

and Jeeva

, MAGDM problems with sumudu transform for interval valued intuitionistic triangular fuzzy sets. 2017 IEEE International Conference on Power, Control, Signals and Instrumentation Engineering (ICPCSI). (2017), doi:10.1109/icpcsi.2017.8391853

15.

Stanujkic

, Zavadskas

E.K.

, Brauers

W.K.M.

and Karabasevic

, An extension of the multimoora method for solving complex decision-making problems based on the use of interval-valued triangular fuzzy numbers, Transformations in Business & Economics 2015.

16.

Stanujkic

, An extension of the ratio system approach of MOORA method for group decision-making based on interval-valued triangular fuzzy numbers, Technological and Economic Development of Economy 22(1) (2015), 122–141. doi: 10.3846/20294913.2015.1070771.

17.

Garg

and Singh

, A novel triangular interval type-2 type-2 intuitionistic fuzzy sets and their aggregation operators, Iranian Jouurnal Of Fuzzy Systems 2018 (15), 69–93.

18.

Diaz-Balteiro

, González-Pachón

and Romero

, Measuring systems sustainability with multi-criteria methods: A critical review, European Journal of Operational Research 258(2) (2017), 607–616. doi: 10.1016/j.ejor.2016.08.075.

19.

Mardani

, Jusoh

and Zavadskas

E.K.

, Fuzzy multiple criteria decision-making techniques and applications –Two decades review from 1994 to 2014, Expert Systems with Applications 42(8) (2015), 4126–4148. doi: 10.1016/j.eswa.2015.01.003.

20.

Soltani

, Hewage

, Reza

and Sadiq

, Multiple stakeholders in multi-criteria decision-making in the context of Municipal Solid Waste Management: A review, Waste Management 35 (2015), 318–328. doi: 10.1016/j.wasman.2014.09.010.

21.

Benayoun

, Roy

and Sussman

, ELECTRE: Une méthode pour guider le choix en présence de points de vue multiples, Rev.franaise Informat.recherche Opérationnelle 3 (1966), 31–56.

22.

Micale

, La Fata

C.M.

and La Scalia

, A combined interval-valued ELECTRE TRI and TOPSIS approach for solving the storage location assignment problem, Computers & Industrial Engineering 135 (2019), 199–210. doi: 10.1016/j.cie.2019.06.011.

23.

Liao

Y.X.

, Two new approaches based on ELECTRE II to solve the multiple criteria decision making problems with hesitant fuzzy linguistic term sets, Applied Soft Computing 6 (2018), 223–234. doi: 10.1016/j.asoc.2017.11.049.

24.

Ashtiani

, Haghighirad

, Makui

and Ali Montazer

, Extension of fuzzy TOPSIS method based on interval-valued fuzzy sets, Applied Soft Computing 9(2) (2009), 457–461. doi: 10.1016/j.asoc.2008.05.005.

25.

Zhang

and Wei

, Extension of VIKOR method for decision making problem based on hesitant fuzzy set, Applied Mathematical Modelling 37(7) (2013), 4938–4947.

26.

Tavana

, Mavi

R.K.

, Santos-Arteaga

F.J.

and Doust

E.R.

, An extended VIKOR method using stochastic data and subjective judgments, Computers and Industrial Engineering 97 (2016), 240–247.

27.

Opricovic

, Multicriteria optimization of civil engineering systems, Faculty of Civil Engineering Belgrade 2 (1998), 5–21.

28.

Wang

, Wei

and Lu

, An extended VIKOR method for multiple criteria group decision making with triangular fuzzy neutrosophic numbers, Symmetry 10(10) (2018), 497. doi: 10.3390/sym10100497.

29.

, Zhou

, Chen

and Chen

, An integrated approach to green supplier selection based on the interval type-2 fuzzy best-worst and extended VIKOR methods, Information Sciences 502 (2019), 394–417. doi: 10.1016/j.ins.2019.06.049.

30.

Rani

, Jain

and Hooda

D.S.

, Shapley function based interval-valued intuitionistic fuzzy VIKOR technique for correlative multi-criteria decision making problems, Iranian Ranian Journal Of Fuzzy Systems 2018.

31.

Wan

S.-P.

, Wang

Q.-Y.

and Dong

J.-Y.

, The extended VIKOR method for multi-attribute group decision making with triangular intuitionistic fuzzy numbers, Knowledge-Based Systems 52 (2013), 65–77. doi: 10.1016/j.knosys.2013.06.019.

32.

Zeng

, Chen

S.-M.

and Kuo

L.-W.

, Multiattribute decision making based on novel score function of intuitionistic fuzzy values and modified VIKOR method, Information Sciences (2019), doi: https://doi.org/10.1016/j.ins.2019.03.018

33.

Kuo

M.S.

and Liang

G.S.

, A soft computing method of performance evaluation with MCDM based on interval-valued fuzzy numbers, Applied Soft Computing 12 (2012), 476–485.

34.

Mikhailov

, Deriving priorities from fuzzy pairwise comparison judgements, Fuzzy Sets and Systems 134 (2003), 365–385.

35.

Chu

T.C.

and Tsao

C.T.

, Ranking fuzzy numbers with an area between the centroid point and the original point, Computers and Mathematics with Applications 43 (2002), 111–117.

36.

Yanbing

and Aihua

, Extension of VIKOR method for multi-criteria group decision making problem with linguistic information, Applied Mathematical Modelling 37(5) (2013), 3112–3125.

37.

Lucca

, et al., Pre-aggregation functions: Construction and an application, IEEE Trans. Fuzzy Syst 24 (2) (2016), 260–272.

38.

Wang

Y.J.

, Ranking triangular interval-valued fuzzy numbers based on the relative preference relation, Iranian Journal of Fuzzy Systems 16(2) (2019), 123–136.

39.

Wang

, Geng

, Yao

and Yang

, Multiple attribute group decisionmaking approach based on extended VIKOR and linguistic neutrosophic Set, Journal of Intelligent & Fuzzy Systems (2018), 1–12. doi:10.3233/jifs-181066

40.

Opricovic

, Fuzzy VIKOR with an application to water resources planning, Expert Systems with Applications 38(10) (2011), 12983–12990. doi: 10.1016/j.eswa.2011.04.097.

41.

Suh

, Park

and Kang

, Evaluating mobile services using integrated weighting approach and fuzzy VIKOR, PLoS ONE 14(6) 2019. e0217786. https://doi.org/10.1371/journal.pone.0217786.

42.

Tian

, Liu

, Zhang

, Yang

, Zhang

, Lin

, Ma

, Wang

, Qu

and Li

, Selection of take-back pattern of vehicle reverse logistics in China via Grey-DEMATEL and Fuzzy-VIKOR combined method, Journal of Cleaner Production 2019. doi: https://doi.org/10.1016/j.jclepro.2019.01.086

43.

Hafezalkotob

and Hafezalkotob

, Interval target-based VIKOR method supported on interval distance and preference degree for machine selection, Engineering Applications of Artificial Intelligence 57 (2017), 184–196. doi: 10.1016/j.engappai.2016.10.018.

44.

Mishra

A.R.

and Rani

, Interval-valued intuitionistic fuzzy waspas method: Application in reservoir flood control management policy, Group Decis Negot 27 (2018), 1047. https://doi.org/10.1007/s10726-018-9593-7.

45.

Zipan

and Shenggang

, A new principal component analysis method for interval data, Basic Sciences Journal of Textile Universities/Fangzhi Gaoxiao Jichu Kexue Xuebao 29(2) (2016), 184–189. 6p.

46.

Mizuno

, Dirichlet series associated with square of class numbers of binary quadratic forms, Mathematische Zeitschrift 272(3–4) (2012), 1115–1135. doi: 10.1007/s00209-012-0979-y.

47.

Nath

and Bender

, On the thermodynamics of associated solutions. III. Vapor-liquid equilibria of binary and ternary systems with any number of associating components, Fluid Phase Equilibria 10(1) (1983), 43–56. doi: 10.1016/0378-3812(83)80003-x.

48.

Gomes

A.J.F.

and Lemos

, The number of elements belonging to triads in 3-connected binary matroids, Discrete Mathematics 339(1) (2016), 255–262. doi: 10.1016/j.disc.2015.08.014.

49.

Ino

, Kanno

, Yamada

, Shiku

and Matsue

, Binary-number-based digital electrochemical detection using a single working electrode with multiple sensors, Electrochemistry Communications 77 (2017), 76–80.

50.

Syofyan

D.K.

, Baskoro

E.T.

and Assiyatun

, The locating-chromatic number of binary trees, Procedia Computer Science 74 (2015), 79–83. doi: 10.1016/j.procs.2015.12.079.

51.

X.-mei.

and Zhao

K.-qin.

, Connection-number-based nonlinearity model and its applications for multiple attributes decision-making with interval numbers[J], Mathematics in Practice and Theory 2011-06.

52.

Shen

, Huang

, Liu

, Jiang

and Zhao

, Multiattribute decision making based on the binary connection number in set pair analysis under an interval-valued intuitionistic fuzzy set environment, Soft Computing (2019). doi: 10.1007/s00500-019-04398-1

A multi-criteria decision-making method based on triangular interval-valued fuzzy numbers and the VIKOR method

Abstract

Keywords

1 Introduction

2 Preliminaries

2.1 Triangular interval-valued fuzzy numbers (TIVFNs)

4 Application

4.1 An illustrative example

Table 3 Importance of criterion DM1 DM2 DM3 C 1 VH VH VH C 2 H H MH C 3 H MH MH C 4 VH H VH C 5 M MH M

Footnotes

Acknowledgments

References

Table 3
Importance of criterion

DM1 DM2 DM3

C ₁ VH VH VH

C ₂ H H MH

C ₃ H MH MH

C ₄ VH H VH

C ₅ M MH M
