Fusing appearance and motion information for action recognition on depth sequences

Abstract

With the advent of cost-efficient depth cameras, many effective feature descriptors have been proposed for action recognition from depth sequences. However, most of them are based on single feature and thus unable to extract the action information comprehensively, e.g., some kinds of feature descriptors can represent the area where the motion occurs while they lack the ability of describing the order in which the action is performed. In this paper, a new feature representation scheme combining different feature descriptors is proposed to capture various aspects of action cues simultaneously. First of all, a depth sequence is divided into a series of sub-sequences using motion energy based spatial-temporal pyramid. For each sub-sequence, on the one hand, the depth motion maps (DMMs) based completed local binary pattern (CLBP) descriptors are calculated through a patch-based strategy. On the other hand, each sub-sequence is partitioned into spatial grids and the polynormals descriptors are obtained for each of the grid sequences. Then, the sparse representation vectors of the DMMs based CLBP and the polynormals are calculated separately. After pooling, the ultimate representation vector of the sample is generated as the input of the classifier. Finally, two different fusion strategies are applied to conduct fusion. Through extensive experiments on two benchmark datasets, the performance of the proposed method is proved better than that of each single feature based recognition method.

Keywords

Action recognition feature fusion depth motion maps completed local binary pattern polynormal

1 Introduction

After decades of exploration, research on video-based human action recognition has achieved considerable results, which have been widely applied in intelligent surveillance [1], auxiliary health care [2], human-computer interaction [3] and robotics [4], etc. Earlier researches focused on recognizing human actions from videos captured by RGB cameras. For instance, based on RGB videos, Bobick et al. [5] used the motion energy image (MEI) and the motion history image (MHI) to represent where the motion occurred. Laptev et al. [6] extended the concept of the spatial interest points to the temporal-spatial domain, thereby generating a compact representation of the action video where the occlusions and the chaotic backgrounds exist too. Sun et al. [7] proposed to model the spatial-temporal context information in a three-level hierarchical way. Di et al. [8] combined both the local and global representations based on silhouette to enhance the discrimination. However, due to the limitations of RGB videos or images, these works suffered from some common problems, such as variation of lighting conditions and cluttered backgrounds. With the development of depth cameras, recent research has focused on using depth sequences for action recognition. Compared with RGB videos, depth sequences have two advantages. First, depth data are more tolerant to changes in lighting conditions; Second, since the depth map records the depth information of the scene, the contrast between the foreground and the background is more distinct, which makes it easier to detect and extract the human body. For example, Chen et al. [9] combined the depth motion maps (DMMs) with the local binary mode (LBP) and tried two fusion strategies, thus achieving the state-of-the-art results on their own dataset. Liu et al. [10] presented a multiple scale energy-based global ternary image (E-GTI) representation to differentiate similar actions and distinguish actions with different speeds. Xu et al. [11] proposed a multilevel frame select sampling (MFSS) method to produce three levels of temporal samples from the depth sequences, and used the proposed motion and static mapping (MSM) method for obtaining the representation of MFSS sequences. For the sake of concisely accumulating the motion information, Shekar et al. [12] extracted the Undecimated Dual Tree Complex Wavelet Transform features from the DMMs.

Most of the methods described above are based on single feature or descriptor for action recognition. Although many features or descriptors can capture motion and shape cues at the same time, they are unable to fully extract action information in the depth sequence. To solve this problem, fusing different features or descriptors is an effective way. In this paper, a recognition scheme that fuses the DMMs based CLBP descriptor and the polynormal descriptor is proposed and the work mainly includes the following: First, the DMMs based CLBP is combined with the patch-based strategy so as to extract more details of the texture information on the DMMs. Second, the DMMs based CLBP descriptor and the polynormal descriptor are fused to represent the characteristics of the action more comprehensively. Both the DMMs based CLBP and the polynormal are capable of simultaneously describing the motion and shape characteristics of the action, but the CLBP focuses on detecting the area where the movement occurs, while the polynormal focuses on describing the process and direction of the movement. Therefore, by integrating the two descriptors, the characteristics of actions can be represented in a comprehensive way. Third, two different fusion strategies are applied to the recognition scheme and their influence on the recognition accuracy is investigated.

The remainder of this paper is organized as follows. In Section 2, the recent researches on action recognition from depth sequence is briefly reviewed. In Section 3, the two descriptors and other feature describing strategies are expounded. In Section 4, the process of sparse representation, pooling and fusion is described. Experiments and evaluation on two benchmark datasets are reported in Section 5. Finally, the conclusion of the work is given in Section 6.

2 Related work

Depth sequences are not affected by changes in lighting conditions and cluttered backgrounds, but also contain 3D structure information of the action subjects, which has made many researchers divert their attention from RGB videos to depth sequences. For example, Yang et al. [13] introduced the Depth Motion Maps to accumulate global activities through the entire depth sequence, and the Histograms of Oriented Gradients (HOG) was calculated from them as the representation of the action video. Chen, Zhang, et al. [14] extracted the features of 2D gradient autocorrelation from the DMMs and 3D gradient autocorrelation from the original depth sequence, and conducted feature fusion at the decision layer to make use of their complementary advantages. Bulbul et al. [15] extracted the Gradient Local Auto-Correlations (GLAC) features from the Motion History Images (MHIs) and the Static History Images (SHIs) respectively, which are generated through the 3D Motion Trail Model (3DMTM) beforehand. To make it more robust to speed differences between different action performers, Chen et al. [16] created a multi-temporal DMMs representation by extracting the shape and motion cues from clips of the depth sequence at different lengths, and the temporal information between frames was recovered by introducing a weighting function to the depth maps. For the same purpose, Liu et al. [17] proposed an adaptive hierarchical strategy to divide the depth sequence into several sets of subsequences with unequal numbers of frames that compose the subsequences between different levels, with adjacent subsequences of each level overlapping. Furthermore, the length of subsequences and the extent of overlap on the subsequence are both adjustable. Then, they calculated the DMMs on each subsequence and encoded their texture features with the Gabor filter for classification.

The approaches introduced above have not taken the distribution of the 4D points into account, thus potentially losing many discriminating information. The surface normal vectors in the 4D space can effectively describing the shape and motion information in the depth maps. Oreifej and Liu [18] extracted the 4D normal feature in the depth sequence and obtained their distribution in 4D space, i.e. histogram of oriented 4D surface normals (HON4D), by projecting them onto vertices of a regular polychoron. Also using the feature of 4D normal, Yang and Tian [19] concatenated the 4D normal vectors of all points in the neighbourhood of each point in the spatial-temporal sequence, so as to compose a descriptor vector, i.e. polynormal which is then represented through sparse coding. For representing geometrical features extracted from depth motion space, Slama et al. [20] present an original method where sequence features are temporally modeled as subspaces lying on the Grassmann manifold. To capture shape and motion cues from noisy depth data, Liu et al. [21] designed a background modeling method suitable for depth sequences and introduced a two-layer Bag of Visual Words model to separately code the motion-based and the shape-based Spatial-temporal Interest Points.

3 Theoretical fundamentals and the proposed method

3.1 ME based temporal pyramid

The temporal pyramid was first proposed by Laptev et al. [22] They took a rough chronological order which evenly subdivides the depth sequence according to frame indices to form the temporal pyramid. Since then, this method has been widely used in action recognition. For example, Wang et al. [23] used the temporal pyramid to combine cues from the temporal context. However, the speed of the action may vary between different subjects, hence it is not flexible to evenly divided the video according to the frame index. To solve this problem, the adaptive temporal pyramid based on motion energy (ME) [19] is adopted.

Here the modified ME formula is used for faster calculation: $ME (i) = \sum_{v = 1}^{3} \sum_{j = 1}^{i - 1} sum (| I_{v}^{j + 1} - I_{v}^{j} |)$ (1) where $I_{v}^{j}$ denotes the jth frame in the projected subsequence of the vth projection view. v={1, 2, 3}, and it stands for the front, the side, and the top view respectively. The function sum(·) returns the number of non-zero elements in a binary frame map. i = 2,...,N; N is the number of frames in the projected sequence. ME(i) refers to the accumulated motion energy from the first frame to the i-th frame, and ME(1)=0.

As can be seen from the calculation process of the motion energy, the ME of each frame reflects the amount of accumulated movement of human body when the action reaches that frame. Therefore, compared to the frame number, it is more accurate to partition the depth sequence based on the motion energy, making it more robust to differences in execution speed of the action.

The normalized motion energy vector is evenly divided into several parts and the corresponding frame indices of the split points are the places where the depth sequence is divided. Instead of the 3-level pyramid in [19], a 2-level temporal pyramid, i.e. {T0 - T1, T1 - T2, T2 - T3, T3 - T4, T4 - T5, T5 - T6}, {T0 - T6}, is employed in this work, as shown in Fig. 1. Such a partitioning scheme is adopted in order to partition the video action in a more detailed and matched manner, while avoiding the increase of computational overhead.

Fig. 1

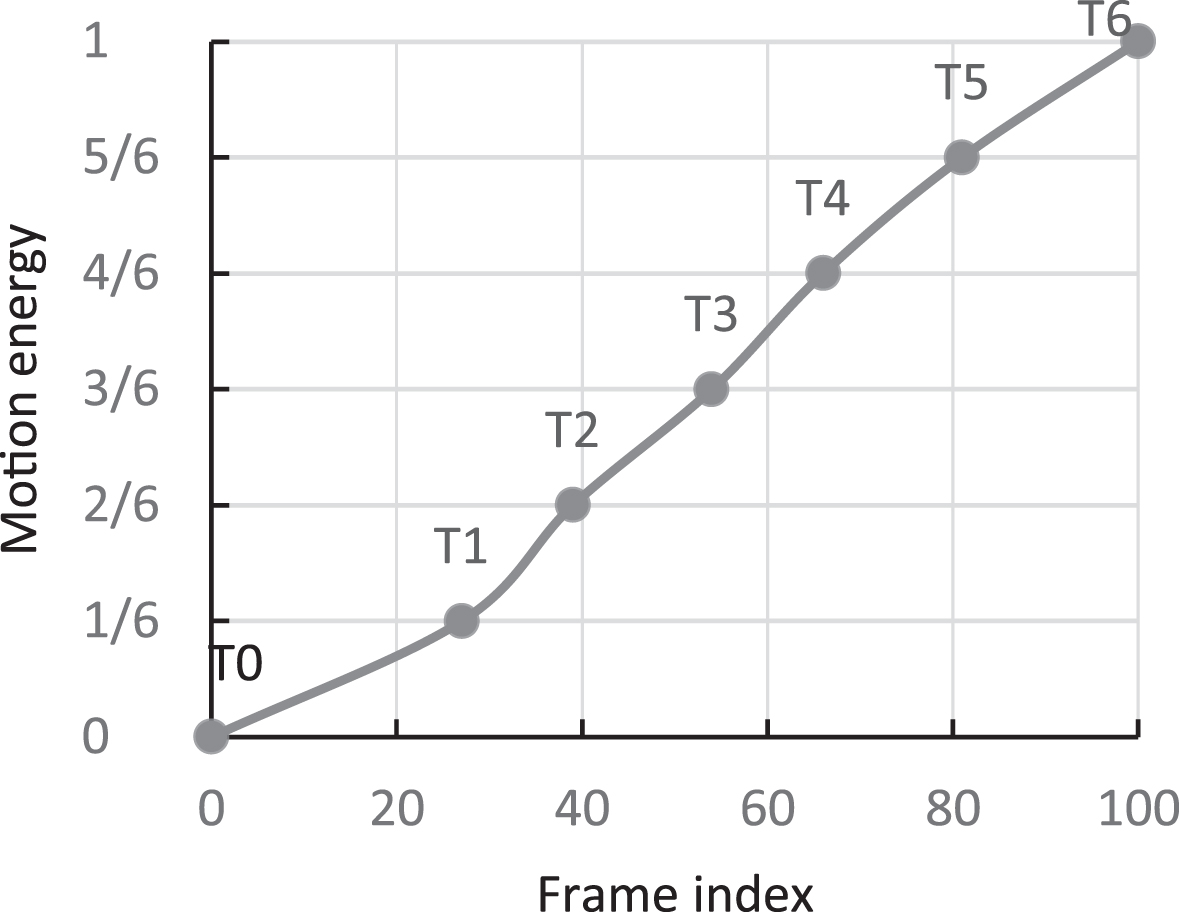

The ME based temporal pyramid.

3.2 CLBP based descriptor

3.2.1 DMMs

In order to represent the shape and motion information of the action in the depth sequence, Yang et al. [13] proposed the depth motion maps, namely DMMs. Specially, they first projected the depth sequence onto three orthogonal Cartesian planes, and thus three projection subsequences were generated, corresponding to the front view (f), the side view (s) and the top view (t) respectively. After that, the difference between the values of the corresponding pixels in each pair of adjacent frames is accumulated based on all the three projection subsequences. For reducing the amount of calculation, Chen et al. [24] modified the process of generating the DMMs, where the DMMs are calculated according to the following formula: ${DMM}_{{f, s, t}} = \sum_{i = 1}^{N - 1} | {map}_{{f, s, t}}^{i + 1} - {map}_{{f, s, t}}^{i} |$ (2) where i denotes the frame index and N is the number of frames in a depth sequence. The process of generating DMMs is illustrated in Fig. 2.

Fig. 2

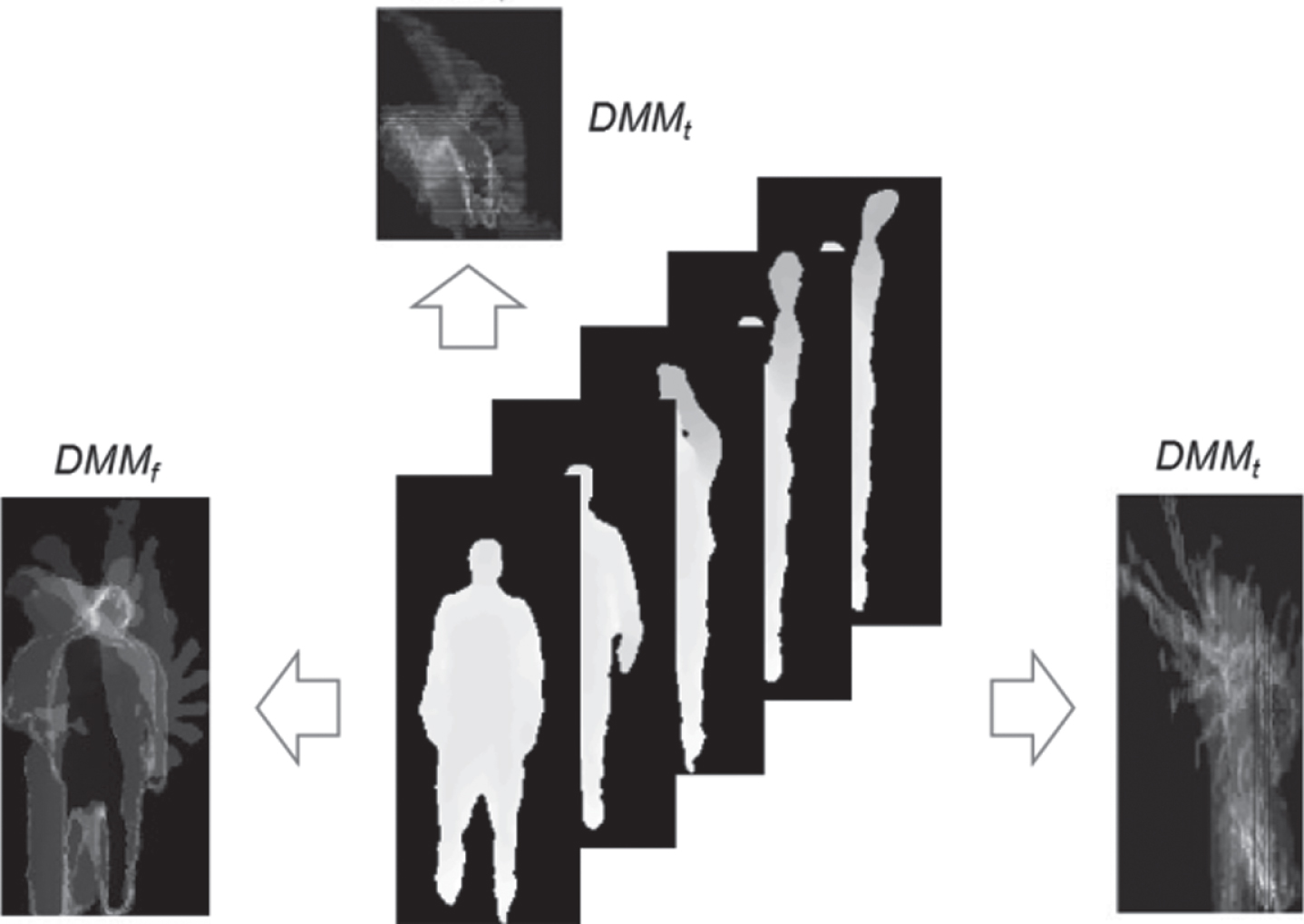

Generation of the DMMs.

3.2.2 CLBP

Local Binary Pattern (LBP) devised by Ojala et al. [25] is an effective descriptor of images’ texture feature. Given a center pixel t_c, its neighbouring pixels are equally spaced on a circle with a radius r, with the center t_c. Let the coordinates of t_c be (0,0) and m neighbours ${t_{i}}_{i = 0}^{m - 1}$ be considered, then the coordinates of its neighbour t_i are (–rsin(2πi/m), rcos(2πi/m)). Through thresholding the differences between the neighbours ${t_{i}}_{i = 0}^{m - 1}$ and the center pixel t_c, an m-bit binary number is generated, which is the LBP. The corresponding LBP of t_c can be represented in decimal form as follows: ${LBP}_{m, r} (t_{c}) = \sum_{i = 0}^{m - 1} s (t_{i} - t_{c}) 2^{i} = \sum_{i = 0}^{m - 1} s (d_{i}) 2^{i}$ (3) where d_i = t_i - t_c is the difference between the neighbour t_i and the center pixel t_c. s (d_i) = 1 if d_i ⩾ 0 and s (d_i) = 0 if d_i < 0.

As can be seen, the LBP only exploits the sign information of the difference values but loses the magnitude information. However, like the sign, the magnitude contains some other important texture information. Accordingly, Guo et al. [26] introduced the completed local binary pattern (CLBP), where the sign and the magnitude of the differences are separately used to produce their respective binary number, namely CLBP-Sign (CLBP_S) and CLBP-Magnitude (CLBP_M). Their calculation process is shown in Fig. 3. The CLBP_S is actually the traditional LBP descriptor and the CLBP_M is defined as follows: $\begin{matrix} CLBP_M_{m, r} = \sum_{i = 0}^{m - 1} p (| d_{i} |, s) 2^{i}, \\ p (a, s) = {\begin{matrix} 1, & a ⩾ s \\ 0, & a < s \end{matrix} \end{matrix}$ (4) where m and r are the aforementioned number of the sampled neighbours and radius of the sampling circle respectively. The definition of d_i here is the same as that in Formula (3). s is the threshold which is set to the average of |d_i| obtained from the whole map.

Fig. 3

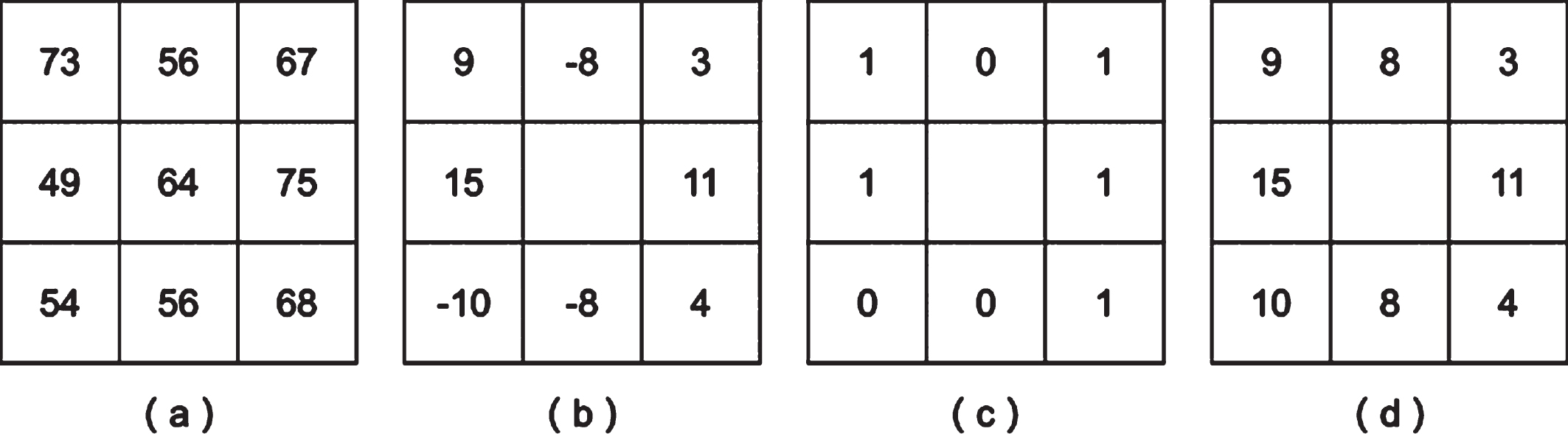

(a) a 3×3 sample block; (b) the difference between each neighbour and the center pixel; (c) the sign; (d) the magnitude.

Additionally, the difference between the center pixel t_c and the average of all pixels in the map, namely CLBP-Center (CLBP_C) also contains the text information and it is defined as follows: $CLBP_C_{m, r} = p (t_{c}, s_{0})$ (5) where p(·) is defined in Formula (4) and the threshold s₀ is the average grayscale of the whole map.

3.2.3 Patch-based CLBP

The calculation of CLBP descriptors is usually conducted on the entire map in present recognition approaches. For the purpose of extracting more detailed texture features, the CLBP is combined with the patch-based strategy [27] in this paper, which is illustrated in Fig. 4.

Fig. 4

Illustration of the Patch-based CLBP calculation. s denotes the stride of the patch movement and w represents the width of the patch.

As shown in the figure, the patch-based strategy introduces a sliding window, i.e. the patch on the DMM and calculates the CLBP descriptors based on each patch. The overlap between two adjacent patches is controlled by the stride and a set of patch-based CLBP histograms is generated to describe the corresponding DMMs in more detailed way.

For a depth motion map with the size of M × N, if the width of the patch is set to w, then the total number of patches is (M + s–w)(N + s–w)/s², and the number of pixels contained in each patch is m = w × w. The CLBP of the ith pixel in each patch is a 3-dimensional vector c_i = [CLBP _ S, CLBP _ M, CLBP _ C] ^T. The CLBP vector of each pixel in the patch is concatenated to obtain the feature descriptor vector $c = [c_{1}^{T}, c_{1}^{T}, . . ., c_{m}^{T}]^{T}$ corresponding to the patch. Its dimension is 3 × w × w.

For the three depth motion maps generated by a depth sequence sample under different view, the CLBP descriptor corresponding to each patch is calculated according to the above-mentioned patch-based strategy for further representation.

3.3 Polynormal descriptor

3.3.1 The 4D normal

Given a sequence of depth maps {I₁, I₂, . . . , I_N}, every pixel in the sequence can be treated as a point in the 4D space and the value of a pixel z on a map can be regarded as a function of the abscissa x, the ordinate y and the frame index t, i.e. z = f(x, y, t). Thus, all the pixels jointly compose a surface S in the 4D space and the normal of point (x, y, t, z) in the 4D surface S is calculated as: $n = \nabla S = {[\frac{\partial z}{\partial x}, \frac{\partial z}{\partial y}, \frac{\partial z}{\partial t}, - 1]}^{T}$ (6)

The orientation of the normals in the whole surface reflects the shape of the surface, hence it is an effective feature that embodies the shape and motion information of the action. For further processing, the normal vectors are normalized first.

3.3.2 Polynormal

In order to present the correlation between the normals of adjacent points and make the distribution of normal orientations less affected by noise, Yang et al. [19] gathered the normals of all points in a local spatial-temporal neighbourhood to create a robust descriptor of normal feature, namely polynormal. In other words, the polynormal corresponding to a point on the 4D surface concatenates the normal vectors of all points in the neighbourhood of this point, which can be expressed by the following formula: $p = (n_{1}^{T}, n_{2}, \cdot \cdot \cdot, n_{L}^{T})^{T}, n_{1}, n_{2} \cdot \cdot \cdot, n_{L} \in Ω .$ (7) where W is a spatial-temporal neighbourhood of point and L is the number of points in the neighbourhood. The size of the neighbourhood is determined by three parameters: Nx, Ny and Nt, which denotes the number of neighbouring points in the horizontal direction, the vertical direction and the temporal direction respectively. Figure 5 illustrates the calculation of the polynormal. Several consecutive frames of the action “tennis serve” is shown in the left half of the diagram and the polynormal of point concatenating normals of all neighbouring points in its neighbourhood is illustrated in the right half of the diagram.

Fig. 5

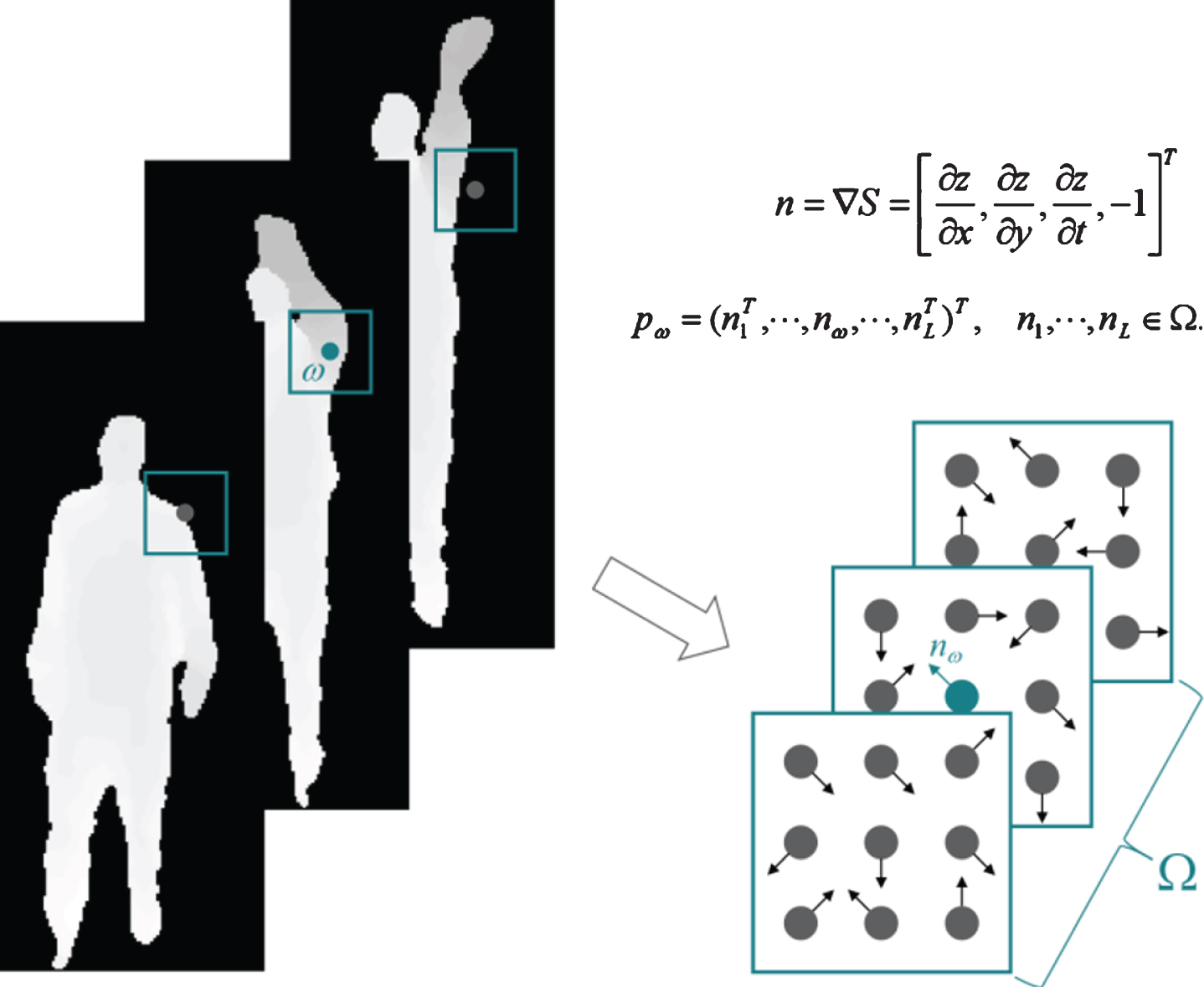

Illustration of generating polynormal P_ω of Point ω. The left half of the diagram is a short depth sequence. An Nx×Ny×Nt neighbourhood Ω of Point ω is taken first, as shown in the right half of the diagram. Then the corresponding 4D normal n of each point in the neighbourhood are calculated, and all the normals are concatenated to get the polynormal vector P_ω to Point ω. In this figure, Nx = Ny = Nt = 3 and thus L = 27.

Because all the action information is concentrated in the area where the action is performed, the pixel values of the background part are invalid for discrimination of the action category. Accordingly, the depth sequence is first cropped through extracting the largest bounding box of the human body [43]. Additionally, this process also helps to reduce the impact of scale differences on recognition results. To further reduce the computational overhead, the cropped depth sequence is partitioned into spatial grids. In this way, combined with the temporal pyramid division in Section 3.1, a depth sequence is partitioned into a set of space-time cells, and on each cell the polynormals are calculated. The bounding box and space-time cells are illustrated in Fig. 6.

Fig. 6

Illustration of the bounding box and space-time cells.

3.4 Methods of fusion

The existing multi-feature fusion methods are mainly divided into two categories, namely feature layer fusion and decision layer fusion [44].

Feature layer fusion is the fusion at the stage of feature description or representation, which is before the classification stage. According to the specific positions, it can be further subdivided into the low-level feature fusion and the middle-level feature fusion, which respectively corresponds to the feature description and feature representation stage. Most of them belong to middle-level feature fusion, and one important reason is that low-level fusion easily leads to overfitting.

Decision layer fusion is to fuse at the classification stage. After inputting various feature descriptors or feature representation vectors into a dedicated classifier for classification, the classification results of each classifier are synthesized according to specific fusion rules, thus getting the final classification result. The following introduces one of the most used fusion rules, i.e. the “sum” rule.

If a depth video sample set contains M action categories and N types of feature representation vectors are obtained from a sample in this set, the output of the classifier corresponding to the ith type of feature representation vector, i.e. the probability of the feature vector belonging to the category ω_k, is expressed as P (ω_k|X_i), then the “sum” rule can be expressed as follows:

If ${max}_{i = 1}^{N} P (ω_{j} | X_{i}) = \max_{k = 1}^{M} \sum_{i = 1}^{N} P (ω_{k} | X_{i})$ , then the sample belongs to the jth category.

In general, compared to other methods, the advantages of low-level feature fusion are that there is no need to perform multiple feature representations and multiple classifications, which reduces the calculation overhead and shortens the recognition time. The advantage of the middle-level feature fusion compared to the decision-level fusion is that there is no need to perform multiple classifications, which reduces the time required for classification. The disadvantage of feature layer fusion is that it easily leads to overfitting. The decision layer fusion can avoid overfitting, but the training and testing of multiple classifiers usually increase the hardware overhead and recognition time.

3.5 Sparse representation

The descriptor vectors generated in the above steps describe the low-level features of the video action. In order to extract the high-level semantic information, it must be further represented. Here the sparse coding and dictionary learning (SCDL) [28] is used to obtain the sparse representation of the descriptors. The SCDL method has been widely applied in action recognition wherein it has achieved state of the art results [29, 30]. In addition to producing a compact representation vector, it can also remove the noise in the video effectively. Given a set of patch-based CLBP descriptors c = {c₁, c₁, . . . , c_N}, its sparse representation can be got by solving: $\begin{matrix} min_{D, α} \frac{1}{N} \sum_{i = 1}^{N} (\frac{1}{2} {∥ c_{i} - D α_{i} ∥}_{2}^{2} + λ {∥ α_{i} ∥}_{1}), \\ s . t . d_{k}^{T} d_{k} ⩽ 1, \forall k = 1, 2, \cdot \cdot \cdot, K . \end{matrix}$ (8) where D is the dictionary and d_k is the kth column in it, called the atom. α_i is the sparse representation vector corresponding to the descriptor vector c_i. In the solving process, the Orthogonal Matching Pursuit (OMP) [31] is applied to calculate the sparse representation vectors and the K-Singular Value Decomposition (K-SVD) [32] is employed to build the dictionary.

Since the dimension of the feature descriptor vectors and the corresponding sparse representation vectors are too high and the number is too large, the maximum pooling and average pooling method are used successively to statistically represent the data distribution in the sparse vectors of the subsequences, which is able to create a more compact representation vector while retaining the most discriminating information. In addition, due to the discrepancy in the number of frames between different subsequences obtained through the ME based temporal pyramid division, the number of polynormal descriptor vectors calculated from them is also unequal. This poses an obstacle to the final classification stage because the classifier used in the work requires the input feature representation vectors to have the same dimensions. The maximum time pooling described below can reduce the representation vectors of the same map or frame into a single vector, thereby unifying the dimensions of the representation vectors to be input into the classifier.

For the sparse representation vector α_i corresponding to the CLBP descriptor c_i, maximum pooling is applied, as shown in the following formula: $y_{v} = max_{i = 1, \cdot \cdot \cdot, | M_{v} |} α_{i}$ (9) where v = 1, 2, 3 and M₁, M₂, M₃ are the respective sets of the patch-based CLBP descriptors on the DMM_f, DMM_s, DMM_t, of a subsequence. α_i ∈ M_v, y_v is the corresponding pooling vector of different perspectives.

For the sparse representation vector β_i corresponding to the polynormal descriptor p_i, the spatial maximum pooling is applied first: $z_{g, t} = max_{i = 1, \cdot \cdot \cdot, | F_{g, t} |} β_{i}$ (10) where F_g,t is the polynormal descriptor set of the tth frame in the gth grid, i.e. cell obtained by grid division of the subsequence; β_i ∈ F_g,t. z_g,t is the spatial pooling vector of this frame in the cell.

Then the temporal average pooling is performed: $z_{g} = \frac{1}{T_{g}} \sum_{t = 1}^{T_{g}} z_{g, t}$ (11) where T_g is the number of frames in the gth cell; Z_g is the pooling vector corresponding to the cell, and Z_g,t is its tth component.

So far, with regard to each subsequence of a video sample, the corresponding CLBP sparse representation vectors ${y_{v}}_{v = 1}^{3}$ and polynormal sparse representation vectors ${y_{v}}_{v = 1}^{3}$ have been calculated. Next, feature layer fusion and decision layer fusion are separately carried out.

3.6 Feature layer fusion

First feature layer fusion is conducted, that is, concatenate the above two to form the total feature representation vector of the subsequence: $w_{s} = (y_{1}^{T}, y_{2}^{T}, y_{3}^{T}, z_{1}^{T}, \cdot \cdot \cdot, z_{g}^{T}, \cdot \cdot \cdot, z_{G}^{T})^{T}$ (12) where G is the number of the grids; s is the subsequence index of the corresponding sample, s = 1, ·· · , 5.

Then, the feature representation vectors of each subsequence are concatenated to compose the ultimate representation vector of the sample: $W = (w_{1}^{T}, w_{2}^{T}, w_{3}^{T}, w_{4}^{T}, w_{5}^{T})^{T}$ (13) Finally, the Support Vector Machine (SVM) [33] is chosen as the classifier. The SVM has been widely applied in the field of action recognition, and has achieved state of the art recognition accuracy in many approaches [34, 35]. As a fully developed SVM function library, LIBSVM [36] is adopted as the SVM solver.

Under this fusion strategy, the pipeline of the proposed recognition method can be illustrated as Fig. 7:

Fig. 7

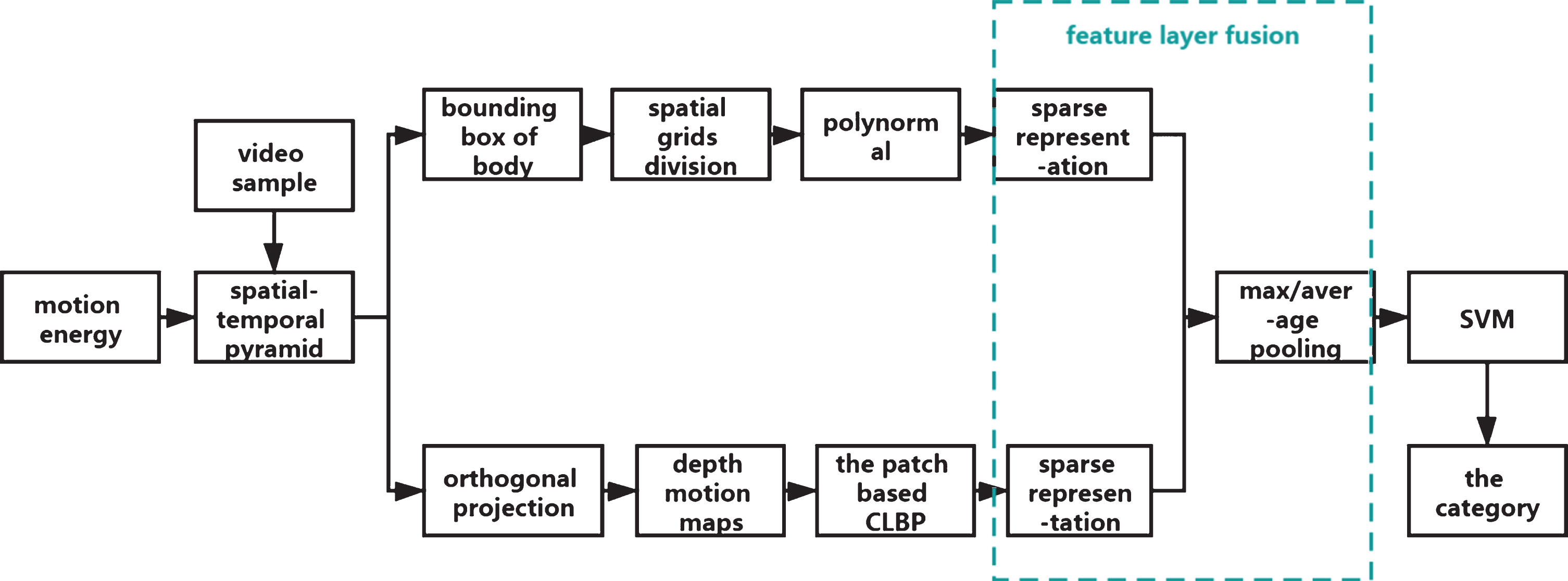

The pipeline of the proposed method under the feature layer fusion.

3.7 Decision layer fusion

Decision layer fusion is to separately sparsely represent and pool the two feature descriptors corresponding to each subsequence according to the method described above. Through comparative experiments, the max pooling method is chosen, which has better performance. For each sample, the final representation vectors corresponding to the two feature descriptors are calculated, and they are input into independent SVM classifiers for classification. The “sum” rule is used to obtain the final classification result. The overall process is shown in Fig. 8.

Fig. 8

The pipeline of the proposed method under the decision layer fusion.

4 Experiments

4.1 MSRAction3D dataset

MSRAction3D dataset [37] is one of the most popular datasets of depth sequences. It is comprised of 20 action categories and each action was performed 2 or 3 times by 10 different subjects. This is a challenging data set, because some of these actions are very similar, and different subjects have considerable difference in speed when doing the same action.

In order to unify the sizes of the DMMs generated from different depth sequences, the size of each DMM was set to the maximum of all sizes. Thus, the DMM_f, DMM_s and DMM_t were resized to 245×137, 245×172 and 172×137 respectively. The patch sizes of the DMM_f, DMM_s, and DMM_t were set to 50×28, 50×35 and 35×28 respectively. Accordingly, the strides between two adjacent patches were set to (25, 14), (25, 18), and (18, 14) respectively. In the calculation of the CLBP, a set of relatively optimal values was found, i.e. m = 4 and r = 1 through observing the influences on the recognition accuracy by different values of m and r. For generating polynormals, 4×3 grids were obtained from the bounding box of the human body, and Nx, Ny, Nt were all set to 3. The values of the parameters were assigned based on experience.

For this dataset, 10 rounds of 5-fold cross-validation are used for training and testing according to the action subject. For example, in a certain round, the samples of the action subjects of No. 1, 2, 4, 5, 6, 7, 9, 10 are taken as the training set, and the samples of the action subjects of No. 3, 8 are taken as the test set. For SVM, some parameter values are assigned by 5-fold cross-validation optimization, and others are set by default.

The confusion matrices of the experimental results using the two fusion strategies are shown in Fig. 9(a) and 9(b) respectively.

Fig. 9

The confusion matrices of the recognition results on the MSRAction3D dataset. (a) feature layer fusion; (b) decision layer fusion.

The proposed method was compared with several existing methods in Table 1. As can be seen from the table, the recognition accuracy of the proposed method is 1.70%higher than the DMM-LBP-DF which adopts only the patch-based LBP feature. This is because the proposed strategy has extracted richer texture features by using CLBP instead of LBP and has extra described the process of the human body’s movement compared to the DMM-LBP-DF whose feature descriptors only indicated the area where the motion occurs. Likewise, the proposed method outperforms the Super Normal Vector by a rise of 1.61%in recognition rate, since it has captured additional motion distribution information and more prominent shape cues compared with the latter that employs the polynormal descriptor alone.

Table 1

Recognition accuracy comparison between the proposed method and previous approaches on MSRAction3D dataset

Method	Year	Accuracy(%)
3D deep CNN+40f [45]	2018	90.00
LMA+RDF [46]	2018	90.50
HOG3D+LLC [38]	2016	90.90
Rate-Invariant Modeling [47]	2020	92.16
Hierarchical 3D Kernel [39]	2015	92.73
DMM-LBP-DF [27]	2015	93.00
Discriminative Parts Learning [48]	2018	93.09
Extended SNV [19]	2016	93.45
MLFF+FBLS-MD [49]	2020	94.18
Deep Convolutional Neural Networks [40]	2018	94.50
The proposed method (feature layer fusion)		94.70
The proposed method (decision layer fusion)		94.95

At the same time, our method achieves better results than some state-of-the-art methods such as [49] and [40]. Although the advantages of deep learning methods in the field of action recognition are becoming more and more obvious recently, it can be seen from Table 1 that the recognition rate of our method is higher than the Deep Convolutional Neural Networks method in [40] and [45]. This is mainly because the learning process of the deep learning methods often relies on a sufficiently large training dataset, but the MSRAction3D dataset only contains a small number of samples, on which the deep learning methods are prone to overfitting. However, the methods of manually extracting features and carefully constructing feature descriptors adopted in this paper often do not require a very large dataset, so it is more advantageous when the number of samples is small.

In addition, it can also be seen that the recognition accuracy when using decision layer fusion is 0.25%higher than when using feature layer fusion, which may indicate that the former fusion strategy has better performance, but it is not significant.

4.2 MSRGesture3D dataset

MSRGesture3D dataset [42] is another most used dataset for action recognition based on depth maps. It contains 12 kinds of gestures in the American Sign Language and every gesture is performed 3 times by each of the 10 subjects. It is considered challenging due to the problem of self-conclusion [9].

Correspondingly, the sizes of the DMM_f, DMM_s and DMM_t were 254×285, 254×67 and 67×285 respectively. The corresponding patch sizes were set to 50×56, 50×13 and 13×56 respectively, and thus the strides were set to (25, 28), (25, 7), and (7, 28) respectively. On this dataset, the leave-one-subject-out cross validation [41] was applied. The values of other parameters were the same as that in the experiment on MSRAction3D dataset. The confusion matrices of the experimental results are shown in Fig. 10(a) and 10(b).

Fig. 10

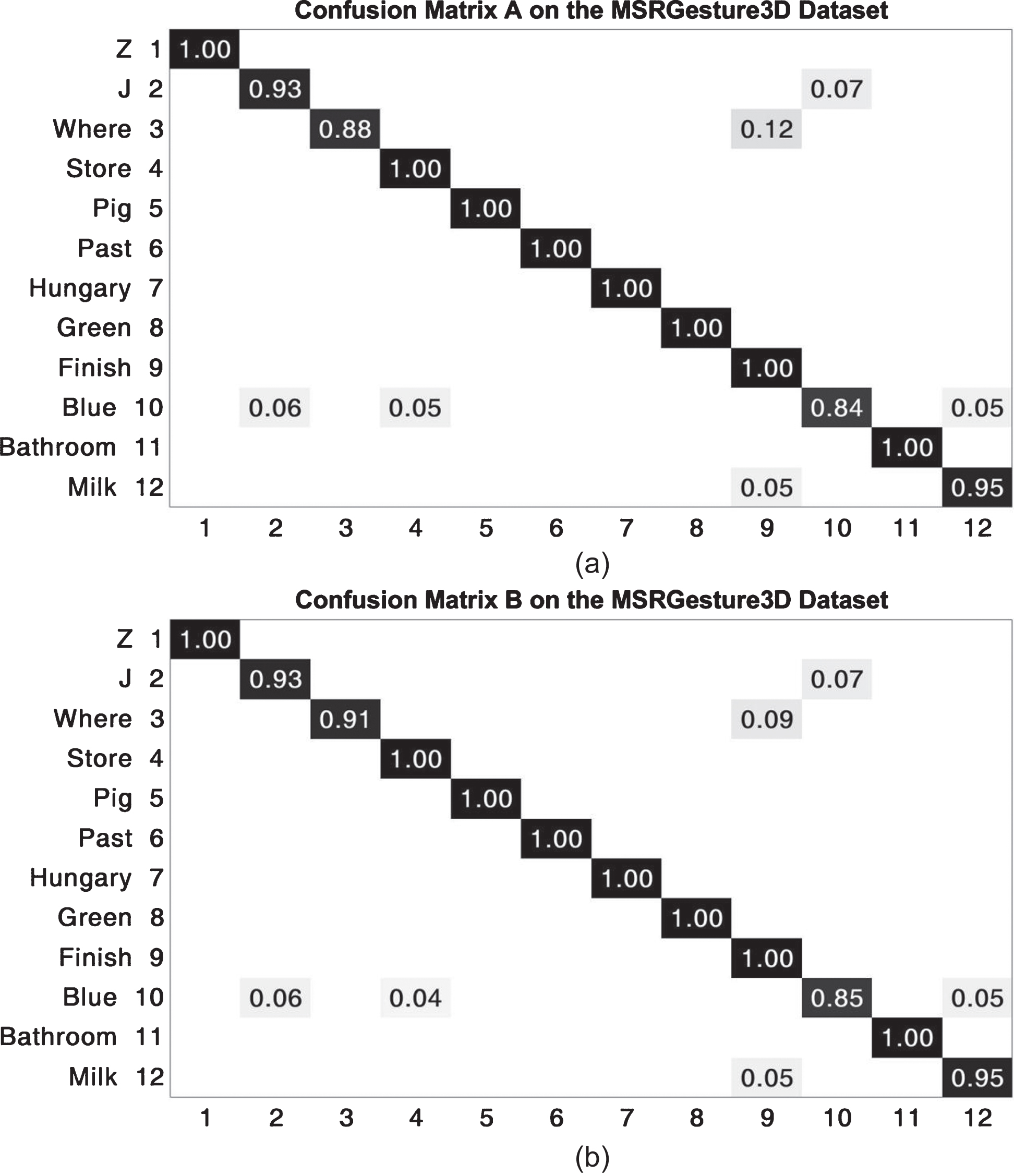

The confusion matrices of the recognition results on the MSRGesture3D dataset. (a) feature layer fusion; (b) decision layer fusion.

The comparison between the proposed method and the same methods mentioned in Section 5.1 were shown in Table 2.

Table 2

Recognition accuracy comparison between the proposed method and previous approaches on MSRGesture3D dataset

Method	Year	Accuracy(%)
HON4D [18]	2013	82.45
MPDMM [50]	2018	93.58
HOG3D+LLC [38]	2016	94.10
DMM-LBP-DF [27]	2015	94.60
3DHoT-MBC [51]	2017	94.70
Extended SNV [19]	2016	94.74
LASC [52]	2017	95.50
Statistical HOG on Multi-DMM [53]	2019	95.97
MLFF+BLS [49]	2020	96.94
The proposed method (feature layer fusion)		96.80
The proposed method (decision layer fusion)		97.00

As can be seen, the proposed method achieves better performance than the DMM-LBP-DF and the Super Normal Vector with a rise of 2.16%and 2.02%in recognition rate, respectively. The reason is the same as the analysis performed in Section 5.2. Similarly, on this dataset, the method based on decision layer fusion is 0.35%higher than the method based on feature layer fusion, which further indicates that the former is a better fusion strategy for the recognition method proposed in this paper. Additionally, our method also shows better performance than some state-of-the-art methods on this dataset.

5 Conclusion

In this paper, a new scheme for action recognition from depth sequences has been proposed. The DMMs based CLBP descriptor and the polynormal descriptor were fused to capture the shape and motion cues of human actions comprehensively. To cope with the variations in speed of actions of the same kind performed by different subjects, a motion energy based spatial-temporal pyramid was used to subdivide the depth sequence. The CLBP was combined with the patch-based strategy so as to extract more texture features in DMMs. Moreover, the SCDL was used to separately encode the two low-level features to obtain their respective more compact feature representation, while retaining their higher-order statistics. Through spatial max pooling and temporal average pooling, the dimensions of the two different kinds of representation vectors were unified to form the final representation vector. Therefor, the proposed representation framework is also applicable to the fusion of other kinds of features. The SVM was chosen as the classifier and different fusion strategies were used to conduct extensive evaluation on the proposed method based on two public benchmark datasets. Experimental results showed that the proposed method is superior to each single feature based method and most of the existing recognition methods.

Footnotes

Acknowledgments

This work is supported in part by the Science and Technology Plan Project of Hunan Province, China under Grant 2016WK2023, and in part by the Changsha Science and Technology Plan Project under Grant KQ1901139.
