Two forms of three-way semiconcepts

Abstract

Semiconcept, a new data processing model, enriches the development of formal concept analysis. However, the classical semiconcept is supported by two-way decisions. In the study of classical semiconcept theory, how to express the information of jointly not possessed is also essential in making decisions. Therefore, this paper tries to combine the classical semiconcept theory with three-way decisions to present three-way semiconcepts, and carry on the further study. Firstly, we define new operators and give some properties of them. Two kinds of three-way semiconcepts —OE-semiconcept and AE-semiconcept, are presented. And the corresponding structures are searched out from the perspective of lattice theory. Furthermore, we analyze the relationship among three-way concepts, three-way semiconcepts and classical semiconcepts. On this basis, the algorithms to build OE-semiconcept and AE-semiconcept are presented. At the meanwhile, we take some examples to examine and explain the obtained results.

Keywords

Semiconcept Formal concept analysis Three-way decisions Three-way semiconcepts Lattice

1 Introduction

Based on a formal context, formal concept analysis (FCA) provides a simple and useful tool for analyzing data. It was proposed by Ganter and Wille [5] and used mainly for knowledge discovery [1 , 15] and data extraction [16 , 33]. Two main areas of research at the FCA are finding formal concepts [5] and constructing formal concept lattice [5].

A formal concept depends on extension and intension of its interdependence. And they have a relationship of jointly possess. Based on dual operators, extension and intension can be formed, so that philosophical concepts can be expressed in mathematical language by formal concepts. Formal concept lattice is a partially ordered collection with formal concepts as elements, and it is hierarchical. The correspondent Hasse diagram of formal concept lattice is visualized, and it determines the formal concept lattice under isomorphism.

The formal concept analysis theory introduced in [5] takes into account the feasibility of data processing with the method of operators. However, there are some issues with the FCA. (1) The classical formal concept only takes into account the common characteristics. The information that not be shared by a series of objects (attributes) cannot be determined from a formal concept. (2) The extension and intension must have the relation of have in common. For this reason, not all subsets of objects (attributes) can be the extension (intension) of a formal concept. That is, for a formal concept (A^*, A^**), the information expressed as (C, D) sometimes cannot be found in the family of (A^*, A^**), where C ⊆ D^* or D ⊆ C^*.

In view of problem (1), Qi et al. [20] put forward three-way concept analysis (3WCA) that applies three-way decisions to the FCA. Three-way decisions [25] is a decision model based on human cognition. In the actual decision-making process, due to insufficient information and incomplete cognition of events, people’s decisions are not completely the result of yes or no. For example, in the process of reviewing manuscripts, excellent manuscripts are directly accepted, while those of poor quality are directly rejected. However, in most cases, the manuscript may be innovative, but need to be further improved, then the chief editor will often choose to modify and re-examine. In medical treatment, for some minor diseases, doctors can quickly and accurately make the diagnosis of disease or no disease. For some difficult diseases, some tests may be required before further diagnosis. The revision of the paper and further observation are the delayed decisions added to three-way decisions. In addition, three-way decisions have a very broad application background [3 , 26]. Three-way decisions have been successfully applied in the fields of medicine, engineering, management and information [4 , 27].

In fact, the set of non-common is not equal to the set of common not. The set of non-co-owning is not the same as the set of common. 3WCA divides the set of attributes or set of objects into three parts: positive region, negative region, and boundary region. They represent the jointly owned features, the jointly unowned features, and the partially jointly owned features, respectively. Yao [8] discusses three-way concepts in an incomplete formal context. Zhao [29] studies the relationship between three-way concept lattices. Zhi [30] proposes three-way dual concept analysis based on dual concept analysis. As a major breakthrough in the FCA, 3WCA is a hot topic in data research and has been applied in many areas [19 , 28].

In order to solve the problem (2), Vormbrock and Wille [23] introduced semiconcept which obviously generalizes the representation of the formal concept analysis. Semiconcept also consists of extension and intention, but requires fewer restrictions than that of a formal concept. Semiconcept only requires finding shared attributes or objects, not vice versa. That is, the shared attributes D for a set of objects C. This means D ⊆ C^*, and so (C, D) is a semiconcept. Additionally, there is more information to be expressed through a semiconcept because any subset of objects (attributes) is the extention (intention) of asemiconcept [23, 24]. In this regard, Vormbrock [22, 23] studied the algebraic properties of semiconcepts. Mao [14] proposes the approximate operators on semiconcepts and discusses the combination of semiconcept and rough sets in [31]. Malik [13] generalizes the theory of the semiconcept in graphs. FCA has been enriched in its applications with the introduction of semiconcept [17], and semiconcept is a lift of the formal concept.

However, with the widespread use of the semiconcept, nor can it represent the features that common unshareds. The expansion of classic semiconcepts is on the agenda. In real life, for example, biologists sometimes study the relationships between species and biological characteristics in biological research. By using semiconcept, we can get the set of common features among species, but we do not discuss the feature from the perspective of common unshared. If we combine three-way decisions, we can discuss the relationship between species from both the perspective of common and common unshared. It is obvious that more information can be obtained by introducing the framework of a trisecting-and-acting into semiconcept.

Few studies combine three-way decisions with classical semiconcepts. This paper therefore tries to combine common shared features with common unshared features in analogy to the method proposed by 3WCA. To distinguish three-way semiconcepts examined in this paper, we call it classical semiconcept.

To achieve this goal, we will do the following works in this paper.

(1) First, we specify semioperators based on the relationship between the classical semiconcept and formal concept, and we define two types of three-way semiconcepts.

(2) Second, the properties of semioperators and the lattice properties of two kinds of three-way semiconcepts are discussed. At the same time, we explore the relationship between three-way concepts and three-way semiconcepts, as well as between classical semiconcepts and three-way semiconcepts.

(3) Finally, algorithms for designing three-way semiconcepts are proposed, and the effectiveness of the algorithm is verified through examples.

The study is arranged as follows. Section 2 is to review basic notions what we need later on. In Sections 3 and 4, definitions of two types of three-way semiconcepts are presented. Some properties are given for three-way semiconcepts also. Section 5 offers algorithms to generate two types of three-way seminconcepts. And examples to illustrate algorithms are in Section 6. The last one is Section 7 to draw conclusions.

2 Preliminaries

This section goes over the definitions and properties needed in the following discussion.

2.1 Some definitions in FCA

Definition 1. [5] A formal context K = (U, V, R) is composed of a set of objects U, a set of attributes V and a binary relation R between U and V, where U and V are nonempty finite set.

In K = (U, V, R), the correspondent operators are defined as follows.

Definition 2. [5, 20] Let X ⊆ U and A ⊆ V. Define positive operators ∗ as follows. $X^{*} = {v \in V | \forall x \in X, xRv},$ $A^{*} = {u \in U | \forall a \in A, uRa} .$

Negative operators $\bar{*}$ are defined by $X^{\bar{*}} = {v \in V | \forall x \in X, {xR}^{c} v},$ $A^{\bar{*}} = {u \in U | \forall a \in A, {uR}^{c} a} .$

Positive operators represent shared features and negative operators embody the characteristic of jointly not possess. According to Definition 2, it is obvious that there is a dual relationship between positive operators and negative operators.

2.2 Definitions in semiconcept

Definition 3. [23] In K = (U, V, R), X, Y ⊆ U and A, B ⊆ V. A ∩-semiconcept has the form (X, A) satisfying X^* = A. Call X and A the extension and the intension of (X, A), respectively. Dually, a ∪-semiconcept has the form (Y, B) if B^* = Y. ∩-semiconcept and ∪-semiconcept are collectively named semiconcept.

We will use Example 1 to explain Definition 3.

Example 1. Let K = (U, V, R₁) be used in Carpineto [7], in which U ={ Bat, Monkey, Penguin }, V = { can fly, has hands, has wings} and R₁ is shown in Table 1.

Table 1
A formal context for some animals K

can fly has hands has wings

Bat × ×

Monkey ×

Penguin ×

	can fly	has hands	has wings
Bat	×		×
Monkey		×
Penguin			×

Suppose 1=Bat, 2=Monkey, 3=Penguin, a=can fly, b=has hands, c=has wings. Then Table 1 can be expressed as Table 2.

Table 2

A formal context K₁

a	b	c
1	×	×
2	×
3	×

According to K₁, we can say U ={ 1, 2, 3 }, V ={ a, b, c } and R₁ is shown in Table 2. According to Definition 3, if X₁ = { 1, 3 } ⊆ U, $X_{1}^{*} = {1, 3}^{*} = {c} \subseteq V$ since {1, 3 } ^* = {1} ^* ∩ {3} ^* = { a, c } ∩ { c } = { c } . Hence, we can consider {{ 1, 3 } , { 1, 3 } ^* } to be a ∩-semiconcept.

For convenience, we write {{ 1, 3 } , { 1, 3 } ^* } as (13, c) in this paper.

Let Y₁ = { a, c } ⊆ V, using Definition 3, we can get $Y_{1}^{*} = {1} \subseteq U$ . Thus, we obtain (1, ac) to be a ∪-semiconcept.

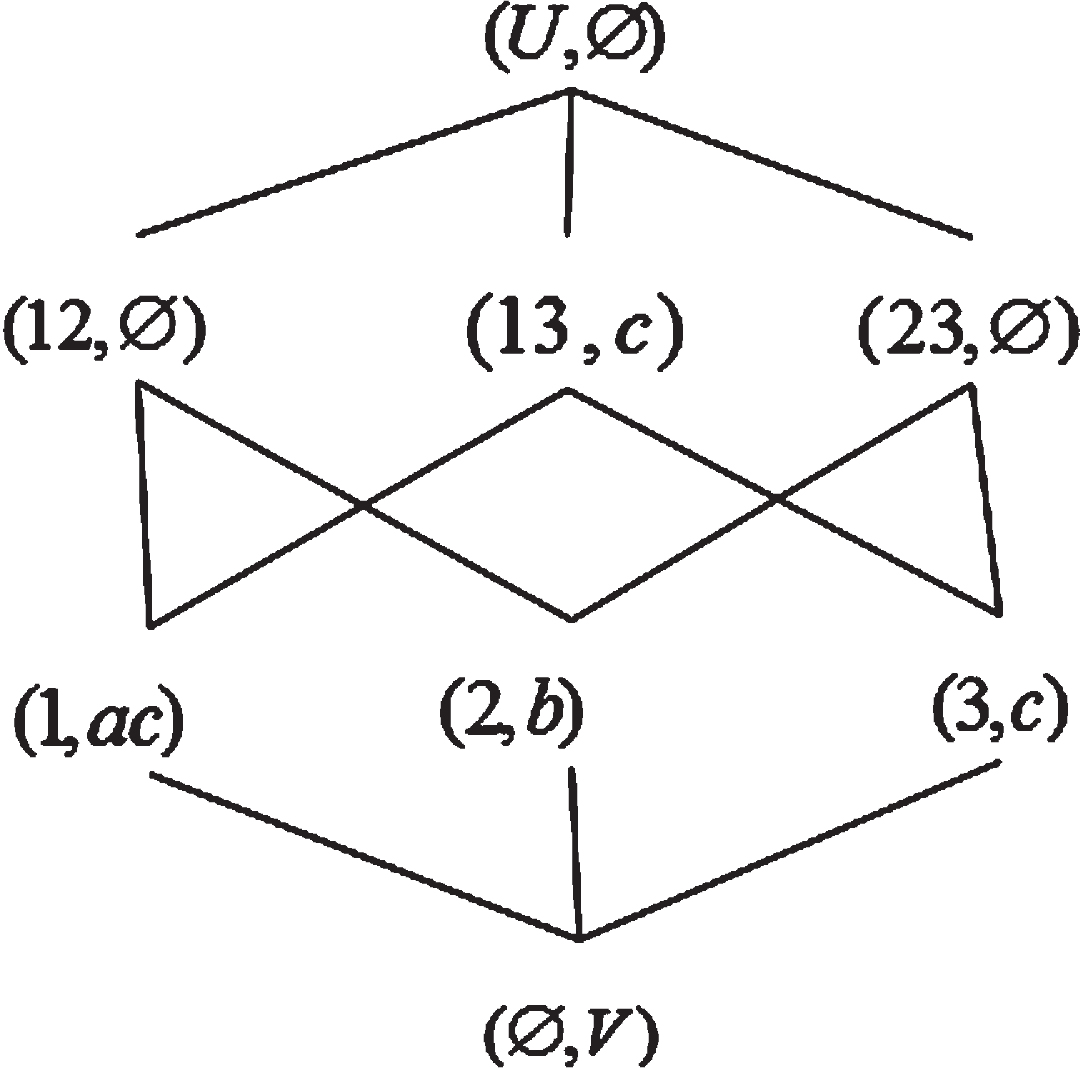

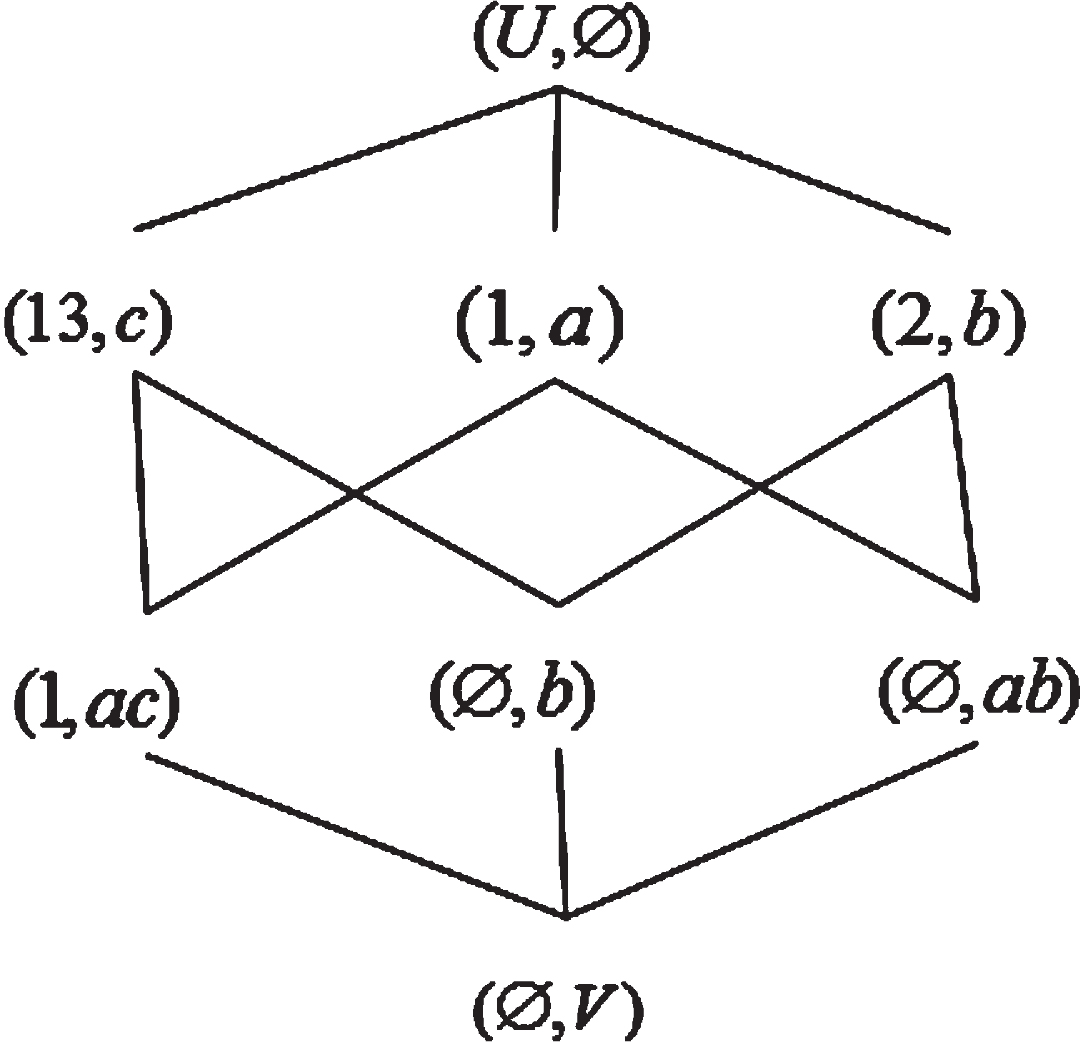

Analogously, we can obtain the family of ∩-semiconcepts and ∪-semiconcepts in K₁.

2.3 Some definitions in lattice and order

Lemma 1. (1) If a partial order relation ≤ is given on set R, then set R and partial order ≤ together are called poset, denoted as (R, ≤). A partial order relation is reflexive, antisymmetric, and transitive.

(2) Let (R, ≤) be a poset. If ∀ a, b ∈ R have supremum a ∨ b and infimum a ∧ b, then (R, ≤) is called a lattice.

2.4 Definitions in 3WCA

Definition 4. [20] Let Y, Z ⊆ U and C, D ⊆ V.

(1) A pair of OE-operators is defined by $Y^{< \cdot} = (Y^{*}, Y^{\bar{*}}),$ $(C, D)^{\cdot >} = {y \in U | y \in C^{*} and y \in D^{\bar{*}}} = C^{*} \cap D^{\bar{*}}$ .

where $Y^{\bar{*}} = {a \in V | \forall y \in Y, {yR}^{c} a},$ and $C^{\bar{*}} = {y \in U | \forall c \in C, {yR}^{c} C} .$

(2) An OE-concept has the form (Y, (C, D)) if Y^<· = (C, D) and (C, D) ^·> = Y.

Lemma 2. [20] Let Y, Y₁, Y₂ ⊆ U, C, C₁, C₂, and D, D₁, D₂ ⊆ V. For the pair of OE-operators, we have

(O1) Y ⊆ Y^<··> and (C, D) ⊆ (C, D) ^·><·,

(O2) $Y_{1} \subseteq Y_{2} \Rightarrow Y_{2}^{< \cdot} \subseteq Y_{1}^{< \cdot}$ and (C₁, D₁) ⊆ (C₂, D₂) ⇒ (C₂, D₂) ^·> ⊇ (C₁, D₁) ^·>,

(O3) Y^<· = Y^<··><· and (C, D) ^·> = (C, D) ^·><··>,

(O4) Y ⊆ (C, D) ^·> ⇔ (C, D) ⊆ Y^<·,

(O5) $(Y_{1} \cup Y_{2})^{< \cdot} = Y_{1}^{< \cdot} \cap Y_{2}^{< \cdot}$ and ((C₁, D₁) ∪ (C₂, D₂)) ^·> = (C₁, D₁) ^·> ∩ (C₂, D₂) ^·>,

(O6) $(Y_{1} \cap Y_{2})^{< \cdot} \supseteq Y_{1}^{< \cdot} \cup Y_{2}^{< \cdot}$ and ((C₁, D₁) ∩ (C₂, D₂)) ^·> ⊇ (C₁, D₁) ^·> ∪ (C₂, D₂) ^·> .

Lemma 3. [20] (1) Let (Y₁, (C₁, D₁)) and (Y₂, (C₂, D₂)) be OE-concepts. The partial order can be defined by $\begin{matrix} (Y_{1}, (C_{1}, D_{1})) \leq (Y_{2}, (C_{2}, D_{2})) \Leftrightarrow Y_{1} \subseteq Y_{2} \Leftrightarrow (C_{2}, D_{2}) \subseteq (C_{1}, D_{1}) . \end{matrix}$

(2) And the infimum and the supermum are given by (Y₁, (C₁, D₁)) ∧ (Y₂, (C₂, D₂)) = (Y₁ ∩ Y₂, ((C₁, D₁) ∪ (C₂, D₂)) ^·><·) , (Y₁, (C₁, D₁)) ∨ (Y₂, (C₂, D₂)) = ((Y₁ ∪ Y₂) ^<··>, (C₁, D₁) ∩ (C₂, D₂)) .

Remark 1. The correspondent definitions and properties of AE-concept can be similarly defined by negative operators. We only introduce OE-concept in detail in the paper.

3 Definitions of OE-semiconcept and some related properties.

This section focuses on OE-semiconcept. Also, it is exactly the theory of lattices to make classical formal concept lattice developed and applied in many fields. Hence, we also discuss the lattice structure of OE-semiconcepts. All the research we do in the following is based on a formal context K = (U, V, R).

3.1 Definitions of OE-semiconcept

According to the operators in formal concept analysis, we define three-way semiconcepts in combination with three-way decisions.

Definition 5. Given Y ⊆ U and C ⊆ V, the object-induced semioperator (simply, OE-semioperator)

< · : $P (U) \to P (V)$ , is defined by $Y^{< \cdot} = (Y^{*}, Y^{\bar{*}}) .$ where Y^* ={ a ∈ V| ∀ y ∈ Y, yRa } and $Y^{\bar{*}} = {a \in V | \forall y \in Y, {yR}^{c} a} .$

Example 2. Take K₁ = (U, V, R) in Example 1. Let X₁ = { 1, 3 } ⊆ U. According to Definition 5, we can consider $X_{1}^{< \cdot} = (c, b)$ since ${1, 3}^{< \cdot} = {{1, 3}^{*}, {1, 3}^{\bar{*}}} = (c, b) .$

From Definition 5, we can state that OE-semioperator is one part of OE-operator. Next, similar to the discussion for OE-operators in Qi [20], we can easily obtain the results about OE-semioperator.

Property 1. For Y₁, Y₂ ⊆ U, the following statements hold.

(1) $Y_{1} \subseteq Y_{2} \Rightarrow Y_{2}^{< \cdot} \subseteq Y_{1}^{< \cdot},$

(2) $(Y_{1} \cup Y_{2})^{< \cdot} = Y_{1}^{< \cdot} \cap Y_{2}^{< \cdot},$

(3) $(Y_{1} \cap Y_{2})^{< \cdot} \supseteq Y_{1}^{< \cdot} \cap Y_{2}^{< \cdot} .$

Proof. To prove item (1).

Since Y₁ ⊆ Y₂, it follows $Y_{1}^{*} \supseteq Y_{2}^{*}$ and $Y_{1}^{\bar{*}} \supseteq Y_{2}^{\bar{*}}$ . Thus, $(Y_{1}^{*}, Y_{1}^{\bar{*}}) \supseteq (Y_{2}^{*}, Y_{2}^{\bar{*}})$ , which implies $Y_{2}^{< \cdot} \subseteq Y_{1}^{< \cdot}$ .

To prove item (2). $\begin{matrix} (Y_{1} \cup Y_{2})^{< \cdot} & = ((Y_{1} \cup Y_{2})^{*}, (Y_{1} \cup Y_{2})^{\bar{*}}) \\ = ((Y_{1}^{*} \cup Y_{2}^{*}), (Y_{1} \cup Y_{2})^{\bar{*}}) & = ((Y_{1}^{*} \cup Y_{2}^{*}), (Y_{1}^{\bar{*}} \cup Y_{2}^{\bar{*}})) \\ = ((Y_{1}^{*}, Y_{1}^{\bar{*}}) \cap (Y_{2}^{*}, Y_{2}^{\bar{*}})) . \end{matrix}$

Hence, it follows $(Y_{1} \cup Y_{2})^{< \cdot} = Y_{1}^{< \cdot} \cap Y_{2}^{< \cdot}$ .

To prove item (3).

As $Y_{1}^{*} \cup Y_{2}^{*} \subseteq (Y_{1} \cap Y_{2})^{*}$ and $Y_{1}^{\bar{*}} \cup Y_{2}^{\bar{*}} \subseteq (Y_{1} \cap Y_{2})^{\bar{*}}$ , it follows $(Y_{1}^{*} \cup Y_{2}^{*}, Y_{1}^{\bar{*}} \cup Y_{2}^{\bar{*}}) \subseteq ((Y_{1} \cap Y_{2})^{*}, (Y_{1} \cap Y_{2})^{\bar{*}})$ . Thus, we have $(Y_{1}^{*}, Y_{1}^{\bar{*}}) \cup (Y_{2}^{*}, Y_{2}^{\bar{*}}) \subseteq (Y_{1} \cap Y_{2})^{< \cdot}$ in view of Definition 5. That is, $(Y_{1} \cap Y_{2})^{< \cdot} \supseteq Y_{1}^{< \cdot} \cap Y_{2}^{< \cdot}$ . Since classical semiconcept is only discussed in a single direction, the inverse operation of the OE-semioperator is not considered. On the basis of the OE-semioperator, we can obtain a new notion–OE-semiconcept.

Definition 6. An object-induced semiconcept (simply, OE-semiconcept) has the form (X, (A, B)) if X^<· = (A, B), i.e. $X^{*} = A and X^{\bar{*}} = B$ , where X ⊆ U and A, B ⊆ V.

We call X and (A, B) the extension and the intension of (X, (A, B)), respectively. The family of OE-semiconcepts is in notation δ_OE (K).

Next we use an example to interpret Definition 6.

Example 3. In K₁ = (U, V, R), let X₁ = { 1, 3 } ⊆ U. Then we obtain $X_{1}^{< \cdot} = (X_{1}^{*}, X_{1}^{\bar{*}}) = (c, b)$ according to Denifition 5. Hence, we can get an OE-semiconcept $(X_{1}, (X_{1}^{*}, X_{1}^{\bar{*}})) = (13, (c, b))$ by Definition 6.

3.2 Properties of OE-semiconcept in lattice

Through similar discussion for partial order and lattice property for classical formal concept lattice in Wille [5], we will obtain the following theorems about OE-semiconcept and prove it in detail.

Theorem 1. (1) (δ_OE (K) , ≤) is a poset, where ≤ is defined as follows: for (Y₁, (C₁, D₁)) , (Y₂, (C₂, D₂)) ∈ δ_OE (K). $\begin{matrix} (Y_{1}, (C_{1}, D_{1})) \leq (Y_{2}, (C_{2}, D_{2})) & : \Leftrightarrow Y_{1} \subseteq Y_{2} and (C_{1}, D_{1}) \supseteq (C_{2}, D_{2}) . \end{matrix}$

(Y₁, (C₁, D₁)) is called a sub-OE-semiconcept of (Y₂, (C₂, D₂)) and (Y₂, (C₂, D₂)) is called a sup-OE-semiconcept of (Y₁, (C₁, D₁)).

(2) (δ_OE (K) , ≤) is a lattice if the correspondent infimum and supremum are given by $(Y_{1}, (C_{1}, D_{1})) \land (Y_{2}, (C_{2}, D_{2})) : = (Y_{1} \cap Y_{2}, ((Y_{1} \cap Y_{2})^{*}, (Y_{1} \cap Y_{2})^{\bar{*}})),$ $(Y_{1}, (C_{1}, D_{1})) \lor (Y_{2}, (C_{2}, D_{2})) : = (Y_{1} \cup Y_{2}, ((Y_{1} \cup Y_{2})^{*}, (Y_{1} \cup Y_{2})^{\bar{*}})) .$

We call this lattice OE-semiconcept lattice, written as OESCL (U, V, R).

Proof. To prove item (1).

By Lemma 1, we divide three steps to prove ≤ be reflexive, antisymmetric and transitive.

Step 1. Due to Y₁ ⊆ Y₁ and C₁ ⊆ C₁ with D₁ ⊆ D₁, one can easily verify that (Y₁, (C₁, D₁)) ≤ (Y₁, (C₁, D₁)). That is, ≤ is reflexive.

Step 2. Let (Y₁, (C₁, D₁)) ≤ (Y₂, (C₂, D₂)) and (Y₂, (C₂, D₂)) ≤ (Y₁, (C₁, D₁)). According to Lemma 3(1), we get (Y₁, (C₁, D₁)) = (Y₂, (C₂, D₂)) since Y₂ = Y₁, C₁ = C₂ and D₁ = D₂. That is, ≤ is antisymmetric.

Step 3. Let (Y₁, (C₁, D₁)) ≤ (Y₂, (C₂, D₂)) and (Y₂, (C₂, D₂)) ≤ (Y₃, (C₃, D₃)). Then (Y₁, (C₁, D₁))≤ (Y₃, (C₃, D₃)) holds since Y₁ ⊆ Y₂ ⊆ Y₃, C₁ ⊇ C₂ ⊇ C₃ and D₁ ⊇ D₂ ⊇ D₃. That is, ≤ is transitive.

To prove item (2).

As $(Y_{1} \cap Y_{2})^{*} \supseteq Y_{j}^{*}$ and $(Y_{1} \cap Y_{2})^{\bar{*}} \supseteq Y_{j}^{\bar{*}} (j = 1, 2)$ . we can obtain

$(Y_{1} \cap Y_{2}, ((Y_{1} \cap Y_{2})^{*}, (Y_{1} \cap Y_{2})^{\bar{*}})) \leq (Y_{1}, (C_{1}, D_{1})),$ $(Y_{1} \cap Y_{2}, ((Y_{1} \cap Y_{2})^{*}, (Y_{1} \cap Y_{2})^{\bar{*}})) \leq (Y_{2}, (C_{2}, D_{2})) .$

Let (Y₃, (C₃, D₃)) ∈ (δ_OE (K) , ≤) be a lower bound. We can consider Y₃ ⊆ Y₁ ∩ Y₂ and (C₃, D₃) ⊇ (C₁, D₁) ∩ (C₂, D₂). Therefore, we can decide $(Y_{1} \cap Y_{2}, ((Y_{1} \cap Y_{2})^{*}, (Y_{1} \cap Y_{2})^{\bar{*}})) \geq (Y_{3}, (Y_{3}^{*},$ $Y_{3}^{\bar{*}})) .$

It follows that $(Y_{1} \cap Y_{2}, ((Y_{1} \cap Y_{2})^{*}, (Y_{1} \cap Y_{2})^{\bar{*}}))$ is the infimum. Analogous to the above proof, we can prove the supremum. Thus, we confirm that (δ_OE (K) , ≤) is a lattice by Lemma 1.

How to use Theorem 1 is illustrated in Examples 4 and 5.

Example 4. Let K₁ = (U, V, R) be in Example 1. Let X₁ ={ 1 } and X₂ = { 1, 3 } . Then we can obtain $(X_{1}, (X_{1}^{*}, X_{1}^{\bar{*}})) = (1, (ac, b)), (X_{2}, (X_{2}^{*}, X_{2}^{\bar{*}})) = (13, (c, b)) \in δ_{OE} (K)$ by Definition 6. We may say $X_{1} \subseteq X_{2}, X_{1}^{*} \supseteq X_{2}^{*} and X_{1}^{\bar{*}} \supseteq X_{2}^{\bar{*}}$ . Thus, we can obtain $(X_{1}, (X_{1}^{*},$ $X_{1}^{\bar{*}})) \leq (X_{2}, (X_{2}^{*}, X_{2}^{\bar{*}}))$ by the first property in Theorem 1.

Example 5. Let K₁ = (U, V, R) be in Example 1. Let (1, (ac, b)) , (13, (c, b)) ∈ δ_OE (K). According to the second property in Theorem 1, we can obtain (1, (ac, b)) ∧ (13, (c, b)) = (1, (ac, b)) ,

(1, (ac, b)) ∨ (13, (c, b)) = (13, (c, b)) .

(1, (ac, b)) For the semiconcept (1, (ac, b)), it means that the bat has the attributes of flying and having wings and does not have hands. Semiconcept (13, (c, b)) indicates that the shared features of bats and penguins is that they have wings, but the common feature that they do not have is that they have hands. Both bat and penguin must have the attribute that is less than or equal to that of a bat or a penguin. From a biological point of view, (1, (ac, b)) and (13, (c, b)) is a subdivision of the supremum (13, (c, b)). For the infimum (1, (ac, b)), it is a subdivision of (1, (ac, b)) and (13, (c, b)).

Based on the relationship between formal concept and classical semiconcept, we also wonder whether the relationship can be extended to OE-semiconcept. Next, we will talk about the relationships between OE-concept and OE-semicncept, and between ∩-semiconcept and OE-semiconcept, respectively.

We will introduce the definitions of two kinds of ∩-semiconcepts.

Definition 7. A P_∩-semiconcept is the ∩-semiconcept induced by its positive operator. Dually, a N_∩-semicon cept refers to the ∩-semiconcept derived by its negative operator.

P_∩-semiconcept represents the positive information that the set of common shared attributes. And N_∩-semiconcept represents the negative information that the set of common unshared attributes.

Example 6. Let K₁ = (U, V, R) be in Example 1. If X₁ ={ 1, 3 }. $X_{1}^{*} = {c}$ and $X_{1}^{\bar{*}} = {b}$ hold according to Definition 2. So $(X_{1}, X_{1}^{*}) = (13, c)$ is a P_∩-semiconcept. And $(X_{1}, X_{1}^{\bar{*}}) = (13, b)$ is a N_∩-semiconcept.

Remark 2. For K = (U, V, R), P_∩-semiconcepts form the ∩-semiconcept lattice, named SCL_∩ (U, V, R). N_∩-semiconcepts compose the complement ∩-semicon cept lattice, denoted as NSCL_∩ (U, V, R).

Theorem 2. Given X ⊆ U, we can get:

(1) (X^**, X^*) is a P_∩-semiconcept.

(2) $(X^{\bar{* *}}, X^{\bar{*}})$ is a N_∩-semiconcept.

Proof. Considering X^* = X^***, then (X^**, X^*) is a P_∩-semiconcept. As $X^{\bar{*}} = X^{\bar{* * *}}$ , it implies that $(X^{\bar{* *}}, X^{\bar{*}})$ is a N_∩-semiconcept. Next, we will discuss the relationship between OE-semiconcept and OE-concept

Theorem 3. (Y, (C, D)) is an OE-semiconcept if it is an OE-concept.

Proof. Using Definition 4, we can consider Y^<· = (C, D) from the OE-concept (Y, (C, D)). That is, $(Y^{*}, Y^{\bar{*}}) = (C, D)$ . Thus, (Y, (C, D)) is an OE-semiconcept. The relationship between ∩-semiconcept and OE-semiconcept is given as follow.

Theorem 4. Let (X, A) be a P_∩-semiconcept and (X, B) be a N_∩-semiconcept, then (X, (A, B)) is an OE-semiconcept.

Proof. By Definition 7, we can get X^* = A and $X^{\bar{*}} = B$ since (X, A) is a P_∩-semiconcept and (X, B) is a N_∩-semiconcept. Thus, $X^{\to} = (X^{*}, X^{\bar{*}}) = (A, B)$ . Hence, according to Definition 6, (X, (A, B)) is an OE-semiconcept.

4 Definitions and properties of AE-semiconcept

Since the proof of relative notions of AE-semiconcept is similar to those in Section 3, the correspondent interprets are omitted here. In this process, we mainly describe the definitions and properties.

Definition 8. Given X ⊆ U and A ⊆ V in K = (U, V, R), the attribute-induced semioperator (simply, AE-semioperator) $\cdot > : P (V) \to P (U)$ , is defined as follows. $A^{\cdot >} = (A^{*}, A^{\bar{*}}) .$ where A^* ={ x ∈ U| ∀ a ∈ A, xRa } and $A^{\bar{*}} = {x \in U | \forall a \in A, {xR}^{c} a} .$

Property 2. For A₁, A₂ ⊆ V, there exist some properties.

(1) $A_{1} \subseteq A_{2} \Rightarrow A_{2}^{\cdot >} \subseteq A_{1}^{\cdot >},$

(2) $(A_{1} \cup A_{2})^{\cdot >} = A_{1}^{\cdot >} \cap A_{2}^{\cdot >},$

(3) $(A_{1} \cap A_{2})^{\cdot >} \supseteq A_{1}^{\cdot >} \cap A_{2}^{\cdot >} .$

Proof. Routine verification by the dual of Property 1.

Definition 9. For X, Y ⊆ U and A ⊆ V, an attribute-induced semiconcept (simply, AE - semiconcept) is expressed by ((X, Y) , A) if A^·> = (X, Y), i.e. $A^{*} = X and A^{\bar{*}} = Y$ .

We call (X, Y) and A the extension and the intension of ((X, Y) , A), respectively. The family of AE-semiconcepts is in notation δ_AE (K).

We call OE-semiconcept and AE-semiconcept three-waysemiconcepts.

Theorem 5. (1) (δ_AE (K) , ≤) is a poset, where ≤ is defined as follows: for ((Y₁, Z₁) , B₁) , ((Y₂, Z₂) , B₂) ∈ δ_AE (K). $\begin{matrix} ((Y_{1}, Z_{1}), B_{1}) \leq ((Y_{2}, Z_{2}), B_{2}) & : \Leftrightarrow \\ (Y_{1}, Z_{1}) \subseteq (Y_{2}, Z_{2}) and B_{1} \supseteq B_{2} . \end{matrix}$

((Y₁, Z₁) , B₁) is called a sub-AE-semiconcept of ((Y₂, Z₂) , B₂) and ((Y₂, Z₂) , B₂) is called a sup-AE-semiconcept of ((Y₁, Z₁) , B₁).

(2) (δ_AE (K) , ≤) is a lattice if the correspondent infimum and supremum are given by $((Y_{1}, Z_{1}), B_{1}) \land ((Y_{2}, Z_{2}), B_{2}) : = (((B_{1} \cap B_{2})^{*}, (B_{1} \cap B_{2})^{\bar{*}}), B_{1} \cap B_{2}),$ $((Y_{1}, Z_{1}), B_{1}) \lor ((Y_{2}, Z_{2}), B_{2}) : = (((B_{1} \cup B_{2})^{*}, (B_{1} \cup B_{2})^{\bar{*}}), B_{1} \cup B_{2}) .$

The AE-semiconcept lattice is denoted as AESCL (U, V, R).

Definition 10. A P_∪-semiconcept refers to the ∪-semiconcept generated by positive operator. Dually, a N_∪-semiconcept is the ∪-semiconcept generated by negative operator.

Remark 3. For K = (U, V, R), P_∪-semiconcepts form the ∪-semiconcept lattice, named SCL_∪ (U, V, R). N_∪-semiconcepts compose the complement ∪-semicon cept lattice, denoted as NSCL_∪ (U, V, R).

Theorem 6. For A ⊆ V, we can get:

(1) (A^*, A^**) is a P_∪-semiconcept.

(2) $(A^{\bar{*}}, A^{\bar{* *}})$ is a N_∪-semiconcept.

Theorem 7. ((X, Y) , A) is an AE-semiconcept if it is an AE-concept.

Theorem 8. Let (X, A) be a P_∪-semiconcept and (Y, A) be a N_∪-semiconcept, then ((X, Y) , A) is an AE-semiconcept.

Remark 4. In fact, Definition 10 is the dual of Definition 7. Hence, we can obtain Theorems 5, 6, 7, 8 from Theorems 1, 2, 3, 4 by the Duality principle.

5 Algorithms searching for OE-semiconccept and AE-semiconcept

This section will propose the constructing algorithms of searching OE-semiconcept and AE-semiconc-ept. And we give an example to illustrate the effect of these algorithms. Since the duality of OE-semiconcept and AE-semiconcept, we will provide and interpret the algorithm to construct OESCL (U, V, R) in detail. And the correspondent algorithm of AESCL (U, V, R) can be obtained by similar way.

5.1 Algorithms relative to OE-semiconcept

The algorithm will be realized with the assistance of classical semiconcept. To achieve this goal, we first give an equivalence relation on K to serve for finding OESCL (U, V, R).

Definition 11. With respect to K = (U, V, R), define an equivalence relation $I$ : $(X, A) I (Y, B) \Leftrightarrow X = Y .$ where (X, A) ∈ SCL_∩ (U, V, R) and (Y, B) ∈ NSCL_∩ (U, V, R).

Proof. It is easy to prove $I$ to be reflexive, symmetric, transitive. Theorem 9. $D$ is a set with all equivalence classes in $K / I$ as elements. We can obtain OESCL (U, V, R) = ${(Y, (C_{1}, C_{2})) | ((Y, C_{1}), (X, C_{2})) \in D} .$

Proof. Firstly, we need to prove $OESCL (U, V, R) \subseteq D .$

For ∀ (Y, (C₁, C₂)) ∈ OESCL (U, V, R), it follows that Y^* = C₁ and $Y^{\bar{*}} = C_{2}$ by Definition 6. That is, both (Y, C₁) ∈ SCL_∩ (U, V, R) and (Y, C₂) ∈ NSCL_∩ (U, V, R) hold by Definition 7. According to Definition 11, we have $((Y, C_{1}), (Y, C_{2})) \in D$ , which implies $OESCL (U, V, R) \subseteq D$ .

Secondly, we prove $OESCL (U, V, R) \supseteq D$ .

If $((Y, C_{1}), (X, C_{2})) \in D$ , it follows $(Y, C_{1}) I (X, C_{2})$ . That is, we can confirm X = Y, (Y, C₁) ∈ SCL_∩ (U, V, R) and (X, C₂) ∈ NSCL_∩ (U, V, R). So Y^* = C₁ and $Y^{\bar{*}} = C_{2}$ . (Y, (C₁, C₂)) ∈ OESCL (U, V, R) holds using Definition 6. Hence, $D \subseteq OESCL (U, V, R)$ . We first give Algorithm 1 to generate SCL_∩ (U, V, R), afterwards Algorithm 2 is to search NSCL_∩ (U, V, R).

Algorithm 1 Build SCL_∩ (U, V, R) .

Require: A formal context K = (U, V, R).

Ensure: all P_∩-semiconcepts.

1: Set SCL_∩ (U, V, R) = ∅ .

2: for each X ⊆ U do

3: for each A ⊆ V do

4: if X^* = A then

5: SCL_∩ (U, V, R) ={ (X, A) } ∪

SCL_∩ (U, V, R)

6: end if

7: end for

8: end for

9: Generate SCL_∩ (U, V, R) .

10: Return SCL_∩ (U, V, R) .

Algorithm 2 Build NSCL_∩ (U, V, R) .

Require: A formal context K = (U, V, R).

Ensure: all N_∩-semiconcepts.

1: Set NSCL_∩ (U, V, R) = ∅ .

2: for each Y ⊆ U do

3: for each B ⊆ V do

4: if $Y^{\bar{*}} = B$ then

5: NSCL_∩ (U, V, R) ={ (Y, B) } ∪

NSCL_∩ (U, V, R)

6: end if

7: end for

8: end for

9: Generate NSCL_∩ (U, V, R) .

10: Return NSCL_∩ (U, V, R) .

We propose Algorithm 3 to build OESCL (U, V, R) based on the aid of Algorithms 1 and 2.

Algorithm 3 Build OESCL (U, V, R)

Require: A formal context K = (U, V, R), the equivalence relation $I$ on K.

Ensure: all OE-semiconcepts.

1: Set $OESCL (U, V, R) = \emptyset, D = K / I .$

2: Use Algorithm 1 to calculate the set SCL_∩ (U, V, R) of all ∩-semiconcepts.

3: Use Algorithm 2 to generate the set NSCL_∩ (U, V, R) of all ∩-semiconcepts.

4: while ((X, A) ∈ SCL_∩ (U, V, R) and (Y, B) ∈ NSCL_∩ (U, V, R)) do

5: if $((X, A), (Y, B)) \in D$ then

6: OESCL (U, V, R) ={ (X, (A, B)) } ∪

OESCL (U, V, R)

7: end if

8: end while

9: Generate OESCL (U, V, R) .

10: Return OESCL (U, V, R) .

Next, we analyze the above algorithms in the aspect of time complexity.

Algorithm 1, proposed in view of Definition 7, depends on steps 4-6. Step 2 is to find all the family of subsets of U and step 3 is to find all the family of subsets of V. So the time complexities of steps 2 and 3 are O (2^|U|) and O (2^|V|), respectively. Step 4 finds out a new ∩-semiconcept, and hence the complexity of Algorithm 1 is O (2^|U|+|V|).

Similar to Algorithm 1, it is easy to obtain the complexity of Algorithm 2 is O (2^|U|+|V|).

In Algorithm 3, step 2 is generated by Algorithm 1. Likewise, step 3 is generated by Algorithm 3. Steps 5-7 are based on Theorem 9 and we need to verify whether X = Y, where X, Y ⊆ U. That is, the execution process of Algorithm 3 consists of three parts: buliding SCL_∩ (U, V, R) by Algorithm 1, constructing NSCL_∩ (U, V, R) by Algorithm 2, and finding OESCL (U, V, R) based on Theorem 9. To sum up, the time complexity of Algorithm 3 is O (2^|U|+|V|).

5.2 Algorithms relative to AE-semiconcept

Definition 12. In K = (U, V, R), define an equivalence relation $J$ : $(Z, C) J (W, D) \Leftrightarrow C = D .$ where (Z, C) ∈ SCL_∪ (U, V, R) and (W, D) ∈ NSCL_∪ (U, V, R).

Theorem 10. $T$ is a set with the family of equivalence classes in $K / J$ as elements.

AESCL (U, V, R) =

${((X_{1}, X_{2}), A) | ((X_{1}, A), (X_{2}, B)) \in T} .$

Next, Algorithm 4 is proposed to search SCL_∪ (U, V, R) and Algorithm 5 is to build NSCL_∪ (U, V, R), respectively.

Algorithm 4 Build SCL_∪ (U, V, R)

Require: A formal context K = (U, V, R).

Ensure: all P_∪-semiconcepts.

1: Set SCL_∪ (U, V, R) = ∅ .

2: for each C ⊆ V do

3: for each Z ⊆ U do

4: if C^* = Z then

5: SCL_∪ (U, V, R) = { (Z, C) } ∪ SCL_∪ (U, V, R) .

6: end if

7: end for

8: end for

9: Generate SCL_∪ (U, V, R) .

10: Return SCL_∪ (U, V, R) .

Algorithm 5 Build NSCL_∪ (U, V, R)

Require: A formal context K = (U, V, R).

Ensure: all N_∪-semiconcepts.

1: Set NSCL_∪ (U, V, R) = ∅ .

2: for each D ⊆ V do

3: for each W ⊆ U do

4: if $D^{\bar{*}} = W$ then

5: NSCL_∪ (U, V, R) ={ (W, D) } ∪

NSCL_∪ (U, V, R) .

6: end if

7: end for

8: end for

9: Generate NSCL_∪ (U, V, R) .

10: Return NSCL_∪ (U, V, R) .

In the following, we propose an algorithm to construct AESCL (U, V, R) based on Theorem 10, shown as Algorithm 6.

Algorithm 6 Build AESCL (U, V, R)

Require: A formal context K = (U, V, R), the equivalence relation $J$ on K.

Ensure: all AE-semiconcepts.

1: Set $AESCL (U, V, R) = \emptyset, T = K / J .$

2: Use Algorithm 4 to find the set SCL_∪ (U, V, R) of all ∪-semiconcepts.

3: Use Algorithm 5 to generate the set NSCL_∪ (U, V, R) of all ∪-semiconcepts.

4: while ((Z, C) ∈ SCL_∪ (U, V, R) and (W, D) ∈ NSCL_∪ (U, V, R)) do

5: if $((Z, C), (W, D)) \in T$ then

6: AESCL (U, V, R) ={ ((Z, W) , C) } ∪

AESCL (U, V, R) .

7: end if

8: end while

9: Generate AESCL (U, V, R) .

10: Return AESCL (U, V, R) .

Actually, the time complexity of both Algorithms 4 and 5 to be O (2^|U|+|V|). And the time complexity of Algorithm 6 is O (2^|U|+|V|).

6 Example

In the following, we illustrate the above algorithms to construct six different lattices based on a formal context detailedly.

Example 7. The formal context is as Table 2. Now we analyze the biological characteristics of these three species. And the complement context is shown in Table 3.

Table 3
The complement context K₂ of K₁

a b c

1 ×

2 × ×

3 × ×

a	b	c
1	×
2	×	×
3	×	×

Firstly, we get the OESCL (U, V, R) of formal context K₁.

(1) To build SCL_∩ (U, V, R) by Algorithm 1. First, let ρ (U) be the subsets of U. Then we can get eight subsets of U since |U|=3. ρ (U) = {∅ , 1, 2, 3, 12, 13, 23, U}. Then we can get ∅^* = V, 1^* = {a, c} , 2^* = {b} , 3^* = {c} , {1, 2} ^* = {∅} , {1, 3} ^* = {c} , {2, 3} ^* = {∅} , G^* = ∅ . So, SCL_∩ (U, V, R) = {(∅ , V) , (1, ac) , (2, b) , (3, ac) , (12, ∅) , (13, c) , (23, ∅) , (U, ∅)}.

(2) To build NSCL_∩ (U, V, R) by Algirithm 2. As ρ (U) = {∅ , 1, 2, 3, 12, 13, 23, U}. Then we can get $\emptyset^{\bar{*}} = V$ , $1^{\bar{*}} = {b}, 2^{\bar{*}} = {a, c}, 3^{\bar{*}} = {a, b}, {1, 2}^{\bar{*}} = {\emptyset}, {1, 3}^{\bar{*}} = {b}, {2, 3}^{\bar{*}} = {a}, G^{\bar{*}} = \emptyset .$ So, NSCL_∩ (U, V, R) = { (∅ , V) , (1, b) , (2, ac) , (3, ab) , (12, ∅) , (13, b) , (23, a) , (U, ∅) } .

(3)To build OESCL (U, V, R) by Algorithm 3. Based on SCL_∩ (U, V, R) and NSCL_∩ (U, V, R), we can get the corresponding OESCL (U, V, R) = {((∅ , (V, V)) , (1, (ac, b)) , (2, (b, ac)) , (3, (c, ab)) , (12, (∅ , ∅)) , (13, (c, b)) , (23, (∅ , a)) , (U, (∅ , ∅))}.

That is, through the analysis of OE-Semiconcept, we can get the following classification:

OESCL (U, V, R) = {(∅ , (V, V)) , ({Bat} , ({can fly, has wings} , {has hands})) , ({Monkey} , ({has hands} , {can fly, has wings})) , ({Penguin} , ({has wings} , {can fly, has hands})) , ({Bat,Monkey} , (∅ , ∅)) , ({Bat,Penguin} , ({has wings} , {has hands})) , ({Monkey,Penguin} , (∅ , {can fly})) , (G,(∅ , ∅))} .

Based on the analysis of Algorithm 3, the complexity of Example 7 is O (2^|3|+|3|) = O (2³⁺³) = O (2⁶). Figures 1,3 and 5 are the correspondent Hasse diagrams. In OESCL (U, V, R), for example, the OE-semiconcept (13, (c, b)) indicates that both Bat and Penguin have wings, but they do not have hands. The conclusion can be stated that Bat and Penguin are classified into one group in terms of having wings and not having hands attributes. Therefore, we can further study the relationship between Bat and Penguin. Thus, OE-semiconcept can express more information than classical semiconcept.

Fig. 1

SCL_∩ (U, V, R).

Fig. 2

NSCL_∪ (U, V, R).

Fig. 3

NSCL_∩ (U, V, R).

Example 8. The formal context is as Table 2. And the complement context is shown in Table 3. Analogously, we can generate AESCL (U, V, R) based on Algorithms 4-6.

AESCL (U, V, R) = {((∅ , ∅) , V) , ((1, 23) , a) , ((2, 13) , b) , ((13, 2) , c) , ((∅ , 3) , ab) , ((1, 2) , ac) , ((∅ , ∅) , bc) , ((U, U) , ∅)}.

Figures 2, 4 and 6 are the correspondent Hasse diagrams.

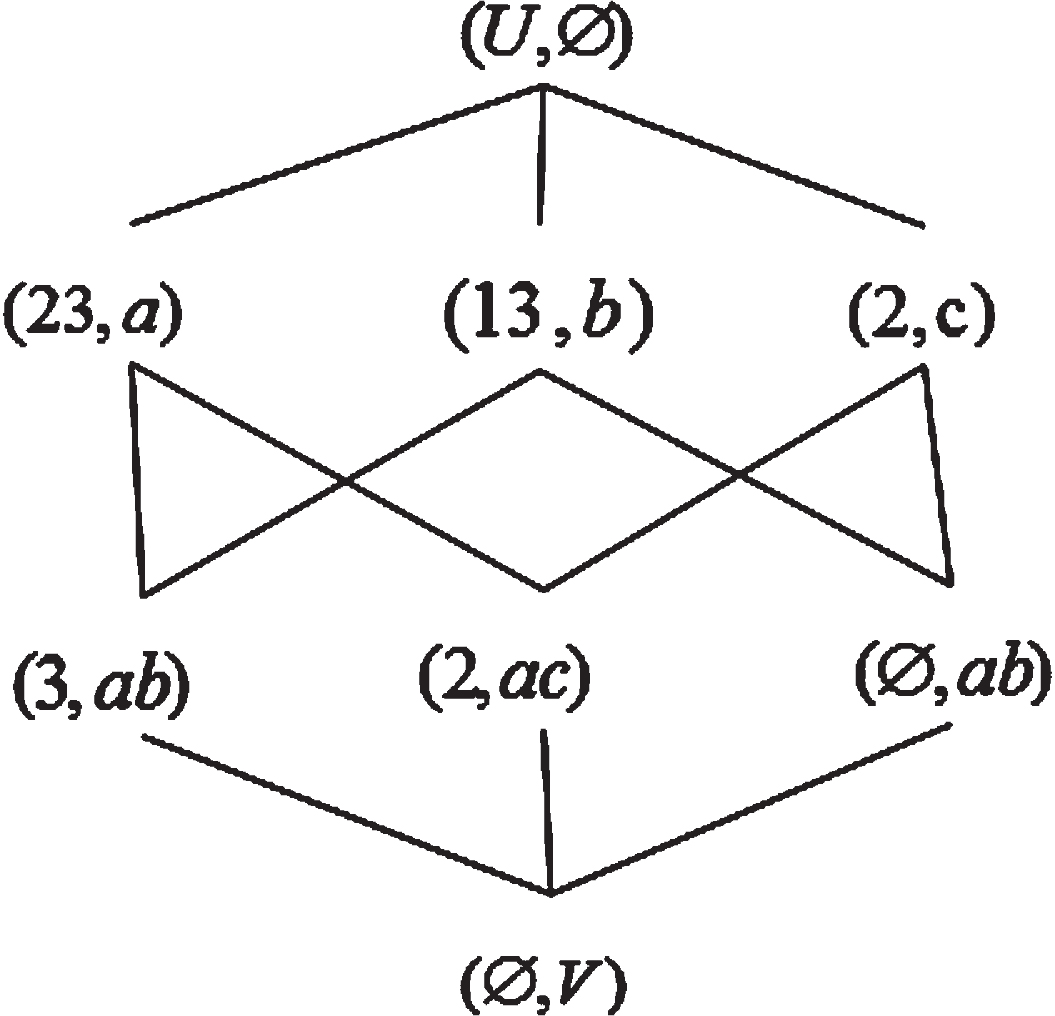

Fig. 4

NSCL_∪ (U, V, R).

Fig. 5

OESCL (U, V, R).

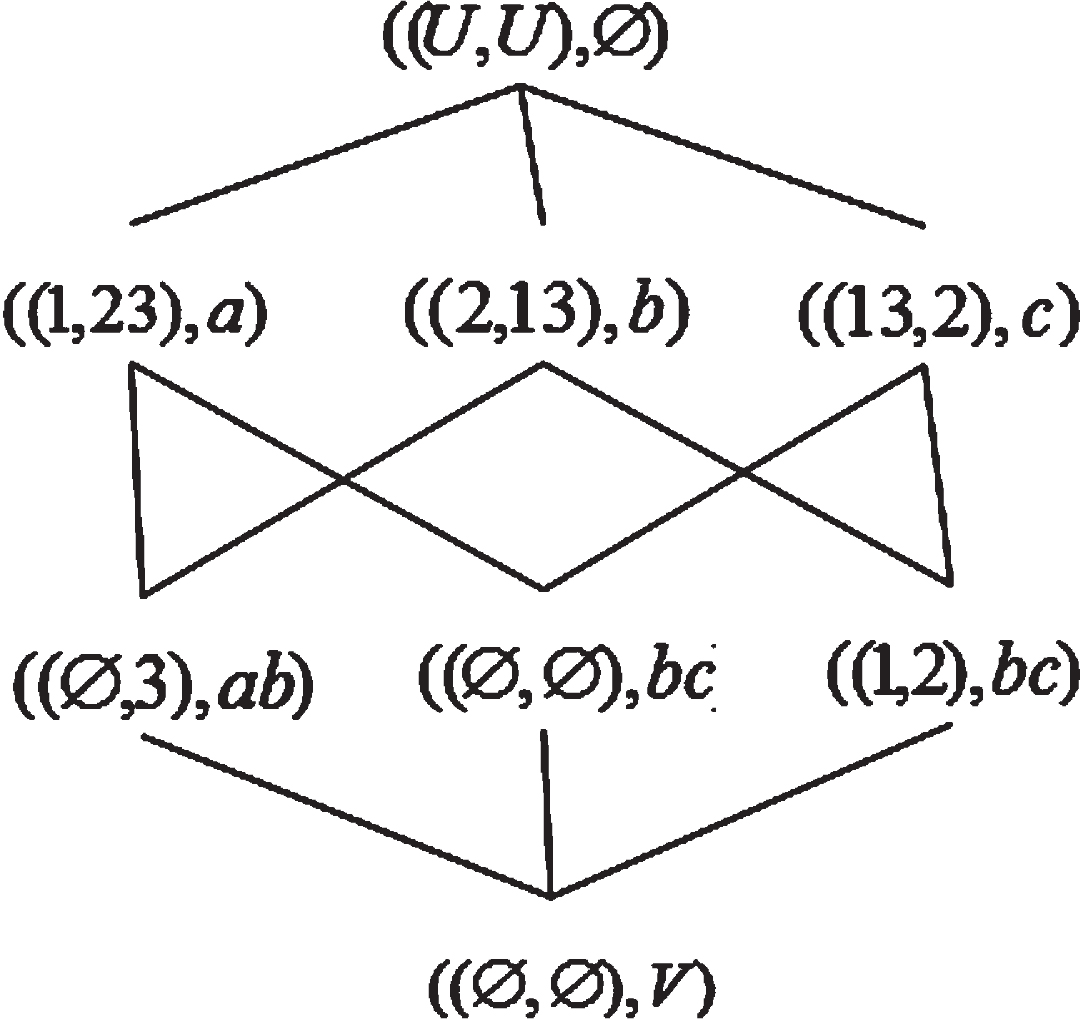

Fig. 6

AESCL (U, V, R).

As this example shows, AE- semiconcept conveys important information. For example, if we want to discuss species in terms of attribute b, we can find Ae-semiconcept((2, 13) , b). So what tells us is that there only Monkey has the attribute b, but Bat and Penguin both have the attribute b. Therefore, using three-way semiconcepts can help biologists to analyse species.

In the process of information processing, the idea of three-way semiconcepts is easier to understand and accept than three-way concepts. To sum up, OE-semiconcept and AE-semiconcept can express more information than classical semiconcept, improving the capability of data analysis.

7 Conclusion

By extending classical semiconcept to 3WD, we present two types of three-way semiconcepts—OE-semiconcept and AE-semiconcept. An OE-semiconcept (AE-semiconcept) is also made by an extension and an intension. Different from 3WCA, three-way semiconcepts only considers the relationship between attributes and objects uniaxially. We get every three-way semiconcept is a three-way concept. Meanwhile, and discuss the lattice properties of OE-semiconcept and AE-semiconcept with the detailed proof. We study the relationshipps among three-way semiconcepts, classical semicocept and three-way concepts. Finally, we give the building algorithms of OE-semiconcept and AE-semiconcept based on classical semiconcept. And use examples to demonstrate the new algorithms. Three-way semiconcepts contains both positive information and negative information, which makes it more widely used and better than classical semiconcept.

On the basis of the results in this paper, there exist some problems remaining such as how to define three-way semiconcepts in an incomplete formal context, and the attribute reduction of OE-semiconcept and AE-semiconcept in the future. We hope that three-way semiconcepts can be used for not only making decisions but also knowledge engineering and other areas.

Footnotes

Acknowledgment

This work is granted by the National Natural Science Foundation of China (61572011), the Natural Science Foundation of Hebei Province (A201820117), Post-graduate’s Innovation Fund Project of Hebei Province (CXZZSS2020004).

References

Chen

, Zhang

and Zhao

, Multi-granular mining for boundary regions in three-way decision theory, Knowledge-Based Systems 91 (2016), 287–292. DOI: 10.1016/j.knosys.2015.10.020

Davey

and Priestley

, Introduction to Lattices and Order, Cambridge University John Wilely and Sons (2002).

Deng

and Yao

, Decision-theoretic three-way approximations of fuzzy sets, Information Sciences 379 (2014), 702–715. DOI: 10.1016/j.ins.2014.04.022

Fujita

, Li

and Yao

, Advances in three-way decisions and granular computing, Knowledge-Based Systems 91 (2016), 1–3. DOI: 10.1016/j.knosys.2015.10.026

Ganter

and Wille

, Formal Concept Analysis: Mathematical Foundations, Springer-Verlag Berlin Heidelberg (1999).

Jian

and Yang

, Semantic search exploiting formal concept analysis, rough sets, and Wikipedia, International Journal on Semantic Web and Information Systems 14(3) (2018), 99–119. DOI: 10.4018/IJSWIS.2018070105

Carpineto

, Romano

and Ebrary

, Concept Data analysis: theory and applications, John Wiley and Sons (2004).

Yao

, Interval sets and three-way concept analysis in incomplete contexts, International Journal of Machine Learning and Cybernetics 8(1) (2017), 3–20. DOI: 10.1007/s13042-016-0568-1

, Huang

, Qi

, Qian

and Liu

, Three-way cognitive concept learning via multi-granularity, Information Sciences 378 (2017), 244–263. DOI: 10.1016/j.ins.2016.04.051

10.

and Wang

, Approximate concept construction with three-way decisions and attribute reduction in incomplete contexts, Knowledge-Based Systems 91 (2016), 165–178. DOI: 10.1016/j.knosys.2015.10.010

11.

Luksch

and Wille

, A mathematical model for conceptual knowledge systems, in: H.H. Bock and P. Ihm (Eds.), Classification, Data Analysis, and Knowledge Organisation, Springer-Verlag Berlin, Heidelberg, (1991), 156–162. DOI:10.1007/978-3-642-76307-6-21

12.

, Three-way fuzzy matroids and granular computing, International Journal of Approximate Reasoning 114 (2019), 44–50. DOI: 10.1016/j.ijar.2019.08.003

13.

Malik

, An extension of the theory of information flow to semiconcept and protoconcept graphs, in: K.E. Wolff, et al. (Eds.), ICCS 2004, LNAI 3127, Springer-Verlag Berlin, Heidelberg, (2004), 213–226. DOI:10.1007/978-3-540-27769-9-14

14.

Mao

, Approximation operators for semiconcept, Journal of Intelligence and Fuzzy Systems 36 (2019), 333–343. DOI: 10.3233/JIFS-18104

15.

Mao

and Kang

, Variable precision rough set approximations in concept lattice, Journal of Progressive Research in Mathematics 2(1) (2015), 47–56. DOI: 10.3969/j.issn.1007-130X.2017.12.026

16.

Burmeister

and Holzer

, On the treatment of incomplete knowledge in formal concept analysis, in: Proceedings of ICCS 2000, LNCS (LNAI), (1867), 385–398. DOI:10.1007/10722280-27

17.

Pollandt

, Relational constructions on semiconcept graphs, http://ceur-ws.org/Vol-41/Pollandt.pdf.

18.

Pei

, Ruan

, Meng

and Liu

, Formal concept analysis based on the topology for attributes of a formal context, Information Sciences 236 (2013), 66–82. DOI: 10.1016/J.INS.2013.02.027

19.

, Qian

and Wei

, The Connections between Three-way and Classical Concept Lattices, Knowledge-Based Systems 91 (2016), 143–151. DOI: 10.1016/j.knosys.2015.08.006

20.

, Wei

and Yao

, Three-way formal concept analysis, in: Rough Sets and Knowledge Technology, Springer 8818 (2014), 732–741. DOI: 10.1007/978-3-319-11740-9-67

21.

Ren

and Wei

, The attribute reductions of three-way concept lattices, Knowledge-Based Systems 99 (2016), 92–102. DOI: 10.1016/j.knosys.2016.01.045

22.

Vormbrock

, Complete subalgebras of semiconcept algebras and protoconcept algebras, in: B. Ganter and R. Godin (Eds.), ICFCA 2005, LNAI 3403, Springer-Verlag Berlin, Heidelberg, (2005), 329–343. DOI:10.1007/978-3-540-32262-7-23

23.

Vormbrock

and Wille

, Semiconcept and protoconcept algebras:The basic theorems, in:B.Ganter, et al.(Eds.), Formal Concept Analysis, LNAI 3626, Springer-Verlag Berlin, Heidelberg, (2005), 34–48. DOI:10.1007/11528784-2

24.

Wille

, Restructuring lattice theory: an approach based on hierarchies of concepts, in: I. Rival (Eds.), Ordered Sets, Reidel Publishing Company, Dordrecht Boston, (1982), 445–470. DOI:10.1007/978-3-642-01815-2-23

25.

Yao

, An outline of a theory of three-way decisions, in: Proceedings of RSCTC 2012, LNCS (LNAI) 7413 (2012), 1–17. DOI: 10.1007/978-3-642-32115-3-1

26.

Yao

, Three-way granular computing, rough sets, and formal concept analysis, International Journal of Approximate Reasoning 116 (2020), 106–125. DOI: 10.1016/j.ijar.2019.11.002

27.

Yao

, Three-way decision: an interpretation of rules in rough set theory, in:P. Wen, Y. Li, L. Polkowski, Y. Yao, S. Tsumoto, G. Wang (Eds.), Rough Sets and Knowledge Technology, Lecture Notes Computer Science 5589, Springer-Verlag, Berlin, Heidelberg, (2009), 642–649. DOI:10.1007/978-3-642-02962-2-81

28.

Yao

, Three-way decisions and cognitive computing, Cognitie Computation 8 (2016), 543554. DOI: 10.1007/s12559-016-9397-5

29.

Zhao

, Miao

and Hu

, On relationship between threeway concept lattices, Information Sciences 538 (2020), 396–414. DOI: 10.1016/j.ins.2020.06.007

30.

Zhi

, Qi

, Qian

and Wei

, Three-way dual concept analysis, International Journal of Approximate Reasoning 114 (2019), 151–165. DOI: 10.1016/j.ijar.2019.08.010

31.

Mao

and Cheng

, Three-way rough semiconcept, Jounrnal of Intelligent & Fuzzy Systems 40 (2021), 4317–4330. DOI: 10.3233/JIFS-200981

32.

Ganter

and Wille

, Formale Begriffsanalyse, Mathematische Grundlagen, Berlin: Springer, (1996). DOI:10.1007/978-3-642-61450-7

33.

Jihoon

and Yun

, Galois Lattices-based Formal Design Concept Analysis for Crowdsourcing Design, Journal of Integrated Design and Process Science 23(4) (2021), 61–89. DOI: 10.3233/JID190016

Two forms of three-way semiconcepts

Abstract

Keywords

1 Introduction

2 Preliminaries

2.1 Some definitions in FCA

2.2 Definitions in semiconcept

Table 1 A formal context for some animals K can fly has hands has wings Bat × × Monkey × Penguin ×

2.4 Definitions in 3WCA

3 Definitions of OE-semiconcept and some related properties.

3.1 Definitions of OE-semiconcept

3.2 Properties of OE-semiconcept in lattice

4 Definitions and properties of AE-semiconcept

5 Algorithms searching for OE-semiconccept and AE-semiconcept

5.1 Algorithms relative to OE-semiconcept

5.2 Algorithms relative to AE-semiconcept

6 Example

Table 3 The complement context K2 of K1 a b c 1 × 2 × × 3 × ×

Footnotes

Acknowledgment

References

Table 1
A formal context for some animals K

can fly has hands has wings

Bat × ×

Monkey ×

Penguin ×

Table 3
The complement context K₂ of K₁

a b c

1 ×

2 × ×

3 × ×
