A novel hybrid deep learning model for taxi demand forecasting based on decomposition of time series and fusion of text data

Abstract

Accurate taxi demand forecasting is significant to estimate the change of demand to further make informed decisions. Although deep learning methods have been widely applied for taxi demand forecasting, they neglect the complexity of taxi demand data and the impact of event occurrences, making it hard to effectively model the taxi demand in highly dynamic areas (e.g., areas with frequent event occurrences). Therefore, to achieve accurate and stable taxi demand forecasting in highly dynamic areas, a novel hybrid deep learning model is proposed in this study. First, to reduce the complexity of taxi demand time series, the seasonal-trend decomposition procedures based on loess is employed to decompose the time series into three simpler components (i.e., seasonal, trend, and remainder components). Then, different forecasting methods are adopted to handle different components to obtain robust forecasting results. Moreover, considering the instability and nonlinearity of the remainder component, this study proposed to fuse the event features (in particular, text data) to capture the unusual fluctuation patterns of remainder component and solve its extreme value problem. Finally, genetic algorithm is applied to determine the optimal weights for integrating the forecasting results of three components to obtain the final taxi demand. The experimental results demonstrate the better accuracy and reliability of the proposed model compared with other baseline forecasting models.

Keywords

Taxi demand forecasting deep learning seasonal-trend decomposition procedures based on loess data fusion text data genetic algorithm

1 Introduction

Complex transportation systems and instability due to multiple factors have rendered taxi demand forecasting extremely challenging. It is important to accurately forecast taxi demand for alleviating traffic pressure and avoiding resource wastage [46]. From the perspective of taxi-calling platforms such as Uber, knowing the future demand for taxis in advance will allow it to assign the appropriate number of taxi drivers. Analogously, from the perspective of shared car platforms such as Car2Go, it will allow suppliers to reallocate their vehicles at night based on future demand forecasting [35]. With accurate taxi demand forecasting, taxi drivers will know places with many passengers to pick them up as soon as possible. Additionally, passengers will have taxis which are waiting for them early [45]. Therefore, efficient scheduling allows taxi drivers and passengers to find each other in the least amount of time, thus benefitting both parties.

In the past decade, various forecasting methods have been proposed to forecast traffic volume, taxi demand, and travel time [18]. The typical methods are statistical models such as autoregressive integrated moving average (ARIMA) [19, 26] and Kalman filtering [10], and nonlinear methods such as support vector machine (SVM) [1]. However, these methods cannot extract features of time series automatically, and the obtained features are often superficial. Fortunately, deep learning models are good at extracting the deep abstract features automatically, which has been proven in our previous study [2]. Recently, some advanced and powerful deep learning models have been proposed for traffic forecasting, including long short term memory network (LSTM) [24], echo state network [34], deep belief network [13], and convolutional neural network (CNN) [44].

Although these previous works can obtain promising traffic forecasting results to some extent, they ignore the complexity of traffic data and the effect of event occurrences, making it difficult to realize accurate taxi demand forecasting in highly dynamic areas. Highly dynamic areas are characterized by the frequently and irregularly held special events (e.g., gala performances, concerts, and sport games). Therefore, to forecast the taxi demand more accurately and stably in highly dynamic areas, a novel hybrid deep learning model (HDLM) is proposed in this study.

The main contributions of this study are as follows:

A new model using a hybrid deep learning structure is proposed to handle the complex taxi demand data from highly dynamic areas. It can improve the robustness of the taxi demand forecasting model by simplifying the taxi demand forecasting problem and exploiting the effect of event features on taxi demand.

Deep learning model is combined with time series decomposition techniques to model the taxi demand time series more effectively. Specifically, seasonal-trend decomposition procedures based on loess (STL) [3] is employed to decompose the global time series into simpler components, and different forecasting methods are adopted to handle different components, which is beneficial for reducing the complexity of taxi demand time series and capturing the variation patterns of taxi demand time series.

Considering that the event occurrences are closely related to the unusual fluctuations in the remainder component, fusion of event features (in particular, text data) is proposed to help deep learning model capture the unusual fluctuation patterns of remainder component and solve its extreme value problem.

Genetic algorithm (GA) [12] is applied to determine the optimal weights for integrating the forecasting results of three decomposed components, which can further improve the forecasting accuracy.

The superiority of the proposed model is verified on two datasets. Experimental results indicate that the proposed model outperforms state-of-art baseline models in highly dynamic areas.

The remainder of this study is outlined as follows: Section 2 reviews the relevant literature. Section 3 provides a detailed description on the taxi demand forecasting model proposed in this study. Section 4 discusses and analyzes the experimental results. Conclusions and future research directions are presented in Section 5.

2 Related work

The time series decomposition technique and deep learning have attracted significant attention from researchers. This section provides a brief review of the time series decomposition technique and deep learning.

2.1 Decomposition of time series

A time series contains many constituents that affect each other. Modeling a global time series is not easy. It is important to decompose a time series into simpler parts that can be better understood to simplify the forecasting problem. For example, Pal and Kar [31] obtained promising results in forecasting the electricity market’s price by using fuzzy transformation to decompose the time series. Lin et al. [20] proposed to use empirical mode decomposition method to decompose time-series data of visitors, and obtained good results in forecasting tourist capacity. Qin et al. [34] used STL with two improvement strategies to forecast monthly passenger flow in China, and achieved the desired results.

Compared with fuzzy transformation and empirical mode decomposition, STL presents distinctive advantages. STL can generate robust components that exhibit strong adaptability to outliers. Furthermore, STL is based on numerical methods and does not require complex parameters, and therefore implemented easily [39]. Many researchers have used STL to solve forecasting problems. For example, Nguyen and Novák [29] decomposed a time series into three components using two methods: STL and ARIMA, and measured their respective performance. Luo et al. [23] proposed to decompose the monthly streamflow time series with STL and combined SVM and generalized regression neural network to model seasonal and trend components. Liu et al. [21] proposed a method for forecasting dengue fever time series data based on STL decomposition. Gao et al. [6] adopted STL to remove the noise and seasonal fluctuation of Visible Infrared Imaging Radiometer Suite data. However, in most studies based on STL, the hidden information in the remainder component cannot be fully utilized, which affects the forecasting accuracy because the remainder component is part of the global time series and represents some significant patterns. In particular, the extreme value problem of the remainder component has not been well addressed [38].

Realizing that the occurrence of events is closely related to the unusual fluctuations in the remainder component, this study factors the remainder component into the forecasting process and explores the event influencing feature and event text feature to solve the extreme value problem.

2.2 Deep learning in taxi demand forecasting

Taxi demand forecasting has attracted significant attention recently owing to its inherent value. Over the last decade, deep learning has been proven successful in taxi demand forecasting. Wang et al. [44] proposed to use random forest and CNN to detect unauthorized ridesharing cars, which is helpful to alleviate the existence of unregulated activities issues. Kuang et al. [16] used attention-based LSTM and 3D CNN to forecast taxi demand by generating feature embedding and capturing the correlation between taxi pick-up and drop-off. Wang et al. [43] proposed a deep neural network structure called Deep supply-demand which considers the environment factors such as weather and traffic condition data. Vanichrujee et al. [41] integrated the forecasting results from LSTM, gated recurrent unit, and extreme gradient boosting (XGBoost) to obtain the final taxi demand with high accuracy. Liu et al. [22] used backpropagation neural network (BPNN) and XGBoost to combine different information to explore the correlation between taxi demand and online taxi-hailing demand.

Although the studies described above demonstrate the power of deep learning for taxi demand forecasting, few have considered the effect of events on taxi demand. It is possible to improve the forecasting accuracy by combining additional information [33, 42]. Recently, Rodrigues et al. [35] used deep learning to combine text data regarding events with time series to forecast taxi demand, and found that the fusion of event information increases forecasting accuracy. However, the complexity of the global taxi demand time series has not been well explored in their study, which may affect the effect of text data fusion. Furthermore, they used the fixed word vectors GloVe [32] trained by other text data to represent the current word vectors, as may result in inconsistences and conflicts.

To solve these limitations, the deep learning approach is applied to a decomposed time series in this study, and the word2vec [25] and embedding layer [17] are used to generate dynamic word vectors that are consistent with and suitable for the current text data, thereby minimizing the loss of hidden information in the text.

3 Methodology

A novel HDLM that decomposes a time series and fuses event influencing feature and event text feature is proposed in this study. Before the modeling framework is described, background knowledge regarding text data processing, STL, LSTM, and MLP are presented.

3.1 Background

3.1.1 Processing and conversion of text data

To fuse unstructured text data extracted from the web, including the description and title of events, the word2vec is adopted to generate structured word vectors because of its powerful feature representation capability [25]. Text data conversion includes applying lowercase transformation, separating sentences, removing high frequency and stop words, converting words to integer identifiers, and initializing an embedding laye with pre-trained vectors generated by word2vec. The embedding layer is fine-tuned with the training process.

3.1.2 Seasonal-trend decomposition procedures based on loess

STL with its component patterns is significantly more flexible than traditional single parameter methods for time series decomposition. It includes inner and outer loops, with the former including steps for detrending, smoothing cycle-subseries, low-pass filtration, deseasonalizing, and trend smoothing, and the latter including steps for calculating the remainder and robustness weights [3]. Following these steps, the global time series is decomposed into seasonal, trend, and remainder components. The decomposition of STL can be defined as follows [3]: $G_{d} = S_{d} + T_{d} + R_{d}$ (1) where G_d, S_d, T_d, and R_d are the global time series, seasonal component, trend component, and remainder component on day d, respectively.

The seasonal-cycle method is adopted to forecast the seasonal component, and the formula is defined as follows: $S_{d + 7} = S_{d}, d = 1, 2, . . ., n$ (2) where S_d+7 denotes the forecasting value on day d + 7, S_d denotes the real value on day d.

3.1.3 Long short-term memory network

LSTM has been widely applied to speech recognition, image capturing, and time series forecasting. LSTM incorporates memory units, and learns when to forget memories and update memories by means of input gate, forget gate, and output gate. The processes of three gates and the output of the cell are defined as follows [24]: ${in}_{t} = σ (W_{in} X_{t} + U_{in} S_{t - 1} + V_{in} C_{t - 1} + b_{in})$ (3) ${for}_{t} = σ (W_{for} X_{t} + U_{for} S_{t - 1} + V_{for} C_{t - 1} + b_{for})$ (4) $C_{t}^{'} = \tanh (W_{mo} X_{t} + U_{mo} S_{t - 1} + b_{mo})$ (5) $C_{t} = {in}_{t} ⊙ C_{t}^{'} + {for}_{t} ⊙ C_{t - 1}$ (6) ${out}_{t} = σ (W_{out} X_{t} + U_{out} S_{t - 1} + V_{out} C_{t} + b_{out})$ (7) $S_{t} = {out}_{t} ⊙ \tanh (C_{t})$ (8) where in_t, for_t, $C_{t}^{'}$ , C_t, out_t, and S_t are the outputs of the input gate, forget gate, modulation gate, new memory cell, output gate, and memory block at time t, respectively. W_in, U_in, V_in, W_for, U_for, V_for, W_mo, U_mo, W_out, U_out, and V_out represent the corresponding weight matrices. b_in, b_for, b_mo, and b_out are the bias vectors. ⊙ denotes the element-wise multiplication of the matrix. σ and tanh represent different activation functions. For a more detailed description of LSTM, the reader is referred to Hochreiter and Schmidhuber [11].

3.1.4 Multi-layer perceptron

MLP is a kind of artificial neural network composed of some fully connected layers [30].It comprises three parts: input layer, hidden layer, and output layer. The computation of an MLP can be defined as follows [8]: $Z = (\sum_{i = 1}^{n} w_{ij} x_{i}) + b_{j}$ (9) $y_{j} = f [(\sum_{i = 1}^{n} w_{ij} x_{i}) + b_{j}]$ (10) where Z, x_i, w_ij, and b_j denote the sum, input variable with index i, weights, and bias in the current layer j, respectively. f and y_j denote the activation function and output value of the activation function, respectively, and the sum Z is fed to the function f that generates the final output. relu is adopted as an activation function because of its powerful performance, and its formula can be defined in Equation (11) [27]. $relu (x) = max (0, x)$ (11)

3.2 Framework of the proposed model

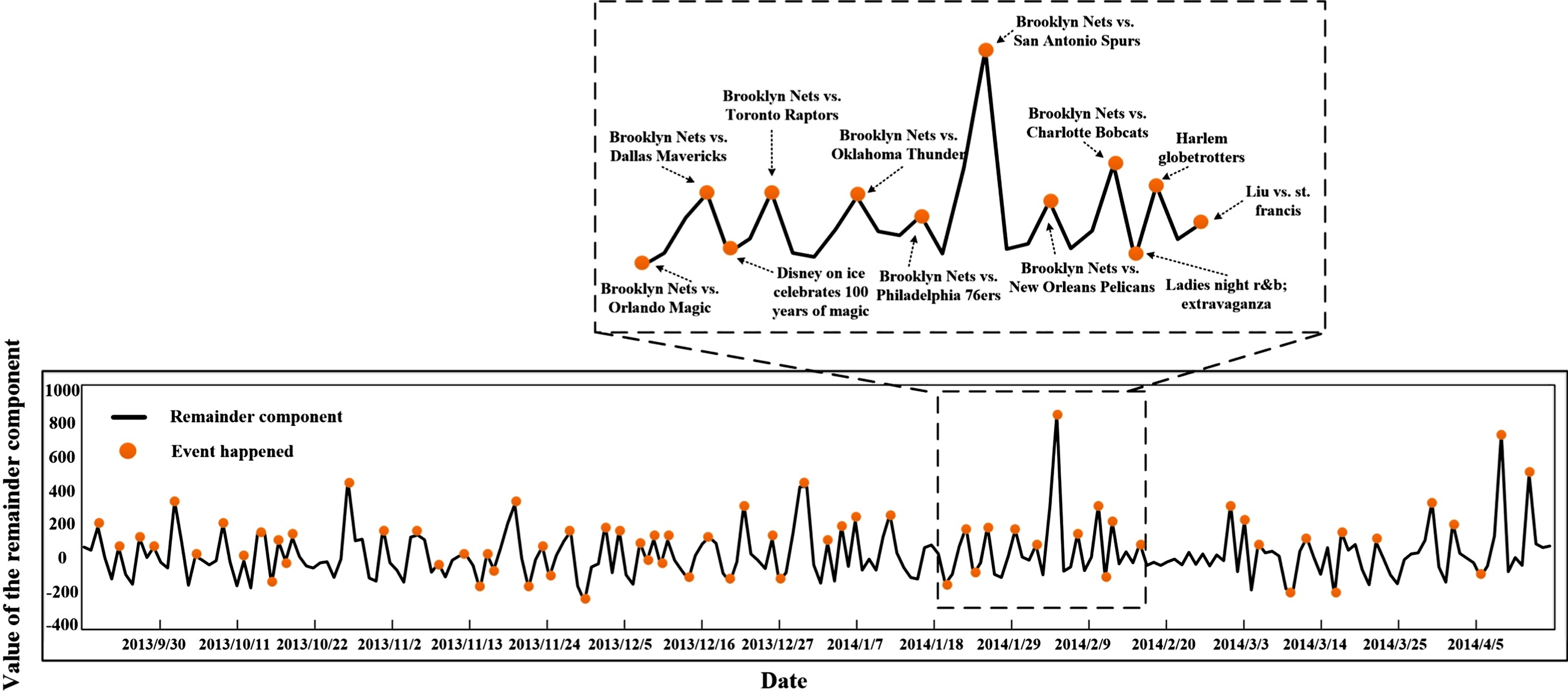

Figure 1 shows an illustrative example that the event occurrences are closely related to the unusual fluctuations in the remainder component. As can be seen, the appearance of extreme values in the remainder component is usually accompanied by the event occurrences. For example, at the time point on February 4, 2014, a basketball game was held and the value of remainder component is higher than those at the surrounding time points. Therefore, this study proposed to fuse event features to help deep learning model capture the unusual fluctuation patterns in the remainder component.

Fig. 1

Part of the remainder component with events occurrences.

The framework of the proposed HDLM is shown in Fig. 2, consisting of three modules: time series decomposition, extraction of event features, and modeling and forecasting. In the time series decomposition module, the STL is employed to decompose the global time series into simpler components, including seasonal, trend, and remainder components. In the extraction of event features module, the event features including event influencing feature (EI) and event text feature (ET) are extracted from event text data, and are then used to help LSTM capture the unusual fluctuation patterns in the remainder component. In the modeling and forecasting module, different forecasting methods including seasonal-cycle, MLP, and LSTM are adopted to model corresponding components, respectively. Finally, GA is employed to determine the optimal weights for integrating forecasting results of three components to obtain the final taxi demand. The detailed process of the model will be described below.

The process of global time series decomposition is shown in Part A of Fig. 2. It is decomposed by STL into three components: seasonal component (S_d), trend component (T_d), and remainder component (R_d). Each of these components has distinct characteristics compared with the global time series.

As shown in Part B of Fig. 2, to express the different effects of events occurring at different times, the event influencing feature is analyzed and represented with variables $I^{BP}$ , $I^{P}$ , $I^{C}$ , $I^{N}$ , and $I^{AN}$ . They denote the influencing effects of events occurring in the day before the previous day, previous day, current day, next day, and day after next day, on the current day, respectively. For example, considering the influencing effects of events that occurs on June 5th, 7th, and 8th, on the current day, the event influencing features for June 7th (as the current day) and June 8th (as the current day) are [0.333, 0, 1, 0.5, 0] and [0, 0.5, 1, 0, 0], respectively. The influencing effects are inversely proportional to the time span from the current day, because the effect of events on taxi demand weakens over time.

The extraction process of the event text feature is shown in Part B of Fig. 2. The event text feature only represents the text data regarding the event that occurs on the current day. The event text feature is a one-dimensional vector composed of some integer identifiers. The event text vectors are input into a word embedding layer that is initialized by word2vec, and then converted to the word vector matrix [25]. The word2vec in this study uses the continuous bag-of-words model, in which, the generated word vector dimension is set to 400, the train window is set to 5, the number of iterations is set to 10, the sampling rate is set to 0.001, and words with frequency less than 2 are filtered out. The size of the word vector matrix is ML×400, where ML is the maximum length of a word sequence. All the parameters in word2vec are set using the trial-and-error method [7]. The word vector matrix is subsequently passed to five one-dimensional convolutional layers of a CNN with 30 filters of size 3 and corresponding max-pooling layers of sizes 3, 3, 2, 2, and 2. relu is used as the activation of each convolutional layer since it is easy to converge and can avoid the vanishing gradient problem. All the hyperparameters in CNN structure are determined using grid search method, which can effectively select the optimal combination of hyperparameters. The dropout layer with dropout rate 0.5 is adopted between the convolutional layers [37]. The output of the last layer is fused with the remainder component.

To forecast the trend and remainder components on day d + 1, T_d, T_d-1,..., T_d-h+1 and R_d, R_d-1,..., R_d-h+1 on the past h days are used. As shown in Part C of Fig. 2, the vectors {T_d, T_d-1,..., T_d-h+1} are input into the MLP to obtain the partial result $Y_{d + 1}^{T}$ . The vectors {R_d, R_d-1,..., R_d-h+1} are input into two LSTM layers to extract the deep features from the remainder component, and these features are fused with the latent representation learned from the event influencing feature and event text feature to obtain the partial result $Y_{d + 1}^{R}$ . The MLP and LSTM are trained using the backpropagation algorithm [36]. The hyperparameters settings of MLP and LSTM are described below. MLP has one input layer, three hidden layers and one output layer. Each of the hidden layers has 32 neurons, and relu is adopted as the activation function. The input layer and output layer have 10 neurons and 1 neuron, respectively. The batch size, number of epochs, and learning rate are set to 64, 500, and 0.01, respectively. The optimizer is Adam [15] and the objective function is mean squared error [9]. LSTM has two layers with 64 neurons, and tanh is adopted as the activation function. The batch size, number of epochs, and learning rate are set to 64, 500, and 0.01, respectively. The optimizer is RMSprop [40] and the objective function is mean squared error. All the hyperparameters in MLP and LSTM are determined using grid search method.

The partial result $Y_{d + 1}^{S}$ of the seasonal component is forecasted by the seasonal-cycle method. Finally, the forecasting result of three parts ( $Y_{d + 1}^{S}$ , $Y_{d + 1}^{T}$ , $Y_{d + 1}^{R}$ ) are integrated to obtain the final forecasting result of taxi demand $Y_{d + 1}^{F}$ , as shown in Equation (12):

Y_{d + 1}^{F} = α_{1} Y_{d + 1}^{S} + α_{2} Y_{d + 1}^{T} + α_{3} Y_{d + 1}^{R}

(12)

Fig. 2

Framework of the proposed taxi demand forecasting model.

where α₁, α₂, and α₃ are the weights. Moreover, to obtain the $Y_{d + 1}^{F}$ more reasonably and accurately, GA is employed to determine the optimal weights for integrating the forecasting results of three components ( $Y_{d + 1}^{S}$ , $Y_{d + 1}^{T}$ , $Y_{d + 1}^{R}$ ). The weights that yield the lowest forecasting errors on the validation set are considered as the optimal weights. In GA, each chromosome is composed of three binary numbers with length 14, and each binary number can be converted to a real number, which corresponds to a weight. The number of maximum iterations and population size are set to 200 and 100, respectively. The crossover rate and mutation rate are set to 0.6 and 0.1, respectively.

4 Experiments

In this section, the past h days is set to 10. To ensure the fair model comparison and experimental effectiveness, some hyperparameters settings in the baseline deep learning models are same as that of HDLM. Specifically, their batch size, number of epochs, learning rate, and objective function are set to 64, 500, 0.01, and mean squared error, respectively. The STL is implemented in the R language. Data processing and model construction are implemented in Python version 3.7, and deep learning structures are implemented in Keras (https://keras.io/). The core configuration of the computer includes Intel Core i7-8700 3.2 GHz CPU, 32 GB memory, and NVIDIA GeForce RTX 2080 graphics.

4.1 Data description

This study mainly focuses on the taxi demand forecasting task in areas with frequent event occurrences. Therefore, two highly dynamic areas, i.e., Barclays Center and Terminal 5 are evaluated. Barclays Center is located in Brooklyn, USA and has 18000 seats hosting large musical shows and basketball games regularly. Terminal 5 is a large area that is located in Manhattan, USA and hosts many concerts regularly. All the taxi pickups produced in these two areas were collected, and used as the taxi demand data. For the Barclays Center, the event data were extracted from its official website, which includes 751 events (e.g., Brooklyn nets vs Houston rockets). For the Terminal 5, the event data were obtained from Facebook, which includes 315 events (e.g., cultural prophetic 20th anniversary concert). Specifically, each event contains some features such as date, start time, title, provenance, and description. The complete experimental dataset including taxi demand data and event text data can be obtained from Rodrigues et al. [35].

4.2 Data preprocessing

The original taxi demand data were obtained every half hour. To forecast the daily taxi demand, half-hourly taxi demand data were aggregated to obtain the daily taxi demand data. Moreover, to deal with the different orders of magnitude for different features, the data normalization was performed to scale the original data into the range [0, 1] according to the following Equation: $X_{n} = \frac{X_{d} - X_{\min}}{X_{\max} - X_{\min}}$ (13) where X_n, X_d, X_min, and X_max denote the normalized, original, minimum, and maximum values of the time series on day d, respectively.

For a fair comparison with the work of Rodrigues et al. [35], the partition of experimental datasets was the same as that of Rodrigues et al. [35]. For the Barclays Center dataset, data from January 2013 to September 2014 were used as the training set, data from October 2014 to December 2014 as the validation set, and data from January 2015 to June 2016 as the test set. For the Terminal 5 dataset, data from January 2013 to December 2014 were used as the training set, data from January 2015 to December 2015 as the validation set, and data from January 2016 to June 2016 as the test set.

For event data, some simple text preprocessing methods were implemented: (1) removing some trivial features in the event data (i.e., date, start time, and provenance); (2) converting the uppercase letters in the title and description of event data to the lowercase letters; (3) separating sentences into words and deleting highly frequent and stop words.

4.3 Evaluation metrics

To evaluate and compare the performances of the proposed taxi demand forecasting models, some typical forecasting errors are employed as indices of performance assessment, including mean absolute error (MAE), root mean square error (RMSE), coefficient of determination (R²), absolute percentage error (APE) and mean absolute percentage error (MAPE). Their formulas are defined as follows: $MAE = \frac{1}{n} \sum_{d = 1}^{n} | {\hat{Y}}_{d} - Y_{d} |$ (14) $RMSE = \sqrt{\frac{1}{n} \sum_{d = 1}^{n} ({\hat{Y}}_{d} - Y_{d})^{2}}$ (15) $APE = \frac{{\hat{Y}}_{d} - Y_{d}}{Y_{d}}$ (16) $MAPE = \frac{1}{n} \sum_{d = 1}^{n} | \frac{{\hat{Y}}_{d} - Y_{d}}{Y_{d}} | \times 100 %$ (17) $R^{2} = [1 - \frac{\sum_{d = 1}^{n} ({\hat{Y}}_{d} - Y_{d})^{2}}{\sum_{d = 1}^{n} ({\bar{Y}}_{d} - Y_{d})^{2}}] \times 100 %$ (18) where n denotes the number of test set, ${\hat{Y}}_{d}$ , Y_d, and ${\bar{Y}}_{d}$ denote the forecasting, true, and average values on day d, respectively.

4.4 Baseline models

To evaluate the contributions from different functional modules, an incremental analysis of the proposed deep learning structure was adopted: starting with the simplest model, and adding the functional modules incrementally to the model until the final forecasting model was obtained. The models obtained through incremental analysis include STL-SVR, STL-SVR-EI, STL-MLP, STL-MLP-EI, STL-MLP-EIET, STL-LSTM, STL-LSTM-EI, STL-LSTM-EIET, STL-MLP-LSTM-EIET, and STL-MLP-LSTM-EIET-GA (i.e., HDLM). In all models except STL-MLP-LSTM-EIET-GA, the weights α₁, α₂, and, α₃ are all set to 1. In STL-MLP-LSTM-EIET-GA, the weights α₁, α₂, and, α₃ are determined by genetic algorithm. Simultaneously, some state-of-art baseline models, i.e., traditional machine learning model (XGBoost and LASSO), ensemble learning model (Ensemble model), and deep learning model (BPNN, DL-LSTM L + W+E+T, and DL-FC L + W+E+T) were compared in this experiment. All models under comparison and their specific descriptions are listed in Table 1. The STL denotes seasonal-trend decomposition procedures based on loess. The XGBoost, SVR, LSTM, FC, and MLP denote the extreme gradient boosting, support vector regression, long short term memory network, fully-connected dense layers, and multi-layer perceptron, respectively.

Table 1
The models and their descriptions in the experiment

Models Types Descriptions

XGBoost Liu et al. [22] It uses XGBoost to combine the time information and historical taxi demand to forecast global time series

LASSO Kamarianakis et al. [14] It is a linear regression model that estimates sparsity coefficients, and usually outperforms simple linear regression model

Ensemble model Vanichrujee et al. [41] It integrates the forecasting results from LSTM, GRU, and XGBoost to forecast global time series

BPNN Liu et al. [22] It uses three hidden layers to exploit the time information to forecast global time series

DL-LSTM L + W+E+T Rodrigues et al. [35] It uses LSTM to combine weather information, event data, and text data to forecast global time series

DL-FC L + W+E+T Rodrigues et al. [35] It uses FC to combine weather information, event data, and text data to forecast global time series

STL-SVR The models obtained through the incremental analysis After the time series is decomposed via STL, it uses SVR to forecast the trend and remainder components

STL-SVR-EI After the time series is decomposed via STL, it uses SVR to forecast the trend component, and use SVR fusing event influencing feature to forecast the remainder component

STL-LSTM After the time series is decomposed via STL, it uses LSTM to forecast the trend and remainder components

STL-LSTM-EI After the time series is decomposed via STL, it uses LSTM to forecast the trend component, and use LSTM fusing event influencing feature to forecast the remainder component

STL-LSTM-EIET After the time series is decomposed via STL, it uses LSTM to forecast the trend component, and use LSTM fusing event influencing feature and event text feature to forecast the remainder component

STL-MLP After the time series is decomposed via STL, it uses MLP to forecast the trend and remainder components

STL-MLP-EI After the time series is decomposed via STL, it uses MLP to forecast the trend component, and use MLP fusing event influencing feature to forecast the remainder component

STL-MLP -EIET After the time series is decomposed via STL, it uses MLP to forecast the trend component, and use MLP fusing event influencing feature and event text feature to forecast the remainder component

STL-MLP-LSTM-EIET After the time series is decomposed via STL, it uses MLP to forecast the trend component, and use LSTM fusing event influencing feature and event text feature to forecast the remainder component

STL-MLP-LSTM-EIET-GA (i.e., HDLM) Based on STL-MLP-LSTM-EIET, it uses genetic algorithm to determine the optimal weights

Models	Types	Descriptions
XGBoost	Liu et al. [22]	It uses XGBoost to combine the time information and historical taxi demand to forecast global time series
LASSO	Kamarianakis et al. [14]	It is a linear regression model that estimates sparsity coefficients, and usually outperforms simple linear regression model
Ensemble model	Vanichrujee et al. [41]	It integrates the forecasting results from LSTM, GRU, and XGBoost to forecast global time series
BPNN	Liu et al. [22]	It uses three hidden layers to exploit the time information to forecast global time series
DL-LSTM L + W+E+T	Rodrigues et al. [35]	It uses LSTM to combine weather information, event data, and text data to forecast global time series
DL-FC L + W+E+T	Rodrigues et al. [35]	It uses FC to combine weather information, event data, and text data to forecast global time series
STL-SVR	The models obtained through the incremental analysis	After the time series is decomposed via STL, it uses SVR to forecast the trend and remainder components
STL-SVR-EI		After the time series is decomposed via STL, it uses SVR to forecast the trend component, and use SVR fusing event influencing feature to forecast the remainder component
STL-LSTM		After the time series is decomposed via STL, it uses LSTM to forecast the trend and remainder components
STL-LSTM-EI		After the time series is decomposed via STL, it uses LSTM to forecast the trend component, and use LSTM fusing event influencing feature to forecast the remainder component
STL-LSTM-EIET		After the time series is decomposed via STL, it uses LSTM to forecast the trend component, and use LSTM fusing event influencing feature and event text feature to forecast the remainder component
STL-MLP		After the time series is decomposed via STL, it uses MLP to forecast the trend and remainder components
STL-MLP-EI		After the time series is decomposed via STL, it uses MLP to forecast the trend component, and use MLP fusing event influencing feature to forecast the remainder component
STL-MLP -EIET		After the time series is decomposed via STL, it uses MLP to forecast the trend component, and use MLP fusing event influencing feature and event text feature to forecast the remainder component
STL-MLP-LSTM-EIET		After the time series is decomposed via STL, it uses MLP to forecast the trend component, and use LSTM fusing event influencing feature and event text feature to forecast the remainder component
STL-MLP-LSTM-EIET-GA (i.e., HDLM)		Based on STL-MLP-LSTM-EIET, it uses genetic algorithm to determine the optimal weights

4.5 Results analysis

4.5.1 Forecasting results in barclays center

In the experiment, the average results and standard deviations are obtained after 30 executions. After the global time series is decomposed into seasonal, trend, and remainder components, different forecasting methods are applied to each component.

Table 2 shows the average results of the trend and remainder components using different deep learning modules in the Barclays Center dataset. The STL-SVR and STL-SVR-EI use SVR to forecast the trend and remainder components The STL-LSTM, STL-LSTM-EI, and STL-LSTM-EIEF use LSTM to forecast the trend and remainder components. The STL-MLP, STL-MLP-EI, and STL-MLP-EIEF use MLP to forecast the trend and remainder components. For the trend component, models using MLP outperform those using SVR or LSTM in all metric values. For the remainder component, models using LSTM outperform those using SVR or MLP in all metric values. These results demonstrate that MLP is most good at forecasting the trend component, and LSTM is most good at forecasting the remainder component. Therefore, the HDLM proposed in this study uses the MLP and LSTM to forecast the trend and remainder components, respectively.

Table 2
Average results and standard deviations among different methods in Barclays Center

Models Trend component Remainder component

MAE RMSE MAE RMSE

STL-SVR 29.7 (±0.0) 38.3 (±0.0) 113.5 (±0.0) 155.3 (±0.0)

STL-SVR-EI 29.7 (±0.0) 38.3 (±0.0) 88.6 (±0.0) 126.7 (±0.0)

STL-LSTM 30.0 (±1.6) 36.6 (±1.8) 93.7 (±0.4) 138.1 (±0.5)

STL-LSTM-EI 29.8 (±1.5) 36.3 (±1.6) 83.1 (±0.9) 123.4 (±0.8)

STL-LSTM-EIET 29.7 (±2.0) 36.1 (±2.1) 81.0 (±0.8) 121.7 (±0.9)

STL-MLP 9.6 (±1.8) 12.3 (±2.2) 97.4 (±2.1) 140.8 (±2.3)

STL-MLP-EI 9.3 (±1.3) 12.1 (±1.5) 87.2 (±2.3) 127.9 (±2.7)

STL-MLP-EIET 9.3 (±0.9) 11.9 (±1.0) 85.3 (±0.9) 125.7 (±1.5)

Models	Trend component	Remainder component
STL-SVR	29.7 (±0.0)	38.3 (±0.0)	113.5 (±0.0)	155.3 (±0.0)
STL-SVR-EI	29.7 (±0.0)	38.3 (±0.0)	88.6 (±0.0)	126.7 (±0.0)
STL-LSTM	30.0 (±1.6)	36.6 (±1.8)	93.7 (±0.4)	138.1 (±0.5)
STL-LSTM-EI	29.8 (±1.5)	36.3 (±1.6)	83.1 (±0.9)	123.4 (±0.8)
STL-LSTM-EIET	29.7 (±2.0)	36.1 (±2.1)	81.0 (±0.8)	121.7 (±0.9)
STL-MLP	9.6 (±1.8)	12.3 (±2.2)	97.4 (±2.1)	140.8 (±2.3)
STL-MLP-EI	9.3 (±1.3)	12.1 (±1.5)	87.2 (±2.3)	127.9 (±2.7)
STL-MLP-EIET	9.3 (±0.9)	11.9 (±1.0)	85.3 (±0.9)	125.7 (±1.5)

Table 3 shows the forecasting results of all models in the Barclays Center dataset. Initially, the LSTM, STL-LSTM, MLP, and STL-MLP are compared to validate the STL. For example, the MAE, RMSE, MAPE, and R² obtained by LSTM are 137.1, 182.6, 16.2, and 42.4, respectively. After the time series is decomposed via STL, the forecasting results are improved, with the MAE, RMSE, MAPE, and R² of STL-LSTM obtained as 98.4, 140.2, 11.6, and 66.1, respectively. Figure 3 shows the comparison results between LSTM and STL-LSTM with truth and heatmaps. Figure 4 shows the comparison results between MLP and STL-MLP with truth and heatmaps. In these heatmaps, each orange square represents the APE value for a day, e.g., the orange square X represents the APE value for January 11th, 2015, and the orange square Y represents the APE value for January 17th, 2015. The vertical coordinate represents the day of the week. The darkness of the orange square in the heatmaps represents the error level of the forecasting results, i.e., the lighter orange square represents the smaller error. As shown in Figs. 3 and 4, STL-LSTM and STL-MLP can obtain better forecasting results and lower APEs than LSTM and MLP, respectively.

Table 3

Average results and standard deviations among different models in Barclays Center

Models	Evaluation metrics
	MAE	RMSE	MAPE (%)	R² (%)
XGBoost	160.0 (±0.0)	214.1 (±0.0)	16.3 (±0.0)	20.9 (±0.0)
LASSO	135.0 (±0.0)	185.1 (±0.0)	15.2 (±0.0)	40.9 (±0.0)
Ensemble model	140.2 (±1.9)	189.1 (±2.1)	15.8 (±0.1)	38.2 (±1.4)
BPNN	119.0 (±2.4)	161.0 (±2.3)	13.8 (±0.3)	55.3 (±1.3)
DL-LSTM L + W+E+T	100.4 (±1.8)	139.5 (±2.0)	12.8 (±0.3)	60.3 (±1.2)
DL-FC L + W+E+T	93.2 (±0.8)	132.3 (±0.9)	12.3 (±0.1)	64.3 (±0.5)
STL-SVR	117.6 (±0.0)	158.3 (±0.0)	14.6 (±0.0)	56.9 (±0.0)
STL-SVR-EI	95.1 (±0.0)	133.4 (±0.0)	11.4 (±0.0)	69.3 (±0.0)
LSTM	137.1 (±1.9)	182.6 (±1.7)	16.2 (±0.4)	42.4 (±1.1)
STL-LSTM	98.4 (±0.9)	140.2 (±0.7)	11.6 (±0.2)	66.1 (±0.3)
STL-LSTM-EI	83.6 (±1.2)	124.0 (±0.9)	9.6 (±0.3)	73.5 (±0.4)
STL-LSTM-EIET	82.3 (±1.4)	121.9 (±0.8)	9.6 (±0.2)	74.4 (±0.3)
MLP	139.0 (±2.9)	189.4 (±3.9)	15.7 (±0.5)	38.1 (±2.5)
STL-MLP	96.5 (±2.1)	139.5 (±2.2)	11.4 (±0.3)	66.4 (±1.1)
STL-MLP-EI	85.9 (±2.1)	126.5 (±2.6)	10.0 (±0.4)	72.4 (±1.2)
STL-MLP-EIET	83.9 (±1.0)	124.2 (±1.5)	9.8 (±0.1)	73.4 (±0.7)
STL-MLP-LSTM-EIET	81.6 (±1.1)	121.2 (±1.0)	9.5 (±0.1)	74.6 (±0.6)
STL-MLP-LSTM-EIET-GA (HDLM)	80.4 (±0.8)	1 19. 9 (±0.9)	9. 4 (±0.1)	7 5. 1 (±0.4)

Significant values are boldfaced.

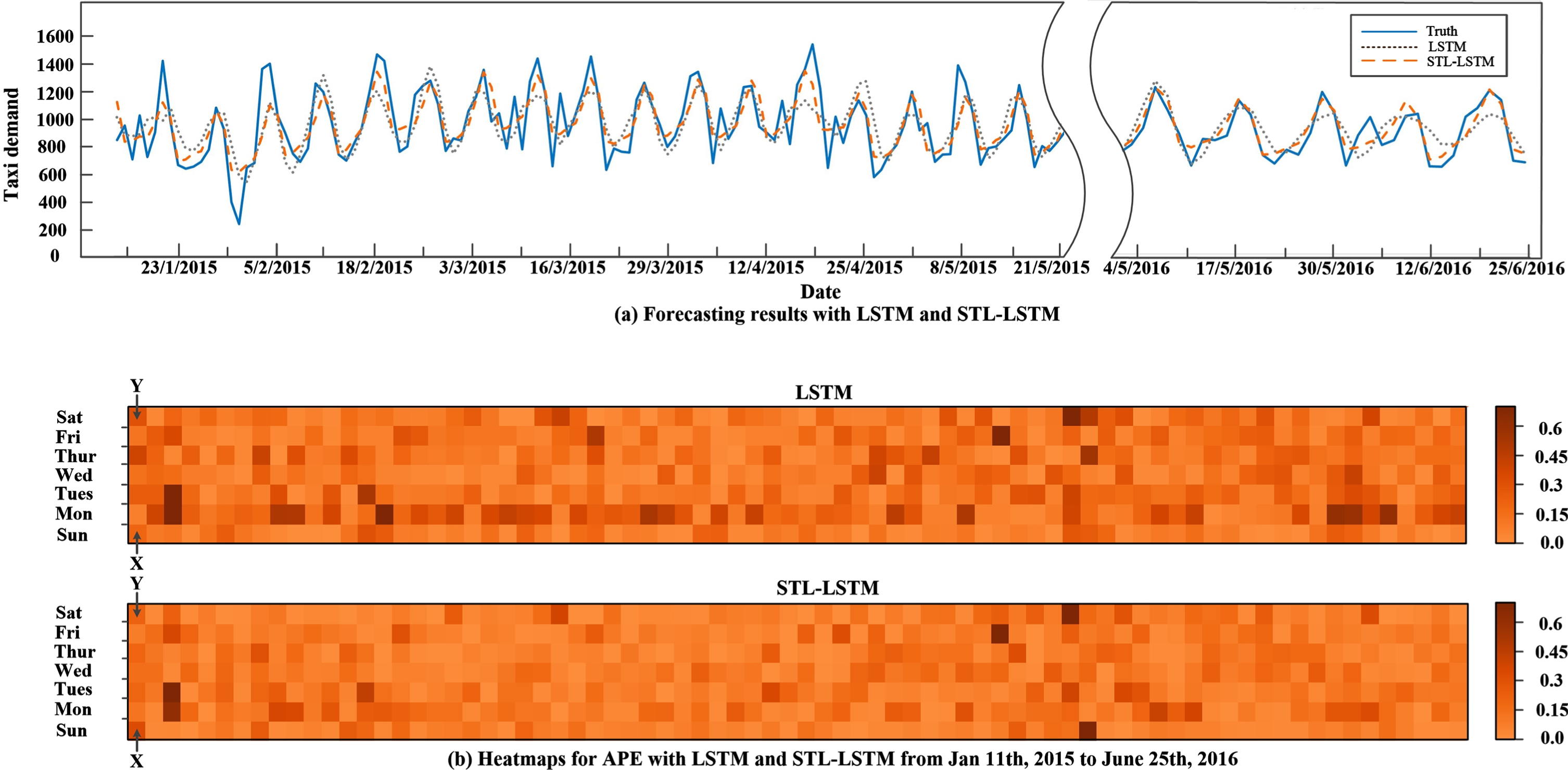

Fig. 3

Comparison of results between LSTM and STL-LSTM with truth and heatmaps in Barclays Center.

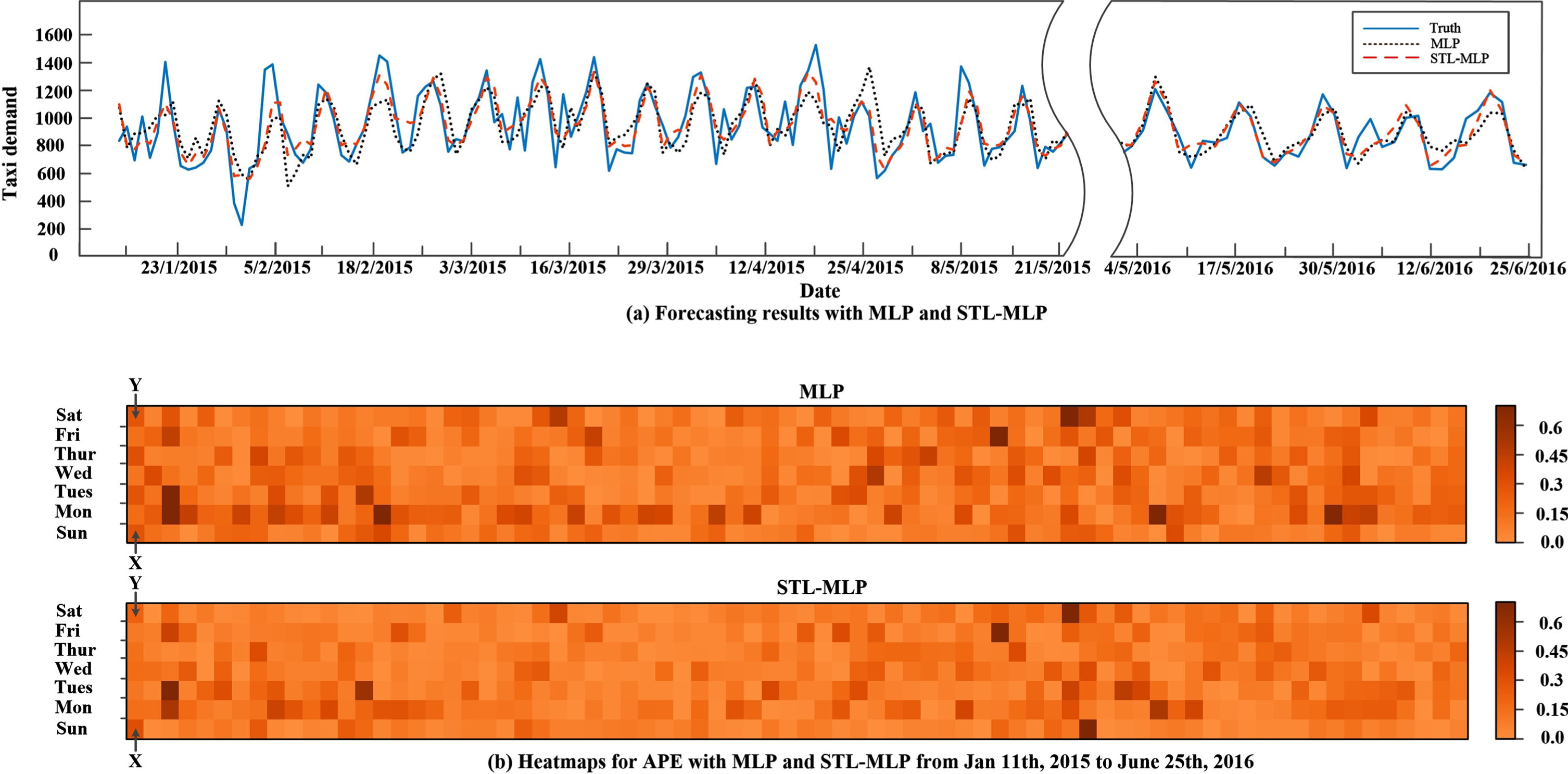

Fig. 4

Comparison of results between MLP and STL-MLP with truth and heatmaps in Barclays Center.

Additionally, Table 3 shows that the fusion of the event influencing feature (EI) reduces the forecasting error of all models effectively. For example, the MAE, RMSE, and MAPE obtained by STL-MLP are 96.5, 139.5, and 11.4, respectively. When the event influencing feature is fused into the models, the forecasting error is reduced, with the MAE, RMSE, and MAPE of STL-MLP-EI obtained as 85.9, 126.5, and 10.0, respectively.

However, it is insufficient to merely consider the effect of event occurrences. Without the event text description, the models cannot identify the degree of effect of various events on taxi demand. Table 3 demonstrates that the fusion of the event text feature (ET) can further improve the forecasting results of all models. For instance, the MAE, RMSE, and R² obtained by STL-LSTM-EI are 83.6, 124.0, and 73.5, respectively. By fusing the event text descriptions, the MAE and RMSE of STL-LSTM-EIET are reduced to 82.3 and 121.9 respectively, and the R² is improved to 74.4. Figure 5 shows the comparison results among STL-LSTM, STL-MLP, and STL-MLP-LSTM-EIET with truth and heatmaps. It is obvious that the forecasting results of STL-MLP-LSTM-EIET have the smallest gaps with the truth, and the orange square in the heatmap is lighter, indicating that using MLP and LSTM to forecast the trend and remainder components respectively can obtain better forecasting results. Further, by comparing the forecasting results of STL-MLP-LSTM-EIET and STL-MLP-LSTM-EIET-GA, it can be concluded that using GA to determine the optimal weights for integrating the forecasting results of three decomposed components can further improve the performance of the proposed model.

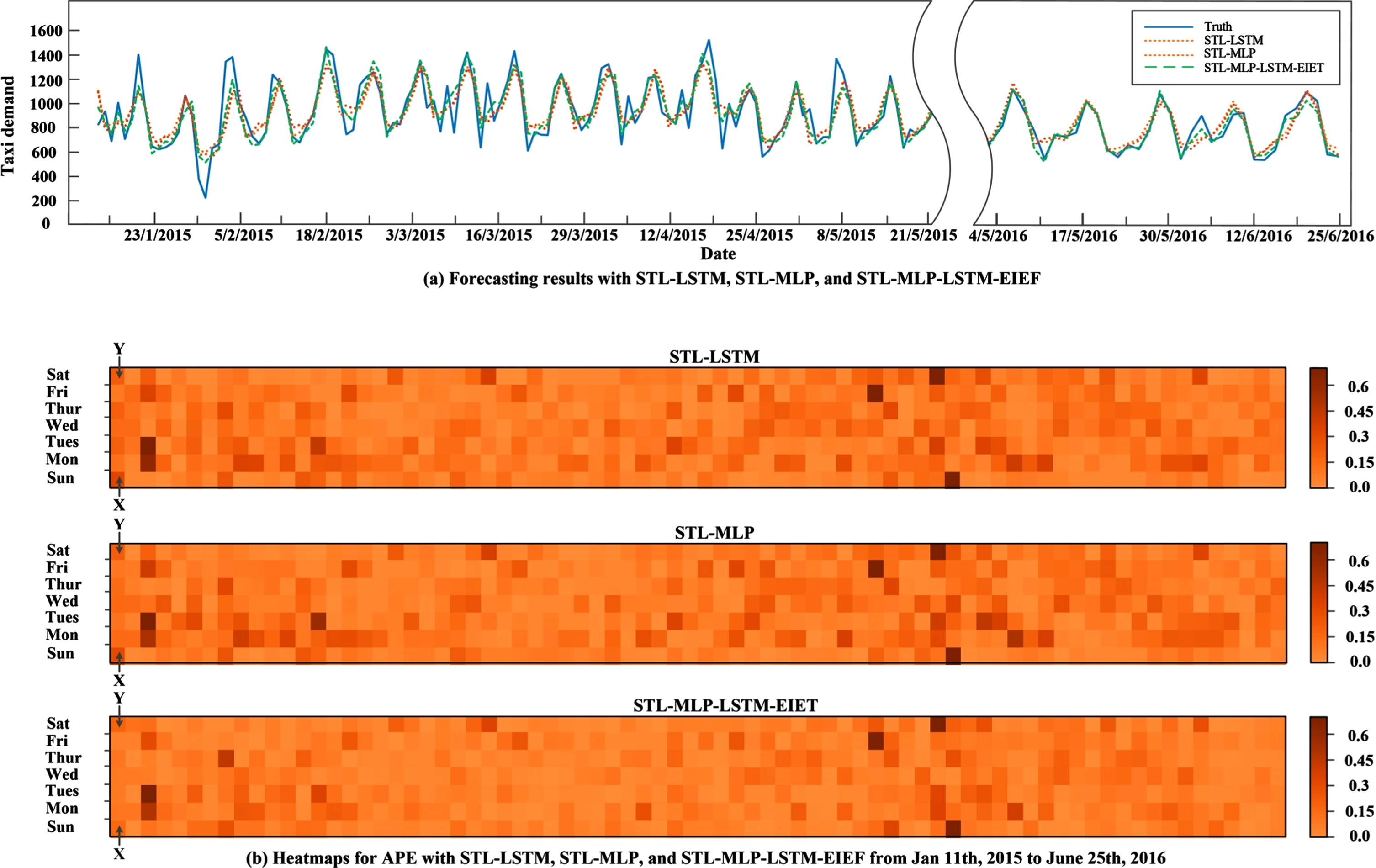

Fig. 5

Comparison of results among STL-LSTM, STL-MLP and STL-MLP-LSTM-EIEF with truth and heatmaps in Barclays Center.

Moreover, the superiority of HDLM is further verified by comparing the HDLM with some state-of-art models, including XGBoost, LASSO, Ensemble model, BPNN, DL-LSTM L + W+E+T, and DL-FC L + W+E+T. As shown in Table 3, the proposed model performs better than these state-of-art models in all the metrics. For example, the RMSE of STL-MLP-LSTM-EIEF are 94.2, 65.2, 69.2, 41.1, 19.6, and 12.4 lower than those of XGBoost, LASSO, Ensemble model, BPNN, DL-LSTM L + W+E+T, and DL-FC L + W+E+T, respectively.

Table 4 shows the MAE and MAPE of different models for both event days and no event days in the Barclays Center dataset. By comparing the forecasting results, it is clear that the proposed HDLM yields the best forecasting performance for two types of days among all models under comparison. For example, the MAE of DL-FC L + W+E+T and HDLM for event days are 108.4 and 93.3, respectively. The MAPE of BPNN and HDLM for no event days are 103.2 and 70.4, respectively.

Table 4

Average results and standard deviations for both event and no event days in Barclays Center

Models	No event days		Event days
	MAE	MAPE (%)	MAE	MAPE (%)
XGBoost	111.8 (±0.0)	13.8 (±0.0)	222.4 (±0.0)	19.5 (±0.0)
LASSO	113.1 (±0.0)	15.8 (±0.0)	157.0 (±0.0)	14.1 (±0.0)
Ensemble model	120.0 (±1.3)	16.5 (±0.3)	166.3 (±5.6)	15.0 (±0.5)
BPNN	103.2 (±6.1)	14.5 (±0.9)	139.6 (±7.1)	12.7 (±0.6)
DL-LSTM L + W+E+T	85.3 (±1.4)	10.2 (±0.1)	118.7 (±1.5)	16.0 (±0.3)
DL-FC L + W+E+T	81.8 (±0.8)	9.8 (±0.1)	108.4 (±1.1)	15.5 (±0.2)
HDLM	70.4 (±1.3)	8. 2 (±0.2)	93.3 (±1.5)	8. 9 (±0.2)

Significant values are boldfaced.

4.5.2 Forecasting Results in Terminal 5

For the Terminal 5 dataset, Table 5 shows the forecasting results of the trend and remainder components using different deep learning modules. Similar to the forecasting results from the Barclays Center area, the MLP can obtain better results in the trend component and LSTM can obtain better results in the remainder component for the Terminal 5 dataset. The forecasting results of all models are shown in Table 6, which demonstrates the same conclusion as that from the Barclays Center dataset regarding the contributions of STL, event influencing feature and event text feature.

Table 5
Average results and standard deviations among different methods in Terminal 5

Models Trend component Remainder component

MAE RMSE MAE RMSE

STL-SVR 23.8 (±0.0) 31.3 (±0.0) 160.5 (±0.0) 240.9 (±0.0)

STL-SVR-EI 23.8 (±0.0) 31.3 (±0.0) 150.7 (±0.0) 233.8 (±0.0)

STL-LSTM 27.3 (±0.8) 35.6 (±1.1) 146.7 (±1.0) 232.7 (±2.7)

STL-LSTM-EI 27.7 (±1.8) 36.0 (±2.0) 135.0 (±2.1) 230.6 (±3.2)

STL-LSTM-EIET 27.7 (±1.2) 35.9 (±1.6) 134.7 (±1.3) 227.9 (±2.8)

STL-MLP 15.2 (±1.8) 20.3 (±1.8) 150.8 (±3.4) 235.0 (±2.5)

STL-MLP-EI 15.4 (±1.4) 20.4 (±1.4) 145.5 (±3.6) 233.3 (±4.3)

STL-MLP-EIET 15.6 (±1.9) 20.7 (±1.9) 143.3 (±3.4) 231.6 (±3.5)

Models	Trend component	Remainder component
STL-SVR	23.8 (±0.0)	31.3 (±0.0)	160.5 (±0.0)	240.9 (±0.0)
STL-SVR-EI	23.8 (±0.0)	31.3 (±0.0)	150.7 (±0.0)	233.8 (±0.0)
STL-LSTM	27.3 (±0.8)	35.6 (±1.1)	146.7 (±1.0)	232.7 (±2.7)
STL-LSTM-EI	27.7 (±1.8)	36.0 (±2.0)	135.0 (±2.1)	230.6 (±3.2)
STL-LSTM-EIET	27.7 (±1.2)	35.9 (±1.6)	134.7 (±1.3)	227.9 (±2.8)
STL-MLP	15.2 (±1.8)	20.3 (±1.8)	150.8 (±3.4)	235.0 (±2.5)
STL-MLP-EI	15.4 (±1.4)	20.4 (±1.4)	145.5 (±3.6)	233.3 (±4.3)
STL-MLP-EIET	15.6 (±1.9)	20.7 (±1.9)	143.3 (±3.4)	231.6 (±3.5)

Table 6

Average results and standard deviations among different models in Terminal 5

Models	Evaluation metrics
	MAE	RMSE	MAPE (%)	R² (%)
XGBoost	226.0 (±0.0)	285.7 (±0.0)	22.6 (±0.0)	16.0 (±0.0)
LASSO	227.0 (±0.0)	283.8 (±0.0)	24.2 (±0.0)	17.1 (±0.0)
Ensemble model	219.0 (±5.4)	282.1 (±4.9)	23.2 (±0.7)	18.0 (±2.8)
BPNN	185.3 (±4.8)	249.7 (±4.6)	18.1 (±0.7)	35.8 (±2.4)
DL-LSTM L + W+E+T	160.8 (±6.1)	233.5 (±4.9)	16.7 (±0.7)	51.7 (±2.0)
DL-FC L + W+E+T	152.6 (±2.4)	232.1 (±2.5)	16.1 (±0.3)	52.3 (±1.1)
STL-SVR	164.6 (±0.0)	241.8 (±0.0)	15.7 (±0.0)	39.8 (±0.0)
STL-SVR-EI	154.5 (±0.0)	233.9 (±0.0)	14.9 (±0.0)	43.6 (±0.0)
LSTM	190.9 (±5.8)	266.3 (±6.9)	18.4 (±0.8)	26.9 (±3.8)
STL-LSTM	150.2 (±1.7)	233.8 (±2.2)	13.9 (±0.2)	43.6 (±1.0)
STL-LSTM-EI	140.1 (±2.9)	230.3 (±2.7)	13.1 (±0.4)	45.4 (±1.3)
STL-LSTM-EIET	139.1 (±1.6)	227.1 (±2.2)	13.0 (±0.2)	46.9 (±1.0)
MLP	195.9 (±4.2)	256.9 (±4.2)	18.5 (±0.5)	32.0 (±2.2)
STL-MLP	150.4 (±3.0)	231.6 (±2.0)	14.0 (±0.3)	44.7 (±1.0)
STL-MLP-EI	144.4 (±3.6)	229.5 (±4.2)	13.7 (±0.4)	45.7 (±2.0)
STL-MLP-EIET	141.4 (±3.3)	227.5 (±3.4)	13.4 (±0.4)	46.6 (±1.6)
STL-MLP-LSTM-EIET	131.2 (±1.4)	225.0 (±4.4)	12.2 (±0.2)	47.9 (±2.0)
STL-MLP-LSTM-EIET-GA (HDLM)	13 0. 0 (±1.1)	22 4. 2 (±4.3)	12. 1 (±0.1)	48.2 (±2.0)

Significant values are boldfaced.

Figures 6, 7, and 8 show the comparison results more visually. The orange square Z represents the APE value for January 17th, 2016, and the orange square U represents the APE value for January 23rd, 2016. The forecasting errors are significantly reduced via STL and fusing event influencing feature and event text feature, and the performance of model is further improved by using MLP and LSTM to forecast the trend and remainder components respectively. In addition, as shown in Table 6, the forecasting results of HDLM are superior to other state-of-art models in the most metrics.

Fig. 6

Comparison of results between LSTM and STL-LSTM with truth and heatmaps in Terminal 5.

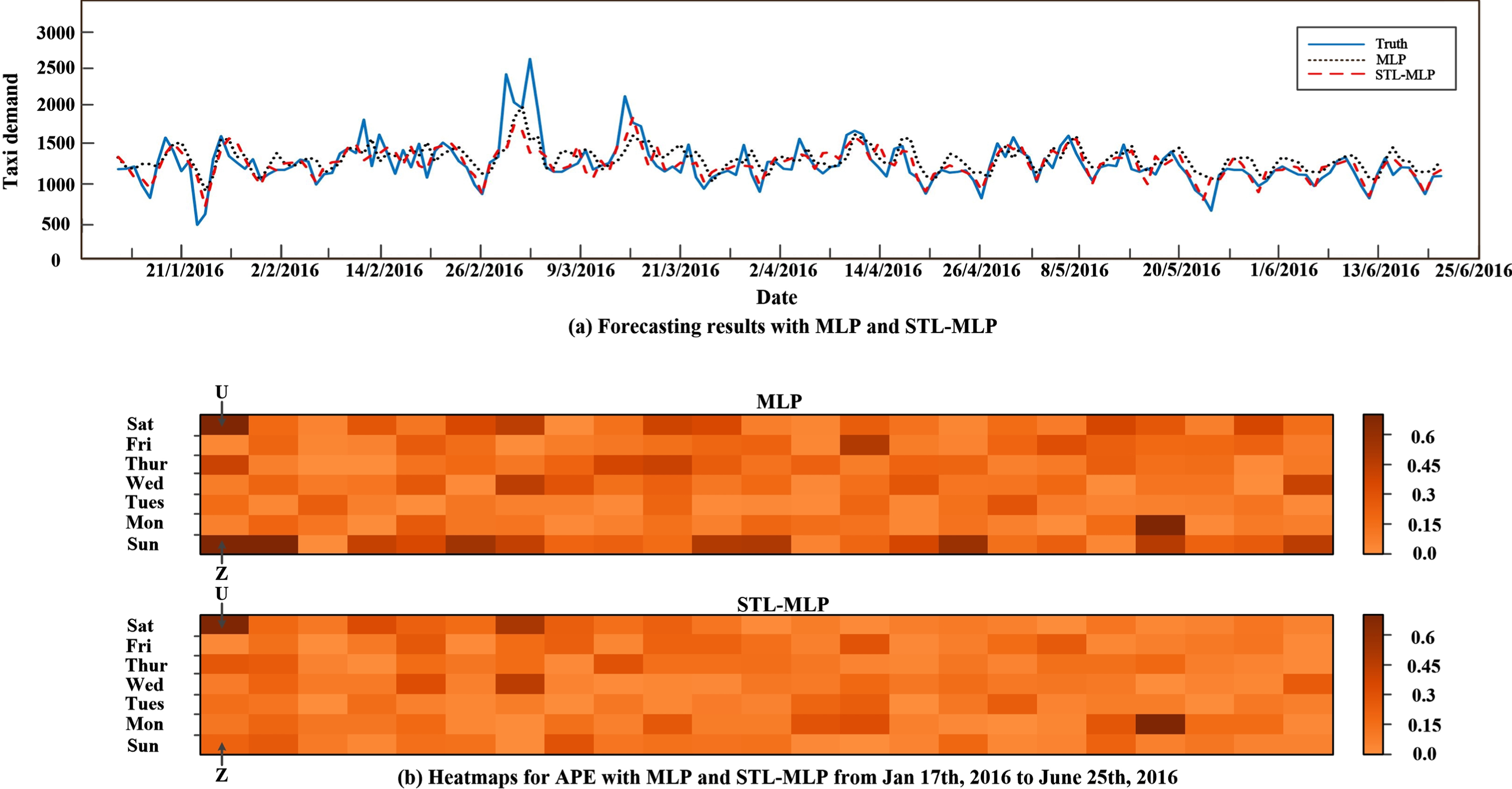

Fig. 7

Comparison of results between MLP and STL-MLP with truth and heatmaps in Terminal 5.

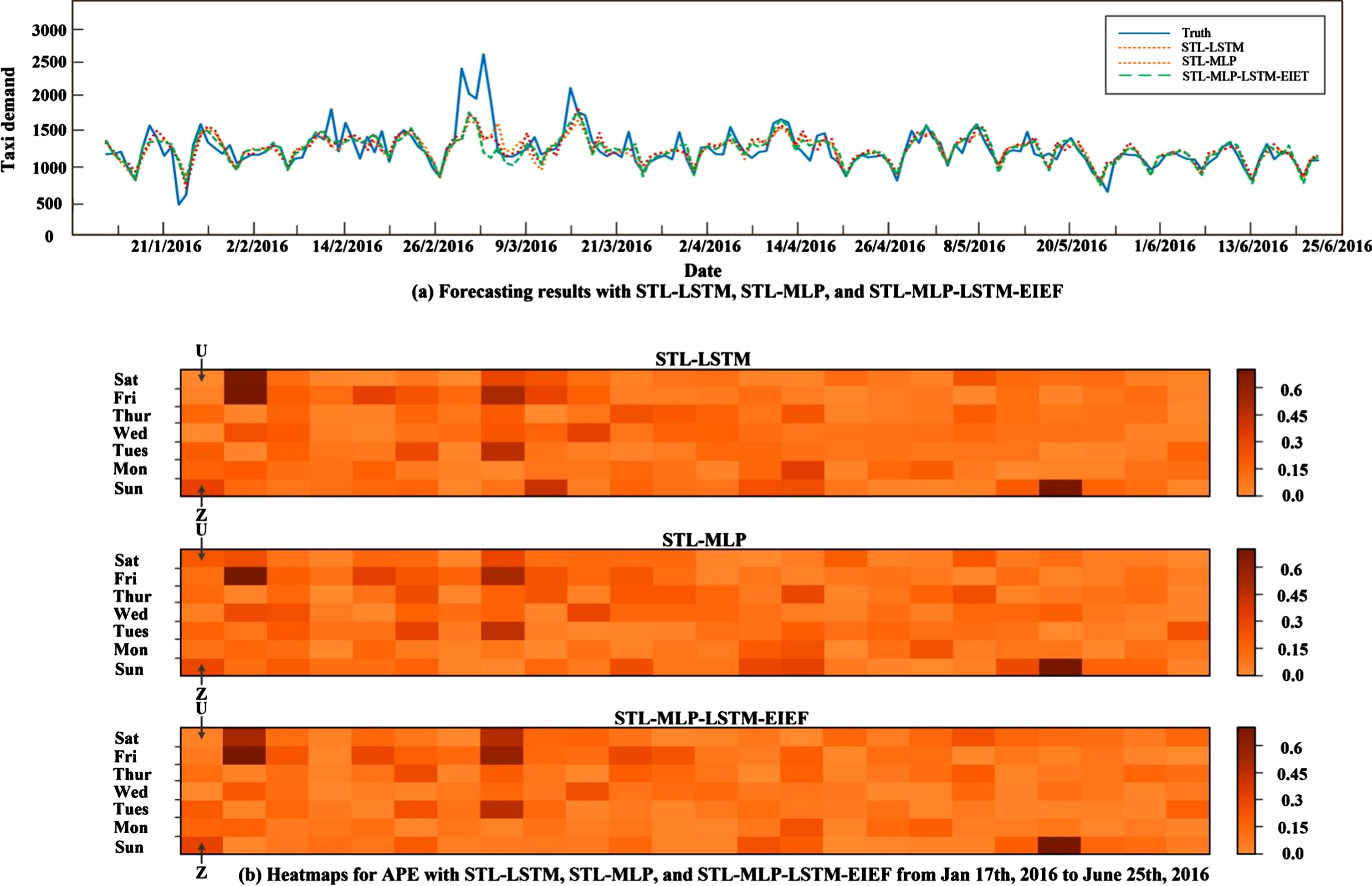

Fig. 8

Comparison of results among STL-LSTM, STL-MLP and STL-MLP-LSTM-EIEF with truth and heatmaps in Terminal 5.

The MAE and MAPE for event days and no event days in the Terminal 5 dataset are shown in Table 7. Similar to the forecasting results from the Barclays Center area, the proposed HDLM yields the best forecasting performance for two types of days among all models under comparison.

Table 7

Average results and standard deviations for both event and no event days in Terminal 5

Models	No event days		Event days
	MAE	MAPE (%)	MAE	MAPE (%)
XGBoost	251.5 (±0.0)	26.4 (±0.0)	163.0 (±0.0)	13.4 (±0.0)
LASSO	236.4 (±0.0)	26.2 (±0.0)	166.8 (±0.0)	14.2 (±0.0)
Ensemble model	227.0 (±9.7)	25.7 (±1.1)	199.2 (±6.4)	17.0 (±0.4)
BPNN	187.5 (±9.4)	19.8 (±1.1)	179.7 (±12.3)	13.7 (±0.9)
DL-LSTM L + W+E+T	148.9 (±7.8)	17.0 (±0.9)	188.4 (±5.8)	15.6 (±0.4)
DL-FC L + W+E+T	138.1 (±3.2)	16.1 (±0.5)	190.2 (±2.8)	16.2 (±0.2)
HDLM	1 30.1 (±1.6)	1 2. 6 (±0.3)	130.0 (±1.7)	10. 4 (±0.2)

Significant values are boldfaced.

4.5.3 Statistical test analysis

Inspired by Demšar [4], the statistical test was adopted to further improve the reliability of the experiment. First, the Friedman test [5] was used to test the significance of all models. Then, if the null hypothesis is rejected, the Nemenyi test [28] would be used. The significance test results of six state-of-art models and the proposed HDLM are presented in Table 8. The steps of Friedman test include: (1) ranking seven selected models based on four evaluation metrics; (2) using model ranking to calculate the significance results of the Friedman test.

Table 8
Significance test results of the Friedman test

Dataset Models MAE RMSE MAPE R²

Barclays Center XGBoost 7 7 7 7

LASSO 5 5 5 5

Ensemble model 6 6 6 6

BPNN 4 4 4 4

DL-LSTM L + W+E+T 3 3 3 3

DL-FC L + W+E+T 2 2 2 2

HDLM 1 1 1 1

Terminal 5 XGBoost 6 7 5 7

LASSO 7 6 7 6

Ensemble model 5 5 6 5

BPNN 4 4 4 4

DL-LSTM L + W+E+T 3 3 3 2

DL-FC L + W+E+T 2 2 2 1

HDLM 1 1 1 3

Results 17.66 50.00 12.99 12.99

Dataset	Models	MAE	RMSE	MAPE	R²
Barclays Center	XGBoost	7	7	7	7
	LASSO	5	5	5	5
	Ensemble model	6	6	6	6
	BPNN	4	4	4	4
	DL-LSTM L + W+E+T	3	3	3	3
	DL-FC L + W+E+T	2	2	2	2
	HDLM	1	1	1	1
Terminal 5	XGBoost	6	7	5	7
	LASSO	7	6	7	6
	Ensemble model	5	5	6	5
	BPNN	4	4	4	4
	DL-LSTM L + W+E+T	3	3	3	2
	DL-FC L + W+E+T	2	2	2	1
	HDLM	1	1	1	3
	Results	17.66	50.00	12.99	12.99

In Table 8, it can be seen that the significance results of the Friedman test on all evaluation metrics are higher than the critical value (i.e., 4.28), the null hypothesis (i.e., the performance of all models are same) is rejected. Then, the Nemenyi test was used to further compare the performance of seven models. The Nemenyi test results with graphical representation are shown in Fig. 9, where the critical distance (CD) denotes the mean ranking score difference. The more the position of the model on the coordinate axis is to the right, the better the performance of the model. As can be seen, the proposed HDLM achieves the superior performance compared to other models.

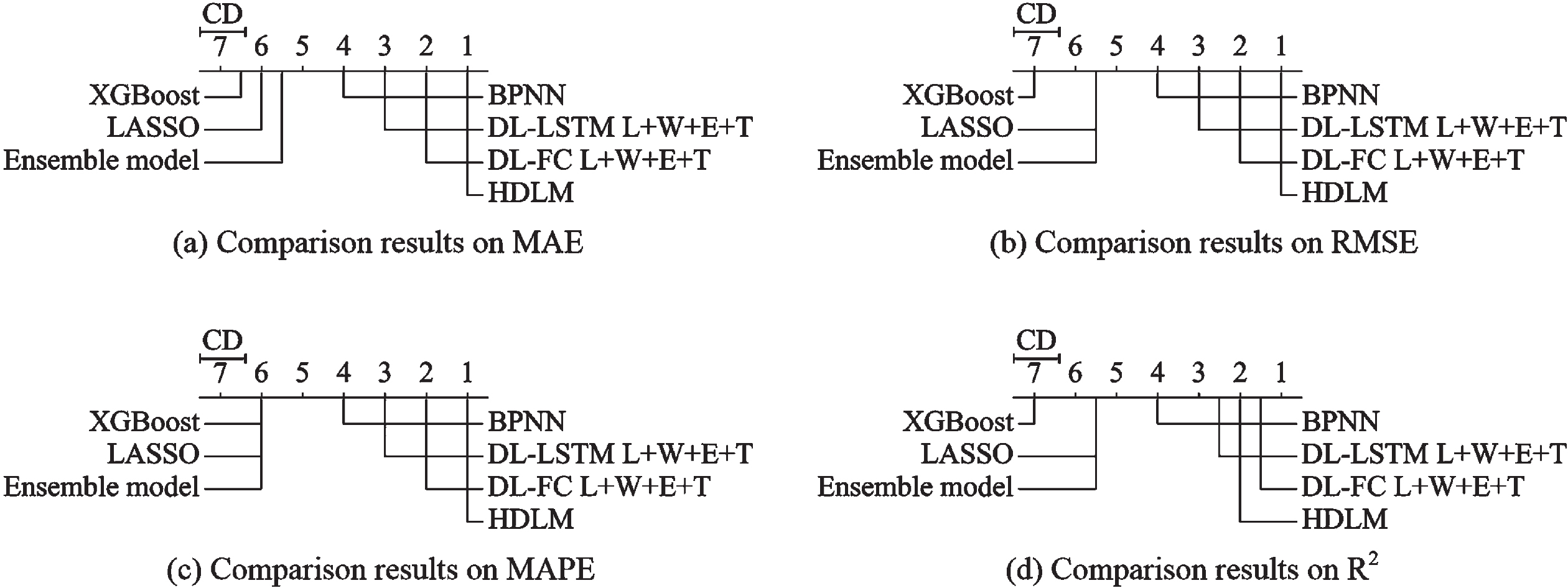

Fig. 9

Nemenyi test results with graphical representation.

5 Conclusion and future work

Taxi demand forecasting can provide an effective guidance for the reasonable allocation of traffic resources and benefit both passengers and taxi drivers. To address the difficulty of accurately forecasting taxi demand in highly dynamic areas, a new hybrid deep learning model based on decomposition of time series and fusion of text data is proposed in this study. To verify the superiority of the proposed HDLM, the Barclays Center and Terminal 5 datasets are explored. The experimental results can be concluded that: (a) the forecasting performance could be improved by decomposing the global time series into simpler components, which are subsequently modeled through a hybrid deep learning structure; (b) fusion of the event influencing feature and event text feature can better capture patterns of the remainder component, and solve its extreme value problem caused by unusual fluctuations; (c) using GA to determine the optimal weights for integrating the forecasting results of three decomposed components can further improve the final forecasting accuracy; (d) compared with the baseline models, the proposed model demonstrates better forecasting accuracy for both event and no event days.

In future work, more unstructured data will be used for time series forecasting, such as images and voice. Additionally, various deep learning structures can be considered to obtain better performances. Moreover, more effective data fusion techniques will be investigated to fully utilize unstructured data. Finally, other advanced heuristic algorithm will be investigated to determine the optimal weights more effectively.

Footnotes

Acknowledgments

The work has been supported by National Natural Science Foundation of China (No. 51975512, No. 51875503, No. 61972336), Zhejiang Key R & D Project of China (No.2021C03153), and Zhejiang Natural Science Foundation of China (No. LZ20E050001).

References

Castro-Neto

, Jeong

Y.S.

, Jeong

M.K.

and Han

L.D.

, Online-SVR for short-term traffic flow prediction under typical and atypical traffic conditions, Expert Systems with Applications 36(3) (2009), 6164–6173.

Chen

, Zhang

W.Y.

, Peng

J.J.

and Cai

Y.S.

, Multifactor spatio-temporal correlation model based on a combination of convolutional neural network and long short-term memory neural network for wind speed forecasting, Energy Conversion and Management 185 (2019), 783–799.

Cleveland

R.B.

, Cleveland

W.S.

, McRae

J.E.

and Terpenning

, STL: a seasonal-trend decomposition, Journal of Official Statistics 6(1) (1990), 3–73.

Demšar

, Statistical comparisons of classifiers over multiple data sets, Journal of Machine Learning Research 7 (2006), 1–30.

Friedman

, A comparison of alternative tests of significance for the problem of m rankings, The Annals of Mathematical Statistics 11(1) (1940), 86–92.

Gao

S.J.

, Chen

Y.H.

, Liang

and Gong

, Post-earthquake night-time light piecewise (PNLP) pattern based on NPP/VIIRS night-time light data: a case study of the nepal earthquake, Remote Sensing 12(12) (2020), 2009.

Gemperline

P.J.

, Long

J.R.

and Gregoriou

V.G.

, Nonlinear multivariate calibration using principal components regression and artificial neural networks, Analytical Chemistry 63(20) (1991), 2313–2323.

Ghritlahre

H.K.

and Prasad

R.K.

, Exergetic performance prediction of solar air heater using MLP, GRNN and RBF models of artificial neural network technique, Journal of Environmental Management 223 (2018), 566–575.

Goodfellow

, Bengio

and Courville

, Deep Learning, The MIT Press, (2016).

10.

Guo

J.H.

, Huang

and Williams

B.M.

, Adaptive Kalman filter approach for stochastic short-term traffic flow rate prediction and uncertainty quantification, Transportation Research Part C: Emerging Technologies 43 (2014), 50–64.

11.

Hochreiter

and Schmidhuber

, Long short-term memory, Neural Computation 9(8) (1997), 1735–1780.

12.

Holland

J.H.

, Adaptation in Natural and Artificial Systems: an Introductory Analysis with Application to Biology, Control, and Artificial Intelligence, MIT press, (1975).

13.

Huang

W.H.

, Song

G.J.

, Hong

H.K.

and Xie

K.Q.

, Deep architecture for traffic flow prediction: deep belief networks with multitask learning, IEEE Transactions on Intelligent Transportation Systems 15(5) (2014), 2191–2201.

14.

Kamarianakis

, Shen

and Wynter

, Real-time road traffic forecasting using regime-switching space-time models and adaptive LASSO, Industry 28(4) (2012), 297–315.

15.

Kingma

D.P.

and Ba

J.L.

, Adam: a method for stochastic optimization, arXiv preprint arXiv:1412.6980, (2015).

16.

Kuang

, Yan

X.J.

, Tan

X.H.

, Li

S.Q.

and Yang

X.X.

, Predicting taxi demand based on 3D convolutional neural network and multi-task learning, Remote Sensing 11(11) (2019), 1265.

17.

Lai

S.W.

, Liu

, He

S.Z.

and Zhao

, How to generate a good word embedding, IEEE Intelligent Systems 31(6) (2016), 5–14.

18.

D.H.

, Predicting short-term traffic flow in urban based on multivariate linear regression model, Journal of Intelligent & Fuzzy Systems 39(2) (2020), 1417–1427.

19.

X.L.

, Pan

, Wu

Z.H.

, Qi

G.D.

, Li

S.J.

and Zhang

D.Q.

, Prediction of urban human mobility using large-scale taxi traces and its applications, Frontiers of Computer Science 6(1) (2012), 111–121.

20.

Lin

S.J.

, Chen

J.Y.

and Liao

Z.X.

, A EMD-BP integrated model to forecast tourist number and applied to Jiuzhaigou, Journal of Intelligent & Fuzzy Systems 34(2) (2018), 1045–1052.

21.

Liu

, Guo

S.J.

, Zou

M.J.

, Chen

, Deng

, Xie

, et al., A dengue fever predicting model based on Baidu search index data and climate data in South China, Plos one, (2019). DOI: 10.1371/ journal.pone.0226841.

22.

Liu

Z.Z.

, Chen

, Sun

X.K.

and Chen

H.R.

, Data-driven real-time online taxi-hailing demand forecasting based on machine learning method, Applied Sciences 10(19) (2020), 6681.

23.

Luo

X.G.

, Yuan

X.H.

, Zhu

, Xu

Z.Y.

, Meng

L.S.

and Peng

, A hybrid support vector regression framework for streamflow forecast, Journal of Hydrology 568 (2019), 184–193.

24.

X.L.

, Tao

Z.M.

, Wang

Y.H.

, Yu

H.Y.

and Wang

Y.P.

, Long short-term memory neural network for traffic speed prediction using remote microwave sensor data, Transportation Research Part C: Emerging Technologies 54 (2015), 187–197.

25.

Mikolov

, Chen

, Corrado

and Dean

, Efficient estimation of word representations in vector space, arXiv preprint arXiv:1301.3781, (2013).

26.

Moreira-Matias

, Gama

, Ferreira

, Mendes-Moreira

and Damas

, Predicting taxi–passenger demand using streaming data, IEEE Transactions on Intelligent Transportation Systems 14(3) (2013), 1393–1402.

27.

Nair

and Hinton

G.E.

, Rectified linear units improve restricted boltzmann machines, In Proceedings of the 27th International Conference on Machine Learning, June 21–24, Haifa, Israel, (2010), pp. 807–814.

28.

Nemenyi

P.B.

, Distribution Free Multiple Comparisons, PhD Thesis, Princeton University, (1963).

29.

Nguyen

and Novák

, Forecasting seasonal time series based on fuzzy techniques, Fuzzy Sets and Systems 361 (2019), 114–129.

30.

Nieto

P.J.G.

, García-Gonzalo

, Sánchez

A.B.

and Miranda

A.A.R.

, Air quality modeling using the PSO-SVM-based approach, MLP neural network, and M5 model tree in the metropolitan area of Oviedo (Northern Spain), Environmental Modeling & Assessment 23(3) (2018), 229–247.

31.

Pal

S.S.

and Kar

, Time series forecasting using fuzzy transformation and neural network with back propagation learning, Journal of Intelligent & Fuzzy Systems 33(1) (2017), 467–477.

32.

Pennington

, Socher

and Manning

C.D.

, Glove: global vectors for word representation, In Proceedings of the 2014 Conference on Empirical Methods in Natural Language Processing (EMNLP), October 25–29, Doha, Qatar, (2014), pp. 1532–1543.

33.

Qian

Y.S.

, Zeng

J.W.

, Wang

, Zhang

J.L.

and Wang

B.B.

, A traffic flow model considering influence of car-following and its echo characteristics, Nonlinear Dynamics 89(2) (2017), 1099–1109.

34.

Qin

, Li

W.D.

and Li

S.J.

, Effective passenger flow forecasting using STL and ESN based on two improvement strategies, Neurocomputing 356 (2019), 244–256.

35.

Rodrigues

, Markou

and Pereira

F.C.

, Combining time-series and textual data for taxi demand prediction in event areas: a deep learning approach, Information Fusion 49 (2019), 120–129.

36.

Rumelhart

D.E.

, Hinton

G.E.

and Williams

R.J.

, Learning representations by back-propagating errors, Nature 323 (1986), 533–536.

37.

Srivastava

, Hinton

, Krizhevsky

, Sutskever

and Salakhutdinov

, Dropout: a simple way to prevent neural networks from overfitting, Journal of Machine Learning Research 15(1) (2014), 1929–1958.

38.

Theodosiou

, Disaggregation & aggregation of time series components: a hybrid forecasting approach using generalized regression neural networks and the theta method, Neurocomputing 74(6) (2011), 896–905.

39.

Theodosiou

, Forecasting monthly and quarterly time series using STL decomposition, International Journal of Forecasting 27(4) (2011), 1178–1195.

40.

Tieleman

and Hinton

, Lecture 6.5-rmsprop: divide the gradient by a running average of its recent magnitude, COURSERA: Neural Networks for Machine Learning 4 (2012), 26–31.

41.

Vanichrujee

, Horanont

, Pattara-atikom

, Theeramunkong

and Shinozaki

, Taxi demand prediction using ensemble model based on rnns and xgboost, In Proceedings of the 2018 International Conference on Embedded Systems and Intelligent Technology & International Conference on Information and Communication Technology for Embedded Systems (ICESIT-ICICTES), May 7-9, Khon Kaen, Thailand, (2018), pp. 1–6.

42.

Vlahogianni

E.I.

and Karlaftis

M.G.

, Comparing traffic flow time-series under fine and adverse weather conditions using recurrence-based complexity measures, Nonlinear Dynamics 69(4) (2012), 1949–1963.

43.

Wang

, Cao

, Li

and Ye

J.P.

, DeepSD: supply-demand prediction for online car-hailing services using deep neural networks, In Proceedings of the 2017 IEEE 33rd International Conference on Data Engineering (ICDE), April 19-22, CA, USA, (2017), pp. 243–254.

44.

Wang

L.Y.

, Geng

, Ma

X.J.

, Zhang

D.Q.

and Yang

, Ridesharing car detection by transfer learning, Artificial Intelligence 273 (2019), 1–18.

45.

, Rahmatizadeh

, Bölöni

and Turgut

, Real-time prediction of taxi demand using recurrent neural networks, IEEE Transactions on Intelligent Transportation Systems 19(8) (2017), 2572–2581.

46.

Yuan

N.J.

, Zheng

, Zhang

L.H.

and Xie

, T-finder: a recommender system for finding passengers and vacant taxis, IEEE Transactions on Knowledge and Data Engineering 25(10) (2012), 2390–2403.
