Long short-term memory stacking model to predict the number of cases and deaths caused by COVID-19

Abstract

The long short-term memory (LSTM) is a high-efficiency model for forecasting time series, for being able to deal with a large volume of data from a time series with nonlinearities. As a case study, the stacked LSTM will be used to forecast the growth of the pandemic of COVID-19, based on the increase in the number of contaminated and deaths in the State of Santa Catarina, Brazil. COVID-19 has been spreading very quickly, causing great concern in relation to the ability to care for critically ill patients. Control measures are being imposed by governments with the aim of reducing the contamination and the spreading of viruses. The forecast of the number of contaminated and deaths caused by COVID-19 can help decision making regarding the adopted restrictions, making them more or less rigid depending on the pandemic’s control capacity. The use of LSTM stacking shows an R² of 0.9625 for confirmed cases and 0.9656 for confirmed deaths caused by COVID-19, being superior to the combinations among other evaluated models.

Keywords

Long short-term memory COVID-19 spreading viruses

1 Introduction

Recently the new coronavirus (SARS-CoV-2) proved to be a highly contagious virus, considering that it soon spread throughout the world and caused serious consequences to the health of the population [1]. Due to easy contagion, certain restrictive measures were imposed in Brazil to prevent the virus from spreading widely and generate catastrophic consequences on public health. One of the main concerns is that the health system is unable to receive and treat all patients properly [2].

SARS-CoV-2 causes the disease COVID-19, which presents a clinical picture that can range from asymptomatic infections to severe respiratory conditions, which in the absence of treatment can cause death [3]. According to the World Health Organization (WHO), most patients with COVID-19 can be asymptomatic, which makes it difficult to identify where the virus is spreading [4].

Some patients with COVID-19 may require hospital care with support for the treatment of respiratory failure, which makes it necessary to have an adequate forecast for the increase of cases [5]. From a forecast it is possible to have control of restrictive measures, in relation to the capacity of advanced treatments [6]. Based on this need, this article aims to assess the ability to predict deaths and infections in the state of Santa Catarina in southern Brazil, in order to indicate whether restrictive measures are generating efficient results.

Some authors have carried out works related to the evaluation of the spread of viruses and the ability to predict this disease. In the work of Pinto, Nepomuceno and Campanharo a study is presented on the spread of infectious diseases [7]. The evaluation shows that complex networks result in curves of infected individuals with different behaviors and, therefore, the growth of a given disease is highly sensitive to the model used. In [8] published reports on forecast models for the diagnosis of COVID-19 in patients with suspected infection are analyzed. In this study, the ability to detect people in the general population at risk of being admitted to the hospital for pneumonia is assessed.

Al-qaness et al. [9] present in their study a new model that aims to predict 10 days in advance the number of confirmed cases of COVID-19 using as a basis the cases previously registered in China. For that, they used an adaptive neuro-fuzzy inference system model (ANFIS). In comparison with other existing models, ANFIS showed better performance in calculating error and computational effort.

Sajadi et al. [10] conducted a study in which climate data from cities with significant community dissemination of COVID-19 were examined using retrospective analysis. So far, there has been significant community dissemination in cities and regions with similar weather patterns with average temperatures in the range of 5-11°C and humidity between 4-7g/m³ The outbreak distribution in regions with these climatographic characteristics is consistent with a seasonal respiratory virus.

Fanelli e Piazza [11] present an analysis of the spread of COVID-19 in China, Italy and France. In this work they mention that in an initial analysis of day-lag graphs, the results show that it is possible to identify a simple model to understand the spread of the epidemic, height and time to reach the peak of the curve of confirmed infected individuals. The analysis also shows that the recovery rate follows the same kinetics regardless of the country under analysis, while the rates of infection and death vary. A simulation of the effects of drastic measures to contain the outbreak in Italy shows that a reduction in the rate of infection actually causes an attenuation of the peak of the epidemic, and it is also observed that the rate of infection needs to be reduced dramatically and quickly to see a noticeable decrease in the epidemic peak and mortality rate.

Roosa et al. [12] used in their research phenomenological models already validated for a short-term forecast of the cases reported in Guangdong and Zhejiang, China. It was possible to make a 5 and 10 day forecast using accumulated data collected from the National Health Commission of China until February 13, 2020. For this, the researchers used a generalized logistic growth model, Richards’ growth models and a sub-epidemic wave model that had previously been used to predict outbreaks of infectious diseases at other times. By using 3 models it was possible to obtain a forecast, using the 10-day condition, of 65 to 81 additional cases in Guangdong and 44 to 354 cases in Zhejiang. It can be seen with this that the transmission in both cities is showing a decrease.

In the article by He, Tang and Rong [13], a short-time stochastic epidemic model with binomial distribution was presented for the study of coronavirus transmission. The model parameters were adjusted based on data collected in China between 11 and 13 February 2020. The estimates of the contact rate and the effective number of reproduction indicate the efficiency of the control measures when applied quickly. The simulations show that the total number of confirmed cases peaked at the end of February 2020, considering that the applied control measures were maintained. Although the number of new cases of infection is decreasing, there is still the possibility of future outbreaks if adequate protective measures are not taken.

There are several algorithms that can be used to forecast time series. Choosing the best model [14] and configuration [15] can improve the predictability of the algorithm. In the article [16] the forecast is made through a neuro-fuzzy network with success for a short-term time series. In [17], several ways of using the Ensemble algorithm are applied to the short-term forecasting problem. The use of optimization methods and hybrid algorithms is also a promising alternative to assess the problem [18].

Time series forecasting is applied to several areas of knowledge, some works stand out for this purpose using advanced forecasting techniques. In [19] the least squares support vector machine classifier combined to chaotic cloud particle swarm optimization is applied to forecasting ship motion, in [20] and [21] a hybrid model is used for forecasting energy consumption, Zhang and Hong [22] used a combined model for the same purpose. In [23] a combination of models is performed to improve the predictability of the algorithm. Papers [24] and [25] perform the prediction based on a support vector regression model.

Among the algorithms for the prediction of time series [26 –28], neural networks with deep learning have gained space for the time series forecasting of COVID-19 spread [29 –32], considering that they have the capacity to analyze a large volume of data with non-linearities. Long short-term memory (LSTM) is a recurrent neural network (RNN) that can process entire sequences of data, making this algorithm suitable for the problem in question [33]. The insensitivity regarding the gap length gives the LSTM an advantage over traditional RNNs and classic approaches, such as nonlinear auto-regressive algorithms.

The use of stacked LSTM is promising for time series forecasting [34]. Stacking the layers can improve the model’s ability to capture temporal dependency patterns. According to Liang et al. [35] stacked LSTM is suitable to perform wind speed prediction for wind power producers and grid operators. The results show that this type of model has the ability to capture and learn uncertainties at the same time that it presents an output performance.

The stacked LSTM model has applications in several areas, and it can even be used to forecast stock prices in the financial market. According to Xu et al. [36], the use of wavelet transformation reduces noise and improves the predictive capacity of the model. Bao et al. [37] presents a work with the same objective-based on stacked autoencoders, the results show that this approach is superior to other predictive models.

In this paper, the stacked LSTM model was used because it has the ability to handle non-linear data. The measurement of cases may vary due to the under-reporting of cases on weekends and variation in the weekly work schedules of the health teams. This variation can cause peaks of cases, not representing the actual situation of the pandemic. For this reason, the forecasting model needs to be able to interpret non-linear data.

The contributions of this paper to predict the number of cases and deaths caused by COVID-19 are summarized in the following:

The first contribution is the forecast of an increase in cases and deaths caused by COVID-19 in Santa Catarina, Brazil. Based on a reliable forecasting model, it is possible to define strategies to minimize the impact of the pandemic caused by COVID19;

The second contribution focuses on use of a deep learning model with layers stacked. This network structure is robust to deal with non-linear data, improving the quality of time series prediction;

The third contribution is related to the evaluation of all network parameters to improve the model. Through optimized parameters, a model with greater capacity to deal with the problem is obtained.

In this article the stacked LSTM will be used to assess the ability to predict contagion and the evolution of the number of deaths caused by COVID-19, using the State of Santa Catarina (Brazil) as a case study. In Section 3 the proposed method will be explained. In Section 2 the problem related to the virus will be presented. In Section 4 the results of the analysis will be discussed. Finally, Section 5 will present the conclusions of this article.

2 Case study

The World Health Organization officially called the disease caused by the coronavirus COVID-19 [38]. The number 19 refers to the year 2019 when the first cases in Wuhan (China) were publicly disclosed. The name Corona refers to the shape of the virus that resembles the shape of a crown, Figure 1 presents an illustrative image of the Coronavirus (SARS-CoV-2 virus) [39].

Fig. 1

Ilustration of the SARS-CoV-2 virus [4].

COVID-19 is an infectious disease caused by the recently discovered coronavirus. The virus is highly contagious, being transmitted through droplets generated when an infected person coughs, exhales, or sneezes [40]. The droplets are weighed and are thus quickly deposited on surfaces that remain infected for a long time. A person can become infected with COVID-19 by inhaling the virus if they are close to someone infected or by touching a contaminated surface and rubbing their hands over their nose, eyes, or mouth [41].

2.1 Contamination in the Santa Catarina state

To reduce the contagion of COVID-19, the Government of the State of Santa Catarina, through Provisional Measure No. 227 of 2020, established measures to deal with public calamity and the public health emergency resulting from COVID-19. Among the measures adopted, remote work was adopted when possible, there was anticipation of vacations and leave for public servants [42].

In addition to Provisional Measure No. 227 of 2020, there have been several decrees aimed at reducing contagion by the coronavirus. Among the measures adopted based on these decrees, some commercial activities were closed at the beginning of the pandemic, events with crowds of people were banned and it was mandatory to use masks indoors [43].

Despite the great public health effort and the restrictive measures imposed by the Government of the State of Santa Catarina (SC), the cases of COVID-19 continue to increase. In Figure 2 can be viewed the locations in the state where there is confirmation of cases.

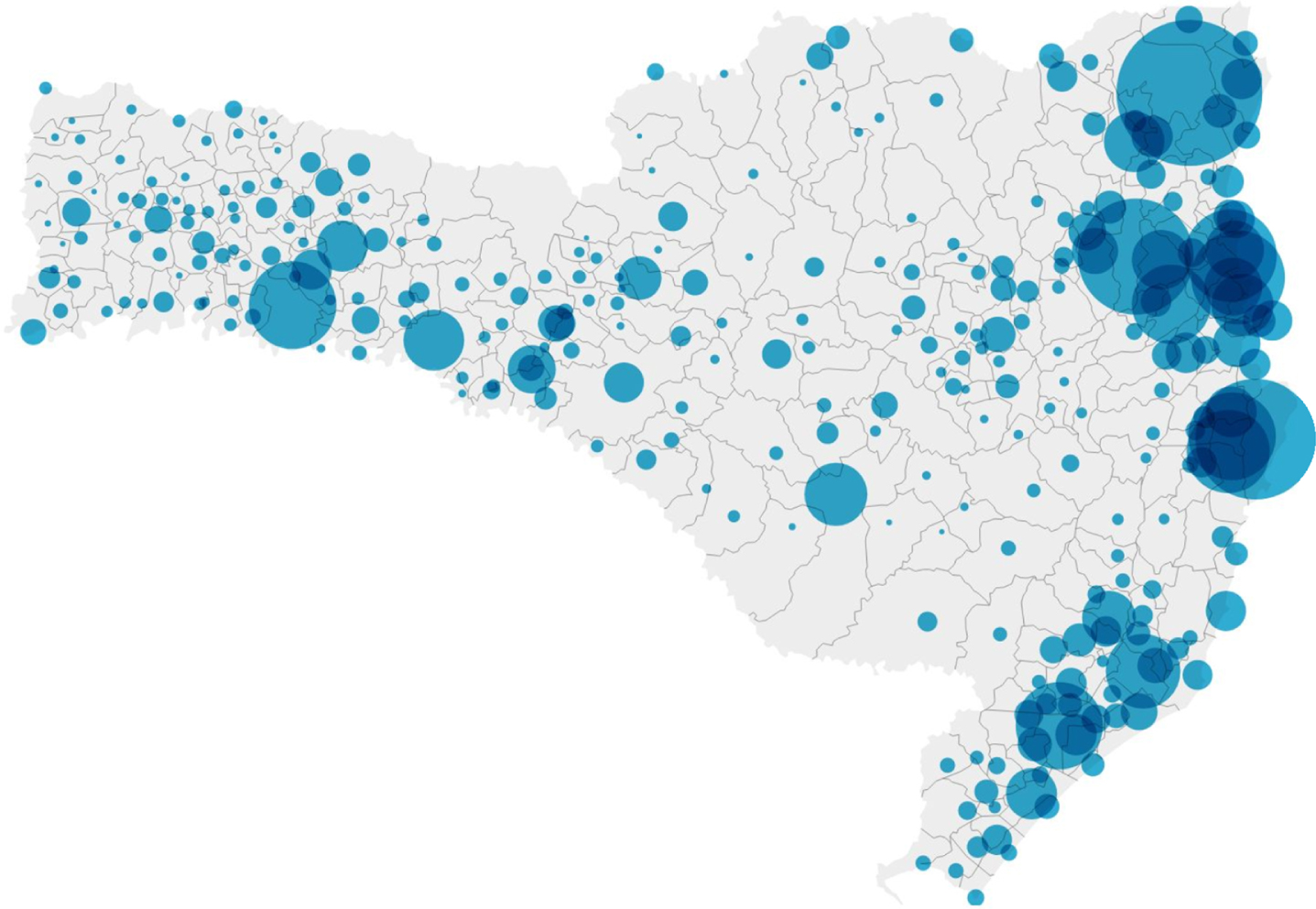

Fig. 2

Confirmed cases of COVID-19 in SC [44].

Mass testing of COVID-19 cases has not yet been possible, so only professionals directly involved in combating COVID-19 are tested or patients who have very clear symptoms of the disease. The number of deaths in relation to the number of contaminated is considerably large compared to places where mass population testing was carried out, as can be seen in Figure 3. The cities with the largest number of inhabitants had a higher number of contaminated ones, with many confirmed cases in the cities of Florianópolis, Chapecó, Blumenau, Joinville and Criciúma. The highest number of deaths in the state was registered in the cities of Florianópolis, Joinville and Criciúma [44].

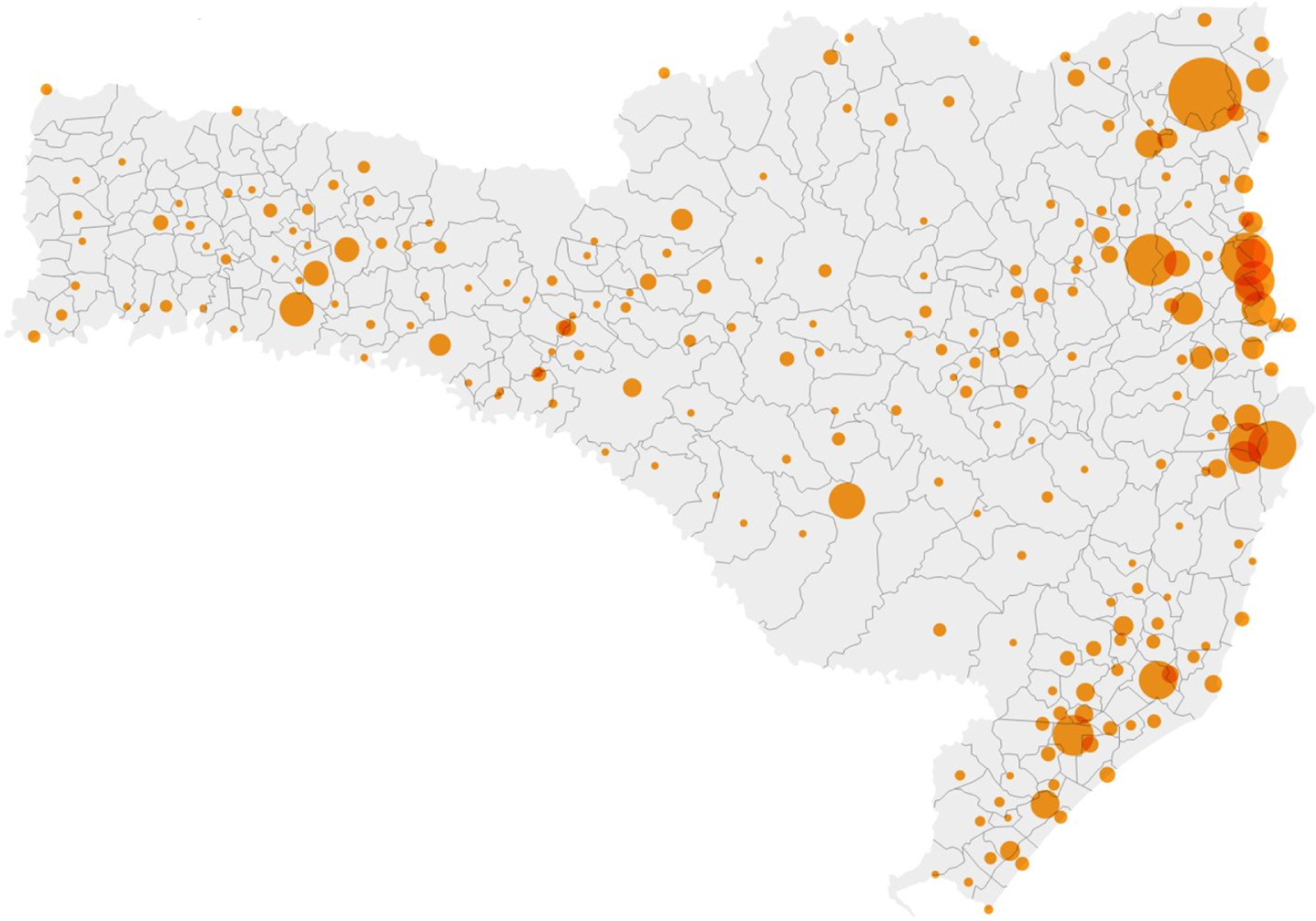

Fig. 3

Deaths confirmed by COVID-19 in SC [44].

The evolution of the number of confirmed infected cases and death records is used in this article to train the neural network and to forecast the continuity in the spread of the virus. The data used to analyze the proposed algorithm, are based on official records informed by the Government of the State of Santa Catarina.

3 Methodology

LSTM is a recurrent neural network algorithm. Unlike common neural networks that have the feedforward form, LSTM has feedback allowing the algorithm to remember distant values [45]. With LSTM, P steps forward, starting from D samples, sampled in an interval Δ, $x (t - (D - 1) Δ), \dots, x (t - Δ), x (t)$ (1) to predict future value $x (t + P) .$ (2)

For this, the classic LSTM algorithm is composed of cells that repeat themselves, as can be seen in Figure 4. Each cell is divided into three gates, the entrance (i_t), exit (o_t) and the forgetting (f_t) gates. These gates regulate how much of the respective variable will be sent to the next step [46].

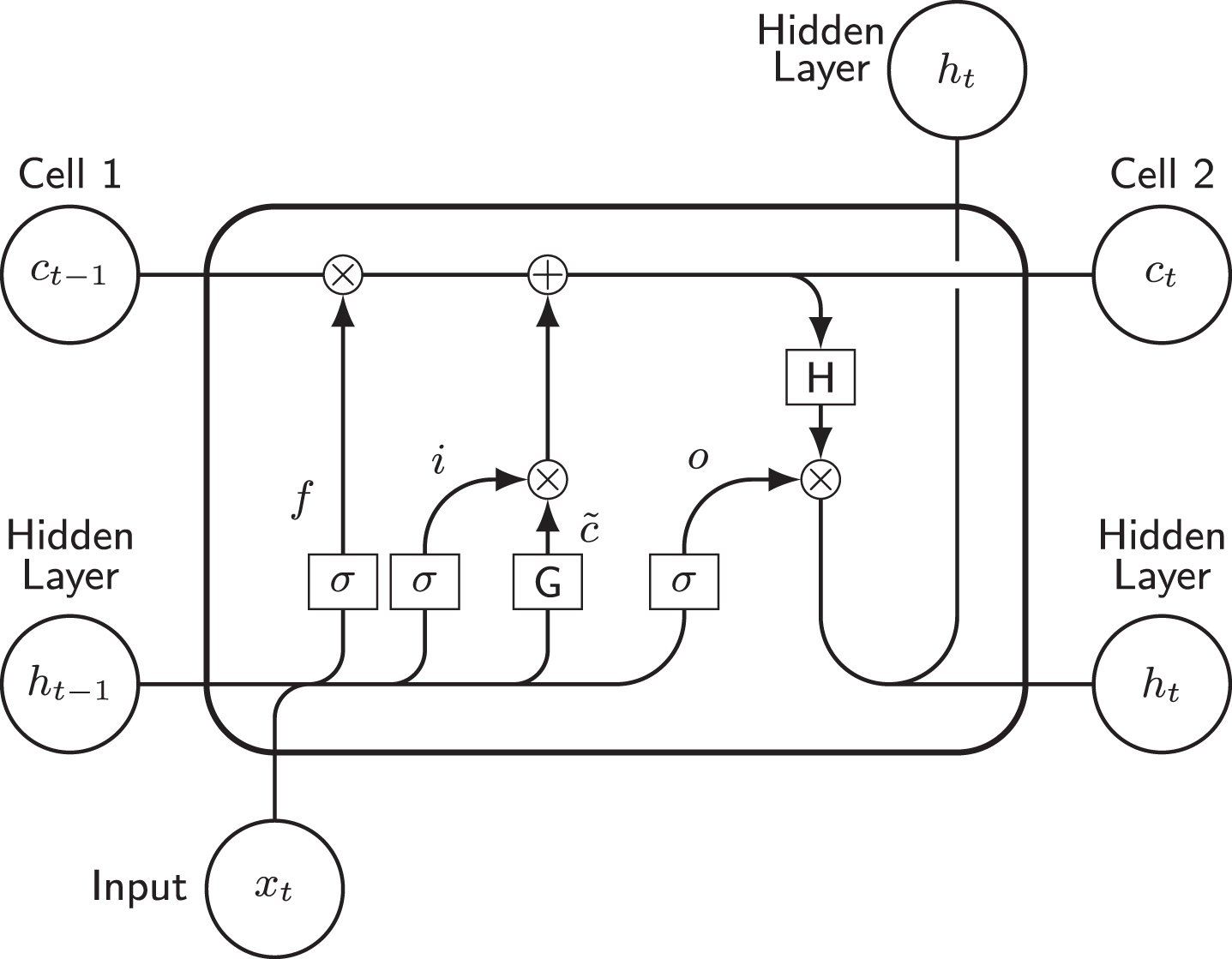

Fig. 4

LSTM cell.

The first gate, of forgetting (forget), determines how much of the information passed will be forgotten and how much will be remembered [47]. Useful information for states is added via the input gate (input), the input values are activated by an activation function. Finally, at the output gate (output) it is determined how much of the current state should be assigned to the output [48]. For this, the current state is activated and regulated by the input. In terms of the equation, the LSTM can be expressed by the equations: $\begin{matrix} i_{t} = σ_{g} (W_{i} x_{t} + R_{i} h_{t - 1} + b_{i}), \\ f_{t} = σ_{g} (W_{f} x_{t} + R_{f} h_{t - 1} + b_{f}), \\ o_{t} = σ_{g} (W_{o} x_{t} + R_{o} h_{t - 1} + b_{o}) . \end{matrix}$ (3)

Where W and R are earnings matrices and b the polarization matrix, whose values will be assigned by the network training. For these equations σ_g denotes the activation function of gate. LSTM has the input activation function G and the output activation function H of the cell, (see Figure 4) which are used to update the cell and the hidden state, according to the equations: $\begin{matrix} {\tilde{c}}_{t} = G (W_{c} x_{t} + R_{c} h_{t - 1} + b_{c}), \\ c_{t} = f_{t} \circ c_{t - 1} + i_{t} \circ \tilde{c}, \\ h_{t} = o_{t} \circ H (c_{t}) . \end{matrix}$ (4)

The operations are performed element by element, and ∘ circ represents the product of the elements. To perform the forecast values of the stages of future time, the responses of the training sequences are displaced by a time step. In this way, at each time step of the input sequence, the network learns to predict the value of the next time step [49].

In this article the LSTM layers are included in the algorithm in a stacked way [50], as seen in Figure 5, based on each cell presented in Figure 4. Stacked LSTM is an extension of this model that has several hidden layers of LSTM, where each layer contains multiple memory cells [48]. For complete evaluation of the algorithm, the regression can be specified with variations in the number of layers, activation function, number of hidden units and optimization method.

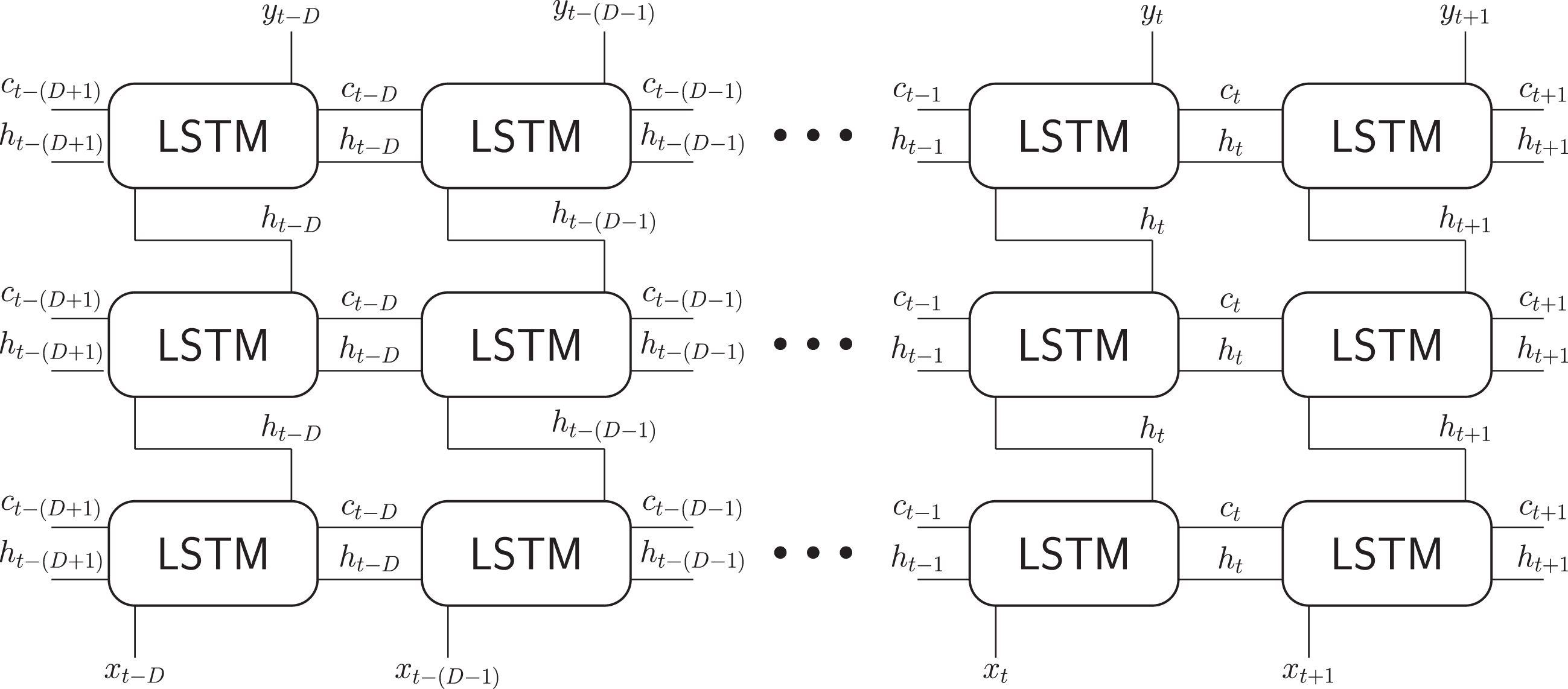

Fig. 5

LSTM stacking scheme using 3 layers.

In this article, the activation functions linear, sigmoid, hyperbolic tangent, rectified linear unit, exponential linear unit and SoftPlus were evaluated. The linear function can be ideal for simple tasks, since its derivative is constant, that is, it does not depend on the input value.

The sigmoid activation function (Sigm) is a widely used function, as it is smooth and continuously differentiable. The hyperbolic tangent activation function (TanH) is similar to the sigmoid function, being a scaled version of this function [15]. The rectified linear unit (ReLU) function is being widely used nowadays to deep learning approaches. A similar activation function to ReLU is the exponential linear unit (ELU) function [51].

To improve the performance of the algorithm, the optimizer must also be evaluated. The stochastic gradient descent (SGD) algorithm, updates the neural network parameters to minimize the loss function, taking small steps in each iteration towards the negative loss gradient. RMSProp uses learning rates that differ by parameter and can automatically adapt to the loss function being optimized [49]. Thus, the algorithm maintains a moving average of the squares of the elements of the parameter gradients. This algorithm uses this moving average to normalize the updates for each parameter individually.

The Adaptive Moment Estimation (ADAM) optimization method calculates adaptive learning rates for each parameter [52, 53]. ADAM uses moving averages to update network parameters. AdaMAX algorithm is a variant of ADAM optimizer based on the infinity norm. The AdaMAX can be promissor specially in embedded models. The Nesterov accelerated adaptive moment estimate (NADAM) is a combination of the Adam method and the Nesterov accelerated gradient (NAG). The NADAM optimizer is used to minimize the cross entropy loss function [54].

AdaGRAD, is based on the gradient that adapts the learning rate to the parameters [55]. AdaGRAD performs minor updates to parameters associated with frequently occurring resources; and performs major updates to parameters associated with infrequent resources. AdaDELTA is an extension of AdaGRAD that seeks to reduce its decreasing learning rate. Instead of accumulating all the previous square gradients, AdaDELTA restricts the gradient window to a fixed size. The current average depends only on the previous average and the current gradient [49].

3.1 Algorithm evaluation

For evaluation of the algorithm using a quantitative methodology [56], a metric of the global error evaluation based on the Root Mean Square Error (RMSE) is used for network training and testing procedures. The error signal is calculated by the difference between the goal of the y_i network and the result of the ${\hat{y}}_{i}$ network for the training and testing procedures [57]. $RMSE = \sqrt{\frac{1}{n} \sum_{i = 1}^{n} {(y_{i} - {\hat{y}}_{i})}^{2}} .$ (5)

Other measures to calculate the error are also presented to evaluate the proposed method, such as the Mean Absolute Error (MAE), and the Mean Absolute Percentage Error (MAPE) [58]. These measures are calculated according to the equations: $MAE = \frac{1}{n} \sum_{i = 1}^{n} | y_{i} - {\hat{y}}_{i} |,$ (6) $MAPE = \frac{1}{n} \sum_{i = 1}^{n} | \frac{y_{i} - {\hat{y}}_{i}}{y_{i}} | .$ (7)

MAPE calculates the average error rate for the correct values and MAE is the mean of the absolute difference between the observed and predicted values [59]. Based on recent studies on the application of time series forecasting, the R² determination coefficient is a promising way to assess model performance [60, 61]. $R^{2} = 1 - \frac{\sum_{i = 1}^{n} {(y_{i} - {\hat{y}}_{i})}^{2}}{\sum_{i = 1}^{n} {(y_{i} - {\bar{y}}_{i})}^{2}} .$ (8)

In this case, ${\bar{y}}_{i}$ is the average of the goals (objectives) and the observed values represent the values that were used for training the network [62]. To complete the analysis of the proposed method, a statistical analysis was performed based on the best model found, considering 50 simulations. For the statistical analysis, average value, standard deviation (Std _ Dev), variance (V_i), and covariance (C_i,j) were considered, respectively as: $Std_Dev = \frac{1}{n - 1} \sum_{p = 1}^{n} {(y_{i, p} - {\bar{y}}_{i})}^{2},$ (9) $V_{i} = \frac{1}{n - 1} \sum_{p = 1}^{n} {(y_{i, p} - {\bar{y}}_{i})}^{2},$ (10) $C_{i, j} = \frac{1}{n - 1} \sum_{p = 1}^{n} (y_{i, p} - {\bar{y}}_{i}) (y_{j, p} - \bar{y_{j}}) .$ (11)

In equations 10), y_i,p is the value of the predicted output i in object p and ${\bar{y}}_{i}$ is the average of the variable i. For the equation (11) y_j,p is the value of the variable j in object p, ${\bar{y}}_{j}$ is the average of the value of the variable j [63].

For a final comparison of the algorithm a benchmarking was performed. In this evaluation the layers were combined for a complete comparison. Recurrent neural network (RNN), gated recurrent unit network (GRU), simple recurrent neural network (SRNN), and dense structures were used for comparison [64].

This article will evaluate network performance using an AMD Ryzen 5 (model 3400G) computer Quad-Core 3.7 GHz, with 8.00 GB of random-access memory (RAM), double data rate (DDR) 4. The algorithm was developed using the Python language from the Keras package based on TensorFlow. The complete flowchart of the steps performed in the analysis of the model used in this paper is presented in Figure 6.

Fig. 6

Flowchart of the procedure performed in this paper.

4 Results analysis

In this section, the analysis of the proposed method will be presented. Initially, the prediction capacity in relation to the size of dataset needed to perform the training of the neural network will be evaluated, considering the RMSE and the R² of the algorithm. To assess R², the determination coefficient will be used. Results with lower RMSE and higher determination coefficient will be highlighted in bold. Then the number of neurons and layers for the analyzed model will be evaluated. The results of applying various activation functions and methods of network optimization will also be presented. Finally, a statistical analysis will be performed based on the best configuration for the analyzed model.

The evaluation of the model is performed for the number of confirmed deaths, and based on the best configuration of the model, statistical analysis will be performed for the number of cases. For comparative purposes, the tests started with the SoftPlus activation function, 40 neurons and 1 step predicted ahead, from 30 samples. In this initial analysis, the ADAM optimizer was used from 90 % of the data for network training. This initial configuration was based on [14], in which variations are evaluated for the best configuration of the model. In this article the layers are organized by stacking cells, as explained in Section 3. Table 1 presents the results in relation to the variation in the size of data used for training. In this model, cross-validation is performed, in which the data used for training are not used for the network test.

Table 1
Results for Size (%) of Data Used for Training

% Train. (s) RMSE MAE MAPE R²

90 6.3 4.6×10² 3.9×10² 0.02 0.99

80 9.7 3.4×10³ 3.1×10³ 0.18 0.16

70 10.3 3.0×10³ 2.4×10³ 0.14 0.61

60 5.9 1.0×10⁴ 9.1×10³ 0.58 0.98

50 7.0 2.4×10⁴ 1.6×10⁴ 0.97 0.80

40 5.2 7.5×10⁴ 4.7×10⁴ 3.08 0.77

%	Train. (s)	RMSE	MAE	MAPE	R²
90	6.3	4.6×10²	3.9×10²	0.02	0.99
80	9.7	3.4×10³	3.1×10³	0.18	0.16
70	10.3	3.0×10³	2.4×10³	0.14	0.61
60	5.9	1.0×10⁴	9.1×10³	0.58	0.98
50	7.0	2.4×10⁴	1.6×10⁴	0.97	0.80
40	5.2	7.5×10⁴	4.7×10⁴	3.08	0.77

Using 90 % of the data for training the network, it is possible to achieve an R² of 0.9943 to forecast the number of confirmed cases with COVID-19. This value is calculated based on the cross-validation of the data that are used for the training (data reported by the State Government), in relation to the forecast result.

It is possible to observe in Table 2 that the best stacking of this model occurs with 5 layers. From this result, the simulations were repeated to assess the influence of different numbers of neurons, according to Table 3.

Table 2

Results for Variation in the Number of Layers

Lay.	Train. (s)	RMSE	MAE	MAPE	R²
1	10.0	3.3×10³	2.9×10³	0.16	0.54
2	10.5	6.5×10³	5.3×10³	0.29	0.94
3	12.8	2.8×10³	2.4×10³	0.13	0.97
4	16.4	1.3×10³	1.1×10³	0.06	0.84
5	17.3	1.6×10³	1.3×10³	0.07	0.97
6	31.0	6.8×10³	5.5×10³	0.30	0.95

Table 3

Results for Variation in the Number of Neurons

Neur.	Train. (s)	RMSE	MAE	MAPE	R²
1	35.4	1.4×10⁴	1.4×10⁴	0.79	nan
5	19.4	1.5×10⁴	1.4×10⁴	0.80	0.02
10	51.1	1.5×10³	1.2×10³	0.07	0.80
20	26.9	1.4×10³	1.2×10³	0.06	0.81
30	19.6	3.0×10³	2.5×10³	0.13	0.99
40	17.9	4.8×10³	3.9×10³	0.21	0.97
50	45.6	3.9×10³	3.2×10³	0.17	0.95

The best performance of the model was obtained using 30 neurons, resulting in lower errors and less time needed for training. The evaluation of the parameters in relation to the R² of the model is presented in Figure 7 with greater precision, with all combinations between the number of neurons and the number of layers.

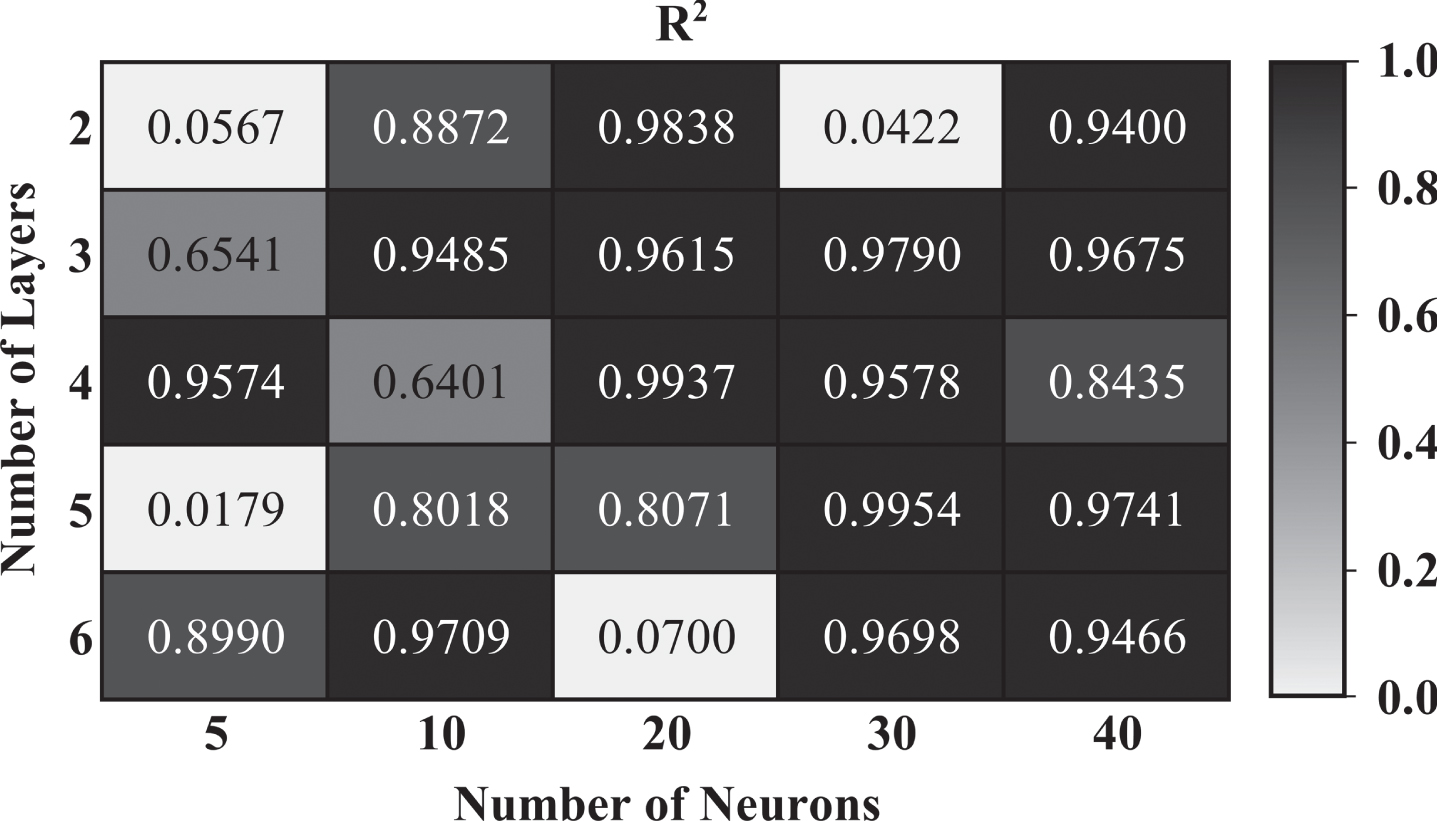

Fig. 7

Analysis of parameters variation.

In the Table 4 the results are presented in relation to the use of different activation functions and the Table 5 presents the results in relation to the variation in the use of the optimization method.

Table 4

Results for Varying the Activation Function

Activ.Funct.	Train. (s)	RMSE	MAE	MAPE	R²
Linear	21.39	7.7×10³	5.0×10³	0.27	0.49
Sigm	27.55	1.8×10⁴	1.8×10⁴	1.00	0.01
SoftPlus	15.12	1.1×10⁴	8.5×10³	0.46	0.93
TanH	15.43	1.8×10⁴	1.8×10⁴	1.00	0.01
ReLU	29.86	1.2×10²	8.3×10²	0.01	0.99
ELU	13.50	8.6×10³	7.0×10³	0.38	0.95

The best results in terms of RMSE reduction and higher determination coefficient were obtained using the ReLU activation function. Changing the optimizer applied to the problem resulted in large variations in the R² of the forecast. In this evaluation, RMSprop and SGD had results below the average of the other methods. The optimizer that resulted in the best R² was ADAM, which also had the smallest error in all the metrics evaluated.

Table 5

Results for the Optimizer Variation

Optim.	Train. (s)	RMSE	MAE	MAPE	R²
SGD	8.5	1.8×10⁴	1.8×10⁴	1.00	0.00
ADAM	31.1	4.8×10²	4.1×10²	0.02	0.99
NADAM	69.4	4.0×10³	3.3×10³	0.18	0.96
RMSprop	15.6	8.5×10²	6.2×10²	0.03	0.33
AdaDELTA	166.3	1.6×10⁴	1.6×10⁴	0.84	0.54
AdaGRAD	25.0	2.3×10³	2.1×10³	0.11	0.98
AdaMAX	11.7	3.2×10³	2.9×10³	0.16	0.97

Based on the analyzes presented here, the configuration that generated the best result in terms of greater precision and less error was with 90 % of the data for network training, 5 layers and 30 neurons. The best activation function was the ReLU and the best optimizer for the analysis of this paper was ADAM. From this configuration, a statistical evaluation based on 50 simulations is presented in 4.1 to assess the forecast of the number of confirmed cases and number of deaths.

From this configuration, Figure 8 shows the relationship between the increase in the real number of cases [43], obtained based on official information, training data and forecasting the evolution of cases. The assessment is presented after the first day on which a case of COVID-19 was confirmed in the state.

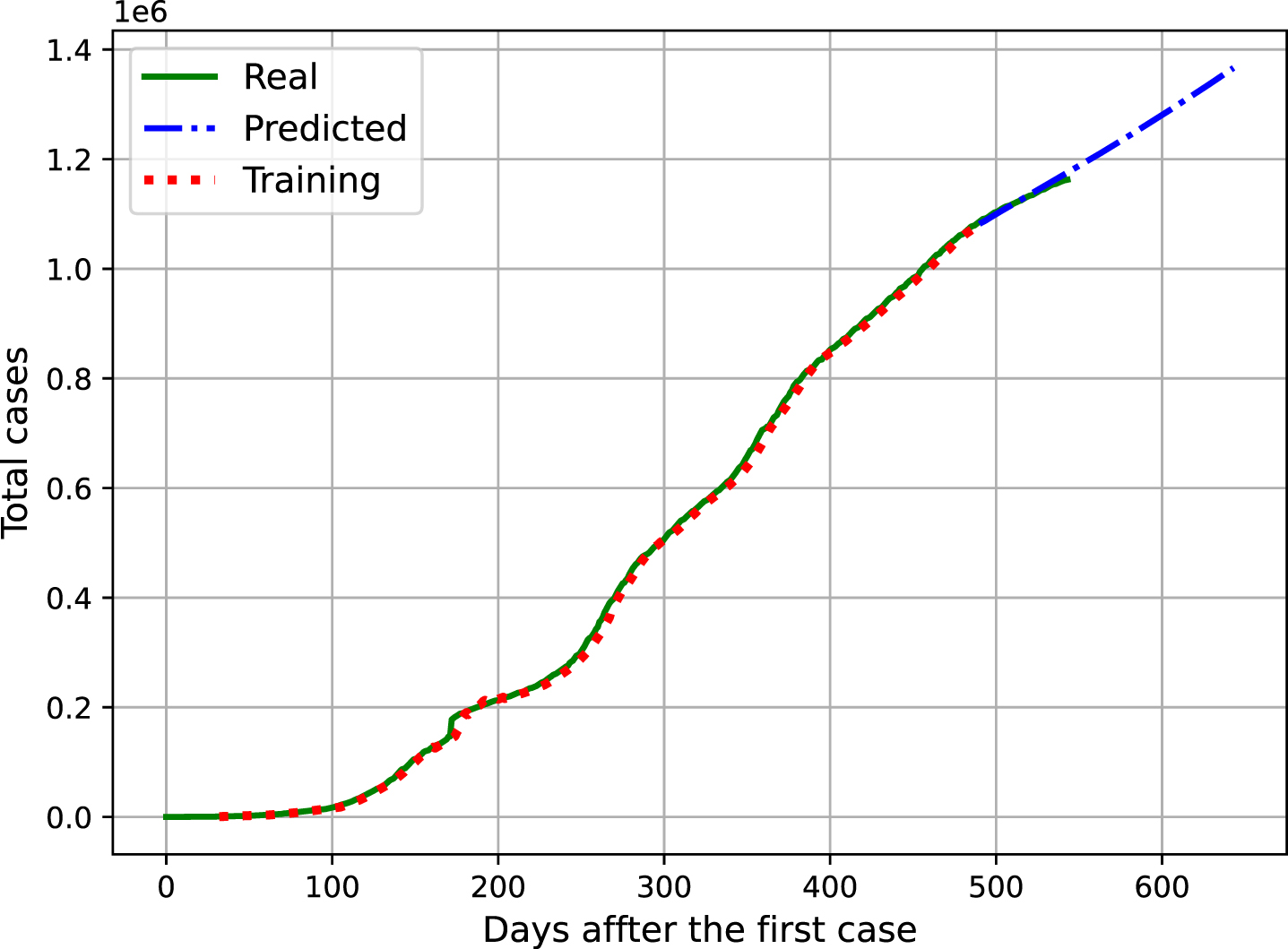

Fig. 8

Analysis of the Evolution of the Number of Cases.

In this visual analysis, the values presented are real for confirmed cases (Real), those used for network training (Training) and the time series forecast (Predicted). Based on this analysis, it is possible to assess the trend in the increase in the number of cases in the future.

This evaluation shows that the increase in the number of cases in the coming days tend to grow slowly possibly stabilizing at a value. That’s given the vaccination advances and the restrictive measures. The same analysis is presented for the number of deaths confirmed by COVID-19 in Figure 9. There is a slightly higher growth but still a concave curve, this analysis shows the effects that vaccination had and will have in controlling the spread of the virus.

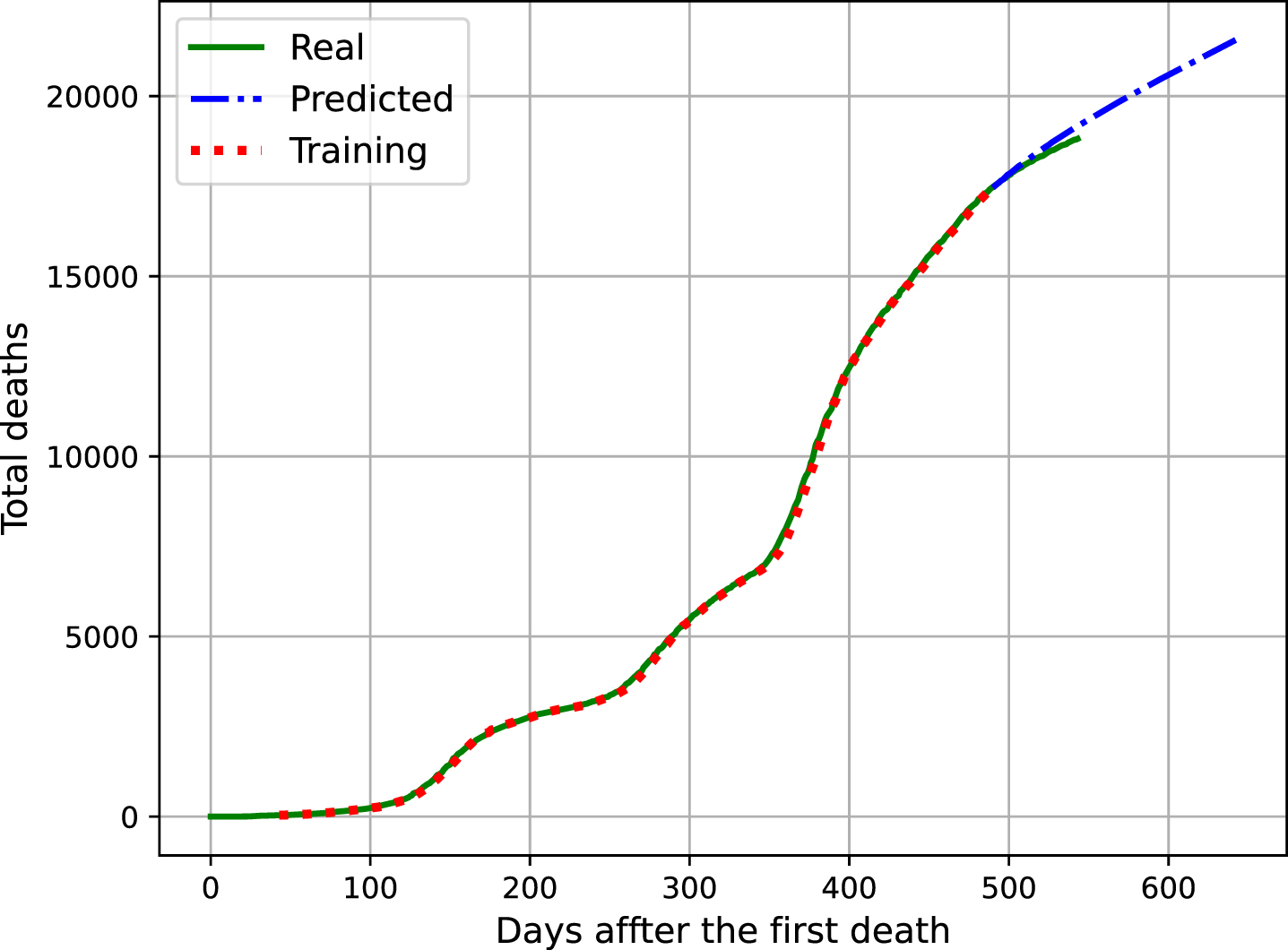

Fig. 9

Analysis of the Evolution of the Number of Deaths.

4.1 Statistical analysis

For the final assessment the statistical analysis of the algorithm is performed, Table 6 presents a complete statistical analysis of 50 simulations with the same configuration described on previous section for confirmed cases and Table 7 for the number of deaths caused by COVID19. The statistical analysis shows that the variation of the values is low for the calculation of RMSE, MAE, MAPE, and R².

Table 6
Statistical Results of the Proposed Method for Confirmed Cases

Indicator Training Time (s) RMSE MAE MAPE R²

Mean 28.23 1.72×10⁵ 1.46×10⁵ 0.12804 0.9077

Std. Dev. 10.58 2.19×10⁵ 2.05×10⁵ 1.82×10^-1 1.96×10^-1

Variance 111.86 4.78×10¹⁰ 4.22×10¹⁰ 3.32×10^-2 3.83×10^-2

Indicator	Training Time (s)	RMSE	MAE	MAPE	R²
Mean	28.23	1.72×10⁵	1.46×10⁵	0.12804	0.9077
Std. Dev.	10.58	2.19×10⁵	2.05×10⁵	1.82×10^-1	1.96×10^-1
Variance	111.86	4.78×10¹⁰	4.22×10¹⁰	3.32×10^-2	3.83×10^-2

Table 7

Statistical Results of the Proposed Method for Confirmed Deaths Caused by COVID-19

Indicator	Training Time (s)	RMSE	MAE	MAPE	R²
Mean	23.22	2.69×10³	2.19×10³	0.1887	0.8861
Std. Dev.	7.58	2.28×10³	1.86×10³	1.01×10^-1	2.00×10^-1
Variance	57.4	5.20×10⁶	3.46×10⁶	1.02×10^-2	3.99×10^-2

As can be seen, there is a great variation in the results as a function of the magnitudes of the metric considered. This result does not represent a problem for the analysis, since the error remains under 1 % of the maximum order of magnitude of the metric used.

The R² average found in this analysis remained at 0.9077 for number of confirmed cases, which shows that even with several analyzes the precision remains at a high average and the error calculated by RMSE, MAE and MAPE were low. The values of standard deviation and variance of RMSE and MAE were high, these results were obtained because the signal features which results in a greater error. Even with a longer time to start in the increase of confirmed deaths, the forecast remains accurate. In this way, it is possible to estimate the number of deaths caused by COVID-19, if the same measures to combat the virus are being taken.

The R² achieved for predicting the number of deaths reaches 0.8861 from the average of 50 simulations, according to the determination coefficient R². Based on the R² found in this paper, it is possible to perform a strategic planning to combat COVID-19. This planning can be based on the results values found of the forecast of increases in confirmed cases and deaths.

In the subsection 4.2, to perform a fairer assessment using the same data set and with the same configurations, the results of the application of the GRU, Dense and SRNN models are compared to the LSTM stacking model.

4.2 Benchmarking

In Table 8 variations of the model structure for the prediction of the increase of the confirmed cases of COVID-19 are presented. It is possible to observe that some layers structures do not generate acceptable R² with results lower than 80 %. All the structures have higher error and low accuracy than the proposed method. The results of the evaluation for the number of deaths confirmed by COVID-19 was follows this tendency, as shown in Table 9.

Table 8
Benchmarking Results for Confirmed Cases

Algorithm Train Time (s) RMSE MAE MAPE R²

GRU_GRU 12.31 7.7×10⁵ 5.5×10⁵ 0.4835 0.7252

GRU_SRNN 27.61 3.0×10⁴ 2.3×10⁴ 0.0204 0.4482

GRU_Dense 6.85 1.3×10⁴ 1.1×10⁴ 0.0095 0.9818

SRNN_GRU 27.61 3.0×10⁴ 2.3×10⁴ 0.0204 0.4482

SRNN_SRNN 7.91 1.1×10⁵ 9.2×10⁴ 0.0809 0.9795

SRNN_Dense 5.28 2.7×10⁵ 2.2×10⁵ 0.1974 0.9731

Dense_GRU 6.85 1.3×10⁴ 1.1×10⁴ 0.0095 0.9818

Dense_SRNN 5.28 2.7×10⁵ 2.2×10⁵ 0.1974 0.9731

Dense_Dense 2.47 9.4×10⁴ 7.8×10⁴ 0.0684 0.9869

Proposed structure 8.90 8.8×10³ 6.4×10³ 0.0056 0.9987

Algorithm	Train Time (s)	RMSE	MAE	MAPE	R²
GRU_GRU	12.31	7.7×10⁵	5.5×10⁵	0.4835	0.7252
GRU_SRNN	27.61	3.0×10⁴	2.3×10⁴	0.0204	0.4482
GRU_Dense	6.85	1.3×10⁴	1.1×10⁴	0.0095	0.9818
SRNN_GRU	27.61	3.0×10⁴	2.3×10⁴	0.0204	0.4482
SRNN_SRNN	7.91	1.1×10⁵	9.2×10⁴	0.0809	0.9795
SRNN_Dense	5.28	2.7×10⁵	2.2×10⁵	0.1974	0.9731
Dense_GRU	6.85	1.3×10⁴	1.1×10⁴	0.0095	0.9818
Dense_SRNN	5.28	2.7×10⁵	2.2×10⁵	0.1974	0.9731
Dense_Dense	2.47	9.4×10⁴	7.8×10⁴	0.0684	0.9869
Proposed structure	8.90	8.8×10³	6.4×10³	0.0056	0.9987

Table 9

Benchmarking Results for Confirmed Deaths Caused by COVID19

Algorithm	Train Time (s)	RMSE	MAE	MAPE	R²
GRU_GRU	11.32	2.8×10²	2.1×10²	0.0111	0.9143
GRU_SRNN	8.24	6.3×10³	5.1×10³	0.2759	0.9400
GRU_Dense	6.43	5.7×10³	4.4×10³	0.2364	0.8955
SRNN_GRU	8.24	6.3×10³	5.1×10³	0.2759	0.9400
SRNN_SRNN	6.70	1.7×10⁴	1.4×10⁴	0.7594	0.9282
SRNN_Dense	3.10	1.2×10³	9.7×10²	0.0525	0.9819
Dense_GRU	6.43	5.7×10³	4.4×10³	0.2364	0.8955
Dense_SRNN	3.10	1.2×10³	9.7×10²	0.0525	0.9819
Dense_Dense	1.19	3.7×10²	3.0×10²	0.0165	0.9330
Proposed structure	1.37×10¹	1.2×10²	1.1×10²	0.0050	0.9984

Although the use of the stacked LSTM takes more time for convergence because of require more computational effort, this structure has the best results for the time series forecasting of the increase of cases and deaths caused by the COVID-19.

The stacked LSTM method has lower RMSE, MAE, and MAPE; and higher R² than others structures combinations. The model with Dense_Dense layer was faster in both analysis, these result was expected as the structure is simpler.

The LSTM proves to be a promising algorithm for the evaluation in question in view that it has the capacity to evaluate a large volume of data as can be seen for the evaluation of the cases confirmed by COVID-19.

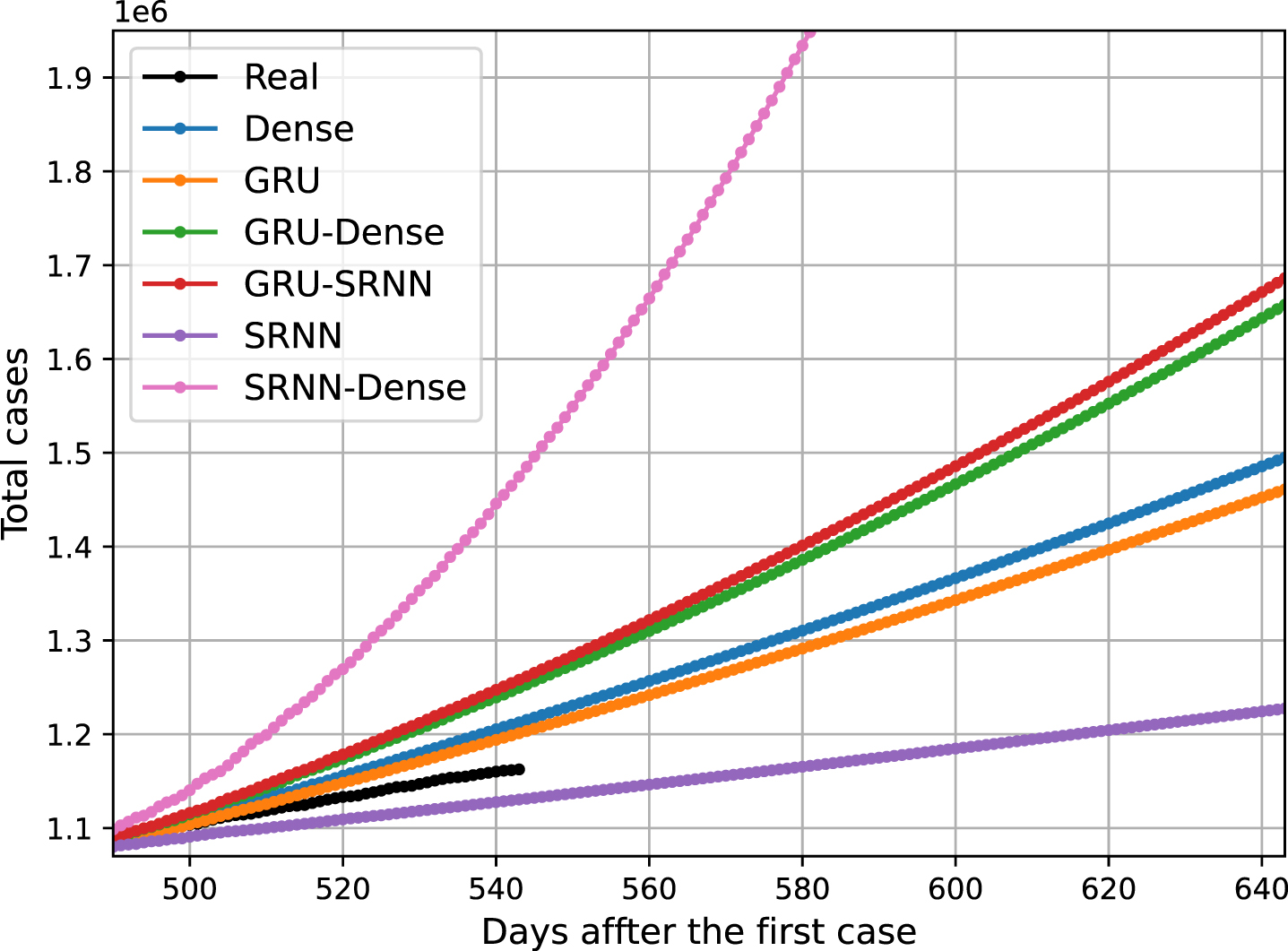

As can be seen in Figure 10 there is a big difference between forecasting results by changing the layer structure of the models. In this presentation, the best results were obtained using GRU and SRNN, as these values were closer to the real variation. The results presented in this image correspond to the comparison with the data set that was used for the model test.

5 Conclusion

The proposed algorithm proved to be a promising technique for evaluating the increase in the number of cases and deaths confirmed by COVID-19. Considering that there was a mean R² in the analysis of 0.9077 for the number of confirmed cases and 0.8861 for the number of deaths. Based on the forecast, it is possible to assess the capacity of the health system and to increase or relax the restriction measures.

According to the results presented in this article, it is possible to notice that the number of deaths follows the trend of the contamination curve, so reducing the slope of this curve is extremely necessary to consequently reduce the number of deaths. The trend presented in the results of this article shows that the vaccination programs applied so far are reducing the numbers of contamination. And government agencies, should consider these forecasts to determine if the restrictive measures are maintained or relaxed.

Comparing to other models the LSTM stacking shows a similar performance in terms of R² an reduction of the error. The average and statistical analysis shows that the algorithm is stable and can be applied for forecast analysis in the COVID-19 spread.

The evaluation of the number of cases curve proves to be an excellent measure to reduce the number of emergency visits with high complexity, without the capacity of the health system. The combination of hybrid methods can be used to reduce variations in the algorithm that are not representative, such as those caused during weekends.

Fig. 10

Results for Each Layer Configuration for the Model.
