Improved ELECTRE II sustainability assessment framework in power generation technological evaluation

Abstract

With the economic growth of the world, sustainable development is a popular issue in recent years. Sustainable assessment is an important part of sustainable development. There are many previous scholars have used multiple-criteria decision-making (MCDM) to develop different evaluation frameworks in different fields. Elimination et Choix Traduisant la Realite II (ELECTRE II) is one of the most commonly used methods for MCDM. ELECTRE II uses alternatives, criteria, and criteria weighting from decision-makers to calculate the concordance and discordance indices. These two indices are used to rank the alternatives. The concordance and discordance indices in ELECTRE II are important because they are the key to make accurate decisions. Previous scholars have failed to make comprehensive calculations for these indices, nor make their units of measure comparable, which negatively affected their results. This study improved the approach in calculating these indices and illustrated it using three case studies: (1) university examination results, (2) a sustainability assessment of groundwater remediation and (3) an assessment of power generation technologies. This improved ELECTRE II method offers decision-makers an objective basis for decision-making.

Keywords

Sustainability assessment multiple-criteria decision-making ELECTRE II decision analysis

1 Introduction

With the development of human economy and the consumption of natural resources, many environments have been destroyed. Therefore, sustainable development has become the global goal in recent years. The goal is to achieve a balance between society and environment. There are many related fields of academic research and challenges [6], including environment, energy, climate, economy, society and engineering. In order to achieve sustainable development, the process of development should be measured [12, 42]. There are many popular issues in the process of sustainable development, including integration of sustainable alternatives and criteria [6], and development the framework for sustainable decision-making [18].

Decision-making is the process of finding the best solution among many feasible solutions based on a given set of criteria [19]. For multiple-criteria decision-making (MCDM), mathematical methods are often employed to rank the alternatives to find the best solution in the context of limited resources [2 , 34]. Because conflict among the criteria is common, MCDM techniques can be applied in these scenarios to make objective assessments.

Dozens of MCDM methods have been developed, including simple additive weighting (SAW), analytic hierarchy process (AHP), data envelopment analysis (DEA), and technique for order preference by similarity to an ideal solution (TOPSIS), VlseKriterijuska Optimizacija I Komoromisno Resenje (VIKOR), decision making and trial evaluation laboratory (DEMATEL), elimination et choice traduisant la realite (ELECTRE), multi-objective optimization on the basis of ratio analysis (MOORA), weighted aggregated sum product assessment (WASPAS), multi-attributive border approximation area comparison (MABAC), evaluation based on distance from average solution (EDAS), combined compromise solution (CoCoSo), measurement of alternatives and ranking according to compromise solution (MARCOS).

Sarker et al. [27] combined VIKOR, TOPSIS, SAW, and balanced scorecard to evaluate sustainable performance assessment in the leather industry. Rao [37] used DEMATEL to find the interaction between the criteria, and ANP to find the important factors in the corporate social responsibility impact of the Taiwan High Speed Rail. Mohammed et al. [1] considered the changes in demand and supply in the supply chain. They used DEMATEL to find out the importance of the criteria through and then selected suppliers using TOPSIS. Saraswat et al. [38] found suitable locations for wind and solar power plants in India using GIS and AHP. Ghorui et al. [28] identified the weights of COVID-19 transmission risk factors by AHP and then ranked the risk factors by TOPSIS. Seker and Kahraman [35] integrated AHP and Multi MOORA to evaluate the manufacturer for solar power plants. Bhadra and Dhar [10] identified the weights by using AHP and select the material in aerospace cabins by using TOPSIS, EDAS, and COPRAS. Huang [30] used VIKOR to select the technology of renewable energy and compared the results with WSM and TOPSIS.

Among the many MCDM methods, Elimination et Choice Traduisant la Realite (ELECTRE) is the most typical [45] and widely used [44]. This method was proposed by Benayoun et al. [31]. Decision-makers must quantify qualitative data, then determine the pros and cons of the alternatives using subjective evaluation [7]. In the ELECTRE method, the concordance and discordance indices are used to rank the alternatives. However, only the core solution of the alternatives can be excluded, and there is no way to know the complete order of all alternatives [39]. Therefore, Roy and Bertier [4] proposed ELECTRE II to exclude the complete order of the alternatives.

Lin et al. [21] used entropy theory to determine the weights of alternatives and combined ELECTRE II with probabilistic linguistics to solve the problem of the computing network. Liu and Wan [44] analyzed the sensitivity of ELECTRE I and ELECTRE II and used the example of location selection. Singh et al. [41] combined entropy and ELECTR II to select the material for natural fibers. They compared the results with COPRAS, TOPSIS, VIKOR, SAW, and MOORA. Reddy et al. [17] used AHP to obtain the weights of the alternatives and used ELECTRE II to find the important factors of product design. Akram et al. [20] believed that the feature of ELECTRE is to evaluate alternatives by outranking relations. Therefore, ELECTRE II and hesitant Pythagorean fuzzy are combined and applied to the electronic commerce problem. Shen et al. [14] combined ELECTRE II with probabilistic linguistic term sets to evaluate the risk of project investment. Sarwar et al. [23] combined ELECTRE II with the theory of rough numbers to find the risk factors. Zhang et al. [33] proposed double hierarchy hesitant fuzzy linguistic term set ELECTRE II for performance evaluation. Liu et al. [45] integrated Z-numbers and ELECTRE II for performance evaluation.

In the process of ranking alternatives in ELECTRE II, the concordance index only considers which alternative is better based on the criterion. The degree to which it is better is not measured. Similarly, the discordance index finds the worst alternative and average loss incurred by various alternatives. An et al. [9] pointed out that in traditional ELECTRE II, the concordance and discordance indices cannot distinguish between alternatives with similar evaluation values. Therefore, they redefined the concordance and discordance indices. Weighting factors are added to the concordance index, and refined the discordance index as the average loss of the evaluation value.

However, the unit of measure for the concordance index is the weight of the criteria, while the unit of measure for the discordance index is the evaluation value. Therefore, these two indices cannot be used for any direct comparisons or calculations. This study thus sought to improve ELECTRE II by exploring the relationship between the alternatives and the criteria to construct an accurate ranked list and the meaning of the concordance and discordance indices. This improved decision-making tool provides an objective basis for decision-making.

The remainder of this paper is organized as follows. Section 2 introduces ELECTRE II. Section 3 discusses the limitation of traditional ELECTRE II and the improvements contributed by this study. Section 4 introduces the case study. Section 5 discusses and analyzes our findings. Finally, the research draws conclusions in Section 6.

2 Preliminaries

2.1 Basic concepts for MCDM techniques

MCDM can be divided into two categories: multiple-objective decision-making (MODM) and multi-attribute decision-making (MADM) [15]. MODM approaches can be regarded as an extension of the operation research (OR) model, a decision process to find the best solution from the continuous decision space by algorithms. It is suitable for the case where there are infinite and continuous feasible alternatives, and only for the state where only the objective function and restrictive conditions are known, but the feasible alternatives are unknown. MADM is to establish a causal relationship evaluation model with expert experience from a limited number of feasible solutions in the discrete solution space. The best alternative is found by comparing the same assessment attribute within each alternative.

The basic element in the process of MCDM is the decision matrix. The decision matrix includes (1) all alternatives considered by the decision-makers; (2) criteria (i.e., factors affecting the choice of the decision-makers; (3) weights for each criterion to determine their relative importance; (4) evaluation values quantifying the alternatives based on the criteria.

Churchman and Ackoff [8] proposed SAW based on the utility function. The evaluations for each alternative and criteria are reasonably obtained from decision-makers or experts. Then the score of the alternative is the sum of each alternative calculated by its evaluation multiplied by the weight for each criterion. Opricovic [36] believed that no alternative that can satisfy all the criteria because there are often conflicting criteria in any given situation of decision-making. VIKOR was proposed based on the concept of compromise to deal with conflicting criteria while ranking alternatives. The feature VIKOR is that it can pursue the maximization of group utility and the minimization of individual regret at the same time. Brauers and Zavadskas [43] believed that each alternative should proposed be compared with the target. Therefore, they proposed MOORA with the concept of ratio. Zavadskas et al. [13] proposed WASPAS based on weighted product model (WPM) and weighted sum model (WSM). They thought that the performance of their proposed method could be better than WPM and WSM. Pamucar and Cirovic [11] believed that the distance between each alternative and the boundary approximation region must be calculated in order to find the best alternative appreciably. They proposed MABAC to solve the problem of investment decisions for logistics centers. Ghorabaee et al. [25] considered the average solution with every alternative. Therefore, they proposed EDAS and verified the performance of the proposed by comparing it with VIKOR, TOPSIS, SAW, and COPRAS. Yazdani et al. [24] proposed CoCoSo by combining the concepts of WASPAS, SAW, and multiplicative exponential weighting (MEW). They verified the stability of their proposed method by comparing the results with TOPSIS, VIKOR, COPRAS, WASPAS, MOORA, EDAS, and CODAS. Stevic et al. [46] proposed MARCOS by considering the aggregations of each alternative and the distances from the ideal and anti-ideal solutions. They compared their result with MABAC, SAW, ARAS, WASPAS, TOPSIS, and EDAS.

2.2 Traditional ELECTRE II

ELECTRE II ranks all feasible alternatives. This study details its procedure in the following:

Step 1. Establishing a decision matrix

After identifying the problem to be solved, we need to collect the basic information, including alternatives, criteria, weights of criteria, and the evaluation of each alternatives. A generic form of the decision matrix for MCDM is shown in Table 1, where x_mn is the evaluation value associated with the m^th alternative based on the n^th criterion.

Table 1
Decision matrix

Criterion C ₁ C ₂ ⋯ C _n

Weight w ₁ w ₂ ⋯ w _n

Alternative A ₁ x ₁₁ x ₁₂ ⋯ x _1n

A ₂ x ₂₁ x ₂₂ ⋯ x _2n

⋮ ⋮ ⋮ ⋱ ⋮

A _m x _m1 x _m2 ⋯ x _mn

Criterion		C ₁	C ₂	⋯	C _n
Weight		w ₁	w ₂	⋯	w _n
Alternative	A ₁	x ₁₁	x ₁₂	⋯	x _1n
	A ₂	x ₂₁	x ₂₂	⋯	x _2n
	⋮	⋮	⋮	⋱	⋮
	A _m	x _m1	x _m2	⋯	x _mn

Step 2. Normalizing evaluation values

Some of the criteria in the decision matrix represent benefits, while others represent cost. Furthermore, each criterion has its own unit of measure, so they cannot be directly compared. It thus becomes necessary to normalize these evaluation values. Normalization converts the evaluation value of each criterion into a number 0 and 1. The normalization of benefit criteria is represented by Equation (1); the normalization of cost criteria is represented by Equation (2): $X_{ij} = \frac{x_{ij} - m_{j}}{M_{j} - m_{j}}$ (1) $X_{ij} = \frac{M_{j} - x_{ij}}{M_{j} - m_{j}}$ (2) where X_ij is the normalized evaluation value for alternative i based on criterion j (i = 1, 2, . . . , m ; j = 1, 2, . . . , n); x_ij is the original evaluation value for alternative i based on criterion j; M_j = Max (x_ij) is the maximum normalized evaluation value under criterion j; and m_j = Min (x_ij) is the minimum normalized evaluation value under criterion j.

Step 3. Calculating concordance and discordance indices

For both concordance and discordance indices, it is necessary to first classify the evaluation values of the alternative into one of three subsets. Under criterion C_k, if the evaluation value of the alternative A_x is superior to the alternative A_y, the criterion C_k is classified into set I⁺, as in Equation (3); if the evaluation value of the alternative A_x is equal to the alternative A_y, the criterion C_k is classified into set I⁼, as in Equation (4); if the evaluation value of the alternative A_x is inferior to the alternative A_y, the criterion C_k is classified into set I^-, as in Equation (5). $\begin{matrix} I^{+} = I^{+} (A_{x}, A_{y}) \\ = {C_{k} | C_{k} \in C; A_{x} ≻ A_{y}; x, y = 1, 2, . . ., m} \end{matrix}$ (3) $\begin{matrix} I^{=} = I^{=} (A_{x}, A_{y}) \\ = {C_{k} | C_{k} \in C; A_{x} \sim A_{y}; x, y = 1, 2, . . ., m} \end{matrix}$ (4) $\begin{matrix} I^{-} = I^{-} (A_{x}, A_{y}) \\ = {C_{k} | C_{k} \in C; A_{x} ≺ A_{y}; x, y = 1, 2, . . ., m} \end{matrix}$ (5)

Step 3.1 Calculating the concordance index

The concordance index measures the degree of satisfaction of the decision-makers with an alternative. That is, this ratio is the sum of the weights of the satisfaction criteria to the sum of the weights of all the criteria. The weight of the satisfaction criteria includes sets I⁺ and I⁼. If when alternative A_x is not worse than alternative A_y, it includes in the concordance index, as described by Equation (6): $θ (A_{x}, A_{y}) = \frac{W^{I^{+}} + W^{I^{=}}}{W^{I^{+}} + W^{I^{=}} + W^{I^{-}}}$ (6) $W^{I^{+}} = \sum_{C_{k} \in I^{+}} w_{C_{k}}$ (7) $W^{I^{=}} = \sum_{C_{k} \in I^{=}} w_{C_{k}}$ (8) $W^{I^{-}} = \sum_{C_{k} \in I^{-}} w_{C_{k}}$ (9) where θ (A_x, A_y) is the degree of satisfaction with alternative A_x compared to alternative A_y (x, y = 1, 2, . . . , m); w_{C
_k} is the weight of criterion C_k; W^{I
⁺} is the sum of weights of all the criteria in set I⁺; W^{I
⁼} is the sum of weights of all the criteria in set I⁼; W^{I
^-} is the sum of weights of all the criteria in set I^-; and when i = j, θ (A_x, A_y) = 1. The concordance matrix is composed of concordance indices, as in Equation (10): $\begin{matrix} θ = {θ (A_{x}, A_{y})}_{m \times m} \\ = [\begin{matrix} 1 & θ (A_{1}, A_{2}) & \dots & θ (A_{1}, A_{m}) \\ θ (A_{2}, A_{1}) & 1 & \dots & θ (A_{2}, A_{m}) \\ ⋮ & ⋮ & ⋱ & ⋮ \\ θ (A_{m}, A_{1}) & θ (A_{m}, A_{2}) & \dots & 1 \end{matrix}] \end{matrix}$ (10) where θ is concordance matrix.

Step 3.2 Calculating the discordance index

The discordance index measures the degree of dissatisfaction of the decision-makers with an alternative. Calculation of this index only includes criteria from set I^-. Equation (11) is the discordance index that wants to know which criterion has the worst value of the evaluation. $δ (A_{x}, A_{y}) = max \frac{C_{k} (A_{y}) - C_{k} (A_{x})}{C_{k}^{B} - C_{k}^{W}}$ (11) where δ (A_x, A_y) is the degree of dissatisfaction with alternative A_x compare to alternative A_y (x, y = 1, 2, . . . , m); C_k (A_y) is the normalized evaluation value for alternative A_y based on criterion C_k; C_k (A_x) is the normalized evaluation value for alternative A_x based on criterion C_k; $C_{k}^{B}$ is the normalized evaluation value of the best alternative base on criterion C_k; $C_{k}^{W}$ is the normalized evaluation value of the worst alternative base on criterion C_k; and when x = y, δ (A_x, A_y) = 0. The discordance matrix is composed of discordance indices, as in Equation (12): $\begin{matrix} δ = {δ (A_{x}, A_{y})}_{m \times m} \\ = [\begin{matrix} 0 & δ (A_{1}, A_{2}) & \dots & δ (A_{1}, A_{m}) \\ δ (A_{2}, A_{1}) & 0 & \dots & δ (A_{2}, A_{m}) \\ ⋮ & ⋮ & ⋱ & ⋮ \\ δ (A_{m}, A_{1}) & δ (A_{m}, A_{2}) & \dots & 0 \end{matrix}] \end{matrix}$ (12) where δ is discordance matrix.

Step 4. Calculating degree of credibility

Before calculating the degree of credibility, we subtract the discordance matrix from the concordance matrix, as follow in Equation (13): $\begin{matrix} P_{A_{x}}^{L} = {j | (θ (A_{x}, A_{y}) - δ (A_{x}, A_{y})) \\ \in {IR}_{L} (θ (A_{x}, A_{y}) - δ (A_{x}, A_{y}))} \end{matrix}$ (13) where IR_L first calculates θ (A_x, A_y) - δ (A_x, A_y). The value is moved from the smallest to the largest, L is deleted from the maximum value, and the remaining values are placed in set $P_{A_{x}}^{L}$ . For instance, if S ={ 1, 3, 5, 7, 9 }, then IR₂ ={ 1, 3, 5 }.

Credibility is determined as follows in Equation (14): $S_{A_{x}}^{L} = {\begin{matrix} 1 \\ \prod_{j \in P_{A_{x}}^{L}} (θ (A_{x}, A_{y}) + λ) \end{matrix} \begin{matrix} , L = m \\ , 1 ⩽ L < m \end{matrix}$ (14) where $S_{A_{x}}^{L}$ denotes the credibility of alternative A_x in the L order; m is the number of alternatives; and λ is a correction factor to ensure zero is avoided. The credibility matrix is as follows in Equation (15): $S = {S_{A_{x}}^{L}}_{m \times m} = [\begin{matrix} S_{A_{1}}^{1} & S_{A_{1}}^{2} & \dots & S_{A_{1}}^{m} \\ S_{A_{2}}^{1} & S_{A_{2}}^{2} & \dots & S_{A_{2}}^{m} \\ ⋮ & ⋮ & ⋱ & ⋮ \\ S_{A_{m}}^{1} & S_{A_{m}}^{2} & \dots & S_{A_{m}}^{m} \end{matrix}]$ (15) where S is credibility degree matrix.

Step 5. Ranking alternatives

The alternative can be ranked after the credibility degree matrix is obtained. Starting from the degree of credibility $S_{A_{x}}^{1}$ (x = 1, 2, . . . , m), we assume that alternative A_p has the most credibility (i.e., $S_{A_{p}}^{1}$ ). Then alternative A_p can be consider the best alternative (i.e., $L_{1} = max (S_{A_{x}}^{1}) = S_{A_{p}}^{1}$ ), and L₁ is defined as the first choice. We then remove alternative A_p from the credibility matrix, starting from the degree of credibility $S_{A_{x}}^{2}$ (x = 1, 2, . . . , m), we assume that alternative A_q has the most credibility (i.e., $S_{A_{q}}^{2}$ ), Alternative A_q is than second-best alternative (i.e., $L_{2} = max (S_{A_{x}}^{2}) = S_{A_{q}}^{2}$ ), and L₂ is defined as the second choice. We then remove alternative A_q from credibility matrix. This process continues in an iterative manner until all the alternatives have been ranked.

2.3 The ELECTRE II method proposed by An et al.

An et al. [9] pointed out that in traditional ELECTRE II, the concordance and discordance indices cannot distinguish between alternatives with similar evaluation values. Therefore, they redefined the concordance index as follows in Equation (16): $θ (A_{x}, A_{y}) = \frac{α W^{I^{+}} + β W^{I^{=}}}{α W^{I^{+}} + β W^{I^{=}} + (1 - α - β) W^{I^{-}}}$ (16) where α and β are weighting factors, and 0 ⩽ α ⩽ 1, 0 ⩽ β ⩽ 1, 0 ⩽ α + β ⩽ 1. As long as appropriate weights are given, it is possible to distinguish alternative A_x from alternative A_y.

The discordance index in traditional ELECTRE II is the lowest evaluation value in set I^-. An et al. [9] refined the discordance index as the average value of set I^-, as follows in Equation (17). $δ (A_{x}, A_{y}) = \frac{\sum_{C_{k} \in I^{-}} (\frac{C_{k} (A_{y}) - C_{k} (A_{x})}{C_{k}^{B} - C_{k}^{W}})}{t}$ (17) where t is the number of criteria in set I^-; C_k (A_y) is the normalized evaluation value of alternative A_y based on criterion C_k; C_k (A_x) is the normalized evaluation value of alternative A_x based on criterion C_k; $C_{k}^{B}$ is the best normalized evaluation value for criterion C_k; $C_{k}^{W}$ is the worst normalized evaluation value for criterion C_k; and when x = y, δ (A_x, A_y) = 0.

An et al. [9] refined the concordance and discordance indices. In the concordance index, they gave the appropriate weighting factors to distinguish alternative A_x from alternative A_y. In the discordance index, they used the average value to improve the worst evaluation value in the traditional ELECTRE II to represent the degree of dissatisfaction. However, this study believes that there are still insufficient considerations in the ELECTRE II so that we find and improve it. The method proposed by this study is described in the following section.

3 A proposed method

In this study, we set out to improve step 3 of the traditional ELECTRE II. The key equation for decision-makers is presented in the form of Equation (13), in which the discordance index is subtracted from the concordance index. It is in Equations (6)–(9) which the concordance index is calculated, and Equation (11) calculates the discordance index. The other steps of the algorithm remain unchanged, in order to preserve the spirit of decision-making in ELECTRE II and provide a more objective decision-making method to assist decision-makers in decision-making. The flowchart of proposed assessment framework of ELECTRE II is presented in Fig. 1. Section 3.1 introduced the formula of the purposed concordance index. Then used example 1 (examination results of students) and example 2 (the sustainability evaluation for groundwater remediation) with purposed concordance index and traditional discordance index to verify and illustrate the unreasonable parts of traditional ELECTRE II. The modified discordance index in this study is purposed in section 3.2. We used example 2 with purposed discordance and traditional concordance index to verify and illustrate that even if the formula has changed to the easier one which is purposed in this study, the rank of the alternatives will not change. It means that our formula simplified the computational burden imposed on the other methods. Since we have already demonstrated the concordance and discordance indices proposed in this study in Sections 3.1 and 3.2, the two formulas are combined in Section 3.3 to verify the ELECTRE II method proposed in this study.

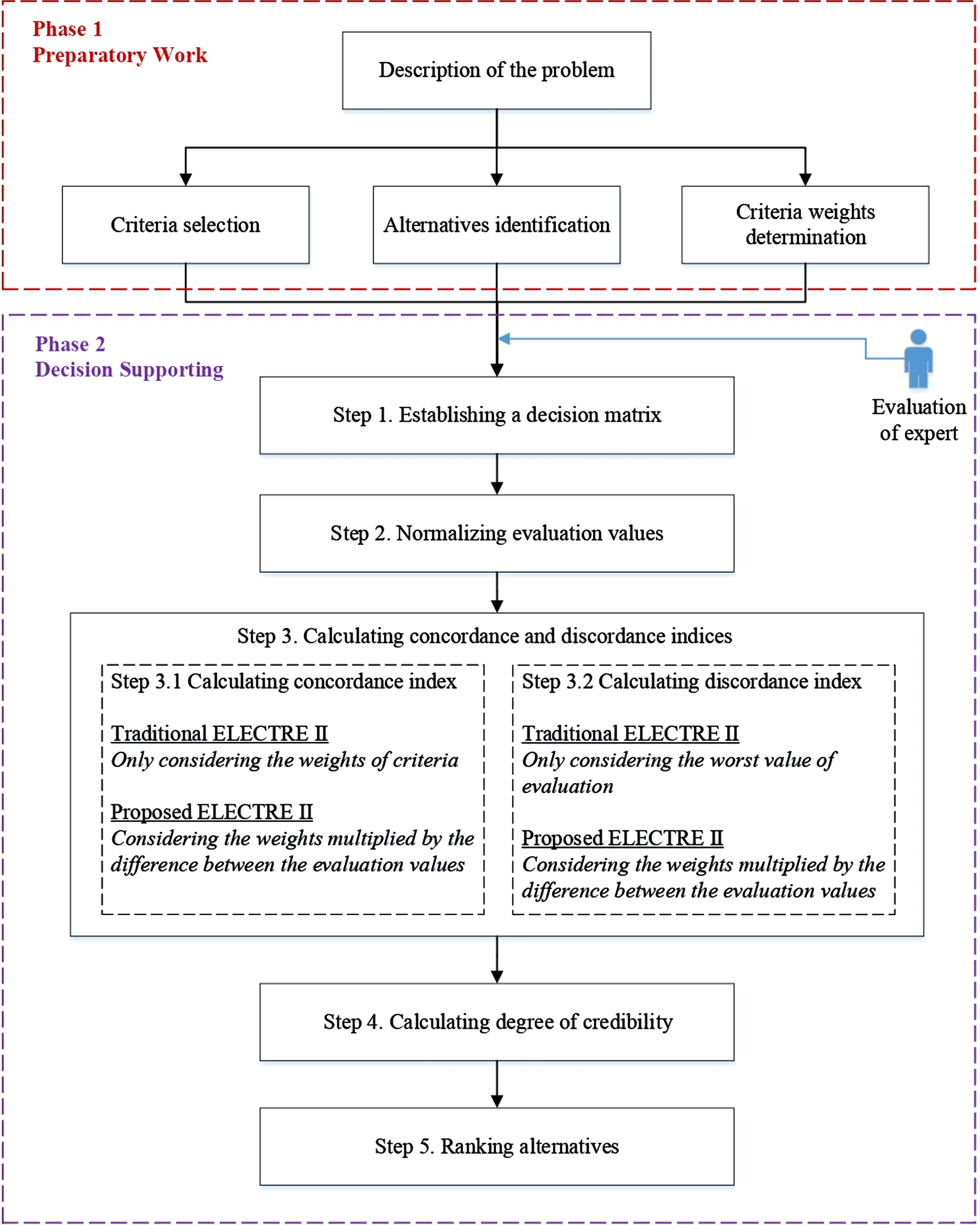

Fig. 1

The flowchart of proposed assessment framework of ELECTRE II.

3.1 Proposed definition of concordance index

According to the improved ELECTRE II proposed by An et al. [9], to calculates the concordance index of alternative A_x compared to alternative A_y, a binary decision is made as to whether the sum of the weights of alternative A_x based on criterion C_k is more than that of alternative A_y based on criterion C_k. The size of the difference between these values is not taken into account.

Example 1. To illustrate with a simple example, the examination results of student A and student B are shown in Table 2. Which student has done better in this round of examination? Student A was better at math and student was better at Chinese and English. However, mathematics is weighted more than both Chinese and English. To decide which student has the best performance, we calculate the concordance indices. In traditional ELECTRE II, according to Equations (6), the the concordance index of stuudent A is 0.6 (0.6/ (0.6) + (0.1 + 0.3)) and the concordance index of student B is 0.4. In the version proposed by An et al. (2016), according to Equation (16), the concordance index of stuudent A is 0.6 ((0.6 × 1/ 3)/ [(0.6 × 1/ 3) + (0.1 + 0.3) × 1/ 3]) and the concordance index of student B is 0.4 by setting α = β = 1/ 3. However, if we multiply the differences in their scores by the wight assigned to each subject, we obtain a different result. We find that the concordance index of student A is 0.054 (0.6× (80 - 79)/ [0.6 × (80 - 79)] +[0.1 × |60 - 90| + 0.3 × |65 - 90|]), and the concordance index of student B is 0.946.

Table 2
Examination results and concordance indices of two students in three subjects of differing importance

Subject (weight) Concordance index

Chinese (0.1) Mathematics (0.6) English (0.3) By only weight #

Student A 60 80 65 0.600 0.054

Student B 90 79 90 0.400 0.946

		Subject (weight)		Concordance index
	Chinese (0.1)	Mathematics (0.6)	English (0.3)	By only weight	#
Student A	60	80	65	0.600	0.054
Student B	90	79	90	0.400	0.946

#: by weight of subject multiplied by gap between two students.

From the perspective, the performance of student B is better than that of student A. If we look at the overall high scores of student B (i.e., 90, 79, and 90), this result makes more sense intuitively.

Therefore, this study redefined the concordance index. While the equation of the index is the same as the traditional one, we define the component parts differently. As long as alternative A_x is not worse than the alternative A_y, we use W^{I
⁺}, W^{I
⁼}, and W^{I
^-} to calculate the concordance index, as in Equation (18): $θ (A_{x}, A_{y}) = \frac{W^{I^{+}} + W^{I^{=}}}{W^{I^{+}} + W^{I^{=}} + W^{I^{-}}}$ (18)

However, rather than simply summing the weights of the criteria in the sets, we sum the weights multiplied by the difference between the evaluation values. Therefore, Equations (7)–(9) are modified as presented in Equations (19)–(21). $W^{I^{+}} = \sum_{C_{k} \in I^{+}} (w_{C_{k}} \times (X_{{xC}_{k}} - X_{{yC}_{k}}))$ (19) $W^{I^{=}} = \sum_{C_{k} \in I^{=}} (w_{C_{k}} \times (X_{{xC}_{k}} - X_{{yC}_{k}}))$ (20) $W^{I^{-}} = \sum_{C_{k} \in I^{-}} (w_{C_{k}} \times | X_{{xC}_{k}} - X_{{yC}_{k}} |)$ (21) where X_{xC
_k} is the normalized evaluation value for alternative A_x based on criterion C_k; and X_{yC
_k} is the normalized evaluation value for alternative A_y based on criterion C_k.

In set I^-, because X_{xC
_k} is worse than X_{yC
_k}, X_{xC
_k} will produce a negative value when X_{yC
_k} is subtracted. Therefore, the absolute value is added to Equation (21). In the traditional and modified ELECTRE II proposed by An et al. [9], only the weights of the criteria in each set are considered and used in W^{I
⁺}, W^{I
⁼} and W^{I
^-}. The method proposed by this study calculates the size of the difference between alternative A_x and alternative A_y. That is, the distance between alternative A_x and alternative A_y is multiplied by the weight of the criterion.

Example 2. We compare the performance of the proposed method with those of the traditional and modified approaches using a problem proposed by An et al. [9]. This problem is presented in Table 3. It is a sustainability evaluation for groundwater remediation. There are four scenarios: pump-treat (P & T), monitored natural attenuation (MNA), permeable reactive barriers (PRB), and air sparging (AS). There are six criteria: capital cost (C₁), detection and analysis costs (C₂), operation and maintenance costs (C₃), effectiveness (C₄), time for remediation (C₅), and effect on ecology, environment and public health (C₆).

Table 3

Decision matrix for groundwater remediation

Criterion		C ₁	C ₂	C ₃	C ₄	C ₅	C ₆
Weight		0.1965	0.1307	0.1307	0.2129	0.1065	0.2230
Alternative	P &T	0.1528	0.2411	0.1349	0.3710	0.2727	0.3927
	MNA	0.3710	0.1547	0.3275	0.1528	0.1818	0.3206
	PRM	0.2381	0.2285	0.3275	0.2381	0.2727	0.1434
	AS	0.2381	0.3756	0.2102	0.2381	0.2727	0.1434

The rankings determined by traditional ELECTRE II and the method of An et al. [9] are presented in Table 4.

Table 4

Ranking of alternatives (round 1)

ELECTRE II	Ranking
	1	2	3	4
Traditional	P &T	AS	PRB	MNA
An et al.	P &T	AS	PRB	MNA

We then kept the same definition of the discordance index and implemented the proposed definition for the concordance index. The results are shown in Table 5. The proposed method returns a different ranking.

Table 5

Ranking of alternatives (round 2)

ELECTRE II	Ranking
	1	2	3	4
Traditional	P &T	AS	PRB	MNA
An et al.	P &T	AS	PRB	MNA
Proposed method	P &T	MNA	PRB	AS

All methods suggest P & T as the optimal choice. Therefore, in this study, the evaluation value was changed to a more extreme value under the condition that the ranking of the evaluation values of P & T and MNA remains unchanged. The evaluation values that make the evaluation of P & T has only a few points to win the evaluation of MNA, but as long as P & T is worse, it will lose more points. The modified decision matrix is shown in Table 6. The values in bold were changed for the purpose of this illustration.

Table 6

Decision matrix for groundwater remediation

Criterion		C ₁	C ₂	C ₃	C ₄	C ₅	C ₆
Weight		0.1965	0.1307	0.1307	0.2129	0.1065	0.2230
Alternative	P &T	0.1528	0.2411	0.1349	0.2382	0.1900	0.3300
	MNA	0.3710	0.2284	0.3275	0.1528	0.1818	0.3206
	PRM	0.2381	0.2285	0.3275	0.2381	0.2727	0.1434
	AS	0.2381	0.3756	0.2102	0.2381	0.2727	0.1434

The results are shown in Table 7. The rankings of traditional ELECTRE II and the method proposed by An et al. [9] remain unchanged. The proposed method, however, reverses the ranking of the first and last ranked, which illustrates the profound effects of this new definition for the concordance index.

Table 7

Ranking of alternatives (round 2), including proposed method

ELECTRE II	Ranking
	1	2	3	4
Traditional	P &T	AS	PRB	MNA
An et al.	P &T	AS	PRB	MNA
Proposed method	MNA	AS	PRB	P &T

3.2 Proposed definition of discordance index

For the discordance index, traditional ELECTRE II seeks the worst evaluation value in set I^- to present the degree of dissatisfaction with alternative A_i compared to alternative A_j. The method proposed by An et al. [9] looks for the average value in set I^-. To calculate credibility, the discordance matrix is subtracted from the concordance matrix. However, the units of measure for the two indices differ, which compromises the result. The concordance matrix considers the percentage of satisfaction across the whole set, while the discordance matrix only considers the scores lose in set I^-. Therefore, for the discordance index, this study considers the percentage of dissatisfaction across the whole set, Equations (17) are modified as presented in Equation (22): $δ (A_{i}, A_{j}) = 1 - θ (A_{i}, A_{j}) = \frac{W^{I^{-}}}{W^{I^{+}} + W^{I^{=}} + W^{I^{-}}}$ (22)

In order to illustrate the advantages of the proposed definition, we fix the discordance index and implement the proposed calculation for the discordance index. The results are shown in Table 8. It can be seen that if the proposed definition for the discordance index is applied, the ranking is returned by both the traditional and modified ELECTRE II. In addition, Equation (22) simplified the computational burden imposed on the other methods.

Table 8

Ranking of alternatives using proposed definition of discordance index

ELECTRE II	Ranking
	1	2	3	4
Traditional	P &T	AS	PRB	MNA
An et al.	P &T	AS	PRB	MNA

3.3 Implementing proposed definitions for both concordance and discordance indices

For the case of groundwater pollution remediation, we ranked the alternatives using Equations (19)–(21) for the concordance index and Equation (22) for the discordance index. In addition, we also used the traditional ELECTRE II, modified ELECTRE II [9], VIKOR, SAW, MOORA, WASPAS, EDAS, CoCoSo, and MARCOS to solve this problem. Table 9 is a comparison table of the ranking of the solutions.

Table 9
Ranking of alternatives for groundwater pollution remediation

Methods Alternative

P &T MNA PRB AS

Traditional ELECTRE II 1 4 3 2

ELECTRE II by An et al. 1 4 3 2

VIKOR 2 1 4 3

SAW 4 1 3 2

MOORA 4 1 3 2

WASPAS 4 1 3 2

EDAS 2 1 4 3

CoCoSo 4 1 3 2

MARCOS 4 1 3 2

Proposed method 4 1 3 2

Methods	Alternative
Traditional ELECTRE II	1	4	3	2
ELECTRE II by An et al.	1	4	3	2
VIKOR	2	1	4	3
SAW	4	1	3	2
MOORA	4	1	3	2
WASPAS	4	1	3	2
EDAS	2	1	4	3
CoCoSo	4	1	3	2
MARCOS	4	1	3	2
Proposed method	4	1	3	2

This problem is solved by ten multi-criteria decision-making methods of previous scholars and the proposed method in this study. We found that the best alternative in the traditional and the modified ELECTRE II is P & T, while the best alternative in other methods and the proposed methods is MNA. P & T ranks the last in the traditional and modified ELECTREE II. Therefore, it is impossible to make an objective decision if we only discuss loss or win without exploring the gap between the alternatives.

4 Case study

4.1 Background description

Environmental issues are important to discuss all over the world, and energy is not only an issue in developed countries but also a popular issue in developing countries [26]. With the economic growth, Bangladesh was promoted to a developing country in 2018. Therefore, the demand for the power in Bangladesh has also increased rapidly [3 , 29]. The energy is mainly divided into renewable energy and non-renewable energy. There are 86.66% of current power generation in Bangladesh is non-renewable energy, which includes gas, oil, and coal [5]. However, the Bangladeshi government has formulated a plan that hopes to realize the net-zero carbon emission policy in 2041. Therefore, Bangladesh should reevaluate all current power generation technologies and explore the factors more comprehensively that affect power generation technologies.

This study refers to the case study of Ali et al. [40] evaluating power generation technologies in Bangladesh. There are six power generation technologies including three non-renewable energy technologies (gas, oil, and coal) and three renewable energy technologies, which are clean energy technologies (hydro, wind, and solar). There are eight criteria are presents in Table 10.

Table 10
Criteria for power generation technologies

Abbreviation Criteria Meaning Type

C ₁ Generation cost Bangladeshi taka in kilowatt-hour (Tk/kWh) Cost

C ₂ Installed capacity Output power during power generation megawatt (megawatt, MW) Benefit

C ₃ Life expectancy Estimated useful life (years) Benefit

C ₄ Efficiency Generating efficiency (%) Benefit

C ₅ GHG emission Greenhouse gas emission in kilowatt-hour (gCO₂/kWh) Cost

C ₆ Water consumption Water use for power generation in kilowatt-hour (l/kWh) Cost

C ₇ Land use Land area required in kilowatt-hour (m²/kWh) Cost

C ₈ Social benefits Benefits to society (%) Benefit

Abbreviation	Criteria	Meaning	Type
C ₁	Generation cost	Bangladeshi taka in kilowatt-hour (Tk/kWh)	Cost
C ₂	Installed capacity	Output power during power generation megawatt (megawatt, MW)	Benefit
C ₃	Life expectancy	Estimated useful life (years)	Benefit
C ₄	Efficiency	Generating efficiency (%)	Benefit
C ₅	GHG emission	Greenhouse gas emission in kilowatt-hour (gCO₂/kWh)	Cost
C ₆	Water consumption	Water use for power generation in kilowatt-hour (l/kWh)	Cost
C ₇	Land use	Land area required in kilowatt-hour (m²/kWh)	Cost
C ₈	Social benefits	Benefits to society (%)	Benefit

4.2 Calculation for alternative selection

We select the best alternative in this case study according to the steps in Section 2.1, but step 3 of tradition ELECTRE II is based on the method proposed in this study in Section 3.

Step 1. Establishing a decision matrix

This problem is prioritizing the best power generation technology of the six alternatives and considering eight criteria. The decision matrix is presented in Table 11.

Table 11
Decision matrix for power generation technologies

Criterion C ₁ C ₂ C ₃ C ₄ C ₅ C ₆ C ₇ C ₈

Weight 0.1633 0.1559 0.0608 0.0584 0.1114 0.2302 0.1113 0.1087

Alternative Gas 3.07 490 22 39.97 400 0.99 0.00020 33.97

Oil 3.3 489 99 39.89 401 1 0.00025 33.8

Coal 3.1 474 40 28.25 800 2 0.00100 33.9

Hydro 1.46 230 100 90 41 34 0.01000 20

Wind 135.64 2.9 20 30 25 0.004 0.00030 1.47

Solar 3.2 470 21 17 35 0.008 0.01000 1.56

Criterion		C ₁	C ₂	C ₃	C ₄	C ₅	C ₆	C ₇	C ₈
Weight		0.1633	0.1559	0.0608	0.0584	0.1114	0.2302	0.1113	0.1087
Alternative	Gas	3.07	490	22	39.97	400	0.99	0.00020	33.97
	Oil	3.3	489	99	39.89	401	1	0.00025	33.8
	Coal	3.1	474	40	28.25	800	2	0.00100	33.9
	Hydro	1.46	230	100	90	41	34	0.01000	20
	Wind	135.64	2.9	20	30	25	0.004	0.00030	1.47
	Solar	3.2	470	21	17	35	0.008	0.01000	1.56

Step 2. Normalizing evaluation values

We used Equations (2) to normalize and convert the evaluation value of each criterion into a number 0 and 1 The normalized decision matrix is shown in Table 12.

Table 12

Decision matrix for power generation technologies with normalized evaluation values

Criterion		C ₁	C ₂	C ₃	C ₄	C ₅	C ₆	C ₇	C ₈
Weight		0.1633	0.1559	0.0608	0.0584	0.1114	0.2302	0.1113	0.1087
Alternative	Gas	0.9880	1.0000	0.0250	0.3147	0.5161	0.9710	1.0000	1.0000
	Oil	0.9863	0.9979	0.9875	0.3136	0.5148	0.9707	0.9949	0.9948
	Coal	0.9878	0.9672	0.2500	0.1541	0.0000	0.9413	0.9184	0.9978
	Hydro	1.0000	0.4662	1.0000	1.0000	0.9794	0.0000	0.0000	0.5702
	Wind	0.0000	0.0000	0.0000	0.1781	1.0000	1.0000	0.9898	0.0000
	Solar	0.9870	0.9589	0.0125	0.0000	0.9871	0.9999	0.0000	0.0028

Step 3.1 Calculating the concordance index

According to Equations (18)–(21), concordance can be calculated, shown as follow: $θ = [\begin{matrix} 1.0000 & 0.0332 & 0.8657 & 0.7525 & 0.8781 & 0.8058 \\ 0.9668 & 1.0000 & 0.9956 & 0.8301 & 0.8981 & 0.8356 \\ 0.1343 & 0.0044 & 1.0000 & 0.6826 & 0.7644 & 0.6558 \\ 0.2475 & 0.1699 & 0.3171 & 1.0000 & 0.5428 & 0.3718 \\ 0.1219 & 0.1097 & 0.2356 & 0.4572 & 1.0000 & 0.2813 \\ 0.1942 & 0.1644 & 0.3442 & 0.6282 & 0.7187 & 1.0000 \end{matrix}]$

Step 3.2 Calculating the discordance index

According to Equation (22), discordance can be calculated, shown as follow: $δ = [\begin{matrix} 0.0000 & 0.9668 & 0.1343 & 0.2475 & 0.1219 & 0.1942 \\ 0.0332 & 0.0000 & 0.0044 & 0.1699 & 0.1097 & 0.1644 \\ 0.8657 & 0.9956 & 0.0000 & 0.3171 & 0.2356 & 0.3442 \\ 0.7525 & 0.8301 & 0.6827 & 0.0000 & 0.4572 & 0.6282 \\ 0.8781 & 0.8903 & 0.7644 & 0.5428 & 0.0000 & 0.7187 \\ 0.8085 & 0.8356 & 0.6558 & 0.3718 & 0.2813 & 0.0000 \end{matrix}]$

Step 4. Calculating degree of credibility

According to Equations (13)–(14), discordance can be calculated, shown as follow: $S = [\begin{matrix} 0.0154 & 0.0175 & 0.0202 & 0.0251 & 0.0333 & 1.0000 \\ 0.5947 & 0.5973 & 0.6177 & 0.6938 & 0.8302 & 1.0000 \\ 0.0002 & 0.0003 & 0.0004 & 0.0006 & 0.0045 & 1.0000 \\ 0.0027 & 0.0050 & 0.0134 & 0.0421 & 0.1700 & 1.0000 \\ 0.0004 & 0.0009 & 0.0032 & 0.0134 & 0.1098 & 1.0000 \\ 0.0050 & 0.0069 & 0.0110 & 0.0320 & 0.1645 & 1.0000 \end{matrix}]$

Step 5. Ranking alternatives

In addition to the method proposed in this study, we also used the traditional ELECTRE II, modified ELECTRE II [9], VIKOR, SAW, MOORA, WASPAS, MABAC, EDAS, CoCoSo, and MARCOS to solve this problem. Table 13 is a comparison table of the ranking of the solutions.

Table 13

Ranking of alternatives for power generation technologies

	Alternative
Method	Gas	Oil	Coal	Hydro	Wind	Solar
Traditional ELECTRE II	1	4	5	2	6	3
ELECTRE II by An et al.	1	5/6	5/6	4	3	2
VIKOR	2	1	3	6	5	4
SAW	2	1	3	5	6	4
MOORA	2	1	3	6	5	4
WASPAS	2	1	3	5	6	4
MABAC	2	1	3	5	6	4
EDAS	2	1	3	5	6	4
CoCoSo	2	1	3	5	6	4
MARCOS	2	1	6	3	4	5
Proposed method	2	1	6	3	5	4

This problem is solved by eleven multi-criteria decision-making methods of previous scholars and the proposed method in this study. We found that the best alternative in the traditional and the modified ELECTRE II is Gas, while the best alternative in other methods and the proposed methods is Oil. Oil ranks fourth in the traditional ELECTREE II and even cannot distinguish whether it is ranked 5th or 6th place in the modified ELECTREE II. It illustrates that the traditional and modified ELECTRE II are not comprehensive enough in decision-making. Therefore, there is no way to distinguish between alternatives that are very close to each other, and it is impossible to know the real difference between the alternatives.

5 Discussions

There are many methods of MCDM for sustainable assessment, and ELECTRE II is one of the popular methods. The ELECTRE II method compares various alternatives according to a given set of criteria to determine which alternative is superior. However, the calculation procedures for the concordance and discordance indices are flawed. Therefore, this study offers new definitions for these indices and illustrated the proposed approach with examples related to examination results, groundwater remediation, and power generation technologies. From the results of the two examples, it can be found that the results of decision-making of the proposed method are the same as those of the method proposed by scholars in recent years. It also proves that the decision-making process of traditional and modified ELECTRE II by An et al. [9] have some irrationalities. Important points are discussed in the following:

In the previous methods, the concordance index considers only the sum of the weights and uses this to determine the percentage of satisfaction. It does not take into account the size of the difference between evaluation values. Therefore, this study included two factors in the calculation of the concordance index, which can be considered more objective.

In traditional ELECTRE II, the discordance index uses the worst evaluation value to represent the degree of dissatisfaction. In the method proposed by An et al. [9], the average value is used. However, to calculate the degree of credibility, the discordance matrix is subtracted from the concordance matrix. The unit of measure for the concordance index is the criterion weight, while the unit of measure for the discordance index is the evaluation value. In the concordance index, the whole set is considered, while the discordance index only considers set I^-. The two matrices therefore cannot be compared. Therefore, this study redefined the discordance index as the percentage of dissatisfaction to ensure the subtraction would not be distorted. In our example, this new definition does not affect the ranking returned by the traditional and modified ELECTRE II. Therefore, the proposed simplified definition of the discordance index is verified.

In the discordance index, An et al. [9] improved the “most loss of evaluation value” of traditional ELECTRE II by using the “average loss of the evaluation value”. It no longer only considers the single worst performance criterion. Based on this concept, this study changed the concordance index into the total difference in the value of evaluation of each alternative to win over another alternative, while the discordance index was changed to the difference in the value of evaluation of each alternative to lose against another alternative; therefore, a more objective decision calculation index was proposed.

This study proposed a calculation method to improve the concordance index and discordance index in ELECTRE II. In addition to considering the weights of the criteria, the difference between the alternatives is also considered, making the decision-making process more objective. It will not cause unreasonable sequencing of alternatives because it only considers the weights of the criteria and the evaluation value of the alternatives lost, and thus decision-makers can have a more objective basis for judgment.

6 Conclusions

The frameworks for sustainable decision-making have developed rapidly in recent years and applied in different fields. The most important key to decision-making is whether each step is reasonable. Therefore, the aim purpose of this study was to pinpoint the limitations of ELECTRE II to provide a more objective decision-making method. Our contributions can be divided into two aspects: theoretical and practical contributions.

(1) Theoretical contributions

More and more scholars have developed different frameworks for sustainable evaluation. Although the selection of sustainable alternatives and criteria is very important, this study emphasizes the rationality and objectivity of evaluation methods.

This study explores the significance of each step in the ELECTRE II method and proposes new definitions of the concordance and discordance indices to overcome the limitations of previous approaches. We provide examples to illustrate the superiority of the proposed approach. Regarding the calculation method of the concordance index, previous scholars did not consider the evaluation value of each alternative for the criterion of winning or losing and only considered the weight of the criterion, so the satisfaction of the alternatives could not be calculated. In addition, in the discordance index, previous scholars did not consider whether the concordance matrix and the discordance matrix were fair when making comparisons nor consider whether the unit of measure was the same. Therefore, there would be a problem of distortion in the calculation, and the degree of dissatisfaction could not be calculated. In this study, we proposed a modified method to redefine the calculation method of the concordance index and the discordance index to improve the ELECTRE II method. We illustrate the implications of the redefinition in this study through a simple example, which improves the unreasonable parts in the previous research, making the concordance index and the discordance index in ELECTRE II more accurate in decision-making results.

(2) Management Implications

There are many issues of sustainability evaluation are discussed. This study takes the selection of groundwater remediation technologies and power generation technologies as the example, which can provide decision-makers with more reasonable consideration of all alternatives and criteria, and will not ignore the alternatives with similar performance. Decision-makers rely on subjective experience to determine the best choice among a range of alternatives. This can lead to variation in the results. The improved ELECTRE II method proposed in this study provides decision-makers with a more objective basis for decision-making that is more in line with intuitive assessment.

(3) Future directions and limitations

This study proposed an improved ELECTRE II sustainability assessment framework. In terms of methodology, the proposed ELECTRE II method can be extended to other ELECTRE family methods in the future. It can also combine with other MCDM methods into a hybrid decision-making model to solve more complex problems. In terms of application, this framework can also be applied to engineering or manufacturing problems. There are many kinds of MCDM methods. The feasible alternatives that are unknown is the limitations of MODM. Oppositely, the feasible alternative, criterion, and weights are known in MADM. Therefore, if only the alternatives, criteria, and weights are known, any problem can use the proposed method in this study to solve it.

References

Mohammed

, Naghshineh

, Spiegler

and Carvalho

, Conceptualising a supply and demand resilience methodology: A hybrid DEMATEL-TOPSIS-possibilistic multi-objective optimization approach, Computers & Industrial Engineering (2021), 107589.

Rubio-Aliaga

, Garcia-Cascales

M.S.

, Sanchez-Lozano

J.M.

and Molina-Garcia

, MCDM-based multidimensional approach for selection of optimal groundwater pumping systems: Design and case example, Renewable Energy 163 (2021), 213–224.

Karmaker

A.K.

, Rahman

, Hossain

and Ahemd

, Exploration and corrective measures of greenhouse gas emission from fossil fuel power stations for Bangladesh, Journal of Cleaner Production 244 (2020), 118645.

Roy

, Bertier

, La method ELECTRE II, Note de travail 142, SEMA-METRA, Metra-International (1971).

Bangladesh Power Development Board, Annual Report 2019–2020, (2020) Retrieved from https://www.bpdb.gov.bd/bpdb_new/index.php/site/new_annual_reports (Accessed on: 15 October 2020).

Mitincu

C.G.

, Ioja

I.C.

, Hossu

C.A.

, Artmann

, Nita

and Nita

M.R.

, Licensing sustainability related aspects in Strategic Environmental Assessment. Evidence from Romania’s urban areas, Land Use Policy 108 (2021), 105572.

Hwang

C.L.

and Yoon

, Multiple attribute decision making-methods and applications, Lecture Notes in Economics and Mathematical Systems 186 (1981), 115–127.

Churchman

C.W.

and Ackoff

R.L.

, An approximate measure of value, Journal of the Operations Research Society of America 2(2) (1954), 172–187.

, Xi

, Wang

, Xu

, Tang

, Dong

, Ren

and Pang

, A sustainability assessment methodology for prioritizing the technologies of groundwater contamination remediation, Journal of Cleaner Production 112 (2016), 4647–4656.

10.

Bhadra

and Dhar

N.R.

, Selection of the natural fiber for sustainable applications in aerospace cabin interior using fuzzy MCDM model, Materialia 21 (2022), 101270.

11.

Pamucar

and Cirovic

, The selection of transport and handling resources in logistics centers using Multi-Attributive Border Approximation area Comparison (MABAC), Expert Systems with Applications 42 (2015), 3016–3028.

12.

Ozdemir

E.D.

, Hardtlein

, Jenssen

, Zech

and Eltrop

, A confusion of tongues or the art of aggregating indicators—Reflections on four projective methodologies on sustainability measurement, Renewable & Sustainable Energy Reviews 15(5) (2011), 2385–2396.

13.

Zavadskas

E.K.

, Turskis

, Antucheviciene

and Zakarevicius

, Optimization of Weighted Aggregated Sum Product Assessment, Elektronika ir Elektrotechnika 122(6) (2012), 3–6.

14.

Shen

, Liang

and Yang

, Combined probabilistic linguistic term set and ELECTRE II method for solving a venture capital project evaluation problem. Economic Research-Ekonomska Istraživanja (2021), 1–23.

15.

Sitorus

, Cilliers

J.J.

and Brito-Parada

P.R.

, Multi-criteria decision making for the choice problem in mining and mineral processing: Applications and trends, Expert Systems with Application 121 (2019), 393–417.

16.

Maruf

H.M.

and Shihavuddin

A.S.M.

, Adaptation for sustainable implementation of Smart Grid in developing countries like Bangladesh, Energy Reports 6 (2020), 2520–2530.

17.

Reddy

J.K.

, Jayakrishna

and Raj

S.A.

, Prioritization of Factors Influencing Sustainable Product Design in the Context of Green Consumer Behavior Using Hybrid AHP—ELECTRE II: A Case Study, Advances in Industrial Automation and Smart Manufacturing, Springer (2021), 57–67.

18.

Troullaki

, Rozakis

and Kostakis

, Bridging barriers in sustainability research: A review from sustainability science to life cycle sustainability assessment, Ecological Economics 184 (2021), 107007.

19.

Abdel-Basset

, Gamal

, Chakrabortty

R.K.

and Ryan

M.J.

, Evaluation of sustainable hydrogen production options using an advanced hybrid MCDM approach: A case study, International Journal of Hydrogen Energy 46(5) (2021), 4567–4591.

20.

Akram

, Luqman

and Kahraman

, Hesitant Pythagorean fuzzy ELECTRE-II method for multi-criteria decision-making problems, Applied Soft Computing 108 (2021), 107479.

21.

Lin

, Chen

, Liao

and Xu

, ELECTRE II method to deal with probabilistic linguistic term sets and its application to edge computing, Nonlinear Dynamics 96 (2019), 2125–2143.

22.

Murshed

, Modeling primary energy and electricity demands in Bangladesh: An Autoregressive distributed lag approach, Sustainable Production and Consumption 27 (2021), 698–712.

23.

Sarwar

, Akram

and Liu

, An integrated rough ELECTRE II approach for risk evaluation and effects analysis in automatic manufacturing process, Artificial Intelligence Review 54 (2021), 4449–4481.

24.

Yazdani

, Zarate

, Zavadskas

E.K.

and Turskis

, A combined compromise solution (CoCoSo) method for multi-criteria decision-making problems, Management Decision 57(9) (2019), 2501–2519.

25.

Ghorabaee

M.K.

, Zavadskas

E.K.

, Olfat

, Turskis

and Multi-criteria inventory classification using a new method of evaluation based on distance from average solution (EDAS), Informatica 26(3) (2015), 435–451.

26.

Rahman

M.M.

and Alam

, Clean energy, population density, urbanization and environmental pollution nexus: Evidence from Bangladesh, Renewable Energy 172 (2021), 1063–1072.

27.

Sarker

M.R.

, Ali

S.M.

, Paul

S.K.

o4and Munim

Z.H.

, Measuring sustainability performance using an integrated model, Measurement 184 (2021), 109931.

28.

Ghorui

, Ghosh

, Mondal

S.P.

, Bajuri

M.Y.

, Ahmadian

, Salahshour

and Ferrara

, Identification of dominant risk factor involved in spread of COVID-19 using hesitant fuzzy MCDM methodology, Results in Physics 21 (2021), 103811.

29.

Das

N.K.

, Chakrabartty

, Dey

, Gupta

A.K.S.

and Matin

M.A.

, Present energy scenario and future energy mix of Bangladesh, Energy Strategy Reviews 32 (2020), 100576.

30.

Huang

, Selecting sustainable renewable energy-powered, desalination: an MCDM framework under uncertain and incomplete information, Clean Technologies and Environmental Policy (2022), 1–18.

31.

Benayoun

, Roy

and Sussman

, ELECTRE: Une methode pour guider le choix en presence de points de vue multiples, Note de travail 49 (1966).

32.

Tao

, Liu

, Cai

and Cheong

K.H.

, A dynamic group MCDM model with intuitionistic fuzzy set: Perspective of alternative queuing method, Information Sciences 555 (2021), 85–103.

33.

Zhang

, Xu

and Gou

, ELECTRE II method based on the cosine similarity to evaluate the performance of financial logistics enterprises under double hierarchy hesitant fuzzy linguistic environment, Fuzzy Optimization and Decision Making 139 (2022), 1–27.

34.

Boral

, Chaturvedi

S.K.

, Howard

, Naikan

V.N.A.

and McKee

, An integrated interval type-2 fuzzy sets and multiplicative half quadratic programming-based MCDM framework for calculating aggregated risk ranking results of failure modes in FMECA, Process Safety and Environmental Protection 150 (2021), 194–222.

35.

Seker

and Cengiz

, Socio-economic evaluation model for sustainable solar PV panels using a novel integrated MCDM methodology: A case in Turkey, Socio -Economic Planning Sciences 77 (2021), 100998.

36.

Opricovic

, Multicriteria Opitimization of Civil Engineering Systems (1998), Belgrade: Faculty of Civil Engineering.

37.

Rao

S.H.

, A hybrid MCDM model based on DEMATEL and ANP for improving the measurement of corporate sustainability indicators: A study of Taiwan High Speed Rail, Research in Transportation Business & Management 9 (2021), 100657.

38.

Sarawat

S.K.

, Digalwar

A.K.

, Yadav

S.S.

and Kumar

, MCDM and GIS based modelling technique for assessment of solar and wind farm locations in India, Renewable Energy 169 (2021), 865–884.

39.

Chang

S.S.

, Fuzzy Multi-Criteria Decision Making for Evaluation Method, Wu-Nan Book Inc., Taipei (2012).

40.

Ali

, Chiu

Y.R.

, Aghaloo

, Nahian

A.J.

and Ma

, Prioritizing the existing power generation technologies in Bangladesh clean energy scheme using a hybrid multi-criteria decision making model, Journal of Cleaner Production 267 (2020), 121901.

41.

Singh

, Pattnaik

, Pruncu

C.I.

, Tiwari

and Fekete

, Selection of natural fibers based brake friction composites using hybrid ELECTRE-entropy optimization technique, Polymer Testing 89 (2020), 106614.

42.

Arulnathan

, Heidari

M.D.

, Doyon

, Li

and Pelletier

, Farm-level decision support tools: A review of methodological choices and their consistency with principles of sustainability assessment, Journal of Cleaner Production 256 (2021), 120410.

43.

Brauers

W.K.

and Zavadskas

E.K.

, The MOORA method and its application to privatization in a transition economy, Control and Cybernetics 35(2) (2006), 445–469.

44.

Liu

and Wan

, A method to calculate the ranges of criteria weights in ELECTRE I and II methods, Computers & Industrial Engineering 137 (2019), 106067.

45.

Liu

, Wang

and Liu

, A modified ELECTRE II method with double attitude parameters based on linguistic Z-number and its application for third-party reverse logistics provider selection, Applied Intelligence 117 (2022), 1–24.

46.

Stevic

, Pamucar

, Puska

and Chatterjee

, Sustainable supplier selection in healthcare industries using a new MCDM method: Measurement of alternatives and ranking according to Compromise solution (MARCOS), Computers & Industrial Engineering 140 (2020), 106231.

Improved ELECTRE II sustainability assessment framework in power generation technological evaluation

Abstract

Keywords

1 Introduction

2 Preliminaries

2.1 Basic concepts for MCDM techniques

2.2 Traditional ELECTRE II

Table 1 Decision matrix Criterion C 1 C 2 ⋯ C n Weight w 1 w 2 ⋯ w n Alternative A 1 x 11 x 12 ⋯ x 1n A 2 x 21 x 22 ⋯ x 2n ⋮ ⋮ ⋮ ⋱ ⋮ A m x m1 x m2 ⋯ x mn

Table 2 Examination results and concordance indices of two students in three subjects of differing importance Subject (weight) Concordance index Chinese (0.1) Mathematics (0.6) English (0.3) By only weight # Student A 60 80 65 0.600 0.054 Student B 90 79 90 0.400 0.946

Table 9 Ranking of alternatives for groundwater pollution remediation Methods Alternative P &T MNA PRB AS Traditional ELECTRE II 1 4 3 2 ELECTRE II by An et al. 1 4 3 2 VIKOR 2 1 4 3 SAW 4 1 3 2 MOORA 4 1 3 2 WASPAS 4 1 3 2 EDAS 2 1 4 3 CoCoSo 4 1 3 2 MARCOS 4 1 3 2 Proposed method 4 1 3 2

4.1 Background description

6 Conclusions

References

Table 1
Decision matrix

Criterion C ₁ C ₂ ⋯ C _n

Weight w ₁ w ₂ ⋯ w _n

Alternative A ₁ x ₁₁ x ₁₂ ⋯ x _1n

A ₂ x ₂₁ x ₂₂ ⋯ x _2n

⋮ ⋮ ⋮ ⋱ ⋮

A _m x _m1 x _m2 ⋯ x _mn

Table 2
Examination results and concordance indices of two students in three subjects of differing importance

Subject (weight) Concordance index

Chinese (0.1) Mathematics (0.6) English (0.3) By only weight #

Student A 60 80 65 0.600 0.054

Student B 90 79 90 0.400 0.946
