Abstract
One of the extremely deliberated data mining processes is HUIM (High Utility Itemset Mining). Its applications include text mining, e-learning bioinformatics, product recommendation, online click stream analysis, and market basket analysis. Likewise lot of potential applications availed in the HUIM. However, HUIM techniques could find erroneous patterns because they don’t look at the correlation of the retrieved patterns. Numerous approaches for mining related HUIs have been presented as an outcome. The computational expense of these methods continues to be problematic, both in terms of time and memory utilization. A technique for extracting weighted temporal designs is therefore suggested to rectify the identified issue in HUIM. Preprocessing of time series-based information into fuzzy item sets is the first step of the suggested technique. These feed the Graph Based Ant Colony Optimization (GACO) and Fuzzy C Means (FCM) clustering methodologies used in the Improvised Adaptable FCM (IAFCM) method. The suggested IAFCM technique achieves two objectives: optimal item placement in clusters using GACO; and ii) IAFCM clustering and information decrease in FCM cluster. The proposed technique yields high-quality clusters by GACO. Weighted sequential pattern mining, which considers facts of patterns with the highest weight and low frequency in a repository that is updated over a period, is used to locate the sequential patterns in these clusters. The outcomes of this methodology make evident that the IAFCM with GACO improves execution time when compared to other conventional approaches. Additionally, it enhances information representation by enhancing accuracy while using a smaller amount of memory.
Keywords
Introduction
Data mining is a technique for gaining info from enormous database, and it have been only just emerged as one of the greatest vital research areas [1]. Data mining with time-dependent sets of information is referred to as temporal mining. This can be done by utilising series data repositories, which draw attention to trends in the data based on period [2]. For each information item has a start time and finish time that specify the period of validity for the data element [3]. Supporting and crucial decision values are given in order to deposit time-categorization models that are significant to the customer [4]. One of the algorithms for data mining is clustering. It is a technique wherein linked pieces of information are gathered into a single list [5]. Low intergroup and great intragroup similarity are the goals of clustering. This is done by first using a time-based temporal repository. In recent years, information has become more and more complex. In other words, each data item has a lot of different qualities, which makes the data incredibly complex. Temporal data mining is difficult and time-consuming. Therefore, it is essential to limit the amount of information that is analyzed for mining. The most often used clustering algorithm is fuzzy clustering. The data is organised using fuzzy clustering. The data points are given member values in reference to each cluster. One common cluster algorithm is the fuzzy c-means approach. Using (FCM) to cluster data is a well-known technique. Based on the fuzzy separation theory, a data item can belong to any of the clusters or groups, with membership grades ranging from 0 to 1, based on the fuzzy separation theory. To enable temporal extraction of data with several dimensions, it must be modified [6]. As a result, it is necessary to investigate fresh, promising methods for grouping temporal information with photo compression. Dimensionality reduction is a process where a distinct point is a member of a group of positions. Only pertinent characteristics are explored for further research, while other characteristics are disregarded [5].
By optimising the clustering procedure, high-quality clusters can be produced. High-quality clusters have the lowest intergroup similarity and the largest intragroup similarity. Finding and assessing information for similarities is another important step in clustering that might be enhanced. Misclustering might be avoided by enhancing the clustering method. Aspects such as clustering time, memory consumption, and computing complexity can all be optimised. High-quality clusters enable effective mining of classification techniques and common patterns [7]. The frequently used item sets that a user prefers are discovered through association rule mining [8]. The basis for identifying the frequent items was the Apriori approach. The drawbacks of the algorithm were addressed in a number of ways because this method required numerous scans of the original set of data. It is difficult to do frequent pattern mining on a temporal dataset because of its dynamic nature [9]. In order to maintain the current phase of the sequential repository, past commonly used itemsets must be altered as new data is added to the database over time [10]. Furthermore, the link rule mining process becomes more challenging when the sets of information contain multi-scale information. Using techniques with less complexity and reducing the number of dimensions led to data with fewer features, which was good for an suggestion rule on a assembly of times.
Each time mining is performed, it is also important to consider any new records that have been put to the temporary database [11]. The innumerable itemets that follow can only be precise and efficient in this situation. Therefore, while mining frequently occurring itemsets on a time-series database, it is crucial to create a frequent mining algorithm that takes into account all of the aforementioned factors [12]. Regular prototype mining uncovers fewer facts and provides less significant information than weighed temporal pattern extraction.
Recurrent data mining has the limitation that it only considers data event probability when discovering common patterns. Weighted pattern mining employs knowledge of patterns that are both prevalent and significant for detecting common patterns [13]. In our proposed weighted temporal pattern mining method, information processing is carried out on the time series repository ideals to transform the mathematical information into fuzzy information suitable for grouping. The corrected data is used in the IFCM method, which combines the FCM and GACO procedures. Clustering is carried out to enhance optimized clusters while the FCM approach lowers dimensionality using a mix of the GACO and FCM algorithms. Then, on this grouping, effective temporal patterns are mined by weighted temporal prototype extract.
The remaining components of the suggested work are as follows: Section 2 presents the comprehensive analysis on various prevailing approaches. In section 3, the methodology is elaborated and the solution for mining problem over high dimensional data is provided. In section 4, the outcomes are determined with numerical analysis which is followed by conclusion in section 5.
Related works
In this unit, recent research articles from reputable journals are used to look at the HUIM and CHUIM-based literature.
HUIM-based evaluation
[14] discussed the issue with HUI mining in 2004. The mining approach was developed by them to mine highly useful data sets. The extraction of all HUIs may not be possible with mining, which is a shaky first step. As a [15] developed a two-phase method to recognize the entire group of HUIs. TWU (Transaction Weighted Utilization), a new upper bound feature, has been created to reduce the exploration space in the two-stage process. The two-stage approach is used to mine the HUIs in two steps. It first generates aspirant HUIs with a TWU higher than the minimal efficacy threshold. In the second phase, the repository is once more examined to limit the HUIs, and the effectiveness of each candidate is then determined. On the other hand, the 2-stage technique has problems with memory and time optimization. The basic reason is that there may be a vast number of candidates developed during the initial stage. In [16], a fresh method for extracting HUI’s support for tree topology is given. A compressing node structure that might be utilised to take full advantage of the TWU feature is created by combining the two-stage approach with the FP-tree concept. This method creates candidate models, develops candidate models, and (3) retrieves HUIs from the candidates list. The quantity of conditional trees produced during mining and the cost of the each conditional tree’s traversal both affect an algorithm’s mining performance. This strategy uses a lot of instances and memory because a lot of conditioned nodes and prospective prototypes are developed [17].
There have been considerable disadvantages to high utility pattern mining, despite its many applications. Consequently, a variety of HUPM (High Utility Pattern Mining) variants have been documented in the literature, including Incremental Utility Mining [18], which aims to mine HUPs from active sets of data, On-Shelf Top Utility Pattern Mining [19], which considers the projection life of information, and Concise Representations of High Utility Patterns (such as Maximal Itemsets [20] and Closed High Utility Itemsets [21]), which necessitates the extraction of a conden.
Correlated HUIM based review (CHUIM)
The information extract literature provides a variety of correlation metrics for connection analysis, including any-confidence, consistency [23], all-confidence, Bond, [22], and [24]. The connectivity of the derived prototype is not taken into account by traditional HUIM methods, which could result in a boring or misleading prototype. In this case, they commonly discover high-utility itemsets, though these itemsets might contain poorly connected components.
Two approaches that combine correlations and utility markers to recognise related buying patterns were proposed by Gan et al. [25]. The former is Correlated High Utility Pattern Miner [26], while the former is CHUIM [25]. (CUPM). Both approaches use the Kulczynsky (short for Kulc) metric [18] along with the effectiveness scale to analzse the desired patterns’ interest. The fast Associated High Utility Itemset Miner (FCHM) method, which utilises correlations, was developed by [27] to find valuable prototype that are closely connected. Two variants of the method, FCHMall-confidence and FCHMbond are based on the prior methods for measuring frequently linked features, all-confidence and bond actions, respectively.
To extract highly interesting prototype and avoid misleading prototypes from arising from classic HUIs approaches, a number of methods to extract CHUI have been presented. These methods combine usefulness and related metrics in categorization [28]. The HUIPM method was introduced, which has a strong occurrence appeal for generating unique patterns in high average - utility item sets that include pertinent item links. In order to effectively store the sets of data required for pattern extraction, the HUIPM approach developed a novel tree-diagram called as UTFA. A novel pruning feature called as KWU has been proposed in this approach to reduce the study scope, even though the HUIPM technique continuously generates a huge number of conditional trees to generate candidates and subsequently uncovers notable patterns. This work will take a long time. Lin’s [29] quick strategy for creating discriminative high average - utility patterns is a revolutionary method that enhances HUIPM. The Component Information tables (EI) and the FU table have been suggested as two information design recommendations for the FDHUP technique to keep the required data for successfully mining the DHUP. An innovative pruning feature has been developed to reduce the search space. On the residual affinitive effectiveness and the affinitive effectiveness outline, it is founded. For efficiently extracting Correlated High Utility Frequently items, Vo et al. [30] introduced the CHUIMiner approach. The repository projection Complexity 3 technique is used by the CHUI-Miner to reduce the database size. Another innovative concept for assessing the utility of data objects directly is the prefix utility of predicted transactions. Table 2 provides a summary of the CHUIM techniques and their characteristics.
CHUIM methods summarized with elements
CHUIM methods summarized with elements
The stages for the anticipated weighted temporal pattern mining method are given in the suggested section as follows. Preprocessing for time-series analysis: As discussed in section 3.3 of this chapter, time-series data is preprocessed to create fuzzy itemsets that make fuzzy clustering easier. For testing purposes, the climate forecast info has been looked into. This collection includes 10 years’ worth of weather forecast information from 2005 to 2015. It consists of eight parameters and is weather forecast prediction information for Chennai. The India Meteorological Department in Chennai, India provided the information. Preprocessing is carried out independently for each attribute in a similar manner. A example climate prediction dataset with numerical values and fuzzy data are shown in Tables 1a 1b, respectively. Clustering with IAFCM: FCM is used to cluster the itemsets. The amount of information in these groups is condensed. The itemsets are placed in the clusters in the best possible order by CS, resulting in the best possible groupings. Weighted pattern recognition mining: In this method, temporal patterns from optimisation groupings are mined using a tree-based weighed pattern mining approach. This is accomplished by incorporating data from a set of continuously updated data that includes information about structure that have higher probability but lower frequencies (weight).
(a): Dataset for weather forecasts: numerical information
(a): Dataset for weather forecasts: numerical information
(b): For the weather report dataset, fuzzy information
In the suggested approach, the information from the complete data set is transformed into itemsets. These itemsets are the result of data preparation. The IAFCM method, which blends CS and FCM approaches, is used to process them. Based on the characteristics of the clusters in each time zone, FCM does clustering and decreases the volume of the information in these clusters. These groupings holding smaller amounts of data are optimized by CS. The IAFCM method produces high-quality clusters as an outcome.
Smaller information size in FCM clusters
Clustering results from the FCM method. FCM is related to K-means in that it authorizations a solo information element to belong to numerous clusters. The value assigned to the information’s class membership depends on how closely it resembles a certain class. Figure 1 shows the method for reducing the amount of information in FCM clusters. In this method, information points represent the rate of an attribute whereas datasets hold the item sets. The next diagram shows the entire procedure. Time-based sections of the material are grouped. FCM is used to deploy a specific amount of clusters to each and every block. For each cluster, the FCM procedure chooses pertinent information. The centroid values were calculated for each cluster and are used as the clusters’ reference points. A projecting group that only includes a subtype of the centroids is chosen using the time property. Other than timing, the key traits pertain to the particular group, whereas the extras are pointless. The evaluation is performed on a 3 dimentional matrix where both the centroids and the pertinent attributes share an instance. In the matrix shown in Fig. 1, centroids stand for rows and attributes for columns. The minimum and maximum rate for to each characteristic characterized by for each column in Fig. 1 are used to calculate the value of the attribute supplied by Equations 1.
Reduction of information size in FCM.
For each feature, the related information things are the value that fall inside the range. The other sets of data are judged unimportant for the time period under consideration. When information points are unsuitable, outliers are found and removed. These won’t be dealt with further.

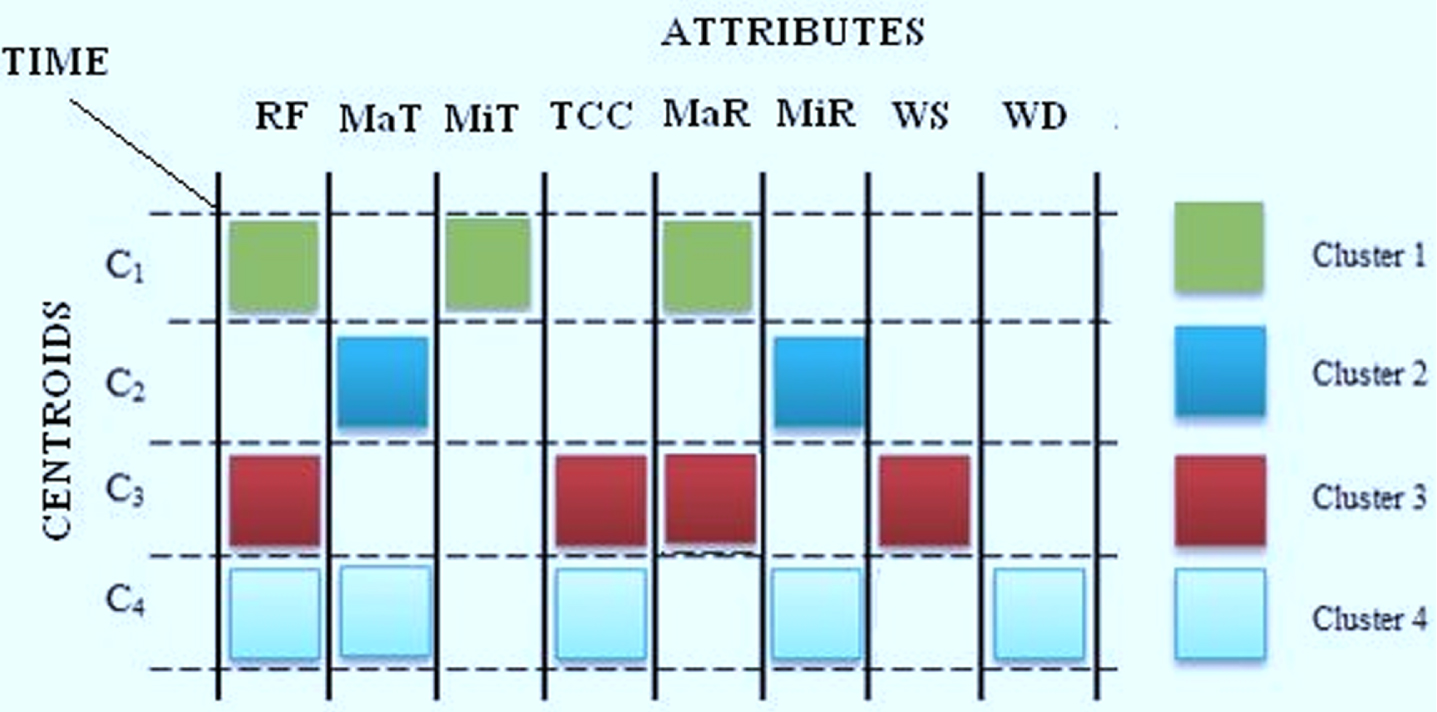

Columns serve as a representation of the attributes. The characteristics from the weather forecast dataset displayed in Table 1a are MiR- Min Relative Humidity, MaT- Max Temperature, WS- Wind Speed, TCC- Total Cloud Cover, MiT- Min Temperature, MaR- Max Relative Humidity, WD- Wind Direction, RF- Rainfall. The rows specify the centroids of the static quantity of cluster denoted by C1, C2, C3, and C4. Predicted clusters 1, 2, 3, and 4 do not have all of the characteristics. Each intended cluster will be associated with one or more of these traits. For values of the selected property outside of this range, outliers for the period of time are deleted. These are not considered in the processing that comes next. Sending these clusters to CS for optimization leaves them with limited features and outcomes that fall inside the range. The attribute set’s dimensionality increases as the number of qualities decreases. The steps for performing cluster optimizing using CS are labeled in chapter 3, section 3.4.1. As a end result, using the IAFCM technique, ideal clusters are produced.
A weighted sequential prototype extraction approach is used on these optimized clusters to yield useful sequential prototype. After clustering, each itemset (transaction) in the final clustered data that will be the subject of weighted temporal pattern mining is given a transaction id. Weighted temporal mining strategies are discussed in the section that follows.

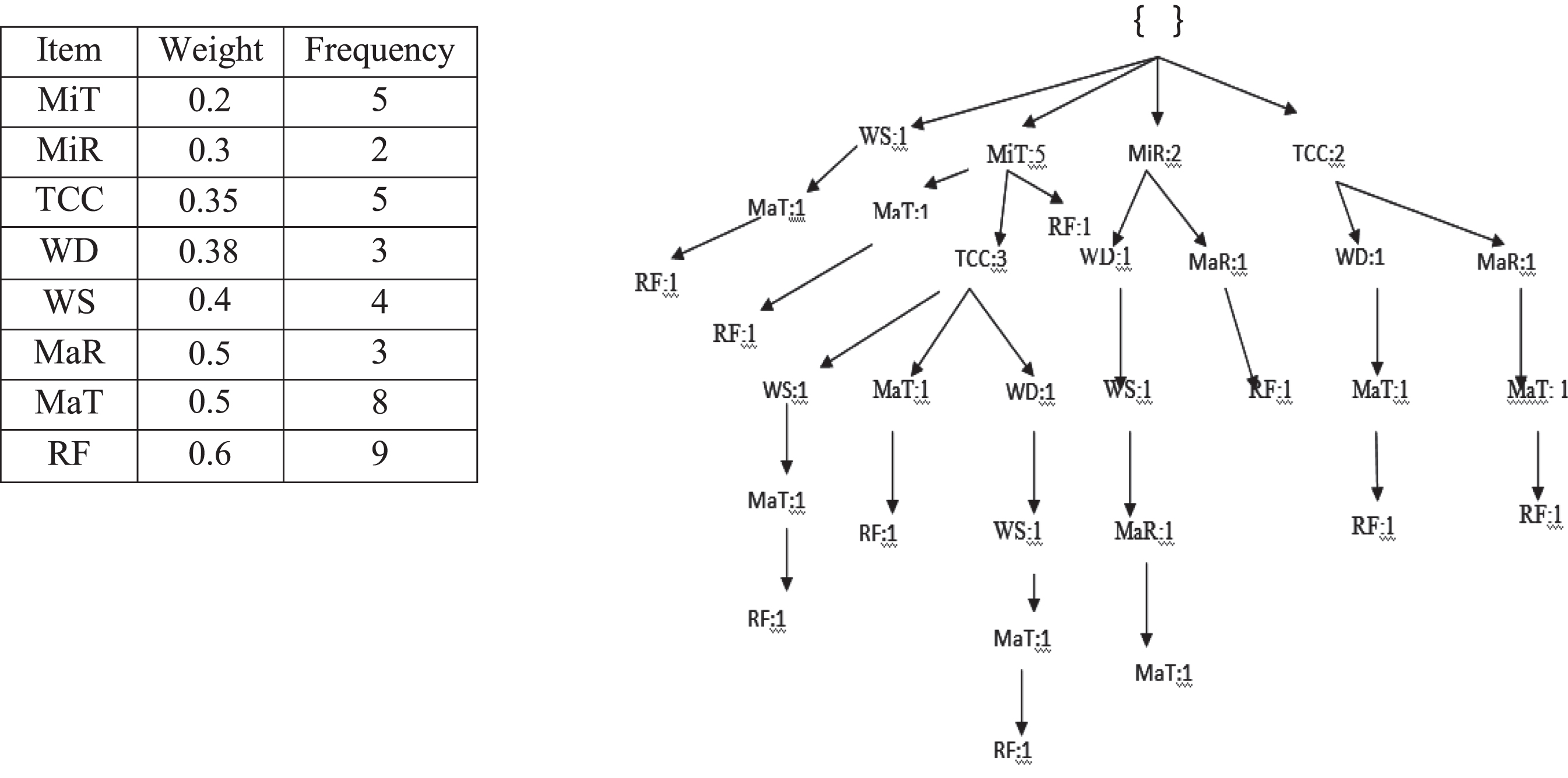

The itemsets in the cluster are treated as activities by the IAFCM method and given a transaction id. Weighted numerous prototype extraction is carried out using a tree-based repeated patterns prototype methodology based on instance. Every transaction item has a weight assigned to it that represents its importance. A dataset’s weight is a non-negative real integer that falls between 0.3 and 0.7, and it serves to denote the relative relevance of each component of the information structure in the dataset. To reflect each item’s importance in the transaction database, a weight is assigned to it. Weight (W) is allocated within the weight division offered by. W

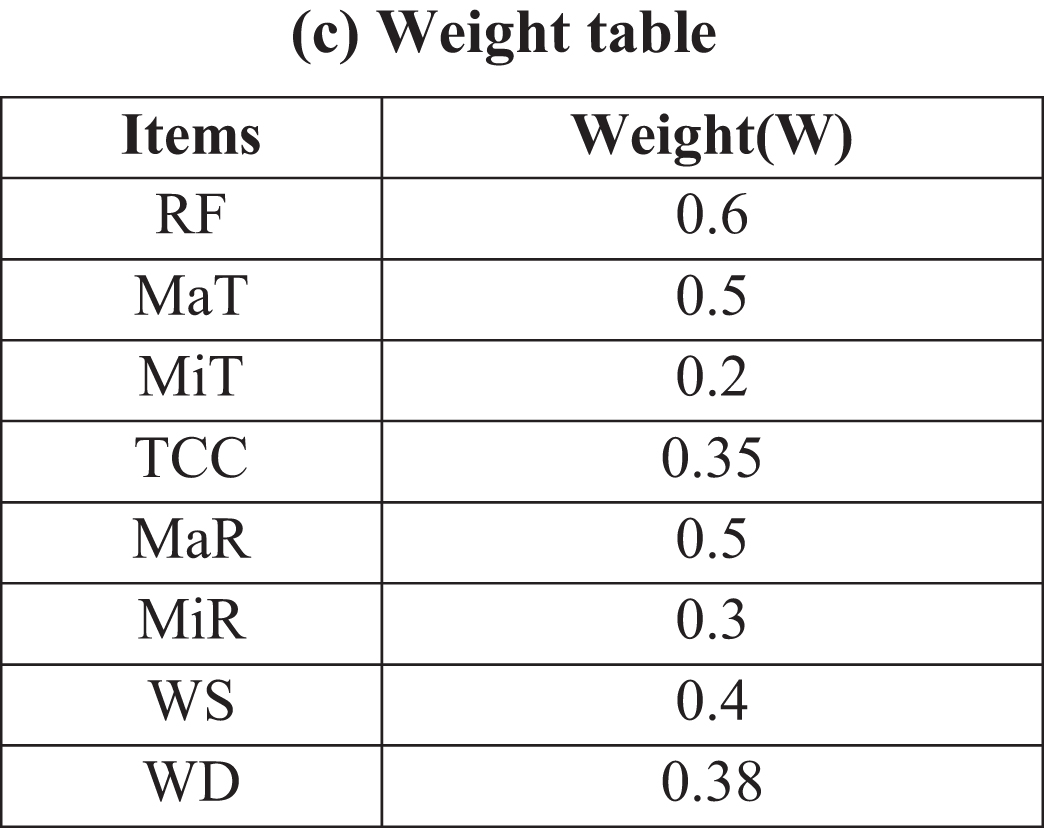

min
= 0.2 and W
max
= 0.6, where W
min
WW
max
. An object’s weight is distributed according to the minimum support. An itemset is deemed useless if its weight and support both are below the level of lowest confidence. This facilitates the trimming of lighter things (Leggett & Yun 2005). For a set of information J ={ y1, y2 . . . y
n
}, weightiness of a example P{ x1, x2 . . . x
m
} is specified by (2) as
Equation shows that the weighted supporting of a pattern is the result of multiplying the pattern’s strength by the pattern’s supporting (3).
Structures are referred to as a weighted frequent organization if its weighted care is more than or equivalent to the minimal care requirement. Only newly added information that is dynamically added to the time sequences sets of data is used when the weight recurrent pattern mining method is used. the Incremental Dimension Weighted Frequent Pattern Tree Upward order tree structure and the Continuously and Freely Weighted Frequent Pattern Mining approach are both used to accomplish this (Ahmed et al. 2008a). It makes use of the prior mining results and data structures to reduce the need for further computations related to database updates or modifications to the mining threshold. For managing frequently updated data on an applying various without the requirement for ongoing labour, a single database scan is sufficient. The weight of the items is arranged in increasing order, with the heaviest sets of information at the bottom. This facilitates the effective production of prospective temporal data.

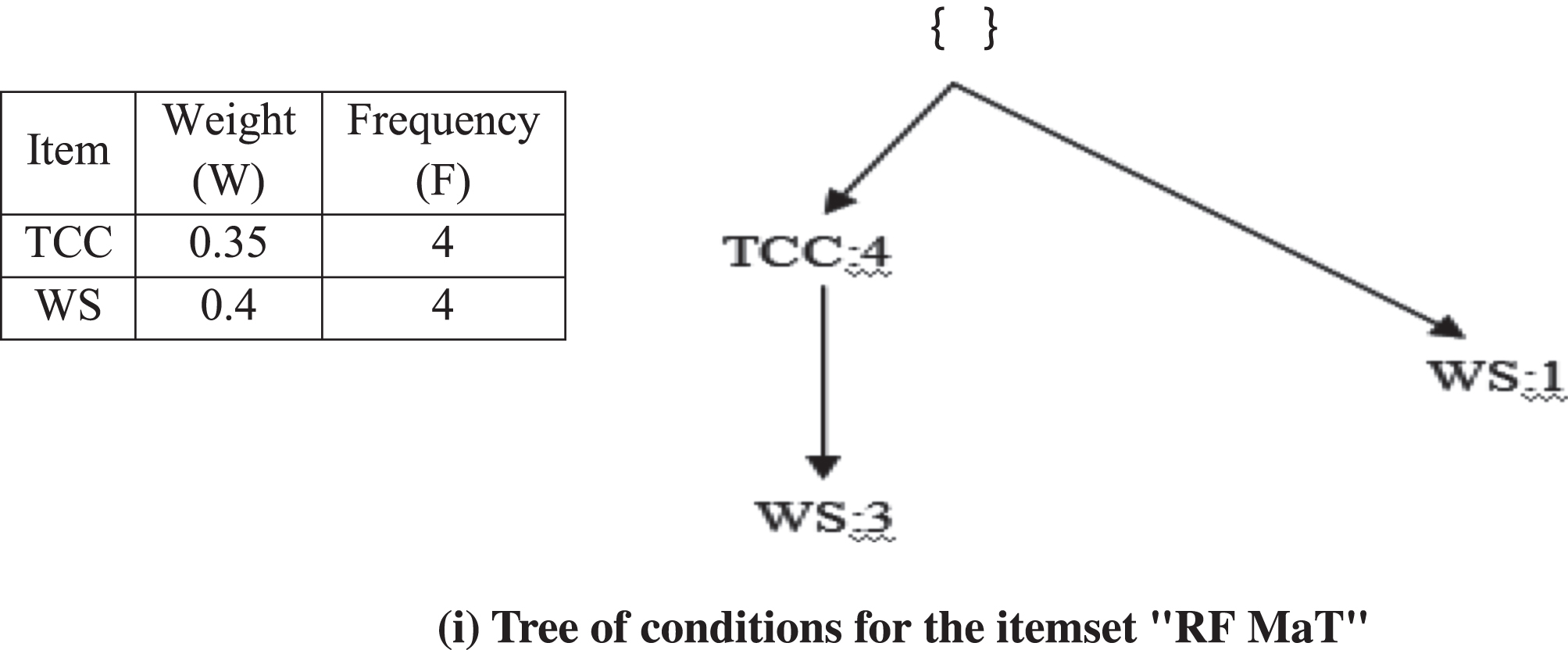

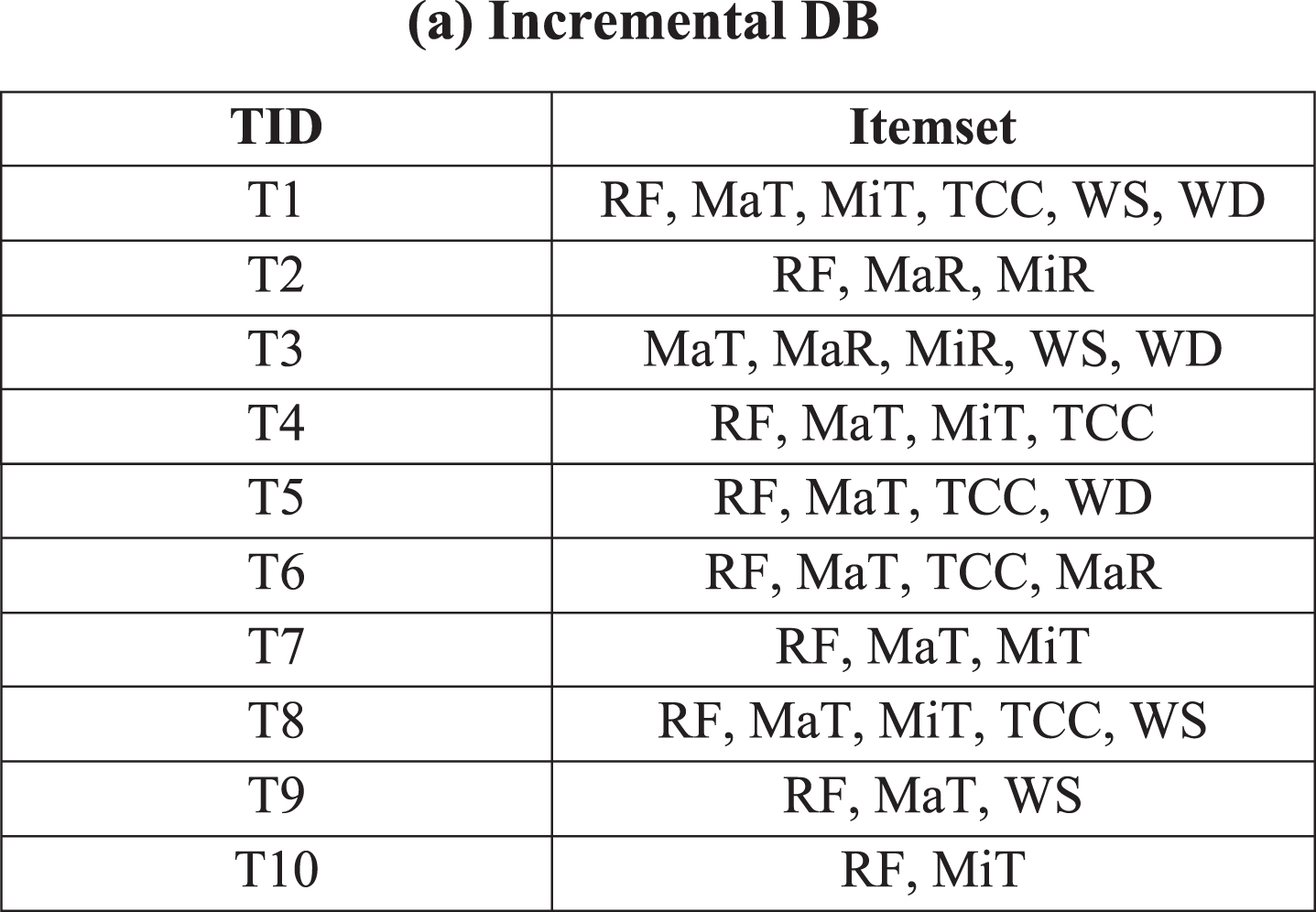

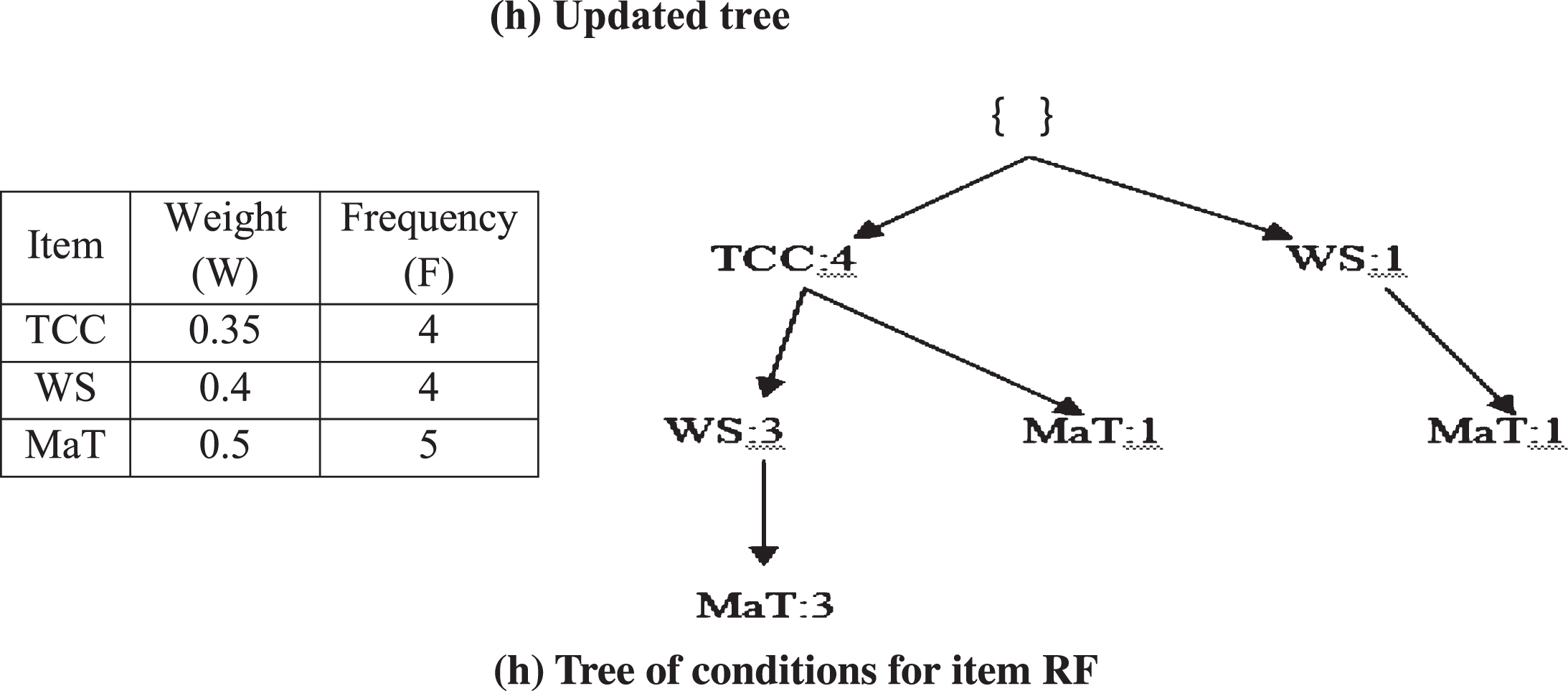

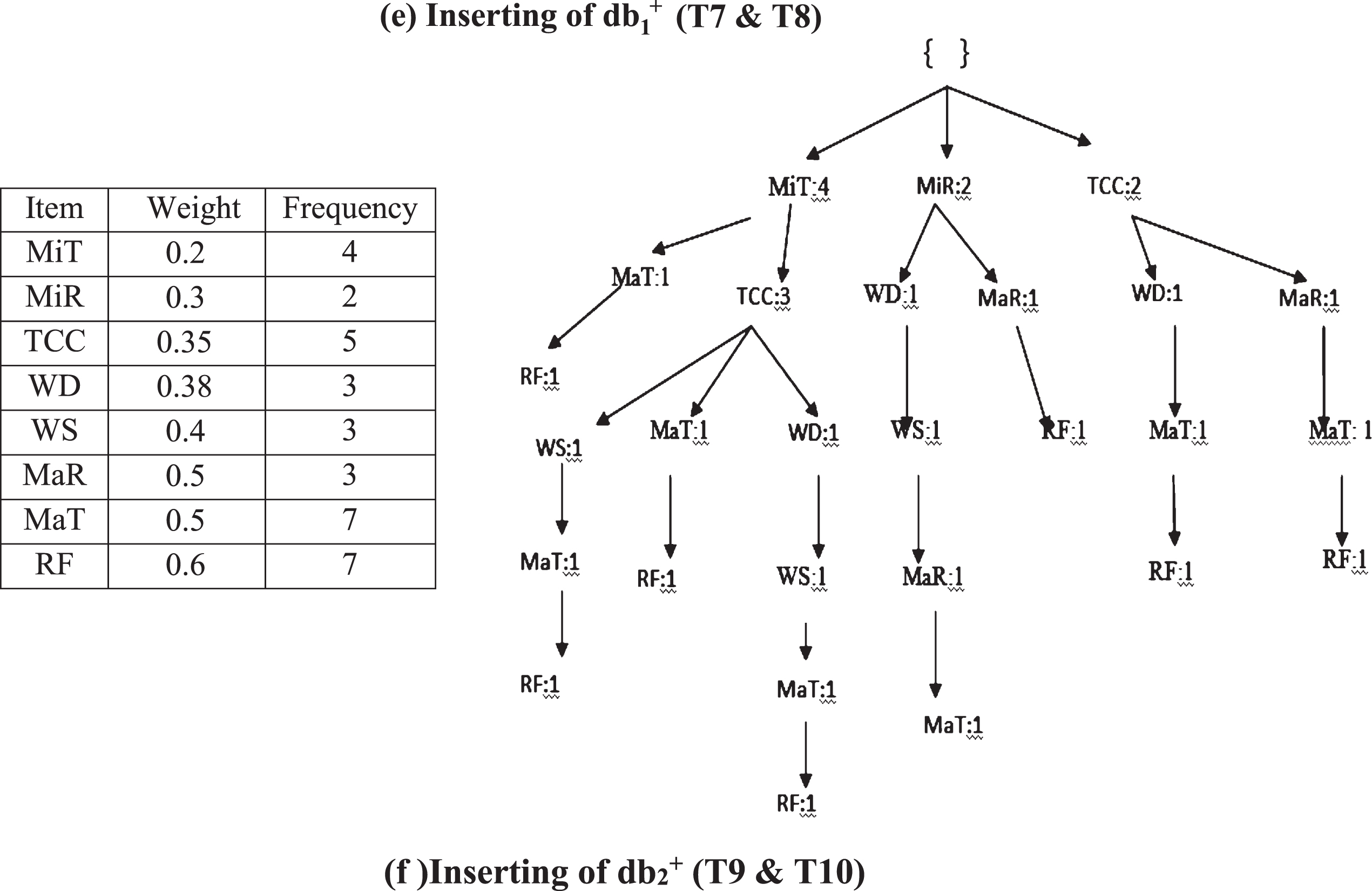

Permit the inclusion of activities with unique transaction id’s (T1 through T6) in the ideal cluster for the climate forecast sets of information. According to the time scale shown in Table 3a, db1+ and db2+ represent the positions of recently added connections to the unique repository (T7, T8, & T9, T10). The two components of the tree-based weighted frequent pattern mining method are tree building and searching using GACO, as shown in Fig. 2. The method for creating and mining trees is as follows.
The mining results show that the variables that govern the climate for the period of time under attention are Max Temperature (MaT), Wind Speed (WS), and Rainfall (RF). It also shows how these factors are related to one another. As a result, the suggested IAFCM method reduces the quantity of the data and enhances clustering, producing high-quality clusters. The tree-based weighting recurrent patterns mining method has been useful across these clusters to provide useful temporal patterns.
Swarm intelligence includes ACO [31]. In the wild, ants use pheromones to determine the shortest route between a source of food and their nest. Think about the graph G = (N, A) [23] where N is a collection of nodes with n = |N|, and A is a collection of unsupervised arcs connecting them. The group of places between which we look for the cheapest route are known as the receiving and transmitting nodes. Cost is calculated in a manner similar to other low-level route difficulties. In reference to the shortest-path-finding behaviour of real ants, we could refer to the source as the “nest” and the availability of food supply as the “end."
There is an description of sub-graph and graphs isomorphisms (formal comparison). G has the same properties as (V, E), where V stands for a group of nodes and E stands for the collection of edges linking those nodes. Expanding the graph-based approach is simple. The graph represents quantifiable sets of transaction item sets. A huge client transaction database may be possible to be mined for common item sets using a graph-based technique. Finding suitable pathways across graphs helps reduce computational challenges (ACS). The main advantage of graph-based methods is that they maintain the underlying structural integrity of the original material.

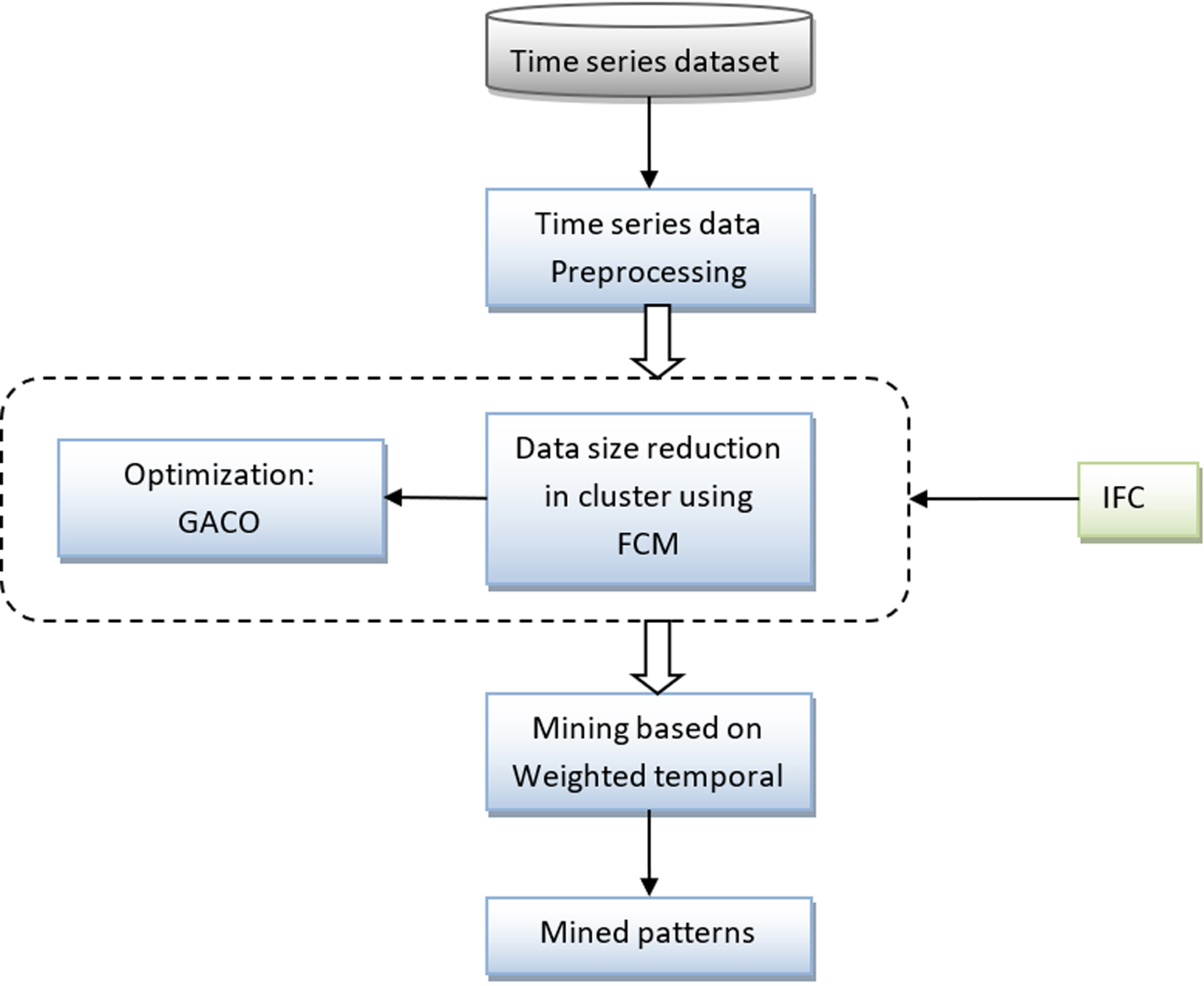

An overview of the suggested model.
The graph-based and ACO technique utilising association rules follow the same procedures. Building completely connected graphs from 2 collections of items that appear frequently Initializing the settings of the ACO-ARM parameters. establishing an ant colony The beginning of a pheromone Building pheromones matrices Create a heuristic dataset for every vertex and edge in the linked network. The development of the heuristic matrix Pheromone and ant evaluation Graphing evaporation by tour cost and updating pheromone quantities Reliable pattern identification Starting a brand-new ant colony Choose the most recent and common pattern.
IFC in Fig. 2 represents the improved Fuzzy C means clustering in the proposed model. Applying the ACO, or extraction association rules, involves many significant considerations, including gathering heuristic data for every vertex of the diagram, figuring out how much weight to give each vertex edge, and initializing the cardinality variables [32]. Initial with the amount of ants and the number of reappearances, one may determine the approximate number of ants in a colony (maximum cycles). The networks with the most nodes are chosen to use these options. As a result, there will be an equal amount of ants and node [33–35]. The ants pass through the constructing graph and arrive at a statistical conclusion at each vertex. Pheromone updates will continue until the termination requirements are met. The subsequent discovery of related patterns is shown in Fig. 3, where ij(t) denotes the computation of the values of connected graph edge (j) and vertex I values, q denotes the derived fuzzy support, and q0 is set to 0.9. The GACO used in the proposed model create a problem known as slow convergence or count to infinity when inconsistencies arise because extraction propagates slowly across the network. Choosing a small infinity helps limit slow convergence, but does not eliminate it [36, 37].

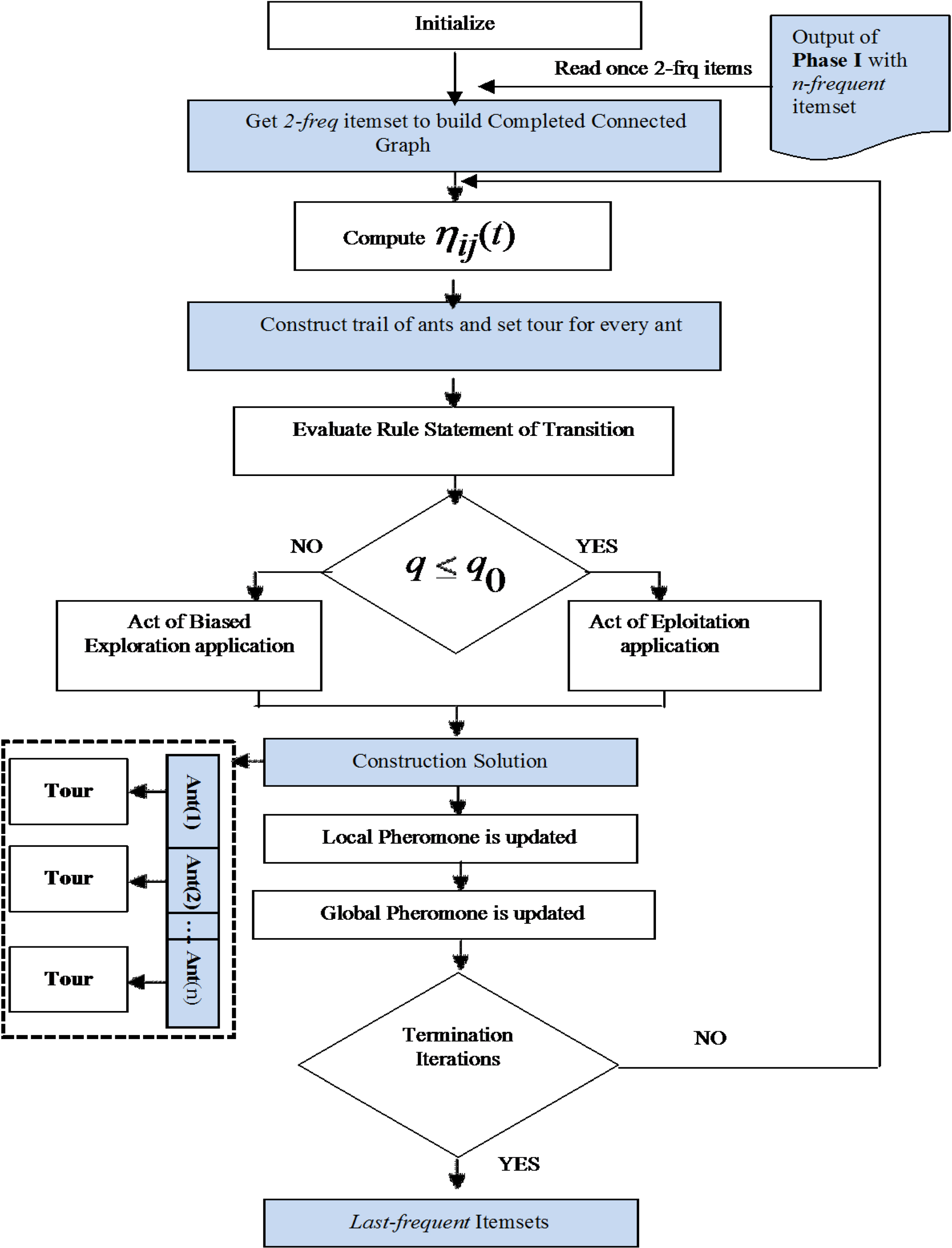

GACO flow for frequently used item sets.
The experiment’s methodology for measuring performance is described in this section. The study used a processor with an Intel CoreTM D7-6600U CPU clocked at 2.69 GHz (4 CPUs), 2.7 GHz, and 8 GigaBytes of RAM, running 64-bit Windows 10 Pro (OS). The future IAFCM-GACO strategy was compared to the CHUIM and CHUI-Miner approaches in terms of precision, speed, and memory ingesting. In order to evaluate the memory handling, accuracy, and implementation time, tests are done on a dataset named climate forecast that is occupied from the UCI Machine learning (ML) DB. The test is carried out using the Netbeans tool. Collect the datasets first, then use the weka tool to transform them into binary form. 25 attributes and 126 cases are taken into account in the adult dataset. The distribution of data is hybrid. The original dataset is divided into two horizontal subsets, each of which is subsequently split into 3 vertical subsets. Following partitioning, a set of rules is joined to create a set of global rules. After then, computations of accuracy, storage complexity (memory use), and execution time were made. As a result, the proposed research has improved accuracy, uses less memory, and executes quickly. The recommended methodology sets the maximum fuzzy supported values at 0.9, which results in better trading off than the CHUIM-Miner and CHUIM approaches in Fig. 4. To expedite the recovery of the most recently frequent dataset, the graph-based ACO technique builds on the already-existing ACO technique. The graph approach can collect frequently occurring data sets from a database of client connections. Using the proper information representation approach, the “sparse dataset” is transformed into a Boolean matrix. The method then creates a weighted, undirected, fully linked graph appropriate for ACO [38]. The graph is constructed in the initial stage of implementation by removing the two most prevalent item sets. The essential of this education is driven by the desire to decrease time and expand rule quality.

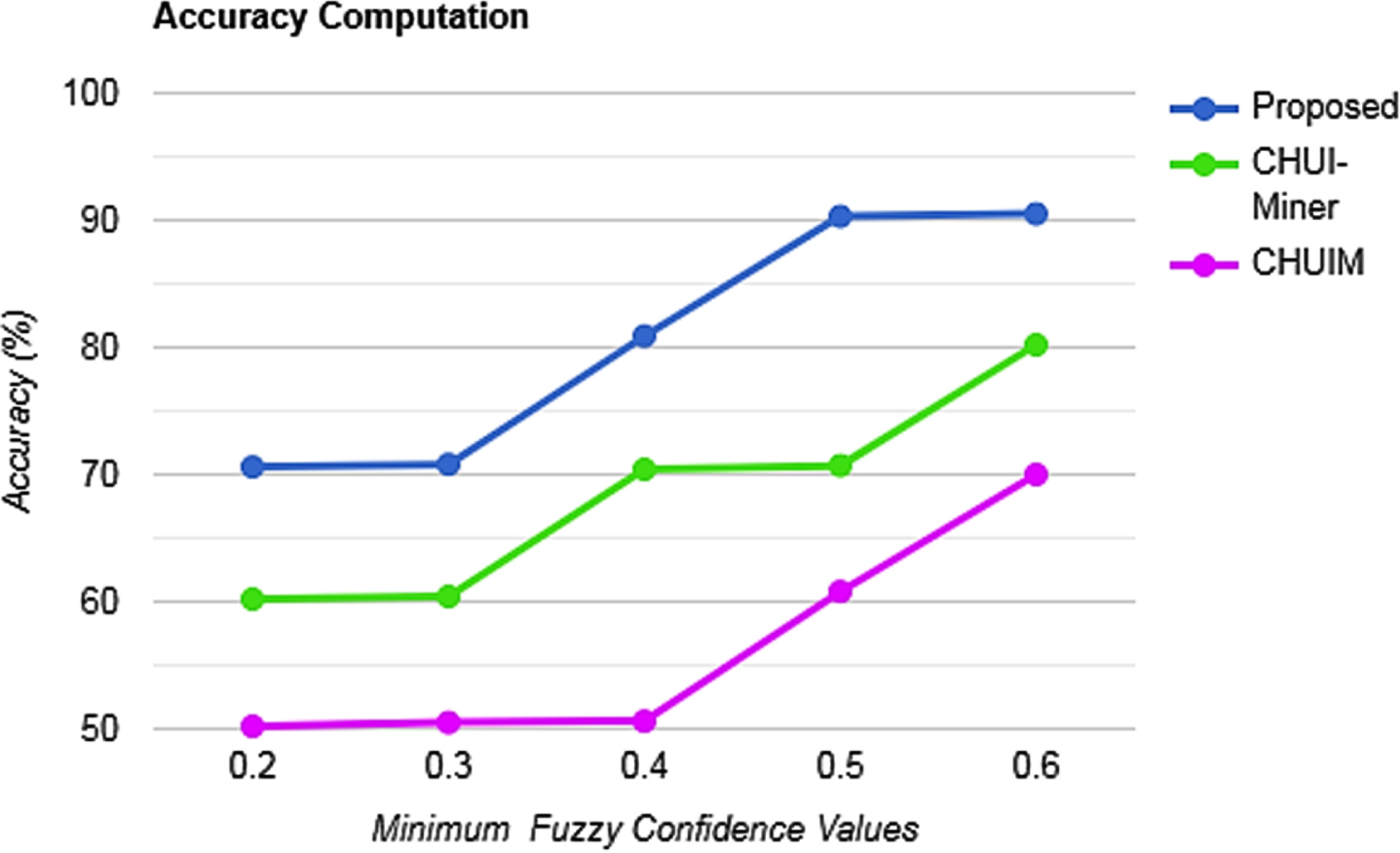

Comparison of the truthfulness.
One of the hardest parts of information extraction is identifying association rules from information transfer activities when each transaction consists of a collection of datasets. The greatest time-consuming problem in this discovery technique is determining how frequently interesting subgroups appear (called candidates). Additionally, the n-frequent itemset is quickly obtained by applying the A priori approach to a Boolean matrix created from synthetic data. When two frequently occurring item sets are constructed, a linked graph is resulted. This graph can be analysed using the ACO method. The most current frequent item sets are obtained using the enhanced ACO approach. When the databases have been completely examined, a representation of the information will urge the ACS to produce a suitable conclusion [39]. Figure 7 illustrates the suggested system infrastructure, which uses a probabilistic graph theory-based approach to resolve computational problems.
Calculation of memory usage.
The approaches’ models, which are absorbed on the strongest cares and conviction values generated, are accurate and have a high degree of storage complexity as a result. This is due to the fact that IAFCM, an optimization technique that combines GACO and FCM, produces ideal clusters.
The proposed model is compared with only two approaches as these two models are directly related with mining over high dimensional transaction database; however, there is very lesser work that concentrates only on high dimensional transaction database. As shown in Fig. 6, the proposed method is more accurate than CHUIM and CHUIM-Miner for a variety of minimal fuzzy levels of confidence. Additionally, Table 4 demonstrates that the minimum fuzzy supporting is decreased, leading to an increase in clustering techniques. With a shorter baseline fuzzy supporting [40], the recommended strategy performs better than the previous approach in terms of evaluates duration as well. A lower minimal accuracy support, however, has no impact on the total assess time. With the expansion of the minimal fuzzy supporting, the execution instance is going to become more obvious. This work does not consider multi-modal analysis for high dimensional data where the practical-level simulation is made to evaluate the metrics like storage, rule generation, accuracy and run-time prediction based on the confidence level. More dataset analysis leads to evaluation clumsy and computationally complex.

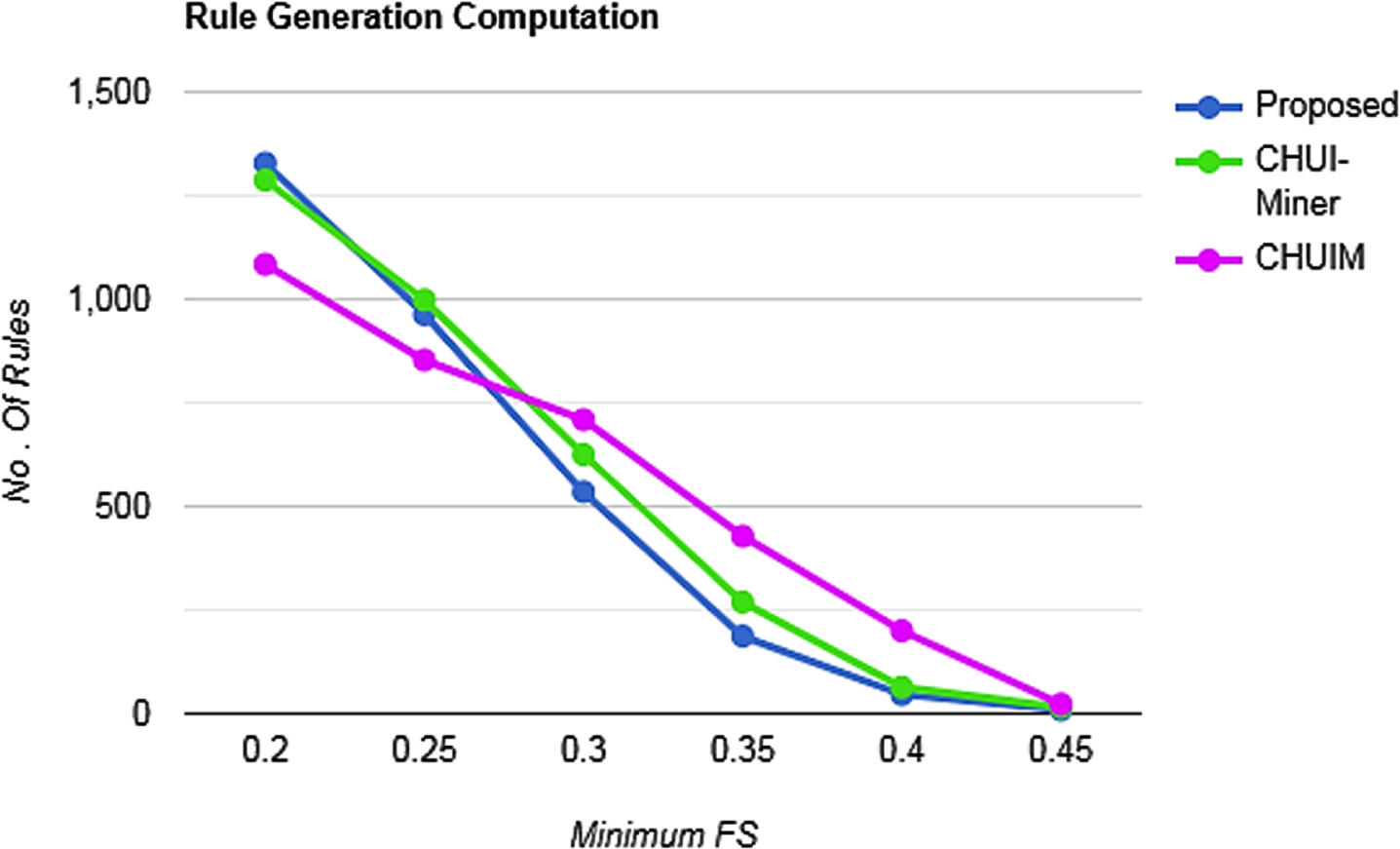

Calculation for rule peer group.
Results of Rule Generation and Run-Time in the Experiment
A comparison of the suggested method’s memory utilization with CHUIM and CHUIM-Miner is shown in Fig. 7. The pie chart displays the storage for the Python memory size library’s minimal utility criterion of 0.00001. Since this work is mainly concentrates on mining with high dimensional dataset and does not relies on prediction (like medical application). The p-value is the probability that null hypothesis is true. (1 –p-value) is the probability that the alternative hypothesis is true. The low p-value determines that the results are replicable. A low p-value shows that the effect is large or that the result is of major theoretical, clinical or practical importance. Thus, statistical measures are highly solicited in prediction and not in mining.
Figure 5 demonstrates that, for various quantities of transactions, the suggested method requires less computing time than PCFA and FCM-based mining methods. In the suggested method, a single examination of the file is sufficient for time-based increments. To avoid wasting computations on database modifications or minimal support thresholds, it uses previously identified data structures and mining results. As a result, computation time is cut down. Due to the decreased amount of data and MoAFCM-based optimal clustering, the suggested weight temporal pattern mining approach (tree-based weight frequent pattern mining) has produced useable temporal patterns with lower computational costs. It has been noted that the IAFCM-GACO approach under consideration uses less storage than the competing methods. In particular, the CHUIM-Miner and CHUIM utilize 2.00 and 0.50 times more space, respectively, than the suggested technique.
During execution.
The proposed weighed sequential information retrieval system integrates a tree-based weighed rule extraction method with the IAFCM methodology. The IAFCM method combines the GACOS and FCM approaches. The IAFCM methodology produces more fruitful clusters than earlier techniques. The tree-based weighting frequent pattern mining technique used to create these graph onotology optimised clusters creates efficient temporal patterns by investigating patterns with low frequency but priority (weight). Due to the significance of time in sequential information, both the IAFCM technique and weighted sequential pattern extract could be applied to temporal datasets that are updated in a time-based manner. Because of this, the weighed temporal pattern mining method is excellent for time series of frequent itemsets and can be employed in a contemporaneous situation when combined with IAFCM. Clustering time-based data is essential before frequent itemset mining. The strength of the cluster determines how effective the commonly used itemsets are. Therefore, before starting routine itemset mining with learning algorithms, future research must focus on a method for improving clusters.
