Three different optimization techniques for solving the fully rough interval multi-level linear programming problem

Abstract

Due to the importance of the multi-level fully rough interval linear programming (MLFRILP) problem to address a wide range of management and optimization challenges in practical applications, such as policymaking, supply chain management, energy management, and so on, few researchers have specifically discussed this point. This paper presents an easy and systematic roadmap of studies of the currently available literature on rough multi-level programming problems and improvements related to group procedures in seven basic categories for future researchers and also introduces the concept of multi-level fully rough interval optimization. We start remodeling the problem into its sixteen crisp linear programming LP problems using the interval method and slice sum method. All crisp LPs can be reduced to four crisp LPs. In addition, three different optimization techniques were used to solve the complex multi-level linear programming issues. A numerical example is also provided to further clarify each strategy. Finally, we have a comparison of the methods used for solving the MLFRILP problem.

Keywords

Constraint method interval arithmetic interactive approach fuzzy approach rough interval programming slice sum method

1 Introduction

The effectiveness of rough set (RS) theory as a useful mathematical technique for dealing with incomplete data analysis and knowledge gaps has been proven. Jerbi et al. [20] proposed the innovative malware detection technique known as “variable precision rough set malware detection,” which offers powerful detection rules and can reveal the new nature of specific software. It is predicated on such hybridization. The adaptive multi-granulation decision-theoretic rough sets model is what Zhang et al. [34] suggest as a generalized MG-DTRS model. This model has the capacity to adjust a compensation coefficient in order to adaptively acquire a pair of probabilistic thresholds. The “shifting strategy” was used in Osman et al.’s [24] study to divide the difficult task into four manageable challenges that will be worked on simultaneously. For each problem, a membership function was constructed to improve a model of fuzzy goal programming for obtaining a satisfactory solution to the multilevel, multi-objective fractional programming problem. An extension of the interval method was presented in Fathy [15]. A modified version of the fuzzy approach that was created in the fully rough environment to solve the linear model was used to deal with the fully rough problem’s roughness. In many fields’ real-life application problems, the coefficients of a model of a linear programming problem may not be exactly defined because of market globalization in the current time and some other uncontrollable factors; therefore, Ammar et al. [4] and Abohany et al. [2] used the slice-sum method to solve this problem. Fathy et al. [16] provided an application that was used to determine the optimality for the cost of the solid MLLP transportation problem in a rough interval environment.

The multi-level programming problem is a series of optimization issues where the outcome of one depends on the decisions made by higher decision-makers (DMs). The decision of the upper-level restrictions affects the decision of the lower-level restrictions in this crucial phase. It was applied in many fields of real-life application problems, such as engineering, environment, medicine, banking, economic systems, management sciences, and transportation problems, as in Zhang et al. [32]. Emam et al. [12] demonstrated a mathematical approach that used the fuzzy decision approach and bound and decomposition strategy to find a fuzzy optimal solution for its problem, and Emam et al. [13] deduced an interactive approach to solving the same problem based on the multi-objective linear (MOL) programming technique, By comparing the result found in [12] and the algorithm proposed in [13], we found that the result of the algorithm in [13] is better than the result that was found in [12]. In Fathy [14], the decomposition technique was used to break down the fuzzy problem into three crisp problems, namely, middle-multi-objective integer quadratic problems (MOIQP), upper-MOIQP, and lower-MOIQP.

In order to address a wide range of management and optimization challenges in practical applications, researchers have underlined the significance of creating a number of different multilevel decision-making (MLDM) techniques. These applications generally fall into the following areas: policymaking [5, 28]; supply chain management [26, 31]; energy management [21, 29]; safety and accident management [3, 6]; traffic and transportation network design [7, 30]; network interdiction [22]; incapacitated lot-sizing problems [17, 27]; and so on. It is suggested in Cui et al.’s [8] that a parameter optimization method based on multi-level pattern matching be used to adapt the best operation parameters in the current superior operational pattern library in order to enhance the transfer bar product quality. This method is applied to the furnace’s rough rolling link.

In many sectors, including engineering, finance, economics, and other disciplines, MLFRILP has grown to be a commonly utilized technique. The following factors make the MLFRILP problem difficult to answer using traditional techniques:

a hierarchical decision structure with independent and frequently conflicting objectives.

Rough intervals for the coefficients in the goal functions and limitations as well as the decision variables.

This work proposes approaches to tackle the MLFRILP problem based on the interval method and slice sum method in order to get around these issues. The following are the primary contributions of the methodologies we’ve presented:

The MLFRILP problem, where all decision variables and parameters are described by rough intervals, is addressed, and various proposed solutions are shown.

Using the interval approach, the MLFRILP issue is split into four crisp linear problems at each level, with the crisp problems having an additional bounded variable constraint imposed. The optimization variables for the crisp problems are then taken from all lower problems.

A conceptual analysis of three optimization algorithms—the constraint method, interactive approach, and fuzzy approach—is provided for solving crisp linear problems based on rough interval data.

Using a numerical example, the efficacy of three approaches is shown.

A comparison of the suggested methods is conducted.

The improved approaches offer the best answer for a variety of MLFRILP models with ambiguous interval parameters.

The scope of this research is to address the MLFRILP problem. Section 2, “Survey of Research on Problems Associated with Rough Multi-Level Programming Problems in the Period 2017–2022,” Section 3 states some important definitions and arithmetic operations that will be used throughout this paper. Section 4 formulates the model of the considered problem. The transformation of the fully rough interval is obtained in Section 5. Subsection 5.1 describes the rough interval coefficient transformation. The transformation of rough interval variables is described in Section 5.2. In Section 6, the methods to solve the MLFRILP problem are explained. Subsection 6.1 discusses the constraint method for the MLFRILP problem. Subsection 6.2 presents an interactive model for the MLFRILP problem. Subsection 6.3 presents a fuzzy approach to the MLFRILP problem. A numerical example is also provided to further clarify each strategy in Section 7. Section 8 gave a comparison of the methods used for solving MLFRILP. Section 9: Conclusion.

2 A survey of research on problems associated with rough multi-level programming problems in the period 2017–2022

Rough multilevel decision-making (RMLDM) procedures point to ways to deal with decentralised administration problems that highlight decision-making entities dispersed on different levels of the chain. Noteworthy endeavours have been given to understanding the basic concepts and developing differing solution algorithms related to RMLDM by researchers in both the mathematics/computer science and business ranges. The importance of creating a variety of fully rough interval multilevel decision-making (FRMLDM) processes has been stressed by researchers in order to address a range of management and optimization issues in real-world applications. and have effectively picked up experience in this range. As a result, a high-quality audit of current patterns is required, not only for theoretical research but also for real-world changes in RMLDM in business.

This section efficiently surveys up-to-date RMLDM procedures and clusters related procedure improvements into seven fundamental categories: rough bi-level decision problems, Rough three-level programming problems, rough multilevel decision problems, fully rough multilevel programming problems, fuzzy rough bi-level decision-making problems, fuzzy rough three-level decision-making problems, and the applications of these methods in several domains are given in Table 1.

Table 1
Summary of surveys up-to-date rough multilevel decision-making procedures and clusters related procedure improvements into seven fundamental categories

Main categories of RMLDM techniques Reference No. of listed references

Rough bi-level decision problems [20] 1

Rough three-level programming problems [1 , 35] 5

Rough multilevel decision problems [8 , 34] 3

Fully rough multilevel programming problems [2 , 24] 3

Fuzzy rough bi-level decision-making problems [9] 1

Fuzzy rough three-level decision-making problems [33] 1

Applications of RMLDM techniques [2 , 33–35] 7

Main categories of RMLDM techniques	Reference	No. of listed references
Rough bi-level decision problems	[20]	1
Rough three-level programming problems	[1 , 35]	5
Rough multilevel decision problems	[8 , 34]	3
Fully rough multilevel programming problems	[2 , 24]	3
Fuzzy rough bi-level decision-making problems	[9]	1
Fuzzy rough three-level decision-making problems	[33]	1
Applications of RMLDM techniques	[2 , 33–35]	7

By giving state-of-the-art information, this study will specifically bolster researchers and viable experts in their understanding of how advancements in theoretical research come about and their applications in connection with multilevel decision-making methods. Relevant common concepts were briefly described, while relevant references were included in the pre-examinations.

3 Basic preliminaries

In this section, the authors provide some important definitions of a rough interval (RI) and arithmetic operations on all RIs that will be used throughout this paper. [19, 25] contain the definitions that follow.

Definition 1. RI can be thought of as a qualitative value from an ill-defined concept based on a variable x ∈ R.

Definition 2. The qualitative value A is called a RI when one can assign two closed intervals $\underline{A}$ and $\bar{A}$ on R to it where $\underline{A} \subseteq \bar{A} .$

Definition 3. $\underline{A}$ and $\bar{A}$ are called the lower approximation interval and the upper approximation interval of A, respectively. Further, A is denoted by $A_{r}^{*} = (\underline{A}$ and $\bar{A}) .$

Definition 4.^.Let $A = [[{\underline{a}}^{L}, {\underline{a}}^{U}], [{\bar{a}}^{L}, {\bar{a}}^{U}]]$ and $B = [[{\underline{b}}^{L}, {\underline{b}}^{U}], [{\bar{b}}^{L}, {\bar{b}}^{U}]]$ be two RIs, then the basic arithmetic operations will be defined as follows:

Addition: $A \oplus B = [[{\underline{a}}^{L} + {\underline{b}}^{L}, {\underline{a}}^{U} + {\underline{b}}^{U}], [{\bar{a}}^{L} + {\bar{b}}^{L}, {\bar{a}}^{U} + {\bar{b}}^{U}]] .$

Subtraction: $A - B = [[{\underline{a}}^{L} - {\underline{b}}^{U}, {\underline{a}}^{U} - {\underline{b}}^{L}], [{\bar{a}}^{L} - {\bar{b}}^{L}, {\bar{a}}^{U} - {\bar{b}}^{U}]] .$

Negation: $- A = [[{\underline{a}}^{U}, - {\underline{a}}^{L}], [- {\bar{a}}^{U}, - {\bar{a}}^{L}]]$ .

Scalar Multiplication: $KA = [[K {\underline{a}}^{L}, K {\underline{a}}^{U}], [K {\bar{a}}^{L}, K {\bar{a}}^{U}]]$ , if k is a positive real number.

Multiplication: $A \otimes B = [[{\underline{a}}^{L} {\underline{b}}^{L}, {\underline{a}}^{U} {\underline{b}}^{U}], [{\bar{a}}^{L} {\bar{b}}^{L}, {\bar{a}}^{U} {\bar{b}}^{U}]], if A, B ⩾ 0 .$

Definition 5. A RI $A = [[{\underline{a}}^{L}, {\underline{a}}^{U}], [{\bar{a}}^{L}, {\bar{a}}^{U}]]$ is said to be a rough positive integer, if ${\underline{a}}^{L}, {\underline{a}}^{U}, {\bar{a}}^{L}$ and ${\bar{a}}^{U}$ are positive integers.

Definition 6. Let $A = [[{\underline{a}}^{L}, {\underline{a}}^{U}], [{\bar{a}}^{L}, {\bar{a}}^{U}]]$ and $B = [[{\underline{b}}^{L}, {\underline{b}}^{U}], [{\bar{b}}^{L}, {\bar{b}}^{U}]]$ . be two RIs, then

$A ⩾ B, if {\underline{a}}^{L} ⩾ {\underline{b}}^{L}, {\underline{a}}^{U} ⩾ {\underline{b}}^{U}, {\bar{a}}^{L} ⩾ {\bar{b}}^{L}, {\bar{a}}^{U} ⩾ {\bar{b}}^{U} .$

$A ⩽ B, if {\underline{a}}^{L} ⩽ {\underline{b}}^{L}, {\underline{a}}^{U} ⩽ {\underline{b}}^{U}, {\bar{a}}^{L} ⩽ {\bar{b}}^{L}, {\bar{a}}^{U} ⩾ {\bar{b}}^{U} .$

$A = B, if {\underline{a}}^{L} = {\underline{b}}^{L}, {\underline{a}}^{U} = {\underline{b}}^{U}, {\bar{a}}^{L} = {\bar{b}}^{L}, {\bar{a}}^{U} = {\bar{b}}^{U} .$

4 Problem formulation and solution concept

Uncertainty-based optimization is useful in solving many real-world problems. In many practical applications, uncertainty optimization is crucial. Our goal in this research is to demonstrate how to resolve an MLFRILP problem.

The following formulation of the MLFRILP problem is possible: $[1^{st} - LevelDM] : max_{x_{1}^{R}} F_{1}^{R} (x^{R}) = \sum_{j = 1}^{n} c_{1 j}^{R} x_{j}^{R},$ (1.a)

where $x_{2}^{R}, \dots, x_{n}^{R}$ solves $[2^{nd} - LevelDM] : max_{x_{2}^{R}} F_{2}^{R} (x^{R}) = \sum_{j = 1}^{n} c_{2 j}^{R} x_{j}^{R},$ (1.b) where $x_{3}^{R}, \dots, x_{n}^{R}$ solves

⋮

where $x_{k}^{R}, \dots, x_{n}^{R}$ solves ${[k}^{th} - LevelDM] : max_{x_{k}^{R}} F_{k}^{R} (x^{R}) = \sum_{j = 1}^{n} c_{kj}^{R} x_{j}^{R},$ (1.c) where $x_{k + 1}^{R}, \dots, x_{n}^{R}$ solves

subject to $G^{R} = {\begin{matrix} \sum_{j = 1}^{n} a_{ij}^{R} x_{j}^{R} ⩽ b_{i}^{R}, (i = 1, \dots, m), \\ x_{j}^{R} ⩾ 0^{R}, (j = 1, \dots, n) \end{matrix}$ (1.d) where $x_{j}^{R} = ([\underline{x} j L, \underline{x} j U], [{\bar{x}}_{j}^{L}, {\bar{x}}_{j}^{U}])$ , (j = 1, …, n) are RI decision variables, $c_{rj}^{R} = ([{\underline{c}}_{rj}^{L}, {\underline{c}}_{rj}^{U}], [{\bar{c}}_{rj}^{L}, {\bar{c}}_{rj}^{U}])$ , $a_{ij}^{R} = ([\underline{a} ij L, \underline{a} ij U], [{\bar{a}}_{ij}^{L}, {\bar{a}}_{ij}^{U}])$ and $b_{i}^{R} = ([\underline{b} i L, \underline{b} i U], [{\bar{b}}_{i}^{L}, {\bar{b}}_{i}^{U}])$ , (r = 1, 2, …, k ; j = 1, …, n ; j = 1, …, n) Are RI parameters.

Then the Problem (1.a) –(1.d), can be rewritten for r^th -level (r = 1, 2, …, k) in the following form: $[r^{th} Level] : max_{x_{r}^{R}} F_{r}^{R} (x) = \sum_{j = 1}^{n} ([{\underline{c}}_{rj}^{L}, {\underline{c}}_{rj}^{U}], [{\bar{c}}_{rj}^{L}, {\bar{c}}_{rj}^{U}]) x_{j}^{R}$ (2.a) where $x_{r + 1}^{R}, \dots, x_{n}^{R}$ solves

subject to $\begin{matrix} G^{R} = \\ {\sum_{j = 1}^{n} ([\underline{a} ij L, \underline{a} ij U], [{\bar{a}}_{ij}^{L}, {\bar{a}}_{ij}^{U}]) \\ x_{j}^{R} ⩽ ([\underline{b} i L, \underline{b} i U], [{\bar{b}}_{i}^{L}, {\bar{b}}_{i}^{U}]), \\ x_{j}^{R} ⩾ 0^{R}, (j = 1, \dots, n)} \end{matrix}$ (2.b)

In the aforementioned Problems (2.a) and (2.b), the variables $x_{j}^{R}$ are RI variables for the objective function and constraints, the coefficients of the objective function are RI coefficients $([{\underline{c}}_{rj}^{L}, {\underline{c}}_{rj}^{U}], [{\bar{c}}_{rj}^{L}, {\bar{c}}_{rj}^{U}]), r = 1, 2, \dots, k .$ , the coefficients of the constraint are RI coefficients $([\underline{a} ij L, \underline{a} ij U], [{\bar{a}}_{ij}^{L}, {\bar{a}}_{ij}^{U}])$ , and $([\underline{b} i L, \underline{b} i U], [{\bar{b}}_{i}^{L}, {\bar{b}}_{i}^{U}])$ are RIs of constants.

5 The transformation of MLFRILP problem into a crisp model

To split the MLFRILP problem into two LP problems with an interval coefficient, apply the interval method [19]. One of these issues is linear programming (LP), whose coefficients are all upper approximations of FRIs, namely P^U, and whose coefficients are all lower approximations of FRIs, namely P^L respectively. Then each (MLFRILP) problems transform into two LPs with RI decision variables, $P_{1}^{U}$ , $P_{2}^{U}$ , $P_{1}^{L}$ , and $P_{2}^{L}$ . Secondly, use the slice sum method [25] to convert each LPs with RI decision variables into four crisp LPs, $P_{ℓ h}^{U}$ and $P_{ℓ h}^{U}$ , (ℓ =1, 2 ; h = 1, 2, 3, 4). All crisp LPs can be simplified to only four crisp LPs, P₁, P₂, P₃ and P₄.

5.1 The transformation of RI coefficient

Let $F_{r}^{R} = ([\underline{f} r L, \underline{f} r U], [{\bar{f}}_{r}^{L}, {\bar{f}}_{r}^{U}])$ , (r = 1, 2, …, k), Then, by obtaining the surely optimal (SO) range of problems (2.a)–(2.b), which gave rise to the subsequent two LP problems, one may obtain the equivalent problem of the DM using the interval approach [19].

P^L of the r^thLevel DM:

$P_{1} : \underline{f} r L = Max \sum_{j = 1}^{n} \underline{c} j L x_{j}^{R}, r = 1, 2, \dots, k$

subject to $\begin{matrix} G_{-}^{L} = {\sum_{j = 1}^{n} \underline{a} ij U x_{j}^{R} ⩽ \underline{b} i L, i = 1, 2, \dots, m, \\ x_{j}^{R} ⩾ 0, j = 1, 2, \dots, n} \end{matrix} (3 . a)$ (3.a)

$P_{2} : {\underline{f}}_{r}^{U} = Max \sum_{j = 1}^{n} \underline{c} j U x_{j}^{R}, r = 1, 2, \dots, k$

subject to $\begin{matrix} G_{-}^{U} = {\sum_{j = 1}^{n} \underline{a} ij L x_{j}^{R} ⩽ \underline{b} i U, i = 1, 2, \dots, m, \\ x_{j}^{R} ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (3.b)

The following theorems are required and helpful after dividing the RI coefficient in the goal functions and constraints into upper and lower intervals to design a crisp equivalent model.

Theorem 1 [19]. Assume that the solution to problems (3.a) and (3.b) is inside the optimal range. The issue range (2.a) is then the unquestionably optimal range (2.b).

While finding the possible optimal range of problems (2.a) and (2.b), which led to the next two LP problems, will give you the possibly optimal (PO) range of the r^th - L DM utilizing interval method [19].

P^U of the r^th - LDM:

$P_{3} : {\bar{f}}_{r}^{L} = Max \sum_{j = 1}^{n} {\bar{c}}_{j}^{L} x_{j}^{R}, r = 1, 2, \dots, k$

subject to $\begin{matrix} {\bar{G}}^{L} = {\sum_{j = 1}^{n} {\bar{a}}_{ij}^{U} x_{j}^{R} ⩽ {\bar{b}}_{i}^{L}, i = 1, 2, \dots, m, \\ x_{j}^{R} ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (4.a)

$P_{4} : {\bar{f}}_{r}^{U} = Max \sum_{j = 1}^{n} {\bar{c}}_{j}^{U} x_{j}^{R}, r = 1, 2, \dots, k$

subject to $\begin{matrix} {\bar{G}}^{U} = {\sum_{j = 1}^{n} {\bar{a}}_{ij}^{L} x_{j}^{R} ⩽ {\bar{b}}_{i}^{U}, i = 1, 2, \dots, m, \\ x_{j}^{R} ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (4.b)

Theorem 2 [19]. Assume that the solution to Problems 4.a and 4.b is within its optimal range. The range of the problem (2.a) is then identical to the unquestionably optimal range (2.b).

5.2 The transformation of RI variables

Use the slice sum method [25] that is a method for solving FRIs problems.

Let $F_{r}^{R} = ([{\underline{f}}_{r}^{L}, {\underline{f}}_{r}^{U}], [{\bar{f}}_{r}^{L}, {\bar{f}}_{r}^{U}]), (r = 1, 2, \dots, k)$ , $x_{j}^{R} = [[x_{* j}^{L}, x_{* j}^{U}], [x_{j}^{* L}, x_{j}^{* U}]], (j = 1, \dots, n)$ . $\begin{matrix} [r^{th} Level, (r = 1, 2, \dots, k)] : max_{x_{r}^{R}} F_{r}^{R} (x) = \\ \sum_{j = 1}^{n} ([{\underline{c}}_{rj}^{L}, {\underline{c}}_{rj}^{U}], [{\bar{c}}_{rj}^{L}, {\bar{c}}_{rj}^{U}]) [[x_{* j}^{L}, x_{* j}^{U}], [x_{j}^{* L}, x_{j}^{* U}]] \end{matrix}$ (5.a) where $x_{r + 1}^{R}, \dots, x_{n}^{R}$ solve

subject to $\begin{matrix} G^{R} = \sum_{j = 1}^{n} ([\underline{a} ij L, \underline{a} ij U], [{\bar{a}}_{ij}^{L}, {\bar{a}}_{ij}^{U}]) \\ [[x_{* j}^{L}, x_{* j}^{U}], [x_{j}^{* L}, x_{j}^{* U}]] \\ ⩽ ([\underline{b} i L, \underline{b} i U], [{\bar{b}}_{i}^{L}, {\bar{b}}_{i}^{U}]) \end{matrix}$ (5.b)

$x_{j}^{R} ⩾ 0, (j = 1, \dots, n),$ are RI variables of the constraints and the objective function. In (3.a) problem with RIs variables can be sliced into the following four LP problems using slice sum method [25].

$P_{1} : {\underline{f}}_{r}^{L} = Max \sum_{j = 1}^{n} \underline{c} j L x_{* j}^{L}, r = 1, 2, \dots, k$

subject to $\begin{matrix} G_{-}^{L} = {\sum_{j = 1}^{n} \underline{a} ij U x_{* j}^{L} ⩽ \underline{b} i L, i = 1, 2, \dots, m, \\ x_{* j}^{L} ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (6)

$P_{2} : {\underline{f}}_{r}^{L} = Max \sum_{j = 1}^{n} \underline{c} j L x_{* j}^{U}, r = 1, 2, \dots, k$

subject to $\begin{matrix} G_{-}^{L} = {\sum_{j = 1}^{n} \underline{a} ij U x_{* j}^{U} ⩽ \underline{b} i L, i = 1, 2, \dots, m, \\ x_{* j}^{U} ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (7)

$P_{3} : {\underline{f}}_{r}^{L} = Max \sum_{j = 1}^{n} \underline{c} j L x_{j}^{* L}, r = 1, 2, \dots, k$

subject to $\begin{matrix} G_{-}^{L} = {\sum_{j = 1}^{n} \underline{a} ij U x_{j}^{* L} ⩽ \underline{b} i L, i = 1, 2, \dots, m, \\ x_{j}^{* L} ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (8)

$P_{4} : {\underline{f}}_{r}^{L} = Max \sum_{j = 1}^{n} \underline{c} j L x_{j}^{* U}, r = 1, 2, \dots, k$

subject to $\begin{matrix} G_{-}^{L} = {\sum_{j = 1}^{n} \underline{a} ij U x_{j}^{* U} ⩽ \underline{b} i L, i = 1, 2, \dots, m, \\ x_{j}^{* U} ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (9)

Solving problems (6)–(9), leads to $x_{* j}^{L} = x_{* j}^{U} = x_{j}^{* L} = x_{j}^{* U} = \underline{x} j L, j = 1, 2, \dots, n .$ so, the four LP problems can be simplified to the following LP problem.

$P_{1} : {\underline{f}}_{r}^{L} = Max \sum_{j = 1}^{n} \underline{c} j L \underline{x} j L, r = 1, 2, \dots, k$

subject to $\begin{matrix} G_{-}^{L} = {\sum_{j = 1}^{n} \underline{a} ij U \underline{x} j L ⩽ \underline{b} i L, i = 1, 2, \dots, m, \\ \underline{x} j L ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (10)

The problems (3.a) through (4.b) can also be rewritten as the following four LP problems:

Lower approximation lower bound (LALB):

$P_{1} : {\underline{f}}_{r}^{L} = Max \sum_{j = 1}^{n} \underline{c} j L \underline{x} j L, r = 1, 2, \dots, k$

subject to $\begin{matrix} G_{-}^{L} = {\sum_{j = 1}^{n} \underline{a} ij U \underline{x} j L ⩽ \underline{b} i L, i = 1, 2, \dots, m, \\ \sum_{j = 1}^{n} {\underline{c}}_{rj}^{L} \underline{x} j L ⩽ Max \sum_{j = 1}^{n} {\underline{c}}_{rj}^{U} \underline{x} j U, r = 1, 2, \dots, k \\ \underline{x} j L ⩾ 0, j = 1, 2, \dots, n} \end{matrix} (11 . a)$ (11.a)

Upper Approximation Lower Bound (UALB):

$P_{2} : {\underline{f}}_{r}^{U} = Max \sum_{j = 1}^{n} \underline{c} j U \underline{x} j U, r = 1, 2, \dots, k$

subject to $\begin{matrix} G_{-}^{U} = {\sum_{j = 1}^{n} \underline{a} ij L \underline{x} j U ⩽ \underline{b} i U, i = 1, 2, \dots, m, \\ \sum_{j = 1}^{n} {\underline{c}}_{rj}^{L} \underline{x} j L ⩽ Max \sum_{j = 1}^{n} {\underline{c}}_{rj}^{U} \underline{x} j U, r = 1, 2, \dots, k \\ \underline{x} j U ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (11.b)

Lower approximation upper bound (LAUB):

$P_{3} : {\bar{f}}_{r}^{L} = Max \sum_{j = 1}^{n} {\bar{c}}_{rj}^{L} {\bar{x}}_{j}^{L}, r = 1, 2, \dots, k$

subject to $\begin{matrix} {\bar{G}}^{L} = {\sum_{j = 1}^{n} {\bar{a}}_{ij}^{U} {\bar{x}}_{j}^{L} ⩽ {\bar{b}}_{i}^{L}, i = 1, 2, \dots, m, \\ \sum_{j = 1}^{n} {\bar{c}}_{rj}^{L} {\bar{x}}_{j}^{L} ⩽ Max \sum_{j = 1}^{n} {\bar{c}}_{rj}^{U} {\bar{x}}_{j}^{U}, r = 1, 2, \dots, k, \\ {\bar{x}}_{j}^{L} ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (12.a)

Upper approximation upper bound (UAUB):

$P_{4} : {\bar{f}}_{r}^{U} = Max \sum_{j = 1}^{n} {\bar{c}}_{rj}^{U} {\bar{x}}_{j}^{U}, r = 1, 2, \dots, k$

subject to $\begin{matrix} {\bar{G}}^{U} = {\sum_{j = 1}^{n} {\bar{a}}_{ij}^{L} {\bar{x}}_{j}^{U} ⩽ {\bar{b}}_{i}^{U}, i = 1, 2, \dots, m, \\ \sum_{j = 1}^{n} {\bar{c}}_{rj}^{L} {\bar{x}}_{j}^{L} ⩽ Max \sum_{j = 1}^{n} {\bar{c}}_{rj}^{U} {\bar{x}}_{j}^{U}, r = 1, 2, \dots, k, \\ {\bar{x}}_{j}^{U} ⩾ 0, j = 1, 2, \dots, n} \end{matrix}$ (12.b)

Theorem 3 [25]. If ${\bar{x}}_{j}^{* U}, {\bar{x}}_{j}^{* L}, \underline{x} j * L,$ and $\underline{x} j * U, (j = 1, 2, \dots n)$ is an optimal solution for the UAUB, LAUB, LALB, and UALB problems, respectively, then the set of RIs $([\underline{x} j * L, \underline{x} j * U], [{\bar{x}}_{j}^{* L}, {\bar{x}}_{j}^{* U}])$ is an optimal solution for the MLFRILP problem such that ${\bar{x}}_{j}^{* L} ⩽ \underline{x} j * L ⩽ \underline{x} j * U ⩽ {\bar{x}}_{j}^{* U}, j = 1, 2, \dots n .$

6 The optimization approaches on MLFRILP Problem

6.1 The constraint method for MLFRILP problem

In multi-level optimization, the constraint approach [11] is employed, where upper levels supply lower levels with sufficient solutions that are acceptable in rank order. In order to get the possibly and SO-range solutions for the rth- L DM problem, the constraint technique first solves the sharp LP problems. $x_{* j}^{rth} = ([\underline{x} * j Lrth, \underline{x} * j Urth], [{\bar{x}}_{* j}^{Lrth}, {\bar{x}}_{* j}^{Urth}]) (r = 1, 2, \dots, k),$ (j = 1, 2, …, n) Describes his or her problem from the perspective of the rth-L DM by setting ${\underline{x} * r Lrth = \underline{x} r L, \underline{x} * r Urth = \underline{x} r U, {\bar{x}}_{* r}^{Lrth} = {\bar{x}}_{r}^{L}, {\bar{x}}_{* r}^{Urth} = {\bar{x}}_{r}^{U}}$ , and doing this twice more till r = k. The $(x_{* 1}^{rth}, x_{* 2}^{(r + 1) th}, x_{* 3}^{(r + 2) th}, \dots, x_{* n}^{k})$ namely a preferred RI solution to the rth-L DM. Finally, the MLFRILP problem’s best solution is eventually discovered.

6.1.1 A flowchart for solving MLFRIL

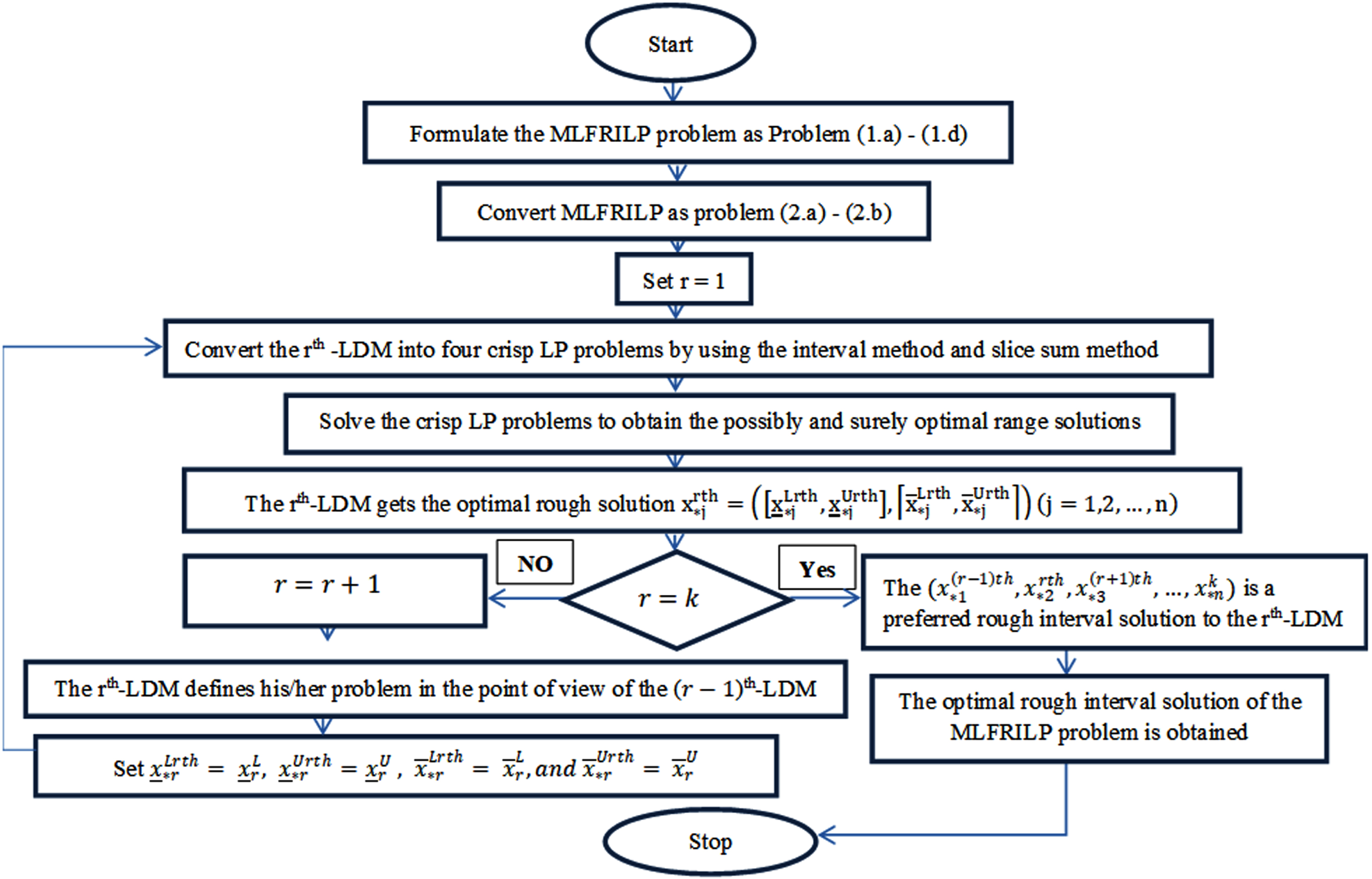

The decision-making procedure of the constraint method is presented in Fig. 1.

Fig. 1

The decision-making procedure of the constraint method.

6.2 An interactive model for MLFRILP problem

The MLFRILP problem is resolved using an interactive model [13, 10]. The 1^stLevel DM initially provides the 2^ndLevel DM with the preferred solutions that are acceptable in rank order, and the 2^ndLevel DM then adopts the 1^stLevel DM’s preferred solutions to acquire the solutions and eventually arrive at the 1^stLevel DM’s satisfying solution. Finally, the 1^stLevel DM, the 2^ndLevel DM, etc., and the (k - 1) ^thL DM decide the preferred solution of the MLFRILP according to the satisfactoriness test functions as follows:

Let $x_{* j}^{rth} = ([\underline{x} * j Lrth, \underline{x} * j Urth], [{\bar{x}}_{* j}^{Lrth}, {\bar{x}}_{* j}^{Urth}])$ (r = 1, 2, …, k) , (j = 1, 2, …, n) is the optimal rough solution of the r^thLevel DM. The (r + 1)th-Level DM defines his/her problem in the point of view of the rthLevel DM by setting ${\underline{x} * r Lrth = \underline{x} r L, \underline{x} * r Urth = \underline{x} r U, {\bar{x}}_{* r}^{Lrth} = {\bar{x}}_{r}^{L}, {\bar{x}}_{* r}^{Urth} = {\bar{x}}_{r}^{U}}$ .

Now the satisfactoriness test functions of the rth-Level DM: $\frac{{\bar{f}}_{r - 1}^{U} (x_{1}^{Ur}, \dots, x_{n}^{U (k - 1)}) - {\bar{f}}_{r - 1}^{U} {(x_{1}^{Ur}, \dots, x_{n}^{Uk})}_{2}}{{\bar{f}}_{r - 1}^{U} {(x_{1}^{Ur}, x_{2}^{U (r + 1)}, \dots, x_{n}^{Uk})}_{2}} ⩽ {\bar{δ}}^{rU},$ $\frac{{\bar{f}}_{r - 1}^{L} (x_{1}^{Lr}, \dots, x_{n}^{L (k - 1)}) - {\bar{f}}_{r - 1}^{L} {(x_{1}^{Lr}, \dots, x_{n}^{Lk})}_{2}}{{\bar{f}}_{r - 1}^{L} {(x_{1}^{Lr}, x_{2}^{L (r + 1)}, \dots, x_{n}^{Lk})}_{2}} ⩽ {\bar{δ}}^{rL},$ $\frac{\underline{f} r - 1 U (x_{1}^{Ur}, \dots, x_{n}^{U (k - 1)}) - \underline{f} r - 1 U {(x_{1}^{Ur}, \dots, x_{n}^{Uk})}_{2}}{\underline{f} r - 1 U {(x_{1}^{Ur}, x_{2}^{U (r + 1)}, \dots, x_{n}^{Uk})}_{2}} ⩽ δ_{-}^{rU},$

$\frac{\underline{f} r - 1 L (x_{1}^{Lr}, \dots, x_{n}^{L (k - 1)}) - \underline{f} r - 1 L {(x_{1}^{Lr}, \dots, x_{n}^{Lk})}_{2}}{\underline{f} r - 1 L {(x_{1}^{Lr}, x_{2}^{L (r + 1)}, \dots, x_{n}^{Lk})}_{2}} ⩽ δ_{-}^{rL} .$ (13)

So, the $(x_{* 1}^{rth}, x_{* 2}^{(r + 1) th}, x_{* 3}^{(r + 2) th}, \dots, x_{* n}^{k})$ is a preferred RI solution to the r^thLevel DM, where the r^thLevel DM assigns a value of $δ^{r} = ([δ_{-}^{Lr}, δ_{-}^{Ur}], [{\bar{δ}}^{Lr}, {\bar{δ}}^{Ur}])$ , which means the $(x_{* 1}^{rth}, x_{* 2}^{(r + 1) th}, x_{* 3}^{(r + 2) th}, \dots, x_{* n}^{k})$ is a preferred RI solution the MLFRILP problem

6.2.1 A flowchart for solving MLFRILP

The decision-making procedure of the interactive method is presented in Fig. 2.

Fig. 2

The decision-making procedure of the interactive method.

6.3 Optimization method of the fuzzy approach

The MLFRILP problem is resolved in this part using a fuzzy technique. The MLFRILP issue is solved using this approach. The r^thLevel DM initially obtains the optimal RI solution $F_{r}^{*} = ([f_{r *}^{L}, f_{r *}^{U}], [f_{r}^{* L}, f_{r}^{* U}])$ with optimal decision variables $x_{* j}^{rth} = ([\underline{x} * j Lrth, \underline{x} * j Urth], [{\bar{x}}_{* j}^{Lrth}, {\bar{x}}_{* j}^{Urth}])$ (j = 1, 2, …, n ; r = 1, 2, …, k).

Let $([\underline{t} 1 L, \underline{t} 1 U], [{\bar{t}}_{1}^{L}, {\bar{t}}_{1}^{U}]),$ $([\underline{t} 2 L, \underline{t} 2 U], [{\bar{t}}_{2}^{L}, {\bar{t}}_{2}^{U}])$ , and $([\underline{t} n - 1 L, \underline{t} n - 1 U], [{\bar{t}}_{n - 1}^{L}, {\bar{t}}_{n - 1}^{U}])$ be maximum tolerance values on the RI decision variables $x_{j}^{rth} = ([\underline{x} j Lrth, \underline{x} j Urth], [{\bar{x}}_{j}^{Lrth}, {\bar{x}}_{j}^{Urth}])$ , (j = 1, 2, … , n ; r = 1, 2, …, k - 1) recognized by the r^thLevel DM.

Then, the membership functions for the RI decision variables $x_{j}^{rth} (r = 1, 2, \dots, k - 1)$ can be formulated as follows: $\begin{matrix} μ (\underline{x} r L) = \\ {\begin{matrix} \frac{\underline{x} r L - (\underline{x} * r Lrth - \underline{t} r L)}{\underline{t} r L}, if \underline{x} * r Lrth - \underline{t} r L ⩽ \underline{x} r L ⩽ \underline{x} * r Lrth, \\ \frac{- \underline{x} r L + (\underline{x} * r Lrth + \underline{t} r L)}{\underline{t} r L}, if \underline{x} * r Lrth ⩽ \underline{x} r L ⩽ \underline{x} * r Lrth - \underline{t} r L . \end{matrix} \end{matrix}$ (14) $\begin{matrix} μ (\underline{x} r U) = \\ {\begin{matrix} \frac{\underline{x} r U - (\underline{x} * r Urth - \underline{t} r U)}{\underline{t} r U}, if \underline{x} * r Urth - \underline{t} r U ⩽ \underline{x} r U ⩽ \underline{x} * r Urth, \\ \frac{- \underline{x} r U + (\underline{x} * r Urth + \underline{t} r U)}{\underline{t} r U}, if \underline{x} * r Urth ⩽ \underline{x} r U ⩽ \underline{x} * r Urth - \underline{t} r U . \end{matrix} \end{matrix}$ (15) $\begin{matrix} μ ({\bar{x}}_{r}^{L}) = \\ {\begin{matrix} \frac{{\bar{x}}_{r}^{L} - ({\bar{x}}_{* r}^{Lrth} - {\bar{t}}_{r}^{L})}{{\bar{t}}_{r}^{L}}, if {\bar{x}}_{* r}^{Lrth} - {\bar{t}}_{r}^{L} ⩽ {\bar{x}}_{r}^{L} ⩽ {\bar{x}}_{* r}^{Lrth}, \\ \frac{- {\bar{x}}_{r}^{L} + ({\bar{x}}_{* r}^{Lrth} + {\bar{t}}_{r}^{L})}{{\bar{t}}_{r}^{L}}, if {\bar{x}}_{* r}^{Lrth} ⩽ {\bar{x}}_{r}^{L} ⩽ {\bar{x}}_{* r}^{Lrth} - {\bar{t}}_{r}^{L} . \end{matrix} \end{matrix}$ (16) $\begin{matrix} μ ({\bar{x}}_{r}^{U}) = \\ {\begin{matrix} \frac{{\bar{x}}_{r}^{U} - ({\bar{x}}_{* r}^{Urth} - {\bar{t}}_{r}^{U})}{{\bar{t}}_{r}^{U}}, if {\bar{x}}_{* r}^{Urth} - {\bar{t}}_{r}^{U} ⩽ {\bar{x}}_{r}^{U} ⩽ {\bar{x}}_{* r}^{Urth}, \\ \frac{- {\bar{x}}_{r}^{U} + ({\bar{x}}_{* r}^{Urth} + {\bar{t}}_{r}^{U})}{{\bar{t}}_{r}^{U}}, if {\bar{x}}_{* r}^{Urth} ⩽ {\bar{x}}_{r}^{U} ⩽ {\bar{x}}_{* r}^{Urth} - {\bar{t}}_{r}^{U} . \end{matrix} \end{matrix}$ (17)

The following can be assumed for the membership functions of the r^thLevel DM (r = 1, 2, …, k): $\begin{matrix} μ_{\underline{L}} ({\underline{f}}_{r}^{L} (x)) = \\ {\begin{matrix} 1, {\underline{f}}_{r}^{L} (x) ⩾ \underline{f} * r L (x), \\ \frac{{\underline{f}}_{r}^{L} (x) - {\underline{f}}_{r}^{L} (x_{* j}^{(r + 1) th})}{\underline{f} * r L (x) - {\underline{f}}_{r}^{L} (x_{* j}^{(r + 1) th})}, {\underline{f}}_{r}^{L} (x_{* j}^{(r + 1) th}) < {\underline{f}}_{r}^{L} (x) < \underline{f} * r L (x), \\ 0, {\underline{f}}_{r}^{L} (x) ⩽ {\underline{f}}_{r}^{L} (x_{* j}^{(r + 1) th}) \end{matrix} \end{matrix}$ (18) $\begin{matrix} μ_{\underline{U}} ({\underline{f}}_{r}^{U} (x)) = \\ {\begin{matrix} 1, {\underline{f}}_{r}^{U} (x) ⩾ \underline{f} * r U (x), \\ \frac{{\underline{f}}_{r}^{U} (x) - {\underline{f}}_{r}^{U} (x_{* j}^{(r + 1) th})}{\underline{f} * r U (x) - {\underline{f}}_{r}^{U} (x_{* j}^{(r + 1) th})}, {\underline{f}}_{r}^{U} (x_{* j}^{(r + 1) th}) < {\underline{f}}_{r}^{U} (x) < \underline{f} * r U (x), \\ 0, {\underline{f}}_{r}^{U} (x) ⩽ {\underline{f}}_{r}^{U} (x_{* j}^{(r + 1) th}) \end{matrix} \end{matrix}$ (19) $\begin{matrix} μ_{\bar{L}} ({\bar{f}}_{r}^{L} (x)) = \\ {\begin{matrix} 1, {\bar{f}}_{r}^{L} (x) ⩾ {\bar{f}}_{r}^{* L} (x), \\ \frac{{\bar{f}}_{r}^{L} (x) - {\bar{f}}_{r}^{L} (x_{* j}^{(r + 1) th})}{{\bar{f}}_{r}^{* L} (x) - {\bar{f}}_{r}^{L} (x_{* j}^{(r + 1) th})}, {\bar{f}}_{r}^{L} (x_{* j}^{(r + 1) th}) < {\bar{f}}_{r}^{L} (x) < {\bar{f}}_{r}^{* L} (x), \\ 0, {\bar{f}}_{r}^{L} (x) ⩽ {\bar{f}}_{r}^{L} (x_{* j}^{(r + 1) th}) \end{matrix} \end{matrix}$ (20) $\begin{matrix} μ_{\bar{U}} ({\bar{f}}_{r}^{U} (x)) = \\ {\begin{matrix} 1, {\bar{f}}_{r}^{U} (x) ⩾ {\bar{f}}_{r}^{* U} (x), \\ \frac{{\bar{f}}_{r}^{U} (x) - {\bar{f}}_{r}^{U} (x_{* j}^{(r + 1) th})}{{\bar{f}}_{r}^{* U} (x) - {\bar{f}}_{r}^{U} (x_{* j}^{(r + 1) th})}, {\bar{f}}_{r}^{U} (x_{* j}^{(r + 1) th}) < {\bar{f}}_{r}^{U} (x) < {\bar{f}}_{r}^{* U} (x), \\ 0, {\bar{f}}_{r}^{U} (x) ⩽ {\bar{f}}_{r}^{U} (x_{* j}^{(r + 1) th}) \end{matrix} \end{matrix}$ (21)

Such that at r = k, then ${\underline{f}}_{r}^{L} (x_{* j}^{(r + 1) th}) = {\underline{f}}_{r}^{L} (x_{* j}^{(r - 1) th})$ , ${\underline{f}}_{r}^{U} (x_{* j}^{(r + 1) th}) = {\underline{f}}_{r}^{U} (x_{* j}^{(r - 1) th})$ , ${\bar{f}}_{r}^{L} (x_{* j}^{(r + 1) th}) = {\bar{f}}_{r}^{L} (x_{* j}^{(r - 1) th})$ and ${\bar{f}}_{r}^{U} (x_{* j}^{(r + 1) th}) = {\bar{f}}_{r}^{U} (x_{* j}^{(r - 1) th})$ .

The following Tchebycheff problems will be resolved in order to produce a suitable result and ensure the satisfaction of all decision-makers:

${\bar{Tch}}^{1} : max ω^{1},$

subject to $\begin{matrix} x \in {\bar{G}}^{L}, \\ μ_{\bar{L}} ({\bar{f}}_{r}^{L} (x)) ⩾ ω^{1}, \\ \frac{{\bar{x}}_{r}^{L} - ({\bar{x}}_{* r}^{Lrth} - {\bar{t}}_{r}^{L})}{{\bar{t}}_{r}^{L}} ⩾ ω^{1}, \\ \frac{- {\bar{x}}_{r}^{L} + ({\bar{x}}_{* r}^{Lrth} + {\bar{t}}_{r}^{L})}{{\bar{t}}_{r}^{L}} ⩾ ω^{1}, \\ {\bar{t}}_{r}^{L} > 0, ω^{1} \in [0, 1] . \end{matrix}$ (22)

${\bar{Tch}}^{4} : max ω^{4},$

subject to $\begin{matrix} x \in {\bar{G}}^{U}, \\ μ_{\bar{U}} ({\bar{f}}_{r}^{U} (x)) ⩾ ω^{4}, \\ \frac{{\bar{x}}_{r}^{U} - ({\bar{x}}_{* r}^{Urth} - {\bar{t}}_{r}^{U})}{{\bar{t}}_{r}^{U}} ⩾ ω^{4}, \\ \frac{- {\bar{x}}_{r}^{U} + ({\bar{x}}_{* r}^{Urth} + {\bar{t}}_{r}^{U})}{{\bar{t}}_{r}^{U}} ⩾ ω^{4}, \\ {\bar{t}}_{r}^{U} > 0, ω^{4} \in [0, 1] . \end{matrix}$ (23)

${\underline{Tch}}^{2} : max ω^{2},$

subject to $\begin{matrix} x \in G_{-}^{L}, \\ μ_{\underline{L}} ({\underline{f}}_{r}^{L} (x)) ⩾ ω^{2}, \\ \frac{\underline{x} r L - (\underline{x} * r Lrth - \underline{t} r L)}{\underline{t} r L} ⩾ ω^{2}, \\ \frac{- \underline{x} r L + (\underline{x} * r Lrth + \underline{t} r L)}{\underline{t} r L} ⩾ ω^{2}, \\ {\underline{t}}_{r}^{L} > 0, ω^{2} \in [0, 1] . \end{matrix}$ (24)

${\underline{Tch}}^{3} : max ω^{3}$ ,

subject to $\begin{matrix} x \in G_{-}^{U}, \\ μ_{\underline{U}} ({\underline{f}}_{r}^{U} (x)) ⩾ ω^{3}, \\ \frac{\underline{x} r U - (\underline{x} * r Urth - \underline{t} r U)}{\underline{t} r U} ⩾ ω^{3}, \\ \frac{- \underline{x} r U + (\underline{x} * r Urth + \underline{t} r U)}{\underline{t} r U} ⩾ ω^{3}, \\ \underline{t} r U > 0, ω^{3} \in [0, 1] . \end{matrix}$ (25)

6.3.1 A flowchart for solving MLFRILP

The decision-making procedure of the fuzzy approach is presented in Fig. 3.

Fig. 3

The decision-making procedure of the fuzzy method.

7 Numerical example

A numerical example is resolved utilizing the three computational approaches—(a) constraint method, (b) interactive model, and (c) fuzzy approach—for the solution of MLP problems with fully rough parameters and fully rough decision-making variables. Think about the following illustration of a three-level programming issue using RI parameters and RI decision variables in the objective functions and constraints:

[1^st - LDM]: $\max_{x_{1}^{R}} F_{1}^{R} = \max_{x_{1}^{R}} {[[1, 1], [1, 4]] \otimes x_{1}^{R} \oplus [[1, 3], [1, 6]] \otimes x_{2}^{R} \oplus [[2, 2], [2, 5]] \otimes x_{3}^{R} \oplus [[2, 5], [1, 7]]},$

Where $x_{2}^{R}, x_{3}^{R}$ solve

[2^ndLDM]: $\max_{x_{2}^{R}} F_{2}^{R} = \max_{x_{2}^{R}} {[[2, 3], [1, 4]] \otimes x_{1}^{R} \oplus [[5, 7], [3, 8]] \otimes x_{2}^{R} \oplus [[3, 5], [2, 8]] \otimes x_{3}^{R} \oplus [[5, 7], [2, 10]]},$

Where $x_{3}^{R}$ solve

[3^rdLDM]: $\max_{x_{3}^{R}} F_{3}^{R} = \max_{x_{3}^{R}} {[[3, 5], [2, 7]] \otimes x_{1}^{R} \oplus [[4, 5], [3, 6]] \otimes x_{2}^{R} \oplus [[5, 8], [3, 9]] \otimes x_{3}^{R} \oplus [[3, 6], [1, 8]]},$

subject to

${[[3, 6], [1, 7]] \otimes x_{1}^{R} \oplus [[3, 5], [2, 6]] \otimes x_{2}^{R} ⩽ [[12, 14], [10, 16]],$

$[[3, 5], [1, 8]] \otimes x_{1}^{R} ⊖ [[5, 7], [2, 9]] \otimes x_{2}^{R} \oplus [[6, 7], [3, 9]] \otimes x_{3}^{R} ⩽ [[9, 11], [8, 14]],$

${[[5, 7], [5, 9]] \otimes x_{1}^{R} \oplus [[3, 5], [3, 8]] \otimes x_{2}^{R} ⩾ [[4, 8], [3, 16]], x_{1}^{R}, x_{2}^{R}, x_{3}^{R} ⩾ 0}$ .

First: Constraint Method

Using Theorems (1), (2), and (3), the three-level programming problem with RI parameters and RI decision variables in the constraints and objective functions and is converted into a crisp model as follows:

1^stLevel DM:

$P_{11} : \underline{f} 1 L : = max x_{1} + x_{2} + 2 x_{3} + 2,$

Subject to

6x₁ + 5x₂ ⩽ 12,

5x₁ - 7x₂ + 7x₃ ⩽ 9,

7x₁ + 5x₂ ⩾ 4,

$x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is $\underline{f} 1 LF = 10.5714,$

$(\underline{x} 1 FL, \underline{x} 2 FL, \underline{x} 3 FL) = (0, 2, 3.285714)$ .

$P_{12} : \underline{f} 1 U : = max x_{1} + 3 x_{2} + 2 x_{3} + 5,$

Subject to

3x₁ + 3x₂ ⩽ 14,

3x₁ - 5x₂ + 6x₃ ⩽ 11,

5x₁ + 3x₂ ⩾ 8,

$x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is $\underline{f} 1 UF = 30.4444$ ,

$(\underline{x} 1 FU, \underline{x} 2 FU, \underline{x} 3 FU) = (0, 4.6667, 5.7222)$ .

P₁₃: ${\bar{f}}_{1}^{L} : = max x_{1} + x_{2} + 2 x_{3} + 1,$

Subject to

7x₁ + 6x₂ ⩽ 10,

8x₁ - 9x₂ + 9x₃ ⩽ 8,

9x₁ + 8x₂ ⩾ 3,

$x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is ${\bar{f}}_{1}^{LF} = 7.7778,$

$({\bar{x}}_{1}^{FL}, {\bar{x}}_{2}^{FL}, {\bar{x}}_{3}^{FL}) = (0, 1.6667, 2.5556)$ .

P₁₄: ${\bar{f}}_{1}^{U} : = max 4 x_{1} + 6 x_{2} + 5 x_{3} + 7,$

Subject to

x₁ + 2x₂ ⩽ 16,

x₁ - 2x₂ + 3x₃ ⩽ 14,

5x₁ + 3x₂ ⩾ 16,

$x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is ${\bar{f}}_{1}^{UF} = 105$ ,

$({\bar{x}}_{1}^{FU}, {\bar{x}}_{2}^{FU}, {\bar{x}}_{3}^{FU}) = (0, 8, 10)$ .

Then, set $x_{1}^{F} = ([0, 0], [0, 0])$ to the 2^ndLevel DM constraints. The problem of the 2^ndLevel DM by using interval method [19] and slice sum method [25] can be formulated as follows:

2^ndLevel DM:

P₂₁: $\underline{f} 2 L : = max 2 x_{1} + 5 x_{2} + 3 x_{3} + 5,$

subject to

6x₁ + 5x₂ ⩽ 12,

5x₁ - 7x₂ + 7x₃ ⩽ 9,

7x₁ + 5x₂ ⩾ 4,

x₁ = 0, $x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is $\underline{f} 2 LS = 24.8571$ ,

$(\underline{x} 1 FL, \underline{x} 2 SL, \underline{x} 3 SL) = (0, 2, 3.285714)$ .

P₂₂: $\underline{f} 2 U : = max 3 x_{1} + 7 x_{2} + 5 x_{3} + 7,$

Subject to

3x₁ + 3x₂ ⩽ 14,

3x₁ - 5x₂ + 6x₃ ⩽ 11,

5x₁ + 3x₂ ⩾ 8,

x₁ = 0, $x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is $\underline{f} 2 US = 68.2778$ ,

$(\underline{x} 1 FU, \underline{x} 2 SU, \underline{x} 3 SU) = (0, 4.6667, 5.7222)$ .

P₂₃: ${\bar{f}}_{2}^{L} : = max x_{1} + 3 x_{2} + 2 x_{3} + 2,$

Subject to

7x₁ + 6x₂ ⩽ 10,

8x₁ - 9x₂ + 9x₃ ⩽ 8,

9x₁ + 8x₂ ⩾ 3,

x₁ = 0, $x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is ${\bar{f}}_{2}^{LS} = 12.1111$ ,

$({\bar{x}}_{1}^{FL}, {\bar{x}}_{2}^{SL}, {\bar{x}}_{3}^{SL}) = (0, 1.6667, 2.5556) .$

P₂₄: ${\bar{f}}_{2}^{U} : = max 4 x_{1} + 8 x_{2} + 8 x_{3} + 10,$

Subject to

x₁ + 2x₂ ⩽ 16,

x₁ - 2x₂ + 3x₃ ⩽ 14,

5x₁ + 3x₂ ⩾ 16,

x₁ = 0, $x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is ${\bar{f}}_{2}^{US} = 154$

$({\bar{x}}_{1}^{FU}, {\bar{x}}_{2}^{SU}, {\bar{x}}_{3}^{SU}) = (0, 8, 10) .$

Then, set $x_{1}^{F} = ([0, 0], [0, 0])$ and $x_{2}^{S} = ([2, 4.6667], [1.6667, 8])$ to the 3^rdL DM constraints.

The 3^rdL DM problem by using interval method [19] and slice sum method [25] can be formulated as follows:

3^rdLevel DM:

P₃₁: $\underline{f} 3 L : = max 3 x_{1} + 4 x_{2} + 5 x_{3} + 3,$

Subject to

6x₁ + 5x₂ ⩽ 12,

5x₁ - 7x₂ + 7x₃ ⩽ 9,

7x₁ + 5x₂ ⩾ 4,

x₁ = 0, x₂ = 2, $x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is $\underline{f} 3 LT = 27.4286$ ,

$(\underline{x} 1 FL, \underline{x} 2 SL, \underline{x} 3 TL) = (0, 2, 3.285714) .$

P₃₂: $\underline{f} 3 U : = max 5 x_{1} + 5 x_{2} + 8 x_{3} + 6,$

Subject to

3x₁ + 3x₂ ⩽ 14,

3x₁ - 5x₂ + 6x₃ ⩽ 11,

5x₁ + 3x₂ ⩾ 8,

x₁ = 0, x₂ = 4.6667, $x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is $\underline{f} 3 UT = 75.1111$ ,

$(\underline{x} 1 FU, \underline{x} 2 SU, \underline{x} 3 TU) = (0, 4.6667, 5.7222)$ .

P₃₃: ${\bar{f}}_{3}^{L} : = max 2 x_{1} + 3 x_{2} + 3 x_{3} + 1,$

Subject to

7x₁ + 6x₂ ⩽ 10,

8x₁ - 9x₂ + 9x₃ ⩽ 8,

9x₁ + 8x₂ ⩾ 3,

x₁ = 0, $x_{2} = 1.6667, x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is ${\bar{f}}_{3}^{LT} = 13.6667$ ,

$({\bar{x}}_{1}^{FL}, {\bar{x}}_{2}^{SL}, {\bar{x}}_{3}^{TL}) = (0, 1.6667, 2.5556)$ .

P₃₄: ${\bar{f}}_{3}^{U} : = max 7 x_{1} + 6 x_{2} + 9 x_{3} + 8,$

subject to

x₁ + 2x₂ ⩽ 16,

x₁ - 2x₂ + 3x₃ ⩽ 14,

5x₁ + 3x₂ ⩾ 16,

x₁ = 0, x₂ = 8, $x_{i}^{R} ⩾ 0, i = 1, 2, 3$ .

whose solution is ${\bar{f}}_{3}^{UT} = 146$ ,

$({\bar{x}}_{1}^{FU}, {\bar{x}}_{2}^{SU}, {\bar{x}}_{3}^{TU}) = (0, 8, 10) .$

Finally, the optimal interval values of objective functions are given in Table 2.

Table 2
The constraint method-based optimal interval values of objective functions

The SO-range The PO-range

1^stLDM $[\underline{f} 1 LF, \underline{f} 1 UF] = [10.5714, 30.444]$ $[{\bar{f}}_{1}^{LF}, {\bar{f}}_{1}^{UF}] = [7.7778, 105]$

2^ndLDM $[\underline{f} 2 LS, \underline{f} 2 US] = [24.8571, 68.2778]$ $[{\bar{f}}_{2}^{LS}, {\bar{f}}_{2}^{US}] = [12.1111, 154]$

3^rdLDM $[\underline{f} 3 LT, \underline{f} 3 UT] = [27.4286, 75.111]$ $[{\bar{f}}_{3}^{LT}, {\bar{f}}_{3}^{UT}] = [13.6667, 146]$

	The SO-range	The PO-range
1^stLDM	$[\underline{f} 1 LF, \underline{f} 1 UF] = [10.5714, 30.444]$	$[{\bar{f}}_{1}^{LF}, {\bar{f}}_{1}^{UF}] = [7.7778, 105]$
2^ndLDM	$[\underline{f} 2 LS, \underline{f} 2 US] = [24.8571, 68.2778]$	$[{\bar{f}}_{2}^{LS}, {\bar{f}}_{2}^{US}] = [12.1111, 154]$
3^rdLDM	$[\underline{f} 3 LT, \underline{f} 3 UT] = [27.4286, 75.111]$	$[{\bar{f}}_{3}^{LT}, {\bar{f}}_{3}^{UT}] = [13.6667, 146]$

Second: interactive model

Firstly, based on the optimal RI solutions of the decision variables obtained in P_rs, (r = 1, 2 ; s = 1, 2, 3, 4), the 1^stL DM tests whether the obtained solution $(\underline{x} 1 FL, \underline{x} 2 SL, \underline{x} 3 SL) = (0, 2, 3.2857), (\underline{x} 1 FU, \underline{x} 2 SU, \underline{x} 3 SU) = (0, 4.667, 5.7222),$ $({\bar{x}}_{1}^{FL}, {\bar{x}}_{2}^{SL}, {\bar{x}}_{3}^{SL}) = (0, 1.667, 2.556)$ and $({\bar{x}}_{1}^{FU}, {\bar{x}}_{2}^{SU}, {\bar{x}}_{3}^{SU}) = (0, 8, 10)$ is a preferred solution that is agreeable to them, or it may be changed, by the function of the 1^stLevel DM that measures satisfactoriness: $\frac{\underline{∥ f} 1 L (0, 2, 3.285714) - \underline{f} 1 L {(0, 2, 3.285714)}_{2} ∥}{∥ \underline{f} 1 L {(0, 2, 3.285714)}_{2} ∥} = 0 < δ_{-}^{FL},$ $\frac{∥ \underline{f} 1 U (0, 4.6667, 5.7222) - \underline{f} 1 U {(0, 4.6667, 5.7222)}_{2} ∥}{∥ \underline{f} 1 U {(0, 4.6667, 5.7222)}_{2} ∥} = 0 < δ_{-}^{UL},$ $\begin{matrix} \frac{∥ {\bar{f}}_{1}^{L} (0, 1.6667, 2.5556) - {\bar{f}}_{1}^{L} {(0, 1.6667, 2.5556)}_{2} ∥}{∥ {\bar{f}}_{1}^{L} {(0, 1.6667, 2.5556)}_{2} ∥} = 0 \\ < {\bar{δ}}^{FL}, \frac{{\bar{f}}_{1}^{U} (0, 8, 10) - {\bar{f}}_{1}^{U} {(0, 8, 10)}_{2}}{{\bar{f}}_{1}^{U} {(0, 8, 10)}_{2}} = 0 < {\bar{δ}}^{FU} . \end{matrix}$

So $x_{1}^{F} = ([0, 0], [0, 0])$ , $x_{2}^{S} = ([2, 4.667], [1.667, 8])$ and $x_{3}^{S} = ([3.285714, 5.7222], [2.5556, 10])$ are a satisfactory solution to the 1^stLevel DM, where δ^F = ([0.5, 0.5] , [0.5, 0.5]).

Secondly, the 2^ndLevel DM tests whether the obtained solution $(\underline{x} 1 FL, \underline{x} 2 SL, \underline{x} 3 TL) = (0, 2, 3.2857), (\underline{x} 1 FU, \underline{x} 2 SU, \underline{x} 3 TU) = (0, 4.667, 5.722),$ $({\bar{x}}_{1}^{FL}, {\bar{x}}_{2}^{SL}, {\bar{x}}_{3}^{TL}) = (0, 1.667, 2.556),$ and $({\bar{x}}_{1}^{FU}, {\bar{x}}_{2}^{SU}, {\bar{x}}_{3}^{SU})$ = (0, 8, 10) are a preferred solution that is agreeable to them, or it may be changed, by the function of the 2^ndLevel DM that measures satisfactoriness: $\frac{∥ \underline{f} 2 L (0, 2, 3.285714) - \underline{f} 2 L {(0, 2, 3.285714)}_{2} ∥}{∥ \underline{f} 2 L {(0, 2, 3.285714)}_{2} ∥} = 0 < δ_{-}^{SL},$ $\frac{∥ \underline{f} 2 U (0, 4.6667, 5.7222) - \underline{f} 2 U {(0, 4.6667, 5.7222)}_{2} ∥}{∥ \underline{f} 2 U {(0, 4.6667, 5.7222)}_{2} ∥} = 0 < δ_{-}^{SU},$ $\frac{∥ {\bar{f}}_{2}^{L} (0, 1.6667, 2.5556) - {\bar{f}}_{2}^{L} {(0, 1.6667, 2.5556)}_{2} ∥}{∥ {\bar{f}}_{2}^{L} {(0, 1.6667, 2.5556)}_{2} ∥} = 0 < {\bar{δ}}^{SL},$ $\frac{∥ {\bar{f}}_{2}^{U} (0, 8, 10) - {\bar{f}}_{2}^{U} {(0, 8, 10)}_{2} ∥}{∥ {\bar{f}}_{2}^{U} {(0, 8, 10)}_{2} ∥} = 0 < {\bar{δ}}^{SU},$

So $x_{1}^{F} = ([0, 0], [0, 0])$ , $x_{2}^{S} = ([2, 4.667], [1.667, 8])$ and $x_{3}^{T} = ([3.2857, 5.722], [2.5556, 10])$ are a satisfactory solution to the 2^ndLevel DM, where δ^S = ([0.5, 0.5] , [0.5, 0.5]).

Finally, the optimal interval values of objective functions are given in Table 3.

Table 3

Based on an interactive model, the optimum interval values for objective functions

	The SO-range	The PO-range
1^stLDM	$[\underline{f} 1 LF, \underline{f} 1 UF] = [10.5714, 30.444]$	$[{\bar{f}}_{1}^{LF}, {\bar{f}}_{1}^{UF}] = [7.7778, 105]$
2^ndLDM	$[\underline{f} 2 LS, \underline{f} 2 US] = [24.8571, 68.2778]$	$[{\bar{f}}_{2}^{LS}, {\bar{f}}_{2}^{US}] = [12.1111, 154]$
3^rdLDM	$[\underline{f} 3 LT, \underline{f} 3 UT] = [27.4286, 75.111]$	$[{\bar{f}}_{3}^{LT}, {\bar{f}}_{3}^{UT}] = [13.6667, 146]$

Third: Fuzzy Approach

Based on the optimal RI solutions of the linear programming problems P_rs, (r = 1, 2 ; s = 1, 2, 3, 4) obtained in the constraint method and interactive model, formulate the membership function for the rth-Level DM (r = 1, 2, 3) as Problems (18)–(21).

Assume that the 1^stLevel DM’S control decision $x_{1}^{F}$ with tolerance $[\underline{t} 1 L, \underline{t} 1 U], [{\bar{t}}_{1}^{L}, {\bar{t}}_{1}^{U}] =$ ([2, 3] , [1, 4]), and that the 2^ndLevel DM’S control decision $x_{2}^{S}$ with tolerance $[\underline{t} 2 L, \underline{t} 2 U], [{\bar{t}}_{2}^{L}, {\bar{t}}_{2}^{U}] =$ ([2, 2] , [2, 2]), and then formulate the membership function for the RI decision variables $x_{j}^{rth}, (j, r = 1, 2, 3)$ as Problems (14)–(17).

Solve the following Tchebycheff problems to produce a solution that will satisfy all DMs:

$\max ω_{-}^{L},$

subject to

$x_{1} - 2 ω_{-}^{L} ⩾, - 2$

$- x_{1} - 2 ω_{-}^{L} ⩾ - 2,$

$x_{2} - 2 ω_{-}^{L} ⩾ 0,$

$- x_{2} - 2 ω_{-}^{L} ⩾ - 4,$

6x₁ + 5x₂ ⩽ 12,

5x₁ - 7x₂ + 7x₃ ⩽ 9,

7x₁ + 5x₂ ⩾ 4,

x_i ⩾ 0, (i = 1, 2, 3),

t_i > 0, (i = 1, 2) ,

$ω_{-}^{L} \in [0, 1] .$

whose solution is $({\underline{x}}_{1}^{L}, {\underline{x}}_{2}^{L}, {\underline{x}}_{3}^{L}) = (0, 2, 0), {\underline{ω}}^{L} = 1.$

subject to

$x_{1} - {\bar{ω}}^{L} ⩾ - 1,$

$- x_{1} - {\bar{ω}}^{L} ⩾ - 1,$

$x_{2} - 2 {\bar{ω}}^{L} ⩾ - 0.3333,$

$- x_{2} - 2 {\bar{ω}}^{L} ⩾ - 3.6667,$

7x₁ + 6x₂ ⩽ 10,

8x₁ - 9x₂ + 9x₃ ⩽ 8,

9x₁ + 8x₂ ⩾ 3,

x_i ⩾ 0, (i = 1, 2, 3),

t_i > 0, (i = 1, 2) ,

${\bar{ω}}^{L} \in [0, 1] .$

whose solution is

$({\bar{x}}_{1}^{L}, {\bar{x}}_{2}^{L}, {\bar{x}}_{3}^{L}) = (0, 1.6667, 0), {\bar{ω}}^{L} = 1$ .

$\max {\underline{ω}}^{U},$

subject to

$x_{1} - 3 ω_{-}^{U} ⩾ - 3,$

$- x_{1} - 3 ω_{-}^{U} ⩾ - 3,$

$x_{2} - 2 ω_{-}^{U} ⩾ 2.6667,$

$- x_{2} - 2 ω_{-}^{U} ⩾ - 6.6667$ ,

3x₁ + 3x₂ ⩽ 14,

3x₁ - 5x₂ + 6x₃ ⩽ 11,

5x₁ + 3x₂ ⩾ 8,

x_i ⩾ 0, (i = 1, 2, 3),

t_i > 0, (i = 1, 2) ,

$ω_{-}^{U} \in [0, 1] .$

whose solution is

$(\underline{x} 1 U, \underline{x} 2 U, \underline{x} 3 U) = (0, 4.6667, 0), ω_{-}^{U} = 1$ .

$\max {\bar{ω}}^{U},$

subject to

$x_{1} - 4 {\bar{ω}}^{U} ⩾ - 4,$

$- x_{1} - 4 {\bar{ω}}^{U} ⩾ - 4,$

$x_{2} - 2 {\bar{ω}}^{U} ⩾ 6,$

$- x_{2} - 2 {\bar{ω}}^{U} ⩾ - 10,$

x₁ + 2x₂ ⩽ 16,

x₁ - 2x₂ + 3x₃ ⩽ 14,

5x₁ + 3x₂ ⩾ 16,

x_i ⩾ 0, (i = 1, 2, 3),

t_i > 0, (i = 1, 2) ,

${\bar{ω}}^{U} \in [0, 1] .$

whose solution is

$({\bar{x}}_{1}^{U}, {\bar{x}}_{2}^{U}, {\bar{x}}_{3}^{U}) = (0, 8, 0), {\bar{ω}}^{U} = 1$ .

Finally, the optimal interval values of objective functions are given in Table 4.

Table 4

The optimal interval values of objective functions based on fuzzy approach

	The SO-range	The PO-range
1^stLDM	$[\underline{f} 1 LF, \underline{f} 1 UF] = [4, 19.0001]$	$[{\bar{f}}_{1}^{LF}, {\bar{f}}_{1}^{UF}] = [2.6667, 55]$
2^ndLDM	$[\underline{f} 2 LS, \underline{f} 2 US] = [15, 39.6667]$	$[{\bar{f}}_{2}^{LS}, {\bar{f}}_{2}^{US}] = [7.0001, 74]$
3^rdLDM	$[\underline{f} 3 LT, \underline{f} 3 UT] = [11, 29.3335]$	$[{\bar{f}}_{3}^{LT}, {\bar{f}}_{3}^{UT}] = [6.0001, 56]$

8 Comparison

The results in Tables 2 3 show that the constraint method and the interactive model produced identical solutions to the MLFRILP problem and were superior to the outcomes in Table 4 provided by the fuzzy approach.

Conclusion

This paper has provided an effective overview of current rough multi-level decision-making processes and combinations of improvements associated with procedures in seven major categories, Moreover, the multi-level linear full-interval programming (MLFRILP) problem has been solved. Using the interval method and the slice sum method, the problem was first transformed into its crisp equivalent. Furthermore, were used three methods to solve the MLFRILP problem. Firstly, it was solved by using the constraint method, secondly by using an interactive model, and thirdly by using the fuzzy approach. To check the validity of the methods, one numerical example was provided. The obtained results clarify that the proposed techniques create a powerful tool that is required for solving the multi-level fully rough interval linear programming (MLFRILP) problem. By taking roughness into account in the model’s formulation, the work will be able to help solve real-life and industrial problems that are typically complicated, uncertain, and constantly subject to change. For future research, one possible direction is to apply the proposed approaches to deal with real-world decision-making situations, such as a multi-level logistics planning problem in fully rough environments. Finally, a comparison was made between the approaches used in the three methods to find out the best way to solve MLFRILP, and the results showed that the proposed approaches for the constraint method and the interactive model were better than the results of the proposed method from the fuzzy approach.

References

Abdullah

, Al Shomrani

M.M.

, Liu

and Ahmad

, A new approach to three way decisions making based on fractional fuzzy decision theoretical rough set, International Journal of Intelligent Systems 37(3) (2022), 2428–2457.

Abohany

A.A.

, Rizk-Allah

R.M.

, Mosa

D.T.

and Hassanien

A.E.

, A Novel Approach for Solving a Fully Rough Multi-Level Quadratic Programming Problem and Its Application, International Journal of Service Science, Management, Engineering, and Technology (IJSSMET) 11(4) (2020), 137–165.

Alguacil

, Delgadillo

and Arroyo

J.M.

, A trilevel programming approach for electric grid defense planning, Computers & Operations Research 41 (2014), 282–290.

Ammar

E.S.

and Emsimir

, A mathematical model for solving fuzzy integer linear programming problems with fully rough intervals, Granular Computing (2020), 1–12.

Amouzegar

M.A.

and Moshirvaziri

, Determining optimal pollution control policies: An application of bilevel programming, European Journal of Operational Research 119(1) (1999), 100–120.

Camacho-Vallejo

J.F.

, González-Rodríguez

, Almaguer

F.J.

and González-Ramírez

R.G.

, A bi-level optimization model for aid distribution after the occurrence of a disaster, Journal of Cleaner Production 105 (2015), 134–145.

Chiou

S.W.

, A bi-level decision support system for uncertain network design with equilibrium flow, Decision Support Systems 69 (2015), 50–58.

Cui

G.M.

and Cheng

, Application of Pattern Matching in Heating Furnace–Rough Rolling Process, In Journal of Physics: Conference Series 2261(1) (2022), 012008.

Elsisy

M.A.

and El Sayed

M.A.

, Fuzzy rough bi-level multi-objective nonlinear programming problems, Alexandria Engineering Journal 58(4) (2019), 1471–1482.

10.

Emam

O.E.

, Interactive bi-level multi-objective integer non-linear programming problem, Applied Mathematical Sciences 5(65) (2011), 3221–3232.

11.

Emam

O.E.

, Fathy

and Abohany

A.A.

, On Rough Interval Three Level Large Scale Quadratic Integer Programming Problem, Journal of Statistics Applications & Probability 2 (2017), 305–318.

12.

Emam

O.E.

, Fathy

and Helmy

M.A.

, Fully fuzzy multi-level linear programming problem, International Journal of Computer Applications 155(7) (2016), 18–26.

13.

Emam

O.E.

, Fathy

and Helmy

M.A.

, An Interactive Model for Fully Fuzzy Multi-Level Linear Programming Problem based on Multi-objective Linear Programming Technique, Journal of Advances in Mathematics and Computer Science 23 (2017), 1–19.

14.

Fathy

, A modified fuzzy approach for the fully fuzzy multi-objective and multi-level integer quadratic programming problems based on a decomposition technique, Journal of Intelligent & Fuzzy Systems 37(2) (2019), 2727–2739.

15.

Fathy

, Building fuzzy approach with linearization technique for fully rough multi-objective multi-level linear fractional programming problem, Iranian Journal of Fuzzy Systems 18(2) (2021), 139–157.

16.

Fathy

, Ammar

and Helmy

M.A.

, On solving the multilevel rough interval linear programming problem, Journal of Intelligent & Fuzzy Systems 42 (2022), 3011–3028.

17.

Gansterer

and Hartl

R.F.

, The collaborative multi-level lot-sizing problem with cost synergies, International Journal of Production Research 58(2) (2020), 332–349.

18.

Guo

, Jiang

and Wu

, Three-way decision based on confidence level change in rough set, International Journal of Approximate Reasoning 143 (2022), 57–77.

19.

Hamzehee

, Yaghoobi

M.A.

and Mashinchi

, Linear programming with rough interval coefficients, Journal of Intelligent & Fuzzy Systems 26(3) (2014), 1179–1189.

20.

Jerbi

, Dagdia

Z.C.

, Bechikh

and Said

L.B.

, Malware Evolution and Detection Based on the Variable Precision Rough Set Model, Conference on Computer Science and Intelligence Systems (FedCSIS) 30 (2022), 253–262.

21.

, Tan

, Lin

, Ma

and Zhang

, Three-level interactive energy management strategy for optimal operation of multiple virtual power plants considering different time scales, International Journal of Energy Research 45(1) (2021), 1069–1096.

22.

Lim

and Smith

J.C.

, Algorithms for discrete and continuous multicommodity flow network interdiction problems, IIE Transactions 39(1) (2007), 15–26.

23.

Omran

, Emam

O.E.

, Abd-Elatif

and Thabet

, Solving Large-scale Three-level Linear Fractional Programming Problem with Rough Coefficient in Objective Function, International Journal of Computer Applications 157(8) (2017), 25–29.

24.

Osman

M.S.

, Emam

O.E.

, Raslan

K.R.

and Farahat

F.A.

, Solving fully rough interval multi-level multi-objective linear fractional programming problems via FGP, Journal of Statistics Applications and Probability Letters 7 (2018), 115–126.

25.

Pandian

, Natarajan

and Akilbasha

, Fully rough integer interval transportation problems, International Journal of Pharmacy and Technology 8(2) (2016), 13866–13876.

26.

Pramanik

, Maiti

M.K.

and Maiti

, A supply chain with variable demand under three level trade credit policy, Computers & Industrial Engineering 106 (2017), 205–221.

27.

Rehman

H.U.

, Wan

and Zhan

, Multi-level, multi-stage lot-sizing and scheduling in the flexible flow shop with demand information updating, International Transactions in Operational Research 28(4) (2021), 2191–2217.

28.

Spencer

, Multi-level governance of an intractable policy problem: Migrants with irregular status in Europe, Journal of Ethnic and Migration Studies 44(12) (2018), 2034–2052.

29.

Street

, Moreira

and Arroyo

J.M.

, Energy and reserve scheduling under a joint generation and transmission security criterion: An adjustable robust optimization approach, IEEE Transactions on Power Systems 29(1) (2013), 3–14.

30.

Wang

, Gao

, Xu

and Sun

, Models and a relaxation algorithm for continuous network design problem with a tradable credit scheme and equity constraints, Computers & Operations Research 41 (2014), 252–261.

31.

, Meng

and Shen

, A tri-level programming model based on conditional value-at-risk for three-stage supply chain management, Computers & Industrial Engineering 66(2) (2013), 470–475.

32.

Zhang

, Guo

, Liu

, Wang

, Engel

B.A.

and Guo

, Towards sustainable water management in an arid agricultural region: A multi-level multi-objective stochastic approach, Agricultural Systems 182 (2020), 102848.

33.

Zhang

and Jiang

, Measurement, modeling, reduction of decision-theoretic multigranulation fuzzy rough sets based on three-way decisions, Information Sciences 607 (2022), 1550–1582.

34.

Zhang

, Li

, Luo

and Wang

, AMG-DTRS: Adaptive multi-granulation decision-theoretic rough sets, International Journal of Approximate Reasoning 140 (2022), 7–30.

35.

Zhang

and Yao

, Tri-level attribute reduction in rough set theory, Expert Systems with Applications 190 (2022), 116187.
