U*: GA-based path planning algorithm for surface floating garbage cleaning robot

Abstract

Marine debris is a serious global problem that is not limited to areas where humans live but also drifts around the world with wind and currents. More than 10 million tons of plastic waste flow into the ocean every year, posing a major threat to humanity. This study designs a path planning algorithm for surface garbage-cleaning robots called U*, which aims to improve the efficiency of salvaging marine debris and reduce labor and time costs. The U* algorithm consists of two procedures: exploration and path-planning. The exploration procedure searches for marine debris, while the path-planning procedure predicts the possible location of marine debris using the velocity and direction of ocean currents and finds the shortest path by using a genetic algorithm (GA) to collect the found marine debris. According to the experimental results, the U* method is more efficient in terms of reducing path length and time costs.

Keywords

Path planning shorted path genetic algorithm surface garbage-cleaning robots

1 Introduction

Marine debris is a general term for waste intentionally or unintentionally produced by human activities and eventually flows into oceans. Plastics are crucial marine debris components because they are challenging to biodegrade. As marine organisms easily consume plastics, marine debris seriously threatens their survival. In addition, marine debris poses a threat to navigational safety, marine and coastal environments, and human health. A Taiwan Biodiversity Research Center team analyzed marine debris in seven oceans worldwide using big data technology and found that wind resistance and ocean currents affect the distribution of debris. The accumulation of marine debris in the Pacific region is the most severe, from subtropical to tropical and polar regions, with 50% of the debris still drifting at sea [1]. If the monitored sea marine debris could be cleared, the best solution would be to assist in garbage clearing using underwater garbage-clearing robots. An underwater garbage-clearing robot can collect data and clear marine debris without geographical limitations [1-3].

Path planning is one of the core areas of underwater robot technology research and is critical for realizing autonomous navigation. With the development of science and technology, many researchers have been working on underwater robots to address path-planning problems using various algorithms. However, these methods assume that the target and the environment are static. In the real environment, there is an influence of ocean currents and wind, causing drifting garbage to change its position continuously. Therefore, designing a path-planning algorithm suitable for marine environments is more realistic. For example, in the real world, roads change permanently in road construction or temporarily in traffic control. However, the location information of the drifting garbage is dynamic, which increases the complexity of path planning.

More than 80% of marine debris is found at or one meter below the water’s surface [12]. For garbage that has entered the sea, clearing marine debris from the water will significantly reduce the amount of marine debris. Figure 1 shows a schematic of the underwater garbage-cleaning robot. Because the robot has good mobility and can collect all the marine debris, we modeled this problem as a Hamiltonian cycle [30]. However, in a real environment, marine debris is also affected by currents and wind, thus changing its location constantly and increasing the difficulty of robot path planning. Owing to the sensors’ detection limitations, underwater garbage-cleaning robots can only effectively detect marine debris within their detection range. Finally, after the robot collects all the marine debris, it must return to the charging station (starting point) to recharge, making salvaging marine debris challenging.

Fig. 1

An example of an underwater garbage-cleaning robot.

In this study, a path-planning algorithm based on a genetic algorithm (GA) with real-time collected data, including current velocity and direction, predicts the marine debris location and then plans a traversal path suitable for a floating garbage-cleaning robot called U*. U* improves salvaging marine debris efficiency and reduces labor and time costs. Compared with the Random and the Greedy methods, the U* method proposed in this study can shorten the path length, reducing the time cost of salvaging marine debris.

In summary, the aims of this study are as follows:

The ocean constantly changes, and winds and currents can influence and vary the location of marine debris. Most marine debris is being collected.

This study considered setting up a charging station, allowing the robot to return to the starting point for charging. This problem formed the basis for calculating the Hamiltonian cycle [30]. For greater efficiency, the expected Hamiltonian cycle was the smallest.

The contributions of this study are summarized into four aspects.

In this study, we designed a path-planning algorithm for a floating garbage-cleaning robot based on a GA called U*. We compared four path planning algorithms, namely Random, Greedy, Improved GA [22], and SUMRF [24], and confirmed that U* is superior to the above four methods in terms of average path length and efficiency in salvaging marine debris.

U* can increase the marine debris amount collected, thereby improving the efficiency of marine debris collection using a floating garbage-cleaning robot.

U* estimates and explores marine debris location based on the ocean currents’ velocity and direction. The robot chooses a shorter path based on the remaining power or task deadline to reduce power consumption.

The study also examined the NP-hard Hamiltonian cycle problem to enable the robot to collect time-shared data and charge itself at the station.

The rest of this paper is organized as follows. Section II describes two classes of solutions for cleaning up underwater debris. Section III defines marine debris collection as a dynamic TSP and describes the U* algorithm details. The fourth section is a simulation experiment, comparing the performance of the Random method, the Greedy method, and U*. The last section is the conclusions of this study and future work.

2 Related works

2.1 The solutions for clearing the underwater garbage

If the monitored marine debris can be cleared, the best solution is to assist in clearing the garbage through underwater garbage robots. The underwater garbage robot can not only collect data but also clear the marine debris, which is without geographical restrictions [5-13].

In addition to garbage collection boats, the construction of underwater dumpsters is also one of the feasible solutions. At present, there are four types of common underwater dumpster: Mr. Trash Wheel, Seabin, The Ocean Clean-up, and Diandian Plastic underwater dumpster [14-16].

Table 1 summarizes the advantages and disadvantages of the current technologies for the treatment of marine debris.

Table 1
Comparison of advantages and disadvantages of various solutions

Solutions Advantages Disadvantages

Underwater garbage clear robot (1) Capable of collecting a wider range of marine debris, including that which is floating on the water, deposited on the seabed, or attached to the shore. (1) High manufacturing and maintenance costs, involving a lot of technology and equipment.

(2) Robots can be designed and manufactured according to different application scenarios and requirements with good flexibility and adaptability. (2) Robots may malfunction or operate incorrectly, affecting cleaning efficiency and safety.

(3) Some robots are equipped with a variety of sensors and intelligent algorithms that can efficiently perceive and identify garbage in the environment and autonomously plan paths and perform cleaning tasks.

Underwater dumpster (1) Simple operation; no need for complicated skills and abilities. (1) The scope of the cleaning is limited, and marine debris can only be collected in certain places.

(2) The structure is relatively simple, and the cost is relatively low. (2) Bins do not efficiently collect difficult types of waste, such as oversized waste and deep-sea waste.

(3) Some bins are powered by renewable energy, meeting environmental goals.

Solutions	Advantages	Disadvantages
Underwater garbage clear robot	(1) Capable of collecting a wider range of marine debris, including that which is floating on the water, deposited on the seabed, or attached to the shore.	(1) High manufacturing and maintenance costs, involving a lot of technology and equipment.
	(2) Robots can be designed and manufactured according to different application scenarios and requirements with good flexibility and adaptability.	(2) Robots may malfunction or operate incorrectly, affecting cleaning efficiency and safety.
	(3) Some robots are equipped with a variety of sensors and intelligent algorithms that can efficiently perceive and identify garbage in the environment and autonomously plan paths and perform cleaning tasks.
Underwater dumpster	(1) Simple operation; no need for complicated skills and abilities.	(1) The scope of the cleaning is limited, and marine debris can only be collected in certain places.
	(2) The structure is relatively simple, and the cost is relatively low.	(2) Bins do not efficiently collect difficult types of waste, such as oversized waste and deep-sea waste.
	(3) Some bins are powered by renewable energy, meeting environmental goals.

2.2 Path planning algorithms for underwater garbage robot

Table 2 lists the research objectives and characteristics of references [21-29]. In [21], the authors overcome the problems of premature population growth and the slow convergence speed of traditional genetic algorithms. The author proposes a strategy using multi-domain inversion to increase the number of offspring and conducts a second fitness evaluation to eliminate bad offspring.

Table 2
Research aims and characteristics of path-planning algorithms in references [21-29]

Algorithm Ref Research’s aims Characteristic

single-domain inversion-based algorithm (SDIGA) [21] Improved the problem of early maturation and slow convergence speed in traditional genetic algorithm populations. The strategy of multi-domain inversion was used to increase the number of offspring, and a second fitness evaluation was carried out to eliminate bad offspring.

improved genetic algorithm [22] Improved the problem that the convergence speed of traditional GA algorithms is too slow. The boundary conditions are established with the collision avoidance range and turning angle as constraints, and the intersection and variation adaptive probability models are designed to improve the correctness and feasibility of the path planning model.

Genetic Path Planner (GPP) [23] The resulting path maximizes the information collected and the coverage scope of the inspection area. A genetic path planner (GPP) is proposed that contains an IPP strategy based on genetic algorithms with the aim of generating a path while maximizing the information collected and the coverage of the area examined.

SMURF [24] Achieve full coverage of the way to clean up underwater debris The author designed SMURF, a fully automatic surface cleaning robot. A novel water cover path planning method and an improved nonlinear model prediction controller are proposed.

complete coverage neural network (CCNN) [25] Achieve full coverage, and the resulting paths reduce corner accumulation, deadlocks, and calculation time. A Full Coverage Neural Network (CCNN) algorithm for USV path planning is proposed to reduce computation time. Establish a decision-making formula to improve coverage. An improved A* algorithm is proposed to make the path have less corner accumulation, deadlock, and calculation time.

Reinforcement Learning (RL) [26] Optimize coverage path planning (CPP) in the robot for efficient coverage. A new method for solving CPP problems in large and complex environments based on the traveling salesman problem (TSP) and deep reinforcement learning (DRL) using grid-based maps is proposed.

Improved A* Path Planning Algorithm [27] Improved the problems of too many nodes, too many turns, and too small turning angles in the path. The A* algorithm is improved for path optimization, and the motion path of the AUV is smoothed.

anti-collision path planning [28] Solve collision avoidance problems for static and dynamic obstacles. The authors propose a distributed, coordinated path planning algorithm suitable for multi-ship encounters. Combined with the constraints of apparent action, time dimension, and ship dynamic characteristics, the three-dimensional Generalized Speed Disorder (TGVO) algorithm is used to generate collision-free velocities in line with COLREGs for ships.

Grid Traversal Path Planning [29] Covers the entire area with the shortest path. The authors propose an alternative to traditional robotic foraging techniques. With this approach, the layout can be tracked faster with less movement.

U* proposed algorithm Finding the minimum Hamiltonian cycle in a dynamic marine environment Predict the location of marine litter by considering the velocity and direction of ocean currents. And use GA to calculate the target position of the robot’s movement.

Algorithm	Ref	Research’s aims	Characteristic
single-domain inversion-based algorithm (SDIGA)	[21]	Improved the problem of early maturation and slow convergence speed in traditional genetic algorithm populations.	The strategy of multi-domain inversion was used to increase the number of offspring, and a second fitness evaluation was carried out to eliminate bad offspring.
improved genetic algorithm	[22]	Improved the problem that the convergence speed of traditional GA algorithms is too slow.	The boundary conditions are established with the collision avoidance range and turning angle as constraints, and the intersection and variation adaptive probability models are designed to improve the correctness and feasibility of the path planning model.
Genetic Path Planner (GPP)	[23]	The resulting path maximizes the information collected and the coverage scope of the inspection area.	A genetic path planner (GPP) is proposed that contains an IPP strategy based on genetic algorithms with the aim of generating a path while maximizing the information collected and the coverage of the area examined.
SMURF	[24]	Achieve full coverage of the way to clean up underwater debris	The author designed SMURF, a fully automatic surface cleaning robot. A novel water cover path planning method and an improved nonlinear model prediction controller are proposed.
complete coverage neural network (CCNN)	[25]	Achieve full coverage, and the resulting paths reduce corner accumulation, deadlocks, and calculation time.	A Full Coverage Neural Network (CCNN) algorithm for USV path planning is proposed to reduce computation time. Establish a decision-making formula to improve coverage. An improved A* algorithm is proposed to make the path have less corner accumulation, deadlock, and calculation time.
Reinforcement Learning (RL)	[26]	Optimize coverage path planning (CPP) in the robot for efficient coverage.	A new method for solving CPP problems in large and complex environments based on the traveling salesman problem (TSP) and deep reinforcement learning (DRL) using grid-based maps is proposed.
Improved A* Path Planning Algorithm	[27]	Improved the problems of too many nodes, too many turns, and too small turning angles in the path.	The A* algorithm is improved for path optimization, and the motion path of the AUV is smoothed.
anti-collision path planning	[28]	Solve collision avoidance problems for static and dynamic obstacles.	The authors propose a distributed, coordinated path planning algorithm suitable for multi-ship encounters. Combined with the constraints of apparent action, time dimension, and ship dynamic characteristics, the three-dimensional Generalized Speed Disorder (TGVO) algorithm is used to generate collision-free velocities in line with COLREGs for ships.
Grid Traversal Path Planning	[29]	Covers the entire area with the shortest path.	The authors propose an alternative to traditional robotic foraging techniques. With this approach, the layout can be tracked faster with less movement.
U*	proposed algorithm	Finding the minimum Hamiltonian cycle in a dynamic marine environment	Predict the location of marine litter by considering the velocity and direction of ocean currents. And use GA to calculate the target position of the robot’s movement.

This improvement helps to effectively enhance the local search ability and increase the probability of producing excellent individuals. For the effectiveness of AUV path planning and to allow the algorithm to converge quickly. In [22], the author established the path planning model of AUV based on the improved genetic algorithm. In the model, the shortest path length is used as the main criterion, and the boundary conditions are established with the collision avoidance range and turning angle as constraints. Reasonable crossover and mutation-adaptive probability models are designed.

Ocean protection and monitoring have always been important topics. Today, autonomous underwater vehicles (AUVs) are used for monitoring and exploration of the marine environment. However, the path planning of AUV is not efficient in terms of information content and energy consumption. In view of this, informative path planning (IPP) is an effective alternative, which is defined as the path to maximize the collection of information. In [23], the authors propose a genetic path planner (GPP) that incorporates a genetic algorithm based IPP strategy with the aim of generating a path while maximizing the collected information and the coverage of the inspected area. At present, water surface cleaning mainly relies on manual operation, which is inefficient and dangerous. In [24], the authors designed a fully automatic water surface cleaning robot, called SMURF, to achieve efficient water surface cleaning without manual operation. The authors also propose a novel and easy-to-implement path planning method for water surface coverage and an improved nonlinear model predictive controller.

Another vehicle similar to an AUV, called an unmanned surface vehicle (USV), usually explores a target area of interest and requires full area coverage. The biological inspired neural network (BINN) algorithm has been widely used in the path planning of mobile robots. In [25], the author proposed a completely covered neural network (CCNN) algorithm for USV path planning. CCNN reduces the calculation time by simplifying the calculation process of neural activities. To improve coverage efficiency, CCNN combines coverage and establishes a decision formula for paths. The CCNN algorithm can also reduce the corner of the path trajectory and make the path smoother. In addition, to reduce path turns, the author also proposes an improved A* algorithm. Optimizing coverage path planning (CPP) in robotics has become the key to efficient coverage applications.

In [26], the authors proposed a new approach based on the traveling salesman problem (TSP) and exploiting grid-based maps with deep reinforcement learning (DRL) to solve the CPP problem in large, complex environments. The solution to the TSP is determined by using reinforcement learning (RL) to train a recurrent neural network (RNN) with long-short-term memory (LSTM) layers. With the increasing demand for ocean exploration activities, more and more underwater vehicles with autonomous path planning capabilities have been designed and developed. The traditional A* algorithm for path planning has many limitations, such as too many nodes, too many turns, a small turning angle, etc. The designed path is not conducive to the development of autonomous underwater vehicles (AUVs). In [27], the author uses the improved A* algorithm for path optimization to smooth and optimize the motion path of the AUV.

In the actual environment, there are many obstacles, so the robot’s obstacle avoidance problem is also an important issue in path planning. Therefore, anti-collision path planning is crucial in path planning for the decision to establish a Maritime Autonomous Surface Ship (MASS). Many collision avoidance methods for static and dynamic obstacles have been proposed. In [28], the authors proposed a distributed coordinated path planning algorithm especially suitable for multi-vessel encounters. The algorithm combines constraints of apparent action, time dimension, and the ship’s dynamic properties and uses the Three-Dimensional Generalized Velocity Obstacle (TGVO) algorithm to generate a practical and COLREGs-compliant collision-free velocity for the ship. In [29], the authors propose an alternative to traditional robotic foraging techniques. With this approach, layouts can be traced faster with fewer moves. The algorithm is well suited for autonomous lawnmowers and is expected to allow the robot to cover the entire area, reducing the robot’s traversal of repetitive areas. The algorithm can be applied to fields such as drones and underwater vehicles.

Taken together, these studies explore different approaches and optimization algorithms for AUV path planning. A genetic algorithm is one of the most used among them. The ocean is a dynamic environment, and the location of marine debris is constantly changing due to the influence of factors such as ocean currents and wind. The traditional genetic algorithm cannot cope with the dynamic environment. This study has two research goals: How to maximize the number of garbage collections in a dynamic environment. To the needs of the situation, we expect the robot to return to the charging station to continue charging after collecting marine debris, so we need to find the Hamiltonian cycle, which is an NP-hard problem [30], so this research will predict the location of marine debris and use the genetic algorithm to be executed multiple times to gradually collect marine garbage in time-sharing.

3 Proposed path planning algorithm: U*

3.1 Environment modelling and problem description

Before explaining the U* algorithm, the environment’s information must be represented. Considering the Fig. 2, it is assumed that there is only one garbage cleaning robot in the environment, and a GPS receiver is installed on the robot, which can accurately locate its position. In addition, the lidar and camera are installed on the robot, and the image measurement approach (IMA) localization technology is used [22], which can detect the location of marine debris and obstacles within the effective detection range (DR) [4-8].

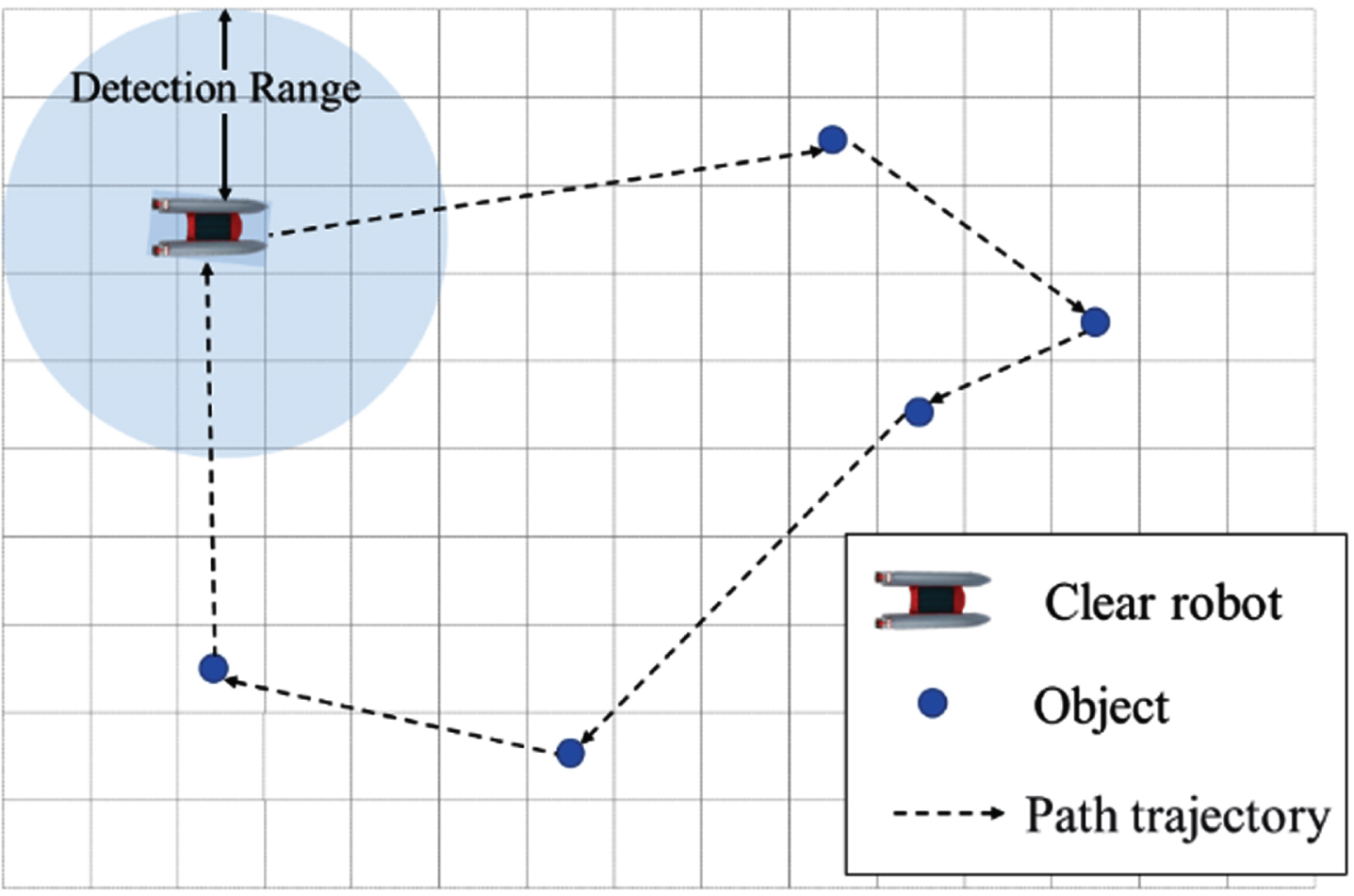

Fig. 2

An example of the garbage-cleaning mission.

Therefore, we assume the marine debris outside the detection range is invisible, and the marine debris needs to be within the detection range to be accurately detected. The robot is also equipped with ocean current sensors that can detect the speed and direction of the ocean current. In the process of the robot picking up marine debris, it is thought that the marine debris has been picked up when the distance between the robot and the marine debris is less than 0.1 meters.

The author stated in [12] that more than 80% of marine debris is at the water’s surface or one meter below the water’s surface. Therefore, this study takes the marine debris on the sea surface as the main object of removal. In this study’s case, we plan to set up a charging station so that the robot can come back to it after work to get charged. This problem can be modelled as a Hamiltonian cycle problem. The Hamiltonian cycle with the smallest path is the minimum cycle. The calculation of the Hamiltonian cycle is a NP-hard problem [30] and the situation is shown in Fig. 2.

For the robot to be able to traverse all the marine debris once, and only once, and return to the starting point. This problem can be transformed into the Hamiltonian cycle. Assuming that there are n marine debris in the environment, the marine debris can be expressed as {G₁, G₂, . . , G_n-1, G_n}. After the robot starts from the starting point V₀, each marine debris can be traversed once, and it finally returns to the starting point V₀ (Hamiltonian cycle). Therefore, the robot’s movement trajectory, S, can be expressed, as shown in Equation (1):

$S = {V_{0}, G_{1}, G_{2}, . ., G_{n - 1}, G_{n}, V_{0}} .$ (1) Whereas the total path length τ (S) can be written as Equation (2), where S (i) and S (j) are two points i and j in S:

$τ (S) = \sum_{i = 1}^{n + 1} \sum_{j = 1}^{n + 1} d (S (i), S (j)) x_{ij} .$ (2) Where Equation (2) is limited by Equation (3),

$\begin{matrix} \sum_{i = 1}^{n + 1} x_{ij} = 1, where j = 1, 2, . ., n + 1 \\ \sum_{j = 1}^{n + 1} x_{ij} = 1, where i = 1, 2, . ., n + 1 \\ x_{ij} = {0, 1}, where i, j = 1, 2, . ., n + 1 \end{matrix}$ (3) Finally, find out the shortest path z, which is the shortest path traversed by the robot, as shown in Equation (4):

$z = arg \min τ (S) .$ (4)

3.2 Exploration procedure of U*

In U* path planning, it is divided into two procedures: the exploration procedure and the path planning procedure. At the beginning of the task of collecting marine debris, the robot starts from the charging station (the starting point) and detects whether there is marine debris in Through lidar and cameras, this study uses the image measurement approach (IMA) [20] to obtain the location information of marine debris. The primary goal of the exploration procedure is to detect marine debris and record its location. Since the robot does not record any information about marine debris in its initial state, the location of marine debris is detected through the exploration procedure. The following three situations are discussed:

There is no marine debris within the detection range. The robot executes the U* exploration procedure. The robot generates a virtual target within the detection range according to the velocity and direction of the ocean current, moves towards the virtual target position, and then to detect marine debris.

There is marine debris in the detection range, and the number is less than threshold, k. Where the threshold k is the threshold of the number of marine debris, it determines whether the robot executes the U* path planning procedure. Recording the location information of the marine debris in the GT table and selecting the nearest marine debris as the moving target position. As shown in Table 3, the GT table records the ID, whether or not it has been salvaged (flag_Gi ={ 0, 1 }), and the location information (x_Gi, y_Gi) of marine debris G_i, which k can be adjusted based on demand and is set to 5 in this study. When the number of marine debris collected exceeds the threshold value k, the path planning procedure is started, and the traversal path of the robot is calculated through GA and prediction of the position of marine debris. The reason for setting k to 5 in this study is that when the value of k is too large, it affects the execution time of the genetic algorithm. Up to 10!, that is, up to 3,628,800 path trajectories. In contrast, if the number is too small, there is no need to use a genetic algorithm. Whereas 5! is about 120 kinds of path trajectories. As for the best value of k, there is no conclusion in the current study about the genetic algorithm.

There is marine debris in the detection range, and the number is more than or equal to threshold, k. The robot executes the U* path planning procedure. The path planning procedure is described in of Section 3.3. When the marine debris G_i is successfully collected, G_i is remarked and avoid being selected in the future. The Algorithm 1 is the pseudo-code of the exploration procedure of U*.

Table 3
An example of GT table in initial state of robot

ID Location flag _G1 ID Location flag _G2 ID Location flag _G3 …

1 (x₁, y₁) 0 2 (x₂, y₂) 0 3 (x₃, y₃) 0 …

ID	Location	flag _G1	ID	Location	flag _G2	ID	Location	flag _G3	…
1	(x₁, y₁)	0	2	(x₂, y₂)	0	3	(x₃, y₃)	0	…

Algorithm 1

The exploration procedure of U*

Input: area size, C_s, C_d, RP , T_desire, T_present
Output: GT table
1: Initialize GT table;
2: While the RP is enough to return to the starting point or T_present < T_desire
3: robot detects marine debris;
4: If not exist marine debris within the detection range
5: generates a virtual target and moves to the virtual target;
6: Else If exist marine debris and the number is less than k
7: records the location of the marine debris in the GT table;
8: selects and moves to the nearest target position;
9: Else
10: executes path planning procedure of U*;
11: End While

remaining power of robot: RP, desire task time: T_desire, present time: T_present, speed of the ocean current: C_s, direction of the ocean current: C_d

3.3 The Path Planning Procedure of U*

1) Predicting the location of marine debris

After the GT table is established, the GT table is converted into a distance matrix, $M \in ℝ^{n + 1 \times n + 1}$ , where M is defined as the Euclidean distance between any two-point pairs. The diagonal distances of the matrix M⁽⁰⁾ are all 0, as shown in Equations (5) and (6). In the initial state, we use GT⁽⁰⁾ and M⁽⁰⁾ to represent the location and distance information of the marine debris detected by the robot, respectively.

$M = M^{T}$ (5)

$Diag (M) = 0$ (6)

Figure 3 shows how to predict the possible position of marine debris and obtain GT⁽ⁱ⁾ and M⁽ⁱ⁾. Assuming that the robot is at the position of G_i, the next node to be traversed is G_j, and the distance $\bar{G_{i} G_{j}}$ from point G_i to all marine debris G_j can be obtained through the distance matrix M⁽ⁱ⁾. Next, through the movement speed R_v of the robot and the distance $\bar{G_{i} G_{j}}$ , the time t_i required by the point G_i to arrive at each marine debris G_j can be calculated, as shown in Equation (7). Then, the position G_j’ of marine debris G_j after time t_i can be calculated by Equations (8) and (9), where θ is the azimuth angle of the ocean current and the C_v is the velocity of the ocean current. Finally, according to the estimated position G_j’, calculate the distance from point G_i to marine debris G_j’. Similarly, the estimated distance from G_i to any point G_j’ can be calculated (GT⁽ⁱ⁾), and the distance matrix M⁽ⁱ⁾ of the predicted elapsed time t_i can be calculated by Equations (10) and (11), where is the position of marine garbage .

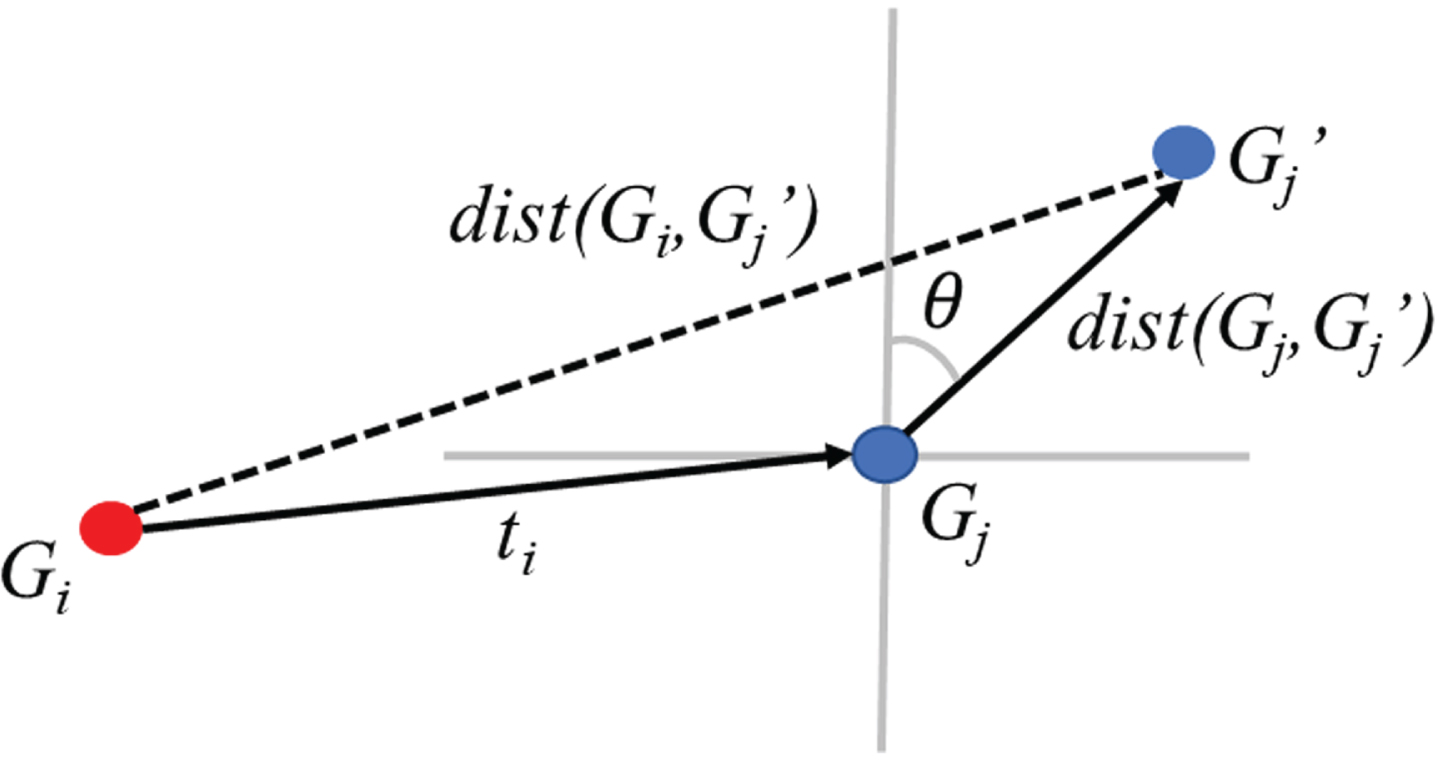

Fig. 3

An example of calculating the possible position of marine debris (G_j) after time t_i.

$t_{i} = \frac{dist (G_{i}, G_{j})}{R_{v}}$ (7)

$dist (G_{j}, {G_{j}}^{'}) = t_{i} \times C_{v}$ (8)

$p o s (G_{j}^{'}) = {\begin{matrix} x_{G j} + d i s t (G_{j}, G_{j}^{'}) \times c o s θ \\ y_{G j} + d i s t (G_{j}, G_{j}^{'}) \times s i n θ \end{matrix}$ (9)

$M^{(i)} (i, j) = dist (G_{i}, {G_{j}}^{'})$ (10)

$G T^{(i)} (i, j) = pos ({G_{j}}^{'})$ (11)

The U* algorithm proposed in this paper is used for path planning by an autonomous robot tasked with cleaning up ocean debris. The algorithm consists of two main parts: exploration and path planning. In the path planning stage, the algorithm first predicts the possible locations of ocean debris and calculates the GT table and distance matrix M based on the robot’s current location at time t = 0. Then, a genetic algorithm is applied to optimize the robot’s path planning by generating new individuals through crossover and mutation operations and selecting the fittest individuals for the next generation.

After figuring out the best way to plan a path, the robot moves along the path to pick up the trash. The algorithm also changes the GT table and the distance matrix M on a regular basis to keep up with changes in the environment. Specifically, at each time interval (t = 1, 2, 3, …, m), the algorithm redetects the debris and calculates the new GT table and distance matrix M using the predicted positions of the debris based on the previous GT table and the current oceanic conditions.

At each time interval t_d, the GT table GT^(t) shows the estimated distances between the robot and each piece of debris at that time. The distance matrix M^(t) shows the estimated time needed to move from one piece of debris to another, considering the current environment. At each time interval t_d, the genetic algorithm is run again to improve the robot’s path planning based on the new GT^(t) and M^(t). The robot then follows the new path, as shown in Fig. 4.

2) Population initialization

Fig. 4

An example of path planning procedure of U*.

After the GT table and the distance matrix M are determined, the population is initialized. The q individuals are randomly generated from the GT table. As shown in Fig. 5, since the robot needs to return to the origin, that is, the starting point and the end point of each group of populations are consistent. Equation (12) is the number of initialized populations.

Fig. 5

An example of population initialization.

There is n ! kinds of individuals from G₁ to G_n. However, if the number of individuals is large, the calculation is complicated, and the operational efficiency of the genetic algorithm is reduced. Therefore, in this study, we set the parameter p to 5.

$q = pn, where n \geq 5$ (12)

3) Calculate the fitness of each individual

To select suitable individuals for crossover and mutation operations, calculate the total length of the moving trajectory S ={ V₀, G₁, G₂, . . , G_n-1, G_n, V₀ }, and set the total path length as the fitness value f_i, as shown in Equation (13), where tdist (i) is the total path length of the i-th individual. The shorter the path length, the fitness value f_i is higher.

$f_{i} = \frac{1}{tdist (i)}$ (13) After the fitness of all individuals f_i is calculated, q new individuals are selected for crossover, and the selection method is adopted by the roulette wheel selection [17-19]. The higher the fitness, the higher the probability of being crossed. Individuals selected for crossover operations are shown in Equation (14).

$p_{i} = \frac{f_{i}}{\sum_{i = 1}^{q} f_{i}}$ (14)

4) Crossover and mutation

After calculating the fitness of the individual, crossover and mutation of the individual are performed to generate new offspring individuals. Intersect the two parents except that the end point is the same as the start point. Suppose there are two parent individuals with parent1 { $V_{0}^{1}$ , $G_{1}^{1}$ , $G_{2}^{1}$ ,.., $G_{n}^{1}$ , $V_{0}^{1}$ } and parent2 { $V_{0}^{2}$ , $G_{1}^{2}$ , $G_{2}^{2}$ ,.., $G_{n}^{2}$ , $V_{0}^{2}$ }, the generated children child1 { $V_{0}^{1}$ , $g_{1}^{1}$ , $g_{2}^{1}$ ,.., $g_{n}^{1}$ , $V_{0}^{1}$ } and child2 { $V_{0}^{2}$ , $g_{1}^{2}$ , $g_{2}^{2}$ ,.., $g_{n}^{2}$ , $V_{0}^{2}$ } obtained by Equation (15):

$\begin{matrix} g_{i}^{1} = {\begin{matrix} G_{i}^{1}, if β \geq 0.5 \\ G_{i}^{2}, otherwise \end{matrix} \\ g_{i}^{2} = {\begin{matrix} G_{i}^{1}, if β \leq 0.5 \\ G_{i}^{2}, otherwise \end{matrix} \end{matrix}$ (15) where γ is a customized parameter, and β is obtained through the calculation of Equation (16):

$β = {\begin{matrix} {(2 \times rand)}^{\frac{1}{(1 + γ)}}, if rand \leq 0.5 \\ {(\frac{1}{(2 - 2 \times rand)})}^{\frac{1}{(1 + γ)}}, otherwise . \end{matrix}$ (16) where 0 ≤ rand ≤ 1 and 0 ≤ γ.

From Equation (16), it can be found that when the γ is larger, the probability that the offspring selects the gene segment of the parent $G_{i}^{1}$ (node i in the parent path trajectory) is higher; conversely, when the γ is smaller, the probability that the offspring selects the gene segment (node i in the parent path trajectory) of generation $G_{i}^{2}$ is higher. In this study, γ was set to 4. However, it is inevitable that there may be duplications in the generated descendant node sequence. To solve the problem of node duplication, if the node that generates the child is duplicated with the node that has already been generated, the node is regenerated. The way to make a new node is to choose one of the remaining nodes to replace the duplicated one.

Since the starting point and end point of the generated offspring individuals are consistent, only the intermediate nodes are mutated, as shown in Fig. 6. In the mutation operation, given a probability ω, the initial value is 0.01. We randomly select one set of nodes (the i-th and j-th nodes) from the offspring individual e for mutation operations. As shown in Equation (17), the order of the two nodes is exchanged. Algorithm 2 is the pseudo-code of the genetic algorithm in the path planning procedure.

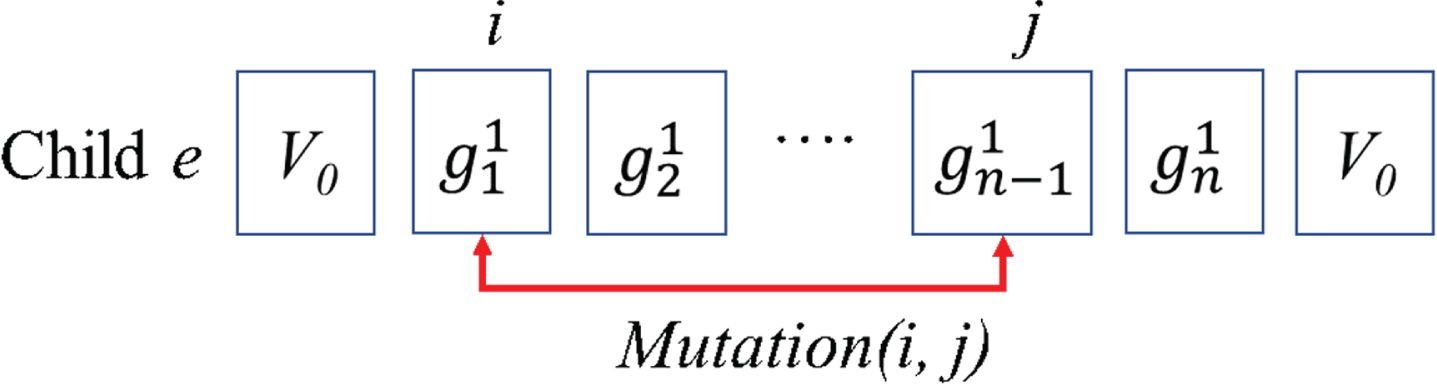

Fig. 6

Mutation operation.

$\begin{matrix} {\begin{matrix} i = (rand % n) + 1 \\ j = (rand % n) + 1 \end{matrix}, where i, j \geq 1, and i \neq j \\ mutation (g_{i}^{e}, g_{j}^{e}) \end{matrix}$ (17)

Algorithm 2

The path planning procedure of U*

Input: the GT table and distance matrix M
Output: the optimal travel sequence S
1: Initial(population P(t));
2: Evaluate(P(t));
3: Keep_Best(S);
4: While(the number of iterations has not been reached)
5: P(t)=Selection(P(t));
6: P(t)=Crossover(P(t));
7: P(t)=Mutation(P(t));
8: t+=1;
9: P(t)=P(t-1);
10: Evaluate(P(t));
11: If (P(t)>P(t-1))
12: Replace(P(t));
13: End if
14: End While

The robot salvages marine debris according to the movement trajectory S generated by the path planning procedure. We set up to redetect marine debris every time t_d. The robot recalibrates the GT table according to the detection data and recalculate the location information of each marine debris. Therefore, the higher the detection frequency, the accuracy of marine debris location prediction is higher, but the detection cost is also higher.

4 Results and discussion

4.1 Simulation configuration parameters

In this study, we used the operating system Windows 11 with 16 GB of DDR4-3000 memory. In terms of simulation development, we use the C/C++ language, MATLAB, and Gnuplot as auxiliary tools for drawing and complex calculations.

To verify the effectiveness of U*, this study compares the four path planning algorithms: the Random, Greedy, Improved GA [22], and SUMRF [24]. Random and Greedy methods have the advantage of being simple to implement. In the Random method, when the robot detects marine debris, it travels directly to the location of the marine debris for salvage. During the detection process, the ID and location information of the marine debris are recorded in the queue, and the detected marine debris is removed one by one in a “first come, first served” strategy. To reduce the robot’s time and power costs, another approach employs a greedy approach. Using information about the location of marine debris in the queue, the robot chooses the garbage closest to itself to salvage first.

We implemented three sets of experiments. Each set of experiments was conducted as follows: (A) changes the detection radius of the robot. (B) Changes the robot’s movement speed. (C) Changes the velocity of ocean current. The parameters of the experimental settings are listed in Table 4.

Table 4
Experimental parameter settings

Items Parameters

Area size 300 m × 300 m

Number of the robot 1

Movement speed of the robot, R_v 10 m/s

Total number of executions, et 100 times

Runtime for each experiment 3000 s

Detection radius, DR 10-150 m

detection frequency, T_d 1 s

Total number of marine debris 50

Direction of the ocean current, c_d 0-2π

Velocity of the ocean current, c_v 1-4.6 m/s

Threshold for execute the genetic

Algorithm (GA), k 5

k₁, k₂ π

k ₃ 2π

k₄, k₅ 1

λ 0.5

Items	Parameters
Area size	300 m × 300 m
Number of the robot	1
Movement speed of the robot, R_v	10 m/s
Total number of executions, et	100 times
Runtime for each experiment	3000 s
Detection radius, DR	10-150 m
detection frequency, T_d	1 s
Total number of marine debris	50
Direction of the ocean current, c_d	0-2π
Velocity of the ocean current, c_v	1-4.6 m/s
Threshold for execute the genetic
Algorithm (GA), k	5
k₁, k₂	π
k ₃	2π
k₄, k₅	1
λ	0.5

For realism in the simulation, marine debris movement is modeled using a kinematic model [31], which assumes a current field that is a combination of tidal and residual currents. One can make an approximation to estimate the dimensionless velocity field in the kinematic model. where Vx is the speed on the X-axis, Vy is the speed on the Y-axis, and k₁, k₂, k₃, and λ are variables that are closely related to environmental factors, such as tides and bathymetry. The kinematic model parameters of this study are shown in Table 4.

$\begin{matrix} Vx & = k_{1} λ c_{v} \sin (k_{2} x) \cos (k_{3} y) \\ + k_{1} λ \cos (2 k_{1} t) + k_{4} \end{matrix}$ (18)

$Vy = - λ c_{v} \cos (k_{2} x) \sin (k_{3} y) + k_{5}$ (19) Equation (20) defines the average path length, where et is the total number of runs. If between node i and node j exists a path, then x_ij=1, otherwise x_ij=0.

$\begin{matrix} Av g_{length} = & (\sum_{m = 1}^{et} \sum_{i = 1}^{n + 1} \sum_{j = 1}^{n + 1} d (S (i), S (j)) x_{ij}) \\ \times \frac{1}{et}, \end{matrix}$ (20) where x_ij ={ 0, 1 }

The Equation (21) defines the average number of marine debris collected, Avg_num, where N_G,m represents the number of marine debris collected in the m-th experiment. In addition, when the distance between the robot and the marine debris is less than 1 m, it is assumed that the marine debris can be successfully collected, where et is the total number of runs.

${Avg}_{num} = \frac{\sum_{m = 1}^{et} N_{G, m}}{et}$ (21)

4.2 Influence of detection radius

This set of experiments compared the effects of the five methods on the total path length of the robot and the collection efficiency of marine debris when the detection radius was changed. The robot starts in the upper left corner of the area, the detection radius is set to grow from 10 meters to 150 meters, the robot’s speed is set to 10 m/s, the ocean current velocity is 1.2 m/s, and each experiment takes 3000 seconds to run.

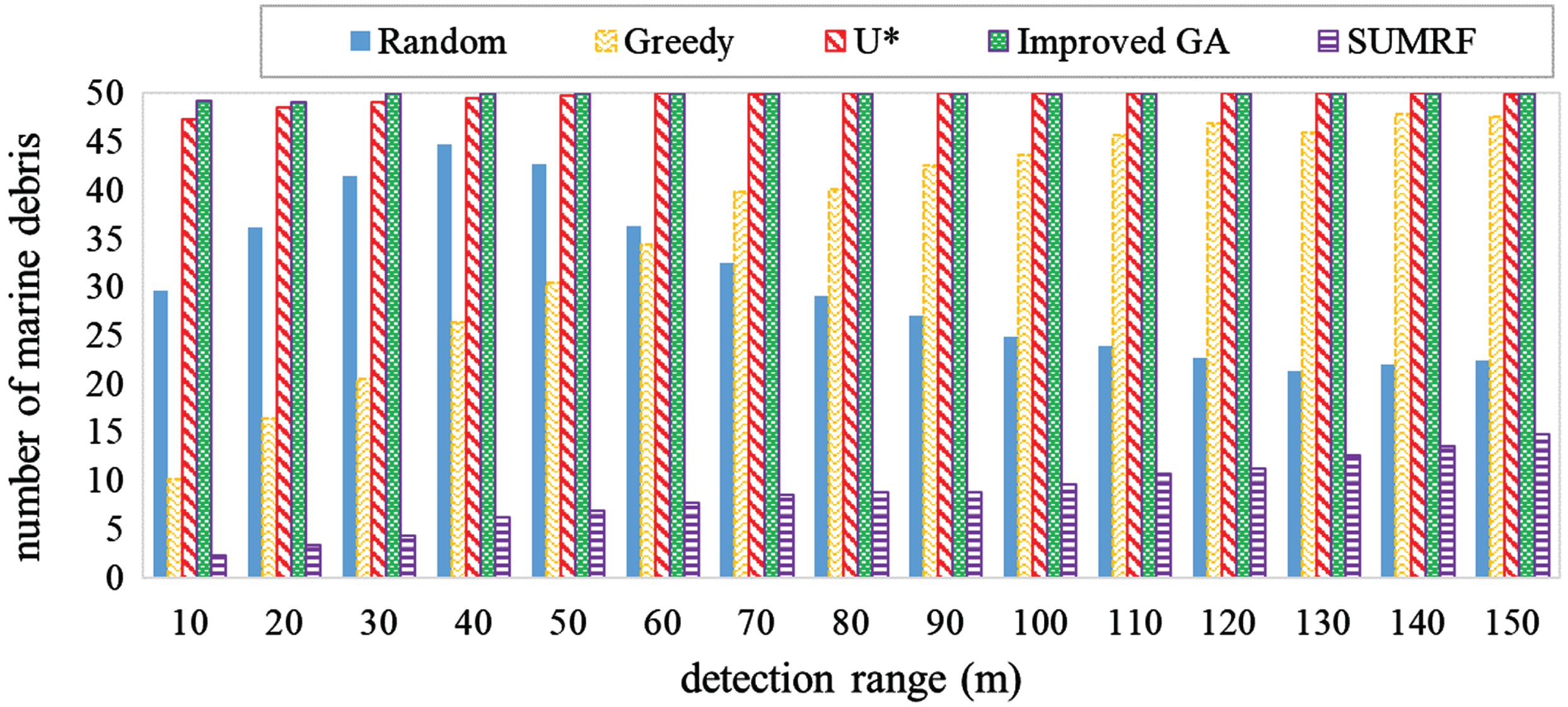

Table 5 and Fig. 7 show the results of the average path length and amount of marine debris collected at different detection radius. In terms of average path length, when the detection radius is small, the difference between the Random and the Greedy methods are not significant due to the smaller amount of marine debris detected. In SUMRF, the influence of the detection radius is small; even if no marine debris is detected, the entire area will be traversed. Therefore, the detection radius size won’t have an impact on SUMRF. To achieve full coverage of SUMRF, the path length will only increase as the area size increases.

Table 5
Influence of detection radius in term of average path length

Algorithm∖DR 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150

U* 4155.5 3991.1 3955.5 3488.9 3256.4 2877.3 2747.2 2464 2404.6 2689.8 2669.5 2848.4 2801.6 2808.1 2883.8

Improved GA 3948 4192.6 3686.2 4436.3 3297.8 2923.5 2765.6 2883.2 2850.8 2877.2 3095 3192 3257.8 3324.4 3419.3

Random 8694.8 8776.9 8810 8600.5 8769.6 8761.4 8767.7 8750.8 8689.2 8684.8 8630.5 8587.8 8631 8611.7 8578.6

Greedy 8774.3 8772.5 8782.7 8779 8765.8 8746.2 8685.5 8492.7 8396.6 8222.3 8201.8 7880.3 7720.7 7535.1 7664.5

SUMRF 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000

Algorithm∖DR	10	20	30	40	50	60	70	80	90	100	110	120	130	140	150
U*	4155.5	3991.1	3955.5	3488.9	3256.4	2877.3	2747.2	2464	2404.6	2689.8	2669.5	2848.4	2801.6	2808.1	2883.8
Improved GA	3948	4192.6	3686.2	4436.3	3297.8	2923.5	2765.6	2883.2	2850.8	2877.2	3095	3192	3257.8	3324.4	3419.3
Random	8694.8	8776.9	8810	8600.5	8769.6	8761.4	8767.7	8750.8	8689.2	8684.8	8630.5	8587.8	8631	8611.7	8578.6
Greedy	8774.3	8772.5	8782.7	8779	8765.8	8746.2	8685.5	8492.7	8396.6	8222.3	8201.8	7880.3	7720.7	7535.1	7664.5
SUMRF	30000	30000	30000	30000	30000	30000	30000	30000	30000	30000	30000	30000	30000	30000	30000

DR: detection range (m).

As the detection radius increases, the amount of marine debris detected by the robot gradually increases. Since the Random method does not consider the path cost, many redundant paths will be generated, while the Greedy method only considers the local optimal situation and only selects the shortest distance from the robot to the marine debris collection site, so it is only superior to the Random method. When the detection radius exceeds 60 meters, U* outperforms Improved GA in path length. As the detection radius increases, U* presents a downward and stable trend.

From the perspective of marine debris collection efficiency, the larger the detection radius, the better the efficiency of marine debris collection. Since SUMRF is a static path planning algorithm, it cannot traverse the entire area in a limited time, so the performance is the worst. The Random method does not consider the path cost factor, showing an unstable trend; that is, the first detected marine debris is collected first. The Greedy method only traverses the optimal area, which is slightly better than the Random method. Similar to Improved GA, U* is close to 100% when the detection radius reaches 40 m, as shown in Fig. 7.

Fig. 7

Influence of detection radius in term of average number of marine debris collected.

4.2 Influence of robot’s movement speed

The set of experiments compares the effects of the five methods on the total path length of the robot and the efficiency of marine debris collection when the robot’s speed changes. 50 pieces of marine debris are randomly generated, the robot starts from the upper left corner of the area, the detection radius is set to 50 meters, the movement speed of the robot is increased from 2 m/s to 10 m/s, and the execution time of each experiment is 3000 seconds.

Table 6 and Fig. 8 show the results of the average path length and amount of marine debris collected by the robot at different moving speeds. From Table 6, we can see that the Random and Greedy methods are similar. SUMRF is a static path planning method. The faster the robot moves, the longer the average path length is, showing regular incremental results. It can be seen that when the robot speed increases, both U* and the average path length of the improved genetic algorithm show an upward trend. The average path lengths of the Random method and the Greedy method are not much different.

Table 6
Influence of robot’s movement speed in term of average path length

algorithm∖MS 2 3 4 5 6 7 8 9 10

U* 2177.5 2265.9 2357.4 2458.1 2525.2 2500.5 2544 2667.5 2589.6

Improved GA 2349.4 2544.2 2497.7 2608.1 2351.2 2572.8 2706.5 2830.6 2828.9

Random 8694.8 8776.9 8810 8600.5 8769.6 8761.4 8767.7 8750.8 8689.2

Greedy 8774.3 8772.5 8782.7 8779 8765.8 8746.2 8685.5 8492.7 8396.6

SUMRF 6000 9000 12000 15000 18000 21000 24000 27000 30000

algorithm∖MS	2	3	4	5	6	7	8	9	10
U*	2177.5	2265.9	2357.4	2458.1	2525.2	2500.5	2544	2667.5	2589.6
Improved GA	2349.4	2544.2	2497.7	2608.1	2351.2	2572.8	2706.5	2830.6	2828.9
Random	8694.8	8776.9	8810	8600.5	8769.6	8761.4	8767.7	8750.8	8689.2
Greedy	8774.3	8772.5	8782.7	8779	8765.8	8746.2	8685.5	8492.7	8396.6
SUMRF	6000	9000	12000	15000	18000	21000	24000	27000	30000

MS: robot’s movement speed (m/s).

In Fig. 8, U* and the improved GA both achieve approximately 100% in terms of the amount of collected marine debris. SUMRF is a predetermined static path trajectory with a time limit, so it performs more uniformly in garbage collection. However, the Random method does not consider the path cost, and marine debris is also found first, which leads to the worst efficiency in salvaging marine debris. In U*, when the amount of marine debris exceeds the threshold k > 5, the genetic algorithm starts to run. Because the genetic algorithm considers the global location of marine debris, it collects more marine debris than the Random, Greedy, and SUMRF algorithms.

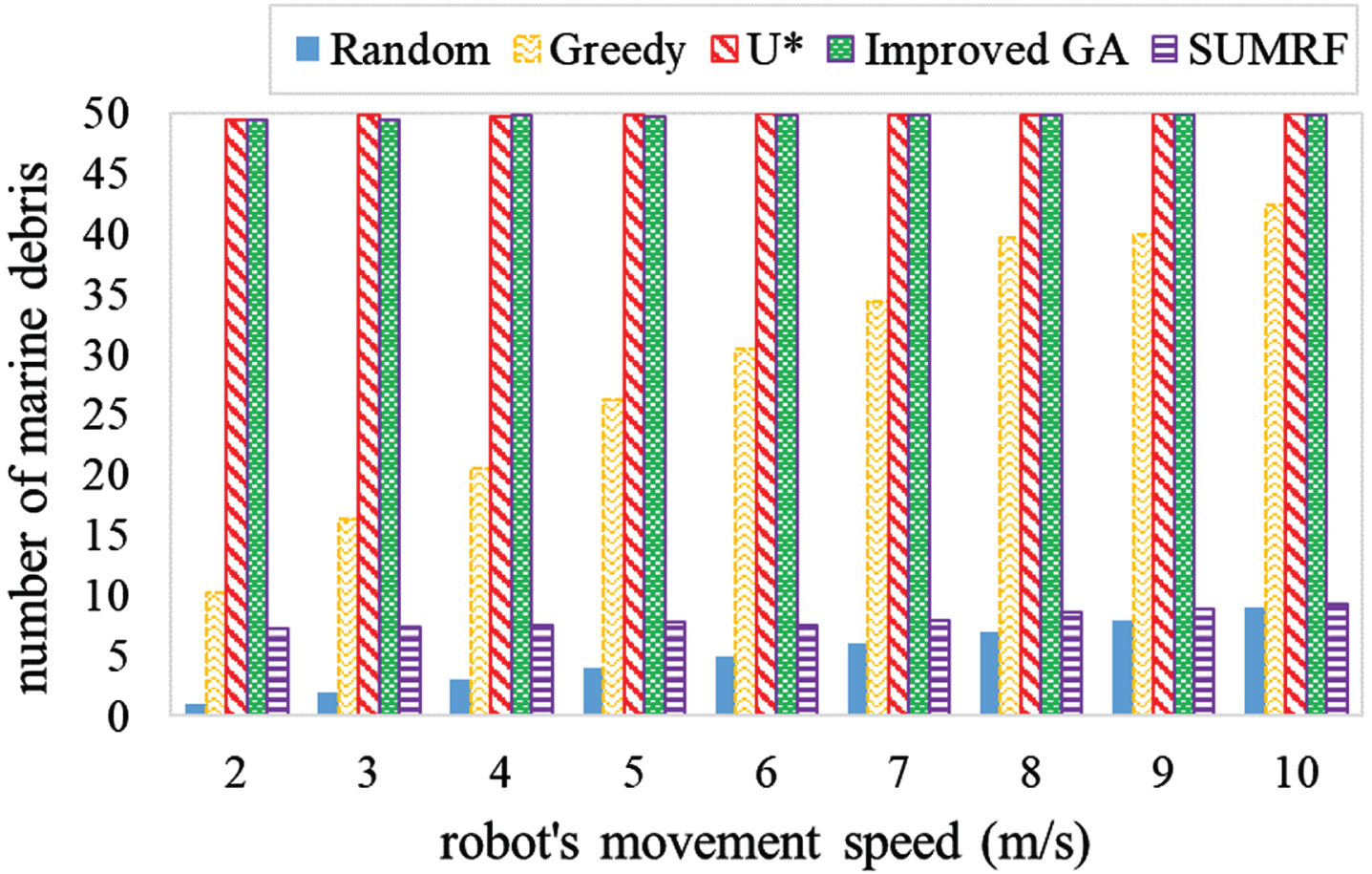

Fig. 8

Influence of robot’s movement speed in term of average number of marine debris collected.

4.4 Influence of ocean velocity

This set of experiments compares the efficiency of marine debris collection when the velocity of ocean changes. Randomly generate 50 marine debris, the robot starts from the upper left corner of the area, the detection radius is set to 90 meters, the detection frequency is 1 time every ten seconds, the movement speed of the robot is set to 10 m/s, and the ocean velocity is incremented from 1 m/s to 4.6 m/s, each experiment executes for 3000 seconds.

Table 7, and Fig. 9 show the results of the mean path length versus the amount of collected marine debris for different ocean current velocities. In Table 7, when the ocean current velocity increases, the location of marine debris changes rapidly. Since the size of the area is 300 m×300 m, the rapid flow velocity leads to the tendency of marine debris to gather, and it is easier to salvage multiple pieces of garbage at one time. As a result, the average path length tends to decrease. The path length is unaffected by the ocean current velocity because SUMRF is a fixed, static path planning algorithm. The average path lengths of U* and Improved GA are similar, and both show a downward trend. The Random method does not consider the path cost and is relatively unstable. Greedy showed a downward trend when the velocity reached 3.4 m/s.

Table 7
Influence of ocean velocity in term of aver-age path length

Algorithm∖OV 1 1.4 1.8 2.2 2.6 3 3.4 3.8 4.2 4.6

U* 2589.9 2559 2442.8 2434 2335.5 2281.1 2302.8 2248.9 2163.5 2199.3

Improved GA 2753.2 2692.9 2601.1 2633.4 2548.6 2660.1 2415.3 2457.9 2392 2348.3

Random 2959.7 2951.7 2951.4 2730.4 2407.5 2183.1 2003.7 1860.8 1728.8 1636.5

Greedy 8774.3 8772.5 8782.7 8779 8765.8 8746.2 8685.5 8492.7 8396.6 8222.3

SUMRF 30000 30000 30000 30000 30000 30000 30000 30000 30000 30000

Algorithm∖OV	1	1.4	1.8	2.2	2.6	3	3.4	3.8	4.2	4.6
U*	2589.9	2559	2442.8	2434	2335.5	2281.1	2302.8	2248.9	2163.5	2199.3
Improved GA	2753.2	2692.9	2601.1	2633.4	2548.6	2660.1	2415.3	2457.9	2392	2348.3
Random	2959.7	2951.7	2951.4	2730.4	2407.5	2183.1	2003.7	1860.8	1728.8	1636.5
Greedy	8774.3	8772.5	8782.7	8779	8765.8	8746.2	8685.5	8492.7	8396.6	8222.3
SUMRF	30000	30000	30000	30000	30000	30000	30000	30000	30000	30000

OV: ocean velocity (m/s).

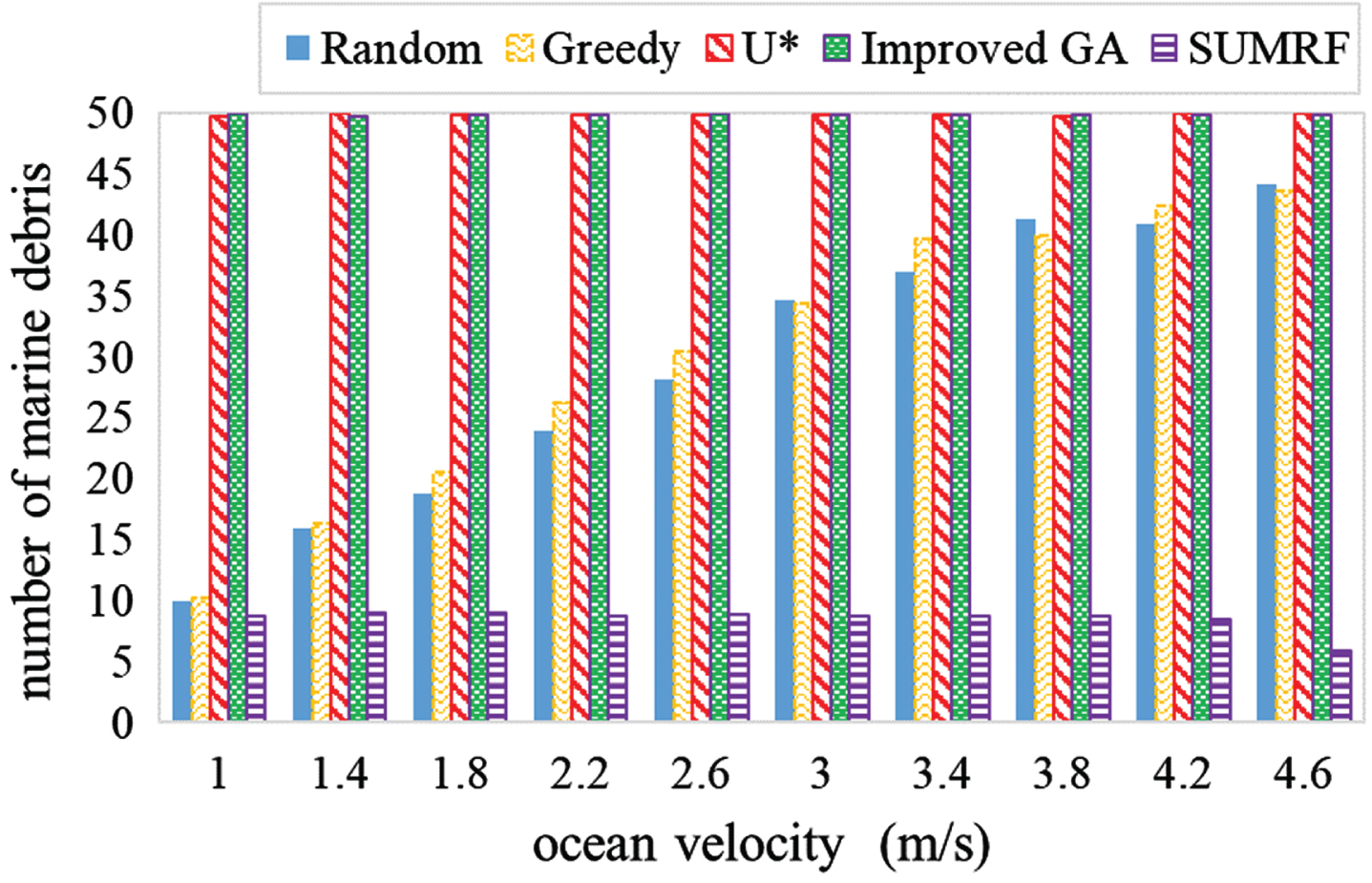

Fig. 9

Influence of ocean velocity in term of average number of marine debris collected.

In Fig. 9, as the ocean current speed increases, the amount of marine debris collected by U* and Improved GA can reach 100%, while SUMRF is the worst because the robot only traverses a specific path and cannot collect it within a limited time (3000 seconds). traverse the entire area.

5 Conclusions

Marine debris is a serious global problem. Its scope of influence is not limited to areas where humans live but also drifts around the world with wind or currents. More than 10 million tons of plastic waste flow into the ocean every year, posing a major threat to the marine ecosystem and humans. This study proposes a path planning applied to the surface garbage cleaning robot, called U*. U* is mainly divided into two procedures: exploration and path planning. U* predicts the location of marine debris based on the velocity and direction of the ocean current. Then, the optimal path is found through the genetic algorithm (GA), thereby shortening the path trajectory of the robot, improving the collection efficiency of marine debris, and saving time and power costs. In the future, we will consider using long short-term memory (LSTM) technology to improve the ability to predict the location of marine debris and further improve the accuracy of marine debris collection.

Footnotes

Acknowledgments

This work was supported by the Putian City Science and Technology Project, China (Grant No. 2022GZ2001ptxy14), and the Science Foundation of the Fujian Province Project, China (Grant No. 2020J01924, Grant No. 2023J011015), and Ying Lin was supported by the Putian University Students’ Innovation and Entrepreneurship Training Project (202111498015).

References

Shirakura

, Kiyokawa

, Kumamoto

, Takamatsu

, Ogasawara

Semi-automatic Collection of Marine Debris by CollaboratingUAVandUUV, Proceedings of IEEE International Conference on Robotic Computing (IRC), 2020, 412–413.

Clear Blue Sea, FRED (Floating robot for Eliminating Debris), https://www.clearbluesea.org/meet-fred/, Accessed on: 2022. 05. 03

Urban Rivers, Trashbot, https://www.urbanriv.org/trashbot, Accessed on: 2022. 04. 15

Hasany

S.N.

, Zaidi

S.S.

, Sohail

S.A.

, Farhan

An autonomous robotic system for collecting garbage over small water bodies, Proceedings of International Conference on Automation, Control and Robotics Engineering (CACRE), 2021, 81–86.

Wang

, Zhao

, Wo

, Zhang

, Wang

A Multi-sensor Intelligent Surface Garbage-cleaning Robot, Proceedings of IEEE International Conference on Mechatronics and Automation, 2021, 797–801.

Rincon-Suarez

et al. Design and Construction of an Autonomous Cleaner Robot, for an aquatic environment, Proceedings of Fourth Congress of Electronics, Robotics and Automotive Mechanics, NAFOSTED Conference on Information and Computer Science (NICS), 2018, 482–487.

Ahsan

M.S.

, Mobarak

, Chy

K.N.

Design and Construction of a Radio Controlled Floating Waste Collector Robot, Proceedings of International Conference on Electrical and Computer Engineering (ICECE), 2020, 105–108.

Turesinin

, Kabir

A.M.H.

, Mollah

Aquatic Iguana: A Floating Waste Collecting Robot with IoT Based Water Monitoring System, Proceedings of International Conference on Electrical Engineering, Computer Sciences and Informatics (EECSI), 2020, 21–25.

Panyavaraporn

et al. Dual Mode Controlled Water Surface Garbage Collecting Robot by using Embedded Deep Learning, Proceedings of International Conference on Electrical Engineering/Electronics, Computer, Telecommunications and Information Technology (ECTI-CON), 2021, 14–17.

10.

Bai

, Yang

, Wu

, Chen

, Pan

, Deng

Expansible Surface Waste Cleaning Robot, Proceedings of International Conference on Computer and Communication Systems (ICCCS), 2020, 378–383.

11.

Kong

, Tian

, Qiu

, Wu

and Yu

, IWSCR: An Intelligent Water Surface Cleaner Robot for Collecting Floating Garbage, IEEE Transactions on Systems, Man, and Cybernetics: Systems 51(10) (2020).

12.

Azure Fighter, https://azurealliance.org/azure-fighter/, Accessed on: 2022. 05. 03

13.

WasteShark, https://www.wevolver.com/wevolver.staff/wasteshark, Accessed on: 2022. 05. 01

14.

Mr.Trash Wheel, https://www.mrtrashwheel.com/, Accessed on: 2022. 05. 03 655

15.

Seabin project, https://seabinproject.com/, Accessed on: 2022. 05. 03

16.

TOC, https://theoceancleanup.com/, Accessed on: 2022. 05. 03

17.

, Wang

, Yan

, Hu

Improved genetic algorithm based on K-Means to solve path planning problem, Proceedings of International Conference on Information Science, Parallel and Distributed Systems (ISPDS), 2020, 283–286.

18.

Wen

, Yang

and Wang

, Path Planning for Autonomous Underwater Vehicles Under the Influence of Ocean Currents Based on a Fusion Heuristic Algorithm, IEEE Transactions on Vehicular Technology 70(9) (2021), 8529–8544.

19.

Cheng

K.P.

, Mohan

R.E.

, Nhan

N.H.K.

and Le

A.V.

, Multi-Objective Genetic Algorithm-Based Autonomous Path Planning for Hinged-Tetro Reconfigurable Tiling Robot, IEEE Access Journal 8 (2020), 121267–121284.

20.

Tsai

R.-G.

, Tsai

Y.-Y.

and Tsai

P.-H.

, Automation Tool for Home Fire Safety Check, IEEE Sensors Letters 5(12) (2021), 1–4.

21.

Xin

, Zhong

, Yang

, Cui

and Sheng

, An Improved Genetic Algorithm for Path-Planning of Un-manned Surface Vehicle, Sensors Journal 19(11) (2019), 2640.

22.

Tao

, Yan

et al. AUV path planning based on improved genetic algorithm, Proceedings of IEEE International Conference on Automation, Control and Robotics Engineering (CACRE), 2020, 195–199.

23.

Bresciani

, Ruscio

, Tani

et al. Path Planning for Underwater Information Gathering Based on Genetic Algorithms and Data Stochastic Models, Journal of Marine Science and Engineering 9(11) (2021), 1183.

24.

Zhu

, Yang

and Cheng

, SMURF: A Fully Autonomous Water Surface Cleaning Robot with A Novel Coverage Path Planning Method, Journal of Marine Science and Engineering 10(11) (2022), 1620.

25.

P.F.

, Ding

Y.X.

and Luo

J.C.

, Complete Coverage Path Planning of an Unmanned Surface Vehicle Based on a Complete Coverage Neural Network Algorithm, Journal of Marine Science and Engineering 9(11) (2021), 1163.

26.

Kyaw

P.T.

, Paing

, Thu

T.T.

et al. Coverage path planning for decomposition reconfigurable grid-maps using deep reinforcement learning based travelling salesman problem, , IEEE Access 8 (2020), 225945–225956.

27.

Wang

, Er

M.J.

, Gong

An Improved A* Path Planning Algorithm of Autonomous Underwater Vehicles, Proceedings of IEEE International Conference on Intelligent Autonomous Systems (ICoIAS), 2022, 186–190.

28.

, Wang

, Qin

et al. A distributed coordinated path planning algorithm for maritime autonomous surface ship, , Ocean Engineering 271 (2023), 113759.

29.

Annamalai

, Vigneshwar

, Subashini

Grid Traversal Path Planning for Robot Foraging, Proceedings of IEEE International Conference on Advances in Computing, Communication Control and Networking (ICACCCN), 2020, 940–945.

30.

Arora , Lund

, Motwani

, Sudan

and Szegedy

, Proof verification and the hardness of approximation problems, Journal of the ACM 45(3) (1998), 501–555.

31.

Beerens

S.P.

, Ridderinkhof

and Zimmerman

J.T.F.

, An analytical study of chaotic stirring in tidal areas, Chaos, Solitons & Fractals 4(6) (1994), 1011–1029.

U*: GA-based path planning algorithm for surface floating garbage cleaning robot

Abstract

Keywords

1 Introduction

2.1 The solutions for clearing the underwater garbage

3.1 Environment modelling and problem description

Table 3 An example of GT table in initial state of robot ID Location flag G1 ID Location flag G2 ID Location flag G3 … 1 (x1, y1) 0 2 (x2, y2) 0 3 (x3, y3) 0 …

4.1 Simulation configuration parameters

Footnotes

Acknowledgments

References

Table 3
An example of GT table in initial state of robot

ID Location flag _G1 ID Location flag _G2 ID Location flag _G3 …

1 (x₁, y₁) 0 2 (x₂, y₂) 0 3 (x₃, y₃) 0 …
