A network security situation prediction approach based on MAML and BiGRU

2.1 Literal review

Network Security Situation Prediction technology differs from traditional prediction technology in that it can be considered a relatively proactive defense system [4]. By predicting the next stage of the network security situation to develop complementary strategies to defend against network attacks, the status quo of traditional security defense tools can be completely changed from passive defense to active defense, greatly upgrade defense with high success rate. As for network security situation prediction, it will no longer be partial to a corner but from a more macro perspective to calculate and evaluate. Analyzing the target network provides analysts with more macro and intuitive data to show the target network’s security. Standard prediction methods include time series prediction methods [5], gray theory prediction, regression analysis, etc. However, the reality is that changing network security situation is a complex process because network attacks are often full of randomness and chance. When dealing with a nonlinear relationship, the above methods need to be revised and have gradually failed to meet the needs of network security situation prediction. Prediction methods as well as models on the basis of theories like Neural Networks, Markov chain [6], Support Vector Machine (SVM) [7, 8] have been discovered by various scholars one after another. Among them, Neural Networks is widely used for the prediction, belonging to artificial intelligence and can be processed in parallel while possessing excellent function fitting and self-learning capabilities. It has a high fault tolerance, providing solid data analysis and processingsupport.

2.2 Background work

2.2.1 Meta learning

Meta Learning is a concept initially introduced by Schmiduber in the 1990’s [9]. Distinguished from machine learning, in which the data itself is the unit, meta-learning uses the task as the basic unit, with target to improving learning algorithm via multi-task learningfor quick adaptation to new task. Each task T has a task-related dataset D _T containing a query set D _Q and a support set D _S . Meta learning has a meta training phase and a meta testing phase. During meta training, model is trained by sampling numerous tasks, namely, Source Task, and during meta testing,model performance is evaluated using Target Task.

The Model-Agnostic Meta-Learning (MAML) algorithm is a perfect meta learning algorithm put forward by Finn et al. in 2017 for trained model using Gradient Descent [10]. The MAML algorithm is widely used to train a streamlined model that uses countable training samples for solving multi-task learning. Algorithm focuses on tuning the original model parameters by training countable tasks and continuously iterating gradient descent to show better generalization performance on new tasks. Its training process is shown in Fig. 2. In addition, the MAML algorithm is a fundamental framework for innumberable meta learning algorithms, with its application into numerous aspects for addressing challenges like data bottlenecks as well as generalization in deep learning. Liu et al. [11] applied meta learning for predicting stock prices and improved stock prediction accuracy by introducing the MAML algorithm for mitigating concept drift influence on predicting and providing precious guide to investor for reducing investing risks. Nie et al. [12] introduced meta-learning to cope with the problem of lack of interoperability and scalability of existing methods and models in the field of human activity recognition when activities and human bodies newly engaged in activities and statuses newly arise for rapidly adapting to human activity recognition in new statuses. Su et al. [13] applied meta-learning to a bearing failure diagnosis with countable samples in diverse operating environment by proposing a data reconstruction hierarchical recursive meta learning method to rapidly adapt to human activity recognition when fault samples are lacking. The fault diagnosis task achieved good results. Through these studies, we treat network security situation prediction as meta learning issue, with MAML algorithm application into network security situaiton prediction to improve model’s prediction performance.

OPEN IN VIEWER

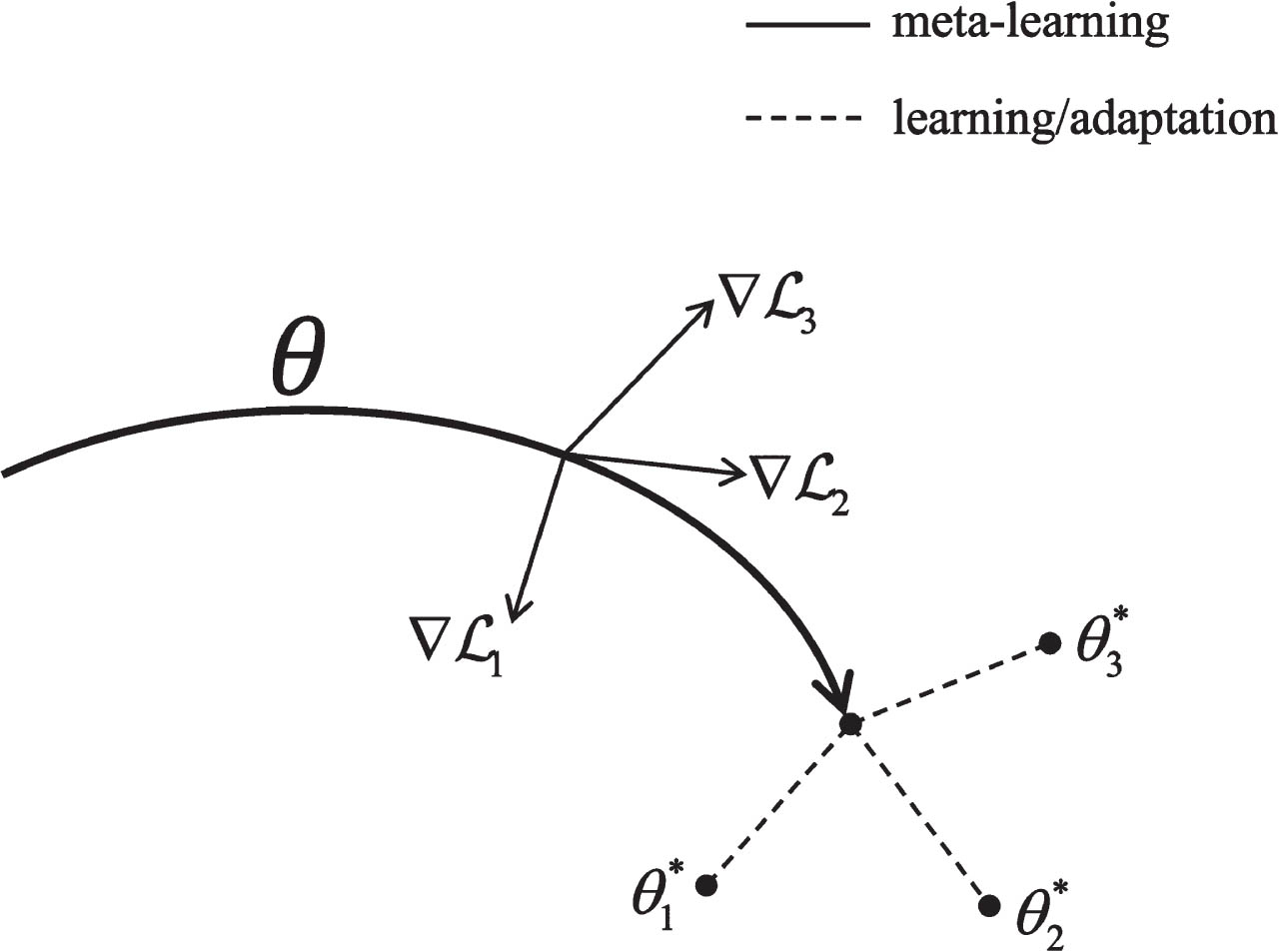

Fig. 2

MAML training process.

2.2.2 Gated recurrent unit

Gated recurrent unit (GRU) introduces the reset gate r _t and updates gate z _t concept, which modifies the calculation of hidden states h ˜ t in recurrent neural networks [14], with inner structure detailed as Fig. 3.

OPEN IN VIEWER

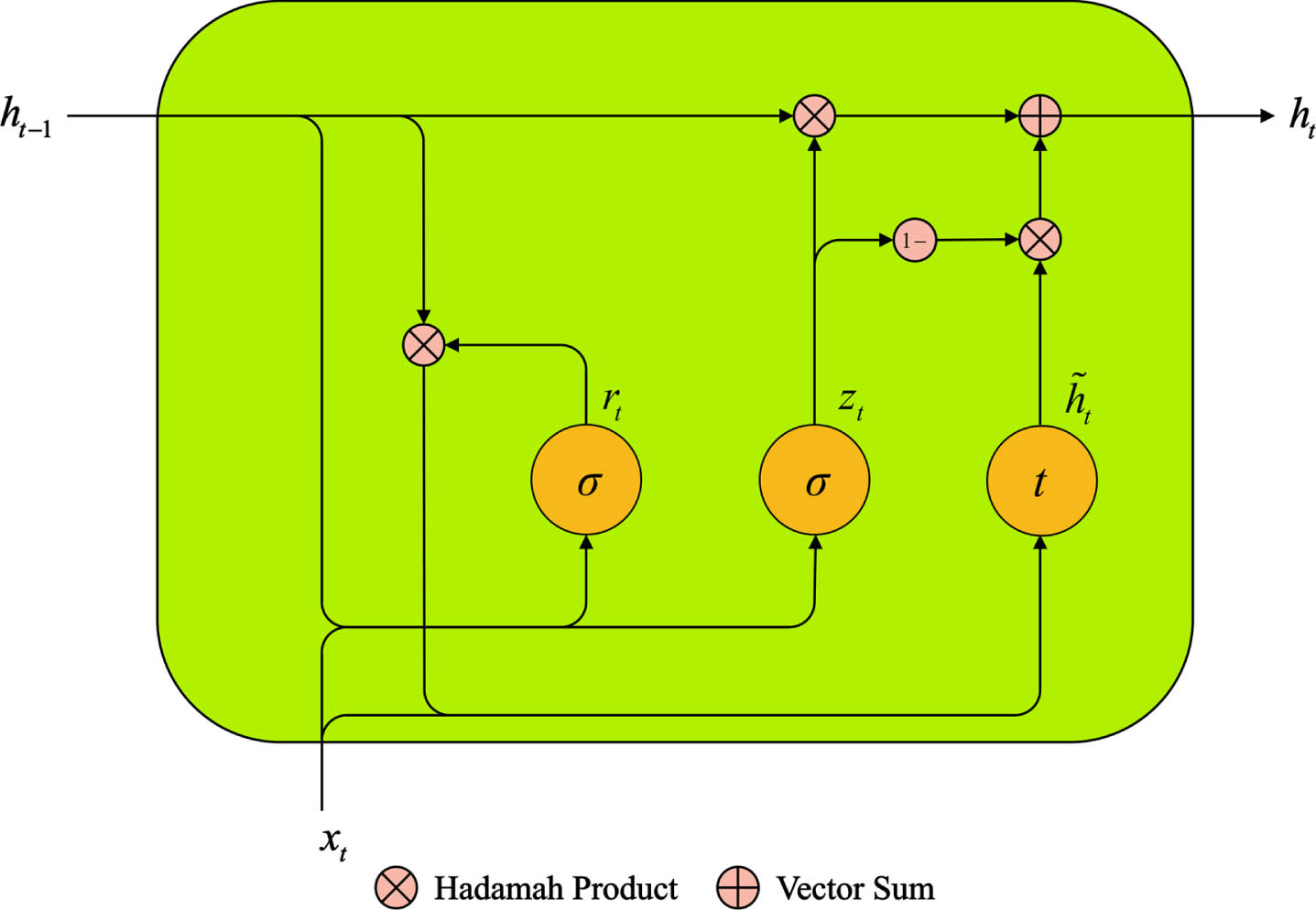

Fig. 3

Basic structure of GRU.

Where x _t denotes input information of current moment, h_t-1 and h _t hidden state of previous and current moment separately. σ denotes sigmoid activation function. t denotes tanh activation function.

GRU network is calculated as follows: r t = σ ( W r · [ h t - 1 , x t ] + b r )(1) z t = σ ( W z · [ h t - 1 , x t ] + b z )(2) h ˜ t = tanh ( W h ˜ · [ r t · h t - 1 , x t ] + b h ˜ )(3) h t = ( 1 - z t ) · h t - 1 + z t · h ˜ t(4) y t = σ ( W o · h t + b o )(5)

Where W and b represent weight matrix and bias term, respectively.

The comparison of related work with the present study is as Table 1.

Our proposed MAML-BiGRU model combines the strengths of meta-learning and deep learning to address the challenges of small sample learning and rapid adaptation to new tasks in network security situation prediction. Compared to traditional machine learning methods (Study A), our model eliminates the need for extensive manual feature engineering, instead learning useful representations directly from raw data. In contrast to pure deep learning approaches (Study B), our model significantly improves generalization performance on new datasets through the MAML algorithm, even when the number of samples is limited. Additionally, our BiGRU architecture effectively captures the dynamics of time-series data, which is crucial for real-time security situation prediction.

3.1 Network security incidents

Network security incidents refer to any unauthorized actions or occurrences that potentially compromise the security, integrity, or availability of network systems. These incidents may include, but are not limited to, virus attacks, network intrusions, data breaches, and denial-of-service attacks (DoS/DDoS). To effectively predict and respond to these incidents, it is crucial to define and document them accurately.

Network security incidents can be categorized based on their nature, scope, and severity. For instance, events can be classified as low, medium, or high risk based on their potential impact. Additionally, incidents can be further based on their origin (such as internal or external threats) and attack type (such as malware or social engineering).

3.2 Network security situation prediction

Situation prediction was first proposed by Endsley in 1988 as part of situation awareness. Situation awareness is defined as “cognition, understanding of environmental factors in a certain spatial and temporal context, and prediction of future trends.” It can be summarized in a classical three-layer model: situation perception, comprehension, and prediction in Fig. 4.

OPEN IN VIEWER

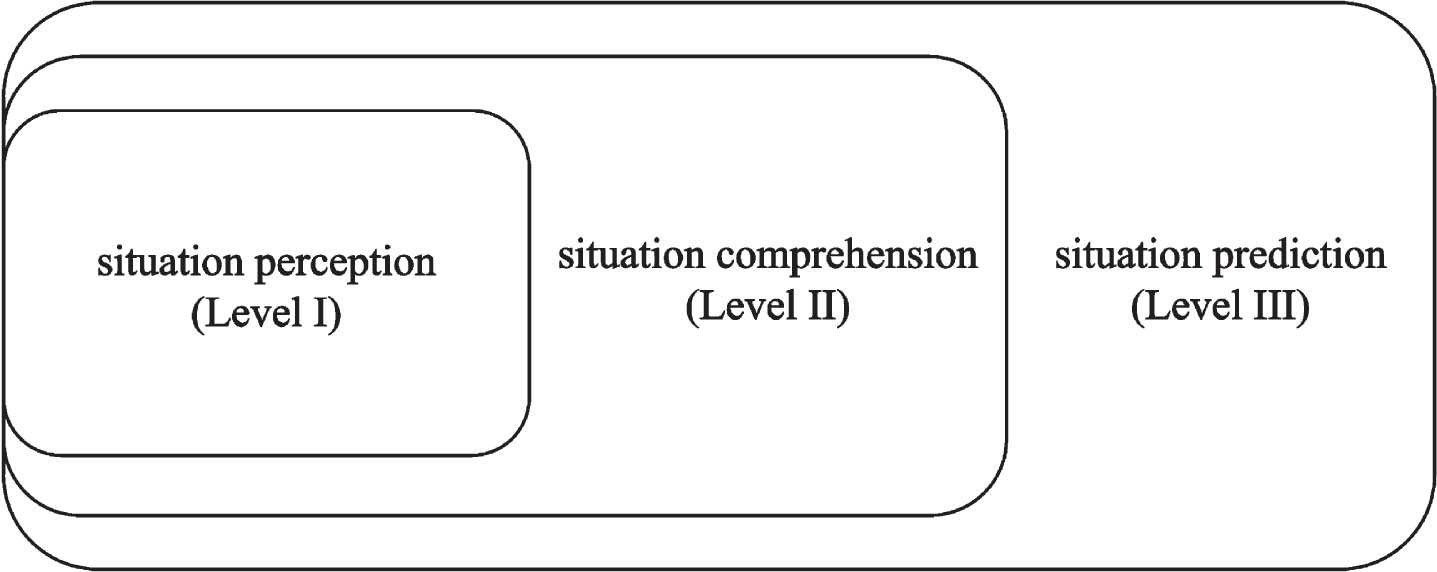

Fig. 4

Network security situation awareness model diagram.

In 1999, Bass [15] put forward “network situation awareness”, which first applied situation awareness to the field of cyberspace, and revealed “the next-generation intrusion detection system shall conduct data fusion from countless heterogeneous distributed network sensors for situational awareness in cyberspace,” and proposed a functional model of network security situation awareness on the basis of Multi-sensor Data Fusion concerning the data-fusion model based on the U.S. military structure, as shown in Fig. 5.

OPEN IN VIEWER

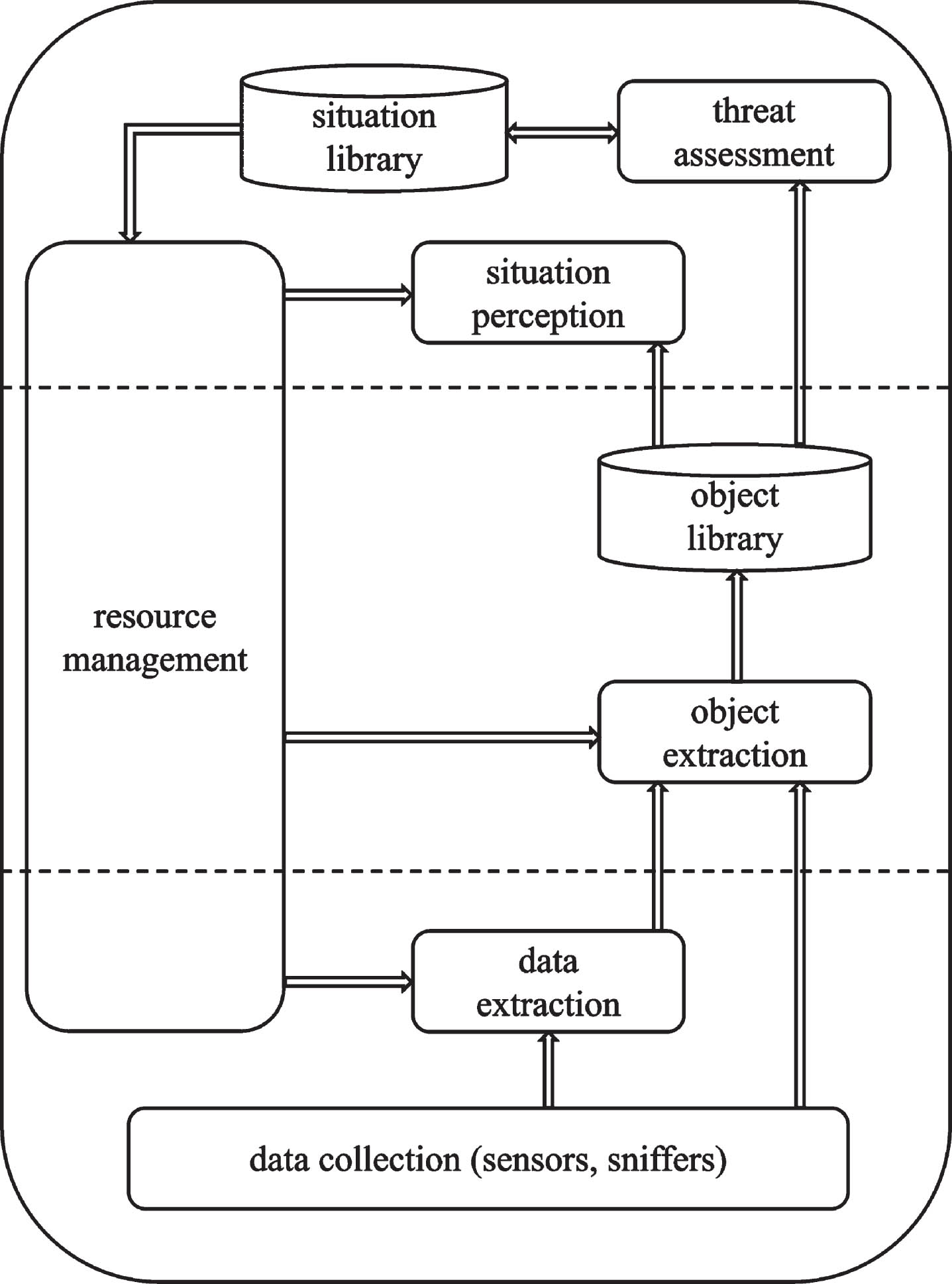

Fig. 5

Functional model of network security situation awareness on the basis of multi-sensor data fusion.

Shi et al. [16] summarized network security situation awareness as “mining out various security elements in the network environment, processing and fusing them, forming a macroscopic security situation assessment on global network environment, and making time-series prediction on security situation further, which is a technical means to guarantee the network environment. It is a technical means for ensuring network environment security.” Chang et al. [17] summarized network security situation awareness as “discerning the attack behavior in the network from innumerable noisy data and then fusing them to evaluate and monitor security situation of the network in real time for achieving comprehensive network control and providing a foundation for network managers’ decision analysis for reducing network risks and losses.”

Network security situation prediction is the final target to awareness, which is mainly based on acquiring and processing the situation information of historical data, establishing appropriate mathematical models to find potential development patterns among situation data, and thus reasoning to get developing trendency and status of situational situation further. Through situation prediction, qualitative or quantitative analysis can be conducted, and early warnings can be issued to provide a reference for security personnel to make decisions and further realize active defense of the network. The randomness and uncertainty of network attacks make the attack-based security situation change highly complex and non-linear, which brings excellent limitations to the traditional prediction model.

4.1 Modeling framework based on MAML and BiGRU

This paper introduces a meta learning method on the basis of Bi-directional Gate Recurrent Unit (BiGRU) network. It constructs a network security situation prediction approach on the basis of MAML and BiGRU, with major three parts included: data input, BiGRU model, and meta learning network, and overall architecture is shown in Fig. 6.

OPEN IN VIEWER

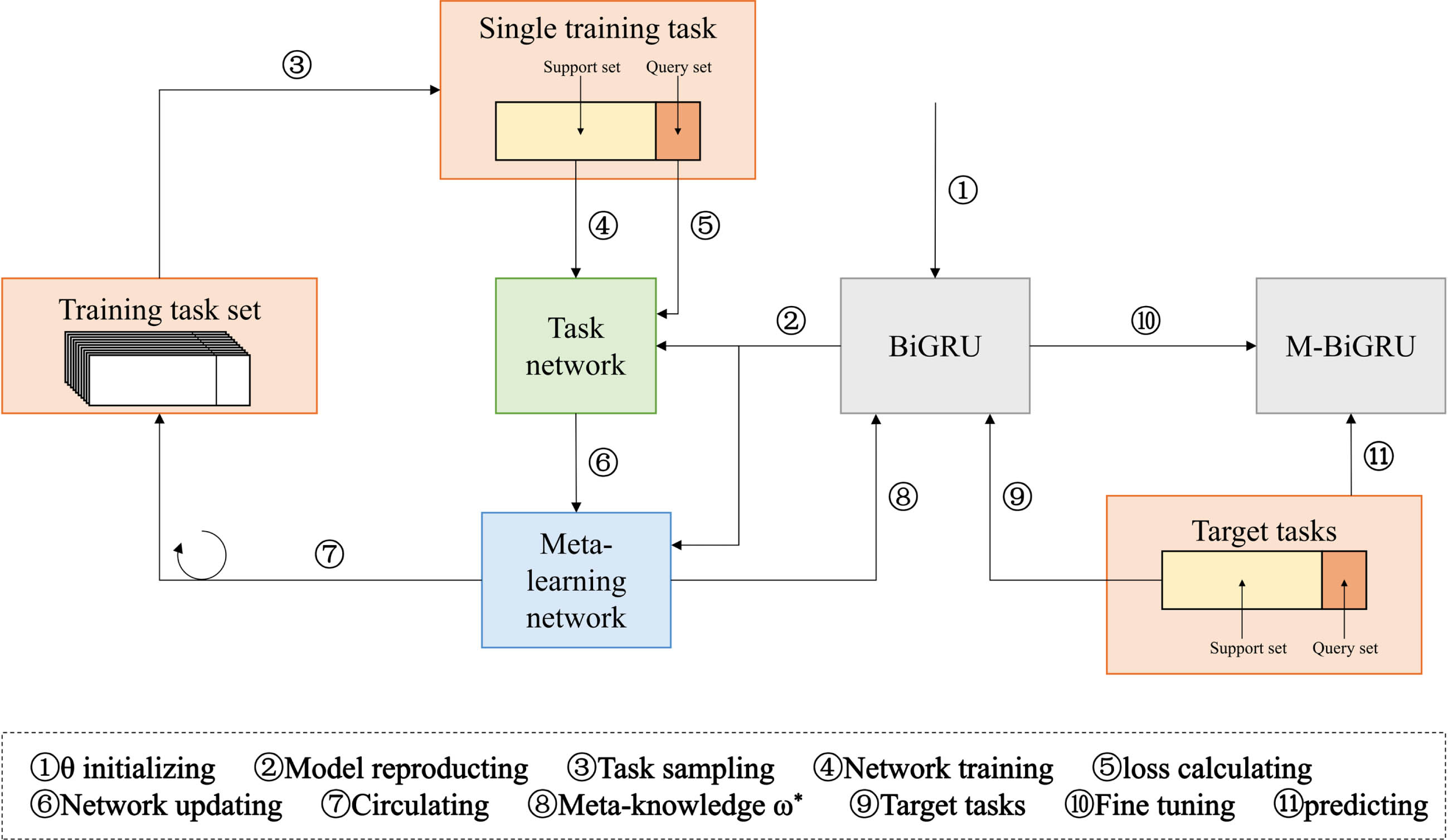

Fig. 6

Model architecture.

In this paper, we choose the security data from National Internet Emergency Response Center [18] as data for experiment, and we obtain the posture values by performing the posture assessment weekly and then conduct normalization and sliding window processing. Finally, we convert them into the form of time step×input dimension. Taking the sliding window as an example, we reconstructed the data, with findings detailed as Table 2.

The task of network security situation prediction is usually related to both before and after network status, and dependencies between network security situation data need to be considered. Therefore, to improve the prediction effect, this paper uses BiGRU network to predict security situation, thus information before and after the network state can be obtained simultaneously, and the features in the network security situation is able for full extraction. Bi-directional architecture of the network can acquire dynamic change of network state in a more detailed way, thus improving the accuracy of prediction.

GRU [19] is a commonly used gated recurrent neural network with a strong learning ability for long-term dependent information.

However, the GRU network can only better capture the forward feature information of the network security posture data, and the backward feature information cannot be obtained, so this paper chooses the BiGRU network for predicting network security situation. Meanwhile, to prevent overfitting problem, a dropout layer is introduced after each BiGRU layer for improving neural network performance.

The BiGRU consists of forward and backward GRUs superimposed on each other, with structure detailed as Fig. 7.

OPEN IN VIEWER

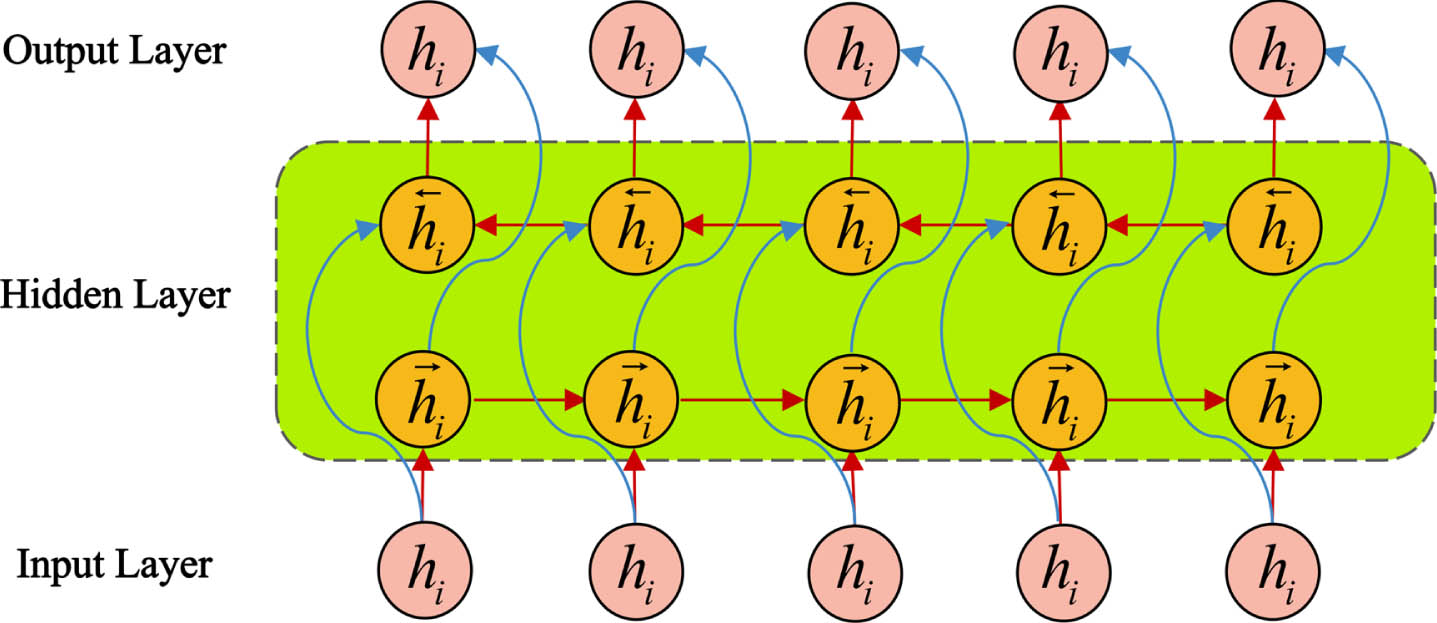

Fig. 7

BiGRU network model.

Using forward and backward GRU network, posture values of forward and reverse inputs are calculated separately for corresponding hidden layer state output H ^→ ={ h _{L 1} , h _{L 2} , ⋯ , h _{L t}  } and H ← = { h R t , h R t - 1 , ⋯ , h R 1 } . Then forward and backward hidden layer state output vectors are stitched together for final output of BiGRU network layer as follows: H = { H → , H ← }(6)

As an emerging technique in machine learning, meta learning is aimed at addressing the problem of how to learn new tasks quickly and accurately in a short time. In our research, the MAML algorithm as a meta-learning layer is introduced, with quick adaptation to new learning tasks and improve model’s generalization performance to some extent by using previous learning experiences. At the same time, combining the MAML algorithm with neural networks and various loss functions enables the model to get better training results and has good application value.

The MAML algorithm, as an initialization method for the learner, has significant advantages, such as fast adaptation to new tasks and improved model generalization performance. Compared with traditional machine learning techniques, the MAML algorithm can update parameters based on computing only a tiny amount of data, thus achieving better results in the face of new learning tasks, that is, having the ability to learn to learn. When using BiGRU to predict cyber security posture, we split data into training and test set. In MAML-BiGRU method, support and query set correspond with training and test set.

In meta training phase, for each source task T, model calculates training error on support set D _S and updates θ by equation below: θ T = θ - α ∇ θ L ( D S T , θ )(7) L ( D S T , θ ) = ∑ ( x , y ) ∈ D S T | | f θ ( x ) − y | | 2 2(8)

Where θ denotes model parameters, and θ ^T denotes model parameters after updating on task T. α denotes the learning rate, ∇ _θ the θ gradient of the query. L ( D S T , θ ) model training error with parameter θ as on support set D _S of the task T calculated via Equation (8), and f _θ model with parameter θ. For training error, L ( D Q T , θ T ) denotes model testing error with parameter θ ^T as on support set D _Q of the task T calculated via Equation (9). L ( D Q T , θ T ) = ∑ ( x , y ) ∈ D Q T | | f θ T ( x ) − y | | 2 2(9) θ = θ - β ∇ θ ∑ T L ( D Q T , θ T )(10)

Where f _{θ ^T} denotes model with parameter θ ^T . Test error on entire source tasks constitutes training error in meta training phase, with parameters updated via Equation (10). β denotes learning rate in Equation (10).

In meta testing, model firstly calculates training error on support set D _S of target task via Equation (8) and updates parameters for fitting target task via Equation (7). After that, calculation is conducted on query set D _Q of target task for test error via Equation (9) for evaluating model performance. Each task contains same time range where the network security situation data are located, so its data distribution only produces a small change. After updating the parameters on the basis of training loss of target task, model’s more adaptation to target data distribution will be realized, thus improving prediction accuracy.

The specific algorithmic flow of the MAML-BiGRU method is detailed as Algorithm 1.

5.1 Assumptions made

Data Distribution: We assumed that the data used in our experiments is representative of the real-world network security situation, capturing the essential characteristics and dynamics of cyber threats and network traffic patterns. While we acknowledge that actual network environments may exhibit greater variability, our dataset is designed to encompass a wide range of typical scenarios.

5.2 Data acquisition and environment configuration

Data normalization is one of the essential pre-processing techniques in machine learning. In practical applications, there are z-score normalization, min-max normalization and mean normalization methods. For our research, we choose min-max normalization, by which the feature data are normalized to –1 and 1, which reduces outlier effect and improves model convergence rate, and also improves model’s ability of handling feature data. x ′ = x - min ( x ) max ( x ) - min ( x )(12)

Where x′ indicates data x mapped to interval [-1, 1]. min(x) and max(x) denote min. and max. values in data set.

The specific parameter settings for the experiments are shown in Table 5.

To evaluate accuracy and stability of prediction model put forward, Mean Absolute Error (MAE), Mean Square Error (MSE), Mean Absolute Percentage Error (MAPE), as well as coefficient of determination (R²) are used as evaluating indexes [21]. Among them, MAE and MSE can reflect the degree of model’s prediction error, MAPE can eliminate the difference in magnitude and reflect model’s relative prediction error, and R² refers to an essential indicator of model’s generalization ability, which can reflect model effectiveness in data fitting. Calculation equation of evaluating index is shown below: MAE = 1 N ∑ i = 1 N | y i - y ˆ i |(13) MSE = 1 N ∑ i = 1 N ( y i - y ˆ i ) 2(14) MAPE = 100 % n ∑ i = 1 n | y ˆ i - y i y i |(15) R 2 = [ ∑ i = 1 N ( y i − y ¯ ) ( y ^ i − y ^ ¯ i ) ] 2 [ ∑ i = 1 N ( y i − y ¯ ) 2 ] [ ∑ i = 1 N ( y ^ i − y ^ ¯ i ) 2 ](16)

In the above four equations, y _i means actual value of a sample, y ˆ i predicted value, N number of samples, y ¯ i mean of actual value, and y ^ ¯ i mean of predicted value.

To effectively compare model prediction ability of proposed in our research and models by others, following experiments are performed: in same experiment environment and setting the sliding window number s = 5, eight models, BP, TCN, GRU [22], LSTM, Attention-GRU [23], AIS-LSTM [24], BiGRU, and MAML-BiGRU, are used to make predictions, and predicted value is compared to actual value, as shown in Fig. 8. The evaluation indexes of diverse models can be seen in Tables 6 and 7, and evaluation indicators sum of diverse models in Fig. 9.

OPEN IN VIEWER

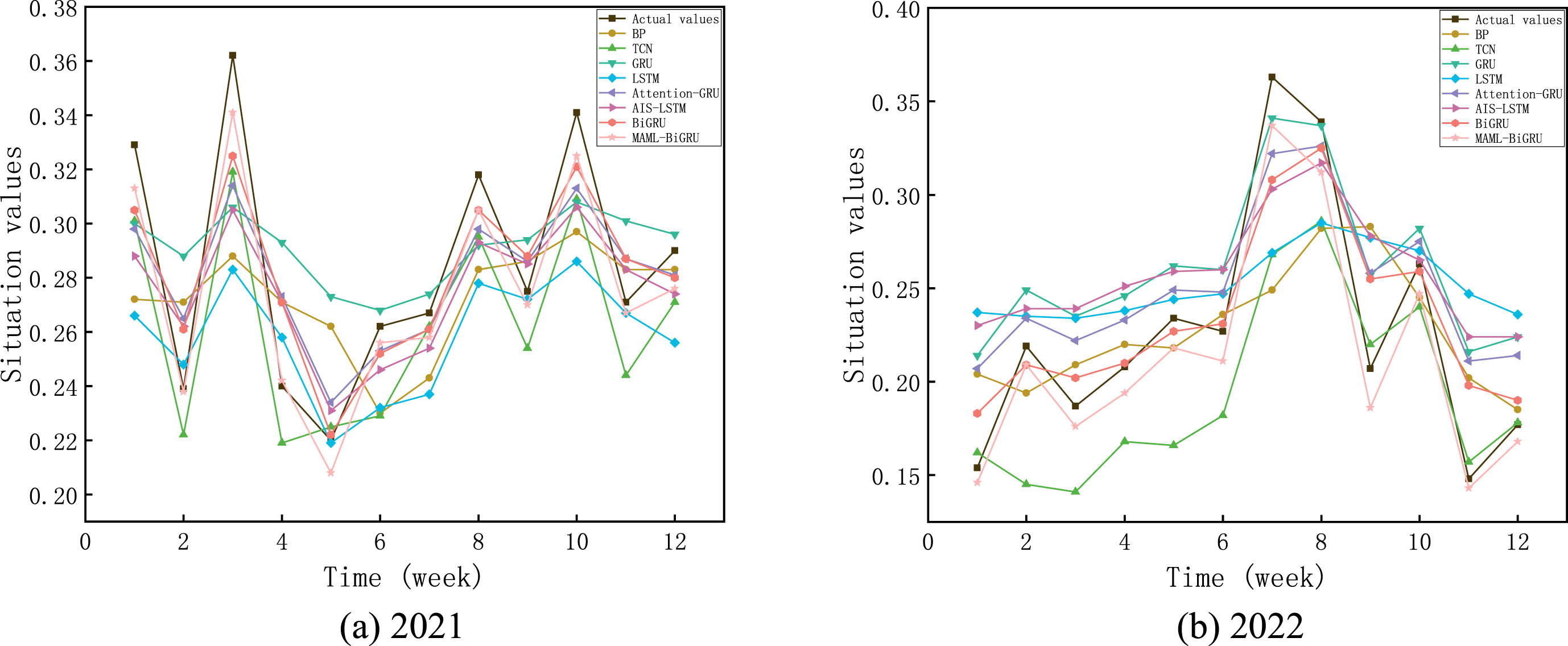

Fig. 8

Comparison of the prediction situation values of different models.

OPEN IN VIEWER

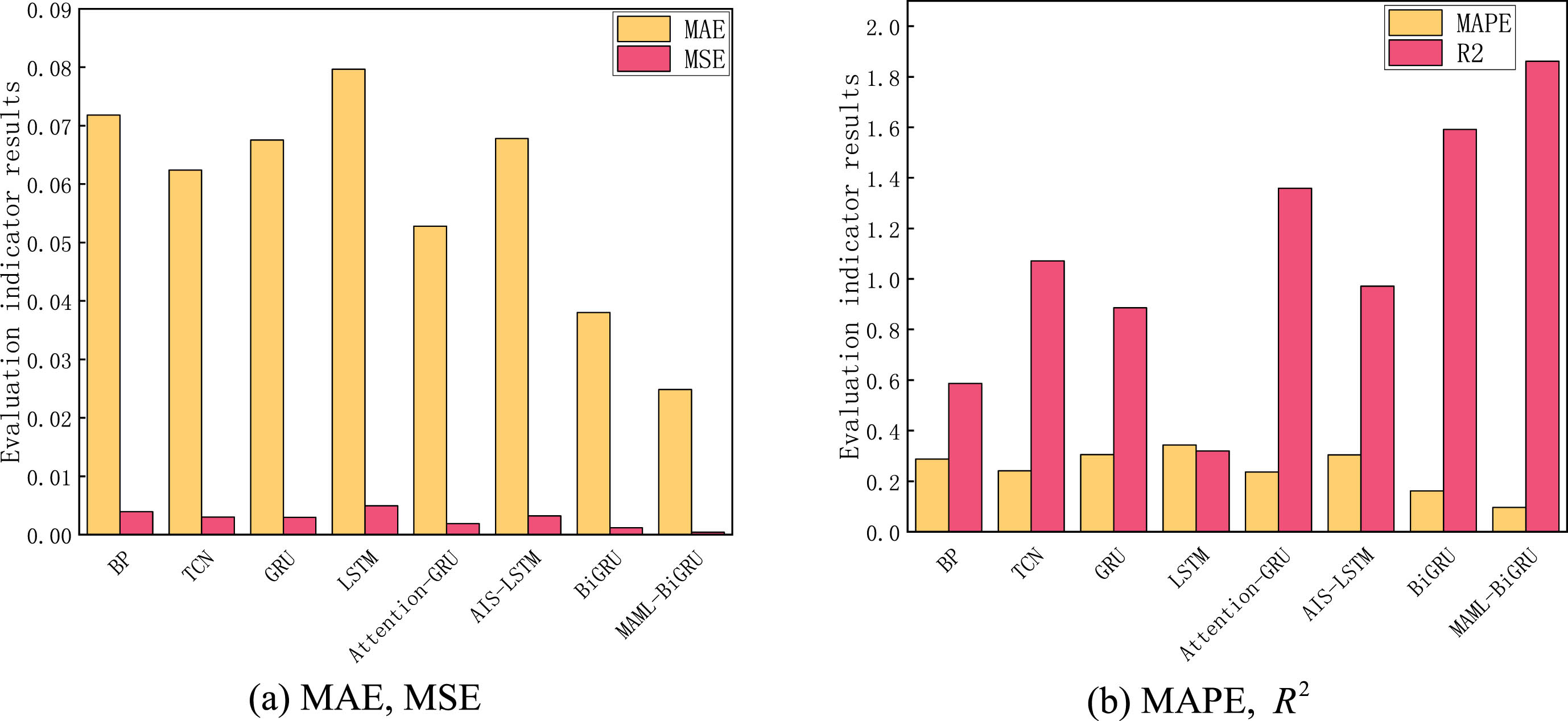

Fig. 9

Evaluation indicators sum of different models in 2021, 2022.

From Fig. 8, we can see that most models merely predict trendency of the network security situation. However, they can not predict the details accurately, while the MAML-BiGRU prediction model put forward introduces MAML algorithm, thus BiGRU model can better extract the relationship characteristics between time series by calculating only a tiny amount of data, which makes the prediction results accurate.

As seen in Table 6, in the 2021 data, compared to other models, MAE decreased by at least 42.2%, MSE decreased by at least 66.1%, MAPE decreased by at least 43.9% %, and R² increased by at least 18.0%. As seen in Table 7, in the 2022 data, compared to other model, MAE reduced by at least 28.5%, MSE by at least 66.1%, MAPE by at least 37.7%, and R² increased by at least 15.8%.

As seen in Fig. 9, the MAML-BiGRU prediction model put forward owns minor error values and the most significant coefficient of determination in the data sum of 2021 and 2022, which has a significant advantage over other models and proves efficacy and accuracy of MAML-BiGRU prediction model in predicting value of the situation.

To ensure that our model does not overfit or underfit the data, we monitored the training and validation loss throughout the training process. Overfitting occurs when a model learns the training data too well, including its noise and outliers, which can reduce its ability to generalize to new data. Conversely, underfitting happens when a model is too simple to capture the underlying structure of the data.

Overfitting: We employed techniques such as dropout and regularization to prevent overfitting. Additionally, we used early stopping, which halts the training process if the validation loss does not improve for a certain number of epochs, thus avoiding the model from learning the idiosyncrasies of the training data.

5.8 K-fold cross-validation results

To ensure the robustness of our MAML-BiGRU model’s predictions, we conducted a 5-fold cross-validation experiment.

The dataset was stratified and divided into five equal-sized subsamples. Each subsample served as the test set once, while the other four subsamples were used as the training set. This process was repeated five times, ensuring each subsample was used for testing. The MAML-BiGRU model was trained and evaluated across these folds, and the performance metrics were documented.

The cross-validation results are summarized in the table below:

The cross-validation results demonstrate that our MAML-BiGRU model provides consistent and accurate predictions across different subsets of the data. The low MAE and MSE values indicate that the model’s predictions are close to the actual values on average. The MAPE values, which are below 4%, further confirm the model’s accuracy in relative terms. The high R² values, which are close to 1, suggest that our model explains a significant portion of the variance in the network security situation predictions. The low standard deviation of the R² values across folds indicates that the model’s performance is stable and reliable.

Our results demonstrate that the MAML-BiGRU model outperforms other benchmark methods in network security situation prediction. This superior performance can be attributed to several key factors:

Rapid Adaptation: The MAML component of our model enables rapid adaptation to new tasks with minimal additional training, which is crucial for responding to the evolving nature of network threats.

The implications of these findings are significant for the field of network security. By leveraging meta-learning and bidirectional recurrent structures, our approach offers a more proactive and adaptive solution to network security situation prediction. This not only enhances the capability to anticipate potential threats but also facilitates the implementation of timely and effective countermeasures.

Moreover, our study contributes to the broader understanding of how advanced machine learning techniques can be applied to complex, real-world problems. The success of our MAML-BiGRU model suggests that similar approaches could be beneficial in other domains where rapid adaptation and the handling of time-series data are critical.
