Creation of a Novel Humanized Dystrophic Mouse Model of Duchenne Muscular Dystrophy and Application of a CRISPR/Cas9 Gene Editing Therapy

INTRODUCTION

Duchenne muscular dystrophy (DMD) is a progressive muscle degenerative disease, affecting about 1 in 5000 male births [1]. It is most often caused by out-of-frame mutations in the DMD gene, which prevent expression of dystrophin protein. Dystrophin normally stabilizes and assembles the dystrophin glycoprotein complex (DGC) at the muscle fiber sarcolemma to connect the actin cytoskeleton to the extracellular matrix. Lack of dystrophin and the DGC leads to muscle fiber damage and progressive degeneration, resulting in fibro-adipogenic accumulation in the muscle. Potential therapeutic strategies, such as exon skipping, or clustered, regularly interspaced, short palindromic repeats (CRISPR) and -associated protein (Cas) 9 (CRISPR/Cas9), aim to restore the DMD reading frame, which will lead to the milder, allelic disease Becker muscular dystrophy [2]. Exon skipping therapies use antisense oligonucleotides to target a specific sequence in the dystrophin mRNA and alter the splicing pattern to reframe the transcript [3]. CRISPR/Cas9-based therapies use guide RNAs (gRNAs) and the Cas9 nuclease to target specific sequences of genomic DNA for deletion or editing [4–6]. Currently, there are no mouse models that allow for testing of such therapies on the human DMD sequence in a dystrophic context in vivo.

A humanized mouse (hDMD) was previously generated in which the entire human DMD sequence was integrated into mouse chromosome 5 [7]. However, this mouse expresses the wildtype human DMD transcript and does not present a dystrophic phenotype, even if crossed to the mdx mouse which lacks murine dystrophin, since human dystrophin can functionally replace the mouse protein. Since the CRISPR/Cas9 system has shown much promise in quickly and easily generating novel mouse models, we used CRISPR/Cas9 to make an out-of-frame mutation by deleting exon 45 of the human DMD gene in hDMD mouse zygotes (hereafter referred to as hDMD del45 mice). We have crossed this mouse to both the mdx and mdxD2 backgrounds, both of which have a premature stop codon in the mouse Dmd gene. MdxD2 mice are on the DBA2 background and have a more severe phenotype than mdx mice on the C57BL/10 background, primarily due to two modifier alleles, Ltbp4 and Anxa6 [8–10]. Here we describe the initial characterization of the hDMD del45 model. We show that muscles of hDMD del45 mdxD2 mice contain a mutated human DMD gene lacking exon 45 and are dystrophic. We also show proof-of-principle in vivo application of our CRISPR/Cas9 gene editing platform which targets human DMD exons 45–55 for deletion to restore the reading frame for up to 60% of Duchenne patients [11].

MATERIALS AND METHODS

RESULTS

We sought to generate a mouse model that expresses a mutated human DMD gene in mice lacking murine dystrophin. To this end, we designed gRNAs targeting DMD introns 44 and 45 to cause deletion of exon 45 via non-homologous end joining (NHEJ) of the human DMD gene in hDMD mice (Fig. 1A). The gRNAs were screened individually and in pairs in HEK293FT cells, and their ability to cause Cas9 cutting (Supplemental Figure 1A) or an exon 45 deletion (Supplemental Figure 1B), respectively, was assessed. Two pairs that had the highest deletion efficacy were chosen and in combination, microinjected into hDMD zygotes. 15 pups were screened and one female heterozygous pup and one male compound heterozygous pup were obtained (data not shown), hereafter referred to as hDMD del45 mice. Upon crossing, both founder mice were shown to have germline transmission of the exon 45 deletion (Fig. 1B), which was confirmed by sequencing of the intron 44/45 rejoining site (Fig. 1C).

OPEN IN VIEWER

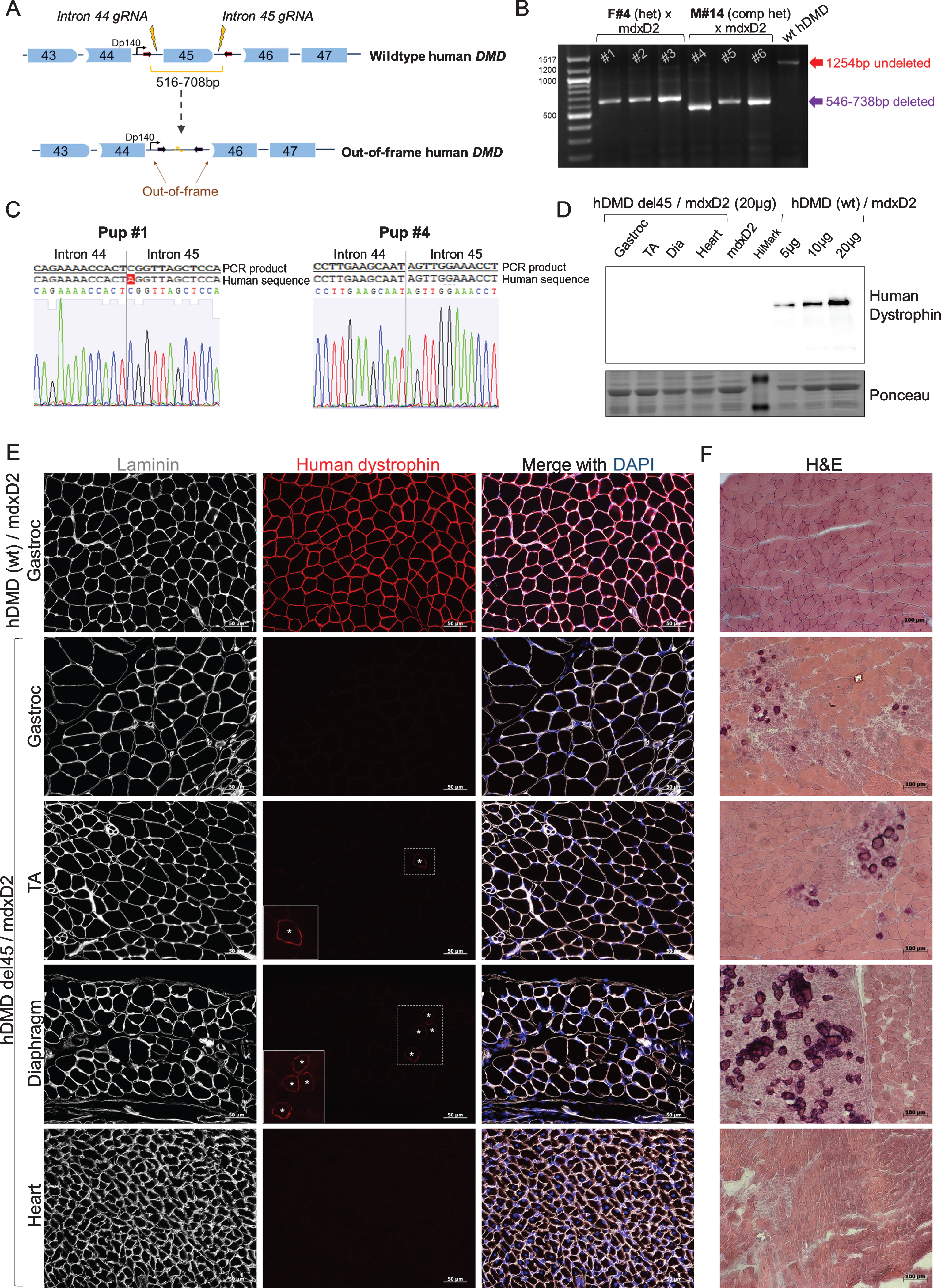

Fig.1

Generation and characterization of hDMD del45 mice. A) Cartoon showing the region of the human DMD gene targeted for mutation in hDMD mice. Guide RNAs (represented as lightning bolts) flank exon 45 to cause an exon 45 deletion by NHEJ, which puts the gene out-of-frame. The Dp140 isoform promoter is shown (arrow). B) Genotyping PCR of genomic DNA from pups (labeled #1-6) from the founder mice F#4 and M#14 crossed to mdxD2 mice showing germline transmission of the deletion. The red arrow highlights the undeleted band seen in wildtype (wt) hDMD mice and the purple arrow depicts the exon 45 deletion seen in the pups. Primers are depicted as arrows in A. Since two pairs of gRNAs were injected together, different deletion sizes occurred due to the various target sites. C) Sequencing of the introns 44 and 45 rejoining site in two pups shows an exon 45 deletion. D) Western blot of whole muscle extracts probed with human dystrophin. Ponceau stain is shown to demonstrate loading. The gastrocnemius (gastroc), tibialis anterior (TA), diaphragm (dia), and heart from an hDMD del45 / mdxD2 mouse (second backcross, 6wks old) show lack of dystrophin compared to an hDMD (wt) / mdxD2 mouse (third backcross, 6.5wks old) gastroc muscle. E) Immunohistochemistry of muscle sections stained with anti-laminin (white) and human dystrophin (red). Laminin was used to delineate muscle fibers. hDMD del45 / mdxD2 muscles (second backcross, 6wks old) show a lack of dystrophin staining with a few faint revertant fibers (* and inset at higher contrast). Scale bar 50 μm. F) Hematoxylin and eosin (H&E) staining of muscle sections show dystrophic pathology in muscles of hDMD del45 / mdxD2 mice (second backcross, 6wks old). Scale bar 100 μm. Similar analyses from another hDMD del45 / mdxD2 mouse is shown in Supplemental Figure 2 (representative of n = 4 mice analyzed).

hDMD del45 mice were crossed to mdxD2 and then mdx mice to generate fully dystrophic models. As a control, wildtype hDMD mice were also crossed to mdx and mdxD2 mice, so these mice expressed human dystrophin but lacked the murine equivalent. The resulting hDMD del45 mdxD2 mice and hDMD del45 mdx mice (from the first or second cross) lacked human dystrophin by western blot (Fig. 1D, Supplemental Figures 2A and Supplemental Figures 3A) and immunostaining (Fig. 1E, Supplemental Figures 2B and Supplemental Figures 3B). Occasionally, a few revertant dystrophin+ fibers were seen (see asterisks in Fig. 1E) but these events were infrequent. The muscle pathology of hDMD del45 mdxD2 mice was dystrophic, with features of fibrosis, inflammation, and calcium deposits, compared to the hDMD mdxD2 mice which express the wildtype DMD gene that rescues the dystrophic phenotype (Fig. 1F and Supplemental Figure 2C).

To demonstrate the in vivo utility of this mouse, we applied our therapeutic CRISPR/Cas9 gene editing platform that targets human DMD exons 45–55 for deletion. Treatment with the CRISPR/Cas9 platform will restore the reading frame for out-of-frame mutations in this region, such as an exon 45 deletion (Fig. 2A). We electroporated a plasmid containing one gRNA targeted to intron 44 and one to intron 55 [11] in tandem with Cas9 into the FDB muscle of 12 week old hDMD del45 mdx mice and 18.5 week old hDMD del45 mdxD2 mice. After 22–33 days, an exon 45–55 deletion in the FDB, IO, and/or lumbricalis (Lum) muscles was observed by genomic DNA PCR (Fig. 2B) and sequencing of the intron 44/55 rejoining site (Fig. 2C) in the electroporated mice. Dystrophin restoration was observed by immunostaining in the IO and FDB of the electroporated hDMD del45 mdxD2 mice (Fig. 2D). Thus, our novel humanized dystrophic hDMD del45 mouse model demonstrates proof-of-principle that a human targeted CRISPR/Cas9 platform is functional in vivo. This mouse model will be a useful resource for testing different CRISPR/Cas9 strategies and other therapies that target the human DMD gene.

OPEN IN VIEWER

Fig.2

CRISPR/Cas9 deletion of DMD exons 45–55 to restore the reading frame in hDMD del45 mdx and mdxD2 mice. A) Cartoon showing our therapeutically relevant CRISPR/Cas9 platform that was electroporated into the FDB of hDMD del45 mdx and hDMD del45 mdxD2 mice. This platform consists of guide RNAs (represented as lightning bolts) in introns 44 and 55 that cause deletion of exons 45–55 through NHEJ to restore the reading frame for the out-of-frame exon 45 deletion in hDMD del45 mice. The Dp140 and Dp116 isoform promoters are shown (arrows). B) Genomic DNA PCR using primers for the undeleted allele (red, 1201bp, bottom) or the deletion (purple, 788bp, top). An exon 45–55 deletion was observed in the FDB, IO and/or Lum muscles 22, 24, and 33 days (D22, D24, and D33) after in vivo electroporation of the CRISPR/Cas9 platform compared to the control mice. C) Sequencing of the intron 44/55 rejoining site from the IO and Lum muscle of the CRISPR electroporated mice, which showed a 1bp insertion. D) Immunohistochemistry of hDMD del45 / mdxD2 IO and FDB muscles stained with anti-laminin (grey), human dystrophin (red), and dystrophin targeting exons 48/50 (E48/50, green). Laminin was used to delineate muscle fibers. Dystrophin E48/50 was used to exclude revertant fibers from the analysis, since after CRISPR/Cas9 application exons 45–55 will be deleted. Dystrophin positive fibers can be seen in the CRISPR electroporated sample compared to the GFP electroporated control. Scale bar 20 μm.

DISCUSSION

Here we describe a novel humanized mouse model of Duchenne muscular dystrophy. We have created an out-of-frame human DMD exon 45 deletion in the hDMD mouse (referred to as hDMD del45) and have crossed it to mdx and mdxD2 backgrounds so that the mice completely lack dystrophin. We have validated that this model lacks human dystrophin and presents with a dystrophic muscle pathology in multiple muscles across the body. Lastly, we have shown one utility of this mouse by applying our CRISPR/Cas9 platform which targets human DMD exons 45–55 for deletion. After delivering the CRISPR/Cas9 platform via electroporation in vivo we have demonstrated a restored DMD reading frame and dystrophin expression in the hDMD del45 mdx and mdxD2 muscles.

This mouse has a wide range of uses. The model will be useful for testing a variety of antisense oligonucleotides against a mutated human sequence in vivo since the reading frame can be restored using an exon 44 or 46 single skip, a 46/47 double skip, or a 43/44/46 or 46/47/48 triple skip. For CRISPR/Cas9-based therapies, the model can be used for testing various human targeted gRNAs around this region. Additionally, the hDMD del45 model is a relevant negative control for western blotting of human dystrophin protein from the hDMD wildtype mouse. Lastly, it presents a unique model in which to study endogenous skipping of the human DMD gene which is a phenomenon known to occur at a low level in human patients with an exon 45 deletion [14]. The ability to study the human protein and/or test potential therapeutics in a dystrophic context in vivo on the human DMD gene rather than just in human cells offers obvious advantages and will allow for faster translation of human specifictherapies.

CONFLICT OF INTEREST

The authors have no conflict of interest to report.
