Sex Difference in Spinal Muscular Atrophy Patients – are Males More Vulnerable?

TREAT-NMD Global SMA Patient Registry

TREAT-NMD (https://treat-nmd.org) is a network for the neuromuscular disease field focused on providing an infrastructure to ensure that the most promising new therapies reach patients as quickly as possible. Since its launch in January 2007 the network’s focus has been on the development of tools for industry, clinicians, and scientists to bring novel therapeutic approaches through preclinical development and into the clinic, and on establishing best practices for treating neuromuscular patients worldwide.

The Global SMA Registry of TREAT-NMD links national SMA patient registries from all over the world. It collects data from genetically confirmed SMA patients. The data can be self-reported and/or provided by professionals. More than 5,000 genetically confirmed SMA patients worldwide have been enrolled in the Global SMA Registry database. The TREAT-NMD Global Registry Network (also known as TGDOC) is governed by a Charter and managed by the TGDOC Executive Board. The Board is responsible for reviewing the requests for data from the Global Registry Network and managing the enquiry governance and contracting. Our enquiry was approved by the TGDOC, and the contract was signed in January 2022. The requested data and data report were sent back in March 2022.

Our enquiry consisted of four primary questions which had been further stratified by the sub-group data items listed below:

Q1: Are there sex-specific difference between different types of SMA, and patients with different SMN2 copy numbers? Sub-group items included: number of SMN2 copies, SMA type (by age of first symptoms), and sex assigned at birth.

Q2: Is the disease severity different between the sexes within the same type of SMA based on motor measures? Sub-group items included: SMA type (by age of first symptoms), clinician global impression of severity total score – at diagnosis/symptom onset, and one motor measure score– at diagnosis/symptom onset. Motor measure scores included were Children’s Hospital of Philadelphia Infant Test of Neuromuscular Disorders (CHOP-INTEND), Hammersmith Functional Motor Scale (HFMS) and Expanded (HFMS-E), and Revised Upper Limb Module (RULM) scores. CHOP-INTEND is a clinician-reported outcome measure designed to assess motor function in very weak individuals with neuromuscular disorders and respiratory compromise [48]. It contains 16 items scored from 0 to 4, the total possible score is 64. It is a reliable measure of motor skills in patients with SMA type 1 and neuromuscular disorders presenting in infancy [49]. The HFMS is an assessment of the physical abilities of SMA type 2 and type 3 patients with limited ambulation. It is an ordinal scale consisting of twenty items with individual item scoring as 2 for unaided, 1 for performed with modification an adaption and 0 for unable [50]. To enable its use in the ambulant types 3 population, the HFMS was expanded to include 13 items from the Gross Motor Function Measure to form the HFMSE [51]. The RULM is a revised version of the Upper Limb Module, specifically designed to assess upper limb function in SMA type 2 and type 3 patients. It consists of 19 scorable items, graded on a three-point system with a maximum total score of 37 points [52].

Q3: What is the SMA type and sex of affected family member (s)? Sub-group items included: SMA type (by age of first symptoms), sex assigned at birth (patient), affected genetically related family member sex assigned at birth, and affected genetically related family member SMA type.

Q4: Is the brain development affected differently between the sexes of type 1 patients? Sub-group items included: sex assigned at birth, current weight, and current head circumference.

Twenty-six patient registries representing twenty-five countries were contacted by the TGDOC and asked to provide the requested data within the timeframe of three weeks. The countries contacted including Australia, Belgium, Canada, China, Columbia, Croatia, Czech Republic/Slovakia#, Egypt*, Georgia, Germany/Austria#, Hungary, India, South Korea, Latvia, Lebanon, New Zealand, Poland, Slovenia, Spain, Switzerland, Turkey*, Ukraine, and the United Kingdom (# Represents a registry with dual country coverage, * This country has more than one patient registry). TREAT-NMD Data Enquiries include only data that has been updated in the last 12 months, however given the disruptions caused by the global Coronavirus pandemic this has been extended to 24 months for this enquiry.

Cure SMA membership database

The Cure SMA database constitutes one of the largest patient-reported data repositories on SMA patients worldwide [53]. Self-identified SMA patients were automatically assigned a household and a personal contact ID number in the database. Aggregated data from the membership of affected individuals included personal contact ID number, birthdate, gender, deceased date, date of first contact to Cure SMA, type of SMA, and diagnosis date [53]. Great thanks to the Chief Medical Officer, Mary Schroth MD, FAAP, FCCP and the Director of Research Data Analytics, Lisa Belter, MPH for voluntarily providing the aggregated data from Cure SMA database according the Q1 query for the TREAT-NMD enquiry. The data included 9542 SMA patients and it was provided on May 2nd of 2022.

Analysis

Statistics

Student’s t-test (two-tailed), Mann Whitney U test, Pearson correlation, and one-way ANOVA with Tukey post-hoc test were applied with Prism 9 (GraphPad Software, San Diego CA) unless otherwise noted. Statistical significance was set at P < 0.05. The data shown represent mean ± SEM.

Sex difference in different types of SMA patients

TREAT-NMD reported a total of 3,838 genetically confirmed 5q SMA patients from 17 registries representing 19 counties, which consists of more than two-thirds (17/26) of the TREAT-NMD Global SMA Registry Network. Of the reports, eight were clinician reported, four were patients and clinician reported, three were patient reported and clinician verified, and two were patient reported. Details of responding registries and data entry are included in Table 1. Cure SMA reported data from 9,542 SMApatients.

SMA types were classified by symptom onset as follow: SMA1, between birth and 6 months; SMA2, between 7 and 18 months; SMA3a, between 18 and 36 months; SMA3b, between 3 and 18 years; SMA4, over 18 years old. Of the 17 responding registries, Turkey and the United Kingdom did not distinguish SMA3 subtypes, so patients of this type from these countries were included in SMA3a. For the Cure SMA data, the SMA type of patients was not verified with age at symptom onset or proof of genetic testing and the SMA3 type was collected as a single category. The percentages of patients classified into different types of SMA in TREAT-NMD data were as follows: SMA1 23%; SMA2 38%; SMA3a 24%; SMA3b 10%; SMA4 1%; and age of symptoms onset unknown 3%. The percentages of patient classified into different types of SMA in the Cure SMA data were as follows: SMA1 39%; SMA2 31%; SMA3 19%, SMA4 3%; and age of symptoms onset unknown 9%. Of all the patients from TREAT-NMD, only 1 patient was in the intersex/unspecified/unknown category, and about 5% of Cure SMA patients were in this category. Please see the sex distribution in SMA patients of different types in Table 2.

The percentages of males and females were calculated with the numbers of patients for whom sex was known from the two databases. Total male and female patients from TREAT-NMD database were 2,022 and 1,815 respectively (Table 2). The percentage of males (52.7%) was significantly higher than females (47.3%) with one-proportional two-tailed Z-test (Fig. 1A). The total number of male (n = 4,528) and female (n = 4,526) patients was about same for the Cure-SMA data (Table 2; Fig. 1B). The Cure SMA membership included patients from United States and from over 100 countries internationally, and U.S. members make up 76% of the total membership database. There was no significant difference in the total number of males (n = 3,423) and females (n = 3,548) among SMA patients from U.S. However, the percentage of males (52%) trended higher than females (48%) in the Cure SMA clinical data registry (Fig. 1C, n = 689, P = 0.05 one-tailed Z-test).

OPEN IN VIEWER

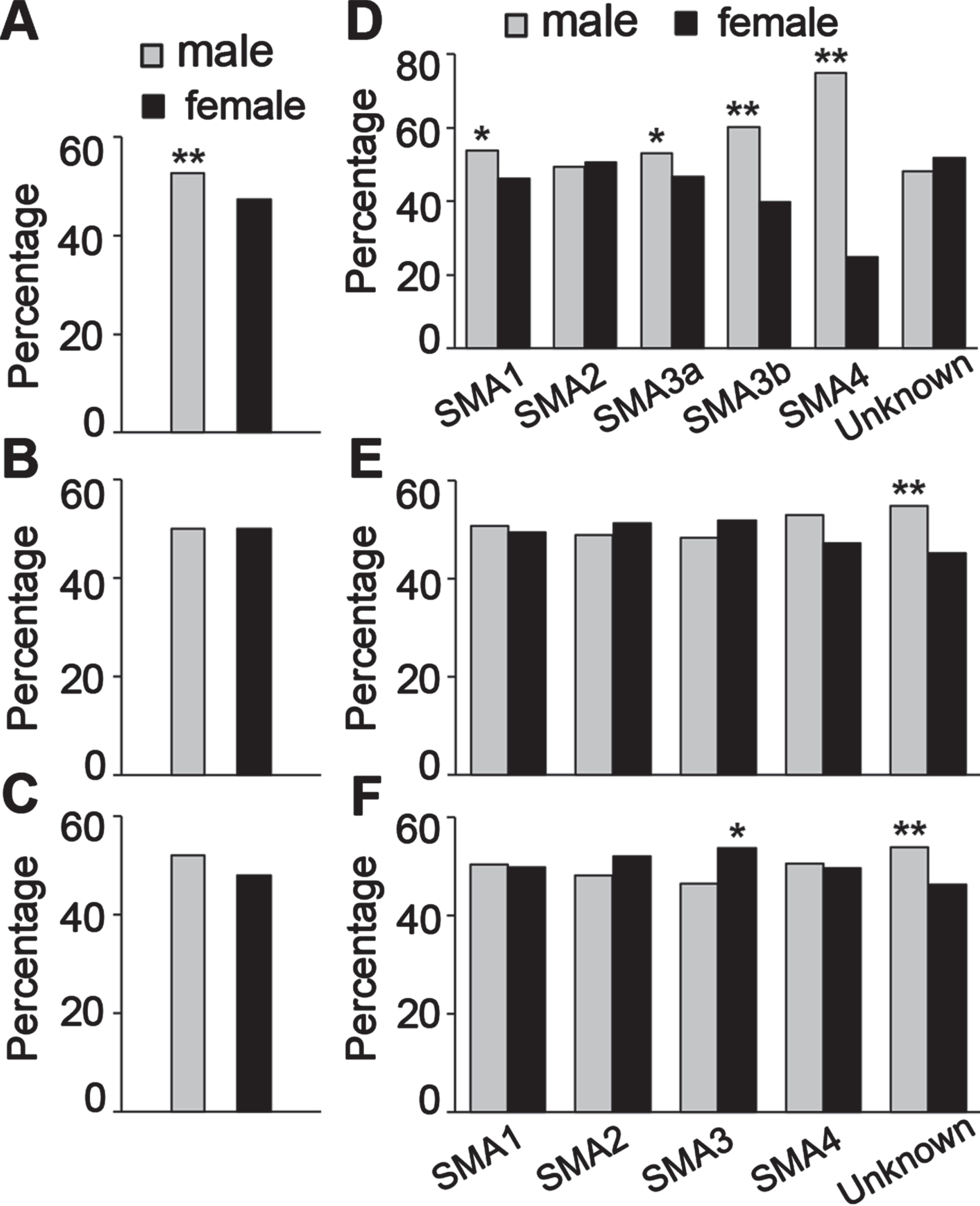

Fig. 1

Male/female ratio of different types of SMA patients. A– C, the percentage of total male and female patients from TREAT-NMD (A), Cure SMA membership (B) and Cure SMA clinical data registry (C) databases; D– F, the male and female percentage of different types of SMA patients from TREAT-NMD (D), Cure SMA membership total (E) and U.S. only (F). *P < 0.05, **P < 0.01 two-tailed Z-test.

In the TREAT-NMD data, the percentage of males was significantly higher than females in most SMA types except SMA2, and the differences were larger in the milder SMA types (Fig. 1D). For the Cure SMA data, there was no significant difference in sex ratio for any types, but the percentage of male patients (54.8%) was higher than females (45.2%) for which the SMA type was unknown (Fig. 1E). The percentages of females of SMA2 (51.2%) and SMA3 (51.7%) were higher than males, although there was no statistical difference. As the patient numbers in these two types were much larger than the unknown SMA type group. It is likely that patients in the SMA type unknown group have milder forms of SMA, so the skewed sex ratio in the SMA type unknown group data may not represent a true difference. The lack of a sex difference overall in the Cure SMA data is likely due to the skewed sex ratio in the SMA type unknown group (Fig. 1B). The contribution of the SMA type unknown group to the overall difference was even clearer in the data for American patients in the Cure SMA database, where the percentage of females (53.8%) was significantly higher in SMA3 patients, but males (53.5%) were a higher percentage of the SMA type unknown group, so overall there was no difference(Fig. 1F).

Sex difference in SMA patients with different copy number of SMN2

The SMN2 copy number is known to corelate with the severity of SMA symptoms [4]. The percentages of patients for whom the SMN2 copy number was known were 22.8% of the Cure SMA dataset, and 70.1% of the TREAT-NMD dataset (Table 3). Both sets of data showed that with increased SMN2 copy number, the severity of symptoms gets milder (Fig. 2A, C). The percentage of males (62.9%) was significantly higher for patients with 4 + SMN2 copies in the TREAT-NMD data (Fig. 2B). For the Cure SMA data (Fig. 2D), the percentage of females was higher in patients with two copies (56.4%) and three copies (56.2%) of SMN2, but the percentage of males was higher for patients with unknown SMN2 copy number (51.4%). The U.S. data for SMN2 copy number showed the same difference as in the total Cure SMA data (not shown). As the majority of patients in the Cure SMA data (77.2%) had an unknown SMN2 copy number (Table 3), the sex ratio observed in patients with two and three SMN2 copies may not represent a true difference.

OPEN IN VIEWER

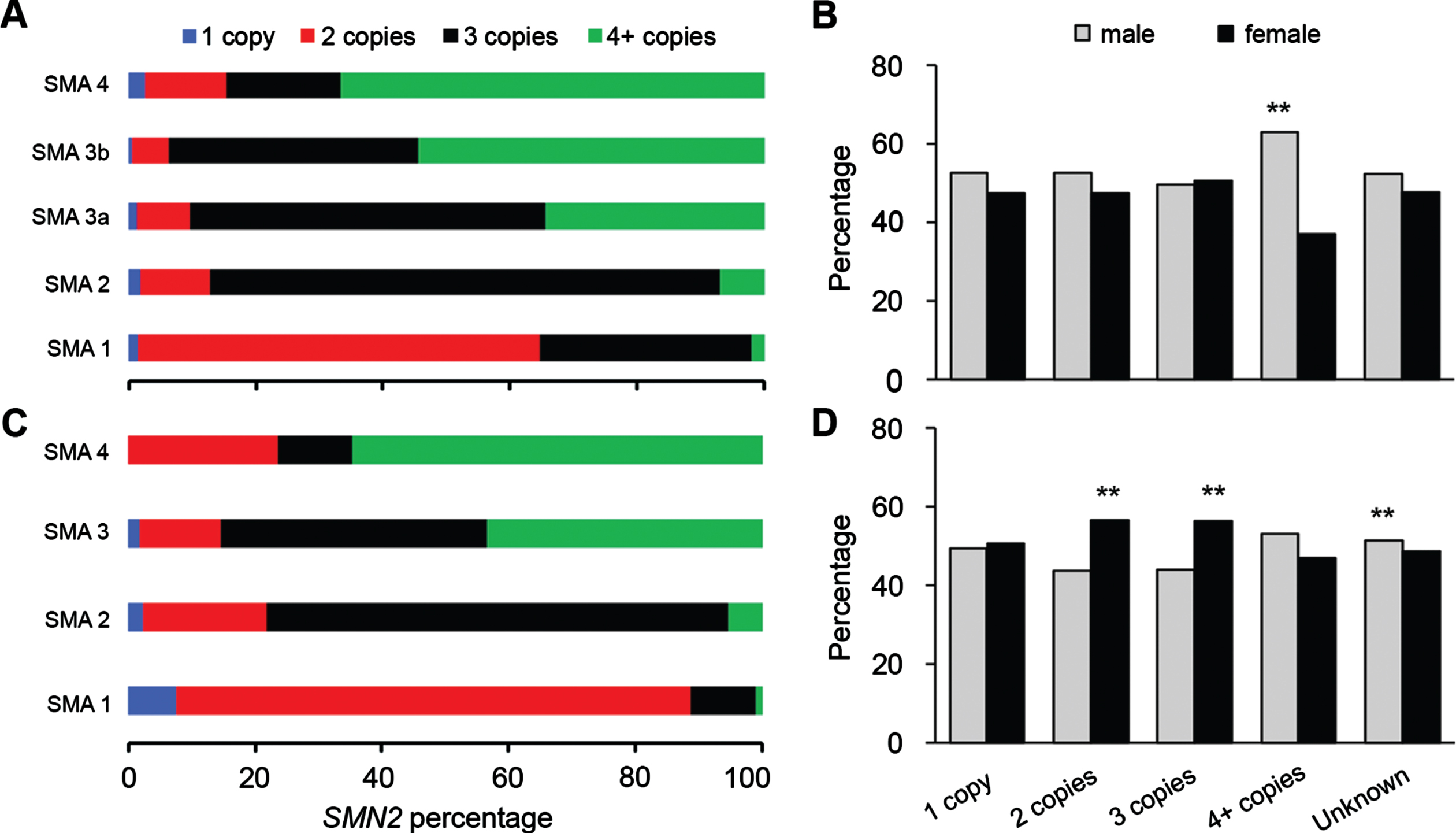

Fig. 2

Male/female ratio of SMA patients with different SMN2 copies. A and C, the percentage of patients with different SMN2 copies in different types of SMA from TREAT-NMD (A) and Cure SMA membership (C) datasets; B and D, the percentage of male and female patients with different SMN2 copies from TREAT-NMD (B) and Cure SMA membership (D) databases. **P < 0.01 two-tailed Z-test.

Correlation between sex ratio of SMA patients in a region and the incidence and prevalence of SMA

It has been reported that the rate of incidence of SMA varies in different racial and ethnic populations [53, 54]. The differences we have observed in the sex ratios of patients in our two datasets may be related to demographic differences in the populations from which the data were collected. To test this hypothesis, the available incidence and prevalence rates for SMA, and the carrier frequency of SMA from different counties were determined from published literature [54–62]. The U.S. data from Cure SMA, and the TREAT-NMD data were stratified by country of origin of the patients and the sex ratio among patients was plotted against the male/female ratio in the country, SMA incidence, prevalence, and carrier frequency (Table 4). The male/female ratio was significantly positively correlated with SMA incidence (Fig. 3A) and prevalence (Fig. 3B), but not with the carrier frequency (Fig. 3C). This data suggests that higher male/female sex ratio among SMA patients is associated with higher SMA incidence and prevalence rates. The sex ratio among SMA patients was negatively correlated with the population sex ratio of individual countries averaged from data from the United Nations Population Division for 1950 to 2020 (Fig. 3D). These results indicate that regional demographic characteristics may play a role in sex differences in SMA patients.

OPEN IN VIEWER

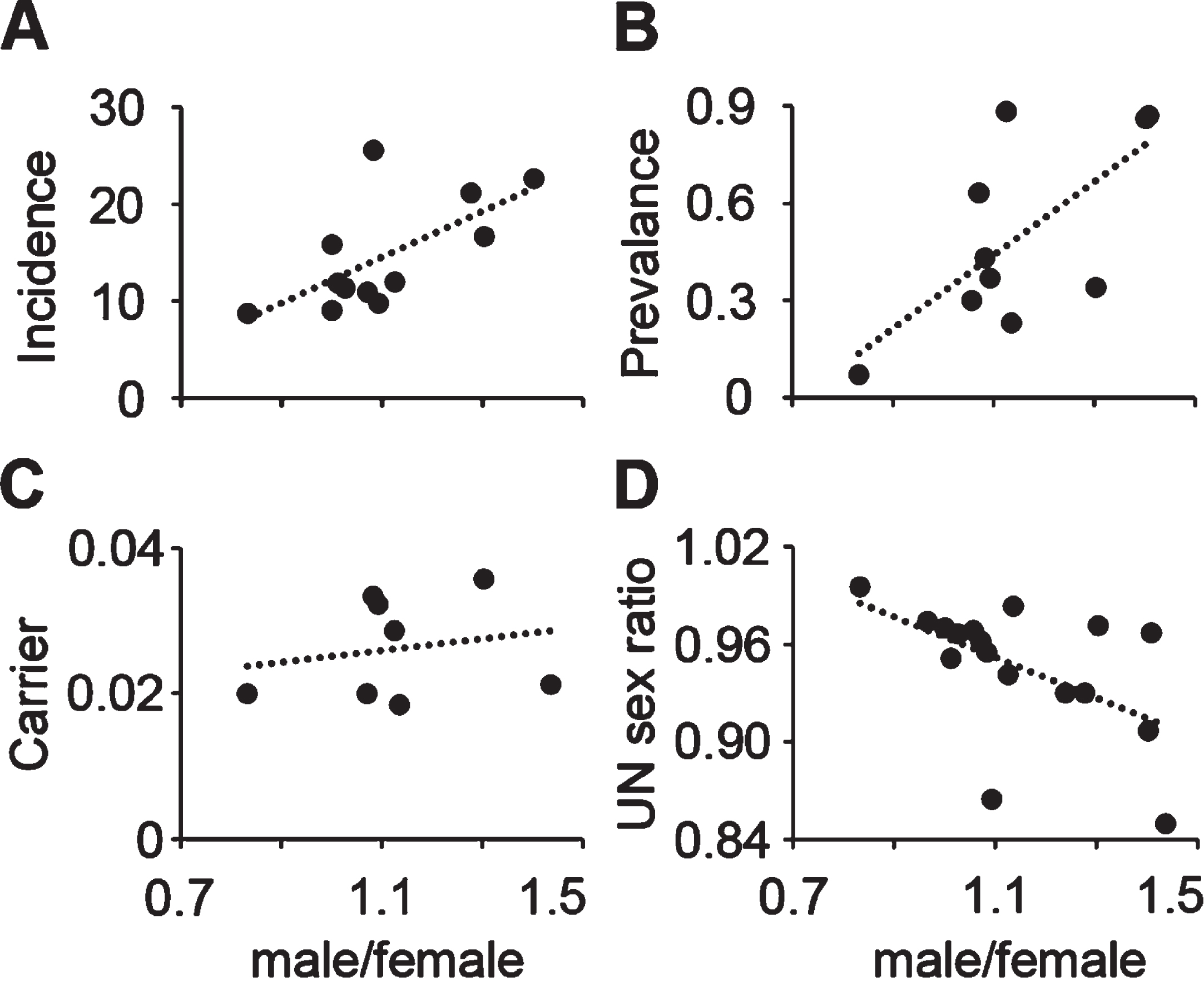

Fig. 3

Male/female ratio of SMA patients correlates with incidence and prevalence ratio by country. A– D, male/female ratio plotted with (A) SMA incidence (n = 12, r = 0.67, P = 0.02 two-tailed), (B) SMA prevalence (n = 10, r = 0.68, P = 0.03 two-tailed), (C) SMA carrier frequency (n = 8, r = 0.27, P = 0.26 one-tailed), (D) the average male/female sex ratio of total population (1950– 2020) from United Nations Population Division (n = 17, r = – 0.54, P = 0.03 two-tailed).

The above data address whether there are more males affected than females among SMA patients. The next question we investigated was whether males are more strongly affected by the disease than females. We compared the severity of symptoms between male and female SMA patients with the clinician global impression of severity total score (Table 5), and patient motor function with the Children’s Hospital of Philadelphia Infant Test of Neuromuscular Disorders (CHOP-INTEND), Hammersmith Functional Motor Scale Expanded (HFMS-E) and Revised Upper Limb Module (RULM) scores from the TREAT-NMD data enquiry (Table 6). To estimate and quantify differences in the scores of symptom severity and motor function, the aggregated data were converted to individual data as described in methods (Tables 5, 6), then the scores were compared between male and female patients.

For severity scores, the dataset did not have enough samples for SMA4 for comparison, so that type was excluded (Table 5). Overall, severity scores were lower in patients with milder SMA. A one-way ANOVA test identified the severity score of male SMA3a patients was significantly lower than of male SMA1 patients, the severity scores for SMA3b patients were significantly lower than SMA1 and SMA2 in both male and female patients; With a two-tailed t-test, the severity scores of SMA2 and SMA3b males were shown to be significantly higher than females in the same SMA type (Fig. 4A). This difference was also confirmed by Mann Whitney U test (not shown) in SMA2 (P < 0.05) and SMA3 (P = 0.05), which suggests that for SMA2 and SMA3, male patients are more severely affected by the disease.

OPEN IN VIEWER

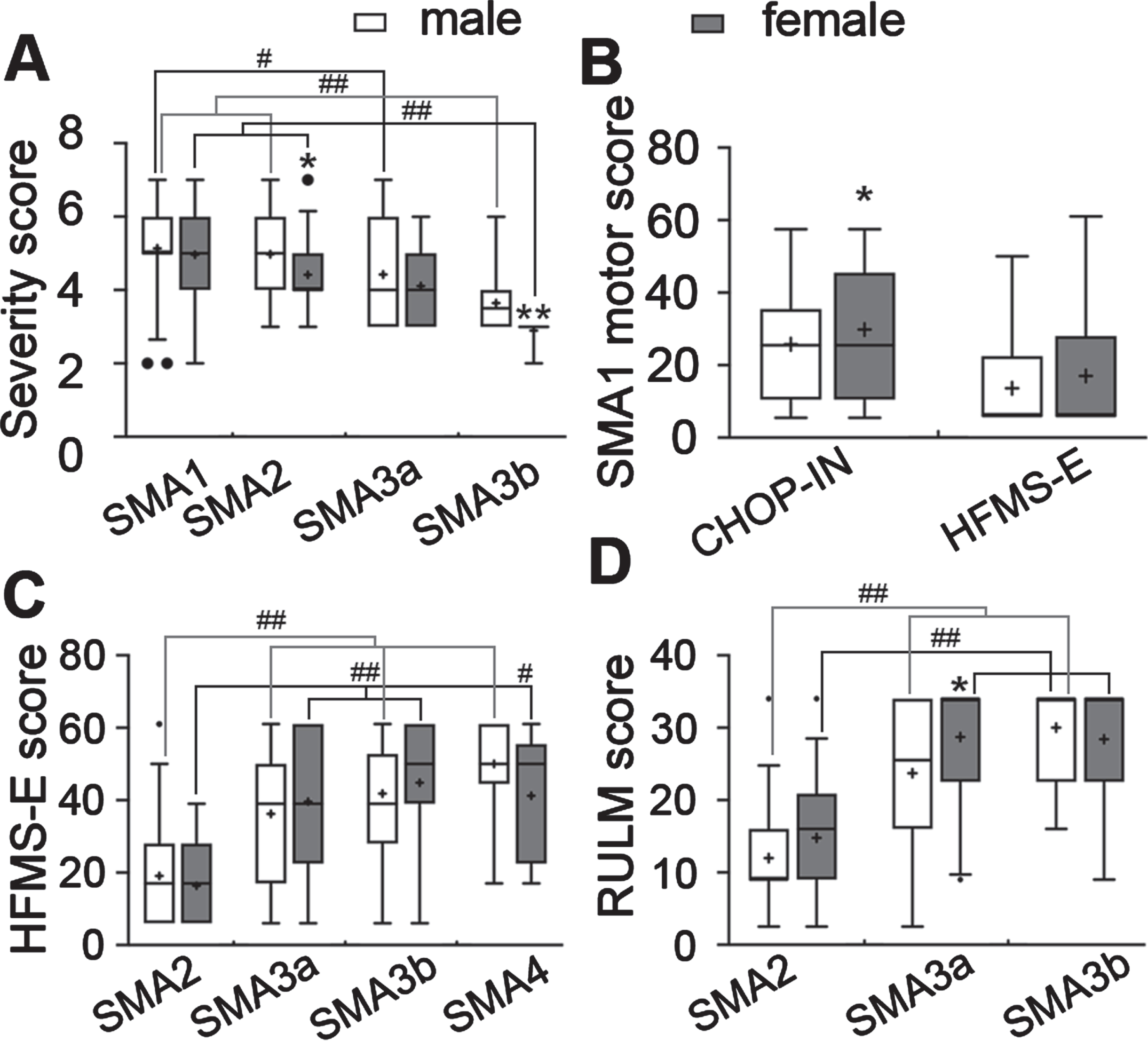

Fig. 4

Sex difference in severity and motor function among different types of SMA patients. A, the clinician global impression of severity total score of different types SMA patients; B, the CHOP-INTEND and HFMS-E total score of SMA1 patients; C and D, the HFMS-E (C) and RULM (D) total scores of milder types of SMA patients. *P < 0.05, **P < 0.01 two-tailed t-test, males were compared with females; ^#P < 0.05, ^# #P < 0.01, one-way ANOVA to compare different types of SMA males and females, respectively.

For motor measurements, the TREAT-NMD dataset reported aggregated patient numbers for both CHOP-INTND and HFMS-E scores for SMA1 patients. The estimated CHOP-INTEND score of female SMA1 patients trended higher than males (P < 0.05, one-tailed t-test), but no difference was found in HFMS-E scores between male and female SMA1 patients (Fig. 4B). For the milder types of SMA, both estimated HFMS-E and RLUM scores were reported. Overall, the HFMS-E scores were higher in milder types of SMA, as the scores of SMA3a, 3b and SMA4 were significantly higher than SMA2 in both male and female patients. However, no difference was found in HFMS-E scores between male and female patients in the same type of SMA (Fig. 4C). The RLUM scores of SMA3a and SMA3b were higher than SMA2 in both male and female patients, and the RULM score of females was higher than SMA3a male patients (Fig. 4D). These data suggest that the motor function of female patients in both severe and mild SMA trends better. This is consistent with a recent study which showed a relevant gender effect on motor function in SMA patients, with higher disease severity reported in males especially in the young adult age and in SMA3 patients [63].

To confirm our midpoint motor score estimation above, motor score ranges were ranked and analyzed with the Mann Whitney U test. We found no significant sex differences in motor score ranks in any of the motor measurements for any type of SMA. This may be because of the limitation of converting the aggregated scores over such a big range of motor scores. It also points out the necessity of analyzing individual data from a large population for a more accurate comparison of motor measurements.

Affected family members of SMA patients tend to be male

To study whether SMA equally affects males and females in the same family, the TREAT-NMD database was queried by males only and females only separately (Table 7a), the percentage of affected family members who were male and female was compared. The percentages of patients with no affected family member were not different between the queries for male patients only and female patients only (Fig. 5A). The male/female ratio of affected family members was significantly higher for the male patients only query, while being nearly 50 : 50 in the female patients only query (Fig. 5B). Breaking down the male patients only query by the SMA type of the affected family members, the percentages of males among the SMA1, SMA3a, SMA3b, and symptom onset unknown groups were significantly higher than for females (Table 7b, Fig. 5C). This is similar to the overall male/female ratio for SMA patients of different types shown in Fig. 1D. The non-significance in the SMA4 group among affected family members may be because the number of SMA4 family members was low (n = 10).

OPEN IN VIEWER

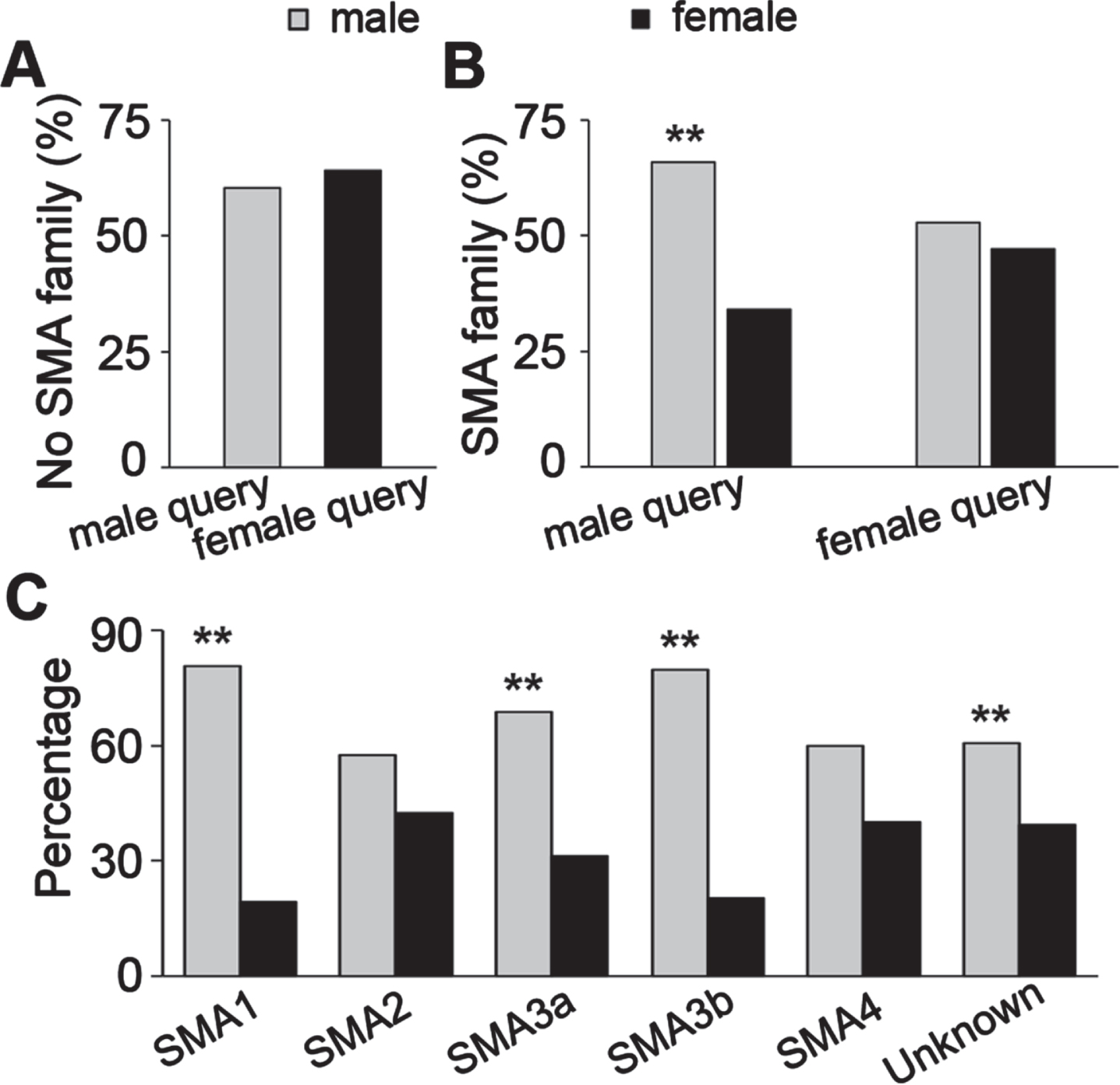

Fig. 5

Male/female ratio of family member of SMA patients diagnosed with SMA. A, the percentage of male and female patients with no SMA affected family member (Chi-Square test, P = 0.09); B, the percentage of male and female family member diagnosed with SMA queried with male patients only and female patients only respectively; C, the percentage of males and females in affected family members with different types of SMA queried with male patients only. **P < 0.01 two-tailed Z-test.

Differences in the developmental trajectories of male and female SMA1 patients

Our current study and other studies [25, 26] suggest that males appear to be more strongly affected by SMA, so we looked in more detail at the development of patients with SMA1 by comparing the body weight and head circumference of males versus females. As described in the methods, to quantify the data, the aggregate numbers of patients in the different ranges of body weight and head circumferences in the TREAT-NMD dataset were assigned the median value of the range in which they fell. Cumulative distributions of the data were fitted with Spline to determine the 50th percentile values. To compare the development of body weight and head circumference to the WHO standards, the median values for the age ranges in the dataset were used to find the body weight and head circumference values from the WHO standard charts and compared with SMA patients (Tables 8, 9; Fig. 6).

The body weight and head circumference of both male and female SMA1 patients were lower than the WHO standards at all ages reported, and both values were lower in SMA1 female patients than males as compared to the WHO standards. The inconsistency of values for age 1 month old is likely caused by the very small patient number in this age group (Tables 8, 9; Fig. 6). In female SMA1 patients, both body weight and head circumference showed the same developmental trend as the WHO standard but with lower values. In SMA1 males, there was no significant difference in growth pattern of body weight from WHO standard and from female SMA1 patients (Fig. 6A). However, the growth pattern of head circumference in SMA1 males was significantly slowed by age of 15 months, so that the average value of age 21 months was lower than 15 months (Fig. 6B). These results suggest that both body and the head circumference development are slower in SMA1 patients, and the slower growth of head circumference in male patients indicates that brain development may be more strongly affected in male than femalepatients.

OPEN IN VIEWER

Fig. 6

Developmental sex differences in the 50th percentile body weight and head circumference in SMA1 patients. A and B, the growth curve of body weight (A) and head circumference (B) of SMA1 patients plotted with WHO standards.

Modifiers influence the phenotype of SMA

The three officially approved treatments for SMA (Spinrasa, Zolgensma, and Evrysdi) are based on an SMN-restoring strategy [64]. They have had impressive results in extending patient lives and improving motor function. However, they are not curative [1]. The overall limitations of these treatments, including the number of non-responders remain a significant problem, as do adverse effect complications, and the unknown long-term efficacy – especially the newly developed treatment Evrysdi [65]. Optimizing current treatments and developing combinatorial and alternative approaches are needed to improve outcomes for SMA patients. Modifiers that could influence the phenotype of SMA patients open novel therapeutic possibilities for SMA treatment [66]. These modifiers act in both SMN-dependent and SMN-independent ways. SMN-dependent factors include the genomic integrity of SMN gene copies, cis- and trans-regulatory factors, and factors influencing RNA transcription, translation, or protein stability. SMN-independent factors facilitate or counteract disease progression via SMN-downstream pathways. They are involved in major cellular pathways including cytoskeletal dynamics, synaptic vesicle recycling and neurotransmission, axonal transport, control of gene expression and transcription [67].

The SMN complex is involved in many cellular processes, including DNA replication and repair, transcription and splicing [68]. Many different processes have been reported to be modulators of SMN complex activities. Recent evidence has identified post-translational modifications (PTMs) including phosphorylation, methylation, ubiquitination, acetylation, and SUMOylation etc., as ways that the pleiotropic functions of the SMN complex are regulated [69]. Moreover, epigenomic profiles in the early embryo and developing germ cells have revealed dramatic differences in the distribution of the histone PTMs and DNA methylation in female and male mice (for review see [70]). These studies indicate the possibility that sexual dimorphism in these chromatin marks, could interact with SMN-related epigenetic modifications to lead to sex differences in SMA.

Of the SMN-independent modifiers, three – PLS3, USP9X and UBA1, are known to be encoded on the X chromosome and affect SMA severity in a sex-specific manner [47, 71]. For example, it has been reported that asymptomatic SMN1-deleted females exhibit significantly higher expression of PLS3 than their SMA-affect siblings [8]. PLS3 expression has been found to be significantly higher in female patients older than three years, and higher in SMA3 patients than SMA2 patients. In SMA3 patients, those who could walk had higher PLS3 expression than patients who were unable to walk [72, 73]. UBA1 loss was observed in induced pluripotent stem cell-derived motor neurons from SMA patient, and systemic restoration of UBA1 ameliorates SMA phenotype in a mouse model [12]. In addition, mutations of UBA1 cause a very rare, non-SMN-dependent form of SMA in human patients [74]. These studies suggest that modifier proteins with sex-influenced expression can play a role in SMA incidence and severity.

Non-X chromosome genes coding for sex specific SMN-independent SMA modifiers have also been reported. For example, TIA1 was reported as a sex-specific disease modifier in a mild mouse model of SMA. Knockout of TIA1 showed exacerbated developmental defects in male but not in female reproductive organs, promoted body weight only in male mice, and early tail necrosis in female but not in male mice [75]. Myostatin inhibition promoted stronger body weight in male than female in SMA mouse models [15]. Overexpression of ZPR1 was associated with better improvement in females, with higher body weight and lifespan increases compared to male mice [16].

Sex is a risk factor for SMA

Sex differences in SMA have been noticed in earlier case studies, but they did not attract much attention and have not been systematically studied. Before the genetic cause of SMA was revealed, there were reports of sex differences in both Werdnig-Hoffmann and Kugelber and Welander diseases. In 1958, Schmid reported two sisters showed milder manifestations than their brother with infantile SMA Werdnig-Hoffmann disease (SMA1) in a German family with five children [76]. Pearn reported two times more males than females in 78 SMA1 patients in U.K., however no sex differences in familial cases, age of onset or life expectancy were reported [17]. Sprira reported that a male patient with Kugelber and Welander SMA was the most severely affected in a family of 7 in Israel [77]. Dubowitz reported on 12 cases in London with symptom onset in infancy and survival into childhood and adolescence, in which affected males had much more severe symptoms than their female siblings [78]. The predominance of male patients in the milder forms of SMA were reported afterwards in Japanese [19, 25] and Polish [18, 24] and other [26] populations. However, there was no sex difference in sex ratio and severity reported for either Werdnig-Hoffman or Kugelberg-Welander forms of SMA in 91 Canadian cases [22]. A report from an Australian group found no significant sex differences among patients with SMA1 or SMA2, but patients with SMA3b demonstrated a female predominance in 70 genetic diagnosed patients [20].

This inconsistency is present in our study too. In our TREAT-NMD dataset, the percentage of males was significant higher in all types of SMA except SMA2. Males were predominantly and more strongly affected than females, and more male family members were affected as well. This is consistent with other studies discussed above. However, in SMA patients in the Cure SMA membership dataset we found no overall sex differences. In our datasets more than 90% of TREAT-NMD patients were from European countries, while the Cure SMA membership data included patients from over one hundred countries with 75.7% patients from the U.S. Our study and others suggest sex is a risk factor in SMA epidemiology and pathology. However, the inconsistency between the two datasets we queried, and in the other studies discussed above indicate that sex differences may be more common in certain populations. Indeed, we found that the sex ratio of SMA patients within a country was correlated with overall SMA incidence and prevalence rates for that country. Higher male/female ratios among SMA patients were correlated with higher SMA incidence and prevalence rates, and inversely correlated to the total population male/female ratio. This result suggests that genetic background may play a role in sex differences in SMA patients from different registry datasets [54, 55].

SMN2 copy number is strongly correlated with SMA severity [4]. However, we found significantly more males only in patients with more than four SMN2 copies. Our results for fewer than four copies of SMN2 are consistent with a study reporting no overall difference in the distribution of SMN2 copies between sexes [26]. If SMA symptoms tend to be more severe in males, the higher incidence of males in the population of patients with high numbers of SMN2 copies suggests that females with high copy numbers of SMN2 are more likely to appear normal and therefore less likely to be diagnosed with SMA.

Interestingly, a recent study reported that weight and supine length growth are more linear in females with SMA1 and SMA2, while SMA1 males showed a decrease in weight, length, and body mass index velocity at about 3 years of age, and males with SMA2 showed a decrease in both weight and length growth velocity after about 6 years of age [79]. This is consistent with our results showing a decline in average head circumference at age of 21 months in male SMA1 patients. Growth in head circumference in female SMA1 patients was more linear, even though it was lower than the WHO growth standard. These data suggest the presence of sex differences in the development of SMA children.

Male infertility may also be a concern among mild SMA patients, as male reproductive defects including testicular hypofunction and infertility have been reported in mild SMA patients [80]. However, the fertility of woman does not appear to be affected by SMA [81]. This difference is supported by studies in a mild SMA mouse model. Impaired testis development, degenerated seminiferous tubules, reduced sperm count and low fertility in males SMA mice were reported, but no overt sex organ phenotype in female SMA mice [82].

Overall, these studies indicate sex is a risk factor in SMA patients, which needs further investigation.

Potential mechanisms of SMA sex difference: genetic background, sex hormones and X-chromosome inactivation escape genes

Human SMN1 and SMN2 gene copies lie within a repeat unit of a copy number variant on chromosome 5q13. A large genetic variability has been found in the number of repeat units (null to four) per chromosome, and the size, and orientation of this copy number variant [67]. Heterozygous carriers of SMA include four main groups of genotypes due to different SMN1 copy numbers and point mutation or microdeletion of SMN1. Generally, the estimation of the incidence of SMA is around 1 in 10,000 live births, and a prevalence of 1-2 per 100,000 persons. However, significant regional differences exist. This could be because of the method of calculation and/or population size. It could also indicate regional genetic pool difference in the incidence of SMA [55]. The strong correlation of sex ratio with SMA incidence and prevalence in our study supports this regional/ethnical difference. Additional support comes from the inverse correlation of SMA sex ratio with the overall population sex ratio in the countries analyzed. Higher male/female ratio in SMA correlated to lower male/female ratio of the total population in the same country. The mechanism underlying this correlation is not known.

It Is known that sex steroid hormones exert significant effects on neural development and that manipulation of sex hormones during critical periods results in permanent neural changes. Sex-related differences in vulnerability to neurobiological disorders might be due to sexual dimorphisms established during development, as well as to levels of steroid hormones [83]. The brain is particularly vulnerable to age-related androgen loss [84] and the diminishment of estrogen in postmenopausal woman [85]. A neuroprotective role for sex hormones in the brain against neurobiological disorders and injury has been reported [86]. The influence of sex hormones in skeletal muscle quality and health may also contribute to dimorphic responses between sexes during muscle pathologies [87]. It is well established that androgens and estrogens and their respective receptors have specific actions on the different bone envelopes during bone growth and bone maintenance in both sexes [88]. Sex hormones also affect immune responses which could lead to variability in disease phenotypes [89]. Studies also suggest that sex hormones ameliorate the regressive changes in motor neuron and muscle morphology after spinal cord injury [90].

ALS is a motor neuron disease which shows sexual dimorphism in its incidence, age of onset and progression rate [91]. In ALS mouse models, androgen and estrogen receptors are differently dysregulated in motor neurons and astrocytes [92]. Androgen receptor gene mutation of the proximal long arm of the X chromosome is the genetic cause of a rare form of spinal muscular atrophy, spinal and bulbar muscular atrophy (SBMA) [93]. Gene therapy with the androgen receptor isoform for SBMA is under study [94]. In SMA, so far, there has been no report of sex hormone and reproductive system changes in SMA patients, but severe impairment of male reproductive organ development was reported in a mild SMA mouse model [82]. These studies on the role of sex hormones in neurological disorders and motor neuron diseases, and the sex differences in SMA patients observed in our study indicate that sex hormones may play a role in the sexual dimorphism of SMA, something which requires more attention and investigation.

X-chromosome inactivation refers to the fact that in female mammals, for most genes on the X chromosome, one allele on one of the X-chromosomes is silenced. In humans, about 15% of X-linked genes escape inactivation to some degree [95]. Differences in the identity and distribution of escaped genes between species and tissues suggest a role for these genes in the evolution of sex differences in specific phenotypes. Escaped genes have higher expression levels in females than in males implying that they may play a role in sexual dimorphism in complex diseases [96]. Among these escape X-linked genes, PLS3, USP9X, and UBA1 have been recognized as positive SMA modifiers [47]. The female-biased expression of PLS3, USP9X and UBA1 may contribute to sex differences of SMA [8, 97]. Other X-linked genes that may have sex-specific effects on SMA phenotypes include the androgen receptor gene, cell-signaling receptor genes and microRNA genes [95]. The protein and microRNAs coded by some of these genes have direct or indirect interactions with SMN gene products [98, 99]. More study of X-chromosome linked modifiers will advance understanding of sex differences in SMA symptoms and aid in developing novel treatments.

Conclusion and recommendations

Our study suggests that there are sex differences in SMA incidence, phenotypes, and development. However, the limitations of the aggregated data in our datasets prevented determination of details in the differences in the phenotypes and development deficiencies in SMA patients. In the TREAT-NMD dataset there was a high variability in the size of the samples from different countries, and the lack of knowledge of genetic background was a limitation. The total patient numbers were rather small for SMA4 patients with reported severity and motor scores, and for SMA1 patients with reported developmental measurements. These limitations prevent our conclusions from being definitive. Additional studies with data from patients with same genetic background, and who can be age- and sex-matched would make the results more conclusive.

This study strongly indicates the need for more systematic study of sex differences among different populations of SMA patients. Future studies require more careful data management and broader availability of detailed patient information including age, gender, ethnicity, and family history, the severity and disease progression, and the treatment regimens. Thoroughly investigating the mechanisms of sexual dimorphisms in SMA will not only lead to better understanding of the sex-specific pathologies of SMA, it is also of utmost importance for developing effective therapies. This study also strongly supports considering sex in selecting clinical therapies and evaluating potentially sex-specific outcomes, which will allow more complete understanding of the effectiveness of current therapies and potential avenues for developing alternative treatments.
