Development of high intensity neutron source at the European Spallation Source

Abstract

The European Spallation Source being constructed in Lund, Sweden will provide the user community with a neutron source of unprecedented brightness. By 2025, a suite of 15 instruments will be served by a high-brightness moderator system placed above the spallation target. The ESS infrastructure, consisting of the proton linac, the target station, and the instrument halls, allows for implementation of a second source below the spallation target. We propose to develop a second neutron source with a high-intensity moderator able to (1) deliver a larger total cold neutron flux, (2) provide high intensities at longer wavelengths in the spectral regions of Cold (4–10 Å), Very Cold (10–40 Å), and Ultra Cold (several 100 Å) neutrons, as opposed to Thermal and Cold neutrons delivered by the top moderator. Offering both unprecedented brilliance, flux, and spectral range in a single facility, this upgrade will make ESS the most versatile neutron source in the world and will further strengthen the leadership of Europe in neutron science. The new source will boost several areas of condensed matter research such as imaging and spin-echo, and will provide outstanding opportunities in fundamental physics investigations of the laws of nature at a precision unattainable anywhere else. At the heart of the proposed system is a volumetric liquid deuterium moderator. Based on proven technology, its performance will be optimized in a detailed engineering study. This moderator will be complemented by secondary sources to provide intense beams of Very- and Ultra-Cold Neutrons.

Keywords

Moderator neutrons source ESS ultra cold neutron very cold neutron

1. Introduction

Presently under construction, the European Spallation Source (ESS) in Lund, Sweden, is a multi-disciplinary international laboratory with 13 European member states and will be one of Europe’s flagship facilities. It will operate the world’s most powerful pulsed neutron source. Initially, the spallation source will be equipped with a single compact low-dimensional moderator [30], which has been designed to deliver brightest neutron beams for condensed matter experiments, optimized for small samples, flexibility and parametric studies. A user program will start in 2023, and by 2025 a suite of 15 neutron scattering instruments will be installed at this first neutron source. The flexible design of ESS, however, leaves a great opportunity to implement a second source with complementary characteristics going well beyond the initial goals of the facility development [4]. This new infrastructure must be capable of delivering highest possible total intensity (as opposed to brightness which was the main design criterion for the first source) of cold neutrons with wavelengths above 4 Å, including neutrons in the long-wavelength tails of the spectrum, so-called Very Cold (VCN) and Ultra Cold Neutrons (UCN). The second source enables experiments in two main categories: condensed matter research using techniques like spin-echo, SANS and imaging, and fundamental physics (searches for neutron-antineutron oscillation, a non-zero neutron electric dipole moment, a fifth force, extra dimensions etc.). The new source will enable a program of world-class experiments, often with a unique physics reach. The sensitivity on various measurements and searches can be improved by up to three orders of magnitude compared with best running facilities. An alternative source with comparable parameters to enable these experiments does not exist. There are two other high-power, MW-class, pulsed spallation sources in the world: J-PARC in Japan, and SNS in USA. Upgrade plans exist for implementation of second target stations at both facilities [1,2], and in both cases the focus is on using low-dimensional high-brightness moderators, as for the ESS first source. These upgrades aim to deliver superior peak brightness to the ESS first source (up to a factor of 5), but with a time-average brightness which remains about a factor of 5 lower than the ESS first source, when operating at 5 MW. The combined effect is that after these upgrades, the SNS and J-PARC second target stations will deliver performance which is similar to that delivered by the ESS first source, and with a similar spectral emphasis on the thermal and cold neutron ranges. An intense source at ESS, focused on delivering more neutrons with longer wavelengths, would outperform these planned upgrades in the long-wavelength regime by more than an order of magnitude. The installation of a long-wavelength facility at the ESS is uniquely favorable due to the high proton power and long-pulse time structure. No existing facilities can upgrade in this way.

2. The ESS source upgrade

Neutrons are a valuable research tool for the investigation of matter in a variety of fields. The application of neutrons as a research probe started in the 50’s with the advent of research reactors. Developments of intense neutron sources followed two threads, leading to high-flux reactors, such as at ILL, and high-power spallation sources such as at SNS, J-PARC and now ESS. Despite these developments, neutron scattering remains an intensity-limited technique, due to the fact that only a very small fraction of the neutrons produced reaches a sample or an experiment. The ESS has developed high-brightness, low-dimensional moderators to maximize the availability of neutrons for typical experiments that are possible only at ESS, in particular for small samples with low-divergence beams. This optimization has led to a single moderator system capable of satisfying the needs of all the ESS instruments in the initial suite. Many other experiments and applications would however strongly profit from a source with different, complementary characteristics, notably those requiring a larger total number of neutrons emitted from the source. This latter feature is crucial for many fundamental physics experiments, such as the proposed neutron-antineutron oscillation search NNBAR [11]. Also neutron scattering experiments would benefit, investigating a sample with techniques allowing for large beam divergence. Moreover, some experiments can strongly profit from using neutrons with longer wavelengths than delivered by a cold hydrogen moderator (2–10 Å). In particular, the range 10–40 Å, which we can broadly call Very Cold Neutrons (VCNs), is of great interest for some neutron scattering applications (spin-echo, SANS), neutron imaging, and notably for fundamental physics (NNBAR, searches for a fifth force and extra dimensions, etc.). The combination of two distinctive features of a new cold source that will be developed, i.e., the availability of a higher total intensity and a colder spectrum with much enhanced output at longer neutron wavelengths, is extremely attractive for the communities of neutron users. The following Figs 1, 2, 3 show the arrangement of the present moderator system at ESS, and areas still available for additional future instruments that can be fed by a second moderator system. These free areas are marked in green in Fig. 3 they represent a valuable infrastructure for future developments.

Fig. 1.

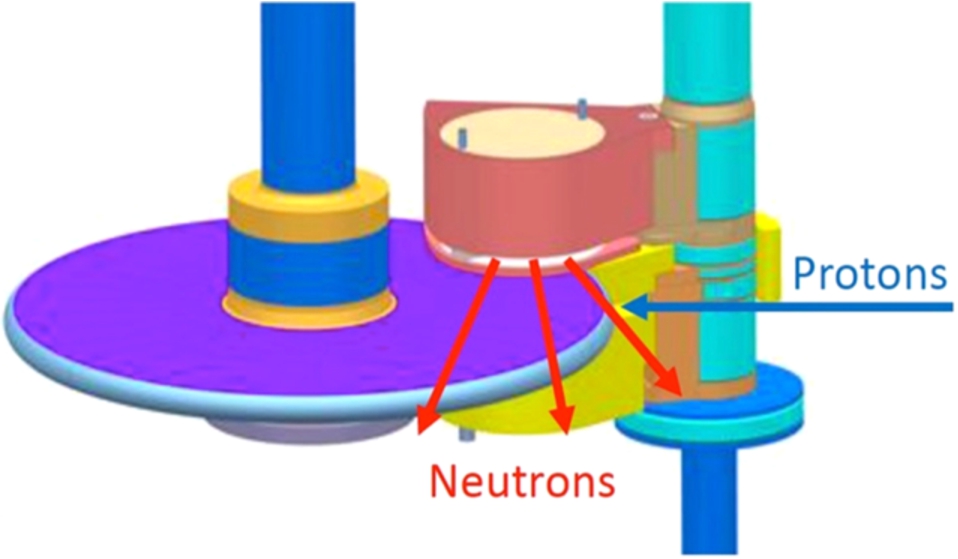

Schematic view of the ESS target-moderator-reflector system. Protons with 2 GeV energy impinge on a rotating target consisting of tungsten (purple disk in the figure). A cylindrical steel structure (dark red) placed above the target contains the moderator and reflector from which neutrons are extracted to the beam lines (red arrows). A similar container (yellow) is placed below the target. Presently unused, it can host another moderator-reflector system (compare Fig. 2).

Fig. 2.

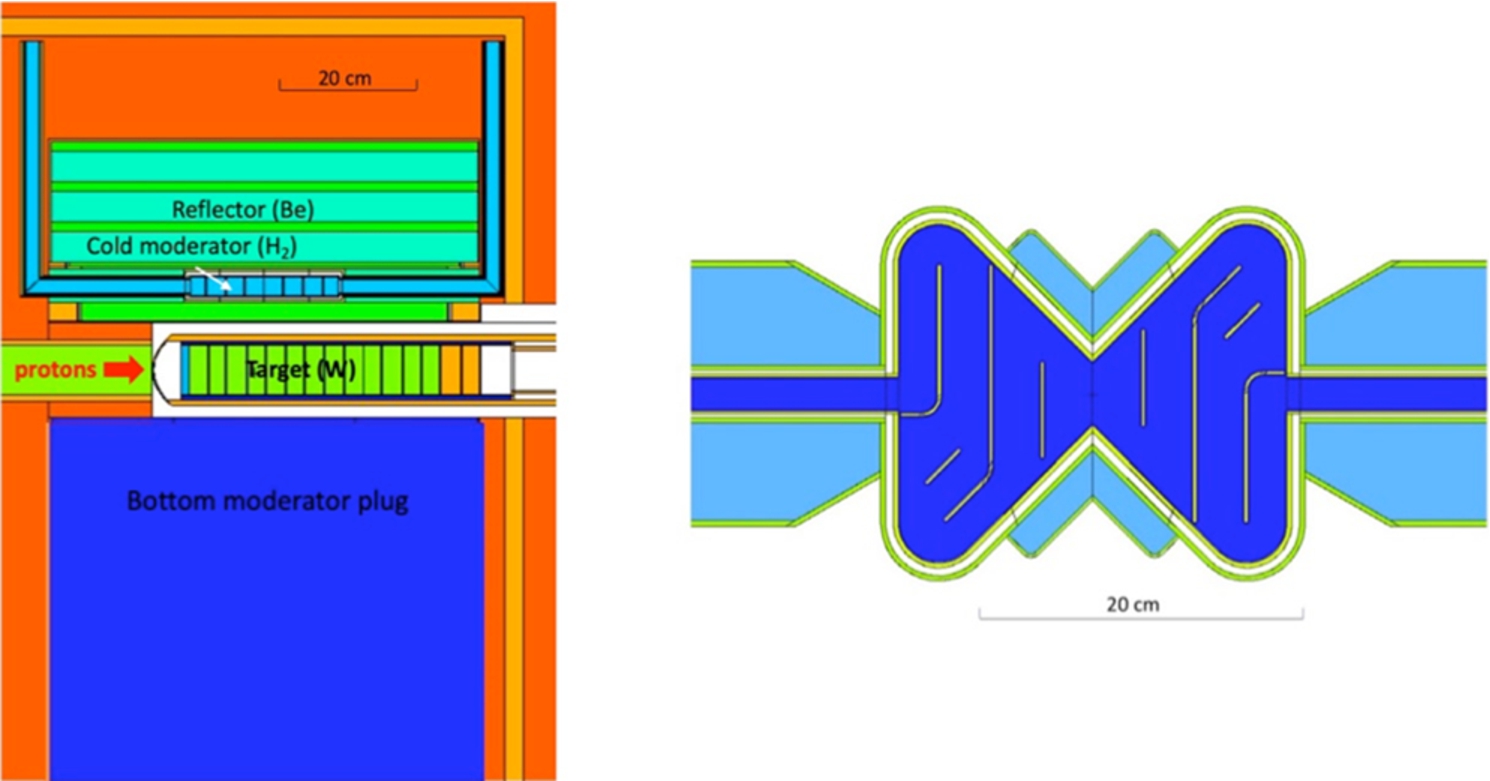

Left: MCNP model of the present configuration of the ESS target-moderator-reflector. A high-brightness moderator system (right figure) is placed above the spallation target. The place below the target is presently occupied by a steel plug and can accommodate a second moderator system.

Fig. 3.

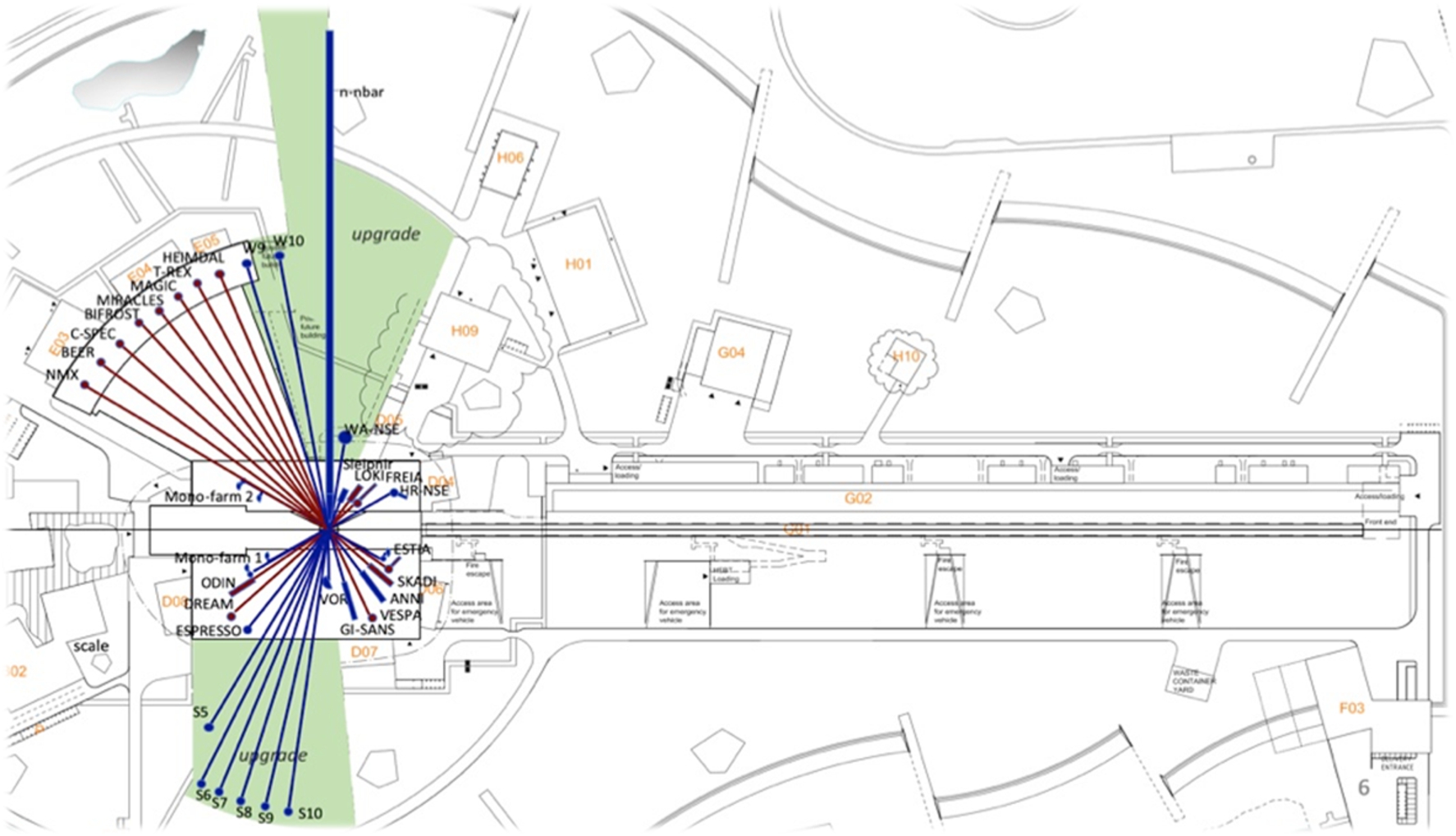

Possible upgrade plan of ESS: the part marked in green covers experimental areas of the facility which are left free by the initial suite of 15 instruments.

Fig. 4.

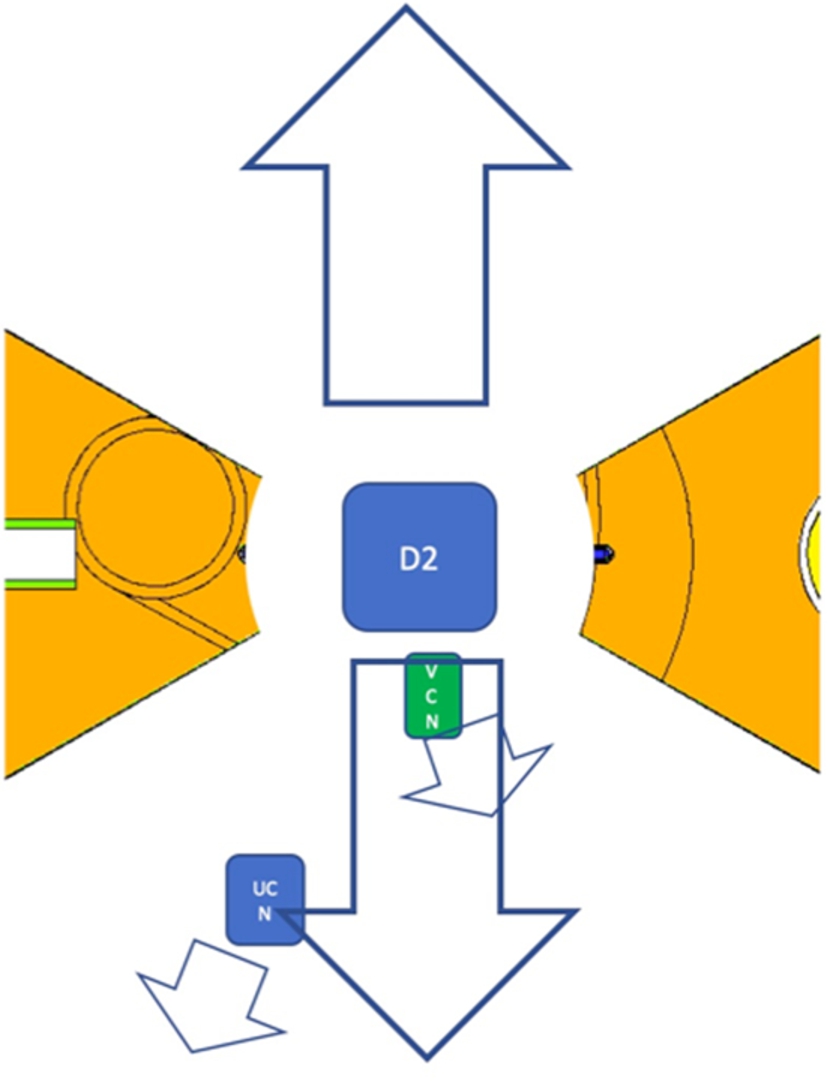

Conceptual arrangement of a possible moderator configuration below the target, see explanations in the text.

It is important to note the difference between the brightness and the total intensity of a neutron source. The latter is given by the total flux of neutrons emitted from the surface, whereas the source brightness is the flux density in a neutron phase space element of interest for use in a neutron instrument. For some applications, notably if small samples are investigated in neutron scattering experiments, a small moderator with higher brightness is more interesting than a large moderator with higher total flux but smaller brightness. It has been shown [4] that an increase of the size of a para-hydrogen moderator from the 3 cm foreseen for the upper ESS moderator to 10 cm would lead only to a gain of 20% in total intensity. While the instruments viewing the upper hydrogen moderator can profit from its high brightness, other applications described in Section 3 are able to take advantage of the higher total intensity offered by a large LD₂ moderator (for which the argument of trading brightness versus intensity does not hold due to the different neutron scattering physics it involves). As shown schematically in Fig. 4, we propose therefore to place in the central position below the target a second cold source containing approximately 20 liters of LD₂. This type of moderator seems currently the best choice for high-intensity applications. It is technically state of the art and well established at user facilities as ILL and SINQ at PSI [7]. With respect to the upper para-hydrogen moderator, which was designed as a bi-spectral moderator with high-brightness, the LD₂ moderator will provide a colder neutron spectrum. Depending on its exact location, an about 3–4 times higher total intensity has been estimated in a preliminary calculation [18]. Neutrons emitted from a surface area of about $20 \times 20 {cm}^{2}$ can be either used directly for a variety of applications (see Section 3), or be further cooled down to the VCN or even UCN energy ranges in secondary cold sources to be placed in close vicinity to the LD₂ moderator, as discussed in the next sections. The LD₂ moderator will thus serve the two purposes to:

Directly feed beamlines, possibly with an advanced reflector system to enhance the CN and VCN fluxes,

Feed a UCN source, and eventually a VCN moderator, for generation of high fluxes of UCNs and VCNs, respectively.

The intensity of the new LD₂ moderator for ESS can be maximized in two ways,

by using optimized geometries. One may also include reentrant holes, as used in several facilities for cold and thermal moderators, to increase the flux in specific emission channels,

by using advanced reflector materials optimized for the CN and VCN wavelength ranges. These are expected to further increase the intensity gain.

While the first possibility involves optimization of well-established technology in the context of the special conditions at ESS, the second is more explorative and requires extensive studies of suitable advanced materials. The study of this advanced materials is part of the upgrade plan of ESS.

2.1. Source for ultra-cold neutrons

Several options for sources of ultra-cold neutrons (UCN) at spallation sources have been discussed at the ESS Science Symposium on Neutron Particle Physics at Long Pulse Spallation Sources, NPPatLPS, held in 2013 at LPSC in Grenoble [19,23,29,31]. They commonly use superfluid helium (He-II) as a medium for conversion of meV cold neutrons to the UCN energy range of typically 100 neV. UCN production in a He-II converter relies on the possibility of nearly entire neutron energy loss in single scattering events, mostly via a one-phonon process induced by neutrons of 8.9 Å wavelength [12]. Sources can be classified as “in-beam” and “in-pile”, depending on the distance to the primary moderator. The “in-beam” option places a He-II converter at the end of a neutron guide, as initially proposed in Ref. [13]. This is viable due to the strictly vanishing absorption cross section of ⁴He. A user facility of this type, called SuperSUN, is currently being commissioned at the ILL. Its position remote from the harsh radiation environment enables converter temperatures below 0.6 K where phonon up-scattering becomes so small that the storage lifetime in the converter is dominated by neutron beta decay. In addition, a magnetic reflector can be implemented to suppress UCN losses at the converter walls. These two aspects together lead to projected UCN densities in the source beyond $1000 {cm}^{- 3}$ , as compared to typically few $10 {cm}^{- 3}$ in the currently best UCN sources for users. At the ESS, UCN densities of an “in-beam” source might reach the order of $10^{4} {cm}^{- 3}$ for an efficient cold-neutron extraction under large solid angle attainable with modern supermirror technology. To be noted is that an “in-beam” source attains its high UCN density only after a saturating period of neutron accumulation, which becomes then diluted on UCN delivery to an actual experiment. This type of source is therefore reasonably applied only for experiments involving small chambers for UCN storage. An “in-pile” UCN source at a spallation source is located in the intense field of cold neutrons generated by a primary cold source situated close to the spallation target. Since the UCN production rate is proportional to the flux of incident neutrons, it is typically by two to three orders of magnitude larger in an “in-pile” source than at an external beam. However, this requires removal of considerable heat loads on the converter due to radiation, which excludes operation of the source below 1 K. Since the UCN storage lifetime due to phonon up-scattering in this temperature range decreases with the 7th power of the converter temperature, the gain in UCN density does not fully follow the gain in UCN production. A significant benefit of the much higher UCN production rate in the more powerful “in-pile” sources is a much weaker dependence of UCN density on chamber size. They thus combine high density and high flux and are therefore perfectly suited to fill larger chambers, and for use in non-storage, flight-through experiments. A dedicated engineering analysis will be carried out to study the best possibility for an “in-pile” UCN source at ESS. Among several UCN source projects worldwide, proposals for “in-pile” He-II UCN sources for the PIK reactor [27] at Gatchina, Russia, are of particular interest for the ESS. They promise UCN densities in the range of a few $10^{3}$ to $10^{4} {cm}^{- 3}$ and are partly well advanced so that some of their concepts can be taken as a starting point for our analysis.

2.2. Source for very cold neutrons

The availability of intense fluxes of Very Cold Neutrons is potentially a game changer in several neutron scattering applications, as well as in fundamental physics research with neutrons. The positive impact of longer neutron wavelengths λ on the performance of various classes of instruments can be seen from the λ dependences of the instrumental resolution at fixed geometry, and the intensity at fixed resolution, e.g., $λ^{- 1}$ and $λ^{2}$ for reflectometers, $λ^{- 3}$ and $λ^{2}$ for Time-of-Flight (ToF) instruments, or $λ^{- 3}$ and $λ^{3}$ for neutron spin echo [20].

Particle-physics experiments able to take advantage of higher VCN fluxes are the search for neutron anti-neutron oscillations (see Section 3) for which the discovery potential is proportional to $λ^{2}$ , a project of an “in-beam” search for a non-vanishing neutron electric dipole moment [24], and experiments searching for new fundamental forces [25]. We will study two possibilities to get these intense fluxes:

with a dedicated VCN moderator using a novel material

using VCN extraction from the colder tail of the LD₂ moderator spectrum, by enhancing the spectral part beyond 10 Å using advanced reflectors.

For the first option, we have to perform dedicated studies to these novel materials (see Section 2.3) since there is still lacking of a detailed knowledge of important properties of materials identified as suitable for moderation to the VCN energy range. For the second option, we intend to use cold-neutron reflectors to enhance the VCN yield from the LD₂ source.

2.3. Advanced reflector materials

Recent years have seen intense research towards novel moderator/reflector materials and for beam extraction systems, with the aim to improve cold-neutron sources. The following materials were identified as promising candidates:

Diamond nanoparticles (NDs) have been studied in the last 15 years and theoretical and experimental results indicate that these materials have large albedo for cold and sub-cold neutrons. There are now studies ongoing or planned at most of the major neutron scattering facilities worldwide, including SNS, JPARC, ISIS, ANSTO, and ILL. One of the reasons for the growing interest is a recent measurement of the scattering cross section in the CN/VCN regime [28] – which is found to be larger by up to two orders of magnitude than of carbon nuclei without coherent amplification at long wavelengths. These experiments agree well with a simple theoretical picture given in Refs. [8,21]. Coherent scattering by NDs notably gives rise to small angle scattering in the CN regime, which becomes almost isotropic in the VCN regime. These properties can be exploited for cold neutron sources. The first property, i.e., quasi-specular reflection of cold neutrons might enable neutron transport in a diffusive channel coupled to a moderator. It is to be shown how effective this mechanism is with respect to neutron optical beam transport by supermirrors. If the inner walls facing the neutron beam in a beam extraction would be made of NDs, stray neutrons leaving the moderator at a too large divergence to be of experimental value, might scatter off the NDs, and get a second chance to be emitted within the acceptance of the optics. This could become useful for transport of cold neutrons to increase the flux at a sample. An important application of a diffusive channel will be the enhancement of CN fluxes from a primary LD₂ moderator to feed a secondary moderator for VCN or UCN production, placed at some distance, providing a corresponding increase of VCN or UCN fluxes. The second interesting property of NDs, a large albedo for VCNs, suggests to use them as a reflector surrounding a VCN moderator to enhance its performance.

MgH₂ is another promising material which has been proposed for diffuse reflection of cold neutrons [14]. Preliminary studies have been performed and more detailed characterizations are ongoing.

Graphite intercalation compounds (GICs) have the potential to act as high-performance reflectors for CNs and VCNs. By intercalating atoms such as fluorine or oxygen between the graphene layers, the largest d-spacing can be increased by a factor of two or more in comparison to regular graphite, pushing the Bragg cut-off to 8–10 Å, or even beyond. A polycrystalline assembly of such a material will be an effective reflector for wavelengths up to that Bragg cut-off, which is to be compared to a cut-off wavelength of about 4 Å for polycrystalline beryllium, the most commonly-used reflector material for CN sources. A variety of such GIC compounds can be synthesized, and the most promising materials will be tested for their neutronic performance. For such an application, the requirements are: large lattice parameters, high coherent scattering cross section, low absorption cross section, low chemical reactivity, and resistance to radiation damage.

Deuterated clathrate hydrates have been proposed more recently [32] to cover the CN range from standard LD₂ cold sources, for which they promise untypically large albedos. These inclusion compounds, consisting of a network of water molecules that form cages able to host small guest molecules, are also particularly promising for VCN production, so that a cooled reflector would also possess moderating properties. This is due to their cross section for inelastic incoherent neutron scattering by local modes, which can remove energy from the neutrons without kinematic restrictions due to a dispersion relation.

However, the characterization of this material class for this application is still at a preliminary stage so additional experimental studies must be performed to be used in the future ESS upgrade.

3. High intensity neutron source applications

As stated previously a high intensity source would benefit several different applications from condensed matter science to fundamental physics. Below a detailed description of the scientific impact of such new source is provided.

3.1. Condensed-matter science

3.1.1. Neutron spin-echo (NSE)

Neutron spin-echo is the technique which can measure the slowest dynamics accessible with neutrons. It does this by decoupling the energy resolution from the degree of beam monochromaticity and measures the van Hove correlation function directly in the time regime, rather than its Fourier transform as is conventionally recorded in neutron spectroscopy. This makes NSE a unique tool for characterizing the motion of large molecules and it is very often the only direct test of predictions made by molecular dynamics (MD) simulations. Significantly higher CN or VCN fluxes increase the performance of NSE spectroscopy in several ways: firstly, by increasing the longest relaxation times which the technique can access, secondly, by allowing measurements at larger wave vector transfer where the scattering cross sections are lower, probing movements associated with smaller structures. It will also allow much faster measurements, increasing throughout for a technique which is strongly flux-limited. Finally, it will permit the study of much smaller amounts of samples, which is extremely important for biological studies. The expected flux increase will be a game-changer for spin-echo, making the technique available to non-expert users and tapping into a much larger user community than currently addressed.

3.1.2. Small-angle neutron scattering (SANS)

SANS measures large structures such as macromolecules in solution by detecting the scattering at small angles using cold neutrons. Longer wavelength neutrons can be used to access larger structures, or alternatively, the same length scales can be accessed by measuring at larger scattering angles, potentially improving the performance of the technique. In addition, the generally lower source flux at these wavelengths can be compensated for by employing novel focusing techniques, such as magnetic or materials lenses using refraction whose effectiveness increases rapidly with wavelength. A significant increase in source intensity of wavelengths in the 5–30 Å range could be transformative for this field. It will allow the measurement of smaller volumes and greater length-scales, overlapping with the lengthscale regime of neutron imaging. Current efforts to access these length scales, known as V-SANS or U-SANS (very- or ultra- small-angle neutron scattering) typically suffer from very long counting times and employ elaborate instrument concepts designed to compensate for the very low source brightness of neutrons in that wavelength range. Rapid measurements with small beams will also enable scanning SANS measurements which can probe local structures and thus structural variations throughout inhomogeneous samples, potentially even in 3D. Faster measurements on the other hand will enable the study of processes and structural transformations that are not amenable today. Two instruments currently under construction, viewing the upper moderator are set already today to transform the field through outstanding performance beyond current capabilities enabling the measurement of smaller samples or faster kinetics. The gains envisioned here are in addition to those of these current projects. They will enable measurements of yet even smaller structures and faster processes and provide data with high spatial resolution through fast pencil beam scanning procedures, today only known from synchrotron sources, but benefitting from the unique contrast conditions which only neutrons can provide.

3.1.3. Neutron imaging

Neutron imaging is a rapidly-evolving real space technique probing macroscopic structures with a very wide range of applications, covering both academic research and areas with direct industrial impact. The ODIN [5] instrument at ESS will provide an order-of-magnitude improvement in versatility and performance compared to existing instruments, and is expected to be strongly over-subscribed. An imaging instrument viewing the ESS lower moderator would provide even further enhanced performance in a complementary regime of applications with respect to the ODIN instrument, in particular for large industrial samples and high temporal and spatial resolution applications. The lower moderator position provides a unique opportunity for this by significantly improving two aspects:

Large moderator surface: The upper moderator is optimized for high (local) brightness, rather than high (area–integrated) intensity. A moderator with a viewable area of the order of $20 \times 20 {cm}^{2}$ , compared to the $3 \times 10 {cm}^{2}$ area used by ODIN, will allow a much larger and more uniform field of view. This will both extend the measurement capability to much larger and more complex systems and industrial components or whole machinery.

Long wavelength neutrons: A flux enhancement for neutrons in the 5–20 Å range will greatly increase, e.g., the sensitivity of polarized neutron imaging, extending the range of accessible 3D magnetic field distributions to lower fields and local electric currents, such as in energy conversion devices. The long-wavelength regime will also greatly improve quantitative high resolution imaging with neutrons, as the signal is not affected by the diffraction background which is otherwise unavoidable from crystalline materials.

3.2. Fundamental physics

3.2.1. The NNBAR project to search for neutron-antineutron oscillations

Fundamental particle physics research is a field which has developed by exploring particle interactions and discovering new particles at progressively higher energy scales. Collider experiments, such as the CERN Large Hadron Collider (LHC) are generally probe only to mass scales up to the collision energy. Non-collider experiments study or search for specific processes at an extremely high precision are sensitive to hitherto unseen physics processes at mass scales substantially in excess of those available at colliders. Taking advantage of the unique potential of the ESS, the NNBAR experiment will continue the long tradition of high sensitivity small scale particle physics experiments by performing searches for neutrons converting to antineutrons. NNBAR has a unique reach in sensitivity to new physics beyond any conceivable or running collider experiment. This enables the experiment to tackle some of the most important open questions in modern physics. One such issue is the so-called matter asymmetry of the universe. While the world around us consists of matter particles (e.g., electron or neutrons) antimatter particles (e.g., positrons or antineutrons) are typically glimpsed in cosmic rays and at colliders. This imbalance in the amount of matter and anti-matter is a long-standing and poorly understood problem in particle physics. What is known is that an essential condition to explain the imbalance is that processes must occur in which matter can be destroyed or turned into anti-matter. Such processes were important at the start of the universe and gave rise to today’s matter-antimatter imbalance. By searching for neutrons converting to antineutrons, the NNBAR experiment offers a unique matter-antimatter search for such a process with a sensitivity improvement three orders of magnitude greater than previously obtained. The observation of neutrons converting to anti-neutrons would be the first evidence of matter changing to antimatter and would be thus of fundamental significance. In addition to addressing the matter-antimatter imbalance, neutron-antineutron conversions tackle other longstanding and open problems in particle physics of equally large importance. For example, it remains an enduring mystery why Nature has provided families of two types of subatomic particles (quarks and leptons). Neutron-antineutron conversions are predicted in theories in which quarks and leptons exist in a single theory continuing the process of unification in physics which started with the Maxwell equations. Another mystery for which solutions predict neutron-antineutron conversions concerns the smallness of the mass of neutrinos, a neutral lepton which was considered massless until the 1990’s, compared with those of the charged leptons such as the electron. In short, at a basic science level, the observation of neutron-antineutron conversions would be a discovery of Nobel Prize winning significance with a direct impact on many lines of research in modern physics.

3.2.2. Fundamental physics with ultra-cold neutrons

Ultra-cold neutrons play an outstanding role in addressing key questions of particle physics at the low-energy, high-precision frontier, complementary to the high-energy frontier probed at particle accelerators. Due to the long times for manipulation and observation in traps, UCNs are an excellent tool for precise measurements in fundamental physics [3,10,26]. The implementation of an intense UCN source at ESS, will boost this important field of research. Scientific activities which will strongly profit include:

Neutron electric dipole moment (EDM) searches are flagship experiments that have been motivating dedicated facilities for UCN production due to their extraordinarily large discovery potential for new physics. This experiment is famous for having ruled out more particle-physics theories than any other experiment. As well reflected by many ambitious projects around the world, particle EDMs are among the most promising observables to find a signal of new physics. Calculations within the SM predict undetectably small EDMs, whereas theories beyond the SM almost inevitably lead to much larger values. Very large mass/energy scales can thus be probed, which may have been relevant in the evolution of the very early Universe. The neutron is a very prominent system as it is comparably simple, without atomic shell or nuclear structure and no net electric charge. Ramsey’s method of separated oscillatory fields, applied to a trapped ensemble of UCNs, provides highest sensitivity to detect a neutron EDM. The still best experimental limit, $| dn | < 2.9 \times 10^{- 26} e \cdot cm$ , has been obtained at ILL by a RAL-Sussex-ILL collaboration [6]. There are various projects in the pipeline which were presented at the recent workshop on Particle Physics at Neutron Sources at Grenoble, aim to a level of sensitivity down to $10^{- 28} e \cdot cm$ . To be noted is that this experiment crucially depends on the amount of UCNs that can be made [3,6,10,26] available for trapping. Lifting the counting statistical limitations will push this experiment crucial for theoretical particle physics to the next level of sensitivity at ESS.

Neutron beta decay studies include measurements of the neutron lifetime which is another long standing topic of UCN physics. Despite its crucial relevance for particle physics and cosmology, its value is still not better known than with about two per-mille accuracy, and with a significant deviation of results using different experimental strategies. The neutron lifetime strongly impacts the abundances of light chemical elements created during the first minutes in the evolution of our Universe [9]. Of similar importance for nuclear and particle physics is that it measures the strength of semi-leptonic weak interactions and, in combination with angular correlations in neutron decay, on one hand provides input to determine the weak axial-vector and vector coupling constants of the nucleon, and on the other hand also enables sensitive tests of the SM, e.g., via the unitarity of the CKM matrix [10].

Neutron gravity states for beyond-SM physics searches is a third scientific topic which attracts strong current interest by the scientific community and a broader public [15]. Quantum mechanical states of the neutron bound by Earth’s gravity to a horizontal mirror [17,22] give access to all parameters describing Newtonian gravitation, the mass and the distance, without disturbing Casimir or van-der-Waals effects. With their tiny nonequidistant eigen-energies in the pico-eV range and characteristic size of a few tens of microns, these states offer the fascinating possibility to combine tests of Newton’s gravity law at short distances with the high precision resonance spectroscopy methods of quantum mechanics. Combined with the quantum bouncer such spectroscopic experiments also enable weak equivalence principle tests conceptually different from classical tests, because the inertial mass $m_{i}$ and the gravitational mass $m_{g}$ enter the Schrödinger equation. At ILL, the qBounce collaboration has demonstrated a novel gravity resonance spectroscopy (GRS) technique that induced resonant transitions between these quantum states by mirror vibrations [17]. First precision measurements sensitive to energy changes of $Δ E = 10^{- 14} eV$ are described in Ref. [16]. A novelty of GRS is the fact that quantum mechanical transitions are not driven by a direct coupling of an electromagnetic charge or moment to an electromagnetic field but by a mechanical modulator. GRS experiments offer access to search for hypothetical “fifth” forces provided by axions or axion-like particles, which are candidates for dark matter in the Universe whose nature is still completely unknown. Precise GRS measurements are also sensitive to large extra dimensions and also enable investigation of dark energy scenarios. Rates in these experiments are at the order of at best 1 UCN per minute. Because of its large physics reach and still many orders of magnitude possible room for improvement by technological advances, there are huge gains in sensitivity to be made with a strong UCN source at ESS.

4. Conclusions

ESS will start the User Program with only one moderator of exceptional brightness in place. The first 15 instruments will point to that moderator. The start of operation of ESS will be at low power, which will be increased stepwise to finally reach its nominal design time average power of 5 MW. It is planned to reach full power around 2030, by which the second moderator system that we propose could become available. Around that date the facility would ideally be equipped with two separate neutron sources optimized for separate neutron characteristics, in this way ESS will offer a versatile neutron source of outstanding performance, spanning a large neutron wavelength range without any sacrifice in performance due to compromises to be made for a single multi-purpose source. This will enable a plethora of multi-disciplinary activities which fit in the original plan for the ESS but offer even more possibilities beyond, for which there is strong topical scientific demand.

Footnotes

Acknowledgements

The authors would like to thank Ferenc Mezei, Yuri Kamyshkov, Anatolii Serebrov and Hirohiko Shimizu for their suggestions and scientific discussions that helped develop the ideas in this article.
