Significance and Translational Value of High-Frequency Cortico-Basal Ganglia Oscillations in Parkinson’s Disease

On how to measure oscillatory activities in the brain

Measures of oscillatory neuronal activities can be obtained using a range of techniques offering different spatiotemporal resolutions and sensitivities.

Scalp electroencephalography (EEG) is the most widely used method to probe oscillatory electrical activities in the human brain. For steady-state oscillatory activity in the cortex/thalamocortical system, EEG can be regarded as a spatially and temporally smoothed version of the local field potential [34]. This smoothing arises mainly because the signal in each EEG electrode correspond to the integrated LFPs over several cm², but also because of the electrical filtering properties of the tissues located between the electrodes and the brain [34].

Non-invasive recordings of brain electrical activity can also be obtained using magnetoencephalography (MEG), which records magnetic fields generated by the electrical currents in the brain. By measuring the magnetic rather than the electric component of the field created by neuronal currents, MEG is expected to improve both the spatial and temporal resolution of the recorded signals, although this is not always the case [35].

Electrocorticography (ECoG) utilizes high-density subdural electrodes to record electrical activity directly from the surface of the cerebral cortex. This technique can enable recordings of higher frequency components with a high spatial resolution and a significantly improved signal-to-noise, essentially resembling the signal of cortical LFPs [36]. Compared to non-invasive approaches, ECoG recordings are also less susceptible to muscle artefacts.

To record from deep brain nuclei, invasive recording techniques are however required. The shape and size of the recording probe, as well as the electronics used for signal acquisition, can be optimized for the study of single unit activity or LFPs, and trade-off solutions are needed to record both phenomena [37]. Local field potentials (LFPs) are often the preferred measure to assess the degree of neuronal synchronization in a certain volume of brain tissue. Despite being a scalar quantity, the LFP is the potential difference between two points in space, and therefore depends on the length and direction of the vector going between the two measuring points. Hence, the measured LFP crucially depends on the spatial arrangement of the electrodes. The LFP is thought to mainly reflect the local synchronization of dendritic currents induced by excitatory and inhibitory synaptic inputs to the population of cells surrounding each electrode [38]. Spiking events in the nearby cell population are considered to give only a minor contribution to the recorded LFP signal in most situations, but because action potentials of cells are in many cases entrained to the LFP, field potentials are nevertheless frequently used as proxy for local cell activity [39]. However, this approximation may not always be valid because LFPs can also be generated by very large networks of sparsely connected neurons [23, 40]. Because all neuronal activity that influences the potential difference between the electrode pair will contribute to the signal, it is of key importance to use electrode pairs that are arranged in a meaningful way with respect to the cytoarchitecture (for a detailed discussion see [40]). A good strategy is to implant multiple electrodes into the structure of interest, and then create differential measures between all possible pairs of electrodes. With this approach, one can make sure that the current sources creating the field are indeed local (in which case, different pairs of electrodes would show different signals) [41]. Even when LFPs are recorded with the best possible methods, it will be difficult to interpret the significance of differences in LFP amplitudes between structures, since differences in the cytoarchitectonic arrangement of neurons in relation to the recording electrodes, and properties of the extracellular space, will ultimately define the recorded signal [40].

When the same microelectrodes are used to record both unit activity and LFP, the recorded voltage signal is split into a high-frequency and low-frequency part to separate the two signals. Note however, that this separation is not perfect and for higher frequencies of LFP-oscillations a spectral leakage of spiking activity may occur [42]. Although less explored in the context of dyskinesia, unit activity has been shown to provide an independent state description even when restricting the analysis to firing rate changes [20]. Large differences in the physical size of the electrode (e.g., macroelectrodes used for deep-brain stimulation vs. microelectrodes) could influence the capacity to detect certain high-frequency oscillations that are spatially more confined. This could for example explain why 110–160 Hz oscillations are a common finding in micro- but not macroelectrode recordings. For a more extensive discussion on extracellular recording methods we refer the reader to more specific reviews on this subject (e.g., [39, 43]).

On the taxonomy of high-frequency oscillations

The classical EEG nomenclature was established in the 1930 s to describe the dominant, slow waves below ∼35 Hz that are directly visible in unprocessed EEG traces (delta, theta, alpha, and beta). The term gamma was instead applied to indistinct fluctuations faster than 35 Hz [44]. Gamma oscillations are orders of magnitude weaker than the lower-frequency oscillations and their existence in the neocortex was established first in the 1990 s, with the discovery of 40 Hz oscillations in visual cortex. In the last two decades, a plethora of even faster oscillations have been found in EEG and LFP recordings, and these are often collectively called high-frequency oscillations (HFOs) or fast/high gamma oscillations. There is unfortunately no consensus on how to classify and name these phenomena either within or beyond the classical gamma band, or where the border to the “high” gamma range lies. Thus, for the purpose of this review, we need to clarify the definitions and classifications applied to different types of HFOs. First, we exclude phenomena that are not proper oscillations. A proper oscillation has a well-defined frequency, like an auditory tone, as opposed to a non-rhythmic signal, which is more comparable to a hissing sound (there are methods that can reliably distinguish between the two cases, see for example Wen et al. [45]). Second, we distinguish between different HFO phenomena based on the following questions, which we suggest may serve as a good basis for an HFO taxonomy in this context: (1) Is the oscillation transient or is it continuous? (2) In which anatomical structures does it occur? (3) Is it related to or modulated by a specific behavioral, pathological or pharmacological state? (4) In what frequency range does it occur?

In this review, we will also consider any oscillation faster than the classical 40 Hz gamma oscillation to be an HFO. Note that this definition deliberately includes so called finely-tuned gamma (FTG) below 100 Hz as an HFO phenomenon (cf. [46]).

60–90 Hz oscillations

Basal ganglia LFP oscillations in the 60–90 Hz range was first reported by Brown et al. [8], who found a ∼70 Hz peak in STN and GPi of PD patients after levodopa treatment. This phenomenon was further investigated in follow-up studies (see e.g., [49, 50–56]). Interestingly, in a limited number of studies, recordings from deep structures were also combined with EEG/MEG. These recordings suggested the presence of cortical oscillations in this frequency range that emerges after L-DOPA treatment, and which may be functionally coupled to oscillations in deeper structures since the recorded LFP signals were reported to be coherent and displaying relatively constant phase differences over prolonged time periods [48, 58]. From these studies in patients, it has however been difficult to establish whether 60–90 Hz oscillations are associated with the beneficial pro-kinetic effect of L-DOPA therapy or if they instead indicate the transition to a pathological hyperkinetic state, manifesting as dyskinetic movements [56]. In general, it has been concluded that increased HFO amplitude – at least in the deep basal ganglia nuclei – is primarily associated with increased motor activity and/or a state of arousal that may enable motor activity (for a review on this subject see [46]).

In motor cortex, on the other hand, evidence for a physiological role of HFOs in this frequency range is not as convincing. While investigations using non-invasive recording technologies, such as electroencephalography and magnetoencephalography (EEG/MEG; [59–61]), or intracranial electrocorticography (ECoG) recordings in epilepsy patients [62–64] have shown that high-frequency oscillations in the 60–90 Hz frequency band can indeed be found in the motor cortex in association with movements, these findings relate only to brief episodes of movement-related increases in gamma power rather than sustained oscillatory activity. Thus, in healthy individuals, activity in this band does not seem to be characterized by clear sustained rhythms with a well-defined frequency but rather by a transient gamma band power increase that occur during movement onset.

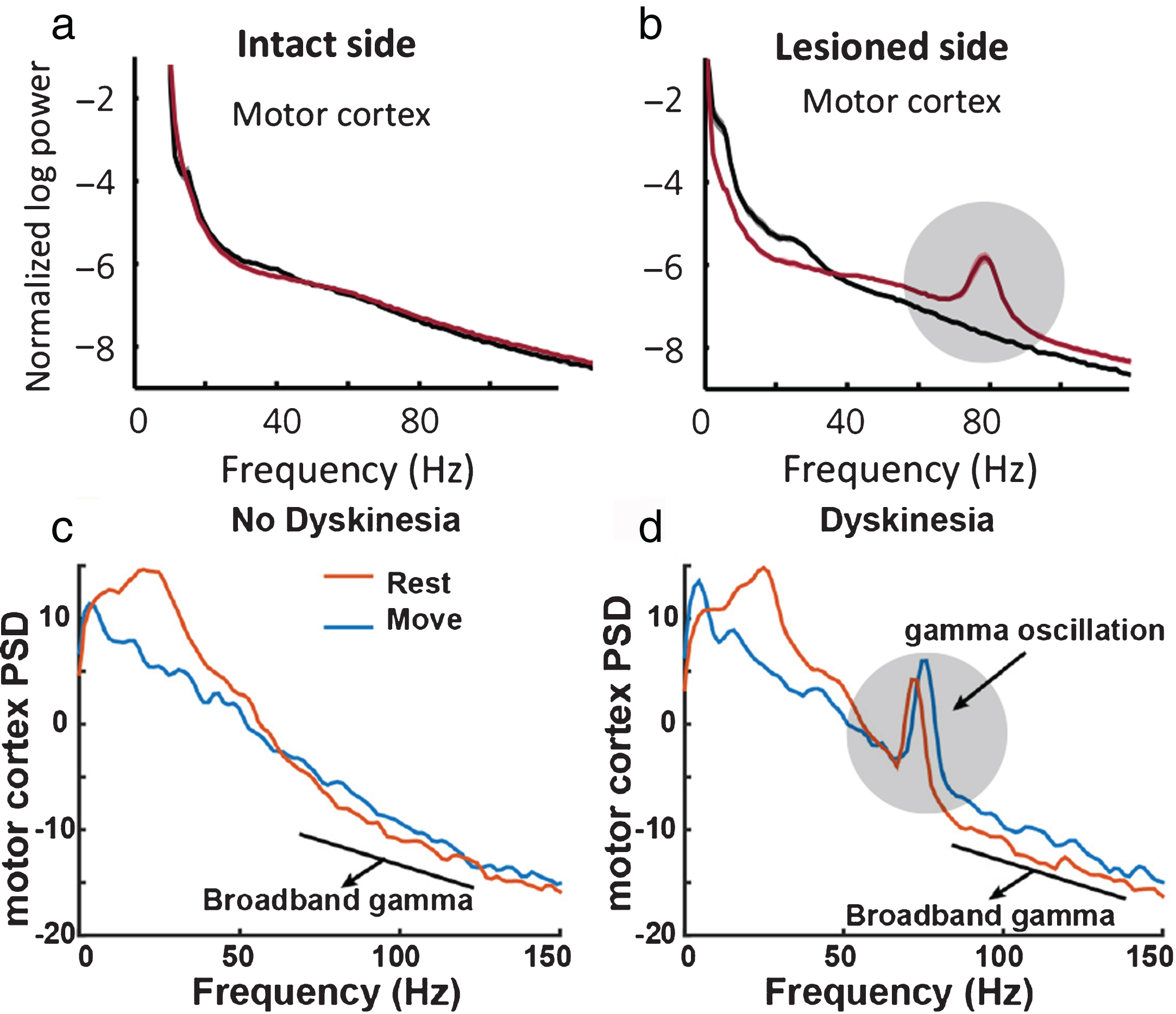

In an alternative view, a pathological role of this HFO in motor cortex was instead first proposed by Halje et al. [19], based on experiments using microwire recordings from motor cortex and dorsal striatum in unilaterally 6-OHDA lesioned rats. The authors found prominent HFOs around 80 Hz that were only present in the lesioned hemisphere during levodopa-induced dyskinesia (LID) [19]. In this seminal study, it was also found that the topical application of an antagonist to dopamine type 1 receptor (D1R) onto the cortical surface was sufficient to break the oscillation and concomitantly suppress dyskinesia.

The relevance of this finding to PD was recently demonstrated by Swann and collegues as a result of the first long-term recordings performed in dyskinetic patients using a combined DBS-electrocorticography (ECoG) device [21]. Importantly, chronically implantable bidirectional electrodes help circumvent experimental caveats associated with the early postoperative phase following DBS-electrode implantation. This phase is not ideally suited for brain recordings, as symptoms are often significantly reduced following electrode implantation (i.e., even when no current is passed through the electrode) –indicating that the symptomatic relief in this case is primarily related to the lesion inflicted by the electrode [65]. By recording neuronal activity over motor cortical areas and in the STN for 12 months, Swann and colleagues could present convincing evidence that, in PD patients, dyskinesia goes hand in hand with the same type of motor cortical HFOs observed in the rat model of LID. A detailed analysis of HFOs was also performed in the STN, prompting the conclusion that this narrow-band HFO is principally pathological rather than pro-kinetic. More specifically, the oscillation was found to be minimally affected by voluntary movements while its presence proved to be a reliable biomarker of dyskinesia. This result is at variance with previous studies that have associated gamma oscillations with the beneficial pro-kinetic effect of levodopa therapy [50, 56]. Such an interpretation likely stems from the increased oscillation amplitude often observed in the STN following levodopa-treatment, and sometimes also in other parts of the cortico-basal ganglia-thalamic loop (also in non-PD subjects) in direct association with motor actions, taking the form of a transient event-related synchronization of neuronal activity (reviewed in Jenkinson et al. 2013, [46]; see also [66]). However, these movement-modulated oscillations may not be functionally equivalent to the long-lasting oscillations found in dyskinetic states, even if the two phenomena may have similar spectral contents. Indeed, such a distinction has been proposed also for beta-band oscillations by a recent study in parkinsonian monkeys, showing that the duration of oscillatory episodes in the beta-band is critical to predict pathological motor states [18].

To further clarify the neurophysiological role of narrow-band HFOs in LID, several studies have further explored this phenomenon in rodents [20, 68]. A study by Dupre and colleagues showed that the oscillations develop together with dyskinetic symptoms with daily levodopa administration during a one-week priming period [24]. During this period, the abnormal involuntary movements became gradually more severe. They also showed that similar oscillations can be induced in L-DOPA-primed rats by independently stimulating dopamine receptors of the D1 or D2 type [24]. At the level of LFPs, these oscillations are particularly strong in corticostriatal circuits and are also observed both in the globus pallidus (corresponding to the external pallidal segment in primates) and in motor nuclei of the thalamus, but are typically somewhat less pronounced in the STN compared to the findings obtained in patients [21]. Overall, LFP oscillatory activities, including HFOs around 80 Hz, can be used as very robust electrophysiological biomarkers to classify parkinsonian and dyskinetic states in the 6-OHDA rodent model, as shown in Tamte et al. [20]. In this study the authors quantitatively compared the spectral components in eight different brain structures to assess which components most reliably predicted brain states associated with untreated parkinsonism versus dyskinesia, with or without additional pharmacological treatment. Classification performance (as estimated by fitting of a Gaussian mixture model to the data [20]) improved steadily with inclusion of a broader spectral content and/or addition of brain structures. Interestingly, HFOs around 80 Hz in the rostral forelimb area (a premotor/supplementary motor area in rodents) were a particularly useful physiological marker of LID [20] (which also appears consistent with the findings by Swann et al. [21]).

110–160 Hz oscillations

HFOs in the 110–160 Hz range have been studied intensely in the hippocampus of healthy animals (for a review, see [69]). Recently, similar HFOs were shown by Brys et al. to be widespread in the basal ganglia and motor cortex of unilaterally 6–OHDA lesioned animals, being present on both sides of the brain (and with relatively increase in power following L-DOPA treatment) [70]. A general feature of these oscillations is that their amplitude is modulated by the phase of a much slower oscillation in the theta range (5–10 Hz) as indicated by measurements of phase-amplitude coupling. In the hippocampus literature, an increase of theta-HFO coupling has been shown to correlate with higher cognitive demands and brain states associated to memory processing [42, 71]. The role of theta-HFO coupling in this PD model is currently unknown, but both L-DOPA and antidyskinetic treatment with 5-HT_1A agonists alter the amplitude and frequency of this type of HFO, as well as its coupling to lower frequencies [70].

Intriguingly, a separate line of research has shown that acute administration of psychotomimetic/psychedelic drugs to healthy animals often induce similar HFOs in the prefrontal cortex and the nucleus accumbens [26, 27], structures belonging to the limbic part of the cortico-basal ganglia-thalamic loop. It is therefore tempting to speculate that psychotic symptoms can arise as a consequence of aberrant HFOs (or the brain state associated with these oscillations) in the cognitive and limbic loops of the cortico-basal ganglia network in a similar way as motor symptoms may result from oscillations in sensorimotor loops. This could also explain why some PD patients experience episodes of psychotic symptoms as a side effect of levodopa treatment (reviewed [2]). Therefore, these HFOs may be important to further study in the context of non-motor PD symptoms and neuropsychiatric side effects of current medications [70].

Oscillations above 200 hz

LFP oscillations above 200 Hz were first observed in the parkinsonian brain by Foffani et al. [28], who reported distinctive peaks at 319±33 Hz in the STN of levodopa-treated PD patients. Moreover, Wang et al. [72] detected HFOs above 200 Hz in part of the STN in PD patients off medications, reporting that the power of such oscillations was negatively correlated with akinesia and rigidity scores [54]. Importantly, although HFOs above 200 Hz are often disregarded as leaked spiking activity of a few neurons, Wang et al. [72] were able to show that this oscillation was not directly caused by spiking activity (since the high-frequency power increase remained also after subtraction of all visible unit activity) and could thus be regarded as a proper LFP phenomenon generated by a large population of neurons.

The frequency of these HFOs is strongly modulated by dopamine, with a slowing by about 60 Hz in the dopamine-depleted state (265±33 Hz; [73]). The amplitude is positively correlated to dopamine tone and it is also enhanced during voluntary movement, especially in the L-DOPA-treated state [28, 73]. This pattern of amplitude modulation is very similar to the modulation pattern of the 70–80 Hz HFOs observed in the STN of PD patients [48]. Several studies have also reported modulation of the HFO amplitude by the phase of beta oscillations (phase-amplitude coupling; [15, 74]) and to other frequencies below the beta band [72]. An oscillation with very similar characteristics has also been reported in GPi [29].

With respect to motor signs, it has been reported that UPDRS scores of akinesia/rigidity were negatively correlated with HFO amplitude, i.e., the more impaired patients had weaker HFOs [72]. It is however not clear if HFOs may have a direct impact on the genesis of parkinsonian motor features or are, instead, modulated by them.

Recently, this very high frequency HFO has been proposed as a marker for resting tremor. In particular, Hirschmann et al. [75], showed that HFOs above 200 Hz are positively correlated with tremor at rest (i.e., HFOs are stronger during tremor), although in this study it was not possible to reliably distinguish between resting tremor and voluntary movement.

The flowchart model

It is often presumed that the physiological signaling within the basal ganglia can be directly deduced from the anatomical connectivity in the sense that activity in one structure will directly influence the next downstream brain structure via synaptic excitation or inhibition. According to this view, oscillatory activity is expected to be passed on from one structure to the next in a step-wise chain of events (Fig. 2a). Indeed, in studies of gamma oscillations in cortico-basal ganglia circuits, cross-structure interactions have often been inferred based on this assumption (see e.g., [46, 49]; however, see also [58]). The pattern of gamma oscillations observed in the rodent model of LID do not however comply with connectivity rules in a straightforward manner. For example, narrowband gamma oscillations associated with LID are detected in motor cortex and striatum in the lesioned hemisphere, but they are never observed in the contralateral striatum, despite the bilaterality of corticostriatal projections [95]. Thus, the existence of direct anatomical connections does not seem to be sufficient for cortical gamma oscillations to be transferred to the contralateral striatum.

OPEN IN VIEWER

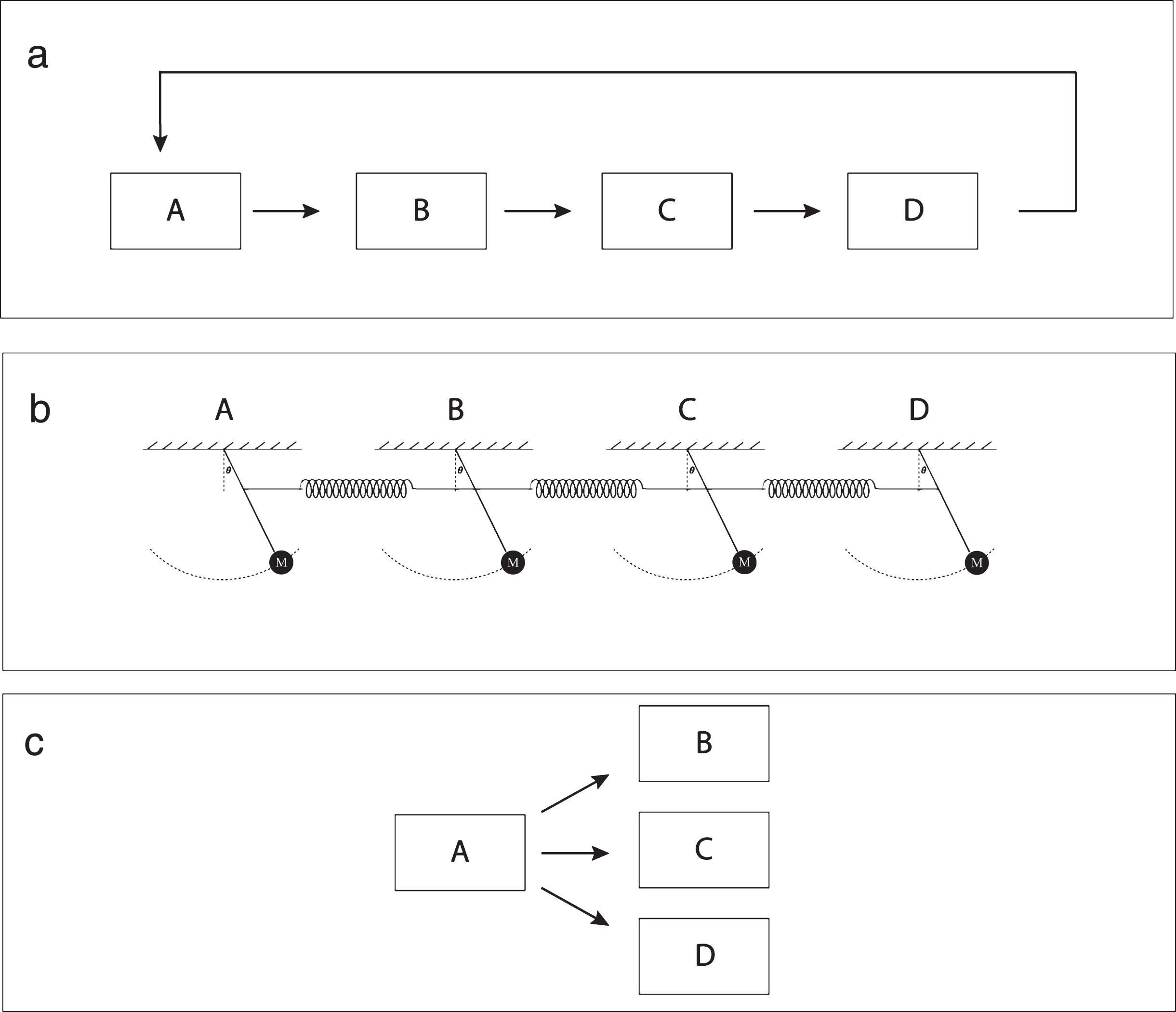

Fig.2

Hypothetical models for the propagation of high-frequency cortico-basal ganglia oscillations in Parkinson’s disease. a) Stepwise feed-forward propagation of oscillatory activity. b) A system of independent oscillators that are weakly coupled via direct or indirect anatomical links. c) Thalamus (marked ‘A’ in diagram) acting as a central pacemaker.

Coupled oscillators

A related but somewhat different view is to consider the interconnected brain structures as a system of coupled oscillators (Fig. 2b). It is possible that several brain structures could have an independent propensity to oscillate in a relatively narrow part of the frequency range under certain conditions, such as during LID [20, 70]. In this situation, even a relatively weak coupling of the oscillators could result in prominent coherent oscillations in multiple structures [96, 97]. On the other hand, structures that do not share the network properties needed to sustain oscillations of the same type would be relatively resistant to rhythmic input of this frequency from upstream structures. This could for example explain why narrowband gamma is not observed in the intact striatum, if the striatal network of an intact brain has different electrophysiological properties that do not uphold narrowband gamma oscillations. It is, however, not clear why brain structures with significant differences in neuronal microcircuitry would become tuned to similar resonance frequencies. In future studies it will therefore be important to clarify the conditions needed for the cortical and striatal microcircuitry to maintain oscillatory activities of high frequencies over extended time periods.

Thalamus as a pacemaker

Because cortex and the basal ganglia are under strong influence of thalamic input, rhythmic thalamic activity has the potential to directly drive fast oscillations in several parts of the circuit, in parallel, via a first-order synaptic connection (Fig. 2c). Indeed, in the visual system, the thalamocortical system has been shown to be a key driver of narrowband cortical gamma oscillations (∼60 Hz) [98]. If narrowband gamma oscillations in cortico-basal ganglia circuits are induced by a similar mechanism, they should be observed only in brain structures that have direct input from thalamic nuclei of the lesioned hemisphere. This notion is supported by preliminary experimental findings suggesting that diffusely projecting nuclei in thalamus, which are known to affect cortical states [99], do in fact display coherent oscillations with cortex during dyskinesia [100]. A pharmacological suppression of this thalamic activity will eliminate high-frequency oscillations also in motor cortex (although this suppression was reported to be insufficient to alleviate LID in preliminary experiments; [100]). Clearly, the role of thalamus in the induction of narrowband gamma oscillations represents quite an important topic for future studies.

Ultimately, because changes at many different levels (ranging from cellular to systems) likely act together, computer modelling will become an indispensable approach to help us understand how cellular processes can induce network dysfunctions, reflected in aberrant oscillatory phenomena and altered effective connectivity between the involved structures [68, 101–104]. At present, however, more detailed experimental data are needed to allow for meaningful modelling, highlighting the importance of joint interdisciplinary efforts by experimentalists and theoreticians.

A window into circuit dysfunctions in basal ganglia disorders

Elucidating pathophysiological phenomena at both cellular and systems levels requires studying animal models that mimic central aspects of the disease of interest. Consequently, the generation of valid animal models of basal ganglia disease remains a high research priority [105, 106]. However, even for conditions where reliable and well-characterized models exist, the development of new treatments for neurologic and psychiatric conditions has often been hampered by an insufficient understanding of how to link molecular and pathophysiological processes that ultimately lead to disabilities. In this perspective, high-frequency oscillations in cortico-basal ganglia circuits in PD could provide valuable cues. The striking similarities between rats and humans in the characteristics of certain HFOs strongly suggests that shared underlying mechanisms are at work in both species. This opens up unique opportunities to test hypotheses and investigate candidate mechanisms in valid models that are amenable to multiple levels of experimental investigation. Moreover, the differential manifestations of HFOs in cognitive and limbic circuits as compared to motor circuits observed in animals may provide important clues to the multi-faceted symptomatology of PD.

A biomarker for developing novel therapies

Importantly, even without a full understanding of the underlying mechanisms, HFOs can be used as reliable biomarkers of pathological brain states with which candidate pharmacological treatments can be evaluated and benchmarked against each other. Because of the great similarity of several of these phenomena across species, the effects produced by therapeutic interventions on HFOs are mostly likely to be translationally relevant. In this way, behavioral and neurochemical assessment techniques that are already in use can be complemented with electrophysiological readouts of changes in the brain, providing not only a much richer description [107] but also a biomarker of drug action that is directly translatable. The added value of electrophysiological recordings is exemplified by a couple of recent studies aimed at evaluating a number of putative antidyskinetic compounds in hemiparkinsonian rats [20, 70]. In some cases, neurophysiological signals can be the only available readout since not all pharmacological treatments affecting brain states give rise to detectable changes in motor behavior [70]. In particular, HFOs in limbic circuits (which are associated with psychotic-like states) could offer an exciting new opportunity to evaluate new antipsychotic treatments in animals.

A feedback signal for closed-loop neuromodulation

DBS is a well-established neuromodulation therapy for the advanced stages of PD, although it is an invasive method with several contraindications and some unwanted side-effects [108]. The widespread use of DBS for the symptomatic treatment of PD is therefore prompting a quest for technological developments that can improve efficacy while avoiding troublesome side-effect. In particular, it is argued that adjusting the stimulation parameters to the moment-to-moment needs of the patient (‘adaptive stimulation’) could greatly improve the therapeutic application of DBS [18, 109–113]. Adaptive neuromodulatory stimulation is also referred to as ‘closed-loop’ stimulation because an adaptive system needs to encompass a physiological read-out of selected biomarkers which are used in the feedback control of the stimulation electrodes thus closing the control-loop. To this end, different electrophysiological signals are being considered, derived from LFPs, electrocorticograms (ECoG), EEG, MEG, or indirect measures of brain activity reflected in blood-flow changes (as detected using near-infrared spectroscopy or functional magnetic resonance imaging). Alternatively, one may simply use physical movement parameters, detected using wearable sensors. Despite this wide variety of options, electrophysiological measurements will most likely be needed for more detailed characterizations of brain states. For this reason, most studies have so far been designed to improve electrical stimulation paradigms based on simultaneously recorded neuronal activity using invasive techniques [14, 111]. With respect to HFOs as a potential biomarker to be used in closed-loop DBS to treat LID, the study by Swann and co-authors provided several important insights on how neurophysiological recordings in a closed-loop arrangement could be used to adjust the stimulation parameters to the patients’ symptom fluctuations [21]. In particular, the authors present data that indicate how problems with stimulation-induced dyskinesia could potentially be overcome by feedback control of the stimulator based on the ECoG/STN on-line recordings [21], and have also subsequently confirmed in two patients that significant energy savings can be achieved using this type of adaptive DBS approach [114].

In conclusion, the high-frequency cortico-basal ganglia oscillations discussed in this article have significant translational and scientific implications that deserve to be thoroughly explored. Further research efforts in this area are clearly worthwhile, both for gaining a deeper understanding of basal ganglia disorders and for developing improved therapies.
