Clinical Relevance of Standardized Mobile Gait Tests. Reliability Analysis Between Gait Recordings at Hospital and Home in Parkinson’s Disease: A Pilot Study

Quantification of gait impairment using wearable technologies

In the emerging field of wearable technologies, inertial sensors (accelerometers and gyroscopes) combined with machine learning algorithms have shown to provide objective, metric outcomes that support the rather rater- and time-dependent clinical ratings of motor symptoms in chronic neurological diseases such as Parkinson’s disease [4, 6–8], multiple sclerosis [9], or Huntington’s disease [10]. Using wearable technologies, clinicians have the opportunity to gain a comprehensive picture of motor impairment by determining deficits that cannot be observed by eye. Inertial sensors provide the potential advantage to measure clinically relevant data as motor symptoms, fall risk, freezing of gait, functional mobility or physical activity [11]. Wearable technologies may provide added value as they are able to quantify gait at home or in different community settings [1]. However, to date there is no fully validated system for monitoring clinical features in the home environment [11].

The long-term goal is to interpret free-living gait in order to improve therapy and quality of life of PD patients. However, there are numerous variables and conditions in free-living gait that need to be taken into account. Recording free-living gait data over 8 hours without any reference is very hard to interpret for a clinical meaningful purpose. Therefore, we intend to perform a step-by-step approach including these steps: starting from 1) standardized + supervised conditions in the hospital over 2) standardized + supervised assessments at home (presented in this study) to 3) standardized + unsupervised gait at home and finally 4) free-living gait. Herewith, we try to overcome the large step between assessments in the hospital and free-living gait in order to extract clinically relevant information.

Inertial sensor-based gait analysis outside lab

The assessment of gait in the patient’s home (HOME) is an important, complementing approach in comparison to the clinical setting (HOSPITAL). Wearable technologies enable gait analysis not only in the hospital but also in variable, real-life environments like at patients’ homes [12]. Inertial sensors have the potential to continuously record gait over several hours instead of generating snapshots of gait impairments during short-lasting visits in the outpatient unit of hospitals [13, 14]. These technical possibilities moved in the focus of recent studies to assess gait outside the clinical setting. As a currently published review pointed out, home-based free living gait recordings are of huge interest of research projects using inertial sensors [15]. Current studies dealing with gait analysis in the home environment evaluate which home-based gait measures provide relevant information with regard to disease-specific gait impairment. Morris et al. showed that conceptual gait domains (pace, rhythm, variability, asymmetry) defined for the at-lab setting in PD were congruent with free-living gait [16] indicating that home-based measures provide meaningful data. Del Din et al. observed that longer gait bouts (>10 s) solely derived from free-living gait showed differences between 47 PD patients and 50 controls with regard to pace, rhythm, and asymmetry indicating that especially longer gait bouts include clinically relevant information about gait characteristics [17]. However, free-living gait largely depends on context information and environmental factors which need to be captured in addition to sensor data and put into the complex picture of gait in everyday life. Otherwise, it is not possible to interpret free-living gait patterns correctly and derive clinically relevant information. Moving one step back, it is necessary to understand the impact of environmental factors first, before we interpret real-life gait.

Recent studies focused on the assessment of free-living gait in PD, however, the evaluation of gait parameters derived from identical supervised gait test in the hospital and at home (HOSPITAL vs. HOME) is still missing for PD. Moreover, the clinical value of standardized gait outcomes recorded at the patient’s home are not clearly understood. Acknowledging that gait patterns are modified during gait tests in presence of an observer in comparison to unobserved situations [18], this study focused on the evaluation of standardized gait tests in patients’ homes in order to understand the impact of home conditions on gait performance.

The aim of this pilot study was to evaluate the reliability of gait parameters gathered by standardized, supervised gait tests performed in hospital and home-environment in order to understand the clinical relevance of home-based measures.

We hypothesize that sensor-based gait parameters measured in standardized gait tests at hospital will be better and cannot be directly compared to the identical assessment in patients’ homes. However, we expect that there is clinical meaningful information in gait data recorded at home.

Study cohort

Twenty patients diagnosed with PD were enrolled at the movement disorder unit, Department of Molecular Neurology, University Hospital Erlangen, Germany. Sporadic PD was defined according to the Guidelines of the German Association for Neurology (DGN) similar to the UK PD Society Brain Bank criteria [19]. PD patients with an age >18 years and Hoehn and Yahr disease stage (H&Y) between I–III were included. Exclusion criteria consisted of motor fluctuations, dyskinesia, and comorbidities potentially affecting gait (e.g., polyneuropathy, visual problems orthopedic, psychiatric comorbidities, orthostatic hypotension). Participants received standardized clinical assessments including UPDRS-III, H&Y and Montreal Cognitive Assessment (MoCA). Postural Instability and Gait Difficulty subscore (PIGD) was calculated as defined [8, 20] as sum of UPDRS-III items ‘gait’, ‘postural stability’, ‘arising from chair’, and ‘posture’. Furthermore, the patients filled in questionnaires to evaluate their fear of falling (Falls Efficacy Scale-International, FES-I) and their falls history. Characteristics of the study population are presented in Table 1. This study was approved by the local ethics committee (reference number: 166_18 B, Medical Faculty, FAU Erlangen-Nürnberg, Germany), and participants gave written informed consent according to the Declaration of Helsinki.

Study procedures

PD patients performed a standardized 4×10 m walk test using sensor-based gait analysis [21] and the Timed Up and Go Test (TUG) [22] supervised by an investigator. In a time frame of 7 days (mean, SD: 7.1±10.0 days) after the assessment in the hospital (HOSPITAL) the clinical scoring (UPDRS-III) and sensor-based gait analysis were repeated at the patients’ home environment (HOME) by the same trained investigator. The assessments in the HOME condition were performed at the same time of the day compared to the HOSPITAL. Participants were asked to take their medication on both testing days exactly at the identical time and dosage. In the hospital, participants performed a standardized 4×10 m overground gait test on a 10 m long corridor in self-selected walking speed and without stops at turning points. In the home environment, PD patients repeated the same standardized and supervised test in self-selected speed on a walkway of maximal possible walking distance (4× maximum available distance) in the patients’ rooms (mean, SD: 7.8±1.5 m, range 6–10 m). Importantly, usually the distance included the transfer from room to room through a door. Only straight strides were automatically detected by the stride detection algorithm [21] and used for gait parameter calculations as described [23].

Sensor-based gait analysis

Gait characteristics were evaluated in a standardized 4×10 m gait test using an instrumented, sensor-based gait analysis system. This system consists of inertial SHIMMER sensors (Shimmer Research Ltd., Dublin, Ireland) laterally attached to the posterior portion of both shoes [8]. Gait signals were recorded within a (tri-axial) accelerometer range of±6 g (sensitivity 300 mV/g) and a gyroscope range of±500 degree/s (sensitivity 2 mV/degree/sec) at a sampling rate of 102.4 Hz. Sensor signals were transmitted to a tablet computer via Bluetooth^® and stored for subsequent data analysis [24, 25]. Machine learning algorithms were applied to calculate spatio-temporal gait parameters as mean per stride values derived from 4x10m gait tests (e.g., stride length, gait velocity) [21, 23]. Gait variability as a measure of stride-to-stride variance is presented as Coefficient of Variance (CV) of each parameter using an average of 49 strides at HOSPITAL and 34 strides at HOME. Maximum toe clearance is the maximum distance between toe and ground at the end of the swing phase (prior to heel strike) as described in [26].

Statistical analysis

Normality of data was tested by Shapiro–Wilk test and variance homogeneity by Levene test. Due to the fact that gait variability parameters were not normally distributed, non-parametric analysis was performed for all gait parameters in order to detect differences between the repeated measures at HOSPITAL and at HOME (Paired Wilcoxon test). Cohen’s d is presented as measure of effect size. Correlation analysis was performed using Spearman’s rank correlation (r_Sp) in order to evaluate the associations of gait parameters and clinical scores between both conditions. Statistics of reliability were assessed for clinical scores (UPDRS-III, PIGD, TUG), gait parameters representing short steps and bradykinesia (Stride length, Gait velocity, Stance time, Swing time, Stride time) as well as shuffling of gait (HS angle, TO angle, max TC) using Intra-Class Correlation Coefficients (ICC 2, 1) (two-way mixed, absolute, single measures). ICC analysis was not performed for gait variability parameters due to the fact that differences in recorded strides (HOSPITAL: 49, HOME: 34 strides) and varying standard deviations would provide unbalanced datasets that may affect reliability analysis. In order to minimize the effect of multiple comparisons, significance level was adapted by Bonferroni correction for multiple testing and p-values <0.004 were considered as significantly different (p = 0.05/13 gait parameters = 0.004). All statistical analyses were performed using SPSS software package version 24 (IBM Corp. Released 2016. IBM^® SPSS^® Statistics for Windows, Version 24.0.0.2, Armonk, NY, USA: IBM Corp.).

Comparison of clinical and functional scores between HOSPITAL and HOME

Motor impairment of participants was rated by a trained examiner using the UPDRS-III in the hospital and at patients’ home. Assessments were performed at the same time of the day and in stable ON medication. UPDRS-III was comparable between HOSPITAL (mean±SD: 21.3±7.6 points) and HOME condition (22.6±7.2 points; p = 0.071) with a trend towards a more severe motor impairment at home. Strong correlations were observed for UPDRS-III ratings in the hospital and at patients’ home (r_Sp = 0.918, p < 0.000) (Fig. 1). The TUG test as functional measure did not reveal significant differences between both settings (HOSPITAL: 11.1±2.9 s; HOME: 10.9±3.1 s; p = 0.262). Correlation analysis showed a strong association for TUG in the hospital and at home (r_Sp = 0.906, p < 0.000). From a clinical viewpoint, the motor status and functional performance was comparable between both conditions.

OPEN IN VIEWER

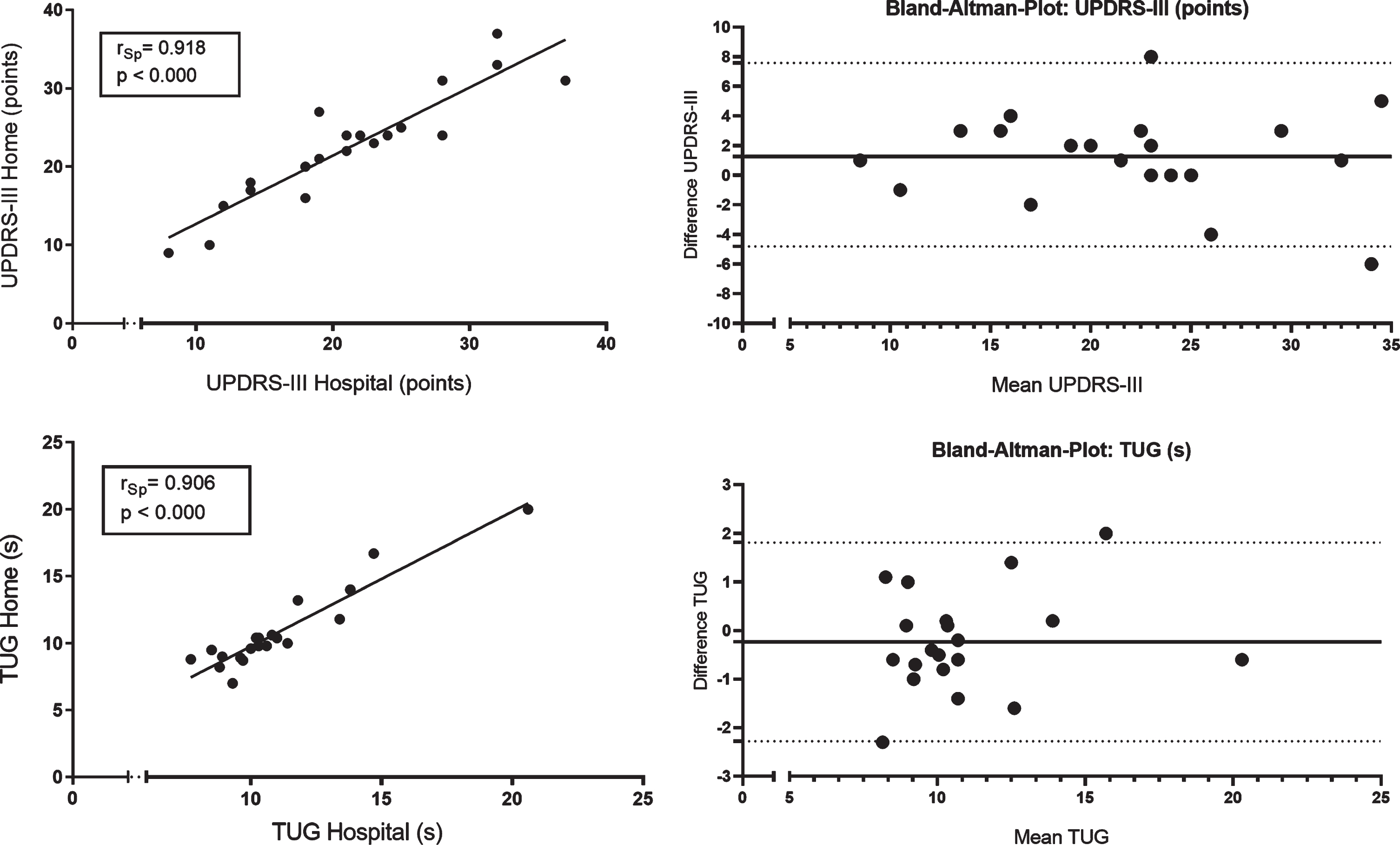

Fig. 1

Correlation analysis and Bland-Altman Plots for the clinical rating of motor impairment using UPDRS-III and the functional motor performance using Timed Up and Go Test (TUG) between standardized assessments in the hospital (HOSPITAL) and home environment (HOME). UPDRS-III, Motor Score of the Unified Parkinson’s Disease Rating Scale. r_Sp, Spearman’s rank correlation coefficient. Significance level p < 0.004 (adapted).

Evaluation of gait parameter differences between HOSPITAL and HOME

Spatiotemporal gait parameters significantly differed between HOSPITAL and HOME condition (Table 2). Stride length (delta Δ presented as mean±SD and Δ_p as change in percentage: Δ= –9.2±9.4 cm; Δ_p = –7.3%) and gait velocity (Δ= –0.07±0.11 m/s, Δ_p = –6.1%) significantly decreased in the HOME setting. Toe-off angle (Δ= –3.4±3.1°; Δ_p = –5.4%), heel strike angle (Δ= –1.0±1.7°; Δ_p = –8.5%) and maximum toe clearance (Δ= –0.7±2.5 cm; Δ_p = –8.8%) significantly reduced from hospital to home-environment as well. In contrast, stride time (Δ= –0.02±0.05 s; Δ_p = –1.8%), swing time (Δ= –0.23±0.89%; Δ_p = –0.5%), and stance time (Δ= +0.23±0.89%; Δ_p = +0.5%) did not substantially change between HOSPITAL and HOME.

Parameters representing gait variability mostly increased from HOSPITAL to HOME condition, however, solely the rise of stride length CV nearly reached significance level (Δ= +2.5±3.3%; Δ_p = +35.3%). Swing time CV (Δ= +0.3±0.9%; Δ_p = +7.8%), stance time CV (Δ= +0.2±0.5%; Δ_p = +6.6%), and gait velocity CV (Δ= +1.9±3.8%; Δ_p = +21.8%) increased in standardized gait test at HOME, whereas stride time CV slightly decreased (Δ= –0.1±1.5%; Δ_p = –3.0%).

Correlations of gait parameters between standardized gait tests at HOSPITAL and at HOME

Correlation analysis revealed strong correlations between sensor-based gait parameters recorded in the hospital and home environment (stride length r_Sp = 0.854, p < 0.000; gait velocity r_Sp = 0.914, p < 0.000; stride time r_Sp = 0.814, p < 0.000; swing time r_Sp = 0.750, p < 0.000; stance time r_Sp = 0.750, p < 0.000; toe-off angle r_Sp = 0.908, p < 0.000; heel-strike angle r_Sp = 0.875, p < 0.000; max. toe clearance r_Sp = 0.910, p < 0.000. Figure 2 illustrates example scatter plots and Bland-Altman plots for stride length and gait velocity. Both parameters show strong correlations between individual values of gait measures at HOSPITAL and at HOME. The mean difference of stride length was 9.2 cm and of gait velocity 0.08 m/s with substantial inter-individual variability (min/max; stride length: +5.5/–35.1 cm; gait velocity: +0.15/–0.33 m/s [negative values indicate shorter steps and slower at home, respectively]). With regard to intra-individual differences, we observed two patients with increased gait velocity at HOME compared to HOSPITAL. All other participants walked slower (n = 10) or at similar gait velocity (n = 8, lower than mean difference). One patient decreased gait velocity substantially indicating that massive individual differences in gait parameters are possible, even though clinical ratings were stable. This specific case is presented in the Supplementary Material in detail. Intra-individual differences of gait velocity between both settings are presented in Fig. 3.

OPEN IN VIEWER

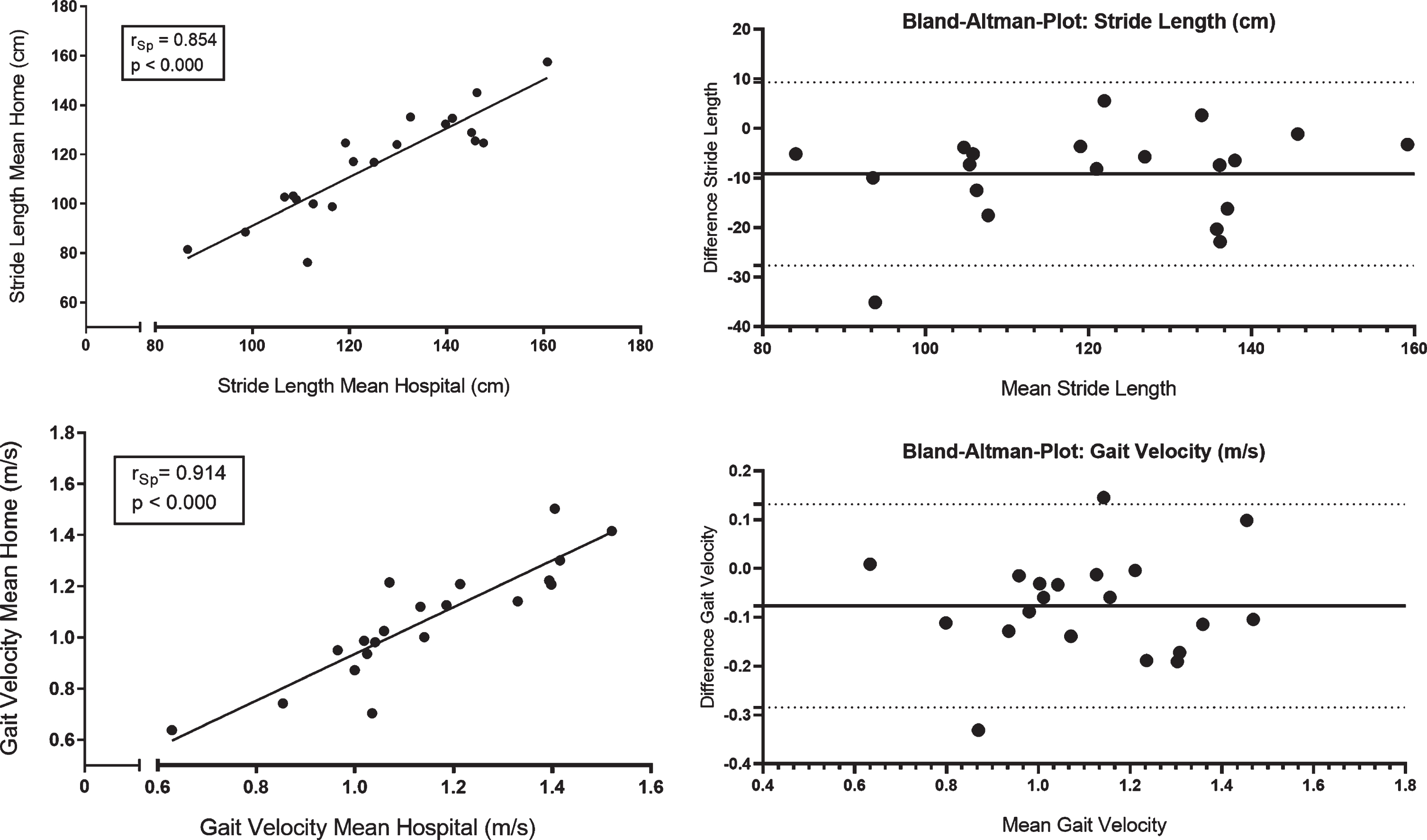

Fig. 2

Left: Scatter plots and Bland-Altman Plots illustrating the relationship between sensor-based gait parameters (stride length, gait velocity) in the hospital (hospital) and home environment (home). r_Sp, Spearman’s rank correlation coefficient. Significance level p < 0.004 (adapted).

OPEN IN VIEWER

Fig. 3

Intra-individual differences of gait velocity between standardized and supervised gait tests at HOSPITAL and at HOME.

In contrast to spatiotemporal gait parameters, gait variability parameters did not show strong correlations. For swing time CV solely, a moderate correlation was observed between both conditions (r_Sp = 0.514, p = 0.020). All other gait variability parameters showed weak or no associations between standardized gait tests at HOSPITAL and at HOME (stride time CV: r_Sp = 0.203, p = 0.391; stance time CV: r_Sp = 0.349, p = 0.132; stride length CV: r_Sp = –0.051, p = 0.830; and gait velocity CV: r_Sp = –0.230, p = 0.329).

Intra-class correlation analysis between HOSPITAL and HOME

Reliability analysis was performed for clinical scores and gait measures except of parameters representing gait variability due to large differences of detected strides at HOSPITAL and at HOME which may affect the interpretation of the coefficient of variance. Intra-Class correlation coefficients were excellent for clinical measures (UPDRS-III, PIGD subscore) and functional scores (TUG). Similarly, gait parameters representing short steps and bradykinesia (stride length, gait velocity, stance time, swing time, stride time) as well as parameters representing shuffling of gait (heel strike angle, toe-off angle, maximum toe clearance) showed excellent ICCs (Table 3).

Subgroup analysis investigating the impact of walkway length and width

With respect to the differences in 1) walkway length and 2) width, a subgroup analysis has been performed due to evaluate the impact of these differences. 1) Walkway length at home ≤7.5 m (Group 1, n = 10) vs. ≥8 m (Group 2, n = 10)): Gait parameter differences between hospital and home were similar regardless of shorter or longer walkways in the home environment. Comparing these results with the hospital condition (Table 2), there is no meaningful difference between subgroups and the entire cohort. 2) Walkway width: it appears that PD patients with wider walkways at home (≥85 cm, Group 1, n = 8) show similar gait velocity as in the hospital condition (no significant difference, in contrast to the entire cohort). In contrast, narrow walkways (narrowest part of a walkway <85 cm, Group 2, n = 12) resulted in a significant reduction of gait velocity at home (Supplementary Material).

Clinical relevance of standardized gait measures at HOME

This study investigated whether identical standardized, supervised gait tests performed at HOME are comparable to the test setting at HOSPITAL in order to evaluate the impact of environmental factors and detect the clinical relevance of home-based gait outcomes. The variance of spatiotemporal gait parameters were in the same range as the clinically established UPDRS-III as a similar pattern in the Bland-Altman plots demonstrated. Both, clinical gold standard (UPDRS-III) and sensor-based gait parameters representing short steps, bradykinesia, and shuffling of gait showed excellent Intra-Class correlation coefficients indicating that parameters assessed in the hospital and in the home-environment are reliable. However, significant differences in the absolute values of gait parameters at HOSPITAL and at HOME were observed. This finding indicates that gait parameters recorded in the home environment may not be directly compared to gait outcomes gained in the hospital. Nevertheless, within the cohort the picture of motor restrictions remained stable meaning that gait impairment shifted to lower values in most participants regardless of presenting impaired or unimpaired gait in the hospital. Even though gait parameters cannot be directly compared, they reflect gait impairment properly within the cohort. With regard to our four-step-approach described in the introduction, standardized gait tests at HOME provide a reliable measure in comparison to gait measures in the hospital and may be used as an ideal bridge to close the gap between gait assessments in the HOSPITAL and continuous free-living gait. Herewith, we confirm that mobile health technologies complement rater-dependent clinical scores and may provide high quality information for patients’ treatment [27] by their objective, metric, and quantitative character as well as by applicability in the home environment.

Sensor-based gait parameters derived from free-living home-monitoring scenarios

In our study, we observed excellent reliability for sensor-based gait parameters between standardized gait tests at HOSPITAL and at HOME condition. This is in contrast to studies which evaluated the comparability of in-lab and free-living environment. Ancum et al. compared a supervised and standardized gait test with free living gait in 254 older adults. They observed that gait speed recorded by the 4 m gait test is only weakly related to daily-life gait speed obtained from tri-axial lower-back accelerometer data over seven consecutive days [28]. Hillel et al. investigated a cohort of 150 elderly fallers and reported that in-lab values (1 min walk on a 15 m long corridor) for stride length, gait speed, step time as well as step and stride regularity do not reliably reflect the same parameters derived from 30 s walking bouts during daily-walking [29]. In PD patients, especially gait parameters derived from longer free-living walking bouts (>30 s) appeared to be clinically relevant since they differentiated between PD patients and controls [17]. From a technical point of view, it has recently been shown that detection of gait sequences in long-term home-monitoring of PD patients is possible, reliable, and efficient with an unsupervised algorithm [30]. These findings indicate that algorithms are able to automatically detect strides from free-living gait. However, gait outcomes derived from HOSPITAL and free-living conditions cannot easily be compared without considering context information or environmental factors.

Comparability of gait outcomes at HOSPITAL and at HOME: Effect of Environmental factors

Despite excellent reliability of gait parameters between both standardized conditions, we observed a significant decrease of stride length, gait velocity, heel strike angle, toe-off angle, and maximum toe-clearance in the at HOME setting. These differences may reflect the influence of environmental factors as uneven floor at home due to door steps and carpets or narrow areas due to door frames and furniture. Obviously, there was a substantial difference of the environments in the present study, among others there was a decrease of walkway length and width at HOME. It has been previously shown that walking environment has a significant effect on gait patterns. Patterson et al. investigated ten young adults over 30 minutes free-living gait in different walking conditions (flat/rough surface, on a hill, busy hallway) and reported significant differences in stride time [31]. Environmental factors also include the context of use since this information “going for a walk in the park” or “rushing to reach the bus” may be substantial for the interpretation of free-living gait patterns. In addition, there is a strong need for personalized models in order to cover individual confounders which can hugely vary between patients. In multiple sclerosis, a personalized algorithm solely predicted the maximum sustained gait speed of continuous walking with a sensor at home by the gait speed of the timed 25-foot-walk performed in the hospital with high accuracy [32]. This finding confirms the high relevance for personalized disease management which has recently been underlined for PD patients [33]. In addition, mobility measures are required to be defined for each disease separately [34]. Non-motor symptoms as mood and depression—not covered in the present study—should be included in personalized models as well since they may substantially affect gait patterns.

Limitations

A comparison between data of PD patients and controls was not performed in this pilot study that focused on the reliability and clinical relevance of sensor-based gait measures in PD patients at home. Future studies should include an age- and gender-matched control group in order to understand differences between both conditions (HOSPITAL and HOME) in more depth. A convenient sample was selected and no a-priori sample size calculation was conducted. Since it was the goal to evaluate the reliability of different test settings, HOME gait test was not matched for total walkway distance with the HOSPITAL setting. There may have been an order effect since HOME condition was always after testing in the HOSPITAL making the patients familiar with the protocol.

Conclusion

In conclusion, this pilot study presented that gait parameters reflecting bradykinesia, short steps and shuffling of gait show excellent reliability between HOSPITAL and HOME condition. However, PD patients’ gait under standardized and supervised test conditions at HOME was slower, strides were shorter, and shuffling of gait was more present compared to the gait tests at HOSPITAL. Particularly, narrow walkways (<85 cm) resulted in a significant reduction of gait velocity at home. Consistent with our hypothesis, gait outcomes recorded in standardized tests at HOME are closely related to those captured at HOSPITAL but cannot be directly compared. They can be set as a clinically relevant reference for home-based recordings and may be the link between standardized gait tests in the hospital and free-living, continuous gait in everyday life. In future studies, standardized, supervised gait outcomes should be compared with non-standardized, non-supervised gait recordings. Potential confounders as fear of falling or falls, cognition and depression need to be evaluated. Furthermore, intra-individual and environmental factors including context information should be part of future studies investigating gait patterns outside the hospital.
