Specific Detection of Physiological S129 Phosphorylated α-Synuclein in Tissue Using Proximity Ligation Assay

Primary cultures

Postnatal day 0 WT or SNCA KO cortices were dissected in ice cold HBSS. The cortices were then incubated in papain for 30 min at 37°C. After incubation, cortices were washed twice with BME (Basal Medium Eagle + 0.45% glucose + 0.5 mM glutamate + Pen/Strep + N2 + B27) with centrifugations at 1000 rpm for 3 min. Tissue was triturated in BME containing 50μg/ml of DNAse and then washed twice in BME with centrifugations at 1000 rpm for 6 min. Cells were diluted with BME + 5% fetal bovine serum (FBS) to a concentration of 1.0×10^∧6 cells/ml. 1.0×10^∧6 cells were added to each well in a 24-well plate with poly-D-lysine - Laminin coated coverslips. The 24-well plate was then placed in a 37°C and 5% CO₂ incubator. After 24 h, 80% of BME + 5% FBS was removed and replaced with fresh BME containing 2.5μM Cytosine Arabinoside. Day In Vitro (DIV) 6 primary neurons were treated with 1μl adeno-associated virus (AAV6) expressing human asyn or mouse asyn under the synapsin 1 promoter (7×10^∧13 vg/ml) for 4 h. Cultures were not kept past DIV 9. Primary neurons were fixed by addition of 4 % PFA for 30 min, washed and stored in 1x PBS at 4°C.

HeLa cultures

HeLa cells were grown in DMEM (Gibco) + 10% FBS (Gibco) and plated on matrigel (Corning) coated glass coverslips at 30,000 cells/well of a 24 well plate. Cells were treated with polo-like kinase (PLK) inhibitor BI2536 at a final concentration of 1μM. DMSO was used as a control. After 4 h, cells were fixed by addition of 4 % PFA for 30 min, washed and stored in 1x PBS at 4°C.

Animals

Strains used are C57Bl/6J (WT; Jax) and C57Bl/6J 129S6-Snca^tm1nbm (SNCA KO) [27]. Mice were housed in a 12-h light/dark cycle with ad libitum access to food and water. All animal work was performed in accordance with the Institutional Animal Care and Use Committee (ACUC) of the National Institute on Aging (NIA/NIH).

Stereotaxic injection: Viral vectors

Animals (n = 4 per group) were anesthetized by 4% isoflurane. After placing the animal into a stereotaxic frame (Kopf), 1μL of AAV6 vector solution (7×10^∧13 vg/ml) acquired from the NINDS Viral Production Core Facility was unilaterally injected into the substantia nigra (SN) using the following coordinates: anteroposterior (AP) –3.2 mm, mediolateral (ML) –1.5 mm, and dorsoventral (DV) –4.3 mm from bregma. The tooth bar was adjusted to –0.6 mm. Injection was performed using a pulled glass capillary attached onto a 5μl Hamilton syringe with a blunt 22 s gauge needle. After delivery of the viral vector using a pulsed injection of 0.1μl every 15 s, the capillary was held in place for 5 min, retracted 0.1 mm and after 1 min it was slowly withdrawn from the brain. Ketoprofin was administered s.c. as analgesic treatment for 3 days post op.

Mouse brain sections

Animals were killed when <1 year old or 4 weeks after viral vector injection by an overdose of ketamine and perfused via the ascending aorta first with 10 ml of 0.9% NaCl followed by 50 ml of ice-cold 4% paraformaldehyde (PFA in 0.1 mM phosphate buffer, pH 7.4) for 5 min. Brains were removed and post-fixed in 4% PFA for 24 h and then transferred into 30% sucrose for cryoprotection. The brains were then cut into 30μm thick coronal sections and stored in an antifreeze solution (0.5 mM phosphate buffer, 30% glycerol, 30% ethylene glycol) at –20°C.

Stereotaxic injection and sections: Preformed fibrils

5μg of asyn preformed fibrils (PFF) (2μg/μl, 2.5μl) was injected to induce α-synucleinopathy [28] into the striatum (anteroposterior (AP) 0.2 mm, mediolateral (ML) 2 mm, and dorsoventral (DV) –3.2 mm from bregma) of wild type mouse, after deeply anesthetized with isoflurane and immobilized in a stereotaxic frame under aseptic conditions. The animal (n = 8–10 per group) was observed during and after the surgery and Ketoprofin was administered for three days including the surgery day. Mouse was harvested at 1 month post injection period, perfused with PBS and the brain was fixed with 70% Ethanol in PBS. Then brains were cut into 2-mm thick slices and embedded in paraffin after overnight paraffinizing. The paraffin block was sectioned with 6μm thickness. Before the PLA staining, the slide was deparaffinized with xylene and alcohol series and pretreated with a citrate buffer for antigen retrieval.

Human brain tissue

Human frontal cortex and hippocampus samples from DLB cases and neurologically unimpaired controls (Table 1) were obtained from the Alzheimer Disease Research Center (ADRC) at the University of California, San Diego (UCSD). Brain tissue was fixed with formalin postmortem and later cut into 40μm thick free floating sections using the vibratome.

Immunocytochemistry

Neurons were blocked in 5% FBS in PBS for 30 min, and incubated with primary antibodies, diluted 1:500 in 1% FBS/PBS overnight. Following three washes in PBS, the cells were incubated for 1 h with a secondary antibody diluted 1:500 (Alexa Fluor 488-conjugated; ThermoFisher) in 1% FBS/PBS solution. After three PBS washes, the coverslips were mounted and the cells were analyzed by confocal microscopy (Zeiss LSM 880 microscopy).

Immunohistochemistry: DAB

Endogenous peroxidases were first quenched by incubating sections in 10% Methanol + 3% H₂O₂ in PBS for 30 min. Sections were then washed with PBS and incubated for 30 min in blocking buffer (10% Normal Donkey Serum (NDS), 1% BSA, 0.3% Triton in PBS). Afterwards, primary antibodies were used at 1:1,000 and incubated overnight in 1% NDS, 1% BSA, 0.3% Triton in PBS. Next day, sections were washed three times with PBS and incubated with 1:2000 biotinylated secondary antibodies (Vector Laboratories) for 1 h at room temperature. After three washes with PBS, sections were incubated in Avidin-Biotin-HRP Complex solution (ABC kit; Vector Laboratories) for 1 h at room temperature. Sections were then washed three times with PBS and developed using DAB (SigmaFast kit; Sigma-Aldrich). Tissue was dehydrated using increasing alcohol solutions and Xylene, and coverslipped using DPX mounting media. Sections were imaged using a Keyence All-In-One microscope with a 10x or 63x oil lens. Z-stacks were merged using the standard full focus option.

Immunohistochemistry: Fluorescence

Sections were washed with PBS and incubated for 30 min in blocking buffer (10% Normal Donkey Serum (NDS), 1% BSA, 0.3% Triton in PBS). Afterwards, primary antibodies were used at 1:500 and incubated overnight in 1% NDS, 1% BSA, 0.3% Triton in PBS. Next day, sections were washed three times with PBS and incubated with 1:500 Alexa Fluor 488-conjugated secondary antibody for 1 h at room temperature. After three washes with PBS, sections were mounted on glass slides, coverslipped using Prolong Gold Antifade mounting media (Invitrogen) and imaged using a Zeiss LSM 880 confocal microscope equipped with Plan-Apochromat 63X/1.4 numerical aperture oil-objective (Carl Zeiss AG).

Antibodies

For a list of antibodies used, please see Table 2.

Proximity Ligation Assay (PLA)^® Sigma Aldrich –Millipore

Reagents. Duolink^®In Situ PLA^® Probe Anti-Rabbit PLUS Affinity purified Donkey anti-Rabbit IgG (H+L) (DUO92002), Duolink^®In Situ PLA^® Probe Anti-Mouse MINUS Affinity purified Donkey anti-Mouse IgG (H+L) (DUO92004), Duolink^®In Situ Detection Reagents Green (DUO92014), Duolink^®In Situ Detection Reagents Brightfield (DUO92012), Duolink^®In Situ Wash Buffers, Fluorescence (DUO82049)

Protocol was generally followed as described by the manufacturer. Briefly, for BF-PLA, sections were incubated in H₂O₂ solution for 30 min at room temperature free floating and shaking followed by 2 washing steps with Wash Buffer A. Always ensure that Wash Buffer A is at room temperature before use. All sections were mounted, dried and incubated in Duolink^® Blocking buffer for 1 h. All incubation steps were performed in a humidity chamber at 37°C with gentle shaking (50 rpm to ensure an even staining) unless stated otherwise. Afterwards, samples were incubated overnight at room temperature with primary antibodies anti-pS129 (ab209421 MJF-R13, Abcam) and total anti-asyn (42/α-Synuclein syn-1, BD Biosciences) 1:1000 and 1:2000, respectively, diluted in Duolink^® Antibody Diluent. The next day, samples were washed 2x for 5 min with gentle shaking using Wash Buffer A. Secondary antibodies Duolink^®In Situ PLA^® Probe Donkey Anti-Mouse IgG (H+L) MINUS and Duolink^®In Situ PLA^® Probe Donkey Anti-Rabbit IgG (H+L) PLUS were diluted 1:5 in Duolink^® Antibody Diluent and incubated for 1 h. After 2x 5-min washes with gentle shaking using Wash Buffer A, samples were incubated in 1x Duolink^® Ligation Buffer and Ligase diluted 1:40 for 30 min. Then, samples were again washed 2x 5-min using 1x Wash Buffer A with gentle shaking. Samples for F-PLA were incubated for 1.5 h with 1x Duolink^® Amplification Buffer (Green) containing the polymerase diluted 1:80. After 2x washes for 10 min with 1x Wash Buffer B and gentle shaking, samples were counter stained with phalloidin-647 (Invitrogen) and DAPI (Invitrogen) for 1 h, washed again using Wash Buffer B, coverslipped with mounting medium (Prolong Gold) and imaged using a Zeiss confocal microscope with an 880 detector and a 63x oil lens. Samples for BF-PLA were incubated for 1.5 h with 1x Duolink^® Amplification Buffer (Brightfield) containing the polymerase diluted 1:80. After amplification, tissue was washed 2x 2-min with 1x Wash Buffer A using gentle shaking. Samples were further incubated in 1x Detection Brightfield for 1 h at room temperature. After 2 washes for 2 min with Wash Buffer A and gentle shaking, sections were incubated in Developing Solution containing Substrate Reagent A (1:70), Reagent B (1:100), Reagent C (1:100), and Reagent D (1:50) for 15 min at room temperature. Following 2 washes for 2 min in Wash Buffer A, tissue was dehydrated using increasing alcohol solutions and Xylene, and coverslipped using DPX mounting media. Sections were imaged using a Keyence All-In-One microscope with a 10x or 63x oil lens. Z-stacks were merged using the standard full focus option.

Assessment of pS129 α-synuclein antibody specificity using conventional immunostainings

To evaluate whether commercially available pS129 asyn antibodies are monospecific, we performed immunocytochemistry (ICC) on mouse primary cortical neurons. We used the pS129 asyn monoclonal antibodies MJF-R13 (abcam), pSyn#64 (WAKO), and 81A (abcam) (Fig. 1 A–C, E–G) [29]. A total-asyn antibody, syn-1 (BD Biosciences), was used as a reference (Fig. 1 D, H) and experiments were performed with both asyn knock-out (SNCA KO; Fig. 1 A–D) and wild-type (WT; Fig. 1 E–H) cultures. MJF-R13, pSyn#64, and 81A antibodies showed extensive staining in both the WT and SNCA KO cultures, demonstrating cross-reactivity of pS129 asyn monoclonal antibodies with other antigens. In contrast, the syn-1 antibody produced a staining in the WT culture only, illustrating that this antibody is monospecific in this application.

OPEN IN VIEWER

Fig. 1

Cross-reactivity of pS129 α-synuclein monoclonal antibodies in cell culture and mouse brain sections. A–H) Immunocytochemistry staining (ICC) of SNCA KO (A–D) and WT (E–H) mouse primary cortical neurons using rabbit MJF-R13 (A,E), mouse pSyn#64 (B,F), and mouse 81A (C,G). Total-asyn antibody, mouse syn-1 (D,H), was used for reference. Alexa-488 stained images were taken at 63x. I-f) Immunohistochemistry staining (IHC) of SNCA KO (I-L,Q-T,Y-b) and WT (M-P,U-X,c-f) 30μm thick coronal mouse brain sections with rabbit MJF-R13 (I,M,Q,U,Y,c), mouse pSyn#64 (J,N,R,V,Z,d), mouse 81A (K,O,S,W,a,e), and rabbit EP1635Y (L,P,T,X,b,f). DAB-stained images were taken at 63x.

Next, we evaluated the specificity of the pS129 asyn monoclonal antibodies MJF-R13, pSyn#64, 81A, and EP1536Y (abcam) using immunohistochemistry (IHC) (Fig. 1 I–f). IHC was performed on paraformaldehyde (PFA) fixed coronal SNCA KO (Fig. 1I–L, Q–T, Y-b) or WT (Fig. 1 M–P, U–X, c–f) 30μm mouse brain sections containing the cortex, hippocampus, and substantia nigra. In all three brain regions, there were no differences in staining patterns between WT and SNCA KO samples. For antibodies MJF-R13, pSyn#64, and EP1536P staining was visible in cell bodies. Additionally, there was a general background staining throughout all brain regions. The 81A antibody did not show cell body staining and had more signal intensity in the cortex and substantia nigra than other areas. In summary, none of the commercially available antibodies that we used here specifically detect physiological levels of pS129 asyn in ICC or IHC.

Staining of pS129 α-synuclein in cell cultures and mouse brain sections using the proximity ligation assay

We next aimed to develop an assay to detect pS129 asyn that would work equally well in rodent and human tissues. Many asyn antibodies that are commercially available recognize the C-terminus of asyn, and typically these antibodies do not recognize both human and rodent asyn with the same affinity due to sequence differences in this region [30, 31]. The syn211 and LB509 clones are human specific monoclonal antibodies that bind very close to the pS129 asyn site [32, 33] and were not considered due to potential competition with pS129 antibodies. The 4B12 and syn204 clones recognize epitopes more distant to S129, but were also eliminated as they do not recognize rodent asyn [8, 32]. We therefore considered C-20 (Santa Cruz) and syn-1 (BD Biosciences) asyn antibodies that can recognize human and mouse total asyn with similar affinity [8, 34]. However, C-20 is no longer commercially available, which led us to choose the mouse monoclonal syn-1. syn-1 is produced in mice and recognizes amino acids 91–99 of asyn (Fig. 2 A) [34]. To achieve a specific PLA signal, we required a monoclonal pS129 asyn antibody with high affinity produced not in mouse to complement the total syn-1 antibody. We therefore chose the rabbit MJF-R13 (R13) clone which has no preference for either rodent or human asyn [8]. An overview of the PLA protocol is shown in Fig. 2 A–D. To evaluate if our PLA specifically stains for pS129 asyn in mouse primary cortical neuron cultures, we performed the fluorescent version of the PLA (F-PLA) in SNCA KO (Fig. 2 E), WT (Fig. 2 F), and WT primary cultures overexpressing mouse asyn (masyn) or human asyn (hasyn) mediated by adeno-associated viral vectors (AAV) (Fig. 2 G and H, respectively). pS129 asyn monoclonal antibody R13 and total asyn monoclonal antibody syn-1 were used for the F-PLA at a concentration of 1:1000 and 1:2000, respectively. Our F-PLA produced a signal in the WT culture that was specific to asyn as demonstrated by the minimal signal detected in the SNCA KO cultures. Signal intensity was further increased in the masyn and hasyn overexpression WT cultures (Fig. 2 G, H). Additionally, we stained HeLa cells with our F-PLA and found that the staining was readily detectable (Fig. 2 I). Using the polo-like kinase inhibitor BI2536 to reduce phosphorylation of asyn on HeLa cells, we could demonstrate a reduction in PLA staining (Fig. 2 J). These data demonstrate that our F-PLA is capable of specifically staining pS129 asyn in primary neuron and HeLa cultures and that it can be used to detect endogenous and physiological levels of pS129 asyn.

OPEN IN VIEWER

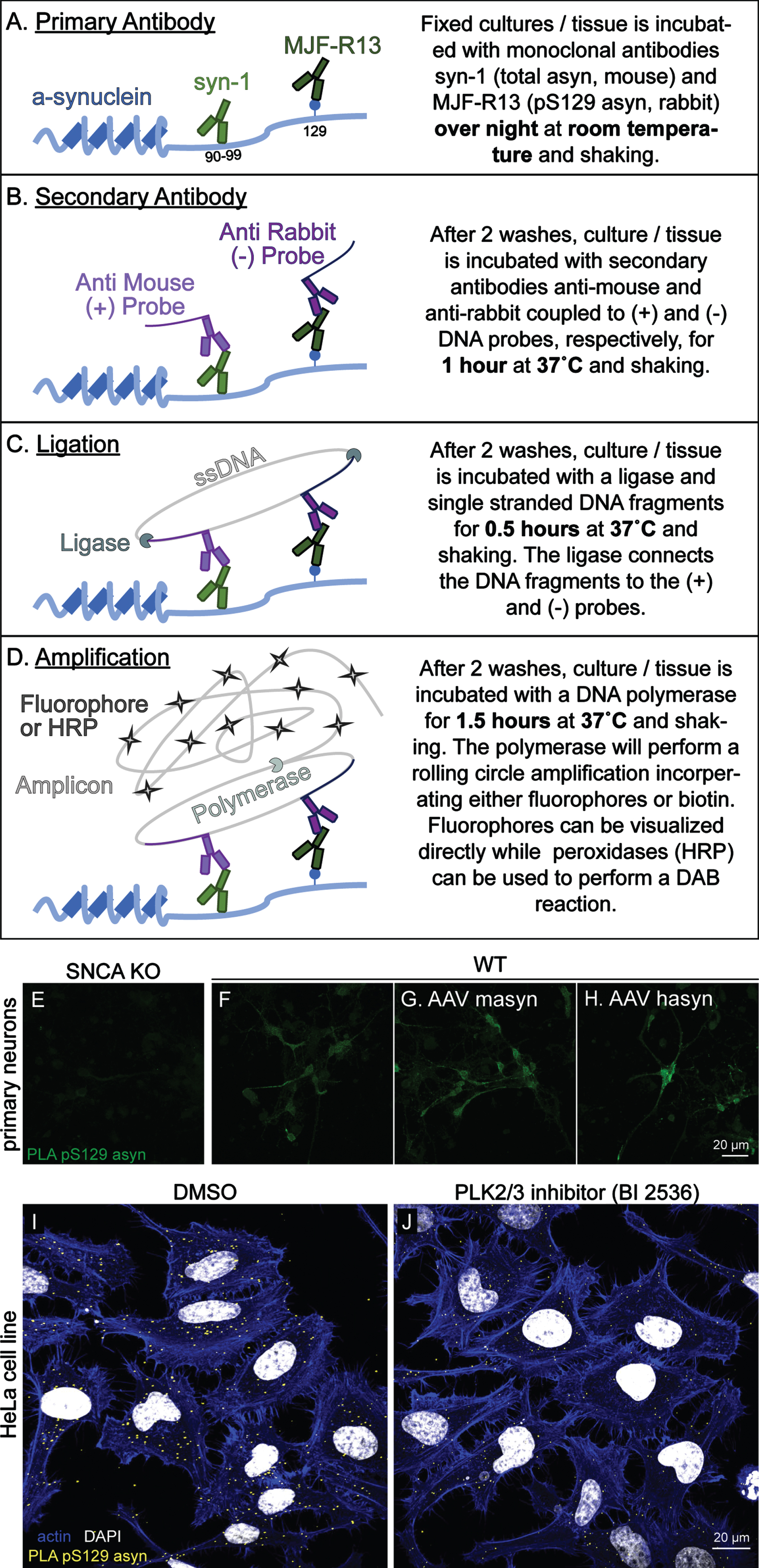

Fig. 2

Fluorescent PLA specifically detects pS129 α-synuclein in primary cortical neuron cultures and HeLa cells. A–D) Schematic illustration of the principle experimental steps in the PLA protocol. E–H) The F-PLA specifically stains for pS129 asyn in WT (F) but not in SNCA KO (E) primary cortical neuron cultures. AAV overexpression of mouse asyn (AAV masyn) (G) and human asyn (AAV hasyn) (H) in WT cultures were used to further exemplify the utility of the F-PLA. In HeLa cells, the F-PLA also staines pS129 asyn (I) while cells treated with the PLK inhibitor BI2536 show a reduced staining signal (J).

We then evaluated the brightfield version of the PLA (BF-PLA) utilizing DAB to stain for physiological pS129 asyn on PFA fixed brain tissue (Fig. 3). pS129 asyn antibody R13 (1:1,000) and total-asyn syn-1 (1:2,000) were again used as the primary antibodies. The BF-PLA was performed with both primary antibodies (Fig. 3 A–H) or with only one of the primary antibodies, either syn-1 (Fig. 3 I–L) or R13 (Fig. 3 M–P) alone. We used WT (Fig. 3 A–D, I–P) and SNCA KO (Fig. 3 E–H) coronal mouse brain sections (30μm) to evaluate the specificity and sensitivity of our pS129 asyn PLA in the neocortex, striatum, hippocampus, and substantia nigra. When both primary antibodies were used, the BF-PLA produced a robust, punctate signal in the WT neocortex, striatum, hippocampus, and substantia nigra (Fig. 3 A–H). The punctate staining is expected as PLA staining relies on rolling circle amplification to produce amplicons that limit diffusion of chromogen from the stained area. Dramatically less signal was produced in the SNCA KO tissue in any of the brain regions (Fig. 3E–H). The syn-1 antibody used alone demonstrated very little nonspecific staining in all brain areas (Fig. 3 I–L) while the sections stained with just R13 alone showed small numbers of punctae, mainly in the hippocampus (Fig. 3 M–P). These findings illustrate that our BF-PLA can be utilized to specifically stain for physiological pS129 asyn in mouse brain sections and that this BF-PLA shows higher specificity than traditional DAB protocols using pS129 asyn monoclonal antibodies.

OPEN IN VIEWER

Fig. 3

BF-PLA specifically detects pS129 α-synuclein in mouse brain sections. A-P) BF-PLA staining of pS129 asyn was performed on coronal mouse brain sections (30μm). R13 (1:1,000) and syn-1 (1:2,000) monoclonal antibodies were used together (A–H). The BF-PLA was also performed using either syn-1 (I–L) or R13 (M–P) alone as controls. WT (A-D,I-P) or SNCA KO sections (E–H) containing neocortex (A,E,I,M), striatum (B,F,J,N), hippocampus (C,G,K,O), and substantia nigra (D,H,L,P) were used.

Next, we evaluated the ability of the BF-PLA to stain for physiological pS129 asyn in additional major brain areas in the WT mouse brain (Fig. 4). A punctate staining was noted throughout the stained mouse brain sections. In the prefrontal cortex (PFC), similar to the neocortex, the staining was not only seen throughout (Fig. 4 A, C) but was particularly strong in layer IV, likely due to staining of neuronal cell bodies (Fig. 4 E). As expected, the pS129 asyn staining was homogenous throughout the striatum and there was no obvious staining of cell bodies (Fig. 4 F, G). The hippocampus was mainly stained in the CA3 region (stratum lucidum) with possible intense labeling of cell bodies (Fig. 4 H, I). Additional somal staining was visible especially in the paraventricular nucleus of the thalamus (Fig. 4 J, K), as well as in the amygdala (Fig. 4 L, M). Even though asyn is well known to be highly expressed in dopaminergic neurons in the substantia nigra and total staining can be visible in their cell bodies (Supplementary Figure 1 W, X), we did not see an increased staining of pS129 asyn in the reticulata or pars compacta subregions (Fig. 4 N, O). Additional intense staining was seen in the granular layer of the cerebellum where round structures, possibly cell bodies were visible with varying strength of staining (Fig. 4 P, Q). These data show that we are able to detect physiological pS129 asyn in primary mouse neurons, HeLas and in mouse brain sections using F-PLA and BF-PLA, respectively. To our knowledge, this is the first time pS129 asyn has been detected at physiological levels in mouse brain tissue without a nonspecific signal. We also demonstrate that pS129 asyn is found throughout the mouse brain and that there is strong pS129 asyn staining in cell bodies in specific brain areas.

OPEN IN VIEWER

Fig. 4

Physiological pS129 α-synuclein staining in the mouse brain. A–Q) WT coronal mouse brain sections (30μm) were stained using the BF-PLA technique. Examples of prefrontal cortex (PFC; A,B), neocortext (C–E), striatum (F,G), hippocampus (H,I), thalamus (J,K), amygdala (L,M), substantia nigra (S. nigra; N,O) and cerebellum (P,Q) are shown in 10x (A,C,F,H,J,L,N,P) and 63x (B,D-E,G,I,K,M,O,Q) magnification.

pS129 α-synuclein staining in α-synuclein overexpression animal models and in human brain tissue using BF-PLA

Since pS129 asyn is often used as a marker of asyn pathology, we also wanted to validate our BF-PLA staining of pS129 asyn in relevant animal models (Fig. 5). Detecting soluble pS129 asyn together with accumulated forms can be useful in order to visualize the full picture of pS129 asyn localization, distribution and its changes. This could be particularly of interest when studying pathology in general or when studying the effect of pathology modifying factors. Therefore, we firstly performed BF-PLA staining on mouse brain sections from WT mice overexpressing rodent or human asyn (Fig. 5 A–L). WT mice received unilateral injections into the substantia nigra of AAV6 particles expressing either GFP (Fig. 5 B, F, J), mouse asyn (masyn; Fig. 5 C, G, K), or human asyn (hasyn; Fig. 5 D, H, L) under the synapsin 1 promoter. Four weeks post-injection, we used BF-PLA to stain for pS129 asyn in the substantia nigra and striatum. Uninjected brain sections of WT mice were used in parallel (Fig. 5 A, E, I). Both the AAV-masyn and AAV-hasyn showed increased staining intensity in the substantia nigra compared to the uninjected and AAV-GFP brain sections (Fig. 5 G, H). The additional pS129 asyn signal was mainly found in round structures, possibly cell bodies, and not in the projections of neurons located in the surrounding tissue or in the striatum (Fig. 5 I–L). No obvious differences were seen between the uninjected and control AAV-GFP stainings (Fig. 5 E, F), suggesting that the increase in staining intensity is not due to the AAV injections but rather due to an increase in asyn expression. We then investigated the BF-PLA staining of pS129 asyn in WT mice that received injections of masyn preformed fibrils (PFF). PFFs were injected into the striatum and animals were euthanized 1 month post injection. In line with previous studies, we were able to detect accumulation of pS129 asyn in cell bodies in the striatum, neocortex, prefrontal cortex, and the amygdala of ethanol-fixed paraffin embedded sections (Fig. 5 M–T), with particularly high signals in the amygdala (Fig. 5 Q–T, black arrows). Additionally, we were also able to visualize endogenous, soluble pS129 asyn throughout the brain.

OPEN IN VIEWER

Fig. 5

BF-PLA used on sections from animal models and human frontal cortex. A–L) Mice were injected with AAV expressing either GFP (B,F,J), mouse asyn (masyn) (C,G,K) or human asyn (hasyn) (D,H,L). Four weeks after injection, the brains were fixed, cut into 30μm thick sections, and stained using the BF-PLA. Uninjected sides were used as a baseline control (A,E,I). Images were taken either with 10x (A–D) and 63x (E–L) magnification. (M–T) Mice were injected with asyn PFF into the striatum. One month after injection, the mice brains were fixed, embedded in paraffin, cut into 6μm thick sections, and stained using the BF-PLA. Images of striatum (M,Q), neocortex (N,R), prefrontal cortex (O,S) and amygdala (P,T) were taken at 10x (M–P) and 63x (Q–T) magnification. Accumulation of pS129 asyn staining in cell bodies indicated by black arrows (Q–T). U-b) Human frontal cortical sections from a healthy control (Case 5) (U–X) and a DLB patient (Case 1) (Y-b) were acquired from ADRC and stained using the BF-PLA protocol. Images were taken at 63x magnification. The monoclonal pS129 asyn antibody, 81A, was used singly to confirm the presence and absence of LBs in the DLB patient tissue and healthy control tissue, respectively (X,b).

Next, we evaluated the use of BF-PLA to detect non-aggregated and aggregated pS129 asyn of LBs in human brain tissue. Brain tissues from neurologically unimpaired controls and patients with DLB were acquired from the Alzheimer Disease Research Center (ADRC) at the University of California, San Diego (UCSD). In both the control and DLB human brain tissue, BF-PLA showed extensive pS129 asyn staining in frontal cortical areas (Fig. 5 U–W and Y-a, respectively). The staining was lacking in some areas that could potentially be cell bodies (Fig. 5 U–Z, black arrows). However, further studies will need to be performed to confirm the precise cellular localization of pS129 asyn in human brain tissue. Moreover, we stained additional cases as well as brain areas and did not observe an apparent difference in staining intensity between DLB and control groups (Supplementary Figure 1 A–L). Interestingly, our BF-PLA did not readily detect LBs in the DLB human brain tissues (Fig. 5 Y-a,Supplementary Figure 1 B, F, J, D, H, L). To confirm the presence and absence of LBs in the DLB patient samples and healthy control samples, we used the widely used and accepted 81A antibody for DAB staining of pS129 asyn. pS129 asyn aggregates were readily found in the DLB patient tissue while none were detected in the healthy control (Fig. 5 X,b). We performed additional staining using the total human asyn specific 4B12 (1:2,000 dilution) combined with R13 to address whether steric hindrance of the syn-1 antibody (epitope aa 90–99) prevented it from detecting the tightly packed aggregated pS129 asyn. Of note, the combination of 4B12 and R13 has been successfully used in a previously described assay for pS129 asyn [35] and has proven to be human and asyn specific in our hands (Supplementary Figure 1 O, P). As with the syn-1/R13 BF-PLA, we detected soluble pS129 asyn readily using the 4B12/R13 combination, but we again did not detect any LB inclusions (Supplementary Figure 1 M, N). Taken together, our BF-PLA can be successfully used in animal models to detect accumulated and soluble pS129 asyn. Additionally, the BF-PLA is capable of staining soluble pS129 asyn in human brain tissue. However, the BF-PLA assay was not able to detect densely packed asyn in LBs in the tissue of a human patient with DLB.

Conclusion

The PLA described here addresses the issue of cross-reactivity of pS129 asyn monoclonal antibodies by establishing a specific signal for pS129 asyn with minimal background signal. We show how this PLA protocol can be used to specifically detect physiological, non-aggregated pS129 asyn in cell culture, wild-type mouse brain tissue, and human brain tissue. Furthermore, we demonstrate its use in cell cultures and mouse models to detect increased levels of pS129 asyn. While soluble pS129 asyn was readily detected in human brain tissue, LBs were not stained by our PLA protocol in brain tissue from DLB patients. Due to its diverse utility in specifically detecting endogenous and physiologically relevant pS129 asyn in vitro and in vivo, our PLA can be utilized to answer major questions still surrounding pS129 asyn biology and its role in the pathology of synucleinopathies.
