POM-based metal–organic compounds: Assembly,structures and properties

2.1.1 {[(Cu·L1’·H₂O)·(α-Mo₈O₂₆)_0.5]·H₂O}_n (1)

A mixed solution of L1 (0.0094 g, 0.0025 mmol), (NH₄)₆Mo₇O₂₄·4H₂O (0.0618 g, 0.05 mmol), CuCl₂ (0.017 g, 0.1 mmol) and H₂O (15 mL) were placed in 25 mL teflon reactor at room temperature and the pH value was adjusted to 3 by adding 4–6 drops of HCl (2 mol/L). The mixed solution was heated at 150°C for 72 h. After slow cooling to room temperature, the crystals of 1 were formed. Rectangular flaky crystals were filtered and washed with distilled water (yield 55%based on Mo). IR (KBr, cm^–1): 3476.13(m), 3117.65(m), 1656.25(m), 1572.56(m), 1453.26(w), 1405.26(s), 1284.12(m), 1143.58(s), 1051.25(s), 916.74(s), 801.74(s). Elemental Anal. Calc. for C₁₇H₂₂N₂O₁₉CuMo₄: C, 20.30; H, 2.20; N, 2.78; O, 30.23. Found: C, 20.41; H, 2.12; N, 2.85; O, 30.35.

2.1.2 {(Cu·L2’·H₂O)·(α-Mo₈O₂₆)_0.5}_n (2)

The synthesis of compound 2 was similar to that of compound 1, except that L1 was replaced by L2. Rectangular flaky crystals were filtered and washed with distilled water (yield 70%based on Mo). IR (KBr, cm^–1): 3389.63(m), 2929.45(m), 1659.68(m), 1574.33(s), 1411.00(w), 1406.00(s), 1145.97 (w), 923.78(s), 797.99(s). Elemental Anal. Calc. for C₁₉H₂₄N₂O₁₈CuMo₄: C, 22.46; H, 2.38; N, 2.75; O, 28.35. Found: C, 22.56; H, 2.24; N, 2.79; O, 28.46.

2.1.3 {[(Cu·L3’·H₂O)·(β-Mo₈O₂₆)_0.5]·5H₂O}_n (3)

The synthesis of compound 3 was similar to that of compound 2, except that L2 was replaced by L3. Light blue needle crystals were filtered and washed with distilled water (yield 72%based on Mo). IR (KBr, cm^–1): 3426.09(s), 2973.70(w), 2919.20(w), 1631.13(w), 1382.92(w), 1049.97(w), 1145.97 (w), 947.73(m). Elemental Anal. Calc. for C₂₀H₃₀N₂O₂₄CuMo₄: C, 21.26; H, 2.67; N, 2.47; O, 33.98. Found: C, 22.15; H, 2.71; N, 2.49; O, 34.12.

2.1.4 {[(Cu·L4’·H₂O)]·(β-Mo₈O₂₆)_0.5}_n (4)

The synthesis of compound 4 was similar to that of compound 3, except that L3 was replaced by L4. Petal-shaped pale blue crystals were filtered and washed with distilled water (yield 76%based on Mo). IR (KBr, cm^–1): 3417.21(s), 1636.66(m), 1568.62(s), 1458.54(w), 1371.10(s), 1135.97(w), 945.41(s), 715.07(s). Elemental Anal. Calc. for C₂₀H₂₀N₂O₁₉CuMo₄: C, 14.72; H, 1.23; N, 1.71; O, 31.38. Found: C, 14.75; H, 1.27; N, 1.69; O, 31.46.

3.1.1 Crystal structures of compounds 1-2

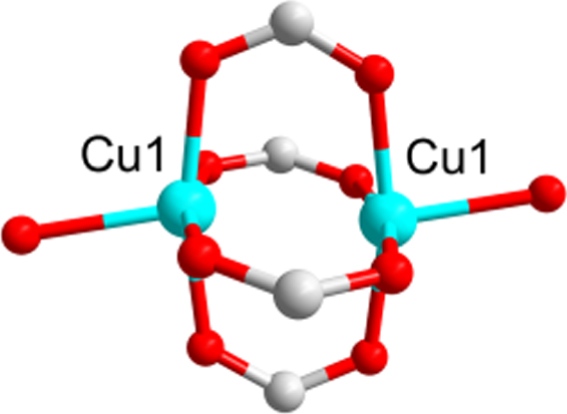

Crystal structures of compounds 1-2 have linear cations as templates and have [α-Mo₈O₂₆]^4– anion clusters (Figs. 1-2). Take compound 2 as an example for detailed discussion. Single-crystal X-ray analysis reveals that compound 2 (Fig. 2) crystallizes in the triclinic with P-1 space group. The asymmetric unit of the compound 2 contains one Cu (II) cation, two half ligand L2’, one half [α-Mo₈O₂₆]^4– polyanion. Noticeably, the L2’ ligand was hydrolyzed and adopted a bidentate coordination mode, coordinating to two Cu5 ions form paddle-wheel-like structure, thus resulting in a 2D layer [25–27]. The Cu-O bond lengths are in the range of 1.966–1.984 Å, which are similar to those of other Cu (II) MOFs [28, 29]. The L2’ cation connects five coordination modes of Cu (II) in-situ generated a 2D structure with the dimension of 35.007×17.804 Ų. The metal organic loop of compound 2 is formed by the ligands L2’ connects adjacent Cu (II) cation with size of 17.439×21.613 Ų. Therefore, the ligand and Cu (II) cation of compounds 1-2 formed the metal organic framework which forms a rotaxane-like structure with [α-Mo₈O₂₆]^4–, if the size is larger. Powder X-ray diffraction (XRD) has been used to confirm the purity of the samples in the solid state. For compound 2 the as-synthesized PXRD patterns closely match the simulated patterns generated from the results of the single crystal diffraction data, indicative of pure products which were shown in Fig. 3.

OPEN IN VIEWER

Fig. 1

(a) Structural unit of compound 1, (b) 2D layer structure of compound 1, (c) 3D supramolecular framework in compound 1.

OPEN IN VIEWER

Fig. 2

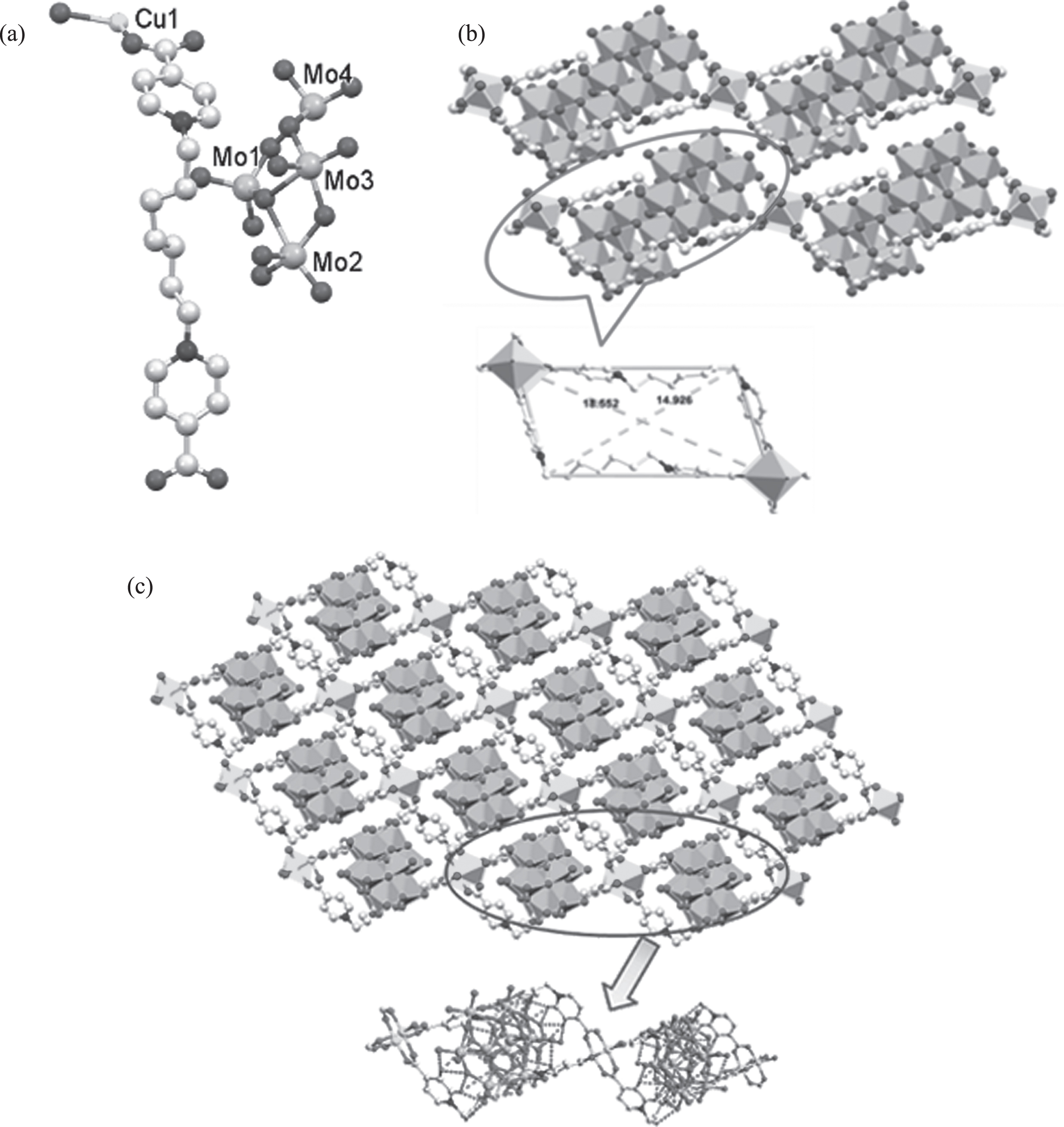

(a) Structural unit of compound 2, (b) 2D layer structure of compound 2, (c) 3D supramolecular framework in compound 2.

OPEN IN VIEWER

Fig. 3

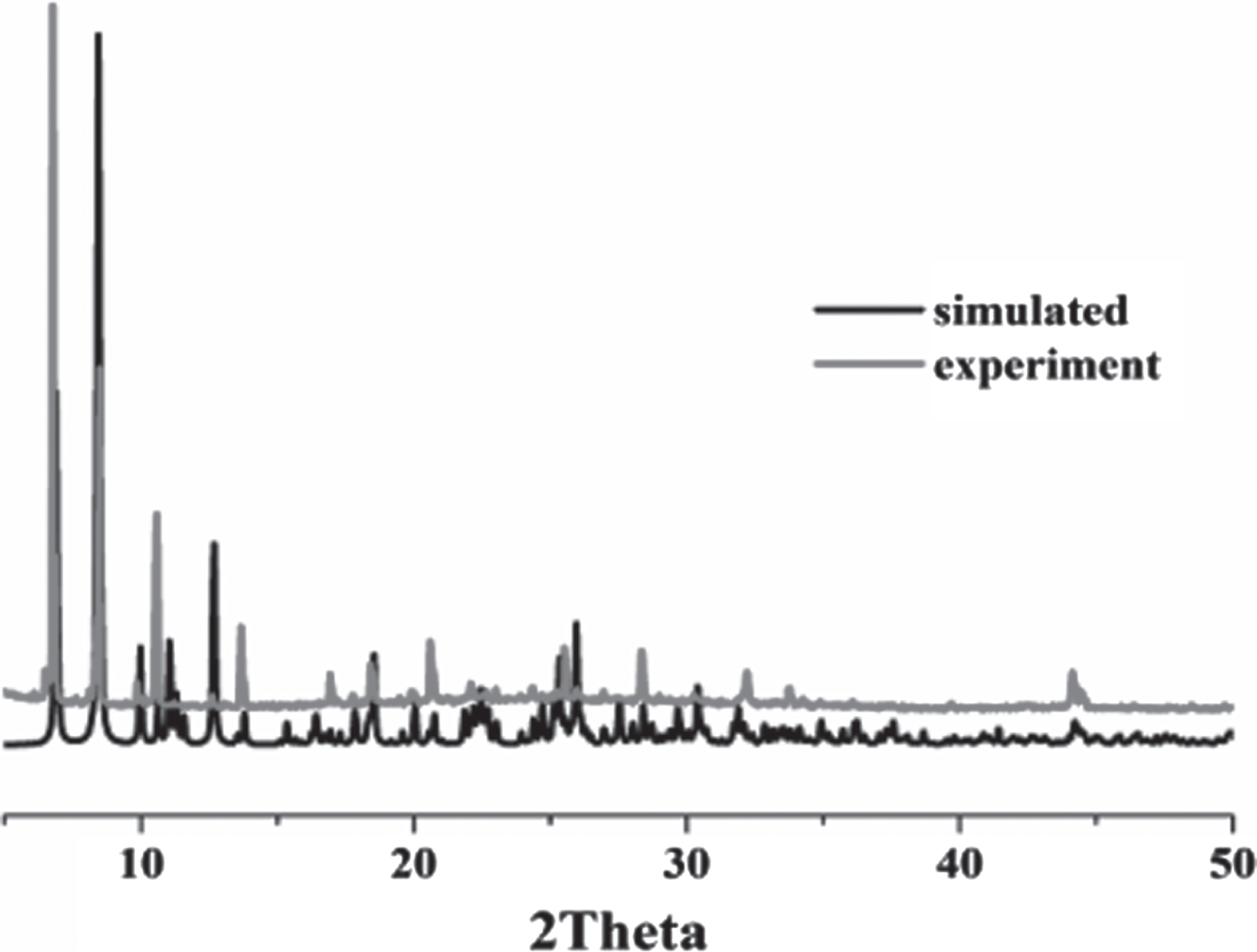

Power X-ray Diffraction of compound 2.

The surface organic ligands react as template with a metal salt to form compounds 3-4. Single-crystal X-ray structural analysis compound 3 reveals that there are two kinds of Cu (II) cations, two kinds of L3’ ligands, and one kind of [β-Mo₈O₂₆]^4– anion in the asymmetrical unit. Then the O-H···O hydrogen bonds [O(12)-H(20A)···O(20) = 2.759 Å and O(4)-H(19B)···O(19) = 2.746 Å] between the [β-Mo₈O₂₆]^4– and the L3’ ligand (Fig. 4a). In compound 3, L3’ ligands link adjacent metal Cu(1) and Cu(2) ions to form a 1D metal-organic chain. Cu1 and Cu2 are hexagonal octahedral geometries in which Cu1 is surrounded by two oxygen atoms from two L3’ ligands and four oxygen atoms from two-molecular coordination water, and Cu2 is surrounded by four oxygen atoms from two L4’ ligands and two oxygen atoms from two-molecular coordination water (Fig. 4b). Furthermore, adjacent 1D metal-organic chains extended into 2D supramolecular framework by hydrogen C-H···O bonds and van der Waals forces (Fig. 4c).

OPEN IN VIEWER

Fig. 4

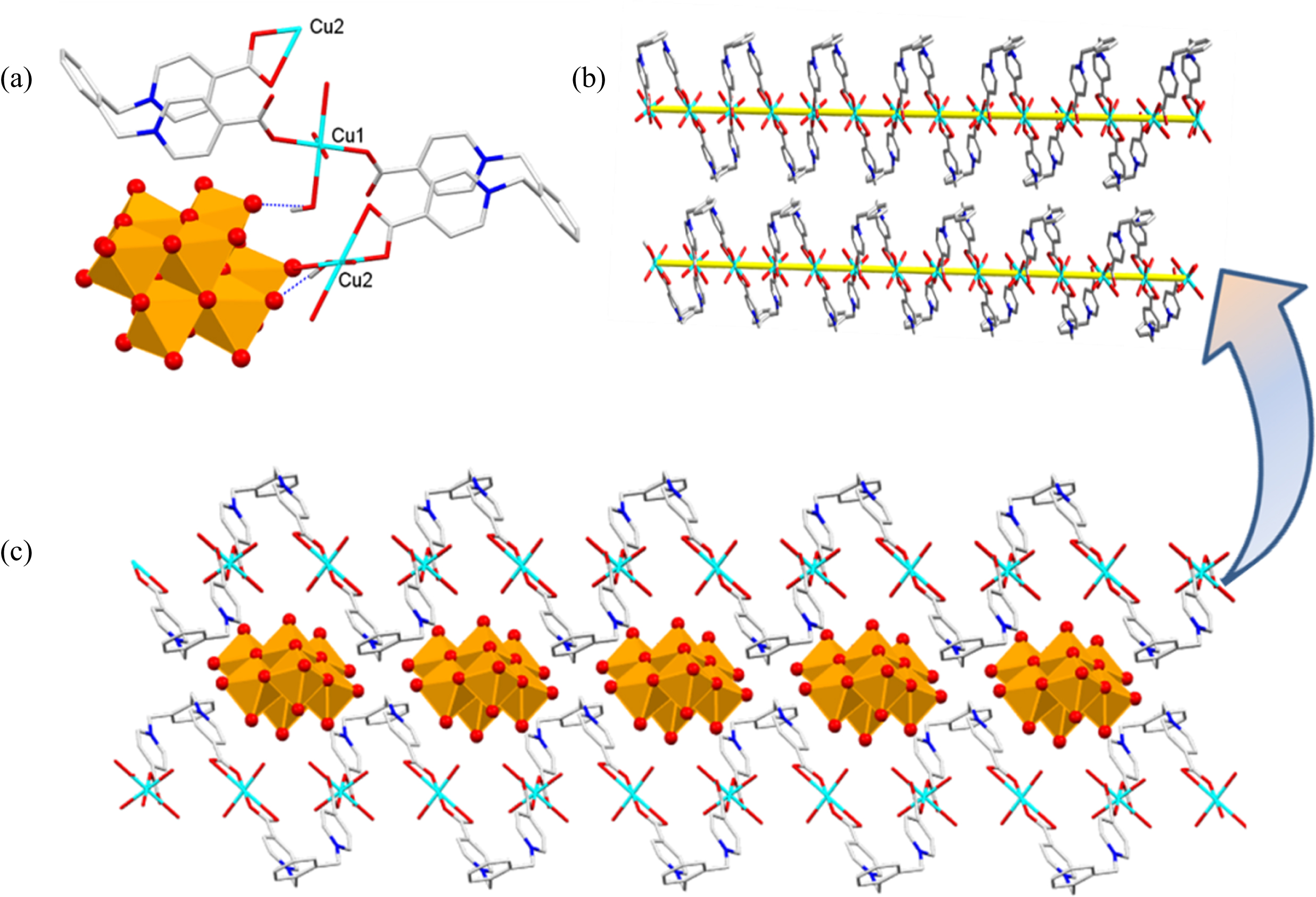

(a) structural unit of compound 3; (b) 1D metal-organic chain in compound 3; (c) the 2D supramolecular layer of compound 3.

Compound 4 crystallizes in the triclinic space group P-1. Its basic structural units contain the one half [β-Mo₈O₂₆]^4–, one half L3’ ligand, one Cu (II) ion, and one H₂O molecule, as shown in Fig. 5(a). Cu1, six-coordinated mode, is coordinated by two oxygen atoms from two water molecules, two oxygen atoms from two L4’ ligands, and other two oxygen atoms from two [β-Mo₈O₂₆]^4– anion. Interestingly, the Cu-O_t bond lengths are obviously different, ranging from 1.944(6) to 2.583(2) Å and shows a distorted octahedral coordination geometry. As shown in Fig. 5(b), compound 4 is one independent copper center in which Cu1 is six-coordinated in elongated octahedral coordination geometry, which is respectively completed by two L4’ oxygen atoms, two oxygen atoms of [β-Mo₈O₂₆]^4– and two water oxygen atoms. It is notable that two [β-Mo₈O₂₆]^4– polyoxoanions, four Cu atoms and two L4’ form a 2D frame with the dimensions of 18.965×26.135 Ų. Compound 4 has hydrogen bonds between the 2D molecular layers, as shown in Fig. 5(c).

OPEN IN VIEWER

Fig. 5

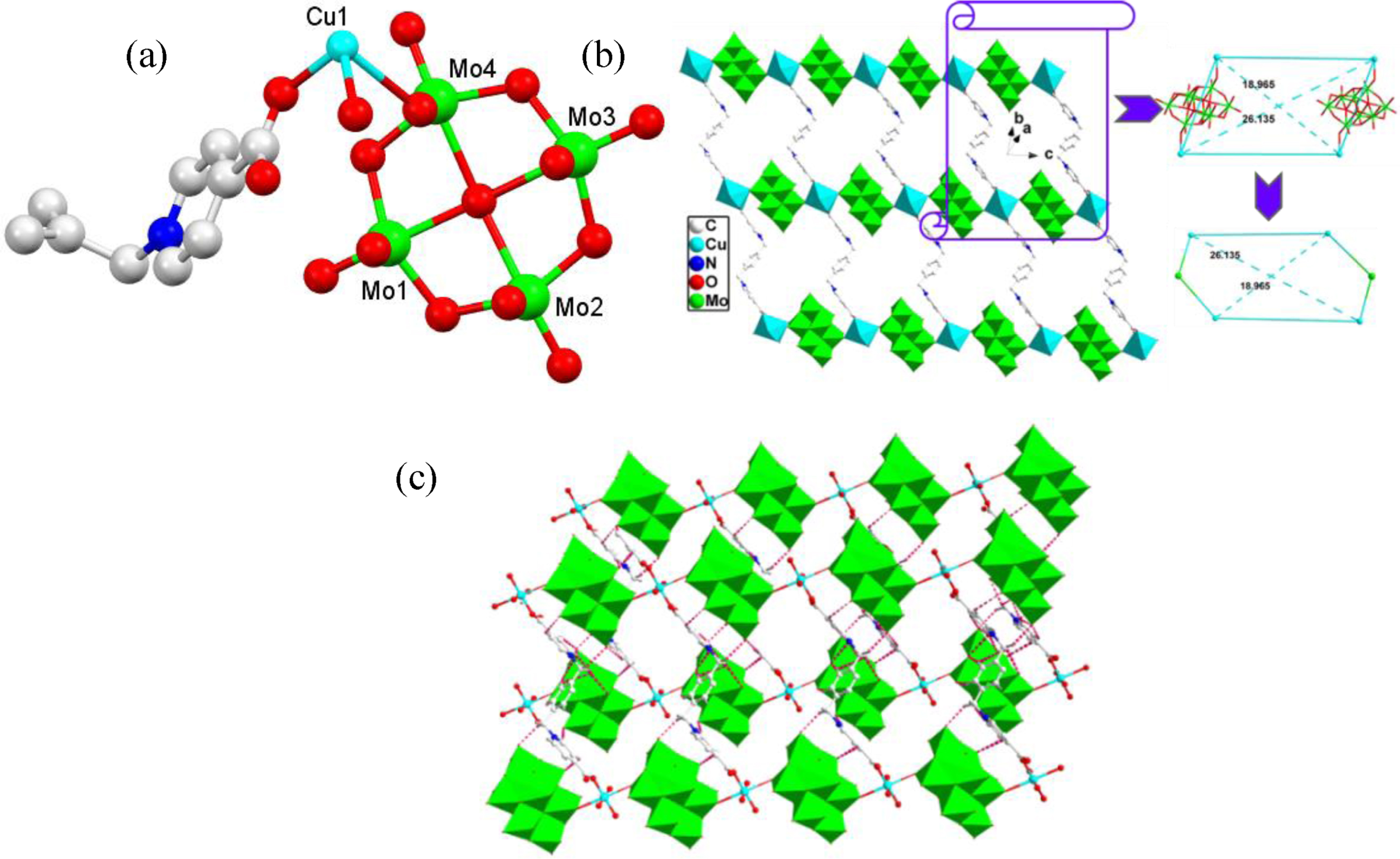

(a) asymmetric structural unit of compound 4; (b) 2D layer of compound 4; (c) the hydrogen bonds of compound 4.

To investigate the effects of organic ligands on the structures of polyoxoanions of compounds, four novel POM-based compounds were successfully synthesized under hydrothermal conditions by adjusting different organic ligands (Table 3). We found that the polyoxoanions in compounds 1-2 formed by linear cationic ligands were [α-Mo₈O₂₆]^4– anions, and the polyoxoanions formed by planar cationic ligands in compounds 3-4 were [β-Mo₈O₂₆]^4– anions. Therefore, it was found that the coordination mode of the polyoxoanions can be changed by increasing the conjugate surface in the ligand.
