Identification of new dihydrophenanthrene derivatives as promising anti-SARS-CoV-2 drugs through in silico investigations

Abstract

To research, evaluate, and invent novel compounds that inhibit SARS-CoV-2 activity, a series of reported 39 substituted 9, 10-dihydrophenanthrene derivatives were subjected to a quantitative structure-activity relationship (QSAR) study. Gaussian 09 and ChemOffice programs were used to calculate the molecular descriptors employed to determine their impact on the studied activity. Then we reduced the number of descriptors by eliminating the redundant information using principal component analysis (PCA). The creation of molecular models was done by using multiple linear regression (MLR) according to the principles established by the Organization for Economic Co-operation and Development (OECD) and the validation by using external and internal validation, Y-randomization tests, and domain of applicability. Moreover, we evaluated the toxicity of developed compounds using ADMET and Molecular docking to determine their optimal position to form a stable complex. As a result, four molecules may be used to develop a novel drug that can inhibit SARS-CoV-2 without causing the side effect.

Keywords

2D-QSAR SARS-CoV-2 disease Molecular docking ADMET

1 Introduction

SARS-CoV-2, also known as severe acute respiratory syndrome coronavirus 2, was discovered as a new coronavirus 2019 (COVID-19) outbreak that first appeared in the Chinese city of Wuhan in December 2019. It represents a highly dangerous disease that paralyzes the world [1]. The virus has quickly spread from one person to another through respiratory drops released when coughing and sneezing [2], causing 618,521,620 confirmed cases of the infected human being throughout the world [3].

On March 12, 2020, The World Health Organization (WHO) declared the viral epidemic a public health emergency of international significance [4].

Likewise, governments and health departments have chosen various strategies to contain the virus’s spread. Many attempts have been made worldwide to develop and find an efficient drug to treat patients potentially infected with COVID-19, leading to the development of various vaccines that have been widely applied to the public to reduce the transmission rate [5]. However, no single therapy has shown its effectiveness against SARS-CoV-2. And to date, the search for new treatments to combat this epidemic continues to avoid future zoonotic epidemics [6].

SARS-CoV-2 is a member of the family Coronaviridae that belongs to beta coronavirus, an enveloped virus with a single-stranded, positive-sense, 29-30 kb RNA genome in size. It encodes 16 non-structural proteins (ORF1a⟶nsp1-11 and ORF1b⟶nsp12-16) and five major structural proteins (S, spike; E, envelope; M, membrane; N, nucleocapsid; HE, hemagglutinin esterase). These include the papain-like protease (PLpro) and the 3C-like protease (3CLpro), which are important for the viral life cycle and responsible for inhibiting the host immune system [7]. These protease enzymes, therefore, represent the crucial molecular targets for COVID-19 treatment. Furthermore, strong 3CLpro inhibition can lower the chance of mutation-mediated drug resistance [8]. Herein, we will work on identifying a novel agent that targets the enzymatic activity of 3-chymotrypsin-like protease (3CLpro) [9].

In this regard, we based our work on the in vitro results of the study conducted by Zhang et al, about the discovery of multiple derivatives of 9,10-dihydrophenanthrene as potential non-covalent inhibitors of the SARS-CoV-2-3CLpro [10]. By privileged scaffold fusion and structure-activity relationships study. The FRET assay was used to investigate the inhibitory effects of the various discovered compounds on SARS-CoV-2 3CLpro.

Only two effective compounds with the most strong SARS-CoV-2 3CLpro inhibitory activity were among all evaluated 9,10-dihydrophenanthrene derivatives, with IC50 values of 1.55 ± 0.21 mM and 1.81 ± 0.17 mM, respectively. Furthermore, enzyme kinetics studies demonstrated that these two drugs inhibit SARS-CoV-2 3CLpro via a mixed-inhibition mechanism. Then In vitro gastrointestinal, plasma, and microsome stability assays were conducted for both discovered compounds and showed good metabolic stability in the human gastrointestinal tract, plasma, and liver microsomes. We can state that the investigation carried out by Zhang et al. come to continue our research on providing more structural references for the development of SARS-CoV-2 3Clpro inhibitors with higher activity by using computational methods. The benefit behind this is to accelerate the process of active compound discovery.

In this work, we conducted an in-silico study using bioinformatics techniques to predict new noncovalent inhibitors with better activity against COVID-19. The quantitative structure-activity relationship is an effective theoretical approach in discovering new effective anti-SARS-CoV-2 compounds [11]. Over the past few years, several models of quantitative structure-activity-QSAR relationships have been developed to predict potential inhibitors of SARS-CoV-2 [12 –15].

This paper determines candidate inhibitors of the studied series by QSAR and molecular docking analysis. Moreover, the evaluation of drug-likeness and ADMET properties was performed to confirm the use of the best inhibitor chosen for the anti-SARS-CoV-2 drug.

2 Materials and methods

This study aimed to create a model able to predict the inhibitory activities of novel compounds using the QSAR technique for fighting COVID-19. To attain our aim, we followed the processes outlined below, considering the recommendations established by the Organization for Economic Cooperation and Development (OECD) [16] (Fig. 1).

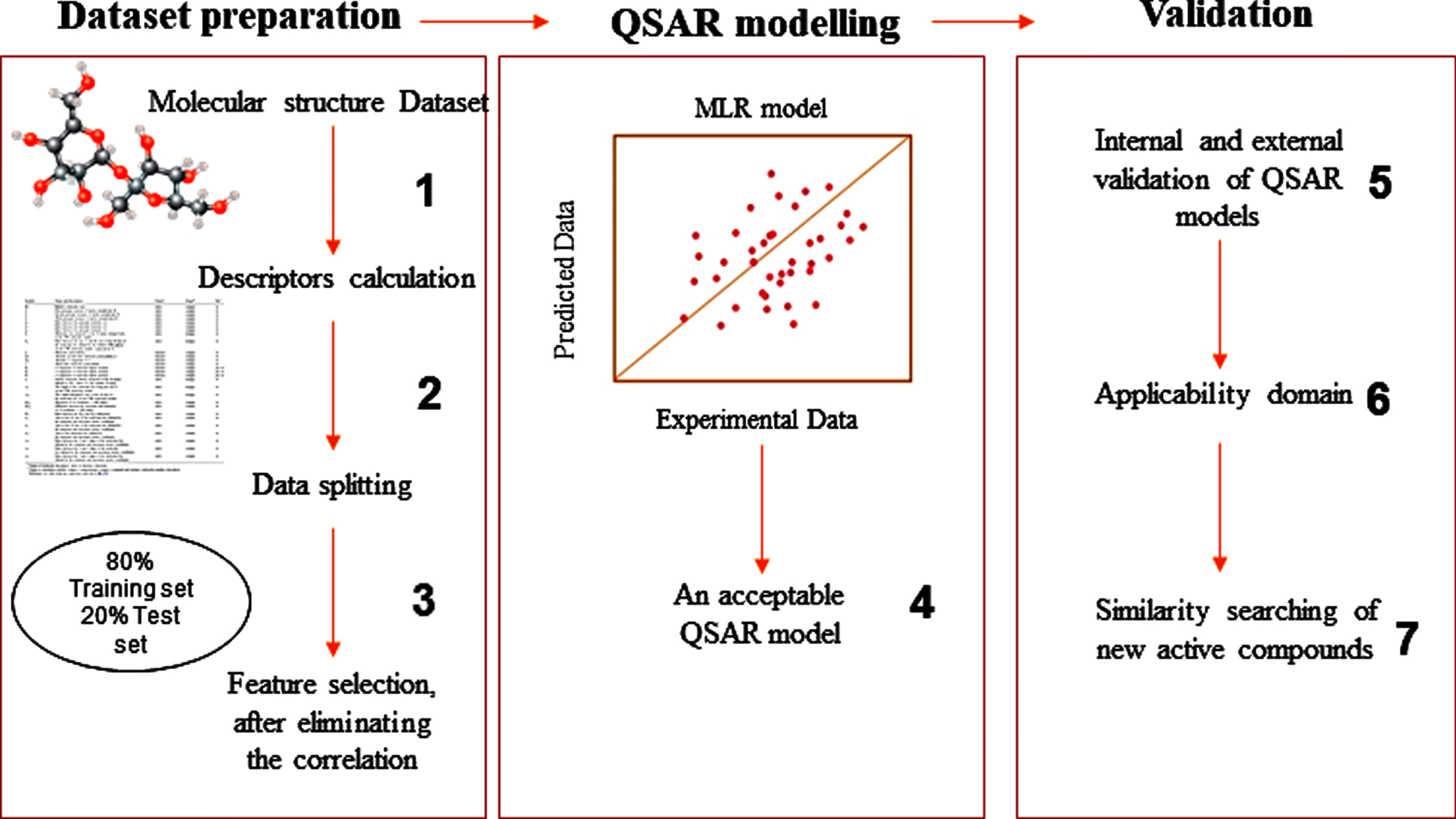

Fig. 1

The process adopted in this study.

2.1 The data sets

In this work, a dataset of reported thirty-nine (39) substituted 9, 10-dihydrophenanthrene analogs covering a wide chemical space and having moderate to high activity against the SARS-CoV-2 virus strain had been considered. The reported IC₅₀ values were then converted into pIC₅₀ (pIC₅₀ = -logIC₅₀) before quantitative structure-activity relationships (QSAR) modeling. For the sake of better understanding, the structures of all these compounds, along with their calculated pIC₅₀ values, are provided in Table 1.

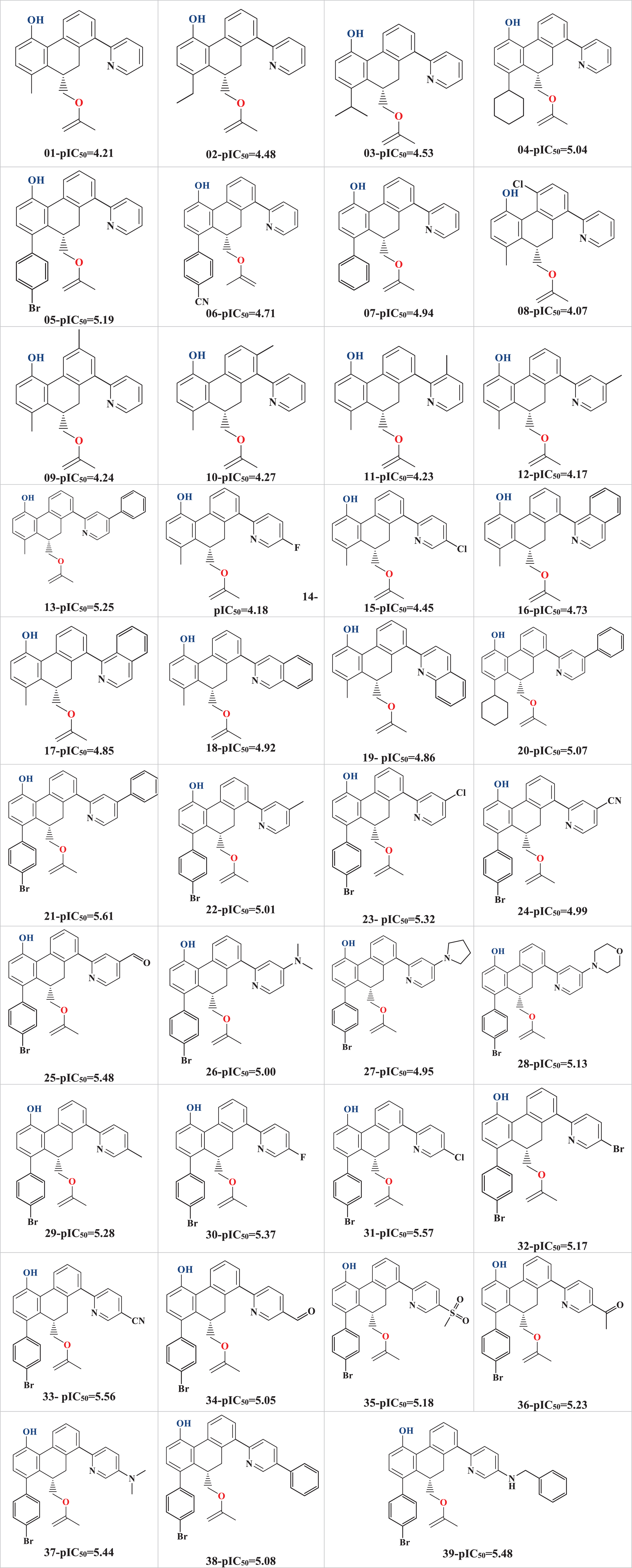

Table 1
Structures and pIC50 values of the 39 studied compounds

2.2 Molecular descriptors calculation

The chemical structures of the 39 molecules in our dataset were drawn using Chemdraw software [17]. The geometrical structure of the investigated series was optimized by using the density functional theory DFT (B3LYP/6-31 G (d, p) basis set) method utilizing the Gaussian09 W [18] and Chem3D software [17], were used to compute various quantum chemical descriptors and calculate the topological, physicochemical, and geometrical descriptors. After the calculation of the descriptors for all the molecules of the studied database, we determined the quantitative relationship between these descriptors and the biological inhibitory activity of the SARS-CoV-2 disease.

2.3 Statistical analyses

To build a linear mathematical model, a wide range of chemical descriptors that belongs to different classes (1D, 2D, 3D) were generated for all the 39 molecules obtained by in vitro synthesis [10]. Then for representing the QSAR models, we did use the statistical methods presented below.

2.3.1 Principal components analysis (PCA)

PCA is a descriptive statistical method, very useful in summarizing the maximum of information contained in the data and representing them in a simple and comprehensible form, reducing the dimensionality of a dataset and understanding the distribution of the variables and the connection between them [19]. This paper used PCA to generate a robust model by removing highly inter-correlated and redundant values while keeping efficient data. Furthermore, the pretreated descriptors were divided into two sets of the group, a set of training used in the construction of the model 2D-QSAR and a set of tests used in the external validation of these models. The descriptors applied for the development of the models are shown in Table 2

Table 2
List of molecular descriptors with different classes

Descriptors Symbol Class

Percentage mass of Carbon % C Constitutional

Percentage mass of Hydrogen % H

Percentage mass of Nitrogen % N

Percentage mass of Brome % Br

Percentage mass of Chlore % Cl

Percentage mass of Oxygen % O

Molecular Weight MW

Number of HBond Acceptors NHA Physico-chemical

Number of HBond Donors NHD

Molecular Refractivity MR

Coefficient of partition Octanol/Water LogP

Pka (log units) Pka

Number Rotatable Bonds N_rot Geometrical

Polar Surface Area PSA Topological

Topological Diameter

Energy gap E (ev) Quantum (Electronic)

Dipole Moment μ

Electronegativity X

Energy gap E_GAP (ev)

Energy HOMO E_HOMO (ev)

Energy LUMO E_LUMO (ev)

Descriptors	Symbol	Class
Percentage mass of Carbon	% C	Constitutional
Percentage mass of Hydrogen	% H
Percentage mass of Nitrogen	% N
Percentage mass of Brome	% Br
Percentage mass of Chlore	% Cl
Percentage mass of Oxygen	% O
Molecular Weight	MW
Number of HBond Acceptors	NHA	Physico-chemical
Number of HBond Donors	NHD
Molecular Refractivity	MR
Coefficient of partition Octanol/Water	LogP
Pka (log units)	Pka
Number Rotatable Bonds	N_rot	Geometrical
Polar Surface Area	PSA	Topological
Topological Diameter
Energy gap	E (ev)	Quantum (Electronic)
Dipole Moment	μ
Electronegativity	X
Energy gap	E_GAP (ev)
Energy HOMO	E_HOMO (ev)
Energy LUMO	E_LUMO (ev)

2.3.2 Model development

This study used the multiple linear regression (MLR) method available in XLSTAT software [20] to develop the QSAR models. MLR is a statistical tool that establishes a linear regression between independent variables X (molecular descriptors) and a dependent variable Y (biological activity to be predicted) according to the following relation Equation (1) $Y = a_{0} + \sum_{i = 1}^{n} a_{i} X_{i}$ (1)

Where a_i represents the coefficients of those descriptors, a₀ is the intercept of the equation, and n is the number of the molecular descriptors.

Afterward, multiple statistical parameters, such as the correlation coefficient (R²) and the root mean square error (RMSE), were determined. The model is simultaneously developed until the R2 value is significantly higher and the RMSE value is lower by entering the new descriptor. All developed models were validated using internal cross-validation (R² _CV ) and external validation (R² _Test ).

2.3.3 Statistical testing and validation

The validation of the models QSAR remains a very sensitive step in statistical studies to evaluate the importance of QSAR models and, thus, their predictive abilities of the activities/properties of other new compounds. It generally starts with an internal validation and then an external validation. In addition, we run a Y-randomization test to assess the effectiveness of the originally developed model and then by the definition of the applicability domain, that is to say, the region of the chemical space in which a compound can be predicted with confidence.

To select the best MLR model, the coefficient of determination R² (Equation 2), the coefficient adjusted for degrees of freedom R²_Adj (Equation 3), the mean squared error MSE (Equation 4), the coefficient of determination for the test set R²_Test, and cross-validation coefficient R²_cv (Equation 5), were used.

If R², R²_Adj, R²_Test, and R²_cv values are greater than 0.6 according to A. Golbraikh, A.Tropsha [21], F-value is higher (F > 0.33) and a level of signification p-value between 1% and 5%, the model is statistically acceptable. $R^{2} = 1 - \frac{\sum_{i = 1}^{n} {(Y_{obs} - Y_{calc})}^{2}}{\sum_{i = 1}^{n} {(Y_{obs} - {\bar{Y}}_{calc})}^{2}}$ (2) $R_{adj}^{2} = \frac{(n - 1) \times R^{2} - p}{n - 1 - p}$ (3) $MSE = \frac{1}{n} \sum_{i = 1}^{n} {(Y_{obs} - Y_{calc})}^{2}$ (4) $R_{CV}^{2} = 1 - \frac{\sum {(Y_{obs} (train) - Y_{calc} (train))}^{2}}{\sum {(Y_{obs} (train) - {\bar{Y}}_{calc} (train))}^{2}}$ (5)

Where Y_obs and Y_calc are, respectively, the value of the observed and calculated response, ${\bar{Y}}_{calc}$ is the average value of the observed/ predicted response, p represents the number of explicative variables in the model (descriptors), and n is the number of observations (Molecules).

2.3.4 Applicability domain

The applicability domain of a QSAR model is the final step in validating the developed QSAR model; it is regarded as an important step in evaluating whether the model is accurate in making predictions within the chemical space for which it was developed [22]. Furthermore, according to the Organization for Economic Cooperation and Development (OECD), the validation process by defining the applicability domain remains very important [23]. There are different methods for defining AD models [24], but the most common method is determining the leverage value h_i for each molecule using the following formula Equation (6). $h_{i} = x_{i}^{T} {(X^{T} X)}^{- 1} x_{i}$ (6)

With (i = 1,2, . . . ..,n) for each compound, xi is the line-vector descriptor of the query compound, X is n*(k-1) matrix of k model descriptor values for training set compounds, and the superscript T refers to the transpose of matrix/vector [25]. In the present study, we used the Williams plot available in Matlab software [26] to determine the AD, the leverage threshold h* value (Equation 7) was calculated and then compared with the leverage value h_i when (h_i > h*), it indicates that the compound affects negatively on the developed model, so it is considered outside the applicability domain.

$h^{*} = 3 \times \frac{(k + 1)}{n}$ (7)

With n the number of compounds in the training set and k the number of descriptors.

2.4 In silico Pharmacokinetic ADMET prediction

ADMET parameters (absorption, distribution, metabolism, excretion, and toxicity) and Pharmacokinetic characteristics of the selected compounds represent a vital tool to predict the failures in drug development candidates and accelerate the process of active compound discovery [27]. These studies consist of evaluating the drug’s likeness properties and determining the activity through the human body. These pharmacokinetic parameters were assessed for the four derivatives predicted compounds of 9, 10 dihydrophenantrene to examine their drug candidate properties. Applying the pkCSM server [28] by introducing the SMILES strings of the structures. It’s a web platform that gives rapid information to evaluate pharmacokinetic and toxicity properties.

2.5 Molecular docking

Molecular docking is an essential tool in structural molecular biology and computer-aided drug design [29]. It is widely used to predict the predominant ligand’s binding mode(s) in the active site of a target protein with a known three-dimensional structure [30]. The configuration of the docking input structures is just as important as the docking itself. First, the 3D-dimensional structure of the SARS-CoV-2 main protein (PDB entry: 6LU7, Resolution: 2.16 Å) was downloaded from the Protein Data Bank (http://www.rcsb.org). Then the target protein was prepared using AutoDockTool-1-5-6 [31] by removing all heteroatoms, water molecules, and imbalance charges by Gasteiger charges while we added the polar hydrogens to the protein structures. Next, the 3D structures of the ligands (all the proposed compounds) were optimized by the Gaussian 09 software using a combination of Density Functional Theory (DFT) with Becke’s three Lee, Yang, Parr parameters (B3LYP) functional, together with a basis set 6–31G* to achieve the optimal structures of the molecules, after that, the structures of the ligands were converted to the PDBQT format using the AutoDockTool-1-5-6.The 3D grid configuration for the AutoDock was set to define the map size, where the total binding energy between the ligand and the SARS-CoV-2 protein is measured. We used a grid box with the dimensions 15×22×15 Å³, with its center located at x = –10.75, y = 12.46, z = 68.92, with spacing 0.375 Å between the grid points.

After preparing the protein and the ligand, we performed molecular docking using the AutoDock Vina program [32], where we determined the best position of the docked ligands with the appropriate protein considering their binding affinities. The most stable complexes represent the lower value of the binding score. Discovery Studio 2021 Software [33] was used to visualize the ligand-protein interaction.

3 Results and discussions

After selecting the chemical descriptors to be used in our QSAR model by using the PCA technique and collecting the experimental values of the Anti-SARS-CoV-2 activities for the 39 derivative molecules as reported by Zhang et al. [10]. We built the QSAR model, represented in Equation 8: ${pIC}_{50} = - 0.717 + 0.258 MR - 0.014 PSA - 0.695 E_{Homo - 1} - 8.598 E_{GAP}$ (8)

N_Test (number of test compounds) = 6 and N_Training (number of training compounds) = 33

With Statistical parameters: R² = 0.805; R²adj = 0.777; RMSE = 0.042; p-value < 10^- 4; F = 28.951

Generally, a QSAR model is considered predictive if the calculated values of R², R²_cv, are greater than 0.6 and 0.5 for R²_adj [34]; hence, the robustness of the MLR model was confirmed based on the statistical performances obtained. Also, a low value of the mean square error (RMSE = 0.042) indicated that the predicted model is reliable and predictive. Then the high value of F-statistic (F = 28.951) signified that the model is statistically acceptable. Moreover, the p-value is less than 0.0001, implying that the model is statistically significant with a level greater than 95% .

Then, we carried out the internal validation by the leave-one-out cross-validation method, where the value of the cross-validation coefficient R²_cv was higher than 0.5 (R²_cv = 0.732), which indicated a good predictability of the pIC₅₀ of the compounds of test set molecules in agreement with the experimentally determined value. According to Y-randomization, we ran 50 random trials. As a result, the cR_p² was estimated, confirming the strength of the built model, and the results are listed in Table 3.

Table 3

Random parameters values

Parameters	values	Threshold value
R²_cv	0.732	>0.500
Average of 50 R²_rand	0.100	<R²
Average of 50 R²_cvrand	–0.253	<R²_cv
cR²p	0.758	>0.500

The predicted and calculated pIC50 values are given in Table 4. The relationship between the observed activity values and the predicted values is shown in Fig. 2.

Table 4

Experimental pIC50 values for the 39 molecules used as training and test sets and corresponding predicted values based on the MLR-developed model

Training set	Compounds	Activity (pIC₅₀)		Compounds	Activity (pIC₅₀)
		Exp	Pred		Exp	Pred
	3	4,531	4,502	21	5,609	5,729
	4	5,043	4,749	22	5,008	5,155
	5	5,191	5,068	23	5,32	5,266
	6	4,714	4,903	24	4,989	5,204
	7	4,943	4,792	25	5,479	5,349
	8	4,068	4,448	26	5	4,962
	10	4,269	4,282	28	5,131	5,105
	11	4,23	4,308	29	5,28	5,127
	12	4,166	4,359	30	5,368	5,156
	13	5,248	4,971	31	5,565	5,301
	14	4,175	4,329	32	5,172	5,35
	15	4,446	4,493	33	5,556	5,214
	16	4,733	4,571	34	5,051	5,219
	17	4,849	4,816	35	5,177	5,203
	18	4,922	4,766	36	5,234	5,379
	19	4,859	4,815	38	5,082	5,568
	39	5,48	5,432	–	–	–
Test set	1	4,214	4,265	20	5,069	5,464
	2	4,481	4,356	27	4,95	5,187
	9	4,239	4,327	37	5,437	5,048

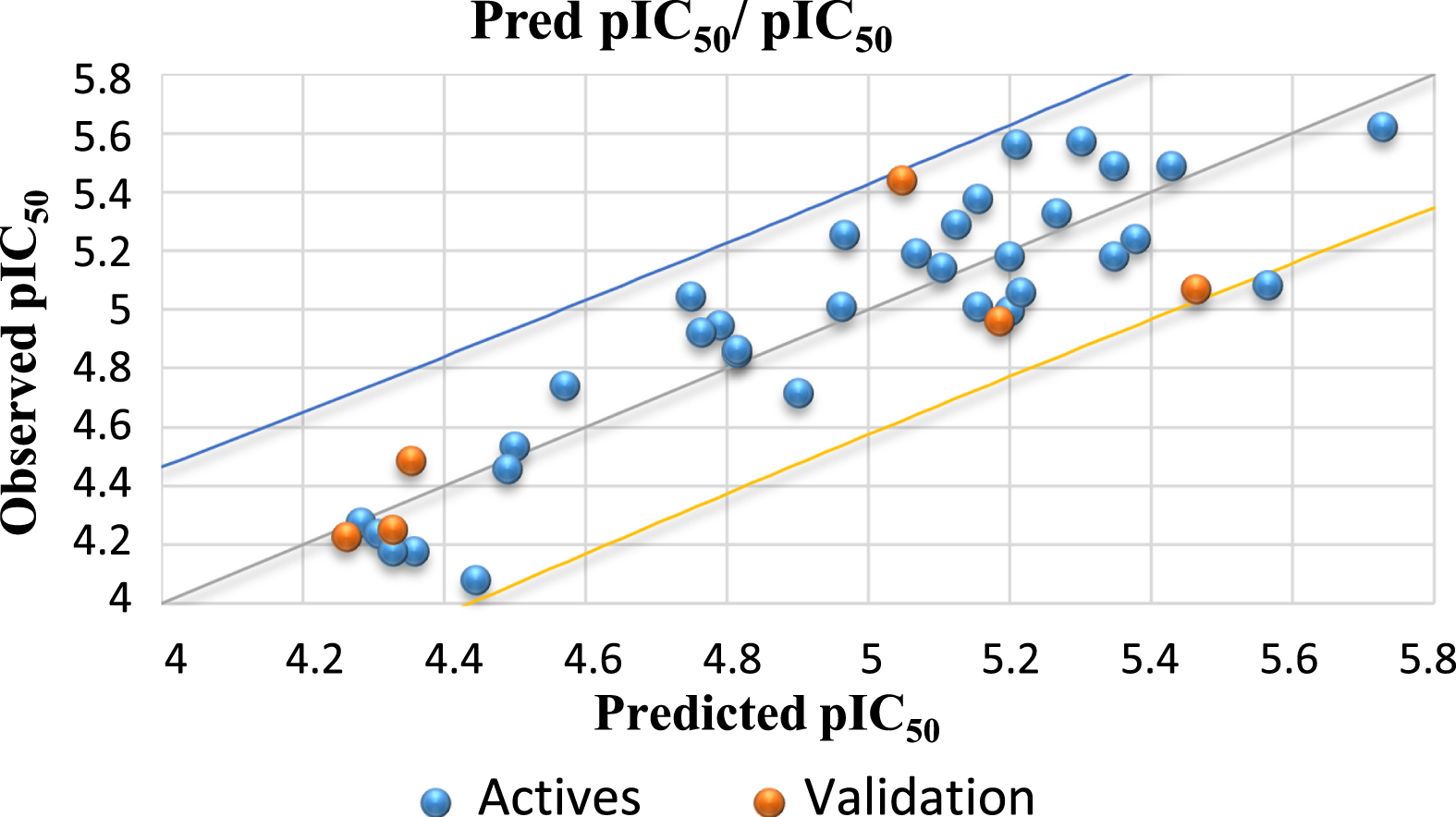

Fig. 2

Correlation between the observed and predicted activity.

To evaluate the predictive power of the resulting model, the external validation was performed by calculating the coefficient of correlation R² test. The concluded value of the R² test is 0.731, greater than 0.6 [34]. Therefore, the external validation of the MLR model guarantees the robustness of the developed model to predict the pIC₅₀.

Therefore, we can sum up that the model gives important information to predict new molecules with high activity against SARS-CoV-2. The model is a function of 4 molecular descriptors. The descriptors, Polar Surface Area PSA, HOMO^- 1 energy (E_Homo - 1), and the Gap energy EGAP are negatively influencing the activity, and the Molar Refractivity (MR) parameters are positively influencing the activity. The Molar Refractivity has a positive sign in the model, which suggests that the increased activity can be achieved by increasing the volume of the molecules.

3.1 Applicability domain

One of the most important aspects of QSAR modeling is defining the applicability domain (AD). Figure 3 shows the William Plot based on the MLR model results. Vertical dashed lines and horizontal dotted lines, respectively, have been used to indicate acceptable limits of structural similarity and inhibitory activity. The standardized residuals and leverage threshold values (h* = 0.378) were plotted to gain a better understanding of structural similarity and biological activity. The predicted activity value will be valid and correct only for compounds located to the left of the leverage threshold h*, while the molecules outside the applicability domain are not correctly predicted. h* value is calculated by using the following Equation (Equation 9)

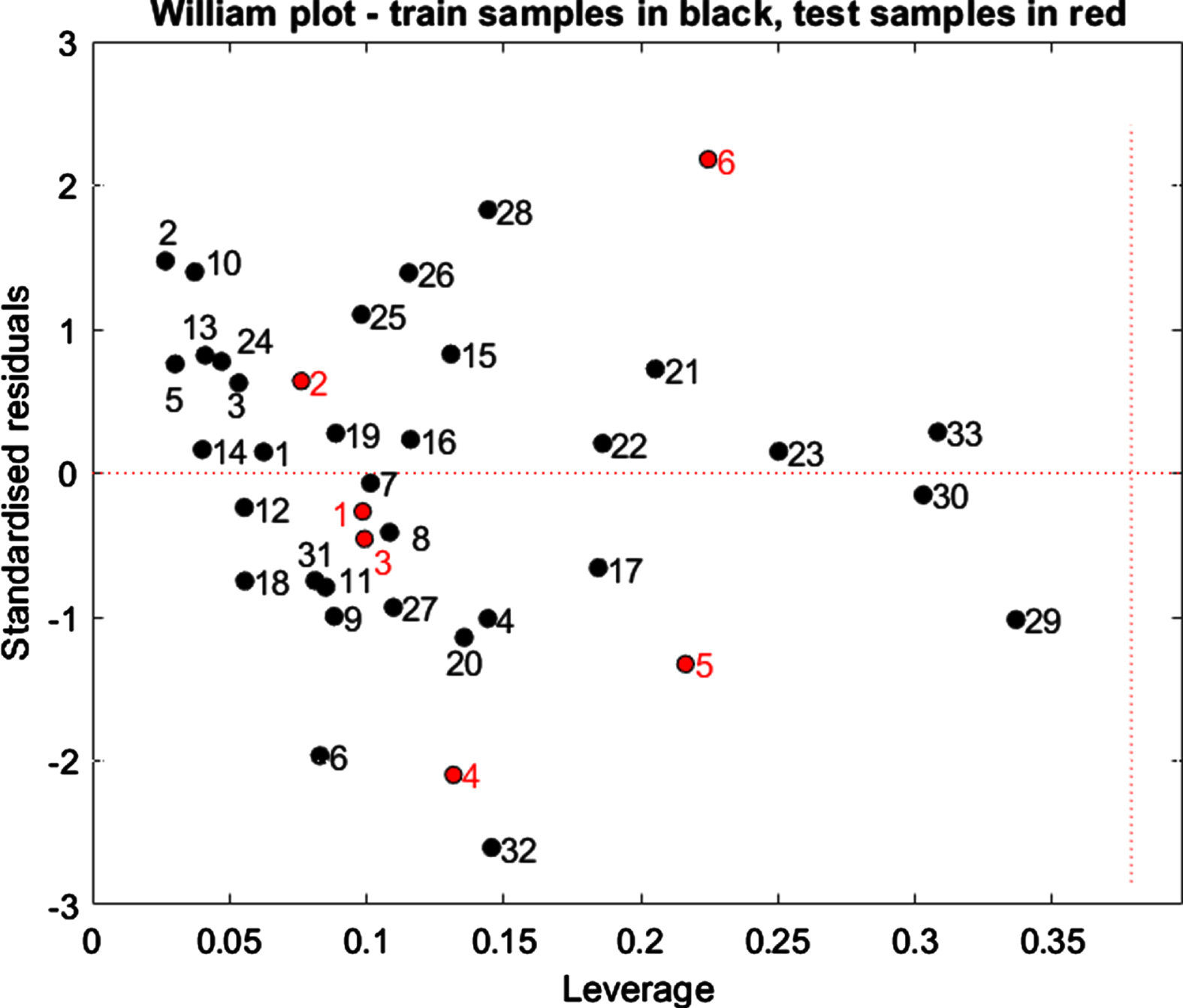

Fig. 3

William plot for standardized residuals and leverage of the QSAR model generated using MLR methods.

$h^{*} = 3 \frac{(k + 1)}{n}$ (9)

n and k represent the number of training compounds and descriptors used in the model, respectively.

There are no outliers (h* = 0.378) among the compounds in the test set.

3.2 The newly designed compounds

Based on the established model, the sign of each variable (descriptor) in the model, also their level of influence (Molar refractivity influence strongly on the SARS-CoV-2 activity). We proposed newly designed molecules with better activity. We began by modifying the structure of the high-activity compounds (Fig. 4) and attempting to increase the value of the molar refractivity by adding high molecular weight groups.

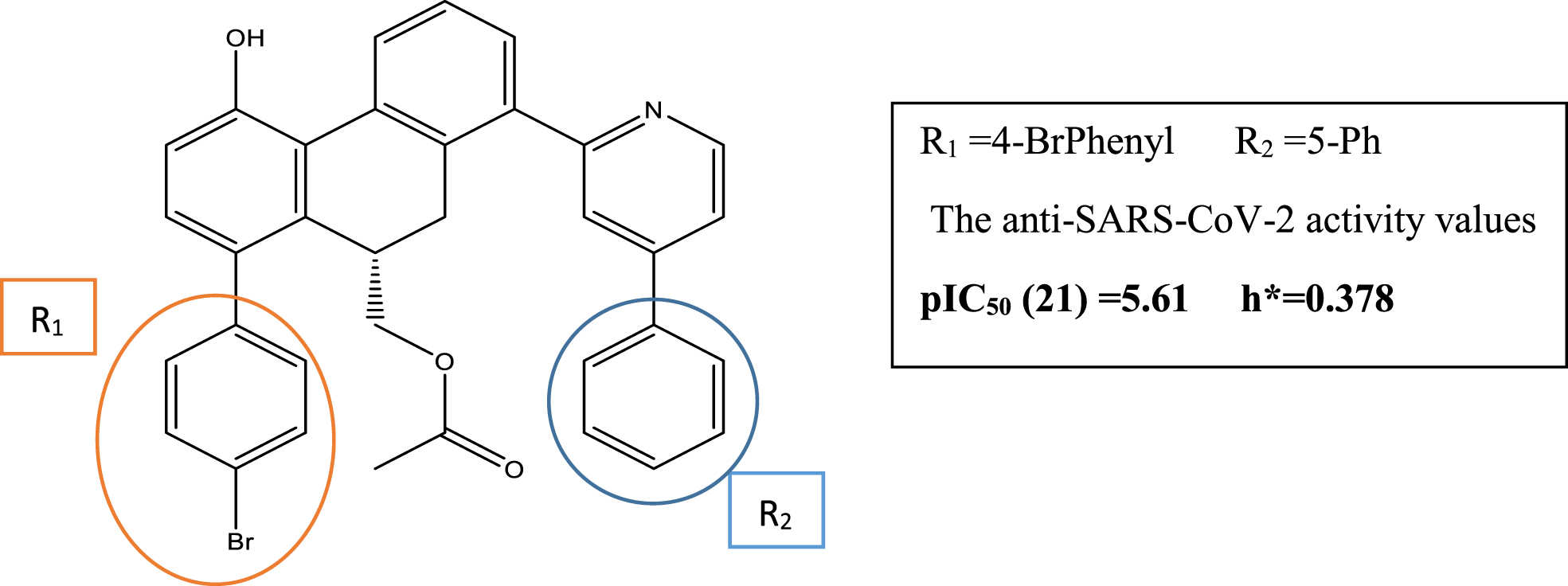

Fig. 4

Structure of the highly active compounds

Table 5

List of the designed compounds

\	STRUCTURES		MR	PSA	E _GAP	E_HOMO^- 1	pIC₅₀	hi	Outlier/
	R₁	R₂							Inside
C1			19.278	58.890	0.159	–5.887	6.147	0.494 > h*	outlier
C2			18.202	58.890	0.167	–6.286	6.354	0.316 < h*	inside
C3			20.832	58.890	0.154	–6.061	6.307	0.709 > h*	outlier
C4			20.055	58.890	0.153	–6.029	6.295	0.595 > h*	outlier
C5			17.711	58.890	0.168	–6.127	6.235	0.291 < h*	inside
C6			20.260	58.890	0.154	–6.078	6.319	0.618 > h*	outlier
C7			18,213	58,89	0,082	–8,074	8,058	0,369 < h*	inside
C8			18,545	58,89	0,095	–8,097	8,049	0,3469 < h*	inside
C9			17,889	58,89	0,101	–8,097	7,827	0,3925 > h*	outlier

Nine compounds were proposed at this phase, and we predicted their activity values. After that, we calculated their leverage values to detect the molecules that belong to the applicability domain. Table 5 represents the list of the designed molecules with the calculated values. Compared to the most active compounds, all designed compounds demonstrated excellent activities. Moreover, except for the compounds identified as out of the domain (C1, C3, C4, C6, and C9), four designed compounds (C2, C5, C7, and C8) fall within the applicability domain.

3.3 Molecular docking results

A docking simulation was conducted to get detailed information about the most important interactions that influence anti-SARS-CoV-2 activity. We performed the docking analysis for the four designed compounds (C2, C5, C7, and C8) in the active site of the 6LU7 receptor, to get further information about ligand-receptor binding energy and explore the binding poses adopted by the ligands. The results obtained showed a good value of binding affinity, it represented a higher docking score of < -7 kcal/mol, which concludes that the tested ligands can form a stable complex with the protein. Table 6 shows the compounds with good binding affinity.

Table 6
The screened compounds’ binding energies toward 6LU7

LU7 receptor Compounds C2 C5 C7 C8

Score (kcal/mol) –8.4 –8.1 –8.8 –8.8

3.4 Protein-ligand interaction analysis

We defined the interaction between the protein and the ligand using the discovery studio. The analysis revealed that the high binding affinity of compound C1 (–8.4Kcal/mol) is due to the formation of Pi-Alkyl bonds with MET49, Pi-Sigma bonds with MET49, Pi-Cation bonds with HIS41, two carbon-hydrogen bonds with ARG188, THR190, carbon-hydrogen bonds with MET165 and Pi-Donor Hydrogen Bond with CYS145 at a distance of 4.41Å, 3.58Å, 4.91Å, 2.48Å, 2.97Å, 3.57Å, 4.18Å respectively. Furthermore, the C5 compounds also formed several interactions, including three conventional hydrogen bonds with THR190, GLN192, and MET165 at a distance of 3.07Å, 3Å, and 2.74Å respectively, Pi-Sigma bonds with MET49 at a distance of 3.52Å, Pi-Donor hydrogen bond with CYS145 at a distance of 4.17Å and 2 Pi-Sulfur bonds with MET49 at a distance of (5.93Å, 4.49Å). Also, binding analysis within the active site of 6LU7 indicated that the C7 forms three Conventional Hydrogen Bond with GLN189, PHE140, and GLU166 at distances 2.46 Å, 2.49 Å, 2.47Å, two Pi-Alkyl Bonds with MET165 at 4.64Å, 4.46Å, Pi-Sulfur with CYS145 at a distance of 5.77Å, Pi-Pi T-shaped with HIS41 at a distance of 4.98Å. Moreover, the interaction formed between the last ligand C8 and the amino acid of 6LU7 protein shows three Pi-alkyl bonds with MET165, LEU27, and CYS145 at a distance of 3.53Å, 4.46Å and 4Å respectively, Pi-cation bond with HIS41 at a distance of 4.46Å, and Carbon Hydrogen Bond with MET165 at a distance of 3.53Å. The existence of van der Waals forces between the ligand and followed residues (GLN192, GLN189, THR25, THR26, THR24, GLY143, ASN142, PRO168, LEU167, THR190, ARG188, HIS172, HIS163, ASP187, HIS164, LEU141, SER144 and ASN142, accounts for the obtained complexes’ high affinity. Which creates a robust environment, thus stabilizing the complex. Table 7 shows the interaction formed between the amino acids of the 6LU7 protein and the proposed ligand.

Table 7
2D structures of complexes formed between proposed compounds and 6LU7 protein

N Residues Type 2D-structure

C2 MET49 Conventional hydrogen bond

HIS41 Pi-Cation

ARG188 Pi-Donor hydrogen bond

THR190 Pi-Sigma

MET165 Pi-Alkyl

CYS145

C5 GLN189 Conventional hydrogen

CYS145 Pi-Cation

HIS41 Pi-Donor hydrogen bond

MET49 Pi-Alkyl

THR190 Pi-sulfur

GLN192 Pi-Sigma

MET165

C7 CYS145 Conventional hydrogen

HIS41 Pi-Alkyl

MET165 Pi-sulfur

PHE140 Pi-Donor hydrogen bond

GLU166 Pi-T-shaped

SER144

GLN189

C8 LEU27 Pi-Alkyl

HIS41 Pi-cation

GLU166 Carbon hydrogen bonds

GLY143

CYS145

MET165

N	Residues	Type
C2	MET49	Conventional hydrogen bond
	HIS41	Pi-Cation
	ARG188	Pi-Donor hydrogen bond
	THR190	Pi-Sigma
	MET165	Pi-Alkyl
	CYS145
C5	GLN189	Conventional hydrogen
	CYS145	Pi-Cation
	HIS41	Pi-Donor hydrogen bond
	MET49	Pi-Alkyl
	THR190	Pi-sulfur
	GLN192	Pi-Sigma
	MET165
C7	CYS145	Conventional hydrogen
	HIS41	Pi-Alkyl
	MET165	Pi-sulfur
	PHE140	Pi-Donor hydrogen bond
	GLU166	Pi-T-shaped
	SER144
	GLN189
C8	LEU27	Pi-Alkyl
	HIS41	Pi-cation
	GLU166	Carbon hydrogen bonds
	GLY143
	CYS145
	MET165

3.5 ADMET prediction

The Absorption, Distribution, Metabolism, Excretion, and Toxicity (ADMET) properties for the four predicted compounds (C2, C5, C7, C8) were generated using the pkCSM web server [35]. Table 8 present the predicted values for every single property.

Table 8
pkCSM webserver prediction of ADMET properties for the selected compounds

Properties Compounds

C2 C5 C7 C8

Absorption Intestinal absorption (human) 99.731 96.671 100 100

Distribution Fraction unbound (human) 0.325 0.298 0.357 0.365

Distribution VDss Human (log L/kg) –1,237 –1,238 –0.825 –0.674

Metabolism CYP1A2 inhibitor No No No Yes

Metabolism CYP2C19 inhibitor No No No No

Metabolism CYP2C9 inhibitor No No No No

Metabolism CYP2D6 inhibitor No No No No

Metabolism CYP3A4 inhibitor No No No No

Excretion Renal OCT2 substrate No No No No

Toxicity AMES toxicity No No No No

Toxicity hERG I inhibitor No No No No

Toxicity hERG II inhibitor Yes Yes Yes Yes

Toxicity Hepatotoxicity No Yes Yes Yes

Properties		Compounds
Absorption	Intestinal absorption (human)	99.731	96.671	100	100
Distribution	Fraction unbound (human)	0.325	0.298	0.357	0.365
Distribution	VDss Human (log L/kg)	–1,237	–1,238	–0.825	–0.674
Metabolism	CYP1A2 inhibitor	No	No	No	Yes
Metabolism	CYP2C19 inhibitor	No	No	No	No
Metabolism	CYP2C9 inhibitor	No	No	No	No
Metabolism	CYP2D6 inhibitor	No	No	No	No
Metabolism	CYP3A4 inhibitor	No	No	No	No
Excretion	Renal OCT2 substrate	No	No	No	No
Toxicity	AMES toxicity	No	No	No	No
Toxicity	hERG I inhibitor	No	No	No	No
Toxicity	hERG II inhibitor	Yes	Yes	Yes	Yes
Toxicity	Hepatotoxicity	No	Yes	Yes	Yes

In terms of the percentage of absorption by the human small intestines, all compounds represent a high absorption value (>90%) which indicates good absorption by the human intestine.

For the distribution, the steady-state volume (VDss) is considered low compared to the standard value (Log VDss < –0.15) for all the compounds. Also, the compounds represent a high value of the fraction unbound which shows that the predicted fraction of the compounds will be unbound to serum proteins. The distribution indices reported by all molecules indicated a good distribution capacity.

In terms of metabolism, cytochrome P450 (CYP) is an important enzyme that can activate drug metabolism. Therefore, it is indispensable to evaluate the ability of compounds to inhibit cytochromes (CYP). The server predicted that the compounds are not inhibitors for the different isoforms (CYP1A2, CYP2C19, CYP2C9, CYP2D6, and CYP3A4), only for the compounds C8 is an inhibitor for the CYP1A2 isoform. For the excretion, the predicted molecules are not a substrate for renal organic cation transporter 2. The contact with this transporter aids in the clearance of substances and may result in undesirable interactions; hence, a negative prediction is regarded as beneficial.

Finally, four indicators were employed to forecast the toxicity of the compounds. AMES toxicity is a test that determines if a chemical is carcinogenic, all of the compounds don’t represent any of the AMES toxicity. Inhibition of hERG I/II is the leading cause of fatal ventricular arrhythmia and has led to the discontinuation of several drugs. The server predicts that all the compounds are likely to be hERGII inhibitors. Hepatoxicity, reveals if the substance may interfere with the liver’s normal function. The server shows that only the compound C2 is not likely to be o be associated with the disrupted normal function of the liver.

4 Conclusion

In this study, The MLR approach was used to thoroughly investigate and explain the 2D quantitative structure-activity relationship (2D-QSAR) for 9,10-dihydrophenanthrene derivatives to inhibit SARS-CoV-2 activity. As a consequence, we established a model based on the molecular descriptors of the 9,10-dihydrophenanthrenes derivatives that showed a strong capacity to impact the biological activity against SARS-CoV-2 (3CLpro). As a result, 9 new drug molecules were created based on the developed model and the structure of the compound n°21 the most bioactive compound (the greatest in vitro biological activity pIC₅₀). The biological activity of designed compounds (pIC₅₀) was then predicted using the selected model, and their non-covalent interaction with 3CLpro (PDB code: 6LU7) was determined by using molecular docking, and in silico pharmacokinetics, ADME characteristics, and toxicity were assessed for the retained molecules. The findings of this investigation showed that 4 compounds, had strong biological inhibitory activity (pIC₅₀), diversity of non-covalent binding to 3CLpro, and acceptable pharmacokinetic appropriateness. Finally, we demonstrated that 4 small compounds modeled on 9,10-dihydrophenanthrene structures have the potential to operate as a viable non-covalent therapeutic candidate against COVID-19.
