Photocatalytic turnover number & turnover frequency of 4-HNB under solar light by ‘1’ photocatalyst with & without reducer

Abstract

4-hydroxynitrobenzene (4-HNB) is a highly effective industrial pollutant that causes adverse effects to human beings. In this regard, detoxification of noxious water is utmost indispensable. Highly efficient metal-free photocatalytic degradation and reduction of 4-HNB with and without reducing agent still challenge. Additionally, for this role, largely expensive reagents that can create inauspicious impacts on the environment are utilized. Herein, we developed a ‘1’ photocatalyst that has the excellent ability for the H₂O₂-mediated degradation and reductant-free reduction of 4-HNB. The ‘1’ photocatalyst has an excellent turnover number (TON) 0.644×10²⁰ molecules and turnover frequency (TOF) 0.0035×10²⁰ molecules /min.

Keywords

4-HNB degradation reduction 4-HAB ‘1’ potocatalyst

The progress of the technology in 19^th to 21^st centuries has increased crucial environmental troubles that must be resolved in the coming future. These troubles consider the depletion of environmental pollution and the energy crisis [1]. Therefore, the development of highly active solar light materials that could potentially degrade noxious pollutants from air and wastewater is desperately needed [2]. Since the first manifestation of water splitting in the form of oxygen and hydrogen by graphitic carbon nitride (GCN), this 2D light-harvesting semiconductor material has been broadly utilized as a photocatalyst for the fixation of carbon dioxide [3], the separation of dangerous gases from the air [4] and degradation of inorganic and organic pollutants from use less water, and so on [5].

But like another broadly explored solar light active materials, it suffers from shortcomings like negligible electron transfer ability, marginal solar light-harvesting ability, the fast possible recombination rate of solar light-created charge carriers, and restricting its significant application in the area of photocatalysis [6, 7]. Therefore, to overcome the aforesaid limitations, the synthesis of nanocomposite with other photoactive expensive materials have been considered one of the utmost auspicious methodologies. By opted this, various nitrogen-rich graphitic carbon nitride-based solar light active expensive materials such as Au@GCN, TiO2@GCN, CdS/GCN, and so forth have been designed by different researchers [8 –10], but in all reported cases the basic circumstance, that is, matching the energy levels in between two reported semiconductors [11, 12] to form a close heterojunction has been unsatisfied. In earlier reported research work [13], Synthesis of the GCN-based heterojunction by using urea and thiourea as precursors. They have explained that this type of heterojunction exhibits highly efficient charge separation and transfer across the designed close interface. Therefore, it exhibits increased photocatalytic removal activity of pollutant compounds than neat GCN [13]. Furthermore, some current reported [14] monomers demonstrate that the in-situ preparation of the porous GCN polymeric material can not only improve its reactant adsorption and solar light-harvesting abilities but also possess improved electron transfer rate, charge recombination, and charge separation. Many researchers have prepared a derivative of porous GCN, which exhibits a promising photocatalytic ability for water splitting, organic pollutants, rhodamine dyes, and bacteria degradation [14, 15] under solar light. In this context, porous GCN hetero-structures exhibit excellent photocatalytic ability in comparison to bulk GCN, till date, and to the best of our cognition, no reports are present on the synthesis of light-harvesting GCN-based hetero-structures [16, 17]. Apart from the modification of GCN with anthraquinone is an additional highly efficient and in-expensive, methodology for the improved ability of the photocatalyst which can increase the optical properties of GCN in the UV-visible range and prolong the change in the efficiency of the photo-generated holes and electrons. Considering the excellent optical, solar light harvesting, stability, and porous properties of anthraquinone-based GCN materials have attained remarkable ability in the research area of photocatalysis. In earlier work [18, 19(a–d)], we developed an in-situ copolymerized 1,4-diaminoanthraquinone (AQ) thermally along with urea utilizing a modified metal-free carbon nitride (CN) photocatalyst (AQBCN ’1’) and utilized it in a photo-catalytic–biocatalytic platform for regeneration & formation of NADH and chemical from CO₂ respectively [18].

In continuation of this research work, 4-hydroxynitrobenzene (4-HNB) is a highly effective industrial pollutant that causes adverse effects on the human being. In this context, detoxification of infected water is utmost indispensable. The metal-free highly efficient photocatalytic degradation of 4-HNB is pic-up an efficient route. Furthermore, for this role, largely in-expensive reagents that can create inauspicious effects on the environment are utilized. Therefore, for the crucial treatment of infected water with 4-HNB, an eco-friendly route is substantially needed. Furthermore, the ability of the photocatalyst ‘1’ (AQBCN) has been examined by the H₂O₂-mediated degradation and reluc-tant-free reduction of 4-HNB.

The outcomes of the ‘1’ ability advise that the photo-catalytic pursuit is strongly pursued by the existence of AQ content. For the 1, the highest photocatalytic activity is determined, which is 12-fold higher than that of AQ toward the degradation and reduction of 4-HNB. The reactive species also engaged during the photo-chemical reactions have been examined, and plausible mechanistic pathways have been proposed for degradation and reduction reactions. The stability and durability of the ‘1’ photo-catalyst have been examined, and the received results explain that the ‘1’ can suffer the experimental situations even after many successive cycles [18]. Therefore, this move opens up an aspect for the fabrication of a metal-free heterogeneous ‘1’ photocatalyst with the utmost photocatalytic ability for degradation of 4-HNB with H₂O₂ and reduction of the same without reducing agent (Scheme 1).

Scheme 1

Illustrative pictorial diagram for the degradation (Deg.) and reduction (Red.) of 4-HNB with and without reducing agent under solar light.

Oxidative photocatalytic degradation of a few organic compounds by reducing agents such as hydrazine, sodium borohydride, and hydrogen peroxide is utilized as highly effective green scientific pathways for the detoxification of wastewater in till date [20(a–c)]. Generally, the rate of decomposition at the ambient temperature of hydrogen peroxide (H₂O₂) is very poor. Therefore, a highly efficient catalyst is needed to activate the reducing agent such as H₂O₂. In the photocatalytic procedure (Scheme 2), frequently H₂O₂ is utilized as a sacrificial agent/electron scavenger that creates ●OH radicals by ensnaring the solar light-generated electrons. Likewise, ●OH radicals can also be generated through the self-decomposition of H₂O₂ under solar light irradiation, such types of radicals are highly very reactive and can oxidize noxious organic compounds into less innocuous products. Therefore, in this current study, the degradation of 4-HNB via photo-catalyst was also investigated utilizing 25 mg/L of H₂O₂, when ‘1’ is utilized as the catalyst under solar light irradiation. Schemes 1 and 2 show, the time-dependent study of the reaction-mediated solution in the existence of the ‘1’ photo-catalyst. This scheme explains that the scenario of the wavelength at maximum absorption for 4-HAB (4-Hydroxyaminobenzene) and 4-HNB (4-Hydroxynitrobenzne) centered near about at 317 and 400 nm (Scheme 1 and Scheme 3) increases unsteadily with solar light illumination time, and the color of the working solution simultaneously undergoes a continuously change from light pale yellow to colorless.

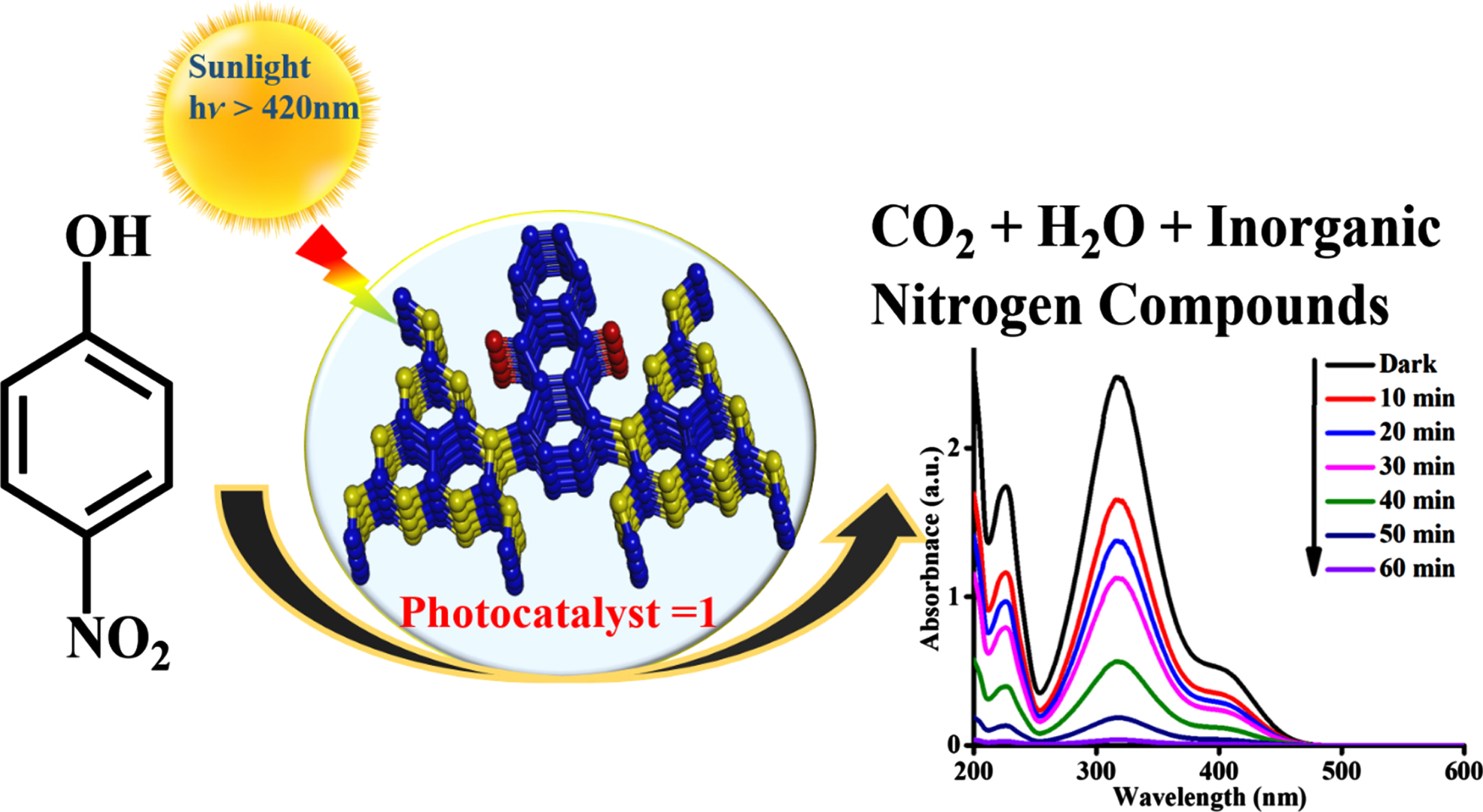

Scheme 2

Degradation of 4-HNB with reducing agent (H₂O₂) by ‘1’ under solar light, and its mechanism. Reaction conditions for Degradation of 4-HNB: 25 mL 4-HNB (15 ppm stock solution), 25 mg/L ‘1’photocatalyst, 1 mL 30% H₂O₂, absorption spectra were measured by UV-Visible spectrophotometer (UV-Vis 1900i).

Scheme 3

The reductant-free photocatalytic reduction of 4-HNB to 4-HAB by 1 under solar light. Reaction conditions for reduction of 4-HNB to 4-HAB: 25 mg/L ‘1’photocatalyst, and 25 mL 4-HNB (15 ppm) during the photocatalytic reaction, at a particular interval of time, about 3 ml of the reaction solution was carried and filtered by the membrane, absorption spectra were measured by UV-Vis. spectrophotometer (UV-Vis 1900i).

This informs that the almost 4-HNB organic compound is degraded due impact of oxidative ●OH radicals, which is obtained by H₂O₂ decomposition after taking solar light. Therefore, the ‘1’ photocatalyst is of utmost efficiency to the variously reported photocatalysts [21, 22]. Due to this reason, we performed the control experiment in absence of a ‘1’ photocatalyst (Fig. 1). It has been determined that nearly about 4% degradation of 4-HNB is only in the existence of H₂O₂. It shows a good correlation between time and –ln (C/C₀) for the ‘1’ photocatalyst received, and the outcome is explained in Fig. 1a and b, intimating the degradation 4-HNB through photocatalytic routes follows the order of kinetics reactions [23]. The appear rate constant (k) was determined as per the reported paper [23]. The ‘K’ of the ‘1’ photocatalyst sample is 0.0667 min^-1 and half-life for the degradation of 4-HNB is 10.38 min (Fig. 1b).

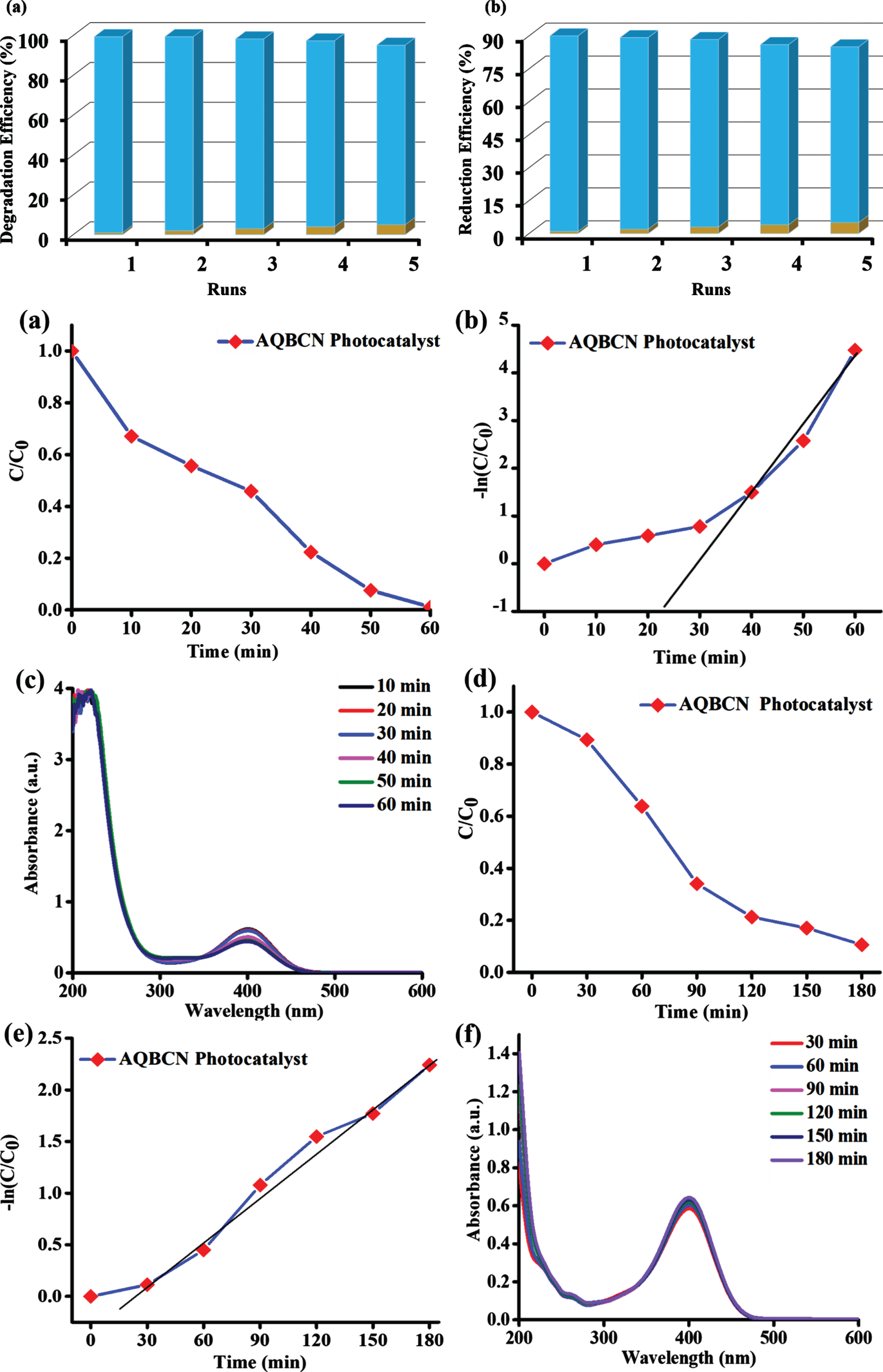

Fig. 1

(a) Photocatalytic degradation rates of 4-HNB under solar light, (b) First-order kinetic study for 4-HNB degradation and K = 0.067min^-1, (c) Photocatalytic degradation with H₂O₂ (d) Photocatalytic reduction rates of 4-HNB to 4-HAB, (e) First-order kinetic study for 4-HNB reduction to 4-HAB and K = 0.013 min^-1, (f) Photocatalytic reduction without photocatalyst.

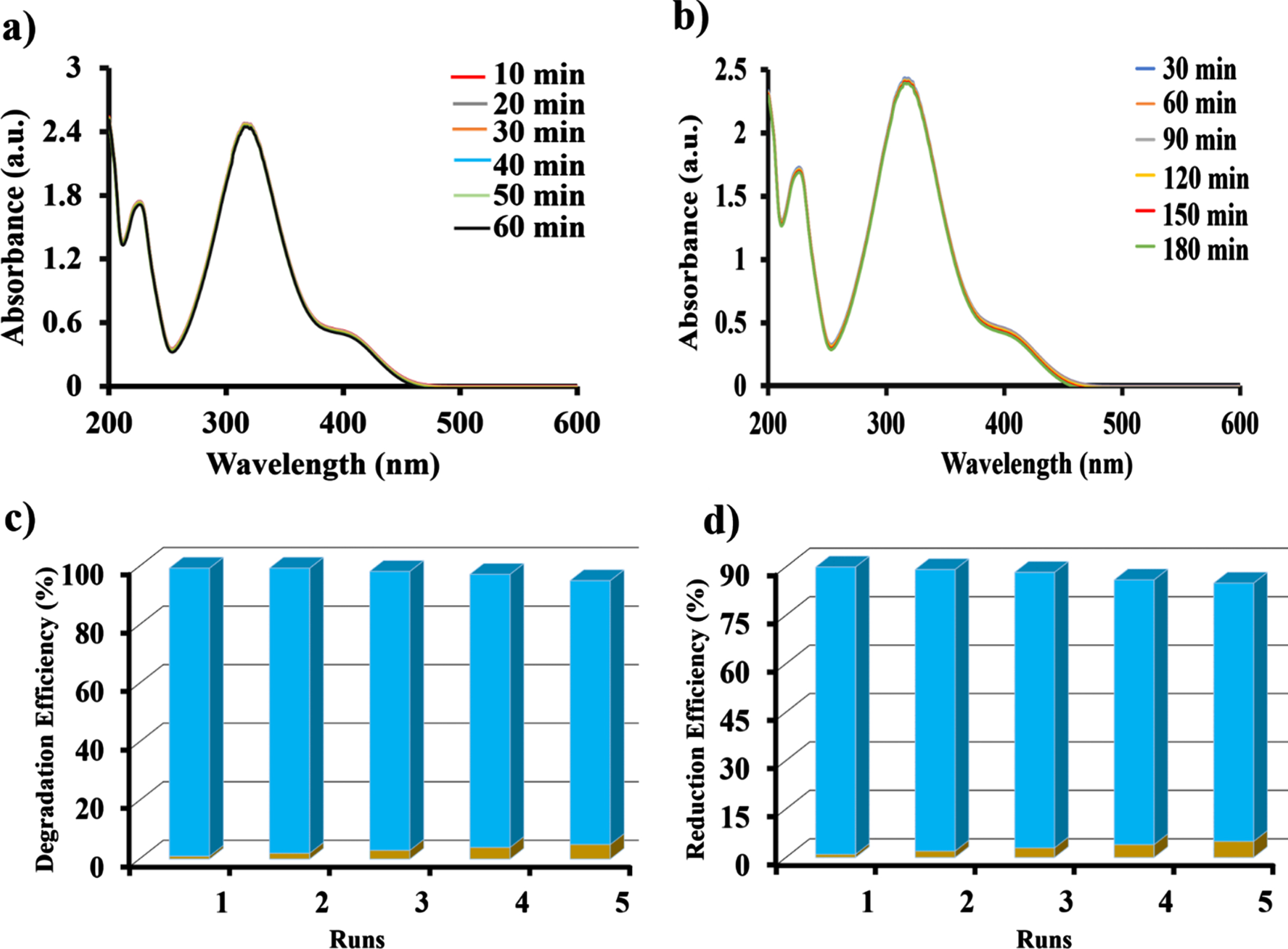

Fig. 2

(a) Photocatalytic degradation of 4-HNB in the absence of light, (b) photocatalytic reduction of 4-HNB in the absence of light (c) Long-term stability of the ‘1’ photocatalyst for the degradation of 4-HNB and, Long-term stability of the ‘1’ photocatalyst for the reduction of 4-HNB into 4-HAB.

In continuation to investigate the reductive and mechanistic behavior of the ‘1’ photocatalyst, the solar light reduction of 4-HNB without the existence of unstable and carcinogenic redcurrants in Table 1 was chosen by different researchers as a model reaction. As a reported literature [24] solution of 4-HNB has a strong absorption peak near about at 316 nm. Furthermore, in the existence of the ‘1’ photocatalyst, the color of the solution of 4-HNB changes from pale yellow to colorless with a spatial absorption peak shift from 316 to 400 nm. This type of information was also authenticated by different researchers via UV-visible absorption spectroscopy [25, 26]. Because the adsorption between ‘1’ photocatalyst and 4-HNB can reduce the photocatalytic reaction duration by increasing the 4-HNB concentration on the photocatalyst surface, so under dark reaction conditions, the effect of adsorption was examined. But when the ‘1’ photocatalyst was mixed with the reaction solution, the fixation of 4-HNB to 4-HAB was initiated, which could be envisioned by a continuous change in the solution color from bright yellow to colorless.

Table 1

Comparison table for the photocatalytic performance of different photocatalyst

Photocatalyst	Reducer	Reaction Time (min)	Conversion (%)	Reference
Pd/SiO₂- TiO₂-0.2	NaBH₄	3.35sec	100	28(a)
BiPO₄/g-C₃N₄	NaBH₄	1 min	95%	28(b)
Fe₃O₄/SiO₂@PDA/Pd	NaBH4	2 min	100%	28(c)
AgPd/rGO	NaBH₄	3 min	95.6	28(d)
N/graphene	NaBH₄	18 min	100	28(e)
Cu@g-C₃N₄	NaBH₄	25 min	98%	28(f)
g-C₃N₄/CuS	NaBH₄	50 min	99.09	28(g)
AQBCN	No one	180 min	89.36	Present work

Scheme 3 shows the UV-visible absorption spectrum on time-dependent of a typical reduction procedure using ‘1’ as a photocatalyst. As shown in Scheme 1, the UV-visible absorbance peak near about 400 nm corresponding to 4-HNB diminutions steadily, and meanwhile, an additional UV-visible absorption peak related to 4-HAB at near about 317 nm continuously strengthens and increases with time under solar light illumination (Schemes 1 and 3). Additionally, to compare the reduction efficiency of the ‘1’ photocatalyst with the reported photocatalyst in Table 1, the reduction procedure time profile was estimated by C/C₀ (Fig. 1d) as per the reported literature method [27], where C₀ and C are the final and initial absorbance of the 4-HNB reaction mixture near about at 400 nm, respectively.

As displayed in Fig. 1f, the demonstrates control experiment without a ‘1’ photocatalyst, in this context 4-HNB cannot be reduced after 180 min under solar light irradiation, but the excellent reduction efficiency is measured for the ‘1’ photocatalyst. The major benefits lying behind this impressive gain in the performance of ‘1’ photocatalyst are (1) the network crosslinking justification in terms of the change in the band structure electronic properties for fantastic utilization of solar light; and (2) the existence of incorporating monomer in ‘1’ photocatalyst provides competent sites for the slow recombination charge carriers and electron transport properties. To further examine the conversion rate of 4-HNB using a ‘1’ photocatalyst, the graph of ln(C/C₀) vs time for reaction is monitored for 180 min. As an outcome, Fig. 1e, exhibits a good correlation, this relation intimating that the nature of the kinetic reaction is pseudo-first-order. The apparent rate constant (k) was obtained at 0.0132 min^-1 for the ‘1’ photocatalyst from Fig. 1e and the half-life for the reduction of 4-HNB is 52.30 min.

Additionally, we checked the degradation of 4-HNB and reduction of 4-HNB to 4-HAB in the absence of light by the ‘1’ photocatalyst. In Fig. 2, we got a negligible change in the degradation and reduction spectra. Along with it, we checked the reusability of the ‘1’ photocatalyst. We performed the recycling experiment for checking the chemical stability of the ‘1’ photocatalyst during the degradation of and reduction of 4-HNB, shown in Fig. 2. In this experiment, we have re-used the same photocatalyst for five successive runs (i.e., four recycles) under the same reaction conditions. We observed that the photocatalytic degradation and reduction efficiency is almost constant during each recycles which confirms the highest stability of the ‘1’ photocatalyst.

To address the superiorities of the ‘1’ photocatalyst, the photocatalytic ability of ‘1’ was compared with the reported literatures (Table 1).

As entries one–seven cases, either cyanogenic reducing agent [28] such as hydrazine, sodium borohydride, sodium thiosulfate, and hydrogen sources were used. Additionally, as per the reported method [28] during a photocatalytic procedure, different active species like ●OH radicals, electrons, holes, and ●O₂^– radicals are generated. Therefore, it is confirmed that electrons are the primary active species participating in the fixation of 4-HNB to 4-HAB. Herein we demonstrate first time as per my knowledge photocatalytic fixation from the ‘1’ photocatalyst of 4-HNB to 4-HAB without utilizing any reducing reagents, making our photocatalyst superior to the reported light harvesting ‘1’photocatalyst [18]. Because radical trapping mechanism and photocatalytic active sites on the surface of the photocatalysts [29, 30] explains that electrons are working as the main reactive species during the fixation process of 4-HNB.

In summary, the ‘1’ photocatalyst has excellent network cross-linking electronic properties along with competent sites for the slow recombination charge carriers, and electron transport properties for fantastic utilization of solar light. Apart from the particular results, this research work confirms the important role of the edge or surface of the ‘1’ photocatalyst in photo-fixation and degradation reactions, proposing new strategies for effective noxious pollution remediation. Therefore ‘1’ photocatalyst has a remarkable turnover number (TON) and turnover frequency (TOF).

Footnotes

Acknowledgments

Thanks for the financial support to MMMUT Gorakhpur and Mokpo National University, Jeollanam-do, South Korea.

References

Rodionov

I.A.

, Zvereva

I.A.

Photocatalytic activity of layered perovskite-like oxides in practically valuable chemical reactions, Russ Chem Rev 85 (2016), 248–279.

, Xu

, Tu

, Chen

, Xu

Metal-Free photocatalysts for Various Applications in Energy Conversion and Environmental Purification, , Green Chem 19 (2017), 882–899.

Jiang

, Wan

, Li

, Yuan

, Zhao

, Wong

P.K.

A Hierarchical Z-Scheme α-Fe₂O₃/g-C₃N₄ Hybrid for Enhanced Photocatalytic CO2 Reduction, , Adv Mater 30 (2018), 1706108.

Dong

, Zhao

, Sun

, Zhang

, Yan

, Wu

An Advanced Semimetal-Organic Bi Spheres-g-C₃N₄ Nanohybrid with SPR-Enhanced Visible-Light Photocatalytic Performance for Purification, , Environ Sci Technol 49 (2015), 12432–12440.

EL-Sheshtawy

H.S.

, El-Hosainy

H.M.

, Shoueir

K.R.

, El-Mehasseb

I.M.

, El-Kemary

Facile immobilization of Ag nanoparticles on g-C₃N₄/V₂O₅ surface for enhancement of post illumination, catalytic, and photocatalytic activity removal of organic and inorganic pollutants, Appl Surf Sci 467–468 (2019), 268–276.

Hayat

, Shaishta

, Mane

S.K.B.

, Khan

, Hayat

Rational Ionothermal Copolymerization of TCNQ with PCN Semiconductor for Enhanced Photocatalytic Full Water Splitting, , ACS Appl Mater Interfaces 11 (2019), 46756–46766.

Hayat

, Raziq

, Khan

, Mane

S.K.B.

, Ahmad

, Rahman

M.U.

, Khan

W.U.

Fusion of Conjugated Bicyclic Co-Polymer within Polymeric Carbon Nitride for High Photocatalytic Performance, , J Colloid Interface Sci 554 (2019), 627–639.

, Huang

, Jia

Zhu and X.Wang, Reduction of nitrophenol to aminophenol under Concert-ed Catalysis by Au/g-C3N4 Contact System, , Appl Catal, B 202 (2017), 430–437.

, Huang

, Zeng

, Huang

, Gao

, Lu

Synergetic Effect of Ti^3 + and Oxygen Doping on Enhancing Photoelerochectmical and Photocatalytic Properties of TiO₂/g-C₃N₄ Heterojunctions, , ACS Appl Mater Interfaces 9 (2017), 11577–11586.

10.

, Zhang

W.-D.

CdS/g-C₃N₄ Hybrids with Improved Photostability and Visible Light Photocatalytic Activity, , Eur J Inorg Chem 2015 (2015), 1744–1751.

11.

, Xiao

, Cheng

, Yu

Direct Z-Scheme Anatase/ Rutile Bi-Phase Nanocomposite TiO₂ Nanofiber Photocatalyst with Enhanced Photocatalytic H2-Production Activity, , Int J Hydrogen Energy 39 (2014), 15394–15402.

12.

Hou

, Yang

, Wang

, Zhou

, Jiao

, Zhu

In Situ Synthesis of α-β Phase Heterojunction on Bi₂O₃ Nanowires with Exceptional Visible-Light Photocatalytic Performance, Appl Catal B 142–143 (2013), 504–511.

13.

Dong

, Zhao

, Xiong

, Ni

, Zhang

, Sun

, Ho

W.-K.

In Situ Construction of g-C₃N₄/g-C₃N₄ Metal-Free Heterojunction for Enhanced Visi-ble-Light Photocatalysis, , ACS Appl Mater Interfaces 5 (2013), 11392–11401.

14.

, Wang

, Zhu

Enhanced Visible-Light-Driven Photocatalytic Disinfection Performance and Organic Pollutant Degradation Activity of Porous g-C₃N₄ Nanosheets, , ACS Appl Mater Interfaces 9 (2017), 27727–27735.

15.

Liu

, Pang

, He

, Ge

Confined Reaction inside Nanotubes: New Approach to Mesoporous g-C₃N₄ Photocatalysts, , Nano Res 10 (2017), 3638–3647.

16.

Wang

J.-C.

, Yao

H.-C.

, Fan

Z.-Y.

, Zhang

, Wang

J.-S.

, Zang

S.-Q.

, Li

Z.-J.

Indirect Z-Scheme BiOI/ g-C₃N₄ Photocatalysts with Enhanced Photoreduction CO₂ Activity under Visible Light Irradiation, , ACS Appl Mater Interfaces 8 (2016), 3765–3775.

17.

Rao

, Dou

, Long

, Zhang

Y.,

Ag₃PO₄/g-C₃N₄ nanocomposites for photocatalytic degradating gas phase formaldehyde at continuous flow under 420nm LED irradiation, , Chemosphere 244 (2020), 125462.

18.

Singh

, Yadav

R.K.

, Kim

T.W.

, Singh

A.P.

, Singh

A.K.

, Singh

A.K.

, Baeg

J.-O.

, Gupta

S.K.

Rational design of a graphitic carbon nitride catalytic–biocatalytic system as a photocatalytic platform for solar fine chemical production from CO₂, , React Chem Eng 7 (2022), 1566–1572.

19.

Yadav

R.K.

, Baeg

J.-O.

, Oh

G.H.

, Park

N.-J.

, Kong

, Kim

, Hwang

D.W.

, Biswas

S.K.

, Yadav

R.K.

, Kumar

, Park

N.-J.

, Kong

K.-J.

, Baeg

J.-O.

, Chaubey

, Yadav

R.K.

, Tripathi

S.K.

, Yadav

B.C.

, Singh

S.N.

, Kim

T.W.

, Choudhury

, Baeg

J.-O.

, Park

N.-J.

, Yadav

R.K.

A Photocatalyst–Enzyme Coupled Artificial Photo-synthesis System for Solar Energy in Production of Formic Acid from CO2, 5–1. A highly efficient covalent organic framework film photocatalyst for selective solar fuel production from CO₂, J Mater Chem A 4 (2016), 9413–9418. Covalent Triazine Framework as an Efficient Photocatalyst for Regeneration of NAD(P)H and Selective Oxidation of Organic Sulfide, 150–159. A Photocatalyst/Enzyme Couple That Uses Solar Energy in the Asymmetric Reduction of Acetophe-nones, Angew Chem 124 (2012), 11792–11796.

20.

Zhang

, Liu

, Deng

, Xie

, Lin

, Zhao

, Yang

, Han

, Dai

, Cui

, Ding

, Liu

, Antonietti

, Fu

, Wang

, Govindan

, Chandran

H.T.

, Raja

, Maheswari

S.U.

, Rangarajan

Fe₂O₃/3DOM BiVO₄: High-Performance Photocatalysts for the Visible Light-Driven Degradation of 4-Nitrophenol, 569–579. Metal-free activation of H₂O₂ by g-C₃N₄ under visible light irradiation for the degradation of organic pollutants. Electron scavenger-assisted photocatalytic degradation of amido black 10B dye with Mn3O4 nanotubes: A response surface methodology study with central composite design, J Photochem Photobiol A 341 (2017), 146–156.

21.

Yao

, Li

, Luo

, Sun

Efficient visible photodegradation of 4-nitrophenol in the presence of H₂O₂ by using a new copper (II) porphyrin–TiO₂ photocatalyst, , J Mol Catal 361-362 (2012), 29–35.

22.

Fan Yunchang , Wu Di , Zhang Sheli , Zhang Lei , Hu Wei , Zhu Chunyan , Gong Xueyun Effective 220 photodegradation of 4-nitrophenol with CuO nanoparticles prepared by ionic liquids/water system, GreenChE. https://doi.org/10.1016/j.gce.2021.07.009

23.

Kadam

V.V.

, Shanmugam

S.D.

, Ettiyappan

J.P.

, Balakrishnan

R.M.

Photocatalytic degradation of p-nitrophenol using biologically synthesized ZnO nanoparticles, , Environ Sci Pollut Res 28 (2021), 12119–12130.

24.

Krishna

, Fernandes

D.M.

, Domingos

V.F.

, Ribeiro

E.S.

, Gil

J.C.

, Dias

, Titus

Reduction of 4-nitrophenol to 4-aminophenol using a novel Pd@NixB–SiO₂/RGO nanocomposite: enhanced hydrogen spillover and high catalytic performance, , RSC Adv 5 (2015), 60658–60666.

25.

Kong

, Sun

, Chen

Metal-free catalytic reduction of 4-nitrophenol to 4-aminophenol by N-doped graphene, , Energy Environ Sci 6 (2013), 3260–3266.

26.

Abazari

, Mahjoub

A.R.

, Salehi

Preparation of Amine Functionalized G-C₃N₄@H/SMOF NCs with Visible Light Photocatalytic Characteristic for 4-Nitrophenol Degradation from Aqueous Solution, , J Hazard Mater 365 (2019), 921–931.

27.

Bano

, Ahirwar

, Thomas

, Naikoo

G.A.

, Sheikh

M.U.-D.

, Khan

Hierarchical synthesis of silver monoliths and their efficient catalytic activity for the reduction of 4-nitrophenol to 4-aminophenol, , New J Chem 40 (2016), 6787–6795.

28.

Pan

, Zhu

, Jiang

, Liu

, Chen

, Azzam

A.B.

, Djellabi

, Sheta

S.M.

, El-Sheikh

S.M.

, Farzad

, Veisi

, Zhu

X.Y.

, Lv

Z.S.

, Feng

J.J.

, Yuan

P.X.

, Zhang

, Chen

J.R.

, Wang

A.J.

, Kong

, Sun

, Chen

, Huang

, Zhao

, Tang

, Ayodhya

, Veerabhadram

Flexible hierarchical Pd/SiO₂-TiO₂ nanofibrous catalytic membrane for complete and continuous reduction of p-nitrophenol, 63–81. Ultrafast conversion of carcinogenic 4-nitrophenol into 4-aminophenol in the dark catalyzed by surface interaction on BiPO₄/g-C₃N₄ nanostructures in the presence of NaBH4, 7–8. Fe₃O₄/SiO₂ nanoparticles coated with polydopamine as a novel magnetite reductant and stabilizer sorbent for palladium ions: Synthetic application of Fe₃O_4/SiO₂@PDA/Pd for reduction of 4-nitrophenol and Suzuki reactions, 114–124. Controlled fabrication of well-dispersed AgPd nanoclusters supported on reduced graphene oxide with highly enhanced catalytic properties towards 4-nitrophenol reduction, 355–363. Metal-free catalytic reduction of 4-nitrophenol to 4-aminophenol by N-doped graphene. Facile fabrication of a Cu@g-C₃N₄ nanocatalyst and its application for the aerobic oxidations of alkyl aromatics and the reduction of 4-nitrophenol 7–6, Influence of g-C₃N₄ and g-C₃N₄ nanosheets supported CuS coupled system with effect of pH on the catalytic activity of 4-NP reduction using NaBH4, FlatChem 6 (2019), 100088.

29.

Qiao

X.-Q.

, Zhang

Z.-W.

, Tian

F.-Y.

, Hou

D.-F.

, Tian

Z.-F.

, Li

D.-S.

, Zhang

Enhanced Catalytic Reduction of P-Nitrophenol on Ultrathin MoS₂ Nanosheets Decorated with Noble Metal Nanoparticles , Cryst, Growth Des 17 (2017), 3538–3547.

30.

Aditya

, Jana

, Singh

N.K.

, Pal

Re-markableFacet Selective Reduction of 4-Nitrophenol by MorphologicallyTailored (111) Faceted Cu₂O Nanocatalyst, , ACS Omega 2 (2017), 1968–1984.
