Hybrid Aquila optimizer for efficient classification with probabilistic neural networks

1. Introduction

The process of classification plays a crucial role in our daily lives and is considered the most commonly used decision-making function performed by humans. By assigning an object to a particular category or class, we categorize it based on several distinct predetermined qualities, which may or may not be related to the object being classified [1, 2, 3].

Various classification algorithms use different strategies to identify patterns in instances, including naïve Bayes, stochastic gradient descent, and k-nearest neighbors. Choosing an effective classification strategy is crucial, and neural networks are one such strategy that can extract meaning from complex or inaccurate data to identify patterns and predict trends that may be too complex for humans or other computational techniques [4, 5]. Neural networks perform tasks in numerous permutations and combinations, making them well-suited for modern big data applications. They can also handle ambiguous, conflicting, or incomplete data by using controlled processes when accurate models are unavailable [6, 7].

In 1990 Specht [8] introduced probabilistic neural networks (PNNs), which are based on Bayes theory. PNN is a classifier that maps input patterns across multiple class levels and can approximate a more general function. It implements the kernel discriminant analysis statistical algorithm and is organized as a multilayer feed-forward network with input, pattern, summation, and output layers. The PNN derives most of its parameters from the training data, with the only item that requires tuning being the smoothing factor that limits the deviations of Gaussian functions [9, 10].

The benefits of PNNs over other types of neural networks can be summarized as having a faster training process and avoiding local minima issues. Additionally, as the size of the training set increases, it ensures better coverage for an optimal classifier. However, PNNs also have some drawbacks, such as delayed network execution due to multiple layers and high memory requirements, among others [11, 12].

Training neural networks is a challenging task that requires experimentation, including error analysis and learning, due to the constantly changing properties of the search space from one scenario to the next. To fit a neural network, a training dataset is utilized to update the model weights and establish a reliable mapping of inputs to outputs [13, 14]. This approach involves exploring a range of potential values for the neural network model weights to identify a set of weights that perform well on the training dataset [15, 16]. Recently, one of the widely used techniques is employing a fast and accurate random search mechanism for metaheuristic algorithms to modify the weights generated by neural networks [17, 18, 19].

A metaheuristic is a computational method or heuristic in computer science and mathematical optimization that aims to discover, generate, or select a heuristic that can provide a satisfactory solution to an optimization problem, particularly when information is incomplete or imprecise, or when computing resources are limited [20, 21, 22]. Metaheuristics identify a subset of solutions that would otherwise be too large to examine fully. As they make minimal assumptions about the problem, they are useful in a wide range of applications [23, 24]. Modern metaheuristic algorithms were developed to address three primary objectives: faster problem-solving, handling large-scale problems, and producing robust algorithms [25, 26].

In combinatorial optimization, metaheuristics can often identify satisfactory solutions with less computational effort than optimization algorithms, iterative methods, or simple heuristics by exploring a vast array of possible solutions [21, 27] While much of the literature on metaheuristics is empirical and based on computer experiments, some formal theoretical findings have been made, including convergence and the possibility of achieving global optimality [28, 29].

Population-based metaheuristic algorithms use local and global search mechanisms. The exploitation of individuals in the algorithm population to search locally for better solutions near the identified solutions is referred to as exploitation [30, 31]. In modeling a metaheuristic algorithm, striking a balance between local and global search is a significant implementation challenge [32, 33]. To address this issue, a hybrid approach that combines the global search capabilities of a population-based metaheuristic algorithm with the exploitation capabilities of a local-based algorithm is being explored as a means of maintaining the balance between the two search phases [34].

There exist various metaheuristic algorithms utilized in solving classification problems, such as particle swarm optimization (PSO) [35], genetic algorithm (GA) [36], ant colony algorithm (ACO) [37], mine blast algorithm (MBA) [38], harmony search (HS) [39], artificial bee colony (ABC) [40, 28], Salp Swarm Algorithm (SSA) [41], and others, which will be discussed in the next chapter. Despite the application of numerous algorithms in solving classification problems, continued research is necessary to discover novel algorithms capable of addressing this challenge. The reason behind this is that no single approach can effectively tackle every type of problem, and no method is universally optimal because each methodology has advantages in specific areas of interest, and the results depend on the nature and intricacy of the problem [10].

In this paper, a cutting-edge algorithm, known as the Aquila optimizer algorithm, was selected to modify the weights of the PNN. When compared to previous metaheuristic optimization methods, the algorithm developed by Abualigah et al. [42] has produced excellent results. It is currently commonly utilized in complicated optimization situations after successful testing. As a result, the Aquila optimizer method is used in this study to improve the classification process’s performance by modifying the weights of the PNN. The Aquila optimizer algorithm is applied in two different ways in this paper. The first approach, Aquila optimizer based probabilistic neural network (AO-PNN), utilizes only the local and global search capabilities of the Aquila optimizer algorithm. The second approach, hybrid Aquila optimizer and simulated annealing based probabilistic neural network (AOS-PNN), hybridizes the global search capability of the Aquila optimizer algorithm with the local search mechanism of simulated annealing in a hybrid method. The main contributions of this study are as follows:

1.

Present the PNN network as a solution to the general classification problems.

2.

Use the Aquila Optimizer (AO) algorithm as a learning strategy for PNN to determine the weights of the optimal values.

3.

Addresses the weakness in the local search mechanism by hybridizing the simulated annealing algorithm with the Aquila optimizer algorithm.

4.

Constructing three different classification models (e.g., PNN, AO-PNN, and AOS-PNN) and contrasting them statistically to find the best one.

5.

Compare the original AO as well as three state-of-the-art algorithms with the hybrid approach (AOS-PNN).

The remainder of this paper is structured as follows: Section 2 presents the most relevant works to this research. Following this, Section 3 discusses the proposed approach, specifically AO-PNN, while Section 4 delves into AOS-PNN. Section 5 presents the experiments and their corresponding results. Lastly, Section 6 outlines the conclusion and highlights potential directions for future work.

2. Literature review

The effectiveness of metaheuristic algorithms can be attributed to their ability to explore and apply the hybridization approach to addressing classification problems. This approach successfully identifies and utilizes the search space during the search process through adjusting the weights and biases till they are very close to the ideal values. In several interesting publications listed here, the neural network has been employed as a classifier. Additionally, the methods for metaheuristic optimization were emphasized to achieve a better result that is closer to the optimal outcome.

To solve categorization issues, several different local search approaches have been employed. The review’s first significant publication is that by Onyezewe et al. [43] used simulated annealing to find optimum k in the k-Nearest Neighbor classifier, removing the need for an exhaustive search. The results of four distinct classification tasks demonstrate a noteworthy enhancement in computational efficiency in comparison to k-Nearest Neighbor methods, which employ an exhaustive search for k. k-Nearest Neighbor classification, produces precise nearest neighbors more quickly, resulting in a reduction in computation time. In another study, Gupta and Raza [44] developed a novel way for optimizing the number of hidden layers and their associated neurons for a deep feedforward neural network. The strengths of tabu search and Gradient descent are combined in this study with a momentum backpropagation training technique. The suggested technique was evaluated on four distinct classification benchmark datasets, and the optimized networks demonstrated improved generalization ability.

Furthermore, Alweshah et al. [45] developed a method by integrating African buffalo optimization (ABO) with PNN to configure a hybrid method in order to address classification issues. ABO method has been employed to carry out the improvement, which aims to optimize the weights of the PNN in order to enhance classification accuracy. According to results from 11 benchmark datasets, the new ABO algorithm beats the old PNN on all datasets. Also, Alweshah [32] enhanced the effectiveness of the PNN classification model using the Coronavirus herd immunity optimizer (CHIO) method. The PNN initiates the process by randomly generating a preliminary solution for the CHIO in order to modify the weight parameters of the PNN. All of this is done by employing beneficial random phase control, resulting in the successful discovery of a search process capable of identifying the optimal value. Eleven benchmark datasets were utilized to assess the developed CHIO-PNN approach for classification accuracy, and outcomes are compared to the PNN and three additional algorithms: firefly algorithm (FFA), African buffalo (ABO), and β -hill climbing algorithms. According to the outcomes, the CHIO-PNN attained an overall accuracy of classification by earning 90.3% throughout every dataset.

Bai and Bain [46] conducted another study wherein they introduced weighted lazy naive Bayes (WLNB) to mitigate the issue of variance by increasing the nearest neighbors of a test instance. A self-adaptive evolutionary technique is used in WLNB to instantly acquire two crucial parameters. The technique proves to be highly effective, as Evolutionary Weighted Lazy Naive Bayes (EWLNB) leverages Differential Evolution to identify the optimal parameter values. EWLNB surpasses naive Bayes and many other improved naive Bayes techniques in experiments carried out on 56 datasets extracted from University of California at Irvine (UCI) dataset based classification performance as well as class probability forecasting. To further improve the accuracy of clothing image recognition, Zhou et al. [47] introduced a classification approach for clothing, which was based on a parallel convolutional neural network (PCNN) and coupled with an optimized random vector functional link (RVFL). To extract characteristics from garment photos, the approach use the PCNN model. Then, to tackle the difficulties of typical CNNs, the structure-intensive with dual convolutional neural network is adopted. The experimental findings demonstrate that the algorithm in this work achieves 92.93 percent accuracy on the fashion-Mnist dataset.

In a separate study, Alweshah et al. [48] improved the performance of PNN by utilizing the β -hill climbing optimizer, a recent local search strategy that determines the appropriate weight for PNN. This method enhances the standard hill climbing algorithm by avoiding local optima through the use of a stochastic operator. The proposed approach, which incorporates PNN, was tested on 11 standard datasets. The experimental outcomes demonstrate that the developed technique surpassed both the original PNN and six other established techniques concerning classification accuracy, utilizing the same benchmarks. Additionally, Alhaj et al. [49] proposed a method to optimize setup determination for Arabic text classification (OCATC) by employing the PSO algorithm to identify the optimal solution (configuration) from a given space. The proposed OCATC technique extracts and transforms features from textual texts into a numerical vector using the term frequency-inverse document frequency (TF-IDF) methodology. Finally, PSO selects the best architecture from a group of classifiers and feature selection techniques with the most features. Extensive tests were conducted on six datasets, five of which were publicly available and one that was developed for the purpose of this study. The results demonstrate that OCATC outperforms individual classifiers and other state-of-the-art methods.

On the other hand, Bangyal et al. [50] presented an improved bat algorithm based neural network for classification problems through enhanced the traditional bat algorithm’s exploitation capabilities while avoiding fleeing from local minima. Aziz et al. [51] proposed a hybrid technique for tackling optimization challenges of independent component analysis (ICA) extracted genes based on cuckoo search (CS) method and ABC to find the best selection of features to improve ICA for the naive Bayes classifier performance. Sheik Abdullah [52] proposed a method-based binary fish swarm optimization for the purpose of feature selection and decision trees and the Gaussian nave Bayes algorithm for classification approaches. Zhou et al. [47] proposed a clothing classification approach which is based on a parallel convolutional neural network (PCNN) paired with an optimized random vector functional link based on grasshopper optimization algorithm (GOA) to increase accuracy in clothing picture identification (RVFL).

Abd Elaziz et al. [53] combined swarm-based approaches and deep learning to create an approach for COVID-19 image classification using the AO Algorithm. MobileNetV3 is used as a deep learning model to extract key visual features and the AO is utilized as a feature selection to decrease the dimensionality of image representations and improve classification performance. The proposed system is validated using two datasets, including X-ray and CT COVID-19 images. The experimental results demonstrate that the proposed method performs well in terms of classification accuracy and feature extraction and selection phases. In a separate study, Fatani et al. [54] investigated various feature extraction and selection techniques for the Intrusion Detection System (IDS) based on the AO algorithm. They developed a feature extraction method based on conventional neural networks (CNN) and used the AO for feature selection. The developed IDS approach is evaluated on four well-known datasets, including CIC2017, NSL-KDD, BoT-IoT, and KDD99, to demonstrate its competitive performance against different optimization techniques. Various evaluation metrics were utilized to demonstrate the developed approach’s excellent performance.

Furthermore, Vashishtha and Kumar [55] proposed a method for detecting bearing defects in a Francis turbine using a sound signal, a minimal entropy deconvolution (MED) filter, and an AO algorithm. The MED filter length was adjusted based on the autocorrelation energy to recover a single random pulse from a weak defective signal, and the AO adaptively selected the best filter length using the autocorrelation energy as the fitness function. Meanwhile, Aribowo et al. [56] used the AO algorithm to estimate the parameters of a proportional-integral-derivative (PID) controller for a DC motor speed control system, which was first tested on benchmark optimization tasks. The AO was compared with several other optimization techniques, and the results showed that the AO approach was effective and outperformed the others in determining PID parameters. Mehmood et al. [57] utilized the AO for control autoregressive system parameter estimation and statistically evaluated the AO’s reliability and robustness at different noise levels. The experimental findings demonstrated that the AO was accurate, convergent, and resilient, and the proposed method was effective in comparison to other state-of-the-art methods using nonparametric statistical tests.

It is clear that there is no single classification model that can be universally applied to all types of problems, and there is no classification strategy that can be considered the best for all scenarios as each strategy offers benefits for particular fields of concern. Regarding the PNN, it has been shown to outperform many other techniques and can be utilized to solve various types of problems. PNN is less sensitive to outliers and closer to Bayes optimum categorization. As the size of the representative training set grows, PNN is certain to reach an ideal classifier; therefore variant metaheuristics proposed in the literature to solve classification problems through adjust the PNN’s weights.

In summary, the existing methods in this section address various issues related to metaheuristic algorithms and classification problems. Some of the main problems and limitations identified in these methods include: exploration and hybridization in metaheuristic algorithms, local search approaches for classification, optimization of neural network parameters, integration of metaheuristic algorithms with neural networks, comparative evaluations and benchmarking, evaluation metrics and validation, and limited discussion on negative results.

As for AO algorithm, after reviewing the most important studies demonstrating the use of AO, it has been noted that the AO produced outcomes that were either superior to or nearly equal to other well-known approaches. Furthermore, by conducting empirical investigations of engineering challenges, it is possible to assess the generated AO’s suitability for dealing with real-world applications. AO gained remarkable accuracy results in previous work. It is capable of dealing with the challenge of restricted engineering optimization as well as providing a quick convergence rate. It can also be used with other optimization techniques. Furthermore, the computational cost is very low; therefore the time complexity is decreased. According to the previous discussion, which demonstrated the superiority of the produced AO, it can open up a broad range of future works.

As there is no one-size-fits-all solution for every problem, and each method has its own strengths depending on the area of application, it is important to explore various techniques to find the most appropriate approach for each specific problem. In this regard, the AO algorithm can be studied further to enhance the accuracy of classification tasks and compared with other established metaheuristic techniques.

3. Aquila optimizer based probabilistic neural network (PNN)

A common data mining approach called the PNN model has been applied to solve a variety of classification and pattern recognition problems. PNN is an efficient strategy to cope with classification challenges. The PNN has a faster training process compared to a backpropagation neural network because it maximizes the size of the representative training set and allows for the addition or removal of training samples without requiring extensive retraining. Additionally, an equivalent structure in the PNN provides convergence with the best classifier [58].

For tasks involving pattern recognition and classification, feedforward neural networks of the type PNN are used. It comprises three levels of nodes, and its algorithm approximates the performance of each category’s parent likelihood distribution using a non-parametric approach and a Parzen window [59].

There are several steps, which called layers, that the PNN classifier takes to complete the classification process, but in general, all of these steps (layers) are included under two main processes, namely training and evaluation [60]. The construction of a PNN Classifier is seen in Fig. 2.

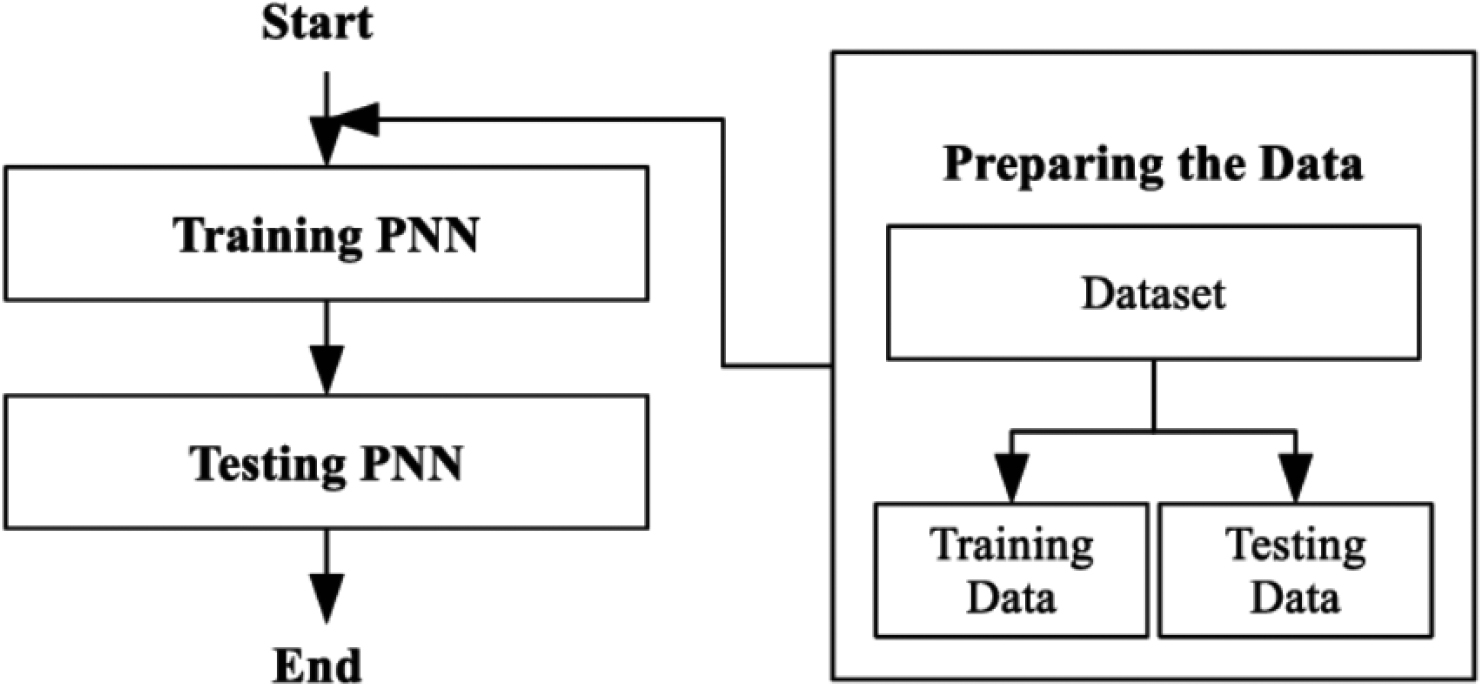

According to Fig. 2, the training part of the dataset was used to train the PNN, and the unclassified occurrences were then categorized using the testing part of the datasets. Finally, the classification accuracy was calculated using Eq. (1) [61].

𝐴𝑐𝑐𝑢𝑟𝑎𝑐𝑦 = ( T ⁢ P + T ⁢ N ) ( T ⁢ P + T ⁢ N + F ⁢ P + F ⁢ N )(1)

In terms of classification, the following terms are used: True Positives (TP), which occur when the predicted value matches the actual output value; True Negatives (TN), which occur when the predicted value is false and the actual value is also false; False Positives (FP), which occur when the predicted value is true but the actual value is false; and False Negatives (FN), which occur when the predicted value is false but the actual value is true.

The processes in this form of (NN) are divided into four layers: input, pattern, summation, and output. The initial layer (input) records the size of the input vector, while the following layer (pattern) keeps track of how many instances there are in the training set overall. The third layer (summation) records the amount of classes existing in the group. Finally, the fourth layer (output) records the number of classes in the group [62]. Figure 3 shows the structure of PNN classifier.

As seen in the PNN architecture figure above, the input layer contains N nodes. These N nodes are linked to the hidden layer by a branch, thus the hidden node receives the entire input feature. For each X class, the hidden nodes are organized into groups. Each hidden node in the class X group corresponds to a Gaussian function centered on the class’s associated feature. The X output nodes receive these Gaussian functional values and send them to the output layer [62]. The four essential operational levels of the PNN model are shown below:

Input layer: Each neuron in the input layer has a predictive parameter, with values provided by neurons. Pattern layer: For each training sample, a single layer outputs a product depending on the input vector x and the vector weight w i , z i = x * w i T . The nonlinear procedures listed below are then carried.

exp ⁡ [ ( - w i - x ) . ( w i - x ) T 2 ⁢ α 2 ](2)

where i is the pattern number, T is the overall set of possible patterns, X is the category’s ith training pattern, and α is the “smoothing parameter.” Summation layer: This layer combines the improvements by each input class and produces output values in the form of a vector of probabilities.

∑ i exp ⁡ [ ( - w i - x ) . ( w i - x ) T 2 ⁢ α 2 ](3)

Output layer: evaluates the target category by analyzing the weighted votes for each target gathered by the pattern layer based on the most significant vote.

${\displaystyle \sum _i}\exp \left[{\displaystyle \frac{(-w_i-x).{(w_i-x)}^T}{2{\alpha }^2}}\right]>{\displaystyle \sum _j}\exp \left[{\displaystyle \frac{(-w_i-x).{(w_i-x)}^T}{2{\alpha }^2}}\right]$(4)

OPEN IN VIEWER

OPEN IN VIEWER

OPEN IN VIEWER

All nodes have a single weight C , which is made up of the probabilities of previous participation as well as the number of training samples C indicated by the cost parameter.

C = - ( ( h s ⁢ l s ) ( h r ⁢ l r ) . n r n s )(5)

where h s is the prior prospect in which the current sample was allocated to Group n and c n represents the cost of misclassification.

All these steps are described in the Algorithm-1 pseudocodes. Figure A.10 shows the AO algorithm flowchart.

Following the establishment of the PNN, a set of network weights is changed to roughly attain the desired outcomes. A training algorithm is used to carry out the process, which alters different weights until a set of error criteria is met [45].

The performance of a PNN is heavily dependent on the smoothing parameter that is chosen, especially whenever the training dataset is restricted, small results in a multimodal distribution, greater results in interpolation between points. Extremely huge approaches Gaussian Probability Density Function (PDF). In theory, should be determined by the frequency of the samples. The most straightforward approach for each dimension or characteristic is to make use of the standard deviation of the training samples. Cross-validation (using training and validation datasets) improves generalization. Another option is clustering, Zhong et al. [63] built on these strategies in gap-based estimation by modeling the distances between a training sample and its neighbors. They calculated per input feature, observing that estimating per class is less accurate.

OPEN IN VIEWER

Optimizing neural network weights to improve classification accuracy and speed up convergence is one of the study’s goals. This study looks into using the Aquila AO method with the PNN network, where the AO is used to change the weights of the PNN. An integration strategy incorporating PNN and AO is given for classification issues in order to evaluate this approach.

Initially, the conventional PNN is used to assess the accuracy of classification issues. First, the AO is used to refine the initial solutions produced by the PNN, which is then used to further enhance the classification process.

The PNN is trained using the AO algorithm in this work, which modifies the weights and finds the ideal values. The main goal is to arrive at precise answers for classification issues. The PNN first calculates the outputs for the hidden and output layers and creates random weights. The difference between the expected and actual outputs is then computed using the error rate. The suggested AO-PNN model, which integrates the AO with the PNN, is shown in Fig. 4.

OPEN IN VIEWER

OPEN IN VIEWER

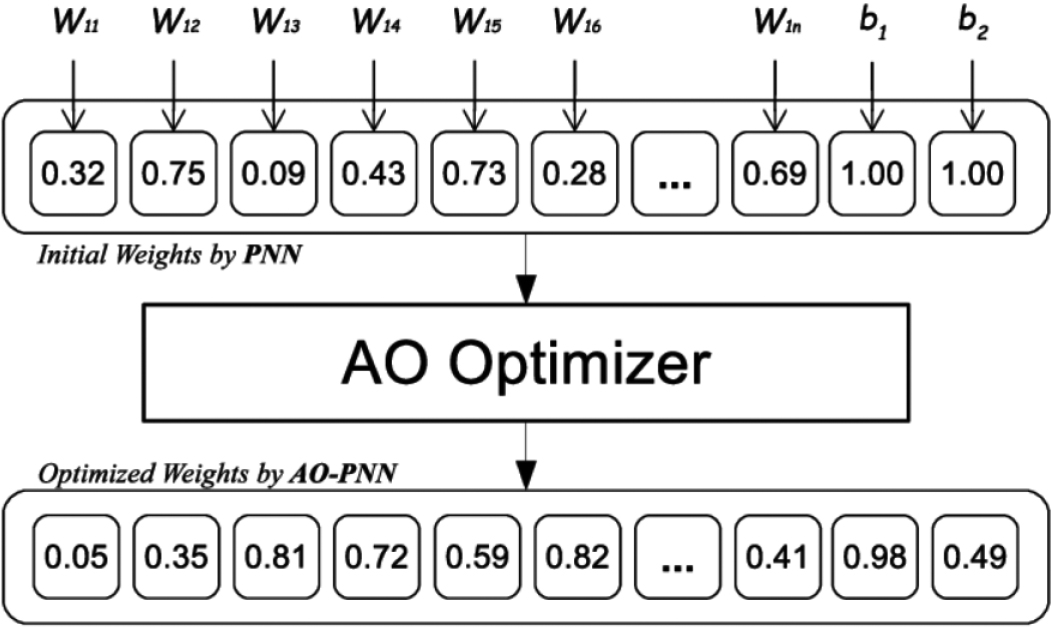

The AO iteratively computes and modifies weights to reduce error rates and improve rating accuracy for the datasets under classification, as shown in Fig. 4. This procedure is repeated until a predetermined number of iterations pass without additional weight modifications, signifying a decline in error rate. The AO refines the initial random solution used by the Probabilistic Neural Network (PNN) in order to maximize PNN weights. Therefore, one of the most important factors in enhancing PNN performance is the AO’s search capabilities.

Controlling random phases and selecting ideal parameters for PNN classification depend on how well the search region is determined. The flowchart that illustrates the AO-PNN model suggested in this work is shown in Fig. 5.

The AO method is a relatively new optimization technique that produces improved outcomes in a wide range of optimization challenges. The original AO method employed a blind operator to conduct exploitation independent of the fitness value of the current and operated solutions. In this paper, this blind operator is modified with a local search that begins with a solution, works on it, and then replaces the original solution with the improved one. This approach hybridizes local search algorithms – simulated annealing (SA) with global search algorithms – Aquila optimizer (AO). The AO algorithm makes use of the SA technique (shown in Fig. 6) to find a solution close to both the best-known solution and a randomly chosen one, and then replace an existing solution. Because the SA method operates as an operator within the AO algorithm in this way, the integration improves the exploitation capabilities of the AO algorithm.

The second goal of the study is to optimize the neural network weights for better classification accuracy and quick convergence by enhance the search capabilities of AO algorithm through hybridization process between global search of AO and the local search of SA. The use of the AO and SA based PNN – where the AO and SA was used to change the PNN’s weight – was investigated in this paper. As seen in Fig. 6, the PNN was used to generate the initial solutions at random, and the AO with SA was utilized to further enhance the PNN weights.

5. Experimental results

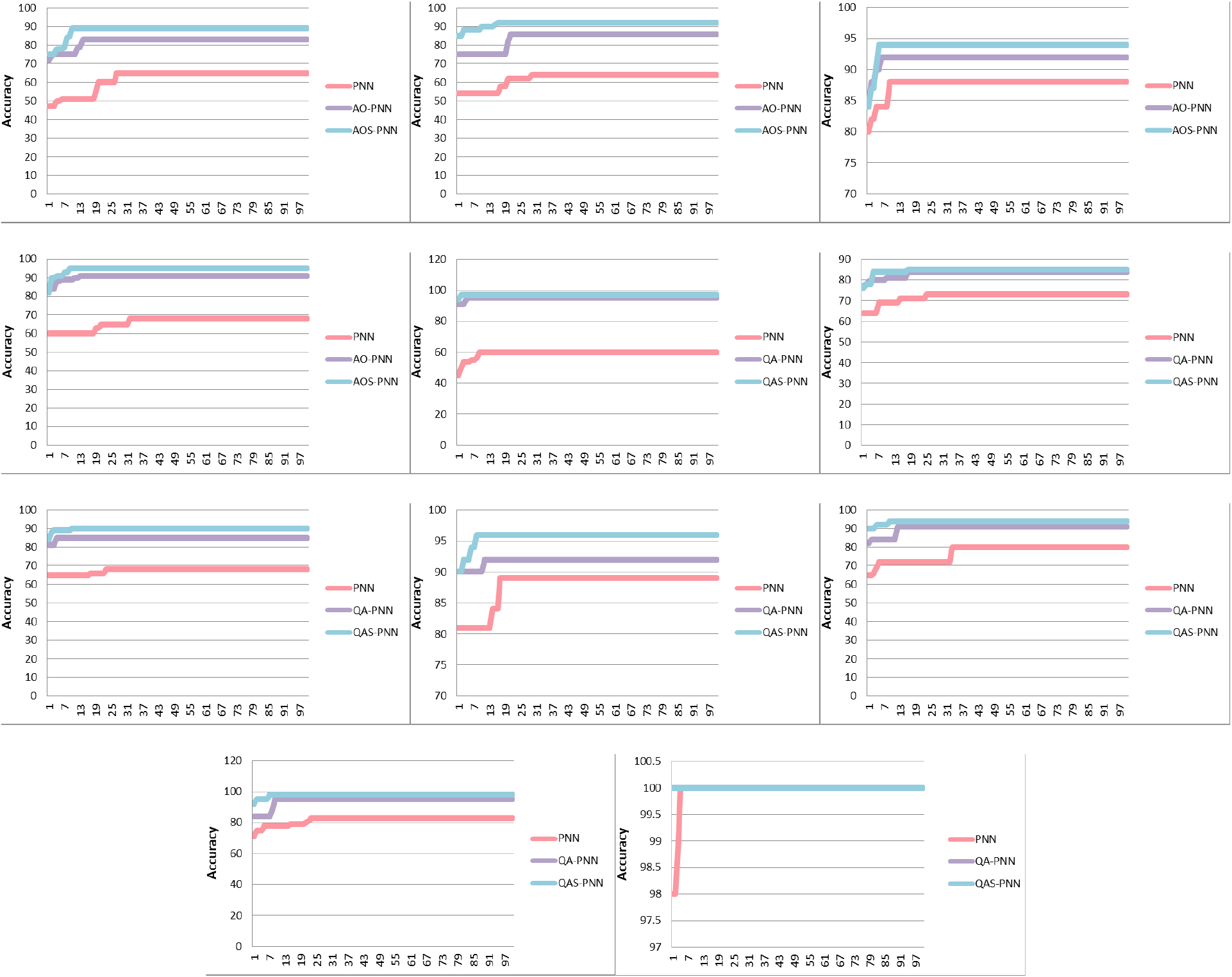

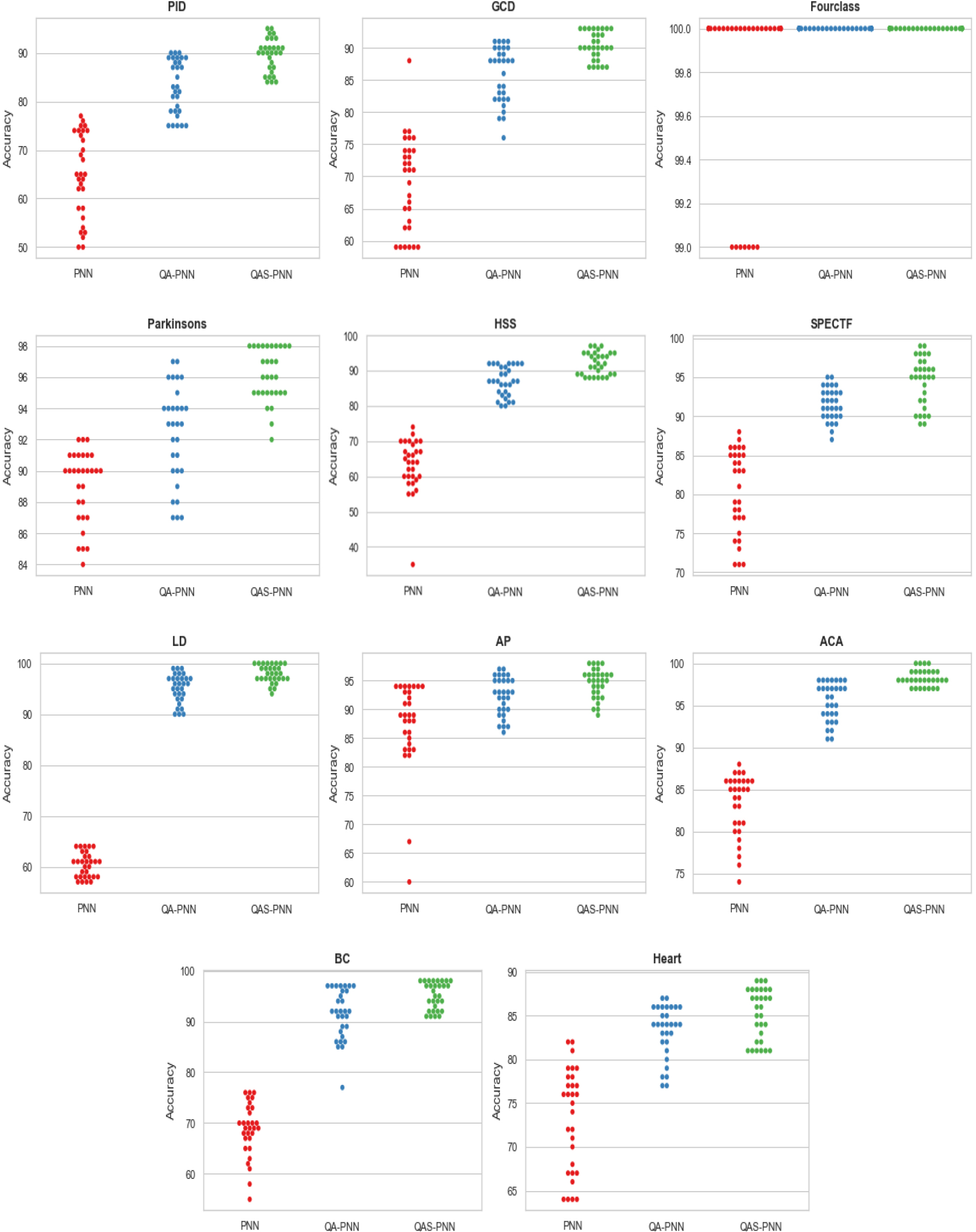

Following the formation of the solution models as outlined in the previous section, the proposed methods AO-PNN and AOS-PNN were tested using the 11 UCI datasets to assess how well they performed in optimizing the classification process by adjusting the PNN’s weights. The experiment was applied to each dataset individually, so in each PNN training run, there is a new model formulated specifically for that dataset. Therefore, we ensure that the optimized PNN- model is suitable for all health problems proposed for solution in this study. The accuracy rate, convergence speed, data distribution, and other measures of central tendency affect how much turbulence is produced. The results were compared to those of the other methods mentioned in the literature.

On a personal computer with an Intel(R) Core(TM) i7-6006U CPU @ 2.00GHz (4 CPUs), 2.0GHz, and 16 GB of RAM, the study validation for this paper is carried out. The suggested approaches were implemented in all experiments using Matlab R2018a and Python3, and the datasets were divided into 70% for data training and 30% for data testing.

6. Conclusion

In this paper, the AO applied two different approaches. The two proposed approaches are employed to adjust the weights generated by PNN. The first approach, called AO-NN, just used the AO’s local and global search capabilities, while the second approach hybridized the AO’s global search with the local search mechanism of simulated annealing in a hybrid method called AOS-PNN. The results clearly demonstrate the capacity of the AO algorithm to provide more accurate results if it is employed as a search mechanism to alter the PNN’s weights since hybrid techniques, AO-PNN and AOS-PNN, outperform the PNN model in the accuracy field across all datasets. Based on the results of classification accuracy, data distribution, convergence speed, and the significant test, the hybrid approach AOS-PNN has the strength to enhance the weights of the PNN rather than the AO-PNN model. As well, the suggested methods’ performance efficiency has been assessed and compared to three recent approaches, including CHIO-PNN, ABO-PNN, and β -HC-PNN. In terms of classification accuracy, the two proposed techniques, AO-PNN and AOS-PNN, were shown to be significantly superior.

As future work, the AOS-PNN could have been used and evaluated on massive data with over 100,000 instants and hundreds of features. It could also be used to solve real-world classification problems like medical diagnosis and intrusion detection.
