An exploration of the use of Inertial Measurement Units in the assessment of dynamic postural control of the knee and the effect of bracing and taping

2.1 Design

An exploratory study comparing stability during dynamic postural control (SEBT) on dominant and non-dominant limbs with McConnell taping, bracing and no intervention in healthy individuals using IMUs.

2.2 Setting

Research was conducted in the Movement Analysis Laboratory at the University of Central Lancashire (Preston, UK).

2.3 Participants

Twenty-four healthy individuals (13 males, 11 females) from a staff and student population were recruited for the study (age = 22.5±2.7 years, height = 171.0±8.4 cm, mass = 70.6±13.2 kg, Body Mass Index = 24.1±3.8 kg/m²). Eligibility criteria were: 18 to 60 years of age, no history of surgery to the lower extremities 3 months prior to the study, and free from: musculoskeletal or traumatic injuries, neurologic or balance disorders, medical conditions that could limit physical activity, and allergies to tape. All participants were provided with, and read, a detailed explanation of study procedures prior to the study. Written informed consent was obtained from all participants. This study was conducted in accordance with the principles of the Declaration of Helsinki and was approved by the STEMH Ethics Committee of the University of Central Lancashire.

2.4 Materials

Delsys Trigno IM sensors (Delsys Inc., Boston, USA) were bilaterally attached to the skin, 4 cm above the lateral malleoli (Fig. 1). Prior to application, skin was cleaned using Cutisoft wipes (BSN medical GmbH, Hamburg, Germany) to ensure optimal adhesion of IMUs during testing.

OPEN IN VIEWER

Fig.1

Participant performing the anterior reach of Star Excursion Balance Test (SEBT) under the McConnell tape condition (left leg standing).

Participants were instructed to wear shorts and a T-shirt for testing. Limb dominance was determined for each participant as the preferred leg used to kick a ball. Dominant and non-dominant limb were recorded for each participant. Leg length was measured as the distance from the anterior superior iliac spine to the ipsi-lateral medial malleolus in the supine position. Any asymmetries were recorded. Activities of daily living were assessed using the International Physical Activity Questionnaire-Short Version (IPAQ) [19].

Three repetitions on each leg were tested under three randomized conditions no intervention (control), patellar taping and patellar bracing. Data from each participant were collected in a single testing session. For the patellar taping condition, an appropriately trained qualified physiotherapist (KB) applied tape using the medial glide technique established by McConnell [9]. To protect the skin, two strips of Hypafix tape, 50% of the knee circumference (BSN medical GmbH, Hamburg, Germany), were applied to the knee from the lateral femoral condyle to the medial femoral condyle, covering the height of the patella and ensuring that the area over the hamstrings was not taped [1]. No compression, tension or medial force was applied during this phase. Three “active” rigid strips of Leukotape P (BSN medical GmbH, Hamburg, Germany), were then applied over the protective tape, anchoring from the lateral femoral condyle and ending on the medial femoral condyle. These strips were used to produce a medial glide across the patella by pushing medially lightly with the physiotherapist’s thumb creating a few creases in the subjects’ skin (Fig. 1). For the knee brace condition, an off the shelf brace (Reaction Brace, DJO Global Inc.), was applied in accordance with the manufacturer’s instructions by the same physiotherapist (Fig. 2).

OPEN IN VIEWER

Fig.2

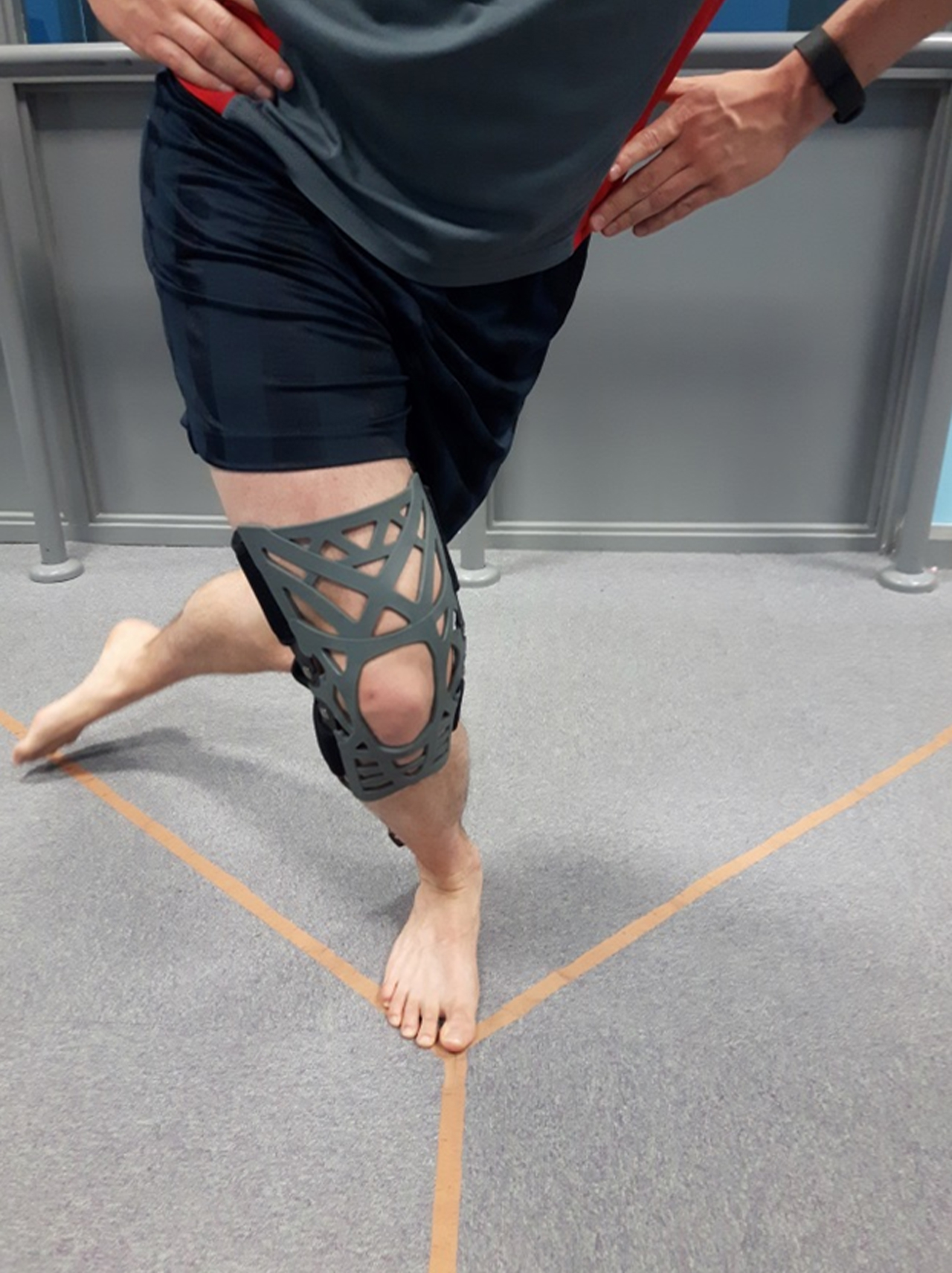

Participant performing the posterolateral reach of Star Excursion Balance Test (SEBT) under the Reaction Brace condition (right leg standing).

The modified Star Excursion Balance Test (SEBT) was used to assess participants’ stability and performance in three directions: anterior (A), posteromedial (PM) and posterolateral (PL) [16]. The laboratory floor was marked with three strips of tape that intersected in the center and were oriented at 45° increments in each direction (Fig. 2). Prior to each SEBT test session, a qualified physiotherapist (KB) described the SEBT procedure and instructed participants on how to perform the test correctly. Four practice trials for each leg were permitted prior to data collection [20]. The SEBT was performed barefoot for all conditions.

Participants were instructed to fix their hands on their hips and attempt to maintain the same conditions of balance and stability for the duration of the SEBT. The starting position was bilateral stance in the middle of the grid with the great toe of the stance leg placed on the centre point of the strips. Participants were asked to perform maximal reach with their non-stance limb along the each designated direction, always in the same consecutive order: A, PM, PL for both the dominant and non-dominant limbs. The trial was concluded following PL reach, when the participant returned to the bilateral stance starting position.

During the SEBT, the same researcher measured the distance of each maximal reach from the centre point of the grid to the furthest horizontal projection of the reach foot in each direction. To facilitate this, the grid was created using three plastic tape measures as strips. The researcher manually recorded maximal reach distances for each direction. To mitigate errors in IMU data, touchdown of the extended foot was not permitted [21], as the support gained can widen the base of support [20]. Trials were discarded and repeated if the participant: (1) lost balance during any point of the trial, (2) failed to keep the hands on the hips or (3) moved any part of the stance (test) foot. IMU data were collected throughout the SEBT using EMGworks (Delsys Inc., Boston, USA) software at 148 Hz.

Gyroscope (angular velocity) data were exported from EMGworks (Delsys Inc., Boston, USA) software to c3d format and imported into Visual3D (C-Motion Inc. USA) files. Data were filtered using a Butterworth 4th order low-pass filter with a cut-off frequency of 10 Hz. The average range of angular velocity from the three repetitions for sagittal, coronal and transverse plane were analyzed from the stance limb between the events of toe off and toe contact of the non-stance limb for the three conditions. Clinical scores were defined as maximal reach distance in each of the three directions and were normalized to leg length. A composite score was calculated as the sum of normalized reach distances from each direction, divided by three [21, 22].

2.7 Statistical analysis

A 2×3 repeated measures ANOVA was used to investigate differences in clinical and IMU data between limbs (dominant and non-dominant) and conditions. Least significant difference (LSD) pairwise comparisons were used to investigate main effects between limbs and conditions. Effect sizes were calculated using partial eta².

4.1 Clinical scores

The taping intervention produced a small (1%), but significant reduction in anterior, posteromedial directions and overall composite score compared to the control condition. These findings are in agreement with Aminaka and Gribble [11] and confirm that patellar taping in healthy individuals can significantly reduce reach scores. However, it is important to differentiate between statistical and clinical significance. The current study reported differences that were less than 2.5% of the limb length (LL). A similar study [11] defined the minimum clinically important change threshold as 5% LL, which equates to approximately 5 cm reach difference and can influence most sports’ tasks. Following this recommendation, the reduced range of motion observed in this study for taping nor bracing did not result in a clinically important change in participants, of which 85% were in the high and medium levels of physical activity, as measured by the IPAQ.

4.2 Bracing

The brace reduced the range of sagittal plane angular velocity by 6% compared to control conditions. The bracing intervention was also found to significantly reduce the range of angular velocity in the coronal plane in comparison to control and taping interventions. This is in agreement with previous studies [1, 7] that have examined this plane. Although it is argued that only the sagittal plane should be examined for evaluating knee stability, these findings suggest that this may not be valid. Imwalle et al. [23] demonstrated that analysis of the coronal plane is sensitive and specific in the prediction of ACL injuries.

Most research has assessed knee angular velocities in the sagittal plane [24–26]. However, to the authors’ knowledge, Hanzlíková et al. [7] is the only other study to consider data from all cardinal planes, which reported that bracing resulted in a significant reduction in angular velocity in the transverse plane. Significant differences were not found for sagittal and coronal planes, which is not in accordance with findings from this study. However, direct comparisons of findings between studies cannot be made due to differences in methods, namely the tasks performed by participants. These findings do however; further support the evaluation of angular velocity from all cardinal planes when investigating knee stability.

Stability of the knee joint, through coordination of the neuromuscular system, can be defined as the ability to maintain or control joint movement or position [27]. An intervention, which maintains the reach distances but reduces the range of angular velocity implies increased control and stability [24]. This complex process is coordinated by the central nervous system, which processes sensory inputs [24]. It can therefore be assumed that the brace influences the somatosensory pathways, altering movement control in the sagittal plane during SEBT tasks. These bracing-induced neuromuscular alterations and their importance for knee stability have been previously described by Selfe et al. [1], who stated that additional cutaneous stimulation provided by bracing may be a significant factor in enhancing neuromuscular control.

4.3 Taping

In accordance with the bracing intervention, taping was also found to significantly decrease range of angular velocity of the shank segment in the sagittal plane by 8% compared to the control condition. This resulted in overall improvements in movement quality and subsequent knee joint stability during the series of unilateral mini-squats required for the SEBT. Improvements in control from taping interventions have also been described by Selfe et al. [1, 24], who demonstrated that neutral patellar taping had a significant effect on global control improvements of the whole knee. These findings suggest that, like bracing, taping also modifies cutaneous sensory stimulation, enhancing neuromuscular performance.

In a similar study, Aminaka and Gribble [11] evaluated the effects of patellar taping during SEBT in individuals with and without PFP. However, in contrast to this study, they found no differences in knee kinematics, but did find that PFP patients exhibited increased clinical scores for the patellar taping intervention compared to control. In addition, Hinman et al. [28] showed that taping, applied to modify patella position, could alter magnitude or distribution of patellofemoral joint pressure and may therefore affect the stresses acting on the joint structures. The directional force component applied by the tape, which is absent under the brace condition, may offer a further explanation for the results reported in this study. However, further research is required to support these claims.

4.4 Clinical application of IMUs

Although clinical SEBT scores can be used to assess overall reach performance, these do not appear to be sensitive enough to detect changes in postural control strategies due to bracing and taping. Kinematic data can offer a quantitative and objective assessment method, which could help clinicians to understand the subtle performance limitations and quality of movement that patients may display during the SEBT. This increased sensitivity may aid the clinician’s decision-making process, especially when considering the effectiveness of future treatments or intervention methods. The IMUs employed in this study have been previously validated with respect to reference standard accuracy (stereophotogrammetry) [29]. Previous studies have also reported that these IMUs are suitable for use in routine rehabilitation of the lower limb joints, as the gyroscopes have been shown to demonstrate variations in balance control [30]. It is therefore important for therapists to be aware of, and understand the potential advantages of such technology, which can facilitate sensitive measurements [31].

This type of measurement technique, which is generally undertaken using laboratory-based optoelectric and electromagnetic systems, has not previously been feasible for use in everyday clinical work. A recent review by Cuesta-Vargas et al. [31] compared the use of IMUs with gold standard laboratory systems such as electromagnetic and video-based optoelectronic systems. This review described laboratory-based systems as being complex and expensive, which underlines the discrepancy with systems employed in clinical settings. In contrast, IMUs were described as being able to bridge the gap between large laboratory-based systems and clinical systems, due to their size and portability. The nature of IMU data analysis often employs biomechanical models. However, in this study, accelerometer and gyroscope data were evaluated through careful placement of the sensors on the shank segment. Findings from this study reveal that these measurements can detect clinically important changes, which occurred when patellar bracing and taping interventions were applied. The clinical and practical applicability IMUs is therefore highlighted in the current study, as data acquisition was guided by a physiotherapist, who was able to collect, process and subsequently interpret IMU data without difficulty.

4.5 Limitations

This study used of a single sensor placed on the left and right shank, however subjects could have adopted different strategies. In addition, the use of a single group of subjects and testing only the immediate effects may also be viewed as limitations of this study.
