Data cleaning survey and challenges – improving outlier detection algorithm in machine learning

3.1. Data cleaning process

Data cleaning, a pivotal aspect of data preparation, undergoes a systematic process to enhance data quality. This process, guided by Ridzuan and al, comprises distinct stages. First, in the data analysis phase, potential errors, discrepancies, and missing values are identified. Following this, the transformation phase involves crafting workflows and mapping rules to address the detected issues. Subsequently, data verification ensures the effectiveness of the cleaning procedure and the upliftment of data integrity. Transitioning into the transformation phase, the actual cleaning takes place, where issues are resolved, and data is purged of inconsistencies. Ultimately, the backflow phase entails revalidating the cleaned data, assuring its quality for downstream use (Fig. 1). This comprehensive procedure, championed by authors such as Abdelaal and their contemporaries, aims to eradicate errors and inaccuracies, rendering data optimally prepared for subsequent stages of the data life cycle, notwithstanding the intricate challenges encountered. [6,10].

OPEN IN VIEWER

Fig. 1.

Data cleaning process.

Data cleaning performs several tasks to finally have useful and ready data to use in the next stage of the data life cycle. Specifically, Chu and al cover four of the most common and important data cleaning tasks, namely, outlier detection, data deduplication, data transformation, and data imputation. Since there is a very large number of work on these tasks. Data cleaning is a key step in various data analytics. many data cleansing tasks target different types of errors [4].

Outlier Detection: The term “outlier detection” refers to the identification of values that stand apart from the norm. Although the exact definition of an outlier varies depending on the application, commonly acknowledged explanations, as articulated by Hawkins and al, include “an outlier is an observation which deviates so much from other observations as to arouse suspicions that it was generated by a different mechanism” and “an outlier observation is one that appears to deviate markedly from other members of the sample in which it occurs.” Outlier detection finds utility across various domains of application. It is seamlessly applicable to data, software, and images. Primarily, the techniques of anomaly detection and misuse are employed to filter out erroneous data and generate an accurate dataset [21,22].

3.3. Data cleaning challenges

Data cleaning is a complex and challenging task that involves various obstacles that can impact the quality and accuracy of data. Some of the common challenges of data cleaning according to Cai and al include [25]:

Time-Consuming Process; duplicate data must be deleted, missing entries must be corrected or added, values that were entered wrongly must be corrected, formatting must be consistent, and other activities that take time must be completed.

4.1. Outliers detection types

As indicated by Divya and al, there are three types of outliers relevant to machine learning models; point outliers, contextual outliers, and collective outliers. Each type differs by how the anomalous data can be observed and what makes the data point stand apart from the rest of the data set. Types are a key consideration for outlier analysis as each has a different pattern to detect [13].

Point Outlier: Bansal and al defined Point Outlieris as a single data point that falls outside the range of the rest of the dataset. There may be an evident trend, pattern, or grouping in the dataset, and an outlier as a data point will typically differ from this. Point outliers can usually be attributed to mistakes in input or measurement of the data. For example, an outlier may occur in health data if there is an error in recording a unit of measurement for a patient’s data. Missing a value while recording the information of a patient can also create a marked point outlier within the dataset. This kind of outlier can be relatively straightforward to detect through visual means. Point outliers are visible if the dataset is plotted in two or more dimensions, where the outlier as a data point would sit far apart from the rest of the dataset [27].

4.2. Outliers detection applications

Anomaly detection has numerous applications in various fields according to Pahuja, Chandola, Wang, Aggarwal, and al. These applications encompass [11,15,18,28]:

Intrusion Detection specifies all of the doubtful patterns that may indicate a system or network attack from someone attempting to compromise a system (hackers). There are different types of intrusion systems based on network, system calls and kind of packets.

4.3. Outlier detection in machine learning

Outlier Detection in Machine Learning is an essential consideration in the development and deployment of machine learning models and algorithms. Accuracy of data is crucial during the development and training of algorithms, and outlier detection is performed after deployment to ensure the effectiveness of models. Models are generally developed to implement outlier detection for various organizations that depend on huge datasets to function.

The identification of outliers in training datasets is a necessary phase of ensuring higher-quality data. Machine learning algorithms depend on huge arrays of accurate data to learn spot and trends patterns. Machine learning models learn from data to understand the trends and relationships between data points. Concerning supervised machine learning models, a data scientist may detect and delete outliers when preparing and labeling training data. However, for unsupervised machine learning models that categorize unlabelled datasets, outlier detection may need to be performed later in the analysis. This can add extra time and resources to the machine learning process. Outlier detection remains crucial for the ongoing maintenance and surveillance of machine learning models.

Once machine learning models are deployed, they need to be continually monitored to ensure ongoing accuracy. A rise in abnormal data or recurring outliers within predictive models can signal a concept drift. The challenge here is to determine whether an outlier points to a systemic issue with the model. In case it does, the model can be retrained or recalibrated for better efficiency. Apart from training and monitoring, outlier detection often forms a critical component of a machine learning algorithm’s intended use. Algorithms that are trained to classify data or detect trends can also identify anomalies through outlier detection. For instance, machine learning is widely used in finance to identify fraudulent transactions. Through outlier detection methods, the model detects any activity that lies outside the normal account behavior, and this information can be used to freeze the account and escalate the issue for human intervention. There are various supervised and unsupervised outlier detection methods available, including k-nearest neighbors, local outlier factor, isolation forest, and one-class support vector machines. These methods can be used to identify outliers in different types of data and can be tuned for optimal performance [18].

4.4. Types of supervision in outlier detection

Outlier detection can be performed using various methods that differ in the amount of supervision required. Generally, three types of supervision can be identified: supervised, unsupervised, and semisupervised outlier detection [13,28]. These methods utilize different strategies to classify data points as normal or outliers, such as using a training dataset with labeled normal and outlier data, clustering techniques, or assuming the availability of labeled instances for only one class.

Supervised Outlier Detection Methods use a training dataset that contains labels for both normal and outlier data objects. When a new test data object is received, it is classified into one of the two classes based on its similarity with the normal data set. If the data object fits with the model, it is classified as normal, otherwise, it is treated as an outlier. The classification is done based on two labels, normal and outlier, and the test data is classified into one of these two categories. Some commonly used supervised outlier detection methods include Support Vector Machines (SVM), Decision Trees, Logistic Regression, Naive Bayes and Random Forests.

4.5. Taxonomy of outlier detection techniques

Various techniques have been developed to detect outliers, each with its strengths and weaknesses. One way to categorize outlier detection techniques is by the approach they use to identify outliers. This classification includes statistics-based methods, distance-based methods and model-based methods (Fig. 2):

OPEN IN VIEWER

Fig. 2.

Classification of outlier detection techniques.

5.1. Outlier detection algorithms methodology

In this section, we will conduct a comparative study of several outlier detection algorithms, including Isolation Forest [34], Local Outlier Factor [35], Minimum Determinant Covariance [33], and One-Class SVM [36]. Firstly, we will select a conventional machine learning dataset and establish a baseline performance. This will serve as the reference point for the subsequent session, which will focus on outlier detection and removal techniques in data preparation. Each technique will be defined and then fitted to the training dataset. After that, the fitted model will predict whether each sample in the training dataset is an outlier or an inlier. Outliers will be removed from the training dataset before fitting the model to the remaining samples and evaluating its performance on the entire test dataset. Fitting the outlier detection technique to the entire training dataset is not appropriate because it would result in data leakage, which means that the model would have access to test set data that was not utilized during training. As a result, the model’s performance may be overestimated. Therefore, we should attempt to identify outliers in “fresh data,” such as the test set, before generating predictions.

The dataset used in this study is the House Price Regression dataset is a popular dataset used in machine learning for regression tasks, which includes 13 input variables describing the properties of the house and suburb. The goal is to predict the median value of houses in the suburb in thousands of dollars. When you examine the raw data, you’ll see that the first few rows of data are displayed below. As we can see, it is a regression predictive modeling problem with numerical input variables of various sizes.

5.2. Comparative analysis of outlier detection algorithms

After examining various outlier detection algorithms and their complexity, we performed a benchmarking study on four algorithms: Isolation Forest, Local Outlier Factor, Minimum Covariance Determinant, and One Class SVM. Based on the benchmark results, Isolation Forest had the best performance with the minimum mean absolute error. However, before proposing a solution to improve the number of outliers detected with minimum calculations, it is important to understand the complexities of these algorithms.

Isolation Forest stands out as it does not require distance or density measures to detect anomalies, which reduces the computational cost of distance calculation in other methods. This results in a linear time complexity with a low constant and a low memory requirement. Additionally, Isolation Forest can handle extremely large data sizes and high-dimensional problems with many irrelevant attributes.

On the other hand, the Local Outlier Factor algorithm (LOF) is density-based and identifies local outliers by assigning a degree of outlierness called the local outlier factor (LOF). However, LOF’s computation time grows exponentially with the number of dataset dimensions, known as the curse of dimensionality. This can lead to high computational complexity, particularly for high-dimensional data.

The Minimum Covariance Determinant (MCD) algorithm is useful when the dataset has two input variables and both are Gaussian, as the feature space forms a multi-dimensional Gaussian distribution. However, MCD is limited by the requirement that the dimension p must be less than the number of observations in any h-subset to be non-singular, resulting in a void in the availability of high breakdown techniques for “fat data” with fewer observations than variables.

Lastly, the One Class SVM algorithm uses supervised learning for knowledge training and gives a global solution for data classification. However, it has a high time complexity and can be complicated to implement. In summary, based on my analysis, Isolation Forest is the most promising algorithm for outlier detection in large, high-dimensional datasets with many irrelevant attributes.

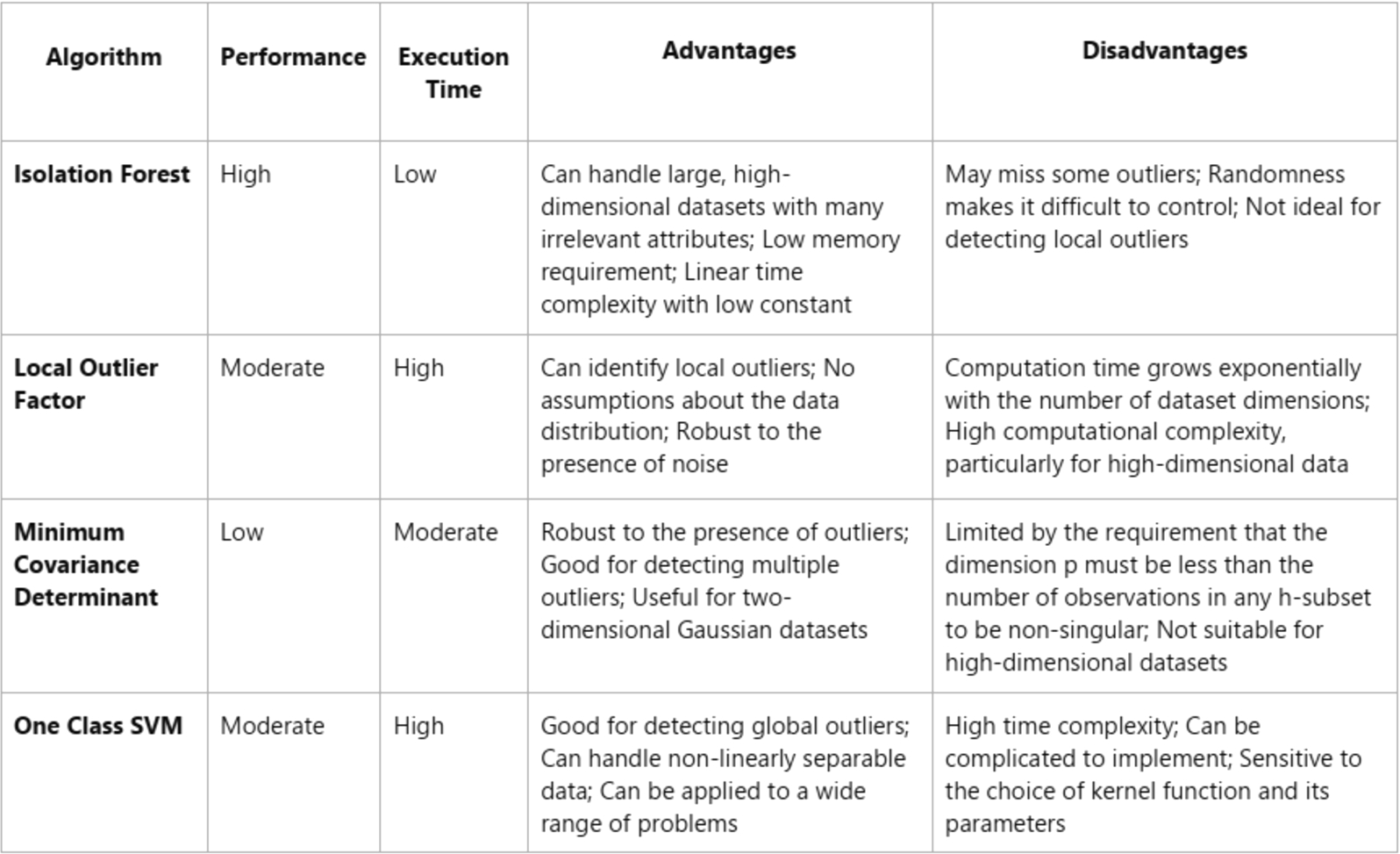

The table compares four outlier detection algorithms: Isolation Forest, Local Outlier Factor, Minimum Covariance Determinant, and One Class SVM – based on their performance, execution time, advantages, and disadvantages. One potential approach is to utilize a clustering algorithm to group similar data together, and then apply the Isolation Forest algorithm to each cluster individually. By doing so, the algorithm can run pathlength on the data without being affected by unrelated data points. This approach can improve the detection of local outliers.

To address the issue with the Isolation Forest algorithm, we propose merging the iForest model with a clustering algorithm. This involves slicing the dataset into subsets using the clustering algorithm and then running the Isolation Forest algorithm on each subset. This approach reduces the number of subsets generated and also fixes the problem with path length calculation, which is related to the anomaly score calculation. For the clustering step, we have chosen the K-means algorithm [37].

K-means Clustering is a vector quantization approach derived from signal processing that seeks to divide n observations into k clusters, with each observation belonging to the cluster with the closest mean (cluster centers or cluster centroid), which serves as the cluster’s prototype. As a result, the data space is partitioned into Voronoi cells. Within-cluster variances (squared Euclidean distances) are minimized by k-means clustering, but not regular Euclidean distances, which would be the more difficult Weber problem: the mean optimizes squared errors, but only the geometric median reduces Euclidean distances. Better Euclidean solutions, for example, can be discovered by employing k-medians and k-medoids. There is multiple inherited algorithms from the k-means clustering algorithm but the standard algorithm employs iterative refining. Because of its prevalence, it is commonly referred to as “the k-means algorithm”; it is also known as Lloyd’s algorithm, notably in the computer science community. It is also known as “naive k-means” because there are considerably quicker alternatives. The method proceeds by alternating between two stages, given an initial set of k means m1(1),…,mk(1).

First Stage: The assignment step Assign each observation to the cluster with the nearest mean: that with the least squared Euclidean distance (Mathematically, this means partitioning the observations according to the Voronoi diagram generated by the means) S i ( t ) = { x p : ( ‖ x p − m i ( t ) ‖ ) 2 ⩽ ( ‖ x p − m j ( t ) ‖ ) 2 ∀ j , 1 ⩽ j ⩽ k } , where each x p is assigned to exactly one S ( t ) even if it could be assigned to two or more of them.

6.1. Isolation forest implementations

In the first part, Isolation Forest is generated with external and internal nodes. The external node contains only one parameter, which is the size, and the internal node contains left and right nodes, split attributes, and split values. The second segment defines the iForest class, which requires three attributes: X for the dataset, noOfTrees for the number of trees in the forest, and sampleSize for subsampling. The iForest contains an nd array named forest and a variable named hlim, which is calculated as log2 of the sample size. The for loop takes a sample from the dataset X with the same sample size and self-calls the same class iForest, and appends the sample named Xtrain as a tree. The iForest class stores the itrees object and subsamples. The third step defines the Isolation-tree class, which requires attributes X for the dataset, the height of the tree in the forest, and the hlim that we have calculated in the iForest class. The Isolation-tree class stores the node as external whenever the height is above or equals the hlim or the length of the dataset is less or equals 1. When one of these two conditions is not satisfied, it stores the current tree as a left node with the data sample, which has a random q that is less than the value of the q index in the dataset. If the data sample has a value greater than or equal to the value of q index, it is stored as a right node. The final task is the pathlength calculation class, which takes three attributes: X for the dataset, the desired tree to calculate the length, and currentHeight.

To test this approach, we use a credit card dataset with many transactions and define the anomaly transactions. The dataset contains 30 columns, and we randomly select 100000 rows from the data as a training set and a sample size of 20000 rows to make the forest. After successfully making the forest, we calculate the pathlength for each data point. After plotting the data, we observe that the points with the lowest pathlength are the anomalies, and there is no anomaly with a long pathlength.

6.2. Proposal implementation:

In this section, we will implement our algorithm and evaluate its performance in detecting outliers, including local outliers, on the dataset used for The Third International Knowledge Discovery and Data Mining Tools Competition. This database contains a standardized set of data for auditing purposes and includes a wide range of simulated intrusions in a military network environment. Initially, we load the dataset to make necessary changes before applying the algorithm. We examine the first five rows of the dataset and observe that it contains several categorical columns. Before handling these columns, we remove the rows that have empty data (NA’s) and assign column headers. The resulting first five rows of the dataset are presented below. Next, we define a function to analyze the data and plot the results. (Fig. 3) illustrates the outcome of the analysis.

OPEN IN VIEWER

Fig. 3.

Outcome of the analysis.

Next, we will create two functions to preprocess the data. The first function encodes Z-Scores for each column, and the second creates dummy variables from the categorical columns. We will then use these functions to encode the feature data. The outcome column specifies the type of attack. A value of ‘normal’ indicates that no attack is currently ongoing. We have found that certain attack types are far more common than others, so to reduce the computational load, we will consider every non-normal connection as an anomaly. The next step is to cluster our data using the k-means algorithm. Firstly, we need to specify an appropriate value for k. To do this, we will use the elbow curve method.

OPEN IN VIEWER

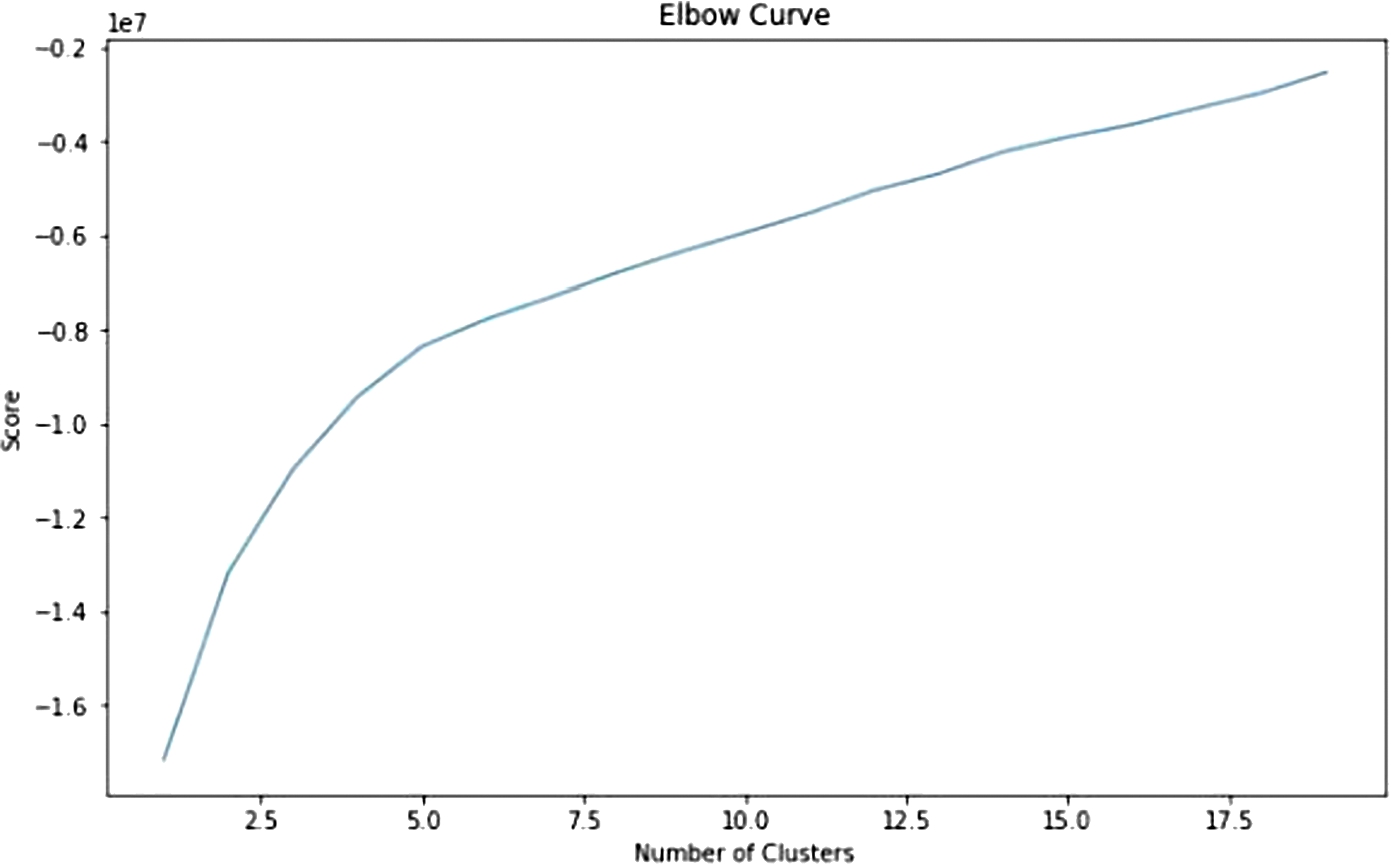

Fig. 4.

Elbow curve for clusters.

The elbow method runs k-means clustering on the dataset for a range of values for k (e.g. from 1 to 20) and then computes an average score for all clusters for each value of k. After examining the curve, we see that the score doesn’t change significantly after k = 15 (Fig. 4), so we will use this value for our analysis. (Note: 5 and 10 are also good values to consider).

We will run the k-means clustering algorithm with k = 15 and transform our data using the k-means transform method (Fig. 5), which transforms the dataset to a cluster-distance space. After the clustering is done (Fig. 6), we will extract all the data points and store them in an nd array based on which cluster they belong to, and we will use the last column as the validation column which indicates whether the connection is normal or not.

OPEN IN VIEWER

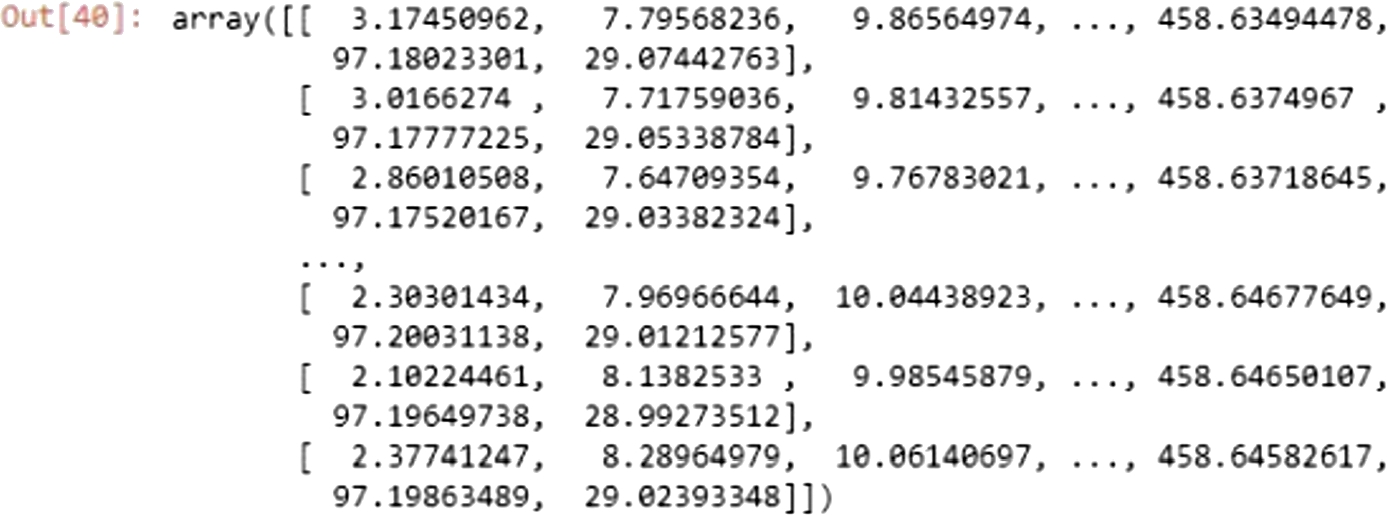

Fig. 5.

Dataset transformation.

OPEN IN VIEWER

Fig. 6.

Created clusters.

Then for each subset we will split them into small x_train x_test and y_train and y_test datasets and reshape our data into the same shape of the original data (which is 1,120) We see that the 9th dataset contains a single row which automatically means that it’s an outlier. We will also consider the (3,5,7,8,9,11,12,13,14) as a group of outliers based on the size difference between them and the other subsets.After it’s done, we simply select all rows that don’t contain outliers and summarize the shape of out dataset. Then we will fit our model and evaluate it with y_hat column and calculate the validation score between the predicted y_eval and the actual y_test. We observed that our model yielded superior results to the algorithm with an overall accuracy of 98% (Fig. 7).

OPEN IN VIEWER

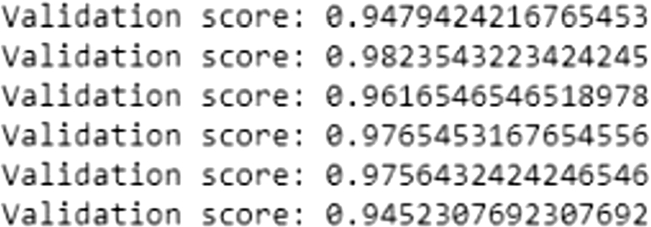

Fig. 7.

Validation score.
