Signal/Collect 1 2

3.1. Basic Signal/Collect graph structure

The basis for any Signal/Collect computation is the graph G = ( V , E ) , where V is the set of vertices and E the set of edges in G. During execution signals (essentially messages containing algorithm specific data items) are sent between vertices along edges.

More specifically, every vertex v ∈ V is a computational unit that can maintain some state and has an associated collect function that updates the state based on the prior state and received signals. Vertices have at least the following attributes:

An edge e ∈ E is also a computational unit directionally connecting two vertices that has an associated signal function that specifies what information is extracted from its source vertex and signaled to its target vertex. Hence, every edge e ∈ E has the following attributes:

In the most general model signals are messages containing algorithm specific data items. The computational model makes no assumption about the structure of signals beyond that they are computed by signal functions of the edges along which they are transmitted and processed by the collect function of the target vertex.

In a practical implementation, vertices, edges, and signals will most probably be implemented as objects. We outline such an implementation in Section 4. For this reason we also allow for additional attributes on the vertices and edges.

To specify an algorithm in the Signal/Collect programming model one needs to define the types of vertices in the compute graph with their associated collect() functions and the types of edges in the compute graph with their associated signal() functions. Note that the implementation of the signal() and collect() functions are interdependent. The signal() function creates a signal, which the collect() functions needs to be able to process. The collect() function in turn updates the vertex’ state, which the signal() function needs to be able to read. These methods can both return values of arbitrary types, which means that vertex states and signals can have arbitrary types as well. To instantiate the algorithm for execution one needs to create the actual compute graph consisting of instances of the vertices, with their initial states, and the edges. Here one needs to specify which two vertex instances are connected by an edge instance. The result is an instantiation of a graph that can be executed.

We have now defined the basic structures of the programming model. In order to completely define a Signal/Collect computation we still need to describe how to execute computations on them.

3.2. The computation model and extensions

In this section we specify how both synchronous and asynchronous computations are executed in the Signal/Collect programming model. Also we provide extensions to the core model.

In order to precisely describe the scheduling we will need additional operations on a vertex. These operations broadly correspond to the scheduler triggering communication (doSignal) or a state update (doCollect):

The additional lastSignalState attribute on vertices stores the vertex state at the time of signalling, which is later used for automated convergence detection.

The doCollect() method updates the vertex state using the algorithm-specific collect() meth- od and resets the uncollectedSignals. The doSignal() method computes the signals for all edges and relays them to the respective target vertices. With these methods we can describe a synchronous Signal/Collect execution.

3.2.1. Synchronous execution

A synchronous computation is specified in Algorithm 1. Its parameter num_iterations defines the number of iterations (computation steps the algorithm is going to perform).

Everything inside the inner loops is executed in parallel, with a global synchronization between the signaling and collecting phases. This parallel programming model is more generally referred to as Bulk Synchronous Parallel (BSP) [57].

This specification allows the efficient execution of algorithms, where every vertex is equally involved in all steps of the computation. However, in many algorithms only a subset of the vertices is involved in each part of the computation. In the next subsection we introduce scoring in order to be able to define a computational model that enables us to guide the computation and give priority to more “important” operations.

OPEN IN VIEWER

Algorithm 1

Synchronous execution

3.2.2. Extension: Score-guided execution

In order to enable the scoring (or prioritising) of doSignal() and doCollect() operations, we need to extend the core structures of the Signal/Collect programming model and define two additional methods on all vertices v ∈ V : v.scoreSignal():Double

is a method that calculates a number that reflects how important it is for this vertex to signal. Schedulers assume that the result of this method only changes when the v.state changes. By default it returns 0 if state == lastSignalState and 1 otherwise. This captures the intuition that it is desirable to inform the neighbours iff the state has changed since they were informed last. Note that lastSignalState is initially uninitialised, which ensures that by default a vertex signals at least once at the start.

v.scoreCollect():Double

is a method that calculates a number that reflects how important it is for this vertex to collect. A scheduler can assume that the result of this method only changes when uncollectedSignals changes. By default it returns uncollectedSignals.size(). This captures the intuition that the more new information is available, the more important it is to update the state.

The defaults can be changed to methods that capture the algorithm-specific notion of “importance” more accurately, but these methods should not modify the vertex.

Note: We have the scoring functions return doubles instead of just booleans, in order to enable the scheduler to make more informed decisions. Two examples where this can be beneficial: One can implement priority scheduling, where operations with the highest scores are executed first, or the scheduling could depend on some threshold (for example for PageRank), which allows the scheduler to decide at what level of precision a computation is considered converged.

Now that we have extended the basic model with scoring, we specify a score-guided synchronous execution of a Signal/Collect computation in Algorithm 2.

OPEN IN VIEWER

Algorithm 2

Score-guided synchronous execution

There are three parameters that influence when the algorithm stops: s_threshold and c_threshold, which set a minimum level of “importance” for the doSignal() and doCollect() operations to get scheduled and max_iter, which limits the number of iterations. The algorithm stops when either the maximum number of iterations is reached or all scores are below their thresholds. In the second case we say that the algorithm has converged. Note that the thresholds are used to configure an algorithm to skip signal/collect operations and setting them too high can lead to imprecise or wrong results.

3.2.3. Extension: Asynchronous execution

We referred to the first scheduling algorithm as synchronous because it guarantees that all vertices are in the same “loop” at the same time. With a synchronous scheduler it can never happen that one vertex executes a signal operation while another vertex is executing a collect operation, because the switch from one phase to the other is globally synchronised.

Asynchronous scheduling removes this constraint: Every vertex can be scheduled out of order and no global ordering is enforced. This means that a scheduler can, for example, propagate information faster by signaling right after collecting. It also simplifies the implementation of the scheduler in a distributed setting, as there is no need for global synchronisation.

OPEN IN VIEWER

Algorithm 3

Score-guided asynchronous execution

Algorithm 3 shows a score-guided asynchronous execution. Again, three parameters influence when the asynchronous algorithm stops: s_threshold and c_threshold have the same function as in the synchronous case; max_ops, in contrast, limits the number of operations executed instead of the number of iterations. This guarantees that an asynchronous execution either stops because the maximum number of operations is exceeded or because it converged. The purpose of Algorithm 3 is not to be executed directly, but to specify the constraints that an implementation of the model has to satisfy during an asynchronous execution. This freedom of allowing an arbitrary execution order is useful, because if an algorithm no longer has to maintain the execution order of operations, then one is able to use different scheduling strategies for those operations.

We refer to the scheduler that we most often use as the “eager” asynchronous scheduler: In order to speed up information propagation this scheduler calls doSignal on a vertex immediately after doCollect, if the signal score is larger than the threshold.

3.3. Extension: Graph modifications and incremental recomputation

Signal/Collect supports graph modifications during a computation. They can be triggered externally or from inside the doSignal() and doCollect() methods. This means that vertices and edges can dynamically modify the very graph they are a part of. Modifications include adding/removing/modifying vertices/edges or sending signals from outside the graph along virtual edges (i.e., sending a message to a vertex with a known id without adding an explicit edge to the graph).

When an edge is added or removed, a scheduler has to update scoreSignal() and scoreCollect() of the respective vertex in order to check if the modification should trigger a recomputation. This is enough to support incremental recomputation for many algorithms and modifications. For some algorithms, however, additional recomputations are also required for vertices when incoming edges change. The more powerful incremental recomputation scheme described in [5] could be adapted to cover these cases, but would require an additional extension to track changes of incoming edges.

Modifications are always applied in per-source FIFO order, which means that all the modifications that are triggered by the same source are applied in the same order in which they were triggered. There are no guarantees regarding the global ordering of modifications.

The framework can both parallelise computations on multiple processor cores, as well as distribute computations over a cluster. Internally, the system uses the Akka5

The different system components such as the coordinator and workers are implemented as actors. The coordinator bootstraps the workers and takes care of global concerns such as convergence detection and preventing messaging overload. Each worker is responsible for storing a partition of the vertices.

OPEN IN VIEWER

Fig. 2.

Coordinator and worker actors, edges represent communication paths. Workers store the vertices.

The scheduling of operations and message passing is done within workers. Figure 2 shows that each node hosts a number of workers and each worker is responsible for a partition of the vertices. Workers communicate directly with each other and with the coordinator. Workers have a pluggable scheduler that handles the delivery of signals to vertices and the ordering of signal/collect operations.

Vertices are retrieved from and stored in a pluggable storage module, by default implemented by an in-memory hash map, especially optimised for storing vertices and for efficiently supporting the operations required by the workers.

A vertex stores its outgoing edges, but neither the vertex nor its outgoing edges have access to the target vertices of the edges. In order to efficiently support parallel and distributed execution, modifications to target vertices from the model are translated to messages that are passed via a message bus.

Every worker and the coordinator have a pluggable message bus that takes care of sending signals and translating graph modifications to messages. Signal/Collect also has implementations that support features such as bulk-messaging or signal combiners.

The framework also supports MapReduce-style aggregations over all vertices: The map function is applied to all vertices in the graph. The reduce function aggregates the mapped values in arbitrary order. Aggregation operations are used to compute global results or to define termination conditions over the entire graph.

4.3. Graph partitioning and loading

Workers have ids from 0 ascending and by default the graph is partitioned by using a hash function on the vertex ids. This is similar to how graphs are partitioned in most other graph processing frameworks. For large graphs it usually leads to similar numbers of vertices per partition, but also to a large number of edges between partitions. To improve on this one could adopt some of the optimisations used in the Graph Processing System (GPS) [50]. Because computing a balanced graph partitioning with minimal capacity between partitions is a hard problem itself [1], this would mainly improve performance in cases where algorithms are run on the same graph repeatedly, for long-running algorithms, or when messaging bandwidth is the main bottleneck (also see discussion of limitations in Section 7).

The default storage implementation keeps the vertices in memory for fast read and write access. Extensions for secondary storage can be implemented [54]. Graph loading can be done sequentially from a coordinator actor or preferably in parallel, where multiple workers load parts of the graph at the same time. Specific partitions can be assigned to be loaded by particular workers. This can be used to have each worker load its own partition, which increases the locality of the loading.

OPEN IN VIEWER

Fig. 3.

PageRank (data-graph).

Our framework has defaults that work for a broad range of algorithms, but are not the most efficient solution for most of them. These default implementations can be replaced allowing a graph algorithm developer to choose the trade-off between implementation effort and resulting performance.

An example of a tradeoff is the propagation latency vs. messaging overhead: While sending each signal as soon as possible leads to a low latency and can perform well in local computations, sending each signal by itself will cause a lot of overhead in a distributed setting. Our implementation allows to plug in a custom bulk scheduler and bulk message bus implementation to choose a trade-off that suits the use case (throughput vs. latency).

In spite of this flexibility, our Signal/Collect implementation is optimised for sparse graphs, due to the internally used adjacency list structure. For very dense graphs alternative representations, for example as a compressed matrix, might perform better.

4.5. Convergence and termination

The framework has to decide when an algorithm execution ends. It is not in general possible to say which algorithms can converge: The Signal/Collect functions allow for arbitrary code execution and is hence subject to the halting problem.

For this reason the question of convergence and termination are algorithm-specific. The framework terminates as soon as an algorithm has converged, according to the score-guided execution definitions in Section 3. The framework also allows for other termination conditions in case convergence was not reached before another condition: One can give a step limit for synchronous computations and a time limit for both synchronous and asynchronous computations. The framework also supports convergence criteria based on global aggregations that are executed in step intervals for synchronous computations or in terms of time intervals for asynchronous computations.

There is also a continuous asynchronous mode where the framework keeps running and executes operations incrementally as they are triggered by modifications and signals. This mode is used by TripleRush [56] and raises the question of how to detect when a query has finished executing, given that the execution can branch many times and the number of signals/results is usually not known a priori. We solved this by implementing per-query convergence detection on top of Signal/Collect: Every query carries a number of tickets with it and when the execution branches the tickets are split up among all branches. The vertex that does the final result reporting knows how many tickets to expect in total and can report success when all the initially sent out tickets have arrived. We described this case in more detail, because it displays that convergence detection is algorithm-specific and that there is a lot of flexibility when it comes to determining convergence criteria: it is even possible to build a custom convergence detection on top of the Signal/Collect model.

OPEN IN VIEWER

Fig. 4.

Delta PageRank (data-flow).

OPEN IN VIEWER

Fig. 5.

Single-source shortest path (data-graph/data-flow).

5.1. Programming model

One of our main contributions is the simple, compact, yet expressive programming model. Whilst simplicity of a program is difficult to judge objectively, compactness and expressiveness are easier to show.

We demonstrate the expressiveness by giving adaptations of ten algorithms from categories as varied as clustering, ranking, classification, constraint optimisation and query processing. We show an actual implementation of the PageRank algorithm in Fig. 21 in the Appendix. As the example illustrates in comparison to the pseudocode in Fig. 3, the translation to executable code is straightforward.

Most algorithms are presented in a simplified version, more advanced versions of many of the examples are available online.6

Unless stated otherwise, the described algorithms use the default scoreSignal() and scoreCollect() implementations for automated convergence detection.

PageRank  This graph algorithm computes the importance of a vertex based on the link structure of a graph [46]. The vertex state represents the current rank of a vertex (Fig. 3). The signals represent the rank transferred from the source vertex to the target vertex. The vertex state is initialised with the baseRank = 0.15 and the damping factor is usually set to 0.85. There is an example of how this pseudocode directly maps to an actual algorithm implementation in the Appendix (see Fig. 21).

Convergence: If one looks how the initial rank from a single vertex spreads, then one notices that it decays with the damping factor on every hop and that it eventually tapers off to zero. The computation on all vertices can be seen as many such single-source PageRank computations (sometimes referred to as personalised PageRank) that are overlaid and will, hence, also converge. In practice the convergence to zero can take many iterations, especially when there are cycles present. For this reason we usually set the scoreSignal function to return the delta between the current state of the vertex and the last signaled state (often referred to as the residual). This allows to conveniently set the desired level of precision by for example setting a signal threshold of 0.001. This means that a vertex will only signal if the residual is still larger or equal to 0.001.

OPEN IN VIEWER

Fig. 6.

Vertex colouring (data-graph).

OPEN IN VIEWER

Fig. 7.

Label propagation (data-graph).

OPEN IN VIEWER

Fig. 8.

Relational classifier (data-graph).

It is also possible to implement PageRank as a data-flow algorithm by signaling only the rank deltas (Fig. 4). This version can be further optimised by not sending the source vertex id with the signals, which saves bandwidth.

Single-source shortest path (SSSP)  This algorithm computes the shortest distance from one special source vertex (S) to all the other vertices in the graph. The vertex states represent the shortest currently known path from S to the respective vertex (Fig. 5). Edge weights are used to represent distance. The signals represent the total path length of the shortest currently known path from S to edge.target that passes through edge.

Convergence: Vertices only signal if their distance was lowered by an incoming signal. Given that the distances can never be smaller than zero and that the first change of a vertex’s state will set it to a finite number, the distance of a vertex can only be lowered a finite number of times, which means that the algorithm is guaranteed to eventually converge.

Vertex colouring  A vertex colouring problem is a special constraint optimisation problem that is solved when each vertex has an assigned colour from a set of colours and no adjacent vertices have the same colour. The following simple and inefficient algorithm solves the vertex colouring problem by initially assigning to each vertex a random colour from some arbitrary set of colours (Fig. 6). Then, the vertices check if their own colour (state) is already occupied (contained in the collection of received signals). If such a conflict is encountered, they switch to a random colour except their current colour. The default scoreSignal() method ensures that the vertex signals again if there was a conflict. If there was no conflict, then the vertex stays with its current colour.

Algorithms such as this one can solve many optimisation problems such as scheduling or finding solutions for Sudoku puzzles. The described algorithm works with undirected edges. In Signal/Collect these are modelled using two directed edges. The performance could be improved by using a better optimisation algorithm of which many have Signal/Collect adaptations.7

Convergence: The computation keeps on going until there are no more conflicts between colours. If the number of colours available is smaller than the chromatic number of the graph, then there is no solution without conflicts, which means that this algorithm is not guaranteed to converge.

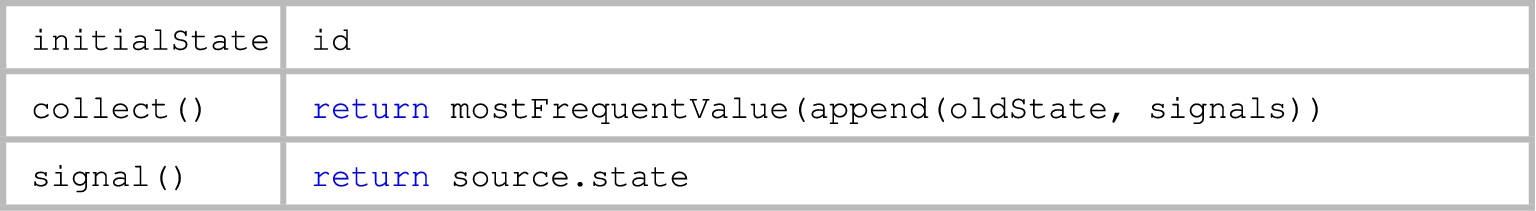

Label propagation  This iterative graph clustering algorithm assigns to each vertex the label that is most common in its neighbourhood [64]. Our variant is called Chinese Whispers Clustering [3] and has applications in natural language processing. The algorithm works on graphs with undirected edges which are modelled with two directed edges.

The vertex state represents the current vertex label (=cluster) and it is initialised with the vertex id (Fig. 7). This means that each vertex starts in its own cluster. Then, labels are propagated to neighbours. When a vertex receives neighbours’ labels, it appends its own label to the collection of labels signalled by the neighbours. It then updates its own label to the most frequent label in that extended collection. Ties are broken arbitrarily.

The convergence depends on the mostFrequentValue function: According to [3] the algorithm does not converge if that function does not break ties in a consistent way, but that only a few iterations are needed until almost-convergence.

OPEN IN VIEWER

Fig. 9.

Conway’s Game of Life (data-graph).

OPEN IN VIEWER

Fig. 10.

Threshold models of collective behaviour (data-graph).

Relational classifier  Relational classification can be considered a generalisation of label propagation. The presented classifier (Fig. 8) is a variation of the probabilistic relational-neighbour classifier described by Macskassy and Provost [39,40]. The algorithm works on graphs with undirected edges which are modelled with two directed edges. ProbDist represents a probability distribution over different classifications. Each vertex starts with an initial probability distribution over the classes, which can be uniform or can reflect the observed frequencies of classes in the training set. If the class of a vertex is available as training data, then that class gets probability 1 and is not changed by the algorithm. When a vertex receives the distributions of its neighbours, then it updates its own distribution to a normalised sum of the class probability distributions of the neighbours. A collective inference scheduling can be chosen using the scoreSignal() implementation to determine when a vertex informs its neighbours about its label distribution. This classifier only works when edges are more likely to connect vertices that belong to the same class (homophily) and, given its supervised nature, when some classes are known as training data [39]. The algorithm described here can be extended with a local classifier to determine the initial state. This initial state would be added to the sum of neighbour states in the collect method (potentially with a higher weight). In this case, it is no longer necessary for some classes to be known. The homophily constraint could be dropped by using a more advanced relational classification algorithm [6,15].

Convergence: According to [39] there is no guarantee of convergence, but according to [40] one can extend the algorithm with simulated annealing to ensure and control convergence.

Conway’s game of life (Life)  Life is played on a large checkerboard of cells, where each cell can be in one of two states (dead/alive) [14]. The game progresses in turns and each turn the state of a cell is updated based on the states of its neighbouring cells. The game is mapped to Signal/Collect by representing each cell as a vertex, alive is represented with state 1 and dead as state 0 (Fig. 9). The neighbourhood relationships between the cells are modeled with edges between neighbouring cells. A vertex counts how many of its neighbours are alive and uses this to determine its state next turn according to the rules of the game. Life is famous for the complex patterns that can emerge from its simple rules.

Convergence depends on the initial configuration and there are many (famous) initial configurations that will never converge.

Threshold models of collective behaviour  Granovetter [17] describes threshold models of collective behaviour to model situations in which agents have two options and the risk/payoff of each option depends on the behaviour of neighbouring agents. The risk/payoff is determined by a threshold which can be different for every actor. Threshold models allow to model the collective behaviour of a group of actors. Granovetter uses the example of rioting, but argues that such models can also be used to model innovation, rumour diffusion, disease spreading, strikes, voting, migration, educational attainment, and attendance of social events.

OPEN IN VIEWER

Fig. 11.

Matching path queries (data-flow).

OPEN IN VIEWER

Fig. 12.

Artificial neural networks (data-graph).

Such models can be mapped to Signal/Collect by representing each agent with a vertex and connecting all agents that can observe each other’s behaviour with edges. The initial state determines the default behaviour of an agent (Fig. 10). In our example, an actor does not riot initially, unless it is a natural rioter, which means that the agent would riot no matter what its neighbours do. Edges inform neighbours about the behaviour of an agent and in the collect() method the agent analyses what fraction of its neighbours are taking the alternative decision. If the fraction of neighbouring agents that display a behaviour exceeds the individual threshold (in our example riotingThreshold), then the agent changes its behaviour and switches to the alternative behaviour (e.g., start to riot).

Convergence: In the described model no person will ever stop rioting, once they decide to riot. For this reason only a finite number of ‘I am now rioting’ messages can ever be sent. This means that at some point either everyone is rioting, or the non-rioters will never receive an additional message that could shift them towards becoming rioters. For this reason, the computation is guaranteed to converge.

Matching path queries  This algorithm matches path queries, which is a typical use case for a graph processing system. The signals sent in the algorithm initially come from outside the graph along a virtual edge. The signals are path queries that specify a pattern of vertices and edges that they can match. An example for such a pattern might be: Match any path that starts with a vertex that has a “professor” property, continues along an edge that has an “advises” property and ends with an arbitrary vertex.

Once a query arrives at a vertex, its first part is matched with the vertex at which it has arrived (Fig. 11). This is done with the successfulMatchesWithVertex() function, which returns only the queries that have successfully matched with the local vertex.

If the query is fully matched – meaning all parts of its path are bound to a vertex or edge – then this path is reported as a result (this could be done by adding it to some result attribute that is later picked up by an aggregation operation). If there is still a part of the query left that needs to be matched, then it is added to the state set of the vertex. During the signal operation all edges try to match the next part of the queries – the one potentially constraining the type of edge to follow – using their successfulMatchesWithEdge() functions. Queries that were successfully edge-matched are returned by that function and signalled along the respective edges.

Matching path queries has many use cases: From simpler ones such as triangle/cycle detection, the approach could be extended to more complex tasks such as computing random walks with restarts or even matching expressive graph query languages.

Convergence: If each query only has a finite number of expected vertex/edge matches, then the execution is guaranteed to converge, because all queries will eventually either be eliminated or become fully matched.

Artificial neural networks  Artificial neural networks are the result of an attempt to imitate the structure of biological neural networks and there are “literally tens of thousands of published applications” [49, p. 748]. Neural networks consist of nodes connected by links [49, p. 737]. The nodes are mapped to vertices in Signal/Collect and the links are mapped to directed edges. Activations are sent as signals between edges, with the difference that they already get adjusted for edge weight in the signal() method of the edge (Fig. 12). The activation function is mapped to the collect() method and updates the state that represents the unit activation. Varying inputs are sent from outside the graph as signals along virtual edges.

Convergence: Neural networks usually do not contain cycles, so if there are no more new inputs, then the remaining activations are guaranteed to finish propagating through the network at some point.

Sketching of some additional algorithms  The “Bipartite Matching” and “Semi-Clustering” algorithms described in the Pregel paper [41] can be adapted to the Signal/Collect model by separating the compute function into a signal part for communication and a collect part for the state update. They require access to the step number, which is not available in the default Signal/Collect model, but can be added for example by using parallel update operations between computation steps. An adaptation of “Loopy Belief Propagation” has been outlined in [55] and was used to do inference on Markov logic networks [51].

We have also implemented a triple store with competitive performance inside Signal/Collect [56]. This system uses three different vertex types to model an index and to keep track of query executions.

The main benefit of adapting an algorithm or system to the Signal/Collect model is that its execution is automatically scheduled in parallel (or even distributed, if several machines are available), which allows for scalability. In the next section we empirically evaluate the scalability of our framework when executing algorithms expressed in the programming model.

In this subsection we evaluate the scalability of the Signal/Collect framework. In order to evaluate this we empirically measure the performance of our framework on multiple algorithms while varying the available resources. More specifically, we analyse the scalability by varying (1) the number of worker threads, (2) the size of the processed graph, and (3) the number of cluster nodes.

5.2.1. Multi-core (vertically/scale up)

We determined the multi-core scalability by measuring the parallel speedup when running an algorithm on the same graph, but with a varying number of worker threads.

In a first benchmark we ran the SSSP and PageRank algorithms on a machine with two twelve-core AMD Opteron^™ 6174 processors and 66 GB RAM. We executed these algorithms with both synchronous and “eager” asynchronous scheduling. They were run on the web graph dataset8

⁸

http://snap.stanford.edu/data/web-Google.html.

with 875 713 vertices (websites) and 5 105 039 edges (hyperlinks). Each combination of algorithm and scheduler was run whilst varying between 1 and 24 worker threads (as the machine has 24 cores). Each run was executed ten times and we graphed the resulting average running time in Figs 13 (PageRank) and 14 (SSSP), where the error bars indicate min/max running times. The speedup was calculated relative to the average runtime with one worker thread. Each execution was run cold in a new JVM, because this reflects the actual usage best.

PageRank was run with a signal function that returns the delta between the previous signal state and the current state (see Fig. 4). The signal threshold was set to 0.01, which determines the precision of the result. More detailed evaluation parameters can be found in the evaluation program.9

⁹

The evaluation program used was MulticoreScalabilityEvaluation in https://github.com/uzh/signal-collect-evaluation at revision 05057d000d. The snapshot dependencies were https://github.com/uzh/signal-collect at revision ba26e95e20 and https://github.com/uzh/signal-collect-graphs at revision 0149927e68. The results are available at https://docs.google.com/spreadsheet/ccc?key=0AiDJBXePHqCldEVwYk1lWDJpQmVRc0QtUWxLcFVXUWc.

OPEN IN VIEWER

Fig. 13.

Multi-Core Scalability of PageRank.

OPEN IN VIEWER

Fig. 14.

Multi-Core Scalability of Single-Source Shortest Path.

The fastest running time was 7 seconds for PageRank and 1.2 seconds for SSSP. The speedup when going from 1 core to 24 cores was 9 for SSSP and around 13 for PageRank. This shows that Signal/Collect scales with additional cores, but that the actual factor depends on the algorithm. The achievable speedup also depends on the graph structure: Running SSSP on a chain of vertices would not allow for any parallelism with our implementation.

5.2.2. Data scalability

In order to evaluate how Signal/Collect scales with increasing graph sizes we had to determine what kind of graphs to evaluate it on. Given that we want the graphs to be as similar as possible, Kronecker graphs [34] seem like a good choice, because they preserve many properties of a graph across different scales. We used the reference implementation of the generator that is part of SNAP [2].10

¹⁰

https://snap.stanford.edu/snap/.

We generate the graphs by using the fitted parameters for the Notre Dame web graph ([0.999 0.414; 0.453 0.229]) which we also got from [34]. With these parameters we generated graphs with between 20 to 26 iterations of the Kronecker product, which resulted in graphs with between 659 518 vertices and 2 652 653 edges up to 39 865 268 vertices and 224 276 985 edges, in between increasing approximately with powers of two. For 27 iterations the graph generator repeatedly threw errors (the machine on which it was run had 128 GB of RAM).

The partitions in of the generated graphs are in many ways unbalanced: The number of outgoing edges from a worker partition varies by a factor of around 9 between the worker with the most outgoing edges and the one with the fewest. With regards to message sending, the distribution is even more uneven: We checked the number of sent messages between the busiest worker for one run at 20 and 26 iterations, and in both cases the busiest worker sent more than 100 times as many messages as the least busy worker.

We ran the experiment on machines with 128 GB RAM and two E5-2680 v2 processors at 2.80 GHz, with 10 cores per processor. The JVM on the machines used between 300 MB (minimum on the smallest graph) and 12.5 GB of RAM (maximum on the largest graph).

Figure 15 shows the performance when running delta PageRank with a threshold of 0.01 on these synthetic graphs.11

¹¹

The evaluation program used was PageRankEvaluation in https://github.com/uzh/signal-collect-evaluation at revision de1a018. The used https://github.com/uzh/signal-collect dependency was at revision 77da25f. The results are available at https://docs.google.com/spreadsheet/ccc?key=0AiDJBXePHqCldFFxaFp1N0RzTDBKdzhoSHlmb3M1T0E.

We ran all evaluations 10 times and plot the average execution time. We tested the running times with both a specialised signal combiner for the rank deltas and with the generally applicable bulk messaging. The plot is logarithmic in both axes and it shows that Signal/Collect scales linearly with increasing dataset sizes. Whilst bulk messaging performs better for smaller graph sizes, the signal combiner is faster on the largest dataset.

OPEN IN VIEWER

Fig. 15.

Data scalability for PageRank on synthetic Kronecker graphs. Both axes have logarithmic scales.

5.2.3. Distribution (horizontally/scale out)

We determined the distributed scalability by measuring the speedup when running an algorithm on the same graph, but with a varying number of cluster nodes.

We ran this benchmark with an optimised version of the delta PageRank algorithm on the Yahoo! AltaVista webgraph12

¹²

Yahoo! Academic Relations, Yahoo! AltaVista Web Page Hyperlink Connectivity Graph, http://webscope.sandbox.yahoo.com/catalog.php?datatype=g.

with 1 413 511 390 vertices and 6 636 600 779 edges. This is one of the largest real-world graphs available for such evaluations and a realistic use case for the PageRank algorithm. In order to measure scalability we ran the algorithm ten times with each configuration on a cluster with 4, 6, 8, 10, and 12 nodes, with 24 worker threads per node (i.e., 96 workers up to 288 workers). The nodes were the same 24-core machines used in the multi-core scalability evaluation connected by a 1 gigabit Ethernet switch. In all computations the coordinator actor was running on a laptop on a different network, this machine had no problem handling the load of running termination detection and flow control. The latency between coordinator and workers was less than one millisecond. Given that the heartbeat interval was 100 milliseconds, it is unlikely for the remoteness of the coordinator to have had much effect on the computation.

The vertices were partitioned using hashing as described earlier, so most edges spanned different workers and nodes. The graph was loaded from the local file system of the machines and loading took between 45 seconds (fastest run with 12 nodes) and 235 seconds (slowest run with 4 nodes).

The huge number of signals required more efficient usage of bandwidth, which is why we used a bulk scheduler and bulk message bus. When scaling across more nodes and workers, this means that either each bulk signal has to contain fewer signals or that there is increased latency that would impair algorithm convergence. We chose to keep the latency constant, which has the effect of reducing the benefits of bulk signaling for runs with more nodes, but removes convergence characteristics as a confounding factor.

Another optimisation that we used was to have the vertex change the edge representation and for each edge only store the ID of the target vertex. The target IDs are integers, so to further reduce the memory footprint we sorted the array of target IDs and at each position only stored the delta from the previous array entry. We then took advantage of the smaller IDs by using variable length encoding on the ID deltas. Furthermore, we collected signals right when they were delivered, which makes it unnecessary to store them inside the vertex until they are collected. These optimisations reduced the memory footprint and allowed us to successfully run the algorithm on only four machines.

Every execution ran until convergence with a signal threshold of 0.01 and both the vertex state (PageRank) as well as the signals were represented as floating point numbers.

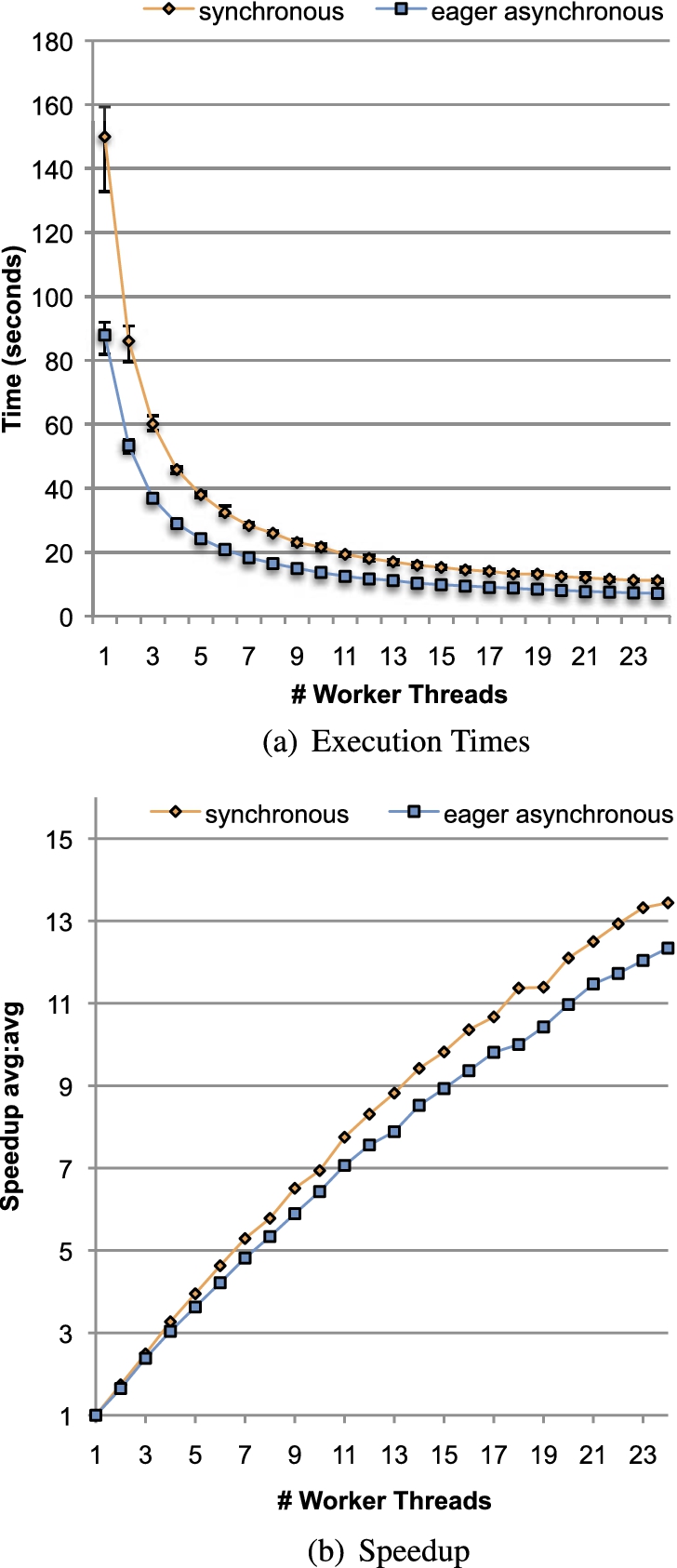

Figure 16(a) graphs the execution times. It shows that increasing the number of nodes decreases run-time. Indeed, the speedup plot in Fig. 16(b) shows that for using three times more resources we get a speedup of almost two. This is decent, considering that more nodes means a larger fraction of signals are sent across nodes (over the slow network, as opposed to fast in-memory transfers) and that there is more overhead for signaling due to smaller bulk signal sizes. More detailed evaluation parameters can be found in the evaluation program.13

¹³

The evaluation program used was DistributedWebGraphScalabilityEval in https://github.com/uzh/signal-collect-evaluation at revision 701e208. The snapshot dependencies were https://github.com/uzh/signal-collect at revision 43c3b0ffe7 and https://github.com/uzh/signal-collect-graphs at revision f35637c930. The results are available at https://docs.google.com/spreadsheet/ccc?key=0AiDJBXePHqCldDF2dEJIWnliVkJ0cjBrVlVvOTBkMkE.

OPEN IN VIEWER

Fig. 16.

Horizontal scalability of PageRank on the Yahoo! AltaVista Web Page Hyperlink Connectivity Graph with 1 413 511 390 vertices and 6 636 600 779 edges. The data points in Fig. 16(a) show the average execution time over 10 runs and the error bars indicate the fastest and slowest runs. Figure 16(b) plots the speedup relative to the average execution time with 4 nodes. The signal threshold used was 0.01, state and signals were represented as floats.

Comparison with other reported results  We are well aware that comparing run-times between systems run on different machines is a problematic proposition at best. The main goal of the comparisons below is, therefore, to provide an intuition of the order of scalability and performance of Signal/Collect in contrast to other systems reported on in the literature.

Pegasus [28] is a MapReduce-based system that ran 10 iterations of an iterative belief propagation algorithm on the same Yahoo! AltaVista webgraph using 100 machines of a Hadoop cluster. This computation took 4 hours.

GPS [50] computed 50 iterations of PageRank on a webgraph with 51 million vertices and 1.9 billion edges in 846 seconds using a cluster of 60 Amazon EC2 nodes (4 virtual cores and 7.5 GB of RAM each). Using a pre-partitioned graph reduced the computation time to 372 seconds. In their evaluations they describe that GPS runs more than an order of magnitude faster than Giraph.

GraphLab did not report any evaluations for the PageRank algorithm, which complicates comparison. The largest (pre-partitioned) graph it was evaluated on had 27 million vertices and 375 million edges. The non-partitioned ones were smaller.14

¹⁴

GraphLab did not scale up to the Yahoo! AltaVista webgraph according to the thesis defence slides of Joseph E. Gonzalez, slide 70, http://www.cs.cmu.edu/~jegonzal/talks/jegonzal_thesis_defense.pptx.

PowerGraph [16] required about 14 seconds to compute PageRank on a Twitter follower graph with 40 million vertices and 1.5 billion edges employing a cluster of 64 Amazon EC2 nodes (8 cores and 23 GB of RAM each, connected by 10 gigabit Ethernet). They report faster times with coordinated partitioning requiring an up-front loading time of more than 200 seconds. In their evaluations PowerGraph is at least an order of magnitude faster than the other frameworks they compare against.

In order to fairly compare the performance of two systems they have to be run on the same hardware. To that end we ran PageRank on both PowerGraph and Signal/Collect, again on the AltaVista webgraph. The experiment was run on a cluster of 8 machines, each machine having 128 GB RAM and two E5-2680 v2 processors at 2.80 GHz, with 10 cores per processor. The machines were connected with both 10 Gbps Ethernet and 40 Gbps Infiniband. For PowerGraph we used the repository version from July 6th 2014.15

OPEN IN VIEWER

Fig. 17.

Comparison between Signal/Collect and PowerGraph of the respective execution times for computing PageRank on the Yahoo! AltaVista webgraph when (a) the convergence threshold and (b) the network is varied relative to the baseline configuration.

OPEN IN VIEWER

Fig. 18.

Figure 18(a) compares the baseline execution time of Signal/Collect, which has an enabled message combiner, with the generally applicable bulk messaging. Figure 18(b) compares the baseline execution time of PowerGraph, which uses the synchronous engine, with the asynchronous engine of PowerGraph. Note that Figs 18(a) and 18(b) do not use the same scale on the y-axis.

In Figs 17 and 18 the bar displays the average running time over ten runs and the error bars indicate the performance of the fastest and slowest runs.

Figure 17(a) shows how the execution times change when the convergence threshold is varied around the baseline. We see that Signal/Collect takes about half as long at all precision levels.

Figure 17(b) shows the comparison of the baseline configurations of PowerGraph and Signal/Collect with one in which Infiniband is disabled. We notice that disabling Infiniband increases the running time of Signal/Collect by around 50%, whilst the PowerGraph execution time more than doubles. We were surprised by this, because for this graph PowerGraph reported a replication factor of 3.27, which means that for each original vertex there were on average more than 3 replicas. We expected that this would lead to a lower sensitivity to network bandwidth and latency, but the results suggest that PowerGraph is more sensitive to the quality of the network.

We also tested enabling delta caching for the PowerGraph synchronous and asynchronous engine. In both cases enabling delta caching resulted in the computation still running after several hours and we canceled the evaluation at that point.

We loaded the graphs from different formats and from a network drive, which is why the loading times are not comparable and are subject to variance due to local caching of the files. For Signal/Collect we loaded the graph from a binary format that split vertices according to their hash code, which is why each worker only loaded local vertices. For this reason most Signal/Collect runs loaded the graph in around 50 seconds. PowerGraph loaded the graph with the automatically determined ‘grid’ ingress method an adjacency list format from 1413 splits in more than 10 minutes, but this could likely be sped up by a lot if one were to also use a specialised format.

Note: PowerGraph only ran the computation on 720 242 173 vertices, because vertices without incoming or outgoing edges were discarded during the loading phase. One Signal/Collect run and four PowerGraph runs crashed during the computation, in this case we simply restarted that run.

Memory usage: The PowerGraph allocator reported that it used around 80 GB of the heap on each machine. The memory usage per node of Signal/Collect varied between 20 GB and 47 GB, the variance is most likely due to garbage collection timing.

We also tried out alternative configurations: Fig. 18(a) compares the impact of using bulk messaging instead of the baseline signal combiner with Signal/Collect. We see that bulk messaging is slightly slower, but that the specialised message combiner did not improve the execution time by much. Figure 18(b) compares the execution time when using the PowerGraph asynchronous engine instead of the baseline synchronous engine. We see that the asynchronous engine is more than four times slower. We found this surprising, but a PowerGraph author explains that this obvservation might be explained by the asynchronous engine being less optimised.18

As always, given the complexity of such distributed frameworks, it is difficult to draw hard conclusions. Nonetheless, we feel that we can clearly state that the Signal/Collect approach seems highly competitive when computing a popular algorithm on a web-scale graph using a conventional cluster. We can also state that Signal/Collect retained its competitiveness when turning off some of its more complex refinements (see Fig. 18(a)) and that it was less reliant on a fast network for its performance.

In this section discuss and evaluate some aspects of asynchronous scheduling in Signal/Collect. Depending on the scheduling strategy an asynchronous scheduler can have the following advantages:

In order to measure how much impact the lower latency signal propagation has we ran PageRank and SSSP with both kinds of schedulers in the previously described scalability experiments. As reported for the PageRank algorithm in Figs 13 and 14 asynchronous scheduling is on average between 36% (with 24 workers) and 41% (with 1 worker) faster than synchronous scheduling. This is largely because of earlier signal propagation: In all cases the asynchronous version required on average 30% fewer signal operations until convergence.

Scheduling does not have the same impact on all algorithms: The single-source shortest path algorithm took approximately the same amount of time, regardless of the scheduling.

To evaluate the impact of scheduling on oscillations we ran a greedy algorithm to solve vertex colouring problems on the Latin Square dataset.19

Figure 19 shows the executions with “eager” asynchronous scheduling found solutions much quicker than synchronous executions. For the harder problems with fewer colours there are also several cases where a synchronous scheduling fails to find a solution within the time limit, while the asynchronous scheduling found a solution within a few seconds. One explanation is that with a synchronous scheduling the vertices tend to switch states in lockstep, which has them cycle through or oscillate between conflicts (“thrashing”). The results show that for some algorithms asynchronous scheduling can be crucial for fast convergence. Other algorithms share this property: Koller and Friedman note that some asynchronous loopy belief propagation computations converge where the synchronous computations keep oscillating. They summarize in that context that [31, p. 408]: “In practice an asynchronous message passing scheduling works significantly better than the synchronous approach.”

OPEN IN VIEWER

Fig. 19.

Vertex colouring with a varying number of colours on a Latin Square problem with 100 * 100 vertices and almost two million directed edges.

6.1. Foundations

The Signal/Collect programming model is related to three lower-level programming models, which are all suitable for distributed and parallel computations, but lack a focus on graph computations:

When designing a programming model for graph processing, it is important to consider the different kinds of computations on graphs. There are two fundamentally different ways of thinking about computations on graphs. One way to interpret a graph is as a data structure, where data can be associated with vertices and edges. Computations may explore this structure and modify its data, potentially iteratively, until some termination or convergence criterion is reached. We refer to computations with this characteristic as data-graph computations. Another way to interpret a graph is as a plan that determines the flow of data along processing stages. Vertices represent processing stages for data, while edges represent the (potentially cyclic) paths along which data flows. This view encompasses the data-flow programming model.

OPEN IN VIEWER

Fig. 20.

Selected Related Work: An overview of only the high-level distributed data processing systems that support iterated processing. References: Piccolo [48], MapReduce [10], Hadoop,21 Twister [13], iMapReduce [62], PrIter [63], Spark [60], HipG [33], PowerGraph [16], Parallel BGL [53], GraphLab [37], Trinity [61], Pregel [41], Giraph,22 GoldenOrb,23 Phoebus,24 Bagel,25 JPregel,26 GPS [50], Pegasus [29], Hama [52], Surfer [8].

With Signal/Collect, we have designed a programming model that is suitable for both kinds of computations: In the Signal/Collect programming model vertices are processing units akin to actors whilst edges can have associated data and may compute signals that flow to their target vertex.

Researchers with roots in disparate communities such as machine learning, biology, or the semantic web have answered the call for general programming models and frameworks specialised for scalable graph processing.

Figure 20 provides a high-level overview of distributed data processing systems that support iterated processing. It differentiates systems along their ability for synchronous versus asynchronous processing of the data on the y-axis and the kind of data abstraction they operate on (key-value pairs, sets, or tables versus graphs) on the x-axis. The category “Synchronisation Required” encompasses systems that schedule iterated computations with mandatory global barriers between iterations. The “Asynchronous Possible” category encompasses systems that are able to schedule iterated computation without such global barriers. “MR Based” is used as a category label for systems that extend the MapReduce model with support for iterated processing or graph abstractions.

We focus our discussion on programming models and systems that are geared towards processing graphs, especially ones that are capable of asynchronous processing. Specifically, we first present GraphStep and Pregel, which have inspired many other graph specialised BSP-based systems. After that, we discuss GraphLab, its extension PowerGraph, and HipG in detail, because they are vertex centric approaches that are closely related to Signal/Collect. In the last part we give summaries of other related work.

GraphStep [12] is the programming model that is most closely related to Signal/Collect. It combines the BSP programming model with the concept of vertices as actors and edges representing the communication structure between those actors. A computation progresses with all vertices receiving input messages, awaiting a global synchronization, performing a local update operation, and sending output messages. The last two steps broadly correspond to collecting and then signaling. A newer description of the model [11] adds a reduce phase on the incoming messages and a separate edge function where each edge reads and writes local state and then possibly sends a message to its destination vertex. The model is meant to be implemented in field-programmable gate array (FPGA) circuits and does not support data-flow computations, asynchronicity, or graph modifications.

Pregel is a framework with a similar programming model developed by Google for large-scale graph processing [41]. The framework scales to graphs with billions of vertices and edges via distribution to thousands of commodity PCs. Pregel is based on a programming model that was inspired by BSP: A computation consists of a sequence of supersteps. During a superstep, each vertex executes an algorithm-specific compute function that can modify the vertex state, modify the graph, and send messages to other vertices. Global synchronisations ensure that all compute functions of the superstep have been completed before the next superstep is started. Within a compute function, a vertex can vote to halt the computation. A computation ends when all the vertices have voted to halt. In order to reduce the number of messages that are sent between workers/machines, Pregel supports combiners that aggregate multiple messages for the same vertex into one. For the computation of global values Pregel also supports aggregation operations.

The Pregel model merges computation, communication, and termination detection into one compute function on a vertex. This function is a black box from the perspective of the framework, which requires a manual implementation of termination detection and prevents the scheduler from separately scheduling state updates and communication.

Pregel can only handle synchronous computations. In a synchronous computation one problematic operation or node can be enough to slow all computations, while in an asynchronous computation only operations on that node or the specific operation are slowed. As we discussed in our evaluation (see Section 5.4), synchronous scheduling can also lead to convergence problems due to oscillations for some algorithms.

Pregel supports graphs with one kind of vertex type sharing a single compute function. This complicates the reusability of vertex/edge-specifications and it adds complexity when implementing algorithms with multiple kinds of vertices or edges. These constraints also make it harder to compose several algorithms within the same computation.

There are extensions to the model for incremental recomputations [5] and for custom scheduling that can imitate some of the properties of an asynchronous scheduling [58].

Google has not released its implementation of Pregel, but there exist several related open source implementations such as Giraph,27

GraphLab is a programming model and framework for parallel graph algorithms [37]. The programming model is especially suitable for computations with sparse data dependencies and for asynchronous iterative computation.

GraphLab is based on a data-graph model which simultaneously represents data and computational dependencies. A computation progresses by executing update functions on vertices. These functions can modify the vertex and edge data as well as data associated with neighbouring vertices in the data-graph. The model offers flexible scheduling of these update operations as well as functions to aggregate over the state of the entire data-graph. The scheduler supports different consistency guarantees, which permit the adaptation of some algorithmic correctness proofs from a sequential to a parallel setting.

In full-consistency mode, concurrent modifications to the neighbourhood of a vertex have to be prevented while an update function is executed. Assuming a random distribution of vertices over cluster nodes of a large cluster – an assumption currently true for many frameworks such as HipG (see below) and Pregel – the expected (and worst-case) scenario is that the vertex data and the data of neighbouring vertices are spread over almost as many nodes as there are vertices in the neighbourhood. The authors describe in a more recent publication [16] (see below) that executing an update function in full-consistency mode on a vertex with a sizable neighbourhood is a costly operation, because it requires a distributed lock of a large fraction of the cluster. They also mention that “distributed locking and synchronization introduces substantial latency” [36]. Furthermore, they describe that “the locking scheme used by GraphLab is unfair to high degree vertices” (see [16, Section 4.3.2]).

Another scheduler (“chromatic engine”) works around some of these issues in distributed computations [36]. This scheduler uses a vertex colouring to avoid the expensive locking during execution. It is equivalent to a BSP execution where at each step only vertices with the same colour are active. This scheduler requires finding a graph colouring (more constrained ones for strong consistency guarantees) and the number of processing steps and global synchronisations is multiplied by the number of colours used for the graph colouring.

GraphLab does currently not allow graph modifications during a computation and does not support graphs with multiple vertex types, which complicates composition of algorithms and reusability of components. Lastly, GraphLab has undirected edges. Hence, algorithms that exploit directionality would have to encode it in an edge’s data, complicating the framework’s ability to optimise computations based on directionality.

6.4. PowerGraph

PowerGraph [16] is a substantial redesign and reimplementation of GraphLab. The main difference in PowerGraph’s abstraction lies in the computation’s division into three phases: gather roughly corresponds to a Pregel combiner gathering and aggregating the data from neighbours, apply computes the new vertex state, and scatter updates the values of the adjacent edges. According to the execution semantics ([16, Algorithm 1, Section 4.1]) the three functions are always called sequentially, without interruption, possibly complicating scheduler-based optimisations. Akin to GraphLab, PowerGraph does not allow for multiple implementations of the three functions per graph and it does not support graph modifications during computations.

To enable a more efficient implementation of the distribution PowerGraph introduces the idea of vertex cuts – essentially the replication of vertices to many machines. Whilst this reduces cross-machine communication for some algorithms and more evenly distributes the load of high-degree vertices, it introduces replication of the vertices and their associated state/data up to a factor of 5–18 for 64 machines. The variation of the overhead factor is dependent on the partitioning strategy chosen. Smarter strategies reduce the replication factor but increase graph loading time by a factor of about 5 (when using 64 machines).

In a direct comparison of the programming models, PowerGraph has consistency guarantees and the built-in optimisations for high-degree vertices going for it. Signal/Collect offers more flexibility with regard to the efficient edge representation, and can even route messages to another vertex if there is no explicitly stored edge between them. Signal/Collect also has built-in support for using different vertex, edge and message types inside the same graph, whilst the same requires a custom mapping and is potentially inefficient for PowerGraph.

PowerGraph’s lack of support for modifications during a computation or the efficiency of the asynchronous implementation are most likely engineering related and not fundamental properties of the approach.

6.5. HipG

HipG is a distributed framework that facilitates high-level programming of parallel graph algorithms by expressing them as a hierarchy of distributed computations [32,33].

As in the Pregel model, code is executed on a vertex. But while in Pregel messages are sent to other vertices, a HipG vertex can conceptually directly execute functions on neighbouring vertices (the framework translates those function calls to asynchronous messages). HipG supports synchronisers, which are coordinators for function executions that have the option to block until all executed functions have completed. This feature can also be used to aggregate global values. A synchroniser can spawn additional synchronisers to create hierarchical computations. This is especially useful for divide and conquer algorithms on graphs.

While it is possible to write a compute function for a vertex that handles thousands of received messages at once, there is no obvious way of combining functions, which means that they all have to be executed. This could be problematic if one wants to implement an iterated computation, because it would require for a function to spawn as many new functions as there are neighbours, potentially leading to an exponential growth of functions in the system. One solution is to use a global synchroniser that repeatedly executes functions on all vertices (using a “visit” flag and only propagating onwards if the flag is not set yet) and has barriers (synchronisations) between those executions (indeed, this is how the PageRank example is implemented in the example code provided with the system33

The Parallel BGL34

Najork et al. [43] evaluated three different platforms and programming models on large graphs. The focus of the evaluation is to find the trade-offs between the platforms for various algorithms. The evaluation did not include vertex-centric models. Members of the same lab are also working on the Trinity graph engine, a distributed key-value store with optimisations for vertex-centric graph processing, such as bundling of messages, graph partitioning and low latency processing [61]. Trinity also supports asynchronous processing and while the technology and features of the framework are impressive, it is not publicly available and the report gives little information about the properties of the programming model and about how algorithms are expressed.

There are several systems for large-scale graph computations implemented on top of MapReduce or by generalising the MapReduce model. Most of these systems have limited support for iterated computations and do not support asynchronicity [8,20,29,52]. PrIter is a modified version of Hadoop MapReduce that supports executing processing steps only on a subset of items with priorities above a threshold [63]. Kajdanowicz et al. [27] compared the efficiency of a MapReduce-based system with a BSP-based system for processing large graphs and conclude that BSP can outperform MapReduce by up to an order of magnitude.

Piccolo and Spark are distributed processing platforms that use table-/set-based abstractions, support iteration and can serve as the foundation of more specialised graph processing frameworks [48,60]. One such extension is the aforementioned Bagel which is built on Spark.

Also noteworthy are distributed data-flow engines such as Sawzall [47], Dryad/DryadLINQ [25,26], Pig [45], and Ciel/Skywriting [42]. Computations on graphs require a custom mapping to the respective data-flow language model. Some of the languages allow to express iterated processing, but the underlying systems are not optimised for doing this efficiently on graph structured data.

There are more graph processing libraries that focus on specific algorithms, but did not offer a detailed enough explanation of a more general programming model. Also we did not cover frameworks that focus on specific aspects of scaling algorithms on architectures such as supercomputers or GPUs, because the scalability challenges are different.
