A RADAR for information reconciliation in Question Answering systems over Linked Data 1

2.1. Assigning a confidence score to the source

Language-specific DBpedia chapters can contain different information on particular topics, e.g. providing more or more specific information. Moreover, the knowledge of certain instances and the conceptualization of certain relations can be culturally biased. For instance, we expect to have more precise (and possibly more reliable) information on the Italian actor Antonio Albanese on the Italian DBpedia, than on the English or on the French ones.

To trust and reward the data sources, we need to calculate the reliability of the source with respect to the contained information items. In [10], an apriori confidence score is assigned to the endpoints according to their dimensions and solidity in terms of maintenance (the English chapter is assumed to be more reliable than the others on all values, but this is not always the case). RADAR 2.0 assigns, instead, a confidence score to the DBpedia language-specific chapter depending on the queried entity, according to the following two criteria:

Wikipedia page length. The chapter of the longest language-specific Wikipedia page describing the queried entity is considered as fully trustworthy (i.e., it is assigned with a score of 1) while the others are considered less trustworthy (i.e., they are associated with a score < 1 ). In choosing such heuristic, we followed [5] that demonstrates that the article length is a very good predictor of its precision. The length is calculated on the Wikipedia dump of the considered language (# of characters in the text, ignoring image tags and tables). Thus, the longest page is assigned a score equal to 1, and a proportional score is assigned to the other chapters.

Cabrio et al. [12] propose a classification of the semantic relations holding among the different instances obtained by querying a set of language-specific DBpedia chapters with a certain query. More precisely, such categories correspond to the lexical and discourse relations holding among heterogeneous instances obtained querying two DBpedia chapters at a time, given a subject and an ontological property. In the following, we list the positive relations between values resulting from the data-driven study in [12]. Then, in parallel, we describe how RADAR 2.0 addresses the automatic classification of such relations. Identity

i.e., same value but in different languages (missing owl:sameAs link in DBpedia). E.g., Dairy product vs Produits laitiers

Geo-specification

i.e., ontological geographical knowledge. E.g., Queensland vs Australia

OPEN IN VIEWER

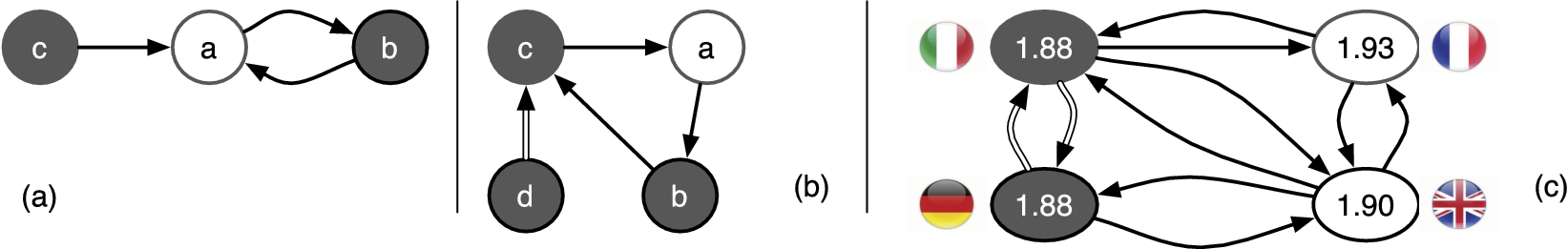

Fig. 2.

Example of (a) an AF, (b) a bipolar AF, and (c) example provided in the introduction modeled as a bipolar AF, where single lines represent attacks and double lines represent support.

Moreover, in the classification proposed in [12], the following negative relations (i.e., values mismatches) among possibly inconsistent data are identified: Text mismatch

i.e. unrelated entity. E.g., Palermo vs Modene

The reader may argue that a machine learning approach could have been applied to this task, but a supervised approach would have required an annotated dataset to learn the features. Unfortunately, at the moment there is no such training set available to the research community. Moreover, given the fact that our goal is to produce a resource as precise as possible for future reuse, the implementation of a rule-based approach allows us to tune RADAR to reward precision in our experiments, in order to accomplish our purpose.

This section begins with a brief overview of abstract argumentation theory, and then we detail the RADAR 2.0 argumentation module.

An abstract argumentation framework (AF) [16] aims at representing conflicts among elements called arguments, whose role is determined only by their relation with other arguments. An AF encodes, through the conflict (i.e., attack) relation, the existing conflicts within a set of arguments. It is then interesting to identify the conflict outcomes, which, roughly speaking, means determining which arguments should be accepted, and which arguments should be rejected, according to some reasonable criterion.

The set of accepted arguments of an argumentation framework consists of a set of arguments that does not contain an argument conflicting with another argument in the set. Dung [16] presents several acceptability semantics that produce zero, one, or several consistent sets of accepted arguments. Roughly, an argument is accepted (i.e., labelled in) if all the arguments attacking it are rejected, and it is rejected (i.e., labelled out) if it has at least an argument attacking it which is accepted. Figure 2(a) shows an example of an AF. The arguments are visualized as nodes of the argumentation graph, and the attack relation is visualized as edges. Gray arguments are the accepted ones. Using Dung’s admissibility-based semantics [16], the set of accepted arguments is { b , c } . For more details about acceptability semantics, we refer the reader to Baroni et al. [1].

However, associating a crisp label, i.e., in or out, to the arguments is limiting in a number of real life situations where a numerical value expressing the acceptability degree of each argument is required [14,17,18]. In particular, da Costa Pereira et al. [14] have proposed a fuzzy labeling algorithm to account for the fact that arguments may originate from sources that are trusted only to a certain degree. They define a fuzzy labeling for argument A as α ( A ) = min { A ( A ) , 1 − max B : B → A α ( B ) } where A ( A ) is given by the trust degree of the most reliable source that offers argument A, and argument B is an argument attacking A. We say that α ( A ) is the fuzzy label of argument A. Consider the example in Fig. 2(a), if we have A ( a ) = A ( b ) = A ( c ) = 0.8 , then the algorithm returns the following labeling: α ( a ) = 0.2 and α ( c ) = α ( b ) = 0.8 .

Since we want to take into account the confidence associated with the information sources to compute the acceptability degree of arguments, we rely on the computation of fuzzy confidence-based degrees of acceptability. As the fuzzy labeling algorithm [14] exploits a scenario where the arguments are connected by an attack relation only, in Cabrio et al. [10] we have proposed a bipolar version of this algorithm, to consider also a positive, i.e., support, relation among the arguments (bipolar AFs) for the computation of the fuzzy labels of the arguments.

Let A be a fuzzy set of trustful arguments, and A ( A ) be the membership degree of argument A in A , we have that A ( A ) is given by the trust degree of the most reliable (i.e., trusted) source that offers argument A,10

Such an α may also be regarded as (the membership function of) the fuzzy set of acceptable arguments where the label α ( A ) = 0 means that the argument is outright unacceptable, and α ( A ) = 1 means the argument is fully acceptable. All cases inbetween provide the degree of the acceptability of the arguments which may be considered accepted in the end, if they exceed a certain threshold.

A bipolar fuzzy labeling is defined as follows,11

When the argumentation module receives the elements of the result set linked by the appropriate relation and the confidence degree associated to each source, the bipolar fuzzy labeling algorithm is applied to the argumentation framework to obtain the acceptability degree of each argument. In case of cyclic graphs, the algorithm starts with the assignment of the trustworthiness degree of the source to the node, and then the value converges in a finite number of steps to the final label. Note that when the argumentation framework is composed by a cycle only, then all labels become equal to 0.5.

Consider the example in Fig. 2(b), if we have A ( a ) = A ( d ) = 1 , A ( b ) = 0.4 and A ( c ) = 0.2 , then the fuzzy labeling algorithm returns the following labels: α ( a ) = α ( b ) = 0.4 , α ( c ) = 0.6 , and α ( d ) = 1 . The step by step computation of the labels is shown in Table 1. Figure 2(c) shows how the example provided in the introduction is modeled as a bipolar argumentation framework, where we expect the Italian DBpedia chapter to be the most reliable one, given that Stefano Tacconi is an Italian soccer player. The result returned by the bipolar argumentation framework is that the trusted answer is 1.88. A more precise instantiation of this example in the QA system is shown in the next section.

The fact that an argumentation framework can be used to provide an explanation and justify positions is witnessed by a number of applications in different contexts [2], like for instance practical reasoning [27], legal reasoning [3,4], medical diagnosis [19]. This is the reason why we choose this formalism to reconcile information, compute the set of reliable information items, and finally justify this result. Other possible solutions would be (weighted) voting mechanisms, where the preferences of some voters, i.e., the most reliable information sources, carry more weight than the preferences of other voters. However, voting mechanisms do not consider the presence of (positive and negative) relations among the items within the list, and no justification beyond the basic trustworthiness of the sources is provided to motivate the ranking of the information items.

Notice that argumentation is needed in our use case because we have to take into account the trustworthiness of the information sources, and it provides an explanation of the ranking, which is not possible with simple majority voting. Argumentation theory, used as a conflict detection technique, allows us to detect inconsistencies and consider the trustworthiness evaluation of the information sources, as well as proposing a single answer to the users. As far as we know, RADAR integrated in QAKiS is the first example of QA over Linked Data system coping with this problem and providing a solution. Simpler methods would not allow to cover both aspects mentioned above. We use bipolar argumentation instead of non-bipolar argumentation because we have not only the negative conflict relation but also the positive support relation among the elements of the result set.

3.1. Dataset

To evaluate the RADAR framework, we rely on the dataset presented in Cabrio et al. [12], the only available annotated dataset of possibly inconsistent information in DBpedia language-specific chapters to our knowledge. It is composed of 400 annotated pairs of values (extracted from English, French and Italian DBpedia chapters), a sample that is assumed to be representative of the linguistic relations holding between values in DBpedia chapters. Note that the size of the DBpedia chapter does not bias the type of relations identified among the values, nor their distribution, meaning that given a specific property, each DBpedia chapter deals with that property in the same way. We randomly divided such dataset into a development (to tune RADAR) and a test set, keeping the proportion among the distribution of categories.12

Table 3 shows the results obtained by RADAR on the relation classification task on the test set. As baseline, we apply an algorithm exploiting only cross-lingual links (using WikiData), and exact string matching. Since we want to produce a resource as precise as possible for future reuse, RADAR has been tuned to reward precision (i.e., so that it does not generate false positives for a category), at the expense of recall (errors follow from the generation of false negatives for positive classes). As expected, the highest recall is obtained on the surface form category (our baseline performs even better than RADAR on such category). The geo-specification category has the lowest recall, either due to missing alignments between DBpedia and GeoNames (e.g. Ixelles and Bruxelles are not connected in GeoNames), or to the values complexity in the renaming subcategory (e.g., Paris vs First French Empire, or Harburg (quarter) vs Hambourg). In general, the results obtained are quite satisfying, fostering future work in this direction.

Since we consider text mismatch as a negative class (Section 2.2), it includes the cases in which RADAR fails to correctly classify a pair of values into one of the positive classes. For date and numerical mismatches, F 1 = 1 (detecting them is actually a trivial task, and therefore they are not included in Table 3. See footnote 9). Overall positive means that RADAR correctly understands the fact that the different answers to a certain query are all correct and not conflicting. RADAR precision in this case is 1, and it is important to underline this aspect in the evaluation, since this confirms the reliability of the released reconciled DBpedia in this respect. The overall positive result is higher than the partial results because in the precision of partial values we include the fact that if e.g., a surface form relation is wrongly labeled as geo-specification, we consider this mistake both as a false negative for surface form, and as a false positive for geo-specification. This means that RADAR is very precise in assigning positive relations, but it could provide a less precise classification into finer-grained categories.

We applied RADAR 2.0 on 300 DBpedia properties – the most frequent in terms of chapters mapping such properties, corresponding to 47.8% of all properties in DBpedia. We considered ∼5 M Wikipedia entities. The outcoming resource, a sort of universal DBpedia, counts ∼50 M of reconciled triples from 15 DBpedia chapters: Bulgarian, Catalan, Czech, German, English, Spanish, French, Hungarian, Indonesian, Italian, Dutch, Polish, Portuguese, Slovenian, Turkish. Notice that we did not consider the endpoint availability as a requirement to choose the DBpedia chapters: data are directly extracted from the resource.

For functional properties, the RADAR framework is applied as described in Section 2. In contrast, the strategy to reconcile the values of non-functional properties is slightly different: when a list of values is admitted (e.g. for properties child or instruments), RADAR merges the list of the elements provided by the DBpedia chapters, and ranks them with respect to the confidence assigned to their source, after reconciling positive relations only (there is no way for lists to understand if an element is incorrect or just missing, e.g. in the list of the instruments played by John Lennon). But since the distinction between functional/non-functional properties is not precise in DBpedia, we manually annotated the 300 properties with respect to this classification, to allow RADAR to apply the correct reconciliation strategy, and to produce a reliable resource. In total, we reconciled 3.2 million functional property values, with an average accuracy computed from the precision and recall reported in Table 3. This resource is available here: http://qakis.org/resources.htm.

OPEN IN VIEWER

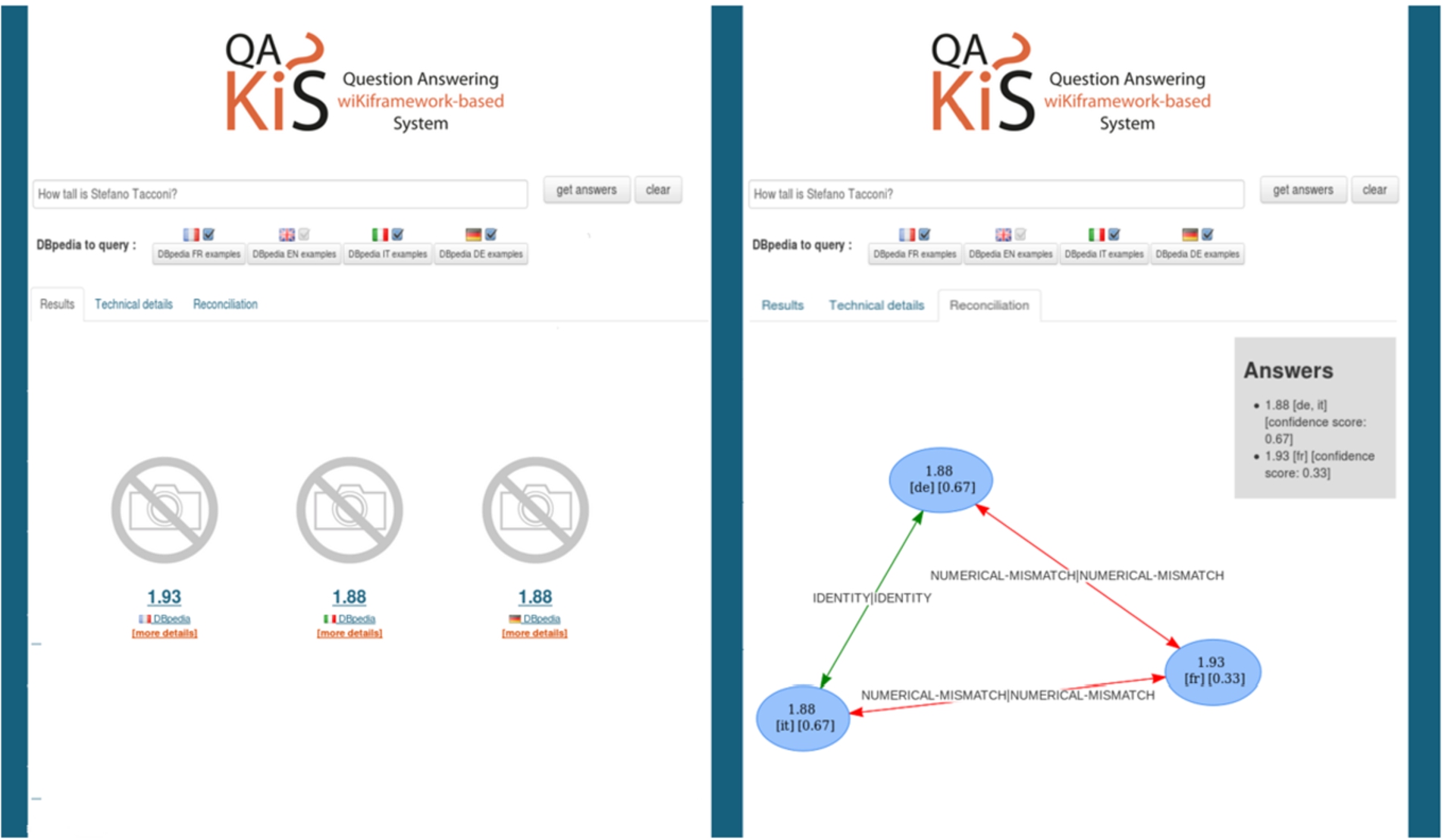

Fig. 3.

QAKiS + RADAR demo (functional properties).

Moreover, we carried out a merge and a light-weight reconciliation of DBpedia classes applying the strategy called “DBpedia CL” in [24] where “CL” stands for cross-language (e.g., Michael Jackson is classified as a Person in the Italian and German DBpedia chapters, an Artist in the English DBpedia and a MusicalArtist in the Spanish DBpedia. As Person, Artist and MusicalArtist lie on the same path from the root of the DBpedia ontology, all of them are kept and used to classify Michael Jackson.

To provide a quantitative evaluation of RADAR integration into QAKiS on a standard dataset of natural language questions, we consider the questions provided by the organizers of the QALD challenge (Question Answering over Linked Data challenge), now at its fifth edition, for the DBpedia track.14

We extract from this reference dataset of 359 questions, the questions that the current version of QAKiS is built to address (i.e. questions containing a NE related to the answer through one property of the ontology), corresponding to 26 questions in QALD-2 training set, 32 questions in QALD-2 test sets, 12 in QALD-4 test set, 18 in QALD-5 training set, and 11 in QALD-5 test set. The discarded questions require either some form of aggregation (e.g., counting or ordering), information from datasets different than DBpedia, involve n-ary relations, or are boolean questions. We consider these 99 questions as the QALD reference dataset for our experiments.

We run the questions contained into our QALD reference dataset on the English, German, French and Italian chapters of DBpedia. Since the questions of QALD were created to query the English chapter of DBpedia only, it turned out that only in 43/99 cases at least two endpoints provide an answer (in all the other cases the answer is provided by the English chapter only, not useful for our purposes). For instance, given the question Who developed Skype? the English DBpedia provides Skype Limited as the answer, while the French one outputs Microsoft and Microsoft Skype Division. Or given the question How many employees does IBM have?, the English and the German DBpedia chapters provide 426751 as answer, while the French DBpedia 433362. Table 5 lists these 43 QALD questions, specifying which DBpedia chapters (among the English, German, French and Italian ones) contain at least one value for the queried relation. This list of question is the reference question set for our evaluation.

We evaluated the ability of RADAR 2.0 to correctly classify the relations among the information items provided by the different language-specific SPARQL endpoints as answer to the same query, w.r.t. a manually annotated goldstandard, built following the methodology in Cabrio et al. [12]. More specifically, we evaluate RADAR with two sets of experiments: in the first case, we start from the answers provided by the different DBpedia endpoints to the 43 QALD questions, and we run RADAR on it. In the second case, we add QAKiS in the loop, meaning that the data we use as input for the argumentation module are directly produced by the system. In this second case, the input are the 43 natural language questions.

Table 4 reports on the results we obtained for the two experiments. As already noticed before, the QALD dataset was created to query the English chapter of DBpedia only, and therefore this small dataset does not capture the variability of possibly inconsistent answers that can be found among DBpedia language-specific chapters. Only three categories of relations are present in this data – surface forms, geo-specification, and inclusion – and for this reason RADAR has outstanding performances on it when applied on the correct mapping between NL questions and the SPARQL queries. When QAKiS is added into the loop, its mistakes in interpreting the NL question and translating it into the correct SPARQL query are propagated in RADAR (that receives in those cases a wrong input), decreasing the total performances.

Notice that in some cases the question interpretation can be tricky, and can somehow bias the evaluation of the answers provided by the system. For instance, for the question Which pope succeeded John Paul II?, the English DBpedia provides Benedict XVI as the answer, while the Italian DBpedia provides also other names of people that were successors of John Paul II in other roles, as for instance in being the Archbishop of Krakow. But since in the goldstandard this question is interpreted as being the successor of John Paul II in the role of Pope, only the entity Benedict XVI is accepted as correct answer.

When integrated into QAKiS, RADAR 2.0 outperforms the results obtained by a preliminary version of the argumentation module, i.e. RADAR 1.0 [10], for the positive relation classification (the results of the argumentation module only cannot be strictly compared with the results obtained by RADAR 2.0, since i) in its previous version the relation categories are different and less fine-grained, and ii) in [10] only questions from QALD-2 were used in the evaluation), showing an increased precision and robustness of our framework. Note that this evaluation is not meant to show that QAKiS performance is improved by RADAR. Actually, RADAR does not affect the capacity of QAKiS to answer questions: RADAR is used to disambiguate among multiple answers retrieved by QAKiS in order to provide to the user the most reliable (and hopefully correct) one.

One of the reasons why RADAR is implemented as a framework that can be integrated on top of an existing QA system architecture (and is therefore system-independent), is because we would like it to be tested and exploited by potentially all QA systems querying more than one DBpedia chapter (up to our knowledge QAKiS is the only one at the moment, but given the potential increase in the coverage of a QA system querying multiple DBpedia language-specific chapters [7], we expect other systems to take advantage of these interconnected resources soon).
