Continuous top-k approximated join of streaming and evolving distributed data

1.1. Motivation

Many modern applications require to combine highly dynamic data streams with distributed data, which evolves, to continuously answer queries in a reactive way.1

In social content marketing, advertisement agencies may want to continuously detect emerging influential Social Network users in order to ask them to endorse their commercials. To do so they monitor users’ mentions and number of followers in micro-posts across Social Networks. They need to select those users who are not already known to be the influencer, who are highly mentioned and whose number of followers grows fast. It is worth to note that (1) users’ mentions continuously arrive, (2) the number of followers may change in seconds, and (3) agencies have around a minute to detect them. Otherwise, the competitors may reach the emerging influencer sooner than them or the attention to the emerging influencer may drop. It is possible to formulate this information need as a continuous query of the form:

Return every minute the users who are not influencer, are mentioned the most and whose number of followers is growing the fastest.

In order to make the problem concrete, let us discuss how to implement this example using Twitter APIs. If we accessed Twitter firehose that streams all the tweets, we could obtain around 200,000 account mentions per minute. To obtain the number of followers of each mentioned account, we must use the REST service,2

Let us present one more example, this time it is about manufacturing companies that use automation and instrumented their production lines with IoT sensor networks. In this setting, a production line consists of various machineries using different instruments. The companies track the usage of each instrument for maintenance purposes, and store the information in their Enterprise Resource Planning (ERP) systems that are not in the production sites. The IoT sensor networks in those companies continuously track the environmental conditions such as temperature, pressure, vibration, etc, and stream out them using IoT protocols such as MQTT.3

As in the Social Media scenario, answering this query in a reactive manner is challenging since it joins thousands of observations per seconds on the MQTT stream with the information stored in the ERP. If, as it is often the case, the network between the production line and the ERP has a latency of 100 ms, it may be impossible to perform the entire join.

However, one may wonder if it is really necessary to perform the entire join to answer those two information needs introduced above. They clearly focus only on the top results. Indeed, the state of the art includes two families of partial solutions to this problem. On the one hand, the database community studied continuous top-k queries over the data streams [40] that can handle massive data streams focusing only on the top-k answer but ignoring the join with evolving distributed datasets. On the other hand, the Semantic Web community studied approximate continuous joining of RDF streams and dynamic linked data sets [10] which is reactive by design but it is not optimized for top-k queries.

More specifically, the Semantic Web community showed that RDF Stream Processing (RSP) engines provide an adequate framework for continuous joining of the stream and the distributed data [11]. In this setting, distributed data is usually stored remotely or on the Web and accessible by using SPARQL query over SPARQL endpoints [8]. In order to access remote services, the query has to use federated SPAQRL syntax [35] which is supported by different query languages (e.g. C-SPARQL [3], SPARQL_stream [7], RSP-QL [13], and CQELS-QL [27]). For instance, Listing 1 shows a simplified version of the first example above formulated as a continuous RSP-QL top-k query using the syntax proposed in [12].

OPEN IN VIEWER

Listing 1.

Sketch of the query studied in the problem.

At each query evaluation, the WHERE clause at lines 5–8 is matched against the data in a window :W open on the data stream :S, on which the mentions of each user flows, and in the remote SPARQL service :BKG, which contains the number of followers for each user. Function F is a user-specified scoring function that computes the score of each user as the normalized sum of her mentions (?mentionCount) and her number of followers (?followerCount). The users are ordered by their scores, and the number of results is limited to 1. As a result this query returns the top-1 result for each evaluation.

OPEN IN VIEWER

Fig. 1.

The example that shows the objects in top-k result after join clause evaluation of windows W 0 , and W 1 .

Figures 1(a), and 1(b) show a portion of a stream between time 0 and 13. The X axis shows the arriving time on the stream of the number of mentions of a certain user to the system, while the Y axis shows the score of the user computed after evaluating the join clause with the number of followers fetched from the distributed data. For the sake of clarity, we label each point in the Cartesian space with the ID of the user it refers to. This stream is observed through a window that has a length equal to 9 minutes and slides every 3 minutes. In particular, Fig. 1(a) shows the content of window W 0 that opens at 1 (excluded) and closes at 10. Figure 1(b) shows the next window W 1 after the sliding of 3 minutes. Each circle indicates the score of a user after the evaluation of the JOIN clause, but before the evaluation of the ORDER and LIMIT clauses.

During window W 0 users A, B, C, D, E, and F come to the system (Fig. 1(a)). When W 0 expired, users A and B go out of the result. Before the end of the window W 1 , user A arrives again and the new user G appears (Fig. 1(b)). Evaluating the query in Listing 1 gives us user E as the top-1 result for window W 0 and user G as top-1 result for window W 1 .

However, changes in the number of followers of a user in the distributed data can alter the score of a user between subsequent query evaluations, and this can affect the result. For example, in Fig. 1(c), between the evaluation time of windows W 0 , and W 1 , the score of user E changes from 7 to 10 (due to an increment in the number of followers in the distributed data). Considering the new score of user E in the evaluation of window W 1 , the top-1 result is no longer user G, but it is user E.

As we mention above, while RSP-QL allows encoding top-k queries, state-of-the-art RSP engines are not optimized for such a type of queries and they would recompute the result from scratch as explained in [32,34]. This put them at risk of losing reactiveness. In order to handle this situation, in this paper we investigate the following research question: How can we continuously, if needed approximately, optimize a top-k join of a stream and a distributed dataset which may change between consecutive evaluations, while guaranteeing the reactiveness of the system?

In continuous top-k query answering, it is well known that recomputing the top-k result from scratch at every evaluation is a major performance bottleneck. In 2006, Mouratidis et al. [32] were the first to solve this problem proposing an incremental query evaluation approach that uses a data structure known as k-skyband and an algorithm to precompute the future results in order to reduce the probability of recomputing the top-k results from scratch. Few years after, in 2011, Di Yang et al. [40] completely removed this performance bottleneck designing MinTopk algorithm which answers a top-k query without any recomputation of top-k results from scratch. The approach memorizes only the minimal subset of the streaming data which is necessary and efficient for query evaluation and discards the rest. The authors also showed the optimality of the proposed algorithm in both CPU and memory utilization for continuous top-k monitoring. Unfortunately, MinTopk algorithm cannot be applied to queries that join streaming data with distributed data, especially when the distributed data evolves.

A solution to this problem can be found in the RSP state-of-the-art, where a few years ago S. Dehghanzadeh et al. [10] noticed that high latency and limitation of the access rate can put the RSP engine at risk of losing reactiveness and addressed this problem, using a local replica of the distributed dataset (shortly named ACQUA in the remainder of this paper). The authors defined the notion of refresh budget to limit the number of remote accesses to the distributed dataset for updating the local replica, and guaranteeing by construction the reactiveness of the system. However, if the refresh budget is not enough to refresh all the data in the replica, some of the data items become stale, and the query result can contain errors. The authors showed that expertly designed maintenance policies can update the local replica in order to reduce the number of errors and approximate the correct result. Unfortunately, also this approach is not optimized for top-k queries.

In this paper, we extend the state-of-the-art approach for top-k query evaluation [40], focusing on 1:1 joins,4

As a first solution, we assume that all changes are pushed from the distributed data to the engine that continuously evaluates the query. We extend the data structure proposed in [40] and introduce Super-MTK + N list that keeps the necessary and sufficient data for top-k query evaluation. The proposed data structure can handle changes in distributed data while minimizing the memory usage. However, MinTopk algorithm [40] assumed distinctive arrival of data, so to handle the changes pushed from the distributed dataset, we have to modify it to support indistinct arrival of data. Indeed, in the example, user E is already in the window when her number of followers changes and so does the score. The proposed Topk + N algorithm considers the changed data items as new arrivals with new scores. The proposed Super-MTK+N list keeps the data items that have a higher probability to appear in the result of query evaluation. Keeping N additional items in the top-k result of each evaluation in the Super-MTK+N list lets Topk+N algorithm to handle the changes in the distributed dataset, and provide a relevant answer.

This first solution works in a data center, where the entire infrastructure is under control, network latency is low and bandwidth is large, but it may not work on the Web, which is decentralized and where we can frequently experience high network latency, low bandwidth and even rate-limited access. In this setting, the engine, which continuously evaluates the query, has to pull the changes form the distributed data. Therefore, considering the architectural approach presented in [10] as a guideline, we propose a second solution, named AcquaTop framework, that keeps a local replica of the distributed data and updates a part of it according to a given refresh policy before every evaluation. Notably, when we have got enough refresh budget to update all the stale elements in the replica the proposed approach is exact, but when we have not, we might have some errors in the result.

In order to approximate as much as possible the correct answer in this extreme situation, we propose two maintenance policies to update the replica using AcquaTop algorithm. They are specifically tailored to top-k approximated join. The Top Selection Maintenance (AT-TSM) policy maximizes the relevance, i.e., minimizes the difference between the order of the answers in the approximate top-k result and the correct order. The Border Selection Maintenance (AT-BSM) policy, instead, maximizes the accuracy of the top-k result, i.e., it tries to get all the top-k answers in the result, but it may fail to order results correctly.

The remainder of the paper is organized as follows. In Section 2, we formalize the problem and introduce the relevant background information. In Section 3, we introduce state-of-the-art works. Section 4, and 5 present our proposed solutions for top-k query evaluation over stream and dynamic distributed dataset. Section 6 discusses the experimental setting and the research hypotheses, reports on the evaluation of the proposed approach, and highlights the practical insights we gathered. In Section 7, we review the related work regarding our contributions and, finally, Section 8 concludes and presents future works.

2.1. Preliminaries

In this section, we present two preliminary contents: RSP-QL semantics, which is important for precisely formalizing the problem in Section 2.2, and the metrics, which we use to evaluate the quality of the answers in the result.

2.1.1. RSP-QL semantic

RDF Stream Processing (RSP) [14] extends the RDF data model and query model considering the temporal dimension of data and the evolution of data over time. In the following, we introduce the definitions of RSP-QL [13].

An RSP-QL query is defined by a quadruple ⟨ ET , SDS , SE , QF ⟩ , where ET is a sequence of evaluation time instants, SDS is an RSP-QL dataset, SE is an RSP-QL algebraic expression, and QF is a query form.

In order to define SDS, we need first to introduce the concepts of time, RDF stream and window over an RDF stream that creates RDF graphs by extracting relevant portions of the stream.

Definition 2.1.

Time. The time T is an infinite, discrete, ordered sequence of time instants ( t 1 , t 2 , … ) , where t i ∈ N .

Definition 2.2.

Evaluation Time. The Evaluation Time ET ⊆ T is a sequence of time instants at which the evaluation occurs. It is not practical to give ET explicitly, so normally ET is derived from an evaluation policy (see [13]).

Definition 2.3.

RDF Statement. An RDF statement is a triple ( s , p , o ) ∈ ( I ∪ B ) × ( I ) × ( I ∪ B ∪ L ) , where I is the set of IRIs, B is the set of blank nodes and L is the set of literals [26].

Definition 2.4.

RDF Stream. An RDF stream S is a potentially unbounded sequence of timestamped data items ( d i , t i ) : S = ( d 1 , t 1 ) , ( d 2 , t 2 ) , … , ( d n , t n ) , … , where d i is an RDF statement, t i ∈ T the associated time instant, and for each data item d i , it holds t i ⩽ t i + 1 (i.e., the time instants are non-decreasing).

Beside RDF streams, it is possible to have static or quasi-static data, which can be stored in RDF repositories or embedded in Web pages. For that data, the time dimension of SDS can be defined through the notions of time-varying and instantaneous graphs. The time-varying graph G ‾ is a function that maps time instants to RDF graphs and instantaneous graph G ‾ ( t ) is the value of the graph at a fixed time instant t.

Definition 2.5.

Time-based Window. A time-based window W ( S ) is a set of RDF statements extracted from a stream S, and defined through opening and closing time instance (i.e., o, and c time instance) where W ( S ) = { d | ( d , t ) ∈ S , t ∈ ( o , c ] } .

Definition 2.6.

Time-based Sliding Window. A time-based sliding window operator W [13], takes an RDF stream S as input and produces a time-varying graph G W . W is defined through three parameters: ω – its width –, β – its slide –, and t 0 – the time stamp on which W starts to operate.

Operator W generates a sequence of time-based windows. Given two consecutive windows W i , W j defined in ( o i , c i ] and ( o j , c j ] , respectively, it holds: o i = t 0 + i ∗ ω , c i − o i = c j − o j = ω , and o j − o i = β . The sliding window could be count- or time-based [1].

Active windows are defined as all the windows that contain the current time in their duration. Current window is the window that closes in the current evaluation time. As stated in the beginning of this section, normally, evaluation times are derived from an evaluation policy. The evaluation times can be equal to the arrival times of objects, or can be equal to the closing time of each window. In this paper, we consider all the closing time of windows as evaluation times. Given current window W cur , and next window W nxt as two consecutive windows defined in ( o cur , c cur ] and ( o nxt , c nxt ] , respectively, we define current evaluation time as the closing time of current window, c cur , and next evaluation time as the closing time of next window, c nxt .

An RSP-QL dataset SDS is a set composed by one default time-varying graph G ¯ 0 , a set of n time-varying named graphs { ( u i , G ¯ i ) } , where u i ∈ I is the name of the element; and a set of m named time-varying graphs obtained by the application of time-based sliding windows over o ⩽ m streams, ( u j , W j ( S k ) ) } , where j ∈ [ 1 , m ] , and k ∈ [ 1 , o ] . It is possible to determine a set of instantaneous graphs and fixed windows for a fixed evaluation time instant, i.e. RDF graphs, and to use them as input data for the algebraic expression evaluation.

An algebraic expression SE is a streaming graph pattern which is the extension of a graph pattern expression defined by SPARQL. It is composed by operators mostly inspired by relational algebra, such as joins, unions and selections. In addition to the ones defined in SPARQL, RSP-QL adds a set of operators to transform the query result in an output stream. Considering the recursive definition of the graph pattern, streaming graph pattern expressions are recursively defined as follows [13]:

a basic graph pattern (i.e. set of triple patterns ( s , p , o ) ∈ ( I ∪ B ∪ V ) × ( I ∪ V ) × ( I ∪ B ∪ L ∪ V ) ) is a graph pattern;

let P be a graph pattern and F a built-in condition, P FILTER F is a graph pattern;

let P 1 and P 2 be two graph patterns, P 1 UNION P 2 , P 1 JOIN P 2 and P 1 OPT P 2 are graph patterns;

let P be a graph pattern and u ∈ ( I ∪ V ) , the expressions SERVICE u P , GRAPH u P and WINDOW u P are graph patterns.

RSP-QL query form QF is defined as in SPARQL (see Section 16 of SPARQL 1.1 W3C Recommendation5

⁵

https://www.w3.org/TR/sparql11-query/#QueryForms

). The query form uses the solution mappings to form result sets or RDF graphs. There exist four query form: (i) SELECT which returns all or subset of the variables bound in a query pattern match, (ii) CONSTRUCT which returns an RDF graph, (iii) ASK which return a boolean that shows query pattern matches or not, and (iv) DESCRIBE which returns an RDF graph that describes the resources found.

As in SPARQL, the instantaneous evaluation of streaming graph pattern expressions produces sets of solution mappings. A solution mapping is a function that maps variables to RDF terms, i.e., μ : V → ( I ∪ B ∪ L ) . dom ( μ ) denotes the subset of V where μ is defined. μ ( x ) indicates the RDF term resulting by applying the solution mapping to variable x [33].

Two solution mappings μ 1 and μ 2 are compatible ( μ 1 ∼ μ 2 ) if the two mappings assign the same value to each variable in dom ( μ 1 ) ∩ dom ( μ 2 ) (i.e., ∀ x ∈ dom ( μ 1 ) ∩ dom ( μ 2 ) , μ 1 ( x ) = μ 2 ( x ) ).

Let now Ω 1 and Ω 2 be two sets of solution mappings, the join is defined as: Ω 1 ⋈ Ω 2 = { μ 1 ∪ μ 2 | μ 1 ∈ Ω 1 , μ 2 ∈ Ω 2 , μ 1 ∼ μ 2 } Definition 2.7.

Top-k Continuous Query. A top-k Continuous RSP-QL query is a special type of RSP-QL query that for each evaluation time returns at most k results. Those k results are selected ordering the results of the algebraic expression SE according to a user-specified ranking function F ( v 1 , … , v m ) , where v 1 , … , v m are variables in SE. We name v 1 , … , v m scoring variables. As normally done in top-k query literature, F is monotonic.

2.1.2. Metrics

Measuring the accuracy of top elements in the result is crucial for evaluating the quality of the approximation for the type of queries that we consider in this paper. Different criteria exist to measure this quality such as the precision at k, the accuracy at k, the normalized discounted cumulative gain ( nDCG ), or the mean reciprocal rank (MRR) [5].

In the following, we introduce two metrics that we use in our experiments in order to compare the possibly approximated result of a query at time i, named Ans ( Q i ) , with certainly correct answers obtained from setting up an Oracle, named Ans ( Oracle i ) .

Discounted cumulative gain Discounted Cumulative Gain ( DCG ) is widely used in information retrieval to measure relevancy (i.e., the quality of ranking).

There are two obvious facts in the evaluation of ranked result of a query: (i) The highly relevant items are more valuable comparing to others; and (ii) The higher the rank of a relevant item, the more valuable it is for the user [22]. The gain of each result set is computed by summing up the gains of the items in the result set, which is equal to their relevancies. In order to consider the ranked position of each item in the list, DCG applies a discount factor, which reduces the gain of items with lower rank, as they are less valuable for user. DCG at particular position k is defined as: DCG @ k = ∑ i = 1 k 2 rel i − 1 log 2 ( i + 1 ) Where rel i is the graded relevance of the result at position i.

In order to compare different result sets for various queries and positions, DCG must be normalized across queries to do so. First, we produce the maximum possible DCG through position k, which is called Ideal DCG ( IDCG ). This is done by sorting all relevant items by their relative relevance. Then, the normalized discounted cumulative gain ( nDCG ), is computed as: nDCG @ k = DCG @ k IDCG @ k

Precision If we focus on having all the correct answers in the result, the key feature of the top-k result is their correctness, while their ranks are less critical. In this case, we can use precision as metric. Precision in information retrieval computes the ratio between the correct instances in the result and all the retrieved instances. Considering the definition of precision as precision = t p t p + f p , where t p is the number of true positive values, and f p is the number of false positive ones, the precision at position k is defined as: precision @ k = # positive instances in the result k where the true positive value is equal to the number of positive instances in the top-k result, and the summation of true positive and false positive values are equal to k.

OPEN IN VIEWER

Fig. 2.

Algebraic expression.

To understand the difference between nDCG @ k and precision @ k , let us consider the following example. Assuming that we have got the following list of items as a correct answer of a query: { A , B , C , D , E , F } with relevancy respectively equal to { 6 , 5 , 4 , 3 , 2 , 1 } . Considering two top-3 answers: { A , D , F } , and { F , C , B } as case 1, and 2. In the first case, as item A with the highest relevancy is correctly ranked in the result, we expect a high value of nDCG @ 3 .

Considering { A , B , C } as the correct result of the first case, the IDCG is computed as follows: IDCG = 63 1 + 31 1.585 + 15 2 = 90.06 and nDCG @ 3 is computed as: nDCG @ 3 = DCG IDCG = 63 + 4.42 + 0.5 90.06 = 0.754

The precision @ k is computed as: precision@ 3 = t p k = 1 3 = 0.333

So, for the first case, nDCG @ 3 is equal to 0.754 while precision @ 3 is equal to 0.33, which shows that the result is more relevant and less accurate. Data item A, which is the most relevant item, is ranked in the correct place and the other answers are not the correct ones.

On the contrary, the second case contains more correct answers, so we expect a high value of precision @ 3 . For the second case, nDCG @ 3 is equal to 0.288 while precision @ 3 is equal to 0.667, which indicates that the result is more accurate and less relevant. There are 2 correct answers in the result, but comparing to the case 1, they are less relevant.

In this paper, we consider top-k continuous RSP-QL queries over a data stream S and a distributed dataset  D . We assume that: (i) there is a 1:1 join relationship between the data items in the data stream and those in the distributed dataset; (ii) the window, opened over the stream S , slides (i.e., ω > β ); (iii) queries are evaluated when windows close and (iv) the distributed dataset can evolve between subsequent evaluations.

Moreover, the algebraic expression SE of this class of RSP-QL queries is defined as in Fig. 2(a), where:

For the sake of clarity, Fig. 2(b) illustrates the algebraic expression of the query in Listing 1. ? user : hasMentions   ? mentionCount , and ? user : hasFollowers   ? followerCount are the graph patterns respectively in the WINDOW and in the SERVICE clauses. ? mentionCount , and ? followerCount are the scoring variable, and ? user is the join variable. The scoring function F gets ? mentionCount , and ? followerCount as inputs and generates the score for each user. Once each solution mapping of the join is extended with a score, the solution mappings are ordered by their score and the top-k ones are reported as result.

In the remainder of the paper, we focus our attention on the solution mappings Ω E of the EXTEND graph pattern where for each solution mapping μ E ∈ Ω E we have: dom ( μ E ) = dom ( μ S ) ∪ dom ( μ D ) ∪ { ? score } . Let us call Object O(id, score) one of such results, where the id = μ E ( x J ) , and the score O . score is a real number computed by the scoring function F ( μ E ( x S ) , μ E ( x D ) ) . We denote O . score S , and O . score D the values coming from the streaming and the distributed data, respectively, i.e., O . score S = μ E ( x S ) , and O . score D = μ E ( x D ) .

Let us, now, formalize the notion of changes in the distributed dataset that may occur between consecutive evaluations of the top-k query. Assuming t ′ and t ″ as two consecutive evaluation times (i.e. t ′ , t ″ ∈ ET , and ∄ t ‴ ∈ ET : t ′ < t ‴ < t ″ ) the instantaneous graph G ‾ d ( t ′ ) in the distributed data differs from the instantaneous graphs G ‾ d ( t ″ ) .

The changes between G ‾ d ( t ′ ) , and G ‾ d ( t ″ ) can affect the result of the top-k query, i.e., in the evaluation of the query at time t ″ , we cannot count on the result obtained in previous evaluation, as O . score t ′ (the score of object O at the evaluation time t ′ ) may differ from O . score t ″ (the one at time t ″ ) and this can give us an incorrect answer.

For instance, in the example of Fig. 1(c), the score of object E changes from 7 to 10 between windows W 0 , and W 1 . So, the top-1 result of window W 1 is object E instead of object G.

If, for every query evaluation, the join is recomputed and the score of objects is generated from scratch, we have the correct answer for all iterations. We denote the correct answer for iteration i as Ans ( Oracle i ) .

For each iteration i of the query evaluation, it is possible to compute the nDCG @ k and precision @ k comparing the possibly erroneous query answer Ans ( Q i ) , and the correct answer Ans ( Oracle i ) . Let us denote the metric with M, i.e., M ∈ { nDCG @ k , precision @ K } , and define the error as follow: error = 1 − M So, our goal in this paper is to minimize such error in order to provide more relevant and accurate result while evaluating top-k queries over streaming and distributed datasets.

3.1. Top-k query monitoring over the data stream

Starting from the mid 2000s, various works addressed the problem of top-k approximate join of data stream [32,34,40] by introducing novel techniques for incremental query evaluation.

Yang et al. [40] address the problem of recomputation bottleneck and propose an optimal solution regarding CPU and memory complexity. The Authors introduce Minimal Top-K candidate set (MTK),7

Going into the details of [40], let us consider a window of size w that slides every β. When an object arrives in the current window, it will also participate in all ⌊ w / β ⌋ future windows. Therefore, a subset of top-k result in the current window, which also participates in all future windows, has the potential to contribute to the top-k result in future windows. The objects in predicted top-k result constitute the MTK set.

In order to reach optimal CPU and memory complexity, they propose a single integrated data structure named super-top-k list, for representing all predicted top-k results of future windows. Objects are sorted based on their score in the super-top-k list, and each object has starting and ending window marks which show a set of windows in which the object participate in the top-k result. To efficiently handle new arrival of objects, they define a lower bound pointer ( lbp ) for each window, which points to the object with the smallest score in the top-k list of the window. LBP set contains pointers for all the active windows.

OPEN IN VIEWER

Fig. 3.

Independent predicted top-k result vs. integrated list of our example in Section 1 at evaluation of the window w 1 before and after processing changes.

Considering the example of Fig. 1, where the window length is equal to 9 and each window slides 3 time units, window W 2 opens at 7 (excluded) and closes at 16, and window W 3 opens at 10 (excluded) and closes at 19. Assuming that we want to report the top-3 object for each window, the content of super-top-k list at the evaluation of window W 1 is shown in Fig. 3. During the evaluation of window W 1 , we have to consider window W 2 , and W 3 as future windows.The left side of the picture shows the top-k result for each window. For instance, objects G, E, and C are in the top-3 result of window W 1 and objects G, E, and F are in the top-3 predicted result of window W 2 which is started at time 7. The right side shows the super-top-k list which is a compact integrated list of all top-k results. Objects are sorted based on their score. W s , and W e are window starting and ending marks, respectively. The lbp s of W 1 , and W 2 are available, as those windows have top 3 objects in their predicted results.

The MinTopk algorithm consists of two maintenance steps: handling the expiration of the objects at the end of each window, and handling the insertion of new arrival objects.

For handling expiration, the top-k result of the expired window must be removed from the super-top-k list. The first k objects in the list with the highest score are the top-k result of the expired window. So, logically purging the first top-k objects of super-top-k list is sufficient for handling expiration. It is implemented by increasing the starting window mark by 1, which means that the object will not be in the top-k list of the expired window anymore. If the starting window mark becomes larger than the end window mark, the object will be removed from the list and the LBP set will be updated if any lbp points to the removed object.

For insertion of a new object, first the algorithm checks if the new object has the potential to become part of the current or the future top-k results. If all the predicted top-k result lists have k elements, and the score of the new object is smaller than any object in the super-top-k list, the new object will be discarded. If those lists have not reached the size of k yet, or if the score of the new object is larger than any object in the super-top-k list, the new object could be inserted in the super-top-k list based on its score. The starting and ending window marks will also be calculated for the new object. In the next step, for each window, in which the new object is inserted, the object with the lowest score, which is pointed by lbp , will be removed from the predicted top-k result. Like for the purging process, we increase the starting window mark by 1 and if it becomes larger than ending window mark, we physically remove the object from super-top-k list and the LBP set will be updated if any lbp points to the removed object. In order to update lbp pointer, the algorithm simply moves it one position up in the super-top-k list.

The CPU complexity for MinTopK algorithm is O ( N new ∗ ( log ( MTK.size ) ) in the general case, with O ( N new ) the number of new objects that come in each window, and MTK.size is the size of super-top-k list. The memory complexity in the general case is equal to O ( MTK.size ) . In the average case, the size of super-top-k list is equal to O ( 2 k ) . So, in the average case the CPU complexity is O ( N new ∗ ( log ( k ) ) and the memory complexity is O ( k ) . The authors also prove the optimality of the MinTopK algorithms. The experimental studies [40] on real streaming data confirm the out-performance of MinTopK algorithms over the previous solutions.

Although [40] present an optimal solution for top-k query answering over the data stream, it did not consider join with the distributed dataset, aggregated score, distinct arrival of items, and changes in scoring values. Therefore, MinTopk algorithm does not work properly in such cases.

As mentioned in Section 1, RSP engines can join data from streams with distributed data using federated query evaluation, but the time to access and fetch the distributed data can be so high to put the RSP engine at risk of violating the reactiveness requirement.

The state of the art addressed this problem and offered solutions for RSP engines. S. Dehghanzadeh et al. [10] started investigating Approximate Continuous Query Answering over streams and dynamic Linked datasets (ACQUA). Instead of accessing the whole background data at each evaluation, ACQUA uses a local replica of the background data, and maintenance policies that refresh only a minimum subset of the local replica. Notably [10] considers the class of queries with 1:1 join relationship between the stream and the distributed dataset, as a relevant number of queries in the stream processing context is in this class.

A maximum number of fetches (namely a refresh budget denoted with γ) at each evaluation guarantees by construction the reactiveness of the RSP engine. If γ fetches are enough to refresh all stale data of the replica, the RSP engine gives the correct answer, otherwise some data items may become stale and it may give an approximated answer.

The maintenance process introduced in [10] is depicted in Fig. 4, and it is composed of three elements: a proposer, a ranker and a maintainer. The Proposer selects a set of candidates8

OPEN IN VIEWER

Fig. 4.

The framework proposed in [10].

ACQUA introduces several maintenance policies for updating the local replica. The best performance is obtained combining the proposer (WSJ) and the ranker (WBM). WSJ builds the candidate set by selecting mappings from the replica which are compatible with those in the current window. WBM identifies the mappings that are going to be used in the upcoming evaluations to save future refresh. WBM uses two parameters to order the candidate set by assigning scores defined as: score i ( t ) = min ( L i ( t ) , V i ( t ) ) , where t is the evaluation time, L i ( t ) is the remaining life time, i.e. the number of future evaluations that involve the mapping, and V i ( t ) is the normalized renewed best before time, i.e., the renewed best before time is normalized with the sliding window parameters.

Given a sliding window W ( ω , β ) , L i and V i are defined as: L i ( t ) = ⌈ t i + ω − t β ⌉ , V i ( t ) = ⌈ τ i + I i ( t ) − t β ⌉ , where t i is the time instant associated to the mapping μ i , τ i is the current best before time, and I i ( t ) is the change interval that captures the remaining time before the next expiration of μ i . It is worth noting that I i is potentially unknown and could require an estimator.

OPEN IN VIEWER

Fig. 5.

The example that shows how WSJ-WBM policy works.

Figure 5 shows an example that illustrates how WSJ-WBM policy works. Figure 5(a) shows the mappings that enter the window clause between time 0 and 12. Each window has a length of 5 units of time and slides every 2 units of time. For instance, window W 0 opens at 1 (excluded) and closes at 6. Each mapping is marked with a point and for the sake of clarity, we label each point with I S where I is the ID of the subject of mapping and S indicates that the mappings appear on the data stream. So, for example during window W 0 mappings A S , B S , C S , D S , and E S appear on the data stream.

Figure 5(b) shows the mappings in the local replica. The mappings in the replica are indicated by R. The replica contains mappings A R , B R , … , H R . The X axis shows the value of best before time for each mapping. It is worth to note that points with the same ID in Figs 5(a), and 5(b) indicates compatible mappings.

At the end of window W 0 , at time 5, WSJ computes the candidate set by selecting compatible mappings with the ones in the window. The candidate set C contains mappings A R , B R , C R , D R , and E R . F R , G R , and H R are excluded from C because they are not compatible. In the next step, WSJ-WBM finds the possible stale mappings by comparing their best before time values with the current time. The possibly stale mappings are PS = { A R , B R , E R } . The best before time of other mappings are greater than the current time, so they do not need to be refreshed.

The remaining life time shows the number of successive evaluations for each mapping. The remaining life time of mapping A R , B R , E R are 1, 1 and 3, respectively. Figure 5(b) shows the renewed best before time of the elements in PS by the dashed light gray arrows. The renewed best before time ( τ i + I i ( t ) − t ) of mappings A R , B R , E R are respectively 11, 10, and 12. Therefore, considering t = 5 , and β = 2 , the normalized renewed best before time ( V i ( t ) ) of mappings A R , B R , E R at time 5 are respectively 3, 3 and 4. Finally, the score will be computed for each mapping at time 5: score A ( 5 ) = 1 , score B ( 5 ) = 1 , and score E ( 5 ) = 3 . Given the refresh budget γ equal to 1, the elected mapping will be E R , which has the highest score.

Other rankers proposed in [10] are (i) LRU that, inspired by the Least-Recently Used cache replacement algorithm, orders the candidate set by the time of the last refresh of the mappings (the less recently a mapping has been refreshed in a query, the higher is its rank), and (ii) RND that randomly ranks the mappings in the candidate set.

As already stated in the introduction, ACQUA is not optimal for top-k queries. Intuitively, WSJ-WBM policy may update mappings that do not contribute to the top-k result and can sub-optimally utilize the available refresh budget. In the next section, we elaborate on an extension that, instead, focuses on the top-k results.

4.1. MinTopk+

As mentioned in Section 3.1, MinTopk [40] offers an optimal strategy to monitor top-k query evaluation over streaming data. In this section, we report on how to extend MinTopk to handle changes in the distributed dataset.

Let us assume that the distributed dataset notifies changes to the engine that has to answer the query. First of all, it is important to note that MinTopk assumes distinct arrivals, so, it cannot be applied if the changed object has been already processed in the current window. The first contribution of this paper is, therefore, an extension of MinTopk algorithm to consider indistinct arrival of objects. We name this algorithm MinTopk + .

If the changed object exists in the super-top-k list, we removed the old object from the super-top-k list, and we add the object with the new score to the super-top-k list. If the changed object is not in the list of top-k predicted results, we have to consider it as a new arrival object and check if, with the new score, it could be inserted in the top-k list. This second case is not feasible in practice, as it requires to store the value of the scoring variable x S for all the streaming data that entered the current window, while the goal of MinTopk is to discard all streaming data that does not fit in the predicted top-k results of the active windows.

As a work around, we propose: (1) to keep the minimum value of the scoring variable x S that has been seen while processing the current window. Let us denote it as min . score S . (2) to generate an approximated score for the changed object using min . score S as the streaming score of the changed object. As the scoring variable x S of the changed object cannot be lower than min . score S , the generated new score is a lower bound for the real new score.

As we don’t need to keep the scoring variable of all arrival objects in the current window, MinTopk+ (as MinTopk) is not depended on the size of the data in the window, and a subset of data is enough for top-k approximated join. We further elaborate on this idea in Sections 4.4 and 5.3 where we, respectively, formalize how the min . score S is computed and where we study the memory and time complexity of a generalized version of this algorithm.

4.2. Updating minimal Top-K+N candidate list

Considering the changes in the distributed dataset, which affect the top-k result, in this section, we propose an approach that gives the correct answer in the current window in most of the cases and, in some cases, may give an approximated answer.

The authors in [40] proposed MTK set which is necessary and sufficient for evaluating continuous top-k query. We extend the MTK set by considering changes of the objects and keeping N additional objects, and introduce Minimal Top-K + N Candidate list (MTK + N list). MTK+N list keeps K+N ordered objects that are necessary to generate top-k result. The following analysis shows that MTK+N list is also sufficient for generating the correct result in the current window for most of the cases.

Assume that we have N changes per evaluation in the distributed dataset, and we keep K+N objects for each window in the predicted result. Each MTK+N list consists of two areas. Let us name them K-list and N-list. Therefore, each object can be placed in 3 different areas: K-list, N-list, and outside (i.e. outside the MTK+N list). For example, assuming k is equal to 2, and N is equal to 1, in Fig. 3, the MTK+N list of window W 1 contains objects G, and E in the k-list, and object C in the N-list.

It is worth to note that each object can be placed in different areas in different MTK+N lists. The position of the object can change between those areas due to changes to the values assumed by the scoring variables x D in the distributed dataset. Depending on the initial and the destination areas of each object, we may have exact or approximated result in each window. The following theorems analyze different scenarios for each window separately, and assuming that (i) the previous results are correct,9

Table 1 summarizes all the explained scenarios. Assuming that we have exact result up to current time, each cell shows the correctness of the top-k result as a function of the initial and destination areas of the changed object. The exact result is indicated by V, while the approximation in the result is showed by ≈. precision @ k and nDCG @ k shows the metrics used for comparing the real result with the correct one.

Theoretically, introducing another area, between N and the outside areas, can increase the correctness of the result and avoid approximation for the upcoming future windows. Considering the size of this new area equal to N, the result of the next window will also be correct for all scenarios. But, practically, the result of the experiments in Section 6 shows that keeping K+N objects in MTK+N list is often enough.

When a query expressed on a sliding window, the predicted top-k results of the current and future windows have partial overlaps. So we have objects which are repeated in the MTK+N lists of the current and future windows. In order to minimize the memory usage, a single integrated list for all active windows can be used instead of various MTK+N lists.

Therefore, we define the Super-MTK + N list that consists of several MTK+N lists of all active window (current and future). The objects in Super-MTK+N list are ordered based on their scores. In order to distinguish the top-k result of each window, for each object we define starting and ending window marks. The marks of each object show the period in which it is in the predicted top-k result.

As mentioned in the previous section, we extend the integrated data structure MTK list from [40] and introduce Super-MTK+N list to handle changes in the distributed dataset. In this section, we describe the Topk + N algorithm that evaluates top-k queries over streaming and evolving distributed data. Table 2 contains the description of symbols used in Algorithms 1, 2, 3, 4, and 5.

The evaluation of a continuous top-k query over a sliding window needs to handle the arrival of new objects in the stream and removal of old objects in the expired window. In addition to the state-of-the-art approach [40], in this problem setting we have changes in the distributed dataset. So, we have to also handle those changes during query processing. The proposed algorithm consists of three main steps: expiration handling, insertion handling, and change handling.

Algorithm 1 shows the pseudo-code of Topk+N algorithm which gets in input the data stream S, the distributed data BKG , the scoring function F, and the window W and generates the top-k result for each window. In the beginning, the evaluation time is initialized. For every new arrival object O i , in the first step, it checks if any new window has to be added to the active window list (Line 4). The algorithm keeps all the active windows in a list named W act . In the next step, it checks if the time of arrival is less than the next evaluation time (i.e., the ending time of the current window), and it updates the Super-MTK+N list if the condition is satisfied (Lines 5–7).

Otherwise, at the end of the current window, it checks for the received changes from the distributed dataset (Line 9). Function UpdateChangedObjects (Line 10) gets the set changedObjects and updates Super-MTK+N list based on changes. This function is the main contribution of the Topk+N Algorithm comparing to the MinTopk algorithm [40]. Getting the top-k result from Super-MTK+N list, the algorithm generates the query result (Line 11). Finally, it purges the expired window and goes to the next window processing (Lines 12–13).

OPEN IN VIEWER

Algorithm 1:

The pseudo-code of Topk+N algorithm

4.4.1. Expiration handling

When a window expires, we have to remove the corresponding top-k result from the Super-MTK+N list. We cannot simply remove the objects, as we have integrated view of the top-k results in Super-MTK+N list, and some of the top-k objects may be also in the top-k results of the future windows. We can implement removing of these object from the list by updating their window marks and increasing the starting window marks by 1 for all the objects in the top-k result of the expired window.

Function PurgeExpiredWindow (Line 1) in Algorithm 2 shows the pseudo-code of expiration handling. It gets the first top-k objects from Super-MTK+N list, whose starting window mark is equal to the expired window and increases their starting window mark by 1 (Line 5). If the starting window mark becomes larger than the end window mark, the object is removed from Super-MTK+N list. The LBP set is updated if any pointer to the deleted object exists (Lines 8–11). Finally, the expired window is removed from the Active Windows list and LBP set (Lines 16–17), and the value of min . score S is reset (Lines 18).

OPEN IN VIEWER

Algorithm 2:

The pseudo-code of expiration handling

OPEN IN VIEWER

Fig. 6.

Super-MTK+N list content related to the example of Section 1 in different evaluation times.

Consider the example of Fig. 1, where window W 0 opens at 1 (excluded) and closes at 10. Assume that we are at time 10, when window W 0 is expired, and we want to report the top-3 objects as result. Figure 6(a) shows the content of Super-MTK+N list. For window expiration, the starting window marks of the objects E, C, and B have to be increased by 1. Object B is removed from the list, as its starting window mark becomes larger than the end window mark. The lbp s of W 0 is also removed from the LBP set. Figure 6(b) shows the Super-MTK+N list after expiration handling of window W 0 .

4.4.2. Handling new arrivals and changes

When a new object arrives in the stream, we have to check if it can be added to the top-k result of current and future windows or not, so its score should be compared with the minimum score in the Super-MTK+N list and if all the predefined conditions are satisfied we can insert it to the Super-MTK+N list. We treat the changed object as a new arrival object and we check if it can be added to the Super-MTK+N list. If the changed object exists in the Super-MTK+N list, it should be replaced with the old one.

Topk+N algorithm (see Algorithm 3 for the pseudo-code) updates Super-MTK+N list based on new arriving objects on the stream S. For every object O i in the stream, function UpdateMTKN checks if the object O i can be inserted in the Super-MTK+N list or not. At the first step, if the streaming score of the object is less than the value of min . score S , the minimum score should be updated (Lines 2–4). Keeping the minimum score let us approximate the score for changed objects as discussed in Section 4.1. Then, it checks if the object O i is present in the Super-MTK+N list, since Topk+N algorithm supports indistinct arrivals (different from state of the art [40]). If the Super-MTK+N list contains a stale version of O i , it is replaced with the fresh one. As the score of the replaced object O i changed, its position in Super-MTK+N list can change too and it may move up or down in the list. Changing position in the Super-MTK+N list could affect the top-k results of some of the active windows, thus the LBP set needs to be refreshed. Otherwise, when the object is not present in the Super-MTK+N list, the algorithm (1) computes the score, the starting window mark, and the ending window marks; (2) it inserts the object in the Super-MTK+N list; and (3) updates the LBP set.

OPEN IN VIEWER

Algorithm 3:

The pseudo-code for updating Super-MTK+N list

Algorithm 3 shows in more details the pseudo-code for handling insertion of new arriving objects through the update of the Super-MTK+N list. If a stale version of the arriving object exists in Super-MTK+N list, the algorithm replaces it with the fresh one with new values i.e., its score, and its starting/ending window marks (Line 6). Then, we have to refresh the LBP set based on the changes occurred in Super-MTK+N list (Line 7). As the new values of the arriving object could change the order of objects in the Super-MTK+N list, the LBP set is recomputed. In case the object is not in the Super-MTK+N list, it computes the score, and adds the new object in the list (Line 16). If the object is a new arrival, computing the score from the values of the scoring variables is straightforward, but if object O i is a changed object, the new score is computed getting the value of min . score S and the scoring value in the replica (Line 11), as we did not keep the scoring value of all the objects, but only of those that entered the Super-MTK+N list (see also Section 4.1, where we present this idea).

Function InsertInToMTKN handles object insertion to the Super-MTK+N list. If the score of the object O i is smaller than the minimum score in the Super-MTK+N list, and all active windows contain k objects as top-k result, then the arriving object is discarded (Lines 19–21). Otherwise, the future windows, in which the object can be in the top-k result, are defined by computing the starting and the ending window marks (Lines 23–24). In the next step, the object is inserted into the Super-MTK+N list and the LBP set is updated (Line 26).

Function UpdateChangedObjects is used for updating Super-MTK+N list for a set of objects, and gets the Objects set as input. For each object in the Objects set, it updates the Super-MTK+N list by refreshing the stale object in the Super-MTK+N list (Line 31).

4.4.3. Updating lower bound pointers

As mentioned in Section 3.1, LBP is a set of pointers to the top-k objects with the smallest scores for all active windows that have k objects as top-k result. When a new object arrives, we need to compare its score with those of the objects pointed by LBP for each window. If the size of any predicted top-k result for future windows is less than the size of MTK+N list (i.e. K+N), or the new object has a higher score comparing to the objects that have lbp s, the new object can be inserted in the Super-MTK+N list.

After inserting the new object, the LBP set needs to be updated; in particular, those pointers that relate to the windows between the starting and the ending window marks of the inserted object. For those windows that have not got any pointer in the LBP set, the size of the top-k result is increased by 1. If the size becomes equal to k, the pointer is created for the window and added to the LBP set.

OPEN IN VIEWER

Algorithm 4:

The pseudo-code for updating LBP list

If the window has got a pointer in LBP set and the score of the inserted object is less than the score of the pointed object, then the last top-k object in the predicted result is removed from the list, so we have to increment the starting window mark by 1. If the starting window mark becomes greater than the ending window mark for any object, the pointer moves up by one position in the Super-MTK+N list and the object is removed from Super-MTK+N list.

Algorithm 4 shows the pseudo-code for updating the LBP set after inserting the new object to the Super-MTK+N list. For all the affected windows from the starting to the ending window marks of the inserted object, if the window does not have any lbp , we increment the cardinality of top-k result by 1 (Line 4). If the cardinality of top-k result of a window reaches the K+N, Function GenerateLBP generates the pointer to the last top-k object of that window and adds it to the LBP set (Line 6).

If the window has a pointer in LBP set, we compare the score of the inserted object with the score of the pointed object (i.e. the last object in top-k result with lowest score). If the inserted object has higher score, we remove the last object in top-k result by increasing the starting window mark by 1 (Line 10). If the starting window mark of the object becomes greater than ending window mark, we move the lbp one position up in the Super-MTK+N list and remove the object from Super-MTK+N list (Lines 11–14).

Let us consider our example in Fig. 1 at time 11. Figure 6(b) shows the content of Super-MTK+N list after the expiration of window W 0 . At time 11, object A comes to the system, and based on its score it is inserted to the Super-MTK+N list with starting window mark equal to 2 and ending window mark equal to 3. As now we have 3 objects in window W 2 , the lbp of the window is added to the LBP set. Figure 6(b) shows the changes applied on the Super-MTK+N list.

At time 12, object G comes to the system, and inserted at the top of the Super-MTK+N list. As Windows W 1 , and W 2 have 3 objects in their top-3 result, we have to remove the last object of each window. So the starting window marks of objects C and F need to be increased by one, and lbp of Windows W 1 , and W 2 should be modified. Object F was the last object in the result of window W 1 , and after inserting object G, object C becomes the last object and lbp of Windows W 1 points to it. For window W 2 , the last object changes from object A to object F, and the lbp moves one position up accordingly.

OPEN IN VIEWER

Fig. 7.

Independent predicted top-k result vs. integrated list of our example in Section 1 at evaluation of window w 1 after processing changes.

OPEN IN VIEWER

Fig. 8.

The AcquaTop framework.

Figure 7 shows how handling changes could affect the content of the Super-MTK+N list and of the top-k query result. At the evaluation time of W 1 , after handling new arrivals of window W 1 , the content of the Super-MTK+N list is as in Fig. 3. As the score of object E changes from 7 to 10 (Fig. 1(c)), it is considered as an arriving object with a new score, so, it is placed in the Super-MTK+N list above object G. The LBP set does not change in this case. As we mentioned in Section 4.2, each object can be placed in different areas in different MTK+N lists. For example, in Fig. 7, assuming K = 1, and N = 2, object G is in the N-list of windows W 1 , and W 2 , but it is placed in the k-list of window W 3 .

Comparing to the MinTopk algorithm [40], the Topk+N algorithm has the following additional futures: (i) it computes the minimum score on the streaming side to approximate score of changed objects, (ii) it handles distinctive arrival of objects, and (iii) it handles changed objects.

5.1. AcquaTop framework

As mentioned in Section 3.2, ACQUA [10] addresses this problem by keeping a local replica of the distributed data and using several maintenance policies to refresh such a replica. Considering the architectural approach presented in [10] as a guideline, we propose a second solution to our problem, named AcquaTop framework. It keeps a local replica of the distributed data and updates the part of it that affects the most the current and future top-k answer after every evaluation.

Figure 8 shows the architecture of AcquaTop framework. AcquaTop gets data from the stream and the local replica and, using Super-MTK+N list structure, it evaluates continuous top-k query at the end of each window. The Super-MTK+N list provides the Candidate set for updating. Notably, such a set is a small subset of the objects that logically should be stored in the window since our approach discards objects that do not enter in the predicted top-k results when they arrive. The Ranker gets the Candidate set and orders them based on the criteria of the different maintenance policies. The maintainer get the top γ elements, namely the Elected set, where γ is the refresh budget for updating the local replica.

When the refresh budget is not enough to update all the stale elements in the replica, we might have some errors in the result. Therefore, as in ACQUA, we propose different maintenance policies for updating the replica, in order to approximate as much as possible the correct result. In the following, we introduce AcquaTop algorithm and the proposed maintenance policies.

OPEN IN VIEWER

Algorithm 5:

The pseudo-code of AcquaTop algorithm

In top-k query evaluation, after processing the new arrivals of each window, we prepare the set of objects which have been updated in the local replica by fetching a fresher version from the distributed dataset. Algorithm 5 shows the pseudo-code of AcquaTop Algorithm for handling changes in the local replica in addition to handling insertion of new arrival objects.

In the first step, the evaluation time is initialized. Then, for every new arriving objects, it checks if any new window has to be added to the active window list (Line 4). If the time of arrival is less than the next evaluation time (i.e., the ending time of the current window), it updates the Super-MTK+N list (Lines 5–7).

At the end of the current window, Function UpdateReplica gets the Super-MTK+N list and returns the set of changed objects in the replica (Line 9). Then, Function TopkN (Line 10) gets the set changedObjects and updates Super-MTK+N list based on changes. The algorithm considers changed objects as new arriving objects with different scores. It removes the stale version of the object from the Super-MTK+N list and reinserts it if the constraints are satisfied. Then, getting the top-k result from Super-MTK+N list, the algorithm returns the query answer (Line 11). Finally, it purges the expired window and goes to the next window processing (Lines 12–13).

Function UpdateReplica in Algorithm 5 updates the replica getting the Super-MTK+N list and the policy as inputs. Function UpdatePolicy (Line 19) gets the Super-MTK+N list and the policy . Then based on different maintenance policies, it returns the electedSet of objects for updating. For every object in the electedSet, if the new value of the scoring variable x D and the one in replica are not the same, it updates the replica and puts the object in the set changedObjects (Lines 20–25). Finally, Function UpdateReplica returns the set changedObjects.

In the following sections, we propose different maintenance policies. Function UpdatePolicy gets one of them as input and generates the electedSet of objects for updating the local replica. The following four sections detail our maintenance policies.

5.3. Cost analysis

The memory size required for each object o i in the Super-MTK+N list is equal to ( Object . size + 2 ∗ Reference . size ) , as we keep the object and its two window marks in the Super-MTK+N list. Based on the analysis in [40], in the average case, the size of the super-top-k list is equal to 2 K (K is the size of MTK set). Therefore, in the average case, the size of the Super-MTK+N list is equal to 2 ∗ MTK + N . size = 2 ∗ ( K + N ) . Notably, the memory complexity of our Super-MTK + N list is constant, as the values of K and N are fixed. It depends neither on the volume of data that comes from the stream, nor on the size of the distributed dataset.

The CPU complexity of the proposed algorithm is computed as follows. The complexity of handling object expiration is equal to O ( MTK + N . size ) , as we need to go through the MTK+N list to find the first k objects of the just expired window.

For handling the new arrival object, the cost for each object is: P ∗ ( log ( MTK + N . size ) + W act . size + C aaw + C albp ) + ( 1 − P ) ∗ ( 1 + W act . size ) , where P is the probability that object o i will be inserted in the Super-MTK+N list, C aaw is the number of affected active window, C albp is the number of affected pointers in LBP set, and W act . size is the size of active window list.

If the probability of inserting object o i in the Super-MTK+N list is P, the cost for positioning it in the Super-MTK+N list is equal to log ( MTK + N . size ) by using tree-based structure for storing the Super-MTK+N list. The cost of computing the starting window marks is equal to W act . size , as all the active windows must be checked as a candidate. The cost of updating the counters of all affected active windows is C aaw , and the cost of updating all affected pointers in LBP set is C albp .

With probability ( 1 − P ) , we discard the object with the cost of one single check with the lowest score in Super-MTK+N list and W act . size checks of active window counters.

For handling the changed object, the cost for each object is: 2 ∗ log ( MTK + N . size ) + O ( MTK + N . size ) , where 2 ∗ log ( MTK + N . size ) is the cost of removing the old object and inserting it with the new score, and O ( MTK + N . size ) is the cost of refreshing the LBP set.

Therefore, in the average case the CPU complexity of the proposed algorithm is O ( N new ∗ ( log ( K + N ) + W act . size ) + N changes ∗ ( K + N ) ) . The analysis shows that the most important factors, in CPU cost of AcquaTop algorithm, are the size of MTK+N list and the number of active windows (i.e. W act . size ). Both of them are fixed during the query evaluation. Therefore, the CPU cost is constant as it is independent of the size of the distributed dataset and the rate of arrival objects in the data stream.

Based on these cost computations, the proposed approach can be compared with the state-of-the-art ones. Comparing to MinTopk algorithm, AcquaTop has memory overhead equal to O ( N ) , but N can be set to 0 if the distributed data does not change. As we stated before, the computational cost of AcquaTop algorithm is equal to 2 ∗ log ( MTK + N . size ) + O ( MTK + N . size ) , while for the MinTopk algorithm, the cost is equal to 2 ∗ log ( MTK.size ) . So even when N = 0 , AcquaTop still has a small constant overhead in the worst case. Therefore if there is no join to perform or if the join is with a static distributed dataset, it is better to use MinTopk.

Comparing to ACQUA, AcquaTop’s memory cost is equal to O ( MTK + N . size ) , while ACQUA has to keep all data items that come in the window to compute the top-k result of the window. Moreover, the state-of-the-art [40] shows that using materialization-then-sort approach (like ACQUA) has higher computational overhead comparing to the incremental approaches (MinTopk and AcquaTop). So for top-k continuous RSP-QL query AcquaTop is already better than ACQUA.

6.1. Experimental setting

As experimental environment, we use an Intel i7@1.7 GHz with 8 GB memory and a SSD disk. The operating system is Mac OS X 10.13.2 and Java 1.8.0_91 is installed on the machine. We carry out our experiments by extending the experimental setting of [10].

The experimental data are composed of streaming and distributed datasets. The streaming data contains tweets mentioning 400 verified users of Twitter. The data is collected by using the streaming API of Twitter for around three hours of tweets (9462 seconds). As one can expect, the number of mentions per user during the evaluation has a long-tail distribution, in which few users have high number of mentions, and most of the users have little mentions. The profiling of the number of mentions per window shows min = 26 , median = 38 , and max = 59 . Figure 9(a) shows the distribution of the number of mentions, and Fig. 9(b) shows the number of mentions per window.

For generating the distributed dataset, every minute for each user we fetched the number of followers from twitter’s REST APIs. Differently from the example in Listing 1, to better resemble the problem presented in Section 1, for each user u and each minute i, we added to the distributed dataset the difference between the number of followers at i ( nf i ) and that at the previous minute i − 1 ( nf i − 1 ). Let us denote such a difference with dfc i . It holds that dfc i = nf i − nf i − 1 .

OPEN IN VIEWER

Fig. 9.

Data stream characteristics.

OPEN IN VIEWER

Fig. 10.

Distribution of number of users per number of changes.

As top-k query, we use the one presented in Section 1. We set the length of the window equal to 100 seconds, and the slide equal to 60 seconds. We run 150 iterations of the query evaluation (i.e. we have 150 slided windows for the recorded period of data from twitter) to compare different maintenance policies. The scoring function for each user is a linear combination of the number of mentions (named mn) in the streaming data and the value of dfc in the distributed dataset. Notably the values of mn, and dfc increase or decrease during the iterations, but the selected linear scoring function is monotonic as assumed in top-k query literature. The scoring function computes the score as follows: score = F ( m n , dfc ) = w s ∗ norm ( m n ) + w d ∗ norm ( dfc ) , where, norm is a function that computes the normalized value of its input, considering the minimum and maximum value in the input range, w s is the weight used for the number of mentions, and w d in the weight used for the number of followers.

For experimental evaluation, we need to control the average number of changes in the distributed dataset. Before controlling it, we need to explore the distribution of changes in the recorded data. Notably, Twitter APIs allow asking for the profile of a maximum of 100 users per invocation,10

Exploring the characteristic of the obtained distributed dataset considering dfc, we found that on average, in every invocation of Twitter API, 80 users have changes in dfc.

Now that we know this information, we generate datasets with a decreased number of changes by sampling the real dataset and randomly decreasing the average number of changes in dfc. To decrease the average number of changes, for each invocation, we randomly select users who have changes in dfc , and set it to the previous value to reach the target average number of changes per invocation.

We also find that, doing so, we introduce many ties in the scores, which as known in top-k query answering literature simplifies the problem. In order to keep the problem as hard as possible, we alter the changes in dfc by adding random noise.

Applying those methods, we generate five datasets in which there are on average 5, 10, 20, 40, and 80 changes in each invocation. The value 80 is the maximum number of changes in each invocation for the dataset. So, the dataset with 80 changes in each invocation is the extreme test case that we have in our evaluations. We tested that each generated dataset has normal distribution of the number of changes. We have different mean value for each dataset, but there is not any significant difference between variances. Figure 10 shows the distribution for three of those datasets.

In order to reduce the risk of bias in synthetic data generation, for each number of changes, we produce a test case that contains 5 different datasets for each number of changes. In the remainder of the paper, we use the notation DS-CH-x to refer collectively to the five datasets whose average number of changes per invocation is equal to x. Table 3 shows the characteristics of the generated datasets. The streaming and distributed datasets, and the implemented experiments are available on GitHub.11

In this experiment, we check the relevancy and accuracy of the top-k result for all the maintenance policies over 150 iterations. We select DS-CH-20 test case for this experiment. In the first step, we check the total result in each iteration and we found that on average we have got 30 items in the query result. Therefore, we set K equal to 5, which is around 15% of the average size of the total result. We put refresh budget equal to 7, so, theoretically, we have got enough budget to refresh all the answers of the top-k query.

In order to set parameter N, we have to analyze the distributed datasets. As we say in Section 6.1, during 9462 seconds of recording data from Twitter API, we have 702 invocations. Therefore, on average we have 7.42 invocations per window with 100 seconds length ( 702 ÷ 9462 × 100 = 7.42 ). We know that in DS-CH-20 test case, we have 20 changes per invocation on average. So, the average number of changes per window is equal to 7.42 × 20 = 148.4 . Considering that we have 400 users in total and 30 users on average in the result set, we have 11.13 changes per window ( 148.4 400 × 30 = 11.13 ). So, we set the value of N equal to 10 for the MTK+N list.

In order to investigate our hypotheses, we set up an Oracle that, at each iteration, certainly provides correct answers. Then, we compare the correct answers at iteration i, Ans ( Oracle i ) , with the possibly erroneous ones of the query, Ans ( Q i ) , considering different maintenance policies. Given that the answers are ordered lists of the users’ IDs, we use the metrics presented in Section 2.1.2 to compare the query result with the Oracle one.

In our experiments, we compute the nDCG @ k and precision @ k for each iteration of the query evaluation. We also introduce the cumulated nDCG @ k ( precision @ k ) at the Jth iteration as following: nDCG @ k C ( J ) = ∑ i = 1 J nDCG @ k ( Ans ( Q i ) , Ans ( Oracle i ) ) precision @ K C ( J ) = ∑ i = 1 J precision @ K ( Ans ( Q i ) , Ans ( Oracle i ) ) where the nDCG @ k of the iteration i is denoted as nDCG @ k ( Ans ( Q i ) , Ans ( Oracle i ) ) and the precision @ k of the iteration i as precision @ k ( Ans ( Q i ) , Ans ( Oracle i ) ) . Higher value of nDCG @ k and precision @ k show more relevancy and accuracy of the result set, respectively.

OPEN IN VIEWER

Fig. 11.

Result of preliminary experiment.

We run 150 iterations of query evaluation for each policy and compute the cumulative error related to nDCG @ k and precision @ k metrics for every iteration. Figure 11 shows the result of the experiment. WST policy has the highest cumulative errors comparing to other policies, which is expected when there is no update in the replica. AT-ASM policy has the lowest error as it updates all the objects in the MTK+N list without considering the limitation of refresh budget. For other policies, in the beginning (iteration 1 to 50) it is difficult to identify policies with better performance, but while the iteration number increases, distinct lines become detectable and comparison between different policies becomes easier. Therefore, for the rest of the experiment, we consider nDCG @ k C ( 150 ) , or precision @ k C ( 150 ) for comparing the relevancy and accuracy of different policies. Abusing notation, in the rest of the paper, we refer to them using nDCG @ k , or precision @ k .

The space, in which we formulate our hypothesis, has got various dimensions. Table 4 describes them and shows the values for each parameter that we used in the experiments.

We introduce two baseline maintenance policies (WST, and WSJ-RND) to compare proposed policies with. In WST maintenance policy, we do not have any update of the local replica, so WST policy is a lower bound w.r.t. the comparison in terms of accuracy and relevancy with the Oracle in our experiments.

WSJ-RND (from [10]) randomly selects objects for updating from the Candidate set. We expect that our proposed policies outperform WSJ-RND policy. As we stated in Section 5.2.3, we also introduce AT-ASM policy as an upper bound. We expect all policies to show worse accuracy and relevancy than AT-ASM w.r.t. Oracle.

In addition to the baseline policies, we consider WSJ-LRU, and WSJ-WBM policies from ACQUA [10] in order to compare them with our proposed policies. Moreover, as mentioned in Section 5.2.4, we also introduce AT-LRU, and AT-WBM, which use AcquaTop algorithm and Super-MTK+N list, while applying state-of-the-art maintenance policies from ACQUA [10] for updating the local replica.

In general, we formulate the hypothesis that our proposed policies outperform the state-of-the-art policies within the setting of this paper. As AcquaTop algorithm only keeps the objects which can participate in the top-k result and discards the rest of the data stream, even comparable results with the state-of-the-art policies (WSJ-WBM, and WSJ-LRU) are good. Indeed, AcquaTop algorithm has significant optimization in memory usage, while ACQUA’s memory complexity depends on the amount of data in the window, AcquaTop framework’s memory only depends on K, and N.

We formulate our hypothesis as follows:

Table 5 summarizes a significant subset of the experiments that we have done. In each experiment, one parameter has various values and the rest of them have a default value. For every experiment nDCG @ k , and precision @ k are computed to compare the relevancy and accuracy of the generated results w.r.t. our Oracle.

In this experiment, we check the sensitivity to the refresh budget for different policies to test Hypothesis Hp.1. As mentioned in Section 6.2, based on the analysis of data stream and distributed dataset, we set K equal to 5, and N equal to 10. We run the experiment over the DS-CH-20 test case for different refresh budgets ( γ ∈ { 1 , 3 , 7 , 10 , 15 , 20 , 25 } ), we consider γ = 1 as the extreme case where we have got the minimum budget for updating, and γ = 25 for maximum budget, as we have on average 30 items in the result set.

Figure 12 shows the result of the experiment for different budgets. Figure 12(a) shows the median of cumulative nDCG @ k with error bars over five datasets for different policies and refresh budgets. Y axis shows the value of cumulative nDCG @ k . The maximum value on nDCG @ k is equal to 150, because in each iteration the maximum value of nDCG @ k is equal to 1 for the correct answer and we have 150 iterations. X axis shows different values of refresh budget and each line identifies a maintenance policy. Figure 12(b) shows the median of cumulative precision @ k with error bars in the same way.

OPEN IN VIEWER

Fig. 12.

Result of experiment 1 – relevancy and accuracy for different value of refresh budget.

OPEN IN VIEWER

Fig. 13.

Result of experiment 2 – relevancy and accuracy for different value of CH.

Figure 12(a) shows that AT-ASM has the highest relevancy in top-k results as it updates all the objects in Super-MTK+N list without considering the refresh budget. WST policy also is not sensitive to refresh budget as it does not update the local replica. Therefore, low relevancy of result is expected for WST policy. When we have a small refresh budget for updating local replica, the proposed policies (AT-TSM, and AT-BSM) perform like other policies and have the same relevancy in the top-k result. But, when we have large enough refresh budgets (i.e., 3 to 15), AT-TSM, and AT-BSM policy outperform other policies. When the value of the refresh budget is high ( γ ⩾ 20 ), AT-LRU is as good as AT-ASM, AT-TSM, and AT-BSM policies in relevancy. This is expected because considering K = 5 and N = 10, MTK+N size is equal to 15 and based on [40], we have 2 × 15 = 30 objects in Super-MTK+N list on average. So, for refresh budget near to 30, we almost refresh the entire Super-MTK+N list.

Figure 12(b) shows the accuracy of the top-k results. Like the chart of Fig. 12(a), AT-ASM and WST policies are not sensitive to refresh budget. AT-BSM policy outperforms other policies for most of the refresh budgets ( γ ⩽ 20 ). For low refresh budgets ( γ < 7 ) AT-TSM can generate top-k result as accurate as others, but for budgets between 7 to 15 it has higher accuracy comparing to other policies except AT-BSM policy. For large budgets, AT-TSM, AT-BSM, and AT-LRU are as good as AT-ASM.

Figure 12 shows some elbow points around refresh budget equal to 10 or 15, in which the performance starts to rise slowly. The experiment done over the DS-CH-20 test case, and the computation in Section 6.2 shows that on average we have 11.13 changes in the result set. Therefore having high number of refresh budget ( γ ⩾ 15 ) does not help to improve the performance, as we have a lower number of changes comparing to the refresh budget.

From a practical perspective, this analysis confirms what we said in Section 4: if we have enough refresh budget for updating the top-k result, AT-TSM policy is the best option. Applying AT-TSM policy we can achieve more relevant data, while the rank position of each data item is important. AT-BSM policy outperforms others when only accuracy is considered.

In this experiment, we set refresh budget to 7, i.e., where our proposed policies outperform others in the previous experiment. We test Hypothesis Hp.2 to check the sensitivity to the change frequency in the distributed dataset for different policies. The maximum change frequency in the dataset is equal to 80. We run the top-k query over datasets with various CH values, setting N to 10, and K to 5. Figure 13 shows the result of Experiment 2. Charts show that AT-TSM has a constant behavior while we have different number of changes in the dataset, and both relevancy and accuracy of the result does not have any noticeable change.

Figure 13(a) shows the relevancy of the result considering nDCG @ k metric for different CH. For most of the policies, while we have less number of changes in the dataset, we have higher relevancy. Both AT-TSM and AT-BSM policies outperform others.

Figure 13(b) shows the accuracy of the top-k result for various CH considering precision @ k metric. In most of the policies, increasing the number of changes reduces the accuracy of the result. AT-BSM generates more accurate top-k results, considering precision @ k . AT-TSM has almost the same accuracy for all CH, but in AT-BSM the accuracy decreases for high CH. The robust performance of AT-TSM policy for different CH is not expected. Theoretically, for higher value of CH, we need to keep more objects in the Super-MTK+N list (i.e., N ≃ CH ), but practically AT-TSM policy has almost the same relevancy and accuracy for different values of CH.

6.6. Experiment 3 – sensitivity to K

OPEN IN VIEWER

Fig. 14.

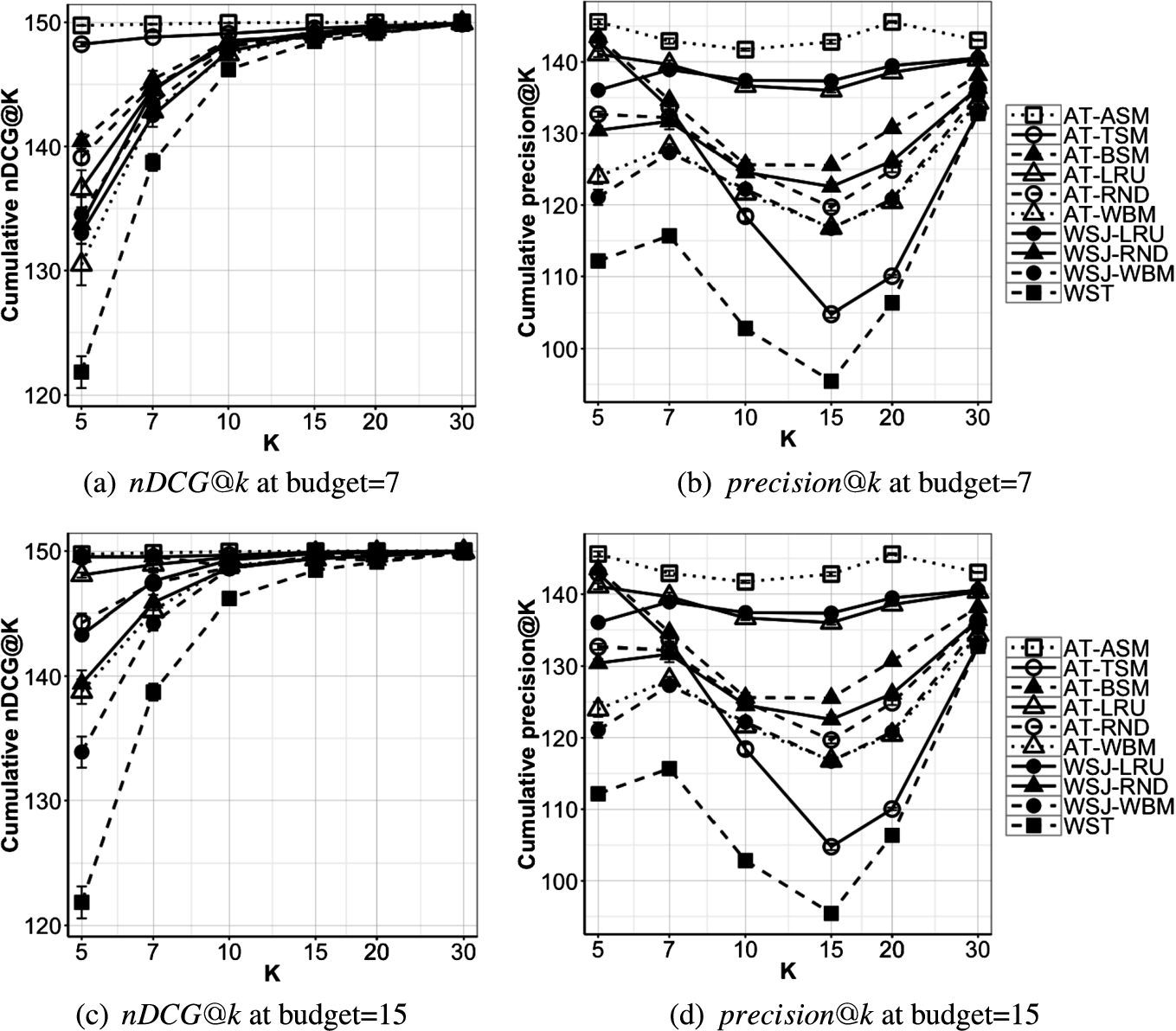

Result of experiment 3 – relevancy and accuracy for different value of K.

The result of Experiment 1 shows that, for refresh budget between 7 and 15, AT-TSM, and AT-BSM policies outperform other policies both in relevancy and in accuracy. So, in this experiment, we explore some extreme conditions. We focus on the middle area of budget selection and set the refresh budget equal to 7 and 15, which are the minimum and maximum refresh budgets in this area respectively. We run the query for different values of K (i.e. K ∈ { 5 , 7 , 10 , 15 , 20 , 30 } ) to test Hypothesis Hp.3. Using the Oracle, we found that, on average, we have 30 result items in each window, so we consider K = 30 as the maximum value. When K is 100 % of the window content we are testing our contribution in the ACQUA setting [10].

Figures 14(a), and 14(c) show that for different K, AT-TSM, and AT-BSM perform better than others and the results are more relevant. They also generate more relevant result while refresh budget is higher ( γ = 15 ).

Figures 14(b), and 14(d) show that for low values of K, (i.e. K < 7 ), AT-TSM, and AT-BSM perform better than others. When refresh budget is equal to 7, and K ⩾ 7 , most of the policies outperform AT-TSM and AT-BSM, and WSJ-LRU, and AT-LRU are the best policies. When the refresh budget is equal to 15 and K ⩾ 7 , in general we have more accurate result, and WSJ-LRU, and AT-LRU are the best policies after AT-ASM. AT-BSM is better than the remaining policies, while AT-TSM is the worst policy (even after WST).

In Figs 14(b), and 14(d), the performance degrades in the middle area. Through more exploration, we found that it is only correlated to the dataset characteristics. As illustrated in both figures, this behavior is also present in the WST policy, which is our baseline and does not perform any update.

Unexpectedly, we learn from observation that focusing on a specific part of the result (e.g. top of the result) and trying to update that part could generate more errors when the refresh budget is not enough to update the entire top-k result (i.e., γ < K ). In this case, uniformly selecting from all the object in the window or Super-MTK+N list, as done in WSJ-LRU, or AT-LRU, can lead to more accurate results.

OPEN IN VIEWER

Fig. 15.

Result of experiment 4 – relevancy and accuracy for different value of N.

In this experiment, we focusing on the middle area of Fig. 12, in which AT-TSM, and AT-BSM policies outperform other policies both in relevancy and in accuracy, we set refresh budget equal to 7 and 15, which are the minimum and maximum refresh budgets in this area. We run the query for different N (i.e. N ∈ { 0 , 10 , 20 , 30 , 40 } ) to test Hypothesis Hp.4. Notice that Hp.4 should be confirmed for large N while small N are extreme situations where Hp.4 may not hold.

Figure 15 shows that AT-TSM, and AT-BSM policies perform better than others. AT-TSM policy has higher relevant results considering nDCG @ k , while AT-BSM generates more accurate results considering precision @ k . This observation gives us an insight. Focusing on the top result can lead to more relevant results, while focusing on the border of the K and the N area, can give us more accurate results.

Comparing the plots in Fig. 15 we can find that giving more refresh budget, we are able to fill the gap between AT-TSM, and AT-BSM with AT-ASM and generate more relevant and accurate results.

Theoretically, keeping additional N objects in Super-MTK+N list leads us to more relevant and accurate results. Figure 15 also shows that AT-ASM policy performs better when we set N to higher values. However, from a practical perspective, if we do not have enough refresh budget to update the replica, we are not able to generate more relevant and accurate results.

To study our research question, in the first step, we set up a preliminary experiment. Analyzing the result of the preliminary experiment, and considering the characteristic of generated datasets, let us to specify the default and other values for each parameter.

In the next step, we formulate four hypotheses and test if our proposed policies provide better or at least the same accuracy (relevancy) comparing to the state-of-the-art policies for different values of refresh budgets, CH, K, and N.

Table 6 summarizes the improvements of proposed policies (AT-TSM, and AT-BSM) comparing them with state-of-the-art ones (WSJ-WBM, and WSJ-LRU) from [10]. For each experiment (1 to 4), we compared policies and find the maximum and minimum improvement for both metrics.

In general, the maximum improvement is our best achievement, and the minimum values are related to extreme conditions. They have no practical meanings, but show the worst conditions we tested. In most of the cases, our best achievement is more than 10 % . Among all the experiments, around half of the minimum improvements are positive, which shows that in half of the extreme cases we outperform state of the art. The negative cases are not remarkable, but for experiment 3. In this experiment, WSJ-LRU outperforms both our policies. This was expected since K is as large as the entire result set, and there is no advantage in focusing at the top.

For instance in Experiment 1, which we have various refresh budgets, considering nDCG @ k , the maximum improvement of AT-TSM policy comparing to the WSJ-WBM policy is 11.68 % , while the minimum improvement is − 3.58 % . The maximum improvement is related to the extreme condition of refresh budget 15, which is our best achievement, and the minimum is related to the refresh budget 1, in which WSJ-WBM policy performs better than AT-TSM. Refresh budget equal to 1 is an extreme case in which we are not able to generate accurate results when the budget is not enough to update all the changes (see Fig. 12(a)).

Table 7 summarizes the result of our investigation. The results of Experiment 1 (about Hp.1) show that, if we have enough refresh budget comparing to the K value, AT-TSM policy is the best option considering relevancy, while AT-BSM outperforms others when accuracy is more important.

The results of Experiment 2 (about Hp.2) show that, for different values of change frequency CH, AT-TSM policy outperforms others in terms of relevancy, while AT-BSM generates more accurate top-k results, in terms of accuracy.

The results of Experiment 3 (about Hp.3) show that, for different values of K, AT-TSM, and AT-BSM perform better than others and the results are more relevant. However, considering accuracy, for low values of K (i.e., K < 7 ), AT-BSM performs better than others, but for high values of K ( K ⩾ 7 ), WSJ-LRU is the best policy.

Finally, the results of Experiment 4 (about Hp.4) show that AT-TSM, and AT-BSM policies perform better than others. AT-TSM policy has higher accurate result considering nDCG @ k , while AT-BSM generates more accurate result considering precision @ k . The results also show that giving more refresh budget, we are able to fill the gap between AT-TSM and AT-ASM, and to generate more relevant and accurate results.

Overall, AT-TSM shows better relevancy than state-of-the-art policies when it has enough budget and using nDCG @ k metric. AT-BSM shows better accuracy when changes are limited and K is small and we measure precision @ k .
