FarsBase: The Persian knowledge graph

2.1. Knowledge base and knowledge graph

A knowledge base contains a set of facts, assumptions, and rules that allows storing knowledge in a computer system. Knowledge bases can be specific to certain domains, e.g. a medical knowledge base containing facts about medical drugs (such as their properties and interactions). Also, knowledge from multiple domains can be integrated to build a general-domain knowledge base. For example, DBpedia [39] is a multi-domain knowledge base that is semi-automatically constructed from Wikipedia articles. Knowledge bases require a data model to organize the facts. A typical approach is to define an ontology, where data instances (a.k.a. entities) are assigned to classes. Each class can be a subclass of another class, which results in a hierarchy known as the ontology tree. The facts of a knowledge base are commonly represented using a knowledge representation format. Modern multi-domain knowledge bases use the Resource Description Framework (RDF) for knowledge representation. RDF is primarily designed to represent resources on the Web, but it can also be used for knowledge management and supports essential features for constructing a knowledge base, such as Is-A relations and object properties.

In Semantic Web and linked data, there are different definitions of knowledge graph (KG); Ehrlinger et al. tried to clarify the term in [24]. They mentioned 5 selected definitions of knowledge graph and presented an architecture for it. They assumed a knowledge graph is somehow superior and more complex than a knowledge base because it contains a reasoning engine and also integrates knowledge from one or more sources.

2.2. Resource description framework

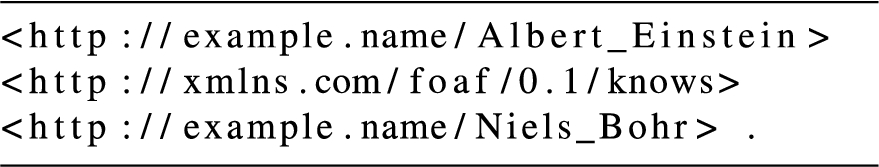

RDF is a standard for conceptualizing structural data. In this model, data is represented as a set of triples consisting of a subject, a predicate, and an object. A set of triples forms an RDF graph.

The RDF format enables knowledge representation using Web resources, where each resource has a Unique Resource Identifier (URI). In RDF, subjects and predicates are URIs, and objects can be either URIs or literal values. RDF data is serialized and stored using different textual syntaxes, e.g. Turtle and NTriples. For example, the fact that “Einstein knows Niels Bohr” can be represented in Turtle syntax as follows:

RDF can be easily used for knowledge graphs derived from non-English data. String literals can have a language tag, which is very useful for building multilingual knowledge graphs. For example, Albert Einstein can be represented as “Albert_Einstein”@en or “”@fa.

2.3. FarsBase: A Persian knowledge graph

Constructing a multi-domain and comprehensive knowledge graph from unstructured and semi-structured Web contents has been of interest for a while. The DBpedia project was initiated a decade ago to construct a knowledge graph from Wikipedia. Further works like YAGO [47] and BabelNet [61] integrated other sources, e.g. WordNet and GeoNames [86], in order to construct a more-enriched knowledge graph. Raw text data collected from Web can also be used to supplement knowledge graphs [53].

Thanks to tons of research in knowledge graph construction techniques, multi-domain knowledge graphs such as DBpedia and YAGO have a comprehensive set of facts extracted from English and other European languages. However, these knowledge graphs do not contain enough facts from a low-resource and challenging language [77], such as Persian. This is mostly due to the fact that tools required for automatic knowledge graph construction are not mature enough to be used in multilingual knowledge extraction engines. Also, Persian NLP toolsets suffer lower accuracies due to the small size of the Persian corpora. We tackled these challenges by various techniques that boost the accuracy of knowledge graph construction in Persian. The main challenges for FarsBase construction are summarized as follows:

FarsBase is designed to be specifically precise on parts of the knowledge graph that are frequently searched. Aside from having precise knowledge for frequent queries, a significant share of structural queries in a search engine correspond to recent content, such as queries about new celebrities and recent events. Therefore, our knowledge construction engine extracts new entities and relationships that are recently introduced in Persian Web sources.

FarsBase is automatically constructed from the Persian (Farsi) section of Wikipedia and is expanded by other data sources such as text and Web tables. Despite the fact that FarsBase is connected to various multi-lingual knowledge graphs, the main focus of FarsBase is on extracting knowledge from Persian sources. In fact, some multilingual information extraction tools already support Persian, but their accuracy on Persian sources is very low. In DBpedia, for example, the knowledge extraction engine is entirely run on Persian Wikipedia but very few triples are extracted. However, FarsBase is primarily constructed to extract Knowledge from Persian sources on the Web.

FarsBase has been designed to be a multi-source knowledge graph. Even though other knowledge graphs also use multiple sources, none of them is designed to be a knowledge graph which accepts structural data and raw texts concurrently. For example, DBpedia mainly extracts triples from Wikipedia (Some researches has been made to augment DBpedia from other sources e.g. [5,58,59]). Similarly, BabelNet is constructed with Wikipedia and WordNet only; and NELL has mainly focused on raw texts and extracts limited number of predicates. To our knowledge, YAGO is the only knowledge graph that supports multiple structural sources and can extract from raw text using an extension [37]. However, the libraries and architecture of YAGO requires language-specific libraries that are of very poor quality for Persian.

3.1. Availability of sources in Persian

Sources for constructing Persian knowledge graphs are limited, both in terms of the number of available options, and their quantity and quality. Wikipedia, for example, contains over 5.6 million English articles, but only 0.6 million articles in Persian. Aside from Wikipedia and raw text, the other common data sources for knowledge graph construction, shown in Table 1, have no Persian alternative or are so small that are not worth extraction. For example, there are few Persian websites similar to the IMDB movie database, such as SourehCinema.com, but their databases is almost a subset of the information already available in Persian Wikipedia.

Persian sources are sparse. In Wikipedia, for example, English articles usually contains more information than their Persian version. More specifically, Persian Wikipedia articles are less verbose, have fewer links and many of them have no infoboxes. This is mostly due to the smaller community of contributors for Persian, which also impacts the quality of the content. Other types of sources such as Web pages are even poorer in quality due to the massive amount of hoaxes and false information, that even appear on credible news sources.

Due to the numerous challenges associated with Persian sources, the first step for FarsBase construction is to select a set of sources that have comprehensive and accurate information.

3.2. Source selection: A cost-based approach

In order to use FarsBase for query answering in search engines, its primary application, it should contain a diverse and comprehensive set of facts from all domains to cover a large share of user queries. Such a large knowledge graph should be collected with an affordable effort, hence we should consider the cost of knowledge extraction from each source. Extracting information from texts, tables, and other sources on the Web is far more challenging and costly than the structured sources like Wikipedia, mainly due to the lack of structure and quality issues.

General cost measures The cost of exploiting a source can be defined as the human effort required for verifying its facts, e.g. in terms of “second per tuple”. Using an incredible data source might lead to false information and increase the demand for human verification. Errors generated by the knowledge extraction modules can also call for more verification.

Application-specific cost measures In most applications, facts of the knowledge graph are not of the same importance. In a search engine, for example, the importance of an entity or relationship is proportional to how frequently it appears in user queries. A false relationship about frequently-searched entities, e.g. “Barack Obama was born in Africa”, has a higher impact on users than the same false information on non-famous people. Moreover, the cost of extracting a false relationship is much higher than missing the relationships from a source, which should be considered when tuning the sensitivity of the extraction algorithms.

We considered the following criteria for selecting and prioritizing the sources

To achieve a good trade-off between the quality and quantity of the extracted knowledge, in the following we provide a brief cost analysis for each of the available sources for Persian knowledge extraction.

3.2.4. Evaluation of raw text sources

Table 2 shows the average number of triples in each category of the raw text sources, measured by human experts with and without co-reference resolution. Results are normalized by length to represent the number of triples per 1000 words.

OPEN IN VIEWER

Table 2

Number of triples per 1000 words for different raw text sources

Source	# Triples	# Triples with C.R.
Wikipedia	46	68
News Sites	3	3.3
Technical blogs	1.4	1.6
Literary blogs	0.2	0.26

Table 3 summarizes different cost aspects of the available data sources for FarsBase, including the need for natural language processing (especially Co-reference resolution), the number of triples, quality of each triple, and the overall cost of extracting knowledge from the source. Considering all these parameters, we built FarsBase using structured parts of Persian Wikipedia (primarily infoboxes); along with a selection of Persian news websites to cover recent information. We also support a high-precision approach to extract data from Web tables, which requires explicit human supervision.

OPEN IN VIEWER

Table 3

Cost of available sources for FarsBase

Source	Co-references	Number of Triples	Accuracy of Triples	Cost	Used in FarsBase
Wikipedia (excl. raw text)	–	Very High	Very High	Affordable	Yes
Web-Tables	–	Very High	Very High	Very High	Limited
News sites (text)	Average	Low	High	Very High	Yes
Formal/Technical Weblogs (text)	Low	Low	Low	Very High	No
Personal Weblogs (text)	Low	Very Low	Very Low	Very High	No

OPEN IN VIEWER

Fig. 1.

FarsBase architecture.

In more details, FarsBase is constructed from the following data sources: Wikipedia structured data (infoboxes, entity categories, ambiguities, external links, Web pages, images, connections between entities, and rewriting ids, etc.), tables (with explicit human labeling), Wikipedia article bodies, and news websites.

4.1. Knowledge graph construction

FarsBase extracts knowledge from various types of sources, including Wikipedia, semi-structured Web data (e.g. Web-tables) and raw texts. The extracted data is then cleaned and organized with partial supervision by the expert.

Extractors Each resource type requires a separate extractor to process its data format. The main three extractors are as follows:

Each extraction module preserves a variety of metadata, including the version and URL of the source that the triple is extracted from. For example, when WKE reads a new dump to generate triples, the version of the dump is stored along with all the extracted triples.

Source selector RTE is fed by the crawler of the search engine, although it can use an independent crawler such as Heritrix or Apache Nutch. The Source Selector module prioritizes Web pages based on the cost-efficiency of the sources, as discussed in Section 3.2. The module also exploits the query-log of the search engine to prioritize Web pages based on the frequency that they appear in search results and the click-through rates.

Experts The extracted predicates must be mapped to a unified ontology. The mapping table is incrementally constructed by the human experts and stored in Candidate Fact and Metadata Store (CFM-Store). The experts are also used for various verification tasks, most importantly for verifying the mapping schemata for TBE and all the triples extracted by RTE.

Mapper The Mapper integrates triples generated by all extractors and converts them into mapped triples. The mapped triples and their corresponding metadata are written to the CFM-Store. The metadata of triples includes document URLs, the module that extracted the triples, version information, date of extraction, source texts (if available), expert votes and notes.

Candidate fact and metadata store (CFM-store) CFM-Store stores all triples and their metadata. FarsBase supports versioning, i.e. the CFM-Store contains multiple versions of each triple. The latest version of triples, after expert approval, is updated/filtered periodically at specified intervals (currently once a day) to the Belief-Store without any metadata.

Filtering/updating triples When transferring the triples to Belief-Store, the Update Handler re-builds the Belief-Store using the latest version of the mapped triples. Therefore, if a relation is removed from the input sources, it is no longer written in Belief-Store.

Resource extractor Resource Extractor is used by both the extraction engine (specifically for RTE), and the search system. It extracts all possible entities and relationships from a given text in a brute-force manner. Resource extractor does not apply any filtering or disambiguation on the extracted entities. Rather, it extracts all combinations of resources (i.e. entities and relationships) that might even overlap with each other and further computes several features for each resource such as its position in the sentence and the class of the resource. These features are very helpful for filtering out irrelevant resources in the consecutive components, e.g. for disambiguation.

Note that the RTE relies on the resource extractor, which in turn is backed by the Belief-Store. Therefore, the Belief-Store should be initially filled with data from Wikipedia and Web-tables, and then the resource extractor can be used to run RTE.

4.2. The search system

FarsBase is designed to respond to unstructured queries with structured output (entities) as the result. While the details of the search system are beyond the scope of this paper, we briefly explain the main components.

5.1. Wikipedia extraction

The Wikipedia extractor in FarsBase is similar to DBpedia [40] and YAGO [47]. The most important data types extracted from Wikipedia are as follows:

Infobox data Infoboxes contain a list of attribute and values. Note that an attribute might contain more than one value, e.g. “occupation: [job1, job2, …]”. A value can be a string literal, an image, a link to other Wikipedia articles, an external link, or a combination of these types. The values can also be objects that contain a list of key-values.

Abstracts and body of articles The body and abstracts of Wikipedia articles contain internal links, which are valuable sources for raw-text and table extractors. In particular, internal links are used to automatically extract high-confidence patterns for extracting facts from raw-texts.

Redirects Entities may have multiple titles. For example, “” (Saadi Shirazi, a Persian poet) has multiple alternative titles that refer to him in Persian Wikipedia, such as “” (The Master of Speech) and “” (The Most Eloquent Speaker).

Disambiguation pages Different entities might have a common title, such as people with the same name. For each ambiguous term, there is a disambiguation page that specifies all entities that might refer to it. Disambiguations and redirects of Wikipedia are specifically helpful for accurate entity resolution in other extractors.

Categories Each Wikipedia article has one or more categories, e.g. “Saadi Shirazi” belongs to several categories such as “Persian poets of the 13th century” and “Persian Poets”. Despite the fact that categories have some sort of hierarchy, e.g. might have sub-categories, the categories are not well-structured and can be treated as a set of tags assigned by different people to each entity. Nevertheless, data analytic applications such as related-entity recommendation or KG search can leverage these labels. Moreover, various enhancements can be applied to improve the quality of category labels [83].

Images The images of entities can be used for constructing the image-based FarsBase. The details of such a system do not fall in the scope of this paper.

Inter-language and inter-KG links Articles belonging to the same entity in different languages are linked to each other in Wikipedia. Also, other knowledge graphs and ontologies might have links to Wikipedia articles. Entity linking is further done in the mapping stage to integrate all records from different sources that belong to the same entity.

5.2. Tables

Information extraction from tables is a challenging task, specifically because the schema of Web tables is very flexible. Indeed, Web tables are primarily designed for viewing purposes, not to store a collection of data, such that many tables have split and merged cells. In most long tables, the subjects of the underlying triples are in a specific column of the table, albeit the subjects might also be in a specific row. More importantly, it is not trivial to recognize if a table contains significant information to be extracted. Despite these challenges, some research has been done to automatically extract entities or triples from tables [12,43,90].

5.3. Raw text

The Raw Text Extractor (RTE) extract triples from unstructured text based on the current knowledge of the KG. Even though FarsBase’s RTE engine shares some aspects with never-ending learning (NELL), it is primarily designed to supplement the KB with information that is missing from Wikipedia. The triples supplied by the RTE should be almost of the same accuracy as the information extracted from Wikipedia, in order not to degrade the quality of the KG for semantic search. Therefore, RTE mostly adopts methods that maintain a high-precision, such as rule-based approaches, even though it can sacrifice the recall. Note that while all triples extracted by RTE are verified by the experts, evaluating highly-accurate results requires much less effort because the triples can be grouped and verified in batches.

In the following, we briefly describe the preprocessing steps for raw text extraction. we then describe our entity linking system that detects the entities from the text, followed by the four RTE modules that extract triples from the raw text. FarsBase has four modules for raw-text triple extraction, namely rule-based extraction, distant supervision, dependency patterns, and unsupervised extraction.

5.3.3. Rule-based RTE

The rule-based RTE is a high-confidence extractor, which is based on Stanford TokensRegex4

⁴

https://nlp.stanford.edu/software/tokensregex.html

[16]. A rule (i.e. pattern) is composed of words and entity classes. For example, the following rule suggests that if a sentence contains “(capital)” followed by an entity of type “Country” (say E sub ), then followed by “(city)” and another entity of type “Settlement” (say E obj ); then we can extract the relation ( E sub , fbo:capital, E obj ). Using 106 regular expressions, we extracted 388640 triples from Wikipedia articles.

5.3.4. RTE with distant supervision

Distant supervision is a semi-supervised approach for information extraction from raw-text [5,50]. It is based on the intuition that the facts in the knowledge graph already have instances mentioned in the raw text sources. By aligning known facts, i.e. triples, with the corresponding sentences, we can automatically create a training set, so that a classifier can be trained to extract more facts with similar patterns from the raw text.

OPEN IN VIEWER

Fig. 2.

Two sentences (a, b) with the same dependency pattern (c).

Inspired by Aprosio et al. [5], we developed a training dataset by automatically aligning FarsBase known facts with Persian Wikipedia’s text. Out of 2.5 Million sentences from Persian Wikipedia articles, 172,368 sentences were mapped to the facts in FarsBase. The mapped sentences were evaluated by human experts, and 16,745 sentences were verified and added to the RTE engine. To improve the accuracy, we added a number of negative examples, i.e. sentences without any relationship between their entities.

We used LibSVM5

⁵

https://www.csie.ntu.edu.tw/cjlin/libsvm/,chang2011libsvm

to train an SVM classifier with bag-of-words features. The classifier uses the first K words before/after the first/second entity (4 feature sets), as well as the POS tags between the two entities, and the classes of the entities.

The precision of the classifier was 54% on the gold data. To increase the precision, we used a type-checking algorithm, which eliminates triples that are not compliant with the domain and range constraints of their predicates. For example, the subject of a nationalTeam must be a Person, and its object must be a Team. Therefore, if the extracted rule is “Iran nationalTeam Africa”, it is eliminated due to in compliance with the domain constraints. Using this module, we extracted 203441 triples (confidence > 0.9) from Wikipedia articles.

5.3.6. Unsupervised RTE

We introduce an unsupervised method for triple extraction, which is based on dependency parsing and constituency tree. Unfortunately, there are no accurate libraries for constituency parsing in Persian. Our unsupervised method takes the main phrases of a sentence as input and uses the dependency parse tree to detect the main phrases. Using this module, we extracted 178240 triples (confidence > 0.9) from Wikipedia articles.

OPEN IN VIEWER

Fig. 3.

The dependency parse tree and main phrases of a sample Persian sentence.

We explain our unsupervised RTE by an example. Consider the sentence shown in Fig. 3. Given the dependency parse tree and the constituency tree, consider the following definitions:

Verb Phrase (VP): A phrase that contains at least one verb.

Ignored Phrase (IP): A phrase in which the head of the phrase is not connected to the verb in the dependency parse tree. IPs are not to be involved in the extraction process.

Linked Phrase (LP): A phrase that all of its words are linked to one and only one entity.

Candidate Phrase (CP): A phrase that includes at least one verb or noun. Phrases that do not include any name or verb is not be ignored in triple extraction.

In our unsupervised RTE, triples are extracted based on the following criteria:

Sentences with no VP are ignored.

If the sentence has one VP and two LPs, the triple ( LP 1 , VP , LP 2 ) is extracted.

If the sentence has one VP, one LP and more than one CPs ( N > 1 ), we extract N triples as ( LP , VP , CP i ) where i ϵ ( 1 , … , N ) and CP i is the ith candidate phrase.

The precision of our unsupervised RTE is 67%, evaluated in 600 sentences. To facilitate the verification by human experts, we assign confidence values to each of the extracted triples with a method similar to [25].

6.1. Mapping Wikipedia infoboxes

Wikipedia infoboxes contain predicates in different syntactic shapes and different languages. While DBpedia uses a markup language for mapping, FarsBases uses mapping tables which are easier to maintain by the human experts. In the following, we describe the two approaches.

6.1.3. Ontology construction

Ontology is one of the most important parts of any knowledge graph. In FarsBase, each entity is an instance of one of the classes. The FarsBase ontology is a tree of the classes, each of which has only one parent.

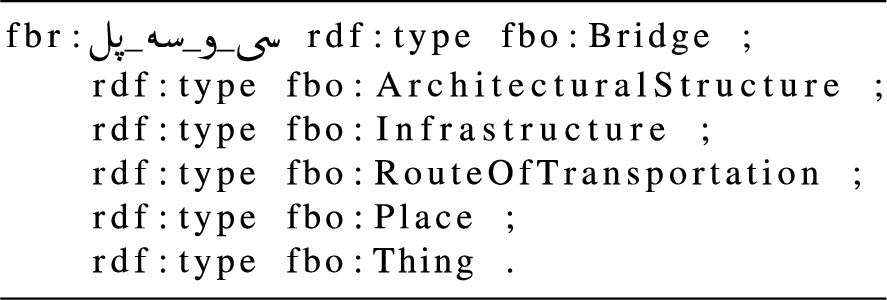

For Example (Si-o-se-pol) is a Bridge, ArchitecturalStructure, Infrastructure, RouteOfTransportation, Place and Thing. The main class of each entity (i.e. the deepest class in the tree) is defined by an fbo:instanceOf predicate.

Note that fbr is the prefix for the “http://fkg.iust.ac.ir/resource/” namespace and fbo is the prefix for the “http://fkg.iust.ac.ir/ontology/” namespace. All classes of an entity are defined with rdf:type predicate:

The ontology of FarsBase consists of 767 classes. The main body of the ontology is derived from DBpedia. Classes with no entities in Persian Wikipedia, most of which are not extensively used in Persian language and culture, are removed from the ontology. Also, some new classes were found in Persian Wikipedia, which is added to the ontology. The new classes are listed in Table 4.

OPEN IN VIEWER

Table 5

Mapping rules for Wikipedia templates

Infobox Attribute	Predicate	Constant	Unit/Type	Transformer
–	rdf:type	fbo:City	owl: NamedIndividual	–
–	rdf:location	fbr:Iran	owl: NamedIndividual	–
mayor	fbo:mayor	–	owl:NamedIndividual
wheat_production	fbo:weathProductionMin	–	xsd:int	minMaxRangeToMin
wheat_production	fbo:weathProductionMax	–	xsd:int	minMaxRangeToMax
area_mi2	fbo:area	–	fbr:km2	mile2ToKm2
latitude	fbo:lat	–	xsd:double	latLong
longitude	fbo:long	–	xsd: double	latLong

Experts added some valuable information to this ontology, e.g. different labels for classes, predicates, ranges, and domains. FarsBase automatically estimates the range and domain of each property and stores them in the KG as triples of type fbo:autoRange and fbo:autoDomain.

In Wikipedia templates and infoboxes, the values are written in different formats. Interpreting each format requires implementing a small logic. Consider the following examples:

To efficiently handle the logic required to handle the values, the experts create a table containing the mapping rules for each template. Each row in the mapping rules table (Table 5) is a rule that defines what should be done for each of the attributes of a template. For example, a mapping table for the template “a city of Iran” is defined in Table 5.

As an example, suppose that the mapper is given all triples extracted from an article with “a city in the Iran” template. The rules with empty attribute fields are executed at first. Therefore, two triples are generated for type (fbo:City) and location (fbr:Iran). Note that a rule with an empty attribute must have a constant value. In the next step, the mapper checks the infobox attribute in all triples and looks for the corresponding rule in the mapping rules table. For example, if the infobox attribute is “mayor”, it is mapped to “fbo:mayor”. Also, wheat_production matches with two rules in the rule set. As a result, several triples corresponding to such attribute are generated.

The transformer functions are defined to handle complex value types. The input of a transformer is a string, and the output can be a string, a numerical value, or a date. For example, the minMaxRangeToMin function receives an interval string (minimum and maximum) and returns the minimum value (Input: “12–13”, output: 12). Similarly, the latLong function receives a string corresponding to latitude or longitude, detects its format, and generates a decimal value in signed degrees format (Input: “35 41′ 36″”, output: 35.69333333).

For some attributes in Wikipedia infoboxes, FarsBase maps the attribute to NULL, meaning that the key will be ignored in the mapping phase and its information will not be stored in the knowledge graph. For example, the size of an image in a Wikipedia article is not valuable and is ignored.

Storing mapping data in the rule sets makes it easier to represent and maintain the mapping system. Manipulating the mapping rules is easy for the experts and provides enough flexibility to handle all complicated cases.

6.3. Mapping triples from raw texts

The Wikipedia mapping system discussed in 6.1 is only applicable to Wikipedia infoboxes. However, if we identify the IRI of the entities, we can also apply the mapping rules on triples extracted from raw text. The module that identifies the entities from the triples generated by RTE and TBE is described in Section 5.3.2.

Obviously, identifying the entities and predicates is very challenging due to the ambiguities in triple extraction. To overcome this problem, if the entity has an infobox in Wikipedia, the extracted predicate is matched with an attribute in the infobox according to the mappings of that template. If the attribute is found in the infobox, the triple is mapped according to the Wikipedia mapping. Otherwise, we look for any rules in the mapping-rule tables of all templates that contain the extracted predicate.

To ensure that the information extracted from raw-text have an adequate quality, all RTE-generated triples must be approved by experts before they can be stored in the Belief-Store.

7.1. N-ary relations

Most knowledge graphs, FarsBase included, represent data in subject-predicate-object (SPO) format defined by the RDF model. This representation is suitable for relations involving two entities, but it is not straightforward to represent n-ary relations in the SPO format.

Wikipedia infoboxes support n-ary relations by defining an order for attribute-values. Figure 4 shows a sample of n-ary relations in the Wikipedia infobox of a football player. In such cases, all related attributes end by a digit, e.g. years4, caps4, and goals4. Rouces et al. [76] reviewed some modeling patterns for the representation of n-ary relations: The basic-triple pattern, triple-reification, singleton-property pattern, specific-role-neo-davidsonia, general-role-neo-davidsonian and Role-class pattern. FarsBase uses triple-reification for handling n-ary relations. For the infobox shown in Fig. 4, a sample of the extracted triples is as follows:

Note that fbr:/relation_4 is automatically created. The reification model also handles relations that contain temporal data.

OPEN IN VIEWER

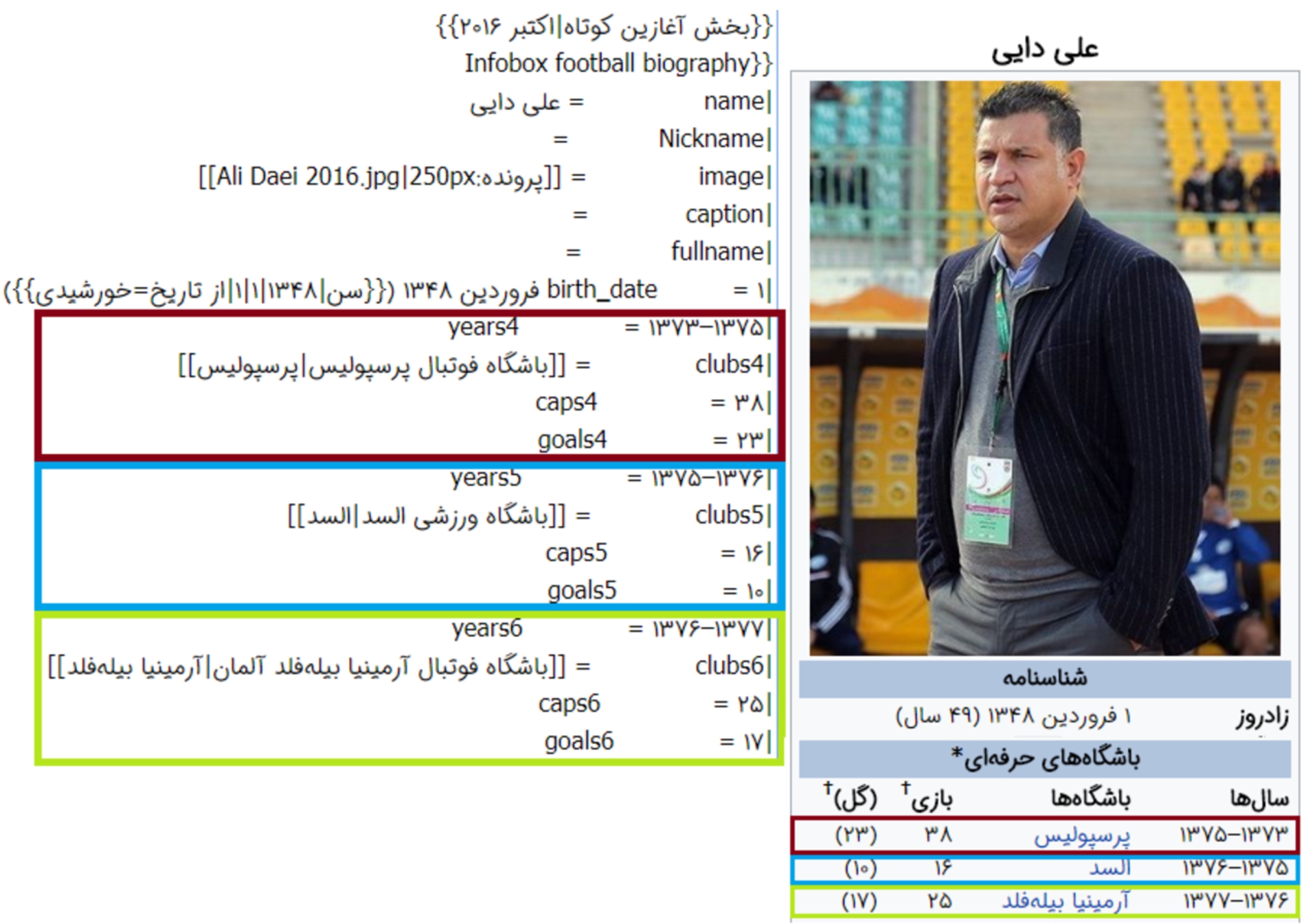

Fig. 4.

N-ary relations in a Wikipedia infoboxe.

The Mapper system stores all the data generated by the various extraction modules in the CFM-Store. The update system is triggered whenever a new set of triples is generated, either by WKE, RTE or TBE. In each update, the generated files, along with general extraction information (start and end time of the extraction and the extractor module), are stored in the system. The Mapper continuously traverses the arriving updates in short intervals and runs the mapping process. Note that some of the mapped triples might need to be validated before transferring to the final data. The Update Handler transfers the mapped triples to the final repository when the data is validated by experts, or when their confidence is above a pre-defined threshold.

Triples that no longer exist in a new Wikipedia dump is deleted from the final data (Belief-Store). FarsBase stores the version number along with the triples so that it can handle the changes in the values of the triples. After finding new triples from a module, the mapper uses a version number generated by the CFM-Store and stores all triples with the assigned version to the CFM-Store. The final (validated) data is stored in Belief Store in specific periods (currently every 24 hours).

7.3. Human supervision

Automatic approaches for knowledge graph construction, such as NELL [52], have recently reached considerably high accuracy, but to construct a high-quality KG, NELL uses crowdsourcing to verify the extracted facts. Therefore, human supervision is still essential to ensure the correctness, consistency, and completeness of the data.

In FarsBase, Human experts are used in four tasks: triple approval, ontology construction, mapping, and evaluation (e.g. to create gold data for evaluating the distant supervision module).

Triples with the confident higher than a threshold are automatically transferred to the Belief-Store. Other triples must be verified by a majority vote of three experts.

Since FarsBase is used in a search engine, the cost of a wrong triple is proportional to its popularity in user queries, i.e. its frequency in the user query logs. To minimize this cost, entities are prioritized by their expected query frequency, which is estimated by a probabilistic model.

DBpedia is already linked to 36 other datasets. Therefore, we can easily link FarsBase to other datasets if we correctly match the FarsBase entities with DBpedia. Most Persian Wikipedia articles have inter-language links with an English article, and the majority of English articles are mapped to DBpedia. By following the connections, FarsBase is connected to DBpedia using the owl:sameAs predicate. 439,445 of FarsBase entities have at least one link to external datasets. FarsBase totally has 5,582,589 links to external datasets.

8.1. Size

Tables 6 and 7 show the frequencies of entities and triples for the most frequent classes in FarsBase. The Settlement and Village classes contain the largest number of entities (69317 and 49512).

In general, more than 190,000 entities are instances of the Place class. The frequency of entities and triples of the first level of the ontology are shown in Table 8.

There are 1712 unique templates in Persian Wikipedia, out of which 683 templates are mapped to FarsBase ontology classes. Also, Persian Wikipedia infoboxes have 25032 unique attributes, and 7808 attributes are mapped to the FarsBase ontology. Table 9, illustrates the number of mapped templates, attributes, and Wikipedia infobox triples. While we have only mapped 40% of the templates and 31% of the attributes, the mapping covers 90% of the triples because the unmapped templates and frequencies have a quite lower frequency in the triples.

8.3. Coverage of entities

We adopted several measures to evaluate the coverage of entities in FarsBase. The coverage is evaluated using two test sets: Wikipedia articles, entities from a gazetteer, and the information need of search engine based on a query log.

Gazetteer named entities We aim to measure how much of the named entities that appear in raw texts are available in FarsBase. We used three gazetteers for named entity recognizer (NER) in Persian developed by Iran Telecommunication Research Center (ITRC). We measured how many of the gazetteer entities are available in FarsBase. Table 10 shows the results for the person, location and organization classes. Results show that FarsBase has a wider coverage for famous persons compared to other named entities.

Query log entities When a KG is used for semantic search, entities that appear in frequent queries are more important. We used 321 popular queries from a search engine log. Human experts chose the main query for each entity and checked whether the entity exists in FarsBase. FarsBase covered 91.85% of the frequent entities.

Application-specific coverage The search system and its evaluation is beyond the scope of this paper. Nonetheless, it is important how FarsBase covers the triples that are required to answer KG-based semantic queries. Evaluating application-specific triple coverage is very challenging because it depends on the application (KG search engine) on how many triples it needs to have for answering to each query. For example, consider the query (“Bridges in Isfahan”). For any of the results of this query, such as the Si-o-se-pol bridge, at least two triples must be available in the KG so that the result can be retrieved, namely “result rdf:type fbo:Bridge” and “result fbo:locatedInArea Isfahan”. From the application’s perspective, if any of the two triples are not in the KG, the cost is the same as not having both of the triples. Therefore, we use an evaluation measure in the application’s domain, such as precision, which indirectly measures the triple coverage.

Eliminating application-specific errors To have a precise estimate of the triple coverage, we try to eliminate the aspects of the application (i.e. semantic search engine) that are irrelevant to triple coverage. A KG-based semantic search engine can fail to retrieve a result for four reasons:

To measure the application-specific triple coverage, we have to eliminate the effect of the first three issues. Therefore, the experts carefully revised the query set and chose the KG-compatible queries that are already supported and processed correctly by the query engine.

Query set Three experts evaluated the responses by the semantic search module for each query.

The query set is built from three different sources:

Results We used r-precision to measure the application-specific triple coverage. For each query, r-precision is the number of correct results among the first R results, where R is the number of relevant results. For examples, since there are 6 bridges in Isfahan, if the query engine returns only 5 correct results, its r-precision is 5 6 . Average r-precision is the average of the r-precision values for all queries in the query set. Average r-precision for each source is reported in Table 11. Note that, since we have eliminated the errors of the query engine when creating the evaluation query set, r-precision is very close to the recall. The difference is that if an irrelevant result appears in the result set (due to false information in the triples), it contributes to a lower r-precision but does not affect the recall.

Freshness measures the effectiveness of the update process. To evaluate the freshness of data in FarsBase, a list of famous recent events was collected in a time interval. The list was extracted automatically from “Portal:Current_events” and “Deaths_in_2018” pages in Wikipedia. After checking 100 entities from the list, all the entities and 91.02% of their attributes existed in FarsBase.

8.6. Linked data

A total of 558,2589 FarsBase resources has been linked to 33 external datasets. In total, 439,445 of the 541,927 FarsBase entities (81.09%) were connected to at least one other datasets. Table 12 shows the number of links to each of the linked datasets.

9.1. Knowledge graph construction

FreeBase Developed by Metaweb, Freebase was a publicly available knowledge graph launched in early 2007. It contained more than 125,000,000 tuples, 4,000+ types, and 7,000+ properties [14]. Freebase data was harvested from multiple sources including Wikipedia and was available using Metaweb Query Language (MQL).

YAGO Suchanek et al. [82] presented YAGO as a lightweight, high-quality and extensible ontology.

YAGO combined Wikipedia infoboxes and WordNet taxonomic relations using several heuristics and a quality control system. Facts are extracted by applying different heuristics on infoboxes, types, words, and categories. YAGO2 added temporal and spatial aspects to the knowledge graph. To provide geographical information, YAGO2 included the GeoNames database [34] YAGO3 is built using multilingual information extraction techniques and supports 10 languages [47,71].

DBpedia DBpedia converted Wikipedia contents into a large multi-domain RDF dataset. It is interlinked to other open data sources including FOAF, GeoNames, Dublin Core Berlin, World Factbook, and Music Brainz. The DBpedia community also developed a series of modules which makes DBpedia accessible via Web services [6]. DBpedia has been further developed into a multilingual knowledge graph and aims to completely support all languages in Wikipedia. The DBpedia extraction framework contains four extraction modules: Mapping-Based Infobox Extraction, Raw Infobox Extraction, Feature (e.g. geographic coordinates) Extraction, Statistical Extraction. Using the mapping-based infobox extraction system [39,49].

BabelNet BabelNet integrated lexicographic and encyclopedic knowledge across multiple languages and presented a lightweight method to map Wikipedia articles to WordNet senses. For resource-poor languages, they used human-edited and statistical machine translations of Wikipedia articles in the other languages. BabelNet also integrated a multilingual word-sense disambiguation system with its knowledge graph [61].

Wikidata The goal of Wikidata (Wikipedia for data) is managing the factual information of Wikipedia. Wikidata uses facts instead of triples and users enter facts directly to the database. Each entity has an ID (not a URI). There is no extraction process on Wikidata and each fact is entered by the users. Each entity has multiple “statements” instead of “triples”. Each statement has one or more references and one claim [36,88].

Other knowledge graphs Wang et al. [89] proposed an automatic knowledge graph construction using statistical text over database systems (MADDEN), deductive reasoning system (PROBKB) and human feedback (CAMEL).

Knowledge Vault introduces a probabilistic knowledge graph that mixes information extraction from Web content with prior knowledge derived from existing KGs. This knowledge graph uses a supervised machine learning method to fuse these information sources. Knowledge Vault has three main components: triple extractors (text documents, HTML trees, HTML tables, and Human annotated pages). Graph-based priors, and knowledge fusion. Triple extractors may extract unreliable and noisy knowledge. Prior knowledge is used to reduce the noise from the extracted data [23].

DeepDive cleans and integrates data from multiple sources like text documents, PDFs and structured databases. Statistical inference and machine learning is used to extract tuples and defines a probability score for each of tuple [31,91].

Nguyen et al. [62] argued that most of the knowledge graphs are not extracted based on the information needs of the end users and fail to cover many relevant predicates. They suggested QKBfly, an approach to construct an on-the-fly knowledge graph from user’s queries a question answering system.

FrameBase [76] proposed a KG schema which uses FrameNet [10] to store and query n-ary relations (facts with more than two entities or literals) from heterogeneous sources which combine efficiency and expressiveness. The article investigated different triple representations for n-ary relations and used NLP frames to handle these relations on other knowledge graphs.

Comparative survey Farber et al. defined 35 aspects in seven categories, including general information, format and representation, genesis and usage, entities, relations, schema, and particularities. for a comparative study on knowledge graphs, they provide a thorough comparison of these aspects in DBpedia, Freebase, OpenCyc, Wikidata, and YAGO [29].

KG construction for other low-resource languages Persian is originated from the ancient Middle-Persian language and has an extensive vocabulary derived from the Classic Arabic language. Persian and Arabic come from different roots (i.e., Indo-European and Semitic), but the Persian script is an adaption of Arabic script with a few modifications.

Currently, DBpedia has an Arabic chapter7

Paulheim et al. [65] provided a survey on knowledge graph refinement approaches (completion vs. error detection, the target of refinement, and internal vs. external methods) and evaluation methodologies (partial gold standards, knowledge graph as silver standards, retrospective evaluation, and computational performance). They evaluated Cyc [41] and OpenCyc, Freebase, DBpedia, YAGO, NELL and Knowledge Vault. They also presented some statistics about Wikidata, Google’s Knowledge Graph, Yahoo!’s Knowledge Graph [13], Microsoft’s Satori and Facebook Entity Graph.

Färber et al. proposed 34 metrics for knowledge graph quality assessments and analyzed on the DBpedia, Freebase, OpenCyc, Wikidata, and YAGO [28]. The metrics categorized on Intrinsic (accuracy, trustworthiness, and consistency), Contextual (relevancy, completeness, timeliness), Representational Data Quality (ease of understanding and interoperability) and Accessibility (accessibility, license, interlinking) metrics.

Rashid et al. [69] also proposed 4 quality assessments (Persistency, Historical Persistency, Consistency, and Completeness) and assessed these metrics on 11 release of DBpedia and 8 release of 3cixty [74].

9.3. Mapping

Dimou, et al. [21] proposed a uniform assessment approach using the RML (a mapping language) and RDFUnit (a test-driven approach for every vocabulary, ontology or dataset). They also applied this validation on DBpedia [20].

Ahmeti, et al. [2] proposed using the DBpedia mapping infrastructure to enhance Wikipedia content using an Ontology-Based Data Management (OBDM) approach, for example, using conflict resolution policies to ensure the consistency of updates on Wikipedia infoboxes.

9.4. Relation extraction from raw texts

Entity extraction and entity linking Many researchers have worked on triple and relation extraction from raw texts. In knowledge graph construction, we have to use triple extraction and each entity must be linked to our knowledge graph. Thus entity linking is an essential task in triple extraction.

Han et al. [32] introduced collective entity linking which works based on jointing name mentions in the same document by a representation called Referent Graph.

Exner et al. [26 ,27] proposed an entity extraction pipeline which includes a semantic parser and coreference resolver and worked based on coreference chains. This approach extracted more than 1 million triples from 114000 Wikipedia articles. Oramas et al. [64] presented a rule-based approach for extracting knowledge from the songfacts.com website. The extraction pipeline includes Babelfy [56] as a state-of-the-art entity linker with the highest precision on musical entities. Nguyen et al. [63] presented J-REED as a joint approach for entity linking based on graphical models.

Finally, Röder et al. [75] proposed a GERBIL including an evaluation algorithm for entity linking to compare two entity URIs without being bound to a specific knowledge graph.

Triple and relation extraction Bach et al. [8] presented a review on the most important supervised and semi-supervised relation extraction prior to 2007. Kasneci et al. [37] proposed YAGO NAGA which extracts candidate facts from raw text and integrates them to YAGO. NAGA also employs a consistency checking approach to control the quality of generated facts. Wanderlust [3] is an approach to extract semantic relations from raw texts unsupervised dependency grammar approach.

Nakashole [60] presented automatic extraction of a web-scale knowledge graph. He proposed a robust method to extract high-quality facts from noisy text sources. He also proposed a method to handle new entities in dynamic web sources.

TokenRegex [16] which was proposed by Stanford Natural Language Processing Group, facilitate rule-based approaches for relation extraction by implementing a framework for cascading regular expressions over sequences of tokens. Madaan et al. [46] proposed a relation extractor for numerical data (e.g. atomic number like “Aluminium, 13” or inflation rate like “India, 10.9%”) which tries to handle units with minimal human supervision.

Presutti et al. [66] proposed Legalo, an unsupervised open-domain knowledge extractor. Legalo is based on the hypothesis that hyperlinks between two entities provide semantic relations between them.

Speer et al. [80] proposed ConceptNet, a knowledge graph extracted from many sources including Open Mind Common Sense (OMCS) [79], Wiktionary, purposeful games, WordNet, JMDict [15] (a Japanese-multilingual dictionary), OpenCyc, and a subset of DBpedia.

Vo et al. [87] described the second generation of OIE which is able to extract relations between Noun and Pre, Verb and Prep using deep linguistic analysis. Stanovsky et al. [81] presented a supervised sequence tagging approach to OIE which is aimed by Semantic Role Labeling models. To provide training data, they automatically converted a question answering dataset to an open IE corpus.

Distant supervision Distant supervision (DS) was first introduced by Mintz et al. [50]. They examined DS on Freebase and the model extracted 10,000 instances and 102 relations with a precision of 67.6%. Aprosio et al. [5] used DS for extracting missing values from Wikipedia articles to enrich the DBpedia knowledge graph. Augenstein et al. [7] use DS on Web sources with data sparsity, noise, and lexical ambiguity. To handle such data, they used an entity recognition tool and an unsupervised co-reference resolver. They also presented several methods for information integration to aggregate extracted knowledge to the main KG. Heist et al. [33] proposed a language-independent approach based on distant supervision and extracted 1.6 million triples with 95% precision from the abstract of 21 Wikipedia language editions.

9.5. Knowledge graph augmentation

FACT EXTRACTOR [30] is an n-ary relation extractor which uses FrameNet and populates the KG with supervised NLP layers and tried to reduce the supervision costs by crowdsourcing. Chen et al. [17] proposed a parallel first-order rule mining method (Path-finding algorithm) and a pruning system to augment Freebase and mined 36625 rules and 0.9 billion new facts from Freebase.
