Gravsearch: Transforming SPARQL to query humanities data

Gravsearch has been developed as part of Knora (Knowledge Organization, Representation, and Annotation), an application developed by the Data and Service Center for the Humanities (DaSCH) [22] to ensure the long-term availability and reusability of research data in the humanities.3

It is not feasible or cost-effective for the DaSCH to maintain a multitude of different data formats and storage systems over the long term. Moreover, part of the DaSCH’s mission is to make all the data it stores interoperable, so that it is possible to search for data across projects and academic disciplines in a generic way, regardless of the specific data structures used in each project. For example, many projects store text with markup, and it should be possible to search the markup of all these texts, regardless of whether they are letters, poems, books, or anything else. When markup contains references to other data, it is useful for humanities researchers to search through the markup to the data it refers to, e.g. by searching for texts that refer to a person born after a certain date (as in the example in Section 2.2). It is therefore desirable to store text markup in the same way as other data, so they can be searched together.

The DaSCH must also mitigate the risks associated with technological and institutional change. The more its data storage is based on open standards, the easier it will be to migrate data to some other format if it becomes necessary to do so in the future.

With these requirements in mind, the DaSCH has chosen to store most data in an RDF triplestore. RDF’s flexibility allows it to accommodate all sorts of data structures. Its standardisation, along with the variety of triplestore implementations available, helps reduce the risks of long-term preservation. Even if RDF technology disappears over time, the RDF standards will make it possible to migrate RDF graphs to other types of graph storage.

Knora is therefore based on an RDF triplestore and a base ontology. The base ontology defines basic data types and abstract data structures; it is generic and does not make any assumptions about semantics.5

Knora is a server application written in Scala; it provides a web-based API that allows data to be queried and updated, and supports the creation of virtual research environments that can work with heterogeneous research data from different disciplines.6

The DaSCH’s mission of long-term preservation requires it to minimise the risk of vendor lock-in. Knora must therefore, as far as possible, avoid relying on any particular triplestore implementation, or on any type of data storage that has not been standardised and does not have multiple well-maintained implementations. This means that as long as there is no widely implemented RDF standard for some of the DaSCH’s requirements, such as access control and versioning, Knora has to handle these tasks itself to ensure consistent behaviour, regardless of which triplestore is used.7

Knora’s API required a query language that allows for complex searches in specific projects, as well as cross-project searches using ontologies shared by different projects, such as FOAF9

The query language also needs to allow queries to use data structures that are simpler than the ones stored in the triplestore. The DaSCH’s requirement to have a generic storage system for humanities data, as outlined in Section 1.1, introduces complexities in the RDF data structures used in the triplestore, and these complexities should be hidden from clients for the sake of usability.

For example, in humanities research, it is useful to search for dates independently of the calendar in which they are written in source materials. If an ancient Chinese manuscript records a solar eclipse or a sighting of a comet, and an ancient Greek manuscript records the same astronomical event at the same time, a search for texts mentioning the event and the date should find both texts, even though the date was written in different calendars. Astronomers and historians have long used a calendar-independent representation of dates, called Julian Day Numbers (JDNs), to facilitate such comparisons [11,19]. A Julian Day Number is an integer, and can therefore be efficiently compared in a database query. Moreover, historical dates are often imprecise, e.g. when only the year is known, but not the month or day, or when a date is known only to fall within a certain range.

Knora therefore stores each date in the triplestore as an instance of its DateValue class, which contains two JDNs, representing a possibly imprecise date as a date range. Each date in the range (i.e. the start date and the end date) has a precision (year, month, or day). The date range also indicates the calendar in which the date was originally recorded. This allows a SPARQL query to determine the chronological relationship between two dates, regardless of the calendar that they were originally created in. This approach cannot handle dates whose JDN cannot be computed (e.g. dates in a calendar system whose points of reference are not known); these would need to be stored in a different way. It would also be possible to extend this system to express different sorts of imprecision. However, the current design is already sufficient for many historical research projects. For our purposes here, the important point is to illustrate the usefulness of having different internal and external representations of dates.11

JDNs are clearly not a convenient representation for clients to use. Search requests and responses should instead use whatever calendars the client prefers. The client should not have to send or receive JDNs itself, or to deal with the complexities of comparing JDN ranges in SPARQL. In the Knora API, all dates are input and output as calendar dates; Knora converts between JDNs and calendar dates using the International Components for Unicode library.12

Another example concerns text with markup, which Knora can store as RDF data (see Section 3.3). A humanities researcher might wish to search a large number of texts for, say, a particular word marked up as a noun. Knora could optimise this search by using a full-text search index. This also involves rather complex SPARQL, which is partly specific to the type of full-text indexing software being used. The client should not have to deal with these details.

SPARQL lacks other features required in this context. Knora must restrict access to data according to user permissions. It also implements a system for versioning data in the triplestore, such that the most recent version is returned by default, but the version history of resources can be requested. To improve scalability, Knora should enforce the paging of search results, rather than leaving this up to the client as in SPARQL.

One way of making RDF data publicly available and queryable is by means of a SPARQL endpoint backed directly by a triplestore. Prominent examples include DBpedia [7], Wikidata [28], and Europeana [8]. While this approach offers great flexibility and allows for complex queries, its drawbacks have been criticised. In a widely cited blog post [21], Dave Rogers argues that SPARQL endpoints are an inherently poor design that cannot possibly scale, and that RESTful APIs should be used instead. For example, a SPARQL endpoint allows a client to request all the data in the repository; this could easily place unreasonable demands on the server, particularly if many such requests are submitted concurrently.

GraphQL [12] is a newer development and – despite its name – not restricted to graph databases. It is meant to be a query language that integrates different API endpoints. Instead of making several requests to different APIs and processing the results individually, GraphQL is intended to allow the client to make a single request that defines the structure of the expected response. (See Section 2.1 for a discussion of extensions to GraphQL for querying RDF.)

From our perspective, triplestore-backed SPARQL endpoints and GraphQL both have limitations that make them unsuitable for Knora and for humanities data in general. They assume that the data structures in the triplestore are the same as the ones to be returned to the client. They offer no standard way to restrict query results according to the client’s permissions. They do not enforce the paging of results, but leave this to the client. And they provide no way to work with data that has a version history (so that ordinary queries return only the latest version of each item). These requirements led us to develop a different approach.

2.1. Scope of Gravsearch

Gravsearch was developed as part of Knora and is used as part of the Knora API. Knora is an integrated system, taking care of creating, updating and reading data by mediating between the triplestore and the client. Gravsearch is not meant to replace direct communication with a triplestore via a SPARQL endpoint, but rather to provide an integrated system with a flexible way of querying data. The result of a Gravsearch query is returned in the same format used by the rest of the Knora API, making it suitable for web applications.

HyperGraphQL [14], an extension to GraphQL, makes it possible to query SPARQL endpoints using GraphQL queries, by converting them to SPARQL. Its intended advantages include the reduction of complexity on the client side and a more controlled way of accessing a SPARQL endpoint, avoiding some of the problems discussed in Rogers’s blog post [18]. A similar approach has been taken with GraphQL-LD [25], differing from HyperGraphQL in that GraphQL queries are translated to SPARQL on the client-side. We think that both HyperGraphQL and GraphQL-LD could be viable approaches to generating SPARQL that is further processed before being sent to the triplestore, thus integrating with Gravsearch. We consider this a promising avenue for future development.

When the full flexibility of SPARQL is needed, projects always have the possibility to make their data openly accessible via a SPARQL endpoint. In such a case, a named graph can be made for queries but not for updates, and possibly transformed into a simpler data model than used internally in order to facilitate integration with other data sets.

It is true that, even with pagination, it is possible to write ‘inefficient or complex SPARQL that returns only a few results’ [21], and this could also be true of Gravsearch queries. As a last resort, some triplestores provide a way to set arbitrary limits on execution time or the number of triples or rows returned, but this still means consuming significant resources before rejecting the query. Moreover, setting a limit on the number of triples returned by a CONSTRUCT query can cause the triplestore to return incomplete entities, with no indication to the client that the response has been truncated.

It would be better to reject a badly written query without running it, and users would appreciate error messages explaining what needs to be changed to improve the query. The presence of an application layer that analyses and transforms the input query provides opportunities to do this. This is why, for example, Gravsearch currently does not allow subqueries. It would also be possible to reject a triple pattern like ?s ?p ?o whose variables are not restricted by any other pattern. We see this kind of analysis as a promising topic for future research.

Although SELECT queries are not currently supported, if tabular output is desired, (e.g. for statistical analysis), the results of a CONSTRUCT query can be converted into a table by combining results pages and converting the RDF output to tabular form. This could be done either in the client or on the server.

2.2. Ontology schemas

A design goal of Gravsearch is to enable queries to work with data structures that are simpler than the ones actually used in the triplestore, thus hiding some complexity from the user. To make this possible, Knora implements ontology schemas. Each ontology schema provides a different view on ontologies and data that exist in the triplestore. The term internal schema refers to the structures that are actually in the triplestore, and external schema refers to a view that transforms these structures in some way for use in a web API.

Knora’s built-in ontologies as well as all project-specific ontologies are available in each schema, but in the triplestore, all ontologies are stored only in the internal schema; the other schemas are generated on the fly as needed. An ontology always has a different IRI in each schema, but the triplestore sees only the IRIs for the internal schema. In Knora, the IRIs of built-in and project-specific ontologies must conform to certain patterns; this allows Knora to convert ontology IRIs automatically, following simple rules, when converting ontologies and data between schemas. An additional convention is that Knora’s base ontology is called knora-base in the internal schema, and knora-api in the external schemas.

In the internal schema, the smallest unit of research data is a Knora knora-base:Value, which is an RDF entity that has an IRI. Subclasses of Value represent different types of data (text, integers, dates, and so on). If a client wishes to update a value via the Knora API, it needs to know the value’s IRI. However, a Knora Value also contains information that is represented in a way that is not convenient for clients to manipulate (e.g. dates are stored as JDNs, as mentioned above). Therefore, Knora provides an external schema called the knora-apicomplex schema, in which each value has an IRI, but its contents are represented in more convenient form (e.g. calendar dates are used instead of JDNs).

For clients that need a read-only view of the data, Knora provides a simple schema, in which there is no Value class; instead, Knora values are represented as literal datatypes such as xsd:string, and the metadata attached to each value is hidden. An advantage of the simple schema is that it facilitates the use of standard ontologies such as dcterms, in which values are typically represented as datatypes without their own metadata. For example, if a property is defined in Knora as a subproperty of dcterms:title, its object in Knora will internally be a Knora TextValue with attached metadata, but a Gravsearch query in the simple schema can treat it as a literal, in keeping with its definition in dcterms.

Gravsearch queries can thus be written in either of Knora’s external schemas, and results can also be returned in either of these schemas.

To illustrate the differences between these schemas, Listing 1 in Appendix A shows a Gravsearch query that searches for a letter in the Bernoulli-Euler Online (BEOL) project (see Section 3), using the complex schema. The query searches for a letter from the mathematician Anders Johan Lexell (identified by his IRI), specifying that the text of the letter must refer to a person whose birthdate is after 1706 CE. To do this, the query in Listing 1 searches the triples representing the text’s standoff markup (see Section 3.3) for a link to a beol:person resource whose birthdate is greater than that date.

To run this query, the Gravsearch transformer generates a SPARQL CONSTRUCT query; part of the triplestore’s response is shown in Listing 2 (the full response contains many more details such as permissions, timestamps, and so on). A beol:person representing Leonhard Euler is returned, because he is identified in the text markup and was born after 1706. Note that the date values are represented as ranges of JDNs, and each markup tag is represented as an RDF entity.

If the client requested a JSON-LD response in the complex schema, it will look like Listing 3. Here each date is represented as a calendar date, the text with its markup has been converted to an XML document (one of several possible representations that the client can request), and each link to a beol:person resource is represented as a JSON-LD object containing the target resource as a nested object. Each resource is accompanied by additional metadata added by the Knora API server (some of which is not shown here), e.g. an ARK URL serving as a permanent link to the resource.

This JSON-LD representation in the complex schema is designed to be convenient to use in the development of web applications. The ARK URLs in this listing can be opened in a web browser to show an example of such an application.13

If the client requested a JSON-LD response in the simple schema, it will look like Listing 4. (The client can also request an equivalent response in Turtle or RDF/XML.) Here, the structure of the response has been simplified, so that values are represented as simple literals. For example, the object of beol:title is a string literal rather than a TextValue. Moreover, if the client dereferences the BEOL ontology IRI given in the JSON-LD context,14

The simple schema also makes it possible to use standard ontologies in the Gravsearch query itself. Listing 5 shows a Gravsearch query that uses the FOAF ontology to search the BEOL project data for foaf:Person objects whose foaf:familyName is ‘Euler’, without using the BEOL ontology at all. This works because beol:person is a subclass of foaf:Person, and beol:hasFamilyName is a subproperty of foaf:familyName. Depending on the triplestore’s inference capabilities, Knora either uses the triplestore’s RDFS inference or expands the query itself using property path syntax.

The query in Listing 5 specifies that the object of foaf:familyName is an xsd:string. This is consistent with the definition of the subproperty beol:hasFamilyName in the simple schema. In the internal schema, the object of that property is the IRI of a Knora TextValue, which contains a string as well as permissions and other metadata. When Gravsearch generates SPARQL from the input query, it transforms the WHERE clause of the input query to handle this difference (see Section 2.6). This design allows standard ontologies using simple literal values, such as FOAF, to be used in Gravsearch queries, even though Knora actually stores values as IRIs with attached metadata.

In short, Gravsearch transforms queries, ontologies, and data on the fly according to the ontology schema that the client is using. The implementation is partly object-oriented (the Scala classes representing different sorts of RDF entities have methods for generating representations of themselves in different schemas) and partly based on sets of transformation rules for each schema (e.g. to remove certain properties and add others, and to change OWL cardinalities). Additional external schemas could be added in the future.

In Knora, each resource and each value has role-based permissions attached to it. Internally, permissions are represented as string literals in a compact format that optimises query performance. For example, a Knora value could contain this triple:

This means that the value can be viewed by members of the specified group. With a SPARQL endpoint backed directly by a triplestore, there would be no way to prevent other users from querying the value. Therefore, the application must filter query results according to user permissions.

To determine whether a particular user can view the value, Knora must compute the intersection of the set of groups that the user belongs to and the set of groups that have view permission on the value. If not, Knora removes the value from the results of the Gravsearch query.

2.4. Versioning

Internally, a resource is connected only to the current version of each of its values. Each value version is connected to the previous version via the property previousVersion, so that the versions form a linked list. When a client requests a single resource with its values via the Knora API, the client can specify a version timestamp. Knora then generates a SPARQL query that traverses the linked list to retrieve the values that the resource had at the specified time.

Gravsearch is designed to query only current data. This is easily achieved, because the only way to obtain a value in Gravsearch is to follow the connection between the resource and the value, which is always the current version. Knora’s external ontology schemas do not expose the version history data structure at all (e.g. they do not provide the property previousVersion). Therefore, the client cannot use previousVersion to query a past version of a value, which would be possible if they could submit SPARQL directly to the triplestore. A specific (non-Gravsearch) API request enables clients to access the version history of a value. The version history data structure is hidden from clients, enabling it to be changed in the future as RDF technology develops.

2.5. Gravsearch syntax and semantics

Syntactically, a Gravsearch query is a SPARQL CONSTRUCT query. Thus it supports arbitrarily complex search criteria. One could, for example, search for persons whose works have been published by a publisher that is located in a particular city. A CONSTRUCT query also allows the client to specify, for each resource that matches the search criteria, which values of the resource should be returned in the search results.

Results are returned by default as a JSON-LD array, with one element per search result. Each search result contains the ‘main’ or top-level resource that matched the query. If the query requests other resources that are connected to the main resource, these are nested as JSON-LD objects within the main resource. To make this possible, a Gravsearch query must specify (in the CONSTRUCT clause) which variable refers to the main resource. The resulting tree structure is generally more useful to web application clients than the flat set of RDF statements returned by SPARQL endpoints.

OPEN IN VIEWER

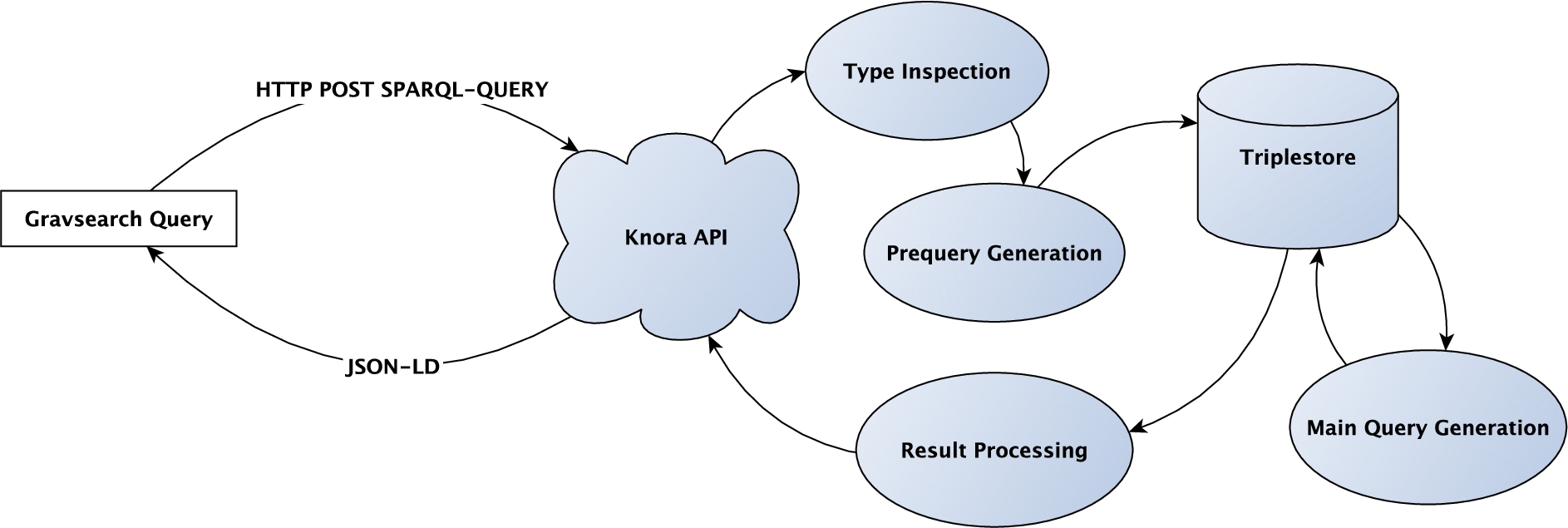

Fig. 1.

Processing and execution of a Gravsearch query.

Gravsearch uses the SPARQL constructs ORDER BY and OFFSET to enable the client to step through pages of search results, and does not allow LIMIT. The client can use ORDER BY with one or more variables to determine the order in which results will be returned, and OFFSET to specify which page of results should be returned. (This is different from the standard SPARQL OFFSET, which counts solutions to the pattern in the WHERE clause, rather than pages of results.) The maximum number of results per page is configurable in the application’s settings, and cannot be controlled by the client. The server indicates that more pages of results may be available by including a boolean property mayHaveMoreResults in the response. To retrieve all results, the client continues requesting pages until this property is absent (false); it is possible that the last page will be empty.

In processing Gravsearch queries, the API server is free to use a SPARQL design that best suits the performance characteristics of the triplestore. For example, as described below, our implementation transforms each input query into multiple SPARQL queries that are run in the triplestore, and generates different SPARQL for different triplestores. Clients and users need not be aware of this.

In theory, such transformations could be implemented using a more generic rule system, such as Rule Interchange Format (RIF),15

Rather than introduce an additional programming language for query transformation, we chose to implement a traditional compiler design in Scala, taking advantage of the RDF4J18

For the reasons explained in Section 1.2, the generated SPARQL is considerably more complex than the provided Gravsearch query, and deals with data structures in the internal schema. Each Gravsearch query is converted to two SPARQL queries to improve performance. First, a SELECT query (prequery) is generated, to identify a page of matching resources. Then a CONSTRUCT query (main query) is generated, to retrieve the requested values of those resources. Figure 1 illustrates this process graphically.

Most of the texts that are currently integrated in the BEOL platform are letters exchanged between mathematicians. On the project’s landing page, we would like to present the letters arranged by their authors and recipients. With Gravsearch, it is not necessary to make a custom API operation for this kind of query in Knora. Instead, a Gravsearch template can be used, with variables for the correspondents.

Appendix C shows a template for a Gravsearch query that finds all the letters exchanged between two persons. Each person is represented as a resource in the triplestore. It would be possible to use the IRIs of these resources to identify mathematicians, but since these IRIs are not yet stable during development, it is more convenient to use the property beol:hasIAFIdentifier, whose value is an Integrated Authority File (IAF) identifier (maintained by the German National Library), a number that uniquely identifies that person. This example thus illustrates searching for resources that have links to other resources that have certain properties. The user chooses the names of two mathematicians from a menu in a web browser, and the user interface then processes the template, substituting the IAF identifiers of those two mathematicians for the placeholders ${iaf1} and ${iaf2}. The result of processing the template is a Gravsearch query, which the user interface submits to the Knora API server. This query specifies that the author and recipient of each matching letter must have one of those two IAF identifiers. The results are sorted by date. The page number ${offset} is initially set to 0; as the user scrolls, the page number is incremented and the query is run again to load more results.

This query is simple enough to be written in the simple schema. For example, this allows the object of beol:hasIAFIdentifier to be treated as a string literal. Internally, this is an object property. Its object is an entity belonging to the class knora-base:TextValue, and has predicates and objects of its own. This extra level of complexity is hidden from the client in the simple schema. After we substitute the IAF identifiers of Leonhard Euler and Christian Goldbach for the placeholders in the template, the input query contains:

Gravsearch transforms these two lines to the following SPARQL:

Since values in Knora can be marked as deleted, the generated query uses knora-base:isDeleted false to exclude deleted values. It then uses the generated variable ?authorIAF__valueHasString to match the content of the TextValue.

3.2. Example 2: A user interface for creating queries

Users can also create custom queries that are not based on a predefined template. For this purpose, a user-interface widget generates Gravsearch, without requiring the user to write any code (Appendix E).

For example, a user can create a query to search for all letters written since 1 January 1700 CE (the user specifies the Gregorian calendar) by Johann I Bernoulli, that mention Leonhard Euler but not Daniel I Bernoulli, and that contain the word Geometria. The user can choose to order the results by date. The web-based user interface generates a Gravsearch query based on the search criteria (Appendix D).

In generating SPARQL to perform the requested search, the Gravsearch compiler converts the date comparison to one that uses a JDN. In the example, the input SPARQL requests a date greater than a date literal in the Gregorian calendar:

Gravsearch converts this to a JDN comparison. The Gregorian date 1 January 1700 is converted to the JDN 2341973. In the generated SPARQL, a matching date’s end point must be greater than or equal to that JDN:

Other date comparisons work as follows:

To specify that the text of the letter must contain the word Geometria, the input SPARQL uses the function knora-api:matchText, which is provided by Gravsearch:

Gravsearch converts this function to triplestore-specific SPARQL that (unlike the standard SPARQL CONTAINS function) performs the query using a full-text search index. For example, with the GraphDB triplestore using the Lucene full-text indexer, the generated query contains:

3.3. Example 3: Searching for text markup

Here were are looking for a text containing the word Acta that is marked up as a bibliographical reference.22

Knora can store text markup as ‘standoff markup’: each markup tag is represented as an entity in the triplestore, with start and end positions referring to a substring in the text. This makes it straightforward to represent non-hierarchical structures in markup,23

To search for text markup, the input query must be written in the complex schema. The input query uses the matchTextInStandoff function provided by Gravsearch:

Gravsearch translates this FILTER into two operations:

The resulting generated SPARQL looks like this:24
