Deriving semantic validation rules from industrial standards: An OPC UA study

2.1. Background: OPC UA

Basic OPC UA notions OPC UA is a framework for industrial communication that additionally provides information modeling capability. The communication of OPC UA is based on the client/server principle, but part 14 of the specification also introduces a publish/subscribe communication paradigm.

OPC UA information modeling provides structure and context to the data of a production facility. It facilitates the description of devices, such as sensors, actuators, as well as whole production machines, in an object-oriented and semantically meaningful way [24].

The basic elements of the information model are: (1) nodes that represent objects, variables, methods, etc., and (2) references which are used to model relations between nodes. Eight different node classes are defined by OPC UA: ObjectType, Object, DataType, VariableType, Variable, ReferenceType, Method, and View. Depending on the node class, a set of attributes is defined for each node. One of the most important attributes, which is supported by every node class, is the NodeId. The NodeId is used to unambiguously identify each node by a so-called NamespaceIndex and an Identifier. Some other attributes are the NodeClass itself, the DisplayName (a human-readable name for the node), Description (a human-readable description of the purpose of the node), maybe a Value, and many more. Nodes can be instantiated based on the defined ObjectTypes or VariableTypes, similarly to object-oriented programming. These objects, variables, and methods are called instance Nodes.

The OPC UA information model is extensible, and it is used by domain experts for certain domains (e.g., machinery) to create Companion Specifications. The experts agree upon the modeling and release it as an industry-standard model, which can be used free of charge by any other stakeholder in that domain, e.g., other machine vendors. Thus, these OPC UA Companion Specifications facilitate interoperability at the semantic level.

OPEN IN VIEWER

Fig. 2.

Part of the OPC UA information model as it is defined in the machinery companion specification.

Figure 2 shows an example of an information model from the Machinery Companion Specification using the graphical notation defined in the OPC UA base specification part 3. The abstract ObjectType MachineryItemIdentificationType has two variables ManufacturerUri and YearOfConstruction. These variables are related to the ObjectType via a HasProperty reference. The HasSubType reference is used to specify another ObjectType called MachineIdentificationType which inherits the properties from MachineryItemIdentificationType. As this ObjectType is not defined as abstract, instances of this type (Objects) can be created. Even if no instance is shown in this example, and not every aspect of the model is explained, it provides insight into the OPC UA information modeling concepts. More details can be found in [25].

OPC UA specifies an XML Schema, which defines the information model as an XML serialization. Such XML files are called OPC UA NodeSet files and can be generated with both open-source and commercial tools. The NodeSet file can be loaded and instantiated by an OPC UA server to make the information available to other clients. This exposed information model is the server’s address space.

Need for semantic validation Even if OPC UA provides sophisticated information modeling possibilities, it lacks the ability to define restrictions on the model. Such restrictions could be beneficial to enforcing semantic interoperability when applying the information model in a certain use case. Currently, constraints on the model have to be documented in text, using natural language. Thus, currently, they cannot be checked automatically. As an example, the Machinery companion specification states, that the property variable YearOfConstruction, as shown in Fig. 2, shall be a four-digit number, such as “2022” or “2023”. However, this constraint is only specified in the companion specification (textual) and not in the information model. Thus, nothing prevents a machine manufacturer from incorrectly using the information model as defined in the companion specification and assigning the value “22” instead of “2022”. The problem occurs when a system in the factory tries to automatically schedule maintenance actions based on the age of the machine. The system will not be able to interpret “22” as the year “2022” and will fail. Other examples of information that currently cannot be modeled in OPC UA are exact multiplicities (e.g., an object shall reference exactly n objects of a specific type), or limitations on the structural model (e.g., a folder shall contain only objects of a set of specific types). This shows that the semantic validation of machine information models against the standard is crucial to ensure interoperability between machines and thus avoid costly errors and malfunctioning due to the incorrect use of the standard.

Such errors could be avoided by ensuring that the NodeSet correctly follows the specification guideline. This “validation” process is currently the task of the engineer that creates such NodeSets and it is unrealistic since the OPC UA base specification itself contains about one thousand pages and the number of companion specifications is rapidly increasing yearly to address the demand for ensuring interoperability between machines from different domains.

OPEN IN VIEWER

Fig. 3.

Rules defined in the OPC UA information model.

There is therefore a need for a paradigm shift towards automated, semantic validation of OPC UA information models. To that end, the OPC Foundation already investigates the possibility of incorporating rules in the OPC UA NodeSet files in the future. Figure 3 depicts how this could be modeled in OPC UA in a very abstract way using the graphical OPC UA notation. The exact implementation is still subject to debate and not the focus of this paper. However, the figure illustrates the basic idea, which is specifying rules for individual nodes within the OPC UA information model. Generally speaking, these rules express restrictions on the node or instances of the node.

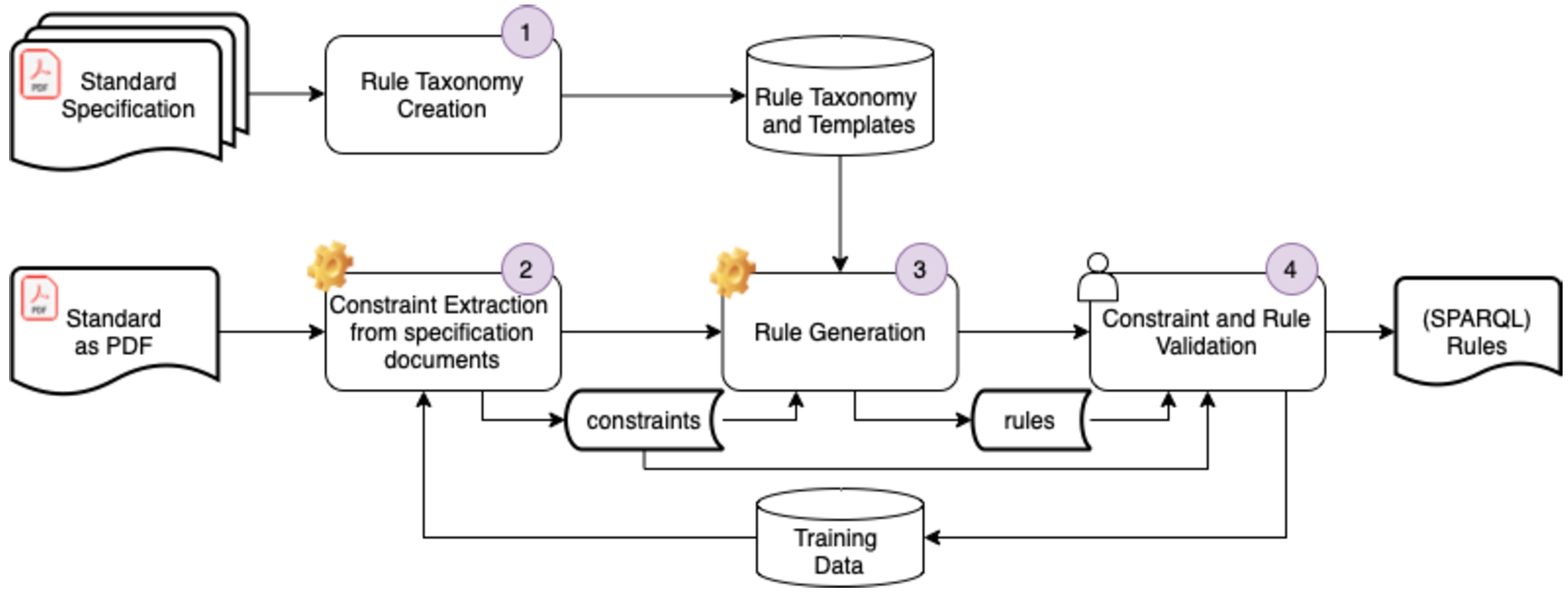

To enable such a paradigm shift within OPC UA motivated our work towards a (semi-)automated approach for extracting the constraints from the specifications, organizing them into a rule taxonomy, and formalizing them in a formal query language. Thereby, a transformation from OPC UA NodeSets to OWL [37] enables the use of Semantic Web technologies, e.g., SPARQL for rule specifications (a technical realization of such a validation process is reported in Section 7.2).

One or more OPC UA Nodesets are transformed into an OWL ontology by following the transformation rules defined in [37]. The transformation is done by mapping each OPC UA node, its attributes and references to the pertinent OWL elements, namely OWL class, property (ObjectProperty, DataTypeProperty, AnnotationProperty), OWL named individual, etc. As an example, the result of the transformation process applied to the excerpt of the Machinery Companion Specification from Fig. 2 is illustrated in Fig. 4. This OWL ontology can then be loaded into a SPARQL server, such as Apache Jena Fuseki, and queried via SPARQL.

OPEN IN VIEWER

Fig. 4.

Part of the OPC UA information model as it is defined in the machinery companion specification transformed to OWL.

Several stakeholder groups can benefit from our work that supports this paradigm shift towards semantic validation. Firstly, users of the Companion Specifications, e.g., a machine vendor will be able to check the conformance of the created address space of, e.g., a machine with the applied Companion Specification. As a result, plant operators can rely on conformance with companion specifications and simplify integration procedures.

Secondly, Companion Specification creators (i.e., members of the OPC UA working groups) will be able to check consistency between their companion specification and NodeSet files created in terms of this specification. They will also be able to provide a mechanism to enforce semantic interoperability (by providing formal rules in addition to the pdf-based companion specification). Capturing the informal specification of standards in formal rules will make sure that the standards are correctly applied, thus supporting interoperability. This stakeholder group greatly benefits from the automated support for the process of creating formal rules. The generated rules can, furthermore, be supplemented with additional, manually formulated rules that are either not present in the pdf document or could not be extracted automatically.

On a long term, work on formal verification of compliance with standard specifications addresses the needs of all stakeholder groups. This paper primarily focuses on supporting companion specification creators in turning their specifications into formal rules. Our goal is that OPC UA experts shall, in the future, use the results and tools described in this paper and apply them on existing and new companion specifications. This will provide them with an extensive set of automatically generated rules, which can then be extended as necessary.

Modeling constraint types identified during the analysis of OPC UA companion specifications were organized in a constraint taxonomy (Fig. 7). Thereby, constraint types were associated to one of three different constraint classes:

OPEN IN VIEWER

Fig. 7.

Top-level constraint classes.

A modeling constraint can be expressed via one or multiple rules. Therefore, the next step is to define rules for each constraint.

Based on the modeling constraint types identified in Step 1, a number of individual rules were derived and subsequently classified into a rule taxonomy. The top-level hierarchy of this taxonomy (Fig. 8) distinguishes between (1) Global Rules, (2) Node Rules, and (3) Type Rules based on the scope of the rule application.

OPEN IN VIEWER

Fig. 8.

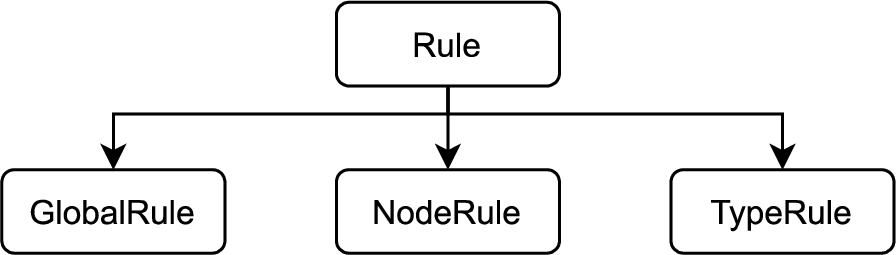

Top-level rule classes.

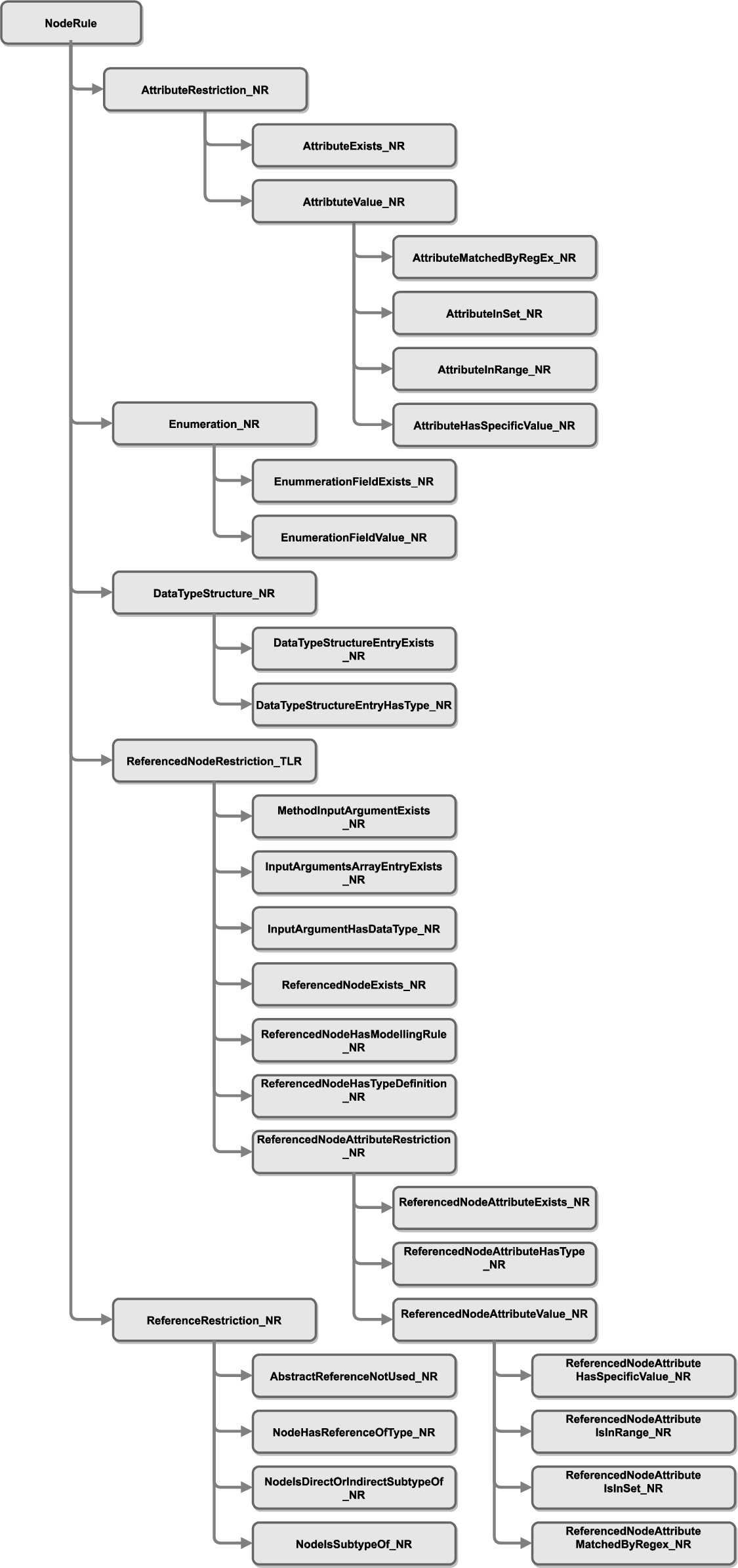

These three basic top-level categories are refined, as shown in Fig. 28–30 (the Appendix), resulting in 3 Global Rules, 24 Node Rules and 18 Type Rules.

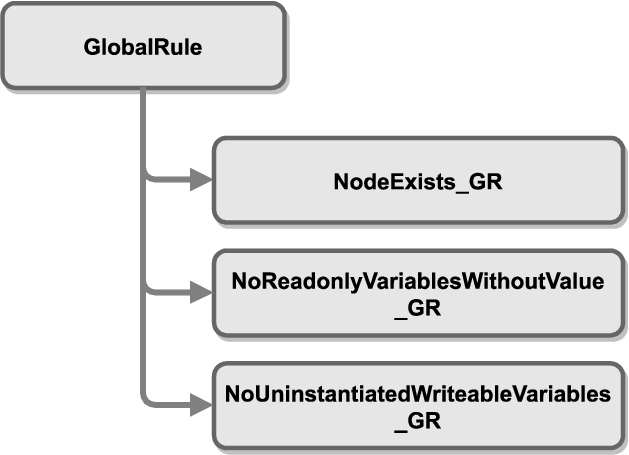

Currently, there exist only three different types of Global Rules (Fig. 28). The most important one is to check whether a specific node exists in the information model. The other two are concerned with the initialization of read-only and write variables. As they cannot be associated with a specific node, such rules are defined globally on the entire NodeSet file.

Restrictions regarding the attributes of a node, the references between them, and a referenced node have to be checked at the type level as well as on node instances of an OPC UA information model. Thus, these classes can be found in the taxonomy for NodeRules and TypeRules.

Additionally, Node Rules have restrictions on general Data Type Structures and Enumerations. These rules and the further refinement of these rule classes are depicted in Fig. 30.

For TypeRules, an additional rule is needed to check that an abstract ObjectType is not instantiated as an Object (Fig. 29).

For each rule present in the taxonomy, an example was formulated in SFN and SPARQL using information from companion specifications. These rules were then generalized into rule templates by replacing constraint-specific information with variables.

We decided to use SFN and SPARQL in this example for several reasons. First, while SFN cannot be used for automatic verification, it provides a human-readable form of documentation describing the purpose of the rule. Second, after consulting with OPC UA experts, it was decided to use SPARQL as the first candidate for a formal rule specification as it has broad support in semantic web tools and OPC UA NodeSets can be translated into OWL [37] as shown in Section 2.1. And third, using SFN and SPARQL simultaneously demonstrates that the approach is not limited to one specific language but can be extended by other languages, e.g., SHACL or technologies from model-driven engineering.

The rules and rule templates are not presented as a whole here, but the following examples should provide an impression of general concepts and the general form of rules formulated in SFN and as SPARQL queries. In general, SPARQL rules produce an error message if the rule is violated, and otherwise, they return no result. The rule, presented in Fig. 9, checks the existence of a node MotionDeviceSystemType on the global, NodeSet file level. The SPARQL query results in a message if no such node could be found and returns no results otherwise.

OPEN IN VIEWER

Fig. 9.

SFN and SPARQL rule examples.

The SFN and SPARQL rule templates, depicted in Fig. 10, are generalized versions of the rule which is depicted in Fig. 9. To derive these templates, constraint-specific information (i.e., the information provided by the contents of the table cells) of the rules created in the previous step was replaced with template variables. The examples depicted in Fig. 9 verify that a node with a specific browse name, provided via the template variable @@BrowseName@@, exists in the ontology representing the NodeSet file. Such templates are important because they can be used as a basis for generating concrete rules by replacing the template variables with concrete values.

OPEN IN VIEWER

Fig. 10.

SFN and SPARQL rule template examples.

The process of formulating rules and, consequently, rule templates is a trade-off between complexity and re-usability. Complex rules covering many aspects at once (e.g., the existence of a node, its data type, and its value) are possible but are less re-usable across multiple modeling constraint types and more rule templates would be required. We, therefore, opted to formulate more fine-grained rules checking each of the exemplified aspects separately.

5.1. Constraint extraction from tables

We report an initial study to clarify whether tables are a good source for modeling constraint extraction (Section 5.1.1), the creation of a data set as a basis for this process (Section 5.1.2), as well as an approach for extracting modeling constraints from tables (Section 5.1.3).

5.1.1. Preparatory study: Which tables are useful for constraint extraction?

To extract all relevant modeling constraints from specification documents an understanding of the information structured in tables is needed and whether tables contain information that is relevant for the constraint extraction. Three of the authors performed an analysis of 543 tables from 10 different companion specifications and concluded that:

tables are a rich and structured source of modeling constraints;

there are several table types, and each table type conveys specific OPC UA modeling constraint types. For instance, a Reference TypeDefinition table can include a symmetric modeling constraint and an inverse name modeling constraint while an Object TypeDefinition table contains among others cardinality and existence modeling constraints.

As part of the conducted table analysis, 42 table types are identified, 9 of which (e.g., Example, Common-terms table types, etc.) are considered irrelevant for the modeling constraint extraction task. Based on the number of instances (e.g., concrete tables) a table type has and the number of specification documents that used this table type, the top most frequent 11 table types are selected and used as input to the automated extraction process described in Section 5.1.3. These table types are: Object TypeDefinition, Enumeration, Method Parameters Definition, Method AddressSpace Definition, Method ResultCode Definition, DataType Structure, Reference TypeDefinition, NamespaceURI, ProfileURI, NamespaceMetadata, Transition.

OPEN IN VIEWER

Fig. 11.

Distribution of table types in 28 preselected OPC UA companion specifications.

5.1.3. Approach for constraint extraction from tables

In this section, we focus on the process of automatically extracting OPC UA modeling constraints from tables. Figure 12 shows an overview of the approach. In general, OPC UA Companion Specification documents have multi-modal forms of data such as tables, texts, and flowcharts with constraint information. As this task focuses on the extraction of modeling constraints from tables firstly, all tables from a pdf document are extracted. From these extracted tables, target table types are identified and simultaneously cell-wise modeling constraint information in each concrete table is pinpointed, extracted, and formulated as a generated (semi-)formal rule. Each step of this process is explained next.

OPEN IN VIEWER

Fig. 12.

Process of extracting constraints from tables.

Step 1 – table detection and extraction This step takes as input a pdf Companion Specification document and returns a set of tables. It relies on Camelot (https://camelot-py.readthedocs.io), an open-source python library, specialized in the automatic detection and individual extraction of different tables from pdf documents. For the extracted tables a categorical separation of the required target table types is carried out as explained next.

Step 2 – table categorization In this step, the set of tables from the previous step is processed and each table is categorized into its corresponding table type.

We apply a heuristics-based approach that relies on making use of a filter based on two types of manually specified lists of key terms: (i) the first list contains terms that indicate that a table is of a certain type; and (ii) the second list contains terms that are not specific to that table type. These lists of key terms are domain-dependent. For instance, here the domain is OPC UA industrial standard and the key terms are column names of the table along with a few specifically occurring words in these tables, for example, IsAbstract, EnumType, InverseName, etc. These key term lists are constant for every companion specification within OPC UA whereas for other industrial standards these lists of key terms must be customized depending on their domain-specific vocabulary. Table 1 gives an overview of the number of indicative and non-indicative strings with respect to each type of table, applicable to all the Companion Specifications considered in this task.

OPEN IN VIEWER

Table 1

Number of strings for all considered table types

Table type	indicative strings	non-indicative strings
ObjectType Type Definition	8	25
ReferenceType	3	0
MethodAddressSpace Type	3	11
DataType Structure	10	33
EnumerationType	11	55
MethodResultCode Type	4	1
MethodParameter Type	1	4
Transition Type	3	15
NamespaceType	2	18
Profile URI Type	4	6

Algorithm 1 describes the steps taken to decide which tables are of a certain table type. It takes as input all extracted tables ( tables ) as well as the lists of indicative and non-indicative terms for a given table type ( i _ list and ni _ list respectively). For each table ( table ) and for all strings appearing in the table, the algorithm checks whether any string present in the table appears in the list of terms indicative of this table type, while not appearing in the list of non-specific terms for that table type. The algorithm outputs a vector of all tables that comply to the currently checked table type.

OPEN IN VIEWER

Algorithm 1

Step 2 table categorization into one table type

The 11 table types and the 10 pairs of lists of indicative and non-indicative keywords with respect to each of these types that we picked for this experiment, align with the companion specification template provided by the OPC UA Foundation. But as these key terms signified for one table type can also appear for other table types, further optimization of the keyword-based approach is required. Hence another list of non-key terms or non-indicative list of strings is also added with respect to each table type along with an indicative list of strings. Namespace metadata and Namespace URI type tables can be obtained by one common filter defined for finding Namespace type tables. Therefore, a total of 10 pairs of both indicative and non-indicative lists of key terms have been used to categorically filter required table types from all the tables extracted from pdf in Step 1.

Figure 13 shows an example of a filter used to identify whether a table is of type Object TypeDefinition. Strings such as “TypeDefinition” and “isAbstract False True” indicate that the table is of type Object TypeDefinition, while the keywords “ToState” and “FromState” refer to a Transition table and would thus classify a table as not-ObjectTypeDefinition. Using this technique, whenever we want to separate and identify a table type, the filter associated with respect to that table type is used to further filter out that table type resulting in the extraction of their exact types.

OPEN IN VIEWER

Fig. 13.

Filtering Object TypeDefinition table types by using lists of indicative/non-indicative strings.

The main challenge in this step remains the inconsistencies in the appearance of a specific table type in the companion specification documents. Since not all tables are exactly compliant with the template defined by the OPC UA companion specification, a table could sometimes have different structural formats with new or varying column names, new positioning of the columns in the table, missing or misaligned rows and columns, as well as typographical errors. Therefore, the classification of the table types had to be further customized to increase the correctness of table extraction. Since only known inconsistencies observed among the same table type were considered, the results of the algorithm might vary when a new inconsistency appears. Hence, further optimization to achieve a fully accurate constraint information extraction from tables is considered as a future goal.

Step 3 – constraint identification & rule formulation Once the types of the extracted tables are known, for each table type a set of its respective type-specific modeling constraints are identified and formulated into (semi-)formal rules using rule templates. The constraints are identified in the following way (also sketched in Algorithm 2). Firstly, by looping iteratively over the rows throughout the length of the table, the required values present in the cells of each identified table are extracted. Some variables are defined for every required column in the table for holding these values extracted from every table. Hence, an automatic filling of these values into respective variables takes place. For instance, a variable named ‘Sourcenode’ holds the ‘Sourcenode BrowseName’ value that appears in the cell at the 2nd row and 2nd column of ObjectType tables. Similarly, the ‘References’ variable holds all the ‘Reference’ values present in the Reference column starting from the cell at the 4th row, 1st column, with reference values in this column extending throughout the length of the table until the last row. In Algorithm 2, var 1 holds a table from separated tables obtained from step 2, var 2 holds the row index value of table present in var 1 and n is the row index value from the starting row of actual values in the target column.

OPEN IN VIEWER

Algorithm 2

Step 3 constraint identification and rule formulation

Subsequently, these variables that hold the modeling constraint information automatically extracted from tables are formulated as (semi-)formal rules by using pre-defined rule templates, finally providing the generated rules(rule templates are explained in detail in Section 4). This is feasible because the rule taxonomy provides a mapping between constraints and rule templates (as explained in Section 6 and shown in Fig. 17). This mapping suggests potential rule templates for the given constraint. However, only rule templates that can be fully populated (the values of all template variables required by the rule template have to be provided by the table) are selected and result in rules.

An example of a rule template is, ‘The ⟨Sourcenode BrowseName⟩ ⟨Reference⟩ ⟨Targetnode BrowseName⟩ which should be of datatype ⟨Datatype⟩’. By using the variables that carry the values extracted from cells of tables, we can formulate constraints as described in the following example, ‘The WidgetType HasProperty Color which should be of datatype String’, using the concept of string concatenation. The variables are concatenated with strings in rule templates to formulate (semi-)formal rules corresponding to the modeling constraints captured in tables. In this way, from every identified and separated table type in step 2, constraints are extracted and generated as (semi-)formal rules in step 3 simultaneously. An evaluation of tabular constraint extraction is provided in Section 7.3.

Figure 14 shows how a (semi-)formal rule can be generated from the information extracted from tables. These (semi-)formal rules are generated in order to check the redundancy of rules described in tables and text in the companion specification documents, this is subject to future work. There is another output from the table extraction which is presented in Fig. 18. This figure shows that we can formalize the rules by populating the SPARQL templates with information extracted from tables. Therefore, the table extraction is used for two purposes and gives two outputs. Detailed description about populating the SPARQL templates is described in Section 6.1, 6.2.

OPEN IN VIEWER

Fig. 14.

Constraint identification and rule formulation from an Object TypeDefinition table.

OPC UA companion specification documents include large amounts of tables and figures. Nevertheless, it can be observed that the text surrounding the tables can extend the modeling constraints defined in the tables or introduce new modeling constraints. Therefore, the extraction of modeling constraints from text is an important task. While extracting modeling constraints from tables is a straightforward process, extractions from text require a well-trained algorithm and a human-in-the-loop for verification.

We investigate two different approaches- a machine-learning-based classification and a lexical-pattern-based extraction, introduced in the next sections.

5.2.1. Machine learning (ML)-based approach

The first approach frames the modeling constraint identification as a binary classification problem. It involves training a classification model using labeled sentences and then classifying new text inputs as constraints or not-constraints.

Training set A prerequisite for this approach is the availability of an annotated data set for the training of the classification algorithm. For this purpose one companion specification (PackML) was analyzed by the authors of this paper (who are also OPC UA members) and modeling constraints were manually identified. The resulting training data set includes 198 text snippets which consist of either a single sentence or several sequential sentences extracted from the specification and their binary classification as a constraint (approx. 20% of the data) or not-constraint (80%). A sample of the data can be seen in Table 2.

OPEN IN VIEWER

Table 2

A sample of the gold standard data for the PackML companion specification

Text Snippet	isConstraint
UnitCurrentMode – is used to display the current mode of the instance of this type. The DataType is Enumeration which is abstract, but an instance shall be assigned a concrete enumeration, which corresponds to the enumeration listed in SupportedModes.	yes
EquipmentInterlock.Blocked – If TRUE, then processing is suspended because downstream equipment is unable to receive material (e.g. downstream buffer is full).	no

OPEN IN VIEWER

Fig. 15.

Machine learning based process for extracting constraints from text.

Figure 15 shows an overview of the extraction process as discussed next.

Step 1 – model training By using the pre-annotated text snippets 8 Scikit-learn (https://scikit-learn.org) based machine learning models (Nearest Neighbors, Linear Support-Vector Machine (SVM), Radial Basis function SVM (RBF SVM), Standard Gradient Descent (SGD), Decision Tree, Random Forest, Neural Network and Adaptive Boosting (AdaBoost)) are trained to recognize different types of output – in our context, to differentiate between constraints and not-constraints. The annotated sentences from the PackML training data were split into Train and Test sets with a ratio of 4:1. When trained with enough example data, the models can then predict the type of new text inputs.

Step 2 – sentence extraction The next step is to extract all sentences from the pdf specification document from which the constraints should be derived.

Since the first chapters of each companion specification include general information about OPC UA, terms explanations as well as introductory examples, they are not considered for this task. For the extraction of the rest of the sections, Spacy (https://spacy.io) and PyPDF2 (https://pypi.org/project/pyPdf/), Python libraries supporting various Natural Language Processing tasks such as information extraction, are used.

Step 3 – binary classification After a set of sentences is extracted, each sentence needs to be categorized as constraint or not-constraint. First, the extracted sentences, as well as the training data, are pre-processed using stop word removing, lemmatization and tokenization. Second, each of the trained models is applied to the extracted sentences and their results are compared. The results are discussed in Section 7.4.1.

5.2.2. Lexical-pattern-based approach

In the English language, a sentence can be considered a rule if it conveys a semantic meaning of some function or some property or something that “has to be present” in some entity or needs to be necessarily followed. Such sentences have a syntactical structure that contains representative words such as must, have to, should, will, etc. Such words are called auxiliary verbs and play a key role in identifying if a statement is a “compulsory condition” and thus a constraint. This observation prompted us to experiment with a lexical-pattern-based constraint extraction, depicted in Fig. 16 and explained next.

OPEN IN VIEWER

Fig. 16.

Rule-based approach for extracting constraints from text.

Step 1 – linguistic patterns identification The first step of the approach is to analyze the structure of sentences likely to express modeling constraints. For instance, a modeling constraint could be expressed with an auxiliary verb in a lexical pattern structure such as pronoun/noun/(proper noun) + auxiliary verb + verb. An example is: “At least one instance of a MotionDeviceSystemType must be instantiated in the DeviceSet.”. The word MotionDeviceSystemType is a proper noun and vocabulary belonging to the OPC UA context, must be is an auxiliary verb, and these words are followed by the verb instantiated. Subsequently, the following lexical patterns are formulated:

pattern1 = [’POS’:’SCONJ’,’OP’: ’?’, ’POS’:’DET’, ’POS’: ’NOUN’,’OP’: ’?’, ’POS’: ’PROPN’]

pattern2 = [’POS’: ’PROPN’, ’POS’: ’NOUN’,’OP’: ’?’, ’POS’: ’PUNCT’,’OP’: ’?’, ’POS’: ’AUX’, ’POS’: ’PUNCT’, ’OP’: ’?’, ’POS’: ’DET’,’OP’: ’?’, ’POS’: ’ADV’, ’OP’: ’?’, ’POS’: ’VERB’]

Here POS is a linguistic attribute that defines the parts of speech of the word in our pattern. Operators and quantifiers define how often the token must be matched. In the above pattern the operator OP: ’?’ makes the Parts of speech or POS token with the AUX or auxiliary verb matching, optional, by allowing to match 0 or 1 times. Similarly, PROPN – represents a proper noun, PUNCT – represents punctuation, DET – represents determiner, ADV – represents adverb, SCONJ – represents subordinating conjunction (e.g., if, while, that).

Step 2 – linguistic patterns matching For this task, we use Spacy and its Matcher object, which allows for the specification of linguistic patterns and leads to extracting only sentences structured according to the preassigned pattern, which are likely to be modeling constraints. We evaluate this method in Section 7.4.2.

6.1. Generating rules from tables

OPEN IN VIEWER

Fig. 17.

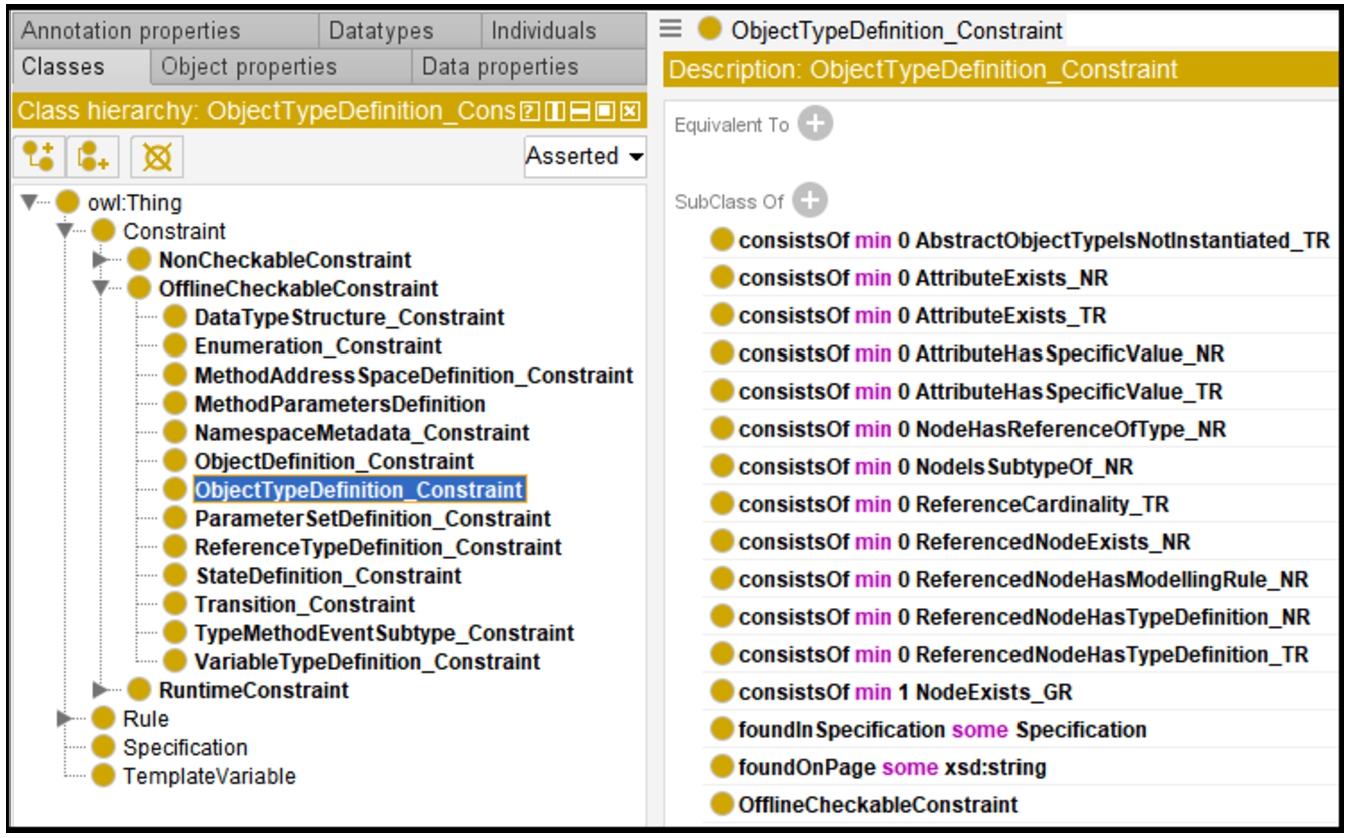

Snippet of the Rule Taxonomy, which is an ontology describing the types of modeling constraints, types of rules as well as the mappings from constraint types to rule types.

All tables found in the companion specifications are classified as NonCheckableConstraint, RuntimeConstraint, or OfflineCheckableConstraint (as discussed in Section 4.1). NonCheckableConstraints are tables with information that can not be checked on the information model. An example would be the description of parameters. RuntimeConstraints can only be checked on a running instance of an OPC UA server because the information is not directly available in a NodeSet file. Examples would be Server Profiles or Namespace URIs. Our work focuses on the so-called OfflineCheckableConstraints, which are concerned with information about the structure of the information model.

To document the constraint taxonomy, rule taxonomy, relations between constraints and rules, and rule templates, we created the ontology illustrated in Fig. 17. The specific snippet depicted illustrates the class structure (TBox) of the ontology and the rules that can be used to express and ObjectTypeDefinition constraint. Concrete constraints found in the specifications are instances of the corresponding constraint class. Likewise, necessary rules to express the constraint are instances of the corresponding rule class.

To automate the generation of rules from tabular data, we relate each one of an OfflineCheckableConstraint to a set of possible rules via an OWL class definition. If a table is found in a companion specification, the first step is to look up if the table represents an OfflineCheckableConstraint. If so, the information from the table is parsed (using techniques described in Section 5.1), and an applicable rule template (based on the constraint to rule mappings provided) is retrieved from the set. Afterward, the template variables from the rule template are populated with the retrieved information from the table (with the algorithm described in Section 5.1.3). This procedure is repeated until all necessary rules are created for the particular constraint.

As an example, 13 different rule templates are available to express an ObjectTypeDefinition constraint (Fig. 17). The needed information, e.g., that a node has a certain attribute value or the reference is of a certain type, is extracted from the tables and used to fill in the template variables in the related SPARQL rule templates. These completed rule templates can now be executed on the SPARQL endpoint, which has loaded the OPC UA information model. Violations of the rules are reported as error messages.

Figure 18 shows an example of this procedure. In the upper part of Fig. 18, a snippet of the ObjectTypeDefinition table is shown for the WidgetType, as defined in the Machinery companion specification. It shows the part of the table where it is stated that the WidgetType is not abstract. This is done by setting the value of the IsAbstract attribute to False.

OPEN IN VIEWER

Fig. 18.

Procedure of generating SPARQL rules from tables.

Among others, the ObjectTypeDefinition constraint is related to the AttributeHasSpecificValue_NR rule template, which checks if a certain attribute has a specific value. In this case, it checks if the attribute IsAbstract has the value “False”. The template of the AttributeHasSpecificValue_NR rule is depicted in the lower part of Fig. 18. The template variables are now assigned with the values from the table to make the SPARQL rule executable. For this, the algorithm from Section 5.1.3 is used but with a SPARQL output. The SPARQL rule will lead to the error message if the WidgetType is defined as abstract in the OPC UA information model.

OPEN IN VIEWER

Fig. 19.

HC task designed for constraint verification.

While the types of modeling constraints expressed in certain table types can be mapped to suitable (semi-)formal rule templates thus enabling the automated generation of (semi-)formal rules from tabular data (Section 6.1), generating rules from text is a much harder process. As currently there is insufficient training data to train automatic classifiers for this task, we propose a Human-in-the-Loop (HiL) approach to map textual modeling constraints to (semi-)formal rules. The approach involves three tasks in order to (1) verify the correctness of textual modeling constraints to remove noise introduced by the automated extraction modules; (2) classify modeling constraints into categories linked to rule types; (3) validate the resulting rules. As such, these tasks also serve as an approach to implement Stage 4: Constraint and Rule Validation of the overall approach presented in this paper (see Section 3, Fig. 5).

OPEN IN VIEWER

Fig. 20.

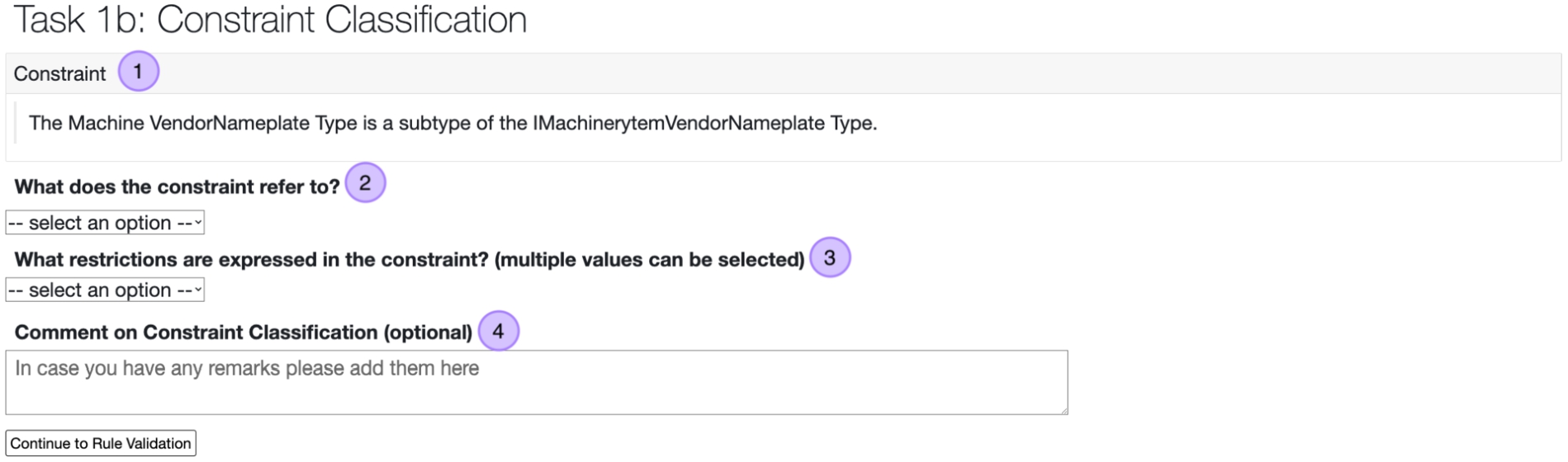

HC task designed for constraint classification.

We rely on Human Computation (HC) techniques for the HiL approach. HC implies outsourcing specific tasks of a system, which cannot be fully automated, to human participants and leveraging the human processing power to solve those tasks. HC has been already successfully applied in a variety of domains for verification tasks [34] and we believe it is an important building block of a semi-automated method to support the steps needed for the derivation of (semi-)formal rules from pdf-based specifications. Next, the designed HC approach is explained and later in Section 7.5 a discussion of the results of an expert-sourcing validation campaign is presented.

Human Computation task design The HC solution consists of three tasks, which are designed to be completed by experts from the OPC UA working groups. In a first task, as shown in Fig. 19, the evaluators are asked to verify whether an extracted sentence (1 in Fig. 19) represents a modeling constraint. To provide enough background information for the decision the task includes additional context (2) such as the paragraph from which the sentence is extracted as well as relevant materials from the OPC UA Online Reference tool (https://reference.opcfoundation.org). To further support the experts, Instructions (3) are available in which nomenclature is explained and detailed task explanations with examples are provided. To allow for easy aggregation of responses provided by multiple experts, the task is designed as closed-ended (4). In case the evaluator is unsure whether the sentence refers to a modeling constraint they can select the Uncertain option. A comment field (5) is also available for remarks that the experts would like to share.

When the evaluator selects that the sentence is a modeling constraint, Task 1b, shown in Fig. 20, is displayed. The goal is to classify the constraint (1 in Fig. 20) into the rule type to which it refers to (2). For instance, the constraint can be related to an Object TypeDefinition or an Enumeration. To support the generation of rules the user is also asked what restrictions (e.g., cardinality) (3) are defined in the constraint. As with a previous task, a comment field (4) is available as well.

Based on the selection in Task 1b and the created Rule Taxonomy a set of rules can be generated which are to be used to validate that the constraint is adhered to and Task 2, shown in Fig. 21, follows. Here the participant’s role is to validate whether the shown (semi-)formal rule (set) (2 in Fig. 21) correctly and completely reflects the constraint expressed in the extracted sentence (1).

OPEN IN VIEWER

Fig. 21.

HC task designed for rule validation.

The form in which the rules are shown is a variable and should be decided based on the evaluation population. In the shown example in Fig. 21 a structured natural language was selected, however, a formal rule language such as SPARQL could be used as well – the choice ultimately depends on the technical expertise of the participants. As with Task 1 Instructions (3) are available and a Yes/No/Uncertain answer (4) is expected. In case the person does not agree with the proposed rule (set) they are asked to select whether the rule (set) is incorrect, incomplete, incorrect and incomplete or superfluous. A comment filed (5) is included in case the evaluator wants to share some further insights regarding the rule.

While human effort is still needed for the constraint extraction and rule validation, by applying the designed HiL approach the manual effort of the experts is significantly reduced. Indeed, with this approach we manage to circumvent the efforts of manually inspecting the full specification document, extracting modeling constraints, and formulating (semi-)formal rules so that the experts are only required to perform a verification of the automatically produced results.

7.1. Evaluation of rule taxonomy

As described in Section 5.1, the rule taxonomy was created based on the analysis of the modeling constraints related to a type of table in a companion specification. Therefore, the question arose whether and to what extent this rule taxonomy would enable expressing constraints present in the textual part of the specifications.

To validate the coverage of the rule taxonomy, we manually identified the textual modeling constraints in the Machinery companion specification. Afterward, these constraints were analyzed to see if the already identified rules could also be used to express them. We found that the rule taxonomy can already cover the vast majority of these textual modeling constraints. Only two global rules had to be added, which are concerned with instantiating variables. This seems reasonable as this kind of information can hardly be expressed in a table and needs additional context.

We conclude that, although the rule taxonomy was created based on modeling constraints expressed in tables, it is sufficiently complete to also express constraints described in the textual part of the specifications. Having said that, the rule taxonomy is by no means a final collection of rules, but a core set of rules that can (and should) be extended as required.

7.2. Evaluation of SPARQL rules

Another important question to clarify was whether the SPARQL rules created as part of the rule taxonomy could be applied successfully on a concrete OPC UA information model.

To that end, in conformance with the Robotics companion specification, an information model was created, including instance nodes. These instance nodes are needed for evaluating some of the rules. Figure 22 illustrates the applied process. As SPARQL cannot be executed directly on the OPC UA NodeSet file, a transformation from an OPC UA NodeSet to an OWL ontology was required. More details about the OPC UA to OWL transformation can be found in [37] and Section 2. Afterward, the resulting ontology was loaded into a triplestore (Apache Jena Fuseki) to exemplify rule checking based on 12 different SPARQL rules. These rules were evaluated by checking the rules’ outputs against the expected results. As the information model provides only a limited amount of possible ObjectTypes, Objects, Variables, etc., only a subset of the defined rules was implemented in SPARQL.

OPEN IN VIEWER

Fig. 22.

Process for evaluating SPARQL rules.

To assess the performance of the modeling constraint extraction from tables (described in Section 5.1), we compute: (i) True Positives (TP) which occurs when a table of a certain type (e.g., Enumeration) is extracted and classified correctly as its type; (ii) False Positives (FP) for tables of a specific type (e.g., Reference TypeDefinition) that are extracted and classified as a table of a different, incorrect type (e.g., Enumeration); (iii) Precision as formalized in Eq. (1). Due to the nature of the input sources and the implemented solution False Negative and True Negative situations arise very rarely and are not considered for the purpose of this task. (1) Precision = TP TP + FP

Since the constraints are formulated using the values obtained from the tables, it can be stated that once a table is extracted correctly, the constraints associated with it will also be properly extracted. In the majority of cases, the constraint extraction is directly proportional to the correctness of the table extraction as constraints are derived from the table values. Therefore, the main focus of the evaluation is on table extraction and categorization, also as a proxy for the correctness of constraint extraction.

OPEN IN VIEWER

Fig. 23.

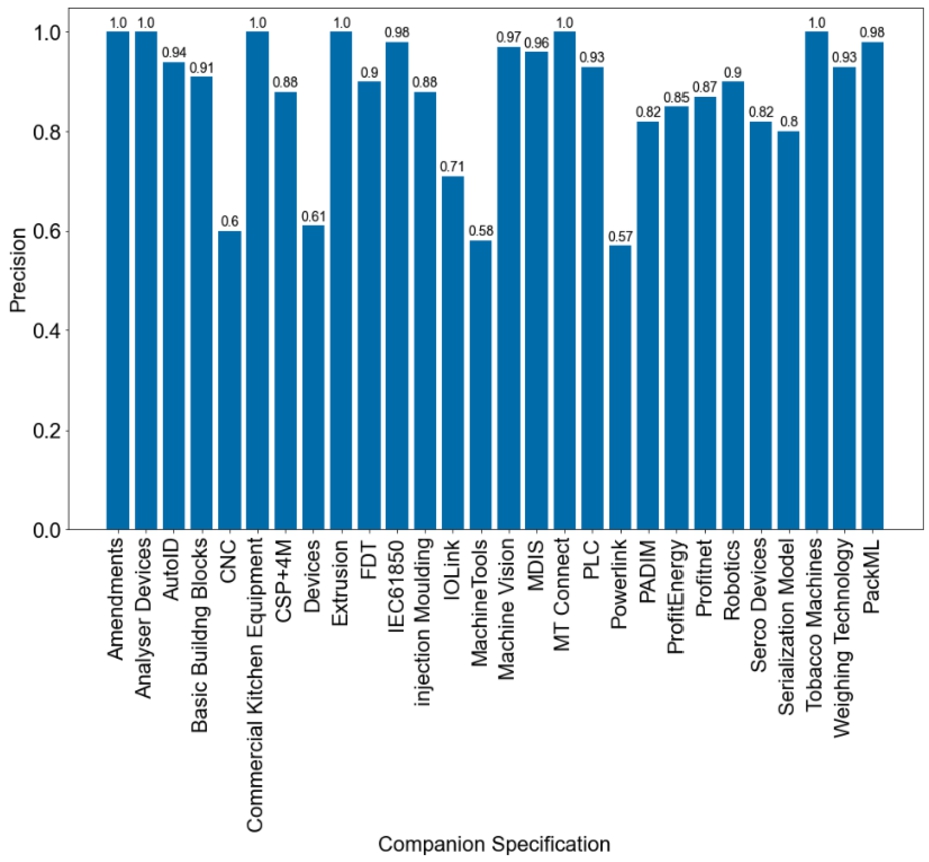

Precision of table extraction per companion specification.

7.3.1. Table extraction and categorization

Figure 23 shows the precision of extraction from each of the 28 selected companion specifications, thereby resulting in an average precision of 0.87 and standard deviation of 0.134. As mentioned in Step 2 some customization of the algorithm is needed for documents that do not follow the guidance and template provided by OPC UA exactly. The more inconsistencies in the layout the lower the precision scores are. In Section 7.3.2 a more detailed error analysis is provided.

OPEN IN VIEWER

Fig. 24.

Comparison between the total number of tables and the correctly extracted tables for each companion specification.

Figure 24 illustrates the Recall analysis. Recall can be formalized in terms of True Positive and False Negative as expressed in Eq. (2). (2) Recall = TP TP + FN

There are a total of 1998 target tables (tables of the types selected for the extraction) in the considered companion specification documents. With the used algorithms 1357 True Positive table extractions were possible thereby also leading to proper constraint extractions for those tables. This results in a recall of approx. 68% for the automatic extraction of tables and the corresponding modeling constraints captured in these tables. However, True Positive extractions are in some cases higher in numbers than the actual number of tables present. This can occur when a large table split into several pages is perceived as multiple tables by the extraction algorithm. Another case where a single table is extracted as multiple smaller tables is when there is irregular spacing or positioning of columns in the table. In some other scenarios, a single table is extracted twice because it fits the conditions of more than one table type. Such special scenarios that lead to some challenges or complexities in extraction are discussed in detail in the following section.

OPEN IN VIEWER

Fig. 25.

Error types encountered during the processing of each companion specification.

7.4. Evaluation of constraint extraction from text

For the evaluation of the constraint extraction from text, one further companion specification document (Machinery) was selected, for which a gold standard was manually created. The data set was retrieved semi-automatically by using an automatic extraction method and the expertise of the authors for corrections and extensions of the extracted data. In total the gold standard data set includes 44 constraints and 229 non-constraints.

7.5. Feasibility evaluation with domain experts

To evaluate the usefulness and clarity of the designed HC Tasks for the verification of automatically extracted constraints and generated rules (Stage 4 of our approach) an expert-sourcing validation campaign was conducted in the concrete context of the OPC UA Machinery specification.

7.5.2. Constraint extraction from text (Task 1)

Figure 26 shows an overview of the results of the constraint classification task. Based on the experts’ judgments a majority vote could be calculated for almost 90% of the sentences, however, a complete agreement among the experts was not achieved on over 50% of the data items as it is seen in Fig. 26a. Since for each task a variable number of evaluations were collected, Krippendorff’s alpha coefficient was used to calculate the inter-rater agreement among the experts. The alpha score of 0.19 indicates very low agreement and shows that the identification of constraints is a difficult task.

OPEN IN VIEWER

Fig. 26.

Results of the constraint classification task in terms of (a) agreement among experts on the classifications, and (b) alignment between the classification proposed by the authors (left) and by the experts’ majority vote (right).

In Fig. 26b a comparison between the classification proposed by the authors and the classification resulting from the experts’ validations is shown. Sentences, for which a majority vote could not be established, have been added to the category “Uncertain”. When comparing the majority vote of the experts against the authors’ classification there is an overlap on less than 60% of the sentences. These results add to the statement that identifying constraints in OPC UA documents is a complex problem and textual definitions are open to interpretation. Therefore identifying textual constraints and defining formal rules to verify them is an important task for ensuring the conformity of OPC UA Nodeset files to the OPC UA base/companion specifications, which can be enabled by the proposed validation approach.

7.5.3. Rule validation (Task 2)

In this section, the ability of the proposed rules to completely and correctly capture textual constraints is examined. Because of the low agreement among the experts on the constraint verification task, rules were not validated by all participants and a majority voting was not feasible for all judgments. Moreover, 45% of the rule validations were evaluated only by a single expert and for 67% of the rules defects were identified by one evaluator only. Since an inter-rater agreement score is not meaningful considering the gathered data, we compute for each expert the percentage of their agreement with the proposed rules.

The expert scores vary from 33% to 100% and result in an average of 68% acceptance of the proposed rules. The frequency of found defects for the 18 rules, for which a defect was selected by at least one evaluator, can be seen in Fig. 27. While no rule set was found to be superfluous, 8 rules were judged as incomplete and 6 as incorrect. In 4 of the rule sets both defects (incompleteness and incorrectness) were found, where each have been selected by at least one expert. In the comments added by the experts for this task, exact mistakes and proposals for improvements were identified.

OPEN IN VIEWER

Fig. 27.

Frequency of the defects identified by the experts for rules that were marked as invalid in absolute numbers and in percentages.

To conclude, the campaign results show that (i) the task of constraint identification is difficult even for experts, and (ii) the human-in-the-loop approach enables the successful identification and classification of invalid constraints and rules which is essential for improving the automatic algorithms.

It is important to note that the feasibility evaluation involved a large amount of manual effort in preparing the input data, however, with the improvement of the automatic extraction algorithms, these efforts will be reduced. An important outcome of the performed validation campaign is the establishment of a gold standard for the Machinery specification, which will act as training data for our automatic approaches so that for the extraction of constraints from further specifications the manual effort will be further minimized.

8.1. Application of Semantic Web technologies in industrial settings

Semantic Web technologies have been extensively applied to support various industrial applications in the last decade ranging from combining sensor networks with the Web [6] to augmenting products with semantic descriptions [33] or enabling smart city infrastructures [5]. The application of these technologies has been taking place in a variety of (mission-critical) domains, such as manufacturing [2,27], electric grids [18], or buildings [4] and addressed tasks both during the engineering (e.g., engineering model integration, digital twin model consistency management) and operation&maintenance (monitoring and anomaly detection, optimization and reconfiguration) phases of cyber-physical systems in such domains [35]. Furthermore, an important task is the verification of technical information objects (e.g., ontologies, semantic data sets) in terms of complying with constraints specified in languages such as SHACL, SWRL, or SPARQL.

Against this backdrop, in this paper, we investigate a novel setting for the application of Semantic Web technologies in the context of industrial standards, in particular as a solution option for automating validation processes of information models based on standards. Our work is in line with the current paradigm shift in such standards towards automatic standard validations. In particular, the OPC UA Semantic Validation Working Group (which we described in Section 1) focuses on providing the foundation to create valid, consistent NodeSets. However, their work is hampered by the high manual effort to identify modeling constraints in text and capturing them in a formal, machine-actionable rule language. Therefore, in this study, we worked towards a (semi-) automatic approach to validate the OPC UA information models and to the best of our knowledge, we are the first to work on such an approach.

8.2. Information extraction

A key goal of our work is extracting relevant constraint information from unstructured documents that can be then translated into (semi-) formal rules. This is in essence an information extraction task. Information extraction (IE) takes natural language-based text as input and produces detailed, fixed-format data using technology-based methods [9]. The challenge depends on the complexity of the data [20]. The closer the data is to natural language, the greater the required effort. The input data might come from social media, e-mails, chatbots, websites, ontologies, documents, etc [17]. The information can be extracted by using various NLP, text mining and machine learning (ML) methods [7] depending on the desired modeling. Thus, the significant interplay between syntax and semantic modeling should be considered [14]. Moreover, the methods might be a part of supervised or unsupervised concepts such as sentence classification, estimation, text generation, similarity, graph creation, ontology-learning, etc. In either case, IE aims to convert the knowledge into a structured form suitable for computer manipulation, opening up many possibilities for using it [17]. In contrast to this state of the art, we are working not only on text but also on table forms and aiming to use mixed methods, including classification, text similarities, and text generation.

Hence, several studies which use information extraction methods in the NLP domain, such as text classification, intent extraction, text similarity, and paraphrasing, exist. In order to achieve one of those tasks, information extraction can be used as a step for a higher purpose such as grammatical knowledge extraction. Although the studies in the English language dominate the field, there are many studies for other languages as well. For example, there is a study [29] about information extraction on Past, Present, and Future Tenses, and there is another example of Hungarian noun phrase extraction from textual documents [32].

Information extraction from text-based documents has been investigated for various purposes for a couple of decades [8]. Sentiment analysis – for instance – is one of the main working areas in text mining and IE. It is the base of the emotion and intent classification of texts. By tagging the sentences or paragraphs as positive, negative and neutral, we can make sense of the text. Therefore, it can be used for child filters of the internet, analyzing the user comments as customer service, etc. Another study from the economy domain is interested in information extraction for qualitative financial data [7]. The project aims to prevent text-based qualitative data overload from different text-based sources by using NLP techniques. A literature review in the medical domain about information extraction from clinical data [41], claims that around 300 different articles were examined in terms of IE tools, methods, data sources, and applications. The FRODO (A Framework for Distributed Organizational Memories) [39] project, for example, started before 2000 and focused on document analysis to extract relations and entities.

The other technical method for document analysis is text classification. In [31], text documents in the business domain such as e-mails, office documents, pdf files, etc., are classified using a knowledge base. An additional interesting example of the studies in the industry is resume automation [36] for human resource departments. It is a different domain regarding being interested in personal and other structured data types.

Text-based regulations are very similar and interesting documents for us because they are giving information about constraints and rules regarding the domain. There is an example from the Game industry about documents called Automated Extraction and Classification of Slot Machine Requirements from Gaming Regulations [30]. The rules from state and federal laws and regulations were extracted using primitive rule-based algorithms and Naive Bayes. Another similar work on legal regulations focuses on obtaining machine-readable data from legal sources to create an appropriate computable representation of building regulations [1]. Finally, security-related terms from various unstructured data sources were extracted in [21].

As it is seen, there is an endless amount of work in the field of information extraction.

8.3. Semantic information extraction

A core part of our work is proposing methods to (semi-)automatically extract validation rules from the standard specifications, thus being related to the large body of work on information extraction (IE) in the context of the Semantic Web (i.e., semantic information extraction) recently reviewed in [26]. This review identified that IE systems have been applied in numerous domains and have been developed for different types of sources – structured text, semi-structured text, unstructured text, images, and tables or mixed multi-modal forms [13]. While many studies focus on text-based sources, there are other modalities that can be used as a base for information extraction, such as tables and schema. In [12] the authors aim to make a classification of information, structured in tables, and define the relations between cell information. In a few studies, multiple modalities such as either graph and text together or a combination of table and text are used for information extraction. In those studies, the main goal is to extract semantic and well-formed machine-readable data from huge online or offline data [11].

An important distinction also refers to the extracted information which can be entities, concepts, binary relations (i.e., triples) or more complex n-ary relations (i.e., rules, axioms). As the focus of our work is on extracting rules, which can be seen as complex n-ary relations, we identified the following examples of works focused on extracting n-ary relations. In [16], semantic relations between concepts are extracted from medical semi-structured text based on belief states. The use of IE for the generation of triples from documents is discussed in [40]. A more complex problem is acquiring rules, which often can contain several triples. Rules have been acquired from web content [19,38] or textual content, e.g., in the medical domain [3].

There are also approaches where the output of IE results in a complex knowledge structure such as a knowledge graph. For example, in [15] the main goal is the creation of a legal knowledge graph based on the Austrian platform RIS (https://www.ris.bka.gv.at). For the population of the knowledge graph legal entities (such as legal rules, references, contributors, etc.) are extracted from structured resources and from text. For the extraction, both machine and deep learning techniques are used as well as a rule-based approach.

There are also studies about information extraction from communication standards. Information extraction from smart devices in home Wi-Fi networks consists in a string matching between input data and a prebuilt smart device rule database. Therefore, the focus is on device information extraction from unstructured strings rather than complex human language-based documents. One of the latest studies [22] which is closer to our purpose is setting up an error-tolerant procedure that extracts information from Natural Language (NL) Communication Standard Documents. They handle Alternating Bit Protocol (ABP) as a use case. Above all, we deal with multi-modal textual data for complex technical documents to generate semantic validation rules. While [22] mainly focuses on inconsistency inside the document, we would like to extract the semantic net and query mechanism for information models.

In summary, our work focuses on technical documents, explores both textual and tabular modalities, and aims to extract rules (e.g., complex n-ary relations). This is the first effort to perform this complex information extraction task in communication standards to the best of our knowledge. OPC UA specifications are handled in the project’s first phase scope. However, in the future, we would like to expand our approach to other industrial communication standards, such as Asset Administration Shell.2
