BrainHood: Designing a cognitive training system that supports self-regulated learning skills in children

Abstract

BACKGROUND:

There is strong evidence that cognitive skills and executive functions are skills that children need in order to successfully learn in school. Although executive function disorders are not considered a learning disability, weaknesses in executive functioning are often observed in students with learning disabilities or ADHD. Cognitive games are a type of educational games which focus on enhancing cognitive functioning in children with different profiles of cognitive development, including students with neurocognitive and/or learning disabilities. Self-regulation and metacognitive skills also play an important role in academic performance.

OBJECTIVE:

In this work, we highlight the need of monitoring and supporting metacognitive skills (self-regulation) in the context of a cognitive training game. We propose a system for self-regulated cognitive training for children which supports metacognitive strategies allowing the child to reflect on their own progress, weaknesses and strengths, self-arrange the training content, and thus to promote their self-regulated learning skills.

METHODS:

We provide a narrative review of research in cognitive training, self-regulated learning and explainable recommendation systems for children in educational settings.

RESULTS AND CONCLUSIONS:

Based on the review, an experimental testbed is proposed to explore how transparency, explainability and persuasive strategies can be used to promote self-regulated learning skills in children, considering individual differences on learning abilities, preferences, and needs.

Keywords

Cognitive training executive functions self-regulated learning Explainable AI persuasive technology

1. Introduction

There is an increasing interest on the benefits of Serious Games (SG) and Games for Health (G4H) to children’s behavior for purposes beyond entertainment, e.g., education and healthcare, game-based learning, interventions to augment therapy and to promote health and well-being [1, 2, 3]. Recent works focus on game design features for cognitive games designed for children, with or without learning disabilities [4]. Motivational design theories have been proposed for game-based cognitive training in children, considering the relationship between user’s emotional state and cognitive skills, as well as the importance of intrinsic motivation and sustained engagement [5]. Such theories highlight basic user needs that should be considered during game design: Competence, Autonomy, and Relatedness. Another study proposed a set of G4H design features for children [6], namely Interactivity, Feedback, Agency or Control, Identity and Immersion. A main challenge is to measure the effects of the game-based training environment (and its design features) both to children’s motivation and training efficiency. For example, a recent study examined how a game-based training environment influences both motivational variables (e.g., willingness to play), as well as executive control during a cognitive training invention in children with ADHD [7]. Considering the long-term interactions of such gamified training systems, a proper selection of design features is required to ensure the positive effects on the intended training purposes [8].

In this paper, we highlight the importance of system transparency and user autonomy, as design features, in the context of a cognitive training game for children which supports metacognitive skills. We review recent works on cognitive and educational training and therapy games for children, as well as works which focus on self-regulated learning skills (SRL) and their impact on learning for children with or without learning disabilities. We also review research works in Explainable AI (XAI) and transparent tutoring agents, focusing on techniques to help the student understand and evaluate the agent’s underlying behaviours and decisions, as well as reflect on their own behavior [9]. We extract guidelines from this review, which are applied in a self-regulated cognitive training system for children. This system supports children in monitoring their performance and self-arranging their training regimen, thus enhancing their SRL skills. We emphasize on these skills as there are indications that SRL-based interventions for children with learning disabilities or ADHD can enhance several self-regulatory skills, such as self-monitoring and planning [10, 11].

2. Background and related work

2.1 Cognitive training for children

There is evidence that executive functioning plays an important role in learning during childhood and it relates to academic skills and competence in mathematics, reading comprehension, vocabulary and writing both in primary and secondary school ages [12]. Although executive function disorders are not considered a learning disability, weaknesses in executive functioning are often observed in the learning profiles of student with learning disabilities or ADHD [13, 14].

Digital cognitive (or brain) training games have been utilized as an educational tool both for typically and atypically developing children. A mathematical and cognitive training application has been proposed for preschool children with Autism Spectrum Disorders (ASD) to enhance their cognitive and social interaction skills [15]. The proposed system includes a set of game-like activities with different levels of difficulty and skills (e.g., counting, color and size recognition, etc.). The child is able to perform these activities in any preferred order and difficulty level. A main goal of such system is to establish an efficient and engaging long-term interaction.A research study focused on the feasibility of a game-based training program for elementary school students [16]. More specifically, they examined the effect of the training environment (school, home), the association of game metrics to cognitive measurements, as well as the relationship between training time and improvement in cognitive abilities. The results highlighted the importance of considering contextual information for the in-home program with regard to child’s participation and interaction with the system, e.g., training frequency and time, parent supervision, etc. The use of attention control to the game elements have shown positive learning outcomes to a mixed class of typically developing children and children with ASD [17, 18], while timely feedback and rewards during an educational game can lead to learning outcomes equal to one-to one training by an expert [19, 20].

Another study introduced a computer-based cognitive training program as an intervention tool to stimulate executive functions through enhancing planning in typically-developing children. The training program, Executive Function Cognitive Enhancement Program, is a set of tasks/games to help the child develop their planning skills [21]. Neurophysiological assessment tasks were used for pre-post evaluation of basic cognitive skills and executive functions. The results showed that the training program was most effective for students with lower pre-training assessment scores, indicating the need of cognitive training in children with lower cognitive skills. Commercial applications for cognitive training in students, such as ACTIVATE1

¹
https://www.c8sciences.com/.

and Braingame Brian,2

https://www.gamingandtraining.nl/beschrijving-braingame-brian/.

aim to demonstrate the use of cognitive training tools in the classroom and investigate their effect in academic performance [22]. A digital in-home self-guided therapy game (Project EVO) has been shown to improve cognitive control in children with sensory processing dysfunction [23]. Such systems identify weaknesses and strengths in child’s cognitive profile, providing personalized training (e.g., difficulty adjustment) to sustain engagement and compliance. Game design features that can sustain intrinsic motivation include transparency, autonomy and control over the training-game materials [5, 6].

2.2 Self-regulated learning and children

Self-regulated Learning (SRL) refers to the learner’s abilities to control and evaluate their own learning environment and learning strategies, monitor their performance and assess their strengths and weaknesses [24]. SRL skills allow a learner to self-assess and guide their own learning more effectively. Self-regulated learning consists of three essential components: cognition, metacognition and motivation. Metacognitve skills are related to “learning to learn” skills, including self-monitoring, self-efficacy and goal setting, which allow the learner to effectively self-assess their skills and guide their own learning process. Learners with high SRL skills are able to monitor their current and previous performance and progress, reflect on their skills and set appropriate goals during learning. A recent work has proposed the integration of an Open Learner Model (OLM) in an attention training game to help the users reflect on their progress and evaluate the system’s decisions regarding task and difficulty selection [25]. Open Learner Models have been mainly used in educational contexts and they refer to the system’s visual representation of the learners’ current understanding of a topic, or their level of competency, usually in the form of skill bars. Another work has proposed an OLM-based approach to assist students to develop self-regulated learning skills (SRL) in an educational game with a robotic tutor [26]. The results showed that personalized SRL scaffolding can increase student’s engagement with the system and support appropriate SRL-based behaviors, including self-monitoring and goal setting. Metacognitive skills are essential in any game-based learning, training or therapy system, e.g., educational systems, cognitive training, physical rehabilitation, behavior change systems, etc. Thus, there is a need to formally deign and integrate a metacognitive skills component in game-based learning environments to enhance self-regulated learning in its users [27].

Supporting and enhancing such skills can also benefit students with learning disabilities and/or cognitive impairment. In the context of a school-based intervention program for two female students with ASD [28], a research study focused on the effects of a social skills program which included a self-regulated learning phase (self-monitoring and goal setting). Another study investigated the effects of a self-regulation enhancement training program on neurocognitive and social skills in students with dyscalculia [29]. The results indicated that such training programs can enhance students’ neurocognitive and social skills, as measured with neurophysiological assessment tasks.

2.3 Persuasion and explainability in recommendations for children

Despite the fact that recommendation systems have been extensively and successfully applied and evaluated in numerous research and commercial applications, there are still open challenges in designing and evaluating such systems with children. A major challenge is the need for transparent and explainable recommendations to effectively communicate the content to a child [30, 31].

Recommendation systems have been proposed in classroom and educational settings. Xie and colleagues focused on how to integrate personalization techniques to a recommendation system for second language vocabulary learning, focusing on the diversity and readability of the recommendations [32]. Another study analyzed the challenges of a recommendation system for reading materials in a classroom setting which focused on the individual student differences both in preferences and comprehension abilities [33]. Social robots have been used in educational settings to investigate if recommendation explanations can improve cognitive, affective, and perceived learning in second language tutoring in children [34]. Another recent study focuses on how transparency and explainability of an educational recommendation system affects student’s task selection and performance [35]. Recommendation systems have also been applied as a therapy support system for children with ASD [36]. The proposed system is designed to recommend daily activities and therapy tasks for the child, allowing both parents and therapists to monitor the interaction with the system.

Figure 1.

BrainHood: game environment and rules. There are four task rules, three difficulty levels and three speed values. Each parameter from the Rule category corresponds to a different addressed cognitive skill. Each combination of these elements results to a different game training specific skills.

Providing “appropriate” recommendations refers to what to recommend, as well as how and when to recommend an item. An online experiment on a real-world platform discusses the persuasive role of explanations suggesting that they are an essential piece of functionality of a recommendation system, since it enhances user’s perception and engagement [37]. Explanations can also enhance user’s decision making regarding whether to choose the recommended item, as well as to assess the potential benefits of following the recommendation [38]. Persuasive profiling is a method to personalize the persuasive strategies used by a system to influence its users [39]. Persuasive systems have been also used in social robots to investigate how users respond socially to persuasive social robots [40], focusing on users’ psychological reactance, liking, trusting beliefs and compliance. Their results showed that interactive social cues and proper timing in social praise can enhance the interaction. Another persuasive system has been proposed to support students with ASD in managing their daily activities and schedule [41]. Their findings showed that teenagers with ASD were likely to prefer receiving persuasive messages from the system rather than their teachers. The study highlights the need to transform traditional educational and training methods into the context of persuasive technology.

3. BrainHood: Game prototype design

In this section, we present BrainHood; a cognitive training game where the child needs to control the archer and shoot the targets that appear on different positions on the screen, following a set of rules defined by a set of task parameters. The game is designed based on the: (a) number of available target/player positions, (b) types of targets, (c) player color, and (d) task rules. Each configuration of these parameters results in a different task which requires specific skills. There are three types of targets (red/green apples, left/right birds), two player colors (green, red), and seven possible positions/spots for targets/player. The purpose of such a parametric game design is to make sure that the possible configurations can cover a wide range of player abilities, skills and preferences. A screenshot of the game environment is shown in Fig. 1.

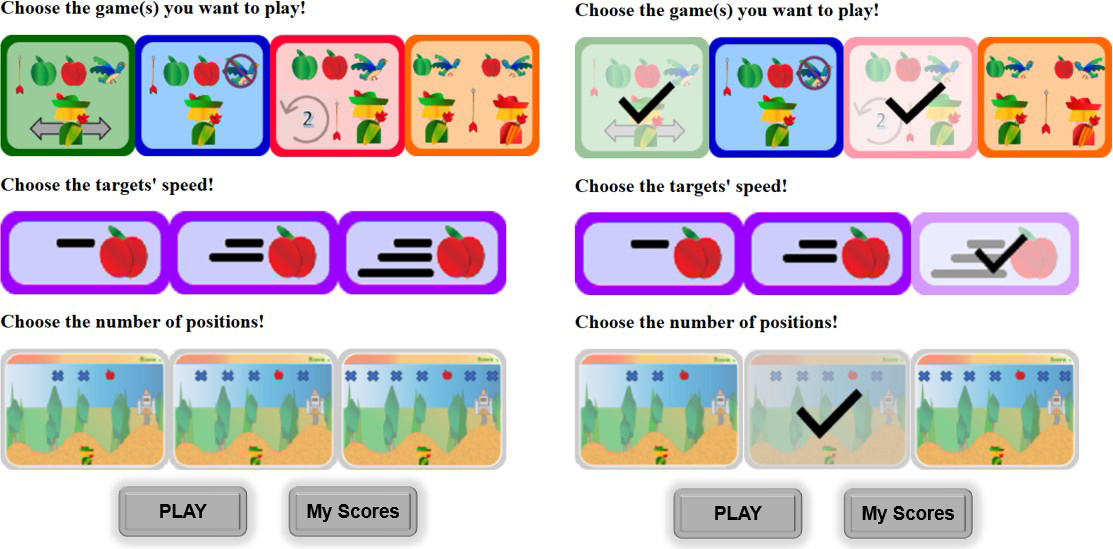

Figure 2.

The child can select the parameters of the next round. The goal of the system is to help the child select appropriate tasks based on their skills and preferences, through the Open Learner Model, persuasive recommendations and explanations.

A prototype version of BrainHood is designed considering three types of task parameters: task rules, task difficulty and task speed. Task Rules. There are four different task types/rules $R$ : (R1) Move and Shoot, (R2) Avoid Birds, (R3) Remember Targets, and (R4) Switch Targets. Each rule affects the goal and complexity of the task. R1 requires the player to use the key arrows to move the player based on where the target appears. R2 requires the user to avoid shooting any bird targets. R3 requires the player to remember target locations, and R4 requires the player to shoot targets based on the player’s color. These rules can be used either individually or combined (15 possible combinations), which can provide a wide range of task complexity and difficulty. Task Difficulty. There are three difficulty levels $D$ : (D1) Easy, (D2) Medium and (D3) Fast, and define the number of available target/player locations (3, 5, and 7, respectively). Task Speed. Task speed defines the frequency (duration) of the presented targets. There are three speed values $S$ : (S1) Fast (1 sec/target), (S2) Medium (1.5 sec/target), and (S3) Slow (2 secs/target). Considering the different task parameters, there are $N_{R}\times N_{D}\times N_{S}=$ 15 $\times$ 3 $\times$ 3 $=$ 195 possible task configurations. Each task configuration can be defined as $T_{k}=$ ([ $R$ 1, $R$ 2, $R$ 3, $R$ 4], $D$ , $S$ ), where $R_{X}=$ [0, 1], $D=$ [ $D$ 1, $D$ 2, $D$ 3], $S=$ [ $S$ 1, $S$ 2, $S$ 3]. Figure 1 summarizes the different task parameters.

Each task configuration has a maximum possible score TS , which is proportional to the task complexity and difficulty. For example, configuration T $=$ ([1, 1, 0,0], D1, S2) denotes a simple task where rules R1 and R2 apply, there are only 3 available spots (Easy) and targets appear for 1.5 seconds (Medium). The BrainHood task rules have been inspired by well-established cognitive tasks ans psychological experiments. PsyToolkit3

https://www.psytoolkit.org/.

is a collection of Python scripts for such experiments which assess, amongst others, processing speed, response inhibition, task switching, including Simple/Choice Response Time, N-back visual task, Go/No-Go, etc. While BrainHood tasks are designed based on such standardized assessments, we need to note that they cannot be used to clinically train cognitive functions rather than to practice game-based skills related to the aforementioned cognitive functionalities. More specifically, R1 is related to hand-eye coordination, R2 is related to response inhibition, R3 is related to visuospatial working memory, R4 is related to task switching, while the selection of stimuli frequency relates to processing speed.

The main feature of the proposed system is the SRL component for a cognitive training application for children. The SRL component includes features for goal setting (set a target score for a session), self-efficacy (make accurate self-assessments of game skills), and task selection strategies (select the tasks that match their weaknesses and needs). An example of the task selection menu is shown in Fig. 2. The child can choose a task configuration and play the game, following the specific rules. Our research aims to investigate the persuasive roles of transparency and explainable recommendations and their influence on children’s SRL-related behaviors and engagement.

4. System architecture

The goal of the proposed system is to enhance the effectiveness of the proposed cognitive training game by supporting the child’s SRL skills. Basic SRL skills relate to self-efficacy, goal setting, and task selection. The system architecture enables the child to monitor their progress, self-assess their weaknesses and strengths and decide which task(s) are more appropriate for them in order to reach their target goal, resulting to a self-guided training session. The system architecture is shown in Fig. 3. At the beginning of each session, the child can set their own target in the form of a total score that they need to reach by the end of the session. Each session consists of $N$ rounds, where each round is one of the possible task configurations. The system provides suggestions in the form of persuasive explanations after each round to help the child select the next task. The system guides the child to make their own selection. However, the system’s architecture allows for a range of system autonomy (fully-manual to fully-autonomous) system. In the rest of the section, we provide an overview of the functionality of the main components of our system: User Profile and Database, Open Learner Model, Recommendation System and Persuasive Explanations Model.

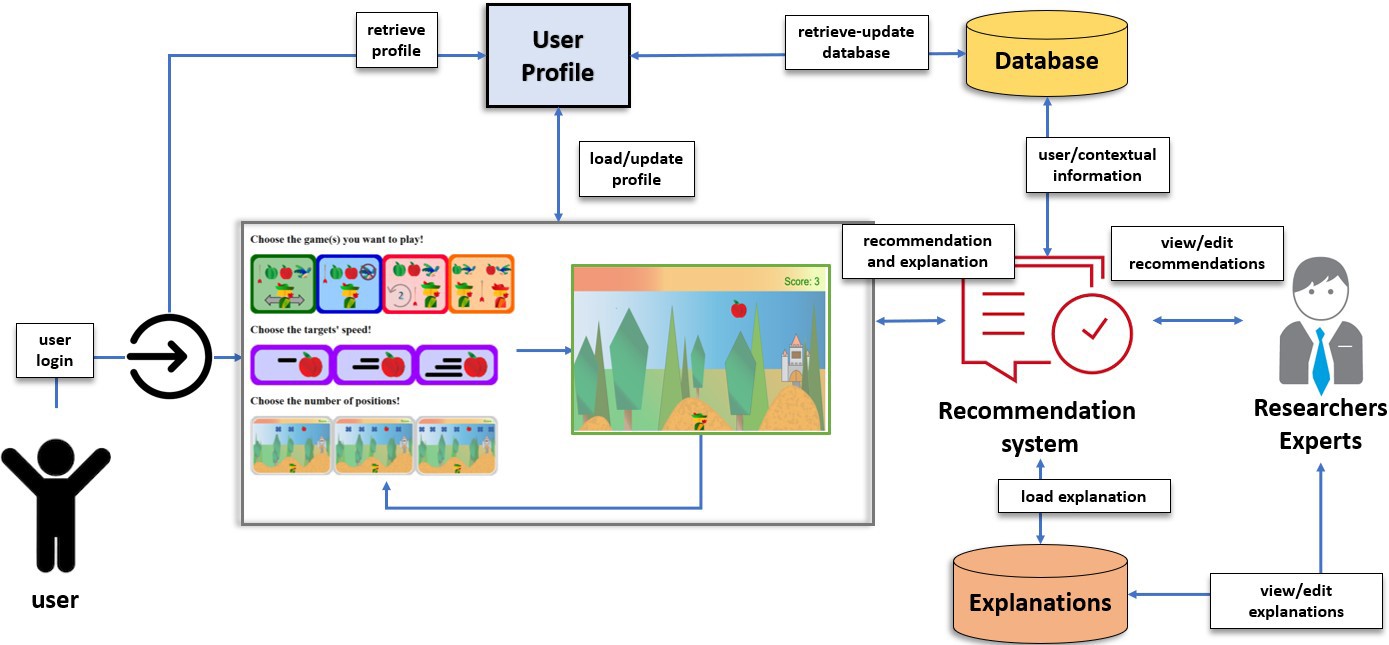

Figure 3.

A session consists of multiple rounds of task configurations. For each round, the child is asked to select the next task to perform. Explainable and persuasive recommendations are provided, along with the open learner model, to help the child identify their weaknesses and strengths, select the appropriate tasks and thus maximize the training benefits of the session.

4.1 User profile and database

Once a new session starts, the system retrieves the user profile, which includes information about user performance and preferences over the different task parameters, as well as other metrics e.g., training time, number of responses, response time, etc. A user profile is a collection of user models (task performance, task selection, etc.). It can also hold information about user preferences and susceptibility to specific persuasive strategies and explanations (persuasive profiling [39]). The database includes the set of all user profiles, as well as additional information about the users, e.g., frequency of training. Self-reports from both the child and supervisor users (e.g., teachers, parents) can be stored in the database. We will follow a data-driven approach to build prediction models (probability of task success/selection) considering individual differences in performance and preferences.

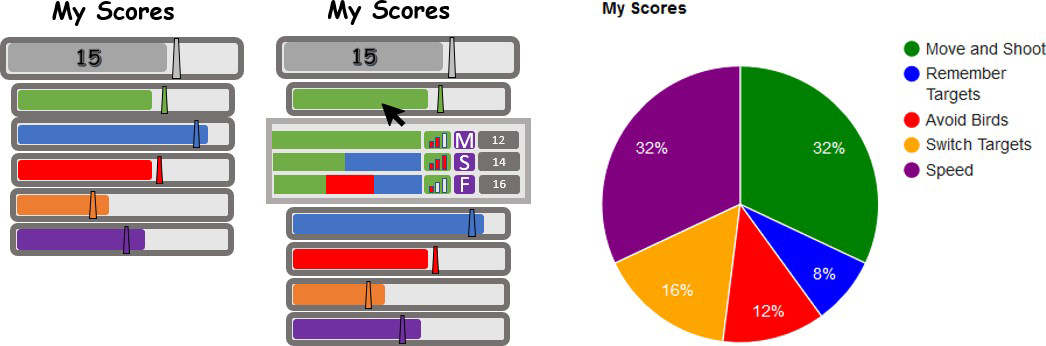

Figure 4.

Different visualizations of Open Learner Models (OLM). OLM is used to help the child monitor their performance. OLM visualizes the overall performance of the child, as well as their performance on each task. Visualizations can include data from previous sessions, as well as personal best scores, to help the child check their progress, select an appropriate next task configuration and self-arrange the session.

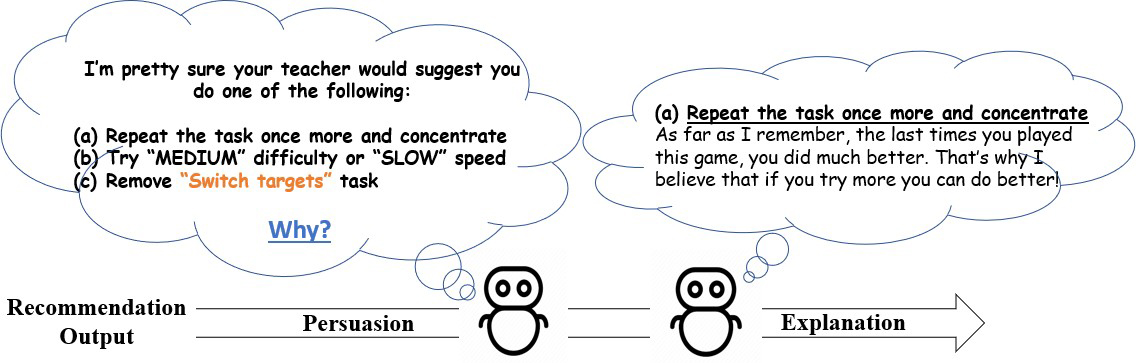

Figure 5.

From recommendation to persuasive explanation.

4.2 Open learner model

A basic feature of the system is the Open Learner Model (OLM). OLM visualizes the progress of the user after each round. More specifically, it shows information for each individual skill, as well as the average of the individual skill scores (total score). In addition, it shows the player’s personal best scores from previous sessions, as well as information from previous rounds. Following the guidelines from previous works that use OLM in educational/training applications, the OLM values are updated after each round with respect to each specific skills that were tested; if a round is not completely successful (i.e., some rules are violated), some skill bars can be increased, while others stay the same. Since each task configuration has its own maximum possible score, selecting the appropriate task configuration is essential towards reaching a target score. An example of different OLM visualizations is shown in Fig. 4. We will investigate different approaches for visualization (skill bars, pie charts, mastery grid) and information (e.g., relative vs. absolute scoring, social comparison), considering user profile (performance and preferences).

4.3 Recommendation system

The recommendation system has two main functionalities: (a) recommend a target score at the beginning of the session and (b) suggest appropriate task configurations for the next round within a session. The recommendation system takes into account user preferences (based on previous user selections), user abilities (based on previous task performance), as well as other user and contextual information (time of day, mood, self-reports, etc.). Today’s Goal. At the beginning of a new session, the child can set their own goal for the upcoming session in the form of a total score. The recommendation system takes into consideration previous selected target scores both form the child and other similar users from the database. Next Task. After each round, the system suggests possible task configuration adjustments (e.g., lower difficulty, remove rule, etc.), based on the target goal and how the child performed. The system can also evaluate a user’s selection through the recommendation system. Educational recommendation systems can provide suggestions based on probability models of mastering an activity/task and the possible gain of performing an activity [34]. Other approaches for task recommendation follow the flow theory, which has been used for difficulty adaptation in games both for entertainment and educational purposes [42, 43].

4.4 Persuasive explanations model

This module is responsible to deliver the recommendation output in an explainable and persuasive way in order to help the child set their goal and select appropriate tasks. An example is shown in Fig. 5, where the recommendation system outputs the top three recommendations and delivers them following a persuasive strategy (e.g., authority, social proof). The model personalizes the output considering the persuasion profile of the child and contextual information, e.g., training time and frequency. An interesting parameter would be the frequency (timing) of the recommendations during a session and how it affects the child’s decisions. The child can request further explanations on a recommendation. Requesting further explanations could be a behavior indicator related to SRL skills. Data from previous sessions and other users can be used to develop personalized persuasion profiles, which match persuasion/explanation strategies (e.g., authority, reward, social comparison) to user’s performance and preferences.

5. Future work and discussion

In this paper, we presented BrainHood; a self-guided cognitive training game for children, which supports SRL-related skills (self-monitoring, task selection, goal setting), through the use of an open learner model and persuasive and explainable recommendations. The goal is to motivate the user to customize their training session, evaluate their task selection and performance, providing them with personalized recommendations and prompts to ensure the effectiveness of the training session. The proposed system is especially developed to facilitate experiments that will answer the following questions:

•

How do transparency, persuasion and explainability affect children’s self-perception, task selection and task performance? More specifically, we are interested in identifying behavior patterns related to SRL skills, based on the use of the Open Learner Model (transparency) and the recommendations (persuasion and explainability). Our next step is to conduct a pilot study to evaluate the game prototype on a focused target population (e.g., 12–15 years old children). Collecting performance data over the different task parameters will help us understand the distribution of task selection strategies and task performance over the different configurations. Moreover, subjective data through built-in questionnaires will be collected (e.g., self-assessment, task preference, engagement levels). The large number of possible task configurations can cover a wide range of user abilities and preferences. Baseline models for the several modules (user profile, database, recommendation and explanations) will be developed in a data-driven way using the collected data, which will include behavioral data (game metrics, task choices, requests for explanations, responses to persuasive strategies, etc.) and subjective data through self-reports using built-in questionnaires. The dataset will be made available online for several research purposes, including user and behavior modeling, recommendation systems, game adaptation, and others.

•

How to design and evaluate personalized persuasive recommendations and explanations to promote self-regulated learning skills in children? More specifically, we are interested in the relationship between different profiles of the child (e.g., cognitive or persuasion profile) and explanation/persuasion methods, towards developing a personalized persuasion strategy. There is evidence that a learner’s cognitive abilities relate to their susceptibility to persuasive strategies [44]. Moreover, design elements can be adapted to user preferences in order to increase engagement [45]. Techniques and theories of behavior change can inform the design of systems which support the development and transfer of SRL skills [46]. Our goal is to design and develop appropriate persuasive recommendations and explanations considering the individual differences and preferences of each child. A main challenge is to measure and evaluate the susceptibility of a child user to a persuasive strategy. The proposed system architecture supports the interaction between non-technical experts (e.g., teachers) and the system modules for monitoring and control purposes how explainability can enhance expert’s decision making, e.g., view and update user profiles, task recommendations and explanations.

Considering the aforementioned research objectives, our proposed evaluation plan includes three phases:

•

Game prototype evaluation and user experience. An exploratory qualitative and quantitative data analysis on game behavior, performance and survey data will be the outcome of our pilot study. Statistical analysis and visualizations will provide us with insights about the relationship of the collected data. This analysis will inform the design and evaluation of user modeling, clustering methods and prediction models to implement the recommendation system, based on user preferences and performance [47].

•

Offline evaluation of algorithms and models. The next step includes the evaluation of the user modeling and clustering methods to define user profiles and recommendations/explanations, based on the collected data. Multi-Dimensional Scaling (MDS) and unsupervised clustering (KNN) can be used in order to define a set of user clusters and the corresponding prediction models [48]. An example of a prediction model could be a Bayesian model as the probability of success for a given task given the previous performance.

•

System integration and evaluation. This phase includes the evaluation of the system with real users. The trained user models and recommendation system will be deployed to an integrated system, aiming to address research questions related to the effect of personalized recommendations and persuasive explanations on both user experience and learning outcomes. Comparative studies will be conducted to measure the effect of model transparency, explainable recommendations and persuasive strategies on the child’s behavior in terms of the demonstrated self-regulated learning skills during the interaction.

References

Zayeni

Raynaud

Revet

. Therapeutic and Preventive Use of Video Games in Child and Adolescent Psychiatry: A Systematic Review. Frontiers in Psychiatry. 2020; 11: 36.

Kankaanranta

Koivula

Laakso

Mustola

. Digital games in early childhood: Broadening definitions of learning, literacy, and play. In: Serious games and edutainment applications. Springer, 2017, pp. 349-367.

Kousar

Mehmood

Ahmed

. Serious Games for Autism Children: A Comparative Study. University of Sindh Journal of Information and Communication Technology. 2019; 3(3): 162-170.

Rachanioti

Bratitsis

Alevriadou

. Cognitive games for children’s Executive Functions Training with or without learning difficulties: an Overview. In: Proceedings of the 8th International Conference on Software Development and Technologies for Enhancing Accessibility and Fighting Info-exclusion, 2018, pp. 165-171.

Gray

Robertson

Manches

Rajendran

. BrainQuest: The use of motivational design theories to create a cognitive training game supporting hot executive function. International Journal of Human-Computer Studies. 2019; 127: 124-149.

Baranowski

Blumberg

Buday

DeSmet

Fiellin

Green

, et al. Games for health for children – Current status and needed research. Games for Health Journal. 2016; 5(1): 1-12.

Dörrenbächer

Kray

. The impact of game-based task-shifting training on motivation and executive control in children with ADHD. Journal of Cognitive Enhancement. 2019; 3(1): 64-84.

Lameras

Arnab

Dunwell

Stewart

Clarke

Petridis

. Essential features of serious games design in higher education: Linking learning attributes to game mechanics. British Journal of Educational Technology. 2017; 48(4): 972-994.

Putnam

Conati

. Exploring the Need for Explainable Artificial Intelligence (XAI) in Intelligent Tutoring Systems (ITS). In: IUI Workshops, 2019.

10.

Shamir

Lazerovitz

. Peer mediation intervention for scaffolding self-regulated learning among children with learning disabilities. European Journal of Special Needs Education. 2007; 22(3): 255-273.

11.

Reddy

Newman

Verdesco

. Use of self-regulated learning for children with ADHD: Research and practice opportunities. In: Cleary

, editor. Self-regulated learning interventions with at-risk youth: Enhancing adaptability, performance, and well-being. Washington: American Psychological Association, 2015, pp. 15-43. Available from: http//content.apa.org/books/14641-002.

12.

Hilbert

Bruckmaier

Binder

Krauss

Bühner

. Prediction of elementary mathematics grades by cognitive abilities. European Journal of Psychology of Education. 2019; 34(3): 665-683.

13.

Meltzer

Krishnan

. Executive function difficulties and learning disabilities. Executive function in education: From theory to practice. 2007, pp. 77-105.

14.

Meltzer

. Executive function in education: From theory to practice. Guilford Publications, 2018.

15.

Winoto

Chen

Guo

Tang

. A Mathematical and Cognitive Training Application for Children with Autism: A System Prototype. In: International Conference on Human-Computer Interaction. Springer, 2018, pp. 114-119.

16.

Rosetti

Gómez-Tello

Maya

Apiquian

. Feasibility of TOWI as a cognitive training video game for children. International Journal of Child-Computer Interaction, 2020, p. 100172.

17.

Mwangi

Barakova

Díaz-Boladeras

Mallofré

Rauterberg

. Directing attention through gaze hints improves task solving in human – humanoid interaction. International Journal of Social Robotics. 2018; 10(3): 343-355.

18.

Mwangi

Barakova

Díaz

Mallofré

Rauterberg

. Dyadic gaze patterns during child-robot collaborative gameplay in a tutoring interaction. In: 2018 27th IEEE international symposium on robot and human interactive communication (RO-MAN). IEEE, 2018, pp. 856-861.

19.

de Haas

Smeekens

Njeri

Haselager

Buitelaar

Lourens

, et al. Personalizing educational game play with a robot partner. In: Robotics in education. Springer, 2017, pp. 259-270.

20.

Huskens

Verschuur

Gillesen

Didden

Barakova

. Promoting question-asking in school-aged children with autism spectrum disorders: Effectiveness of a robot intervention compared to a human-trainer intervention. Developmental Neurorehabilitation. 2013; 16(5): 345-356.

21.

Ríos Cruz

Olivares Pérez

Hernández Expósito

Bolívar Barón

Gillon Dowens

Betancort Montesinos

. Efficacy of a computer-based cognitive training program to enhance planning skills in 5 to 7-year-old normally-developing children. Applied Neuropsychology: Child. 2020; 9(1): 21-30.

22.

Wexler

Iseli

Leon

Zaggle

Rush

Goodman

, et al. Cognitive priming and cognitive training: immediate and far transfer to academic skills in children. Scientific Reports. 2016; 6: 32859.

23.

Anguera

Brandes-Aitken

Antovich

Rolle

Desai

Marco

. A pilot study to determine the feasibility of enhancing cognitive abilities in children with sensory processing dysfunction. PloS One. 2017; 12(4).

24.

Schraw

. The use of computer-based environments for understanding and improving self-regulation. Metacognition and Learning. 2007; 2(2-3): 169-176.

25.

Hocine

. Personalized Serious Games for Self-regulated Attention Training. In: Adjunct Publication of the 27th Conference on User Modeling, Adaptation and Personalization, 2019, pp. 251-255.

26.

Jones

Castellano

. Adaptive robotic tutors that support self-regulated learning: A longer-term investigation with primary school children. International Journal of Social Robotics. 2018; 10(3): 357-370.

27.

Braad

Degens

IJsselsteijn

. Towards a framework for metacognition in game-based learning. In: 13th European Games-Based Learning Conference, 2019.

28.

Bacon

. The Effects of a Multi-Component Social Skills Self-Monitoring Program on Two Females Diagnosed with Autism Spectrum Disorder. MSU Graduate Theses, 2019.

29.

Karbasdehi

Abolghasemi

Khanzadeh

AAH

. The effect of self-regulation empowerment program training on neurocognitive and social skills in students with dyscalculia. Archives of Psychiatry and Psychotherapy. 2019; 2: 71-80.

30.

Zanker

. The influence of knowledgeable explanations on users’ perception of a recommender system. In: Proceedings of the sixth ACM conference on Recommender systems, 2012, pp. 269-272.

31.

Murgia

Landoni

Huibers

Fails

Pera

. The Seven Layers of Complexity of Recommender Systems for Children in Educational Contexts. In: Workshop Proceedings. vol. 2449; 2019. pp. 5-9.

32.

Xie

Wang

Zou

Wang

. A Personalized Task Recommendation System for Vocabulary Learning Based on Readability and Diversity. In: International Conference on Blended Learning. Springer, 2019, pp. 82-92.

33.

Pera

Wright

Ekstrand

Dragovic

Shaikh

, et al. Recommending Texts to Children with an Expert in the Loop. In: Proceedings of the 2nd International Workshop on Children & Recommender Systems (KidRec). doi: 10.18122/cs_facpubs/140/boisestate, 2018.

34.

Schodde

Hoffmann

Stange

Kopp

. Adapt, Explain, Engage – A Study on How Social Robots Can Scaffold Second-language Learning of Children. ACM Transactions on Human-Robot Interaction (THRI). 2019; 9(1): 1-27.

35.

Barria Pineda

Brusilovsky

. (2019) Making Educational Recommendations Transparent through a Fine-Grained Open Learner Model. In: Proceedings of Workshop on Intelligent User Interfaces for Algorithmic Transparency in Emerging Technologies at the 24th ACM Conference on Intelligent User Interfaces, IUI 2019, Los Angeles, USA, March 20, 2019, CEUR. In: CEUR workshop proceedings. vol. 2327, 2019.

36.

Costa

Julián

Novais

. A task recommendation system for children and youth with autism spectrum disorder. In: International Symposium on Ambient Intelligence. Springer, 2017, pp. 87-94.

37.

Gkika

Lekakos

. The persuasive role of explanations in recommender systems. In: 2nd intl. workshop on behavior change support systems (bcss 2014). vol. 1153; 2014, pp. 59-68.

38.

Sato

Kawai

Nobuhara

. Action-Triggering Recommenders: Uplift Optimization and Persuasive Explanation. In: 2019 International Conference on Data Mining Workshops (ICDMW), IEEE, 2019, pp. 1060-1069.

39.

Kaptein

Markopoulos

De Ruyter

Aarts

. Personalizing persuasive technologies: Explicit and implicit personalization using persuasion profiles. International Journal of Human-Computer Studies. 2015; 77: 38-51.

40.

Ghazali

Ham

Barakova

Markopoulos

. Assessing the effect of persuasive robots interactive social cues on users’ psychological reactance, liking, trusting beliefs and compliance. Advanced Robotics. 2019; 33(7-8): 325-337.

41.

Aagaard

Øhrstrøm

. Developing persuasive technology for asd challenged teenagers. In: International Conference on Persuasive Technology. Springer, 2012, pp. 67-78.

42.

Chanel

Rebetez

Bétrancourt

Pun

. Boredom, engagement and anxiety as indicators for adaptation to difficulty in games. In: Proceedings of the 12th international conference on Entertainment and media in the ubiquitous era, 2008, pp. 13-17.

43.

Kim

Lee

Chung

. Personalized Recommendation System for Efficient Integrated Cognitive Rehabilitation Training Based on Bigdata. In: International Conference on Human-Computer Interaction. Springer, 2018, pp. 32-39.

44.

Abdullahi

Orji

Nwokeji

. Personalizing Persuasive Educational Technologies to Learners’ Cognitive Ability. In:2018 IEEE Frontiers in Education Conference (FIE). IEEE, 2018, pp. 1-9.

45.

Jabbar

Felicia

. Gameplay engagement and learning in game-based learning: A systematic review. Review of Educational Research. 2015; 85(4): 740-779.

46.

Oppezzo

Schwartz

. A behavior change perspective on self-regulated learning with teachable agents. In: International handbook of metacognition and learning technologies. Springer, 2013, pp. 485-500.

47.

Tintarev

Masthoff

. Designing and evaluating explanations for recommender systems. In: Recommender systems handbook. Springer, 2011, pp. 479-510.

48.

Tsiakas

Abujelala

Makedon

. Task engagement as personalization feedback for socially-assistive robots and cognitive training. Technologies. 2018; 6(2): 49.
