Comparing ten WCAG tools for accessibility evaluation of websites

Abstract

BACKGROUND:

Web accessibility is one of the most important aspects of building a website. It is important for web developers to ensure that their website is accessible according to WCAG standards for people with different range of abilities. There is plethora of tools for ensuring conformance to WCAG standards but not many studies compared performance of automatic WCAG tools.

OBJECTIVE:

This paper compares a set of ten WCAG tools and their results in terms of ease of comprehension and interpretation by web developers. We proposed a Common User Profile format to help personalize contents of website making it accessible to people with different range of abilities.

METHODS:

We selected ten WCAG tools from World Wide Web Consortium (W3C) to evaluate landing pages of two popular websites. For each webpage, we identified accessibility issues and recommended alternate suggestions to help developers improve accessibility. Further, we highlighted accessibility issues that cannot be captured only through conformance to WCAG tools; and proposed additional methods to evaluate accessibility through an Inclusive User Model. We then demonstrated how simulation of user interaction can capture usability and accessibility issues that are not detected through only syntactic analysis of websites’ content. Finally, we proposed a Common User Profile format that can be used to compare and contrast accessibility systems and services, and to simulate and personalize interaction for users with different range of abilities.

RESULTS AND CONCLUSIONS:

After careful evaluation of two websites using the ten tools, we noted that, both websites lacked color contrast between background and foreground; lack of sign language alternatives; opening of pop-ups without proper warnings and so on. Further, results from comparative analysis of selected web accessibility tools noted that, there is no single tool that can be found ideal in all aspects. However, from our study, Utilitia Validator by Utilitia SP. z O.O was considered the most feasible tool. By rectifying and incorporating issues and alternate suggestions by simulation study and Common User Profile format respectively, developers can improve both websites making it accessible to maximum audience.

Keywords

WCAG guidelines World Wide Web Consortium (W3C)accessibility evaluation tools Cambridge Simulator Inclusive User Model common user profile

1. Introduction

Web accessibility is one of the most important aspects of building a website. It is an inclusive practice of ensuring no barriers to prevent interaction with, or access to websites on the World Wide Web (WWW), by people with physical and situational disabilities, and socio-economic restrictions on bandwidth and speed [1]. Web developers should make sure that their website is accessible to people of varying abilities, or at least by those for whom the website is designed [2]. Web developers usually use standard authoring and evaluation tools to create web content. To evade confusions regarding accessibility assessment of different websites, W3C proposed a set of guidelines [1] and formed the Web Accessibility Initiative (WAI) [3]. These guidelines are critical for developers who tend to design and develop websites, for example, a person with blindness requires screen reader technology, and color contrast should be taken care of for persons with blurred vision [3]. Similarly, videos should have sign language and should be close captioned for people with hearing impairment. Additionally, systems and services developed for elderly or disabled people often find useful applications for their able-bodied counterparts – examples include mobile amplification control [4] originally developed to compare 10 different web accessibility tools on two popular websites for people with hearing problem but helpful in noisy environment, audio cassette version of books [5] originally developed for blind people, standard of subtitling in television [6] for deaf users and so on. However, existing design practices often isolate elderly or disabled users, by considering them as users with special needs. Web developers fail to consider their problems during the design phase leading to design of poorly accessible websites. In the context of accessibility of websites, this paper made the following contributions:

•
Identified issues with existing WCAG tools in terms of WCAG guidelines followed, POUR (Perceivable, Operable, Understandable and Robust) factors, success criteria, types of automatic checks, disability checks and so on
•

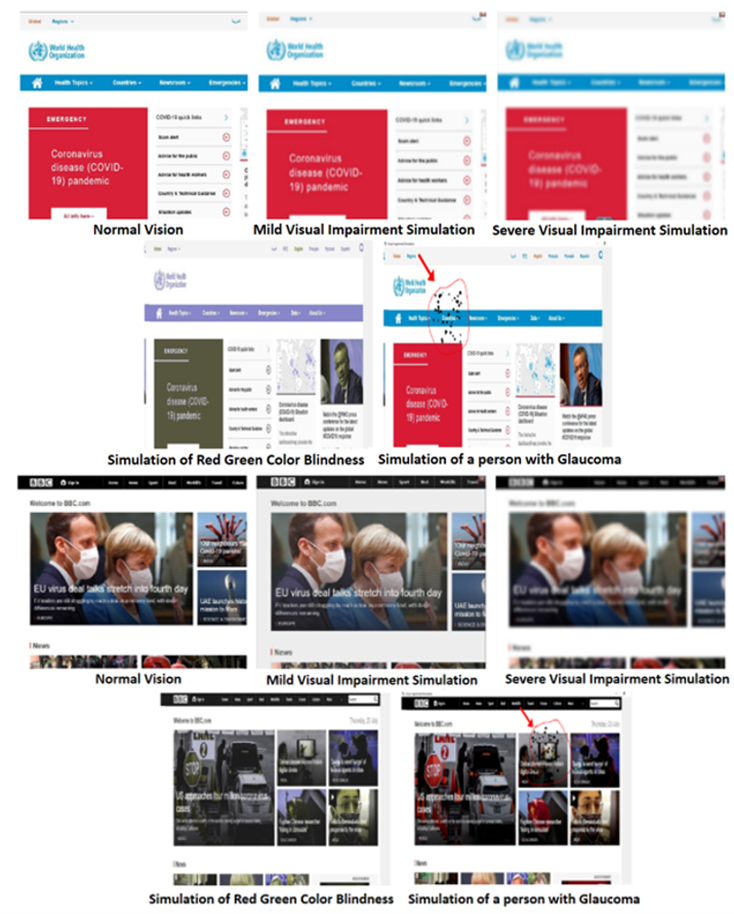

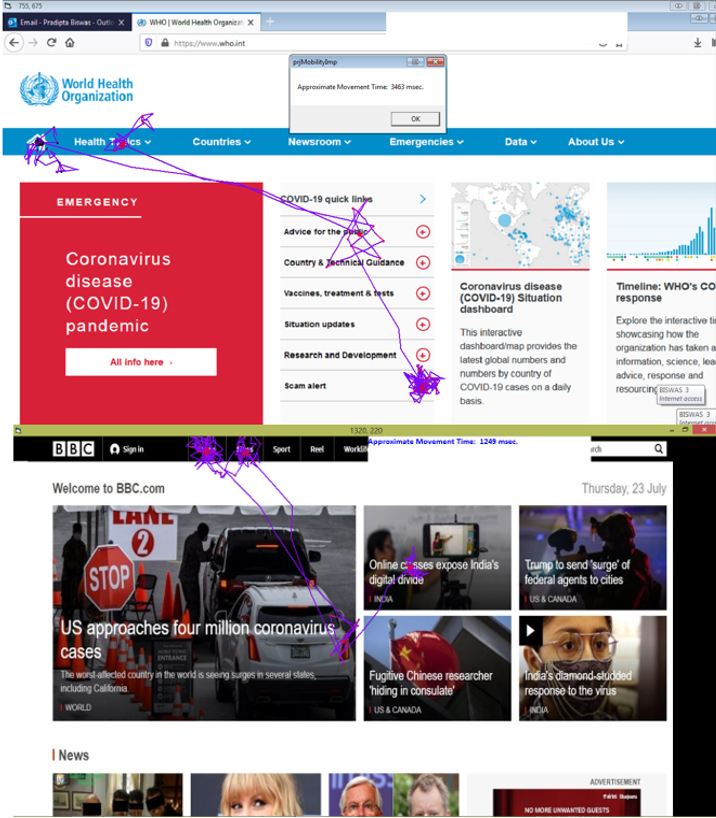

Used a simulator that can identify interaction issues for people with different range of abilities and complement results obtained from existing tools
•

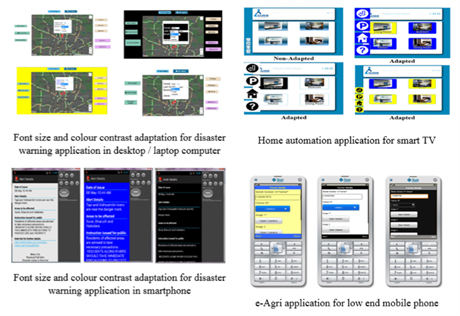

Proposed a common user profile format to personalize content of websites for people with different range of abilities.

2. Literature review

The WWW [1] has undergone several improvements to make it available for a larger population across the globe. However, there still exists problems of accessibility, which limits a major fraction of population from utilizing it. Accessibility evaluation of a website is a complicated and difficult task. Hence, most web developers fail to evaluate websites for accessibility in the website development life cycle, making it inaccessible for people with disabilities.

When web accessibility tools were newly released, websites were manually evaluated for accessibility problems, leading to unreliable results for flagging issues [7]. An inspiring paper by Brajnik et al. [8], discussed evaluation of accessibility checks done by experts resulting in detection of such violations with more accuracy. Manual inspection method consumed more manpower and time, thereby being expensive compared to automated tools. There is no way to confirm the expertise of an evaluator resulting in biased evaluations, and experts may fail to perform a detailed meticulous review. Another approach was to evaluate websites for accessibility by conducting user trials with people with disabilities using a method called User Testing [9]. However, this method is not easy, as it requires the need to find users with disabilities, every time a website needs to be evaluated. Disabilities are of various types, so we have to find appropriate user group, to ensure thorough evaluation. Nowadays, most automated web-based tools help in evaluating websites by providing a detailed report of areas which need to be improved [10].

In a recent study by Alsaeedi [7], only two tools were used to check for accessibility of a website. Tools were selected without proper justification for their selection. A study by Sandhya and Devi [11], focused on evaluating The Times of India and NDTV webpages, using a screen reader. The study provided a discussion on methods followed in using screen reader and not the evaluation process itself. Alsaeedi [7] evaluated the website of University of Saudi Arabia for accessibility using two tools. Authors proposed a Coverage Error Ratio (CER) metric to select any web accessibility tool. It is the ratio of number of errors detected by a given tool to the total number of errors detected by all tools. Value of CER scores calculated for each tool, can be used to measure the performance of tools. In this study, authors used the Wave and Site Improve tool for webpage evaluation as they possessed a high CER score. In a recent study by Almeida and Duarte [12], a webpage was evaluated by three tools namely Color Contrast Accessibility Validator, WAVE and WCAG Color Contrast Validator, to check if webpage meets color contrast specifications. Tools used were compared based on different sets of foreground and background colors [12].

A paper by Akgül [13] evaluated Turkish local and state government websites for accessibility using A-checker. The author discussed the importance of usability, accessibility and readability and argued that, these factors should be considered during design phase as it helps provide users with information about services offered by website. The paper noted HTML and CSS errors detected but failed to compare tools based on various tool selection parameters as mentioned in the W3C tool selection guide [14]. However, the author emphasized the need to use visual impairment simulation to determine actual accessibility. Another paper by Akgül and Vatansever [15] evaluated accessibility of a Turkish municipal authority website using TAW tool. The paper focused on the need to consider POUR factors for accessibility evaluation. The obvious limitation of study was evaluation for WCAG 2.0 guidelines using automatic evaluation tools. On the other hand, a paper by Vigo et al. [16] explored risk of solely relying on automated tools for evaluation. Authors demonstrated effectiveness of choosing right evaluation tools to improve evaluation.

Thus, in our study, we have selected 10 different WCAG tools, based on parameters [17] like WCAG guidelines followed, POUR factors followed, features offered by each tool, license of tool, ease of usability and interpretation, disability checks, success criteria [17] and tool completeness [18]. Tools were selected with an intention to cover different accessibility checks and features offered, making the website accessible according to WCAG standards. Since we have chosen tools that perform different accessibility checks rather than selecting tools that perform same accessibility check, evaluation of tools based on precision and accuracy is not considered feasible [18]. Additionally, we have used a simulation-based approach to further evaluate two websites for accessibility. The simulator is designed as a tool, to help web designers visualize, understand and measure effects of age and impairment on their websites. Finally, we propose a Common User Profile Format to personalize websites across different platforms and devices.

3. Selection of websites and appropriate web accessibility tools

3.1 Websites selected for accessibility evaluation

For our study, we considered evaluation of landing pages of two popular websites- the ‘World Health Organization (WHO)’ and the ‘British Broadcasting Corporation (BBC)’. The WHO is a part of the United Nations Organization (UNO), tasked with promoting universal healthcare, monitoring public health risks, coordinating responses to health crises, and bettering human health and wellbeing [19]. The organization is headquartered at Geneva, Switzerland, with 6 semi-autonomous regional offices and 150 field offices worldwide [19]. The BBC on the other hand, is the worlds’ oldest media broadcaster headquartered in Westminster, London [20]. It has a staff of around 22,000, and more than 16,000 other personnel engaged in public sector broadcasting organization [20]. The website hosts a sizeable amount of traffic [21] and is claimed to be the worlds’ most visited news website in 2020 [22], offering online services in Arabic and Persian languages.

We noted that, WHO website follows accessibility requirements stated by the UNO to enhance reachability [23]. However, the website failed to check for accessibility with respect to WCAG guidelines [24]. Similarly, although BBC followed the WCAG 2.0 standards [25, 26, 27], the webpage required change in color and contrast, clear labelling of video content, simplifying most read and most watched sections for better understanding [28]. For the above-mentioned reasons, we have chosen to evaluate the two websites for accessibility.

3.2 Website parameters considered for accessibility tool selection

There is a plethora of tools available for automatic evaluation of web accessibility with respect to Web Content Accessibility Guidelines (WCAG). We have chosen tools such that each tool covers different accessibility checks and features offered, making the website accessible according to WCAG standards. Following parameters are considered to select the 10 tools from W3C:

3.2.1 WCAG guidelines followed

Accessibility, usability, and inclusion are three important factors to be considered while developing a website usable by people with disabilities [29]. The WAI suggests a set of WCAG guidelines to be followed by developers of any website. Thus, each tool is checked if it follows at least one version of WCAG standards like WCAG 1.0, WCAG 2.0, and WCAG 2.1. Additionally, the tool can further satisfy other guidelines like Barrierefreie-Informationstechnik-Verordnung (BITV), BITV 2.0, US Federal Procurement Standard, Section 508, Japanese Industry Standard, Stanca Act, Italian Accessibility Legislation, German Government Standard EN 301 549, European Accessibility Standard and so on.

Table 1
Criteria to classify a tool for ease of usability and interpretation

Classification	Ease of usability	Interpretation
Easy	A single link of website is provided as input to web accessibility tool	Output provides a complete step by step evaluation report of issues and errors for a given website
Moderate	Add plugin of tool to browser followed by inserting link of website in tool	Output provides an in-page feedback of part of a webpage needed to be improved, rather than a detailed report
Difficult	Insert available script of tool into the HTML file of website	Output does not indicate pointers to any improvement for a given issue, rather just identifies errors

3.2.2 Success criteria

WCAG guidelines available at the W3C have a testable success criterion [17] that can be categorized into three levels of conformance namely A, AA and AAA respectively. Each conformance level creates a better user experience for a wider audience. Thus, we ensured to select tools that follow at least two levels of conformance to evaluate a webpage no less than sufficiently accessible. The conformance levels are as follows:

•
Level A (Lowest Level): This holds the lowest level of accessibility success criterion to be satisfied by any website to be classified as accessible. A few suggestions by this level include-provide text alternatives for all non-text content; provide equivalent information for time-based media; create content that may be presented in multiple ways; use of color; audio and keyboard controls.
•
Level AA (Sufficient Level): This holds a higher level of accessibility success criterion than Level A. The website should meet all conditions mentioned in Level A. Additionally, it should include live audio caption; audio description; text contrast and resizing; text over images; appropriate labels/headings.
•
Level AAA (Highest Level): This holds the highest level of accessibility success criterion. The website should successfully meet all the criteria mentioned in Level A and Level AA along with extended audio descriptions; sign languages; multimedia alternatives and interruptions; and content size.

3.2.3 POUR factors

Guidelines and success criteria defined by the W3C are organized around four principles called the POUR factors. These principles lay the foundation necessary for anyone to access and use Web content with ease [30]. POUR is the abbreviation of Perceivable, Operable, Understandable and Robust. Each of the web accessibility evaluation tool is checked to follow at least one of the four factors. Additionally, information available on the website should be:

•
Perceivable: The user interface components and information on website must be presented in a way that can be perceived by users with ease
•
Operable: Navigation and user interface components must be operable. This is necessary for users to operate all components required for interaction
•
Understandable: Operation and information of the interface must be understandable by user. This is necessary as users must be able to understand the information and operations offered by website
•
Robust: Contents of website should work across multiple platforms, without any interface issues, providing same experience to all its users, across all platforms. Since the Web industry is improving on a day-to-day basis, websites should be kept updated to meet latest standards, for users to access.

If any of these principles are not met, users with disabilities will find it difficult to use the webpage.
3.2.4 License of tool

We have chosen tools that are explicitly available as free, open source, trial/demo, enterprise or commercial.

3.2.5 Unique features offered by each tool

We have selected 10 different tools such that each tool checks for a unique feature of accessibility. Few features covered are color contrast checker, testing through plugins and modules for Node JS and Karma [31], checks for visual representation, evaluation through command line interface or application and so on.

3.2.6 Ease of usability and interpretation

Each tool is selected such that it is easy to use for webpages to evaluate accessibility. Additionally, we ensured that, results obtained by each tool are easy to interpret and understand, to help developers incorporate the same. We have classified each tool as easy, moderate and difficult based on the ease of usability of tool, and interpretation of results as defined in table (Table 1) below.

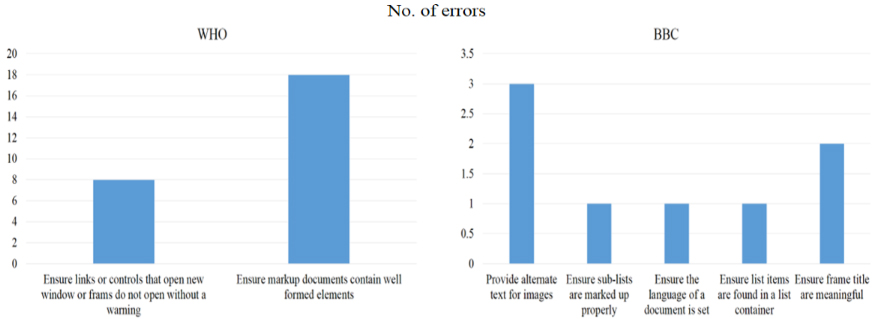

Figure 1.

Error chart of WHO and BBC websites.

3.2.7 Disability checks

Tools should evaluate a website for a specific group or type of disability. The types of disabilities considered are:

•
Visual: This type of disability ranges from slight vision loss to total blindness. It includes color blindness, heightened sensitivity to bright colors, and other variations in color and brightness perception with or without visual acuity [32].
•
Physical: This type of disability is known as motor disability. This disability type hampers movement of muscle of any individual but is not restricted to partial or total loss of muscular co-ordination, muscular control or physical sensation as well as pain or missing limbs [33].
•
Auditory: This type of disability ranges from slight to severe hearing loss in one or both ears. It includes the ability of a person to hear sounds, but possibly not understand speech. This worsens in case of any added background noise and may be applicable to people using hearing aids [34].
•
Speech: Any difficulty in audibly speaking in a way that is not understandable to others [35].

Therefore, we selected 10 different web accessibility tools that confirm to all parameters considered. The tools selected are available at the W3C [36] for website evaluation and are as follows:

•
Access Assistant Community Edition by Level Access
•
A-Checker by Inclusive Design Research Centre
•
Functional Accessibility Evaluator 2.0 by University of Illinois at Urbana-Champaign
•
QualWeb by Faculdade de Ciências da Universidade de Lisboa
•
WAVE by WebAIM
•
Accessibility Insights for Web by Microsoft
•
Button Contrast Checker by Aditus
•
Siteimprove Accessibility Checker by Siteimprove
•
Utilitilia Validator by Utilitia SP. Z O.O
•
IBM Accessibility Equal Access Toolkit: Accessibility Checker by IBM

Finally, our study is divided into three phases; Phase – 1, describes tools selected for accessibility evaluation with a detailed interpretation of results, issues identified and alternate suggestions to solve the issues. A section on comparative analysis of selected web accessibility tools is presented next. Phase – 2, evaluates the two websites further, using Cambridge Simulator [37]. This tool provides an overview of how a website is accessible to a user with three types of disabilities-visual, motor and hearing impairments. Results obtained from the simulator for each disability type is given in Section 6.1. Phase – 3, describes a common user profile format proposed to personalize websites across different platforms and devices.

Table 2
Result obtained by the tool

Results WHO BBC

Issues Identified
•
Links open without warnings
•
Markup documents do not contain well-formed elements.

•
Non-meaningful frame titles
•
List items not found in list containers
•
Sub-lists not marked properly
•
Language of document not set
•
Alternate texts for images not provided.

Alternate Suggestions
•
Avoid unnecessary creation of links that open a new window
•
Exceptions such as ‘print the page’ and/or ‘delete this’ prompt should appear at minimal intervals
•
Pages should have complete start and end tags
•
Elements should be nested according to specification and should not contain duplicate attributes
•
All IDs should be made unique.

•
Images within a page must be given an alternative text equivalent tag
•
Appropriate ‘alt’ attribute should be added for images and poster images of videos
•
‘alt’ attribute should be concise and meaningful
•
Logo should be marked properly
•
Language should be set appropriately, to ensure screen-reader and other user tools to understand the same
•
Default language for text in attribute on HTML tag should be declared.

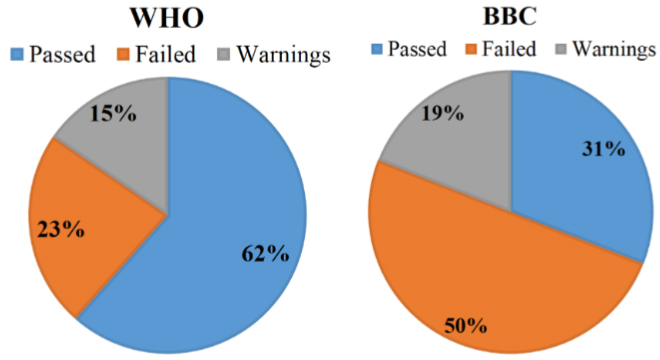

Figure 2.
Error chart of WHO and BBC website.

4. Results for evaluation of websites using selected accessibility tools

Results	WHO	BBC
Issues Identified	• Links open without warnings • Markup documents do not contain well-formed elements.	• Non-meaningful frame titles • List items not found in list containers • Sub-lists not marked properly • Language of document not set • Alternate texts for images not provided.
Alternate Suggestions	• Avoid unnecessary creation of links that open a new window • Exceptions such as ‘print the page’ and/or ‘delete this’ prompt should appear at minimal intervals • Pages should have complete start and end tags • Elements should be nested according to specification and should not contain duplicate attributes • All IDs should be made unique.	• Images within a page must be given an alternative text equivalent tag • Appropriate ‘alt’ attribute should be added for images and poster images of videos • ‘alt’ attribute should be concise and meaningful • Logo should be marked properly • Language should be set appropriately, to ensure screen-reader and other user tools to understand the same • Default language for text in attribute on HTML tag should be declared.

We present results for evaluation of two websites using 10 different tools available on the W3C. Two websites were evaluated using Chrome browser (Version: 85.0.4183.83) on a Laptop (Windows 8.1, Operating System having Intel (R) Core (TM) with i5- 8250U (8th Gen) CPU @ 3.40 GHz (4 CPUs and installed memory (RAM) 8000 MB). It may be noted that, we have chosen Chrome browser in particular for evaluation, as the same is supported by all tools selected. A detailed description of each tool, error chart, issues identified and alternate suggestions for both websites are furnished below.

4.1 Access Assistant Community Edition by Level Access [Release date: 15-Dec-2017]

This tool [38] checks for all iterations of code with web components. It offers two modes of evaluation of a webpage namely: quick test and preview mode. Error chart showing issues for both websites are given in Fig. 1. Results for the same are mentioned in Table 2.

4.2 A-Checker by Inclusive Design Research Centre [Release date: 19-Sept-2019]

This tool [39] is based on Open Accessibility Checks (OAC) providing users, the ability to create their own guidelines that can be taken care of, while checking for conformance. Issues identified in both webpages are depicted in Fig. 2. Results are mentioned in Table 3.

Table 3
Result obtained by the tool

Results	WHO	BBC
Issues Identified	• Inappropriate size of text • Links not working properly.	• Inappropriate size of text • Language of page not set • Labels not proper.
Alternate Suggestions	• Elements in italics should comply with guidelines by replacing with ‘em’ or ‘strong’ elements • If image is used within the anchor, ‘alt’ text with a title attribute of ‘a’ should be added.	• Elements in italic should comply with guidelines by replacing them with ‘em’ or ‘strong’ elements • For HTML documents, add ‘lang’ attribute with a valid ISO-639-1, two-letter language code to the opening HTML element • For XHTML documents, add ‘lang’ and ‘xmllang’ attributes with a valid ISO-639-1 two-letter language code to the opening HTML element • Input assistance should be improved • Label texts should be filled appropriately • Text should be added to label element to help users correct their mistake.

Results

WHO

BBC

Issues Identified

•

Inappropriate size of text

•

Links not working properly.

•

Inappropriate size of text

•

Language of page not set

•

Labels not proper.

Alternate Suggestions

•

Elements in italics should comply with guidelines by replacing with ‘em’ or ‘strong’ elements

•

If image is used within the anchor, ‘alt’ text with a title attribute of ‘a’ should be added.

•

Elements in italic should comply with guidelines by replacing them with ‘em’ or ‘strong’ elements

•

For HTML documents, add ‘lang’ attribute with a valid ISO-639-1, two-letter language code to the opening HTML element

•

For XHTML documents, add ‘lang’ and ‘xmllang’ attributes with a valid ISO-639-1 two-letter language code to the opening HTML element

•

Input assistance should be improved

•

Label texts should be filled appropriately

•

Text should be added to label element to help users correct their mistake.

4.3 Functional Accessibility Evaluator 2.0 by University of Illinois at Urbana-Champaign [Release date: 07-Sept-2016]

This tool [40] evaluates webpages for WCAG 2.0 Level A and AA conformances. A unique feature of the tool is to provide with the option of choosing between HTML5, ARIA Techniques or HTML4 Legacy Techniques for evaluation. The tool calculates the implementation score (Score $=$ P/(P $+$ F $+$ MC); where P $=$ elements passed, F $=$ elements failed and MC $=$ manual checks required) for each scanned parameter out of 100. The implementation score was found to be approximately 37 and 44 for the WHO and BBC websites respectively, which is considered below average in most cases indicating that webpages are not accessible. Error chart for both websites are given in Fig. 3. Results are mentioned in Table 4.

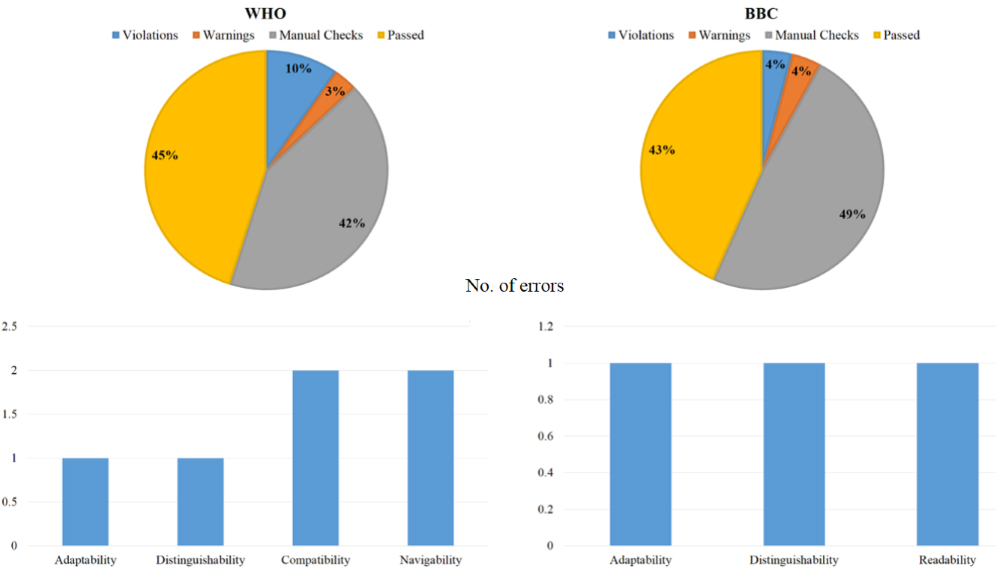

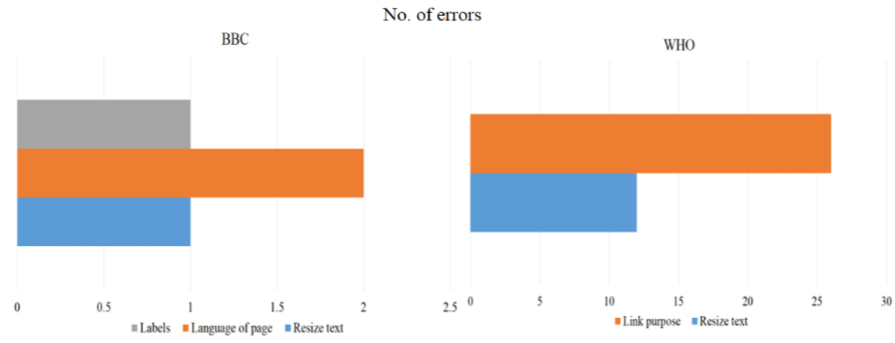

Figure 3.

Error chart of WHO and BBC websites.

Table 4

Results obtained by the tool

Results	WHO	BBC
Issues Identified	• Not adaptable across all browsers- parts of webpage content are not organized and rendered in line with one another • Not distinguishable- parts of webpage does not allow user to see and hear content between foreground and background • Not compatible- webpage does not adapt with the current and future user agents • Not navigable- webpage fails to help users find content and determine where they are.	• Not adaptable across all browsers- parts of webpage content are not organized and rendered in line with one another • Not distinguishable- parts of webpage does not allow user to see and hear content between foreground and background • Not readable- text content of webpage is not readable and understandable.
Alternate Suggestions	• Text alternatives should be provided for any non-text content to convert into different forms such as large print, braille, speech, symbols or simpler languages • Any text in images should be at least 14 points with enough contrast • Need for high visibility highlighting mechanism for links and controls upon hovering of cursor • Pages should be inter-linked properly with information about corresponding pages.	• Text alternatives should be provided for any non-text content to convert into different forms such as large print, braille, speech, symbols or simpler languages • Content should be structured to programmatically circumscribe any assistive technology • All webpages should be properly linked to each other • Any text in images should be at least 14 points with enough contrast • Need for high visibility highlighting mechanism for links and controls upon hovering of cursor.

Results

WHO

BBC

Issues Identified

•

Not adaptable across all browsers- parts of webpage content are not organized and rendered in line with one another

•

Not distinguishable- parts of webpage does not allow user to see and hear content between foreground and background

•

Not compatible- webpage does not adapt with the current and future user agents

•

Not navigable- webpage fails to help users find content and determine where they are.

•

Not adaptable across all browsers- parts of webpage content are not organized and rendered in line with one another

•

Not distinguishable- parts of webpage does not allow user to see and hear content between foreground and background

•

Not readable- text content of webpage is not readable and understandable.

Alternate Suggestions

•

Text alternatives should be provided for any non-text content to convert into different forms such as large print, braille, speech, symbols or simpler languages

•

Any text in images should be at least 14 points with enough contrast

•

Need for high visibility highlighting mechanism for links and controls upon hovering of cursor

•

Pages should be inter-linked properly with information about corresponding pages.

•

Text alternatives should be provided for any non-text content to convert into different forms such as large print, braille, speech, symbols or simpler languages

•

Content should be structured to programmatically circumscribe any assistive technology

•

All webpages should be properly linked to each other

•

Any text in images should be at least 14 points with enough contrast

•

Need for high visibility highlighting mechanism for links and controls upon hovering of cursor.

4.4 QualWeb by Faculdade de Ciências da Universidade de Lisboa [Release date: 01-Jan- 2008]

This tool [41] automatically evaluates a webpage on ACT-Rules [37] and WCAG 2.1 HTML and CSS techniques. The tool can be used through a command line interface or as a part of the application. Issues identified in both webpages are depicted in Fig. 4 with results mentioned in Table 5.

Figure 4.

Error chart of WHO and BBC websites.

Table 5

Result obtained by the tool

Results	WHO	BBC
Issues Identified	• Elements have same ‘id’ attribute • First focusable control links to an non-existent element • The ‘aria-labelledby’ property is neither inherited nor supported by the ‘role’ img • Elements do not follow flow content model • Link text is equal to images’ alternative text • Images do not have an accessible name • Color CSS property is defined but not a background CSS property • ‘lang’ attribute does not exist or is empty (“ ”) • Headings do not start with h1 • Form tag does not contain any of the following elements input [type $\sim=$ “submit image”], button [type $=$ “submit”] • Elements contain a title attribute equal to the text in the link • Elements have a ‘width’ CSS property not using percentage value with the important flag • A list item is not contained in a correct list element • Some texts neither matches nor is contained within its accessible name.	• Elements have the same ‘id’ attribute • First focusable control links to an non-existent element • Does not have focusable controls • aria- * attributes are not defined in ARIA 1.1 • ‘autocomplete’ attribute is not valid • Elements do not follow flow content model • Text is equal to the images’ alternative text • Code is in the accessibility tree, has focusable children and does not have an accessible name • Elements did not keep focus • Images do not have an accessible name • Color CSS property is defined but not a background CSS property • ‘lang’ attribute does not exist or is empty (“ ”) • Some elements do not have an accessible name • Form tag does not contain any of the following elements input [type $\sim=$ “submit image”], button [type $=$ “submit”] • Elements contains a title attribute equal to the text in the link • A list item is not contained in a correct list element • Elements have a ‘width’ CSS property not using percentage value with the important flag.
Alternate Suggestions	• Elements should have unique ‘id’ attribute • Give focus to elements in an order that follows sequences and relationships within the content • aria-hidden $=$ ‘true’ should not be added when HTML hidden attribute is present or the element or the element’s ancestor is hidden with display: none or the element or the element’s ancestor is hidden with visibility: hidden • Content model allows any flow content, should have either at least one descendant text node that is not inter-element whitespace, or at least one descendant element node that is embedded content • Every image must have a unique ‘alt’ attribute • Each button element should have an accessible name • Background CSS property must be defined • ‘lang’ attribute is to be defined • The most important heading should start with h1 • Form tag should contain elements input [type $\sim=$ “submit image”], button [type $=$ “submit”] • Elements’ title attribute should be different to that of the text in the link • Font-size CSS property should use percentage value with the important flag • Texts should be matched with an accessible name.	• Elements should have unique ‘id’ attribute • Focusable control links should be to an existent element • Should have focusable controls • Aria attributes should be defined • Valid ‘autocomplete’ attribute should be given • Give focus to elements in an order that follows sequences and relationships within the content • Text and images alternative text should be different • Codes and images should have accessible name • ‘lang’ should be defined • Background CSS property must be defined • Form tag should contain elements input [type $\sim=$ “submit image”], button [type $=$ “submit”] • Elements contains a title attribute equal to the text in the link • Title attribute and text in the link should be unique • List item should be in the correct order • Font-size CSS property should use percentage value with the important flag.

Results

WHO

BBC

Issues Identified

•

Elements have same ‘id’ attribute

•

First focusable control links to an non-existent element

•

The ‘aria-labelledby’ property is neither inherited nor supported by the ‘role’ img

•

Elements do not follow flow content model

•

Link text is equal to images’ alternative text

•

Images do not have an accessible name

•

Color CSS property is defined but not a background CSS property

•

‘lang’ attribute does not exist or is empty (“ ”)

•

Headings do not start with h1

•

Form tag does not contain any of the following elements input [type $\sim=$ “submit image”], button [type $=$ “submit”]

•

Elements contain a title attribute equal to the text in the link

•

Elements have a ‘width’ CSS property not using percentage value with the important flag

•

A list item is not contained in a correct list element

•

Some texts neither matches nor is contained within its accessible name.

•

Elements have the same ‘id’ attribute

•

First focusable control links to an non-existent element

•

Does not have focusable controls

•

aria- * attributes are not defined in ARIA 1.1

•

‘autocomplete’ attribute is not valid

•

Elements do not follow flow content model

•

Text is equal to the images’ alternative text

•

Code is in the accessibility tree, has focusable children and does not have an accessible name

•

Elements did not keep focus

•

Images do not have an accessible name

•

Color CSS property is defined but not a background CSS property

•

‘lang’ attribute does not exist or is empty (“ ”)

•

Some elements do not have an accessible name

•

Form tag does not contain any of the following elements input [type $\sim=$ “submit image”], button [type $=$ “submit”]

•

Elements contains a title attribute equal to the text in the link

•

A list item is not contained in a correct list element

•

Elements have a ‘width’ CSS property not using percentage value with the important flag.

Alternate Suggestions

•

Elements should have unique ‘id’ attribute

•

Give focus to elements in an order that follows sequences and relationships within the content

•

aria-hidden $=$ ‘true’ should not be added when HTML hidden attribute is present or the element or the element’s ancestor is hidden with display: none or the element or the element’s ancestor is hidden with visibility: hidden

•

Content model allows any flow content, should have either at least one descendant text node that is not inter-element whitespace, or at least one descendant element node that is embedded content

•

Every image must have a unique ‘alt’ attribute

•

Each button element should have an accessible name

•

Background CSS property must be defined

•

‘lang’ attribute is to be defined

•

The most important heading should start with h1

•

Form tag should contain elements input [type $\sim=$ “submit image”], button [type $=$ “submit”]

•

Elements’ title attribute should be different to that of the text in the link

•

Font-size CSS property should use percentage value with the important flag

•

Texts should be matched with an accessible name.

•

Elements should have unique ‘id’ attribute

•

Focusable control links should be to an existent element

•

Should have focusable controls

•

Aria attributes should be defined

•

Valid ‘autocomplete’ attribute should be given

•

Give focus to elements in an order that follows sequences and relationships within the content

•

Text and images alternative text should be different

•

Codes and images should have accessible name

•

‘lang’ should be defined

•

Background CSS property must be defined

•

Form tag should contain elements input [type $\sim=$ “submit image”], button [type $=$ “submit”]

•

Elements contains a title attribute equal to the text in the link

•

Title attribute and text in the link should be unique

•

List item should be in the correct order

•

Font-size CSS property should use percentage value with the important flag.

Figure 5.

Error chart of WHO and BBC websites.

4.5 WAVE by WebAIM [Release date: 01-Jan-2014]

This tool [42] facilitates human evaluation of web content providing a visual representation of accessibility issues within the page. The tool marks potential accessibility concerns on the webpage. Errors are marked on an interactive interface making it easy to comprehend. Red icons marked (Fig. 5) indicate accessibility errors; yellow icons symbolize alerts; green icons symbolize accessibility features; and all light blue icons symbolize structural, semantic or navigational elements. This tool has a high CER score indicating that all errors can be identified, thereby exhibiting high performance [7]. Error chart for both websites are given in Fig. 5 and results mentioned in Table 6.

Table 6
Result obtained by the tool

Results	WHO	BBC
Issues Identified	– 29 major errors– 25 contrast errors– 37 minor errors or alerts– 128 structured elements error.	– 3 major errors– 9 contrast errors– 21 minor errors or alerts– 129 structured elements error.
Alternate	– For contrast, use 18 points (18.5px in CSS3) or 14 points bold (24px in CSS3) for text
Suggestions	– Contrast ratio of 3:1 should be followed as per ISO and ANSI standards
	– Contrast ratio of 4:5:1 should be maintained for Level AA for people with 20/40 vision and 7:1 for people with 20/80 vision
	– HTML and CSS files should be well-structured.

Table 7

Result obtained by the tool

Results	WHO	BBC
Issues Identified	• Presence of ‘duplicate ID’ and ‘color contrast’ tags.	• Issues with ‘list item’, ‘list’, ‘html has lang’, ‘frame title’, ‘aria-hidden-focus’ and ‘color-contrast’ tags.
Alternate Suggestions	• Contrast between foreground and background color should be as per WCAG 2 and Level AA guidelines • Ensure unique value for each ID attribute.	• Remove all focus elements from ‘aria-hidden’ elements • Contrast between foreground and background color should be as per WCAG 2 and Level AA guidelines • Ensure <iframe> and <frame> elements to contain a non-title attribute • Ensure each HTML document to have a ‘lang’ attribut • Ensure list to be structured properly • List items like <li> elements should be semantically used.

Results

WHO

BBC

Issues Identified

•

Presence of ‘duplicate ID’ and ‘color contrast’ tags.

•

Issues with ‘list item’, ‘list’, ‘html has lang’, ‘frame title’, ‘aria-hidden-focus’ and ‘color-contrast’ tags.

Alternate Suggestions

•

Contrast between foreground and background color should be as per WCAG 2 and Level AA guidelines

•

Ensure unique value for each ID attribute.

•

Remove all focus elements from ‘aria-hidden’ elements

•

Contrast between foreground and background color should be as per WCAG 2 and Level AA guidelines

•

Ensure <iframe> and <frame> elements to contain a non-title attribute

•

Ensure each HTML document to have a ‘lang’ attribut

•

Ensure list to be structured properly

•

List items like <li> elements should be semantically used.

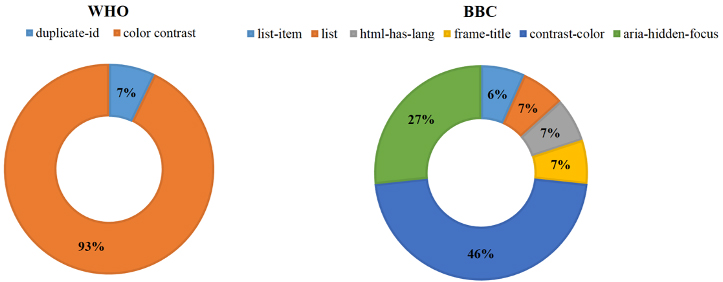

Figure 6.

Error chart of WHO and BBC websites.

Figure 7.

Error chart of WHO and BBC websites.

4.6 Accessibility Insights for Web by Microsoft [Release date: 12-Mar-2019]

This tool [43] checks for accessibility issues by generating a brief report of step-by-step guidance on improvements for a webpage. This tool provides an option of selecting two different modes for evaluation-Tab stops (Fast scan) check and Assessment (Comprehensive scan) check. Issues identified in both webpages are depicted in Fig. 6 followed by results in Table 7.

Figure 8.

Difference between valid and invalid color contrast.

4.7 Button Contrast Checker by Aditus [Release date: 10-Sep-2019]

This tool [44] checks for WCAG 2.1 compliance of all buttons and links on the webpage in just a click of a button. This tool specifically checks for contrast of buttons with default, hover, focus, active, disabled, etc. states. Error chart for both websites are given in Fig. 7. Results are mentioned in Table 8.

Table 8
Result obtained by the tool

Results	WHO	BBC
Issues Identified	• 3 Level AA contrast guidelines are not fulfilled • 4 Level AAA contrast guidelines are not fulfilled • 12 contrast errors found.	• 3 Level AA contrast guidelines are not fulfilled • 23 Level AAA contrast guidelines are not fulfilled • 6 contrast errors found.
Alternate Suggestions	For every button, a contrast ratio of 3:1 should be maintained as per ISO and ANSI standards (Fig. 8).

Results

WHO

BBC

Issues Identified

•

3 Level AA contrast guidelines are not fulfilled

•

4 Level AAA contrast guidelines are not fulfilled

•

12 contrast errors found.

•

3 Level AA contrast guidelines are not fulfilled

•

23 Level AAA contrast guidelines are not fulfilled

•

6 contrast errors found.

Alternate Suggestions

For every button, a contrast ratio of 3:1 should be maintained as per ISO and ANSI standards (Fig. 8).

Table 9

Result obtained by the tool

Results	WHO	BBC
Issues Identified	• Limited text alternatives are provided • Not adaptable across all browsers- parts of webpage content are not organized and rendered in line with one another • Not distinguishable- parts of webpage does not allow user to see and hear content between foreground and background • Not enough time provided for user to respond to web content • Not navigable- webpage fails to help users find content and determine where they are.	• Limited text alternatives are provided • Not adaptable across all browsers- parts of webpage content are not organized and rendered in line with one another • Not distinguishable- parts of webpage does not allow user to see and hear content between foreground and background • Not enough time provided for user to respond to web content • Not navigable- webpage fails to help users find content and determine where they are • Not readable- text content of webpage is not readable and understandable.
Alternate Suggestions	• Text alternatives should be provided for any non-text content • Content should be structured to programmatically circumscribe any assistive technology • Parts of webpage should be properly linked to one another • Text in images should be at least 14 points with enough contrast • Need for high visibility highlighting mechanism for links and controls upon hovering of cursor • Option for adjustable timing features like pause, stop, hide, no timing, interruptions, re-authenticating and timeout should be provided • Page links should have a short summary of offerings in corresponding page.	• Text alternatives should be provided for any non-text content • Content should be structured to programmatically circumscribe any assistive technology • Text in images should be at least 14 points with enough contrast • Need for high visibility highlighting mechanism for links and controls upon hovering of cursor • Option for adjustable timing features like pause, stop, hide, no timing, interruptions, re-authenticating and timeout should be provided • Page links should have a short summary of offerings in corresponding pages • Parts of webpage should be properly linked to one another.

Results

WHO

BBC

Issues Identified

•

Limited text alternatives are provided

•

Not adaptable across all browsers- parts of webpage content are not organized and rendered in line with one another

•

Not distinguishable- parts of webpage does not allow user to see and hear content between foreground and background

•

Not enough time provided for user to respond to web content

•

Not navigable- webpage fails to help users find content and determine where they are.

•

Limited text alternatives are provided

•

Not adaptable across all browsers- parts of webpage content are not organized and rendered in line with one another

•

Not distinguishable- parts of webpage does not allow user to see and hear content between foreground and background

•

Not enough time provided for user to respond to web content

•

Not navigable- webpage fails to help users find content and determine where they are

•

Not readable- text content of webpage is not readable and understandable.

Alternate Suggestions

•

Text alternatives should be provided for any non-text content

•

Content should be structured to programmatically circumscribe any assistive technology

•

Parts of webpage should be properly linked to one another

•

Text in images should be at least 14 points with enough contrast

•

Need for high visibility highlighting mechanism for links and controls upon hovering of cursor

•

Option for adjustable timing features like pause, stop, hide, no timing, interruptions, re-authenticating and timeout should be provided

•

Page links should have a short summary of offerings in corresponding page.

•

Text alternatives should be provided for any non-text content

•

Content should be structured to programmatically circumscribe any assistive technology

•

Text in images should be at least 14 points with enough contrast

•

Need for high visibility highlighting mechanism for links and controls upon hovering of cursor

•

Option for adjustable timing features like pause, stop, hide, no timing, interruptions, re-authenticating and timeout should be provided

•

Page links should have a short summary of offerings in corresponding pages

•

Parts of webpage should be properly linked to one another.

Table 10

Result obtained by the tool

Results	WHO	BBC
Issues Identified	• Errors in HTML, CSS and header validation code.	• Errors in HTML and CSS code.
Alternate Suggestions	• HTML and CSS code should be properly rendered to make features available • Headers should be checked and added if necessary.	• HTML and CSS code should be properly rendered to make features available.

Results

WHO

BBC

Issues Identified

•

Errors in HTML, CSS and header validation code.

•

Errors in HTML and CSS code.

Alternate Suggestions

•

HTML and CSS code should be properly rendered to make features available

•

Headers should be checked and added if necessary.

•

HTML and CSS code should be properly rendered to make features available.

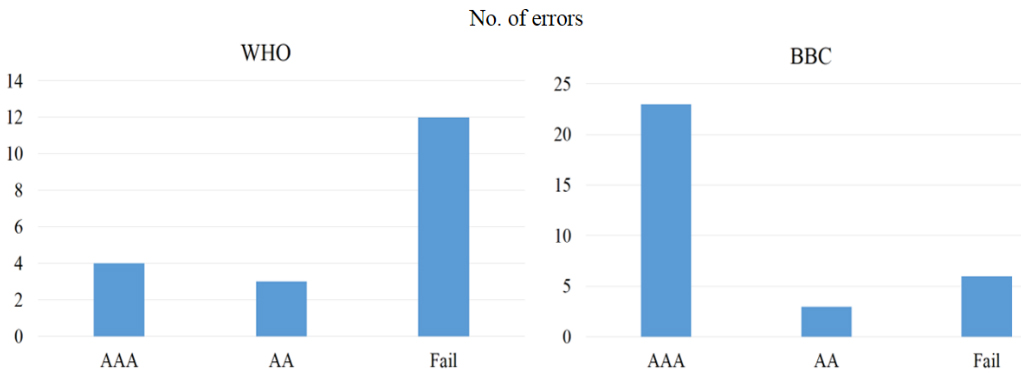

Figure 9.

Error chart of WHO and BBC websites.

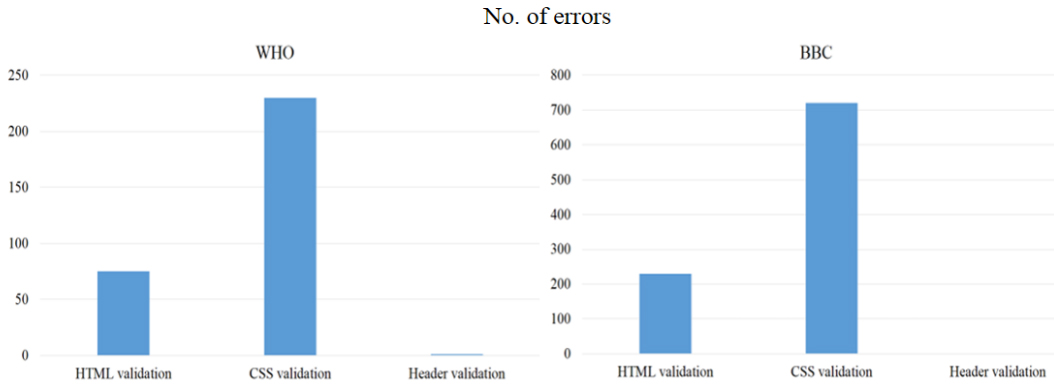

Figure 10.

Error chart of WHO and BBC websites.

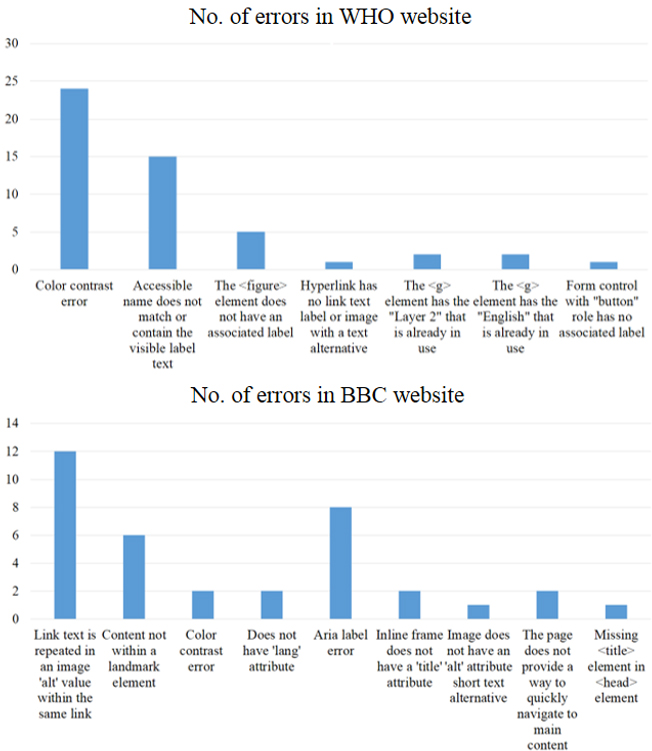

Figure 11.

Error chart of WHO and BBC websites.

Table 11

Result obtained by the tool

Results	WHO	BBC
Issues Identified	• Form control with ‘button’ role has no associated label • The <g> element has the id ‘Layer_2’ that is already in use • The <g> element has the id ‘ENGLISH’ that is already in use • Accessible name does not match or contain the visible label text • Hyperlink has no link text, label or image with a text alternative • Text contrast of 3.71 with its background is less than the WCAG AA minimum requirements for text of size 18px and weight of 700 • The <figure> element does not have an associated label.	• Link text is repeated in an image ‘alt’ value within the same link • Image does not have an ‘alt’ attribute short text alternative • Text contrast of 3.36 with its background is less than the WCAG AA minimum requirements for text of size 22px and weight of 400 • Multiple elements with ‘nav’ role do not have unique labels • Content is not within a landmark element • Inline frame does not have a ‘title’ attribute • The page does not provide a way to quickly navigate to the main content (WAI-ARIA ‘main’ landmark or a skip link) • The element with ‘region’ role is not labelled with an ‘aria-label’ or ‘aria-labelledby’ • Does not provide a way to quickly navigate to main content (WAI-ARIA ‘main’ landmark or a skip link) • Elements with ‘complementary’ role does not have a label • Missing <title> element in <head> element • Page detected as HTML, but does not have a ‘lang’ attribute.
Alternate Suggestions	• Provide labels to identify all form controls • Accept having unknown elements treated as ‘g’ for rendering • Assign accessible name through native elements and semantics where possible • Add link text, label or image with a text alternative to hyperlink • Contrast between foreground and background color should be as per WCAG2 and Level AA guidelines.	• Provide both text and iconic representations of links • Provide alt attribute for every <img> element • Contrast between foreground and background color should be as per WCAG2 and Level AA guidelines • Define a unique label name for ‘nav’ • Use appropriate landmarks to identify the different regions of content on a web page • Use title attribute of the ‘frame’ or ‘iframe’ element to describe the contents of each frame • At the top of each page add a link that goes straight to the main content area • Include the <title> tag within the <head> tag • Use a valid language code in the ‘lang’ attribute of the <html> element.

Results

WHO

BBC

Issues Identified

•

Form control with ‘button’ role has no associated label

•

The <g> element has the id ‘Layer_2’ that is already in use

•

The <g> element has the id ‘ENGLISH’ that is already in use

•

Accessible name does not match or contain the visible label text

•

Hyperlink has no link text, label or image with a text alternative

•

Text contrast of 3.71 with its background is less than the WCAG AA minimum requirements for text of size 18px and weight of 700

•

The <figure> element does not have an associated label.

•

Link text is repeated in an image ‘alt’ value within the same link

•

Image does not have an ‘alt’ attribute short text alternative

•

Text contrast of 3.36 with its background is less than the WCAG AA minimum requirements for text of size 22px and weight of 400

•

Multiple elements with ‘nav’ role do not have unique labels

•

Content is not within a landmark element

•

Inline frame does not have a ‘title’ attribute

•

The page does not provide a way to quickly navigate to the main content (WAI-ARIA ‘main’ landmark or a skip link)

•

The element with ‘region’ role is not labelled with an ‘aria-label’ or ‘aria-labelledby’

•

Does not provide a way to quickly navigate to main content (WAI-ARIA ‘main’ landmark or a skip link)

•

Elements with ‘complementary’ role does not have a label

•

Missing <title> element in <head> element

•

Page detected as HTML, but does not have a ‘lang’ attribute.

Alternate Suggestions

•

Provide labels to identify all form controls

•

Accept having unknown elements treated as ‘g’ for rendering

•

Assign accessible name through native elements and semantics where possible

•

Add link text, label or image with a text alternative to hyperlink

•

Contrast between foreground and background color should be as per WCAG2 and Level AA guidelines.

•

Provide both text and iconic representations of links

•

Provide alt attribute for every <img> element

•

Contrast between foreground and background color should be as per WCAG2 and Level AA guidelines

•

Define a unique label name for ‘nav’

•

Use appropriate landmarks to identify the different regions of content on a web page

•

Use title attribute of the ‘frame’ or ‘iframe’ element to describe the contents of each frame

•

At the top of each page add a link that goes straight to the main content area

•

Include the <title> tag within the <head> tag

•

Use a valid language code in the ‘lang’ attribute of the <html> element.

4.8 Siteimprove Accessibility Checker by Siteimprove [Release date: 14-Feb-2014]

This tool [45] scans individual webpages and provides a clear explanation of different issues and how to fix each issue according to WCAG standard. It scans for restricted and password-protected pages. It displays accessibility issues on the webpage along with instruction to fix them. This tool exhibits high performance [7] with a high CER score indicating that all errors can be identified precisely. Issues identified in both webpages are depicted in Fig. 9 followed by results in Table 9.

4.9 Utilitia Validator by Utilitia SP. z O.O [Release date: 01-Jan-2011]

This tool [46] scans webpages and checks their accessibility. The tool checks for validity of webpage by using additional guidelines provided by the Polish Government. It provides ability to select a specific validation check based on three levels of conformance. Error chart for both websites are given in Fig. 10. Results are mentioned in Table 10.

4.10 IBM Accessibility Equal Access Toolkit: Accessibility Checker by IBM [Release date: 18-May-2020]

This tool [47] is an open-source software that offers integrated accessibility testing through plug-ins and modules for Node JS and Karma [31]. The tool provides an integrated checking experience by displaying accessibility issues on the website as well as by generating a detailed report for the same. Error chart for both websites are given in Fig. 11. Results are mentioned in Table 11.

5. Comparative analysis of selected web accessibility tools

This section presents a comparative analysis of 10 selected web accessibility tools based on various factors for WCAG guidelines. Initially, we have identified unique features of accessibility check offered by each tool as shown in Table 12. Further, each tool is checked and summarized for factors like WCAG guidelines and success criteria followed, POUR factors followed, license, formats not supported, ease of usability and interpretation of each tool, type of disability check, and total violations found and total needs reviewed by each tool. Results for evaluation of the mentioned factors are tabulated from Tables 12 to 17 below.

Table 12
Unique feature of accessibility check offered by each tool

Tool name	Unique feature for accessibility check
Access Assistant Community Edition by Level Access	Tests the webpage for all iterations of HTML and CSS codes, web components instead of static code
A-Checker by Inclusive Design Research Centre	Ability to create and test custom guidelines along with standard guidelines
Functional Accessibility Evaluator 2.0 by University of Illinois at Urbana-Champaign	Checks all associated pages along with the page being evaluated for a detailed evaluation
QualWeb by Faculdade de Ciências da Universidade de Lisboa	Evaluates a webpage for ACT-Rules and can be used through a command line interface or as part of the application being evaluated
WAVE by WebAIM	Provides a visual representation of accessibility issues within the page being evaluated
Accessibility Insights for Web by Microsoft	Offers two scenarios for evaluation: a lightweight evaluation where the tool will identify most common and high impact errors in less than 5 minutes; and a full-length evaluation where the tool will evaluate website against all WCAG 2.1, Level AA guidelines
Button Contrast Checker by Aditus	Checks for color contrast of all buttons
Siteimprove Accessibility Checker by Siteimprove	Displays issues and how they can we resolved right on the page which is being evaluated and allows secure evaluation of password-protected pages, multi-step forms, and dynamic content
Utilitia Validator by Utilitia SP. z O.O	It evaluates a website for additional guidelines provided by the Polish Government and supports a variety of licences as per requirement
IBM Accessibility Equal Access Toolkit: Accessibility Checker by IBM	Offers integrated accessibility testing through plug-ins and modules for Node JS and Karma

Table 13

WCAG guidelines and success criteria followed by each tool

Tool name	WCAG guidelines followed	Success criteria
Access Assistant Community Edition by Level Access	WCAG 2.1, WCAG 2.0, Section 508, US Federal Procurement Standard	Level A and Level AA
A-Checker by Inclusive Design Research Centre	WCAG 2.0, WCAG 1.0, Section 508, U.S. Federal Procurement Standards, BITV 2.0, Italian Accessibility Legislation, Stanca Act, and German Government Standards	Level A, Level AA and Level AAA
Functional Accessibility Evaluator 2.0 by University of Illinois at Urbana-Champaign	WCAG 2.0 Level A and AA compliance	Level A and Level AA
QualWeb by Faculdade de Ciências da Universidade de Lisboa	WCAG 2.1, WCAG 2.0	Level A and Level AA
WAVE by WebAIM	WCAG 2.1, WCAG 2.0, Section 508, Federal Procurement Standard	Level A and Level AA
Accessibility Insights for Web by Microsoft	WCAG 2.1, WCAG 2.0, WCAG 1.0	Level A and Level AA
Button Contrast Checker by Aditus	WCAG 2.1, WCAG 2.0	Level A, Level AA and Level AAA
Siteimprove Accessibility Checker by Siteimprove	WCAG 2.0, Section 508, US Federal Procurement Standard, Japanese Industry Standard (JIS), Stanca Act, Italian Accessibility Legislation, BITV 2.0, German Government Standard	Level A, Level AA and Level AAA
Utilitia Validator by Utilitia SP. z O.O	WCAG 2.0	Level A, Level AA and Level AAA
IBM Accessibility Equal Access Toolkit: Accessibility Checker by IBM	WCAG 2.1, WCAG 2.0, Section 508, US Federal Procurement Standard, EN 301 549, European Accessibility Standard	Level A and Level AA

Table 14

POUR principles satisfied by each tool

Tool name	Perceivable	Operable	Understandable	Robust
Access Assistant Community Edition by Level Access	No	Yes	Yes	Yes
A-Checker by Inclusive Design Research Centre	Yes	Yes	Yes	Yes
Functional Accessibility Evaluator 2.0 by University of Illinois at Urbana-Champaign	Yes	Yes	Yes	Yes
QualWeb by Faculdade de Ciências da Universidade de Lisboa	No	Yes	Yes	Yes
WAVE by WebAIM	Yes	No	Yes	Yes
Accessibility Insights for Web by Microsoft	Yes	Yes	Yes	Yes
Button Contrast Checker by Aditus	Yes	No	No	No
Siteimprove Accessibility Checker by Siteimprove	Yes	Yes	No	No
Utilitia Validator by Utilitia SP. z O.O	Yes	Yes	Yes	Yes
IBM Accessibility Equal Access Toolkit: Accessibility Checker by IBM	Yes	Yes	Yes	Yes

Table 15

Licence type and formats not supported by each tool

Tool name	License	Formats not supported
Access Assistant Community Edition by Level Access	Free	XHTML, CSS, Images, AJAX, PDF Documents
A-Checker by Inclusive Design Research Centre	Free, Open Source	Images, PDF Documents
Functional Accessibility Evaluator 2.0 by University of Illinois at	Open Source	XHTML, PDF Documents
Urbana-Champaign
QualWeb by Faculdade de Ciências da Universidade de Lisboa	Free, Open Source	Images, PDF Documents
WAVE by WebAIM	Free, Trial/Demo, Commercial	PDF Documents
Accessibility Insights for Web by Microsoft	Open Source	XHTML, CSS, Images, AJAX, PDF Documents
Button Contrast Checker by Aditus	Free	XHTML, CSS, Images, AJAX, PDF Documents
Siteimprove Accessibility Checker by Siteimprove	Free	HTML, XHTML, CSS, Images, AJAX
Utilitia Validator by Utilitia SP. z O.O	Free, Trial/Demo, Commercial,	Nil
	Enterprise
IBM Accessibility Equal Access Toolkit: Accessibility Checker by IBM	Free, Open Source	AJAX, PDF Documents

Table 16

Comparison of ease of usability and interpretation and type of disability check of each tools

Tool name	Ease of usability and interpretation	Disability checks covered
Access Assistant Community Edition by Level Access	Easy/Moderate	Physical disabilities, auditory disabilities
A-Checker by Inclusive Design Research Centre	Difficult/Moderate	Visual disabilities, physical disabilities
Functional Accessibility Evaluator 2.0 by University of Illinois	Moderate/Easy	Visual disabilities, physical disabilities, auditory
at Urbana-Champaign		disabilities
QualWeb by Faculdade de Ciências da Universidade de Lisboa	Easy/Difficult	Visual disabilities, physical disabilities
WAVE by WebAIM	Moderate/Difficult	Visual disabilities, speech disabilities, auditory
		disabilities
Accessibility Insights for Web by Microsoft	Easy/Moderate	Visual disabilities, physical disabilities
Button Contrast Checker by Aditus	Moderate/Easy	Visual disabilities
Siteimprove Accessibility Checker by Siteimprove	Moderate/Moderate	Visual disabilities, speech disabilities, physical
		disabilities, auditory disabilities
Utilitia Validator by Utilitia SP. z O.O	Moderate/Difficult	Physical disabilities, auditory disabilities
IBM Accessibility Equal Access Toolkit: Accessibility Checker	Moderate/Easy	Visual disabilities, physical disabilities
by IBM

Table 17

Total violations found and total needs reviewed by each tool

Tool name	Total violations found		Total needs review
	WHO	BBC	WHO	BBC
Access Assistant Community Edition by Level Access	26	8	78	56
A-Checker by Inclusive Design Research Centre	4	38	816	1254
Functional Accessibility Evaluator 2.0 by University of Illinois at Urbana-Champaign	6	3	32	25
QualWeb by Faculdade de Ciências da Universidade de Lisboa	46	23	72	97
WAVE by WebAIM	219	162	37	21
Accessibility Insights for Web by Microsoft	44	15	103	84
Button Contrast Checker by Aditus	19	32	0	0
Siteimprove Accessibility Checker by Siteimprove	276	269	15	19
Utilitia Validator by Utilitia SP. z O.O	301	930	537	655
IBM Accessibility Equal Access Toolkit: Accessibility Checker by IBM	38	21	35	48

Summarizing the results mentioned from Tables 12 through 17, it may be noted that all tools considered for evaluation are open source or freely available and follow WCAG 2.0 guidelines and confirm to have at least Level AA conformance. Further, each tool follows a minimum of two POUR principles. From Table 14, it may be noted that, A-Checker, Functional Accessibility Evaluator, Accessibility Insights for Web and Utilitia Validator satisfied all four POUR factors. Additionally, we identified formats that were not supported by each tool as per Web Accessibility Evaluation Tools list [36] indicating that the tool cannot evaluate the website in the said format. Table 17 lists the total number of violations found and total needs review by each tool [49]. From this table, we can infer that, in most tools the total violations flagged are much less than potential issues detected. Here, total number of violations are issues detected which directly violate the WCAG guideline and need to be resolved as soon as possible, as they might reduce accessibility of website. Total needs review, refers to potential issues detected. This means that the tool is not certain if errors detected might actually affect accessibility of website [49]. However, it is always encouraged to resolve the total needs review through manual check to evaluate accessibility.

After detailed comparison of 10 WCAG tools, we can conclude that, there is no single tool that can be found ideal in all aspects. However, from our study, it can be safe to say that, Utilitia Validator by Utilitia SP. z O.O is the most feasible tool for those requiring a precise and elaborate review of websites on WCAG 2.0 criteria and covers majority of disability checks namely-visual disability; speech disability; physical disability and auditory disability. Further, this tool has detected the most number of violations. We noted that this tool supports all POUR factors following WCAG 2.0 standards, Section 508 guidelines, US Federal Procurement Standard, Japanese Industry Standard (JIS), Stanca Act, Italian Accessibility Legislation, BITV 2.0 and German Government Standards respectively. The tool supports a variety of licenses such as Free, Trial/Demo, Commercial and Enterprise. Finally, output generated by the tool for both websites is moderately-difficult to interpret.

6. Cambridge simulator

In addition to evaluating the WHO and BBC websites with 10 WCAG tools, we used a simulation-based approach to visualize accessibility issues for different types of disabilities. In a study by Velázquez et al. [50], authors developed Emagin Z800 3DVisor-based virtual reality headset that projects image and video within an immersive environment. This handset simulates various visual impairments such as Macular Degeneration, Diabetic Retinopathy, Hemianopsia, Central Scotoma, Tunnel Vision, Migraine Fortification, Pituitary Tumors, Glaucoma, and Retinitis Pigmentosa upon varied inputs. The goal of the project was to educate normal people who work on accessibility on visual impairment and provide them with firsthand view of visual impairment. However, this simulator lacked the simulation for hearing and mobility impairment. Goodman-Deane [51] developed a simulator using Adobe Flash to simulate visual as well as hearing impairment. The visual impairment simulator simulated impairment for cataracts, macular degeneration, loss of accommodation, glaucoma, and color blindness. The hearing impairment simulator simulates for three levels of hearing loss namely mild, moderate, and severe. This simulator lacked the capability to simulate mobility impairment.

Thus, we used an inclusive performance simulator called the Cambridge Simulator, developed by Biswas and Robinson [52] at the Cambridge University. The Cambridge Simulator provides an overview, of how a website could be perceived by a user with different range of abilities. The simulator imitates four different types of impairments, namely: Visual, Hearing, Cognition and Motor impairments. Further details of the simulator can be found in the paper by Biswas and Robinson [52]. While web accessibility tools provided a documented report of issues in both websites, the Cambridge simulator provided a real-time perspective of webpages in the eyes of people with disabilities. Unlike the case of WCAG tools having a predefined set of parameters to evaluate a webpage, the Cambridge Simulator can take a variety of custom inputs for different types of disabilities. The simulator can be found in the link – https://cambum.net/I3DLab/facilities.htm#simulator. Therefore, few advantages of using the Cambridge Simulator include:

•
Interface of the simulator is interactive and user-friendly
•
It simulates different disabilities without requirement of real participants. However, it does not intend to replace real participant, rather try to widen design space at early stage of development
•
Customization of personal user profiles and parameters as input for disability check
•
Multiple websites can be simulated simultaneously
•
Simulation results are achieved in real time.

Figure 12.
Output for WHO and BBC websites.

Figure 13.
Output from motor impairment simulator for WHO and BBC websites.

7. Results from simulator

7.1 Simulation for visual impairment

The software runs image processing algorithms [53] to simulate effects of different variants of visual impairment ranging from mild vision acuity loss, severe visual acuity loss, red-green color blindness, glaucoma, macular degeneration and diabetic retinopathy [54, 55]. Results from the simulator (Fig. 12) noted that, both websites possessed lack of quality of images with poor color contrast, making websites difficult to use by mild visual impairment.

7.2 Simulation for hearing impairment

The Cambridge simulator simulates hearing impairment [52] with conductive and sensory hearing, ranging from mild to severe. Results found a noticeable difference in the output audio file, for podcast and speech, as perceived by the listener. For both websites, the audio was barely coherent when deficit of disease was set to ‘severe’. However, when deficit was set to ‘mild’, the audio was coherent to a certain extent. Additionally, we found that the audio track of the WHO website was not processed before it was put on the website, leading to unclear sound, while the BBC website was comparatively better when compared to WHO website. Resulting audio files are given in – https://drive.google.com/drive/folders/1OEjLKSwvqZ9UPtrvaWO7kc_nxALHKksR.

7.3 Simulation for mobility impairment

We ran the simulator for mobility impairment [56] on a profile with mild Parkinson’s disease that results in hyperkinetic motor impairment. Most links and news items in both websites found to have adequate inter-element spacing except the plus ( $+$ ) icons on WHO webpage found too small to select by person with motor impairment with predicted movement time of more than 3 secs (Fig. 13).

8. Common user profile format

We may note that, it is often difficult for web developers to cover requirements of people with a wide range of abilities. A one-size-fits-all approach is difficult to implement while developing different versions of the same website for people with different range of abilities and is often not scalable for large websites. Researchers already explored ways to adapt the same website differently for different users based on a user profile. The SUPPLE project [57] at University of Washington, Inclusive User Model [47] described in previous section in the context of simulation-based evaluation, IBM Web Adaptation technology [59] and AVANTI browser [60] are notable examples, mostly working for people with different range of visual and motor impairment. A user profile is an essential component for any personalization or adaptation.

ISO-FDIS 9241-129 [61] published a standard on managing user profiles for software individualization in 2010. From 2010 onwards, there were various attempts among researchers to create a common user profile format. The European Union-Virtual User Modelling and Simulation (EU-VUMS) cluster [62] took an ambitious attempt to publish an exhaustive set of anthropometric, visual, cognitive, auditory, motor and user interface related parameters for adapting man-machine interfaces of automobile, consumer electronics, audio-visual media and so on. ISO_IEC_24756 published the concept of Common Access Profile [63] for accessible and assistive devices. A detailed review on user profile and model can be found in separate research papers [58, 64]. ITU Focus Group [65] published a much compact set of parameters for creating user profile for smart TV.

As computers turn more ubiquitous with advancement of electronic technology, presently users including people with disabilities access information through multiple devices each having different set of applications and software platform. Ideally, an accessibility service should be provided to all devices and applications irrespective of underlying hardware. Responsive design of website can be considered as an example of automatic adaptation of layout based on screen size and platform of deployment. However, information about users is essential to personalize content and layout of an audio-visual media with respect to range of abilities of users. A user profile can be defined as an instantiation of a user model while a user model can be defined as a machine-readable description of user. In the context of personalization and accessibility, a common user profile format may have the following advantages:

•
Personalizing user interface content and layout for different applications after creation of a single user profile
•
Offering accessibility services to all devices and platforms after creation of a single user profile
•
Sharing personalized content and interface across different platform and devices to improve usability
•
Adapting quality of accessibility services (e.g. font size of subtitle) across multiple media
•
Sharing personalization metadata among service providers like website or content developers.

Figure 14 below, shows examples of interface adaptation across multiple devices and platforms using a common user profile format. It may be noted in the picture that, color contrast, font size, inter-element spacing of icons is adjusted across smart TV, desktop and laptop computers, smartphones and low-end mobile phones based on a common user profile. The Common User Profile will not only ensure accessibility but can be used to compare quality of accessibility services itself. For example, it will enforce authors to explicitly state font size, color contrast for general content as well as for closed caption or subtitles.

Figure 14.
Example of interface personalization using common user profile format.

However, sharing information about user always possess security risk and unintended use not authorized by end users. Implementation of common user profile should take care of security aspect and local regulation and legislation. If the format and details of common user profile is agreed and shared among service providers, then sharing of actual content may not be necessary, rather the personalization algorithms can run on user profile stored on local machines. Standardization and sharing of only the format definition across service providers will enable personalization without taking risk of sharing details of individual user.
9. Discussion

This paper compares 10 WCAG tools by evaluating landing pages of two popular websites-WHO and BBC. We selected these tools covering different accessibility checks and features offered. Evaluation of both websites revealed many scopes of improvement. In the WHO website, links open without any warning; markup document do not contain well-formed elements; size of text do not fulfill the required criteria; presence of duplicate ID in mark-up languages; header violation in HTML and CSS code were found noticeable. In the BBC website, most frame titles were not meaningful; list containers for list items were missing; sub-lists were not marked properly; language of the document was not set; alternate texts for images were not provided; size of text and labeling did not meet the WCAG criteria; specified color contrast guidelines were not followed; there was violation with respect to ‘Html-has lang’, ‘frame title’ and ‘aria-hidden focus’; insufficient time to read the content and so on.

Compared to a study by Brajnik [8], we used automated tools instead of manual evaluation with human experts, as it provided accurate and fast results with respect to syntactic issues in the markup language of a website. A study by Alsaeedi [7] considered only two tools leading to incomplete evaluation of webpage. In our study, we have selected 10 different WCAG tools for website accessibility evaluation. Any issue left undetected by one tool can be picked up by other nine tools, making our results more reliable. Additionally, we used the Inclusive User Model [58] simulating interaction of a wider range of abilities of users, compared to existing studies [10, 11]. We then presented a concept on common user profile format that can help personalize websites across platforms based on a common understanding of users’ range of abilities. Finally, we may note that, this study presents a brief idea for web developers on how a website can be evaluated for accessibility using existing automatic WCAG tools; parameters to consider for appropriate tool selection; interpretation of results for each tool based on performance; generate a comprehensive report based on the interpreted results; perceive a webpage in the eyes of a person with different range of abilities using simulation; and personalize web content for design of accessible websites using common user profile format.

10. Conclusion

This paper analyzed a set of 10 different WCAG evaluation tools on two popular webpages and compared the output from these tools. Webpages were evaluated to check whether they followed WCAG guidelines by meeting all three-conformance levels. While automatic accessibility tools are easy to apply, it may be noted that their output are not equally comprehensible. There are many differences among the syntax of checking and there is not a single winning candidate among tools. Certain aspects of usability could not be captured by mere syntax checking of tools and required thorough analysis. In this context, we presented a simulation-based approach and showed how people with different range of abilities perceive a particular webpage. Finally, we presented a concept of Common User Profile format that can personalize websites across devices and platforms based on a common understanding of users’ range of abilities.

Footnotes

Acknowledgments

The authors have no acknowledgements.

Conflict of interest

The authors have no conflict of interest to report.

Author contributions

All authors have equally contributed to the work.

References

Chadwick

Wesson

, and Fullwood

Internet access by people with intellectual disabilities: inequalities and opportunities. Future Internet. 2013; 5, 376-397. doi: 10.3390/fi5030376.

Instructions for the Benefits of WCAG 2 Presentation. [Internet] [cited 2020 October 31]. Available from: www.w3.org/WAI/presentations/WCAG20_benefits/.

Web Accessibility Initiative (WAI) – Diverse Abilities and Barriers. [Internet] [cited 2020 July 31]. Available from: https://www.w3.org/WAI/people-use-web/abilities-barriers.

Biswas

Aydemir

G.A.

, and Langdon

Developing and Validating a hearing impairment simulator. Journal of Assistive Technologies. 2014; 7(3), ISSN: 1754-9450.

Dobie

R.A.

, and Van Hemel

National Research Council (US) Committee on Disability Determination for Individuals with Hearing Impairments; Hearing Loss: Determining Eligibility for Social Security Benefits. Washington (DC): National Academies Press (US); 2, Basics of Sound, the Ear, and Hearing. 2004; [Internet] [2020 September 05]. Available from: https://www.ncbi.nlm.nih.gov/books/NBK207834/.

Ohene-Djan

Wright

, and Combie-Smith

Emotional Subtitles: A System and Potential Applications for Deaf and Hearing-Impaired People. In Proceedings of the Conference and Workshop on Assistive Technologies for People with Vision and Hearing Impairments: Assistive Technology for All Ages (CVHI), Granada, Spain. 2007.

Alsaeedi

Comparing web accessibility evaluation tools and evaluating the accessibility of webpages: proposed frameworks. Information. 2020; 11, 1-40. doi: 10.3390/info11010040.

Brajnik

Yesilada

, and Harper

The expertise effect on web accessibility evaluation methods. Human-Computer Interaction. 2011; 26, 246-283. doi: 10.1080/07370024.2011.601670.

Petrie

, and Kheir

The relationship between accessibility and usability of websites. In Proceedings of the SIGCHI Conference on Human Factors in Computing Systems, San Jose, CA, USA; ACM: New York, NY, USA. 2007; pp. 397-406. doi: 10.1145/1240624.1240688.

10.

Kumar

K.L.

, and Owston

Evaluating e-learning accessibility by automated and student-centered methods. Educational Technology Research and Development. 2016; 64, 263-283. doi: 10.1007/s11423-015-9413-6.

11.

Sandhya

, and Devi

Accessibility evaluation of websites using screen reader. In 7th International Conference on Next Generation Web Services Practices, Salamanca. 2011; pp. 338-341. doi: 10.1109/NweSP.2011.6088201.

12.

Almeida

, and Duarte

Analysis of automated contrast checking tools. In Proceedings of the 17th International Web for All Conference. 2020. doi: 10.1145/3371300.3383348.

13.

Akgül

The accessibility, usability, quality and readability of turkish state and local government websites an exploratory study. International Journal of Electronic Government Research. 2019; 15, 62-81. doi: 10.4018/IJEGR.2019010105.

14.

W3C Selecting tools for Evaluation. [Internet] [cited 2020 September 05]. Available from: https://www.w3.org/WAI/test-evaluate/tools/selecting/.

15.

Akgül

, and Vatansever

Web content accessibility of municipal web sites in Turkey. Journal of Advances in Information Technology. 2016; 7, 43-48. doi: 10.12720/JAIT.7.1.43-48.

16.

Vigo

Brown

, and Conway

Benchmarking web accessibility evaluation tools. In Proceedings of the 10th International Cross-Disciplinary Conference on Web Accessibility – W4A ’13. 2013. doi: 10.1145/2461121.2461124.

17.

Web Content Accessibility Guidelines (WCAG) 2.0. [Internet] [cited 2020 July 31]. Available from: https://www.w3.org/TR/WCAG20/.

18.

Brajnik

Beyond Conformance: The Role of Accessibility Evaluation Methods. Lecture Notes in Computer Science. 2008; 63-80. doi: 10.1007/978-3-540-85200-1_9.

19.

WHO Home. [Internet] [2020 July 31] Available from: https://www.who.int.

20.

British Broadcasting Corporation Website. BBC – Homepage. [Internet] [cited 2020 July 31]. Available from: https://www.bbc.com.

21.

Ahrefs. Top 100 Most Visited Websites by Search Traffic. [Internet] [cited 2020 August 01]. Available from: http://ahrefs.com/blog/most-visited-websites/.

22.

BBC – New data shows BBC is the world’s most visited news site – Media Centre. [Internet] [cited 2020 August 01]. Available from: http://www.bbc.co.uk/mediacentre/worldnews/2020/worlds-most-visited-news-site.

23.

Accessibility Guidelines for United Nations Websites. [Internet] [cited 2020 July 31]. Available at: https://www.un.org/en/webaccessibility/index.shtml.

24.

Zeng

, and Parmanto

Web content accessibility of consumer health information web sites for people with disabilities: a cross sectional evaluation. Journal of Medical Internet Research. 2004; 6(2), e19. doi: 10.2196/jmir.6.2.e19.

25.

BBC – Accessibility guide – My web my way. [Internet] [cited 2020 September 01]. Available from: http://www.bbc.co.uk/accessibility/guides/.

26.

BBC Future Media Accessibility Guidelines v1.10. [Internet] [cited 2020 September 01]. Available from: http://www.bbc.co.uk/accessibility/guides/.

27.

Schulz

, and Fritsch

Accessibility and Inclusion Requirements for Future e-Identity Solutions. In Miesenberger

Fels

Archambault

Peňáz

Zagler

(eds) Computers Helping People with Special Needs. ICCHP. Lecture Notes in Computer Science, 8547. Springer, Cham. 2014. doi: 10.1007/978-3-319-08596-8_50.

28.

Making the BBC News website more accessible – Sutherland Labs. [Internet] [cited 2020 July 31]. Available from: https://www.sutherlandlabs.com/portfolio/bbc-news-accessibility-wireframes/.

29.

Accessibility, Usability, and Inclusion – W3C. [Internet] [cited 2020 August 01]. Available from: http://www.w3.org/WAI/fundamentals/accessibility-usability-inclusion/.

30.

Moorman

Web review: W3C, the World Wide Web consortium. XRDS: Crossroads. 1999; 6(2), 4. doi: 10.1145/333104.

31.

Karma – a Javascript Test Runner. [Internet] [cited 2021 Feb 24]. Available from: https://www.methodsandtools.com/tools/karma.php.

32.

Accessibility testing for people with visual disabilities. [Internet] [cited 2020 October 31]. Available from: https://www.boia.org/blog/how-do-we-perform-accessibility-testing-for-the-impact-of-visual-disabilities.

33.

Accessibility testing for people with physical disabilities. [Internet] [cited 2020 October 31]. Available from: https://www.boia.org/blog/how-do-we-perform-accessibility-testing-for-the-impact-of-physical-disabilities.

34.

Accessibility testing for people with auditory disabilities. [Internet] [cited 2020 October 31]. Available from: https://www.boia.org/blog/how-do-we-perform-accessibility-testing-for-the-impact-of-auditory-disabilities.

35.

Accessibility testing for people with speech disabilities. [Internet] [cited 2020 October 31]. Available from: https://www.boia.org/blog/how-do-we-perform-accessibility-testing-for-the-impact-of-speech-disabilities.

36.

Web Accessibility Evaluation Tools List. [Internet] [cited 2020 July 31]. Available from: http://www.w3.org/WAI/ER/tools.

37.

Biswas

, and Robinson

Evaluating interface layout for visually impaired and mobility-impaired users through simulation. Universal Access in the Information Society. 2013; 12(1), 55-72.

38.

Access Assistant Community Edition. [Internet] [cited 2021 Feb 24]. Available from: https://chrome.google.com/webstore/detail/access-assistant/ojiighldhdmahfdnhfdebnpmlbiemdfm.

39.

A-Checker by Inclusive Design Research Centre. [Internet] [cited 2021 Feb 24]. Available from: https://achecker.ca/checker/index.php.

40.

Functional Accessibility Evaluator 2.0 by University of Illinois at Urbana-Champaign. [Internet] [cited 2021 Feb 24]. Available from: https://fae.disability.illinois.edu/anonymous/?Anonymous%20Report=/.

41.

QualWeb by Faculdade de Ciências da Universidade de Lisboa. [Internet] [cited 2021 Feb 24]. Available from: http://qualweb.di.fc.ul.pt/evaluator/.

42.

WAVE by WebAIM. [Internet] [cited 2021 Feb 24]. Available from: https://wave.webaim.org/.

43.

Accessibility Insights for Web by Microsoft. [Internet] [cited 2021 Feb 24]. Available from: https://accessibilityinsights.io/.

44.

Button Contrast Checker by Aditus. [Internet] [cited 2021 Feb 24]. Available from: https://www.aditus.io/button-contrast-checker/.

45.

Siteimprove Accessibility Checker by Siteimprove. [Internet] [cited 2021 Feb 24]. Available from: https://chrome.google.com/webstore/detail/siteimprove-accessibility/efcfolpjihicnikpmhnmphjhhpiclljc.

46.

Utilitilia Validator by Utilitia SP. Z O.O. [Internet] [cited 2021 Feb 24]. Available from: https://validator.utilitia.pl/analyses/new.

47.

IBM Accessibility Equal Access Toolkit: Accessibility Checker by IBM. [Internet] [cited 2021 Feb 24]. Available from: https://www.ibm.com/able/toolkit/.

48.

ACT Rules – Community. [Internet] [cited 2020 July 31]. Available from: https://act-rules.github.io/rules/.

49.

Ismail

, and Kuppusamy

K.S.

Web accessibility investigation and identification of major issues of higher education websites with statistical measures: A case study of college websites. Journal of King Saud University – Computer and Information Sciences. 2019. doi: 10.1016/j.jksuci.2019.03.011.

50.

Velázquez

Sánchez

, and Pissaloux

Visual impairment simulator based on the hadamard product. Electron Notes Theoretical Computer Science. 2016; 329, C, 169-179. doi: 10.1016/j.entcs.2016.12.010.

51.

Goodman-Deane

Langdon

P.M.

Clarkson

P.J.

Caldwell

N.H.

, and Sarhan

A.M.

Equipping designers by simulating the effects of visual and hearing impairments. In Proceedings of the 9th International ACM SIGACCESS Conference on Computers and Accessibility. 2007; pp. 241-242. doi: 10.1145/1296843.1296892.

52.

Biswas

, and Robinson

Evaluating Interface Layout for Visually and Mobility Impaired Users through Simulation. Universal Access in the Information Society. 2011. doi: 10.1007/s10209-011-0265-5.

53.

Biswas

, and Robinson

Modelling perception using image processing algorithms, People and Computers XXIII Celebrating People and Technology – Proceedings of HCI. 2009; 494-503.

54.

Rubin

Roche

Huang

Muñoz

Schein

Fried

, and West

The Association of Multiple Visual Impairments with Self-Reported Visual Disability: SEE Project, Investigative Ophthalmology and Visual Science. 2001; 42, 64-72. PMID: 11133849.

55.

Ross

J.E.

Bron

A.J.

, and Clarke

D.D.

Contrast sensitivity and visual disability in chronic simple glaucoma. British Journal of Ophthalmology. 1984; 68, 821-827. doi: 10.1136/bjo.68.11.821.

56.

Biswas

, and Robinson

Predicting pointing time from hand strength, Symposium of the Austrian HCI and Usability Engineering Group. 2009; 428-447.

57.

Gajos

K.Z.

Wobbrock

J.O.

, and Weld

D.S.

Automatically generating user interfaces adapted to users’ motor and vision capabilities. In ACM Symposium on User Interface Software and Technology. 2007; pp. 231-240. doi: 10.1016/j.artint.2010.05.005.

58.

Biswas

Robinson

, and Langdon

Designing Inclusive Interfaces Through User Modeling and Simulation. International Journal Human Computer. Interaction. 2012; 28, 1-33. doi: 10.1080/10447318.2011.565718.

59.

IBM Web Adaptation Technology. [Internet] [cited 2020 May 22]. Available from: http://www.webadapt.org/.

60.

Stephanidis

, and Constantinou

Designing human computer interfaces for quadriplegic people. ACM Transactions on Computer-Human Interaction. 2003; 10(2), 87-118. doi: 10.1145/772047.772049.

61.

ISO 9241-129:2010 Ergonomics of human-system interaction – Part 129: Guidance on software individualization.

62.

EU VUMS Cluster (2020). [Internet] [cited 2020 November 09]. Available from: https://wiki.iao.fraunhofer.de/index.php/VUMS_-_Virtual_User_Modelling_and_Simulation_Standardisation.

63.

Information Technology – Framework for Specifying A Common Access Profile (CAP) Of Needs and Capabilities of Users, Systems, And Their Environments. International Organization for Standardization. 2009. ISO/IEC 24756:2009.

64.

Kaklanis

Biswas

Mohamad

Gonzalez

M.F.

Peissner

Langdon

Tzovaras

, and Jung

Towards standardisation of user models for simulation and adaptation purposes. Universal Access in the Information Society. 2014; 15(1), 21-48. doi: 10.1007/s10209-014-0371-2.

65.

Technical report from ITU Focus Group on Smart TV. [Internet] [cited 2020 May 22]. Available from: http://www.itu.int/dms_pub/itu-t/opb/fg/T-FG-SMART-2013-PDF-E.pdf.

Comparing ten WCAG tools for accessibility evaluation of websites

Abstract

BACKGROUND:

OBJECTIVE:

METHODS:

RESULTS AND CONCLUSIONS:

Keywords

1. Introduction

3. Selection of websites and appropriate web accessibility tools

3.1 Websites selected for accessibility evaluation

3.2 Website parameters considered for accessibility tool selection

3.2.1 WCAG guidelines followed

Table 1 Criteria to classify a tool for ease of usability and interpretation

3.2.5 Unique features offered by each tool

3.2.6 Ease of usability and interpretation

4.1 Access Assistant Community Edition by Level Access [Release date: 15-Dec-2017]

4.2 A-Checker by Inclusive Design Research Centre [Release date: 19-Sept-2019]

Table 3 Result obtained by the tool

Table 6 Result obtained by the tool

Table 8 Result obtained by the tool

4.9 Utilitia Validator by Utilitia SP. z O.O [Release date: 01-Jan-2011]

4.10 IBM Accessibility Equal Access Toolkit: Accessibility Checker by IBM [Release date: 18-May-2020]

5. Comparative analysis of selected web accessibility tools

Table 12 Unique feature of accessibility check offered by each tool

7.1 Simulation for visual impairment

7.2 Simulation for hearing impairment

7.3 Simulation for mobility impairment

8. Common user profile format

10. Conclusion

Footnotes

Acknowledgments

Conflict of interest

Author contributions

References

Table 1
Criteria to classify a tool for ease of usability and interpretation

Table 3
Result obtained by the tool

Table 6
Result obtained by the tool

Table 8
Result obtained by the tool

Table 12
Unique feature of accessibility check offered by each tool
