Abstract
BACKGROUND:
The main position of the working population is becoming sitting. Immobile prolonged sedentary time may cause negative effects including reduced intervertebral discs nutrition. Main ways of mitigating them are regular position changes and exercising.
OBJECTIVE:
To evaluate influence of the short term training on unstable training machine on balance control and trunk muscles activity in patients with lower back pain.
METHODS:
Participants (
RESULTS:
Balance control improved after the training program. Besides, more symmetrical activation of both sides rectus and transversus abdominis muscles, as well as increased transversus abdominis muscle activation of 19% (
CONCLUSIONS:
Six weeks short sessions training on unstable training machine improved balance control and increased trunk muscles activity especially in aligned body posture when standing or sitting on unstable surface.
Introduction
Poor postural control is observed in sitting for patients suffering from lower back pain [1, 2]. In 37% of all cases, back pain results from all the risk factors related to work environment [3]. Studies show that sitting as an action does not damage our spine, however, the posture dominant in this position induces lower back pain [4]. Experts have analysed four sitting positions: flat back, long lordosis, short lordosis and slump sitting positions [5]. It was determined that deep multifidus muscles and abdominal (internal oblique and transverse) muscles had higher activity during sitting in short lordosis. The lowest activity of the same muscles was during the sitting position with a flat back. To restore the multifidus muscle, exercises should be performed in a neutral lordosis position using isometric activity, which would result in the tonic muscle mode. It is a very important action for stopping lower back pain recurrence and onset [6]. Systematic review has shown that it is more difficult to perform work-tasks at the time when patients feel low back pain at work that requires physical efforts and mental concentration [7]. For this reason, they lose a lot of time for important tasks implementation, and this is the result, but not the reason, why they experience the onset of low back pain.
Physical activity is one of the ways to reduce musculoskeletal diseases, type two diabetes, cardio – pulmonary diseases, and early mortality [8, 9]. The United States of America Federation guidelines recommend 30 minutes of moderate physical activity 5 times per week [9], which could reduce the diseases mentioned above.
It was also stated that one of the main consequences of sedentary lifetime and work environment in Western countries is lower back pain [10]. The first onset of low back pain appears in young adults, and symptoms repeat constantly [11, 12]. Lower back pain is divided into that of specific origin (about 5–15%) and nonspecific (causes are unknown) origin, about 85–95% of all cases of lower back pain [11, 13]. Lower back pain treatment is widely analysed, however, there is no optimal treatment and it is still being discussed by most physiotherapy scientists. Systematic review has shown that one of the possible treatments is multidisciplinary biopsychosocial attitude towards low back pain [14]. This approach is based on physical, psychological, and social dysfunctions that cause low back pain. The treatment requires different specialists’ competency, patients’ education and solutions of the problem. Moreover, it is important to mention that back schools also have a positive impact on correct motion and daily activities that are inevitable in lifetime [7].
One of the aims during the systematic review was to assess the training influence on neuromuscular control and functional exercise effect [15]. Results showed that balance training for an interventional group had a positive effect on improving the postural sway and functional balance compared with the control group. Longer balance training had a stronger effect than short-period. Jump, agility and neuromuscular control improved after the balance training program. Another systematic review studied the dose-response relationships of balance training in healthy young adults aged 16–40 [16]. This review revealed that balance training for 11–12 weeks, three or six training sessions per week, 11–15 minutes long for a single training session, improved the steady-state balance for recreational athletes. However, a six-week training period helped sub-elite athletes reach almost the same results as recreational athletes. We chose this duration of balance training because we have exploratory population with lower back pain to see if there are any physiological changes after a six-week training period.
The aim of the research was to evaluate influence of the short term periodical trainings on unstable training (sculling) machine for six weeks on the balance control ability and trunk muscles activity in patients with lower back pain.
Methods
Subjects
Twenty adults of both sexes who have experienced low back pain in the last 6 months were included in this study. Individuals who volunteered to participate in this study responded to the announcement. Four participants were excluded from this case because they did not end training sessions and did not participate in the second testing. For this reason data obtained on sixteen volunteers of both sexes were included in this study. The study subjects’ average (
Procedures
Testing before and after the training programme was carried out according to the protocol showed on Fig. 1.
First of all the static body balance maintenance was tested on Biodex Balance System (BBS). BBS uses a circular balance platform able to tilt up to 20
Methodology protocol.
Body balance using BBS was measured in the usual and aligned body posture in sitting (on stool placed on the platform) and standing positions on a stable and unstable platform for 40 seconds, three times each, with 10 seconds rest between the trials (Fig. 2). The participants were informed about the balance maintenance and their center of mass positioning in the right direction. The participants were verbally informed to keep their usual body posture and after that – the aligned body posture during the balance testing. The aligned body position was set manually with verbal instructions.
Moreover, the trunk muscles activity was measured during the balance testing by surface electromyograph (sEMG) (Noraxon MR3.6). Before the surface electrodes placement the skin was shaved, swabbed and rubbed with alcohol to reduce skin impedance. Bipolar EMG electrodes were affixed on the skin and measurement were recorded during balance testing. Signal was fixed for 40 seconds with the same protocol as balance measurement (40 seconds, three times each, with 10 seconds rest between the trials). EMG data were collected from 3 abdominal wall muscles bilaterally: rectus abdominis, externus oblique, transverse abdominis, and 2 back wall muscles bilaterally: multifidus and erector spine [19, 20, 21]. The Noraxon electrodes have adhesive area of 4

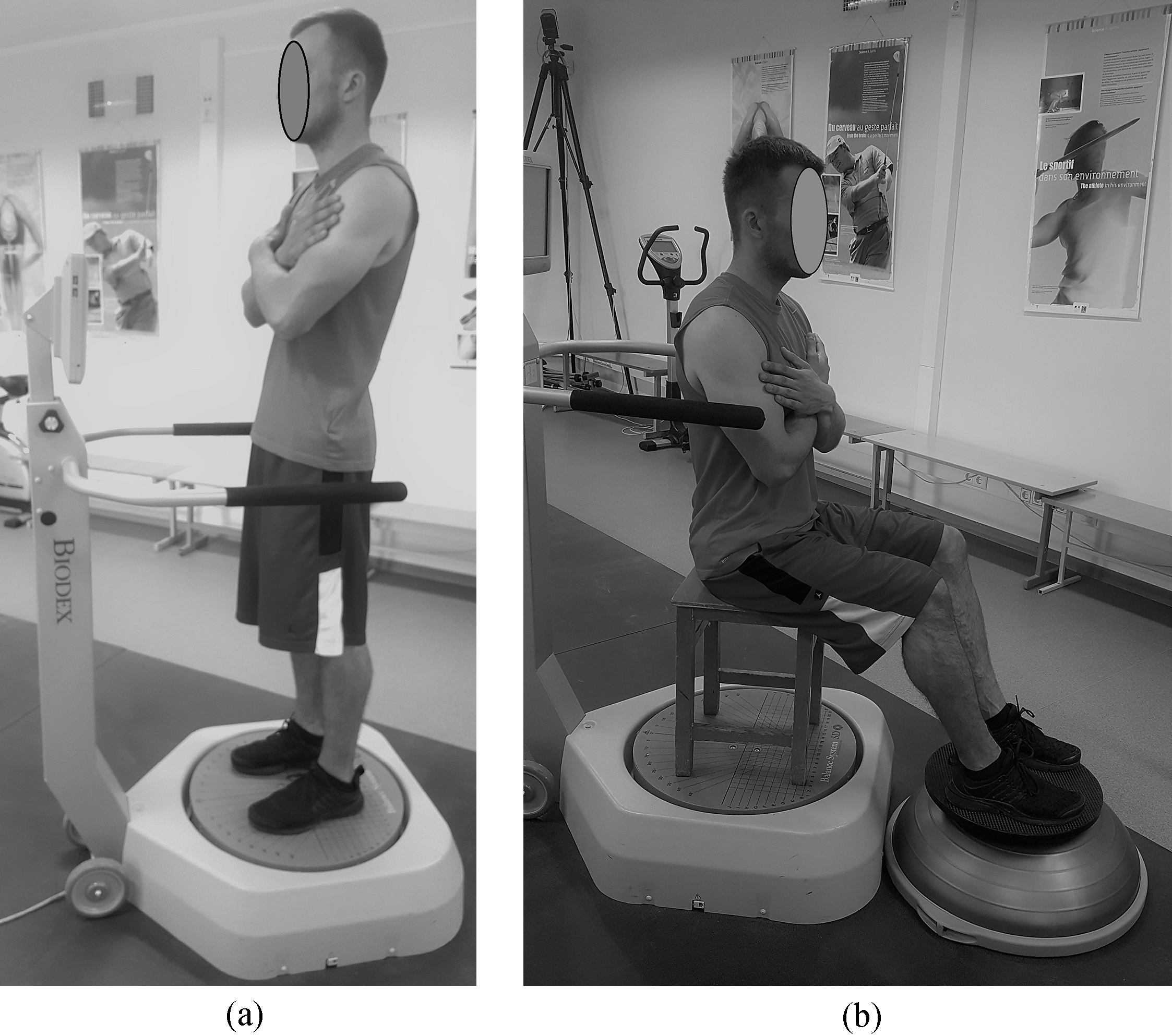

(a) Experimental environment. Patient performs balance tests on stable and unstable surface in standing position. (b) Experimental environment. Patient performs balance tests on stable and unstable surface in sitting position.
An isokinetic dynamometer (Humac NORM) was used for the evaluation of maximal voluntary isometric contraction (MVIC). The participants did trunk flexion, extension, and lateral trunk flexion of the right and left sides in an upright standing position. The protocol was set according to [22], however, the participants did MVIC in an erect standing position, not leaned forward 30

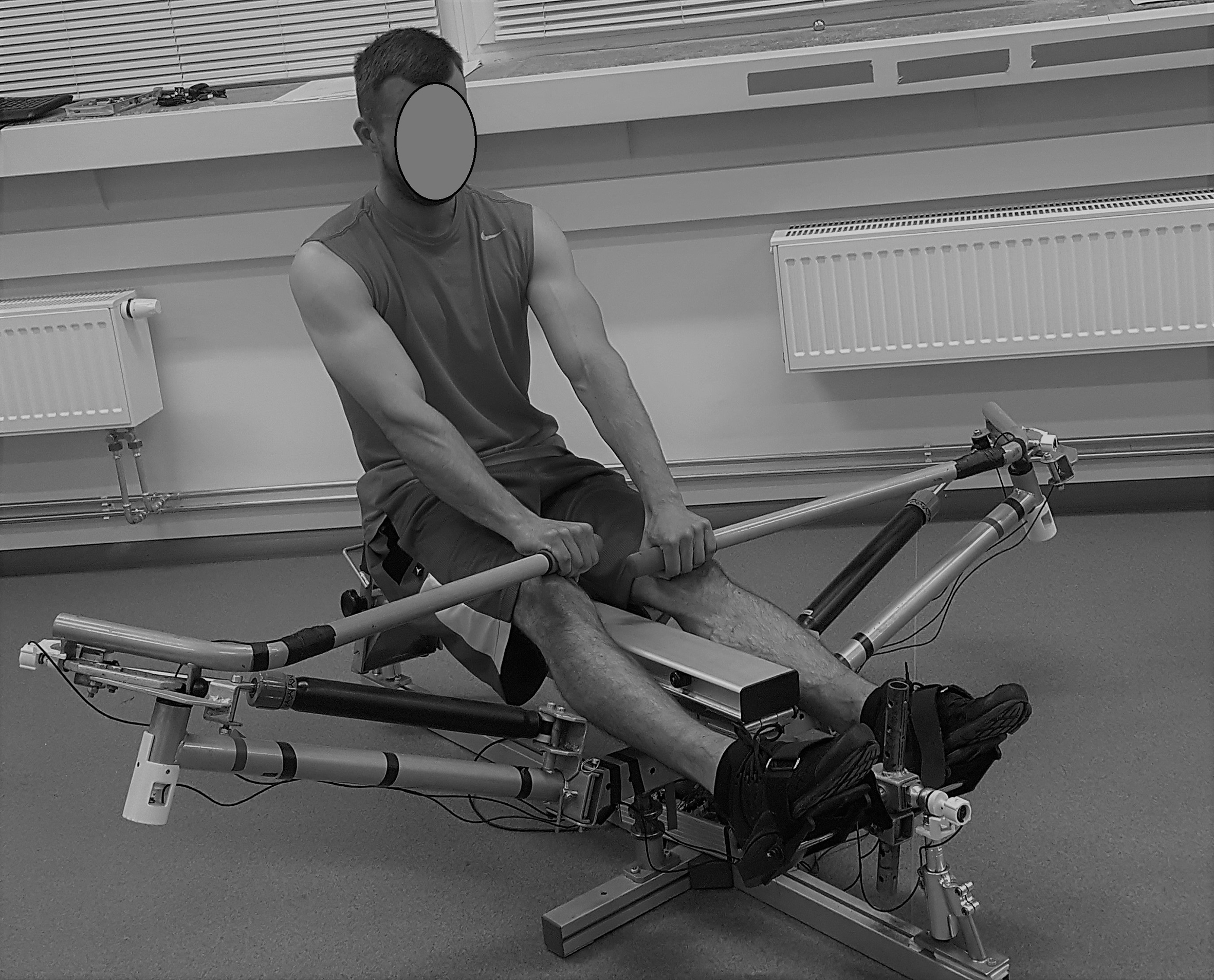

For this study, the unstable training machine “REHABILI” (Fig. 3) was used for training in the sitting position. The principle of this device is based on simulation of sculling, but involves not only the movements’ and resistance patterns, but also instability of the seat in frontal plane, thus the participants had to do exercises and to keep the balance at the same time. Besides, this machine had an integrated computer, which captures the number of cycles, rate, time, heart rate, energy expenditure; and seat tilt angle indication and registration system. The resistance on oars of the unstable training machine are adjustable, but in this study minimal hydrodynamic resistance (generated by hydraulic cylinders) was used, because the point of research was training of the balance for patients with low back pain. Thus the maximal resistance force value was
Training on unstable training machine.
The training on an unstable training machine lasted six weeks, three times per week for 15 minutes per training. At the first meeting, the instability level of training machine was set for each individual according to his ability to keep the balance (zero tilt) while sitting still without leaning to the sides. The instability level was gradually increased when the patients felt comfortable and did not lean to the sides even during the training. Every person was trained individually with trainer instructions about the action, exercises and aligned body posture maintenance. During the training session, patients had to keep their posture aligned with neutral pelvis and with body segments alignment considering the vertical line projection above the base of support [23] at all phases of the exercise. The patients were trained to do trunk flexion/extension, arms extension/flexion and legs flexion/extension on an unstable training device in sitting positions (Fig. 4). The training dose was selected on the basis of systematic review of balance training [24]. The patients were tested after six weeks of training the same way, as before training program.

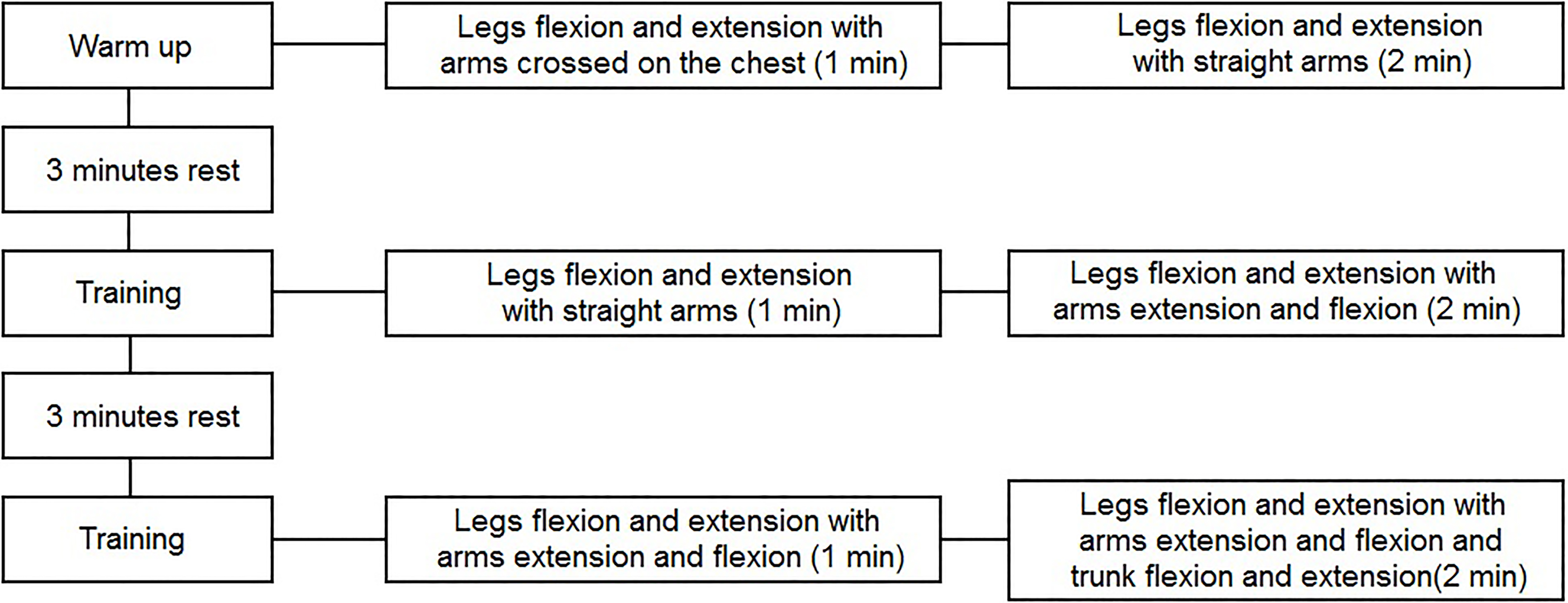

The base of training program on unstable training machine REHABILI.
sEMG signal normalization was done using (Noraxon MR 3.6) Myomuscle software. sEMG data were band-pass filtered (the frequency range 5–500 Hz) then rectified and smoothened. The non-reproducible part of the signal was minimized by applying digital smoothing algorithms that outline the mean trend of signal development. The steep amplitude spikes were cut away; the signal receives a “linear envelope”. The amplitude of sEMG data was normalized using the mean dynamic activity method [25]. For further calculations and results comparison between patients, maximum voluntary isometric contraction (MVIC) was performed for each muscle and the sEMG amplitude recorded at the same time.
The overall stability index (OSI) was used for the evaluation of balance keeping; it was calculated automatically by Balance System (Biodex). OSI represents the variance of the foot platform tilt, from the horizontal position Eq. (1). High OSI score means significant displacements of the patient’s center of gravity and is indicative low ability to keep balance during static test.
The data were analysed with statistical package SPSS version 23.0. For a small sample, the nonparametric Wilcoxon test was used. The data level for statistical significance was set at
Body balance in two different postures
When testing patients before and after the training program their body balance was measured on two different bases of support, stable and unstable. Patients kept their balance in standing and sitting positions and in two different postures, usual and aligned (Table 1).
Individuals body balance in standing and sitting on stable and unstable surfaces in two different postures. Values represents overall stability index (OSI). Data is presented as mean (
SD)
Individuals body balance in standing and sitting on stable and unstable surfaces in two different postures. Values represents overall stability index (OSI). Data is presented as mean (
Transverse abdominis muscle activity for the participants with a usual body posture in standing on an unstable surface before the training was 45.22% (
Trunk muscles activity in different postures and surfaces before and after trainings
Trunk muscles activity in different postures and surfaces before and after trainings
Data is presented as mean (
However, externus obliques muscle activity in aligned body posture in standing on unstable surface before the training was 62.69% (
After training on an unstable machine, the results of balance in sitting and standing positions became better. In sitting and standing positions with an aligned body posture on an unstable surface, the stability index and standard deviation of stability index after the training were statistically significantly decreased (
Posture is of great importance for balance maintenance [28], balance is kept worst by patients who spend most of their time in a wrong sitting position. Posture and balance maintenance connections were also analysed during this research. It was found, that after the training sessions, patients kept their balance better in an aligned body posture, and just in one case balance was better in the usual body posture, when the patients’ standing on an unstable surface stability index score was lower, however, the standard deviation of this stability index did not change. It means that the sway did not become better after the training sessions.
After the training, the externus obliques muscles activation became lower in the usual standing position on an unstable surface and in an aligned body posture in sitting and standing positions on stable and unstable surfaces (
Asymmetry of deep abdominal muscle transverse abdominis could also be seen from the results of research. According to other authors [30], transverse abdominis activation depends on the mechanical disturbance importance and the direction of the trunk. However, the author’s results are based on surface electromyography as our research results. The asymmetry of rectus abdominis muscle activity to the front surface conversion is asymmetrical for patients suffering from low back pain [30]. Our research has shown the same results: before the training, patients felt low back pain, and the activity of rectus abdominis was asymmetrical, however, after the training sessions, the activity of this muscle became more symmetrical than before the training.
Conclusions
This study examines the influence of the personalised short-term periodical trainings on unstable training machine on the body balance control ability and trunk muscles activity (in two different body postures and positions) in patients with lower back pain. Research revealed that balance trainings have positive influence on trunk muscles activity (transversus abdominis muscle increased about 19%), and balance maintenance ability, especially in an aligned body posture, about 33% increased postural control. Increased Transversus abdominis muscles activity and symmetry showed better postural control in balance maintenance and reduced swaying parameters. Trainings on unstable training machine leaded to increment of the activity of deep muscles, which are responsible for spine stabilisation, and decreased activity of superficial muscles (externus obliques muscles activity decreased 13%). This important fact shows that training on unstable machine makes deep muscles to work more efficiently. Nevertheless, there is still a need of further research, considering larger sample sizes, control group.
Footnotes
Conflict of interest
None to report.
