Fuzzy logic based risk assessment system giving individualized advice for metabolic syndrome and fatal cardiovascular diseases

1. Introduction

The main reason for 46% deaths in Europe, 30% for deaths globally was Cardiovascular diseases (CDV) in 2015 [1]. Turkish Statistical Institute claims that in Turkey 408782 people died of circulatory system diseases in 2016 and it is expected that numbers will dramatically increase [2]. Metabolic Syndrome (MetS) is a combination of biochemical and physiological abnormalities associated with CVD and Type 2 DM (T2DM) development. As represented in Fig. 1, there is a strong relationship between main risk factors of MetS and CVD. Another important risk factor is central obesity that increases the risk of diagnosed as T2DM. Hence, as T2DM risk increases, MetS risk and CVD risks are increasing, too. Therefore, early detection of MetS is important to prevent and reduce cardiovascular risks. This will reduce the cost of health care for DM and related diseases and also reduce the risk levels of people worldwide [3].

Today, over 300 million people worldwide suffer from Diabetes Mellitus (DM), and according to the International Adult Diabetes Federation, 20% to 25% of the adult population in the world has MetS [4, 5]. By 2010, it was estimated that 31% of the male population and 43% of the female population in Turkey suffers from metabolic syndrome [6]. Hence approximately 9.2 million adults, including 5.3 million women, have metabolic syndrome in Turkey [6].

So, with this study, it was aimed to propose a Clinical Decision Support System (CDSS) that evaluates MetS existence and calculates the risk level according to the Heart Score chart. The HeartScore chart is a data set containing information, which enables to calculate fatal cardiovascular risk level [7, 8]. Our system is based on Turkish HeartScore risk chart [9].

The second purpose is to create a detailed report about MetS and HeartScore risks and to give some individualized advice to him/her to reduce them by focusing on high-risk indicators. For this; the FLRAS was formed in LabVIEW graphical development platform according to IDF’s and European Heart Journal’s criteria. Mamdani type fuzzy logic sets were identified for each input variable and membership functions were assigned depending on the magnitude of the input limits.

OPEN IN VIEWER

According to the IDF standards that we used in our study; abdominal obesity is a prerequisite for setting MetS diagnosis for a person [5]. That is, the waist circumference measurement (WCM) and the other two factor values exceeding the stated ethnicity of the individual should be higher than the normal limits as demonstrated in Table 1 [5, 10, 11]. Those four factors can be listed as follows: increased triglycerides (LDL), reduced HDL-c, raised systolic blood pressure (SBP) or raised diastolic blood pressure (DBP) and raised fasting plasma glucose (FPG). Although LDL, SBP, DBP and FGB were applicable to both genders with same limit values, WCM and HDL differ [11].

The rest of this paper is organized as follows: Similar studies in the literature were given in Section 2. In Section 3, detailed information about the proposed system and its general structure was given. In addition, generation of fuzzy rules were explained, too. In Section 4, tests results were given and the proposed MetS risk assessments system was evaluated by giving Specificity, Accuracy and Sensitivity parameters. In the last section, results’ consistency was discussed. In addition, a few limitations of the system were given. Next, future works planned for solutions of these problems were explained.

OPEN IN VIEWER

In the literature, there are many medical decision support systems developed in a similar way of artificial intelligence algorithms. According to Kong et al. [13], CDSS can give a more accurate diagnosis and treatment guidelines using artificial intelligence and soft computing techniques as fuzzy logic system (FLS) Ivanović et al. [14] did. They claimed that ANNS is a suitable soft computing technique for detecting MetS risks [14]. Malmir et al. [15] presented a CDSS modeled by FLS that collects set of significant symptoms for a kidney stone and a kidney infection diagnosis. Also, Nazari et al. [16] tried to develop an expert system using fuzzy analytic hierarchy process for diagnosis of CVD and used changeable risk factors (Obesity, air pollution, stress lack of exercise, eating habit, smoking behavior, mental factors), controllable risk factors (HDL-c, LDL, DBP, kidney problems, diabetes) and unchangeable risk factors (age, gender, inheritance, genetic factors, unknown factors) as input to calculate CVD risk. Moreover, with advancements in medical image processing Soltani et al. [17] created a FLS that detect early glaucoma diagnosis. Also, another FSL study focused on breast cancer classification using expectation maximization to cluster same the data in similar groups and classification and regression trees method to create the fuzzy rule that combines input data and the output clustering result [18]. In a search on Google Scholar with keywords “Turkey”, “HeartScore”, “Metabolic Syndrome”, and “Fuzzy Logic Risk Assessment”, it has been determined that there is no similar system to the proposed FLRAS.

3. Proposed fuzzy logic based risk assessment system

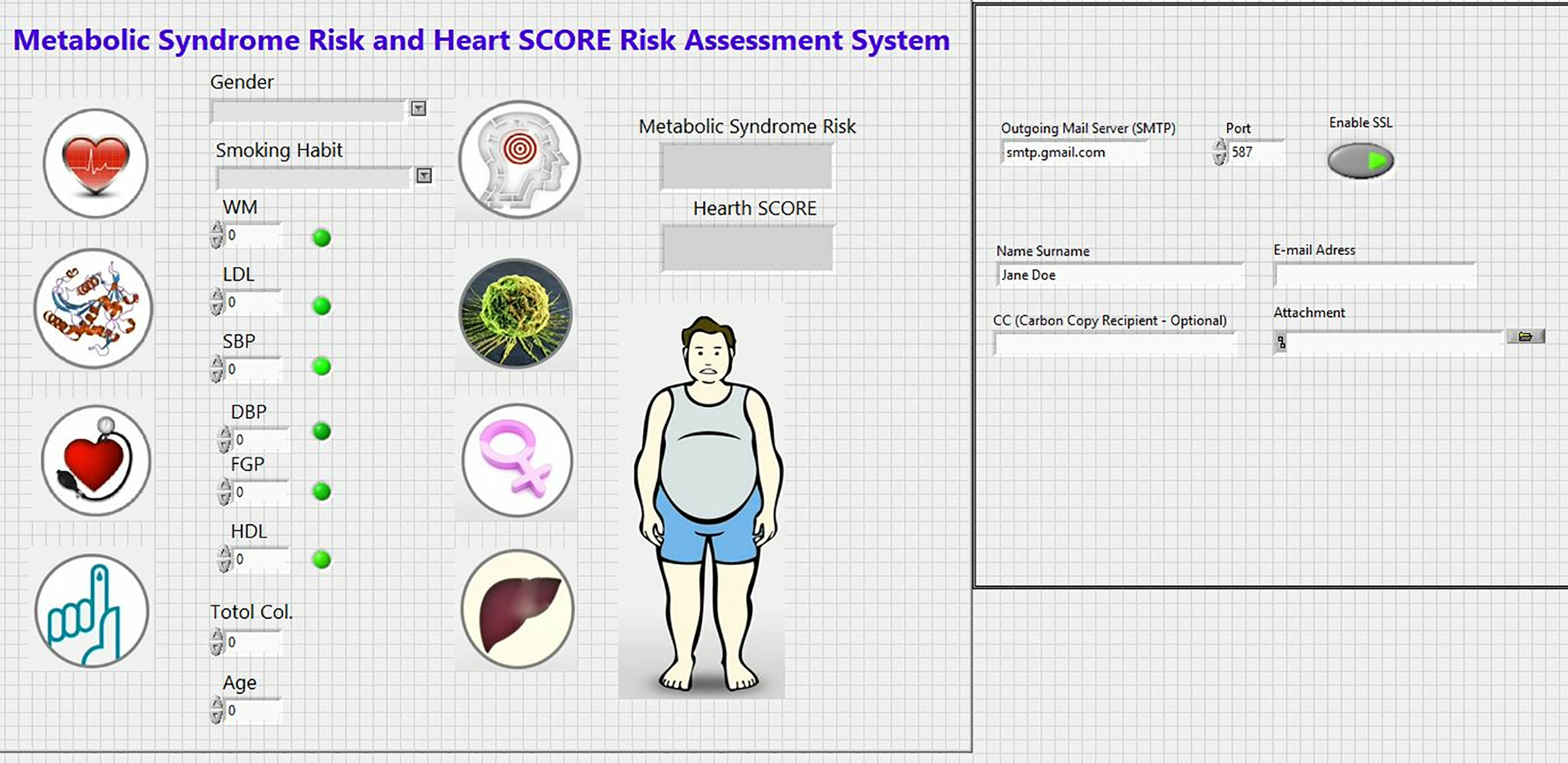

The proposed system consists of two main parts: one of them is the front panel and the other one is block diagram. Input variables such as WCM, LDL, HDL, SBP, DBP, FGP, total cholesterol level, smoking habits, gender and subject e-mail addresses were entered into the system via the front panel shown in Fig. 2.

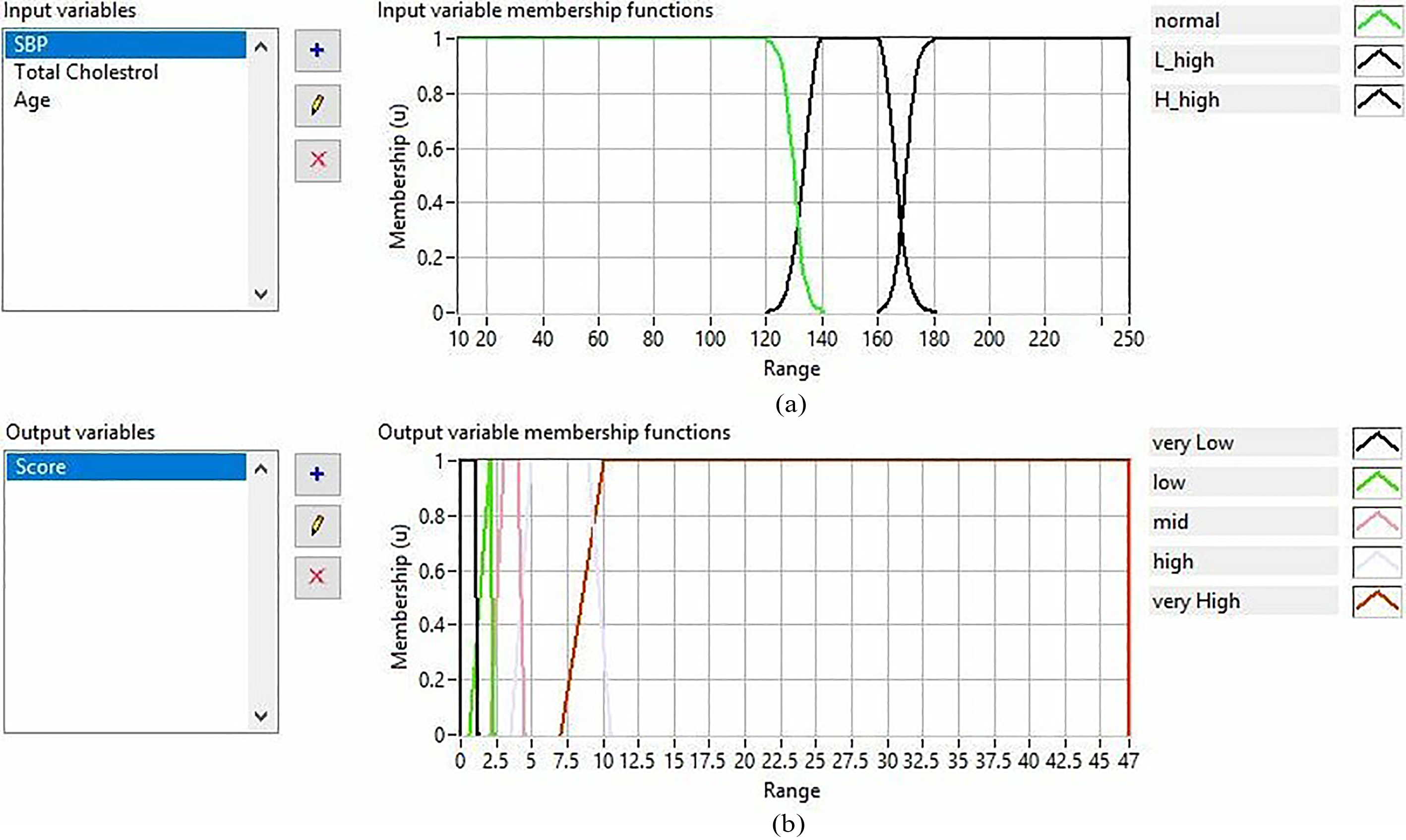

The second part of suggested CDSS is the block diagram where all the tasks were conducted including as follows: fuzzification/defuzzification processes for risk analysis of MetS and HeartScore, rule creation, individualized report generation and e-mailing process. All of the crisp numeric data was transformed into the fuzzy form using different membership functions for each of male and female test subjects as seen in Fig. 3a and b. Upper and lower limits of these variables were formed according to IDF criteria for MetS risk and European Heart Journal criteria for Heart Score risk calculation. Beside, all membership functions were calibrated based on Turkey’s Endocrinology Metabolism Association guidelines for Turkish population [19].

OPEN IN VIEWER

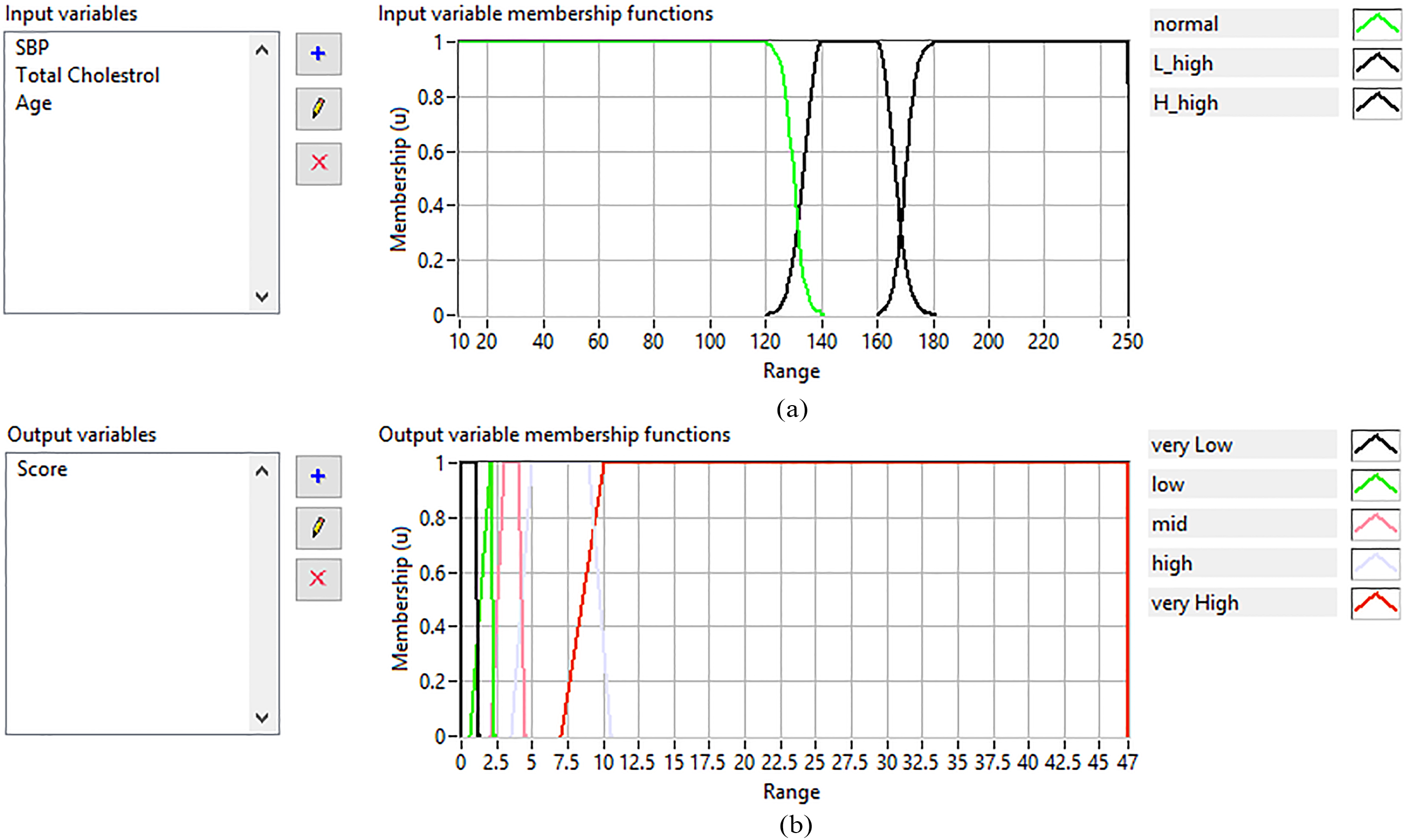

Output membership functions for HeartScore risk level are given in Fig. 4. In our system, centroid defuzzification method was used due to its simplicity and the widespread usage in different applications. Twenty-one linguistic rules for Mets analysis and 43 linguistic rules for HeartScore were defined for men and women, respectively. A small part of the rules are presented in Fig. 5. The next step was to create a report indicating the risk levels of the person including suggestions in order to reduce the MetS risk level and the HeartScore (Table 2). In total, 12 suggestions were created and two of them can be seen in Table 2 as an example. LabVIEW MSOffice Report subVI was used to create the reports in .doc format. Recommendations were formed by using IDF’s conclusions on the definition of the metabolic syndrome [4] and the work of Conroy et al. [7]. The final step of the system was designed to send an e-mail with an attachment including a report that created automatically.

OPEN IN VIEWER

System’s performance was tested on 96 (72 females, 24 males) patient data and results from the proposed system were compared with the real medical decision made from IDF’s criteria and HeartScore risk table. Data were obtained from Marmara University’s Hypertension and Arteriosclerosis Research and Implementation Centre. All patient data were contained WM, LDL, HDL, SBP, DBP, FGP, total cholesterol level, smoking habit and gender. MetS risk assessment decision matrix was presented in Table 3.

The proposed FLRAS works with 0.9025 specificity, 0.9028 accuracy and 0.9032 sensitivity for females’ data and 1 specificity, 1 accuracy and 1 sensitivity for males’ data. Over all for both genders, system’s performance scores for MetS risk analysis were 0.9285 for specificity, 0.92708 for accuracy and 0.925 for sensitivity (Table 4).

Obtained data were lack of information about smoking habits of the individual. Thus to test the performance of proposed system’s assessment ability to calculate HeartScore, whole data’s age, SBP and total cholesterol values were entered to system through from front panel of FLS. Results were compared with the European Guidelines on CVD Prevention’s HeartScore chart to obtain decision matrix, which represents the system’s ability to deal with uncertainty and classification abilities. Results for assessment of fatal cardiac risk for ten years represented in Table 5. Moreover, when we performed the two-tailed paired t-test, a statistically significant difference between HeartScore results between smoking and non-smoking habits of the same individual was observed ( 0.00035896). Hereby, system evaluated different scores for smoking and nonsmoking conditions of test subjects.

OPEN IN VIEWER

The proposed FLRAS calculated individual’s MetS risk based on IDF’s criteria [4] and fatal cardiovascular risk based on HeartScore [7] for Turkish population and generated a report containing risk analysis and advice to reduce risk level and e-mail it. The greatest novelty of this study is that there is no other fuzzy based system for the calculation of HeartScore and MetS risk assessment that targeting the Turkish population. The proposed FLRAS have a user-friendly interface enabled calculating outputs by simply entering input variables. Besides, proposed advices not only planned to reduce CVD risk; but also MetS risk level, too. Our results were consistent with practical clinically used standards defined by IDF and European Society of Cardiology. Moreover, high or low risk limits of input and output variables can be altered according to related country’s CVD risk classification [1, 8, 20]. Consequently, proposed system was suitably designed to add new input and output variables, to change their membership functions or to update the limits according to up-to-date developments.

One major drawback of proposed CDSS is the focusing on a specific age group varying between 40 and 65 for Heart Score system [3]. Moreover, input and output values can be altered according to high risk or low-risk level of related country’s CVD risk classification [1, 8, 20]. Consequently, proposed system was designed to adapt to latest updates by changing defined membership function limit values or adding new membership inputs or outputs according to the up-to-date developments.

Another important limitation was the missing information about smoking habits of subjects that we used to test our system. Although t-test proves that system calculates statistically different risk results for smoking and non-smoking habits, the next system should be tested with a complete dataset including smoking habit of individuals. Since MetS is strongly associated with T2DM, future studies may focus on the calculated risk values of T2DM patients and develop a clinical decision support system that calculates T2DM disease risk levels.
