Abstract
BACKGROUND:
Atrial fibrillation (AF) is associated with significant morbidity and is predicted by atrial high rate events. The early detection of AF is paramount to timely interventions to reduce the morbidity of AF. The DX ICD system combined with Home Monitoring
OBJECTIVE:
To establish the reaction to and timing of reactions to the detection of atrial high rate episodes (AHRE).
METHODS:
A prospective cohort of DX ICD systems was followed up and the response to AHREs was collected and evaluated.
RESULTS:
A total of 234 patients were enrolled; an AHRE
CONCLUSIONS:
The DX ICD system provides rapid and ongoing atrial rhythm monitoring such that physicians are rapidly aware of AHRE without the need for a dedicated atrial lead, but local protocols are needed to improve the response time of anti-coagulation prescription.
Background
Atrial fibrillation (AF) is associated with an increased stroke risk, cardiovascular morbidity, heart failure exacerbations, cognitive decline as well as impacting on quality of life [1, 2, 3]. Furthermore, in patients with implantable cardioverter-defibrillators (ICDs) AF is the most common trigger for inappropriate shock delivery [4] and is associated with increased mortality [5]. Furthermore, it has been shown that single-chamber ICDs under-estimate the true AF incidence compared to dual-chamber ICDs and that additional screening with Holter monitors is required in single chamber ICDs to detect AF and address the thromboembolic risk in a timely fashion [6]. Furthermore, the early detection of AF by remote monitoring is important as it may instigate programming changes to the tachycardia detection algorithms [7].
There are well established guidelines for management of confirmed AF including instigation of oral anticoagulation (OAC) to address stroke risk, rate/rhythm control as appropriate as well as risk factor modification [2, 8]. Rate control is often the mainstay of therapy in asymptomatic patients, the elderly and those deemed to have permanent AF. Rate control is established with the administration of beta blockers, calcium channel blockers, digoxin or by performing AV nodal ablation as a last resort. Lenient rate control (
The gold standard of AF detection is based on electrocardiogram (ECG) recordings (clinical AF), however as AF is often paroxysmal or asymptomatic AF diagnosis will underestimate the true incidence leaving a large ‘at risk’ population. More recently cardiac implantable electronic devices (CIEDs) with atrial leads such as pacemakers and ICDs have provided continuous atrial monitoring. This technology allows the automatic identification of patients with atrial high rate episodes (AHRE), it also overcomes the difficulty and patient acceptability of prolonged remote monitoring with wearable devices for the detection of AF [16].
The incidence of AHRE was defined in the ASSERT trial where 2580 patients with a newly implanted CIED (2451 pacemakers and 129 ICDs) without a history of atrial fibrillation were followed for a mean of 2.5 years [17]. Subclinical AHRE (
The DX ICD system (BIOTRONIK SE &. Co. KG, Berlin, Germany) consists of a single-chamber ICD and a right ventricular lead with an integrated ‘floating’ atrial dipole providing a continuous atrial monitoring without the requirement for a dedicated atrial lead. This registry was designed to evaluate the ‘real-world’ incidence of AHREs in the ICD population, to understand the utilization of remote monitoring for AHRE without pre-defined instructions (e.g. standard operation procedures) and the reactions of treating physicians to AHREs detected.
Methods
The REACT DX registry is a prospective, non-randomized, non-controlled, multicentre investigation into the incidence of device-detected AHRE in an ICD population and the clinical reactions pertaining to the AHRE conducted in 14 hospitals. The local ethics committees approved the study and all patients gave written informed consent. The trial was registered in the publicly accessible database DRKS (Deutsches Register Klinischer Studien – ID: DRKS00010898). The registry was performed according to the principles of the Declaration of Helsinki and ISO14155.
For the purposes of the study a CHA
Spontaneous AHREs detected by the device were independently evaluated by the investigators and a clinical event committee. Events were included in the analysis if they were determined to be genuine atrial tachyarrhythmias with a duration of
Patients implanted with an ICD for primary or secondary prevention according to guidelines within one month prior to enrollment were eligible for the registry. Only patients with de novo ICD implantation were included. Additionally, sufficient coverage of mobile network for Home Monitoring
All ICDs implanted were BIOTRONIK DX devices including: Lumax 740 VR-T DX, Iforia 7 VR-T DX, Idova 7 VR-T DX, Itrevia 7 VR-T DX and Inventra 7 VR-T DX. The leads implanted included: Linox
Subsequent to the implantation, six follow-up examinations were performed; pre-discharge, after 1, 3, 6, 9, 12 and 24 months. The 3- and 9-month follow-up were performed remotely. Additional follow-up was performed at the discretion of treating institution in response to remote-monitor detected AHRE. At each follow-up standard lead and device measurements were taken. P-wave amplitude (mV) was recorded at all visits.
The aim of the registry was to evaluate physicians’ reactions to AHRE detected with an integrated atrial dipole and the therapeutic consequences. The reactions to any AHRE were at the discretion of the treating physician. Reactions were classified as addressing the thromboembolic risk, alterations to the rate or rhythm control approach to the patient. Reactions were defined as: additional follow up, hospitalisation, medication change or procedure booking (such as echocardiography, cardioversion or ablation) and further classified as early (in response to the initial AHRE, timing defined by first patient contact after AHRE) or late (subsequent to the first patient contact after AHRE and prior to the study conclusion).
Statistical analysis
Continuous data were expressed as mean
Results
Study population
In total 234 patients across 14 sites were enrolled in the registry. Enrolment was from November 2012 to June 2016. Follow-up duration was 489.2
The average age of the study population was 60.7 years and 85.0% of patients were male. The indication was primary prevention in 76.9% of patients, the remained were secondary prevention (Table 1). The mean CHA
Baseline characteristics
Baseline characteristics
AHRE
Medical history
ARVC
AHREs
The mean time to detection of AHRE was significantly longer for patients with no previous diagnosis of AF (183

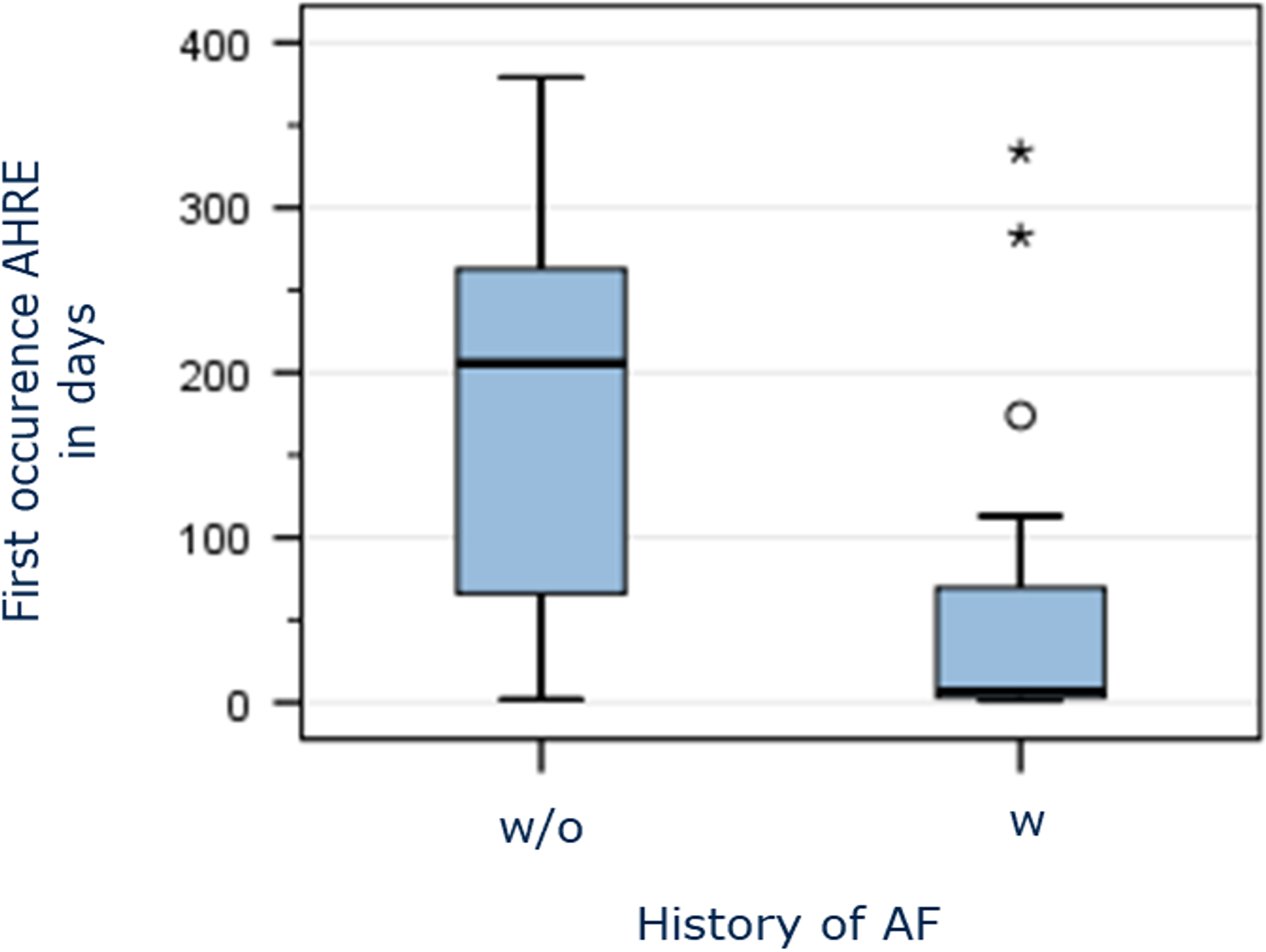

Box plot comparing time to first occurrence of AHRE (in days) between group with history of AF and without history of AF; w/o
The p-wave amplitude remained stable with a mean value to 5.29 mV at the 12-month follow up (Fig. 2).

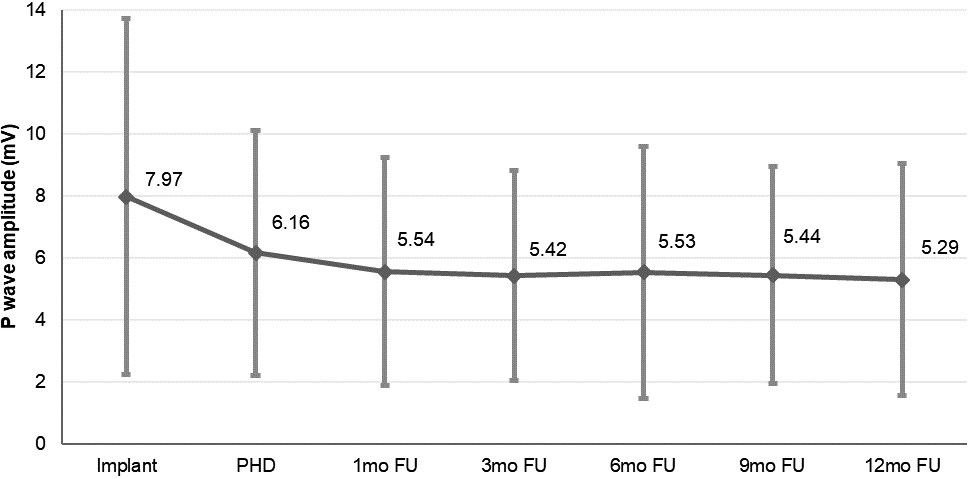

Mean p-wave amplitude in mV over time from implant to 12-month follow up; PHD

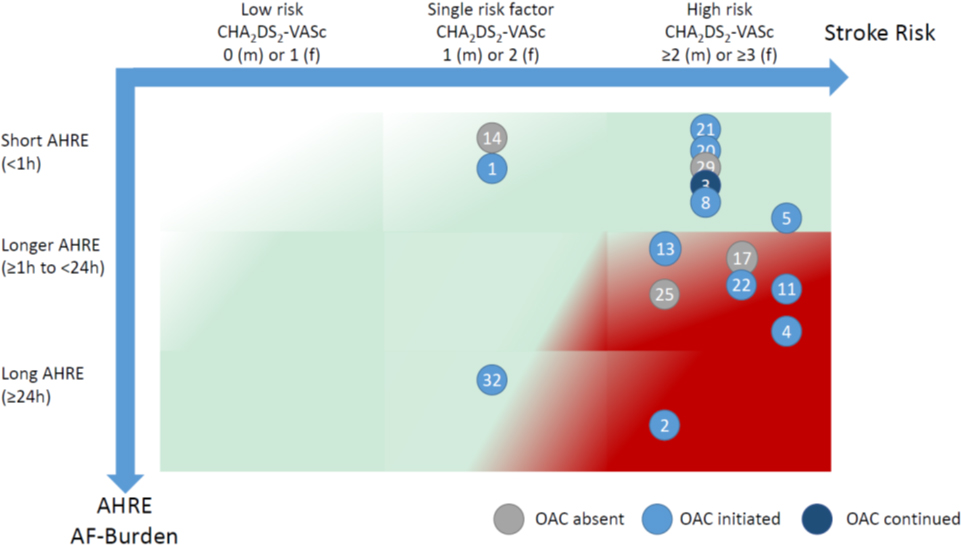

The 16 patients with no prior history of AF and newly detected AHRE plotted as their AHRE duration against CHA
Sankey diagram demonstrating the physician response to AHRE in patients with prior documented AF with regards to initiating rate/rhythm control at the time of AHRE detection and during follow up.

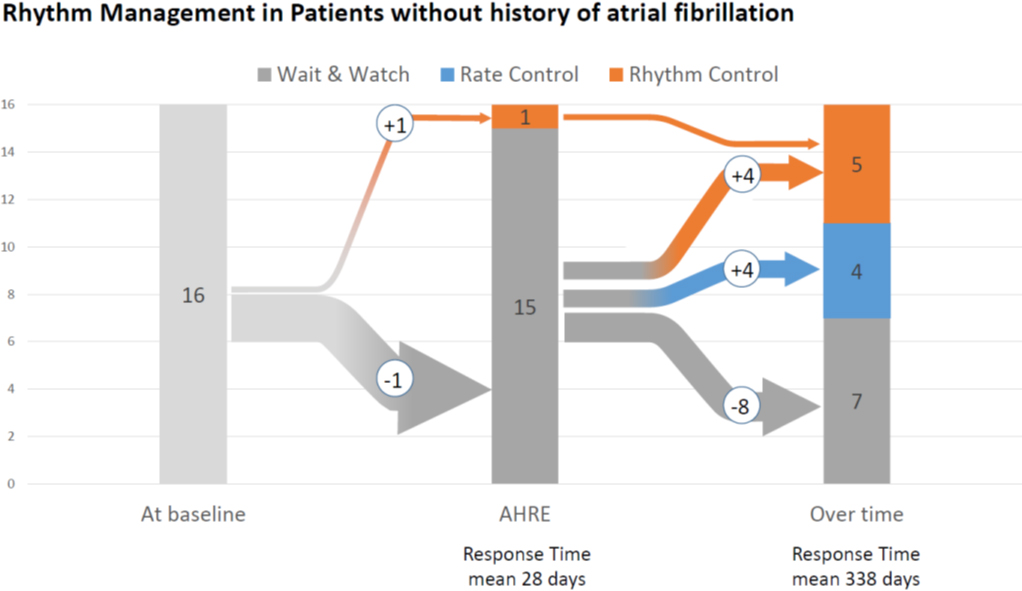

Sankey diagram demonstrating the physician response to AHRE in patients with no prior documented AF with regards to initiating rate/rhythm control at the time of AHRE detection and during follow up.
Of the 16 patients with a previous diagnosis of AF 14 were already established on OAC. The remaining two patients, OAC was initiated in one patient after the first AHRE, and in one patient only after the end of the study period. Of the 16 patients with no previous AF diagnosis and newly detected AHRE one was previously established on an OAC; after the first AHRE a further 11 were commenced on an OAC with a mean reaction time of 24 days (defined as the time from AHRE episode to change in management). Of the remaining four, one was placed on OAC after the end of the study period, one received a left atrial occlusion device and two were considered precipitated events (one post-operative and one in the context of sepsis). Of the patients with no previous AF 81% (13/16) were high risk for thromboembolic events and of these approximately half (7/13) had an AHRE episode
Rhythm management in response to AHRE
Patients with a previous diagnosis of AF were either on rate control (68.8%, 11/16) or on rhythm control (31.2%, 5/16) drugs at enrolment. In response to the first device-detected AHRE two patients underwent electrical cardioversion thus indicating a change to a rhythm control approach with an average reaction time of 25 days. Longer-term, a further five patients were managed with a rhythm control approach (two ablation and three with anti-arrhythmic drugs (AADs)). The mean reaction time for these patients was 262 days (Fig. 4).
Initially, patients without AF were not following a rhythm or rate control regime, in response to the first device-detected AHRE one patient was placed on an AAD (reaction time 28 days). The longer-term management involved 50% (8/16) of patients being placed managed with rate (4/16) or rhythm control (4/16) with a mean reaction time of 338 days. Rate control was established with betablockers in three cases and AV nodal ablation in one case. Rhythm control was established with AADs in two patients, electrical cardioversion in one and ablation in one patient (Fig. 5).

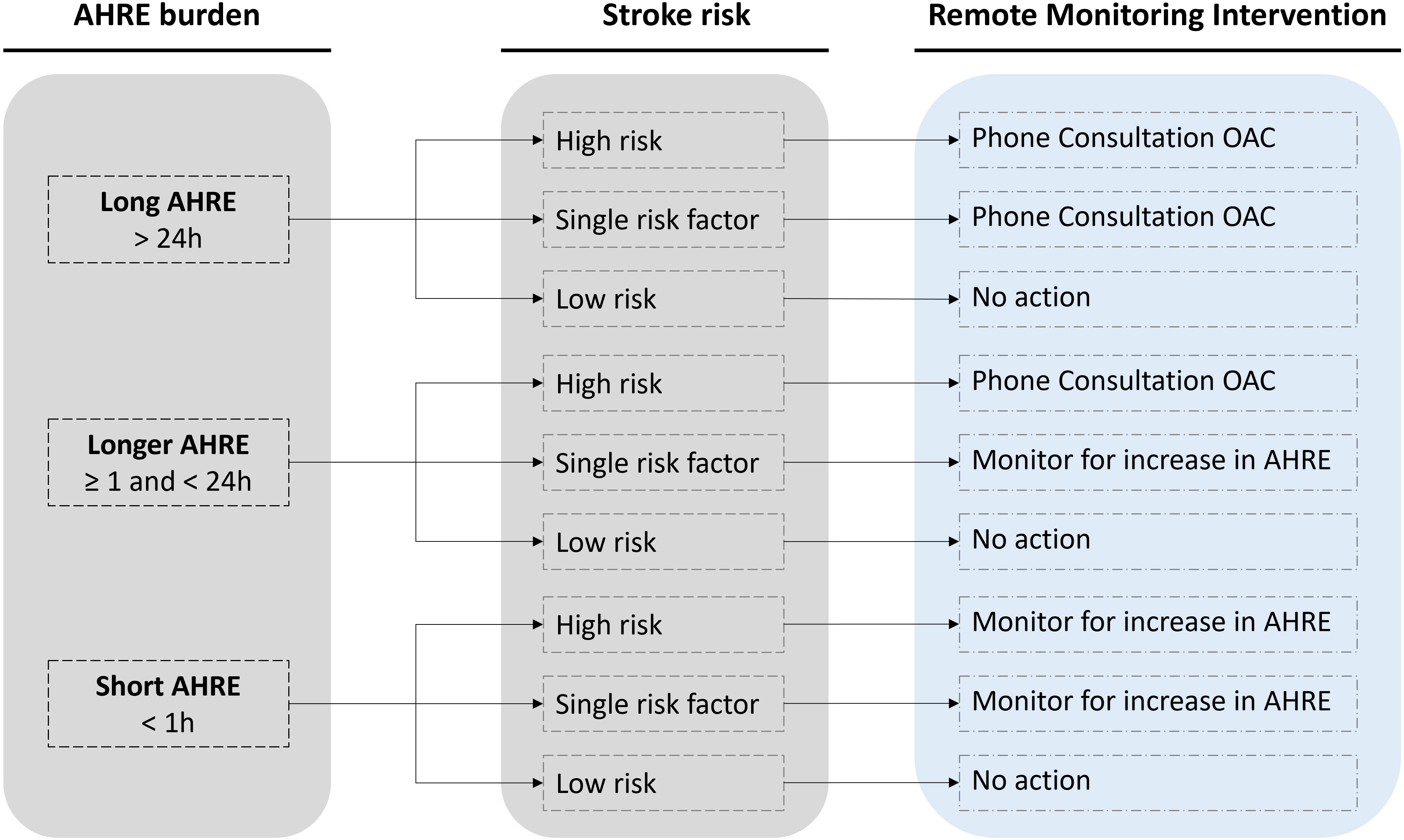

Proposed protocol for responding to AHRE events detected by Remote Monitoring. Interventions in reaction to AHRE are based on stroke risk (High risk
To the best of our knowledge, this is the first study to prospectively evaluate the physician response to device-detected AHRE from an integrated atrial dipole DX ICD system. All previous studies have only used devices with a dedicated atrial lead introducing selection bias as the decision to add an atrial lead to a system is based on clinical factors and thus excludes the majority of ICD patients without a pacing indication. Importantly the p-wave amplitude (mean value 5.29 mV) remained stable over the study period permitting accurate diagnosis of AHRE.
During the study period an additional 16 patients were identified as having AHRE by the use of the DX ICD system, these AHRE may not have been detected with a standard single chamber ICD. This thus demonstrates a potential advantage of the DX ICD system given that the implant procedure does not come with any additional complications.
The rate of AHRE during follow up in our cohort was lower than previously suggested in studies such as the ASSERT trial (10.1% at 3 months and 34.7% at 2.5 years); this is likely explained due to the difference in patient selection; the ASSERT trial consisted of 2451 pacemaker patients and only 129 ICD patients suggesting that their population are older and have established sinus node or conduction disease which is linked to the development of atrial tachyarrhythmias. Other studies including pacemaker patients show similar AHRE incidence from 13–30% [21, 22, 23]. However, ICD specific studies and those with sub-group analysis of ICD cohorts show a much lower AHRE incidence cf. pacemaker patients similar to our cohort (3.6–13.8%) [23, 24]. With a low incidence of AF in the ICD population it is hard to justify a dedicated additional lead, and its associated increased complication rate, just for AF detection, however given the morbidity associated with the thromboembolic complications of AF rhythm monitoring when available as an integral component of the ventricular lead is advantageous.
There were two cerebral embolic events in the group without AHRE detected; this could be due to under-detection of AHRE/AF in this group. Given the p-wave amplitudes recorded (mean
We found that the majority of physician responses to AHRE are reasonable, with the majority of high-risk patients with AHRE commencing OAC, but there is a small delay, or reaction time, from AHRE occurrence to implementing the response. The two high-risk patients who were not anticoagulated in response to their AHRE did receive a LAA occlusion device (in the case of OAC contra-indication) or anticoagulation after the conclusion of the study, respectively. This highlights the priority in physician’s minds to protection from thromboembolic complications of AF, but most reactions occurred at the point of the next scheduled follow up suggesting that the Home Monitoring
In contrast, the majority of rhythm/rate management decisions occurred with a significantly greater delay compared to OAC initiation. This is understandable as the decision to alter rate/rhythm approaches requires a shared decision-making approach with patient engagement best done in a clinic environment and likely requiring ongoing monitoring and additional data points. This additional data is readily gathered from the DX ICD system with continuous atrial rhythm monitoring. The paradigm regarding rhythm control is different from that of OAC initiation due to the significant consequences of un-anticoagulated, high thrombotic risk AF explaining the shorter reaction time for this intervention.
The complexity in the decision around oral anticoagulation for a given AHRE event lies in the lack of clear evidence, despite much interest and study, that a particular cut off in duration or burden with any given thromboembolic risk profile clearly identifies those who will benefit from OAC and those who will not. There is evidence of higher thromboembolic risk in paroxysmal vs. persistent AF suggesting a dose response effect [25, 26, 27], though this too has been contested [28]. It is not clear if this dose-response effect extends to much shorter durations of atrial arrhythmias i.e. AHREs. Though caution is warranted in prescribing OAC outside of clinical AF with no benefit for stroke or heart failure patients without AF [29, 30, 31] the risk of stroke in patients with AHRE does appear to be elevated with an annualized stroke risk of 1.7% [17]. Importantly this risk needs to be balanced against that of the bleeding risks with OAC which are approximately 2% [32]. Given this lack of definitive evidence or guideline directions to aid developing institutional protocols; we propose the following approach to AHRE detected by Home Monitoring
Our study is limited by its observational nature, however this is also its strength as it highlights the real-world reactions of physicians to the discovery of AHRE as well as the application of Home Monitoring
The DX ICD system with an integrated atrial sensing dipole offers permanent atrial rhythm monitoring while keeping the simplicity of a single-chamber ICD.
In combination with Home Monitoring
Footnotes
Acknowledgments
The authors would like to thank Dr. Alexander Schirdewan, who passed away, for his initial conception of the study and valuable contribution to the steering committee. They also thank Ulrike von Hehn for her statistical support.
Conflict of interest
NK received lecture fees from BIOTRONIK, AstraZeneca, Pfizer, Novartis and has advisory contracts with BIOTRONIK, Cardiac Dimensions, Boston Scientific. NW and JFK received financial support from BIOTRONIK. RB, TH and KR are employees of BIOTRONIK. MO, HI, TR, CK, SK, StK, RT, DB, CL have no conflict of interest to declare.
Funding
This study was sponsored by BIOTRONIK SE & Co. KG, Berlin, Germany.
