Changes in gain of horizontal vestibulo-ocular reflex during spaceflight

1 Introduction

The vestibulo-ocular reflex (VOR) works in conjunction with the visual system to help maintain a clear, stable image on the retina by producing eye movements that compensate for movements of the head. To effectively stabilize gaze, the VOR is mediated primarily by vestibular information that relies on appropriate interaction between the semicircular canals and the otoliths. The dynamic characteristics of the passively evoked VOR have been well documented and are routinely examined by measuring the relationship between stimulus and response during transient velocity steps or sinusoidal oscillations over a range of frequencies [32]. However, responses to passive perturbations may not reflect the true nature of the system responses because during natural behavior we usually move both our eyes and our head together. During voluntary head movements, we receive additional proprioceptive information from neck muscles and inputs from the efference copy of the motor command [13]. This additional information informs the central nervous system of a self-generated movement and prevents the illusion of a shift in the visual environment increases, thereby increasing the efficiency of the stabilizing reflex [30].

On Earth, the otolith organs of the vestibular system help the central nervous system interpret the position of the head in space by detecting head tilt relative to gravity. In the absence of a gravitational reference during spaceflight, the static otolith signals are no longer effective. The integration of proprioception and vestibular cues, critical for optimizing gaze reflexes during active head movements, is likely altered due to unloading of both the head and otoliths. During return to a normal 1g environment, otolith inputs are restored and proprioceptive information changes. A misinterpretation of the head’s position in space could result in a misperception of gaze position, which would alter the VOR.

VOR has been studied in space during voluntary head oscillations at frequencies ranging from 0.25 to 1.0 Hz [1, 43]. Six hours into the Space Shuttle mission STS-51G, a crewmember exhibited a significant decrease in VOR gain in darkness during voluntary head oscillations in yaw at 0.25 Hz; this decrease recovered to preflight levels by flight day 7 [41]. A decrease in yaw VOR gain early in flight is consistent with results from studies conducted in parabolic flight (20–25 seconds of microgravity) [24, 40]. Since no phase shift accompanied the in-flight reduction in yaw VOR gain, the authors of the STS-51G investigation speculated that the subject might have suppressed vestibular input to avoid sensory conflict, possibly as a learned response from his prior training as a pilot [41]. However, it is also possible that the microgravity-induced changes in otolith and proprioceptive inputs affected the crewmember’s ability to imagine a fixed visual target.

Decay in horizontal post-rotatory nystagmus was measured in 4 astronauts during Space Shuttle missions lasting 10–12 days by spinning the subjects on a rotating chair in darkness and then suddenly stopping the chair. No change was observed in the initial peak slow-phase velocity of the VOR; however, spaceflight reduced the time constant of post-rotatory nystagmus [28, 29]. Four astronauts who participated in a different short Space Shuttle mission also had a shorter time constant of the post-rotatory nystagmus than baseline values during their first flight day and after they returned from space, but they had no consistent change in the magnitude of the initial peak slow-phase velocity response [27]. These effects are qualitatively similar to effects observed in parabolic flight [16, 17]. A decrease in the time constant of nystagmus was also observed in 2 monkeys after they returned from space [10], and this decrease was associated with a postflight decrease in activity of the primary afferents in their vestibular end organ [12].

The time constant of nystagmus gives an evaluation of velocity storage [33], which is defined as the nystagmus response to a velocity step that outlasts the physical return of the cupula-endolymph system of the semicircular canals to resting levels. Velocity storage is thought to reflect the midbrain integration of a velocity signal originating from the semicircular canals. When the otolith organs are ablated, velocity storage is abolished [11], which suggests that the velocity storage mechanism is sensitive to linear acceleration and gravity. Studies have shown a modulation of the yaw VOR due to changes in the otolith cues mediated by velocity storage [25] and that the three-dimensional organization of velocity storage was influenced by gravity [34]. During head movements in pitch and roll, the vertical semicircular canals are stimulated by angular acceleration, and the otolith organs are stimulated by head tilt relative to gravity. A decrease in the gain of the vertical and torsional VOR during and after spaceflight has been well documented [2–4, 41]. Such a decrease is expected is microgravity because the otoliths are no longer contributing to signaling head tilt during pitch and roll head movements. When the head upright is rotated in yaw in normal gravity, the otoliths are not stimulated by the head movements, but they still signal the head’s orientation relative to gravity. This function is absent in microgravity; therefore it is possible that spaceflight could also affect the horizontal VOR gain and phase.

Previous attempts to determine how spaceflight affects horizontal VOR gain were limited by the relatively short duration of the spaceflights and the limited opportunities to measure these effects early in the flight and shortly after return. The purpose of the present study was to measure horizontal VOR gain and phase at regular intervals during Space Shuttle flights. Subjects performed voluntary sinusoidal head movements at a low (0.33 Hz) and high frequency (1.0 Hz) in two visual conditions: with their gaze fixed on a visual target (VVOR) or while attempting to fix their gaze on the target while their eyes were open but covered (DVOR). Measurements were obtained throughout the flight and within 2 hours of landing, and we evaluated the difference in gain and phase between the two visual conditions.

2 Material and methods

2.3 Experimental protocol

The subjects actively oscillated their head relative to their trunk around the long body axis (yaw) in a sinusoidal fashion to determine the relative contributions of the VOR when their vision was occluded (DVOR), or in conjunction with the smooth pursuit system for maintaining gaze stability (VVOR). In the VVOR condition the fixed target was visible at all times. In the DVOR condition the subject first fixed their gaze on the target, then his vision was occluded with light-tight goggles, and he oscillated his head while fixing his gaze on the remembered location of the target.

The visual target was a red LED in the center of a cruciform target display (Fig. 1) that was placed 1 m in front of the subject. All targets subtended a visual angle of approximately 1°. The subjects sat with their legs and trunk tightly restrained. Sound cues for the sinusoidal head oscillation were provided by a 2 kHz carrier tone that was modulated in pitch at the primary frequencies of 0.33 Hz and 1.0 Hz. Subjects were instructed to move their head to the left in response to the low pitch of the modulated frequency and to smoothly generate sinusoidal head movements such that when the modulated tone reached its highest pitch the head would be at its peak rightward displacement. No attempt was made to regulate the amplitude of the head movements by either training or feedback. By following the auditory cue, the subjects made smooth head transitions from the low frequency (0.33 Hz) to the high frequency (1.0 Hz). With limited practice, all subjects were capable of executing sinusoidal head movements that followed the auditory cues. The responses to the first five cycles for each of the individual tones were excluded from our analysis. Data from the final 5 to 10 cycles were then averaged to estimate the response parameters of peak-to-peak amplitude and phase relationships.

OPEN IN VIEWER

Fig.1

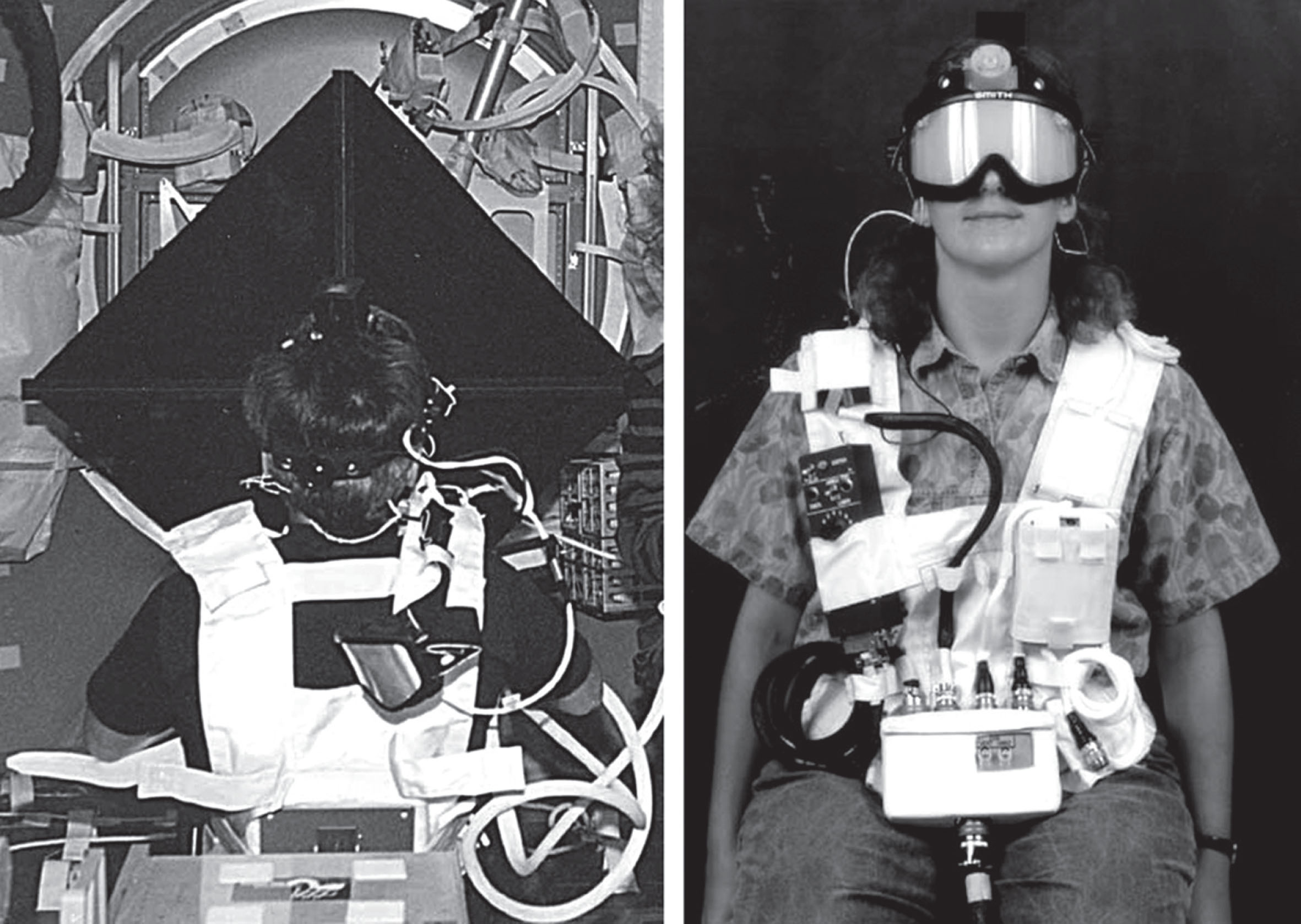

Left. Photograph showing a crewmember performing the experiment on board the Space Shuttle. The rate sensors housing unit is seen on the top of subject’s head. Directly in front of the subject is the cruciform target display used for head and eye calibrations, and for the presentation of the central target during head oscillations. Right. Photograph showing the head-mounted laser for head position calibration and the goggles that can occlude the subject’s vision. The black box is the controller used by the operator to control the visual display, the goggles occluding, and the cassette tape recorder that plays the frequency-modulated tones used for pacing the head oscillations. Photos credit: NASA.

3 Results

Figure 2 shows examples of recordings of one subject’s head position when he was cued with a modulate tone to oscillate his head at a 0.33 Hz and a 1.0 Hz. The power spectral analysis of the head position indicates that the subject was able to match the frequency of the modulated tone almost perfectly.

OPEN IN VIEWER

Fig.2

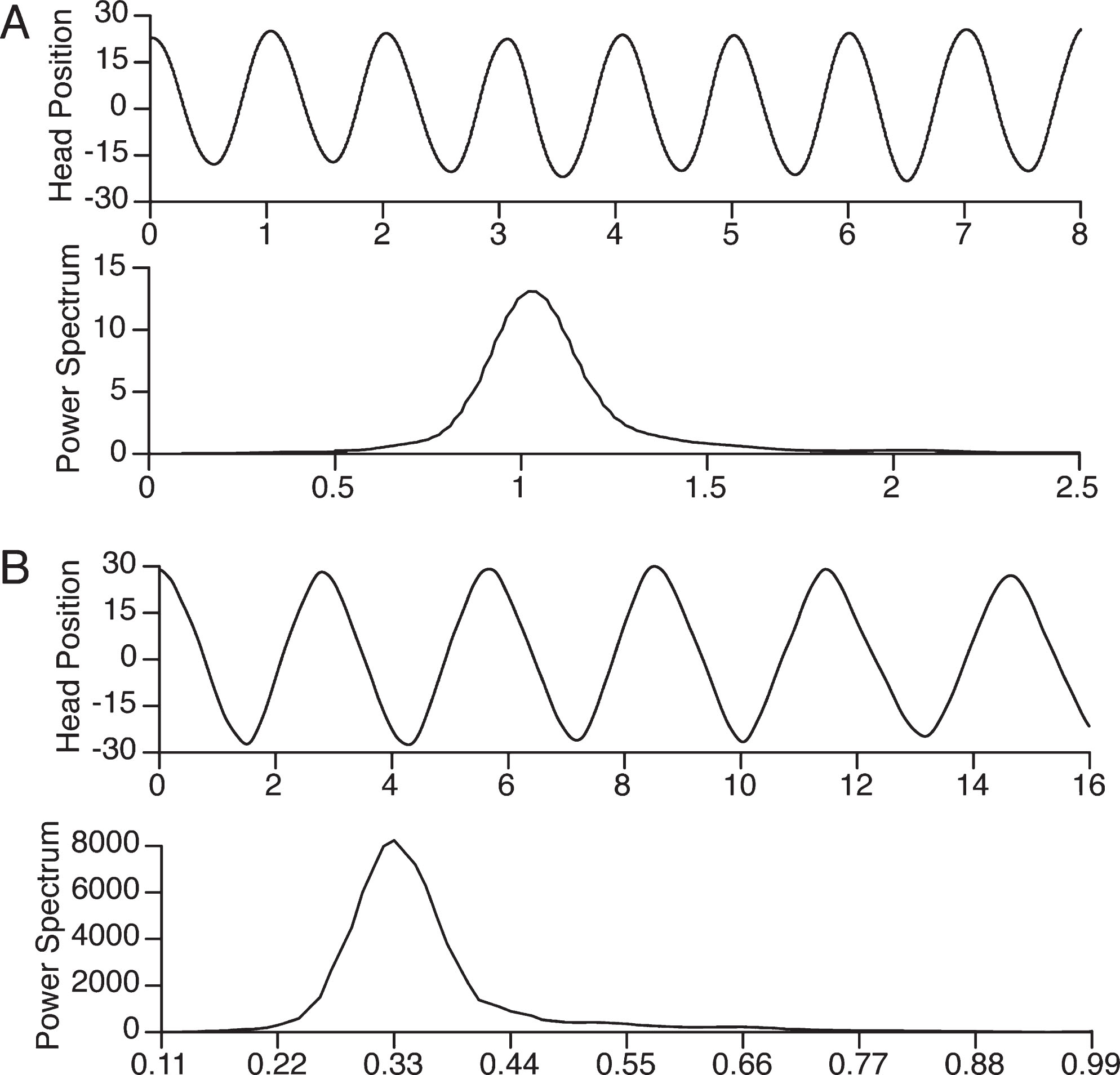

Examples of head position recordings as a function of time accompanying a 0.33 Hz modulated tone (A) and a 1.0 Hz modulated tone (B) in the VVOR condition and the corresponding power spectral analyses. X-axis units are s for head position and Hz for power spectrum. Y-axis units are degrees.

Figure 3 shows the mean peak-to-peak amplitude for all subjects of head movements around the yaw, pitch, and roll axes obtained by integrating the angular rate sensor signals. A repeated measure ANOVA with two factors (visual conditions: VVOR, DVOR; sessions: L-60 to R + 8) indicated no significant differences in head yaw amplitude at 0.33 Hz across visual conditions [F (1, 87) = 2.63, p = 0.109] and sessions [F (10,87) = 1.93, p = 0.06]. There were also no significant differences in head yaw amplitude at 1.0 Hz across visual conditions [F (1,87) = 3.25, p = 0.07] and sessions [F (10,87) = 1.41, p = 0.19]. For pitch head movements, the ANOVA indicated no significant difference in amplitude between VVOR and DVOR at 0.33 Hz [F (1,87) = 0.36, p = 0.55] and at 1.0 Hz [F (1,87) = 0.12, p = 0.73]. However, there was a significant difference in head pitch amplitude at 0.33 Hz across sessions [F (10,87) = 3.67, p < 0.001], but not at 1.0 Hz [F (10,87) = 0.92, p = 0.52]. There were no significant differences in head roll amplitude across visual conditions and frequencies [F (3,175) = 0.08, p = 0.96] and test sessions [F (10,175) = 1.63, p = 0.10]. Before the flight, the amplitude of head movements during both visual conditions and at both frequencies were 55.3°±5.4° in yaw, 1.8°±0.6° in pitch, and 9.9°±2.2° in roll (mean±SD). On flight day 2, the amplitude of head movements in pitch increased (5.9°±0.3°) compared to preflight values. Student t-test indicated that this difference was significant (p = 0.01).

OPEN IN VIEWER

Fig.3

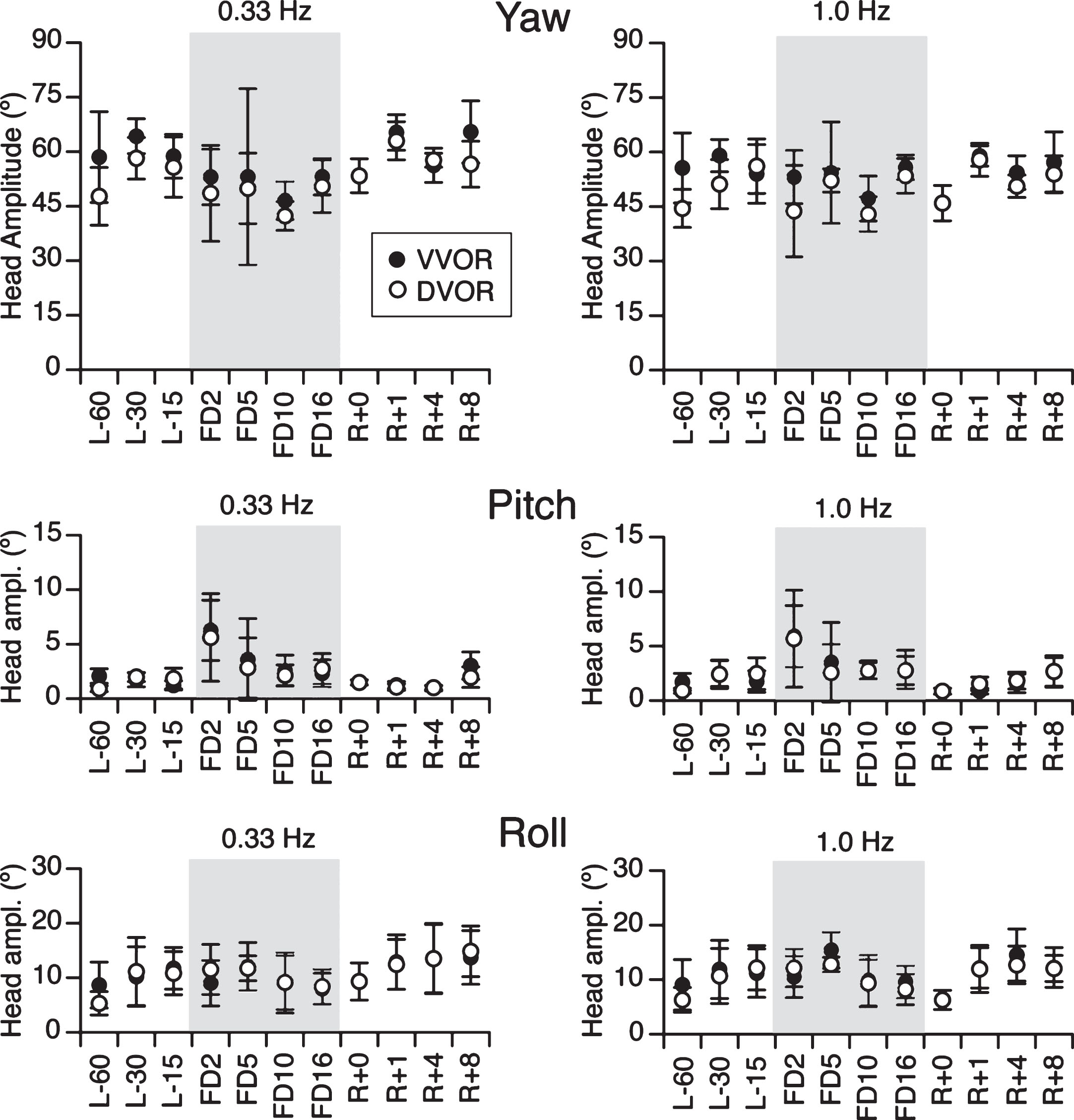

Peak-to-peak amplitude of head movements about the yaw, pitch, and roll axes for both oscillation frequencies and visual conditions. Note that the head movements were predominantly in the yaw plane throughout all flight phases. Mean±SD of all subjects.

The VOR gains during both visual conditions and at both frequencies were similar for all 3 preflight tests (Fig. 4). No VVOR gain measurements were made on R + 0 due to crew time constraints; however, the mean VVOR gain at both oscillation frequencies was near unity before, during, and after the flight (Fig. 4A,B). Before the flight, the mean DVOR gain was near unity during head movements at 0.33 Hz (Fig. 4C) and DVOR gain ranged between 0.92–0.94 at 1.0 Hz (Fig. 4D). From flight day 2 (i.e. 30 hours into the mission) to flight day 10, the DVOR gain at 1 Hz decreased (mean value of 0.78) in comparison to baseline levels, and partially recovered by flight day 16 (Fig. 4D); DVOR gain was still lower than baseline immediately after landing (R + 0), and returned to preflight levels one day later. The DVOR gain at 0.33 Hz also decreased early in the flight and immediately postflight (Fig. 4C); however, the magnitude of the changes was less than the changes for 1.0 Hz.

OPEN IN VIEWER

Fig.4

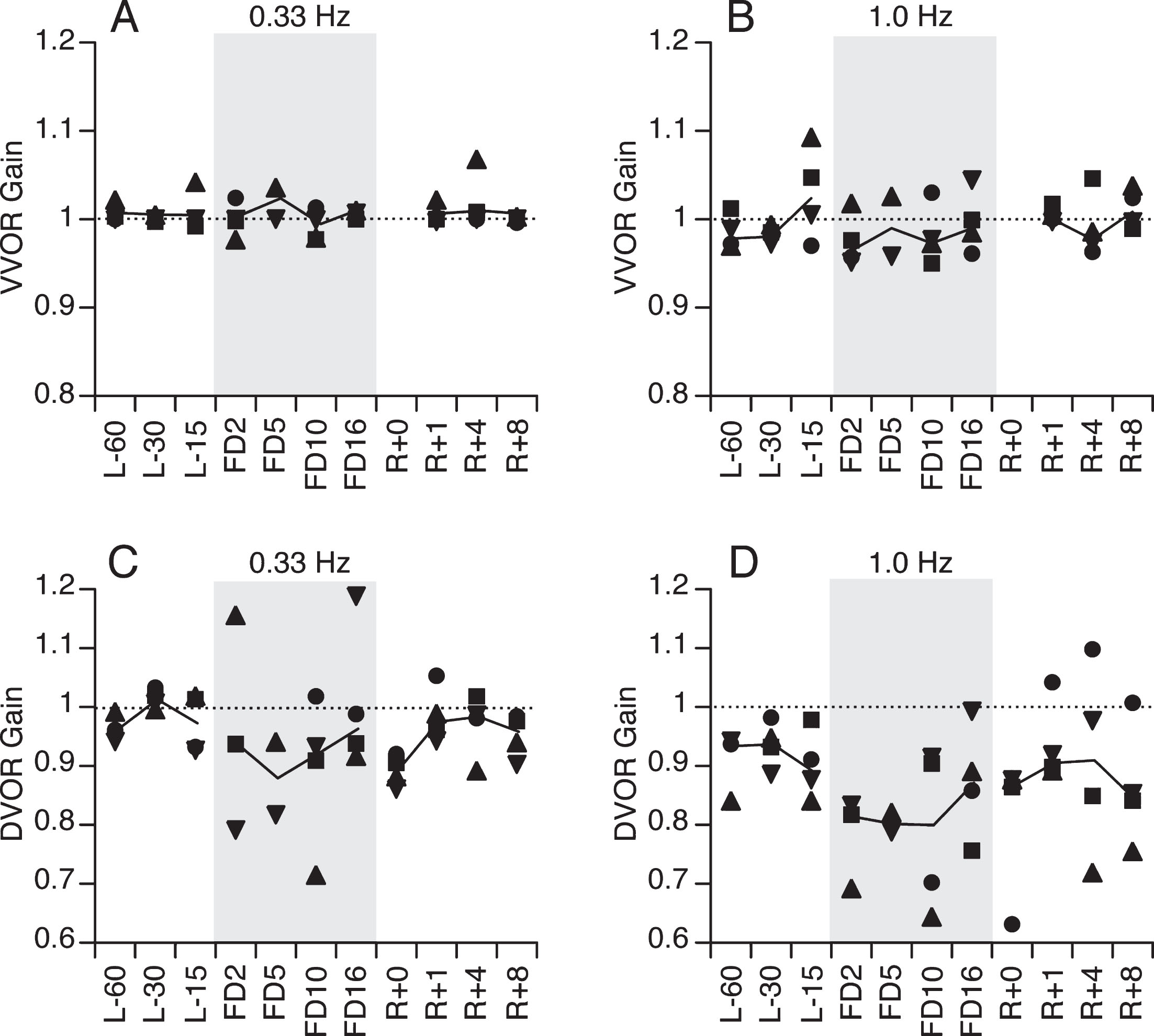

VVOR (A,B) and DVOR (C,D) gain during head oscillations at 0.33 Hz and 1.0 Hz as a function of flight day. Symbols represent individual subject’s values and continuous line is the median gain.

Spaceflight had little or no effect on the VVOR gain for either of the head oscillation frequencies we tested (Table 2). By contrast, the DVOR gain during the flight was reduced for both 1.0 Hz (–10.9%; p = 0.0084, Wilcoxon Rank Sum test) and 0.33 Hz (–4.4%; p = 0.087) compared to preflight. Although the preflight DVOR gain was lower at 1.0 Hz than at 0.33 Hz (–7.5%), the difference was far greater during the flight (–15.4%), resulting in a significant interaction (p = 0.028, Wilcoxon Rank Sum test). At 0.33 Hz, there was no difference between VVOR and DVOR gains during the preflight period, but there was a suggestion of interaction, manifested by a modest decrease in DVOR gain during the flight (p = 0.078), whereas the VVOR gain remained constant. A comparison of postflight and preflight results indicated that the effect of spaceflight on DVOR gain was still present immediately after return from space (p = 0.05 at 0.33 Hz; p = 0.004 at 1.0 Hz).

When viewing the target (VVOR) before the flight, the subjects’ head and eyes were almost in phase during both oscillation frequencies (Fig. 5A,B). However, during the trials when vision was occluded (DVOR) there was a slight positive phase shift, i.e., the eye movement was leading the head movement (Fig. 5C,D). Spaceflight had no significant effect on phase shift in the VVOR condition. The positive phase shift in the DVOR condition increased during flight at both oscillation frequencies, and the magnitude of increase was similar throughout the duration of the flight. Nevertheless, the median difference between the DVOR and VVOR phase shifts was higher than baseline during the flight (p = 0.054, Wilcoxon Rank Sum test), indicating a likely interaction.

OPEN IN VIEWER

Fig.5

VVOR (A,B) and DVOR (C,D) phase during head oscillations at 0.33 Hz and 1.0 Hz as a function of flight day. Symbols represent individual subject’s values and continuous line is the median gain.

The results of this investigation support the hypothesis that spaceflight affects the vestibular responses to self-rotation of the head in space relative to a stationary trunk, especially in the absence of vision. The VOR is mediated by the semicircular canals of the inner ear, which are activated by angular acceleration; by the otolith organs, which are sensitive to gravitoinertial acceleration; and (to a lesser extent) by neck proprioceptive inputs. The integration of canal, otolith, and proprioceptive cues is critical for optimizing gaze reflexes during active head movements. In microgravity, this integration is altered and the resulting modification of the VOR can cause retinal slip and possible degradations in visual performance.

As would be expected in a simple goal-oriented task such as visual fixation during predictable head movements, VOR gain is mostly effective during lower frequency (0.33 Hz) head oscillation when vision is present (VVOR). However, at high frequency (1.0 Hz) head oscillation, the relatively slow response of the pursuit system begins to fail and vestibular information primarily drives stabilization of the retinal image. In microgravity, the otoliths have less influence on the velocity storage mechanism [10, 15]; consequently, microgravity affects VOR more during faster head movements. However, vision appears to compensate for this change in vestibular function in microgravity, at least at the frequencies of head oscillations we tested in the current study.

Our results indicate that an astronaut’s performance would not be compromised under normal visual conditions. However, when an astronaut performs tasks in low ambient light, or with unstructured vision or other off-nominal visual conditions, a decrease in DVOR gain, could negatively affect their gaze. This is particularly true if the change in DVOR gain is accompanied by a phasic change where the eye leads the head, as shown in our in-flight data. This gaze error could explain the oscillopsia experienced by some astronauts, and the changes in their perception of self- or surround-motion that are evoked during head movements [35, 36].

The amplitudes of yaw head movements were approximately constant across conditions and test sessions. The amplitude of pitch head movements at 0.33 Hz, however, increased significantly when initially in space, even in the target-viewing condition (VVOR). This could represent difficulty in motor control (maintaining head-neck posture) or deficient processing of vestibular information to maintain orientation. The pitch movements might also, through interaction with yaw movements, contribute to the reduction in DVOR gain in flight compared to preflight. Determining the extent to which vertical eye movements associated with this pitching contributed to the reduction in DVOR gain was limited by the EOG recording used.

It is well known that the eyes diverge when vision is occluded; in the dark, eyes focus at approximately 2 m [42]. It is possible that our subjects would have had difficulty maintaining the same eye convergence when vision was occluded as they did when viewing the target. Previous studies have measured changes in vergence eye movements in microgravity [7, 14]. A change in fixation distance during the DVOR task could affect the gain since the eyes are not aligned with the axis of yaw rotation. If vergence reverted to the more distant dark focus rather than the actual target distance (1 m), then a lower amplitude of the eye would be required to stabilize this target, and the DVOR gain would decrease [20]. Based on a radius of the eyes at 0.08 m from the axis of yaw rotation [31], an average interpupillary distance of 60 mm, and head movement amplitude of ±50°, we calculated the horizontal gain would be expected to decrease approximately 3% from a fixation of 1 m to 2 m. This may contribute to the 10.9% and 4.4% decrease in DVOR gain in flight compared to preflight at 1.0 Hz and 0.33 Hz, respectively. This may also contribute in part to the lower gains in the preflight tests when vision was absent.

Another contributing factor for the reduced DVOR gain in flight and early postflight could be due the astronauts’ spatial disorientation in microgravity. Previous studies have shown that perception of distance and depth is altered during transitions between gravitational states [5, 9]. It is possible that spatial disorientation makes it more difficult to imagine the location of a fixed target. In addition, the lower DVOR gain in flight compared to preflight values could be because the subject is suppressing vestibular information to reduce the confusing spatial orientation information.

Given the cost and difficulty of installing a servo-controlled rotating chair on board a spacecraft, active head oscillation appears to be a reasonable alternative method of investigating visual-vestibular function to different gravitoinertial environments [19]. The present study needs to be expanded to include additional oscillation frequencies to fully define the characteristics of the vestibulo-ocular transfer function. In addition to head oscillations, gaze stabilization trials (where the head is rotated actively with a velocity ramp-like profile), and head impulse testing (where the head is rotated passively at small amplitude and high acceleration) could also be performed. Astronauts must also be assessed as early as possible when they arrive in space and throughout long-duration missions if we are to accurately characterize the effects of spaceflight on gaze performance during visual-vestibular interaction.
