A review of digital watermarking techniques: Current trends,challenges and opportunities

Abstract

The rapid progress in the transfer of information and its availability are the reasons behind the widespread use of the Internet. Document images are the most complicated and challenging category among various forms of digital data to which watermarking can be applied for its security and authentication. Watermarking of the document image is a very difficult task, since these images have very limited redundancy. Because of this factor there has been very little research in this area. A comprehensive research should be carried out to ensure the effective assessment, review as well as implementation of document image watermarking techniques. This paper reviews the existing document image watermarking by considering different evaluation parameters. Based on this review, a variety of challenges and directions have been prescribed for the development of effective watermarking techniques for document images.

Keywords

Entropy peak-signal to noise-ratio bit error rate normalized hamming distance normalized absolute error

1. Introduction

Technological innovations in the world of information technology have developed an environment in which information can be stored, exchanged, duplicated, copied and distributed. The illegal manipulation and dissemination of digital media such as text documents, images, video and audio has increased with this growth. Information security monitoring, which requires not only encryption but also traffic safety, is now increasingly in demand [88,106].

Many approaches like cryptography, watermarking and steganography are used to secure digital information. Digital watermarking uses an algorithm to imperceptibly embed some user watermark in the digital data, as shown in Fig. 1. Digital data may be in various formats such as text document, image, audio, or video. To secure ownership and ensure authentication, digital watermarking may be used. The owner of the digital media can prove his ownership if required. Watermarking technique’s main objective is to secure a digital document [39,67,87,95].

Figure 1 shows a general process for the embedding and extraction process. Watermarked document is transferred via communication channel with the help of watermark and key. Communication channel is not secured and with the attacks like insertion, deletion and reordering, watermarked document can be altered. For comparison with the original watermark, the watermark is extracted from the watermarked document on the receiver side. If the two watermarks are the same then document will be authenticated otherwise it will be a tampered document.

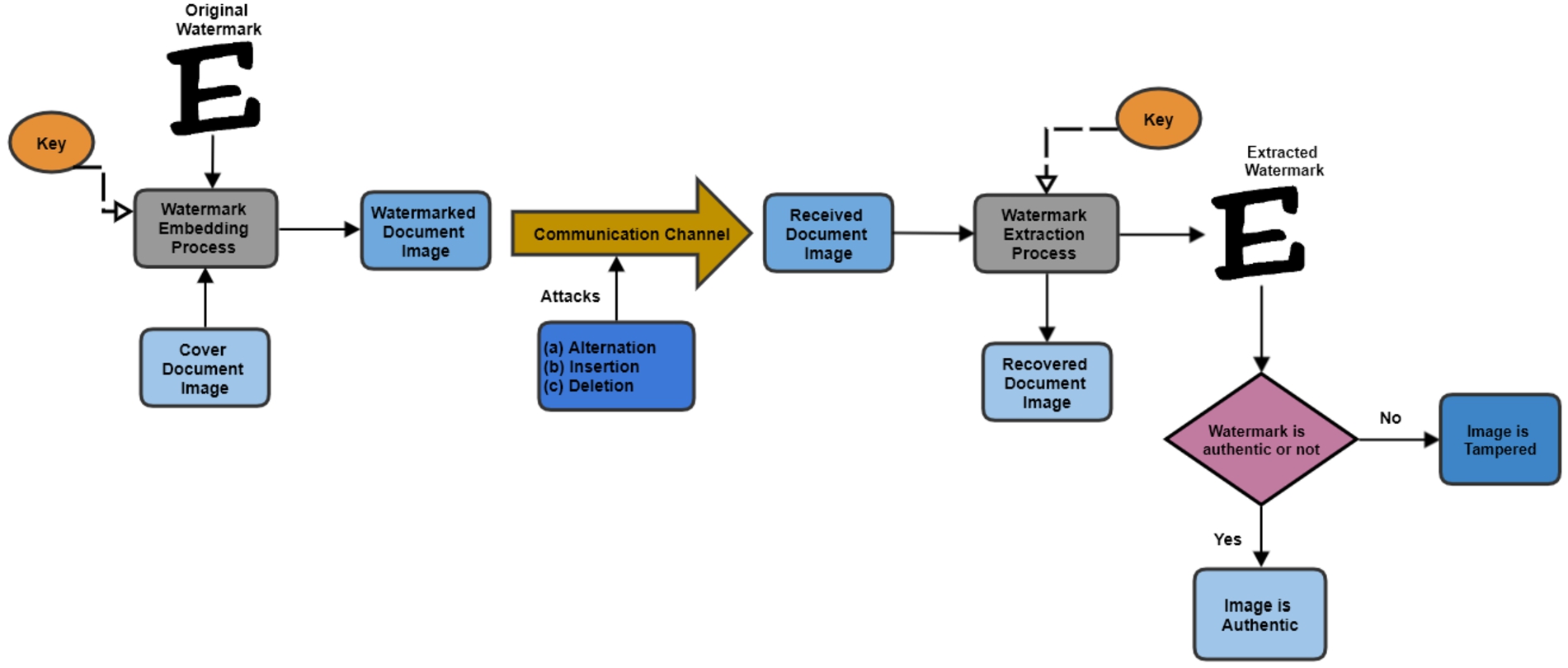

Fig. 1.

Watermark embedding and tamper detection process.

A digital document image generally consists of textual contents which are prone to common image processing attacks. This vulnerability makes their security and protection a key problem. Document image security becomes problematic due to the lack of effective watermarking techniques [4,128]. Preserving the integrity of digital content and maintaining its availability and secrecy at the same time is important. The growth of many languages like Chinese, English, Arabic and Spanish, has resulted from the rise of the Internet [85]. A single framework is designed by busing text and layout information. Layout of LM model was evaluated by using three tasks form understanding, receipt understanding and scanned document image classification [114]. Due to variations in the nature and characteristics of text contents, most of the existing document watermarking techniques have concentrated on certain languages only. In order to resolve the challenges and vulnerability in the transmission of documents and hiding of information due to language barrier, more general document watermarking techniques that can be extended to any kind of text need to be design and developed. Figure 2 shows the year wise papers published in the watermarking document domain. We can conclude that the number of papers on the watermarking of documents has been decreasing since the last four years. It shows that novel watermarking techniques applicable to the document or text image need to be designed which can incorporate novel features of these images.

The purpose of this analysis is to conduct a comprehensive investigation into the current status of document watermarking development including its theory, methodology and usages. In addition, open research issues requiring significant research are being explored, with an emphasis on information integrity, availability of information, retention of originality, secrecy of information, protection of information, transformation of documents, implementation of cryptography, and language versality.

Fig. 2.

Year-wise paper published on document watermarking.

The article is structured as follows. Section 2 presents the literature review and Section 3 includes a discussion of the requirements of watermarking techniques. Section 4 outlines document watermarking approaches which are currently available. Section 5 presents the logical and physical embedding processes employed in digital watermarking. Applications of document image watermarking are covered in Section 6. Section 7 describes the various types of parameters. Section 8 addresses the research challenges and issues. In the last section, the findings of this study are summarised.

2. Literature review

Watermarking techniques for Artificial Intelligence is reviewed by [14]. Artificial intelligence (AI), Machine Learning (ML) and Deep Learning (DL) technologies are compared in watermarking. A summary and comparison of the surveyed scheme’s contribution are provided for several technical perspectives. The authors outlines current research issues and future directions that could close knowledge gaps for scientists and technologists working in this field.

[77] proposed a Blockchain-oriented watermarking techniques for the authentication and integrity of construction information. The 5W1H (Who?, What?, Where?, Where?, Why?, How?) watermarks are used to create a blockchain-based deployment architecture that secures information integrity and authentication for construction tasks by hiding them within digital content.

[36] proposed a watermarking technique for digital image in cybersecurity using compass edge detector and LSB. This approach depends on the least important bit mechanism, compass edge detection, and the use of chaotic encryption for watermark embedding. A range of geometrical and image-processing attacks are systematically assessed to determine the efficacy and performance.

Medical image copyright protection has proven essential, and even little modifications might put a patient’s life in risk. Digital watermarking technology is widely used in healthcare applications to confirm the authenticity of these images. The basic concepts of watermarking including such as watermarking in the biometric, blockchain, machine learning, and spatial and transform domains; watermarking using optimization; and watermarking using encryption and compression are reviewed by authors [68]. A robust and high capacity data hiding technique using Integer Wavelet Transform (IWT) and Least Significant Bit (LSB) to secure the medical data. Multiple watermarks are embedded into medical color image using IWT and LSB. Cover images were first converted into three channels using this process, and then IWT was applied to each channel. After then, the LSB method was used to hide several marks inside the cover image. In the meantime, the image mark was compressed using a lossless soft approach before embedding, which decreased storage and transmission overhead and increased the marked colour image’s embedding capacity [103]. A watermarking technique for encrypted images using Generative Adversarial Network (GAN) provides authentication and copyright protection. This technique is helpful to avoid the data leakage in healthcare scenarios. First, image is encrypted with the help of chaotic map and randomised singular value decomposition (RSVD). In order to create a watermark, a GAN model is developed by hiding several markings within of a picture. Afterwards, the created watermark is embedded into the encrypted image to provide authentication and copyright protection [102].

Reversible data hiding (RDH) technique for JPEG document images using zero coefficients embedding is proposed by [119]. The integrity and authenticity of JPEG document images can be ensured by reversible data hiding. JPEG document images provide a large number of zero coefficients to contain data because of their obvious borders and simple texturing. The best options for maintaining the visual quality are those with zero coefficients, as determined by a mean square error analysis. Then, to greatly reduce the visual distortion, the optimal zero coefficients are chosen by minimizing a carefully created embedding cost.

3. Requirements of digital watermarking techniques

Following are the characteristics of a watermarking technique, as shown in Fig. 3.

Imperceptibility: It is the watermark’s ability to remain unacknowledged by the naked eye. To achieve this, similarity between the cover and the watermarked image should be maintained. After hiding the watermark, the cover image should be almost the same, and there should be no observable degradation in its contents i.e. watermarked image should be imperceptible. Embedded digital watermarks may be either transparent or invisible. The embedded watermark is evident in visible watermarking, and observable by the naked eye. It is easy to change and reproduce the text content, so it is important that the watermark should be invisible. The embedding of the invisible watermark should be proper, so that it can not be observed by naked eye. However, it can be detectable through some process [51,52].

Robustness: A watermarking method’s robustness is its ability and strength to survive any attack aiming to retrieve or modifying the hidden data [81]. The watermarked document should be robust to attack such as filtering, compression, rotation and noise as well as particular attack on the document image such as changing color, cropping some text contents and changing font size, font type and style etc. It is necessary to securely embed and recover the watermark, so that it can resist any attack. Robustness is an essential requirement for the proof of ownership, copyright protection and finger printing where conceivable distortion is unavoidable and removal of the watermark is an issue. Important characteristic of robustness is that watermark can not be destroyed without distorting or modifying the watermarked image, even though the watermark may be identified by a third party.

Robust, fragile and semi-fragile are three watermarking categories according to robustness property [97,127]. A robust technique is capable to resist attacks like compression, rotation, scaling etc. On the other hand, a fragile watermarking technique cannot withstand any attack. A semi-fragile method guarantees that the watermark can withstand few attacks. Robustness can thus be used to calculate and differentiate the strategies of text watermarking by measuring how many attacks it can withstand. For measuring robustness, there are no accurate indicators. In the case of document watermarking, however, the attacks that seek to break the watermarked image of a document are used to test the robustness of the technique. Formatting and contents modification are the two types of attacks that typically threaten watermarked text information [8,10,108,127]. So, if such attacks can be avoided by a technique, it is considered a robust one. They are called semi-robust or non-robust, where only half or none of the attacks can be avoided.

Capacity: Capacity is calculated by maximum watermark bits that are embedded in the digital cover document image and is typically measured in bits per pixel [4]. Digital cover document media is properly utilized in the embedding process if capacity is high. This may impact the intelligibility of watermark in the data comprising the watermark. An optimum capacity is therefore necessary, which does not affect the imperceptibility of the watermarking technique’s. Overall, different applications of watermarking can need different embedding capacities.

Security: Security means that how much a technique is able to protect the watermark from an unauthorized access. The digital document should be sufficiently protected to avoid unauthorized deletion of the secret data and should only be editable by the owner [44,54]. The watermark must not be changed or fabricated by any attacker without knowing the key [26]. In this sense, blind approaches are helpful in ensuring the security where the presence of original cover document image is not necessary during the validation process of copyright owner of the content. By improving the technique’s efficiency and limiting access to authorized individuals, unauthorized exploitation of digital content can be ensured. In this case, ensuring the key is well concealed from any possible attacker is critical. This can be solved by making it cryptographically stable. The use of a cryptographic tool and digital signature increases the protection of a watermarking technique.

To determine a watermarking technique’s security, it must be believed that the intruder is aware of the watermark embedding method. The intruder can attempt to examine the watermarked document image as well as to remove the watermark bits. Without modifying the contents of watermarked image, intruder should not be able to change the watermark bits. Identifying the best protection procedure and strategy is important in order to increase the efficacy of the watermarked document.

The above requirements contradict one another. For instance, increasing the embedding capacity will reduce the watermarked image visual quality and decrease the robustness against attacks. The most critical properties for any watermarking technique are robustness and imperceptibility. Conflicting the above properties poses many difficulties in the design of a robust watermarking technique.

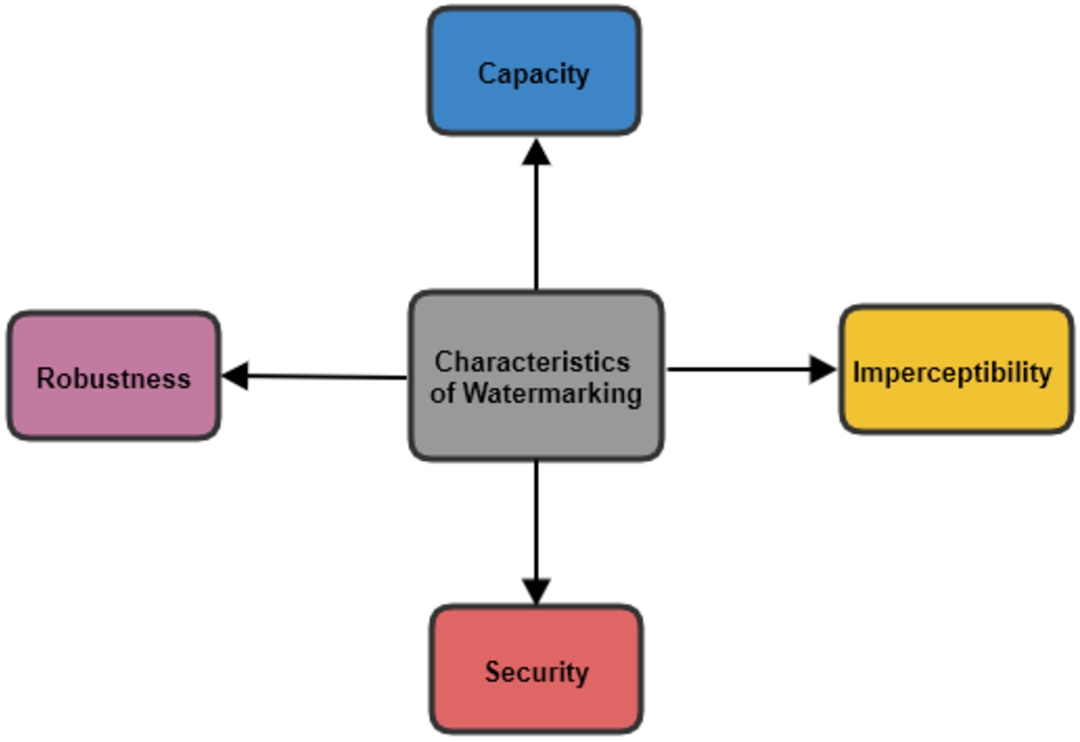

Fig. 3.

Characteristics of a watermarking technique.

4. Approaches used for document image watermarking

Work related to watermarking of document images began in 1997. This initiative inspired other scholars to work in the domain of document image watermarking. Several watermarking approaches for the authentication and protection of digital document images have been proposed [82] as shown in Fig. 4. These approaches to watermarking of document images are categorized as:

Structural based watermarking: In this approach, in order to embed the watermark bits, the lines, letters and spaces of the text content are modified [22].

Linguistic based watermarking: In this approach, the language of text present in document image is analyzed and modified to embed watermark bits [17]. Since then a number of modifications have been suggested by several researchers [3,51].

Image based watermarking: In this approach, characteristics of the contents of the document image are used to create the watermark. Using some embedding approach, this watermark is then inserted into the cover image.

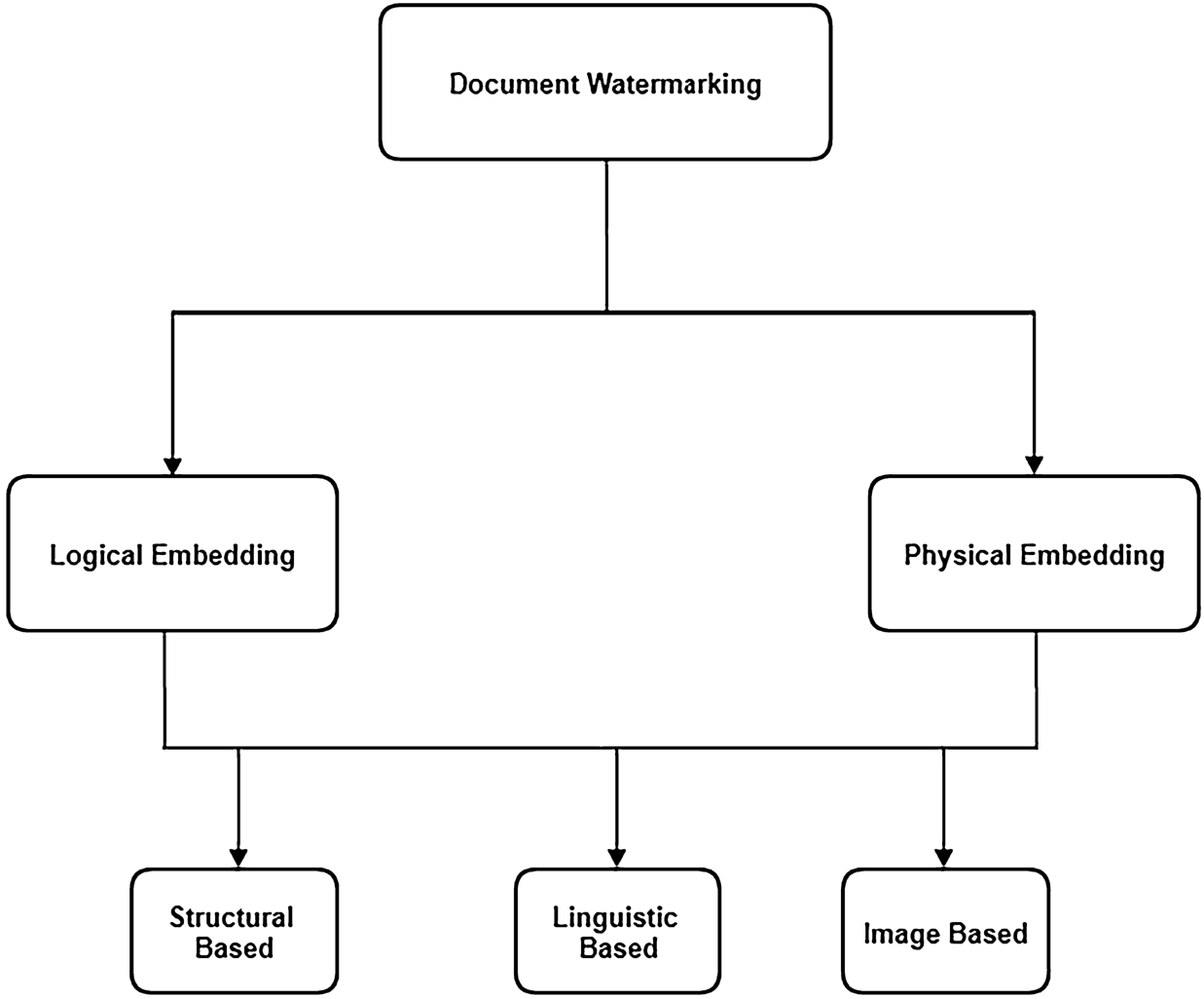

Fig. 4.

Document watermarking techniques.

4.1. Structural based watermarking approaches

In this approach, the structure or features of the text are adjusted to hide the bits of the watermark. This includes the general formatting of the digital cover text media within which text content is changed to embed the bits of watermark image by using its words or sentences. It is also possible to change the writing style or the positions of words as well as letters for this purpose. This involves repeating those letters or changing the text’s features. General text properties are detected, and some physical properties are used to hide the bits of watermark image into text content.

Watermark bits are often inserted by shifting up or down the words and sentences of the text of a document image in the techniques proposed by [22,24]. To improve the Brassil techniques, a variety of somewhat different approaches were proposed. Examination of the average word width within every line is also one of the structural watermarking techniques. Other approaches have also been developed on the basis of word classifications [66]. In these methods, a word is classified according to its characteristics. Another method takes advantage of the justified paragraphs and the uneven spacing found in the document to embed the watermark bits [7].

One of the methods to insert the watermark bits uses the keyword present in the text. This keyword is selected by the owner and the watermark bits are created using the length of the preceding words and the following words; to and from the keywords in the text [56].

The first watermarking method based on Chinese text was proposed by [73]. The authors used the characteristics of the pictographic characters in Chinese language. These features are used in their technique to create the redundancy that is further used to embed the watermark. Chinese character properties are also used by other Chinese text watermarking techniques, as they are found to be ideal objects for embedding watermark bits. A watermarking technique was developed by following the pronunciation of polyphonic characters and features of two Chinese character polyphones [37]. The other method used was Chinese sentence entropy, measured on the basis of word frequency. The key sentences for embedding the secret bits are chosen based on entropy [37,121].

Mostly existing techniques used features of Arabic script characters to embed watermark bits in content of Arabic text. The characters are expanded and replaced with similar Unicode characters, or the diacritics are modified to embed watermark bits [10,43].

The structural-based techniques described above are not immune to format based attacks like copying, pasting and retyping. Some of these techniques are immune to print and change of font. This also relies on the robustness of the technique for attacks based on content.

4.2. Linguistic based approach

The linguistic based approach is based on methods based on natural language processing. To add the watermark bits, it uses the syntactic and semantic essence of the digital cover image [27,108]. The bits of watermarks are inserted in such a way that the text’s structure and context remain unchanged. Some watermarking methods are bases on the linguistic use of semantic or syntactic transformation, or a combination of both, depending on the text’s language [72]. The substitutions of synonym words are used to preserve the imperceptibility and one word per sentence increases the embedding capacity [42].

To insert the watermark bits, words of the contents are manipulated according to the syntactic approach. Verbs, nouns, adjectives, pronouns, prepositions, synonyms and other grammatical features of text content are used for embedding. These grammatical changes are implemented without altering the content’s originality. And the word sequence in the contents can be rearranged to add the bits of watermark image. This can be achieved by modifying the text structure, such as changing the adverbial expression from active to passive, adding the subject matter and altering a sentence. Syntactic tree and transformation were used as one of the early approaches [15–17]. Modifications in the watermarking techniques have introduced several other syntactic-based approaches [64,65,83,84,111].

In the semantic dependent method, the watermark bits are added by modifying the words of text content. It consist of approaches like synonym replacement, algorithms based on noun-verbs, typo-based algorithms, acronyms and abbreviations, linguistic-based presupposition-based algorithms, and text-based representational sequences. This method relies on language, and uses vocabulary, grammar or structure to embed the watermark bits [27,78,86].

4.3. Image based approach

In this approach, text contents are viewed as a series of text images and bits of watermark image are hidden in content of digital original text. The watermarked text is considered to be an image and it is no longer possible to copy and paste the text and it must be retyped for reproduction. To create a watermark, the watermark is translated into a text string and combined with the characteristics of cover text. Using certain embedding algorithms, watermark bits are embedded into the content of cover text. A watermark logo is generally created to identify the validity of the original image and to check the possibility of the text being altered.

In recent years, image-based approaches to text watermarking have been suggested. One approach is to embed watermark bits by using letter pixels [118]. Curvaceous letters are used in these approaches for watermarking by changing the curves of letters with respect to the specific bits. Curve of a watermarked text image involves embedding mechanism of the bit, which varies a little in direct relation to the changed bit.

Image based approach to document watermarking is deemed safe against format based attacks as format based attacks are common to digital documents.

5. Embedding process

Embedding in a document image is the process by which the watermark bits are created and inserted in the original document image to create a watermarked image. There are two types of embedding, namely zero embedding and physical embedding, that can be used during the embedding process. Both methods have their advantages and drawbacks as discussed in the following subsections.

5.1. Zero watermarking techniques

Zero watermarking is a fully invisible or imperceptible approach to watermarking. It is equivalent to data hiding in which the viewer is absolutely transparent to concealed data due to this, no embedding is implemented on the cover media. The solution involves digitally embedding the watermark bits into content of text, without embedding the watermark physically inside a digital carrier. This is achieved by producing the watermark data from the features of the carrier image. Although the watermarked document is kept confidential, the original document is released to the public. The watermark information is generated again from the same features of the cover image and compared with the original watermark bits to validate the authenticity of document being targeted. Authenticity or protection is proved if the comparison is true [53,99,105,112,127]. The following requirements should be fulfilled by a zero watermarking technique:

The features used to create a zero watermark should fully reflect the cover image.

These features should satisfy the collision resistance i.e. from different cover images, probability of extracted zero watermarks bits will be same, is very less.

In this technique, the structural or attribute properties of the text contents of the image are analyzed and then used to create a watermark. This watermark is kept secure with Certifying Authority (CA) and can be used for future authentication process. It appears that this method is very robust as well as imperceptible, as there is no watermark information in the cover document image being released to the public. Nevertheless, there are some disadvantages that need to be stressed. Even though it is safe against format-based attacks or attacks based on content, all of the contents can be easily changed or modified by a possible attacker so that the information about the watermark can no longer be found. The text information can be misused if the watermark is hard to recognize. Logical or zero embedding methods relevant to document images have been explored in this section. The study of these approaches in relation to attacks and results is summarized in Table 1.

5.1.1. POS tag sequence based zero watermarking

As patterns of a sentence are represented by Part of Speech (POS) tag sequence. These patterns are characterized by the quantity of POS tags and the permutation. You may use this tag sequence in zero watermarking. Many sentences can be built up to reflect the same meaning as is required. So, there are infinite words patterns and POS tag sequences. The contents and expressions of various texts are various. Their POS tag sequence is expected to be different. Final zero watermarking is produced by applying transformation to the characteristic of POS sequence.

A zero watermarking technique using POS tag sub-sequences is proposed by [45]. Tag sequences have been extracted using a chaotic method to create a watermark. This approach offers good protection as sequence of selected POS tags is not known o the attacker, whereas the chaotic process has uncertain properties. Robustness is also assured which involves protection against reformatting and transforming document type, interchangeable substitution, and sentence transformation attacks with a very poor percentage of effectiveness.

[90] proposed a zero watermarking approach to authenticate Chinese documents. The frequency of POS tags as well as entropy are used as features. Watermark bits are generated by using forward cloud model generator and features generated from the POS tags. This approach is very vulnerable to insertion and deletion attacks. A tamper detection rate can be achieved high if insertion and deletion is less than 20%. Synonym replacement attacks have little affect on the watermark’s degree of resemblance.

5.1.2. Prepositions based zero watermarking

A document image consists of sentences and each sentence contains words or phrases that connect a noun or pronoun to a verb or an adjective. The word or phrase is referred to as preposition. This preposition is used in a number of ways for the watermarking process. Occurrence or maximum occurrence of preposition is used in zero watermarking.

Maximum occurring prepositions in the text contents are used by [49] to construct a text separator. For creating text partitions this separator is often used. After that, the maximum occurring Non-Vowel ASCII characters in every partition are listed. Author key is generated by using this list and watermark bits selected by user. The generated watermark is stored with CA to make it secure. Against insertion and deletion attacks, precision of the extracted watermark bits are evaluated. The insertion and deletion rate is checked at 5%, 10%, 20% and 50% and the watermark accuracy results are analyzed. When the addition and deletion ratio is highest, the precision is found to be lowest. Without deleting the text contents, it’s hard to totally uninstall the watermark bits.

A preposition and a double letter were used by [55] to build the watermark. The data partitions in the document image are evaluated using the frequency of repeated letters. By using the number of letters in the time interval, the watermark is formed. To judge the degree of closeness, original and modified watermark bits are matched. This strategy ensures protection and is more stable in terms of resistance to any attacks like insertion, deletion and reordering.

A blind watermark approach based on the appearance of prepositions and double letters in the text document was suggested by [50]. This approach offers protection of copyright and protects the cover image from addition, deletion and reordering attacks. This process is also checked for ASCII characters and reports a reasonable percentage of watermark derived with results above 90%.

5.1.3. Keywords based zero watermarking

There are various keywords in a document image. These keywords are used in watermarking process by considering their length and frequency of occurrence. Word length and multiple occurrences of the words are used for watermarking.

A zero watermarking technique on the basis of word is proposed by [57]. To create a watermark key for every sentence, all words with more than four letters are chosen and used. Watermark distortion rate and pattern matching are evaluated for insertion and deletion attacks. At a constant rate, experimental results for low, moderate and high-level tampering attacks are evaluated.

Characteristics of the text are used by [56] to propose another technique for creating the watermark. The keyword that appears several times is selected, and the length of the word that precedes and follows the keyword is used to build the watermark. Watermark distortion rate is evaluated against the insertion and deletion attacks. The tamper detection accuracy of the technique is measured and found to be better than the existing techniques.

Another secure and robust technique is proposed by [53] in which the bits of watermark image are logically embedded in the text content of the digital document cover image. Watermark key is created by using text elements, double letters and most commonly used English words. The technique is being tested for insertion and deletion attacks and found to be efficient.

5.1.4. Image to text based zero watermarking

Image to text based zero watermarking techniques transform an image watermark to a text watermark. The first letter that most commonly appears is generally used to create a watermark, in these techniques.

A image to text watermarking technique in which first an image of watermark image is transferred into an alphabetical watermark image is proposed by [55]. After using the propositions in the text as separator, a key is created by using the first letter that appears most frequently (MOFL). These separators are used to render groups and to construct a MOFL list, every group’s first double letter occurrence is used. The watermark letters and the list are used to generate the watermark key. The watermark has been shown to survive insertion, reordering and deletion attacks. This technique provides a higher percentage of successfully detected watermarks following attacks relative to the existing techniques.

A technique using an image-to-text converter to generate a watermark key was suggested by [105]. The watermark image is embedded in the duplicated original file where it is processed and categorized into word sets and based on its features, the watermark key is created. Technique provides protection against forgery and unauthorized exploitation of information in digital data. By means of a blind and fragile watermark extraction procedure, watermark key is secured.

5.1.5. Entropy based zero watermarking

Entropy of a sentence is amount of average information. It is defined as $\begin{matrix} (1) & H (X) = - \sum_{k} p_{k} {log}_{2} (p_{k}) \end{matrix}$ where K is the gray levels number and $p_{k}$ is the probability with respect to gray level k. Entropy of a sentence depends on the language of the sentence. Entropy of English language document varies from the entropy of the other language documents.

The word in Chineses text is used by [121] to produce a watermark. This entropy is measured using the word frequency and is further used to select the key phrases. The watermark is built in accordance with the order of critical sentences. Due to the complexities of Chinese text semantics, a sentence with a larger word frequency has a high entropy. Technique is tested against attacks such as adding, deleting and synonym substitution. Since this technique offers good imperceptibility and security, it is used for protection purposes.

A technique that uses the features of Chinese content sentences is proposed by [74]. Text of the document is divided among sentences and semantic code of each word is then used to measure its entropy. Word entropy, relevance, weighting function and length are used to measure the weight of each sentence. The created key is encrypted and stored with CA. This technique offers security, robustness as well as protection.

5.1.6. Model based zero watermarking

A document image consists of sentences and each sentence includes different words. Probabilistic features as well as syntactic and semantic features of textual contents of an image can be used in zero watermarking.

Space models based zero watermarking was developed by [122]. The zero watermark is generated from a 3-D model on the basis of 2-D coordinates of word level and sentence weights of the sentence-level. 2-D word space layout consists of both the length and frequency of the word and is expanded to a 3-D format. By mapping 3-D model with the sentence, text watermark is constructed. This approach is evaluated against three most frequent attacks; attack of syntactic transformation, synonymous replacement attack and deleting attack. This technique is used to protect the digital document images.

Markov’s model is utilized by [6] to propose a watermarking technique in which watermark is generated by using the probabilistic features for document image content authentication. Text information is analyzed with the help of hidden Markov model. This strategy provides protection against insertion and deletion attacks.

[120] proposed a three-dimensional (3-D) space model by using syntactic and semantic features of digital text image. Based on abstract set, a watermark is generated that can be derived after that by comparing the distance of each sentence of document image. Syntactic transformation, synonymous substitution, addition, deletion and reordering attacks were performed in the experiment. Deletion and reordering attacks demonstrated the model’s vulnerability to the modifications, syntactic transformation and synonymous replacement attacks were well resisted.

Three order Markov model for english text image is analyzed by [18]. In order to generate the watermark bits, the analysis is further utilized to find the relationship that exists between the contents of text image. The contents of English text document are used to extract the probabilities of the interrelationships between the contents. This technique is used for authentication and provides better robustness against attacks like insertion, deletion and reordering as compared to existing techniques.

A zero watermarking technique based on Markov Model for English text document is proposed by [40]. The technique is capable to provide content authentication and tamper detection for English text documents. This technique provides more robustness and better performance as compared to other existing techniques, especially for insertion and deletion attacks.

Markov model is used by [5] to proposed a zero watermarking technique for Arabic text. This technique is based on the Fourth level of word mechanism that provides tamper detection and content authentication. Integration of the zero watermarking with the hidden Markov model enhances the embedding capacity as well as robustness.

5.1.7. Chinese machine code and information strategy based zero watermarking

Chinese machine code and information gain approach are used in text zero-watermark scheme that uses Chinese edit distance to generate the text zero watermark and detection mechanism. In each paragraph, the edit distance is computed between the characteristic words and used to pick the commutation location to create an edit distance matrix to produce a zero watermark.

A watermarking technique for text document based on Chinese machine code and information tactics is proposed by [123]. The weighing terms are computed of paragraphs and Chinese machine code formally expresses the text features. The edit distance is measured and the point of commutation is located to create a watermark. This technique has good robustness and protection against attacks like addition and deletion, synonymous substitution, and syntactic transformation. It provides security with the help of copyright holder ID and date stamp for every generated key.

5.1.8. Transform based zero watermarking

Transforms are used in zero watermarking. A transform changes the image from spatial domain to transform domain. After transformation, the image is divided into blocks of different coefficients values. These blocks may also be further used for watermarking.

Discrete Cosine transform (DCT) transforms an digital image into a set of numbers called coefficients. It reduces the complexity of computing complex number. DCT is a method of transformation derived from the minimum mean square error conditions for image coding which is the sub-optimal orthogonal transform to K-L transform.

[38] proposed an DCT based zero watermarking technique for Chinese document images. Cover document image is partitioned into 64 blocks and then DCT is applied to every block. Low-frequency to medium-frequency band DCT coefficients are chosen to form a one dimensional series. Keys are used to encrypt the sequence, using the logistic mapping to create the zero watermark sequence. The detected watermark and registered watermark are compared in order to measure the similarity parameter for verification.

[99] proposed a wavelet transform zero watermarking techniques applicable to the document images. Lifting wavelet transform is applied on the cover image to get its subbands. Non-overlapping blocks of the same size are generated using these subbands. A zero watermark is created using the features of each blocks. A key watermark is combined with this watermark to generate a meaningful watermark. The technique can detect the tamperness in the document images in any regions. Performance of the techniques is found to be superior than the existing techniques.

5.1.9. Digital signature based zero watermarking

A digital signature is a mathematical feature used to confirm that digital images or documents is authenticate or not. The digital signature technique is applied using symmetric key or asymmetric key methods. It guarantees the content authenticity, integrity, and privacy of the transmitted data. Two most used public key digital signature methods are Rivest–Shamir–Adleman (RSA) encryption algorithm and the Digital Signature Algorithm (DSA).

[105] proposed a hybrid technique on the basis of zero watermarking and digital signatures to secure digital media. Logical embedding is done by embedding the watermark bits in the cover document and watermark image is transformed into a character sequence. Unicode is used to numerate words into binary values. This technique provides better performance in terms of tamper detection, robustness, capacity ratio, imperceptibility, to verify authentication of a document, and language independence as compared to the other existing watermarking techniques. It has its drawback because it needs a large amount of memory to store the created keys with the certification authority.

5.1.10. Chinese phonetic alphabet and chaotic equation based zero watermarking

Chinese phonetic alphabets are divided into three categories: initials, finals and syllables.

A watermarking technique connecting the syllable parts of the Chinese phonetic alphabet is proposed by [130]. Every syllable is assigned initial and final values, and frequency is calculated according to the total of values. A sequence is constructed by using the logistic chaotic with respect to the value of total and transformed. Output of the sequence’s transformation is used to create text watermarking key. One dimensional logistic chaotic equation has been evaluated as these chaotic features follow the demands of sequence key to evaluate its robustness against content attacks such as format, deletion and addition. The outcome demonstrates the algorithm’s ability to perform anti-adding attacks. It demonstrates good robustness as well as high resistance against tampering attacks. In order to prevent illegal access, the key shall be registered with certified authority along with the date and licence.

5.1.11. Word occurrence and selection ratio based zero watermarking

The document image consists of sentences and each sentence contains different word. Word presence plays a vital role in determining the ratio of word occurrence and also in determining the size of replacement attack.

A zero watermarking approach on the basis of a replacement attack for document images was developed by [19]. The replacement attack changes the contents of a document without altering the structure of text content. Word Occurrence Ratio (WOR) is used to determine the rate of presence of the word within a document and Word Selection Ratio (WSR) has been used to determine the size of replacement attack. This technique depends on the three key stages of replacement resource selection, new word preparation as well as replacement action. It is clear from the results that word-based methods are not capable of detecting document’s replacement attack and also less accurate for calculating the size of advance replacement attacks compared with normal attacks. This technique is used for authentication purposes. The $WOR$ of every word is being computed from the below equation. $\begin{aligned} (2) & WOR (z) = \frac{Number of occurrence of z in document}{Total number of words in document} \end{aligned}$ By measuring the $WOR$ for every word of the original document, $WSR$ , that is equal to the size of replacement attack, is calculated by $\begin{aligned} (3) & WSR = \frac{\sum WOR (z)}{Total number of words in Document} \end{aligned}$

5.1.12. Effective characters list based zero watermarking

[96] proposed a Effective Characters List (ECL) based zero watermarking technique for document images. The watermark is constructed by concept of the conversion between the selected characters of a documents. After that, the number of characters to be selected for watermark generation is calculated by Effectiveness Ratio (ER). Deletion, insertion and reordering attacks are deployed on the original digital documents to verify the effectiveness of the technique.

Table 1
Types of attacks and performance evaluation of zero watermarking

Author Types of attack Other evaluation metric

Insertion Deletion Reordering Synonym substitution Syntatic transformation

[8] No No No No No Imperceptibility and capacity

[5] Yes Yes No No No No

[18] Yes Yes Yes No No Robustness

[19] Yes Yes Yes No No No

[38] Yes No No No No Robustness and capacity

[40] Yes Yes Yes No No Robustness

[46] No No No Yes Yes No

[53] Yes Yes Yes No No No

[57] Yes Yes Yes No No No

[49] Yes Yes No No No No

[56] Yes Yes Yes No No No

[55] Yes Yes Yes No No No

[50] Yes Yes No No No No

[54] Yes Yes Yes No No No

[74] Yes Yes No Yes Yes No

[90] Yes Yes No Yes No No

[99] Yes No No No No Imperceptibility and robustness

[105] No No No No No Computation at time to encode and decode watermark

[121] Yes Yes No No No Robustness

[122] No Yes No Yes Yes Imperceptibility and robustness

[120] Yes Yes Yes Yes Yes No

[123] Yes Yes No Yes Yes No

[130] Yes Yes No No No No

Author	Types of attack	Other evaluation metric
[8]	No	No	No	No	No	Imperceptibility and capacity
[5]	Yes	Yes	No	No	No	No
[18]	Yes	Yes	Yes	No	No	Robustness
[19]	Yes	Yes	Yes	No	No	No
[38]	Yes	No	No	No	No	Robustness and capacity
[40]	Yes	Yes	Yes	No	No	Robustness
[46]	No	No	No	Yes	Yes	No
[53]	Yes	Yes	Yes	No	No	No
[57]	Yes	Yes	Yes	No	No	No
[49]	Yes	Yes	No	No	No	No
[56]	Yes	Yes	Yes	No	No	No
[55]	Yes	Yes	Yes	No	No	No
[50]	Yes	Yes	No	No	No	No
[54]	Yes	Yes	Yes	No	No	No
[74]	Yes	Yes	No	Yes	Yes	No
[90]	Yes	Yes	No	Yes	No	No
[99]	Yes	No	No	No	No	Imperceptibility and robustness
[105]	No	No	No	No	No	Computation at time to encode and decode watermark
[121]	Yes	Yes	No	No	No	Robustness
[122]	No	Yes	No	Yes	Yes	Imperceptibility and robustness
[120]	Yes	Yes	Yes	Yes	Yes	No
[123]	Yes	Yes	No	Yes	Yes	No
[130]	Yes	Yes	No	No	No	No

Table 1 describes the attacks and metrics used by the authors to measure the efficiency of the zero watermarking approach.

5.2. Physical embedding

In this approach, the watermark bits are embedded into the digital original image. The bits of watermark are in the pattern of a linguistic, image or structural manipulations. Embedded watermark bits could be invisible, slightly visible as well as visible. In visible watermarking, embedded watermark bits are visible to the receiver [87] and therefore prevents copying as well as reusing the image. So it is helpful in promoting the owner of task. This type of embedding is usually done in the form of an image watermark, but text content is not well-known because text content can be easily manipulated and retyped. Visible data can, however, also be deleted or altered by an unauthorized access.

Depending on the process used, the modifications made to the text vary from barely visible to completely invisible. In invisible as well as partially visible physical embedding, only authorized users are aware of the watermark. Thus, in the case of copying and tampering, the watermark bits are not lost or removed as the unauthorized user does not know that there is watermark bits in the text. The invisible watermark can impede the tampering of the text and it is easy to detect any kind of manipulation. The related work on the physical embedding of document image watermarking as well as study of attacks and results are discussed in Table 3.

5.2.1. Feature based physical embedding

As document image contains different elements such as lines, words and characters. The physical embedding can be achieved using the features of these elements. Each element has different features that can be used to hide secret bits of the watermark. The watermark bits may be embedded into the digital document image by shifting or altering these elements.

Different shifting in the lines and words of the cover image are used by [23] to hide watermark bits. The watermark is embedded in the line shift approach by dislodging the entire text line vertically. The line is shifted up or down whereas the line quickly above or underneath is not moved. In word shifting approach, the position of a word inside a text line is moved horizontally to embed the watermark. Moving may be either right or left while neighboring words will remain unchanged. In character shifting, features of a character are altered to embed the watermark bits. These alterations are made by extending or shortening the length of the characters by (at least one) pixels.

[25] proposed watermarking techniques by embedding each document with a single code word for each recipient. In this work, the authors proposed three techniques i.e. Line-shift coding, Word-shift coding and Feature coding. The discussed techniques are extremely reliable even if the documents are photocopied.

Feature calibration based technique for embedding and detecting watermarks in the document images is proposed by [13]. Within that technique, two sets of symmetrically arranged partitions are specified in the bounding boxes of the text line and features have been extracted from every partition. The difference between the average feature values of the two sets is encoded as a positive or negative displacement of every bit of the watermark. This technique is used for protection purpose. In order to calculate the efficiency of the technique, the average and standard deviations of the feature displacement are evaluated.

Some of the measurable properties of digital content fonts are used by [21] to develop a technique for embedding data in color or monochrome images. The embedding process includes two scanning of original document. The first scan is used to produce the preview of the document image at a lower resolution and the second scan provides maximum resolution that is used to create the copy of document.

A data embedding technique for document images is proposed by [33]. The data embedding is done by changing the widths of a few successive characters space in a certain line. During the embedding process, characters are grouped into blocks using sentence or word spacing as a group boundary. Blocks with character size less than the threshold value are not used for embedding a watermark. The disadvantage is that width of the character spacing width is very limited relative to width of the word spacing.

Several watermarking techniques used in the document image have been reviewed by [28]. The techniques reviewed are: Text line, Word or Character shifting, boundary modifications. In these techniques, the document image is divided into blocks with fixed partitioning, character features modifications, run length patterns modification, or half-tone images modifications.

Different lines of text have different inter-word spacing in their contents. This feature is used by [46] to propose a watermarking technique for protection purpose. The spacing between different lines of text are altered. The sine wave is produced by the average spaces of different lines after the alteration. Technique is compared with the previous techniques: Line Shift Coding, Word Shift Coding and Feature Coding. This approach supports blind and non-blind techniques.

An authentication technique based on a block pixel rearrangement for binary images is developed by [48]. Grayscale image conversion into binary image is achieved using Halftone technique. The first image is divided into 9 × 9 non-overlapping blocks and each 9 × 9 block is further divided into non-overlapping 3 × 3 blocks. Standard deviation is used as a authentication signal and is created by reordering the pixels in the selected 3 × 3 blocks. The main drawback of this approach is the deterioration introduced in the binary image encoded.

[113] proposed a blind data hiding technique for binary image authentication and annotation. The flipping of pixels is used before the embedding process and a significant amount of data is embedded without any visible artifacts. Secret data is embedded by manipulating pixels with high score of flippability. The features based on group of pixels are used to embed the data.

A blind watermarking technique for authentication of text document images by combining inter-character and word-spaces was suggested by [117]. Inter character spaces are incorporated with word spaces in enhancing the hiding capacity. To embed watermark bits, different embedding rules are used. In the experiment, English and Frech text documents are used. The major disadvantage of this technique is its high computational complexity as well as susceptibility to noise attack.

[129] used Render Sequence Encoding (RSE) to suggest a technique for authenticating a text. It encodes the hidden data into the documents by altering the display sequence of words and characters, without altering the appearance or contents of the digital document. Encoding is accomplished by means of a special permutation of the sequence of the display. RSE hides data into the formatted document that includes all text data layout information such as PostScript, Portable Document Format (PDF), Printer Control Language and Device Independent Document.

Adaptive Least Significant Bit (LSB) replacement technique is used by [94] for the purpose of proposing a copyright protection technique. A embedding capacity map is generated by using a saliency map after that adaptive LSB replacement is performed to generate a watermarked image. Imperceptibility and robustness are optimized to verify the results.

5.2.2. Transform based physical embedding

Transforms are also used in physical embedding. Transform changes the spatial domain into transform domain. Coefficients of an image are used to embed bits of a watermark. It can have better robustness compared to the techniques of spatial domain.

[80] developed a watermarking technique on the basis of Discrete Cosine Transform (DCT) for binary images. The DC components of DCT coefficients are used to embed bits of watermark image. Before embedding process, a pre-processing approach is often used to blur the binary image into gray scale image. A post-processing process is often used after the embedding which binarizes the image into a binary image. Pre-processing is the required step to prevent the watermark embedding in DC components from failing. Binarization is used to make sure that image is still a binary image. The technique provides not only robustness but also protection against cropping and noise attacks.

Spread spectrum modulation and Human Visual System are used by [131] to develop a image watermarking technique for binary documents. Watermark patterns are created using the coefficients of DCT and are inserted into the cover document image. Perceptual masks are used to evaluate the places of flipped pixels. Robustness of technique is evaluated against four types of attacks such as noising, denoising, geometrical and print scan. The output of the technique is evaluated by using $PSNR$ parameter.

A blind watermarking technique by using Discrete Wavelet Transform (DWT), Discrete Fourier Transform (DFT) and Arnold scrambling for document images is proposed by [72]. Before the embedding process, Arnold scrambling transform is applied to the watermark image for security purposes. DWT is used to divide the cover image into four subbands ${LL}_{1}$ , ${LH}_{1}$ , ${HL}_{1}$ and ${HH}_{1}$ . Since most of the image energy is compacted in ${LL}_{1}$ , it is selected for the embedding. DFT is applied on the ${LL}_{1}$ subband to produce the DFT coefficient matrix. The parameters Peak Signal-to-Noise Ratio (PSNR) and Normalized Correlation (NC) are used to test the performance of the technique.

A hybrid non-blind watermarking technique using DWT and Singular Value Decomposition (SVD) is proposed by [58]. Four subbands (LL, HL, LH, and HH) of cover image are generated using DWT transform. After this, SVD has been performed on the LL sub-band and diagonal singular value coefficients are modified with the help of scaling factor. After that, coefficients of $LL$ sub-band are reshaped with the aid of altered singular values and then inverse DWT is applied to generate a watermarked image. The efficiency of technique is evaluated using the $PSNR$ parameter. The technique is tested against attacks like filtering, scaling, Gaussian, JPEG compression, rotation or cropping.

[70] proposed a DCT based on semi-blind watermarking technique for Quran images. First, cover image is split into 8 × 8 blocks after that DCT is applied to every block. DCT and Interpolation is used during embedding process. 120 Quran text images were used in the experiment. PSNR, MSE, Visual Information Fidelity (VIF), Universal Quality Index (UQI), Structural Similarity Index (SSIM), Noise Quality Measure (NQM) and Visual Information Fidelity Criterion (IFC) were used to evaluate performance of the technique.

[32] proposed a adaptive image enhancement technique for handwritten document images. With the help of histogram, threshold value is used to equalize the contrast of a handwritten image by using contrast limited adaptive histogram equalization. After that directional transform enhancing is used for foreground and interfering strokes to improve the quality of image. The technique also increases the readability of handwritten document images.

A watermarking technique on the basis of DCT and Integer Wavelet Transform (IWT) for text images is proposed by [12]. IWT is applied on cover image to create sub-bands and DCT is applied on low frequency sub-band. For each block 9, 16, 25 and 36 coefficients are selected. The attacks used are JPEG compression, rotation, cropping, median filter, salt and pepper and histogram equalization. This technique is used for the purpose of protection. Parameters like $MSE$ , $PSNR$ , Universal Quality Index (UQI), SSIM and Normalized Cross Correlation (NCC) are used to test the efficiency of technique.

A watermarking technique based on stable region and object fill-based for grayscale document images was suggested by [76]. With the help of image processing operations, document image is transferred into intermediate form to find the stable region. Object segmentation is applied to find the separated objects in stable region. The performance of technique is measured by using imperceptibility, robustness and capacity against attacks like JPEG compression, geometric transformation as well as print and scan process.

[34] proposed a blind watermarking technique for document images with the help of DWT and Quick Response (QR) code. Cover image is decomposed into n-level of frequency channels with the help of DWT and QR code is embedded in a sub-band of final level of DWT. Robustness of the technique is tested against attacks like JPEG compression, cropping, scaling as well as salt and pepper noise. SSIM and $PSNR$ are the parameters used to measure the performance of technique. The technique is used to protect the document images.

[124] proposed a watermarking technique to improve the security of two dimensional code by using QR. Cover image is divided into blocks after that two dimensional DCT is applied on every block. A smaller block is selected after applying two dimensional DCT and SVD is applied on the selected smaller block. Two dimensional DCT and SVD is also applied on watermark image. The technique shows good robustness, invisibility, low computational cost and high security.

A watermarking technique for digital documents by using encryption and compression was suggested by [98]. Multiple watermarks are embedded by using non sub-sampled contourlet transform, DWT and SVD transform. SHA-256 and Lempel Ziv Welch (LZW) are used to encrypt and compress the digital document. Multiple watermarks can be extracted from distorted cover image.

5.2.3. Distance reciprocal distortion measure based physical embedding

Distance-Reciprocal Distortion Measure (DRDM) measures distortion by applying a weighted matrix with every one of its weights calculated by the reciprocal of a relative distance from the center pixel. The amount of distortion can be determined by flipping a particular pixel of a binary document images. Distance among pixels plays a crucial role in the perception of distortion in document images by human.

A secure data embedding technique for binary document images was suggested by [79]. This technique provides security for tampering and authentication. The amount of distortion that occurred due to flipping a specific pixel in binary document images is measured using DRDM. This technique is derived from a combination of DRDM technique and 2-D shifting technique with an even-odd embedding technique.

5.2.4. Image and text based physical embedding

Image as well as text can be used for zero watermarking. Watermarks created by using an image and text combination to make the document image more secure. The combination of image and text can be used to enhance the robustness of watermarking technique.

A watermarking technique by using the combination of image and text watermark for document images is proposed by [59]. The watermark bits are logically inserted in the content of text image and also text image is further encrypted by using Rivest–Shamir–Adleman (RSA) algorithm to provide the security. On the receiver side, the encrypted text is decrypted prior to the extraction phase. The extracted watermark bits are compared with original watermark to prove the authentication of cover document image.

A text image watermarking for printed documents was suggested by [47]. Fourier descriptor has been used to flip the trivial pixel with frequency information on the boundary of a character. Multiple bits watermark with respect to a single character is embedded with the help of quadratic quantization function. QR code with high decoding reliability and robust error correction capability can be used as a watermark information to reduce the effect of bit error as well as enhance the robustness of watermark information.

[1] developed a intelligent text watermarking technique to protect Latin-based information from malicious attacks on social media. A secret watermark is inserted in the text and can be removed later to provide evidence of ownership. The technique is based on instance-based learning algorithm and all text words are labelled that can be used to evaluate their integrity against attacks like forgery, tampering and plagiarism.

[100] proposed a tamper detection technique for text images using Markov matrix and entropy. A character of pattern is generated by computing the entropy of every sentence and markov matrix using the occurrences of character. After the terminator, each sentence has its Zero Width Characters (ZWCs) of entropy encoded at the end of it. ZWCs of character patterns are embedded at the end of text of image. The same process is performed on the receiver side for tamper detection.

A watermarking technique for the protection and authentication of digital document images with the help of hashing algorithm is proposed by [101]. A hash value of cover document image is produced by applying the Message Digest 5 (MD5). Hash value and watermark image is translated into ZWCs using lookup table before the embedding process. The same process is applied on the receiver side to detect the tamper detection. Integrity rate is used as a parameter to compare with the existing.

5.2.5. Syntactic tree based physical embedding

The syntactic structures of the document image are represented by syntactic trees and these trees are not very large. These syntactic trees are used for document watermarking.

[17] developed a watermarking technique based on natural language for document images. This technique relies on the text-meaning representations (TMR) of the text sentences that are richer and larger trees that like the syntactic trees. The semantic marking scheme and syntactic are used together to design a system that can detect the tampered text without using any side information.

[84] proposed a Natural language watermarking approach for text documents. Original text image is converted into a syntactic tree where the syntactic hierarchies and functional dependencies are encoded. In order to embed the bits of watermark, sentences in syntax tree format are used.

5.2.6. Edge based physical embedding

The characteristic of text document images can be identified using the histogram of the edge directions. These characteristics are used for the embedding of watermark bits. Edge directions histogram is used to improve the robustness. Edge pixels are used to enhance the data embedding capacity.

A watermarking technique based on edge direction histograms for grayscale text document is proposed by [66]. The histogram of edge directions is used to create empty spaces for embedding. Sobel edge director is used to find the edge strengths and directions for a grayscale document image. After that, it quantizes each edge direction into 16 levels. The image is partitioned into a set of primitive blocks, both mother and child blocks are chosen. The child blocks are used to embed the watermark data. English, Korean and Chinese document images has been used in the experiment to evaluate efficiency of the technique.

A technique based on invisible and high data capacity data hiding by using edge pixels is proposed by [107]. In the embedding process, connected components of edge pixels are used to embed the data. For blind data hiding, the total number of vertical and horizontal lines between two consecutive embeddable diagonal edge lines are taken as a parameter. The external boundary of a character is often used to embed data. Inner boundary is used to enhance the embedding capacity of the technique.

5.2.7. Reversible data hiding based physical embedding

Reversible data hiding technique that is used for data embedding in which a cover image is restored without any loss after extraction of the embedded watermark. This technique is helpful in enhancing the protection of the encrypted cover image.

A reversible data hiding for lossless reconstruction for binary images was suggested by [109]. This approach is based on logical computation that is pair-wise. To construct a new 2 M bit binary sequence, bit 1 is inserted in front of each bit in the secret binary bit stream sequence. The technique provides good embedding capacity as well as a lossless recovery of the watermark but it is not applicable to grey and color images.

5.2.8. Signature based physical embedding

Digital signature also can be used for physical embedding. For the authentication of images, digital signature and watermarking techniques are used. Digital signature is a cryptographic tool that is used to verify the authenticity as well as integrity of a digital images.

[116] developed a semi-fragile watermarking technique to authenticate the text document images. This technique considers the smoothness and connectivity of the block. The block’s content signature is generated and inserted in the block. A pixel’s flippability depends on denoise pattern matching. During embedding process a block size of 7 × 7 is used and a moving window of size 3 × 3 is used for each block. The Look Up table consisting of the denoise pattern index is used. The documents in English and Chinese language are used as a cover image.

A watermarking technique based on document analyzer and signature generator for digital document is proposed by [89]. Document Analyzer and Signature (DAS) generator works on authors information, the actual text and its features. The number of watermark bits that can be embedded in document image are computed by DAS. The main point of the invisible insertion algorithm for watermarking is that the output image is the same as the input image.

Self-embedding watermarking approach is used by [104] to propose a watermarking technique for digital documents. The technique provides detection of seal and signature entities. Recovery information is derived from these entities and embedded throughout the document after encryption. The pixel level is used to authenticate using three integrity check bits is based on location, neighborhood and pixel value.

5.2.9. Entropy based physical embedding

Entropy is a computation of image information content and the corresponding states of intensity level of every pixel. It is used in quantitative analysis and to evaluate details of the image. The value of entropy provides a better comparison of the information of the image.

An entropy-based data embedding technique for digital document images was suggested by [69]. First, smallest fonts that appear most commonly are identified in the document and then unique regions at word level are identified where the embedding process causes minimal perceptual distortion. Variations of the entropy are used to detect the beginning and end of the character, as well as the suitable positions in the word for embedding the data of the watermark.

The technique for embedding data using entropy for binary document images is proposed by [63]. Entropy is used to select blocks of the cover image with minimal perceptual distortion. This technique provides good visual quality, reduces response time as well as computational complexity. This technique is based on Authentication Watermarking by Template raking with symmetrical central pixels (AWTC) with entropy measurements and used for authentication.

5.2.10. Block based physical embedding

Document cover image is partitioned into blocks prior to the embedding process. It becomes easier to work on a block compared to the whole image. The size of the block size is determined as per the watermarking approach.

A data hiding technique on the basis of connectivity for binary images authentication is proposed by [115]. Prior to the embedding process, the flippability of the pixel is determined. Connectivity of the pixels is not destroyed by the flipping pixel. Fixed 3 × 3 block (FB), Non-Interlaced Block (NIB) and Interlaced Block (IB) definitions are used to partition the image into blocks. In each block during the embedding process, only one bit of watermark image is embedded. Various types of images such as cartoon, French, Chinese, English, Japanese and handwritten text are used to determine the efficiency of the technique.

[30] proposed a fragile watermarking technique for document image. Cover document is partitioned into blocks of same size as well as a pseudo random mapping of each block is generated. The watermark is created using the authentication and recovery information and is embedded in the corresponding mapping block. Authentication information is created with the help of LSB value of every pixel in the block. A dual option parity check method has been used to check the authenticity of watermarked image. This technique is used for both recovery and tamper detection.

[110] proposed an authentication technique using the principle of block patterns for binary images. Two embedding block patterns: non-symmetrical block and dual pair block are designed to enhance the visual quality of watermarked images. Two types of matching pair (MP) methods are used to minimise the embedding process effect: internal MP adjustment and external MP adjustment. $PSNR$ , Edge line distortion, and bit rate parameters are used to test the efficiency of this technique. Chinese, English text images, Lena and Baboon images are used in the experiment.

Segmentation based robust watermarking technique for protection of document images was suggested by [29]. The block encoding approach is used to compress the binary watermark logo. Depending on the presence and absence of the information in the original document image, empty and non-empty segments are created. In order to obtain subbands, the two-level integer wavelet transformation is applied to the non-empty segments of the cover document image. To hide the compressed watermark bits in the lower subband blocks, quantization is used. The parameters used to determine the technique’s efficiency are $PSNR$ and $NCC$ .

[91] proposed a fragile watermarking technique for document image by using linear block mapping. This fragile technique is used to detect small changes in watermark bits and also used for authentication process. Chaotic map is used to spread the neighboring pixels of the document image to a mostly dispersed location. $PSNR$ is the parameter used to evaluate the performance of the technique. Tampered image can be recovered with better image visual quality.

5.2.11. Slope based physical embedding

Watermarking based on slope can be used for physical embedding. Characteristics of sloping letter of the language are used. Slopes of the typical sloping letters are used to embed the watermark bits.

A watermark technique for Farsi language based on sloping letters is proposed by [35]. By changing the value of their slopes, watermark bits are embedded in four common slope letters. The key parts of the sloping letters are located below the baseline and the difference between letters is only in the number of points are placed on top of them. Sloping letters are appeared in a distinct and associated form. The slope of the letter can be determined as follows: $\begin{aligned} (4) & Slope (r) = \frac{L_{r}}{W_{r}} \end{aligned}$ where $L_{r}$ and $W_{r}$ are the vertical length and the horizontal width of the letter respectively.

5.2.12. Script format based physical embedding

A document file has a particular format such as Portable Document Format (PDF) or Open Document Format (ODF). These formats are smaller in size compared to other image files and are known to be more secure than other file format types.

A script format document authentication technique is developed by [41]. Watermark bits are embedded into the document file during the embedding process. The tamper detection capability is determined with the help of 200 documents; if more than 0.25% of total characters of the document are changed, then technique is able to detect alteration in the document.

[2] proposed a watermarking technique for E-government document images. DWT is applied on the cover image up-to two levels after that SVD is applied. Non-reversible embedding is applied on the diagonal elements of DWT-SVD decomposed document image. $PSNR$ and imperceptibility are the parameters used to evaluate the performance against attacks like JPEG compression, salt and noise, Gaussian noise.

A watermarking technique by using Discarded Page Object for PDF document was suggested by [125]. The content of PDF document is read with the help of translator in binary form. Advanced Encrypted Standard (AES) is used for encryption and decryption process. Robustness and invisibility are the parameters used to evaluate the performance of the technique.

[31] proposed a watermark technique for PDF document to improve the content accuracy extraction. When a watermark is embedded into the PDF document then watermark can affect the order of content, this technique is overcome the above problem. Direct extraction of text from PDF and Optical Character Recognition are used to improve the extraction of content.

A watermarking technique for PDF based on file page objects is proposed by [62]. Huffman coding is used to compress the PDF document. Suitable page object is utilized to embed the watermark bits. Content as well as format of document is not affected because the watermark is embedded in PDF document page objects. The technique shows good robustness and imperceptibility.

Double watermarking technique for PDF document is proposed by [126]. Data Encryption Standard (DES) is applied on watermark image to generate the hexadecimal watermark information. Read the PDF file information till the end of file and replace the first string of IDs in the end information of PDF file with the hexadecimal watermark sequence. Watermark is extracted without any distortion after text attack and page attack. Technique shows good robustness.

5.2.13. Kashida based physical embedding

Kashida, an Arabic character, used for adjacent letters, may be used for watermarking purposes. There are some rules for using Kashida in a image that it can not be used at the beginning or end of a preposition and a word. These rules can be used to produce a zero watermark. Imperceptibility depends on the average number of kashida per word.

[43] proposed a technique using Kashida in which watermark bits are embedded in Arabic characters. Embedding process does not alter content of the text and may be placed before and after particular letters. The technique randomizes the position of every kashida based on the series of a random value. The random number assigned to each partition is determined using a pseudo random number generator. The ratio of capacity is measured and found to be larger than the current techniques. It does not change writing contents and provides good capacity, security, and robustness.

[8] proposed an improved kashida technique for copyright protection and authentication of Arabic document images. The kashidas are embedded in front of a particular characters. For bit 1, the kashida is set and for bit 0, it is omitted. In order to improve security, some rules are followed in the embedding process of the kashida. The technique is performed on the capacity ratio and it is found that higher imperceptibility results in lower capacity.

A authentication technique based on frequency recurrence properties is proposed by [9] in which kashida is inserted in front of specific characters. For bit 1, the kashida is set and for bit 0, it is omitted. The above approach provides good security, capacity as well as robustness. However, several kashida characters may increase suspicion and may reduce the security and imperceptibility. Watermark bits are not embedded within every letters that can decreases the embedding capacity of the technique. For short texts, the kashida approach is also not applicable. While the technique supports invisibility, also vulnerable against attacks like copy and paste, retyping and Optical Character Recognition (OCR).

5.2.14. Letter occurrence based physical embedding

Letters that appear in a document image may also be used for physical embedding. A document image consists of a number of words, letters and lines. The occurrence of letters is known to be embedding of watermark bits.

A text watermarking technique using a combination of image-plus-text watermarking is proposed by [53]. Watermark bits are inserted in its embedding process through the use of double letters. First, the watermark image is divided into text and image. Alphabetical watermark is created by converting the image to an alphabet. Depending upon the preposition input and the size of the group, partitions and groups are formed. By using watermark and the second largest double letter occurrences from every group, the key generator produces an author key that is stored with the Trusted Authority (TA) and used to authenticate the cover image.

A information hiding technique in vocalized Arabic text is proposed by [20]. Diacritics (vowel signs), which are optional to put, are used for embedding. In the embedding process, when the secret bit is 1 then use diacritics as it is, but if this is 0 then delete diacritics. The number of letters and spaces as well as the number of diacritics of the cover image are considered for embedding.

There is no particular shape for Arabic letters, but their shapes depend on their location in the word. This characteristics is used by [11] to propose two watermarking techniques. These techniques use the pseudo space in Arabic text document. These spaces make the connected letters appear separate. This space is used to embed watermark bits. The very first technique embeds the watermark bits in the text by adding a pseudo space in Arabic text by using dot character. Second technique adds normal space to the pseudo space, which improves the embedding capacity. This approach shows good robustness and imperceptibility against attacks like copy and paste, formatting and tempering, but it is perceptible against attacks like retyping.

[60] proposed an invisible digital watermarking method for Arabic digital document images. In Arabic, diacritics of the letters have a crucial role to play in their sense. Each paired letter with the diacritic and its Unicode standard is changed into UTF-8 form and XOR operation is used to generate the watermark key. This technique is also extended to sensitive text because it does not change the nature and text content.

5.2.15. Hashing based physical embedding

A hash function is used to adjust discretionary size data to fixed-size values and returns hash codes, digests, or hashes. A fixed-size table called a hash table is indexed using these values.

A watermarking technique by using character encoding and attributes for combined text of Chinese and English was suggested by [95]. The MD5 hashing approach is used to encrypt the original watermark prior to its embedding. The technique can be used to embed more than one bit in a single character and to provides error correction mechanism. This technique is used for the purposes of protection.

5.2.16. Character based physical embedding

Microsoft word supports the characteristics that can be used for physical embedding. Unicode extended characters provides a robustness, high imperceptibility and adequate capacity for text watermarking.

Unicode extended characters are used by [3] to propose a watermarking technique for digital documents. Two lookup tables are designed to divide the available characters into two groups. The first group implies that 0s are embedded and the second group implies that 1s are embedded. This technique demonstrates high imperceptibility and robustness for attacks like conversion, copying, addition as well as deletion. The robustness analysis showed that the technique tolerates almost all of the possible attacks and the watermark is retrieved with high precision. Capacity assessment indicates that technique has a excellent payload capacity at around 2 bits per word. The watermark does not survive retyping and font change attacks, and demonstrates only a certain degree of resistance to attack reordering. Technique provides protection to the digital documents.

Text watermarking technique by using homoglyph characters substitution for latin symbols was suggested by [92]. This technique is based on password watermark and used for authentication purposes. It conserves the shape and content without transferring the text to an image. It reveals invisibility, preserves the content’s properties and is also blind in nature. The technique utilizes alternate Unicode symbols to make sure visual indistinguishability as well as length conservation. The symbols selected are converted into same symbols and analyzed as well as encrypted by Unicode. This methodology used a set of data of 1.8 million New York papers to analyse their technique.

[93] proposed a text watermarking technique to protect the Intellectual Property (IP) of text document. Even small portions of digital text content is protected by using fine-grain text watermarking. The technique is based on homoglyph characters substitution for white-spaces and latin symbols. The technique does not alter content of text and watermark is generated with the help of hash function is visually indistinguishable from the original text content. The technique shows good robustness against attacks like partial copy and paste attack.

5.2.17. Data mining based physical watermarking

A watermarking technique based on data mining for the security of copyright and verification of ownership was suggested by [61]. Data mining principles are used to select features from document image to embed watermark bits. The techniques provides copyright protection for local and cloud computing paradigm in text documents. In order to test attacks like formatting, addition, and deletion, 20 separate text documents have been used. The technique is capable of achieving a high degree of imperceptibility where $PSNR$ will be between 64.67% and 71.03%, and SSIM will be between 99.92% and 99.99%. The technique shows good robustness and also resists attacks like formatting. The technique has greater ability as compared to existing techniques.

5.2.18. Convolution neural network based watermarking

[71] proposed a technique for document images by using Convolution Neural Network (CNN). Three views of document images were generated by extracting table frame, text region and shape. These views are merged and resized to a standard image. Three classic methods are used to evaluate the proposed technique.

A watermarking technique for handwritten documents based on Fully Convolution Network (FCN) was suggested by [75]. Mean value of document content is used to replace the gray level with highest values by using a pre-processed. FCN is used to find the watermarking region that is used to hide the watermark bits. Imperceptibility and robustness are parameters used to test the efficiency of technique.

Table 2
Types of attacks and performance evaluation of physical embedding watermarking

Author Types of attack Other evaluation metric

Crop Deletion Reordering Synonym substitution Syntatic transformation

[8] No No No No No Average capacity

[9] No No No No No Average capacity

[2] No No No No No Imperceptibility and PSNR

[3] No Yes Yes No No Imperceptibility and capacity

[11] No Yes Yes No No Capacity

[12] Yes No No No No Imperceptibility and robustness

[13] No No No No No Robustness

[17] No No No No No No

[20] No No No No No Capacity

[23] No No No No No Robustness

[25] No No No No No Robustness

[28] No No No No No Robustness and capacity

[30] No Yes Yes No No PSNR

[29] Yes No No No No PSNR

[33] No No No No No Capacity

[35] No No No No No Capacity

[34] Yes No No No No SSIM and PSNR

[41] No No No No No Cross-correlation

[43] No No No No No Average capacity

[48] No No No No No Fidelity and integrity

[58] Yes No No No No No

[59] Yes Yes Yes No No No

[60] No No No No No Memory consumption and time complexity

[62] No No No No No Robustness and imperceptibility

[63] No No No No No Computational cost

[66] No No No No No Robustness

[69] No No No No No No

[70] No No No No No Robustness

[72] Yes No No No No Robustness

[75] No No No No No Imperceptibility and robustness

[76] No No No No No Imperceptibility, capacity and robustness

[79] No No No No No No

[80] Yes No No No No Robustness

[84] No No No No No Robustness and capacity

[89] No No No No No No

[91] No No No No No PSNR

[92] No No No No No Memory complexity

[93] No Yes No No No Robustness and capacity

[95] No No No No No No

[98] Yes No No No No SSIM and PSNR

Author	Types of attack	Other evaluation metric
[8]	No	No	No	No	No	Average capacity
[9]	No	No	No	No	No	Average capacity
[2]	No	No	No	No	No	Imperceptibility and PSNR
[3]	No	Yes	Yes	No	No	Imperceptibility and capacity
[11]	No	Yes	Yes	No	No	Capacity
[12]	Yes	No	No	No	No	Imperceptibility and robustness
[13]	No	No	No	No	No	Robustness
[17]	No	No	No	No	No	No
[20]	No	No	No	No	No	Capacity
[23]	No	No	No	No	No	Robustness
[25]	No	No	No	No	No	Robustness
[28]	No	No	No	No	No	Robustness and capacity
[30]	No	Yes	Yes	No	No	PSNR
[29]	Yes	No	No	No	No	PSNR
[33]	No	No	No	No	No	Capacity
[35]	No	No	No	No	No	Capacity
[34]	Yes	No	No	No	No	SSIM and PSNR
[41]	No	No	No	No	No	Cross-correlation
[43]	No	No	No	No	No	Average capacity
[48]	No	No	No	No	No	Fidelity and integrity
[58]	Yes	No	No	No	No	No
[59]	Yes	Yes	Yes	No	No	No
[60]	No	No	No	No	No	Memory consumption and time complexity
[62]	No	No	No	No	No	Robustness and imperceptibility
[63]	No	No	No	No	No	Computational cost
[66]	No	No	No	No	No	Robustness
[69]	No	No	No	No	No	No
[70]	No	No	No	No	No	Robustness
[72]	Yes	No	No	No	No	Robustness
[75]	No	No	No	No	No	Imperceptibility and robustness
[76]	No	No	No	No	No	Imperceptibility, capacity and robustness
[79]	No	No	No	No	No	No
[80]	Yes	No	No	No	No	Robustness
[84]	No	No	No	No	No	Robustness and capacity
[89]	No	No	No	No	No	No
[91]	No	No	No	No	No	PSNR
[92]	No	No	No	No	No	Memory complexity
[93]	No	Yes	No	No	No	Robustness and capacity
[95]	No	No	No	No	No	No
[98]	Yes	No	No	No	No	SSIM and PSNR

Table 2

(Continued)

Author	Types of attack					Other evaluation metric

	Crop	Deletion	Reordering	Synonym substitution	Syntatic transformation
[100]	Yes	Yes	No	No	No	Distortion robustness and integrity rate
[101]	Yes	Yes	No	No	No	Distortion robustness, compression effect and integrity rate
[107]	No	No	No	No	No	Capacity
[109]	No	No	No	No	No	Capacity
[112]	No	No	No	No	No	PSNR and capacity
[117]	No	No	No	No	No	Capacity
[116]	No	No	No	No	No	No
[115]	No	No	No	No	No	Capacity
[124]	Yes	No	No	No	No	PSNR
[126]	No	No	No	No	No	Robustness
[129]	No	No	No	No	No	Robustness and capacity
[131]	No	No	No	No	No	Robustness

Table 2 describe the attacks and metrics used by the authors to evaluate performance of the physical embedding approach.

6. Applications of document image watermarking

6.1. Authentication

This application is used to detect the changes to the watermarked image. Digital signature is an example used for the authentication of document image. Authentication may be based on content and the complete authentication of the document image.

6.2. Access control

Different users have different access to the document image. This application helps avoid unauthorized copying of the document image.

6.3. Media forensics

This application is very useful in gathering evidence for illegal activity. This watermarking enforces agreements between the content owner and the individual with whom it shares its contents.

6.4. Protection

Document image watermarking is very useful for protecting the copyright and ownership of the document image. Contents of digital image are embedded to identify the copyright owners. Digital content may also be embedded to avoid unauthorized duplication of the content.

6.5. Localization

Localization application of the document image watermarking can be used to identify the precise location where document image has been tampered with.

6.6. Tampered recovery

Tampered recovery application is used to restore the tampered position after tampering has been detected.

7. Evaluation parameters

Different technique used different types of parameters to evaluate its efficiency. Table 3 described the various criteria are used by existing document watermarking techniques to evaluate the performance.

Table 3
Types of Parameters

S. No. Parameters Techniques

1 PSNR [2,3,29,30,34,50,58,66,79,98,109,110,124]

2 Capacity [2,11,20,35,93,95,110,115,117,118]

3 Robustness [11,40,62,72,76,93]

4 Correlation [2,29,30,98,131]

5 Imperceptibility [8,11,41,61,75,99,100,117]

6 Distance reciprocal distortion measure [79,109]

7 BER [101,110,111,131]

8 Normalized absolute error [50]

9 Watermark accuracy rate [57,59]

10 Watermark distortion rate [56]

11 SSIM [3,34,50,99]

12 Pattern matching rate [56]

13 Normalized hamming distance [50]

14 Normalized absolute error [50]

15 Character count [90]

16 Execution time [29]

17 Word occurrence ratio [19]

18 Word selection ratio [19]

S. No.	Parameters	Techniques
1	PSNR	[2,3,29,30,34,50,58,66,79,98,109,110,124]
2	Capacity	[2,11,20,35,93,95,110,115,117,118]
3	Robustness	[11,40,62,72,76,93]
4	Correlation	[2,29,30,98,131]
5	Imperceptibility	[8,11,41,61,75,99,100,117]
6	Distance reciprocal distortion measure	[79,109]
7	BER	[101,110,111,131]
8	Normalized absolute error	[50]
9	Watermark accuracy rate	[57,59]
10	Watermark distortion rate	[56]
11	SSIM	[3,34,50,99]
12	Pattern matching rate	[56]
13	Normalized hamming distance	[50]
14	Normalized absolute error	[50]
15	Character count	[90]
16	Execution time	[29]
17	Word occurrence ratio	[19]
18	Word selection ratio	[19]

PSNR: Peak Signal-to-Noise Ratio is often used to compare the quality of cover image with watermarked image. $PSNR$ value determines the visual quality of watermarked image. $\begin{aligned} (5) & PSNR = 10 \times {log}_{10} \frac{{(2^{b} - 1)}^{2}}{MSE} \end{aligned}$ where b is the bit depth of image.

MSE: Mean Square Error indicates the cumulative square error between original image and watermarked image. $\begin{aligned} (6) & MSE = \sum_{i = 1}^{M} \sum_{j = 1}^{N} \frac{δ {(i, j)}^{2}}{M \times N} \end{aligned}$ where $δ (i, j)$ is defined as $\begin{aligned} (7) & δ (i, j) = S (i, j) - C (i, j) \end{aligned}$ where $S (i, j)$ is the pixel of watermarked image and $C (i, j)$ is the pixel of cover image, M and N are the height and width of image respectively.

BER: Bit Error Rate is determined by the sum of the correct bits obtained divided by the total number of bits transmitted. $\begin{aligned} (8) & BER = \frac{Number of correct bits received}{Total number of bits transferred} \end{aligned}$

Computational Time: Computational Time is the cumulative time taken to complete the process. $\begin{aligned} (9) & Computational Time = cputime \end{aligned}$ where $cputime$ is total CPU time taken by MATLAB or any other tool to compete a process.

SSIM: Structural Similarity Index Measure is a metric used to quantify the deterioration of image quality induced by embedding in the image. The Similarity Index Measurement (SIM) and Correlation coefficient can be used for robustness to gauge the degree to which an attack can withstand the proposed approach. $SIM$ between the cover watermark and the extracted watermark is also evaluated, as defined by $\begin{aligned} (10) & SIM = \frac{\sum_{m} \sum_{n} W (m, n) \times W {(m, n)}^{'}}{\sum_{m} \sum_{n} {[W (m, n)]}^{2}} \end{aligned}$

NCC: Normalized Cross Correlation between the original watermark and the extracted watermark is often used as a quality parameter. It is given by $\begin{aligned} (11) & Correlation = \frac{\sum_{m} \sum_{n} (Se (m, n) - \bar{Se}) \times ({Se}^{'} (m, n) - \bar{{Se}^{'}})}{\sqrt{\sum_{m} \sum_{n} {(Se (m, n) - \bar{Se})}^{2} \times \sum_{m} \sum_{n} {({Se}^{'} (m, n) - \bar{{Se}^{'}})}^{2}}} \end{aligned}$ where $Se (m, n)$ is the original watermark data and ${Se}^{'} (m, n)$ is the extracted watermark data. $\bar{Se}$ is the mean of original watermark and ${\bar{Se}}^{'}$ is the mean of extracted watermark.

NAE: Normalized Absolute Error is used to determine the amount of error in an image. Low $NAE$ value means good quality of the image and high $NAE$ value means low quality of the image. $\begin{aligned} (12) & NAE = \frac{\sum_{i = 1}^{M} \sum_{j = 1}^{N} | Ł (i, j) - M (i, j) |}{\sum_{i = 1}^{M} \sum_{j = 1}^{N} | Ł (i, j) |} \end{aligned}$

NHD: To measure the degree of closeness between the original watermark and extracted watermark, the Normalized Hamming Distance is used. $\begin{aligned} (13) & NHD (w, w^{'}) = \frac{1}{N_{w}} \sum_{i = 1}^{N_{w}} w (i) \oplus w^{'} (i) \end{aligned}$ where $w (i)$ and $w^{'} (i)$ denotes the original and extracted watermarks respectively.

WPSNR: Weighted Peak Signal-to-Noise Ratio is the modified $PSNR$ version. $WPSNR$ depends on the calculation of a Noise Visibility Function (NVF) that often depends on a texture masking function. $\begin{aligned} (14) & WPSNR = 10 \times {log}_{10} \frac{255 \times 255}{NVF \times MSE} \end{aligned}$ where $MSE$ is the Mean Square Error as determined in equation (6).

Imperceptibility: Imperceptibility is the watermark’s ability to stay unnoticed with naked eye. This is accomplished by a high level of resemblance among the original image and watermarked image. Imperceptibility is inversely proportional to capacity i.e. higher the imperceptibility decreases the embedding capacity. $\begin{aligned} (15) & Imperceptibility = \frac{No . of extendable characters}{Watermark Length} \end{aligned}$

Embedding Capacity: Capacity is given by maximum value of watermark bits or information embedded in the original image for a particular period of time. $\begin{aligned} (16) & Capacity = \frac{Total number of watermark bits embedded}{H \times W} \end{aligned}$ where $H \times W$ denotes the cover image size.

8. Challenges and future research directions

Since the document image watermarking approach has been thoroughly studied, further research on document image watermarking is required to resolve various current issues. In document image watermarking, some important issues are not resolved. Present document image watermarking techniques are not in a position to solve these problems. The following subsections discuss some of the key research concerns and direction for future research work.

8.1. Standard data set

Data set is one of the fundamental requirements for monitoring the effectiveness of any watermarking technique. The existing document watermarking techniques do not use the general data set. Authors use different data sets to develop their technique. The key problem is that we do not have a standard data set as a common data set is often useful in comparing outcomes with the existing techniques.

8.2. Language independent technique

There is no general technique developed for watermarking of document images. A technique that can be applied independently of the language of the document image is the need of the hour. A variety of techniques are developed for document image watermarking but each technique works for a specific language, such as some techniques for Arabic and some techniques for Chinese. A technique that can be applied to all languages needs to be developed.

8.3. Hybrid technique

A hybrid technique for document image watermarking should be developed. A technique can be extended to all document types and facilitates both logical and physical embedding. The technique should be independent of the language of the document image.

8.4. JPEG2000 attack

The JPEG2000 compression attack should be considered during the attack process. No technique has been developed to withstand the JPEG2000 attack in document watermarking. The existing techniques can only tolerate attacks such as insertion, deletion, reordering, transformation and cropping etc.

8.5. Tolerable technique

A general document image watermarking technique should be developed that can withstand all types of image processing attacks. Current techniques can not withstand all sort of such attacks. It is also necessary to ensure a proper level of robustness of watermarked images against such attacks.

8.6. Transformation of document

There are possibilities to lose an embedded watermark during the transformation of a text into a different format i.e. from pdf to word and vice versa. A document image watermarking technique should be developed to make sure that watermark stays protected and secure in any format during transformation.

8.7. Lack of flexibility

The key problem with the existing document images watermarking techniques is the lack of automation and flexibility. The current text watermarking approaches are computationally inefficient and can only be deployed to a certain field under such predetermined assertions.

8.8. Lack of deep learning based techniques

Recently, Deep learning and neural networks have achieved noticeable advancement, especially in the area of image processing, segmentation, classification and natural image security. There is no watermarking technique based on deep learning which can be used for the security of document image.

9. Conclusion

This paper explores the techniques relevant to watermarking of document images. Watermarking of the document image is increasingly popular and a number of novel and innovative techniques have been proposed. This area of watermarking faces a number of challenges, especially in terms of enhancing the development and accuracy of text detection. This article addressed the most common challenges and hurdles to document image watermarking. A brief description of the existing techniques in this field is given, the potential drawbacks are evaluated, and the findings are analyzed. The key tasks have been listed for potential study in the field of document watermarking.

10. Declarations

10.1. Ethical approval:

This declaration is “not applicable”.

10.2. Funding:

No funding was received.

10.3. Availability of data and materials:

Data sharing not applicable to this article as data availability statement in my main manuscript.

References

M.T.

Ahvanooey,

Li,

Zhu,

Alazab and

Zhang, ANiTW: A novel intelligent text watermarking technique for forensic identification of spurious information on social media, Computers & Security 90 (2020), 1–14.

Al-Haj and

Barouqa, Copyright protection of E-government document images using digital watermarking, in: International Conference on Information Management, IEEE, 2017, pp. 441–446.

N.A.S.

Al-Maweri,

W.A.W.

Adnan,

A.R.

Ramli,

Samsudin and

S.M.S.A.A.

Rahman, Robust digital text watermarking algorithm based on unicode extended character, Indian Journal of Science and Technology 9(48) (2016), 1–14.

N.A.S.

Al-Maweri,

Ali,

W.A.W.

Adnan,

A.R.B.

Ramli and

S.M.S.A.A.

Ahmad, State-of-the-art in techniques of text digital watermarking: Challenges and limitations, Journal of Computer Sciences 12(2) (2016), 62–80. doi:10.3844/jcssp.2016.62.80.

Al-Wesabi,

Mahmood and

Nemri, A zero watermarking approach for content authentication and tampering detection of Arabic text based on fourth level order and word mechanism of Markov model, Journal of Information Security and Applications 52 (2020), 1–15. doi:10.1016/j.jisa.2020.102473.

F.N.

Al-Wesabi,

A.Z.

Alshakaf and

K.U.

Vasantrao, A zero text watermarking algorithm based on the probabilistic weights for content authentication of text documents, in: Proceedings of MPGI National Multi Conference, 2012, pp. 26–31.

A.M.

Alattar and

O.M.

Alattar, Watermarking electronic text documents containing justified paragraphs and irregular line spacing, in: Proceeding of the International Society for Optical Engineering, Vol. 5306, 2004, pp. 685–695.

Y.M.

Alginahi,

M.N.

Kabir and

Tayan, An enhanced Kashida-based watermarking approach for Arabic text-documents, in: Proceedings of Electronics, Computers and Computation, 2013, pp. 301–304.

Y.M.

Alginahi,

M.N.

Kabir and

Tayan, An enhanced Kashida-based watermarking approach for increased protection in Arabic text-documents based on frequency recurrence of characters, International Journal of Computer and Electrical Engineering 6(5) (2014), 381–392. doi:10.17706/IJCEE.2014.V6.857.

10.

R.A.

Alotaibi and

L.A.

Elrefaei, Utilizing word space with pointed and un-pointed letters for Arabic text watermarking, in: Proceeding of Conference on Computer Modeling and Simulation, 2016, pp. 111–116.

11.

R.A.

Alotaibi and

L.A.

Elrefaei, Improved capacity Arabic text watermarking methods based on open word space, Journal of King Saud University – Computer and Information Sciences (2017), 236–248.

12.

R.A.

Alotaibi and

L.A.

Elrefaei, Text image watermarking based on integer wavelet transform and discrete cosine transform, Applied Computing and Informatics 15 (2018), 191–201. doi:10.1016/j.aci.2018.06.003.

13.

Amano and

Misaki, A feature calibration method for watermarking of document images, in: Proceedings of International Conference on Document Analysis and Recognition, 1999, pp. 1–9.

14.

Amrit and

A.K.

Singh, Survey on watermarking methods in the artificial intelligence domain and beyond, Computer Communications 188 (2022), 52–65. doi:10.1016/j.comcom.2022.02.023.

15.

M.J.

Atallah,

Hempelmann,

Kerschbaum,

Mohamed and

Naik, Natural language watermarking: Design, analysis, and a proof-of-concept implementation, in: Proceedings of International Workshop on Information Hiding, 2001, pp. 185–200. doi:10.1007/3-540-45496-9_14.

16.

M.J.

Atallah,

C.J.

McDonough,

Raskin and

Nirenburg, Natural language processing for information assurance and security: An overview and implementations, in: Proceedings of Workshop New Security Paradigms, 2000, pp. 51–65.

17.

M.J.

Atallah,

Raskin,

C.F.

Hempelmann,

Karahan,

Sion,

Topkara and

K.E.

Triezenberg, Natural language watermarking and tamper proofing, in: Proceedings of International Workshop on Information Hiding, 2003, pp. 196–212. doi:10.1007/3-540-36415-3_13.

18.

F.M.

Ba-Alwi,

M.M.

Ghilan and

F.N.

Al-Wesabi, Content authentication of English text via Internet using zero watermarking technique and Markov model, International Journal of Applied Information Systems 7(1) (2014), 25–36. doi:10.5120/ijais14-451128.

19.

Bashardoost,

M.S.M.

Rahim,

Saba and

Rehman, Replacement attack: A new zero text watermarking attack, in: 3D Res, Vol. 8, Springer, 2017, pp. 8–17.

20.

M.L.

Bensaad and

M.B.

Yagoubi, High capacity diacritics-based method for information hiding in Arabic text, in: Proceedings of International Conference on Innovations in Information Technology, 2011, pp. 433–436.

21.

A.K.

Bhattacharjya and

Ancin, Data embedding in text for copier system, IEEE (1999), 245–249.

22.

J.T.

Brassil,

Low and

N.F.

Maxemchuk, Copyright protection for the electronic distribution of text documents, Proceedings of IEEE 87(7) (1999), 1181–1196.

23.

J.T.

Brassil,

Low,

N.F.

Maxemchuk and

O’Gorman, Marking text features of document images to deter illicit dissemination, IEEE (1994), 315–319.

24.

J.T.

Brassil,

Low,

N.F.

Maxemchuk and

O’Gorman, Hiding information in document images, in: Proceedings of Conference Information Science System, Vol. 95, 1995, pp. 482–489.

25.

J.T.

Brassil,

Low,

N.F.

Maxemchuk and

O’Gorman, Electronic marking and identification techniques to discourage document copying, IEEE Journal on Selected Areas in Communication 13(8) (1995), 1495–1504. doi:10.1109/49.464718.

26.

Cayre,

Fontaine and

Furon, Watermarking security: Theory and practice, IEEE Transactions on Signal Processing 53(10) (2005), 3976–3987. doi:10.1109/TSP.2005.855418.

27.

Chen,

Yang,

Ma and

Lu, Text watermarking algorithm based on semantic role labeling, IEEE (2016), 117–120.

28.

Chen,

E.K.

Wong,

Memon and

Adams, Recent developments in document image watermarking and data hiding, in: Proceedings of SPIE – the International Society for Optical Engineering, 2001, pp. 166–176.

29.

K.R.

Chetan and

Nirmala, An efficient and secure robust watermarking scheme for document images using integer wavelets and block coding of binary watermarks, Journal of Information and Security Applications (2015), 13–24. doi:10.1016/j.jisa.2015.07.002.

30.

K.R.

Chetan and

Shivananda, A new fragile watermark approach for tamper detection and recovery of document images, in: Proceedings of International Conference on Advances in Computing, Communications and Informatics, 2014, pp. 1494–1498.

31.

W.C.

Chia,

P.L.

Teh and

C.M.H.

Gill, Text extraction and categorization from watermark scientific document in bulk, in: International Conference on Computational Intelligence and Applications, IEEE, 2018, pp. 47–51.

32.

Chiang,

Hsia,

Tu,

H.T.H.

Giang and

Lin, Adaptive image enhancement method for document, in: International Symposium on Intelligent Signal Processing and Communication Systems, 2017, pp. 417–420.

33.

Chotikakamthorn, Document image data hiding technique using character spacing width sequence coding, in: Proceedings of International Conference on Image Processing, 1999, pp. 250–254.

34.

Q.B.

Dang,

Kessi,

Coustaty,

M.M.

Luqman and

Ogier, A blind document image watermarking approach based on discrete wavelet transform and QR code embedding, in: International Conference on Document Analysis and Recognition Workshops, IEEE, 2019, pp. 1–6.

35.

Davarzani and

Yaghmaie, Farsi text watermarking based on character coding, in: Proceedings of International Conference on Signal Processing Systems, 2009, pp. 152–156.

36.

Z.B.

Faheem,

Hanif,

Arslan,

Ali,

Hussain,

Ali and

Baz, An edge inspired image watermarking approach using compass edge detector and LSB in cybersecurity, Computers and Electrical Engineering 111 (2023), 108979. doi:10.1016/j.compeleceng.2023.108979.

37.

Fei and

Tang, A Chinese text watermark algorithm based on POLYPHONE, in: Proceeding of Cross Strait Quad-Regional Radio Science Wireless Technology Conference, 2011, pp. 1215–1218.

38.

Feng and

Huang, An improved DCT based zero-watermarking algorithm for text image, in: Proceedings of International Conference on Anti-Counterfeiting, Security and Identification, 2012, pp. 1–4.

39.

Garg,

S.S.

Kasana and

Kasana, Block-based reversible data hiding using histogram shifting and modulus operator for digital images, Journal of Circuits, Systems, and Computers 26(6) (2017), 17501031–1750103-17. doi:10.1142/S0218126617501031.

40.

M.M.

Ghilan,

F.M.

Ba-Alwi and

F.N.

Al-Wesabi, Combined Markov model and zero watermarking techniques to enhance content authentication of English text documents, International Journal of Computational Linguistics Research 5 (2014), 26–42.

41.

Gonzalez-Lee, Nakano-Miyatake ,

Perez-Meana and

Sanchez-Perez, Script format document authentication scheme based on watermarking techniques, Journal of Applied Research and Technology 13 (2015), 435–442. doi:10.1016/j.jart.2015.07.010.

42.

M.L.P.

Gort,

Olliaro,

Cortesi and

C.F.

Uribe, Semantic-driven watermarking of relational textual databases, Expert Systems with Applications (2020), 1–22.

43.

A.A.A.

Gutub,

Al-Haidari,

K.M.

Al-Kahsah and

Hamodi, E-text watermarking: Utilizing ‘Kashida’ extensions in Arabic language electronic writing, Journal of Emerging Technologies in Web Intelligence 2(1) (2010), 48–55.

44.

Hakak,

Kamsin,

Tayan,

M.Y.I.

Idris and

G.A.

Gilkar, Approaches for preserving content integrity of sensitive online Arabic content: A survey and research challenges, Information Processing and Management 56 (2017), 367–380. doi:10.1016/j.ipm.2017.08.004.

45.

He,

Zhang,

Ma,

Fang and

Gui, A part-of-speeach tag sequence text zero-watermarking, in: Proceedings of the Second Symposium International Computer Science and Computational Technology, 2009, pp. 187–190.

46.

Huang and

Yan, Interword distance changes represented by sine waves for watermarking text images, IEEE Transactions on Circuits and Systems for Video Technology 11(12) (2001), 1237–1245. doi:10.1109/76.974678.

47.

Huang,

Tian,

Yu,

Yu and

Yin, A high capacity watermarking technique for the printed document, Electronics (2019), 1–13.

48.

Huang,

Wu and

Tsai, A novel block-based authentication technique for binary images by block pixel rearrangements, in: Proceedings of IEEE International Conference on Multimedia and Expo, 2004, pp. 903–906.

49.

Jalil,

Aziz,

S.B.

Shahid,

Arif and

A.M.

Mirza, A zero text watermarking algorithm based on non-vowel ASCII characters, in: Proceedings of IEEE International Conference on Educational and Information Technology, 2010, pp. V2503–V2-507.

50.

Jalil,

M.A.

Jaffar and

A.M.

Mirza, A novel text watermarking algorithm using image watermark, International Journal of Innovative Computing, Information and Control 7(3) (2011), 1255–1271.

51.

Jalil and

A.M.

Mirza, A review of digital watermarking techniques for text documents, in: Proceedings of International Conference on Information and Multimedia Technology, 2009, pp. 230–234.

52.

Jalil and

A.M.

Mirza, An invisible text watermarking algorithm using image watermark, in: Innovations in Computing Sciences and Software Engineering, Springer, 2010, pp. 147–152. doi:10.1007/978-90-481-9112-3_25.

53.

Jalil and

A.M.

Mirza, Text watermarking using combined image-plus-text watermark, in: Proceedings of International Workshop on Education Technology and Computer Science, 2010, pp. 11–14.

54.

Jalil and

A.M.

Mirza, A robust zero-watermarking algorithm for copyright protection of text documents, Journal of the Chinese Institute of Engineers 36(2) (2013), 180–189. doi:10.1080/02533839.2012.734470.

55.

Jalil,

A.M.

Mirza and

Iqbal, A zero-watermarking algorithm for text documents based on structural components, in: Proceedings of International Conference Information and Emerging Technologies, 2010, pp. 1–5.

56.

Jalil,

A.M.

Mirza and

Jabeen, Word length based zero-watermarking algorithm for tamper detection in text documents, IEEE 6 (2010), V6-378–V6-382.

57.

Jalil,

A.M.

Mirza and

Sabir, Content based zero-watermarking algorithm for authentication of text documents, International Journal of Computer Science and Information Security 7(2) (2010), 212–217.

58.

Jane,

Elbai and

H.G.

Ilk, Hybrid non-blind watermarking based on DWT and SVD, Journal of Applied Research and Technology 12(4) (2014), 750–761. doi:10.1016/S1665-6423(14)70091-4.

59.

K.U.

Jaseena and

John, Text watermarking using combined image and text for authentication and protection, International Journal of Computer Applications 20(4) (2011), 8–13. doi:10.5120/2424-3255.

60.

N.S.

Kamaruddin,

Kamsin and

Hakak, Associated diacritical watermarking approach to protect sensitive Arabic digital texts, in: Proceeding of International Conference on Applied Science and Technology, Vol. 2014, 2017, pp. 0200741–020074-5.

61.

Khadam,

M.M.

Iqbal,

M.A.

Azam,

Khalid,

Rho and

Chilamkurti, Digital watermarking technique for text document protection using data mining analysis, IEEE Access 7 (2019), 64955–64965. doi:10.1109/ACCESS.2019.2916674.

62.

Khadam,

M.M.

Iqbal,

M.A.

Habib and

Han, A watermarking technique based on file page objects for PDF, in: Proceeding of Pacific Rim Conference on Communications, Computers and Signal Processing, IEEE, 2019, pp. 1–5.

63.

Khan,

Khanam,

Bashir,

M.S.H.

Khiyal,

Iqbal and

F.H.

Khan, Entropy based data hiding in binary document images, International Journal of Computer and Electrical Engineering 3(4) (2011), 503–506. doi:10.7763/IJCEE.2011.V3.369.

64.

Kim and

Goebel, Adaptive-capacity and robust natural language watermarking for agglutinative languages, Security and Communication Network 5 (2012), 301–310. doi:10.1002/sec.336.

65.

M.Y.

Kim, Text watermarking by syntactic analysis, in: Proceedings of WSEAS International Conference on Computers, 2008, pp. 904–909.

66.

Y.W.

Kim and

I.S.

Oh, Watermark text document images using edge directions histograms, Pattern Recognition Letters 25(11) (2004), 1243–1251. doi:10.1016/j.patrec.2004.04.002.

67.

Kukreja,

Kasana and

S.S.

Kasana, Curvelet transform based robust copyright protection scheme for color images using extended visual cryptography, Multimedia Tools and Applications 79(35–36) (2020), 26155–26179. doi:10.1007/s11042-020-09130-y.

68.

Kumar and

A.K.

Singh, Copyright protection of medical images: A view of the state-of-the-art research and current developments, Multimedia Tools and Applications 82 (2023), 44591–44621. doi:10.1007/s11042-023-15315-y.

69.

Kurup,

Sridhar and

Sridhar, Entropy based data hiding for document images, International Journal of Computer and Information Engineering 1(11) (2007), 3582–3585.

70.

Laouamer and

Tayan, A semi-blind robust DCT watermarking approach for sensitive text images, Arabian Journal for Science and Engineering (2015), 1097–1109. doi:10.1007/s13369-015-1596-y.

71.

Li,

Mei and

Zhang, A method for document image enhancement to improve template-based classification, in: Proceedings of International Conference on Big Data and Artificial Intelligence, 2020, pp. 87–91.

72.

Li and

Wu, Robust watermarking for text images based on Arnold scrambling and DWT-DFT, in: Proceedings of International Conference on Mechatronic Sciences, Electric Engineering and Computer, 2013, pp. 1182–1186.

73.

Q.C.

Li and

Z.H.

Dong, Novel text watermarking algorithm based on Chinese characters structure, International Symposium on Computer Science and Computational Technology (2008), 348–351.

74.

Liu,

Zhu and

Xin, A zero-watermarking algorithm based on merging features of sentences for Chinese text, Journal of Chinese Institute of Engineers 38(3) (2015), 391–398. doi:10.1080/02533839.2014.981210.

75.

C.H.

Loc,

Burie and

Ogier, Watermarking for security issue of handwritten documents with fully convolutional networks, in: Proceedings of International Conference on Frontiers in Handwriting Recognition, IEEE, 2018, pp. 303–308.

76.

C.H.

Loc,

Burie and

Ogier, Stable regions and object fill-based approach for document images watermarking, in: Proceedings of IAPR International Workshop on Document Analysis Systems, IEEE, 2018, pp. 181–186.

77.

Lou and

Lu, Construction information authentication and integrity using blockchain-oriented watermarking techniques, Automation in Construction 143 (2022), 104570. doi:10.1016/j.autcon.2022.104570.

78.

Lou and

Liu, Watermarking text document based on structure and semantic of Chinese characters, in: Proceedings of International Conference on System of Systems Engineering, 2012, pp. 866–869.

79.

Lu,

A.C.

Kot and

Cheng, Secure data hiding in binary document images for authentication, IEEE (2003), 806–809.

80.

Lu,

Shi,

Y.Q.

Shi,

A.C.

Kot and

Chen, Watermark embedding in DC components of DCT for binary image, IEEE 13(8) (2002), 300–304.

81.

L.R.

Matheson,

S.G.

Mitchell,

T.G.

Shamoon,

R.E.

Tarjan and

Zane, Robustness and security of digital watermarks, in: Proceedings of International Conference on Financial Cryptography, 1998, pp. 227–240. doi:10.1007/BFb0055486.

82.

N.F.

Maxemchuk and

Low, Marking text documents, in: Proceedings of International Conference on Image Processing, Vol. 3, 1997.

83.

H.M.

Meral,

Sankur,

A.S.

Ozsoy,

Gongor and

Sevinc, Natural language watermarking via morphosyntactic alterations, Computer Speech and Language. 23(2009) (2008), 107–125.

84.

H.M.

Meral,

Sevinc,

Unkar,

Sankur,

Ozsoy and

Gungor, Syntactic tools for text watermarking, in: Proceedings of SPIE – the International Society for Optical Engineering, 2007, p. 65050X.

85.

Miniwatts Marketing Group, Top ten internet languages – world internet statistics, 2017, http://www.internetworldstats.com/stats7.htm.

86.

Mir, Zero watermarking for text on www using semantic approach, in: Proceedings of International Conference on Software Engineering and Computer System, 2011, pp. 306–316.

87.

A.S.

Panah,

R.V.

Schyndel,

Sellis and

Bertino, On the properties of non-media digital watermarking: A review of state of the art techniques, IEEE Access 4 (2016), 2670–2704. doi:10.1109/ACCESS.2016.2570812.

88.

F.A.P.

Petitcolas,

R.J.

Anderson and

M.J.

Kuhn, Information hiding – a survey, in: Proceedings of IEEE, Vol. 87, 1999, pp. 1062–1078.

89.

M.A.

Qadir and

Ahmad, Digital text watermarking: Secure content delivery and data hiding in digital document, IEEE Aerospace and Electronic Systems Magazine (2006), 18–21. doi:10.1109/MAES.2006.284353.

90.

Qi and

Liu, Cloud model based zero-watermarking algorithm for authentication of text document, in: Proceedings of International Conference on Computational Intelligence and Security, 2013, pp. 712–715.

91.

Rakhmawati,

I.E.

Wiryanto and

Rochmawati, Fragile watermarking technique using a linear block mapping for document image authentication with recovery capability, in: Proceedings of International Seminar on Research of Information and Intelligent Systems, 2018, pp. 518–521.

92.

S.G.

Rizzo,

Bertini and

Montesi, Content-preserving text watermarking through unicode homoglyph substitution, in: Proceedings of International Database Engineering and Applications Symposium, 2016, pp. 97–104. doi:10.1145/2938503.2938510.

93.

S.G.

Rizzo,

Bertini and

Montesi, Fine-grain watermarking for intellectual property protection, EURASIP Journal on Information Security (2019), 1–20.

94.

S.S.

Roy,

Basu and

Chattopadhyay, On the implementation of a copyright protection scheme using digital image processing, Multimedia Tools and Applications (2020), 13125–13138.

95.

Rui,

XiaoJun and

Jinqiao, A multiple watermarking algorithm for texts mixed Chinese and English, Procedia Computer Science 17 (2013), 844–851. doi:10.1016/j.procs.2013.05.108.

96.

Saba,

Bashardoost,

Kolivand,

Shafry,

Rahim,

Rehman and

M.A.

Khan, Enhancing fragility of zero-based text watermarking utilizing effective characters list, Multimedia Tools and Applications 79 (2020), 341–354. doi:10.1007/s11042-019-08084-0.

97.

Sharma and

Coumou, Watermark synchronization: Perspectives and a new paradigm, IEEE (2006), 1182–1187.

98.

A.K.

Singh,

Thakur,

Jolfaei,

Srivastava,

Elhoseny and

Mohan, Joint encryption and compression-based watermarking technique for security of digital documents, ACM Transactions on Internet Technology (2021), 18:1–18:20.

99.

Singh and

M.K.

Sharma, Tamper detection technique for document images using zero watermarking in wavelet domain, Compuers and Electrical Engineering 89 (2021), 106925. (1-11).

100.

Singh and

M.K.

Sharma, Markov matrix and entropy based tamper detection technique for text images, Journal of Engineering Research 11 (2021), 79–93.

101.

Singh and

M.K.

Sharma, Efficient watermarking technique for protection and authentication of document images, Multimedia Tools and Applications 81(16) (2022), 22985–23005. doi:10.1007/s11042-022-12174-x.

102.

H.K.

Singh,

Baranwal,

K.N.

Singh,

A.K.

Singh and

Zhou, GAN-based watermarking for encrypted images in healthcare scenarios, Neurocomputing 560 (2023), 126853. doi:10.1016/j.neucom.2023.126853.

103.

O.P.

Singh,

K.N.

Singh,

Baranwal,

A.K.

Agrawal,

A.K.

Singh and

Zhou, HIDEmarks: Hiding multiple marks for robust medical data sharing using IWT-LSB, Multimedia Tools and Applications, 2023, 1–19.

104.

Singh,

Raman and

P.P.

Roy, Detection of seal and signature entities with the hierarchical recovery based on watermark self embedding in tampered digital documents, Displays 54 (2018), 47–59. doi:10.1016/j.displa.2018.09.004.

105.

Tayan,

Y.M.

Alginahi and

M.N.

Kabir, An adaptive zero watermarking approach for text documents protection, in: Proceedings of International Conference on Advances in Computer and Information Technology, 2013, pp. 205–208.

106.

Thonnard,

Bilge,

Kashyap and

Lee, Are you at risk? Profiling organizations and individuals subject to targeted attacks, in: Proceedings of International Conference on Financial Cryptograph, Data Security, 2015, pp. 13–31. doi:10.1007/978-3-662-47854-7_2.

107.

Tirandaz,

Davarzani,

Monemizadeh and

Haddadnia, Invisible and high capacity data hiding in binary text images based on use of edge pixels, in: Proceedings of IEEE International Conference on Signal Processing Systems, 2009, pp. 130–134.

108.

Topkara,

C.M.

Taskiran and

E.J.

Delp, Natural language watermarking, in: Proceedings of SPIE – the International Society for Optical Engineering, Vol. 5681, 2005, pp. 441–452.

109.

Tsai,

Chiang,

Fan and

Chung, Reversible data hiding and lossless reconstruction of binary images using pair-wise logical computation mechanism, Pattern Recognition 38 (2005), 1993–2006. doi:10.1016/j.patcog.2005.03.001.

110.

Wang,

Chang,

Jan and

Lin, A high capacity data hiding scheme for binary images based on block patterns, The Journal of Systems and Software 93(2014) (2014), 152–162. doi:10.1016/j.jss.2014.02.023.

111.

Wang,

Sun,

Liu and

Liu, Natural language watermarking using Chinese syntactic transformations, Information Technology Journal 7(6) (2008), 904–910. doi:10.3923/itj.2008.904.910.

112.

Wen,

Sun and

Wang, Concept and application of zero-watermark, Acta Electronica Sinica 31 (2003), 214–216.

113.

Wu and

Liu, Data hiding in binary image for authentication and annotation, IEEE Transactions on Multimedia 6(4) (2004), 528–538. doi:10.1109/TMM.2004.830814.

114.

Xu,

Li,

Cui,

Huang,

Wei and

Zhou, LayoutLM: Pre-training of text and layout for document image understanding, in: Proceedings of ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, 2020, pp. 1192–1200. doi:10.1145/3394486.3403172.

115.

Yang and

A.C.

Kot, Pattern-based data hiding for binary image authentication by connectivity-preserving, IEEE Transactions on Multimedia 9(3) (2007), 475–486. doi:10.1109/TMM.2006.887990.

116.

Yang,

A.C.

Kot and

Liu, Semi-fragile watermarking for text document images authentication, IEEE (2005), 4002–4005.

117.

Yang and

A.C.

Kot, Text document authentication by integrating inter character and word space watermarking, in: Proceedings of IEEE International Conference on Multimedia and Expo, 2004, pp. 955–958.

118.

Yazdani,

M.A.

Doostari and

Yazdani, A new method to Persian text watermarking using curvaceous letters, Journal of Basic and Applied Scientific Research 3(4) (2013), 125–131.

119.

Yin,

Wu,

Chen,

Wang and

Lu, Reversible data hiding in JPEG document images based on zero coefficients embedding, Signal Processing 206 (2023), 108917. doi:10.1016/j.sigpro.2022.108917.

120.

Yingjie,

Gao,

Liu and

Bai, ‘Chinese text zero-watermark based on three-dimensional space model, Journal of Computers 7(8) (2012), 2063–2070.

121.

Yingjie,

Guo,

Guo and

Gao, Chinese text zero-watermark based on sentence’s entropy, IEEE (2010), 1–4.

122.

Yingjie,

Liming,

Xianlong and

Tao, Chinese text zero-watermark based on space model, in: Proceedings of International Workshop on Intelligent System and Applications, 2011, pp. 1–5.

123.

Yingjie,

Xianlong,

Wenjun and

Wei, Text zero-watermark based on Chinese edit distance, in: Proceedings of International Conference on Computational and Information Sciences, 2013, pp. 686–689.

124.

Yuwei and

Su, A two-dimensional code security authentication method based on digital watermarking, in: Proceedings of International Conference on Industrial Control Network and System Engineering Research, 2020, pp. 94–99. doi:10.1145/3411016.3411164.

125.

Zhang,

Wu,

Li and

Li, PDF document watermarking algorithm based on discarded page object, in: Proceedings of International Conference on Natural Computation, Fuzzy Systems and Knowledge Discovery, IEEE, 2017, pp. 3107–3111.

126.

Zhao,

Guan,

Huang and

Zhang, Research on double watermarking algorithm based on PDF document structure, in: Proceedings of International Conference on Culture-Oriented Science and Technology, 2020, pp. 298–303.

127.

Zhou,

Wang,

Zhao and

Peng, A semi-fragile watermarking scheme for content authentication of Chinese text documents, IEEE (2009), 439–443.

128.

Zhou,

Zhao,

Wang and

Pan, Security theory and attack analysis for text watermarking, IEEE (2009), 1–6.

129.

Zhu,

Wu and

M.S.

Kankanhalli, Render sequence encoding for document protection, IEEE Transactions on Multimedia 9(1) (2007), 16–24. doi:10.1109/TMM.2006.886334.

130.

Zhu,

Xiang,

Song,

Li,

Zhang and

Tao, A text zero watermarking algorithm based on Chinese phonetic alphabets, Wuhan University Journal of Natural Sciences 21(4) (2016), 277–282. doi:10.1007/s11859-016-1171-8.

131.

Zhu,

Wen and

Chen, Novel binary document image watermarking exploiting the features of double domains, International Journal of Computer and Electrical Engineering 4(1) (2012), 87–92. doi:10.7763/IJCEE.2012.V4.456.
