Application of 3D scanning and 3D printing for designing and fabricating customized half-mask facepieces: A pilot study

Abstract

BACKGROUND:

The main function of respiratory protective devices is to provide an intact physical barrier between the environment and the user. To ensure that, a leak-tight fit of the facepiece to the user’s face is essential, regardless of the user’s individual facial features.

OBJECTIVE:

The main objective of this study was to assess the possibilities of developing customized respirators well-fitting to the anthropometric dimensions of the user’s face using 3D scanning and 3D printing techniques and to evaluate this custom-made device in terms of protective, usage and strength parameters.

METHODS:

Commercially available twin-filter half-mask type MP22/2 was selected as base model for customization. The 3D scans of the half-mask facepiece were performed using ATOS Core optical 3D scanner. Simultaneously anthropometric measurements of the test subject face were carried out with hand-held 3D scanner Artec EVA. Then digital model of the facepiece was matched to the shape of user’s face using Geomagic Touch X haptic device. Customized facepieces were printed out with use of selective laser sintering technique from thermoplastic polyurethane. After assembling, respirators were tested for compliance with the requirements of the European standards.

RESULTS:

The developed respirators proved to be very well-fitted to the user’s face, did not cause any imprints or skin irritations and were assessed positively in terms of protective, usage and strength parameters.

CONCLUSIONS:

The application of 3D scanning and 3D printing techniques for designing and fabricating customized half-mask facepieces constitutes a viable option for the future development of respiratory protective devices.

Keywords

Respiratory protective devices fit of respirators additive manufacturing total inward leakage

1 Introduction

Negative pressure respirators are the most commonly used Respiratory Protective Devices (RPD). Each such device consists of at least two elements: the facepiece (i.e. full-face mask, half-mask, quarter mask, mouthpiece, hood) and the filtering element that may constitute an integral component of the facepiece (e.g., filtering half-masks) or have the form of individual particle and/or gas filters. The main function of such devices is to provide an intact physical barrier between the environment and the user. In such devices during the inhalation phase the air is sucked through the filtering element under the facepiece and enters the respiratory system of the user. In this phase negative pressure occurs under the facepiece, which may lead to the leakage of contaminated air into the breathing zone, especially when the facepiece does not fit to the users face.

In order to provide a leak-tight fit of RPD various designs of the facepiece are developed. In case of standard filtering half-masks, nose clips in the form of metal elements fixed to the outer surface of the half-mask are often used (e.g. [1]). They are usually accompanied by a polyester, neoprene or polystyrene foam tape located at the height of the nose clip on the inner surface of the half-mask (e.g. [2]). Various types of spatially formed elements are also placed at the height of the nasal bridge (e.g. [3 –5]), in the upper part of the half-mask or around the periphery thereof (e.g. [6]). They are most often joined with the facepiece by means of lamination or through different types of adhesives (e.g. hot-melt adhesives). The main construction element responsible for the proper fit of reusable half-masks and full-face masks is the part that is directly adjacent to the user’s face. It is usually made of thermoplastic silicone rubber, formed by injection moulding (e.g. [7]) in a way that maximizes the contact area between the facepiece’s rim and face of the user. In some designs adhesive tapes are used to fix the facepiece on the face; however, repeated putting on and removing of such devices may cause discomfort [8].

Even if the facepiece has the best possible design, it is necessary to identify its shape and dimensions in order to adjust it correctly to the user’s facial features. Moreover, to select the equipment with the highest possible efficiency, fit testing should be performed to determine the protection factor for each individual case. Quantitative methods for determining the fit factor are based on measurements of pollutants in the atmosphere surrounding the user and in the breathing zone under the facepiece. According to European standards, fit tests of RPD are carried out in laboratory conditions using a method for determining a total inward leakage, which includes leakage through the expiration and/or inhalation valve and penetration of pollutants through filtering elements. Studies indicate, however, that the fit factor determined under laboratory conditions often differs significantly from values occurring in the workplace [9]. This problem can be solved by assessing individual fit of equipment in the workplace, under conditions of actual use. The protection factor is then determined using air aerosol and condensation particle counter, which counts particles captured from the environment and from under the facepiece of the tested equipment in subsequent cycles. This makes it possible to calculate the workplace protection factor, which is compared to the nominal protection factor, calculated as the inverse of the maximum total inward leakage as defined in the European standards for the tested kind of equipment. This method is extremely effective but rarely used by European employers due to the high cost of testing.

Another way to ensure a proper fit of RPD, regardless of the user’s individual facial features, would be to customize the facepiece itself. New possibilities in this area have emerged with the development of rapid prototyping and additive manufacturing that have lately become more and more available even for small and medium-size enterprises. In particular, 3D scanning techniques showed high precision and accuracy when compared with traditional methods for facial parameter measurements [10]. Zhuang et al. employed 3D scanning technique to collect volumetric and contour data regarding face size and shape of US respirator users to develop new head forms for RPD testing [11, 12]. The head forms are currently used in drafts of new ISO standards for determination of basic ergonomics factors of RPD.

3D digitizing design method has been used to develop three different prototypes of half-mask facepieces taking into account Korean facial characteristics. Silicon models of masks were then made via silicon moulding and evaluated in terms of comfort and fit during wear and organoleptic tests [13]. In another study, a novel method for designing and fabricating facepiece prototypes was developed to accommodate different types of face profiles. Computer tomography of a solid silicone facepiece was customized using four different computer-aided design programs. Digital representation of the facepiece was then 3D printed from non-elastic UV-cured polymer and used to prepare silicon block mould from which silicon facepieces were casted [14].

Currently, research related to the design of new PPE focuses on adaptation to the individual needs of users, in particular the size and shape of the human body. The use of new technologies such as 3D scanning and 3D printing gives more and more opportunities in this area. Despite this, there are no RPD on the market fabricated with the use of this type of technology, and literature reports in this area are very limited. Therefore, the aim of this pilot study is to evaluate the functionality of half-masks customized to the facial characteristics of specified male study participant based on 3D scans and manufactured from new rubberlike thermoplastic polyurethane by 3D printing in terms of protective, usage and strength parameters according to the European standards.

2 Materials and methods

The overall methodology that was used within the study is presented schematically in Fig. 1. First the test subject was selected and his face was scanned using 3D scanning method. Simultaneously appropriate RPD was selected (elastomeric half-mask) and disassembled (all removable parts were disconnected from the facepiece). Then the facepiece was 3D scanned and its digital representation was customized by modelling its geometry to provide best fit to test subject’s face. At the last stage of the study the customized halfmask was 3D printed and all parts of the mask were put together.

Fig.1

Schematic diagram showing the overall research methodology approach.

2.1 Test subject selection and 3D scanning of the subject’s face

A professionally active, healthy, 33 year old male, who had direct contact with the RPD on daily basis (paramedic with the fire department), was selected as a study subject.

Anthropometric measurements of test subject’s face were carried out with the use of 3D scanning technique using a handheld 3D scanner Artec EVA (Artec 3D, Russia). Scanning resolution was 0.5 mm and the scanning distance varied from 40 cm to 100 cm with a minimum field of view 21.0×29.7 cm. During the scanning process the participant was seating in the upright position on a chair rotating with constant angular velocity. The participant was also instructed to have his eyes closed and to keep a neutral face expression. The total of three face scans were performed (an example is shown in Fig. 2)

Fig.2

3D face scan of the test participant.

After scanning the 3D model of test subject’s face was processed using Artec Studio 9 software. First outliers removal tool was applied to get rid of points that were scanned but were located outside of the user’s face. It was followed by small object filter tool in filter-by-threshold mode to remove irregularities from the processed surface resulting from scanning errors. Threshold parameter was set at 1500 polygons. Then the holes filling tool was used with maximum length of the hole perimeter set at 10 mm. The edges tool was used to identify and fill out the holes in the mesh and smooth the edges of 3D model. To correct any remaining defects manual smoothing tool was used. Then files were exported to the ‘stl’ format for further processing.

2.2 RPD selection and 3D scanning of the RPD facepiece

Commercially available, twin-filter, half-face respirators type MP22/2 (Maskpol, Poland) were selected for customization. The individual components of the respirator are shown in Fig. 3. The respirator consisted of stiffening – element made of polypropylene (located on the inner part of the facepiece), harness made from polyethylene and strips made of textile rubber (used to fit the respirator to the face) and the facepiece made of silicon rubber. Silicone inhalation and exhalation valves were arranged in the slots in the stiffening element.

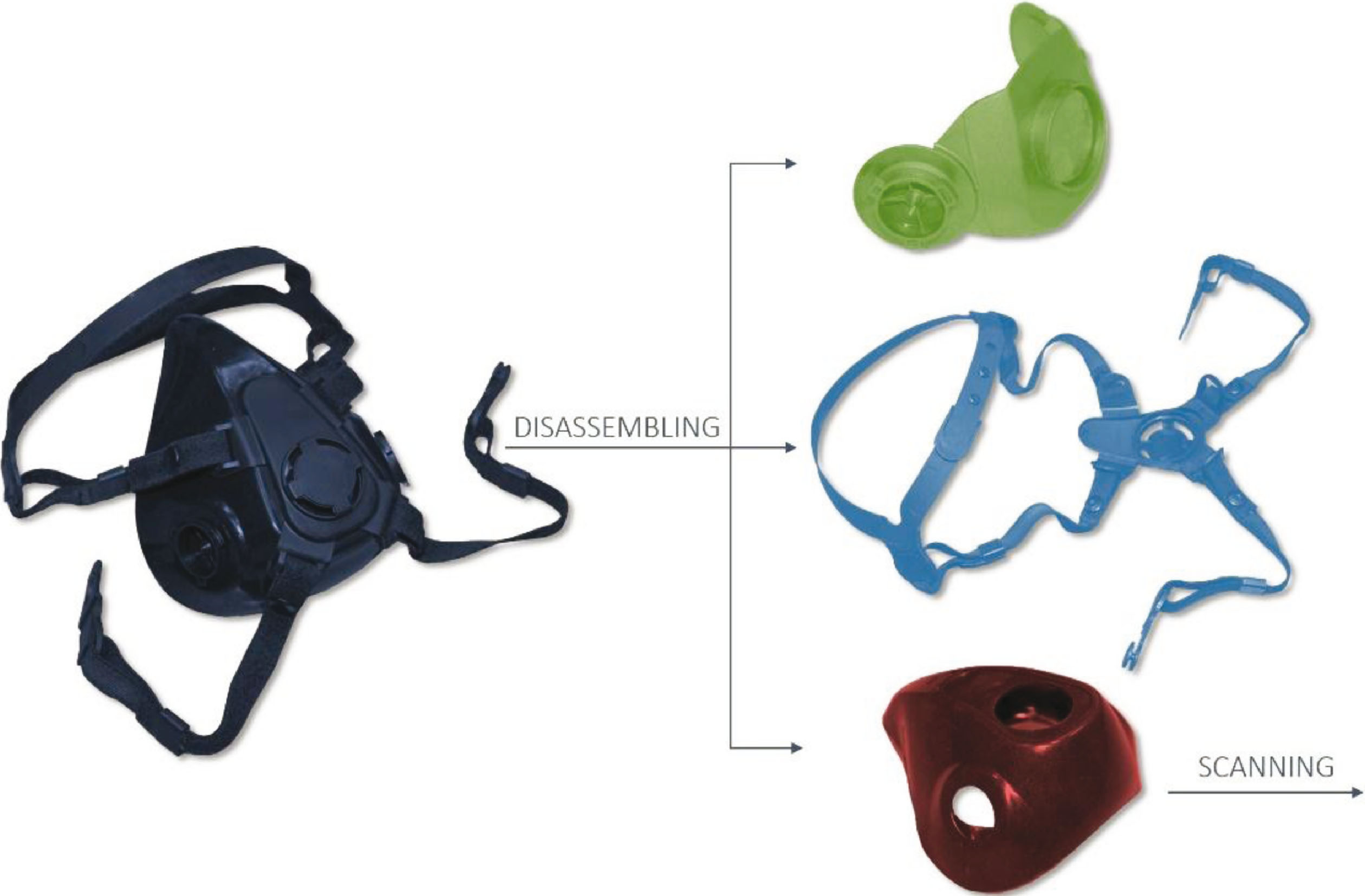

Fig.3

Components of the half-face respirator (color online: valve-fixing frame – green/upper right, harness – blue/middle right, standard facepiece – red/lower right).

Before 3D scanning the half-mask was disassembled. 3D scans were performed using ATOS Core optical 3D scanner (GOM GmbH, Germany) based on triple scan technology that combines views of the object captured with use of two cameras and the projector. Projection technology is based on the use of narrow-band blue light LED, so accurate measurements could be obtained regardless of the lighting conditions. Stereo camera worked on the principle of triangulation. The band patterns projected on the surface of the scanned object were recorded by two cameras. 3D coordinates of points on the plane of the scanned object were determined from the equations of transformation for each pixel of the camera with the resolution of 0.02 mm. High resolution of scans was especially important in terms of ensuring a proper fit of the facepiece to the user’s face. A digital representation of the facepiece geometry was then saved and used as a base model for customization.

2.3 Facepiece customization and RPD assembling

The customization was performed by digital modelling the geometry of the previously scanned base facepiece to fit it to the specific anthropometric characteristics of the participant face. The modeling was performed with the use of haptic device type Geomagic Touch X of Geomagic Freeform Plus software. The comparison of the facepiece geometry before and after customization is shown in Fig. 4.

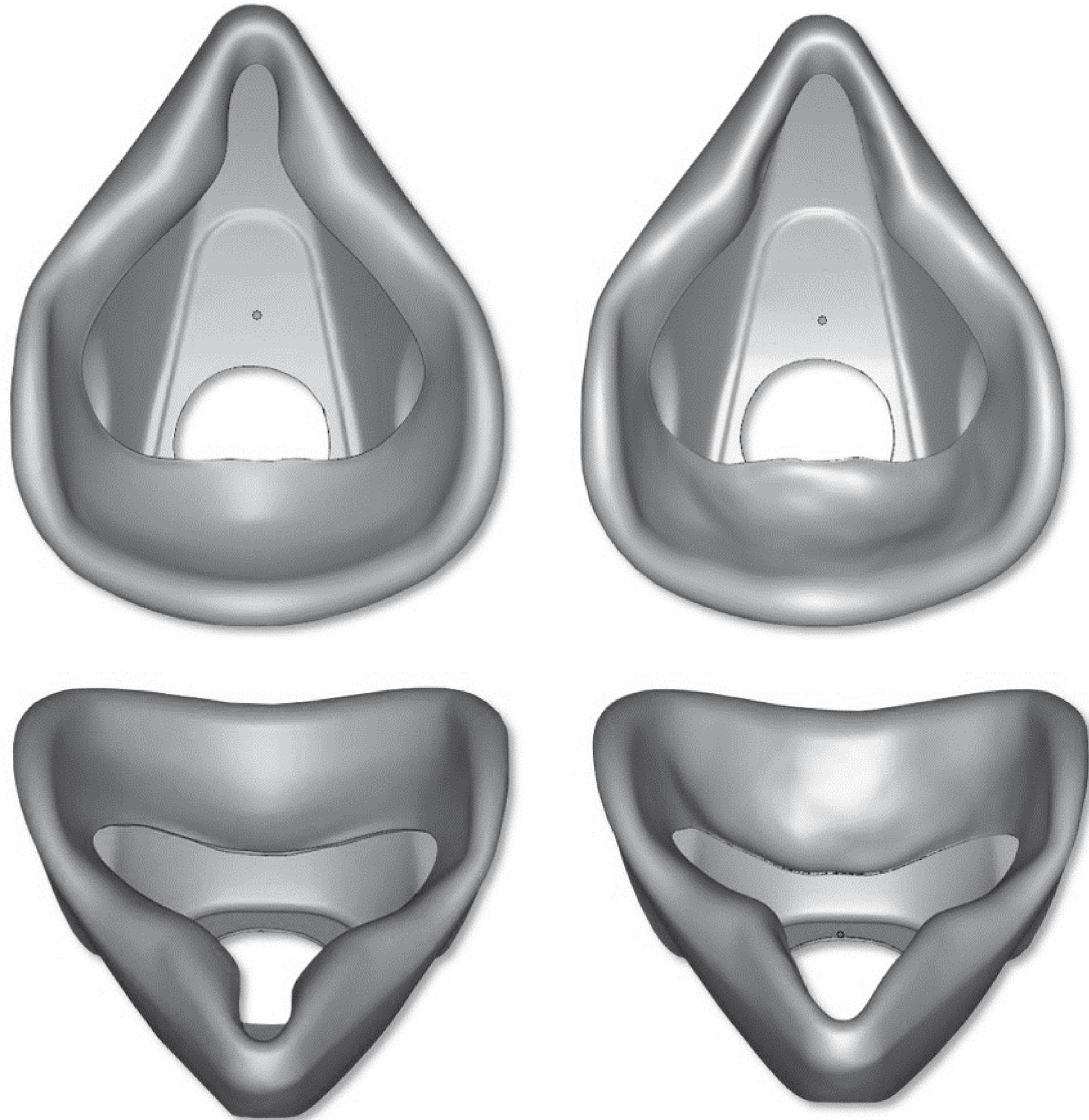

Fig.4

Comparison between standard (left) and customized (right) facepiece.

Five customized facepieces were fabricated using Selective Laser Sintering (SLS, technique that uses a laser to bind the powdered material together at certain points to create a solid structure) on EOS Formiga P100 3D printer. The resolution of print was 0.3 mm. To ensure full functionality of the prototypes rubberlike thermoplastic polyurethane (TPU) material type 92A-1, with permanent flexibility, high resistance to dynamic load and abrasion, rapid response to impact and operating temperature range from –20°C to 80°C, was used. Summary of the material characteristics is given in Table 1 (based on producers information [15]).

Table 1

Characteristics of TPU material

Parameter	Value
Density, g/cm³	1.2
Tensile Strength, MPa	27
Elongation at Break, %	400
Flexural Modulus, N/mm²	9
Shore A-hardness	92
Abrasion resistance, mm³	31

After the facepieces were printed, half-masks were reassembled as shown in Fig. 5.

Fig.5

Components of the customized half-face respirator (valve-fixing frame – green/upper left, harness – blue/middle left, customized facepiece – white/lower left).

2.4 Customized RPD testing

Customized half-masks were tested for compliance with the requirements of European standards harmonized with the Directive 89/686/EEC on conformity assessment of personal protective equipment [16]. Protective, usage and comfort as well as strength and durability parameters were evaluated. The summary of testing methodology is presented in Table 2. The results were interpreted in reference to the requirements described in EN 140 : 1998 standard [21].

Table 2
Summary of the testing methodology

Type of parameter Parameter Standard Tested samples Method

Protective Total inward leakage (TIL) [% ] EN 13274–1 : 2001 [17] 1N, 1TC During testing each of half-masks completed with ZG P3 R particle filter (S.I. Zgoda, Poland) was fitted on the participant’s face and then subjected to five cycles of TIL testing. After entering the chamber, the half-mask was connected with a probe to the flame photometer that simultaneously measured the concentration of NaCl inside the chamber and under the facepiece. 2% sodium chloride solution was used to generate aerosol in a Collison atomizer connected to the test chamber via the aerosol-drying duct. The mean concentration of NaCl in the chamber was 8±4 mg/m³. The particle size distribution was 0.02–2μm, equivalent to the aerodynamic diameter, with a median mass diameter of 0.6μm. The subject walked on the treadmill at a speed of 6 km/h and performed the following exercises (each for 2 min): walking without head movement or talking, walking with head movement from left to right, walking with head movement up and down, walking and talking (uttering the letters of the alphabet), walking without head movement or talking. TIL, was calculated based on measurements taken during the last 100 s of each exercise as a ratio of concentration of NaCl in the chamber and concentration of NaCl in the inhaled air under the facepiece.

Usage/Comfort Breathing resistance [Pa] EN 13274–3 : 2002 [18] 1N, 1TC Prior to the measurement half-masks were sealed on the Sheffield dummy head in a leak tight manner. Clean air was passed through the half-mask at a constant flow rates of 0.5 l/s, 1,6 l/s and 2,7 l/s corresponding to lung ventilation during light, medium and heavy work. Breathing resistance expressed as the pressure drop on the half-mask was measured with the use of digital differential micromanometer in Pascals [Pa].

Carbon dioxide content in the inhaled air [% ] EN 13274–6 : 2001 [19] 1N, 1TC Prior to the measurement half-masks were sealed on the Sheffield dummy head in a leak tight manner. Air with a carbon dioxide content of 5% was introduced to the tested half-mask from the artificial lungs set to 25 cycles/min and 2.0 l/stroke. Carbon dioxide concentration in the inhaled air was measured by means of IR analyzer. For each of the tested samples three independent measurements were performed.

Practical performance tests EN 13274–2 : 2001 [20] 2N Practical performance test was divided into two parts – the walking test (10 min of walking at a constant speed of 6 km/h on a horizontal treadmill) and the simulated working test (the participant walked on the level in a tunnel of height 1.3±0.2 m for 5 min; then crawled on the level in a tunnel of height 0.70±0.05 m for 5 min; then was filling a small basket with rubber chippings from a container 1.5 m high with a hole at the bottom to allow the basket to be shoveled out and the further opening at the top where the chipping were returned – the activity was repeated 20 times over 10 min). The tests were performed in ambient laboratory conditions specified in the standard, i.e. temperature 23±1°C and relative humidity 50±5% Firstly the base RPD model was tested then the same procedure was repeated for customized RDP model. After the test, the participant filled in a simple questionnaire consisting of 11 ‘yes/no’ questions concerning: the ease of fitting and readjusting the facepiece, comfort of use, safety and durability of connections and fasteners, sensory experiences (smell and touch), usability and restriction of communication and field of vision.

Strength/Durability Temperature conditioning EN 140 : 1998 [21] 2N Half-masks were stored in dry air at temperature of 70±3°C for 24 h, then they were left at room temperature for 4 h and stored at –30±3°C for another 24 h. After storage the samples were visually inspected in terms of deformation.

Flammability EN 13274–4 : 2001 [22] 1N, 1TC The half-masks were fitted to a metal head model that moved in a circular motion with linear speed of 60±5 mm/s over the flame of propane (generated by TEKL burner described in EN ISO 6941). The distance between the flame tip and the lowest part of the tested half-mask was 20±2 mm. The test was repeated to allow perform the assessment of all materials exposed to flames used in the construction of the equipment but each piece of tested half-masks went over the flame only once.

Operation of the exhalation valve EN 140 : 1998 [21] 1N, 1TC The operation of the half-masks valves was checked after a constant flow rate of 300 l/min over a period of 30 s.

Fixing of the exhalation valve EN 140 : 1998 [21] 1N, 1TC The half-masks were mounted on the head model, which was set so that the load operated in the direction of the valve axis. In addition, a system of belts and straps was used to hold the body of the half-mask so that the load was not transferred to the head straps. The 50 N load was applied directly to the connector for 10 s.

Strength of connectors EN 140 : 1998 [21] 1N, 1TC The half-masks were on a head model, which was set so that the load operated in the direction of the connector axis. In addition, a system of belts and straps was used to hold the body of the half-mask so that the load was not transferred to the head straps. The 50 N load was applied directly to the connector for 10 s.

Strength of head harness EN 140 : 1998 [21] 1N, 1TC The force of 50 N was applied to the free ends of the straps in the direction of pulling for 10 s.

Type of parameter	Parameter	Standard	Tested samples	Method
Protective	Total inward leakage (TIL) [% ]	EN 13274–1 : 2001 [17]	1N, 1TC	During testing each of half-masks completed with ZG P3 R particle filter (S.I. Zgoda, Poland) was fitted on the participant’s face and then subjected to five cycles of TIL testing. After entering the chamber, the half-mask was connected with a probe to the flame photometer that simultaneously measured the concentration of NaCl inside the chamber and under the facepiece. 2% sodium chloride solution was used to generate aerosol in a Collison atomizer connected to the test chamber via the aerosol-drying duct. The mean concentration of NaCl in the chamber was 8±4 mg/m³. The particle size distribution was 0.02–2μm, equivalent to the aerodynamic diameter, with a median mass diameter of 0.6μm. The subject walked on the treadmill at a speed of 6 km/h and performed the following exercises (each for 2 min): walking without head movement or talking, walking with head movement from left to right, walking with head movement up and down, walking and talking (uttering the letters of the alphabet), walking without head movement or talking. TIL, was calculated based on measurements taken during the last 100 s of each exercise as a ratio of concentration of NaCl in the chamber and concentration of NaCl in the inhaled air under the facepiece.
Usage/Comfort	Breathing resistance [Pa]	EN 13274–3 : 2002 [18]	1N, 1TC	Prior to the measurement half-masks were sealed on the Sheffield dummy head in a leak tight manner. Clean air was passed through the half-mask at a constant flow rates of 0.5 l/s, 1,6 l/s and 2,7 l/s corresponding to lung ventilation during light, medium and heavy work. Breathing resistance expressed as the pressure drop on the half-mask was measured with the use of digital differential micromanometer in Pascals [Pa].
	Carbon dioxide content in the inhaled air [% ]	EN 13274–6 : 2001 [19]	1N, 1TC	Prior to the measurement half-masks were sealed on the Sheffield dummy head in a leak tight manner. Air with a carbon dioxide content of 5% was introduced to the tested half-mask from the artificial lungs set to 25 cycles/min and 2.0 l/stroke. Carbon dioxide concentration in the inhaled air was measured by means of IR analyzer. For each of the tested samples three independent measurements were performed.
	Practical performance tests	EN 13274–2 : 2001 [20]	2N	Practical performance test was divided into two parts – the walking test (10 min of walking at a constant speed of 6 km/h on a horizontal treadmill) and the simulated working test (the participant walked on the level in a tunnel of height 1.3±0.2 m for 5 min; then crawled on the level in a tunnel of height 0.70±0.05 m for 5 min; then was filling a small basket with rubber chippings from a container 1.5 m high with a hole at the bottom to allow the basket to be shoveled out and the further opening at the top where the chipping were returned – the activity was repeated 20 times over 10 min). The tests were performed in ambient laboratory conditions specified in the standard, i.e. temperature 23±1°C and relative humidity 50±5% Firstly the base RPD model was tested then the same procedure was repeated for customized RDP model. After the test, the participant filled in a simple questionnaire consisting of 11 ‘yes/no’ questions concerning: the ease of fitting and readjusting the facepiece, comfort of use, safety and durability of connections and fasteners, sensory experiences (smell and touch), usability and restriction of communication and field of vision.
Strength/Durability	Temperature conditioning	EN 140 : 1998 [21]	2N	Half-masks were stored in dry air at temperature of 70±3°C for 24 h, then they were left at room temperature for 4 h and stored at –30±3°C for another 24 h. After storage the samples were visually inspected in terms of deformation.
	Flammability	EN 13274–4 : 2001 [22]	1N, 1TC	The half-masks were fitted to a metal head model that moved in a circular motion with linear speed of 60±5 mm/s over the flame of propane (generated by TEKL burner described in EN ISO 6941). The distance between the flame tip and the lowest part of the tested half-mask was 20±2 mm. The test was repeated to allow perform the assessment of all materials exposed to flames used in the construction of the equipment but each piece of tested half-masks went over the flame only once.
	Operation of the exhalation valve	EN 140 : 1998 [21]	1N, 1TC	The operation of the half-masks valves was checked after a constant flow rate of 300 l/min over a period of 30 s.
	Fixing of the exhalation valve	EN 140 : 1998 [21]	1N, 1TC	The half-masks were mounted on the head model, which was set so that the load operated in the direction of the valve axis. In addition, a system of belts and straps was used to hold the body of the half-mask so that the load was not transferred to the head straps. The 50 N load was applied directly to the connector for 10 s.
	Strength of connectors	EN 140 : 1998 [21]	1N, 1TC	The half-masks were on a head model, which was set so that the load operated in the direction of the connector axis. In addition, a system of belts and straps was used to hold the body of the half-mask so that the load was not transferred to the head straps. The 50 N load was applied directly to the connector for 10 s.
	Strength of head harness	EN 140 : 1998 [21]	1N, 1TC	The force of 50 N was applied to the free ends of the straps in the direction of pulling for 10 s.

N – as prepared (new), TC – thermally conditioned sample.

2.5 Statistical analysis

Statistical analysis was performed for half-mask performance tests where results were expressed by numeric values. Statistical analyses were conducted using STATISTICA 12 software (Statsoft, Round Rock, TX, USA). Descriptive statistics for all variables of interest were calculated.

3 Results and disscussion

3.1 Protective parameters

Test results of the average Total Inward Leakage (TIL) for each exercise for ten full measurements are presented in Fig. 6.

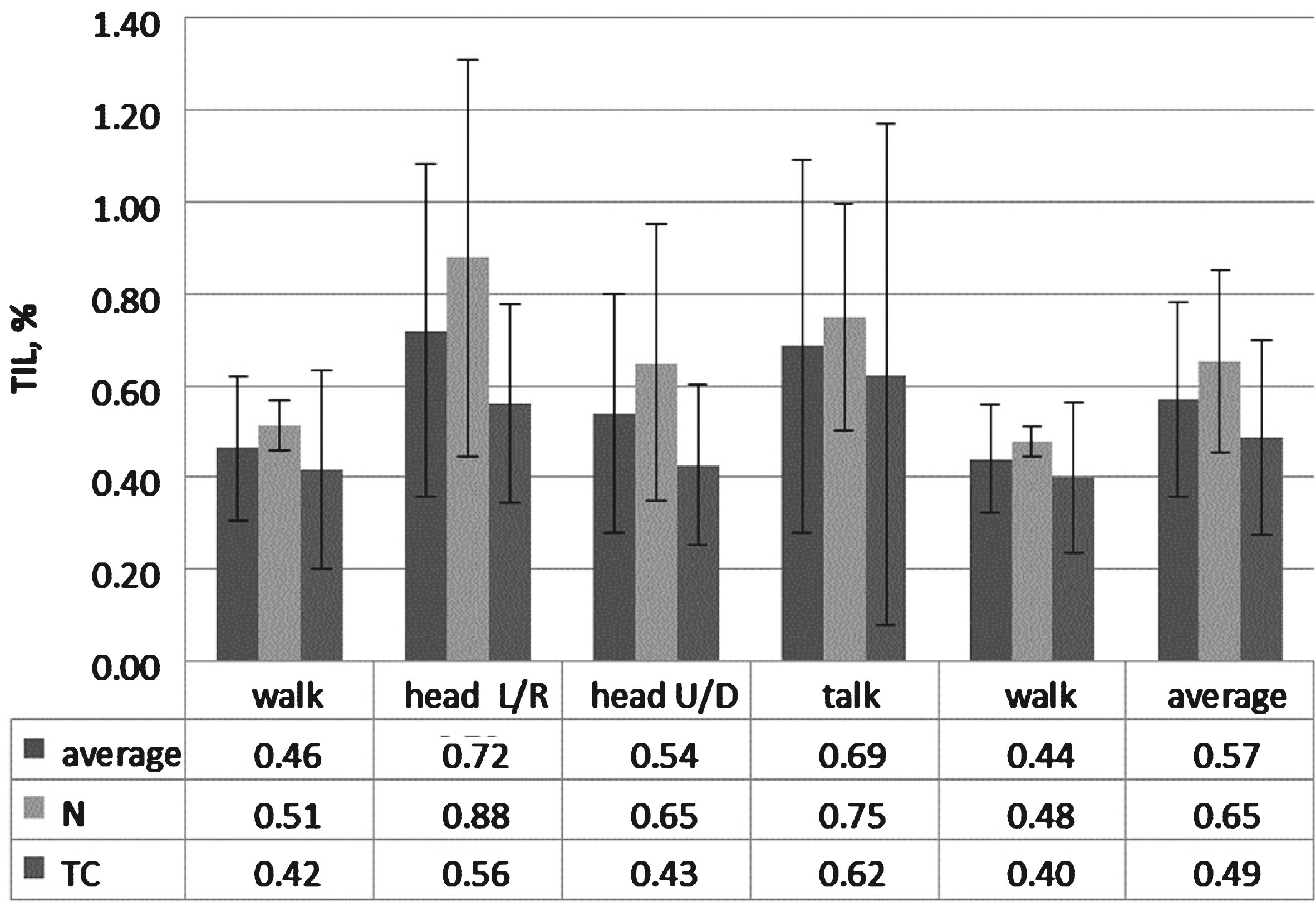

Fig.6

The average results of TIL for each exercise; N – as prepared (new), TC – thermally conditioned sample.

The maximum TIL noted for the 50 measurements was 1.57%, while the maximum average of the 10 measuring cycles was 0.72%. In all cases the TIL was slightly lower for the samples subjected to thermal conditioning, which may result from the increase of the plasticity of the 3D printed material after heat treatment. Both of the above results were below the limit values of the EN 140 standard that are equal to 5% for single measurement and 2 % for average TIL. Requirements of the standard have been met with considerable reserve, which is equivalent to the fact that the developed models of respirators meet the requirements of the standards of the most important protection parameter, which is the total inwardleakage.

3.2 Utility and comfort parameters

The test results of breathing resistance of the half-mask are presented in Fig. 7.

Fig.7

The test results of breathing resistance of developed models of half-masks: N – as prepared (new), TC – thermally conditioned sample.

In the case of new respirators the maximum inhalation resistance was respectively 5 Pa, 18 Pa, 39 Pa at 0.5 l/s, 1.6 l/s and 2.7 l/s. For respirators conditioned it was slightly higher and amounted to 7 Pa, 21 Pa, and 42 Pa. The observed difference could be the effect of a slight stiffening of inhalation valve discs of the half-mask and was independent of the customization process because original valves were used to assemble the customized half-mask model. The maximum resistance of the exhalation at flow rate of 2.7 l/s for the new respirator was 28 Pa, and for thermally conditioned 29 Pa. The average value was higher by 3 Pa, which may confirm earlier observations concerning the stiffening of valve discs. According to the requirements of standards mentioned above, the breathing resistance should not exceed 200 Pa for inhalation and 300 Pa for exhalation at constant air flow of 2.7 l/s. Inhalation resistance should not exceed 50 Pa at a constant flow rate of 0.5 l/s and 130 Pa with a constant flow of 1.6 l/s, which is considerably higher than the results obtained for the developed respirator model. Thus it can be concluded that the customization did not adversely influence the breathing resistance of the respirator as it fulfils the requirements of the standard.

Another important utility parameter closely linked with the shape of the facepiece is so called ‘dead space’ expressed in terms of the carbon dioxide content in the inhaled air (Fig. 8).

Fig.8

The test results of carbon dioxide content in the inhaled air.

According to the European standards the average content of carbon dioxide in the inhaled air should not exceed 1.0 % by volume. Obtained average concentration of carbon dioxide in the inhaled air was 0.57% by vol. for new half-mask and 0.60 % by vol. for thermally conditioned one. The observed difference in the results confirms the earlier observation concerning the stiffening of discs of exhalation valves. Nevertheless, the change in geometry of half-masks during customization had no significant influence on the dead space of the half-mask as it fulfilled the requirements of the standard with awide margin.

Ergonomic parameters of the customized half-mask were assessed during practical performance test under simulated work conditions in the laboratory setting. For comparison, the same tests with uncustomized half-mask were performed. The aim of this test was to evaluate the functionality of the equipment, and to check whether the equipment had imperfections related to wearer’s acceptance, which couldn’t be otherwise assessed on the basis of laboratory tests. During the tests facepieces were subjectively assessed by test participant in terms of the ease of fitting and readjusting the facepiece, comfort of use, safety and durability of connections and fasteners, sensory experiences, usability as well as the restriction of communication and field of vision. In all cases evaluation was positive. The customized model of the half-mask turned out to be far better fitted to the user’s face and did not cause any bruising or skin irritation, which had a significant impact on the growth of comfort throughout usage. The only element, which was considered inferior to the standard device, was delicate surface roughness of the body of the respirator. But this did not affect the positive evaluation of the model. Therefore, it was stated that the requirements of EN 140 : 1998 in the ergonomic assessment of developed half-mask model have also been met.

3.3 Strength and durability parameters

The results of strength and durability evaluation are presented in Table 3 along with the interpretation of the results.

Table 3
Strength and durability parameters of customized half-masks

Tasted parameter Requirement of EN 140 standard Test results Interpretation

Temperature conditioning After conditioning (heat and freeze) and return to room temperature respirators should not have significant deformation. Half-masks did not show any deformation of the main body and discoloration or deformation of any part of the respirator. Requirements of the standard were fulfilled

Flammability Elements of respirator exposed during test to the flame should not burn and if ignited they should not burn for more than 5 seconds after removal from the flame. None of the half-mask elements burned (including 3D printed facepiece) Requirements of the standard were fulfilled

Operation of the exhalation valve Respirator should have at least one exhaust valve or other device allowing the discharge of exhaled air. Valves of both of the tested samples functioned correctly when subjected to the constant flow rate of 300 l/min for 30 seconds. After the test, the exhaust valves operated reliably in each position of the respirator. Requirements of the standard were fulfilled

Fixing of the exhalation valve The connection between the body of the facepiece and the connector should be sufficiently strong to withstand the tension force of 50 N acting along its axis. Both samples withstood an axial load force of 50 N for 10 s Requirements of the standard were fulfilled

Strength of connectors The connection between the body of the facepiece and the connector should be sufficiently strong to withstand the tension force of 50 N acting along its axis. Both samples withstood operation of the load force of 50 N for 10 sec. Requirements of the standard were fulfilled

Strength of head harness Respirators harness should be designed so that the face can be easily put on and remove. Harness should be regulated or self-regulating and ensure the tightness of the respirator and keep it in a comfortable position. Each tape head harness buckle and the other parts of the adjustment should be capable of withstanding a force of 50 N acting for 10 s in the direction of stretching. There should not be any interruption or permanent deformation (permanent stretch) of tapes. All harness straps withstood the load of force of 50 N for 10 sec. Requirements of the standard were fulfilled

Tasted parameter	Requirement of EN 140 standard	Test results	Interpretation
Temperature conditioning	After conditioning (heat and freeze) and return to room temperature respirators should not have significant deformation.	Half-masks did not show any deformation of the main body and discoloration or deformation of any part of the respirator.	Requirements of the standard were fulfilled
Flammability	Elements of respirator exposed during test to the flame should not burn and if ignited they should not burn for more than 5 seconds after removal from the flame.	None of the half-mask elements burned (including 3D printed facepiece)	Requirements of the standard were fulfilled
Operation of the exhalation valve	Respirator should have at least one exhaust valve or other device allowing the discharge of exhaled air.	Valves of both of the tested samples functioned correctly when subjected to the constant flow rate of 300 l/min for 30 seconds. After the test, the exhaust valves operated reliably in each position of the respirator.	Requirements of the standard were fulfilled
Fixing of the exhalation valve	The connection between the body of the facepiece and the connector should be sufficiently strong to withstand the tension force of 50 N acting along its axis.	Both samples withstood an axial load force of 50 N for 10 s	Requirements of the standard were fulfilled
Strength of connectors	The connection between the body of the facepiece and the connector should be sufficiently strong to withstand the tension force of 50 N acting along its axis.	Both samples withstood operation of the load force of 50 N for 10 sec.	Requirements of the standard were fulfilled
Strength of head harness	Respirators harness should be designed so that the face can be easily put on and remove. Harness should be regulated or self-regulating and ensure the tightness of the respirator and keep it in a comfortable position. Each tape head harness buckle and the other parts of the adjustment should be capable of withstanding a force of 50 N acting for 10 s in the direction of stretching. There should not be any interruption or permanent deformation (permanent stretch) of tapes.	All harness straps withstood the load of force of 50 N for 10 sec.	Requirements of the standard were fulfilled

4 Conclusion

A good quality respirator equipped with high-efficiency filters is not nearly enough to ensure a proper protection of workers exposed to dangerous airborne contaminants. Personal characteristics of users face play a vital role in this matter because they can adversely affect the fit of the protective device. In present study a new method of designing and fabricating customized RPD using 3D scanning and 3D printing techniques was described. The respirators were tested in terms of protective, usage and strength parameters according to the European standards to confirm that this newly-developed method can constitute a viable option for the future development of RPD.

Presented results show that the use of these emerging technologies to develop products for the individual protection of workers provides a huge advantage in terms of facepiece customization. The preliminary results show that the proposed approach can bring improvement especially in terms of efficiency and perception of comfort, which greatly affects the uptake of RPD. Although, the present study is limited in terms of sample size, its shows a research potential of the discussed issues and indicates the need for further exploration. Moreover, the initial conclusions are indeed promising, and particularly relevant to workers with distinct facial features.

Conflict of interest

None to report.
