A novel method of micro-tomography geometric angle calibration with random phantom

Abstract

The objective of this study is to develop and test the feasibility of applying a machine learning method for geometry calibration of angles in micro-tomography systems. Increasing importance of micro-tomography systems are manifested with escalating applications in various scenarios including but not limited to oral and maxillofacial surgery, vascular and intervention radiology, among other specific applications for purposes of diagnosis and treatments planning. There is possibility, however, actual pathology is confused by artifact of tissue structures after volume reconstruction as a result of CT construction errors. A Kernel Ridge Regression algorithm for micro-tomography geometry estimation and its corresponding phantom is developed and tested in this study. Several projection images of a rotating Random Phantom of some steel ball bearings in an unknown geometry with gantry angle information were utilized to calibrate both in-plane and out-plane rotation of the detector. The described method can also be expanded to calibrate other parameters of CT construction effortlessly. Using computer simulation, the study results validated that geometry parameters of micro-tomography system were accurately calibrated.

Keywords

Kernel ridge regression cone beam computed tomography geometry calibration

1 Introduction

Micro-tomography (μCT) is more portable, flexible [1], inexpensive, quicker and requiring lower radiation dose [2] comparing with CT, which helps numerous applications in image-guided radiation therapy (IGRT) in recent years. Among every picture series of volunteers and patients captured by CT since 1983 [3], it keeps challenging to utilize μCT in IGRT because of the trade-off between image quality, emission dose, and scanning time [4]. The three-dimensional (3D) volume data sets generated by μCT systems are reconstructed from a number of tomographic images projected surrounding the rotating gantry system which locates between X-ray source and scanner [5]. Characterizing geometric relationship parameters of the x-ray source and detector constitutes a geometric calibration for the μCT system, and errors in this process give rise to image artefacts such as blur, distortion, and streaks. To have the artifact avoided and to have the volume data sets reassembled accurately, the system geometric parameters are essential but hardly mechanically accessible.

For example, an experiment has been done to better illustrate the artefacts. FDK methods are used in this experiment of cone beam projection. The size of the phantom is 143×143×143 while the size of reconstruction slides is 136×136. Both distances from the center of the phantom to the x-ray source and scanner plane are 300. All units are a pixel. The middle of horizontal slides (i.e. XoYplane) is the least affected by scanner tilt and rotation. Reconstructed images with and without slight tilt and rotation of scanner plane at this slide are used as comparison objects in Fig. 1. If the residual error in the middle slide is not acceptable, error in other slides cannot be less significant. The Fig. 1a is a reconstructed image without tilt or rotation (i.e. control image). Figure 1b, 1c and 1d are reconstructed images with tilt and rotation of 0.5, 1, 5 degrees on all of x, y, z-axes respectively. Figure 1e, 1f and 1g show the residual error between reconstructed image without tilt or rotation and images with 0.5, 1, 5-degree tilt and rotation respectively. Observed from figures, reconstructed images are remarkably different from control image and there are distortions and artefacts. With the increasing of tilt and rotation, distortions and artefacts are more significant. This effect is illustrated in residual images as well. The PSNR between Fig. 1(b) and 1(a) is 110.95. The PSNR between Fig. 1(c) and 1(a) is 105.64. The PSNR between Fig. 1(b) and 1(a) is 94.74.

Fig.1

Reconstruction image and residual error image.

Actually, even the tilt or rotation is less than 1 degree, there are distortions and artefacts as well which potentially cause a false diagnosis. Therefore, if high precision is required by applications of micro-tomography efforts on eliminating them are necessary. Since obvious tilt or rotation can be detected by mechanical methods, a novel measure of slight tilt and rotation is proposed by this work in order to improve the accuracy of reconstruction and to fetch ideal reconstructed images.

Recently, Brown [6] proposed a polynomial representation instead of a precise analytic expression of both radial and tangential artifact on photographs. Hence this method is somehow speculative dealing with reduction of distortion. Zhang gave an adaptable method to calibrate the intrinsic and extrinsic parameters of cameras easily. However, Zhang deployed the method come up by Brown while dealing with radial distortion [7]. Fitzgibbon presented an efficient method for fitting ellipses to scattered data by normalizing the algebraic distance subject to the constraint 4ac – b² =1 [8], which stimulated a series of methods which calibrate the parameters analytically. One of the inspired solutions was provided by Noo which determined calibration geometry algebraically as it traced two ellipses of spherical objects [9]. Noo’s method as well as its other extensions had loss of generality as it assumed that the detector is parallel with the revolution axis of gantry [10]. Making use of a calibration phantom which consisted of a precise positioning of 24 metal ball bearings (BBs) embedded in a cylindrical plastic phantom, Cho developed a more general algebraic algorithm for estimating these geometric parameters [11] but the 25μm machining tolerances of arrangement might be difficult to satisfied. Even an anthropomorphic head phantom with a tungsten wire and lead BB is required by Ouadah [12]. Yang purposed a high-precision calibration method for μCT system without precise information about the phantom [13]. Rough manual measurement of distance between BBs, however, was still acquired. Lee presented a novel algorithm to calibrate and register a μCT system with an additional 3D optimal (red green blue depth, RGBD) camera utilizing a calibration phantom which consists of three tubes in different heights, lengths, and orientations [14] while an RGBD camera involved in calibration and not all μCT system was deployed with an RGBD camera.

In this study, a method for calibrating geometric parameters of μCT is discussed which requires several projections of a Random Phantom of ball bearings and angle of gantry system. The robustness of this method is guaranteed by computer simulation that no information about the phantom is required to determine the parameters.

2 Geography and phantom

2.1 Geography

Without loss of generality, we assume that the flat panel detector and the source of X-ray are stable while the gantry system is rotatable. The detector is assumed not to be spatially distorted. It is also convenient to introduce three right-handed dimensional Cartesian coordinate systems named under X-ray source (s), virtual scanner (v) and real scanner (r) as Fig. 2 suggested. Random Phantom which is the designed calibration instrument, purposed patients as well as the rotatable gantry system are valued under X-ray source coordinate system. The z axis of the X-ray source coordinate system (z^s), is parallel with the rotation axis of gantry system. Without loss of generality, point the x^s axis at the gantry angle of 0 so that y^s axis is obviously pointing at the gantry angle of 90.

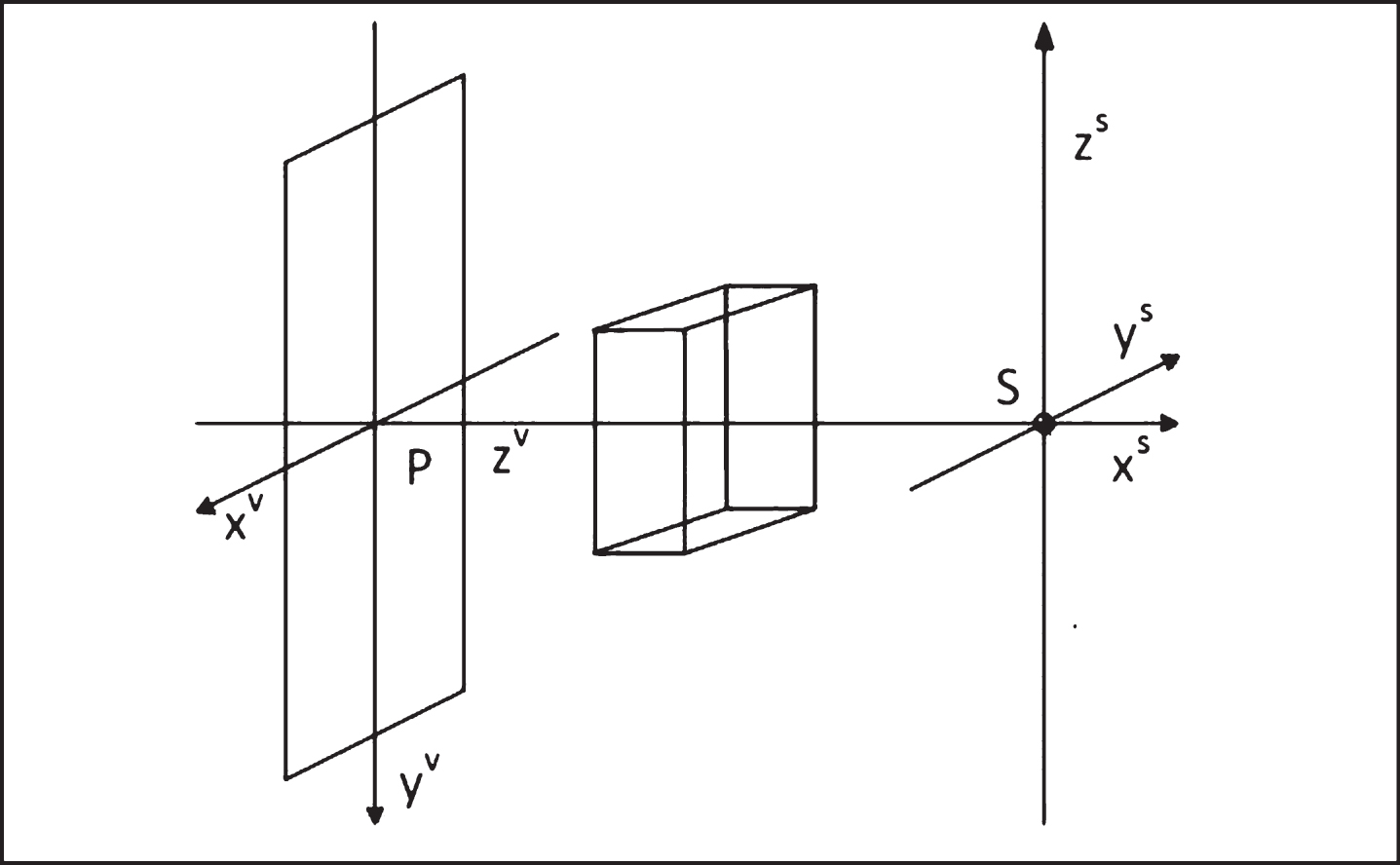

Fig.2

μCT System.

The virtual scanner coordinate system is utilized to model an ideal scanner. Piercing point ( $P_{p}^{s}$ ), which is the origin of the virtual scanner coordinate system, is located at the projection point of the center of gantry system. The direction of the y^v axis is oriented anti-parallel to the z^s axis of the X-ray source coordinate system while the x^v axis is perpendicular to the vector from the piercing point to the source point. With the possible tilting (θ or φ, around the x^v or y^v axis) and rotation (η, around the z^v axis) from the virtual scanner coordinate system, the real scanner coordinate system is defined. A position vector (P^v) in the virtual scanner coordinate system can be easily transformed to one (P^r) in the real scanner coordinate system through the beneath formula: ${\begin{matrix} P^{r} = R_{i}^{r} P^{i}, \\ R_{i}^{r} = [\begin{matrix} 1 & 0 & 0 \\ 0 & c_{z} & s_{z} \\ 0 & - s_{z} & c_{z} \end{matrix}] [\begin{matrix} c_{x} & s_{x} & 0 \\ - s_{x} & c_{x} & 0 \\ 0 & 0 & 1 \end{matrix}] [\begin{matrix} c_{y} & 0 & s_{y} \\ 0 & 1 & 0 \\ s_{y} & 0 & c_{y} \end{matrix}], \\ c_{x} = cos θ, \\ s_{x} = sin θ, \\ c_{y} = cos φ, \\ s_{y} = sin φ, \\ c_{z} = cos η, \\ c_{z} = sin η . \end{matrix}$ (1) The X-ray projection on the scanner ( $P_{d}^{s}$ ) of an object in the X-ray source coordinate system (P^s) can be expressed by the following equation: $P_{d}^{s} = \frac{R_{z} \cdot (P_{p}^{s} - P_{s}^{s})}{R_{z} \cdot (P^{s} - P_{s}^{s})} \cdot P^{s} + P_{s}^{s}$ (2)

where $P_{s}^{s}$ is the position vector of the X-ray source. Five characters are used to describe the μCT system geometry in this paper: gantry position $P_{g}^{s} = {[X_{g}^{s}, 0, 0]}^{T}$ , piercing point $P_{p}^{s} = {[X_{p}^{s}, 0, 0]}^{T}$ , tilting θ, φ and rotation η while other parameters which are assumed as 0 can also be covered after the expand of this study.

2.2 Random phantom

The phantom for calibration comprises a random arrangement of several metal BBs embedded in a cubic plastic model whose length of each side is 100 mm. The size of cube and number of BBs can be altered within the compatibility of the algorithm. More BBs, however, may cause problems of performance during calibration. Another trade-off which should be considered is between phantom size and geometric precision and accuracy. In order to maximize robustness of calibration, the diameter of each BB should be large enough to include a large number of pixels and to exhibit high contrast yet small enough to avoid overlapping with neighboring BBs when projected [11]. Finally, to make sure that each BB is visible in every photograph of scanner, the calibration phantom is supposed to be placed at the approximate center of the gantry system.

3 Theory

3.1 Kernel ridge regression

The Support Vector (SV) method is a universal tool for solving not only linear but also nonlinear multidimensional function estimation problems. To begin with, it was designed for solving problems of pattern recognition where one selects some subset of training data called the SVs to find a set of classification rules with strong generalization ability. This leads to a representation of decision trees which are a linear expansion on a basis whose elements are nonlinear functions characterized by the SVs [15]. We apply SV method handle the problem of calibration. In this case of regression, maintaining all the main features to generate a non-linear function by a linear learning machine in a kernel-induced feature space while the capacity of the system is controlled by a parameter that does not depend on the dimensionality of the space [16]. We consider the following perfect-information protocol of on-line regression:

Protocol 1. Online Regression Protocol
fort : =1, 2,. . .do
Reality announces x_t ∈ X
Learner predicts $\hat{y_{t}} \in ℝ$
Reality announces $y_{t} \in ℝ$
end for

We consider F is a linear set of functions f (x) defined in set X. F is supposed to be either a real or complex class, in hence it accepts multiplication of complex constants. The norm for f ∈ F is defined following:

Definition 1. The norm for f ∈ F is given by a quadratic form, $∥ f^{2} ∥ = Q (f),$ (3) where for any constants $ξ_{1}, ξ_{2} \in ℂ$ and any function, f₁, f₂ ∈ F, $Q (ξ_{1} f_{1} + ξ_{2} f_{2}) = {| ξ_{1} |}^{2} Q (f_{1}) + ξ_{1} ξ_{2} (Q (f_{1}, f_{2}) + Q (f_{2}, f_{1})) + {| ξ_{2} |}^{2} Q (f_{2}),$ (4) $Q (f_{1}, f_{2}) = \bar{Q (f_{2}, f_{1})}$ is the uniquely determined bilinear hermitian form corresponding to the quadratic form Q (f) [17].

This bilinear form will be denoted by $〈 f_{1}, f_{2} 〉 \equiv Q (f_{1}, f_{2})$ (5) and called the scalar product corresponding to the quadratic metric ∥f ∥ ²: ${∥ f ∥}^{2} = 〈 f, f 〉 .$ (6) The complete class of F with the norm, ∥∥, forms a Hilbert space of X.

Definition 2. A function K (x₁, x₂) of x₁, x₂ ∈ X is called a reproducing kernel (RK) of F if $\forall x_{2} \in X, K (x_{1}, x_{2}) \in F$ (7) $\forall x_{2} \in X, \forall f \in F, f (x_{2}) = {〈 f (x_{1}), K (x_{1}, x_{2}) 〉}_{F}$ (8) the subscript H by the scalar product indicates that the scalar product applies to RKHS of F [18].

We shall suppose the case where the space X from which the input vector x_t are drawn is an arbitrary set of inputs. Let F be a reproducing kernel Hilbert space (RKHS) of functions $X \to ℝ$ as a functional Hilbert space with continuous evaluation functional f ∈ F, ∀ x ∈ X. According to the Riesz-Fischer theorem: $\forall x \in X, \forall f \in F, \exists k_{x} \in F {〈 k_{x}, f 〉}_{F} = f (x)$ (9) Define the kernel $K : X^{2} \to ℝ$ of the RKHS F as K (x₁, x₂) =〈 k_{x
₁}, k_{x
₂} 〉 [19]. The optimization problem becomes: ${\begin{matrix} {\begin{matrix} minimize & a ∥ f ∥ \end{matrix}}_{F}^{2} + \sum_{t = 1}^{T} ξ_{i}^{2} \\ \begin{matrix} subject & ξ_{i} = y_{t} - f (x_{t}), t = 1, 2, . . ., T \end{matrix} \end{matrix}$ (10)

Let L_t be an (n × n) Gram matrix at step t and Y_t be the column vector of labels y_i for i = 1, 2, 3 . . . , t. we can express the final Kernel Ridge Regression prediction at each step T in the scalar product mode form [20]: $γ T = Y_{T - 1}^{'} (aI + L_{T - 1})^{- 1} k_{T}$ (11)

where k_t is the column vector K (x_i, x_t) for i = 1, 2, 3,. . . , t - 1.

The following theoretical guarantee of the Kernel Ridge Regression learner is proved [21]:

Theorem 1. The Kernel Ridge Regression algorithm for the learner with a > 0 satisfies, at anystep T, $\sum_{t = 1}^{T} \frac{(y_{t} - γ_{t})^{2}}{1 + \frac{K (x_{t}, x_{t}) - k_{t}^{'} (aI + L_{t - 1})^{- 1} k_{t}}{a}} = min (\sum_{t = 1}^{T} (y_{t} - f (x_{t}))^{2} + a {∥ f ∥}^{2}), f \in F .$ (12)

3.2 Procedure

For the calibration of a μCT system, the rotation of detected object and stationarity of X-ray source and scanner are assumed. Place a random phantom with N metal BBs nearly at the center of gantry system. Since not all viewing angles of the object are available in practice, divide the flat angle into M equal part and choice about the center of each part as one of the gantry angle.

After projection, an array of M digitalized images is exported from the scanner and shadows of each BB can be identified from every radiographic image. Projection positions of BBs are described by the real scanner coordinate system. Due to the stability of 0 value on z^r axis, only two parameters of the positions are counted in the data structure. In conclusion, the data structure is constructed by the Protocol 2.

Protocol 2. Projection Protocol
Initiate LLV as a list of lists to represent all data
Form:=1,2, … ,Mdo
Initiate LV as a list of vectors to represent data of an image
Forn :=1,2, … , Ndo
Initiate V as a vector of 2 dimensions
Assign the position of shadow to V
Push V in LV
end for
Push LV in LLV
end for

Serialize LLV as a vectorof x features which has M × N × 2 dimensions. For each specific x, the Kernel Ridge Regression learner can get an exact y with 3 dimensions which can be describedas [θ, φ, η]. The learner is trained by computer simulation. Due to the lack of computation resource, we generate only data of 21000 inputs and outputs. Supposed outputs are generated under the following normal distribution: ${\begin{matrix} R_{I} \sim N (200, 1), \\ R_{D} \sim N (400, 1), \\ θ \sim N (0, 1), \\ φ \sim N (0, 1), \\ η \sim N (0, 1), \end{matrix}$ (13) where R_I is the distance of gantry center from X-ray source and R_D is the distance of pierce point from X-ray source. The learner fetches 20000 cases randomly for training and uses the rest for testing.

4 Simulation

4.1 Method

As mentioned above, the BBs in random phantom are supposed to locate far enough with each other to prevent their shadows on scanner from overlapping together. To generate an ideal phantom, we use nearest-neighbor graph (NNG) to validate BBs from a dependently and uniformly chosen set.

Let V ={ v₁, v₂,. . . , v_n } be a set of points in $ℝ^{t}$ .

Definition 3. The nearest neighbor of v_i is a point v_j, j ≠ i, with minimum Euclidean distance from v_i. For the uniqueness of the nearest neighbor, the point v_j is chosen with the maximum index in case of ties and denoted as nn (v_i).

Definition 4. The shortest edge of v is the directed edge e (v) =〈 v, nn (v) 〉.

Definition 5. The nearest-neighbor graph (NNG) NNG (V) of a point set V is the directed graph 〈V, E〉 where E ={ e (v) |v ∈ V } [22].

We simply use the distance of shortest edge in NNG to evaluate the priority of a phantom. In this study, we generate1000 phantoms with independent and uniform BBs and choose the one with the longest distance of shortest edge in NNG as the calibration phantom. During simulation, we choose M∈ { 3, 4, 5, 6, 7, 8 } and N∈ { 8, 10, 12, 14, 16, 18 } to discover the trend of correctness. In order to simulate the practical situation of noise, for each feature in the input array with the unit of millimeter, a N (0, 0.01) Gaussian noise is added. After that, features are digitalized to precision of 0.1 mm.

4.2 Result

We utilize fraction of variance unexplained to evaluate the accuracy of fitted model.

Definition 6. The fraction of variance unexplained (FVU) e² is defined as: ${\begin{matrix} e^{2} = \frac{f}{g} \\ f = E {[t_{i} - p_{i}]}^{2} \\ g = E {[t_{i} - t]}^{2} \\ \bar{t} = E [t_{i}] \end{matrix}$ (14) where t_i is the true label of each case and p_i is the predicted label for each case [23].

The score can be no negative and can be higher than 1.0. A constant model that always predicted the same label regardless of the input features would get a 1.0 score. FVU of all 3 parameters without condition of noise and digitalization are show in the 3 contour patterns demonstrated in Figs. 3 to 5, respectively.

Fig.3

Coefficient of Determination of θ without Noise.

Fig.4

Coefficient of Determination of φ without noise.

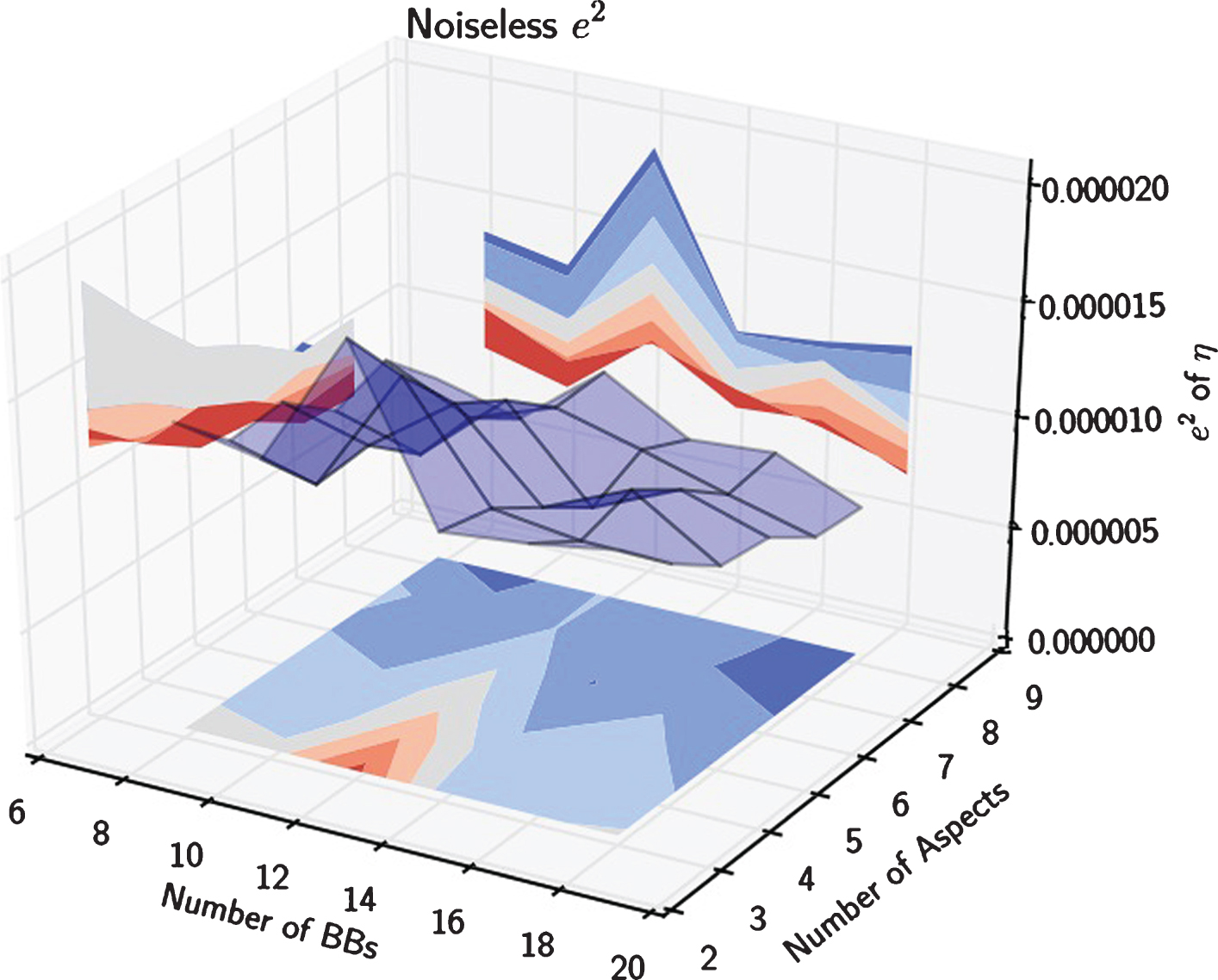

Fig.5

Coefficient of Determination of η without noise.

Generally, it is manifest from the contour figures that with the increment of either number of BBs or number of aspects, FVU between true labels and predicted labels is descending. However, the number of BBs, by contrast, acts with some uncertainty which presents anomalous phenomena. The points of extremal abnormality appear at the same position in fields of different parameters which is N∈ { 12, 16 }.

More specifically comparing between different parameters, use ${\begin{matrix} M = 8, \\ N = 18, \end{matrix}$ (15)

as an example, the most precise prediction among the 3 parameters is given by η with less than 7 × 10^-6 uncertainty whereas θ and φ present about 6 × 10^-5 uncertainty.

FVU of all 3 parameters within condition of noise and digitalization are show in the 3 contour figures below: Figs. 6, 7, 8.

Fig.6

Coefficient of Determination of θ with Noise.

Fig.7

Coefficient of Determination of φ with noise.

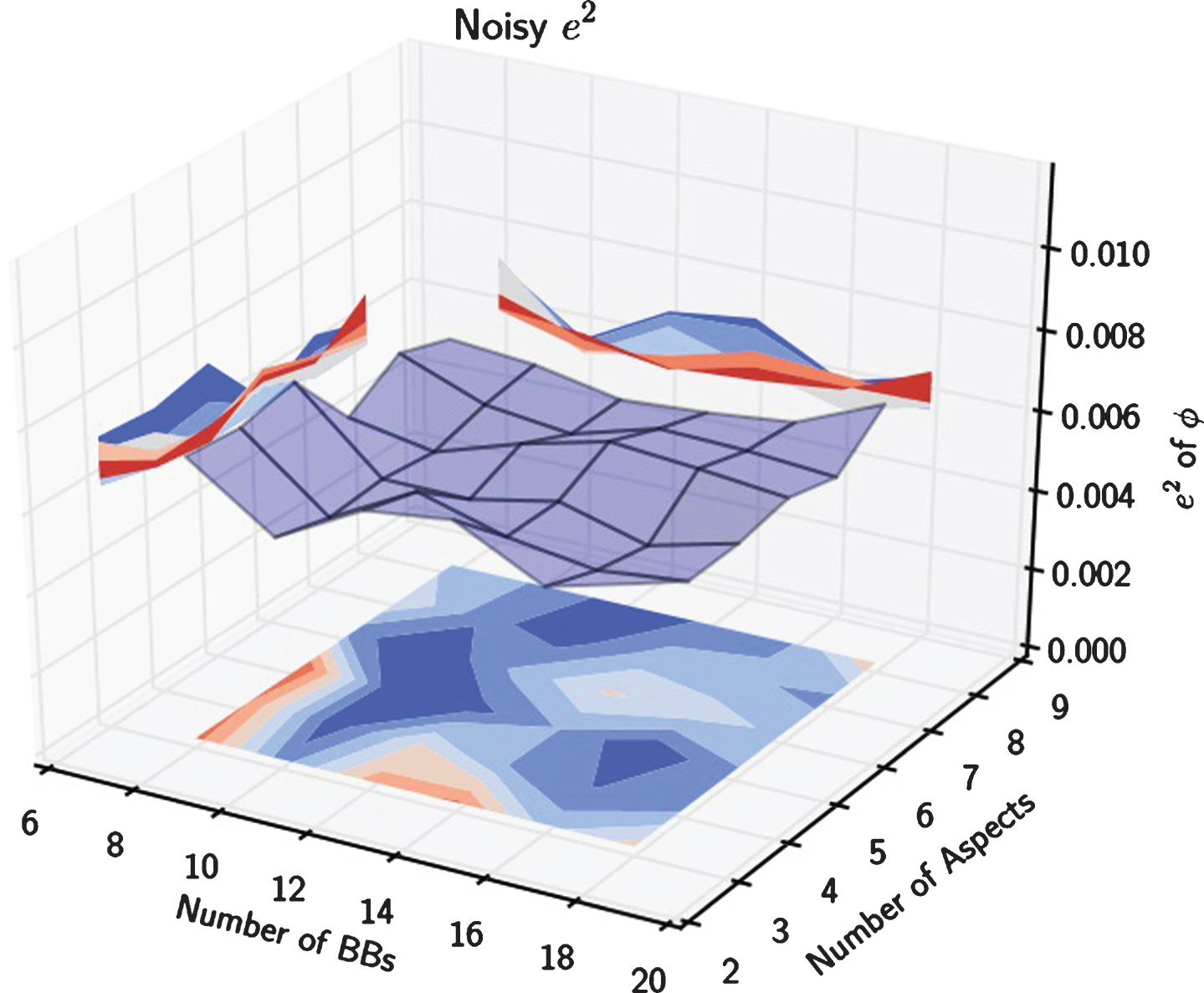

Fig.8

Coefficient of Determination of η with noise.

Use the same case in Equation 15 as an example, the most precise prediction among the 3 parameters is given by η as well with about 1 × 10^-3 uncertainty where as θ and φ present about 6 × 10^-3 uncertainty. Comparing with noiseless cases, uncertainty increases for about 2 orders of magnitude. Furthermore, there are still anomalous phenomena but the points of extremal abnormality may alter from noiseless cases.

4.3 Reconstruction

The result of reconstruction is shown in Fig. 9. The images are reconstructed by Feldkamp-type(FDK) algorithm which projections have been rectified by θ,φ,η. Figure 9(a) shows the reconstruction of quite image with rectification. The PSNR between Figs. 9(a) and 1(a) is 224.78. Figure 9(b) shows the reconstruction of noisy image with rectification. The PSNR between Figs. 9(b) and 1(a) is 143.17. Hence, compared with Fig. 1(b), the quality of reconstruction is improved by rectification significantly: quality of quiet image gets an improvement of more than 100 dB while even quality of noisy image gets an improvement of more than 30 dB.

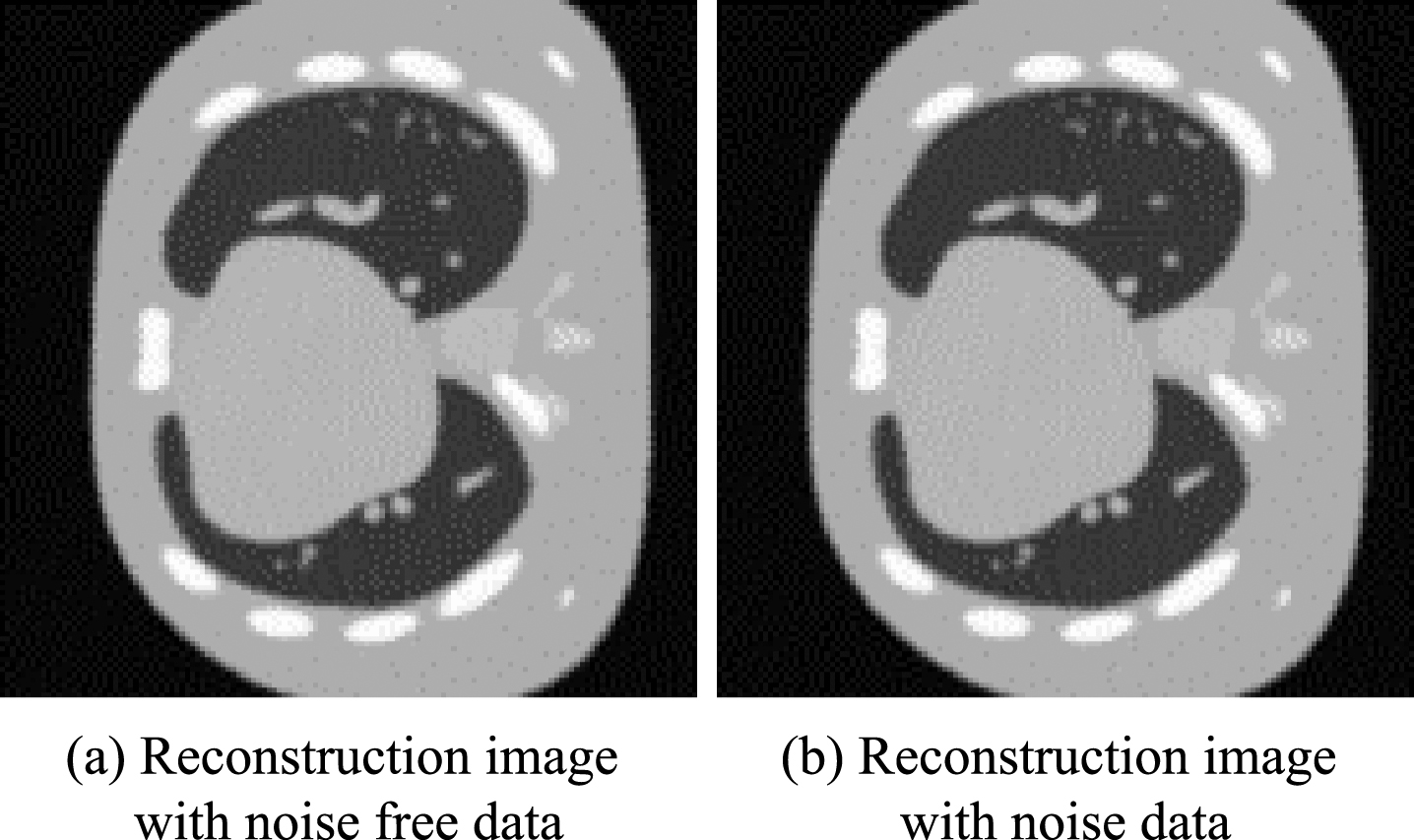

Fig.9

Reconstruction image which projections have been rectified by θ, φ, η.

5 Discussions and conclusions

Geometry calibration is important to produce high quality medical images in disease detection and diagnosis [24, 25]. For example, Chen et al. reported an iterative locally linear embedding (LLE) based calibration approach to address this challenge under a rigid 2D object assumption [26]. However even if iterative LLE was able to converge, it was not guaranteed that the limitation was the optimized parameters. Comparing with classical methods [10 , 13] and recent ones [12, 26], a new machine learning method proposed and tested in this study for μCT geometry calibration is more general and convenient since no information of phantom is required. It is clearly seen from simulation that this study provides a machine learning method that have the ability to present more accurate prediction by acquiring more projection of various aspects.

However, there are still some items which can be improved in further research. First, in current simulation, we use an Intel^® Core™ i7-3517U processor with 8GB RAM. The fitting process occupies at last 6GB RAM while handling 20000 cases of data and more RAM is required for more cases or the operating system will not response. Since precision can be ameliorated by additional features and extra cases, with more powerful computing machine, more features and cases can be fed to the learning machine and more precise predictions can be expected. Second, supplementary parameters of μCT system can be introduced into this calibration method easily because the learning machine does not rely on any parameter. Third, the correlation is not transparent between FVU and number of BBs. Simulations of N∈ { 9, 11, 13, 15, 17, 19 } may help solving this problem.

One of the reasons which may cause the greater uncertainty in noisy cases is that the noise and digitalization are at rough estimate. The current estimation is more influential than common situations. In order to solve the problem of misrepresentation of tissue structures caused by errors in μCT construction, a machine learning method is chosen to calibrate μCT system. Kernel Ridge Regression is applied in the calibration and FVU for [θ, φ, η] ^T is simulated as [6 . 1 × 10^-5, 6.3 × 10^-5, 6.6 × 10^-6] ^T and [6 . 1 × 10^-3, 6 . 6 ×10^-3, 1 . 0 ×10^-3] ^T in the noiseless and noisy situation, respectively.

Footnotes

Acknowledgments

We would like to thank Xuelu Chen for helpful discussion on Hilbert space.
