A three-dimensional analysis of skeletal and dental characteristics in skeletal class III patients with facial asymmetry

Abstract

OBJECTIVE:

To evaluate the skeletal and dental characteristics in skeletal class III patients with facial asymmetry and to analyse the relationships among various parts of the stomatognathic system to provide a theoretical basis for clinical practice.

METHODS:

Asymmetric cone-beam computed tomography data acquired from 56 patients were evaluated using Mimics 10.0 and 3-Matic software. Skeletal and dental measurements were performed to assess the three-dimensional differences between two sides. Pearson correlation analysis was used to determine the correlations among measurements.

RESULTS:

Linear measurements, such as ramal height, mandible body length, ramal height above the sigmoid notch (RHASN), maxillary height, condylar height, buccal and total cancellous bone thickness, and measurements of condylar size, were significantly larger on the nondeviated side than on the deviated side (P < 0.05). Crown root ratio and buccolingual angle of mandibular first molar were found to be significantly smaller on the nondeviated side than on the deviated side (P < 0.05). A negative correlation was also discovered between the buccolingual angle of mandibular first molar and the ramal height (P < 0.01).

CONCLUSIONS:

In patients with facial asymmetry, asymmetries in the mandible, maxilla and condylar morphology, and skeletal canting served as major components of skeletal asymmetry. Furthermore, a reduced thickness of buccal cancellous bone and a larger crown root ratio were found on the deviated side, indicating that orthodontic camouflage has limitations and potential risks. A combination of orthodontics and orthognathic surgery may be the advisable choice in patients with a menton deviation greater than 4 mm. An important association between vertical skeletal disharmony and dental compensation was also observed.

Keywords

Facial asymmetry skeletal and dental characteristics cone-beam computed tomography

1 Introduction

Skeletal class III with facial asymmetry is common in orthodontic clinics and can severely degrade facial aesthetics and oral function. The treatment of skeletal class III patients with facial asymmetry is challenging for orthodontists because of the complicated characteristics of asymmetry. Although various aetiological factors, such as heredity, environmental factors, condylar hyperactivity, etc., have been proposed, the causes of facial asymmetry remain unclear. Investigating the skeletal and dental characteristics in skeletal class III patients with facial asymmetry is helpful in designing orthodontic treatment plans for this malocclusion and for understanding its formation mechanism.

Currently, evaluating facial asymmetry is still challenging because the asymmetry may involve skeletal, dental and soft tissue components. Skeletal (mandible, maxilla, and temporomandibular joint) features are research hotspots in facial asymmetry patients. Because the mandible is a relatively flexible part, and the mandibular growth periods are longer, a deviation of the lower face is more frequent than that of the upper and midface regions [1]. Skeletal asymmetry may involve the mandible only; however, the asymmetry usually also affects the maxilla, which is the antagonist basal bone of the mandible. Many studies [2 –9] have characterized maxillomandibular features, but mandibular and maxillary symmetry are still being disputed. The temporomandibular joint (TMJ) is the pivot connecting the maxilla and mandible, and its harmonious function is important for maintaining a normal masticatory system. The symmetry of the TMJ structures helps the TMJ to function normally. Kau CH [10] indicated that skeletal class III patients with facial asymmetry whose skeleton and occlusion are asymmetric may show asymmetric TMJ conditions. While linear, angular, volumetric, and surface area measurements used to assess condylar characteristics have been undertaken by several three-dimensional (3D) research efforts [2 , 11–13], a cone-beam computed tomography (CBCT) study of glenoid fossa morphology symmetry is lacking. Further 3D evaluations of skeletal characteristics in patients with facial asymmetry is necessary.

For patients with facial asymmetry, orthodontic camouflage and surgical treatment are the two main therapies. Because surgical treatment causes greater trauma and is associated with higher costs, many patients with facial asymmetry tend to be treated with orthodontic camouflage. When adopting orthodontic camouflage, practitioners should bear in mind its potential limitations and follow basic biomechanical principals; otherwise, iatrogenic sequelae may occur [14]. If facial asymmetry is beyond the scope of correction by conventional orthodontic treatment, a combined orthognathic surgical approach may be required [15]. The dimensions of the alveolus constitute a limiting factor for orthodontic movement [16], and the movement of the posterior teeth plays an important role in the management of facial asymmetry. The dimensions of the posterior alveolus and the position of the posterior teeth in the alveolar bone should therefore be established before treatment. The degree of compensation and the condition of the posterior teeth should also be taken into consideration when selecting treatment options. Investigating the dental characteristics of the posterior teeth (the position of the tooth in the alveolar bone, dental compensation, and tooth condition) in patients with facial asymmetry can provide a reference source for choosing a therapy method.

The maxilla, mandible, TMJ, and dental arches are the major components of the stomatognathic system. Teeth are set in the alveolar fossa of the jaw bones, and the maxilla and mandible are linked together by the TMJ; thus, they are interact with each other affects. Therefore, investigating the relationships among the various components of the stomatognathic system is essential. This study evaluated the skeletal and dental characteristics in skeletal class III patients with facial asymmetry and analysed the relationships among various parts of the stomatognathic system to provide a theoretical basis for clinical practice.

2 Materials and methods

2.1 Study subjects

A total of 56 CBCT images (male 26, female 30, mean age 22±3.46 years) were selected from patients who had undergone a CT scan at the authors’ institution between 2011 and 2015. The inclusion criteria were as follows: 1) angle class III malocclusion and skeletal class III patients (ANB <0°); 2) facial asymmetry (menton deviation ≥4 mm); 3) age ≥18 years; 4) absence of functional mandibular deviations; and 5) full permanent dentition with the exception of the third molar. Patients with 1) abnormally shaped molars; 2) a history of orthodontic treatment; 3) a temporomandibular joint disorder syndrome; 4) noticeable periodontal diseases; 5) a history of facial trauma; and 6) diseases or congenital syndromes accompanied by skeletal disharmony, were excluded from the dataset of this study. The study was conducted according to the recommendations for research involving human subjects and was approved by the authors’ institution (CQHS-IRB-2016-02).

2.2 CBCT scans and 3D reconstruction of the CBCT scans

All patients underwent standardized CBCT (KaVo Dental Gmb H, USA) with a setting of 120 kVp, 5 mA, 8.9 sec and voxel size of 0.4 mm. Patients were asked to occlude at maximum intercuspation and relax their lips; in addition, they were positioned with the Frankfort horizontal plane parallel to the floor and the midsagittal plane align with the long axis of the CT machine.

CBCT images were exported in the Digital Imaging and Communication in Medicine (DICOM) format using the iCAT Vision software. DICOM files were imported into the Mimics 10.0 software (Materialise, Leuven, Belgium), and 3D reconstructions were created. The mandible and mandibular first molars were separated from the whole image.

2.3 Measurements

The multiplanar visualization was combined with the 3D image reconstructions to locate anatomic landmarks (Fig. 1 and Table 1). Reference planes were established (Fig. 1): The axial plane was defined by passing through the bilateral orbitale and the right porion points; The plane crossing the midpoint of the zygomaticotemporal suture of the two sides and perpendicular to the axial plane was defined as the coronal plane; The plane crossing the most anterior midpoint of the maxillary anterior nasal spine and perpendicular to the axial plane and coronal plane was defined as the sagittal plane. Skeletal and dental measurements were taken using the Mimics (Materialise, Leuven, Belgium) and 3-Matic (version 7.0) software programs.

Table 1
Description of landmarks

Landmark Description

Or (L/R) Most inferior point of infraorbital rim on right and left sides

PoR Most superior point of right external acoustic meatus

ANS Most anterior midpoint of the anterior nasal spine of the maxilla

ZT (L/R) Midpoint of the zygomaticotemporal suture

J (L/R) The intersection of the jugal bone and the maxillary

Cd (L/R) Most superior point of the condylar head

CdD (L/R) Most distal point of the condylar head

CdM (L/R) Most medial point of the condylar head

CdC (L/R) Geometric centers of the condyle head

W (L/R) The point that the pterygoid muscle attach on the neck of condylar head

Si (L/R) Most inferior point of incisura mandibulae of the mandibular bone

Sii (L/R) A tangent of the sigmoid notch and the mandibular ramus posterior intersect at Sii

Go (L/R) Midpoint on the angle of the mandible, halfway between the corpus and ramus

Me Most inferior midpoint in the symphysis

GlS (L/R) Most superior point of the glenoid fossa of the temporal bone

GlA (L/R) Most inferior point of the articular eminence of the temporal bone

Poi (L/R) Most inferior point of the external acoustic meatus

L6MBC (L/R) The highest point of the mandibular first molar medial buccal cusp

L6DBC (L/R) The highest point of the mandibular first molar distal buccal cusp

L6MCEJ (L/R) The junction of the mandibular first molar medial enamel and cementum

L6MA (L/R) The inferior point of the mandibular first molar medial root

L6C (L/R) The centre point of mesiodistal and buccolingual of the occlusal surface of the mandibular first molar

L6R (L/R) The centre point of the root bifurcation of the mandibular first molar

L6MRB (L/R) The most buccal point of the mandibular first molar medial root cervix

L6MRL (L/R) The most lingual point of the mandibular first molar medial root cervix

U6MBC (L/R) The highest point of the maxillary first molar medial buccal cusp

U6MLC (L/R) The highest point of the maxillary first molar medial lingual cusp

UI The point that the mesial contact of the upper central incisors

Landmark	Description
Or (L/R)	Most inferior point of infraorbital rim on right and left sides
PoR	Most superior point of right external acoustic meatus
ANS	Most anterior midpoint of the anterior nasal spine of the maxilla
ZT (L/R)	Midpoint of the zygomaticotemporal suture
J (L/R)	The intersection of the jugal bone and the maxillary
Cd (L/R)	Most superior point of the condylar head
CdD (L/R)	Most distal point of the condylar head
CdM (L/R)	Most medial point of the condylar head
CdC (L/R)	Geometric centers of the condyle head
W (L/R)	The point that the pterygoid muscle attach on the neck of condylar head
Si (L/R)	Most inferior point of incisura mandibulae of the mandibular bone
Sii (L/R)	A tangent of the sigmoid notch and the mandibular ramus posterior intersect at Sii
Go (L/R)	Midpoint on the angle of the mandible, halfway between the corpus and ramus
Me	Most inferior midpoint in the symphysis
GlS (L/R)	Most superior point of the glenoid fossa of the temporal bone
GlA (L/R)	Most inferior point of the articular eminence of the temporal bone
Poi (L/R)	Most inferior point of the external acoustic meatus
L6MBC (L/R)	The highest point of the mandibular first molar medial buccal cusp
L6DBC (L/R)	The highest point of the mandibular first molar distal buccal cusp
L6MCEJ (L/R)	The junction of the mandibular first molar medial enamel and cementum
L6MA (L/R)	The inferior point of the mandibular first molar medial root
L6C (L/R)	The centre point of mesiodistal and buccolingual of the occlusal surface of the mandibular first molar
L6R (L/R)	The centre point of the root bifurcation of the mandibular first molar
L6MRB (L/R)	The most buccal point of the mandibular first molar medial root cervix
L6MRL (L/R)	The most lingual point of the mandibular first molar medial root cervix
U6MBC (L/R)	The highest point of the maxillary first molar medial buccal cusp
U6MLC (L/R)	The highest point of the maxillary first molar medial lingual cusp
UI	The point that the mesial contact of the upper central incisors

L/R, left/right.

Fig.1

Landmarks (as described in Table 1) and reference planes. A and B, lateral and frontal views of maxillofacial region. C, reference planes: a, axial plane; b, coronal plane; c, sagittal plane. D and E, lateral and frontal views of mandible. F, condyle. G, maxillary teeth. H and I, buccolingual and mesiodistal views of mandibular first molar. I is a perspective figure.

Mandibular measurements included an evaluation of menton deviation, mandibular inclination, ramal height, and mandible body length. To further evaluate the mandibular ramus, ramal height above the sigmoid notch (RHASN) and ramal height below the sigmoid notch (RHBSN) were measured. Maxillary inclination and maxillary height were used for evaluating maxillary symmetry (Table 2 and Fig. 2).

Table 2

Description of measurements

Measurement	Description
Menton deviation	Distance from Me to sagittal plane
Mandibular inclination	Angle between bi-condyle and axial plane
Ramal height	Distance from Cd to Go
Mandible body length	Distance from Go to Me
RHASN	Ramal height above the sigmoid notch (distance from Cd to Sii)
RHBSN	Ramal height below the sigmoid notch(distance from Sii to Go)
Maxillary height	Distance from J to axial plane
Maxillary inclination	Angle between bi-jugal and axial plane
Glenoid fossa width	Distance from Poi to GlA
Glenoid fossa height	Distance from GlS to the line constructing by Poi and GlA
Tuberculum articulare angle	Angle between the plane of the posterior wall of the articular tubercle and the line constructing by Poi and GlA
Condylar height	Distance from Cd to the line constructing by CdM and CdD
Condylar volume	Wing muscle fossa plane which through W and parallel to axial plane divided the mandible into two parts. The above part was condyle.
Condylar surface	Wing muscle fossa plane which through W and parallel to axial plane divided the mandible into two parts. The above part was condyle.
Condylar anteroposterior position	The distance from CdC to coronal plane
Axial condylar angle	Angle between condylar coronal plane which constructed by Cd, CdM and CdD and sagittal plane
Crown length	Distance from L6MBC to L6MCEJ
Root length	Distance from L6MCEJ to L6MA
Crown root ratio	The ratio of crown length and root length
Buccolingual angle of mandibular first molar	Angle between sagittal plane and the plan which perpendicular to coronal plane and through L6C and L6R
Mesiodistal angle of mandibular first molar	Angle between maxillary occlusal plane, which constructed by U6MBC (L/R) and UI, and the plane which perpendicular to sagittal plane and through L6C and L6R
Buccal cancellous bone thickness	Distance from L6MA to the tangent of the inner contour of the buccal cortical plate
Lingual cancellous bone thickness	Distance from L6MA to the tangent of the inner contour of the lingual cortical plate
Total cancellous bone thickness	Distance from D to E (The perpendicular feet of vertical line was defined as D/E. which through L6MA and vertical the tangent of the inner contour of the lingual/buccal cortical plate.)
Occlusal plane inclination	Angle between bi-U6MLC and axial plane

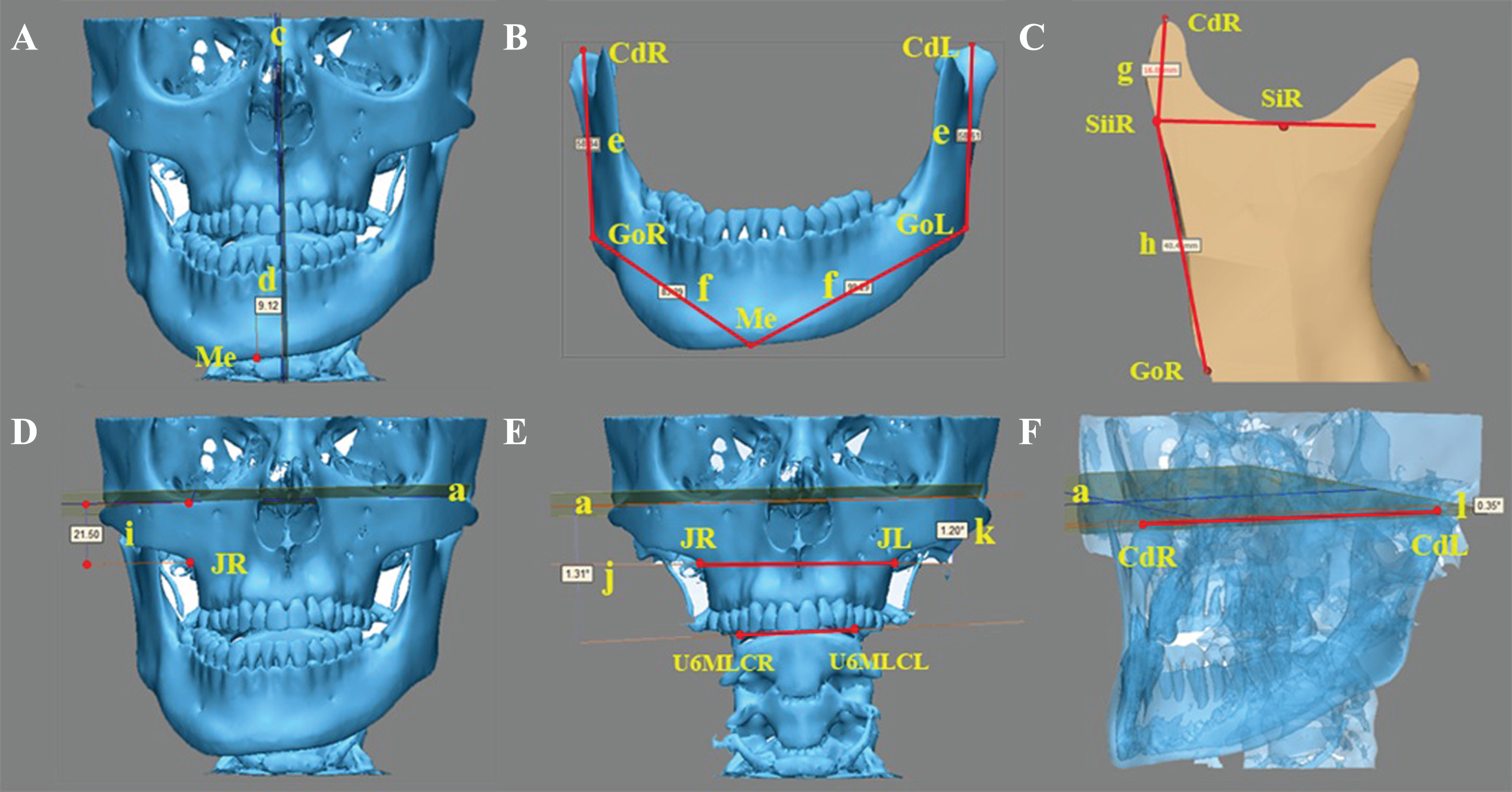

Fig.2

Mandibular and maxillary measurements (The description of measurements is shown in Table 2). A, frontal view of maxillofacial region. c, sagittal plane; d, menton deviation. B, mandibular frontal view. e, ramal height; f, mandible body length. C, section view of mandibular ramus, which was cut along the plane constructed by Cd, Si and Go. g, ramal height above the sigmoid notch; h, ramal height below the sigmoid notch. D, E and F, frontal and lateral views of maxillofacial region. a, axial plane; i, maxillary height; j, occlusal plane angle; k, maxillary angle; l, mandibular angle. F is a perspective figure.

For the TMJ, the symmetry of glenoid fossa and condyle were evaluated. Glenoid fossa width, glenoid fossa height, and tuberculum articulare angle were used to assess the symmetry in the glenoid fossa morphology. The condyle was evaluated from two aspects (morphology and position). Condylar height, condylar volume and condylar surface were used to evaluate the symmetry in the morphology. The symmetry of position included an evaluation of condylar anteroposterior position and axial condylar angle (Table 2 and Fig. 3).

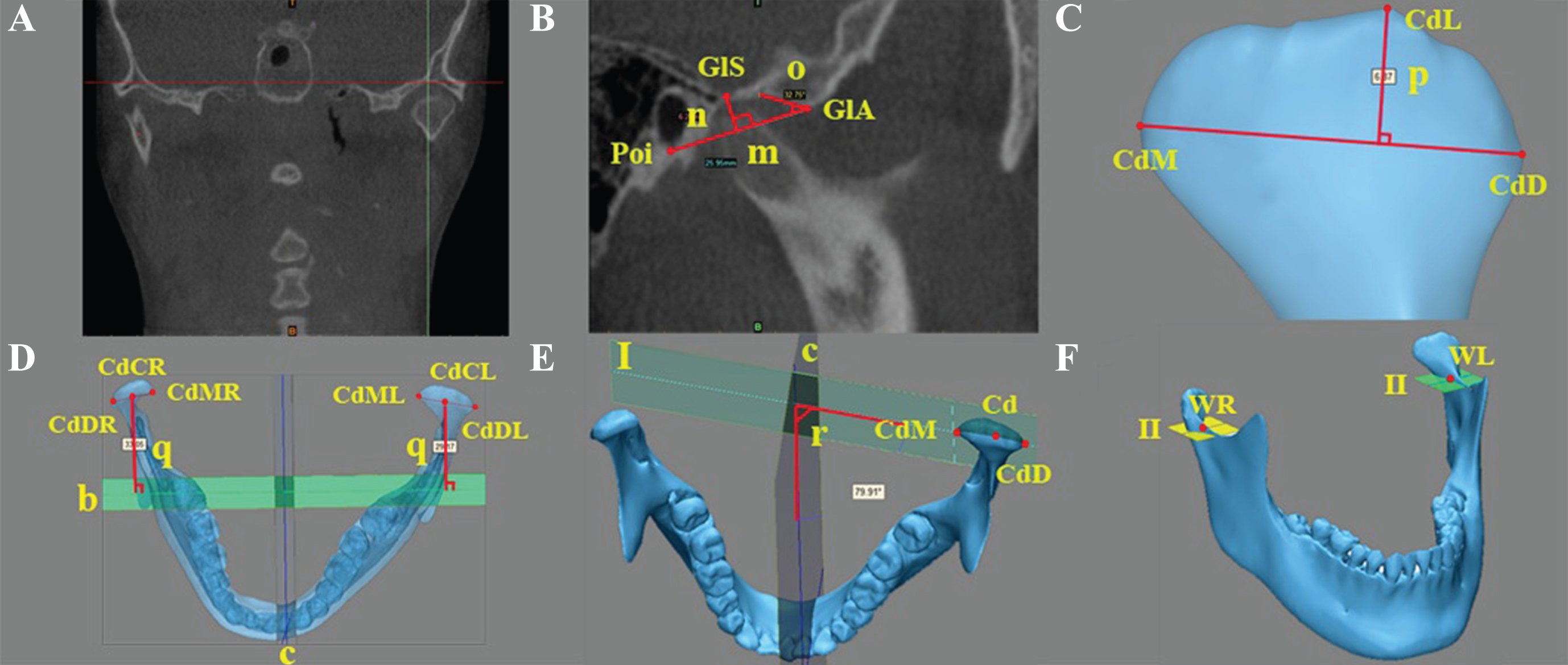

Fig.3

Measurements of temporomandibular joint (The description of the measurements are shown in Table 2). A and B, the coronal and sagittal views at which the curvature of glenoid fossa is the deepest. m, glenoid fossa width; n, glenoid fossa height; o, tuberculum articulare angle. C, condyle. p, condylar height. D, E and F, mandibular upper and lateral views. b, coronal plane; c, sagittal plane; q, condylar anteroposterior position; I, coronal plane of condyle; r, axial condylar angle; II, wing muscle fossa plane.

In this study, the mandibular first molar was used as an example to preliminarily analyse dental characteristics. Dental characteristics were evaluated from three aspects (tooth condition, dental compensation, and the position of the tooth in the alveolar bone). Crown root ratio was used to evaluate the tooth condition. Dental compensation included an evaluation of buccolingual and mesiodistal angles of mandibular first molar. Buccal cancellous bone thickness, lingual cancellous bone thickness and total cancellous bone thickness were used to assess the position of the tooth in the alveolar bone (Table 2 and Fig. 4). Furthermore, occlusal plane inclination was used for assessing the occlusal plane (Table 2 and Fig. 2).

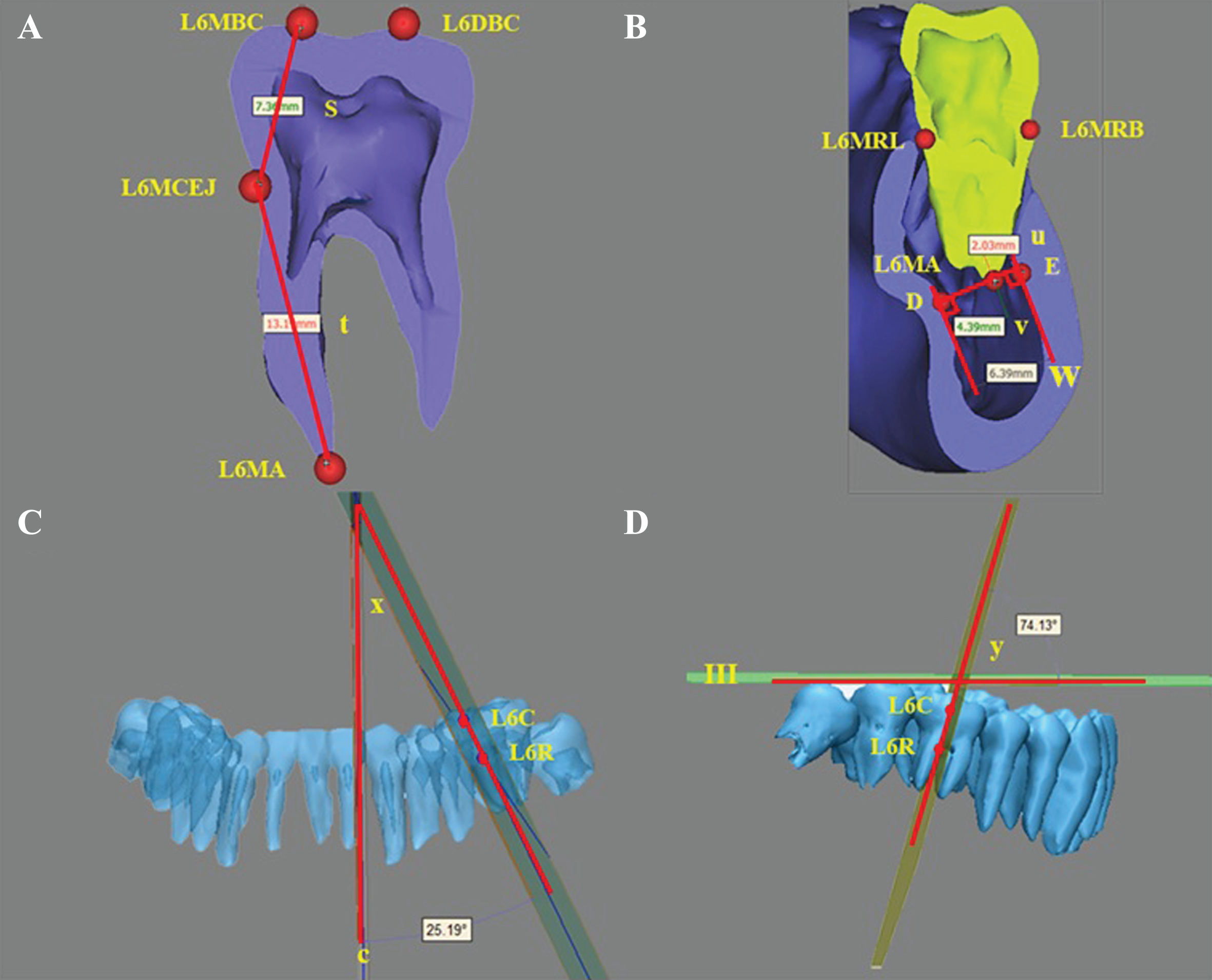

Fig.4

Dental measurements (The description of measurements is shown in Table 2). A, section view of mandibular first molar, which was cut along the plane constructed by L6MBC, L6DBC and L6MA. s, crown length; t, root length. B, section view of mandibular first molar and mandible, which were cut along the plane constructed by L6MRB, L6MRL and L6MA. u, v and w, buccal, lingual and total cancellous bone thickness. C and D, frontal and lateral views of mandibular teeth. c, sagittal plane; III, maxillary occlusal plane; x and y, buccolingual and mesiodistal angles of mandibular first molar. C is a perspective figure.

2.4 Statistical analysis

All measurements were repeated after a two-week interval by the same operator, and the mean of the two measurements was used in the statistical analysis. The intraclass correlation coefficient (ICC) was used in assessing the magnitude of measurement error. The paired t-test was used to compare the differences between the two sides. The Pearson correlation analysis was used to determine correlations among measurements. Statistical evaluations were performed at the 5% level of significance with SPSS (version 17.0; SPSS, Chicago, III).

3 Results

The ICC results ranged from 0.836 to 0.905, indicating that the method had good reliability. In skeletal indices, ramal height, mandible body length, RHASN, maxillary height, condylar height, condylar volume and condylar surface were significantly greater on the nondeviated side than on the deviated side (P < 0.01). There was no significant difference in RHBSN, glenoid fossa width, glenoid fossa height, tuberculum articulare angle, condylar anteroposterior position and axial condylar angle (Table 3). The mean value of the occlusal plane inclination, maxillary inclination and mandibular inclination were 1.88°, 0.98° and 1.01°. Among subjects of this experiment, the proportion of occlusal canting, maxillary canting and mandibular canting were 63.63%, 54.54%, and 45.45% respectively (Occlusal canting/maxillary canting/mandibular canting was defined as the angle between the bi-U6MLC/bi-jugal/bi-condyle and axial plane exceeding 1°).

Table 3
Comparison of the differences in measurements between nondeviated and deviated sides (Paired-Samples T Test)

Measurement Nondeviated side Deviated side P value

Mean SD Mean SD

Ramal height (mm) 58.40 4.77 52.95 5.31 0.008^

Mandible body length (mm) 87.58 8.49 84.06 7.66 0.001^

RHASN (mm) 20.51 3.04 16.06 3.66 0.004^

RHBSN (mm) 37.87 2.56 37.35 3.32 0.674

Maxillary height (mm) 25.21 3.92 24.13 4.16 0.002^

Glenoid fossa width (mm) 20.42 2.93 20.08 4.23 0.760

Glenoid fossa height (mm) 7.53 1.52 7.98 2.09 0.376

Tuberculum articulare angle(°) 46.33 13.50 42.87 11.32 0.382

Condylar height (mm) 7.66 1.37 6.22 1.54 0.001^

Condylar volume (mm³) 1532.40 393.69 1130.19 290.33 0.006^

Condylar surface (mm²) 822.03 153.49 699.92 129.84 0.006^

Condylar anteroposterior position (mm) 32.39 3.41 32.25 3.80 0.849

Axial condylar angle(°) 76.39 12.13 69.53 11.56 0.130

Crown root ratio (%) 49.33 8.62 52.94 8.60 0.004^

Buccolingual angle of mandibular first molar(°) 10.97 14.43 25.01 9.23 0.023^*

Mesiodistal angle of mandibular first molar(°) 85.32 9.02 83.13 5.42 0.428

Buccal cancellous bone thickness (mm) 1.84 1.77 1.07 1.18 0.045^*

Lingual cancellous bone thickness (mm) 5.34 1.81 5.25 1.31 0.881

Total cancellous bone thickness(mm) 7.11 1.31 6.34 1.09 0.049^*

Measurement	Nondeviated side	Deviated side	P value
Ramal height (mm)	58.40	4.77	52.95	5.31	0.008^**
Mandible body length (mm)	87.58	8.49	84.06	7.66	0.001^**
RHASN (mm)	20.51	3.04	16.06	3.66	0.004^**
RHBSN (mm)	37.87	2.56	37.35	3.32	0.674
Maxillary height (mm)	25.21	3.92	24.13	4.16	0.002^**
Glenoid fossa width (mm)	20.42	2.93	20.08	4.23	0.760
Glenoid fossa height (mm)	7.53	1.52	7.98	2.09	0.376
Tuberculum articulare angle(°)	46.33	13.50	42.87	11.32	0.382
Condylar height (mm)	7.66	1.37	6.22	1.54	0.001^**
Condylar volume (mm³)	1532.40	393.69	1130.19	290.33	0.006^**
Condylar surface (mm²)	822.03	153.49	699.92	129.84	0.006^**
Condylar anteroposterior position (mm)	32.39	3.41	32.25	3.80	0.849
Axial condylar angle(°)	76.39	12.13	69.53	11.56	0.130
Crown root ratio (%)	49.33	8.62	52.94	8.60	0.004^**
Buccolingual angle of mandibular first molar(°)	10.97	14.43	25.01	9.23	0.023^*
Mesiodistal angle of mandibular first molar(°)	85.32	9.02	83.13	5.42	0.428
Buccal cancellous bone thickness (mm)	1.84	1.77	1.07	1.18	0.045^*
Lingual cancellous bone thickness (mm)	5.34	1.81	5.25	1.31	0.881
Total cancellous bone thickness(mm)	7.11	1.31	6.34	1.09	0.049^*

SD, standard deviation. The Paired-Samples T Test was used to compare the difference between nondeviated and deviated sides. ^*P < 0.05; ^**P < 0.01.

In dental indices, crown root ratio and buccolingual angle of mandibular first molar were significantly smaller on the nondeviated side than on the deviated side (P < 0.05). When compared with the deviated side, the buccal and total cancellous bone thickness were found to be significantly larger on the nondeviated side (P < 0.05). The lingual cancellous bone thickness and mesiodistal angle of mandibular first molar were not significantly different between the two sides (Table 3).

Menton deviation was significantly correlated with differences in ramal height (P < 0.01), mandible body length (P < 0.05), RHASN (P < 0.01) and condylar volume (P < 0.05) between the two sides. There were significant correlations between the ramal height with RHASN (P < 0.05). Maxillary height was negatively related to the crown root ratio (P < 0.05). Both condylar volume and condylar surface were correlated with ramal height (P < 0.05) and RHASN (P < 0.01). A negative correlation was found between buccolingual angle of mandibular first molar and ramal height (P < 0.01, Table 4).

Table 4

Correlation analysis between statistically significant difference measurements (Pearson correlation analysis)

Correlation coefficient (P value)	Ramal height diff	Mandible body length diff	RHASN diff	Maxillary height diff	Condylar height diff	Condylar volume diff	Condylar surface diff	Crown root ratio diff	Buccal cancellous thickness bone diff	Total cancellous thickness bone diff	buccolingual angle of mandibular first molar diff
Menton deviation	0.756	0.619	0.839	–0.466	–0.262	0.728	0.585	0.386	–0.217	0.101	–0.328
	(0.007^**)	(0.042^*)	(0.001^**)	(0.148)	(0.437)	(0.011^*)	(0.059)	(0.240)	(0.522)	(0.768)	(0.324)
Ramal height diff		0.223	0.731	–0.464	–0.188	0.706	0.669	0.326	0.001	0.359	–0.781
		(0.509)	(0.011^*)	(0.150)	(0.581)	(0.015^*)	(0.024^*)	(0.328)	(0.998)	(0.279)	(0.005^**)
Mandible body length diff			0.409	0.010	–0.138	0.332	0.231	–0.027	–0.474	–0.087	0.135
			(0.212)	(0.978)	(0.686)	(0.318)	(0.494)	(0.937)	(0.141)	(0.800)	(0.691)
RHASN diff				–0.486	0.049	0.803	0.742	0.294	0.153	–0.005	–0.563
				(0.130)	(0.887)	(0.003^**)	(0.009^**)	(0.381)	(0.653)	(0.989)	(0.071)
Maxillary height diff					–0.144	–0.389	–0.379	–0.650	–0.181	0.462	0.276
					(0.673)	(0.237)	(0.250)	(0.030^*)	(0.595)	(0.152)	(0.412)
Condylar height diff						0.099	0.289	0.253	0.046	–0.386	0.011
						(0.773)	(0.389)	(0.453)	(0.894)	(0.242)	(0.974)
Condylar volume diff							0.952	0.210	0.015	0.126	–0.466
							(0.000^**)	(0.536)	(0.965)	(0.711)	(0.148)
Condylar surface diff								0.232	0.117	0.007	–0.571
								(0.493)	(0.733)	(0.984)	(0.067)
Crown root ratio diff									–0.293	–0.362	–0.205
									(0.382)	(0.273)	(0.545)
Buccal cancellous bone thickness diff										–0.219	–0.396
										(0.518)	(0.228)
Total cancellous bone thickness diff											–0.191
											(0.574)

Diff, nondeviated side minus deviated side. ^*P < 0.05; ^**P < 0.01.

4 Discussion

This study used CBCT for the measurement and analysis of skeletal class III patients with facial asymmetry. CBCT has smaller magnification errors, less radiation exposure, shorter scan times, and lower operating costs compared with traditional radiography [17, 18]. CBCT is an effective tool for clinical examinations and has high accuracy and application value in evaluating TMJ morphology. Take assessing glenoid fossa morphology symmetry as an example to compare the evaluation difference between using old methods and CBCT: Traditional radiograph have magnification errors and the glenoid fossa morphology displayed in these radiograph are not clear. Traditional methods can display the sagittal glenoid fossa morphology, such as the transpharyngeal projection (Fig. 5A) and the transcranial projection (Fig. 5B), but they are difficult to reflect the coronal and transversal glenoid fossa morphology. Utilizing traditional radiograph to assess glenoid fossa morphology symmetry need to take two X-ray photographs. CBCT is able to contrast glenoid fossa morphology symmetry with various sagittal sections (Fig. 5C), coronal sections (Fig. 5D) and transverse sections (Fig. 5E). Furthermore, CBCT can reconstruct the inspected parts and rotate them on the screen to achieve thorough observation (Fig. 5F and G). The frequency of highly reliable values in identifying landmarks was greater in the multiplanar visualization than in 3D image reconstructions [19]. However, previous research [20] has concluded that identifying landmarks with multiplanar visualization may be affected by the reference anatomic structure, visualization of the anatomic plane, and operator training. To improve the accuracy, this study therefore combined multiplanar visualization with 3D image reconstructions to define landmarks.

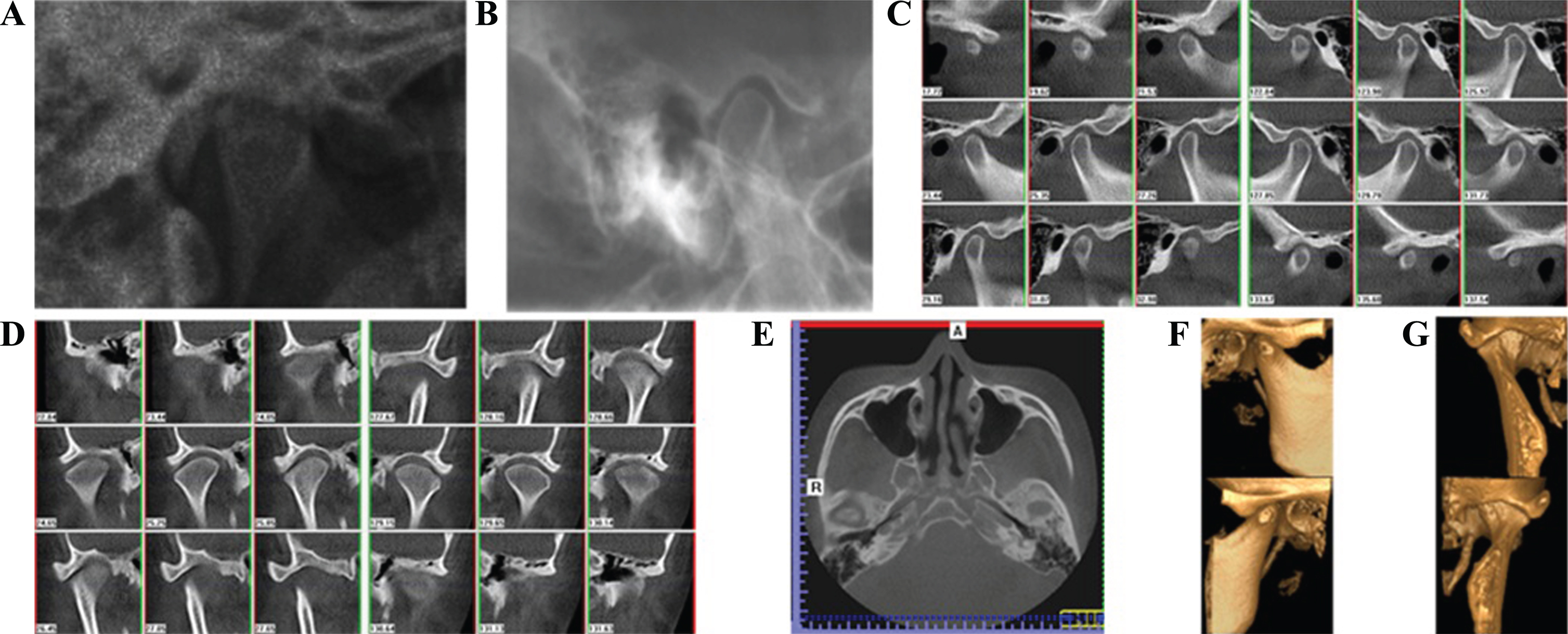

Fig.5

Compared the difference between using old methods and CBCT in assessing glenoid fossa morphology symmetry. A, the transpharyngeal projection. B, the transcranial projection. C, sagittal sections. D, coronal sections. E, transverse sections. F and G, the reconstruct glenoid fossa.

Determining which structures are involved, including the mandible, maxilla and/or another craniofacial region, is important to achieve the correct diagnosis and therapy. Deviations in the lower face are more frequent than those in the upper and midface. The mandibular ramus and body are the basic units of the mandible. In patients with facial asymmetry, their symmetry is still under discussion due to diverse inclusion criteria and measurement methods among experiments. It was concluded by HyoYeon Lee [5] that there was no significant difference in ramal height and body length. Some scholars [2, 3] have insisted that ramal height is asymmetrical, but body length is symmetrical, while others [4] hold the opposite view. This study found that both ramal height and mandible body length were asymmetrical. Anatomically, ramal height can be divided into two parts (RHASN and RHBSN) by the line parallel to the axial plane and tangential to the lowest point of the sigmoid notch. It is amusing to further investigate which part of ramus has significant differences. This study measured RHASN and RHBSN and showed that the difference in ramal height was due to the bilaterally asymmetrical RHASN. We also found that 45% of the subjects in this experiment appeared to have mandibular canting. These findings suggest that facial asymmetry may be caused by the length differences in the mandibular basic units as well as the spatial rotation of the mandible.

The symmetry of the maxilla in patients with facial asymmetry is a controversial issue because inclusion criteria, landmarks and reference planes are diverse in the current research. While the maxillary asymmetry has been reported in some studies [4, 6], experiment published by Lee et al. [5] did not report the same outcomes. This study showed that maxillary height was significantly different between the two sides. Moreover, among the subjects in our experiment, the proportion of maxillary canting was 54.54%, suggesting that maxillary canting was common in patients with facial asymmetry. In facial asymmetry, asymmetric maxilla and maxillary canting can be assumed to be adaptations of the asymmetric functional condition, which was caused by existing mandibular asymmetry. The significance of a maxillary cant is that this feature will require correction with surgery if the mandibular asymmetry is to be corrected. To summarize, in the diagnosis and treatment of facial asymmetry, both mandible and maxilla should be considered from at least two aspects: asymmetrical morphology and skeletal canting.

The symmetry of the structures in the TMJ is important for maintaining normal function. In this study, the results of condylar morphology were consistent with the outcomes of previous experiments [11 , 21] that reported that condylar height, volume and surface were smaller on the deviated side. In patients with facial asymmetry, the deviated side exhibited bigger medial pterygoid volumes [22], and the percentage of fast muscle fibers was increased in the deep masseter muscle on the deviated side [23]. These suggest that the bilateral condyle may be subjected to asymmetrical forces during mastication. Some animal experiments [24] have confirmed that the asymmetrical force can lead to asymmetric condylar remodelling. Asymmetry in condylar morphology may be caused by asymmetric condylar adaptive reconstruction. Bishara [25] claimed that if the posterior crossbite was not treated for a long time, adaptive remodelling would occur in TMJ and the condylar position would become more symmetrical. This finding supports the experimental result in our study that there was no obvious difference in bilateral condylar positions. Therefore, in the clinical treatment of adult facial asymmetry patients, adjustments in jaw positions should have a limit. Although the condylar morphology was asymmetrical, the morphology of glenoid fossa did not show asymmetry, possibly because, when compared with the glenoid fossa, condylar adaptive reconstruction is more active. In brief, an asymmetry in condylar morphology was the major component of TMJ asymmetry in patients with facial asymmetry. Yanez-Vico had indicated that condylar morphology asymmetry was a common feature of temporomandibular disorders (TMD) [26]. Accordingly, facial asymmetry patients have the potential risk of appearing to have TMD. In the treatment of facial asymmetry, orthodontic specialists should pay more attention to TMJ, especially in performing intermaxillary traction and mandible backward movements. These specialists should use caution to prevent TMJ from being damaged.

The present study used the intersection angle of two planes to assess transverse dental compensation, which is more precise than the measurements used in previous studies [27 –30]. This experiment and previous studies [27 –30] indicate that buccolingual angle of mandibular first molar was significantly smaller on the nondeviated side than on the deviated side. This was attempt to compensate the lateral skeletal disharmony by causing dental changes. When patients undergo surgical treatment, asymmetric torque control should be adopted in the deviated and nondeviated side to eliminate dental compensation. However, if patients undergo non-surgical treatment, the compensatory inclinations should be maintained or produced. This research also demonstrated that the deviated side had smaller buccal cancellous bone thickness. Accordingly, the roots of the deviated side may make contact with the cortical plate when producing compensatory buccolingual inclination, which can inhibit orthodontic movements to a great degree and may lead to dehisences, fenestrations or root resorption [31]. Furthermore, the crown root ratio on the deviated side proved worse than that of the nondeviated side. The above results suggest that producing compensatory inclinations has limitations and potential risks. However, from the perspective of health and stability, a combination of orthodontics and orthognathic surgery are perhaps a better choice in cases of menton deviation ≥4 mm. An important discovery was that the total cancellous bone thickness on the deviated side was found to be smaller. Therefore, clinicians should be aware that in patients with facial asymmetry, the range of mandibular first molar movement on the deviated side was limited compared to the nondeviated side. In the subjects of this study, the proportion of occlusal canting was 63.63%, indicating that facial asymmetry was usually associated with an occlusal canting. Preoperative measurement of the occlusal plane inclination in all patients with facial asymmetry will ensure that the orthognathic surgery is properly planned.

The stomatognathic system is indivisible and interactive, making it important to further investigate the relationships among them. The differences in ramal height, mandible body length, RHASN and condylar volume are found to have a significant correlation with menton deviation, indicating that the mandibular [2 , 9] and condylar incoordination between the two sides are the factors causing mandibular asymmetry. However, the masticatory muscles, facial soft tissues and occlusal factors may influence the occurrence and development of mandibular deviation. Further study is needed to analyse these factors. Transverse dental compensation has been confirmed to be closely related to sagittal and transverse skeletal discrepancy [30]. In this experiment, ramal height was significantly related to buccolingual angle of mandibular first molar, suggesting that vertical skeletal discrepancy is also correlated with transverse dental compensation.

This study has several limitations. Combined with the results of the previous studies [19, 20], the method for determining landmarks in this experiment is deemed reliable. Therefore, the linear and angular measurements based on landmarks are accurate. However, using smoothing algorithms in 3D surface reconstruction can eliminate holes in areas with low voxel threshold, which can cause measurement errors in condylar volume and condylar surface. Because the elimination holes of the two sides are approximately equal for the same research object, this should not affect the comparison results of condylar size between the two sides. Nonetheless, we still reduced the frequency of using smoothing algorithms. Future studies that consider this aspect in larger sample sizes are needed.

5 Conclusions

This research concluded that facial asymmetry may be caused by length differences in mandibular basic units as well as the spatial rotation of mandible and these will probably cause maxillary asymmetry. Second, an asymmetry in condylar morphology served as the major component of TMJ asymmetry in skeletal class III patients with facial asymmetry. Furthermore, a smaller buccal cancellous bone thickness and a larger crown root ratio were found on the deviated side, indicating that orthodontic camouflage has limitations and potential risks, and a combination of orthodontics and orthognathic surgery may be the advisable choice in patients with a menton deviation of greater than 4 mm. Importantly, a vertical skeletal discrepancy was proved to have a significant correlation with transverse dental compensation.

Footnotes

Acknowledgments

This work was supported by Program for the Natural Science Foundation of China (81470772); the Natural Science Foundation of Chongqing (cstc2015jcyjA10028, cstc2016jcyjA0238); the Medical Scientific Research Project of Chongqing (20141013, 2015HBRC009, 2016MSXM051); the Program for Innovation Team Building at Institutions of Higher Education in Chongqing (CXTDG201602006); the Chongqing Municipal Key Laboratory of Oral Biomedical Engineering of Higher Education.

References

Thiesen

, Gribel

B.F.

and Freitas

M.P.

, Facial asymmetry: A current review, Dental Press J Orthod 20(6) (2015), 110–125.

Baek

S.H.

, Cho

I.S.

, Chang

Y.I.

and Kim

M.J.

, Skeletodental factors affecting chin point deviation in female patients with Class III malocclusion and facial asymmetry: A three-dimensional analysis using computed tomography, Oral Surg Oral Med Oral Pathol Oral Radiol Endod 104(5) (2007), 628–639.

Wen

, Yan

, Yue

, Bo

, Xiao

and Chun-Ling

, Study of condylar asymmetry in angle class III malocclusion with mandibular deviation, J Craniofac Surg 26(3) (2015), e264–e268.

Kim

E.J.

, Palomo

J.M.

, Kim

S.S.

, Lim

H.J.

, Lee

K.M.

and Hwang

H.S.

, Maxillofacial characteristics affecting chin deviation between mandibular retrusion and prognathism patients, Angle Orthod 81(6) (2011), 988–993.

Lee

, Bayome

, Kim

S.H.

, Kim

K.B.

, Behrents

R.G.

and Kook

Y.A.

, Mandibular dimensions of subjects with asymmetric skeletal Class III malocclusion and normal occlusion compared with cone-beam computed tomography, Am J Orthod Dentofacial Orthop 142(2) (2012), 179–185.

Thiesen

, Gribel

B.F.

, Kim

K.B.

and Freitas

M.P.M.

, Maxillofacial features related to mandibular asymmetries in skeletal class III patients, J Oral Maxillofac Surg 75(5) (2017), 1015–1025.

Kwon

T.G.

, Park

H.S.

, Ryoo

H.M.

and Lee

S.H.

, A comparison of craniofacial morphology in patients with and without facial asymmetry–a three-dimensional analysis with computed tomography, Int J Oral Maxillofac Surg 35(1) (2006), 43–48.

You

K.H.

, Lee

K.J.

, Lee

S.H.

and Baik

H.S.

, Three-dimensional computed tomography analysis of mandibular morphology in patients with facial asymmetry and mandibular prognathism, Am J Orthod Dentofacial Orthop 138(5) (2010), 540.e1–540.e8.

Yoon

S.J.

, Wang

R.F.

, Hwang

H.S.

, Kang

B.C.

, Lee

J.S.

and Palomo

J.M.

, Application of spherical coordinate system to facial asymmetry analysis in mandibular prognathism patients, Imaging Sci Dent 41(3) (2011), 95–100.

10.

Kau

C.H.

, Kamel

S.G.

, Wilson

and Wong

M.E.

, New method for analysis of facial growth in a pediatric reconstructed mandible, Am J Orthod Dentofacial Orthop 139(4) (2011), e285–e290.

11.

Lee

B.R.

, Kang

D.K.

, Son

W.S.

, Park

S.B.

, Kim

S.S.

and Kim

Y.I.

, et al. The relationship between condyle position, morphology and chin deviation in skeletal Class III patients with facial asymmetry using cone-beam CT, Korean J Orthod 41(2) (2011), 87–97.

12.

Lin

, Zhu

, Lin

, Wan

, Shu

, Xu

et al., Mandibular asymmetry: A three-dimensional quantification of bilateral condyles, Head Face Med 9(42) (2013), 42–48.

13.

, Sun

, Zhang

, Li

, Bo

and Song

, 3D reconstruction images of cone beam computed tomography in dental medicine application: A case study and mini-review, J Xray Sci Technol 24(5) (2016), 673–680.

14.

Handelman

C.S.

, The anterior alveolus: Its importance in limiting orthodontic treatment and its influence on the occurrence of iatrogenic sequelae, Angle Orthod 66(2) (1996), 95–110.

15.

Chia

M.S.

, Naini

F.B.

and Gill

D.S.

, The aetiology, diagnosis and management of mandibular asymmetry, Ortho Update 1(1) (2008), 44–52.

16.

Garib

D.G.

, Yatabe

M.S.

, Ozawa

T.O.

and Filho

O.G.D.S.

, Alveolar bone morphology under the perspective of the computed tomography: Defining the biological limits of tooth movement, Dental Press J Orthod 15(5) (2010), 192–205.

17.

Brooks

L.S.

, CBCT dosimetry: Orthodontic considerations, Semin Orthod 15(1) (2009), 14–18.

18.

Mah

J.K.

, Danforth

R.A.

, Bumann

and Hatcher

, Radiation absorbed in maxillofacial imaging with a new dental computed tomography device, Oral Surg Oral Med Oral Pathol Oral Radiol Endod 96(4) (2003), 508–513.

19.

Neiva

M.B.

, Soares

A.C.

, Lisboa Cde

, Vilella Ode

and Motta

A.T.

, Evaluation of cephalometric landmark identification on CBCT multiplanar and 3D reconstructions, Angle Orthod 85(1) (2015), 11–17.

20.

De Oliveira

A.E.F.

, Cevidanes

L.H.S.

, Phillips

, Motta

, Burke

and Tyndall

, Observer reliability of three-dimensional cephalometric landmark identification on cone-beam computerized tomography, Oral Surg Oral Med Oral Pathol Oral Radiol Endod 107(2) (2009), 256–265.

21.

Akahane

, Deguchi

and Hunt

N.P.

, Morphology of the temporomandibular joint in skeletal class III symmetrical and asymmetrical cases: A study by cephalometric laminography, J Orthod 28(2) (2001), 119–128.

22.

Kwon

T.G.

, Lee

K.H.

and Park

H.S.

, Relationship between the masticatory muscles and mandibular skeleton in mandibular prognathism With and Without Asymmetry, J Oral Maxillofac Surg 65(8) (2007), 1538–1543.

23.

Raoul

, Rowlerson

, Sciote

, Codaccioni

, Stevens

, Maurage

C.A.

et al., Masseter myosin heavy chain composition varies with mandibular asymmetry, J Craniofac Surg 22(3) (2011), 1093–1098.

24.

Zhao

, Kurita

, Kurashina

, Hosoya

, Arai

and Nakamura

, Temporomandibular joint response to mandibular deviation in rabbits detected by 3D micro-CT imaging, Arch Oral Biol 55(12) (2010), 929–937.

25.

Bishara

S.E.

, Burkey

P.S.

and Kharouf

J.G.

, Dental and facial asymmetries: A review, Angle J Orthod 64(1) (1994), 89–97.

26.

Yanez-Vico

R.M.

, Iglesias-Linares

, Torres-Lagares

, Gutierrez-Perez

J.L.

and Solano-Reinaet

, Association between condylar asymmetry and temporomandibular disorders using 3D-CT, Med Oral Patol Oral Cir Bucal 17(5) (2012), e852–e858.

27.

Tyan

, Park

H.S.

, Janchivdorj

, Han

S.H.

, Kim

S.J.

and Ahn

H.W.

, Three-dimensional analysis of molar compensation in patients with facial asymmetry and mandibular prognathism, Angle Orthod 86(3) (2016), 421–430.

28.

Kusayama

, Motohashi

and Kuroda

, Relationship between transverse dental anomalies and skeletal asymmetry, Am J Orthod Dentofacial Orthop 123(3) (2003), 329–337.

29.

Shigefuji

, Motohashi

and Kuroda

, Longitudinal changes of molar dental compensation following orthognathic surgery in facial asymmetry patients, Jpn J Deform 11 (2001), 11–20.

30.

Ahn

, Kim

S.J.

, Lee

J.Y.

and Kim

K.H.

, Transverse dental compensation in relation to sagittal and transverse skeletal discrepancies in skeletal Class III patients, Am J Orthod Dentofacial Orthop 151(1) (2017), 148–156.

31.

Mulie

R.M.

and Hoeve

A.T.

, The limitations of tooth movement within the symphysis, studied with laminagraphy and standardized occlusal films, J Clin Orthod 10(12) (1976), 882–893.
