Imaging Neural Stem Cell Graft-Induced Structural Repair in Stroke

Lentiviral Production and Generation of a Stable hESC Line

Production of the triple fusion lentiviruses has been previously reported (29). Polymerase chain reaction amplification and standard cloning techniques were used to insert and fuse monomeric red fluorescence protein (mRFP), firefly luciferase (Fluc), and herpes simplex virus truncated thymidine kinase (HSV-ttk) genes from pCDNA plasmids as previously described (29). Self-inactivating lentivirus was prepared by transient transfection of HEK293FT (Invitrogen, Carlsbad, CA, USA). Two days after transfection, vector particles of the LV-pUB-fLuc-mRFP-HSV-ttk triple fusion (TF) reporter gene were harvested from the medium, concentrated by ultracentrifugation at 25,000 rpm for 2 h at 4°C. To estimate the concentration of transducing units/ml, 293T-cells were transduced with serial dilutions of each vector preparation. After 48 h, cells were harvested and subjected to flow cytometry analysis of RFP expression. Based on these data, the H7 human embryonic stem cells (hESCs; Wicell, Madison, WI, USA) were transduced with the LV-pUB-fLuc-mRFP-HSV-ttk TF reporter gene at a multiplicity of infection of 10. The infectivity was determined by mRFP expression as analyzed on FACScan (BD Bioscience, San Jose, CA, USA). The mRFP- positive cell populations were isolated by fluorescence-activated cell sorting (FACS) Vantage SE Cell Sorter (Becton Dickinson Immunocytometry Systems, San Jose, CA, USA) and expanded in feeder-free cell culture condition according to Wicell's protocol.

Derivation of hNSCs From hESCs

Human neural stem cells (hNSCs) were isolated from the H7 human embryonic stem cell lines (WiCell), as we previously described (7). The serum-free culture medium was composed of Dulbecco's modified Eagle's medium (DMEM)/F12 (1:1) including glucose (0.6%), glutamine (2 mM), sodium bicarbonate (3 mM), and HEPES buffer (5 mM) (all from Sigma, St. Louis, MO, USA; except glutamine from Invitrogen). A defined hormone mix and salt mixture (Sigma) that included insulin (25 μg/ml), transferrin (100 μg/ml), progesterone (20 nM), putrescine (60 μM), and selenium chloride (30 nM) was used in place of serum. Growth factors including 20 ng/ml mouse epidermal growth factor (EGF; Upstate Cell Signaling, Lake Placid, NY, USA), 10 ng/ml human recombinant basic fibroblast growth factor (bFGF), and 10 ng/ml of human recombinant leukemia inhibitory factor (LIF; R&D Systems, Minneapolis, MN, USA) were added to the culture 2 h after plating. Cells were incubated at 37°C in a 95% air/5% CO₂ humidified atmosphere.

Induction of Focal Ischemia and Cell Transplantation

All animal experiments were conducted according to the National Institute of Health (NIH) guidelines including the use of anesthetics and analgesics for surgery and sacrifice and animal welfare conditions for housing and care and approved by the Stanford University's IACUC. Sprague–Dawley (SD) adult male rats (275–310 g, Charles River Laboratories, Wilmington, MA, USA) were subjected to a transient 1.5-h suture occlusion of the middle cerebral artery (MCAO) as we previously described (5,7). SD rats were immunosuppressed 2 days before cell transplantation and daily thereafter with IP injections of cyclosporine A (20 mg/kg, Sandimmune, Novartis Pharmaceuticals, East Hanover, NJ, USA). Undifferentiated hNSCs from passages between P9 and P15 were single cells dissociated using trypsin-EDTA (Invitrogen) in preparation for cell transplantation. One week after the stroke lesion, animals were randomized based on their MRI-measured infarct size. Based on T2-weighted serial scans, stroked animals were separated into a moderate infarct size group (n = 8) with infarct size less than 0.1 cm³ (100 mm³) and into large infarct size group (n = 8) with infarct size more than 0.1 cm³. Volume of 1–2 μl of the hNSCs, at a concentration either 50,000 cells/μl for low dose or 100,000 cells/μl for high dose, were stereotaxically transplanted into one site for the 50,000 cell dose or into two sites for the 500,000 and 1 million cell doses, within the lesioned striatum at the following coordinates: AP: +0.5 mm, ML: +3.0 mm, DV: −5.0; AP: −0.5 mm, ML: +3.0 mm, DV: −5.0 with the incisor bar set at 3.4 mm (6).

MR Imaging

Transduced hNSCs were labeled with SPIO (superparamagnetic iron oxide; Feridex I V, Berlex Laboratories, Wayne, NJ, USA) using the poly-d-lysine method (14) and grafted at increasing cell doses into the striatum of stroked rats (n = 15/group). Magnetic resonance (MR) imaging was performed on a “microSigna 7.0” T-MR scanner (7.0T/310/AS System; Varion, Inc., Palo Alto, CA, USA) starting 2 days after transplantation and for up to 2 months on all animals. The scanner consists of a 310-mm (horizontal) bore scanner with gradient drivers, EXCITE2 electronics, eight-channel multicoil radio frequency (RF) and multinuclear capabilities and volume RF coils, and the supporting LX11 platform. The Resonance Research Instruments BFG-150/90-S shielded gradient insert (Billerica, MA, USA; 770 mT/m, SR-2500 T/m/s) has a bore size of 9 cm. Animals were anesthetized with isoflurane, the respiratory and heart rates were monitored and the temperature was autocontrolled and kept at 37°C. The imaging protocol consisted of imaging in 2D multi-slice followed by a spin-echo sequence using the following parameters: echo time (TE) = 82.5 ms, repetition time (TR) = 4,000 ms, number of excitations (NEX) = 10, 5 cm × 5 cm field of view (FOV), matrix = 256 × 256, slice thickness = 0.6 mm, gap = 0.

Serial T2-weighted coronal MRI scans 600 μm spaced were used for transplant volume analysis using the DICOM viewer software Osirix v.3.1 (http://www.osirix-viewer.com) as we previously reported (6). Briefly, serial T2-weighted coronal MRI scans were used for transplant infarct size analysis using the DICOM viewer software Osirix v.3.1 (http://www.osirix-viewer.com). Region of interest (ROI) that is the hypointense areas of the SPIO-labeled grafted hNSCs are drawn by an investigator blinded to treatments and the surface area is measured in mm² automatically by the software. The infarct volume was then expressed in mm³ by factoring the total thickness of brain slices observed to the surface area.

Histopathology, Immunocytochemistry, and Microscopic Analysis

Cultures were fixed with 4% paraformaldehyde (Sigma) for 15 min. Both cells and brain sections were rinsed in PBS for 3 × 5 min then incubated for 2 h (cultures) or overnight (brain sections) with the appropriate primary antibodies for multiple labeling. Secondary antibodies raised in the appropriate hosts and conjugated to fluorescein isothiocyanate (FITC), rhodamine isthiocyanate (RITC), amino-methyl-coumarin-acetate (AMCA), cyanine 3 (CY3), or CY5 chromogenes (Jackson Immuno Research; West Grove, PA, USA) were used. Cells and sections were counterstained with the nuclear marker 4′,6-diamidine-2′-phenylindole dihydrochloride (DAPI; Sigma). Positive and negative controls were included in each run. Immunostained sections were coverslipped using fluorsave (Calbiochem, San Diego, CA, USA) as the mounting medium. The following antibodies were used: anti-vimentin (monoclonal 1:500, Calbiochem); anti-neuron specific class III β-tubulin (TuJ1; monoclonal 1:100, Covance, Princeton, NJ, USA; Polyclonal 1:200, Aves Labs, Tigard, OR, USA); antiglial fibrillary acidic protein (GFAP, monoclonal 1:1,000, Chemicon; polyclonal 1:200, Aves Labs); anti-nestin (polyclonal 1:1,000, Chemicon); anti- 2′,3′-cyclic nucleotide 3′-phosphodiesterase (CNPase; 1:200, Aves Labs); anti-RFP (polyclonal 1:200, MBL International, Woburn, MA, USA). Fluorescence was detected, analyzed, and photographed with a Zeiss LSM550 laser scanning confocal photomicroscope (Thornwood, NY, USA). Double labeling was determined using the confocal laser scanning microscope by random sampling of 100 or more cells per marker for each animal, scoring first for human nuclei (hNUC⁺; RFP), followed by DAPI⁺ nuclei and then the marker of choice. The double labeling was always confirmed in x–z and y–z cross-sections produced by the orthogonal projections of z series. For Prussian blue staining, sections were fixed using 2% glutaraldehyde (Sigma), washed in PBS, and incubated with Pearls reagent (Sigma; 4% potassium ferrocyanide/12% HCL, 50:50 vol) for 40 min under agitation. Sections were then washed in PBS and twice in water, dehydrated through graded alcohols, and counterstained with nuclear fast red (Sigma) (6,7).

Small Animal PET Imaging

Positron emission tomography (PET) imaging was acquired using the Vista system (GE Healthcare, Chalfont St. Giles, UK). Animals (n = 5) underwent intravenous injection of the metabolic probe fluorine-18-fluorodeoxyglucose ([¹⁸F]-FDG; Stanford University Medical Center, Cyclotron Radiochemistry, Stanford, CA, USA) on weeks 1 and 5 posttransplant or the reporter probe 9-(4-[¹⁸F]fluoro-3 hydroxymethylbutyl) guanine ([¹⁸F] FHBG; Stanford University Medical Center) at 4 mCi/kg on weeks 4 and 8 posttransplant. At 45–70 min after injection, animals were anesthetized with 2% isoflurane. Images were performed, reconstructed by filtered back projection, and analyzed using image software Amide (Amide's Medical Image Data Examiner, SourceForge, Inc., Mountain View, CA, USA). Three-dimensional ROIs were drawn of the stroke or the NSC graft area. For each ROI, time activity curves were expressed as the percentage of injected dose per cubic centimeter (%ID/cc). [¹⁸F]FDG and -FHBG PET images were assembled into polar maps, and activity measured was then normalized to activity in a control region, the cerebellum.

Quantitative Reverse Transcriptase-Polymerase Chain Reaction (qRT-PCR)

Total RNA was extracted from NSCs cultured under different conditions using RNAeasy kit (Qiagen, Valencia, CA, USA). Aliquots (1 μg) of total RNA from the cells were reverse transcribed (RT) as previously described (9) in the presence of 50 mM Tris–HCl, pH 8.3, 75 mM KCl, 3 mM MgCl₂, 10 mM DTT, 0.5 μM dNTPs, and 0.5 μg oligo-dT(12–18) with 200 U Superscript RNase H-Reverse Transcriptase (Invitrogen).

Quantitative real-time polymerase chain reaction (Q-PCR), using Applied Biosystems TaqMan Gene Expression Assays (Foster City, CA, USA), was performed in the CFX96 Real-Time PCR Detection System (Bio-Rad, Hercules, CA, USA) equipped with software for gene expression analysis. The TaqMan Gene Expression Assay ID/Gene Symbol used were Hs03003631_g1/Eukaryotic 18S rRNA; Hs02387400_g1/Nanog homeobox; Hs00909236_m1/GFAP; Hs03929064_g1/β-tubulin; Hs00185584_m1/Vimentin; Hs00232764_m1/forkhead box A2 (FoxA2); Hs00999632_g1/POU class 5 homeobox 1 (octamer binding transcription factor 4 [Oct4]); Hs00941821_m1/Neural Cell Adhesion Molecule 1 (NCAM1); Hs01057642_s1/SRY (sex determining region Y)-box 1 (Sox1); Hs01053049_s1/Sox2. The expression of the gene of interest was determined in triplicate for each culture condition. Expression of the reference gene, 18S, was determined for each sample in triplicate. Quantification was performed at a threshold detection line (“threshold cycles,” Ct value). The Ct of each target gene product was normalized against that of the reference gene 18S, which was run simultaneously for each marker. Data were expressed as mean±SEM. The ΔCt for each candidate was calculated as ΔCt of [Ct (target gene) – Ct (18S)] and the ΔΔCt was the difference between the Ct of treated sample and the Ct of control sample. The relative expression was calculated as the 2^ΔΔCt according to the methods (24) and plotted as relative levels of gene expression.

Statistics

Outcome measurement for each experiment was reported as mean ± SEM. All data were analyzed using SPSS 11 for Mac OS X (SPSS, Inc., IBM, Armonk, NY, USA). Significance of intergroup differences was performed by applying Student's t test where appropriate. The one-way aNOVA analysis was used to compare group differences for the infarct size as the dependent variable and groups as the single independent factor variable. Differences between the groups were determined using Bonferroni's post hoc test. A value of p < 0.05 was considered to be statistically significant.

Isolation and Characterization of hNSCs

The TF reporter gene construct consisted of Fluc, mRFP, and HSV-ttk reporter genes linked by a 14-amino acid-long linker (Fig. 1A) inserted into a self- inactivating lentiviral vector. hESCs were stably transduced with the lenti-TF reporter gene construct and selected based on mRFP expression using fluorescence activated cell sorting. Multipotent and self-renewable NSCs were isolated from these hESCs and perpetuated in vitro using serum-free media supplemented with EGF, bFGF, and LIF (7). The NSCs grew as an adherent monolayer culture. They were fully neuralized and uniformly expressed the NSC markers vimentin (Fig. 1B, C) and nestin (data not shown). Nuclei are counterstained with DAPI. qRT-PCR analysis demonstrated that these hNSCs did not express the pluripotency marker Oct4 or Nanog and did express neural markers, such as Sox1, NCAM, GFAP, and β-tubulin class III (Fig. 1D).

OPEN IN VIEWER

Figure 1.

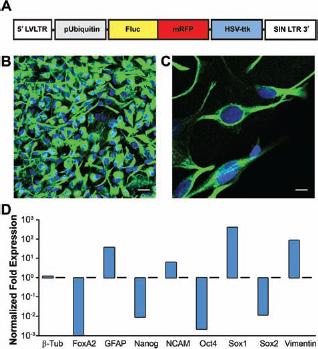

Generation and characterization of human embryonic stem cell (hESC)-derived neural stem cells (NSCs) genetically engineered for multimodal imaging. (A) Schematic representation of the triple fusion (TF) reporter gene containing firefly luciferase (fLuc), monomeric red fluorescence protein (mRFP), and Herpes simplex virus truncated thymidine kinase (HSV-ttk) driven by the human ubiquitin promotor (pUbiquitin) in a self-inactivating long-term repeat lentiviral vector (5′LVLTR-SIN LTR3′). (B, C) Derived cell line expression of the NSC marker vimentin at two different magnifications. Scale bars: 20 μm (B) and 10 μm (C). (D) qRT-PCR for target genes expressed by the NSCs. Expression was normalized to the expression level of the same genes by the pluripotent hESCs. β-Tub, neuronal β III tubulin; FoxA2, forkhead box A2; GFAP, glial fibrillary acidic protein; NCAM, neural cell adhesion molecule; Oct4, octamer binding transcription factor 4; Sox1, sex-determining region Y box 1.

MRI Analysis of Dose and Infarct Size-Dependent Efficacy of NSC Grafts

To visualize grafts with MRI, the undifferentiated NSCs were first labeled with the MR contrast agent SPIO using the poly-d-lysine technique, as we previously reported (6). The NSCs were transplanted into stroke lesioned rats at increasing cell densities (50,000, 500,000, or 1,000,000 cells) and followed for up to 12 weeks.

In T2-weighted MR images the stroke zone appeared as a hyperintense region in the striatum and cortex (Fig. 2), and the NSC graft appeared as hypointense areas in the striatum (arrows in Fig. 2C, D). Three-dimensional reconstructions of the grafts and stroke by surface rendering from the serial MR scans allowed for an accurate representation of both the graft and stroke sizes and visualized the overtime changes in stroke size in vehicle- and NSC-treated animals. In the T2-weighted serial scans spanning week 1 to week 12 (Fig. 2A, B, right inset) the increased T2 intensity in the stroke region of vehicle treated animals and the increased size by approximately 10 mm³ suggested that stroke evolved to the pannecrosis phase. In contrast, stroke volume from 3-D representations of animals receiving the hNSC grafts showed a reduction in stroke size with less hyperintensity T2 (Fig. 2C, D, right inset).

OPEN IN VIEWER

Figure 2.

Magnetic resonance imaging (MRI) analysis of stroke and NSC grafts. MRI horizontal serial scans show superparamagnetic iron oxide (SPIO)-labeled NSC grafts as hypointense areas in the striatum (arrow in C, D, left panel) and stroke as hyperintense areas on T2-weighted MR images. Three-dimensional surface rendering reconstruction of grafted rat brain from high resolution T2-MRI illustrates the grafts (bright green, arrow in C, D) and stroke (red) in a representative control (A, B) and transplanted animals (C, D).

Effects of the Ischemic Infarct Size on the Efficacy of the NSC Grafts

To investigate the relationship between the efficacy of NSCs and the infarct size, we separated animals with moderate infarct size (less than 0.1 cm³) from animals with large infarct size (more than 0.1 cm³) and performed volumetric analysis of the stroke and the NSC grafts. Animals with moderate stroke demonstrated a significant reduction over 10 weeks by up to 73.2 ± 11.7% of the infarct volume in comparison to the large infarct animals and to vehicle animals with moderate stroke (Fig. 3). Large infarcts increased in volume by 2.4% over 10 weeks. The postmortem analysis of infarct volumes in brain sections stained with cresyl violet confirmed that the moderate group infarcts were significantly smaller than the large group infarcts defined by the MRI analysis. Both MRI and histological measurements of the infarct size showed a strong correlation between infarct size and cell dose (Fig. 4A, B). These results validated the infarct volume group analysis as defined by the MRI T2 measurements. Quantitative analysis of the transplants in the serial MRI scans (Fig. 4C–E) demonstrated the graft size significantly increased with the dose of cells injected (p < 0.05) within each of the moderate and the large infarct groups (Fig. 4C–E).

OPEN IN VIEWER

Figure 3.

MRI analysis of stroke size. The stroke area distinguished as hyperintense areas on serial T2-weighted images was measured in consecutive horizontal MRI scans, 600 μm spaced (see Materials and Methods) from all animal groups in vehicle (A, n = 6) and NSC-treated animals (B–D). Cell doses were 50,000 (B, n = 9), 500,000 (C, n = 9), and 1,000,000 (D, n = 6). *p < 0.001.

OPEN IN VIEWER

Figure 4.

Correlation between stroke size and cell dose. Strong correlation exists between cell dose actions on the infarct size measured either by MRI and histological approaches (A, B). Quantitative analysis of graft size (C–E) appearing as hypointense areas on T2-weighted images in consecutive horizontal MRI scans, 600 μm spaced (see Materials and Methods) at 2, 4, 6, 8, and 10 weeks. Measurements were by DICOM viewer software Osirix v.3.1 in three animal groups (n = 10) with moderate or large strokes transplanted with 50,000, 500,000, or 1,000,000 NSCs.

PET Imaging of the Metabolic Activity in the Stroke Region and of the Ttk Reporter Gene in the Grafted hNSCs

To assess metabolic alterations, PET imaging with [¹⁸F] FDG was used to measure the rate of regional glucose utilization in the brain in response to stroke and hNSC treatment. Analysis of the stroke and grafted NSCs of the transplanted animals demonstrated an approximate 40% increase in metabolic activity in the lesioned hemisphere (p < 0.05) from week 1 to week 5 (Fig. 5A). The NSC-expressing HSV-ttk reporter gene enabled us to directly and specifically image the grafts in the brain (Fig. 5B) based on detecting phosphorylation and entrapment in the cells of the radiolabeled reporter probe [¹⁸F]fluoro-hydroxymethylbutyl-guanine ([¹⁸F]FHBG). The stability and efficiency of this reporter gene has been previously described (3). Imaging signals were stable from week 4 to week 8 after transplantation and correlated with the graft size measured by MRI analysis (Fig. 5D). The marked difference in PET activities was consistent with the expression of the HSV-ttk reporter gene by the NSCs and with the integrity of brain tissue in the stroke lesion.

OPEN IN VIEWER

Figure 5.

Positron emission tomography (PET) imaging analysis of stroke and NSC grafts. (A) Increase of uptake of the metabolic probe [¹⁸F]fluorodeoxyglucose (FDG) in the stroke region of hNSC-grafted rats imaged in horizontal and coronal planes at 1 and 5 weeks posttransplant. (B) 9-(4-[¹⁸F]fluoro-3 hydroxymethylbutyl) guanine ([¹⁸F]FHBG) PET activity visualizing the grafted cells in the striatal region of the forebrain imaged in horizontal and coronal planes at 4 and 8 weeks posttransplant. (C) Representation of the [¹⁸F]FDG uptake measured at 1 and 5 weeks after transplantation of NSCs in five animals showing the significant increase in FDG activity. ID/cc, injected dose per cubic centimeter of tissue. (D) Correlation between MRI and PET activity in grafted NSCs. Grafts were measured in T2-weighted MRI. Uptake of the PET reporter probe [¹⁸F]FHBG by the HSV-ttk-expressing hNSCs was represented at 4 and 8 weeks posttransplant.

Differentiation of hNSCs in the Stroke-Damaged Tissue

Histological analysis with Prussian blue staining of SPIO-labeled grafts confirmed the MRI data and demonstrated the survival of the grafts, as well as migration towards the stroke-damaged areas. Grafted NSCs exhibited typical neuronal morphologies (Fig. 6A–C). To investigate the fate of transplanted cells, we used double immunofluorescence labeling with an anti-RFP antibody specific to the grafted hNSCs and various human neural specific markers. Immunocytochemistry for RFP and the neuronal markers β-tubulin class III and NeuN (Fig. 6D) confirmed the differentiation into neurons. The grafted NSCs elaborated oligodendroglial lineages as demonstrated by the expression of CNPase (Fig. 6D) and astrocytic lineage as determined by the coexpression of RFP and GFAP (Fig. 6D).

OPEN IN VIEWER

Figure 6.

Transplanted NSCs migrate and differentiate into neural lineages. (A) Histological analysis at 13 weeks poststroke (12 weeks post-NSC transplant) using Prussian blue staining for supraparamagnetic iron oxide (SPIO) particles demonstrate cytosolic deposition of blue crystals in the grafted NSCs and migration towards stroke area. (B,C) High power magnification of the grafted NSCs in the parenchyma showing typical neuronal morphologies (arrows). (D) Immunocytochemistry and confocal image analysis of the grafted hNSCs. Grafted NSCs express the RFP transgene and thus can be easily tracked. The panels of markers represent confocal photomicrographs showing double immunostaining for the RFP (red) and the three CNS lineages (green): β-tubulin class III for neurons, 2′,3′-cyclic nucleotide 3′-phosphodiesterase (CNPase) for oligodendrocytes and GFAP for astrocytes. Arrows show the positive staining for these markers. Scale bars: 50 μm (A), 25 μm (B, C), 20 μm (D) (top), and 50 μm (for the two bottom panels).
