Electrophysiological Characterization of eGFP-Labeled Intrastriatal Dopamine Grafts

Animals

Female Sprague-Dawley (SD) rats obtained from Charles River (Sulzfeld, Germany) and female transgenic tg (TH-GFP)^6-7Koba mice on C57BL/6 genetic background (38) were kept with ad libitum access to food and water. All experimental protocols followed the German law on animal care and were approved by the Bezirksregierung LAVES (Hannover, Germany).

Experimental Design

Three sets of experiments were performed (Fig. 1): i) eGFP-Flag-transfected rat VM-derived progenitor cells were intrastriatally transplanted into the adult rat 6-OH DA-lesioned PD model; grafted cells were electrophysiologically recorded in brain slice preparations at different time intervals for up to 12 weeks after transplantation. ii) VM-derived dissociated cell cultures of TH-GFP transgenic mice were characterized immunocytochemi-cally (ICC), and DA neurons were electrophysiologically recorded. iii) VM-derived cell suspensions of TH-GFP transgenic mice were intrastriatally transplanted into the adult rat 6-OHDA-lesioned PD model; grafted cells were electrophysiologically recorded in brain slice preparations 6 weeks after transplantation. Measurements of the different approaches were compared and enabled a characterization of the grafted rat progenitor cells.

Preparation of VM Primary Cell Suspension

Primary cultures of DA progenitor cells were prepared from dissociated cell suspensions of the dissected VM on embryonic day (E) 12 (SD-rats) (Fig. 1, exp. i), E13 (TH-GFP mice; for transplantation) (Fig. 1, exp. iii), and E14 (TH-GFP mice; in vitro patch clamp experiment) (Fig. 1, ii). Transgenic green fluorescent embryos derived from crosses of hemizygous TH-GFP male mice with wildtype TH-GFP female mice were selected under visual control (fluorescence microscope; Leica Microsystems, Wetzlar, Germany) and subsequently used to isolate the VM.

OPEN IN VIEWER

Figure 1.

Overview of the experimental design. (i) Ten grafting sessions were performed with eGFP-Flag-transfected VM cell suspensions derived from rat embryos. Whole-cell patch clamp recordings were performed 3 to 12 weeks after grafting. Recorded slices were stained against TH and biocytin. (i, iii) Additionally, whole-cell recordings of genetically labeled dopaminergic neurons derived from TH-GFP mice embryos were performed in VM cell cultures in vitro [6 to 8 days in vitro (DIV), ii] and 6 weeks after intrastriatal grafting in acute brain slices (iii). Grafts and VM cultures were stained with TH-antibody. p, preparations; r, grafted rats; c, recorded cells.

Dissection and dissociation of the fetal rat VM was previously described in detail (33). Briefly, VMs were incubated in preparation medium that consisted of 1 mM sodium pyruvate (PAA, Cölbe, Germany), 2 mM l-glutamine (PAA), 1 χ B27 (Gibco, Darmstadt, Germany), and 0.05% DNAse (Roche, Mannheim, Germany) for 15 min at 37°C. After adding adhesion medium [SD rats: Dulbecco's modified Eagle's medium/Ham's F-12 medium (DMEM/F12; Gibco) containing 3% fetal calf serum (FCS; PAA), 1 χ N2 (Gibco), 1 mM sodium pyruvate (PAA), 0.25% bovine serum albumin (BSA; PAA), 2 mM l-glutamine (PAA), 20 ng/ml fibroblast growth factor-2 (FGF-2; Peprotech, Hamburg, Germany), and 1 χ B27 (Gibco); TH-GFP mice: DMEM/F12 (Gibco) containing 5% FCS (PAA), 1 χ N2 (Gibco), 1 mM sodium pyruvate (PAA), 0.25% BSA (PAA), 2 mM l-glutamine (PAA)], cells were centrifuged at 235 χ g for 5 min. Cells were resolved and dissociated mechanically in adhesion medium using Eppendorf pipettes (2,33). The concentration of the cells was estimated by using the trypan blue exclusion assay system (Sigma-Aldrich, Steinheim, Germany).

Cell Culture

E12 SD rat VM cell suspensions were used in experiment i (Fig. 1). Dissociated VM progenitor cells were seeded first in an amount of 600,000 cells per well in the proliferation plate (Nunc 6-well multidish; Thermo Scientific, Rockford, IL, USA) to reach high numbers for transfection and second in an amount of 400,000 cells per well that served as a bottom layer for transfected cells. After 1 day of adhesion and 3 days of proliferation [similar composition to the adhesion medium without FCS (PAA) and B27 (Gibco)], the cells of the proliferation plate were detached. Two million cells were resuspended in 100 μl nucleofection solution (Amaxa basic nucleofector kit-primary neurons; Lonza, Basel, Switzerland) and transfected with an eGFP-expressing plasmid [5 μg pCAGGS-EGFP-Flag plasmid described in (33)] using the nucleofector program A-033 (4,33). The transfected cells were seeded in a ratio of 1:3 on top of the bottom layer cultures of the second well. The colayer culture protocol enables high transfection efficiencies while keeping high numbers of DA neurons from the bottom layer of the undetached and nontransfected cells (33). After 2 days of differentiation [DMEM/F12 containing 1% FCS (PAA), 0.25% BSA (Sigma-Aldrich), 2 μM l-glutamine (PAA), 1χ B27 (Gibco), and 100 μM l-ascorbic acid (Sigma-Aldrich)], the cells of the colayer were detached and transplanted into the lesioned rat striatum as described previously (33). Ten preparations/transfections were performed for transplantation. Transplanted rats (n=31) were evaluated at different time points (Fig%. 1, exp. i).

For whole-cell patch clamp experiments, five TH-GFP mouse VM preparations (E14) were performed (Fig%. 1, exp. ii). Dissociated cell cultures were seeded in a concentration of 100,000-300,000 cells per well on polyornithine (0.6 mg/ml; Sigma-Aldrich)/laminin (6 μg/ml; BD Biosciences, Bedford, MA, USA)-coated coverslips in 24-well plates. After adhesion in neurobasal medium [DMEM/F12 (Gibco), 5% FCS (PAA), 1 mM sodium pyruvate (PAA), 0.25% BSA (PAA), 2 mM l-glutamine (PAA), N2 (Gibco), and 5% FCS (PAA)] overnight, cells were differentiated for 5 to 8 days in neurobasal medium containing 50 μg/ml recombinant high molecular weight (HMΩ) FGF-2 (prepared by Dr. P. Claus, Neuroanatomy, Hannover Medical School). Differentiated cells were either fixed for ICC examination of the DA neurons or were used for whole-cell patch clamp experiments. For recording experiments, the differentiation medium was replaced by artificial cerebrospinal fluid (ACSF) that consisted of 125 mM NaCl (J.T. Baker, Deventer, Holland), 25 mM NaHCO₃ (Merck, Darmstadt, Germany), 2.5 mM KCl₂ (Merck), 1.25 M NaH₂PO₄ (Fluka, Steinheim, Germany), 2 mM CaCl₂ (Sigma-Aldrich), 1 mM MgCl₂ (J.T. Baker), 25 mM glucose (Sigma-Aldrich), and 10 mM HEPES (SERVA Electrophoreses GmbH, Heidelberg, Germany). Fluorescent neurons were chosen by fluorescence microscopy (Leica DM LFSA) and recorded under transmitted light. The neurons of a single coverslip were recorded for up to 1.5 h.

For transplantation of primary TH-GFP mice cell suspensions, VM preparations of the slightly younger stage E13 were used to achieve a better integration into the host tissue (Fig. 1, exp. iii). The GFP-expressing embryos were selected by fluorescence microscopy. The dissected VM tissues were collected and stored for 1 to 3 days in B27 (2χ)-supplemented hibernation medium (hibernate-E CTS, Gibco) at 4°C (3,28). Hibernation was performed to have sufficient donor tissue on the day of transplantation, as time mating was performed at three consecutive days using six female mice. The collected GFP-expressing VM tissues were incubated for 15 min at 37°C in DMEM containing trypsin (0.025%, Gibco) and DNAse (0.05%, Roche). Afterward, tissue was washed four times with DMEM/F12 containing DNAse (0.05%) following centrifugation at 235 χ g for 5 min. The tissue was resolved and dissociated into a single cell suspension containing 130,000 cells/μl. Nine 6-OHDA-lesioned rats were intrastriatally grafted.

6-OHDA Lesion and VM Cell Suspension Transplantation

A 6-OHDA lesion was performed according to a previous protocol (33). In brief, rats were anesthetized with chloral hydrate (370 mg/kg body weight, IP; Sigma-Aldrich). Animals received one stereotaxic injection of 6-OHDA hydrobromide (free base 5.14 μg/μl in 0.03% l-ascorbate-saline; Tocris, Briston, UK) into the right medial forebrain bundle using a 10-μl Hamilton syringe (Hamilton, Bonaduz, Switzerland) with an injection rate of 1 μl/min. The following coordinates in millimeters according to bregma and dura (32) were used: anterior-posterior (AP) −4.0, lateral (LAT) −1.3, dorsoventral (DV) −7.0, and tooth bar (TB) −4.5 with an injection volume of 3 μl (42). The cannula was left in place for an additional 2 min to allow diffusion before being slowly retracted.

Rats were selected for transplantation according to the lesion success estimated in the drug-induced rotation test and the paw preference of the staircase test. Intrastriatal transplantations of TH-GFP mice cell suspensions and SD rat cell suspensions were performed with 130,000 cells/μl by two stereotactic injections [two tracts, four deposits of 1 μl cell suspension each into the right striatum using a glass capillary (Drummond Scientific, Gauting, Germany)] at the following coordinates (in mm according to bregma and dura): medial tract, AP +0.5, LAT −2.3, DV −5, and −4, TB 0.0; lateral tract, AP +0.5, LAT −3.3, DV −5, and −4, TB 0.0 (33,41). Rats that were grafted with TH-GFP mouse progenitor cells were injected with cyclosporine (1 mg/100 g body weight, IP; Novartis, Nürnberg, Germany). Treatment was started 1 day in advance and continued daily after grafting.

Drug-Induced Rotation Test

Six weeks after 6-OHDA lesion, rats were monitored in automatic rotometer bowls. As previously described, animals were injected with 0.05 mg/kg body weight l-apomorphine hydrochloride (Sigma-Aldrich) in ascorbate-saline and 3 days later with 2.5 mg/kg body weight D-amphetamine sulfate (Sigma-Aldrich) in saline. Right and left full turns were automatically counted for 40 min (apomorphine) and 90 min (amphetamine) (33). Animals were considered fully lesioned when they demonstrated at least four turns per minute contralaterally after apomorphine injection and six turns per minute ipsilaterally after amphetamine injection.

Staircase Test

Motor skills of lesioned rats were additionally investigated by a paw-reaching test (8,26,29). All tested animals were food deprived (reduced to 12 g standard food pellet per animal per day) during the period of the testing days and 1 day in advance. The body weight was controlled every second day ensuring a maintenance of at least 80% of the pretest body weight. Rats were placed into the staircase boxes for 5-10 min to habituate to the surroundings for the first 4 days. On the third and fourth day of habituation, pellets were distributed where they were easily accessible inside the box. The actual experiment started on day 5. The test was performed for 15 min per run on 11 following days. Each of the seven stairs was loaded with four sugar pellets. The total amount of pellets reached, eaten, and the maximal distance within every run was estimated for each animal's left and right paw separately. In the second session, the test was repeated with the grafted animals 5 weeks after transplantation. The number of eaten pellets and the maximal reached distance by the right and left paw of each animal on the last 5 days was averaged. Statistical analysis was performed using one-way ANOVA and Tukey's multiple comparisons test comparing the skills of the ipsilateral (right) and contralateral (left) paw after lesion with the skills after transplantation (GraphPad PRISM 6; GraphPad Software, San Diego, CA, USA). Statistical significance was set at *p <0.05, **p <0.01, ***p <0.001.

Immunohistochemistry (IHC) and Immunocytochemistry (ICC)

The recorded brain slices were fixed in 4% paraformaldehyde (PFA; Sigma-Aldrich) in Dulbecco's phosphate-buffered saline (PBS; Biochrom, Berlin, Germany) overnight at 4°C. Primary cultures of TH-GFP neurons were fixed in 4% PFA in PBS for 15 min.

After preincubation [0.3% Triton-X-100 (Roche), 3% normal goat serum (NGS; Gibco) in PBS], slices and cell cultures, respectively, were incubated with the first antibody anti-TH (AB152, 1:500; Millipore, Ternecula, CA, USA) with 0.3% Triton X-100 (Roche) and 3% NGS (Gibco) in PBS at 4°C overnight. The secondary antibody anti-rabbit Alexa 647/555 (A-21247/A-210042, 1:500; Molecular Probes, Karlsruhe, Germany) with 0.3% Triton X-100 (Roche) and 1% NGS (Gibco) was incubated for 1 h at room temperature.

In order to identify biocytin (Sigma-Aldrich)-filled neurons, the fixed brain slices were incubated with streptavidin Cy3 (1:500; Jackson Immunoresearch, Hamburg, Germany) with 0.5% Triton X-100 (Roche) and 3% NGS (Gibco) for 1 h at room temperature.

Preparation of Acute Rat Brain Slices After Intrastriatal Transplantation of VM-Derived Progenitor Cells

Three to 12 weeks after intrastriatal transplantation of fetal rat VM progenitor cells, acute brain slices (300 μm thickness) were dissected. The transplanted rats were deeply anesthetized by exposure to isoflurane (Baxter, München, Germany). Under deep unconsciousness, rats were quickly decapitated and the head immersed in ice-cold sucrose solution [1 M NaCl (J.T. Baker), 2.5 M sucrose (Roth, Karlsruhe, Germany), 1 M NaHCO₃ (Merck), 1 M KCl (Merck), 0.5 M NaH₂PO₄ (Fluka), 0.05 M CaCl₂ (Sigma-Aldrich), 1 MgCl₂ (J.T. Baker), and 1 M glucose (Sigma-Aldrich)]. The following procedure was performed under cooled conditions. The brain was quickly removed; the cerebellum and brainstem were chopped off by a razor blade and pasted onto the vibratome holder (Hyrax V50; Carl Zeiss MicroImaging GmbH Jena, Germany) filled with ice-cold sucrose solution. The brain slices were cut (300 μm thick) and placed onto a nylon-covered holding (constructed by “Werkstätten” Hannover Medical School) surrounded by carbogen (O₂ 95%/CO₂ 5%; Linde, Hannover, Germany) fumigated sucrose solution at room temperature. Prior to recording, brain slices were incubated for 15 min at 37°C. Slices were transferred to the recording chamber and were constantly bathed with carbogen (Linde)-fumigated ACSF solution. To avoid sliding of the compound, the slices were held by a nylon stringed holder. The micropipette for patch clamp recording was immerged in the brain slice with applied positive pressure of approximately 10 mbar (Manometer PCE P15; PCE Instruments, Southampton, UK). The neurons within the eGFP-Flag-transfected graft were recorded under visual control (fluorescence microscope; Leica DM LFSA).

Electrophysiological Recording

Whole-cell patch clamp recordings were performed in vitro and in acute brain slices using ACSF bath solution. Pipettes with resistances of 5-8 MΩ were pulled from borosilicate glass capillaries (GC150-15; Harvard Apparatus, Hugstetten, Germany) using a pipette puller (Model P-97; Sutter Instruments, Novato, CA, USA) and fire polished (Microforge MF-830; Narishige, East Meadow, NY, USA). They were filled with intracellular solution containing 120 mM K-gluconate (Sigma-Aldrich), 10 mM NaCl (J.T. Baker), 0.25 mM CaCl₂ (Sigma-Aldrich), 5 mM EGTA (Roth), 2 mM MgCl₂ (J.T. Baker), 0.4 mM GTP (Sigma-Aldrich), 10 mM HEPES (SERVO), 10 mM glucose (Sigma-Aldrich), and 2 mM diNa-ATP (Sigma-Aldrich). One percent biocytin (Sigma-Aldrich) was added in order to visualize the penetrated neurons inside the graft. Current clamp measurements were performed using an Axopatch 200B amplifier (Axon Instruments, Union City, NJ, USA).

Analysis of Electrophysiological Data

The data were analyzed using Clampfit software (Version 10.2.0.14; Axon Instruments). Spontaneous activity was recorded continuously for 3 min (low-pass filter frequency 2,000-5,000 Hz; sampling rate 20 kHz). We intracellularly applied negative current steps to evoke hyperpolarizations below −100 mV, since DA-like neurons typically respond with a voltage “sag” to such stimuli. In order to characterize rectifying currents, the current-voltage relationship was determined at the most negative point in the early phase and after 485-495 ms in the late phase of the stimulation. The difference between membrane potentials of the early and the late phase (ΔmV) was plotted against the potential of the early phase. Neurons exhibiting a prominent deflection of the membrane potential over the period of stimulation indicate anomalous rectification (12). Additionally, cell responses were evoked by depolarizing and hyperpolarizing current steps between −1 nA and +1 nA (500 ms). Single action potential properties were investigated including the threshold (point of maximum rising in the depolarization phase), overshoot (maximal point of depolarization), spike heights (distance between overshoot and maximum of hyperpolarization), afterhyperpolarization amplitude (maximum of hyperpolarization), and spike duration (half heights of a single spike). Comparison of the membrane potential properties was performed using the Kruskal-Wallis and Dunn's multiple comparison test (GraphPad Prism).

Electrophysiological Recording of Intrastriatally Transplanted eGFP-Flag-Transfected Rat VM-Derived Progenitor Cells

In the first experiments, electrophysiological recordings were performed on brain slices of 6-OHDA-lesioned rats intrastriatally transplanted with rat VM progenitor cell suspensions, which had been transfected with eGFP-Flag to allow visual identification of the graft (Fig%. 1, exp. i). The eGFP-Flag neurons were evenly distributed throughout the graft (Fig. 2A, E, I) and could be detected for up to 12 weeks after grafting (data not shown). Transfected neurons were excluded from whole-cell patch clamp recordings, since eGFP-Flag (Fig. 2B, F, J) and TH-immunoreactive (ir) (Fig. 2C, G, K) neurons revealed no overlap (Fig. 2D, H, L), which is in accordance with our previous study (33). TH-ir neurons displayed a neuronal morphology already at early time points (3 to 5 weeks after grafting) (Fig. 2C), forming fusiform cell bodies with long neurite outgrowth. Recorded neurons were selected according to their location inside the graft. Again, in line with previous observations (33), TH-ir neurons were located in the core of the graft within the first 5 weeks (Fig. 2A) and at later posttransplantation intervals within the border of the graft (Fig. 2E, I). Especially at these late stages, eGFP-Flag-transfected neurons proved to be valuable to visualize the graft.

OPEN IN VIEWER

Figure 2.

Validation of eGFP-Flag-transfected VM grafts 5 to 12 weeks after transplantation. eGFP-Flag-transfected neurons were distributed throughout the graft and detectable for up to 12 weeks after transplantation (A, E, I). Magnified eGFP-Flag (B, F, J) and TH-ir (C, G, K) neurons illustrate no overlap in the merged pictures (D, H, L). Five weeks after transplantation, TH-ir cells are distributed throughout the graft (A). Eight and 11 weeks after grafting, multiple TH-ir neurons are located at the border of the graft (E, I).

Responses of intrastriatally transplanted neurons (Fig%. 1, exp. i, total number of recorded cells c = 59) were examined upon intracellular stimulation by hyperpolarizing currents. A hyperpolarization-activated inward current causes a bipolar deflection of the membrane potential at strong hyperpolarizations that is typical for pacemaker neurons. Since DA neurons naturally contain hyperpolarization-activated HCN channels, all mature DA neurons should display pacemaker characteristics with this potential rebound at highly negative potentials. Using this attribute, the recorded neurons were divided into putative DA and non-DA neurons. Figure 3A-C displays representative recordings of neurons derived from eGFP-Flag-transfected intrastriatal grafts. Type 1 (Fig. 3A) and type 2 (Fig. 3B) neurons displayed a voltage “sag” when negative currents were applied in the current clamp mode. Current steps evoked an early strong hyperpolarization that was attenuated after 100-200 ms leading to a repolarizing shift toward resting membrane potentials. Selectively performed voltage clamp recordings confirmed a distinct inward current at negative potentials below 90-100 mV (data not shown). Type 1 and 2 neurons typically showed a peak during the early phase of hyperpolarization. Figure 3D-F displays representative current-voltage relationships of the early and late phase response to hyperpolarizing stimuli. To compare the different groups of neurons, the difference (ΔmV) between the hyperpolarized membrane potential of the early and the late phase was plotted against the membrane potential of the early phase (Fig. 3G-I). Data were collected from recordings between 3 and 12 weeks after grafting. We did not observe any dependence on the intervals after grafting. Both type 1 (Fig. 3G) and type 2 (Fig. 3H) neurons showed a deflection of the negative membrane potential beginning at −100 mV. In contrast, type 3 neurons showed no negative deflection at highly negative membrane potentials and no peak during the early phase of the hyperpolarization. An apparent positive deflection of ΔmV (Fig. 3I) results from the arbitrarily selected time for measurement of early phase potentials at 500-700 ms after stimulation, where hyperpolarization had not reached steady-state conditions in every cell (Fig. 3C).

OPEN IN VIEWER

Figure 3.

Grouping of the grafted neurons according to their response to hyperpolarizing current injection. Type 1 (A) and type 2 (B) neurons displayed a biphasic progression to hyperpolarization. Type 3 neurons showed simple, monophasic responses to hyperpolarizing stimuli (C). Type 1 neurons (n = 16) showed no or delayed single spikes after hyperpolarization. Type 2 (n = 12) exhibited fast repetitive spikes (bursts) after hyperpolarization (arbitrary spikes after hyperpolarization are highlighted in red, A, B). Representative current-voltage relationships of the early (dots) and the late phase were shown for each group (D, E, F). The voltage difference (ΔmV) between the early and the late phase (square) was plotted against the membrane potential of the early phase (G, H, I). ΔmV was examined in response to steps of hyperpolarizing stimuli and displayed for different intervals after grafting (3 to 12 weeks). Type 1 (G) and type 2 (H) neurons showed a deflection of the negative membrane potential beginning at −100 mV in the early phase. Type 3 neurons (I) showed no deflection of the negative membrane potential. There was no significant difference in ΔmV regarding time intervals after grafting. Two biocytin-labeled type 1 neurons could be characterized by a fusiform, bipolar morphology (J). Type 2 neurons were shown to have a round cell soma with two or more dendrites (n = 3, K). (L) A single example for a highly branched neuron of the heterogeneous type 3 group that additionally implies bipolar, fusiforme (n = 2), and round-shaped neurons (n = 3).

We attempted to identify the recorded neurons by adding biocytin to the intracellular solution, which diffused inside the recorded neurons. However, in line with a previous study of Zhang et al., double labeling of biocytin and TH-ir neurons was not observed (47) after 15-20-min recording duration of single neurons. It is likely that the intracellular solution replaces the cytosol, since short 3-min recordings of putative DA neurons allow double labeling (24,47). Therefore, only sporadic labeling of recorded neurons was performed; nevertheless, these neurons demonstrate differences in their morphology, which might correspond to their electrophysiological properties. Two biocytin-labeled type 1 neurons exhibited a fusiform, bipolar morphology (Fig. 3J). Type 2 neurons were shown to have a round cell soma with two or more dendrites (n=3) (Fig. 3K). Type 3 neurons revealed different varieties of cell morphologies (n=6) (Fig. 3L). Figure 3L represents a single example for a highly branched neuron. Additionally, bipolar fusiform neurons (n=2) and round-shaped neurons (n=3) were detected, suggesting that several different cell types are associated within the type 3 classification.

Type 1 neurons (n= 16) showed no (n= 10/16) or delayed single spikes after hyperpolarization (n=6/16) (Fig. 3A). Type 2 neurons (n=12) attracted attention by discharging with fast repetitive spikes (bursts) after hyperpolarization (Fig. 3B). Type 3 (n= 31) neurons showed no hyperpolarization-activated currents and no voltage “sag” in the current clamp mode, although strong hyperpolarization (below −150 mV) was induced (Fig. 3C).

Type 1 and type 2 neurons represent putative DA neurons and were examined for properties such as spontaneous activity (irregular and regular firing), pacemaker activity, and general characteristics of the membrane potential. Type 3 neurons are not considered as DA due to the lack of inward currents induced by hyperpolarization. This group is potentially consisting of a conglomeration of different types of neurons. Therefore, the membrane potentials and the spontaneous firing pattern display great variances. These neurons were excluded from further contemplations.

Type 1 Neurons—Spontaneous Activity

Overall, 33% of the evaluated intrastriatally transplanted neurons showed spontaneous action potentials, whereas 9% were represented by type 1 neurons, and 7% were represented by type 2 neurons. Type 1 neurons were either silent or exhibited an irregular, spontaneous firing mode (5 of 16 measured type 1 neurons; Fig. 4A). The occurrence of spontaneous activity was independent of the time point after grafting. Spontaneous activity occurred 3, 5, and 11 weeks after grafting. The firing pattern was characterized by interspike interval (ISI) histograms (35). Irregular firing resulted in broadly distributed spike intervals in the histogram (Fig. 4B). Type 1 neurons responded to depolarizations with high- or low-frequency spike trains depending on the intensity of stimulation (Fig. 4C). The frequency of irregular fired, spontaneous action potentials varied between 0.6 and 1.8 Hz (Table 1). Frequencies between 0.6 and 1.1 Hz (n=3) were measured 3 weeks after grafting, whereas 5 weeks after grafting, a frequency of 1.5 Hz (n=1) and 11 weeks after grafting 1.8 Hz (n=1) was recorded. This might indicate a slight increase in the firing frequency over time intervals after grafting. Nevertheless, due to the slow number of spontaneously active neurons, this needs to be proven in further investigations. The analysis of single spike properties of type 1 neurons displayed distinct afterhyperpolarization amplitudes (range between 52 mV and 37 mV) (Table 2) and spike durations between 1.1 and 2 ms. Intrinsic membrane properties are summarized in Table 2.

OPEN IN VIEWER

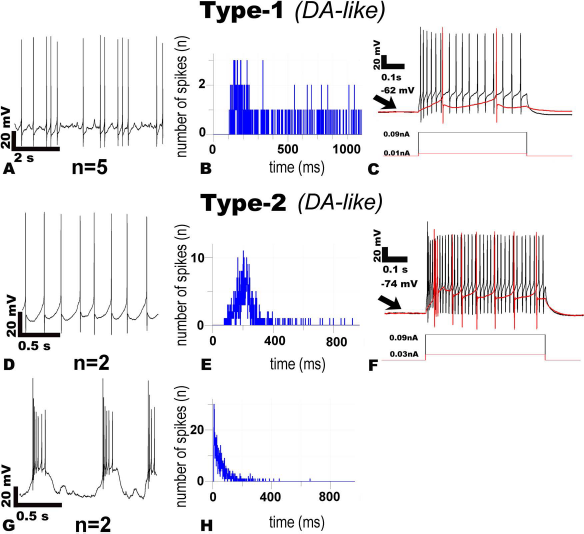

Figure 4.

Representative spontaneous firing pattern of type 1 and type 2 neurons. Five out of 16 measured type 1 neurons exhibited irregular firing patterns (A), which were characterized by a broad distribution of intervals in the ISI histogram (B). Stimulation by depolarizing currents evoked repetitive firing (C). Type 2 neurons generated regular (n=2/12) (D) and burst firing (n=2/12) (G). Type 2 neurons displayed a repetitive firing mode at evoked responses (F). Regular firing pattern exhibited a narrow, single peak in the ISI histogram (E). With bursting neurons the single peak in the histogram is shifted to very short intervals (25 ms) (H).

OPEN IN VIEWER

Table 1.

Spontaneous Firing Frequency (Hz) of the Intrastriatally Grafted VM Progenitor Cells Obtained 3-11 Weeks After Transplantation

Weeks After Transplantation	3	4	5	6	8	11
Type 1 neurons (Hz)	0.6 ± 1.4 (irregular)		1.5 ± 14			1.8 ± 3
	0.6 ± 1.5 (irregular)		(irregular/burst)			(irregular)
	1.1 ± 1.6 (irregular)
Type 2 neurons (Hz)		0.2 ± 0.2 (bursting) mean single bursts 9 ± 4		4 ± 4 (regular)	3 ± 13 (bursting) mean of single bursts 23 ± 8	3 ± 6 (regular)
TH-GFP in situ (Hz)			2 ± 1 (irregular)

VM, ventral mesencephalon; TH-GFP, tryosine hydroxylase-green fluorescent protein.

Type 2 Neurons—Spontaneous Activity

Type 2 neurons were either silent or discharged spontaneously in a regular (n=2) (Fig. 4D) or bursting manner (n=2). A regular firing pattern displayed a narrow, single-peaked distribution of intervals (Fig. 4E). All neurons displayed repetitive firing after steps of depolarizing currents (Fig. 4F). Burst firing is characterized by fast repetition of at least three discharges (Fig. 4G), which are illustrated in the ISI histogram by a peak at very short intervals (Fig. 4H). The appearance of spontaneous activity was independent of the duration after grafting. A burst firing was measured already 4 weeks after transplantation (mean of three event frequencies of single burst discharges 9 ± 4 Hz; event frequency 0.2 ± 0.2 Hz) and increased 8 weeks after grafting (mean event frequency of bursts 23 ± 8 Hz; event frequency 3 ± 13 Hz). Regular firing was measured 6 (4 ± 4 Hz) and 11 (3 ± 6 Hz) weeks after grafting and was characterized by a slow depolarization between spikes and a prominent afterhyperpolarization typical for pacemaker neurons.

The frequency of the regular firing pattern remained similar 4 and 11 weeks after transplantation, whereas the frequency of the spontaneously bursting neurons appeared to increase. Again, the small number of spontaneously active neurons did not allow correlations between time intervals after grafting and firing frequencies. The firing and membrane potential characteristics are summarized in Table 2. Single spike properties were characterized by distinct afterhyperpolarization amplitudes (range between 56 and 28 mV) (Table 2) and spike durations from 1 to 1.8 ms (Table 2).

OPEN IN VIEWER

Table 2.

Characteristics of Single Evoked Action Potentials

	Type 1 (n = 16)	Type 2 (n = 12)	TH-GFP In Vitro (n = 12)	TH-GFP In Situ (n=6)
	-64	-66	-59	-61
Resting membrane potential (mV)	Q 1.: −69	Q 1.: −69	Q 1.: −67	Q 1.: −70
	Q 2.: −58	Q 2.: −58	Q 2.: −54	Q 2.: −53
	(n=9)	(n=9)
	-36	-35	-34	-28
Threshold (mV)	Q 1.: −40	Q 1.: −40	Q 1.: −37	Q 1.: −33
	Q 2.: −29	Q 2.: −33	Q 2.: −31	Q 2.: −22
	60 **	60 *	36	41
Overshoot (mV)	Q 1.: 49	Q 1.: 50	Q 1.: 27	Q 1.: 33
	Q 2.: 68	Q 2.: 65	Q 2.: 47	Q 2.: 59
	-34	-31	20	26
AHP-amplitude (mV)	Q 1.: −43	Q 1.: −43	Q 1.: −37	Q 1.: −47
	Q 2.: −28	Q 2.: −26	Q 2.: −13	Q 2.: −18
	129 **	132 **	91	102
AP-heights (mV)	Q 1.: 112	Q 1.: 118	Q 1.: 75	Q 1.: 84
	Q 2.: 145	Q 2.: 142	Q 2.: 99	Q 2.: 118
			(n = 11)
	1.4	1.4 *	2.5	2.1
AP-duration (ms)	Q 1.: 1.1	Q 1.: 1	Q 1.: 1.8	Q 1.: 1.7
	Q 2.: 2	Q 2.: 1.8	Q 2.: 2.9	Q 2.: 2.6
			(n = 11)
Voltage “sag” to hyperpolarizing currents injection	16/16	12/12	7/9	5/5
Single spikes after hyperpolarization	6/16	0/12	0/9	0/6
Bursting discharge after hyperpolarization	0/16	12/12	0/9	0/6
Spontaneous activity	5/16	4/12	1/12	1/6
Regular firing pattern	0/16	2/12	1/12	0/6
Irregular firing	5/16	0/12	0/12	1/6
Burst firing	0/16	2/12	0/12	0/6
Input resistance (MΩ)	957	710	1442	750
	Q1: 267	Q1: 441	Q1: 778	Q1: 402
	Q2: 2300	Q2: 945	Q2: 1680	Q2: 1569

AHP, after hyperpolarization; AP, action potential.

Properties Type 1 Neurons—Postsynaptic Potential

The input resistance of type 1 neurons was determined from voltage shifts evoked by current injections of small amplitude and ranged from 250 MΩ to 2.5 GΩ. This variance was independent of the duration after grafting and could not be used to estimate neuronal maturation or integration. However, some neurons of both classes, type 1 and type 2, displayed spontaneous postsynaptic potentials (PSPs) that indicate formation of new interconnections of the singularized transfected cells within the graft or with neurons of the surrounding host tissue. Figure 5A is a representative measurement of spontaneous PSPs from a type 1 neuron. In the upper panel, the spontaneous activity was recorded for 165 s. Episodes with single and multiple PSPs result in depolarization and generation of single action potentials or trains of discharges. The PSPs are magnified in the lower panel showing multiple PSPs with peaks up to 4 mV. PSPs occurred in measurements at early (3 weeks) and late (11 weeks) time points after grafting.

OPEN IN VIEWER

Figure 5.

Synaptic input of type 1 and type 2 neurons. The upper panel illustrates receiving PSPs inducing bursting discharge in type 1 neurons (A). In the lower panel, the magnified excerpt demonstrates single and multiple PSPs. Type 2 neurons receive PSPs as well, which again induce discharging, in this case sporadic APs (B). The lower panel again represents the magnified excerpt of the upper recording.

Properties Type 2 Neurons—Postsynaptic Potential

The input resistance ranged between 400 MΩ and 1.5 GΩ. No correlation between time after grafting and input resistance could be found. Synaptic integration is illustrated in Figure 5B by the occurrence of PSPs. In the upper panel, a single AP is elicited. Large episodes possess trains of PSPs, which seems to sporadically induce APs. These trains are visualized in the magnification in the lower panel of Figure 5B. PSPs occurred in measurements at early (3 weeks) and late (11 weeks) time points after grafting.

The firing frequencies and other electrophysiological parameters are summarized in Tables 1 and 2.

Electrophysiological Recording of Genetically Identified DA Neurons In Vitro Derived From TH-GFP Transgenic Mice

Since double labeling of biocytin-filled neurons with a TH-antibody failed, a direct correlation of TH-ir cells with electrophysiological properties was not possible. To directly characterize DA neurons, neurons expressing GFP under the control of the TH-promotor were recorded in dissociated cell cultures derived from tgTH-GFP mice and after intrastriatal transplantation into the 6-OHDA rat PD model (Fig%. 1, exp. ii).

Anti-TH ICC revealed a complete overlap of GFP fluorescent cells with TH-ir neurons in vitro. Figure 6A shows an example for TH-ir neurons expressing GFP, which were characterized by a fusiform bipolar morphology; however, not all TH-ir cells were GFP positive, which is in accordance to a previous study (25). GFP-expressing neurons were electrophysiologically characterized using the same protocols as for rat progenitor cells.

In a first approach, TH-GFP neurons were cultured and investigated in vitro. Nine TH-GFP neurons were stimulated by hyperpolarizing current steps in the whole-cell current clamp mode. Such TH-GFP neurons in vitro demonstrated a clear voltage “sag” to hyperpolarizing current injections as illustrated in Figure 6B. Most neurons (7/9) reaching membrane potentials of at least −120 mV displayed a prominent deflection of the membrane potential over the period of stimulation (Fig. 6C).

OPEN IN VIEWER

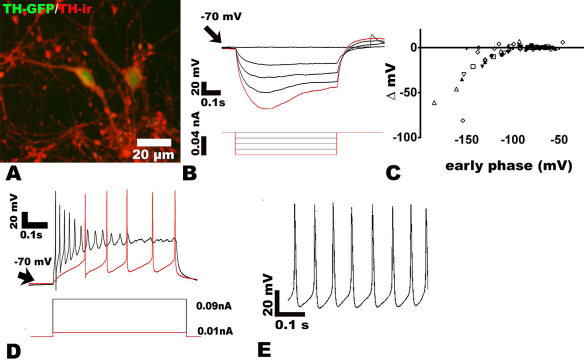

Figure 6.

Whole-cell patch clamp recordings of genetically labeled DA neurons derived from transgenic TH-GFP mice in vitro. Six days after differentiation, TH-GFP neurons revealed a complete overlap of GFP and TH-ir neurons (A). Seven out of nine TH-GFP neurons in vitro demonstrated a clear biphasic response to a stimulation with hyperpolarizing currents (n = 9, B, C). All TH-GFP-positive neurons generated spikes after depolarization (D). A regular discharge pattern of the single TH-GFP neuron in vitro that was spontaneously firing (E).

All GFP-positive neurons (12 out of 12 measured) generated spikes after stimulation with depolarizing currents (Fig. 6D). The neurons could be excited at thresholds around −47 mV with long action potential durations ranging from 1.8 to 2.9 ms and prominent afterhyperpolarization amplitudes (range from 50 to 26 mV) (Table 2). Spontaneous activity could only be observed for a single TH-GFP neuron in vitro (12 ± 8 Hz) (Fig. 6E). This regular firing neuron displayed repetitively depolarizing membrane potentials and spikes with prominent afterhyperpolarizations (Fig. 6E).

Electrophysiological Recording of Intrastriatally Transplanted Genetically Identified DA Neurons Derived From Cell Suspensions of TH-GFP Transgenic Mice

Experiment iii (Fig. 1) was performed to allow comparison of in situ measurements of identified DA neurons with the data from experiment i (Fig. 1), recorded from grafted rat progenitor cells. Therefore, VM-derived cell suspensions of tgTH-GFP mice were intrastriatally transplanted into adult 6-OHDA-lesioned rats and recorded 6 weeks after transplantation (Fig. 7). IHC confirmed the complete overlap of GFP-expressing TH-GFP neurons in situ and TH-ir neurons (Fig. 7A-C), and their typical location near the border of the graft. The higher magnification illustrates the bipolar and fusiform morphology of TH-GFP neurons in situ (Fig. 7D).

OPEN IN VIEWER

Figure 7.

TH-GFP neurons 6 weeks after transplantation. GFP-expressing (A) and TH-ir neurons (B) are located at the border of the graft. All GFP neurons are colabeled with TH-ir neurons, whereas not all TH-ir neurons express GFP (C). Higher magnification illustrates the bipolar and fusiform morphology of the GFP-expressing neurons (arrowhead) and TH-ir neurons (arrows) after grafting (D). Recordings of grafted TH-GFP neurons expressing GFP showed a biphasic response to stimulation with hyperpolarizing currents (E). The difference of the early to the late phase of the hyperpolarization (ΔmV) demonstrates a distinct deflection of the early toward the late phase (F). One grafted neuron generated spontaneous discharges in an irregular manner (G). All measured neurons generated spikes after depolarization (H).

Recordings of grafted tgTH-GFP neurons resulted in a voltage “sag” to hyperpolarizing current injections for all measured neurons (n=6) (Fig. 7E). ΔmV demonstrates these voltage “sags” (Fig. 7F). Only one neuron generated spontaneous discharges in an irregular manner (2 ± 1 Hz) (Table 1) (Fig. 7G). Neither delayed spikes nor bursts after hyperpolarization occurred. All measured neurons generated spikes in response to depolarizing current steps (Fig. 7H). The neurons generated spikes at approximately −28 mV with long durations ranging between 1.7 and 2.6 ms and prominent afterhyperpolarization amplitudes (range: 56 and 28 mV) (Table 2). In order to verify the functional integration of the xenografts, staircase tests were performed. The ability of the rats to grasp sugar pellets from each stair with the contralateral and ipsilateral paw was investigated with the paw-reaching test. Six out of 16 lesioned rats displayed a preference to the ipsilateral paw compared to the contralateral paw. These six rats were chosen to receive a TH-GFP xenograft. Five weeks after grafting, two kinds of analyses were performed. First, the paw-reaching test of the affected contralateral paw (Fig. A,B) was measured. Two out of six rats revealed significantly improved motor skills after grafting (p <0.05 or 0.01, respectively) (Fig. 8A). Second, the farthest distance reached was analyzed in the reached distance test. Three rats exhibited improved motor skills of the contralateral paw (p <0.05, 0.01, or 0.001, respectively) (Fig. 8B) compared to the ipsilateral paw. One of the rats (#6) showed significant improvement in the paw-reaching test and in the reached distance test. Electrophysiological recordings were performed with two rats showing improvements in the reached distance test (#5, #6) and with one rat showing no significant behavioral improvement at all (#4). No significant difference in electrophysiological properties could be observed between the improved rats #5, #6 and the not improved rat #4. Nevertheless, spontaneous activity was recorded in one rat (#5), which showed improvements in the reached distance test.

OPEN IN VIEWER

Figure 8.

Analysis of the affected contralateral paw after lesion and after grafting. The staircase test session 4 weeks after transplantation of the rats revealed significantly improved motor skills of the contralateral paw according to the reached pellets test (2 out of 6, A) and reached-distance test (3 out of 6, B) compared to the staircase test session after lesion (*p <0.05, **p <0.01, ***p <0.001).

Comparison of the Electrophysiologically Characterized DA-Like Cells

Comparison of the electrophysiologically characterized putative DA-like cells in the rat VM-progenitor cell grafts (experiment i, Fig. 1) with identified tgTH-GFP neurons (experiments ii and iii, Fig. 1) showed that type 1 neurons and type 2 neurons exhibited hyperpolarization-activated rectification. This is the most conspicuous property of DA neurons since all TH-GFP neurons in vitro and in situ exhibited voltage “sags” upon hyperpolarizing current injections (Figs. 6, 7). Differences between type 1 and type 2 neurons arose for the discharge behavior after hyperpolarization. Type 1 neurons revealed delayed spikes (Fig. 3A) and type 2 neurons burst after hyperpolarization (Fig. 3B). However, no bursts or delayed spikes could be observed for TH-GFP neurons in vitro (Fig. 6B) or after intrastriatal transplantation (Fig. 7E).

Both type 1 and type 2 neurons exhibited spontaneous spike discharges, whereas tgTH-GFP neurons in vitro displayed regular firing (Fig. 6E) similar to type 1 neurons. Type 2 neurons resemble in their spontaneous activity the tgTH-GFP neurons after grafting, which fired irregularly (Fig. 7G). No bursting behavior could be recorded for type 1, TH-GFP in vitro, and in situ neurons.

In conclusion, type 1 and type 2 neurons exhibited similar properties as identified DA neurons of tgTH-GFP mice. Depending on the age of the graft, type 1 and type 2 neurons exhibited a slight increase in the spontaneous firing frequency, which might reflect a progressive integration of the grafted DA neurons. Type 1 and type 2 neurons received input by surrounding neurons or the host striatum represented by PSPs 3 to 11 weeks after grafting. The input resistances were similar in all groups of the grafted putative DA neurons and the identified DA neurons. No correlation could be made between input resistance and time point after grafting. Nevertheless, it is reasonable to conclude that varying resistances indicate different levels of maturation and integration on the single cell level.
