Synaptic Mechanisms of Activity-Dependent Remodeling in Visual Cortex during Monocular Deprivation

Ocular Dominance Plasticity and Binocular Competition

Modifications of synaptic strength are necessary for encoding responses to sensory experience. Predating the early MD experiments of Hubel and Wiesel, Hebb proposed that synapses strengthen when the presynaptic cell “repeatedly and persistently” excites the postsynaptic cell. ³⁶ In 1973, Stent reasoned that the opposite of Hebb's rule was also possible, that synaptic weakening occurred when a “reduction in frequency of use of one set of synapses permits the other to take complete charge”. ³⁷ Activity-dependent refinement of cortical response properties after MD is believed to involve long term potentiation (LTP) of non-deprived eye synapses and long term depression (LTD) of deprived eye synapses. Yet how these modes of plasticity regulate binocularity after MD and whether more global types of plasticity, such as synaptic scaling, also play a role is still unclear.

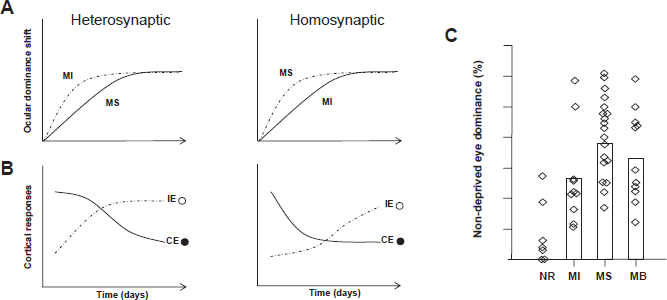

Good evidence exists that LTD of cortical synapses serving the deprived eye underlies the frst phase of OD plasticity where deprived eye responsiveness is lost, and several forms of LTD induction have been observed in visual cortex.^24,38–40 Classical competition would suggest that heterosynaptic LTD would be important for OD plasticity. In this type of LTD deprived eye synapses become weaker as a consequence of the strengthening of non-deprived eye synapses on the same cortical neurons. Thus heterosynaptic LTD would be greatest at inactive synapses.^37,41 Homosynaptic LTD, on the other hand, is synapse specific and requires activity at the depressing synapse.^36,42–44 Homosynaptic LTD was frst observed experimentally following long lasting low frequency stimulation (1–5 hz for 5–15 min) of hippocampal CA1 neurons^45,46 and can be induced in visual cortical slices following a similar protocol. ⁴⁷ In vivo studies indicate that a form of homosynaptic rather than heterosynaptic LTD of deprived eye synapses drives the initial phase of OD shifts.^24,39,48 Homosynaptic LTD of deprived eye responses in V1 explains the surprising result that completely inactivating the afferents of one eye with TTX for 48 hours results in very little change in OD compared to the shifts seen after the same length of monocular lid suture which allows a residual level of sensory activity. ²⁵ Thus, the residual deprived eye activity in the lid-sutured animals actually facilitates the OD shift (Fig. 2). In line with this result, kittens fitted with overcorrecting contact lenses, which merely blur visual experience in one eye, experienced shifts in cortical OD equivalent to age-matched animals that experienced monocular lid suture. ²⁶ While these animals experienced normal light stimulation of the deprived eye, the distortion of patterned visual input elicited a loss of cortical responsiveness to stimulation through that eye, suggesting that it is not necessarily light deprivation that drives OD plasticity but a disruption in the spatiotemporal pattern of synaptic activity in visual cortex. These results suggest that rapid OD plasticity may be driven by the relative timing of pre and postsynaptic activity (spike-timing dependent plasticity) ⁴⁹ and that the degree of OD shift after brief MD is relative to residual deprived eye activity, thus supporting a role for homosynaptic LTD in visual cortex plasticity. Comparing ocular dominance after short and long deprivations can also be instructive. For example, in contrast to the lack of an OD shift after 2 days of monocular TTX, ²⁵ 7 days of monocular TTX results in a shift similar to monocular lid suture. ^{50 52} Together the findings suggest that while an OD shift will ultimately occur with either monocular TTX or lid suture, the difference lies in the rate of the shift, such that this rate is related to the amount of residual activity in the deprived eye (Fig. 2).

There is also evidence that the second phase of OD plasticity which involves a slower strengthening of non-deprived eye responses is mediated by LTP, although this phase of plasticity has not been studied as intensely. Homosynaptic LTP has been described in visual cortex^53,54 and disruption of molecular processes underlying LTP also disrupt OD plasticity ⁵⁵ and potentiation of non-deprived eye responses. ¹³ More recently, another mechanism for regulation of synaptic strength was identified that also addresses the question of what happens after the initial homosynaptic LTD of deprived eye responses. Changes in global neuronal activity elicit a form of synaptic plasticity that increases or decreases the strength of the full complement of a neuron's synapses to maintain overall stability. ⁵⁶ In dissociated rat cortical cultures, blockade of activity with TTX resulted in a global multiplicative scaling up of overall synaptic strength. Scaling of AMPA receptor clustering and activation^57,58 and NMDA receptor surface expression ⁵⁷ have also been described. A role for synaptic scaling in the second phase of OD plasticity is supported by the paradoxical finding that monocular neurons in visual cortex that respond to the deprived eye slowly increase their responsiveness after MD. ⁵⁹ This suggests that, in the absence of non-deprived eye activation, LTD is not implemented and a lack of synaptic activity instead leads to scaling up of all synapses which, in this case, are driven by the deprived eye. Additionally, the strengthening of non-deprived eye responses has been shown to be dependent on glial cytokine signaling ⁶⁰ that produces synaptic scaling in vitro. ⁶¹ In this study the authors found that the slower phase of OD plasticity was accompanied by an increase in responses to both eyes and they also found synaptic scaling in monocular cells. ⁶⁰ At first pass, this homeostatically regulated synaptic scaling ⁶² seems contradictory to a homosynaptic plasticity of cortical synapses, particularly to a homosynaptic potentiation of non-deprived eye responses seen after prolonged MD. ²⁴ However, previous homeostatic mechanisms have been described that may help reconcile these two phenomena. The Bienenstock, Cooper and Munro (BCM) theory has frequently been used to model OD plasticity.^43,63 Because of its modification threshold, the BCM theory models a form of homeostatic regulation of homosynaptic plasticity. The sliding modification threshold imposed in the BCM model allows for adjustment of postsynaptic firing rates by either synaptic depression or potentiation as the activation of deprived eye synapses is reduced. Thus, with longer periods of MD, the modification threshold decreases, thereby increasing synaptic activity and returning firing rates to their original levels (although, unlike synaptic scaling, this is not multiplicative). Metaplasticity, a change in plasticity as a function of recent synaptic activity, ⁶⁴ is another form of homeostasis that is not multiplicative and has been modeled using BCM theory. Metaplasticity has been observed experimentally by reduced LTD (and increased LTP) induced by putting animals in the dark,^40,65 an effect that is reversed by brief light exposure. ⁴⁰

Taken together, computational models and in vitro and in vivo brain studies, indicate compensatory processes exerting effects on overall cortical activity^66,67 or on synaptic strength^40,43,64,68 during MD. How do these recognized mechanisms correspond with the original binocular competition postulate? It is unlikely that OD shifts following long-term MD do not include some mechanism that takes into consideration the activity in both eyes. However, a strictly spatial competition for postsynaptic area and/or resources as originally posited does not seem to play a major role. Instead, it is likely that an early Hebbian depression of deprived eye synapses relies on the relative timing of pre and postsynaptic activity^25,39 and promotes a compensatory Hebbian^14,24,43,44 or non-Hebbian^56,59,60 homeostatic rescaling of responses to all or a subset of inputs.

The mode of synaptic depression induced during MD likely depends not only on the activity history but also the local cellular network. Several recent studies describe changes in cortical response properties following MD that are restricted to specific cortical laminae.

Laminar Specificity of Deprivation-Induced cortical changes

The visual cortex is a highly ordered structure. Indeed, in higher animals, cells with similar response properties are grouped together in eye specific and orientation columns. Given the existence of these local networks, it stands to reason that visual deprivation may affect distinct connections in different ways. The data reviewed above suggest that the consequences of MD cannot be explained by one single form of synaptic plasticity. Additionally several recent studies, describe lamina-specific changes in cortical response properties following MD. Thus, the mode of plasticity induced is likely to depend not only on the history of activity but also on a relationship between mechanisms in local cellular networks.

A number of studies point to extragranular layers as being the prime movers in OD plasticity. For instance, short MD (one day) results in OD shifts in layer 2/3 but not layer 4 as assayed using single unit recording in cat visual cortex. ²⁸ This is somewhat surprising in light of the fact that layer 4 is the primary geniculate input layer and thus is the first cortical stop for incoming visual activation. However, the possibility that extragranular layers guide geniculocortical remodeling is consistent with the finding that layer 2/3 plasticity developmentally outlasts layer 4 plasticity. ^{69 73} Layers 2/3 remain plastic into adulthood; whereas layer 4 plasticity is lost after an early critical period in both visual^69,71 and barrel cortices.^74,75 Additionally, plasticity of synaptic structure occurs rapidly in layer 2/3 but not in layer 4.^48,76 Homeostatic scaling also exhibits a critical period in layer 4 ⁶⁶ but lasts into adulthood in layers 2/3. ⁷⁷ These findings, however, need to be reconciled with several other studies that show rapid OD plasticity in layer 4 using VEP ²⁴ and single unit recordings, ⁷⁸ and others that have shown plasticity of layer 4 in adulthood with titanic stimulation of geniculocortical afferents in vivo. ⁵³ One of the strongest pieces of evidence against the idea that extragranular layers instruct plasticity in layer 4 is a recent study that demonstrated layer 4 plasticity in the absence of plasticity in layer 2/3. ⁷⁹

Studies on the mechanisms of plasticity in different cortical layers support the notion that different pathways can be independently regulated during development. Early in vitro studies of visual cortex plasticity typically focused on population activity in the superficial layers. Activity-dependent synaptic depression was induced in layer 2/3 of slices of rodent visual cortex following stimulation of layer 4^47,80 or white matter. ⁸¹ More recent work, comparing synaptic activity across layers, has shown laminar specificities in the induction of LTD in visual cortex. ³⁸ For example, low frequency stimulation, a classical way of inducing LTD in brain slices, and spike timing dependent protocols, consistently elicited LTD in both layer 4 and layer 2/3 of mouse visual cortex of young mice. ³⁸ However, while LTD was induced in layer 2/3 and in layer 4 (by white matter stimulation), it was through activation of different receptors; layer 2/3 LTD was mediated by cannabinoid receptors, layer 4 by AMPA receptor endocytosis. Both AMPA and cannabinoid receptor-mediated LTD were directly linked to OD plasticity as a prior period of MD limited the amount of further depression induced in vitro. ³⁸

Another important regulator of laminar plasticity may be the local networks of inhibitory neurons, as maturation of cortical inhibition is widely posited to underlie the ability to induce OD plasticity in mature cortex. ⁵⁵ In cats ⁸² and rats ⁸³ layer 4 lacks the horizontal inhibitory networks present in layer 2/3 (Fig. 1b) and inhibition may therefore serve as a gate that governs the induction of plasticity in different lamina and at different ages. ⁸⁴ Support for this hypothesis comes from several sources, including the sensitivity of LTP in layer 2/3 following white matter stimulation in vitro to the blockade of inhibitory signaling, ⁵⁴ reactivation of layer 2/3 LTP from white matter stimulation and in vivo OD plasticity in fluoxetine-treated adult visual cortex which shows reduced inhibitory tone ⁸⁵ and the finding of interneuron dendritic remodeling in layers 2/3 in adult mouse cortex. ⁸⁶

The understanding of how specific networks contribute to OD plasticity has been hampered by the fact that in vivo studies of MD effects often generalize findings to all cortical layers. Based on methodological limits, cell labeling, or reconstruction of electrode tracks, however, it is sometimes possible to localize results to specific laminae. For instance, some in vivo techniques inherently target either the superficial or deeper cortical layers; optical and two-photon imaging are largely limited to visualized cells or cell processes in the supragranular layers, whereas VEP studies typically describe layer 4 activity where synaptic currents are largest (although they likely refect activity of geniculocortical and feedforward intracortical afferents, as well as dendritic activity in lower layer 2/3 cells not simply the activity of layer 4 neurons). This might help explain the current controversy surrounding the underlying mechanisms that lead to the strengthening of the non-deprived eye responses during MD. Studies that have suggested homeostatic mechanisms for this phase of OD plasticity have relied on in vivo imaging methods that access superficial cortical layers,^59,60 while those that suggest Hebbian mechanisms have used VEP recordings. ¹³ Another level of complexity was suggested by the results of a recent study comparing monocular inactivation with monocular lid suture. A local response compensation was observed in layers 2/3 of monocular visual cortex in rat brain slices after the animals experienced either monocular TTX injection or lid suture of the contralateral eye; interestingly, TTX treatment resulted in synaptic scaling whereas lid suture induced depression. ⁸⁷ This study suggests that in addition to different mechanisms of plasticity existing in different layers, the mechanism itself may depend on the amount of residual deprived eye activity. Although the study was performed in monocular visual cortex, contralateral to and innervated by the deprived eye, it opens up the possibility that activity in the deprived eye dictates whether homosynaptic LTD or homeostatic scaling causes the loss of cortical response to the deprived eye. The authors proposed that LTD induced by lid suture may be too strong for scaling to overcome (compared to LTD after monocular TTX). It is important to point out that these findings may be specific to monocular cortex and layers 2/3; whether the results will generalize to other layers and binocular cortex remains to be seen.

The question still remains whether extragranular plasticity is instructive for later changes in layer 4 and why the superficial layers remain plastic longer. While laminar plasticity may refect the molecular identity of neurons in different layers, it is more likely that individual synapses are regulated independently depending on the source of their input. Neurons in extragranular layers are densely interconnected through lateral, long-range connections (Fig. 1B) that are largely absent from layer 4. ⁸² Thus laminar differences may exist as a result of the spatial distribution of synapses carrying information from the deprived or non-deprived eye and synapses that are part of feedforward vs. short or long-range intracortical networks.

Structural Changes Associated with OD Plasticity

Changes in response properties of neurons during MD rely on adjustment of synaptic weights through potentiation and depression of the appropriate synapses. These electrophysiological modifications have been shown to correlate with profound structural changes resulting in the deprived eye losing cortical territory to the non-deprived eye following prolonged MD.^10,73 This loss of cortical territory is a result of the slow retraction of geniculocortical axonal arbors serving the deprived eye and a subsequent expansion of non-deprived eye afferents. ^{88 90} These changes are not apparent after brief MD which elicits profound functional changes in the responses of cortical neurons to visual input through the deprived eye, suggesting that structural axonal changes are not a requirement for functional OD plasticity. Indeed brief MD does not alter the density of geniculocortical synapses serving the non-deprived and deprived eyes, ⁹¹ suggesting that more subtle changes in axonal structure do not underlie rapid functional plasticity. Thus structural changes in connectivity and cellular architecture have traditionally been thought to act as slower consolidating mechanisms that follow the rapid functional changes implemented through the alterations in molecular composition of the synapse.

Recent experiments linking postsynaptic structure to synapse function, however, suggest a possible role for fast structural alterations in dendritic spines (Figs. 3A/B) in the implementation of rapid OD shifts. ⁹² Dendritic spines are the postsynaptic sites of the vast majority of excitatory synapses in the visual cortex. Spines are morphologically diverse and their structure is highly dynamic. ^{93 95} Spine structural dynamics are activity-dependent. In slices and in culture, spines are stabilized by neuronal and synaptic activity, ⁹⁶ and become more dynamic if activity is pharmacologically reduced,^97,98 paralleling the developmental stabilization of spine structure as synaptic function matures.^92,96 Additionally, both LTP and LTD have structural correlates at the level of the dendritic spine. In the hippocampus, induction of LTP is accompanied by rapid increases in the size of spine heads ^{99 101} which is closely tied to functional plasticity both in timescale and mechanism. The co-regulation of spine function and morphology is supported by the tight correlation between the expression of AMPA receptors and spine size in situ. ¹⁰² LTP has also been tied to spine outgrowth (Fig. 3C),^103,104 whereas LTD elicits the opposite changes, rapidly decreasing spine volume^101,105 and eliminating spines. ¹⁰⁴ OPEN IN VIEWER

It is unclear how these structural changes may be involved in functional plasticity. One possibility is that spine size is altered by the recycling of plasma membrane during the exocytosis or endocytosis of synaptic receptors ¹⁰⁶ which implement functional changes. Alternatively, spine structure may regulate biochemical compartmentalization at synapses and activity-driven changes in the spine head and neck can alter synaptic signaling. ¹⁰⁷ In particular, calcium compartmentalization at the spine, which is crucial for the further implementation of plasticity (metaplasticity) is sensitive to spine structure ¹⁰⁸ and is altered after LTP induction. ¹⁰⁹ While these studies show that changes in spine size are linked to functional changes in synapse strength, the two phenomena can in some cases be dissociated mechanistically ¹¹⁰ and whether structural changes are necessary to implement plasticity remains to be shown.

Structural dynamics of axons and their presynaptic structures are even less well understood. While some studies have found axonal structures to be more stable than nearby dendritic spines,^111,112 others have described high levels of structural change in axons both in vivo and in vitro.^113,114 These discrepancies may be explained in part by differences in dynamics between different axonal types.^115,116 However, it appears that the early focus on the remodeling of axonal arbors and presynaptic sites as the structural correlate for OD plasticity, may have led to the erroneous conclusion that structural changes in connectivity do not contribute to rapid functional plasticity. In contrast, a number of recent studies suggest that structural changes implemented postsynaptically can occur rapidly and may implement OD plasticity through the remodeling of network connectivity.

Although it is well established that dendritic spine structure and density are sensitive to visual stimulation, ^{117 119} the progression and location of changes in dendritic spines are not well understood. The majority of studies have described reductions in spine density only after prolonged MD, ^{120 122} but recent technical progress allowing imaging of spine dynamics in vivo revealed that these structures can actually remodel very rapidly during MD. For instance, 2 days of MD are sufficient to upregulate dynamics of spines on layer 5 neurons in mouse visual cortex in vivo, ⁷⁶ a time during which functional changes in response properties are just becoming apparent. ²⁴ In the adult mouse visual cortex, MD induces a rapid (∼4 days) gain of dendritic spines on these same neurons, paralleling the gain in non-deprived eye responses that characterizes adult OD plasticity. ¹²³ These new spines are likely to bear functional synapses as EM studies link spine turnover to synapse formation and elimination.^124,125 That these novel spines became larger during the MD period, suggests the possibility of synaptic strengthening by a mechanism similar to LTP. ¹⁰⁰ Interestingly, the new spines persist after re-opening of the deprived eye, but shrink, suggesting that recovery is mediated by the selective depression of the function of these synapses. Because these new spines remain present during a post-MD period of binocular vision, despite a recovery of deprived eye responses, it is quite likely that they form a “memory trace” in the cortex allowing subsequent MD episodes to have faster functional effects. ¹² The larger implication is that structural changes may in fact be crucial for functional changes during the first MD period and this structural reconfiguration slows down the implementation of OD plasticity in the naïve adult animal. The reactivation of this already established but functionally dormant network allows rapid plasticity during the reoccurrence of a familiar stimulus. Whether similar structural changes occur during developmental OD plasticity has yet to be determined although rapid spine loss has been reported on layer 2/3 neurons,^48,126 suggesting that rapid loss of deprived eye responses may be mediated by the dismantling of cortical networks serving the deprived eye. It is interesting to note that even prolonged MD in the immature mouse does not result in the retraction of deprived thalamocortical arbors ¹²⁷ further implicating changes in postsynaptic structures in OD plasticity.

The locus and timing of structural changes can tell us about the nature of plasticity occurring at individual synapses. Homeostatic plasticity would be expected to occur globally on all cells that experience reduced visual drive. Homosynaptic plasticity, on the other hand, would be limited to those synapses undergoing potentiation or depression and could be expressed in a very controlled spatiotemporal pattern. We know that spine motility is increased following all types of deprivation paradigms, including monocular ⁷⁶ and binocular deprivation ⁹³ as well as dark rearing; ¹²⁸ thus spine destabilization may refect a compensatory mechanism activated by the loss of visual drive. It is indeed a possibility that spines enter a plastic state during loss of synaptic activity as a means to homeostatically adjust cortical activity. In fact dark adaptation in adult animals briefly re-establishes a more immature and plastic cortical state. ¹²⁹ However, rapid spine destabilization by monocular deprivation was found to be limited to the binocular cortex ⁷⁶ suggesting that this mechanism might be common to synaptic regulation during both brief MD and prolonged binocular deprivation. The rapid gain of spines in adult visual cortex following MD is also restricted to the binocular segment and retains many similarities to in vitro LTP, ¹⁰⁰ suggesting that this form of structural plasticity is tied to functional OD shifts and not due to a passive redistribution of synaptic weights. Whether the gain of non-deprived eye responses uses the same synaptic mechanisms in adult and developing cortex, however, is unclear^13,130 and it is possible that during the critical period dendritic spines are gained more indiscriminately throughout the cortex through homeostatic regulation. MD-induced axonal changes also appear to be mediated by binocular mechanisms, as binocular deprivation alters axonal development but fails to elicit the retraction of thalamocortical arbors.^89,131 However, this is likely mediated through homosynaptic plasticity, as inhibiting cortical activity during normal vision resulted in axonal retraction likely due to the mismatch between activity in pre and postsynaptic elements. This retraction was not apparent when the same animals were binocularly deprived and activity was suppressed in both axons and cortical neurons. ¹³² Altogether these studies highlight the importance of structural changes to the functional OD shift and suggest that different types of plasticity are triggered by MD.

One confound of studying the synaptic changes that underlie OD plasticity is the current inability to infer connectivity and function of individual synapses. This is unfortunate as it is readily apparent that not all synapses are equal when it comes to OD plasticity. In the adult mouse cortex, superficial spines on layer 5 neurons undergo profound and rapid structural changes following MD, whereas dendritic spines on layer 2/3 neurons do not ¹²³ despite the fact these cells show functional changes following MD. ¹² In the somatosensory cortex, anatomically distinct layer 5 neurons also show different behaviors with respect to spine remodeling following sensory deprivation, ¹³³ and spine loss following enucleation has been described on “deep” but not “superfcial” layer 5 neurons in layer 4. ¹³⁴ Additionally, different synapses may undergo plasticity at different timescales following MD. The precise wiring of the cortical circuit is still unknown and it is likely that nearby synapses serve different cortical networks and use different rules to remodel during MD. Following changes in dendritic spine structure, however, will offer valuable insight as to how OD plasticity progresses on a synapse by synapse basis.

Molecular Mechanisms

Elements of the molecular bases of activity-dependent synaptic plasticity are continually being discovered. And the evolving recognition that the mode of plasticity depends on the developmental stage and cortical lamina, as well as induction method, certainly predicts that the molecular mechanisms are just as diverse. In fact many different molecular components of OD plasticity have already been identified. These include proteins with synaptic functions such as kinases, immediate early genes, and growth factors, ^{135 138} as well as proteins that link calcium signaling to actin remodeling within the cell. ¹³⁹ Interestingly, the extracellular environment has also been shown to strongly influence OD and synaptic plasticity. ¹⁴⁰ Here we review studies of synaptic calcium activity and intracellular and extracellular signaling: molecular pathways thought to link synaptic activity during MD with the concomitant structural dynamics of dendritic spines (Fig. 4). We also examine what is known about plasticity beyond the critical period and how this informs our understanding of the molecular mechanism of OD plasticity. OPEN IN VIEWER

Synaptic Calcium Signaling

Calcium signaling at the synapse appears to be a central mechanism for initiating many types of synaptic plasticity, including OD shifts following MD. The level of intracellular calcium in the postsynapse is thought to determine the magnitude and direction of plasticity, with small calcium accumulations leading to LTD and large calcium accumulations leading to LTP.^141,142 The majority of calcium entry at excitatory cortical synapses is mediated through NMDA receptors. ¹⁴³ Because the magnesium blockade of NMDA receptors is released by co-activation of AMPA receptors and Na⁺ channels, it follows that postsynaptic calcium accumulation is activity-dependent. ¹⁴⁴ However, even at resting potentials NMDA receptor-dependent calcium accumulations can be detected, ¹⁴⁵ showing that even the smallest synaptic activations lead to calcium entry and can potentially trigger plasticity. NMDA receptors are also critical in OD plasticity. Local ^{146 148} or systemic ¹⁸ infusion of the NMDA receptor antagonists results in decreased OD shifts. Additionally, NMDA subunit composition is regulated developmentally, with NR2B subunits which have slower kinetics and result in larger calcium transients^149,150 being replaced with NR2A subunits.^151,152 This subunit switch is regulated by activity and dark exposure decreases the NR2A to NR2B ratio. ¹⁵³ This provides a means for altering the plasticity of cortical synapses by varying synaptic calcium entry in a specific spatiotemporal pattern. Interestingly, in CA1 pyramidal neurons, synapses containing NR2A and NR2B subunits are intermingled but distinct, ¹⁵⁴ suggesting that individual synapses in the hippocampus, but also possibly in visual cortex, can regulate their NMDA subunit composition and calcium entry profile based on their activity history. Additionally, GluR2-lacking AMPA receptors are also permeable to calcium and are expressed after LTP in the hippocampus, which may in turn promote their replacement with calcium-impermeable AMPA receptors. ¹⁵⁵ While it is unclear whether calcium entry through AMPA receptors contributes to OD plasticity, recent evidence suggests that AMPA receptor subunit composition is sensitive to visual stimulation. ¹⁵⁶ An additional important pathway for calcium entry into dendritic spines is through voltage-sensitive calcium channels (VSCCs) elicited by strong depolarization provided by synaptic summation and back propagating action potentials.^143,144 In the cortex, calcium entry in dendritic spines is mediated by L, P/Q and low threshold T-type channels, ¹⁵⁷ while hippocampal CA1 neuronal spines contain R and L-type channels.^158,159 While the distribution of these channels between different spines on the same and different cell types in visual cortex is still not well understood, it is possible that regulation of these calcium entry pathways can provide heterogeneity in the modes of plasticity at different synapses during MD. The contribution of calcium release from internal stores after synaptic activation is more controversial^144,160,161 and has not been carefully examined in the visual cortex.

All of the calcium entry pathways described above likely contribute to OD plasticity. A role for activity-dependent rises in postsynaptic calcium has been described for homosynaptic plasticity.^162,163 In this scenario, action potentials that precede synaptic events elicit small calcium accumulations through NMDA receptors postsynaptic to deprived eye afferents; resulting in the depression of deprived eye responses. Supratheshold synaptic stimulation that elicits supralinear calcium entry through NMDA receptors and VSCCs postsynaptic to non-deprived eye afferents leads to potentiation of responses to the non-deprived eye. The requirement for calcium in homeostatic plasticity is less well established, although a number of studies also suggest that integrated calcium levels supported by VSCCs are responsible for the scaling of synaptic responses.^164,165

Intracellular Signaling

Calcium entering the spine cytoplasm through the different receptors and channels can play various roles in plasticity by activating distinct signaling pathways. The specificity of calcium signaling is achieved through the organization of the postsynaptic density where several molecular signaling complexes associated with specific calcium entry mechanisms are brought together (Fig. 4). High resolution immuno-electron microscopy studies have revealed that the PSD is composed of three main functional layers. ¹⁶⁶ The first contains transmembrane proteins, membrane receptors and ion channels. Glutamate receptors are a prominent part of this layer with NMDA receptors located at the center and AMPA receptors at the periphery showing the spatial organization of different signaling networks. Calcium channels, on the other hand, are located peripheral to the PSD ¹⁶⁷ and likely associate with a different set of molecular complexes. The second layer contains scaffolding proteins that are oriented perpendicular to the PSD and which link membrane receptors with effectors through PDZ domain interactions, thus creating the dense scaffold of the PSD. The third layer contains cytoskeletal regulating proteins that are associated with the actin scaffold of the dendritic spine cytoplasm. This ultrastructural organization allows specific members of a molecular signaling pathway to be spatially grouped together such that very local changes in calcium concentrations associated with particular receptors can affect particular signaling complexes specifically. The existence of these “calcium nanodomains” has now been confirmed using calcium imaging approaches that demonstrate that L-type calcium channel flux, undetectable on the level of the spine calcium signal, activates a CaMKII and cAMP-dependent pathway and that this activation results in the depression of R-type calcium channels. ¹⁵⁹ Additionally, small conductance Ca-activated potassium channels (SK channels) are specifically activated by calcium flowing through R-type channels in hippocampal neurons suggesting that these two channels are complexed together within a calcium nanodomain. ¹⁶⁸

Many of the postsynaptic density kinases and phosphatases involved in LTP and LTD, have also been implicated in OD plasticity, including CamKII,^169,170 calcineurin, ¹⁷¹ PKA^172,173 and Erk kinase, ¹⁷⁴ as well as downstream effectors such as CREB. ¹⁷⁵ However, their role is still unclear. For instance, it is surprising that CamKII dysfunction, generally thought to affect LTP, affects brief ocular dominance plasticity, a process driven by LTD of deprived eye synapses. ¹⁷⁰ While it is possible that this and other discrepancies result from the different function of synapses located in different layers and serving different circuits, it is also possible that the subcellular kinase location and its association with particular calcium signaling domains as well as its spatiotemporal dynamics can affect its contribution to synaptic plasticity. For instance, it has recently been reported that phosphorylation of PSD-95 by CamKII results in PSD reorganization and inhibits spine growth and potentiation of synaptic currents. ¹⁷⁶

Another intracellular molecule that is well poised to affect plasticity is actin. The actin cytoskeleton is tethered to the PSD and controls many aspects of PSD organization as well as spine morphology. Signaling within the PSD, on the other hand, is perfectly suited to affect actin polymerization through many different signaling pathways. Actin polymerization is critically involved in spine structural dynamics.^93,94,101 It is regulated by many of the same kinases and phosphatases as LTP, LTD and OD plasticity and it's regulation can enhance spine size during LTP and shrink spines during LTD, ¹⁷⁷ thereby linking functional and structural aspects of plasticity at the synapse. While intracellular microtubules have traditionally been thought to be compartmentalized to dendrites, recent evidence suggests that dynamic microtubules invade spines and interact with the actin cytoskeleton regulating structural plasticity at dendritic spines. ¹⁷⁸ This suggests that the microtubule network may work in concert with actin in the dendritic spine to implement dynamic structural changes during OD plasticity.

Interestingly, the molecular mechanisms that mediate the loss of responses to the deprived eye during MD are not the same as those that mediate recovery from deprivation. While cortical protein synthesis and CREB activation are crucial elements of OD shifts,^175,179,180 recovery of visual responses through the re-opened eye does not require either of these mechanisms^179,181 and can occur outside the visual critical period. ¹⁸² Further, the fact that changes elicited by monocular deprivation can be readily reversed suggests that networks subserving binocular vision are easily reactivated, possibly through the existence of dormant connections or a stable axon scaffold.^112,123

Extracellular Signaling

While intracellular pathways of plasticity have been extensively studied, more recently extracellular factors and non-neuronal mechanisms have been implicated in OD plasticity. For instance, signaling by intracortical myelin has been shown to inhibit OD plasticity. ¹⁸³ Recent studies also suggest that non-traditional cell types, such as astrocytes, are critical for synaptic development, function and plasticity. ¹⁸⁴ The importance of astrocytes for visual processing is underscored by the fact that astrocytes show sharply tuned visual responses that are as precisely mapped across the cortical surface as those of neurons and that they can modulate neuronal responses to visual stimuli. ¹⁸⁵ Glial-derived tumor necrosis factor-alpha (TNF-α), a cytokine largely studied in the context of brain inflammation, acts to rapidly scale synapses in the hippocampus.^61,186 TNF-α is involved in the potentiation of nondeprived eye responses during OD plasticity. ⁶⁰ This supports the idea of a homeostatic role for this phase of OD plasticity and suggests a bi-directional dialogue between neurons and glia in the visual cortex.

Proteolytic pathways activated by neurons or glia, such as the activation of tissue plasminogen activator (tPA), also appear to be critical for both functional OD plasticity and its associated structural changes at synapses.^48,76,187 tPA can be rapidly released from neurons in response to depolarization,^188,189 using mechanisms that are also important in LTP-induction ¹⁹⁰ and visual plasticity. ¹⁹¹ In fact tPA is up-regulated during LTP, ¹⁹² and manipulating tPA activity affects both LTD ¹⁹³ and LTP. ^{194 196} Thus tPA can mediate Hebbian processes such as those involved in the loss of deprived eye responses. Additionally, because tPA activity remains high for ∼1 week post-deprivation, ¹⁸⁷ it could also mediate slower homeostatic changes. Several downstream effects of tPA activity have been identified as well, though they have yet to be shown to be involved in visual plasticity. tPA plays a role in regulating NMDA receptor kinetics, a known factor in synaptic plasticity. It can cleave the NR1 subunit of the NMDA receptor, increasing calcium influx, ¹⁹⁷ and can modulate the NR2B subunit.^198,199 tPA can also cleave proBDNF, thus up-regulating BDNF signaling, ²⁰⁰ which affects visual plasticity and synaptic remodeling. ²⁰¹ Interestingly, tPA can increase extracellular matrix (ECM) proteolysis either directly or through its activation of both plasmin, which is a broad spectrum protease with many possible targets in the ECM, and matrix metalloproteinases (MMPs), ²⁰² which degrade the ECM and play an important role in synaptic plasticity. ²⁰³

While the targets of tPA activity in the visual system are not known, several studies suggest that chondroitin sulfate proteoglycans (CSPGs) are cleaved following tPA activation and that these may be candidate extracellular molecules for OD plasticity. For instance, both phosphacan and neurocan can be cleaved by plasmin in vitro, and tPA/plasmin-mediated phosphacan cleavage has been demonstrated in the epileptic hippocampus. ²⁰⁴ MMPs can also cleave CSPGs. ²⁰⁵ CSPGs are a family of molecules comprising a large part of the brain ECM and are particularly abundant in dense lattice structures called perineuronal nets (PNNs) which ensheath neuronal cell bodies and proximal dendrites in visual cortex. In the visual cortex, the maturation of PNNs made up of dense CSPG aggregates is thought to close the critical period and deprivation affects PNN structure. ^{206 208} While, there is little known about the direct role of individual CSPGs in plasticity, there are a number of reasons to suspect that they could affect synapses in visual cortex. Local CSPG expression is modulated by activity ^{208 210} and correlates with synaptic remodeling in the hypothalamic supraoptic nucleus. ²¹¹ The interactions between CSPGs and the cell surface can activate intracellular signaling cascades ²¹² and CSPGs have ECM binding partners, such as neuronal cell adhesion molecule (NCAM), which has a well established role in synaptogenesis and plasticity. ²¹³ Lecticans and phosphacan are also implicated directly in the induction and maintenance of LTP^214,215 and LTD. ²¹⁶ However, while the fnding that degrading the ECM in adult animals restores developmental plasticity ²¹⁷ garnered much excitement, it is still not certain that ECM remodeling contributes to developmental OD plasticity.

Reactivating Plasticity in the Visual Cortex

The molecular mechanisms that control adult OD plasticity are not fully understood, and may be different than those that govern critical period plasticity given the physiological differences ²¹⁸ and the relative capacities of juvenile and adult cortex for plasticity. ²¹⁹ However, manipulations of the adult cortex that restore plasticity seem to reinstate known critical period mechanisms of plasticity. Darkrearing adult animals, for instance, reinstates OD plasticity and restores juvenile-like synaptic NMDA and inhibitory signaling profiles in visual cortex. ¹²⁹ Chemical dissolution of PNNs, which mature during the critical period, also recovers plasticity. ²¹⁷ Fluoxetine, a selective serotonin reuptake inhibitor, reinstates OD plasticity in the adult rat possibly by decreasing inhibitory drive to developmental levels. ⁸⁵ While the mechanisms of fluoxetine treatment are not entirely clear, it is interesting to note that fluoxetine has been observed to induce dendritic arborization and spine growth in the hippocampus,^220,221 increase synaptic protein expression in a BDNF-dependent manner, ²²² enhance cortical axonal remodeling after retinal lesions, ²²³ affect astrocytic signaling, ²²⁴ and change the balance of ECM-remodeling proteinases and their inhibitors. ²²⁵ More research is needed in order to elucidate the mechanisms of adult OD plasticity; this will be instructive for understanding the differences between critical period and adult plasticity, as well as for discovering how the transition between the two is determined.

Summary and Future Directions

Competition between the two eyes’ afferents for postsynaptic resources has often been characterized as the primary force behind the OD shift induced by MD. Recent research, however, has described the involvement of a complex framework of spatiotemporal changes at synapses across visual cortex. Some aspects of OD plasticity are directly influenced by the activity or lack thereof in one eye, such as the depression of deprived eye synapses that relies on rapid Hebbian remodeling of the cortical network. Other aspects may be determined by a more prolonged loss of activity and affect synapses globally such as the slower synaptic scaling of responses that may, at least contribute to, the delayed increase in non-deprived eye drive. The implementation of these different mechanisms, however, is diverse and varies across cortical layers and by developmental stage.

Understanding the mechanisms of OD plasticity will require the dissection of physiological, structural and molecular plasticity at individual synapses with identified inputs. One significant advance would be to label each eye's axons separately, allowing their synapses to be differentiated. This might be achieved through transsynaptic viral labeling in eye-specific LGN laminae. From there, each eye's geniculocortical afferents (and the cortical neurons they innervate) would be distinguished by the fluorescent marker they express. ²²⁶ Unfortunately this would not provide much information about intracortical circuitry as the diffuse connectivity between cortical neurons makes it more likely that cortico-cortical synapses are binocular. Only the monitoring of synaptic activity through calcium, voltage or molecular activity markers will allow the determination of the binocularity and plasticity at individual intracortical synapses. Existing studies have provided important pieces of this puzzle and allow us to appreciate the complexity of cortical network plasticity. The development of new molecular, optical and electrophysiological tools will facilitate our understanding of how different connections remodel during OD plasticity. As additional work is done, a more detailed picture of local circuit and network level cortical plasticity will certainly continue to emerge.

Disclosure

The authors report no conflicts of interest.
