Iterative Decomposition of Water and Fat with Echo Asymmetric and Least–-Squares Estimation (IDEAL) (Reeder et al. 2005) Automated Spine Survey Iterative Scan Technique (ASSIST) (Weiss et al. 2006)

Introduction

Currently, MRI spine exams are technologist-dependent and lack standardization. They may also be degraded by motion/susceptibility artifact and provide suboptimal tissue characterization, limiting reproducibility, sensitivity and specificity. Moreover, MRI has been too time intensive and costly to justify as a routine screening instrument or adjunct for interventional spine procedures. A conventional multi-planar, multi-sequence MRI spine study to include separate coverage of the cervical, thoracic, and lumbar-sacral regions may take 1–2 hrs to complete and cost several thousand dollars, particularly if a contrast agent is to be administered.

Routine MRI T1 and T2 sequences may be somewhat limited in the detection and characterization of vertebral marrow pathology to include metastatic disease, myeloma, and Modic Type I-III changes. T1 sequences typically provide good soft tissue contrast between normal bone marrow and most malignancies due to the presence of fat (short T1) in the former but not in the latter. Unfortunately, normal bone marrow may have heterogeneous or diminished lipid content, confounding interpretation. Moreover, the composition of bone marrow changes with age. Fat fraction increases linearly with age, ranging from 20.5% in the second and third decades of life to 49.4% in the eight or ninth decades.(Schellinger et al. 2001)

The presence of lipid can limit the sensitivity of conventional T2 sequences for the detection of pathology such as metastases as both neoplasm and lipid demonstrate relative hyperintensity with T2 imaging. Routine chemical shift and short tau inversion recovery (STIR) fat saturation techniques may provide some help but have several important limitations. Conventional chemical shift techniques often fail when applied to large field-of-view sagittal spine imaging, consequent to magnetic field inhomogeneity. STIR sequences, while insensitive to such field inhomogeneity, suffers from reduced signal-to-noise ratio (SNR) and mixed contrast that is dependent on T1.(Reeder et al. 2005)

Recently, Reeder et al. described a novel modification of the Dixon technique (Dixon, 1984), termed IDEAL (Iterative Decomposition of Water and Fat with Echo Asymmetric and Least-squares Estimation). Rather than obtaining the classic in-phase and out-of-phase images to create fat and water images, their technique utilizes three equally spaced intermediate phase echoes to optimize S/N and allow accurate fat and water quantification. While this technique has demonstrated promise in several areas (liver, breast, heart, knee, ankle, brachial plexus and cervical spine)(Reeder et al. 2007; Reeder et al. 2006), to our knowledge, total spine imaging with IDEAL has not been previously reported.

Weiss et al. developed and tested an Automated Spine Survey Iterative Scan Technique (ASSIST) to rapidly survey the entire spine, enabling accurate numbering of all intervertebral discs and vertebrae.(Weiss et al. 2006; Weiss and Storrs, 2007) Their technique surveys the entire spine with sub-millimeter in-plane resolution in less than one minute in two contiguous auto-prescribed sagittal sequences. Post-processing software identifies and labels the intervertebral discs and vertebral bodies. The MRI sequences require a total of 42 seconds and provide coverage of all vertebrae through the sacrum with discs prominently hyperintense in contrast to vertebral bodies. ASSIST automated disc detection and numbering was concordant with neuroradiologist assignments in 50/50 cases (100%) after mid-study parameter refinement related to a case of vertebral planus.(Weiss et al. 2006)

However, as initially described, ASSIST provided only 3.5 cm of sagittal coverage (7 slices at 4 mm skip 1mm) potentially limiting evaluation of scoliotic or mal-positioned patients. Moreover, while highly accurate in their select population, generalization to other populations and MR platforms was indeterminate as post-processing software parameters had been optimized for their adult out-patient population utilizing a single 1 5T MRI scanner and pulse sequence.(Weiss et al. 2006)

To rectify the aforementioned potential shortcomings, we modified ASSIST(Weiss et al. 2006) and integrated experimental FSE IDEAL pulse sequences(Zhiquang et al. 2006; Reeder et al. 2005), the goal being an automated multi-parametric sagittal survey of the entire spine in less than twenty minutes.

Materials and Methods

Results

In all 18 subjects/20 spine studies, independent neuroradiologists (R.S.C. and K.L.W.) and computer ASSIST labeling of all vertebrae were concordant. In all cases, IDEAL provided uniform fat and water separation throughout the entire 70 cm FOV imaged (Figs. 1–3). In contradistinction, conventional chemical shift fat suppressed images that were available for comparison, not infrequently demonstrated regions of heterogeneous fat and water suppression (Fig. 4). Two subjects demonstrated breast metastases (Figs. 1, 2) and one had a large presumptive schwannoma (Fig. 3). 14 subjects demonstrated degenerative disc disease with associated Modic Type I or II changes at one or more levels. (Fig. 1). FGRE ASSIST afforded subminute (21 × 2 = 42 sec), submillimeter (0.99 × 0.69 mm) in-plane resolution imaging of the entire spine, with high contrast between discs and vertebrae at both 1.5 and 3.0T. In all cases, marrow signal abnormalities could be particularly well characterized with IDEAL derived images and parametric ratio maps.

OPEN IN VIEWER

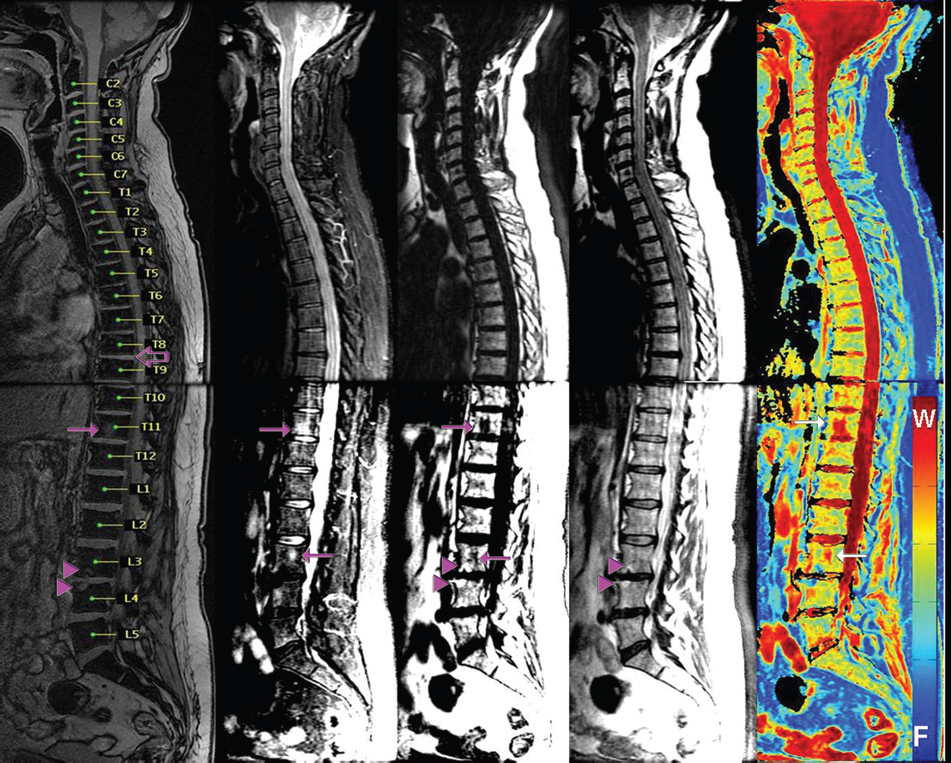

Figure 1.

52 year old woman with metastatic breast cancer involving T11 and more subtly L3 vertebral bodies, (closed arrows); T8–9 HNP with anterior cord impingement, (open arrow); and lower lumbar spondylosis including anterior Modic II changes at L3–4 (arrowheads). MRI performed at 1.5T without contrast.

OPEN IN VIEWER

Figure 1. b)

From left to right: ASSIST FGRE (TR 61, TE 2.2 msec); T1-weighted FSE IDEAL (TR 500, TE 17 msec, ET 2) water, fat, composite (W + F), and W% map.

OPEN IN VIEWER

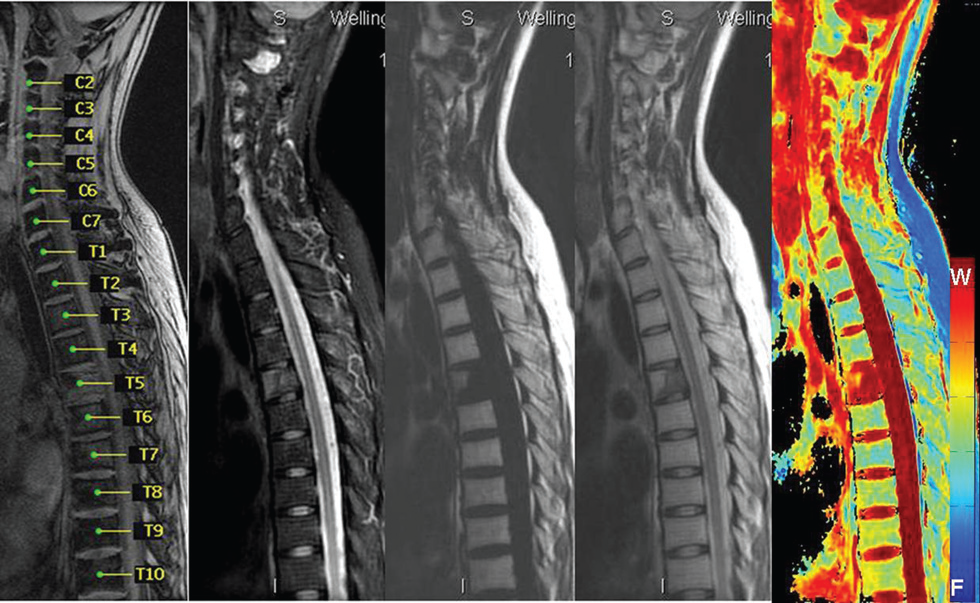

Figure 2.

35 year old woman with metastatic breast cancer status post recent radiation therapy, with prominent T5 vertebral lesion. MRI performed at 1.5T without contrast. From left to right: ASSIST auto-labeled FGRE (TR 61, TE 2.2 msec); T2-weighted FSE IDEAL (TR 2017, TE 61 msec, ET 10) water, fat, composite (W + F), and W% map.

OPEN IN VIEWER

Figure 3.

31 year old man presents with back pain and a schwannoma (arrow) involving the left L1 neural foramen. MRI performed at 3.0T without and with contrast, the latter on a separate day. From left to right: ASSIST auto-labeled FGRE (TR 62, TE 3.2 msec); T2-weighted FSE IDEAL (TR 2067, TE 52 msec, ET 10) fat and water; T1-weighted FSE IDEAL (TR 467, TE 15.5 msec, ET 2) water pre-contrast, water post- contrast, W% post-contrast.

OPEN IN VIEWER

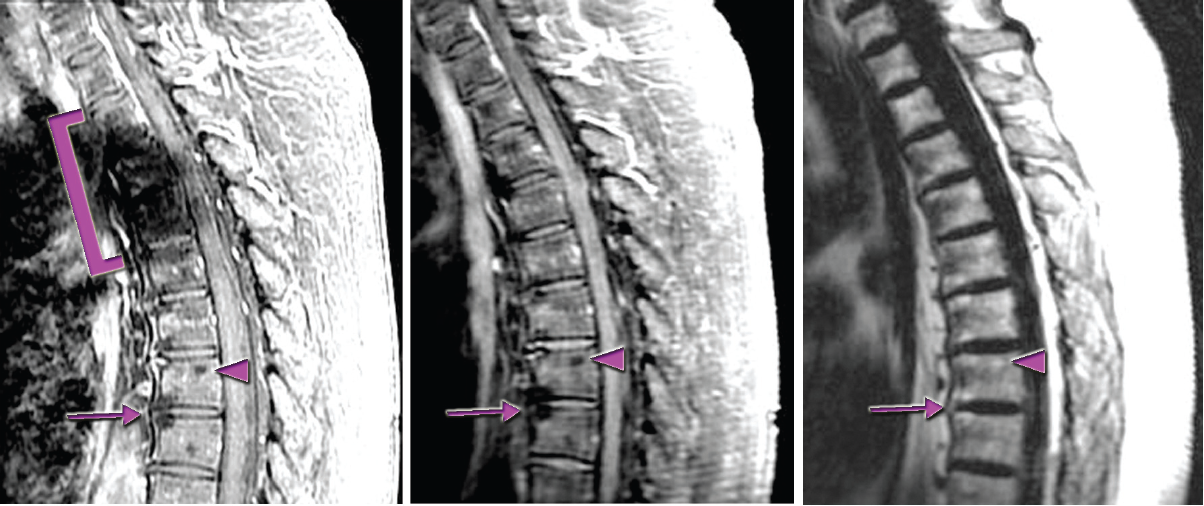

Figure 4.

69 year old breast cancer patient without evidence for metastatic disease. Post contrast images at 3T from left to right: TI-weighted conventional FSE with chemical shift fatsaturation technique, (TR 800, TE 13.1 msec, ET 2) and T1-weighted IDEAL FSE (TR650, TE 15.6 msec, ET 3) water and fat. Heterogeneous fat suppression with artifactual signal loss in upper thoracic spine (bracket) is evident on the chemical shift fat saturated image but not on the two corresponding IDEAL images, which demonstrate homogeneous fat-water separation. Lower in the thoracic spine, Modic Type II changes (arrow) and focal fatty fatty marrow deposition (arrowhead) can be appreciated on all three images and definitively characterized with IDEAL.

Considering coverage, S/N, tissue contrast, and time; with available software and hardware, the following parameters were rated best by the two neuroradiologists (R.S.C. and K.L.W.) and selected for a prospective American Cancer Society study:

3.0T, sagittal 4 mm skip 1mm (L25 mm – R25 mm), 11 slices, 2 stations (35 cm × 2 = 70 cm FOV). At each station:

a) FGRE ASSIST (TR 57 msec, TE 1.4 msec, 30 degree flip angle, BW 62.5 khz, 512 freq × 352 phase, freq direction S/I, breath hold −21 sec).

b) T1 FSE IDEAL (TR 650 msec, TE 15.5 msec, ET 3, 320 freq × 256 phase, BW 19.2 khz, freq direction S/I, 3:33 sec).

c) T2 FSE IDEAL (TR 1867 msec, TE 69.9 msec, ET 9, 512 freq × 288 phase, BW 25 khz, freq direction S/I, 3:50 sec).

Total scan sequence time is 7:44 × 2 = 15 minutes 28 sec. All sequences are auto-prescribed and total table time including setup, auto-tuning, table translation, and image reconstructions is approximately 20 minutes. The modified ASSIST algorithm running in Matlab 7 (Mathworks, Natick, MA) on a 2.80 GHz, 2.00 GB RAM PC (Intel, San Jose, CA) auto- labels all discs and vertebrae in less than 1 minute.

Discussion

The investigation demonstrates the potential for rapid automated imaging of the entire spine with optimized tissue contrast afforded by uniform fat-water separation. As SCIC was not functional in the investigation IDEAL software version provided, parametric ratio maps such as F% appeared particularly helpful as they compensated for surface coil intensity drop-off. Nonetheless, implementation of SCIC for IDEAL as it has been for the clinical FGRE would be most desirable to facilitate image interpretation without the need to adjust window/level setting across the large FOVs.

Rather than a comprehensive total spine exam, 2D sagittal IDEAL ASSIST should be viewed as a screening technique, which when indicated may be complemented with additional multi-planar sequences. We are, however, developing automated methodology to prospectively prescribe axial oblique images through ASSIST labeled interspaces or other computer identified regions of interest which deviate from the norm in terms of morphology or signal characteristics. Additionally, we are exploring 3D sagittal ASSIST to include fat-water decomposition sequences, which can be subsequently reformatted in any plane and like multi-detector volumetric CT may obviate the need to prospectively obtain multi-planar images.

Obtaining a gold standard, such as magnetic resonance spectroscopy, to quantitatively measure the accuracy and uniformity of fat-water separation against, was beyond the scope of this investigation. Consequently, independent ratings were performed qualitatively rather than quantitatively by two experienced neuroradiologists. Recently, however, others have quantitatively demonstrated the accuracy of the IDEAL technique, to include determining fat%.(Bernard et al. 2007)

As previously advocated,(Weiss et al. 2006) we also recommend FGRE ASSIST localizers for all thoracic or lumbar spine exams to assure correct numbering and facilitate subsequent scan prescriptions. We have successfully implemented a similar protocol on other magnet systems to include a 1.5T Siemens unit (Siemens Medical Systems, Erlander, Germany) and have achieved similar success with the modified ASSIST automated numbering algorithm. Children as young as 9 years of age have also been successfully studied without change in protocol or computer algorithm. Depending on magnet homogeneity, however, smaller children might be more efficiently imaged with a single large field of view acquisition. If contrast is to be administered in conjunction with IDEAL ASSIST, we currently recommend pre-contrast breath-hold FGRE and T2 FSE IDEAL sequences followed by post-contrast breath-hold FGRE and T1 FSE IDEAL.

More study is required as well as FDA/EU approval before FSE IDEAL ASSIST sequences can be recommended for routine clinical examination. Other versions of IDEAL, such as RADIAL GRASE IDEAL(Altbach et al. 2007) need to be tested as well in conjunction with the ASSIST protocol and compared to determine optimal sequences over a large spectrum of pathologies. Additionally, IDEAL sequences should be compared to the rapid dual gradient echo Dixon sequences and fat-water separation technique developed by Ma.(Ma, 2004; Boehm et al. 2005) for integration with ASSIST. While the former affords more accurate fat-water quantification, the latter is much faster and might be substituted for the single echo FGRE technique described by Weiss et al.(Weiss et al. 2006) and herein there by permitting a sub-minute survey of the entire spine in two breath-hold sequences.

Regarding, automated spine image analysis, disc/vertebral identification and numbering are only the beginning. Refinements and extensions of such software should permit subsequent automated image prescriptions through regions of interest, generate measures of vertebral deformity(Genant et al. 1993) and provide automated multi-parametric tissue assessment.(Weiss et al. 2006; Weiss and Storrs, 2007)

Conclusion

IDEAL ASSIST is a promising MRI technique affording a rapid automated high resolution, high contrast survey of the entire spine with optimized tissue characterization. Further development and testing is warranted.
