Design Optimization of a Cable-Driven Two-DOF Flexible Joint Module

2.1 Design Consideration

The proposed CDSLRA adopts a modular design approach, which consists of a number of serially connected identical 2-DOF cable-driven joint modules. As shown in Figure 1(a), each module comprises a base disk, three cables, an elastic backbone and a moving platform. The moving platform is linked to the base disk through three driving cables and a flexible backbone at the centre of the joint module. To further simplify the joint module design with inter-changeable connectivity among the modules, both the moving platform and the base disk are identical to each other. The attachment points of three driving cables are equally spaced at 120° on both the moving platform and the base disk. Stainless steel cables are employed instead of super-elastic Ni-Ti tubes [4] because the latter have limited driving force.

OPEN IN VIEWER

Figure 1.

2-DOF cable-driven joint module

2.2 Joint Module Displacement Analysis

The flexible backbone is made of elastic and inextensible material, and it is designed to be rigid in torsion. Hence, the joint module with such a flexible backbone only allows a two-DOF bending motion, which can be described by two kinematic parameters: rotation angle of the bending plane α and the bending angle θ, as shown in Figure 2.

OPEN IN VIEWER

Figure 2.

The kinematics diagram of the 2-DOF joint module

The purpose of the forward displacement analysis is to find the pose of the moving platform T(l)∈SE(3) when the lengths of the three driving cables l=[lc1 lc2 lc3]^T are given. Since it is difficult to derive T(l) directly, joint variables φ=[α θ] are used as the intermediate variables to simplify the analysis.

Frame {j-1} is attached to the base disk with its origin located at the centre of the disk, as shown in Figure 1(b).

The zj-1 axis is normal to the disk and the xj-1 axis points to the first cable attachment point on the disk. Similarly, Frame {j} is attached to the moving platform with its origin located at the centre of the platform. The zj axis is normal to the platform and the xj axis points to the first cable attachment point on the platform.

2.2.1 Relationship between joint variables and cable lengths

As shown in Figure 2, Bi and Pi (i=1, 2, 3) are the ith cable attachment points on the base disk and the moving platform respectively. Based on the 2-DOF bending characteristics, the bending shape of the backbone is assumed to be circular with a constant arc length L [3, 4]. The plane OCPB formed by zj-1 and zj, as well as the flexible backbone arc OC is the bending plane, which is always perpendicular to the base disk plane. Point B and P are the intersection points of the bending plane with the base disk and the moving platform respectively. Note that B and P are located on the same circles formed by Bi and Pi (i = 1, 2, 3) respectively. The backbone deflection within the bending plane is described by the bending angle θ(i.e, ∠BMP), while the bending plane is defined by a rotation angle α (∠B1OB).

The length of P i B i → represents the cable length lci. A loop-closure equation for the ith cable can be written as:

P i B i → = P i C → + C O → + O B i →

(1)

where C P i → = r ⋅ R z ( α ) R y ( θ ) [ cos β i − sin β i 0 ] T

O C → = R z ( α ) ⋅ 2 ⋅ ( L θ ) sin θ 2 [ sin θ 2 0 cos θ 2 ] T

O B i → = r ⋅ R z ( α ) [ cos β i − sin β i 0 ] T

Here, r is the constant radius from O to B and also from C to Pi. βi is a right-handed rotation angle from O B i → to O B → such that:

β i = α + ( i − 1 ) 2 π 3 , i = 1 , 2 , 3

Therefore, for a set of given joint variables α and θ, the cable lengths are determined as follows:

l c i = 2 L θ sin θ 2 − 2 r cos β i sin θ 2

(2)

While for a set of given cable lengths, the joint variables can be expressed as:

α = a t a n 2 ( 3 ( l c 2 − l c 3 ) , l c 2 + l c 3 − 2 l c 1 )

(3)

θ = 2 sin − 1 ( l c 2 − l c 3 2 3 r sin α )

(4)

2.2.2 Determination of kinematics transformation matrix

Denote the forward kinematics transformation from the frame {j-1} to {j} as T(j-1),j∈SE(3), which has the following general form:

T ( j − 1 ) , j = [ R p 0 1 ]

(5)

where R∈SO(3) and p∈R^3×1 represent the orientation and position of frame {j} with respect to frame {j-1}, respectively. As shown in Figure 2, when the joint variables α and θ are known, the position vector of point C, i.e., p ( O C → ), with respect to frame {j-1} can be determined as follows:

p = O C → = L θ [ cos α ( 1 − cos θ ) sin α ( 1 − cos θ ) sin θ ] T

(6)

However, to determine the orientation of frame {j} with respect to frame {j-1}, i.e., R is not so straightforward. Conventionally, the rotation matrix R is computed through the Z-Y-Z Euler angles as follows [4]:

R = R z ( α ) R y ( θ ) R z ( − α ) = [ s α 2 + c α 2 c θ − s α c α v θ c α s θ − s α c α v θ c α 2 + s α 2 c θ s α s θ − c α s θ − s α s θ c θ ]

(7)

where s_α=sinα, c_α=cosα, s_θ=sinθ, c_θ=cosθ and v_θ=1-cosθ.

By analysing the rotation matrix R=[r_ij]∈SO(3) (i, j =1, 2, 3), we find that r12= r21, r13=-r31, r23= r32.

On the other hand, for a given R∈SO(3), it can always be represented by a rotation about an axis ω=[ω1 ω2 ω3]^T ∈R³ (|ω|=1) of a angle θ ∈ R such that [5]

R = e ω ^ θ = [ ω 1 2 v θ + c θ ω 1 ω 2 v θ − ω 3 s θ ω 1 ω 3 v θ + ω 2 s θ ω 1 ω 2 v θ + ω 3 s θ ω 2 2 v θ + c θ ω 2 ω 3 v θ − ω 1 s θ ω 1 ω 3 v θ − ω 2 s θ ω 2 ω 3 v θ + ω 1 s θ ω 3 2 v θ + c θ ]

(8)

Comparing corresponding terms in (7) and (8), the rotation axis is given by:

ω = [ − sin α cos α 0 ] T

(9)

Equation (9) implies that the motion of the 2-DOF joint module to achieve a desired posture is equivalent to a rotation about an axis ω that is parallel to the xj-1-yj-1 plane as shown in Figure 3. It can be readily verified that the rotation axis ω is given by the cross product of zj-1 and zj, and the rotation angle is identical to the bending angle θ.

OPEN IN VIEWER

Figure 3.

The rotation motion of the 2-DOF joint module

With such a meaningful geometric description, the kinematic transformation of the 2-DOF joint module can be represented by a rotation about an instantaneous screw axis (i.e., a twist), ξ ^ ∈ s e ( 3 ) of an angle θ. The twist coordinates of ξ ^ is given by: ξ=(ω, v) ∈ R^6×1 in which ω=[-sinα cosα 0]^T represents the direction of the screw axis and it is always parallel to the xj-1-yj-1 plane, while v=[vx vy vz]^T determines the position of the screw axis and it is a function of the joint variables α and θ,, i.e., a function of the cable lengths.

After such a geometric treatment, the POE formula can be employed to formulate the kinematics models of the 2-DOF joint module.

2.2.3 POE Formula for Forward Displacement Analysis

Based on the screw theory, Murray et al. [5] showed that each rigid motion associated with rotating and translating along the twist direction can be expressed by the product of matrix exponentials. Because of its compact representation and its connection with Lie groups and Lie algebras, the POE formula has proven to be a useful modelling tool in robot kinematics [14, 15]. These advantages make POE formula a convenient and powerful modelling method for hyper-redundant robots.

Based on the POE formula, the forward kinematics of the 2-DOF joint module is given by:

T ( j − 1 ) , j ( θ , α ) = e ξ ^ θ T ( j − 1 ) , j ( 0 )

(10)

where T(j-1), j(θ,α)∈SE(3) is the final configuration of frame {j} relative to the frame {j-1} as a function of the joint angles θ and α. T(j-1),j(0)∈SE(3) is the initial configuration of frame {j} relative to the frame {j-1} at θ=0 and α=0. e ξ ^ θ ∈ S E ( 3 ) describes the rigid body motion simultaneously rotating and translating about a screw axis (a twist) ξ ^ . ξ ^ is expressed in frame {j-1} and its twist coordinates are given by ξ = (ω,v) = (ω,-ω×q)∈ R^6×1, in which ω is the unit directional vector of the axis and q is a point on the axis. e ξ ^ θ ∈ S E ( 3 ) is given by:

e ξ ^ θ = [ e ω ^ θ ( ( I − e ω ^ θ ) ω ^ + ω ω T θ ) υ 0 1 ]

(11)

From (10), e ξ ^ θ can also be obtained by:

e ξ ^ θ = T ( j − 1 ) , j ( θ , α ) T ( j − 1 ) , j − 1 ( 0 )

(12)

Substituting (8) and (9) into (11), and substituting (5) into (12) respectively, then by equating (11) and (12) yields

υ = L ⋅ [ − 1 2 cos α − 1 2 sin α ( 1 θ − 1 2 c t g θ 2 ) ] T

(13)

There are many possible points q on the axis ω, of particular interest is the intersection point between axis ω and the bending plane OCPB, qs, which is expressed by:

q s = [ q x y cos α q x y sin α q z ] T

(14)

where qxy and qz are the projection of vector O q s → onto the xj-1-yj-1 plane and the axis zj-1, respectively.

Because v = -ω×q, combining (9), (13) and (14) yields

q s = L ⋅ [ cos α ( 1 θ − 1 2 c t g θ 2 ) sin α ( 1 θ − 1 2 c t g θ 2 ) 1 2 ] T

(15)

According to (15), it is seen that the point qs on the axis is located on the bisector of ∠PWB, and the height of qs is always equal to L/2, as seen in Figure 4.

OPEN IN VIEWER

Figure 4.

Location of point qs on the instantaneous screw axis ω

In brief, the motion of the 2-DOF flexible joint module is equivalent to a rigid body rotation about an instantaneous screw axis ξ ^ ∈ s e ( 3 ) whose direction is always parallel to the xj-1-yj-1 plane and normal to the bending plane OCPB. The position of the axis can be determined by qs which is the intersecting point of the instantaneous screw axis and the bending plane OCPB. Note that the position of the axis is always located at a constant height since qz is equal to L/2.

2.3 Joint Module Velocity Analysis

In this section, the velocity analysis of joint module is carried out in order to obtain the Jacobian matrix J_xφ and J_Iφ.

Since T(j-1), j represents the forward kinematic mapping of the joint module, the instantaneous spatial velocity of the moving platform is therefore given by the twist [5]:

V ^ ( j − 1 ) , j j − 1 = T ̇ ( j − 1 ) , j ( θ , α ) T ( j − 1 ) , j − 1 ( θ , α ) = d d t ( e ξ ^ θ ) T ( j − 1 ) , j ( 0 ) ⋅ ( T ( j − 1 ) , j ( 0 ) ) − 1 ( e ξ ^ θ ) − 1 = d d t ( e ξ ^ θ ) ( e ξ ^ θ ) − 1

(16)

where V ^ ( j − 1 ) , j j − 1 ∈ s e ( 3 ) is a twist which can be written in the following matrix form:

V ^ ( j − 1 ) , j j − 1 = [ ω ^ m j − 1 v m j − 1 0 1 × 3 0 ]

(17)

ω ^ m j − 1 ∈ s o ( 3 ) represents the instantaneous angular velocity of joint module j with respect to frame {j-1};

v^j-1 _m ∈ ℜ^3×1 denotes the linear velocity of joint module j with respect to frame {j-1}.

Since the instantaneous screw axis ξ ^ is not a constant axis and it varies with variable α, the time derivative of e ξ ^ θ is not straightforward. Therefore, we resort to the Lie bracket method, in which the derivative of e ξ ^ θ is defined as a function of dexp [7–10]:

d d t ( e ξ ^ θ ) = dexp ( ξ ^ θ ) d ( ξ ^ θ ) d t ⋅ ( e ξ ^ θ )

(18)

Substituting (18) into (16) yields,

V ^ ( j − 1 ) , j j − 1 = dexp ( ξ ^ θ ) d ( ξ ^ θ ) d t

(19)

According to the Lie group theory, the right hand side of (19) can be expressed in terms of an infinite series of nested Lie brackets [7–10].

dexp ( ξ ^ θ ) d ( ξ ^ θ ) d t = C + 1 2 ! [ A , C ] + 1 3 ! [ A , [ A , C ] ] + ⋯

(20)

where

[ A , C ] = A C − C A ; A = ξ ^ θ = [ ω ^ υ 0 0 ] θ ∈ s e ( 3 ) ; C = d ( ξ ^ θ ) d t = [ ω ′ ^ θ α ̇ + ω ^ θ ̇ Γ 0 0 ] ∈ s e ( 3 ) ; Γ = − L 2 θ α ̇ ⋅ ω + L θ ̇ 2 ( 1 − cos θ ) ( ω ′ ( cos θ − 1 ) + ω ^ ω ′ ( sin θ − θ ) ) ;

ω′ = [-cos α –sin α 0]^T is the derivative of ω with respect to α.

Since ω ^ ∈ s o ( 3 ) is a skew-symmetric matrix, it holds the following properties [5].

ω ^ 2 = ω ω T − ‖ ω ‖ 2 I

(21)

ω ^ 3 = − ‖ ω ‖ 2 ω ^

(22)

According to (21) and (22), the nested Lie bracket in (20) can be simplified. Here only the first four simplified terms of the Lie bracket are listed.

[ A , C ] = [ ( ω ^ ω ′ ) ∧ θ 2 α ̇ − ω θ 2 L M α ̇ − ω ′ θ L N θ ̇ 0 0 ]

(23)

[ A , [ A , C ] ] = [ − ω ′ ^ θ 3 α ̇ ω θ 3 L 2 α ̇ − ω ^ ω ′ θ 2 L N θ ̇ 0 0 ]

(24)

[ A , [ A , [ A , C ] ] ] = [ − ( ω ^ ω ′ ) ∧ θ 4 α ̇ ω θ 4 L M α ̇ + ω ′ θ 3 L N θ ̇ 0 0 ]

(25)

[ A , [ A , [ A , [ A , C ] ] ] ] = [ ω ′ ^ θ 5 α ̇ − ω θ 5 L 2 α ̇ + ω ^ ω ′ θ 4 L N θ ̇ 0 0 ]

(26)

where

M = 1 θ − 1 2 c t g θ 2 and N = θ 2 ( 1 − cos θ ) − 1 θ

Substituting (23–26) into (20) forms the trigonometric series for the corresponding entries of matrix of V ^ ( j − 1 ) , j j − 1 .

ω ^ m j − 1 = ω ^ θ ̇ + ω ′ ^ α ̇ ( θ − θ 3 3 ! + θ 5 5 ! + ⋯ ) + ( ω ^ ω ′ ) α ̇ ( θ 2 2 ! − θ 4 4 ! + θ 6 6 ! + ⋯ ) = ω ^ θ ̇ + ω ′ ^ sin θ α ̇ + ( ω ^ ω ′ ) ∧ ( 1 − cos θ ) α ̇

(27)

v m j − 1 = ω L M α ̇ ( − θ 2 2 ! + θ 4 4 ! − θ 6 6 ! + ⋯ ) + ω L 2 α ̇ ( − θ + θ 3 3 ! − θ 5 5 ! + ⋯ ) + ω ′ L θ N θ ̇ ( − θ 2 2 ! + θ 4 4 ! − θ 6 6 ! + ⋯ ) + ω ^ ω ′ L θ N θ ̇ ( − θ 3 3 ! + θ 5 5 ! + ⋯ ) + L θ ̇ 2 ( 1 − cos θ ) ( ω ′ ( cos θ − 1 ) + ω ^ ω ′ ( sin θ − θ ) ) = ω L θ ( cos θ − 1 ) α ̇ + L θ 2 θ ̇ ( ω ′ ( 1 − cos θ ) + ω ^ ω ′ ( θ − sin θ ) )

(28)

Furthermore, the linear velocity of the origin of the moving platform frame is:

v o j − 1 = ω m j − 1 × p + v m j − 1

(29)

Hence, the velocity of the centre of the moving platform is given by:

x ̇ = J x Φ Φ ̇

(30)

where Φ ̇ = [ θ ̇ α ̇ ] T is the joint velocities;

x ̇ = [ v o j − 1 ω m j − 1 ] T is the velocity of the centre of the moving platform frame.

Combining (27–30) yields the Jacobian matrix as shown in the Equation (31).

Note that the Jacobian matrix in (31) is ill-conditioned when θ = 0, i.e., there is neither bending of the backbone nor rotation of the platform. This singularity at the configuration θ = 0 can be resolved by applying the L'Hopital Rule [3,4].

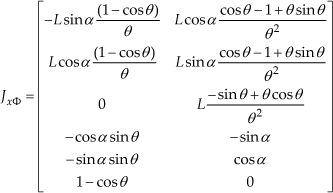

J x Φ = [ − L sin α ( 1 − cos θ ) θ L cos α cos θ − 1 + θ sin θ θ 2 L cos α ( 1 − cos θ ) θ L sin α cos θ − 1 + θ sin θ θ 2 0 L − sin θ + θ cos θ θ 2 − cos α sin θ − sin α − sin α sin θ cos α 1 − cos θ 0 ]

(31)

The instantaneous inverse kinematics can be given as:

l ̇ = J l Φ Φ ̇

(32)

where Jacobian matrix J_lφ is obtained by taking the derivative of (2) for α, θ [3, 4]:

J l Φ = [ ∂ l c 1 ∂ α ∂ l c 2 ∂ α ∂ l c 3 ∂ α ∂ l c 1 ∂ θ ∂ l c 2 ∂ θ ∂ l c 3 ∂ θ ] T

(33)

3.1 Tension Analysis

The principle of virtual work [4] is employed for the large-deflection beam analysis of the flexible backbone, as obtaining an analytical solution for a large-deflection beam [16] using conventional Newton methods by elliptic integral will be difficult and is unnecessary.

In the following analysis, twisting and extension of the backbone are neglected. Since the backbone is made of linearly elastic material and the bending shape of backbone is assumed to be circular, the strain energy of the flexible backbone is given by [17]:

E = ∫ L E I 2 ( d θ d s ) 2 d s = E I θ 2 2 L

(34)

The virtual work resulting from the infinitesimal joint displacement dφ of the flexible backbone is ∇E^Tdφ. ∇E represents the gradient of strain energy with respect to joint displacement dφ=[dθ dα]^T. Let We=[fe^T me ^T]^T represents the vector of external forces and moments applied to the moving platform. The virtual work contributed by an infinitesimal displacement dx of the moving platform is We^T dx. If the cable tension to maintain an equilibrium is τ=[τ1 τ2 τ3] ^T , the virtual work done by an infinitesimal displacement dl of the cables is τ^T dl. By using the principle of virtual work, we obtain:

W e T d x = τ T d l + ∇ E T d Φ

(35)

Substituting (30) and (32) into (35) yields

J x Φ T W e = J l Φ T τ + ∇ E

(36)

Therefore, the null space solution of τ is:

τ = ( J l Φ T ) + D + λ N

(37)

where (J_lφ^T)⁺ = (J_lφ^T)^T[(J_lφ^T)(J_lφ^T)^T]⁻¹

D = J x Φ T W e − ∇ E

Using the Cramer's rule, the null vector N of Jacobian matrix J_lφ^T can be written as N={n1 n2 n3}^T, in which ni (i=1, 2, 3) is the determinant of the matrix formed by deleting the ith column of the Jacobian matrix J_lφ^T. λ is an arbitrarily scalar.

3.2 Stiffness Analysis

When a CDSLRA performs a given task, an external force and moment vector will be applied on the moving platform. This contact wrench will cause the platform to elastically deviate from its desired motion. The amount of displacement or deformation will depend on both the magnitude of external wrench and the stiffness of the manipulator [18]. Here, we focus on the stiffness model of the 2-DOF joint module of CDSLRA, which is expressed as:

K = [ J x l + ] T ⋅ k c ⋅ [ J x l + ] + [ J x Φ + ] T ⋅ k b ⋅ [ J x Φ + ]

(38)

where k c = k ′ d i a g ( l 1 − 1 , l 2 − 1 , ⋯ , l m − 1 ) , k b = d i a g ( E I L , 0 ) , J x l + = J Φ l T ( J Φ l J Φ l T ) − 1 ( J x Φ T J x Φ ) − 1 J x Φ T is the pseudo-inverse of J_xl, J x Φ + = [ ( J x Φ ) T J x Φ ] − 1 ( J x Φ ) T is the pseudo-inverse of J_xφ.

The stiffness matrix is symmetric, positive semi-definite and configuration dependent. Equation (38) is derived as follows. By substituting (30), (32) into (35), we obtain

W e = [ J x l + ] T τ + [ J x Φ + ] T ∇ E

(39)

Let δWe∈ℜⁿ represent the change of applied wrench and δx the corresponding displacement changes of the moving platform. We have

δ W e = K δ x

(40)

where K is the Cartesian stiffness matrix [19] of the joint module.

With (39) and (40), and following the chain rule, we have

K = [ J x l + ] T δ τ δ l ⋅ δ l δ x + [ J x Φ + ] T δ ∇ E δ Φ ⋅ δ Φ δ x

(41)

As cables behave as linear springs [19], the stiffness equation in the joint space is given as:

δ τ = k c δ l

(42)

where k_c = k' diag (l_1-¹, l_2-¹, …, l_m⁻¹) and k' is the stiffness per reciprocal unit length of cable which is a constant and l_i is the cable length at a particular pose.

δ ∇ E δ Φ = k b = d i a g ( E I L , 0 )

(43)

Substituting (30), (32), (42) and (43) into (41) yields (38).

In this paper, the flexible backbone uses a spring steel rod with the diameter db=4mm and Young's modulus E=210GPa. The stainless steel cable is employed and its stiffness per reciprocal unit cable length is k' = 1×10⁵ N/m.

4.1 Quantitative Measure

The orientation workspace of the 2-DOF joint module is a subset of the rotation group SO(3). It can be visualized as a circular area in its parametric domain when the polar coordinates are employed to represent the two rotation angles θ ∈ [0,π/2] and α∈[0,2π], as shown in Figure 5. However, the orientation workspace volume of the 2-DOF joint module as described in SO(3) (VSO(3)) is not equal to the geometrical volume of the circular area in its parametric domain due to the nonlinear parameterization. Therefore, an integral factor has to be introduced, which is orientation dependent. For the polar coordinate parameterization, it has been shown that the integration factor is given by sinθ/θ [20]. Hence, the maximum orientation workspace volume of the 2-DOF joint module is given by: OPEN IN VIEWER

W V e n t i r e = ∫ S O ( 3 ) d V R = ∫ 0 2 π ∫ 0 π 2 sin θ θ θ d θ d α = 2 π

(44)

To evaluate the orientation workspace volume for a particular 2-DOF joint module, a numerical analysis approach that can generally cope with complicated workspace boundaries (due to the mechanical constraints and singularities) is more effective. Hence, a finite partition of the orientation workspace in its parametric domain is necessary. Similar to [11], the parametric domain of two rotation angles θ and α in the polar coordinate can be partitioned into 3n² finite elements with equal volume, as shown in Figure 5. When a double index (j, k) is specified for an element, the coordinates of the feature points can be readily computed. Using Equation (44), the orientation workspace for a subset of rotations S ∈ SO(3) can be numerically computed as:

∫ R ∈ S d V R ≈ V t ∑ sin θ j k θ j k

(45)

where θjk =πj/2n, αjk=2nk/(6j-3), Vt=π³/12n² is the element's volume in its parametric domain for the equi-volumetric partition scheme. In this paper, the number of division n=50.

4.2 Qualitative Measure

Displacement or deformation on the moving platform will emerge if an external wrench is applied to it. This deformation depends on both the external wrench and the stiffness of the manipulator. Thus the stiffness has effect on the position accuracy of the manipulator. Also, the 2-DOF cable-driven joint module with the flexible backbone structure has a relatively low stiffness. Therefore, it is necessary to evaluate the stiffness quality over the entire attainable workspace so as to attain an optimal design with a high stiffness performance.

Since the stiffness matrix K of the joint module relates the applied external wrench We on the moving platform to the moving platform deformation x, from the singular value decomposition theorem [21–22], the bounds on |x| can be established as

‖ W e ‖ σ max ≤ ‖ x ‖ ≤ ‖ W e ‖ σ min

(46)

where σmax and σmin are the maximum and minimum singular value of the stiffness matrix of the joint module. They give the lower and upper bounds of the deformation | x | on the moving platform.

Supposing the vector We is unity, i.e., | We | =1, then the minimum and maximum deformations can be obtained as

‖ x min ‖ = 1 σ max & ‖ x max ‖ = 1 σ min

(47)

Thus, 1/σmax and 1/σmin are actually the minimum and maximum deformation on the moving platform when the external wrench are unity. Furthermore, the deformations form a deformation ellipsoid, whose axes are directed along the left-hand singular vectors of the pseudo-inverse of the stiffness matrix K⁺. Its magnitudes are all the singular value of K⁺. The minimum and maximum deformations in (47) are in the direction of the minor and major axis of the ellipsoid. Normally, the smaller the maximum deformation, the better the stiffness performance, and this maximum deformation bound depends on the σmin. Therefore, the minimum singular value σmin is usually used as the criterion to design the manipulator with respect to its the stiffness [23–24]. Moreover, a larger σmin can lead to a smaller deformation, i.e., better stiffness performance.

Since the stiffness matrix is configuration-dependent, based on (47), the GSV index, which can evaluate the stiffness characteristics of the joint module over the achievable workspace, is defined as

G S V = 1 h a ∑ i = 1 h a σ i min

(48)

where ha is the sum of all the achievable workspace volume elements. σri min is the minimum singular value of the stiffness matrix K at the specified posture i. Normally, the index value GSV is expected to be as large as possible.

4.3 Design Optimization

4.3.2 Constraints

For a cable-driven mechanism, the tension of the cables is required to be positive in order to fully constrain the moving platform. Therefore, the GSV of the joint module can be determined by checking the tension conditions of three cables using the tension analysis. It is seen that the tension solution τi in the Equation (37) can always be made positive for all positive homogeneous solutions regardless of the value of D. This is achieved by changing the arbitrarily scalar λ to compensate the particular solution. The boundary of the workspace can therefore be purely based on the null vector N. Hence, the design constraints for positive cable tension are given as follows [25]:

∏ i = 1 3 n i ≠ 0 & ∑ i = 1 3 | n i | = | ∑ i = 1 3 ( − 1 ) i n i |

(49)

4.4 Optimization Results

The r/L-GSV relationship is plotted in the Figure 6. It is shown that for the joint module with decision variable r/L∈[0.06,0.637], the GSV is proportional to r/L. This means that a larger ratio r/L can lead to a larger GSV index, i.e., better stiffness performance. The largest GSV=581.3767 is obtained when r/L=0.637. Furthermore, the attainable workspace volume of the joint module is 6.1119 radians, which is very close to the maximum orientation workspace volume (2π), as shown in Figure 7. It is observable that there are three blank spaces (radial strips) inside the circular area, which indicates that the workspace cannot be attained when the rotation angle α=0, 2π/3 and 4π/3, where the positive tension constraint cannot be satisfied.

OPEN IN VIEWER

Figure 6.

r/L-GSV relationship plot

OPEN IN VIEWER

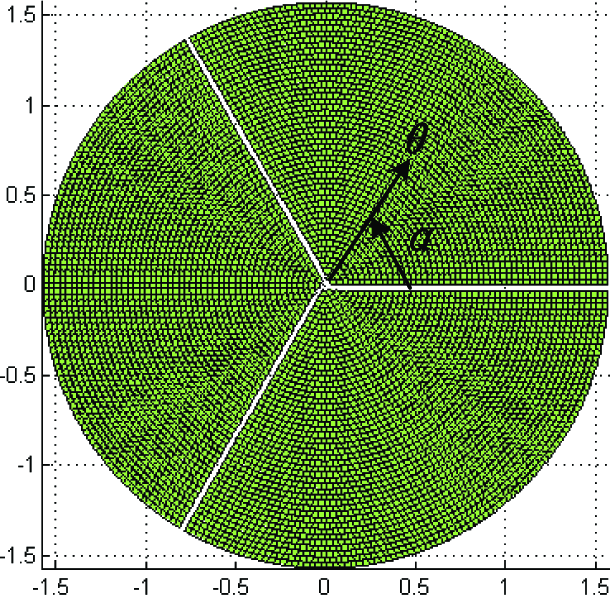

Figure 7.

Orientation workspace in polar coordinate GSV-based optimized
