Design and Assessment of a Machine Vision System for Automatic Vehicle Wheel Alignment

Abstract

Abstract Wheel alignment, consisting of properly checking the wheel characteristic angles against vehicle manufacturers' specifications, is a crucial task in the automotive field since it prevents irregular tyre wear and affects vehicle handling and safety. In recent years, systems based on Machine Vision have been widely studied in order to automatically detect wheels' characteristic angles. In order to overcome the limitations of existing methodologies, due to measurement equipment being mounted onto the wheels, the present work deals with design and assessment of a 3D machine vision-based system for the contactless reconstruction of vehicle wheel geometry, with particular reference to characteristic planes. Such planes, properly referred to as a global coordinate system, are used for determining wheel angles. The effectiveness of the proposed method was tested against a set of measurements carried out using a commercial 3D scanner; the absolute average error in measuring toe and camber angles with the machine vision system resulted in full compatibility with the expected accuracy of wheel alignment systems.

Keywords

Machine Vision Stereovision Wheel Alignment

1. Introduction

In the automotive industry, vehicle quality and safety require the measurement and adjustment of wheel alignment settings, both during manufacture and afterwards, during the life of the vehicle [1].

It is commonly known [2] that motor vehicle wheel alignment consists of correctly checking the wheel characteristic angles against vehicle manufacturers' specifications. Incorrect alignment may result in rapid and irregular tyre wear, and can dramatically affect vehicle handling and safety.

The two most important wheel angles, to be set during wheel alignment, are the toe and camber angles of the front wheels (see Figure 1).

Figure 1.

Toe and camber angles

Toe is defined as the symmetric angle that wheel makes with the longitudinal axis of the vehicle observing the vehicle from above (or below) [3]. When a pair of wheels is set so that their leading edges are pointed slightly towards each other, the wheel pair is said to have toe-in; in other words the two planes tangent to the tyre sidewall (referred to as “wheel planes” from now on) cross in front of the considered axle with respect to the driving direction. If the leading edges point away from each other, the pair is said to have toe-out. Toe settings affect three major areas of performance: tyre wear, straight-line stability and corner entry handling characteristics.

Camber is defined as the angle between the vertical axis of the wheels used for steering (i.e., the imaginary line about which the entire assembly of the hub, wheel bearing, rim and tyre rotates when the front wheel turns) and the vertical axis of the vehicle when viewed from the front or rear. If the wheel leans in towards the chassis, it has negative camber; if it leans away from the car, it has positive camber. The cornering force that a tyre can develop is highly dependent on its angle relative to the road surface and so wheel camber has a major effect on the road holding of a car [4].

In the last few decades, the wheel alignment field experienced a tremendous surge of interest, as demonstrated by technical literature. In particular, the state of the art moved from mechanical and electromechanical measurement devices, often referred as “direct measurement methods”, to 2D and 3D machine vision-based systems.

The earlier direct measurement methods used to be unwieldy, time-consuming, labour-intensive and often less accurate than desired. Dealing with more recent approaches, a number of machine vision-based systems, often referred to as non-contact methods [5], are marketed by companies producing wheel alignment devices, such as Hunter Engineering, Bosch, Beissbarth and John Bean/Snap-on.

Most of modern systems based on artificial vision employ targets, provided with structured markers, to be manually attached on wheel rims; an appositely devised acquisition system is then either placed frontally to the vehicle or placed in a relative lateral position to the vehicle. In the first case [6–9] the structured targets are usually applied to wheels and are provided with a suitable inclination with respect to the wheel plane. The main drawbacks of these systems are:

the need to position the equipment by attaching it onto the wheel, which often results in a non-trivial procedure and which can expose the equipment to damages from incidental drops, etc.

the increase in measurement time caused by mounting

the mounting stability: the targets must be mounted on the wheel with extremely stable connections to prevent generation of measurement errors during movements and rotations of the wheel occurring in the normal measure operations.

In the second case, [10] the targets are placed parallel to the inspected tyre. Then a video camera placed in front of the wheel (i.e., on the side of the vehicle) acquires images of the wheel and of the motion of the structured markers to obtain the characteristic angles. This method can only be applied if pre-marked rims or tyres are used. Alternatively, the technician performing the measurement/adjustment can apply the structured markers to the wheel, but in this case the drawbacks related to the need of attaching complex equipment to the wheel are again encountered.

Other works [11, 12] proposed solutions based on laser devices projecting features to be identified on the wheel in order to perform the measurements.

These systems, however, are characterized by considerable constructional complexity and low flexibility, which is a primary issue when considering variability in vehicle and wheel dimensions.

In order to partially overcome the drawbacks of prior methods, the main aim of the present paper is to design and assess a novel Machine Vision-based system for contactless measurement of vehicles' wheel alignment. The proposed system is able to provide toe and camber angles without requiring highly precise application of structured targets on the wheels. An appositely devised stereovision system performs a real-time acquisition of a number of non-structured near infrared (NIR) responsive markers, attached to the tyre sidewall so to describe an approximate circumference coaxial to the wheel axis. The 3D position of the markers is then related to the plane where the wheel lies by using image processing and stereoscopic triangulation-based algorithms.

The paper is structured as follows. In Section 2 the imaging acquisition hardware is described. In Section 3 the procedure for carrying out intrinsic and extrinsic calibration of acquisition devices is briefly summarized. In Section 4 the algorithms for determining 2D and 3D marker positions and wheel planes are illustrated. In Section 5 the camber and toe angle measurement procedure is provided. Finally, in Section 6 some practical results are shown and discussed.

2. Acquisition system

With the aim of determining the camber and toe angles of both front and rear axles of a vehicle, a proper image acquisition system has been devised.

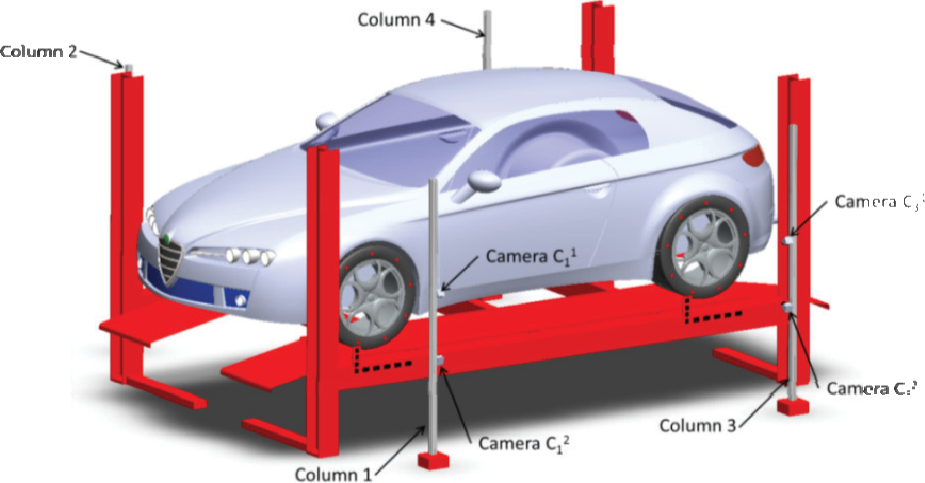

As depicted in Figure 2, the system comprises four columns (one for each wheel) each one equipped with two commercial QXGA resolution ½ inches CMOS cameras, surrounded by an LED ring working in the NIR range (800nm). The two cameras (for each column) are placed in the upper and lower parts of the column so that their optical axes form an angle of approximately 20°. Images are acquired with a 10fps frame rate and transferred to a PC for subsequent elaboration.

Figure 2.

Acquisition system

Each camera is equipped with a 4.0mm f/0.8 focal length lens, possibly affected by large distortion. As is well known, many camera sensors are characterized by a slight sensitivity in the NIR range, usually attenuated by the application of an appropriate NIR filter.

Since, on the contrary, the author's idea is to specifically work in the NIR range, such a filter has been replaced by an NIR pass band filter in the range 700–900nm. As a consequence, the visible light is removed from the acquired images. The columns are placed laterally to the car lift at a distance of approximately 0.8m, so that each pair of cameras acquires a 1335 × 1000mm scene, containing a single wheel; in this configuration the spatial resolution results are equal to 0.65mm/pixel. A number (at least six) of circular (non-structured) NIR responsive markers (diameter 20mm) need to be manually placed on the tyre sidewall so that 1) the locus of marker centre points defines, approximately, a circumference coaxial with the wheel (practical tests have shown that up to a 5mm distance from the ideal circumference can be tolerated) and 2) the markers are approximately evenly spaced. This may be practically performed by adhesively placing the markers using, as a reference, one of the circular outlines, which can always be found on the tyre sidewall (see Figure 3). It must be noted that the tyres are required to be reasonably cleaned in order to avoid the markers detachment due to excessive dirt. Generally speaking, the use of such markers is preferable with respect to pre-marked plates, since they are inexpensive and cannot be damaged. Nonetheless, pre-marked plates could also be used with the proposed methodology even if in this case a very small deformation of plates (possibly due to accidental falls) could produce incorrect measurements.

Figure 3.

Outlines and markers on tyre sidewall

The car lift is provided with four L-shaped targets (placed in proximity to the position of the four wheels when the car is on the lift) provided with a unique NIR responsive marker (whose “negative” consists of a number of squares). Such targets, meant to work as a reference system for the evaluation of toe and camber angles, need to be placed with high precision as further explained in the next section. In the present work, the L-shaped targets are characterized by a shorter vertical arm (with respect to the horizontal one) in order to avoid possible overlapping of the wheel in acquired images. The described architecture may be used with all types of vehicle lifts, including scissors, parallelogram and two and four-post lifts to the condition that sufficient room for placing the L-shaped targets is available.

3. System calibration

The central issue in the set-up of the proposed stereovision system is two-fold: 1) determining the single camera calibration and performing the stereo calibration of each pair of cameras equipping a single column and 2) determine the relative position of all the pairs of cameras with respect to a global coordinate system (VCS).

3.1 Mono and stereo camera calibration

Each of the cameras C_i^j (where i = 1…4 is the index of the acquisition columns and j = 1,2 is the index of the cameras of each column) is intrinsically calibrated, independently, in order compute the focal distance and to take into account non-idealities such as lens distortion. Although a number of different calibration methods and models have been investigated by the authors [13], in the present work this procedure is performed according to the widely known approach described in [14, 15], since it proved to be the most effective in properly calibrating the system. The results of camera calibration consist of determining the following parameters:

– Camera Matrixes KK_i¹and KK_i² defined, for the generic j^th camera.

– Focal distances (a unique value in mm) f^j_u and f^j_v expressed in units of horizontal and vertical pixels for the generic j^th camera.

– Coordinates of the image principal point, u^j₀ and v^j₀.

– Distortion coefficients (in the image directions x and y) for the generic j^th camera k^j_u and k^j_v.

Obviously, calibration procedure is affected by uncertainties on the assessment of such parameters. In order to reduce possible calibration errors, we used a checkerboard calibration pattern with the following specifications:

– maximum flatness error equal to 0.05mm;

– maximum error in dimension of the single checker equal to 0. 1mm;

– maximum error in absolute position of a single checker on the pattern equal to 0. 1mm.

Once all the single cameras are calibrated, a stereo calibration can be carried out. As is well known, the goal of a stereo calibration routine (once each single camera is accurately intrinsically calibrated) is to determine the relative position in space of the two cameras equipping a single column (stereo couple). In detail, stereo calibration allows the evaluation of:

– Rotation Matrixes R_i¹² between the reference systems of the cameras making up each stereo couple (camera 1 and camera 2 of the i^th column).

– Translation Vectors T_i¹² between the camera 1 and the camera 2 of the i^th column.

3.2 Determination of the relative position of all the stereo couples with respect to the vehicle coordinate system (VCS)

The main aim of this task is to determine the position of all the cameras in a properly defined Vehicle Coordinates System (VCS), a frame of reference usually adopted by manufacturers to specify the alignment parameters. This is possible if the position of each L-shaped target is known with respect to the others, i.e., a properly Lift Coordinate System (LCS) is defined. In such a case, the position of the four stereo couples in a common reference system can be retrieved by evaluating the local reference system of each L-shaped target with respect to one of the cameras making up each stereo couple.

First, the reference systems of each L-shaped target (O_iX_iY_iZ_i) need to be defined. In the exemplificative case of considering a front left target, the corresponding reference system is arranged as follows: the origin O₁ is identified by the centroid of the lower left quadrilateral of the marker (see Figure 4), the axes are positioned so that Y₁ is defined by the line passing through O₁ and the centroids of all the vertically aligned quadrilaterals, while X₁ is defined by the line passing through O₁ and the centroids of all the horizontally aligned quadrilaterals.

Figure 4.

Definition of the VCS and camera reference systems

One of the L-shaped targets has to be selected for conventionally setting the VCS. From now on, the front left target reference system is selected as VCS.

Referring to column 1, the camera C₁¹ is able to acquire the reference target in its field of view so that a number of feature points belonging to it can be retrieved. The knowledge of such points, as explained below, allows the reference system's evaluation with respect to the camera. In acquiring the necessary images to identify the L-shaped target, though the cameras are equipped with NIR pass band filter and the marker is NIR responsive, the (non-uniform) environmental light may be responsible for undesired background noise. Moreover, noise can occur in acquired images due to possible LED light reflections. In order to remove these non-uniformities, the following procedure has been used:

An image of the target is acquired by the camera C₁¹ first with LED off (see Figure 5a) so that only background noise and reflections due to environmental light are visible in the image. Another image is then acquired with LED on (see Figure 5b). Accordingly the entire scene objects (background, reflections and markers) reflected in the NIR range are visible. Finally, an image I₁¹ is evaluated as the difference between the image acquired with LED on and the one with LED off (Figure 5c). This allows an image where both the background noise and the reflections due to environmental light are removed to be obtained. Unfortunately, when the LED ring is turned on, reflections in the NIR range may still occur in the image. As a consequence further processing is required.

Figure 5.

(a) image acquired with LED off; (b) image acquired with LED on; (c) difference between “LED on” and “LED off” images; (d) thresholded image

The image I₁¹ is processed by global thresholding using the Otzu method [16], thus obtaining a binary image B₁¹ where the marker, the reflections and the possible noise are described by white pixels, while both the background and the quadrilaterals inside the marker are represented by black ones (see Figure 5d).

The image B₁¹ is processed by applying connected component labelling [17] and then the 0^th moment of each binary labelled object is computed.

Since the NIR responsive marker is the labelled object characterized by the greater area (this actually occurred in all the performed tests, also using different lifts and cars), both possible noise and NIR light reflections are removed by image B₁¹ by simply discarding all labelled objects whose 0^th moment is lower than the maximum one.

The resulting image B̄₁¹ is inverted so that the negative image B˜₁¹ represents the projected quadrilaterals using white pixels (while the background is black).

Image B˜₁¹ is also processed as described in Step 3; moreover the 1^th moments of the labelled components are evaluated, so that the nine centroids of each projected quadrilateral are detected. Note that, due to the actual positioning of the vision system and the dimensions of the target, the well-known difference between the projection of the centroid and the centroid of the projection, which is induced by perspective distortions, can be neglected.

Since the nine physical centroids lie on plane X₁Y₁ (and their position in such a plane is known), planar homograpy [18] can be computed between the corresponding points in such a plane and in the image one. The homograpy allows the 3D position of the nine centroids to be determined, thus including the origin O₁. Such centroids are used for computing the least square best fitting plane. The centroids themselves are then projected onto such a plane so as to define the axes X₁ and Y₁ as follows. X₁ is assumed to be the best fitting line computed for all the horizontal points (including O₁), while Y₁ is defined as the best fitting line computed for vertical ones. The knowledge of O₁, X₁ and Y₁ allows the axis Z₁ = X₁ ∧ Y₁ to be determined so that the whole VCS is now known. Once the VCS is known with reference to the camera C¹₁, it is possible to (reversely) refer camera C₁¹ to it.

The same procedure described above for camera C₁¹ (Steps 1–7) can be reiterated for cameras C₂¹, C₃¹ and C₄¹. As a result, the reference systems defined by the four targets (each one expressed in the reference system stated by camera 1 of the corresponding column) are now known.

Finally, it is possible to determine the position of all the eight cameras with respect to the VCS by knowing the relative position (translation vector and rotation matrix) of the four targets attached to the car lift. Although such roto-translations are measurable with a sufficient accuracy using, for instance, 3D Scanners or other 3D measurement devices, in the present work some convenient technical solutions have been adopted in order to simplify this task. First, the L-shaped targets are attached to the car lift using inclinometers so that the X_iZ_i planes are practically parallel to the ground (orientation error lower than 0.005°). In order to fix the remaining rotation and the three translations among the four reference systems, suitable mounting equipment (whose description lies outside the aim of this work) has been devised and used. The actual obtained target positioning has been, successively, validated by means of 3D scanning. Using such equipment it is possible to practically align X₁ and X₂ with X₃ and X₄, respectively and Z₁, Z₂ with Z₃, Z₄, while ΔX₁₃, ΔX₂₄, ΔZ₁₂ and ΔZ₃₄ (see Figure 6) are constrained by the mounting equipment with a maximum error of ±0.5mm.

Figure 6.

Relative position of the four targets.

As a concluding remark, it has to be noted that, since the retrieved reference systems are based on L-shaped target acquisition, the targets themselves need be manufactured with sufficient accuracy in order to guarantee measurement results are good enough. The final result of this calibration procedure is the complete knowledge of the position of any camera with respect to the LCS. This allows the acquisition columns to be moved as desired, within certain practical limits, without having to measure their movements and/or rotations with other methods. In fact, the aforesaid procedure allows automatic recalibration of external camera parameters at all times (assuming the corresponding targets are visible from the selected position of the four columns).

4. Wheel planes evaluation

In order to determine toe and camber angles of the four wheels, the evaluation of wheel planes is essential. As detailed in the rest of this section, such planes are determined by combining image processing based algorithms together with stereo triangulation (Figure 7). First, noise (background and reflections possibly due to chromed, polished and glossily painted surfaces) in the wheel images is partially removed. Then, the correspondence between 2D marker centroids in the images from camera 1 and camera 2 of each column is univocally determined using the procedure described in Section 4.2, regardless of the possibility of remaining noise.

Figure 7.

Triangulation between NIR marker centroids with respect to front left wheel

4.1 Noise removal from images

Once the whole system is calibrated, the images of the four wheels can be processed. As already stated, each pair of cameras is able to acquire a single wheel. For the sake of clarity, the procedure described below is referred to as single column (images acquired by cameras C₁¹ and C₁²); obviously, the images from the remaining three columns are processed analogously.

Similarly to the acquisition of L-shaped targets, two wheel images J₁¹ and J₁² are obtained as the difference between the corresponding images acquired with LED on and off.

Images J₁¹ and J₁² are subsequently thresholded so that only the NIR responsive markers, plus possible areas due to reflections, are visible in the resulting images. By applying component labelling and by evaluating region moments, it is possible to obtain for each image a set of n^j (j = 1,2) connected components, each one characterized by an area A^j_n and a centroid vector (2times1) c^j_n.

Among them, only m < n^j connected components (“c.c.” from now on) represent, for each image, the NIR responsive markers (where m is the number of markers attached to the wheel). Therefore, a procedure for removing the remaining m – n^j c.c. (representing reflections) has to be defined. Since markers are round, due to perspective, they are represented in acquired images by ellipses. Depending upon the camera(s) relative position with respect to the wheel, such ellipses may be characterized by different area values even if the actual area is the same for all markers. Moreover, reflections also may result in (approximately) elliptic zones whose areas may be comparable with the ones characterizing the markers. As a consequence, detection of markers in an image is not trivial and an image processing based procedure, described below, is required for discarding most of the reflections.

A threshold area value A_t is evaluated as the actual area of a marker A_a and normalized with respect to the spatial resolution. In this work, since the marker diameter is 20mm, A_a = 314mm² and A_t = 743.5pixel². All the c.c. whose area A^j_b is lower or greater than 0.5A_t and 1.5A_t respectively, are discarded. Due to perspective and wheel rotation the markers may appear as ellipses whose area is considerably different from the ideal one. As demonstrated by experimental tests, the range [0.5A_t – 1.5A_t] assures a good c.c. discrimination for all the possible wheel rotations of practical interest in wheel alignment.

2nd moments of c.c. are computed so that the principal axes are also computed. The ratio α^j between the major and minor axes is evaluated and all the c.c. for which α^j < 0.5 and α^j >1.5 are discarded. The result of steps 1–2 is still a set of n̄^j > m connected components.

Unfortunately, although n̄^j < n^j, the procedure described above does not always allow the removal of all possible reflections in acquired images. The remaining reflection induced c.c. (r.i.c.c.) can be removed by means of additional processing, as described in Section 4.2.

4.2 Correspondences evaluation and triangulation

In order to properly detect correspondences between c.c. acquired by each camera of a given stereo couple (and to discard the remaining r.i.c.c.) epipolar geometry is used. With reference to column 1, epipolar lines are computed for the n̄¹ centroids detected in image J₁¹ according to [19]. As is well known, such lines should pass perfectly through the centroids of the corresponding points in image plane J₁². Actually, due to both numerical and (possible) calibration errors, the epipolar lines pass “near” the corresponding points. Therefore, a criterion for determining point-to-point correspondence between c.c. in images 1 and 2 needs to be used. In the present work the correspondent points (i.e., the pair of marker centroids in images 1 and 2 defining the actual marker centroid in the 3D space) are determined using an Euclidean distance based procedure: first, the set S of all points whose Euclidean distance from the epipolar line is lower than a threshold value ε (set in the present work to equal to 20 pixels) is created; then, the following scenarios are possible (see Figure 8):

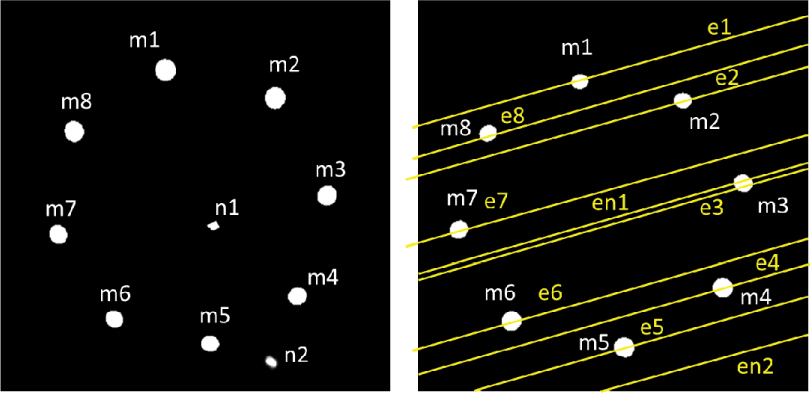

Figure 8.

(a) detection of centroids – marker m and noise n - on image J₁¹; (b) corresponding epipolar lines on image J₁²

–

The epipolar line originated from a marker centroid in image J₁¹ passes near one marker centroid (i.e., S is composed by only one marker centroid); as a consequence, such a point is the only one univocally satisfying the epipolar constraint (see for instance epipolar lines e1, e2, e4, e5, e6, e7 and e8 in Figure 8) and the point to point correspondence is determined.

–

The epipolar line originated from a marker centroid in image J₁¹ passes near two (or more) marker centroids (i.e., S is composed by two or more marker centroids); in this case, one of the points composing the set S is surely the correspondent one.

–

The epipolar line originated from a marker centroid in image J₁¹ passes near one (or more) marker centroid(s) and one (or more) r.i.c.c.

–

The epipolar line originated from an r.i.c.c. in image J₁¹ passes near two (or more) marker centroids; for instance the epipolar line en1 in Figure 8.

–

The epipolar line originated from an r.i.c.c. in image J₁¹ passes near one (or more) marker centroid(s) and one (or more) r.i.c.c.

–

The epipolar line originated from an r.i.c.c. in image J₁¹ passes near two (or more) r.i.c.c. This is a very rare case since the light reflection due to LED illumination is nearly perpendicular to the LED ring; so the LED reflections hardly occur in the same point framed by the two cameras.

For all the described scenarios the discrimination of corresponding points is still required since epipolar constraint does not provide univocal results. Hence, the following strategy was adopted:

All the centroids (marker and/or r.i.c.c.) detected by the generic epipolar line are stored and used for 3D triangulation according to [20]. The triangulation result consists of a set of h 3D points (with h ≠ n̄^j) usually composed by a number of points greater that m; among them only m points represents markers and are appropriate for evaluating wheel plane.

For the set containing h elements, the number of its distinct three-element subsets is evaluated by using the binomial coefficient $(\begin{matrix} h \\ 3 \end{matrix})$ .

For each three-element subset the equation of the plane (through three points) is evaluated. The result is a set of $h' = (\begin{matrix} h \\ 3 \end{matrix})$ planes. Among them, the $m' = (\begin{matrix} m \\ 3 \end{matrix})$ planes defined by centroid markers are characterized by similar normal vectors values. For instance, in Figure 9 the marker centroids lie on a number of planes (in red) while other planes (in magenta) are defined by wrong correspondence detection.

In order to detect these planes, the absolute value of the dot product for all the possible permutations of the pairs of normal vectors for the h′ planes is evaluated. The m′ planes are the ones whose dot product is nearly equal to one. Consequently, all the pairs of planes whose absolute value of the dot product results is greater than 0.95 may be considered a reliable guess of the wheel plane. In fact, this procedure allows the user to get rid of the possibly remaining reflections spots from the pre-processing described in Section 4.1.

Finally, the wheel plane is evaluated as the least square-fitting plane approximating the points that define the m′ planes. Approximation to the minimum squares is used to reduce the effect of possible errors related to marker misplacement. Using an appropriate number of points (at least six) it has been demonstrated by experimental tests that this kind of error is drastically reduced, so that the validity of the measurement is not nullified. In case a lower number of markers are used, the wheel plane equation is obviously still obtained (three points are strictly necessary) but results can be excessively prone to the error affecting the measurement of each single point, thereby producing an unreliable result.

Figure 9.

Planes defined by marker centroids (in red) and planes defined by marker and noise centroids (in magenta)

5. Toe and camber measurement

The procedure described in Section 4 allows the determination of the equation of the four wheel planes, each one referred to the C_i¹ of the respective acquisition column. Since the positions of all the cameras are known in the VCS, it is forthright to refer all the wheel planes to the global coordinate system. In detail, toe angle is provided by:

ψ = \arcsin (‖ v_{i} \land v_{z} ‖) \cdot \frac{180}{π}

(1)

Where v_i is the normal vector for the i^th wheel and v_z is the normal vector of the plane X₁Y₁.

Analogously, the camber is defined as follows:

ϑ = \arcsin (‖ v_{i} \land v_{y} ‖) \cdot \frac{180}{π}

(2)

Where v_y is the normal vector of the plane X₁Z₁.

The toe angles defined in Eq. 1, do not take into account possible misalignments of the car with respect to the car lift. In order to compensate for this effect, an additional step is required. Since the wheel marker centroids approximately define a circumference in the 3D space (coaxial to the wheel axis) it is possible to evaluate the wheel centre coordinates with respect to the VCS as the centre of the 3D best fitting circumference. Once the 4 wheel centre coordinates are known, the lines connecting the four centres define a quadrilateral as shown in Figure 10. The thrust axis deviation, i.e., the axis defining the misalignment of the vehicle, is evaluated as the line joining the midpoints of the front and rear part of the quadrilateral. Finally, the angle ψ′ defined by the thrust axis deviation and the X₁ axis is used for compensating the run-out effect (i.e., to evaluate the actual toe ψ“) as follows:

Figure 10.

Run-out effect due to misalignment of the vehicle

ψ ″ = ψ + ψ'

(3)

6. Results and conclusions

With the aim of assessing the correctness of toe and camber measurement provided by the devised system, measurement results were tested against a complete 3D reconstruction of wheel alignment obtained using a commercial 3D scanner (Romer Absolute Arm 7520). The scanner is a seven axis portable CMM for dimensional inspection, it is equipped either with a completely integrated high-performance laser scanner or with a touch probe so it allows both optical and tactile measurement.

Laser scanning accuracy is declared equal to 0.058mm using the full measurement range (approx. 4m). In the worst case, such an accuracy may lead to a maximum error in determining wheel angles equal to 0.009° when measuring a 14″ wheel; since wheel alignment is considered accurate when the measured angles are affected by an error not exceeding 0.05°, the 3D scanning measurement can be considered to provide sufficiently accurate values to be compared with the ones coming from the proposed apparatus. The device has been used for 3D scanning of a Toyota Yaris, provided with 14″ wheels and placed on a car lift. Three acquisitions have been carried out setting different toe and camber angles of the four wheels. It has to be noted that, since the front vehicle wheels are set on two translating support platforms (which can always be found on car lifts and are meant to allow front wheel steering), by changing the toe and camber angles of the four wheels, the thrust axis changes too. For all configurations, toe and camber have been measured using the proposed machine-vision system. The resulting values are compared with the ones obtained by processing the point clouds resulting from the 3D scanning (see for instance Figure 11).

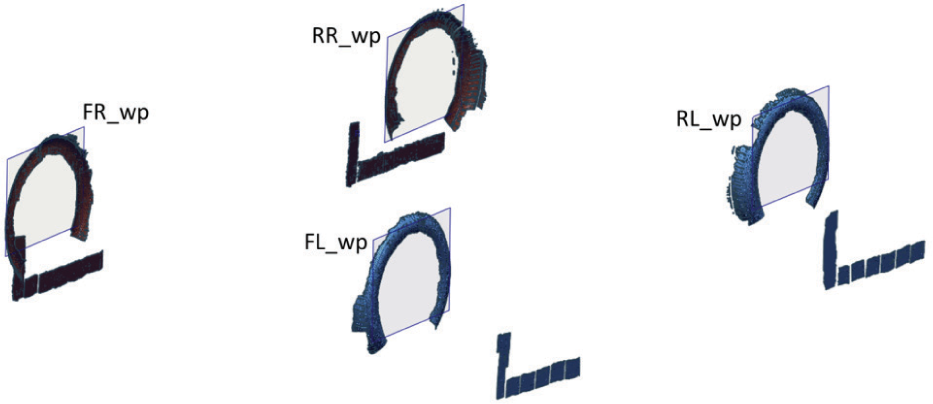

Figure 11.

Point cloud resulting from 3D scanning process.

In detail, starting from a generic point cloud, wheel planes have been evaluated by best fitting the centroids of all the NIR markers (each centroid is, in turn, evaluated as the barycentre of all the points composing each marker). By means of the same procedure, the target planes have been evaluated using the centroids of the quadrilaterals inside the L-shaped target. Finally, toe and camber angles have been assessed using Eq. 1–3 after referring all the planes (wheels and targets) to the VCS. Results listed in Table 1 show that the absolute average difference between the angles measurement using the 3D scanner and the same obtained using the proposed machine vision system is equal to 0.024° and to 0.026° for toe and camber, respectively.

Table 1.

Comparison between toe and camber measurements performed using the 3D scanner and the MV system.

N°	Wheel	Angle	3D Scanner	MV System	Absolute difference
Test 1	FL	Toe	0.144	0.124	0.020
	FL	Camber	−0.236	−0.253	0.018
	FR	Toe	0.353	0.366	0.013
	FR	Camber	−0.646	−0.622	0.024
	RL	Toe	0.297	0.281	0.016
	RL	Camber	−0.439	−0.411	0.028
	RR	Toe	0.301	0.326	0.026
	RR	Camber	−0.447	−0.482	0.035
Test 2	FL	Toe	0.175	0.195	0.020
	FL	Camber	−0.204	−0.227	0.023
	FR	Toe	0.313	0.328	0.015
	FR	Camber	−0.603	−0.642	0.039
	RL	Toe	0.257	0.236	0.021
	RL	Camber	−0.374	−0.399	0.025
	RR	Toe	0.267	0.234	0.033
	RR	Camber	−0.387	−0.339	0.048
Test 3	FL	Toe	0.096	0.134	0.038
	FL	Camber	−0.157	−0.186	0.029
	FR	Toe	0.202	0.181	0.021
	FR	Camber	−0.464	−0.442	0.022
	RL	Toe	0.198	0.159	0.039
	RL	Camber	−0.326	−0.343	0.017
	RR	Toe	0.167	0.144	0.023
	RR	Camber	−0.298	−0.227	0.021
Average difference					0.026
Average difference toe					0.024
Average difference camber					0.027
Legend: FL, RL: front and rear left wheels. FR, RR: front and rear right wheels.

In other words, the system provides measures with an absolute difference lower than 0.05° with respect to the 3D scanner measurement. Accordingly, the described MV system proves to be effective for toe and camber measurement for the considered test case.

Further work will be addressed to perform additional validation taking into consideration a number of different vehicles in order to spot possible issues related to errors introduced by manufacturing tolerances in rims and wheels, damage to the wheel assemblies and to suspension components, mounting variances of tyres onto the rims and deformation of the gantry under the vehicle weight. Moreover, practical usage scenarios will be investigated to test the robustness of the system versus the variability induced by human factors.

Future work will also be addressed to the reduction of the number of stereo couples necessary to perform the measurement. From this point of view, the possibility of using only two columns (one for each car side) moving on a linear track will be investigated as well as the option of using a single stereo pair for simultaneously observing two wheels.
