A Monocular Pointing Pose Estimator for Gestural Instruction of a Mobile Robot

3.1 State-of-the-art in pointing pose estimation

Inter-human communication is based on many different facets. Speech, gestures, body pose, facial expression and many other aspects influence the way information is transferred, and the information itself. Many of these aspects are difficult to observe and distinguish or are even not yet understood completely. Even we humans, having cognitive skills superior to every technical system, sometimes fail to understand all of them and therefore misinterpret the intentions of our communication partner. This makes it particularly difficult to implement human-machine interfaces that are really natural. However, integrating some of these aspects into an interface helps to make it more intuitive and natural-looking.

Not only is interaction with the robot simplified for the human user, under the view of “social robotics”, enriching a robot with the ability to show such “social skills” is considered even more essential. For example, when reviewing basic requirements and design principles for socially interactive robots, (Fong, T., Nourbakhsh, I. & Dautenhahn, K., 2003) state that “a socially interactive robot must proficiently perceive and interpret human activity and behavior. This includes detecting and recognizing gestures, monitoring and classifying activity, discerning intent and social cues, and measuring the human's feedback.” So, if we want to design a robot service companion that is fully accepted as a competent interaction partner by its users, it must have the ability to react to natural human behaviour in a suitable manner.

One of the most important and informative aspects of nonverbal inter-human communication are gestures and poses. In particular, pointing poses simplify communication by linking speech to objects or locations in the environment in a well-defined way. Therefore, a lot of work has been done in recent years focusing on integrating gesture recognition into man-machine-interfaces.

However, most of this work concentrates on distinguishing a fixed symbolic set of gestures, creating a “command alphabet” for robot control. Figure 4 shows a non-exhaustive overview of viewpoints that can be used to describe and classify vision-based gesture recognition and pointing pose estimation approaches. They can be distinguished by the used camera configuration and image quality, the amount of preprocessing (like user-background segmentation) that is utilized, the way, features are extracted, encoded and represented, the applied recognition algorithm, the mechanism that triggers the recognition process, and – of course – the application fields they are suitable and intended for.

OPEN IN VIEWER

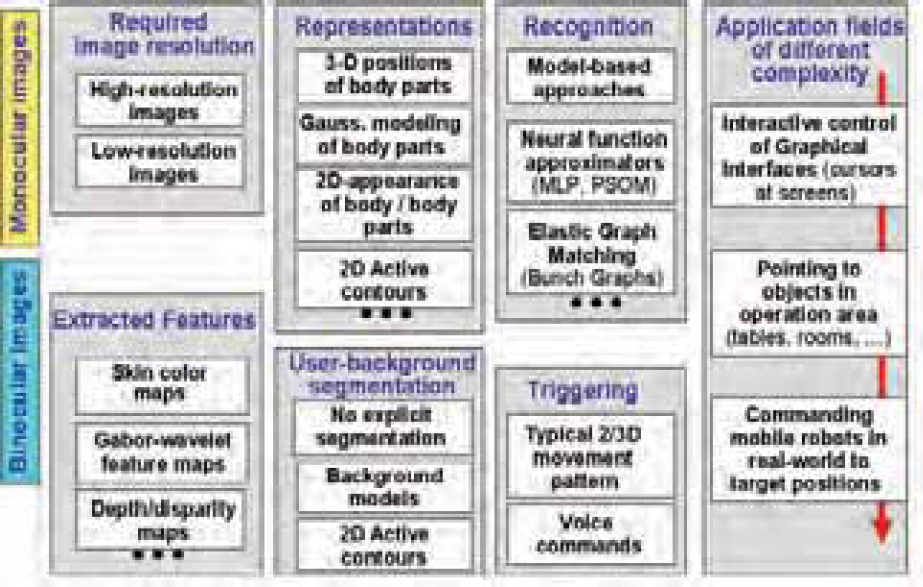

Figure 4.

Overview of significant criteria and aspects to describe and distinguish vision-based gesture recognition and pointing pose estimation approaches.

A good introduction and overview on the subject of gesture recognition for human-computer interaction (HCI) – including gesture taxonomy, different approaches for spatial and temporal gesture modeling, and analysis – is given in (Pavlovic, V., Sharma, R. & Huang, T., 1997).

(Rogalla, O., Ehrenmann, M., Zoellner, R., Becher, R. & Dillmann, R., 2002) presented a system that classifies hand postures for robot control. They use monocular high-resolution color images and extract a hand contour by means of skin color segmentation. This contour is sampled with a fixed number of sampling points, normalized and Fourier-transformed. The Fourier descriptors represent the feature vector that is classified using a model database and a distance measure.

(Triesch, J. & von der Malsburg, C., 2001) detect and classify hand postures in monocular images by using compound bunch graphs. No explicit segmentation is needed, since their system can cope with highly complex backgrounds. The features used are the responses of Gabor wavelets and color information at the graph nodes. Hand postures are classified using a distance measure to a model graph, taking into account deformation and scaling.

Up to now, there are only a few authors who tried to actually estimate a pointing direction out of a deictic gesture. (Jojic, N., Brumitt, B., Meyers, B., Harris, S. & Huang, T., 2000) did so by detecting a person using dense disparity maps (from a stereo system) and color information in low-resolution images. In their approach, after an explicit background subtraction using a statistical background model, a simple Gaussian mixture model of the body and outstretched arm is fitted to the person. If a pointing gesture is detected (when the angle between the main principal components of the arm and body “blob” exceeds a threshold), the pointing direction is determined from the largest principal component of the “arm-blob”.

(Noelker, C. & Ritter, H., 1998) use low-resolution monochrome images from two infrared cameras. The images are Gabor-filtered and then a Local Linear Map (LLM) classifier calculates the 2D positions of landmarks (shoulder, elbow and hand of the pointing arm). This is done separately for the two camera images. A Parametrized Self-Organizing Map (PSOM) then estimates the 3D coordinates of these landmarks, making it possible to calculate a pointing direction. The approach is used to control a Virtual-Reality-System and therefore the working conditions for their system can be very restrictive.

(Nickel, K. & Stiefelhagen, R., 2003) classify dynamic gestures by means of Hidden Markov Models (HMM). They extract candidates for heads and hands using color and disparity information from a stereo camera system. These candidates are transformed into a user-centered polar coordinate system, yielding a three-dimensional feature vector. Tracking is performed by maximizing a product of three quality scores. For detection of pointing gestures, they model three gesture phases - begin, hold and end – and train a HMM for each of these phases. If a pointing gesture is recognized, the pointing direction is estimated by calculating the connecting line between the center of the head and the hand for the hold-phase.

(Hofemann, N. Fritsch, J. & Sagerer, G., 2004) identify pointing gestures and referred objects in monocular color images. Hand regions are extracted by skin-color segmentation and tracked over time with a Kalman filter. Activity recognition is achieved with a modified version of the CONDENSATION algorithm (Isard, M. & Blake, A., 1998): Activities are classified via matching with parametrized models. By adding a context area to each particle, the authors link a pointing gesture to a referred object and therefore can identify objects the user points at. However, they do not really estimate a pointing direction, links are only established because of spatial proximity in the image.

With our approach, we are interested to determine whether it is possible to accomplish a pointing position estimator using only monocular images of low-cost cameras as input data. No explicit background segmentation is utilized, and we use an appearance-based approach. Feature extraction is done by means of Gabor wavelets. A cascade of Multi-Layer Perceptron (MLP) neural function approximators serves as pointing direction estimator. The estimation process is triggered by a simple voice command, e.g. the call “HOROS!”, so no explicit recognition of pointing poses (or distinction from non-pointing actions and meaningless gesticulation) is necessary. Note that this distinction is itself a non-trivial problem commonly referred to as “gesture spotting”. Different approaches have been proposed to tackle this task. (Nehaniv, C. et al., 2005), for example, suggest using the interaction history and context knowledge to infer the type of gesture performed. In a way, (Hofemann, N. Fritsch, J. & Sagerer, G., 2004) realize this by assuming a pointing gesture when an object is present in a context area near the hand. Other authors approach the problem by classifying hand shapes (e.g. Stoerring, M., Moeslund, T., Liu, Y & Granum, E., 2004) or trajectories (e.g. Nickel, K. & Stiefelhagen, R., 2003). By utilizing a voice command, we elude the gesture spotting problem. We do not believe this to be a serious constraint of our system, since it is natural behavior to use a speech utterance in order to catch the attention of an interaction partner.

We implemented this approach on our mobile robot HOROS, making it navigate to specified targets, thus enabling a user to control HOROS only by means of pointing. To the best of our knowledge, there are no other low-cost oriented approaches that are comparable to the one presented here.

a) Pointing Area, Training Data and Ground Truth:

We encoded the target points on the floor as (r, φ) coordinates in a user-centered polar coordinate system. This requires a transformation of the target estimate into the robot's coordinate system (by simple trigonometry), but the estimation task becomes independent of the distance between user and robot. Moreover, we limited the valid area for targets to the half space in front of the robot with a value range for r from 1 to 3 m and a value range for φ from −120° to +120°. The 0° direction is defined as user-robot-axis, negative angles are on the user's left side. With respect to a predefined maximum user distance of 2 m, this spans a valid pointing area of approximately 6 by 3 m on the floor in front of the robot in which the indicated target points may lie.

Fig. 5 shows the configuration we chose for recording the training data. We used three markers (at distances of 1, 1.5 and 2 m from the robot) specifying different user positions, however, in Fig. 5 for reasons of clarity only the marker in 1.0 m distance is shown. Around each marker, three concentric circles with radii of 1, 2 and 3 m are drawn, being marked every 15°. Positions outside the specified pointing area are not considered. The subjects were asked to point to the markers on the circles in a defined order and an image was recorded each time (see Fig. 6, right). Pointing was performed as a defined pose, with outstretched arm and the user fixating the target point. All captured images are labeled with distance, radius and angle, thus representing the ground truth used for training and for the comparing experiments with human viewers (see Section 4.1).

OPEN IN VIEWER

Figure 5.

Configuration used for recording the ground truth training and test data. Here, for reasons of clarity only one of the marked positions in front of the robot (at 1m distance) to generate pointing poses to predefined target points is shown.

OPEN IN VIEWER

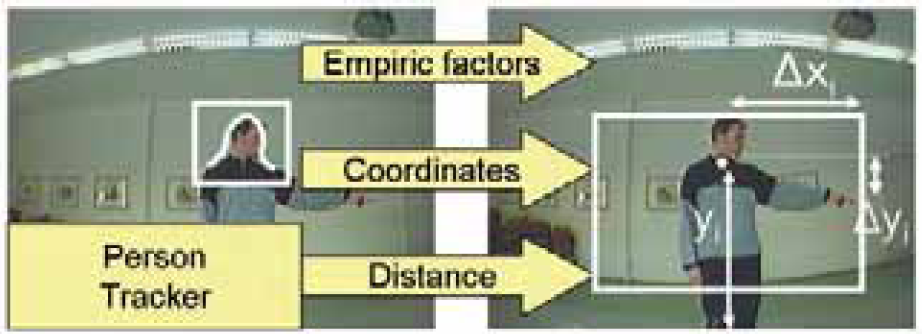

Figure 6.

Example for an image provided by the low-cost eye-webcam. Moreover, this figure sketches how the region of interest (ROI) in the camera image is determined: a combination of empiric factors, head coordinates of the head-shoulder-detector and distance estimation given by the multi-modal tracker (see Section 2) is used to achieve a normalized ROI (right).

This way, we collected a total of 900 images of 10 different interaction partners During preprocessing, the Regions of Interest (ROI - see next section) were calculated from manually marked starting points and then moved a few pixels in each direction to receive a slight variation of the data. This way, nine samples per training image were extracted, resulting in a sample database of 8,100 labeled images. This database was divided into a training subset and a validation subset containing two complete pointing series (i.e two sample sets each containing all possible coordinates (r, φ) present in the training set). The latter was composed from different persons and includes a total of 1620 images (18 samples for each valid (r, φ) coordinate). This leaves a training set of 6480 samples (72 samples for each valid (r, φ) coordinate).

b) Preprocessing and Feature Extraction:

Since the users standing in front of the camera can have different height and distance, an algorithm had to be developed that can calculate a “normalized” region of interest, resulting in similar subimages for subsequent processing. We determined the ROI by using a combination of head-shoulder-detection (based on the Viola & Jones Detector cascade mentioned above), empirical factors, and the distance measurement from the multi-modal person tracker described before (Fig. 6).

The head-shoulder detector will typically yield a center of detection somewhere in the throat area of the user. Its coordinates are used as starting point.

Since this center of detection will have different vertical image coordinates (y-coordinates) for different user heights given a constant user-camera distance, it can be used to implicitly include the user's height into the calculation. Next, the size of the ROI has to be determined based on the head-shoulder detection result. To this purpose, we measured the maximum distances between the center of detection and the tip of the pointing arm in both x and y direction for different subjects. We also determined these values for different user-camera distances for each subject.

Let Δ x_i,d and Δ y_i,d be the measured maximum distances between the center of detection and the tip of the pointing arm in pixels for subject i given user-camera-distance d, x_i and y_i are the coordinates of the center of detection yielded by the head-shoulder detector. We calculate

f a c x , i , d = Δ x i , d y i , f a c y , i , d = Δ y i , d y i

(1)

and obtain two factors fac_x,i,d and fac_y,i,d specifying the maximum extension of the pointing arm for this particular user i and distance d dependent on the user's height in the image y_i. In other words, these factors describe how big the ROI rectangle must be to ensure it contains the complete pointing arm for this person and the pose for which they were measured. Since we chose examples with maximum possible extension of the arm given the valid pointing area - more precisely the cases 90° pointing direction with 3 m pointing distance (maximum extension in x-direction) and 0° pointing direction with 1 m distance (which means the user is pointing at the ground directly in front of himself, thus yielding the maximum extension in y-direction) - these two factors ensure that the calculated ROI always contains the complete pointing arm for this user, provided he is performing a valid pointing action.

As mentioned before, these values were calculated for different subjects and for different user-camera distances, namely 1, 1.5 and 2 meters. Since fac_x,i,d did not vary strongly for the subjects i given distance d, we took the mean values f a c x , d ̄ for the calculation of the ROI width. By doing this, we assume that the ratio between height and arm length is the same for most humans, which is not true in general. But our experiments showed that this inexactness is minor compared to other error sources present in the system.

Thus, our ROI is 2 ⋅ y i ⋅ f a c x , d ̄ wide and has its center at the center of detection (x_i, y_i). Note that this width is dependent on the user's height in the image y_i and this way compensates for different arm lengths due to different heights of users. We determined the values of fac_x,1.0 as 1.6, fac_x,1.5 1–4 and fac_x,2.0 as 1.2, respectively. Linear interpolation over the values for different distances d (with a valid value range from 1.0 to 2.0) yielded the following expression for the ROI width w:

w = y ⋅ ( 1.2 + 0.4 ⋅ ( 2.0 − d ) ) .

(2)

Since fac_y,i,d, was almost exactly the same value for all subjects, we decided to discard this factor and simply fix the height of the ROI to the next whole-numbered width-to-height ratio, which is 3:2. However, it is not reasonable to center the ROI vertically at the center of detection because we would like to extract an image region containing the head of the person as uppermost and the tip of the pointing arm as lowermost part, while avoiding as much noninformative background as possible. So we have to shift the ROI downwards (remember that the center of detection is in the throat area). We do this by calculating an offset o_y using the following equation

o y = ( 60 − 25 ⋅ ( d − 1.0 ) ) ,

(3)

which was obtained in a similar way as described above: Determining the appropriate offsets for different subjects and different distances d, calculating the mean values over all subjects and then interpolating linearly over the distance d. Please note that these parameters depend highly on the camera used to record the images. Note also that we use the distance estimation d from the tracking system to simply scale the ROI size and offset linearly according to the user-camera distance. Although this algorithm is quite simple, it shows satisfactory results. Fig. 7 shows typical ROI extracted this way.

OPEN IN VIEWER

Figure 7.

(Top) Captured ROI extracted with the described normalization algorithm for three instructors with different height (from 1.65 to 2 m) all performing the same pose. (Middle) Extracted ROI for different distances person-robot ranging from 1–2 m. (Bottom) Examples for sub-images extracted from the ROI containing both the pointing arm and the head pose. By using these as input data for the target point estimator, the head pose is integrated as additional information.

The cropped ROI is scaled to 81×81 pixels, and then an illumination correction and histogram equalization is applied. After this, the preprocessed image is Gabor-filtered (4 frequencies with 8 orientations each, absolute values of filter responses) using an equidistant 4×5 grid to extract a pose-describing feature vector as input for the first stage of the pointing estimator. For later stages, the ROI is modified again to create two subimages (using a modified version of the algorithm described above), one of them containing the pointing arm, the other one the head (Fig. 7, bottom). By doing this, the head pose of the instructor is directly integrated into the pointing pose estimation as additional information.

c) Architecture of the Classifier Cascade:

A series of experiments showed that it is not possible to tackle the function approximation problem with a single neural network estimating both radius and angle in one step. It also became clear that, while the radius estimation works quite well, it is more difficult to robustly estimate the angle. Therefore, we decided to use a cascade of neural classifiers and function approximators (typically three-layered MLPs trained by means of the RPROP learning rule (Riedmiller, M. & Braun, H., 1993)).

Fig. 8 gives an overview over the architecture of the developed target point estimator cascade. After extracting and preprocessing the ROI, a left/right MLP classifier (topology: 640–40–20–2, i.e. 640 input neurons, two hidden layers with 40 and 20 neurons, respectively, and 2 output neurons.) first determines whether the person is pointing to the left or to the right. Knowing this, that half of the input image that does not contain the pointing arm can be discarded. This way two smaller ROIs containing the head and body-arm regions (see Fig. 7 (bottom)) can be extracted. Each of these two input images is also Gabor-filtered (4 frequencies with 8 orientations, absolute values of filter responses) using an equidistant 5×5 grid resulting in 1,600 input features describing the head and arm pose sub-images. If the person is pointing to the left, the image is simply flipped. This allows us to use the same classifier for both directions.

OPEN IN VIEWER

Figure 8.

System overview of the target point estimator cascade. The Gabor-filtered subimage is first fed into a left/right - classifier. The result of this classifier enables it to extract the finer image ROIs shown in Fig. 7, bottom. In the following stage, the final pointing radius r is estimated, and the input is classified into one of three radius classes. For each class, a coarse angle estimator is trained, yielding a classification into one of three angle classes. The last stage yields the final angle estimate.

In the following cascade stage the value for the pointing radius r is directly estimated by means of a first MLP function approximator (network topology: 1600-30-20-1 neurons, i.e. 1,600 input neurons, 30 neurons in the first hidden layer, 20 neurons in the second hidden layer, and 1 output neuron) with the single output neuron linearly coding the range from 1 to 3 m (output interval: 0 …1.0). Since the estimation of the pointing angle φ is less accurate and prone to errors, this estimation is done later in the cascade to provide this stage as much supporting and simplifying information as possible. To that purpose, the arm and head ROIs are first classified into one of three coarse radius classes (see Fig. 8, bottom left). For each of these classes, there is a specialized MLP classifier assigning the input to a coarse angle class (network topology: 1600-30-20-10-3, i.e. 1,600 input and 3 output neurons, and 30, 20 and 10 neurons in the several hidden layers). Finally, within the respective coarse class, a finer estimation of φ is determined by highly specialized MLP function approximators (with slightly different topologies for the 9 subclasses, typically 1600-20-10-5-1) leading to the final target estimation [r, φ].

The cascade contains a total of 14 MLP networks (1× left/right, 1× radius, 3× coarse angles, 9× fine angles), but, due to the hierarchical architecture, only four of these classifiers have to be activated during one pass.

4.1 Estimation Results of Human Viewers

In order to get a reference value for the recognition performance of the estimator, in particular experiments we determined how accurately a human viewer could estimate the referred target point from a monocular image. Therefore, the images from the training and test data sets were presented to test viewers in random order using the graphical user interface shown in Fig. 9. The valid area for the pointing targets is specified by a circular arc. Subjects were told beforehand that the targets can only lie within this area. The circular arc is skewed perspectively to create a 3D impression and adapted in size according to the distance between the person in the image and the camera. The test person marked a guessed target point by clicking with the mouse pointer on the interface. The found coordinates were then transformed according to the given perspective and the distance of the person, yielding the estimated target coordinates r and φ. The estimates were then compared with the known image labels.

OPEN IN VIEWER

Figure 9.

Graphical user interface for experiments with human viewers. The valid target area is marked by the circle segment.

These comparative experiments were performed with 8 test viewers, resulting in 885 target estimates altogether. The achieved estimation accuracy is shown in Fig. 10.

OPEN IN VIEWER

Figure 10.

Estimation results of human viewers. (Top) Mean values and standard deviations of the angle estimate vs. the correct angle. (Bottom) Average errors of the radius and angle estimates vs. the correct angle.

On the top, the mean values and standard deviations of the angle estimates are shown versus the correct angle. Obviously, perfect estimates would lie on a straight line depicted by the dotted line in the image.

The mean values of the estimates deviate slightly from this ideal case. It is noticeable that angle estimates between (+/−) 45° and 90° are persistently too large in magnitude. What's more, the standard deviations (depicted by the vertical lines) for these angles are significantly higher. So, it seems to be quite difficult for a human viewer to precisely estimate φ from the monocular images in this area.

At the bottom of Fig. 10, the average errors for the estimates of r and φ versus the correct angle are shown. For the radius r, the errors are significantly higher for small angle values compared to large angle values. The errors for φ behave inversely, being small for small angle values, then getting bigger with increasing angle value. For an explanation of this behavior, consider the situations depicted in Fig. 11.

OPEN IN VIEWER

Figure 11.

Geometrical explanation for the experimental results shown in Fig. 10 (Bottom). Top view (Top) and frontal view (Bottom) of a person (P) performing a pointing pose with different indicated angles φ.

The upper figure shows the top view of a person (P) standing in front of HOROS (H) (i.e. the camera) and performing a pointing action with a small angle φ₁ (left) and a large angle (φ₂ (right). A change of pose by angle Δφ results in a different length of the pointing arm's projection (l₁, l₂) into the image plane. Obviously, this difference Δl is bigger for small angles φ. Or in other words, as the value of φ gets larger, it becomes increasingly difficult to distinguish a pose change by Δφ, leading to larger estimation errors.

A similar explanation can be given for r (Fig. 11 bottom). This time, the projection of a frontal view of the user into the camera plane is shown. A change of the indicated radius r results in a significant change of the body pose. This change is measurable in the image by the values Δδ, Δp and Δl. Since the projections of Δδ and Δl into the image plane depend on sinφ, they get smaller for smaller values of φ given a constant change of radius Δr. Again, this means that changes of pose get harder to distinguish for small angles φ, thus yielding larger estimation errors and leading to the behavior visible in Fig. 10. For angles greater than 90°, the errors decrease again. This is due to the fact that pointing to a target behind one's position results in a significant change of the body pose: The shoulder and the face are turned backwards, which is clearly visible in the images.

Overall, in 50.1% of all cases, the human viewers estimated φ correctly within a tolerance of 10°. For r, 76.3% of all trials were within a tolerance of 50 cm. These results give a hint for valuating the following results of our neural estimator, keeping in mind that the presented data, the distorted monocular images, are very unfamiliar for a human.

In the following experiment, static image sequences of different users performing pointing poses were used. These sequences were recorded using the same configuration (and ground truth) as for the training set (see Section 3.2a).

In each test image, the correct face position was labeled manually beforehand. By means of this step, the negative influence of positioning errors possibly generated by the automatic head-shoulder-detection could be completely eliminated. This way, the performance and properties of the developed ROI extraction algorithm and the neural estimator cascade could be analyzed without impairments by deficits of preceding subsystems. Fig.12 shows the classification results of each cascade stage for three test persons. For comparison, person P2 is from the training data set. All results mentioned in the following passages refer to the two remaining subjects not included in the training data, i.e. previously unseen by the system.

OPEN IN VIEWER

Figure 12.

Classification results of the different stages of the estimator cascade for 3 test subjects. (From left to right:) left/right classifier, radius classifier (radius classes), radius estimate (tolerance 50cm), coarse angle classifier, angle estimate (tolerance 10°)

The left/right classifier yields classification rates of almost 100% for all subjects. This is especially important since further processing of the input image depends on the results of this stage, and misclassifications will lead to a totally erroneous target estimate. The radius estimator stage shows a good overall performance, with 84.4% and 96.7% of the samples within an allowed 50 cm tolerance and classified into the correct radius class. Compared to this, the angle estimator stages perform poorly: While the performance of the coarse angle classifier stage is very good for all subjects, the fine angle estimate is not, with only 66.7 or 80% of the samples within the 10° tolerance. These results show that the angle estimate is the major problem, limiting the performance and accuracy of the developed pointing direction estimator.

When comparing the results for P0 and P1 in Fig. 12, it is noticeable that the performance for P0 is significantly worse. This shows a drawback of the current system: P0 tended to perform the pointing gestures with the pointing arm not fully extruded, but slightly angled. Obviously, the neural estimator is quite sensitive to deviations from the pose it was trained for.

For comparison with Fig. 10, the diagram for the mean values and standard deviations of the angle estimate is given in Fig. 13 (top). The results are close to the optimal straight line with small standard deviations for most angles. Fig. 13 (bottom) shows the average errors of the angle and radius estimates. The behavior of the angle estimate is quite similar to that observed in Fig. 10. The radius estimate behaves almost inversely to that observed before, apart from the large errors for 0°. So far, we have no complete explanation for this deviation from expected behavior, but we believe a correlation between the outputs r and φ of the detector cascade to be the reason.

OPEN IN VIEWER

Figure 13.

(Top) Mean values and standard deviations of the angle estimate vs. the correct angle determined on manually selected ROIs (off-line estimation). The ideal case is depicted by the dotted line. (Bottom) Average errors for radius and angle estimate vs. the correct angle.

Looking at Fig. 12 again, it can be seen that the neural estimator achieved a classification rate of 66.7% and 80% respectively for the fine angle estimate with a tolerance of 10°, and 84.4% or 96.7% for the radius estimate with a tolerance of 50 cm. This is significantly better than the results achieved by human viewers (50.1 / 76.3%). But of course, the latter are more reliable in the sense that they don't produce outliers and large errors.

When interpreting these results, we have to keep in mind that they were achieved off-line with a perfect head detection (and therefore a perfect ROI placement). Fig. 14 shows the performance of the classifier stages for the two test persons when the Viola & Jones detector is activated and used online for head-shoulder-detection. This detector reliably finds persons in the camera image, but its center of detection is usually not centered exactly on the persons's throat. In this case the recognition rate for the coarse radius becomes about 20% lower for person P0 and stays constant for P1, while the fine angle estimates (with a tolerance of 10°) get significantly worse for both persons (only 45%). This clarifies that of all possible error sources, the head shoulder detection is the most crucial: misplacements of a few pixels from the optimal position may already lead to greater errors in the final target estimate.

OPEN IN VIEWER

Figure 14.

Online classification results of the different stages of the estimator cascade for two test subjects. In these experiments the head-shoulder detector was activated for positioning of the ROI.

To determine the overall online performance and precision of the presented target point estimator while operating on the mobile robot HOROS, a random target pointing experiment was conducted finally: Standing at many different positions within the operation area, the instructor pointed to randomly selected target positions in his local surroundings, and the robot had to navigate from its current rest position to the estimated target position. From a total of 72 trials, only six (8.3%) were totally erroneous outliers. The remaining trials yielded an average position error of 59 cm. 28 of them (38.9%) were within 50 cm, 31 (43.1%) within 1 meter, and 7 (9.7%) within 1–2 m from the target point.

For a correct interpretation of these results, it should be taken into account that in this experiment all possible disturbances and localization errors superimposed: an imperfect person tracking and head-shoulder detection resulting in non-optimally placed ROIs, an erroneous target point estimation with many different reasons (changing background, badly executed pointing poses, image disturbances, etc.), and insufficiencies in the robot's navigation system resulting, for example, in an imperfect self-localization and motion planning to the given target points.
