Self-Imitation and Environmental Scaffolding for Robot Teaching

1. Introduction

What differentiates a robot from a collection of specialised machines? Why would a consumer choose to purchase a domestic robot rather than a smarter dishwasher or an automatic laundering system? One answer may be that the robot might be clever enough to carry out a range of tasks and adaptable enough for the purchaser to train it to carry out new tasks. For example, imagine the robot is delivered with pre-programmed behaviours which allow it to carry out useful tasks around the home e.g. collecting cutlery, cups and plates and placing them in a dishwasher or tidying up by picking up clothes left on the floor and placing them in a washing basket. However, although the robot performs to the manufacturer's specifications there are some tasks which it does not carry out. It fails to tidy up the children's toys into the toy cupboard or it fails to recognise that a particular and expensive glass should not be placed in the dishwasher. Rather than call in the manufacturer to re-program the robot the purchaser may prefer to show the robot what to do, effectively teaching the robot to carry out new skills or to modify existing skills. A simple and intuitive method that would allow humans to train and shape robot behaviour is clearly a primary goal in making this task easier. In researching how to meet this goal two issues arise; firstly how should the robot learn these new skills or modify its existing skills and secondly, how should the trainer teach the robot new or modified skills.

Ideally we might wish the robot to observe what we do and imitate it. However social or observational learning is difficult to replicate in artificial systems. Two reasons, among others, for this difficulty is firstly, that to learn from observing the actions of others a mechanism is needed which transforms the others' actions into the same action frame as oneself. Thus a mapping needs to be made between the imitator and the entity being imitated (the model). Secondly, in the making of this mapping it is necessary to know which parts of the body of the imitator are supposed to match those of the model. For humans this matching process can be based on the similar morphology of each person. However, between agents with differing embodiments the matching process is less obvious. This issue is referred to as the “Correspondence Problem” (Nehaniv and Dautenhahn 2002). Further difficulties are that in some cases learning through observation alone will be insufficient to correctly learn a skill. For example, teaching a robot to pick up a wet glass will be different from teaching it to pick up a dry glass. The robot may only learn the correct procedure from having directly experienced the skill as there may be insufficient information available from observation alone (Saunders, Nehaniv and Dautenhahn 2004). It is also possible that a task may not involve a straightforward matching of movements. The task may be sufficiently complex that the robot will need to be shown each sub-task separately and then shown how to combine these into more complex behaviours. This form of teaching and skill assembly reflects many of our own human experiences when being taught new skills.

In this paper we examine these issues and propose, implement and validate an architecture that allows a robot to learn, via supervised teaching, new tasks and be able to modify existing tasks. The system proposed places emphasis on how a robot can learn, how it can be helpful by providing feedback to the trainer during learning and how it can exploit what it has learned to optimise its sensory and attentional mechanisms and thus operate more efficiently. We also highlight the role of the teacher in this process, whereby the teacher can carefully structure the learning experience and enable the robot to learn more effectively.

We start this discussion by considering how to avoid the correspondence problem by using a technique of learning from internal observation rather than external observation. Matching behaviour based on this process of internal observation is called self-imitation and involves learning from actions made by oneself or made by another on oneself. For example, when teaching children to write, the fingers of the child are often physically placed by the teacher around the pencil. This physical process is called putting through and allows the child to experience the correct way to hold the pencil, a task that would be difficult to learn from observation alone. In order to use the pencil again the child must replicate the motor actions it experienced when being taught and thus self-imitate his or her own physical actions. We review how this idea of self-imitation may have been an evolutionary precursor (Moore 1996) to the more complex stages of imitation and cross-modal imitation.

We then consider how the social aspects of teaching, learning and self-imitation are used by some social animals to expand their repertoire of skills and define the developmental concept of scaffolding as a mechanism which may prove useful for scaling up complexity in robot teaching.

The realisation and validation of our architecture based on these insights has been implemented on two physical ¹ robotic platforms. The first, using Khepera miniature robots (k-Team 2006), demonstrated how the careful construction of a teaching environment can augment the algorithmic selection of appropriate sensory states experienced for learning in the self-imitation process (Saunders, Nehaniv and Dautenhahn 2006). In the second, which is described here, an enhanced version of this application is realised on a “human-scale” Pioneer P3-DX robotic platform (MobileRobots 2006). This platform has a larger sensory-motor space than the Khepera and illustrates how the methods can scale to more complex, real world robotic systems. This realisation of the learning architecture also allows the robot to notify the trainer of its existing competencies and to ensure that its focus of sensory attention is optimised for the taught task. The robot is able to notify the trainer by making predictions of a possible next action based on the set of previously taught behaviours and given the current sensory state. We discuss how this mechanism could prove useful for observational learning given the necessary mappings between imitator and model. The architecture is validated using the Pioneer on a task which involves the robot perceiving, camera tracking and then physically following a patterned object. Working versions of the architecture on the Pioneer have been successfully demonstrated and trained at two live events, (see Saunders (2006) for details).

Finally we describe relevant issues that we have recognised during these studies and discuss the possible directions for further research based on these issues.

2. Evolutionary Aspects of Self-Imitation

In his proposal on the evolutionary path of imitative learning, Moore (1996) describes six key steps. The learning process starts with Thorndikian conditioning where existing motor actions are associated and reinforced based on particular environmental conditions. This step is later enhanced by operant (or Skinnerian) conditioning where novel motor responses are formed based on combinations of existing actions. The next evolutionary step is an implicit reinforcement cycle leading to “skills” where the animal is able to perfect the novel act. The fourth stage introduces the teacher. The teacher essentially guides the pupil by physically putting through the actions of the pupil given particular environmental stimuli. This can be considered as self-imitation by the animal as it repeats the actions that it has experienced. Visual imitation of others is the next evolutionary stage. In this case the animal now only has to see an act to be able to repeat it. The final process is called cross-modal imitation where an animal is able to match features of its body with corresponding features of another animal. For example, human babies touch parts of the faces of their parents and can then locate the same features on their own face. All of the subsequent stages are built and reinforced on the previous stages. Moore states:

“…these three processes (skill learning, putting through and visual imitation) are linked in many ways: their possible controlling stimuli are nested as just described: both putting through and imitation incorporate and set the stage for skill learning. Putting through is like self-imitation. And all three processes involve novel responses and possibly implicit reinforcement” (Moore 1996 [p.258]).

The study presented in this paper bases its mechanisms for robot teaching on the self-imitation stage. In our current research we do not use any form of implicit reinforcement. Rather, we use explicit reinforcement through teaching of a system by a human. The teaching is carried out using two mechanisms. Firstly the physical act of putting through, where the system's actions in a given environmental state are moulded by the teacher. Secondly, by the process of scaffolding where the teacher ensures that the appropriate environmental conditions exist to amplify the learning experience. Our previous work (Saunders, Nehaniv and Dautenhahn 2004) considered aspects of observational/imitative learning at the visual imitation (fifth) stage. Our current work develops these ideas in a further investigation of the spectrum of possible learner/model social learning interactions.

3. Self-Imitation, Putting Through and Scaffolding in Animals

Evidence for self-imitation from teaching using putting through and scaffolding in the animal kingdom come mainly from studies of primates (Byrne 1995). However there is also evidence from carnivores including domestic cats, tigers, cheetahs, otters, dolphins, orca whales and some bird species (Caro and Hauser 1992).

Fouts et al. provide compelling reports on the chimpanzees Washoe and Loulis, Loulis being the adopted infant chimp of the mother Washoe. Washoe had previously been taught American Sign Language (ASL) however the human carers made no attempt to teach Loulis ASL and did not use ASL in Loulis' presence. However Washoe succeeded in teaching Loulis ASL both by demonstration and by putting through of Loulis' hands (Fouts, Fouts and Van Cantfort 1989). This technique had also been used by the human carers to originally teach Washoe.

Herman (2002) reports on vocal, social and self-imitation in extensive studies with bottlenosed dolphins and argues that it is not the origin of the imitative representation, either internal or external, that is relevant but rather that an animal can create a mental representation of a behaviour and replicate that behaviour.

Animals have also been observed modifying the environmental conditions experienced by a learner. This process, called scaffolding, is used typically by the mother to make it much easier for her child to complete the task when the child is at a developmental stage where it could not perform the appropriate acts or sequence its actions correctly. Scaffolding of tasks together with observational learning have been observed in wild chimpanzees (Byrne 1995). For example, cracking nuts with a hammerstone is an especially difficult task for a chimpanzee to learn, taking up to 14 years to perfect in some cases. A number of observations have been recorded where the mother will clean the anvil, reposition the nut or re-orient the hammerstone to favourable orientations for the infant. Additionally mothers will often leave their hammers and a supply of nuts in favourable positions for their young to use when normally adult chimpanzees would eat the available nuts and retain their hammers.

Another example of scaffolding from cheetahs is where the mother rather than killing prey will capture and release the live prey to the cheetah cubs when they are about 3 months old. The behaviour is also selective, only prey species which the cubs are likely to catch are released. It appears that the cubs' experience results in faster learning and a more skilled performance. This was tested with domestic cats whose kittens were brought live mice by their mothers at an early age. By 6 months old the kittens showed superior skills to a test group who had not been exposed to the mice (Caro 1980).

Scaffolding is also a familiar concept in human development and is emphasised in Vygotysky's idea of the “zone of proximal development” in his theory of the child in society (Wertsch 1985). Vygotsky emphasised the idea that teaching and social interaction allow higher competence levels to be achieved through staged learning and building upon existing skills. This contrasts with the Piagian view of the child as a solitary thinker or little scientist exploring the world (Piaget 1945/1962). However Vygotsky and Piaget both argued that the learner learns based on their own sensorimotor experiences; their own activity is at the centre of the learning process.

The examples above illustrate that demonstration, putting through and scaffolding can be used when there is a specific lack of knowledge in the pupil. The teacher is aware that the task to be learned may not be directly acquired but requires some developmental building blocks, these blocks allowing the pupil to reach a further developmental stage.

We take inspiration from these examples in humans and other social animals to study how self imitation via putting through and scaffolding can be used to good effect in teaching robots to learn new skills and modify existing skills.

4. Imitation Perspective

Approaches to imitative learning can be classified into specialist and generalist theories (Brass and Heyes 2005). The generalist theories, such as ideomotor theory (IM) (Prinz 2005) and associative sequence learning (ASL) (Heyes 2002), assume that imitation is mediated by learning and motor control. This is in contrast to the specialist theories, such as active intermodal matching (AIM) (Meltzoff 2002), which proposes special purpose mechanisms for imitation. Our approach is closest to that of extended ideomotor theory where the defining feature of the imitation attempt is the idea that the similarity between an event perceived by the imitator and an event learned from the imitator's own actions will induce that action (Wohlschlager, Gattis and Bekkering 2003). This idea of similarity is central to imitation and we use it in the learning algorithms implemented on our systems. Previous learning is what gives rise to matching actions and we match perceived internal and external perceptions with motor actions in a single form of memory representation.

5. Approach and Related Work

Even with explicit programming robot control is hard due to sensor noise, the non-deterministic state of the environment, the inability to ensure that the robot's actions are deterministic and the need for real-time responses. There are generally a number of problems which need to be solved:

How can the human teach the robot? - what mechanisms can be used to make the robot meet the needs of the teacher? How can the robot learn when the task is complete?

Approaches include topics such as programming by demonstration, imitation learning, learning from observation and robot shaping.

6. Framework

For this study we use a Pioneer P3-DX robot with 16 sonars, 10 bump sensors, a Canon VCC4 Video camera with a pan/tilt unit and a 5-DOF arm.

The robot is taught three tasks. Firstly to point to a patterned object, secondly to track and follow a human carrying that object and finally (for safety reasons) to avoid obstacles. All three tasks are taught iteratively by a human trainer, correcting mistakes and testing the training process throughout (see figure 1).

OPEN IN VIEWER

Fig. 1.

The environment showing the Pioneer robot pointing to a patterned object. The robot is equipped with sonars, bump sensors, a pan/tilt camera and 5-DOF arm.

The sensory feedback to the learning mechanism is the proprioceptive state of the arm angles, pan/tilt unit, sonars and bump sensors together with the centre point (XY coordinates) and distance to the centre a chosen patterned object ⁴ . An object is detected and tracked in the camera frame using the ARToolkit system (Kato 2006). We ensure that the trainer knows when the robot can see the object by placing an arbitrary virtual object over the pattern (see figure 2).

OPEN IN VIEWER

Fig. 2.

The patterned object from the robot's point of view. The virtual teapot indicates to the trainer that the robot has correctly identified the pattern.

In the following sections we describe:

How the robot uses similarity measures to learn.

6.1. Learning Mechanism

We use a memory based “lazy” learning method (see Mitchell (1997) for details) to allow the system to learn tasks. This is a k-nearest neighbour (kNN) approach where the value of each feature in the system's sensorimotor state vector (see Scaffolding below) is regarded as a point in n-dimensional space, where n is the number of features in the state vector (see Table 1). For each chosen task we collect a set of training examples (as described in Putting Through below) together with their target primitives, each primitive being chosen by the human trainer when moulding the robot's actions. We call this collection of states a memory model. When the task is executed the robot continually computes its current state vector. It then computes the distance from the current state to each of the training examples held in the memory model.

OPEN IN VIEWER

Table 1.

State Vector

State	Description
Pan	Current Pan Setting
Tilt	Current Tilt Setting
X-value	Location of object in camera X-direction
Y-value	Location of object in camera Y-direction
Distance	Distance of object from camera
Area	Size of object tracking area
Sonar	Values of the 8 front and 8 rear sonars
ObjectAngle	Angle in degrees to nearest object
Bumpers	Values of the 10 bump sensors
BumpFront/BumpRear	Values of 2 indicator showing state of combined front or rear bumpers.
Arms	Angles of 6 arm joints

Prior to this study we used both Manhattan (shown below) and Euclidean distance metrics, however there was very little or no difference between them. We therefore chose the computationally simpler Manhattan metric throughout. The distance between the state vector and the training example being the sum of the distances between the features in each, as follows:

d i s t a n c e ( X , S ) = ∑ i = 1 n W i | x i − s i max i − min i | ,

(1)

where X is an instance of the training examples and S an instance of the system's current sensory state. W is a non-negative vector of real numbers used to weight each of the dimensions. This weighting is discussed in the scaffolding section below. Setting k to 1 will result in the nearest point in the training examples being used and yield a single primitive as its target function. Where k is greater than 1 the algorithm will yield a set of primitives. We choose the most common primitive from the set as the target function. Note that this method will always result in a primitive being chosen. In environmental situations not previously experienced by the system, generalisation occurs as the primitive nearest to the current state is chosen. Thus performance is based on the similarity of new situations to those already experienced.

In work to date the k value has been set both experimentally and by cross-validation. However the value of k derived from cross-validation has never yielded a value higher than 5 due primarily to the low number of training instances. We make use of two software systems to provide the kNN functionality. Firstly, timlb the Tilburg University Memory Based Learner (Daelemans, Zavrel, van der Sloot and van den Bosch 2004). This system has the advantage of providing a very efficient kD-tree based coding structure (see Moore (1991)) for the training examples so as to speed up performance. Secondly, the Weka (Witten and Frank 2005) machine learning toolkit is employed. We use this system to provide various cross-validation facilities and as a means to check the performance of the timbl system above. Although not described here we also use the Weka system to test alternative machine learning schemes (such as inductive and bayesian approaches) within this application framework.

6.3 Scaffolding

All of the states perceived by the system are recorded in the state vector, however particular attributes may have more relevance to different tasks. For example, during tracking of an object using the pan/tilt unit the values of the X-Y object tracking values may be of more relevance than the values of the sonars or arm angles.

We use two mechanisms to ensure that the appropriate attributes are chosen. The first is based on computing information gain to measure how well a given attribute separates the set of recorded state vectors according to the target primitive. This is defined as follows:

G a i n ( S , A ) = H ( S ) − ∑ v ∈ V a l u e s ( A ) | S v | | S | H ( S v ) ,

(2)

where S is the collection of training examples, H(x) is a function returning the entropy of x in bits, Values(A) is the set of all possible values for a particular state attribute A and S_v is the subset of S for which attribute A has value v. Further explanations of this quantity can be found in Mitchell (1997) and Quinlan (1993). The information gain measurement allows particular attributes in the state vector to have greater relevance by using it to weight the appropriate dimensional axes in the kNN algorithm, (setting the weight W_i in equation (1) above). This has the effect of either lengthening or shortening the axes in Euclidean space thus reducing the impact of irrelevant state attributes.

W i = G a i n ( S , i ) ,

(3)

The second mechanism for attribute selection is the human trainer. It is assumed that the trainer already understands the task (from an external viewpoint) that the robot must carry out and therefore is able to construct the training environment appropriately so as to ensure that irrelevant features are removed. The modification of the environment allows the technical selection of relevant state features to be enhanced as the other features will now tend to have constant values and therefore a low information gain. As discussed in Section 3 above this process of scaffolding or creating favourable conditions for learning would seem a quite natural phenomenon in social animals and is of course fundamental to all forms of human teaching.

6.4 Learning New Tasks

The trainer directs the robot using a screen based interface which provides a number of buttons used to set operation modes such as “execute” and “start/stop learning” plus an edit field to label actions and a list from which to choose existing labelled actions and primitive operations.

The robot can be operated in two modes. The first is execution mode, which is its normal mode of operation where its current behaviour is executed. Alternatively the robot can be in learning mode where the human trainer can put through, scaffold and create new activities for the robot to eventually use in execution mode.

In “learning” mode the robot can be taught new competencies: sequences, tasks or behaviours. All three learning levels are started by pressing a “start learning” button and terminated by pressing a “stop learning” button. For each new competence (a behaviour, task or sequence) the trainer explicitly provides an appropriate label. When training is complete the label is added to the set of actions available to the trainer and thus can be used immediately for further training sessions. Existing labelled actions can also be modified (or entirely deleted) with additional training episodes as required.

The sequence level is where the robot can be directed through a given sequence of primitives which it records without reference to its state i.e. sequences are entirely independent of the internal or external environment. This is similar to the ethological idea of Fixed Action Patterns where animals display certain sequences of movements which are independent of environmental stimuli (Tinbergen 1951). An example of a sequence might be to move the arm to a particular position. This could, for example, be labelled as the ‘readyArm’ sequence. The readyArm sequence would then become part of the available set of competencies available for the trainer to use. These new sequences could then be used in combination with other primitives and other sequences to create further sequences. Note that when requested to perform a sequence the robot will simply execute the recorded list of competencies taught by the trainer sequentially. It will make no reference to the environmental state. Each primitive when executed by the robot can be run in two further modes - discrete or continuous. In discrete mode the primitive will execute followed immediately by a “stop” instruction. The continuous mode does not issue the “stop” instruction. Discrete mode allows the trainer put the robot though its range of actions step by step. Continuous mode is typically used after training is complete and enables the robot to execute the primitives without the jerkiness caused by the “stop” instructions above.

The goal-directed task level differs from a sequence in that during training the actions taken by the system will depend on the robot's internal and external state at that time. The trainer now has the opportunity to select not only basic primitives, but sequences and other goal-directed tasks. The tasks are goal-directed because the trainer is able to inform the robot when the task has completed with the resulting state being recorded as a target to achieve. This goal condition is paired with the system state and becomes a further training record in the memory model for that particular task. In execution mode the task is iterated until the environmental state is close to a goal state and the task will then terminate (also see figure 3).

OPEN IN VIEWER

Fig. 3.

The schematic illustrates how the current system state is used to select an appropriate action from each memory model. As we proceed down the hierarchy a primitive will eventually be selected for execution. The dotted lines from the system state indicate that each task will only complete once its goal state has been reached. This requires that the system state be polled within each task. Note that each task executed in the hierarchy will only terminate when its goal condition is selected based on the current system state, thus within the lowest selected task the state will be polled after each executed primitive.

For example consider a tracking behaviour, for which the goal state is to have the target centred in the visual field. The trainer would:

pan the camera to the right

choose the “goal-directed task” level

label it (say “trackRight”)

press the “start learning” button

The robot can then be put through a right panning situation tracking an object. The trainer would signal that the goal state was reached when the camera lens was directly in front of him/her. This training regime would be repeated for many panning situations and thus many panning recognition states with appropriate actions and goal states being recorded into the “trackRight” memory model. Note that the signalling by the trainer to the robot of a goal-state does not automatically imply that teaching has stopped, it simply signals that this state is a goal-state. The trainer could continue training the robot by placing it in situations that are not goal-states. The “stop learning” button is only pressed once the trainer is happy with the training regime. Similarly an existing training episode can be enhanced with further training episodes by choosing an existing task and pressing the “start learning” button.

The behaviour level allows the trainer to construct the complete behaviour for the robot from the component set of tasks, sequences and primitives. The construction of a behaviour is the same as for a task except that no goal state is required. The behaviour will run continually in execute mode and base its decision of what task, sub-task, sequence or primitive to use based on the current environmental state. A behaviour can also be used by another behaviour, task or sequence as required, the only constraint being that hierarchy must have a behaviour as its topmost node. A key difference between a behaviour and a task is that a task will only yield control to a parent node once its goal state is reached, a behaviour will yield immediately. With careful training the trainer can now build a hierarchy of tasks, sequences and primitives as required (see figure 4).

OPEN IN VIEWER

Fig. 4.

An example of a trained hierarchy of primitives, primitive sequences, learned goal-directed tasks and behaviours

6.5 Predicting Existing Competencies

Both the goal directed tasks and the behaviours depend on the robot state. When the teacher is training the robot each action is associated with the scaffolded state at that time and for each trained component a memory model is created. As well as being used to control overall behaviour these memory models can be employed to predict whether the trainer is teaching tasks already known to the robot. Based on the current state each memory model is polled using the kNN algorithm above. This polling will yield a set of possible actions, one for each memory model in the system. If the trainer directs (puts through) the robot to take one of these actions, a confidence factor attached to each memory model that proposed this action is given a reward and all other tasks are penalised. As each training step is taken this cycle is repeated. A bonus is also given to a memory model that has predicted both the current action and has correctly predicted the previous action. This bonus serves to reward consistently correct predictive behaviour. Once the confidence factor of any of the memory models exceeds a global threshold (manually set between 0% and 100% of the confidence factor) the trainer is informed by the robot that it may already have knowledge of this task. Setting a low threshold (nearer to zero) will cause more of the memory models to report possible equivalence; a high threshold will require more matched actions before possible equivalence is reported. For the experiment reported here, the threshold was set at 30% which gave a reasonable compromise between eager and conservative reporting. ⁵ An example of this process is shown in figure 5. The algorithm is as follows:

C t N = C t − 1 N + { B + R i f ( A t T a k e n = A t Pr e d i c t e d ) 0 − P i f ( A t T a k e n ≠ A t Pr e d i c t e d ) ,

(3)

B = { 0 i f ( A t − 1 T a k e n ≠ A t − 1 Pr e d i c t e d ) b i f ( A t − 1 T a k e n = A t − 1 Pr e d i c t e d ) ,

(4)

where C^N is the confidence factor proposed for task N at time t, R is the value of the reward, b the value of the bonus and P the value of the penalty. A^Taken is the action taken by the trainer at time t, A^Fredicted is the action predicted by the robot at time t. The value of the reward is set to 100 at the start of the training session, with the penalty and bonus set to the reward divided by the total number of behaviours and tasks in the system. This ensures that the reward is always significantly higher than the bonus but takes account of the fact that there will normally be a large number of incorrect matches for systems with a high number of tasks.

OPEN IN VIEWER

Fig. 5.

Recognition of previously learned behaviour using Task Prediction. The graph shows how well each task or behaviour matches the current training sequence. As each training step is taken the task/behaviour most similar to that being trained increases in confidence.

This process is in some ways similar to the prediction capabilities of imitation systems using forward models (Demiris and Hayes 2002; Johnson and Demiris 2005). In these systems a set of forward models predict a set of possible forthcoming states which are weighted by matching against current observed (and transformed) states. This eventually leads to the appropriate inverse model (which is paired with a forward model) being selected as the imitative action. In this study we instead match predicted actions against actions put through by the trainer and weight the single memory representation for each task accordingly. Our process differs in that the observation is internal rather than external and that actions rather than states are matched.

7. Experimental Validation

We illustrate the successful functioning of the architecture in a tracking and pointing task. The trainer is required to teach the robot to track a patterned object held by the trainer. If the object comes within range of the extent of the robot arm, the arm is trained to move and point to the object. When out of range the arm is held in a “ready” or “home” position. If the trainer moves away from the robot, the robot will follow him/her by keeping track of the object by moving either the pan/tilt unit or its wheels (up/down or moving forward). For safety the robot is also trained to avoid obstacles using its sonars and to carry out an emergency stop and recover procedure if it has bumped into anything as recorded by its bumpers.

Prior to training the robot has no abilities other than the pre-defined primitives shown in Table 2. The final training hierarchy that results from the training exercise is shown in figure 6. Note that for reasons of clarity figures 7–10 show only each unique sequence, task or primitive per memory model. In reality each memory model may have many instances of different states (i.e. many more rows) in each sequence, behaviour, task or primitive.

OPEN IN VIEWER

Fig. 6.

The derived set of behaviours, tasks and sequences after training.

OPEN IN VIEWER

Fig. 7.

The follow behaviour created after training.

OPEN IN VIEWER

Fig. 8.

The tracking behaviour created after training.

OPEN IN VIEWER

Fig. 9.

The avoid behaviour using the sonars.

OPEN IN VIEWER

Fig. 10.

The emergency stop behaviour based on the bumpers.

The first step in the teaching process is to amplify the selection of appropriate sensorimotor experiences by correctly scaffolding the environment. In this case this means ensuring that extraneous effects which might affect the sensorimotor space are avoided by placing the robot, as far as is possible, in a space unaffected by other robots or people. We then construct the learning experience in a series of stages.

Firstly an enhanced primitive is created using the sequencing system. This simply moves the arm to a pointing position. To achieve this a new sequence is created called “point” which moves each of the arm actuators to a particular position. Note that as the actuators are independent, the primitive commands, although issued sequentially, are activated by the motors in parallel.

Secondly, the robot is trained to move forward if the object is outside a given range, the range decided by trainer during training by simply directing the robot to move forward once the object is at a given distance. If closer than this distance the “point” sequence is activated. These steps are shown in figure 7.

The third stage is training the robot to track the object. If the object is in the centre of the robots X-Y tracking plane, then we invoke the “Follow” behaviour taught above. Otherwise we now train the robot to either use its pan/tilt mechanism to track the object in the Y plane (up and down), or if outside its X range to move its wheels left or right, thus bring the object back into view. This is shown in figure 8.

Two procedures are necessary for safety. The first is the obstacle avoidance procedure (see figure 9). Here the robot is trained with two goal-oriented tasks to avoid objects on either side of it. The attribute selection mechanism is useful here as only the sonars are relevant, all other sensory feedback is not polled. If the state is not similar to that encountered for avoidance then the trainer directs the robot to carry out the “tracker” behaviour. The final step is an “emergency stop” procedure (see figure 10). The robot is trained to stop and either reverse or go forward if any of the bumpers are activated. This is achieved by physically pressing each bumper on the robot and selecting two pre-taught sequences. The interference picked up during this process by the sonars (as the trainer moves around the robot pressing the bumpers) is ignored by the attribute selection mechanism. The robot is taught to invoke the “avoid” procedure if none of the bumpers are pressed.

During the training process the prediction mechanism is always on. Thus if the trainer were to attempt to train the robot to avoid objects to the right (e.g. create a new version of “avoidRight” in figure 9)), the system would respond with a high similarity measure as further actions are introduced. This is shown in the graph in figure 5 where a new version of avoidRight is trained. As more training steps are taken only the avoidRight task remains at a higher weighting level. The robot informs the trainer of a high match via messages sent to a display box on the control system GUI.

After training, which is carried out in an iterative manner, both correcting errors and testing tasks throughout, the robot successfully tracks, follows and points to the patterned objects when presented to it by the trainer.

For this training example two teachers were used. One teacher holding and moving the patterned object, the other directing the robot actions through the control interface. The time taken to train the robot and number of training steps taken for this task, which includes time for correcting mistakes and testing the resultant behaviours, is shown in Table 3. The table also shows the reduction in the number of sensor attributes that are required to be polled following the application of the attribute selection mechanism.

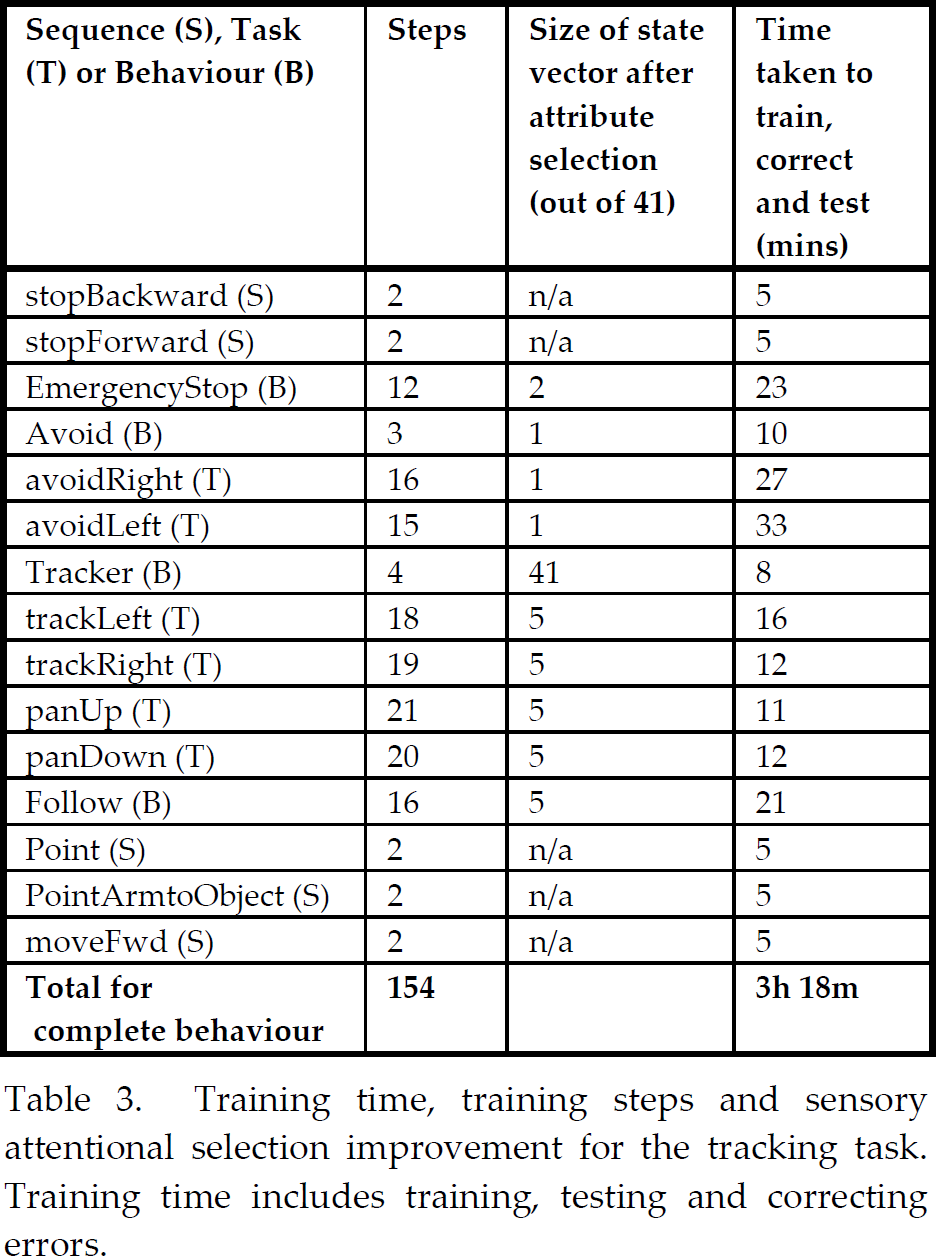

Training steps. Overall the training took on average 10 steps per item (SD=8). However, what is noticeable from the training regime is that for many items very few training steps are required. Typically these are behaviours and sequences. On average each behaviour took 9 steps (SD=6) and each task 18 steps (SD=2). All sequences took 2 steps. This is because sequences are simple chains of movements and are thus easy to train and test. Behaviours tend to have fewer training instances than goal-directed tasks because the training instances are extreme forms of the underlying task behaviour. For example the avoid behaviour has one instance of a left avoidance situation and one of a right, plus a training instance for when an avoidance situation is not present. The kNN selection algorithm will always choose the trained state nearest to the current state and thus one of the three will be chosen. Tasks contain the main bulk of training as these tend to have to carry out a longer series of actions before a goal state is reached. For example, in the avoid task this would involve moving the robot many times until it was no longer in an obstacle detecting situation.

Overall performance. The performance of the trained robot on the overall behaviour is harder to assess as there are no benchmarks available for comparison. As such the performance of the robot was in part assessed subjectively by the two teachers and in part by objective measures of time required for learning, as well as tested for scalability of behaviour acquisition.

In general the robot carried out the task assigned and new behaviours/tasks/sequences could be added dynamically and incrementally upon a growing scaffold of existing ones. However, it was felt that the quality of the goal directed tasks could have been improved with additional training, but as can be seen from Table 3 training can take a reasonably long time (in this example over 3 hours for essentially a relatively simple operation). On average each component in the training regime took around 13 minutes to train (SD=9), with tasks taking on average 3 minutes longer than behaviours (16 min. vs. 19 min, SD=8, SD=9 respectively). The time taken to train and test sequences was always around 5 minutes. The times for behaviours and tasks are closer than what might be expected from the analysis of the training steps above, however when each behaviour is tested it inevitably includes the time taken to execute the sub-components.

It should be borne in mind that once learned the relevant components could be re-used in training for additional skills and as such there is probably a higher investment to be made at the earlier stages of learning.

Recognising multiple objects. Although the vision system can be trained to recognise multiple patterns our current methodology will only allow for a single pattern to be recognised in any single camera frame. Thus two patterns cannot be recognised if both exist in the same camera image (although separate patterns can be recognised in separate images). This limits the flexibility of the robot. To obviate this problem would require that each snapshot of the robot's state vector be extended by each pattern. For large numbers of patterns this would become extremely inflexible and severely limit the performance of the system.

Attentional mechanism. The sensory selection mechanism, whereby the number of sensory attributes polled is reduced, gave good results on tasks and most behaviours on average reducing the state vector by 90% of its original size. In one behaviour there was no reduction due to the low number of training instances resulting in the information gain algorithm having very little data to work on. However, the main bulk of sensory polling takes place in the tasks and as such the reduction in load is effective.

We have demonstrated how a robotic social learning system can be constructed which uses the concepts of self-imitation and task and environmental scaffolding. The system has been implemented and successfully demonstrated on two different physical robot architectures, the first described in (Saunders, Nehaniv and Dautenhahn 2006) and the second discussed here. The latter architecture has been extended with a predictive capability which aids the teacher in understanding the robot's current capabilities and a facility providing a selective attentional mechanism.

During our experiments we have recognised issues that require further research.

Firstly, the robot has no mechanism for recording historical states i.e. has no form of temporally extended long or short term memory. This limits its use in that previous events that the teacher may wish to use to inform current actions is not possible as they are not part of the similarity state space of the robot.

Secondly, although we have made efforts to use unmodified sensory information wherever possible there are instances when this form of sensory capture would overwhelm and may be inappropriate for the learning model, for example, the capture of raw camera images. There are also cases where the individual sensor readings do not impart enough information to separate the class value (action) chosen in each memory model. In this case we use some prior knowledge of the expected applications to modify the sensory stream when necessary.

Thirdly, we are limited in our hardware in having to use tele-operation as a proxy for direct manipulation of the robot due to the lack of proprioceptive feedback from the robot's actuators. This means that training steps tend to be discrete and small in number as the interface cannot replicate continuous movements. The result is that the level of detail available to us in this system is ‘coarse’ rather than ‘fine’ and as such much useful information may be missing. One of the drawbacks of memory based approaches is that with each demonstration the number of training instances increases. The requirement to process all of these instances may be problematic given a very large sensory motor space. For the experiments shown here we use discrete actions and as such the number of training instances were very low (<100 per competence). As stated above the recording of continuous state/action combinations would be preferred and this would inevitably lead to a much larger sensory motor space. This issue of large state spaces could be partly obviated by the use of the attentional mechanisms described above which would serve to reduce the dimensionality of the data combined with efficient processing algorithms such as kD-trees (Moore 1991).

Finally, in the current model each sensor stream is recorded as a unique attribute in the kNN classification algorithm. However, when weighting the attributes using the information gain criteria, relevant attributes may be underweighted as they are only partly relevant to the classification at a given time. This implies that the memory model should be separated into parts which are relevant at the given time and may indicate that the training needs to be further scaffolded. Equally, continuous identification of a relevance criterion for the whole stream may need to be extracted in advance, an approach employed by Calinon et al. (2006).

These and other issues form part of our ongoing research.

A feature of the system is that the robot predicts which task is most similar to the one that the trainer is currently teaching by matching proprioceptive actions against predicted actions given the current sensorimotor states. This predictive facility based on similarity may be a precursor to observational imitation if the idea is extended to associate learned state and action pairs against actual effects (although the thorny problem of correspondence remains). One could imagine in this situation that the mechanism for task prediction, currently used to inform the trainer of existing competencies, would be used to recognise human actions and offer help e.g. “I see that you are loading the dishwasher, I know how to do that, shall I do it for you?”.

This extension would allow for a predictive similarity measure between perception of an event and the learned action-event pair in a single form of memory representation that would serve, as Prinz puts it,

“to select a certain act, given an intention to achieve certain effect'” (Prinz 2005 [p.143]).

The inverse is the similarity of motor actions informing perception and therefore

“one is to expect certain effects given certain acts” (Prinz 2005 [p.143]).

This idea of the bidirectional nature of perception and action in social learning follows directly from the extended definition of ideomotor theory and is also closely related to the perspectives used in control engineering for forward and inverse models (Haruno, Wolpert and Kawato 2001; Demiris and Hayes 2002). We intend to pursue this extension in further research using this architectural model.
