zePPeLIN: Distributed Path Planning Using an Overhead Camera Network

1. Introduction

Path planning refers to the calculation of the path that an object has to follow in moving from a starting point to a given destination/configuration. This is a fundamental problem in robotics, where the moving object can be the robot itself, a part of it (e.g., its robotic arms) or an object being carried by one or more robots. The calculation of a plan consists of the definition of the precise sequence of roto-translations for moving the object without hitting obstacles, including other robots. A large number of versions of this problem, as well as algorithms for its solution, have been proposed in the last three decades (e.g., see [1–3] for overviews). In this paper, we focus on the version which is also informally referred to as the Piano mover's problem. In this case, the controllable degrees of freedom of the moving object are equal to the total degrees of freedom, meaning that the moving object (the piano) has no dynamic constraints on its motion (holonomic motion). The Piano mover's problem assumes that an agent who plans the path has as input a map of the environment and the object's model. However, in many cases of practical interest, such a map needs to be gathered on the spot, immediately before path planning, in order to reliably include the precise deployment of the furniture and the status of any dynamic obstacles (e.g., a moving robot, a closed door, a human crowd). For instance, sensing devices such as video or depth cameras placed in the environment can be conveniently used to build the required map.

Starting from this basic scenario, we specifically address the case in which the distance between the start and end points of the path is such that one single sensing device is not sufficient to reliably cover and map the area in between. In other words, we address the situation where path planning needs to be performed over a large area. Under this condition, a distributed collection of sensing devices is needed. Each device can only cover a limited portion of the environment and build a sub-map, but all sub-maps can be merged in order to obtain a full and consistent view of the entire area in which the object can move. In particular, we consider the scenario in which the sensing devices are smart cameras distributed over the area in which the object moves. Each camera has an overhead view of the situation on the ground, which is exploited to build a navigation map for the moving object. We assume that each camera is equipped with a wireless interface for local communications and that camera deployment is such that, altogether, the camera set can visually cover the full area on the ground. In practice, the camera set could be a set of fixed smart video cameras deployed by hand, it could correspond to a set of camera-equipped flying robots dynamically deployed over the area [4], or it could even be associated with a more general distributed aerial platform [5]. Regarding the object, we assume that it is holonomic and we do not impose restrictions on its shape.

By collectively exploiting their overhead view, the distributed camera system (hereafter referred to as zePPeLIN (Path PLannIng Network)) can effectively build the map of the environment and the model of the moving object and then use this information to collaboratively compute a detailed path. In zePPeLIN, the role of each camera of the network is to plan the local part of the path which is relative to its field of view, and to communicate and coordinate with its neighbouring cameras in order to let the system as a whole consistently compute the global path for the object, from its origin to the designated destination. More specifically, each camera communicates with its neighbouring cameras to locally merge their sub-paths and to cooperatively generate a global path (i.e., the precise sequence of roto-translations) for the ground moving object. During plan execution, each robot camera visually localizes the moving object and sends to it the required motion information as it moves into the wireless range of the robot camera itself. In this way, the use of the networked camera system allows us to effectively perform path calculations over large areas and can deal with dynamic changes in the environment by exploiting its parallel and distributed nature. Moreover, the system can be used to make path calculations for multiple ground-moving objects/robots at the same time. Possible examples of application scenarios for the zePPeLIN system include: guiding the movements of a fleet of ground transportation robots in large warehouses, directing the motion of human crowds towards the escape exits of a large building in case of emergency, supporting and guiding a reconnaissance vehicle on the ground with the overhead surveillance provided from a fleet of UAVs flying in formation with overlapping views.

The description and implementation of the zePPeLIN distributed path planning system is the central contribution of this work. The core of the proposed system consists of a 2D deterministic approach based on the distributed combination of standard path planning techniques relying on potential fields and Voronoi skeletons. A set of heuristics is also proposed to overcome efficacy issues related to the adopted approaches (e.g., incurring in local minima while performing gradient descent) and to improve the computational and communication efficiency of the entire distributed process.

An additional - and equally important - contribution of the paper regards the study of the robustness of the distributed path planning process to measurement errors of the relative positioning and alignment of the system cameras. These errors can be seen as “intrinsic” to distributed vision-based or, in general, map-based approaches. In fact, since each camera can only compute the path segment for the sub-map associated with its limited field of view, the individual path segments need to be consistently merged, carefully taking into account how adjacent sub-maps overlap with each other, in order to generate a global feasible path. However, in practice it is not always possible to know the relative positioning and alignment of the different cameras with high accuracy. Hence, the presence of uncertainties about the size and the location of the regions where the fields of view of neighbouring cameras overlap have to be considered as inherent to the process. These uncertainties, in turn, can determine inconsistencies in the way the path segment locally computed by a camera according to its sub-map is linked with the path segments computed by its neighbouring cameras to produce the desired global path. These inconsistencies can result in an infeasible path in practice, which in some cases can be dealt with by locally calculating a repairing path once the problem arises during path execution (this is discussed in Section 9), or can lead to a global path failure. Figure 1 shows an example of such a situation and illustrates the disastrous consequences of the incorrect merging of two path segments due to errors in the knowledge of the relative positioning of neighbouring cameras (more technical explanations are given in Section 5). This could be a common situation when using flying robots or other aerial platforms, due to their intrinsic dynamic instability when hovering/floating in the air. However, also in the case of fixed cameras positioned by hand, measuring the precise fields of views and relative positioning of neighbouring cameras is not a trivial task and is expected to result in non negligible errors in practice.

OPEN IN VIEWER

Figure 1.

Illustration of the possible disastrous effect of an error in the measurement of the relative position of two neighbouring cameras. (a) The initial scenario, including the known start and destination positions, and two cameras with partially overlapping fields of view. (b) Exchange of information from Camera 1 to Camera 2 about the potential field on the edge for the correct (top) and erroneous (bottom) position estimation of Camera 2. (c) The virtual potential field computed by Camera 2 using the received information. (d) Following the virtual potential field, Camera 2 computes the local sub-path. (e) The global path resulting from the merged sub-paths: (top) successful global path computed with the correct relative position information, (bottom) the final path results in a collision due to erroneous relative position estimations.

When dealing with a parallel and distributed system such as zePPeLIN, the scalability of the system needs to be investigated. Therefore, another contribution of the paper is the study of scalability when the number of cameras and the area size increase, in the presence of the above-mentioned alignment errors. To study both scalability and robustness, we performed an extensive set of experiments both in simulation and using real cameras and moving robots. The results show that the system is in general robust, even if performance degrades for increasing levels of error, with a significant drop in performance only for large errors. Likewise, the scalability tests have shown good efficacy and efficiency for increasing the number and density of cameras.

It is important to note that, even though in this introduction, in the rest of the paper and in our previous work [6, 7] we always speak of and make use of vision-based sensors to build local maps of the ground environment, the zePPeLIN distributed path planning algorithm that we propose can be used with any system of networked devices capable of locally mapping the environment. For instance, a networked system of Kinect-equipped or laser-equipped nodes could be used in the zePPeLIN framework, producing equivalent (if not better) performance than a camera-based system. This is to say that zePPeLIN should be seen as a general system for the distributed calculation of high resolution paths.

The rest of the article is organized as follows. In Section 2, we discuss related work both in terms of application and techniques. In Section 3, we define the problem and the reference physical model used for the overhead cameras. In Section 4, we describe the state of the art methodology that was used to implement a centralized planner based on a single global image. The centralized planner was then adapted and engineered to implement the distributed planner - the main contribution of this work - which is described in Section 5. In Section 6, we propose a set of heuristics for improving the performances of the system, that is, the quality of the solution and the efficiency of the process. Section 7 shows how the proposed system can deal with dynamic environments using local adaptation to changes of obstacle positions and camera failures. We present the results of the simulation experiments in Section 8. The experiments are designed to study the performances of the system in relation to the main aspects of interest: robustness, efficiency and scalability. Moreover, we study how the various proposed heuristics affect the performance of the system. In Section 9, we describe the real robot experiments that we designed and implemented to validate the simulation results. Finally, in Section 10, we provide final remarks and point out the directions that will be investigated in future work.

2. Related work

Path planning is a fundamental problem in mobile robotics and, for this reason, it has been extensively studied, mainly considering single-robot approaches or multi-robot (or multi-camera approaches) based on a centralized information fusion and calculation point. An overview of the established work in this respect can be found in [1–3]. In the scenario considered in this paper, a centralized solution would comprise a single leading camera merging the visual information from all networked cameras. An notable example of the application of such a centralized approach can be found in the Robocup Small Size League: two overhead cameras send images of the field to a central server, which merges the images, tracks the position of the robots and the ball, and plans the robots' movements [8]. In this case, the relatively small size of the arena to be tracked allows the process to be totally centralized. In contrast, the proposed zePPeLIN approach targets potentially very large areas, and as such only relies on local and partial information. The entire process is fully distributed and the communication between cameras is only local. These architectural choices are motivated by the objective of obtaining a system which is scalable, robust to individual camera failures, and which requires minimal communication overhead. A centralized approach suffers from the single point of failure problem, and in order to scale to large environments it has to cope with efficiency issues and communication bandwidth bottlenecks. In fact, all cameras need to reliably forward their images to the centralized processing node, possibly using ad hoc multi-hop routing. The fully decentralized zePPeLIN solution does not suffer from these problems and is therefore expected to be more general, portable and efficient than centralized map-merging.

Another form of non-distributed approach which is an alternative to the distributed camera system that we propose consists of letting the ground robots build the occupancy map of the environment by themselves and perform self-localization and path planning. This is the typical approach taken in SLAM studies, which are very popular nowadays (e.g., see [9, 10] for examples of visual SLAM approaches). However, while potentially more precise, this way of proceeding requires much longer computation and execution times than our approach (especially in the case of large areas), and is more prone to path errors (e.g., while performing SLAM or moving through an area, the obstacle situation in nearby areas could have changed). In any case, we do not consider zePPeLIN as a replacement for SLAM, but rather as an alternative based on different architectural assumptions.

In terms of distributed path planning, existing research works can be roughly grouped into four main threads: (i) on-board multi-robot path planning, (ii) path planning assisted by a sensor network, (iii) swarm approaches, and (iv) parallelism of computation. In the following, we briefly discuss some of the most prominent approaches in each of these threads of research, with a particular emphasis on the second one, since our work falls within it.

On-board multi-robot path planning studies propose distributed planning and navigation algorithms to enable a group of robots to move in an environment without colliding with obstacles or one another. An overview of the solutions to this type of scenario can be found in [11]. The more recent works [12–17] are based on different assumptions and problem statements, which also makes it relatively difficult to draw proper comparisons among the different approaches. In [13, 15], the authors investigate how the multi-robot system's behaviour changes when the noise in sensor measurements varies. In [12], the goal is to let the robots keep a predefined formation while they move towards a given destination. The work in [17] exploits multi-hop information sharing in a mobile multi-robot system for the calculation of paths that allow the simultaneous optimization of the travelled distance and network performance. In all these works, the algorithm runs on-board the robot, and thus the path is planned directly by the robot, which then implements it. To do so, the robots need to know the map of the environment. This information can be either given as input or else the robots can locally sense and explore the environment and generate a map on the fly (e.g., using a SLAM technique). Both approaches are, however, unable to deal robustly with large and dynamic environments.

Path planning assisted by a sensor network has been considered in a number of works in the last decade [18–25]. In the considered scenarios, the moving robot is not required to be equipped with sophisticated devices and powerful CPUs in order to perceive the environment, build a representation of it (i.e., a map) and calculate a motion plan. Instead, the robot is guided by a distributed sensor network deployed within the environment. Compared to an individual robot, the sensor network can exploit a better and distributed point of view, can rely on a much wider coverage of the environment, and can quickly react to changes in the environment or in the network (even if this happens at locations distant from the moving robot position). In these works, the resulting path is commonly defined as a sequence of sensors that the moving robot has to visit. Sensors act as routers and compute only the high-level plan (i.e., the direction towards the next sensor). When entering the communication range of a sensor, a robot receives the necessary instruction to proceed with the plan. The robot is in charge of planning and implementing the precise sequence of roto-translations in moving towards the next sensor and while manoeuvring between obstacles and other moving robots. The planned path consists of a sequence of sensors. Obstacles within the environment are usually not explicitly considered, assuming that there is always a valid path between two neighbouring sensors and the moving robot is able to effectively sense the environment and compute local motion planning. The path planning problem is, therefore, reduced to compute the shortest path on a graph, where the sensors are the nodes of the graph and some notion of neighbourhood (e.g., wireless range) defines that two nodes are connected by an arc that can be navigated by the robots. In this same context, some works have studied the path planning problem considering additional constraints, such as: the avoidance of dangerous areas [20, 22], collision-free trajectories for multi-robot systems [18], and the presence of different terrain surfaces (which results in different motion speeds) [24].

To the best of our knowledge, only Yao and Gupta [26] have studied the same type of problem in considering a distributed setting similar to our own. Their algorithm makes use of a sensor network with complex spatial sensing capabilities, and the generated path is detailed with a fine resolution and takes into account the size and the shape of the ground moving robot. This work is the closest to ours. However, the authors do not report any study of the impact of measurement errors for the overlapping areas, which is one of the focuses of our work and which is an intrinsic aspect of distributed sensory and planning systems. More specifically, in the Distributed Probabilistic Roadmaps algorithm proposed by Yao and Gupta, each sensor calculates a part of the path in the area within its sensing range and joins its sub-path with the one of its neighbours in a shared area of overlapping sensing. The resulting path is the sequence of the via-points that allow it to avoid collisions with obstacles and to safely reach the next sensor/router. In this setting, which is equivalent to ours, any alignment error between the local maps (it does not matter how they are built) can easily cause the generation of sub-optimal or even infeasible global paths, as has been pointed out in the Introduction. However, this critical aspect was not taken into account in [26], while we fully account for errors of different types and extensively study how they affect the overall performance of the system, running experiments both in simulation and with real robots. Moreover, since scalability and robustness are core properties of a distributed system, we perform an extensive analysis in this respect (see Section 8), while these issues have not been addressed in [26]. In terms of the approach taken, an important difference between the work in [26] and our own lies in the fact that in [26] the solution is based on Probabilistic Roadmaps (PRM) while our approach is deterministic, based on the gradient descent over the potential field. Normally, the use of probabilistic approaches is justified by the need to deal with the exponential growth of the search space. However, in a distributed path planning scenario, given the relatively small size of each local map, a deterministic (and more precise) approach is computationally affordable and seems preferable, precisely because it leverages on a distributed architecture. The experimental results of Section 8 support our choice, showing that zePPeLIN is faster than the Distributed Probabilistic Roadmaps algorithm.

Swarm robotics systems are characterized by a large number of robots and the use of local communication and self-organized cooperation. Works in the literature exploit these aspects to perform swarm-level path planning (see survey [27]). In [28], the system assumes that a dedicated sensor network is deployed within the environment which navigates the swarm, in a similar fashion to what happens in the case of the works mentioned above based on the use of external sensor networks. In [29], the algorithm exploits the robots in the swarm to create a chain of static landmarks to direct the navigation of the other robots in the environment. In [30–32], the system does not allocate any specific resource for building a dedicated sensor network, but the swarm itself is a mobile sensor network. While moving in the environment, each robot acts as a landmark and communicates information about the localization of the local neighbours and at the same time receives information from its neighbours. In all these works, the sensors (or the robots acting as sensors) act as high level routers and direct the moving robots to the next sensor communicating only the direction, rather than planning the precise path through a cluttered environment. The final path consists of the sequence of sensors to be visited, which is very different from our work where the resulting path is the precise sequence of roto-translations to be performed to move through a potentially highly cluttered environment.

Parallelism of computation involves distributing the planning computation on different processors in order to increase the overall computational speed of the system [33, 34]. In these works, as distinct from our own, the computing nodes have global knowledge of the environment, and the issue is how to optimize the division of computation. A different approach to parallelism is taken in [16], where the authors cast a multi-robot system as a distributed multi-computer, with each robot calculating a (possibly different) solution based on a rapidly-exploring random tree technique which is shared with the other robots. Using this approach, the algorithm is meant to exploit perfect communication and to have a gracefully decline of performance in case of communication errors.

3. Path planning scenario and camera network model

In zePPeLIN, we consider the following settings for the distributed path planning of a holonomic object on the ground. Initially, a network of cameras is deployed within the environment where the object moves (e.g., using a swarm of flying robots, each equipped with a camera). Each camera faces the ground, meaning that we assume that each camera acquires a top view of the local environment underneath. We assume that the deployment is such that, altogether, the camera set covers - with the union of all visual fields - the ground environment, including the start and the target positions of the object. Each camera device is equipped with an on-board wireless communication system. The cameras are positioned so that they are locally within range of one another and the fields of view of two neighbouring cameras overlap. The size of the overlapping area must be greater than or equal to the dimensions of the moving object. This constraint is to allow the cameras to connect sub-paths during the distributed path planning process by exchanging the local coordinates of the moving object. The cameras do not change their position for the entire planning process.

We assume that the cameras are equipped with a relative (or global) positioning system which allows them to estimate, with some uncertainty, the relative positions of neighbouring cameras in terms of angle and distance. For instance, this information could be derived through the use of GPS or the use of an on-board range and bearing system such as the one described in [35]. The relative positioning information is used to estimate the overlapping area between the fields of view of neighbouring cameras and, in turn, to locally connect the sub-paths calculated by each camera (see Section 5).

Unfortunately, an error in the estimate of the relative positions of two cameras results in an erroneous estimation of their overlapping fields of view (see Figure 3, as explained in Section 5), which can potentially have a disastrous effect on the quality and feasibility of the calculated paths. Therefore, we study how the error in mutual positioning affects the performance of the system, also in relation to the number of cameras participating in the planning process. We consider this uncertainty to be an intrinsic issue of any vision-based distributed path planning and, as such, we consider it as an internal parameter of the problem. That is, we do not propose ways to reduce it, for instance by means of sophisticated position calibration techniques; rather, we empirically study to what extent this parameter impacts upon the feasibility and quality of the planned paths. In the simulation experiments of Section 8, the error in relative position and orientation is independently generated for each camera from two independent zero-mean Gaussian distributions with configurable standard deviation. In this way, we model error estimates in a rather general and, at the same time, realistic way, avoiding making assumptions that would be specific to the hardware in use.

OPEN IN VIEWER

Figure 2.

Graphical representation of the potential field (left) and the moving object (right). The environment is discretized in a 2D matrix of cells. The height and the saturation of the cells represent the potential field value. Obstacles are represented by high brown cells, and the skeleton by the dark green graph. The moving object (the L-shaped green area) is represented by a set of control points (blue squares) and a set of collision points (purple squares).

OPEN IN VIEWER

Figure 3.

Illustration of how two neighbouring camera nodes m and n define their overlapping region and assign shared and open edges. δ is the relative position (in x, y coordinates) of the camera node m in the reference system of n and α is the relative orientation of m with respect to the orientation of n. Using the δ and α estimates, node n builds a projection of the field of view of node m. In this way, node n defines the overlapping region (striped region), the shared edges (solid bold lines) and the open edges (dashed bold lines). δ and α are affected by the ∈ and ξ errors, respectively. As discussed in Section 1, this results in an erroneous estimation of the overlapping area, which can potentially have a negative effect on the calculated path.

Since the focus of this work is on distributed path planning calculation, we make simplifying assumptions for some aspects of the scenario that are not strictly related to path calculations. In particular, we assume that the start and target configurations are given as input. Moreover, we assume that the moving object can be moved by a system that can interpret instructions given by the zePPeLIN system (e.g., through a wireless system or a speaker). For instance, it might be a single ground robot, a set of assembled ground robots or even humans (e.g., carrying a piano). In the real robot experiments of Section 9, the moving object that follows the camera instructions is a two-robot system connected together in a rigid structure, and we consider an indoor scenario where the cameras are fixed to the ceiling.

4. Path planning using a single environment map

In this section, we describe a centralized version of the path planner that we propose: we consider the case in which there is only one camera that has the entire environment and the moving object included within its field of view. The distributed path planning algorithm described in Section 5 is based on this centralized algorithm, but it extends it with various components aimed at effectively addressing the unique challenges of a distributed environment, in which multiple camera nodes have to tightly interact and cooperate with each other. The core contribution of this work precisely consists of the architecture and the algorithmic parts of the distributed planner, while the design of the centralized planner is mostly based on well-established techniques and approaches for deterministic 2D path planning [1–3].

The choice of a deterministic planner, which is reflected in the distributed version, is related to the limited size of the 2D local map, and in turn the search space, that each camera node individually has to deal with. In the case of very large search spaces, a probabilistic approach would have been preferred. The validity of our choice is confirmed by the results reported in Section 8, showing that it allows the generation of optimal sub-paths at the camera level without compromising the global performance. Moreover, the computational results show that, in terms of time, zePPeLIN outperforms the mentioned method for distributed path planning from Yao and Gupta [26], which is based on a probabilistic planning algorithm.

In the rest of this section, we describe the techniques, methods and algorithms used for implementing the centralized path planner.

4.3. Path calculation based on the potential field

The last phase of the planning algorithm consists of the actual calculation of the path. It is computed following the gradient in the descending direction of the potential field. The process begins from the starting position of the object and follows the decreasing value of the potential field, computed using the A^* algorithm [37]. In order to apply A^*, the 2D map is seen as a graph where the cells represent the nodes and where there is an edge between two nodes when two cells are adjacent (i.e., we use Minkowski's Taxicab Geometry [38]). The A^* algorithm finds the least-cost path from a given initial cell to the destination cell. It uses a distance-plus-cost heuristic function f (x) that is computed on every cell x visited by the algorithm:

f ( x ) = g ( x ) + h ( x )

(1)

where g(x) is the path cost function and h(x) is the estimate function. In our case, g(x) represents the distance from the starting cell to the current cell x. h(x) is a heuristic estimate of the number of steps from cell x to the destination, which is derived from the value of the potential field.

Since we consider moving objects that can have any arbitrary shape and which can occupy more than one cell, the value of the functions g and h for the generic extended object (i.e., whose object size is greater than the cell size) needs to be calculated based on the individual values associated with the spanned cells. This is realized by using the notion of control points introduced below.

5. The distributed path planner

The centralized planner described in the previous section is the basic building block of the zePPeLIN distributed path planner: it is used by each individual camera for planning limited to its local map. The distributed planner takes into consideration the whole set of local plans and defines ways for their effective merging and coordination. The distributed algorithm is based on local sensing (the camera's limited field of view), local communication between neighbouring cameras, and partial knowledge of the overall status of the planning process (i.e., no omniscient leader or centralized controller exists).

The distributed algorithm presented in this section only executes the path calculation, and it terminates when a valid path is found. The implementation of the path, that is, the actual navigation in the environment of the moving object, is described in Section 9.

The zePPeLIN distributed path planning algorithm is composed of three phases, described in detail below: (1) neighbour mapping, (2) potential field diffusion, and (3) path calculation. The zePPeLIN pseudo-code algorithm that is executed at a generic camera node is given in Algorithm 5.1.

5.2. Phase 2: Potential field diffusion across maps

The calculation of the potential field is the second phase of the distributed path planning process. It is based on a diffusion process. Since each camera only sees a limited part of the environment, and since the entire environment map is segmented across the networked system, the cameras need to engage in a cooperative diffusion of the potential field. The process is fully distributed: starting from the cameras at the goal location, each camera first computes the potential over its local map; next, it sends the potential field values of its shared edges to its neighbours in order to allow them to continue with the potential field diffusion. From an operational point of view, the process is implemented as follows.

Each camera calculates the local skeleton that corresponds to the Voronoi diagram on its 2D occupancy map (see Section 4). The environment's skeleton resulting from the sum of all local skeletons differs from the one which would be calculated in a centralized way using a single global map. Any differences are due to the fact that, during the calculation of the skeleton, the frontiers of a (local) map need to be considered as obstacles. Therefore, at the corners of each map the local skeleton exhibits bifurcations that do not see any counterpart in the centralized skeleton (see Figure 4). Differences in the skeleton turn into differences in the resulting path. This effect can be clearly observed from the results of the experiments with perfect alignment between cameras (see Section 8): the paths planned with the distributed process and the paths planned by the centralized planner have different lengths. An example of the paths generated by the global, single map planner and by zePPeLIN's distributed planner is shown in Figure 5.

OPEN IN VIEWER

Figure 4.

Comparison between the skeleton calculated in a centralized way using a single global map (left) and the sum of two local skeletons (right)

OPEN IN VIEWER

Figure 5.

Final paths calculated by the global planner (left) and by the zePPeLIN system (right) in the same environment

Once the skeleton is generated, camera nodes cooperatively diffuse the potential, whereby the value of the potential field of each cell represents the number of steps from the destination to the current cell. The cameras that have the goal configuration in their field of view begin the process. They first diffuse the potential field on their local map. The diffusion starting point is the centre of mass of the control points of the goal configuration. Once the diffusion in the local map is completed, they send to their neighbours the value of the potential field on the shared edges. In this way, a camera device that receives this information can continue the diffusion, beginning from the values of the received edge cells. Upon receipt, a camera copies the received values in the cells of its local map and then executes the diffusion process on its local map starting from these received points. Each camera updates the potential value of a cell only if the new potential value is lower than the best value it had calculated thus far (i.e., if a lower number of cells in the direction of the destination is found). This process is iteratively executed in a distributed way among all the cameras in the network. At the end of the diffusion process, the potential field in the overlapping areas of neighbouring cameras will be similar but not necessarily the same.

Cameras that have the final destination configuration within their field of view behave in a slightly different way compared to the others. In fact, they need to precisely calculate the path that defines both the final position and orientation of the object. For this, the use of the information regarding the centre of mass of the control points is not sufficient to guarantee the correct final orientation. Therefore, these cameras calculate C different potential fields, one for each of the C control points. Each potential field is then diffused using as the final destination point one of the control points. During path calculation, these cameras compute the h(c) value by averaging the potential field values of all the control points. However, differently from the other cameras, for each control point the value which is used is that of the corresponding potential field. In this way, during Phase 3 (see below), the cameras which have the final destination in their view map can define the set of roto-translations of the object while also taking into consideration its desired final orientation. Since only these cameras need to use multiple potential fields, this does not have a major impact in terms of computation and communication costs, yet it is able to guarantee the correctness of the path.

It is also important to remark that, in order to minimize the communication overhead, cameras exchange only the value of the skeleton cells lying on the shared edges. In this way, communication messages only contain the values of a few cells, resulting in a low number of small packets of just a few bytes.

6. Heuristics for improving efficacy and efficiency

In the following two subsections, we describe a set of heuristics that we designed to address the issue of getting trapped in local minima during the path search process, as well as issues related to the computational and communication efficiency of the system, with the aim of improving its overall scalability.

6.1. Heuristics to avoid local minima

During potential diffusion, the single-map path planner presented in Section 4 can potentially become trapped in local minima. This is due to the fact that potential diffusion does not explicitly consider the dimensions of the moving object, while during path calculation the object dimension is taken into consideration. Therefore, when the shortest route towards the final configuration includes a narrow passage, the potential field can diffuse through the passage and assign low potential values to the corresponding area. During the path calculation phase, the search algorithm explores the solution space by expanding the search tree towards those areas with assigned low values for the potential field. In this way, the exploration process is naturally attracted in the direction of the narrow passage and tries to establish a path through it. However, while the skeleton and the potential field might be able to pass through the narrow passage, the moving object itself has a shape and dimensions which might prevent its crossing. If this is the case, the process becomes stuck in exploring an area that has low potential values but which is, at the same time, too narrow to allow the moving object to pass through. In other words, the search process becomes trapped in a local minimum. The algorithm deals with this issue by locally backtracking and exploring different alternative paths.

However, getting stuck in local minima and backtracking can have a significant negative impact on computational efficiency. Therefore, we propose two heuristics for minimizing the probability that this happens: (i) skeleton pruning, and (ii) narrow passage detection. The two heuristics can be implemented independently of each other and also act during different phases of the process. The illustration of the effect of the two heuristics, in comparison to the path resulting without the application of the heuristics, is shown in Figure 6. In Figure 6c, only the smallest passages are blocked by the skeleton pruning, while some wider local minima are not detected. Alternatively, in Figure 6d, the narrow passage detection is able to find the most computationally expensive local minima, but also in this case the resulting path is affected by one undetected local minimum. Instead, in Figure 6e, both the heuristics are active and the resulting path is very close to that calculated by the centralized planner.

OPEN IN VIEWER

Figure 6.

Comparison of paths in grid of 4×3 cameras. (a) Global planner. (b) zePPeLIN planner without heuristics. (c) Planner using skeleton pruning (with the parameter w_sp set as the smallest dimension of the object). (d) Planner using narrow passage detection. (e) Planner using all the heuristics.

6.1.1. Skeleton pruning

The aim of this heuristic is to prune the skeleton during potential field diffusion in order to block passages narrower than a predefined safety width w_sp. In the experiments, we set w_sp to the width of the smallest dimension of the moving object. However, since width is not the only parameter defining whether or not an object can cross a passage (e.g., it depends also on the object's shape), the heuristic does not guarantee the removal of all local minima (see Figure 7). On the other hand, setting w_sp higher than the smallest object dimension (or, more generally, too high) might result in the pruning of the majority of (or all) feasible paths.

OPEN IN VIEWER

Figure 7.

Width is not the only parameter defining whether or not an object can cross a passage. In the two figures, the narrow passages of the two similar scenarios have the same width. However, the object with L shape can pass through the passage of the right figure, while this cannot be said for that of the left figure.

6.1.2. Narrow passage detection

This heuristic is executed during path calculation, when a camera detects a local minimum due to the presence of a narrow passage. A narrow passage is detected when the following conditions, each one indicating an anomaly related to the presence of a narrow passage, are all verified. Let x be the last visited configuration and b be the visited configuration with the lowest value of h(.). The heuristic checks the conditions described below.

[h(x) > (h(b) + M)]: the search algorithm is exploring configurations with a h value which is significantly higher than the lowest h value associated with the configurations visited thus far (M=10 in the experiments). As a result, the search algorithm is not exploring configurations which reduce the distance from the destination, which means that the local planner has started backtracking. This is possibly due to the presence of a narrow passage.

[∀c_x ∉ skeleton]: all the control points c_x of the current configuration x are on cells that are not skeleton cells. While the skeleton is able to pass through the narrow passage, the moving object has a shape and dimensions that might prevent its passage. Normally, the algorithm tends to calculate paths that follow the skeleton. However, if the last visited configuration x is not on the skeleton, it is sign of anomaly, indicating a possible local minimum.

[dist(x,b) > size(O)]: the Euclidean distance dist(x,b) between x and b is greater than the size size(O) of the largest dimension of the moving object O. This check aims to detect whether or not the search algorithm has started to perform backtracking. That is, it detects if the algorithm is exploring different alternative paths that are distant from configuration b, which is so far the closest to the destination.

[∃ freeSpace]: there exists a control point ∉ of the configuration b^I that collides with some obstacle (i.e., it is not in the freeSpace set). Configuration b^I is calculated by starting from b and performing a one-step translation in the direction of the descent of the potential (i.e. in the direction in which the potential decreases). This means that the algorithm has stopped visiting configurations with a lower h value because an obstacle is occluding the way. In other words, it is likely that a narrow passage lies in the direction of the shortest path.

Algorithm 5.1 zePPeLIN pseudo-code: local path planning and navigation algorithm executed at a generic camera node

1: M ĺ CalculateOccupancyMap() {/* Detect obstacles and build local map */} 2: for all n ∈ Neighbours do 3: CommunicateMyFoVSize(n) 4: fov_n ĺ GetNeighbourFoVSize(n) 5: δ_n ĺ DetectNeighbourPosition(n) 6: α_n ĺ DetectNeighbourOrientation(n) 7: o ĺ OverlappingArea(n, δ_n, α_n, fov_n) 8: end for 9: CalculateSkeleton(M) 10: if (isVisible(Destination)) then {/* Camera with final configuration in the FoV */} 11: DiffusePotential(M, Destination) {/* Potential field diffusion with Destination as starting point */} 12: SendPotentialFieldMessageToNeighbours(M, N) {/* Send the potential field on the shared edges */} 13: end if 14: while pot_new ĺ NewPotentialFieldMessagesReceived() do {/* Received updated potential field values pot_new from the neighbours */} 15: Diffuse potential(M, pot_new) {/* Potential field diffusion with pot_new as starting points */} 16: SendPotentialFieldMessageToNeighbours(M, N) 17: end while 18: while true do 19: WaitForMessageFromNeighbours() 20: i ĺ ReadMessage(n_i) {/* n_i is the sender of message i */} 21: switch (i) 22: case StartMessage: 23: s_i ĺ ReadMessageContent(i) {/* s_i = starting configuration received with message i */} 24: if (isValidStart(s_i)) then 25: if (P ĺ CalculateLocalPath(s_i, M, o)) then {/* The algorithm has found a local path P */} 26: if (P[lastPosition] = Destination) then 27: LocalBroadcastGoalFound(N) 28: go to: 56 29: else 30: s_j, n_j ĺ IdentifyNextNeighbourInPath(P, N) {/* s_j = last position of path P converted in the reference system of neighbour n_j */} 31: SendStartPathMessage(s_j, n_j) 32: end if 33: PATHS ĺ StoreLocalPathInf o(P, n_i, n_j, openset) {/* openset = current status of the search */} 34: else 35: if (isTheStartPositionVisible() AND isEmpty(PATHS)) then 36: LocalBroadcastGlobalFailure(N) 37: exit 38: else 39: SendLocalFailureMessage(n_i) 40: end if 41: end if 42: else 43: SendLocalFailureMessage(n_i) 44: end if 45: case LocalFailure: 46: openset ĺ RestorePlanningStatus(PATHS[lastPosition]) 47: go to: 25 48: case GoalFound: 49: RelayMessage(i, N) 50: go to: 56 51: case GlobalFailure: 52: RelayMessage(i, N) 53: exit 54: end switch 55: end while 56: k ĺ 1 57: if (isTheStartPositionVisible()) then 58: go to: 62 59: end if 60: while NavigationCompleted do 61: WaitForContinueNavigationMessage() 62: NavigateTheRobot(PATHS[k]) 63: SendLocalNavigationControlMessages(PATHS[k].next) 64: k ĺ k + 1 65: end while

Since each of the above criteria is a strong indicator of the possible presence of a narrow passage, when all the criteria are met together the camera node can robustly assess the presence of a narrow passage. It deals with this evidence by placing a virtual obstacle over the cells belonging to the passage. This way of proceeding has a potentially high cost, since the access to a part of the environment gets cut out by the virtual obstacle. This is the reason why all the above conditions are required to be met before stating the presence of a narrow passage, thus aiming to minimize the probability of the issuing of a false positive.

The centre center_np of the passage is identified as the cell of b^I with the lowest potential value. The algorithm places a virtual obstacle on center_np and on all the cells within the range of size(O)/2 cells from center_np. Next, it triggers a new distributed potential field diffusion step that avoids -in this way - the passage and, therefore, being trapped in the associated local minimum.

7. Adaptation to changes in the environment

An important advantage of our distributed system in comparison to single robot or centralized multi-camera systems is that it can effectively cope with dynamic environments. The system can locally and quickly detect and adapt to a change in the environment that might happen at any place and any time (e.g., changes in obstacles' positions or the appearance/disappearance of an obstacle). For instance, a planning system based on maps built by a single moving object/robot (e.g., using SLAM techniques) could not effectively cope with these situations, since the sensory range would necessarily be locally limited. On the other hand, a centralized system using multiple cameras, even in the presence of a small change, would correct the Voronoi skeleton, repeat the potential field diffusion and restart the path planning, comprising a set of operations that deal with the problem but which, taken altogether, might require considerable resources and time. In contrast, in our distributed architecture, the system can effectively reduce re-initialization costs and time by re-planning only a limited part of the path through a process of local adaptation to changes.

In a dynamic environment, in case a change blocks the current path, the camera n that controls the area where the change has occurred tries to locally plan an alternative path by generating a new local potential field, with the constraint of maintaining fixed the original entrance and exit configurations. If the camera n succeeds in finding an alternative path, it can safely use the new local path without the need for informing its neighbours of the local change. Otherwise, n notifies the destination node (through multi-hop wireless communication) to trigger a new potential field diffusion process. The destination node decides either to repair the path (from n to the destination) or to recalculate the entire path (using as a start configuration the current position of the navigating object). The decision as to either alternative is taken in relation to the position of n in the sequence of nodes along the path (e.g., a local repair is issued when n is close to the final destination). In this case, if the repair process happens while the object is already performing path navigation, it can continue the navigation towards n, such that when it arrives at n a new path continuation towards the final destination will already be available.

8. Experimental results in simulation

We studied the properties of the system through an extensive set of simulation experiments. The experiments have been designed with the objective of studying the following characteristics of the system: (i) the robustness to the alignment errors (i.e., incorrect estimations of neighbours' relative position and orientation), (ii) the effect of the heuristics on performance, (iii) scalability in large environments (keeping the density of cameras constant), and (iv) scalability for an increasing density of cameras (keeping the environment size constant), which corresponds to scalability of resources.

8.2. General experimental setup

The experiments in simulation were run with a dedicated multi-process simulator developed for this study. The input for one simulation experiment is a set of three files including: an environment description, the camera network formation, and parametric properties. The environment description also includes the start and final configurations of the moving object. All individual camera processes communicate with each other and collaboratively plan the path.

The experiments have been run on a machine with two AMD Opteron 6128 (eight cores each, 2 GHz, 2×12 MB L2/L3 cache) and 16 GB RAM. The discretization of the environment for the purpose of defining unit movements amounts to 15 cells per metre (i.e., cells with a size of 6.7 cm). As a unitary rotation, we used θ = 15°. The moving object has an “L” shape with two segments of the same length equal to 50 cm. During the planning process, the object is modelled by three control points, as shown in Figure 2. Aiming to be realistic, the characteristics for the field of view of the cameras, for wireless communications and for relative positioning errors, are derived from those of the flying robotic platform described in [35].

The simulation experiments are based on automatically generated maps, which differ in the placement of the obstacles. The maps are generated by placing a rectangular obstacle with a probability of 0.5 every square metre. Obstacle placement is performed by randomly selecting a position, orientation and size (sampled between 20 cm and 1 m). The start and the final configurations are kept fixed for all the maps, respectively, in the top-left corner and in the bottom-right corner.

In all the result plots, the performance of the system is evaluated against different levels of error. Since the error is stochastically generated, we execute multiple runs for every error level in order to improve the statistical significance of the results. For each error level, we run 10 to 20 runs, depending upon the experiment.

In Figure 9, 10 and 11, the results are presented with box plots; the bottom and top of the box are the lower and upper quartiles (i.e., the interquartile range, IQR) and the band near the middle of the box is the median. The whiskers represent the lowest datum still within 1.5 IQR of the lower quartile, and the highest datum still within 1.5 IQR of the upper quartile. Any data not included between the whiskers is plotted as an outlier with a small circle.

OPEN IN VIEWER

Figure 8.

Success rate of the system with respect to alignment errors: comparison of different planners. (a) Planners with and without heuristics, varying the error in the relative orientation. (b) Planners with the four heuristics active independently, varying the error in the relative orientation. (c) Planners with and without heuristics, varying the error in the relative position. (d) Planners with the four heuristics active independently, varying the error in the relative position.

OPEN IN VIEWER

Figure 9.

Relative path length for various levels of alignment error: comparison of different planners. (a) Planners with and without heuristics, varying the error in the relative orientation. (b) Planners with the four heuristics active independently, varying the error in the relative orientation. (c) Planners with and without heuristics, varying the error in the relative position. (d) Planners with the four heuristics active independently, varying the error in the relative position.

8.3. Robustness to relative position errors

In this section, we present the results of simulation experiments designed to study the variation of the performance as a function of different levels of alignment error. The errors of the relative position and orientation between cameras are modelled as two independent zero-mean Gaussian distributions with configurable standard deviation. We vary the standard deviation of the error on one measure while keeping the error for the other measure fixed to zero. In Figures 8 and 9, plots (a) and (b) show the results for increasing angle errors, with the position error set to zero. The results for the reverse setup are shown in plots (c) and (d).

8.3.1. Experimental setup

For the experiments of Figures 8 and 9, we used 18 different maps of size 12×7 m² covered by a sensor network of 25 cameras, which were deployed in the environment in a grid formation of 5×5. Each camera has a field of view of 3×2 m² of the ground, and the network has a topology such that each camera's field of view has a rectangular overlapping area with the neighbour's field of view with a width equal to 75 cm.

8.3.2. Robustness to alignment errors

Figure 8 shows that the success rate decreases with an increase in the alignment error. This is due to the fact that erroneous information about the overlapping area prevents the connection of partial paths during the planning phase.

Figure 9 shows the results for the relative path length metric. In addition, in this case the performance decreases for a high level of alignment error: the length of the final path is longer and thus less efficient (in terms of time and energy consumption). This is partially due to the connection paths, since the final path is the sum of the calculated sub-paths and the connection paths. When the error is high, the possible disconnection between paths is larger and, consequently, the connection paths are also longer. This increases the length of the final path.

8.3.3. Impact of the heuristics

The results for robustness in Figures 8 and 9 are reported for the different planners that we propose. More specifically, we show the results of the planner with and without heuristics (on the left side) and the planners with each of the heuristics active independently (on the right side). The planner indicated in the figure as the ‘planner with heuristics’ included three heuristics: blocked cells, narrow passage detection and loop avoidance. We excluded skeleton pruning because of its low success ratio performance.

A first consideration is the positive effect of the heuristics on the quality of the solutions. The planner with heuristics is able to calculate on average shorter paths than the planner without heuristics (Figure 9a) and 9c).

However, this beneficial effect has the disadvantage of a reduction in the success rate (Figure 8). With the increase of the error level, the success rate decreases more rapidly for the planner with heuristics than for that without heuristics. As described in Section 6, when the planner gets stuck in a local minimum, it executes a backtracking strategy which is costly in terms of resources. The planning process in a local minima-free scenario does not get stuck and rapidly finds a solution. The heuristics reduce the effect of local minima and improve the efficiency of the process (time and messages) and the solution (path length). However, as a drawback they reduce the solution space and feasible paths might be removed from the search process. The effect of each heuristic is discussed in separate paragraphs below.

The skeleton pruning heuristic aims to remove the local minima. It acts during the phase of skeleton generation: it closes all the passages narrower than the object size. However, the object has an L shape and it can thus overcome narrow passages with tight manoeuvres between the obstacles. Therefore, in some environments this heuristic closes valid paths towards the destination. In this way, it does prevents the algorithm from finding a valid solution. For this reason, the skeleton pruning heuristic noticeably reduces the success rate (Figure 8b and 8d). As an advantage, this heuristics lets the planner operate in a scenario free of local minima so that the process can rapidly converge on the solution without getting trapped. The effect is a more efficient planning process which avoids backtracking, produces shorter paths (Figure 9b and 9d), has a quicker execution (Table 1), and generates a lower number of messages (Table 2).

OPEN IN VIEWER

Table 1.

Normal: without heuristics. BC: Blocked cells. LA : Loop avoidance. SkP: Skeleton pruning. NPD: Narrow passage detection. All Heuristics: BC + LA + NPD. This table shows the execution time (in seconds) of the planners with and without heuristics with various levels of error. The value is the median of the distribution.

Position Err.	Orient. Err.	Normal	BC	LA	SkP	NPD	All Heur.
0	0	6.79	8.08	6.91	2.91	2.89	2.52
0	2	6.49	9.95	5.81	3.27	4.79	4.33
0	5	9.61	14.29	7.47	2.74	6.23	5.34
0	10	12.30	15.96	7.89	4.08	8.92	9.23
0.05	0	6.27	7.04	4.95	1.86	4.97	4.50
0.1	0	6.61	9.85	5.84	1.94	5.90	7.25
0.15	0	15.91	12.37	11.66	4.73	9.45	15.29
0.2	0	10.45	16.63	11.60	3.08	6.63	11.42

OPEN IN VIEWER

Table 2.

Number of messages per camera for the planners with and without heuristics with various levels of error. The reported value is the median of the distribution. Normal: without heuristics; BC: Blocked cells; LA : Loop avoidance; SkP: Skeleton pruning; NPD: Narrow passage detection; All Heuristics: BC + LA + NPD.

Position Err.	Orient. Err.	Normal	BC	LA	SkP	NPD	All Heur.
0	0	88.38	85.36	85.48	83.16	97.18	86.52
0	2	86.36	85.00	85.22	84.82	160.58	87.64
0	5	86.86	85.04	85.28	85.44	131.28	89.44
0	10	88.52	85.26	86.08	85.88	164.90	167.36
0.05	0	86.88	85.54	85.72	85.08	90.84	89.88
0.1	0	87.44	86.02	86.30	85.50	138.76	171.06
0.15	0	91.28	86.00	87.12	87.50	168.08	171.00
0.2	0	89.92	86.16	87.08	86.80	145.68	174.54

The narrow passage detection heuristic is designed to remove local minima and their negative effects. It acts during the path calculation phase and aims to block a passage only when the planner has realized that it is effectively not feasible. This heuristic improves efficacy in terms of path quality (Figure 9b and 9d), efficiency and execution time (Table 1), producing at the same time a lower reduction in the success ratio in comparison to skeleton pruning (the other heuristic for local minima). A side-effect of this heuristic is the higher number of messages it generates (Table 2). This is due to the fact that, when a camera detects a local minimum, it triggers a new potential field diffusion phase for the entire network.

The blocked cells heuristic aims to reduce the exchange of messages between neighbours. Table 2 shows that the heuristic succeeds in this purpose. However, and similar to the other heuristics, it has a lower success rate.

The loop avoidance heuristic aims to remove loops in the final resulting paths (see Section 6). In other words, it aims to improve the quality of the resulting paths. Its effect is visible in the plots of Figure 9b and 9d: when the loop avoidance heuristic is active, the system can calculate the paths with the shortest length.

8.4. Scalability to environment size

In this subsection, we present the results of simulation experiments designed to study how the system scales its performance when the environment size increases. We consider environments whose size is, respectively, two and three times larger than the size of a baseline environment.

8.4.1. Experimental setup

The experiments were run considering 30 different maps with the following sizes: 10 maps of 12×7 m² (=84 m²), 10 maps of 12×14 m² (=168 m²), and 10 maps 12×21 m² (=252 m²). Since the environment size increases, the camera network must be increased correspondingly to cover the entire area. In order to maintain a minimum overlapping area of the fields of view of 75 cm, the network scales to 5×11 cameras for environments of twice the size, and to 5×17 cameras for those of three-times the size.

8.4.2. Results for efficacy and efficiency

Figure 10 shows the success ratio and the relative path length for different environment sizes. Both the effectiveness (success ratio) and the efficiency (relative path length) remain constant for larger environments. These results are an indicator of scalability for increasing environment size. The success rate values oscillate within the range between 100% and 93%. The plots in Figure 10a and 10b are jagged due to the strong heterogeneity of the scenarios and the random generation of errors. However, it is worth noticing that the percentage of success also remains above 93% for high levels of error.

OPEN IN VIEWER

Figure 10.

Scalability for environments of increasing size. (a) Success rate varying the error in the relative orientation. (b) Success rate varying the error in the relative position. (c) Relative path length varying the error in the relative orientation. (d) Relative path length varying the error in the relative position.

The box plots in Figure 10c and 10d show the results in terms of relative path lengths. Moreover, for this metric the results confirm the scalability of the approach. While for environments of 84 m² and 252 m² the relative path length values are very similar, for an environment of 168 m² the values are slightly higher (about 5%-10% more) and with higher variance. As discussed above, this difference is due to the strong heterogeneity of the scenarios, which were randomly generated.

Figure 11 shows the efficiency of the system in terms of the communication overhead. We study how the number of messages changes by scaling-up the environment and the network. In order to perform a fair comparison of the efficiency performance in the different environments, the reported values are normalized with respect to the average number of neighbours (which is different for the different topologies). In fact, the cameras on the edges of the network have a lower number of neighbours than the cameras in the middle. In our scenario, cameras on the corner have two neighbours, cameras on the edge have three and cameras in the middle have four. To make the performance measure as independent as possible from this effect, the values for the number of exchanged messages are calculated as follows:

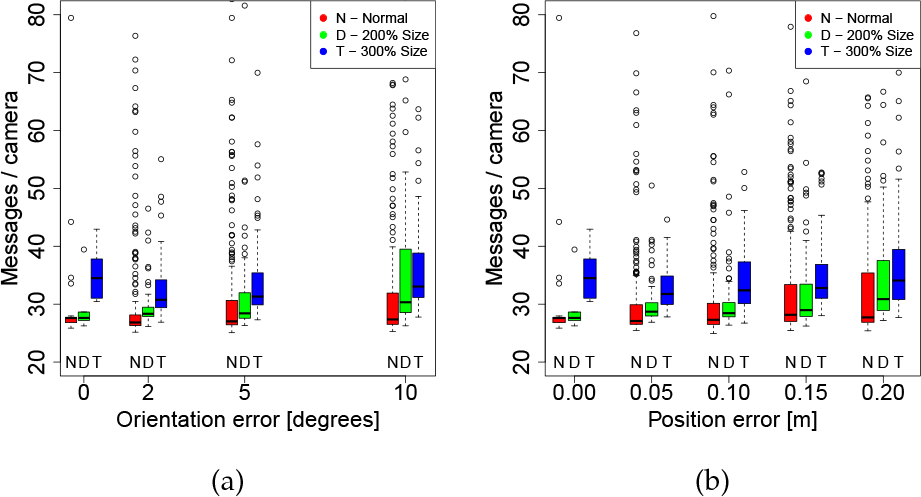

OPEN IN VIEWER

Figure 11.

Scalability for environments of increasing size: efficiency measures. (a) Messages per camera varying the error in the relative orientation. (b) Messages per camera varying the error in the relative position.

M e s s a g e s = 1 k N ∑ n N p n ,

(2)

where p_n is the number of messages received by camera n, N is the total number of cameras, and k is the average number of neighbours in the network (e.g., in the case of a network 5×5, k = 3.2).

For the correct interpretation of the data, it is necessary to describe how, in our system, a camera identifies that the phase of potential field diffusion is concluded. This has been implemented with a simple message-repetition protocol. While a camera is waiting for new potential field messages from its neighbours, periodically (every δt seconds) it communicates to them the most up-to-date values that it holds for the potential field. Therefore, each node waiting for updated potential field values in turn continues to receive potential field messages. If the same message is repeatedly received M times, this indicates that during the last Mδt seconds no changes happened regarding the calculation of the potential field. Therefore, the camera node can safely consider the received information to be definitive and conclude the potential diffusion phase. In our experiments, to establish a good trade-off between bandwidth consumption and safety in assessing the convergence for the potential field calculation, we set M to 21 and δt to 0.01s. If bandwidth is a major issue (it was not in our robot implementation), the message-repetition protocol could be safely substituted with an alternative mechanism based on an explicit time threshold. It is worth pointing out that, in slower diffusion processes, a larger number of repeated messages is exchanged. Analogously, when the network size increases, the diffusion process obviously takes more time and the number of the (often repeated) messages increases. The number of messages communicated during the other phases is very limited compared to the selected M, and remains practically constant for all the studied scenarios within the range of 3 to 10 messages per camera.

8.5. Scalability of resources

The set of experiments in this subsection shows how the performance of the system varies when increasing the number of cameras while maintaining constant the size of the environment.

8.5.1. Experimental setup

The experimental setup is the same as in SubSection 8.3. We ran experiments over 10 maps, and for every map we increased the density of the camera network. The initial network was composed of a grid of 5×5 cameras, which is the minimum number to fully cover the entire environment. We then increased the density by adding, in a first test case, 25 cameras (+100% = double density), and in a second test case 50 cameras (+200% = triple density). In both cases, the cameras were assigned with a randomly selected position and orientation. For each of the three setups, we ran experiments varying the level of error in position and orientation and executed 10 runs for each error level. This means that every point in the plots of Figure 12 corresponds to the average of 10 · 10 = 100 runs.

OPEN IN VIEWER

Figure 12.

Scalability for higher numbers of cameras keeping the environment size constant. (a) Success rate varying the error in relative orientation. (b) Success rate varying the error in relative position.

8.5.2. Effect of varying the number of camera nodes

For high levels of error, the performance of zePPeLIN decreases: Figure 12 shows the success rate as a function of alignment errors. These errors, in some cases, prevent connections between sub-paths in the overlapping area; therefore, for high levels of errors the process more often fails to find a valid path. This negative effect can be reduced by increasing the number of cameras in the sensor network (Figure 12). With the standard sensor network formation 5×5, the overlapping area has a width of 75 cm and the moving object has a length of 50 cm. This formation has a limited margin of error, which allows the system to cope effectively only with low levels of error (success rate over 95% (first dot of plots in Figure 12). A more dense network has wider overlapping areas, which is a characteristic that allows the system to effectively plan valid paths more often (and even for high levels of error).

The system improves its performances in response to an increase in the resources within the system (i.e., the number of cameras in the sensor network). In zePPeLIN, the increase in resources is eased by a distributed, scalable and flexible architecture, which is designed to allow the user to add new cameras without any need to modify, update or setup the algorithm.

9. Real robot experiments

We completed the experimental evaluation of zePPeLIN with a set of experiments with real cameras and ground robots. In these experiments, zePPeLIN executes all the planning and navigation phases: at first, it detects the moving robot's position, then it calculates the path from the current position to the given destination, and finally it provides the instruction to navigate the ground robots in the environment. The setup adopted for the real world experiments and the results are described in the remainder of this section.

9.1. Environment

The ground robot moves in an area of 33 m², where the grey floor is occluded by red obstacles. This colour configuration has been selected to ease the obstacle detection, since it is not the main focus of the work. A sample image of the arena is shown in Figure 13 (top).

OPEN IN VIEWER

Figure 13.

Scenario for real robot experiments. (Top) An example arena. The moving object has to move in the arena while avoiding collisions with the red obstacles. (Bottom) The moving object which follows camera instructions, and which is implemented as a set of two e-puck robots interconnected by a rigid structure.

9.6. Experimental results

We performed experiments on 20 different maps: in 14 of them, the environment is relatively well structured, with the obstacles placed to form straight walls (see Figure 14a) for an example), while in the remaining six the obstacles are deployed completely randomly (see Figure 14b for a sample scenario). In all the experiments, the system has been able to calculate valid paths no longer than 150% of the optimal shortest path and 115% of the path calculated by the global planner. Figures 14a and 14b show the composite screenshot of the four fields of view. The planning time is relatively low - for example, the planning time for the paths shown in Figures 14a and 14b is, respectively, 4.6 s and 7.2 s.

OPEN IN VIEWER

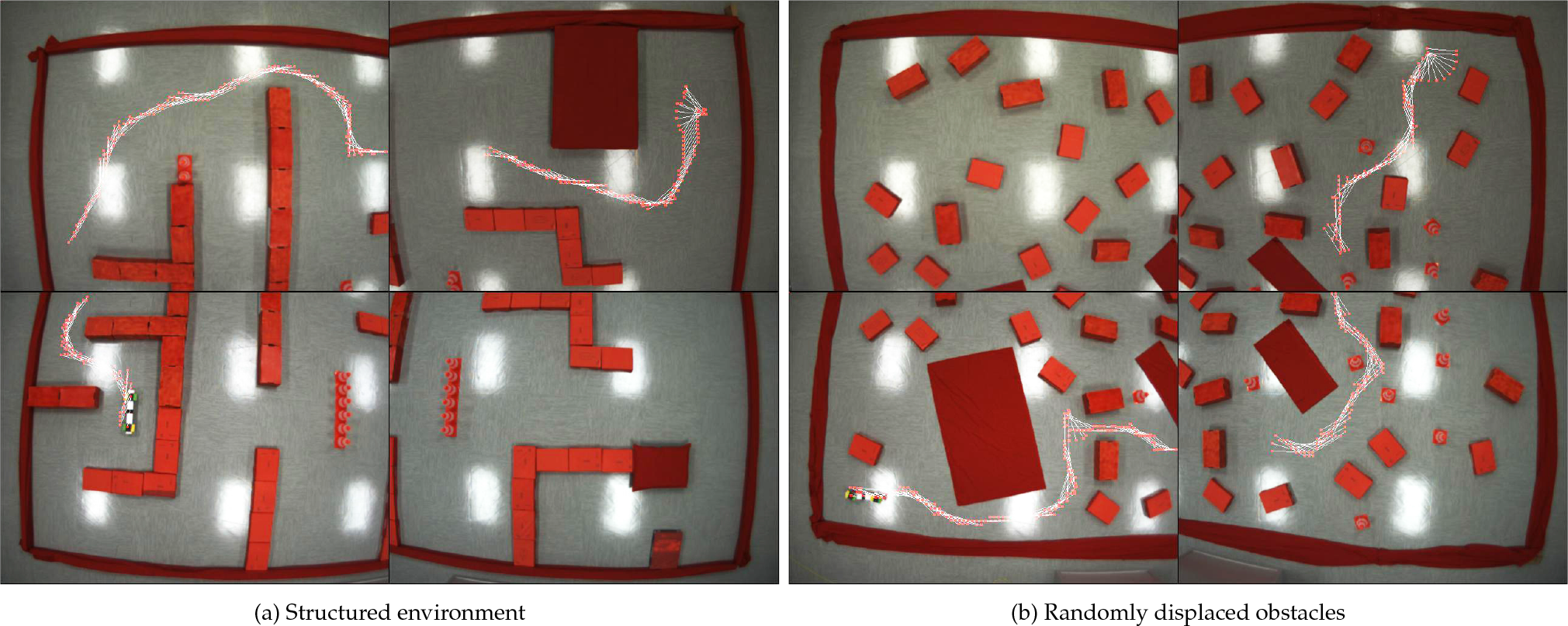

Figure 14.

Composite screenshot of the four fields of view of the four cameras in two different experimental setups. The planned path (in red, the control points, and in white the stylized object) is shown. In this example, the information about the final path is segmented into three partial paths distributed among the cameras. The bright spots are the reflection of the ceiling light.

From the mentioned sample videos, it is possible to appreciate that the robots implementing the instructions received from the overhead camera are able to follow the calculated path with good precision. The system is able to effectively correct local actuation errors through the continuous tracking of the robots' position and the recalculation of the next relative movements to be communicated.

Through simulations, we have exhaustively tested the systems for different scenarios and error levels. By the real system implementation, we completed the process by adding, after path planning, the path actuation by distributed navigation. This set of experiments successfully verified the applicability of the proposed approach. It is important to note that the path planning process did not present noticeable differences in moving from simulation to the real world, both as regards implementation issues and the observed results. For the scenario considered, the main challenges for a real system implementation concern sensing and actuation errors. When performing path planning, sensing errors might affect the computation of the navigable areas in the local maps and the relative alignments between cameras. The former error has been removed in practice by exclusively using red boxes over a grey floor as obstacles: this setup allowed each camera to compute an error-free occlusion map. Instead, alignment errors have been estimated in a more or less accurate way (resulting in the values reported in Section 9.2), and have affected the performance accordingly.

10. Conclusions and future work

We have proposed zePPeLIN, a novel system for distributed path planning in large, cluttered, dynamic areas. The system is based on a fully distributed architecture in which a network of cameras is deployed in the environment. Each camera only has a partial, overhead view of the ground environment where the object needs to move from the initial to the final configuration. The camera system solves the path planning problem cooperatively, through local calculations of a potential field and a Voronoi skeleton, and wireless message exchanges. A number of heuristics have been proposed to enhance the system's efficiency and effectiveness. The system also has a built-in component to deal with dynamic changes (e.g., the appearance/disappearance of an obstacle or the failure of a camera).

In simulation, we performed an extensive analysis of the system's performance and the heuristics. We validated the system through a series of experiments using real camera devices and moving robots. Compared to systems with a single camera or using centralized computation, our fully distributed approach is more scalable, flexible and robust. However, it introduces efficiency issues and sensory errors. In particular, we studied the impact on performance of the alignment errors between the fields of view of neighbouring cameras - a type of error which we consider to be inherent to any distributed system of local, partially overlapping maps.

The experimental results show that, as expected, the system performance degrades when the alignment error increases. However, the drop in performance becomes significant only for very large errors. Errors of distance and angle result in slightly different performance drops, with angle errors having a larger impact in this respect. In general, the heuristics improve the quality (path length) and efficiency (computation time, communication overhead) of the system but, at the same time, reduce the success rate in finding feasible paths. The system shows relatively good scalability in terms of the number and density of cameras.

In principle, the zePPeLIN distributed algorithm can be used with any networked system of devices, so long as the devices are capable of building a local map of the environment in their ‘field of view’ (e.g., a Kinect). In future work, we intend to implement zePPeLIN with a network of different devices instead of cameras. Moreover, we intend to extend the system by adding general mechanisms to manage - and possibly reduce - the overlapping errors. Additional tests will consider larger environments and the inclusion of dynamic obstacles (e.g., humans or moving robots).
