A Novel Greeting Selection System for a Culture-Adaptive Humanoid Robot

1.1 Greeting interaction with robots: related works

Robots, especially humanoids and anthropomorphic ones, are expected to interact and communicate with humans of different cultural background in a natural way. It is therefore important to study greeting interaction between robots and humans.

Some humanoid robots can perform programmed greetings: among others, ARMAR-III [10], which greeted the Chancellor of Germany, Angela Merkel, with a handshake. ASIMO [11] is capable of performing a wider range of greetings: a handshake, waving both hands, and bowing, and can recognize such gestures performed by others. HRP-4 [12] and MAHRU [13] are two other examples of humanoid robots that can greet by a simple bow.

While greeting gestures have been implemented, so far only a few greeting interaction experiments with robots have been conducted in order to test the impression on humans. Examples are experiments by Yamamoto et al. [14], who focused on timing, rather than on culture, and experiments featuring the social robot ApriPoco, in which Japanese, Chinese, and French greetings were compared [15]. However, in experiments with ApriPoco, conclusions remain unclear because of the small number of subjects and the limited number of degrees of freedom of the robot, leading to difficulties in obtaining significant data from biological signals from the test subjects. Compared to those experiments, our intention is to do a more extensive study, with a greater number of subjects and a human-sized anthropomorphic robot.

1.2 Objectives of this paper

The robot should be trained with sociology data related to one country, and evolve its behaviour by engaging with people of another country in a small number of interactions. For the implementation of the gestures and the interaction experiment, we used the humanoid robot ARMAR-IIIb, designed for close cooperation in human environments. As the experiment is carried out in Germany, the interactions are with German participants, while preliminary training is done with Japanese data, which is culturally extremely different.

The idea behind this study is a typical scenario in which a foreigner visiting a country for the first time (e.g., a Westerner in Japan) greets local people in an inappropriate way as long as he is unaware of the rules that define the greeting choice. For example, he might want to shake hands or hug, and will receive a bow instead. However, in a limited number of interactions, the foreigner can understand the rules and correct his behaviour. In this experiment, we want a robot to be able to do the same.

This work is an application of a study of sociology into robotics. Our contribution is to synthesize the complex and sparse data related to greeting types into a model; create a selection and adaptation system; and implement the greetings in a way that can potentially be applied to any robot.

Other existing studies focus on specific subfields of greetings: sociology studies focus on specific greetings or on the effect of specific factors; whereas robotics studies like [16,17] focus more on physical aspects, such as the oscillation trajectory of a handshake. Our approach was related to the psychological aspect of greeting interaction, and the scope of the study was more extensive, focusing less on the details of each single greeting.

The rest of the paper is organized as follows: in Section 2 we describe the system of greeting selection; in Section 3 the hardware implementation; in Section 4 we describe the experiment; in Section 5 we discuss the results; and in Section 6 we conclude the paper.

2.1 Greetings among humans

Greetings are the means of initiating and closing an interaction. Hoffman-Hicks [18] states that greetings function primarily as formulaic exchanges, which serve to acknowledge another person's presence. We desire that robots be able to greet people in a similar way to humans. For this reason, understanding current research on greetings in sociological studies is necessary. Moreover, depending on cultural background, there can be different rules of engagement in human-human interaction. Gaps in recognition of facial expressions and gestures due to a lack of understanding regarding cultural norms can lead to difficulty in communication. For example, the complexity of greetings in Japanese culture may cause possible communication problems with foreigners [19].

A unified model of greetings does not seem to exist in the literature, but a few studies have attempted a classification of greetings. Some more specific studies have been done on handshaking [20]. Varieties of bowing also exist: this is why many publications advising foreigners doing business in Japan exist [21].

A classification of greetings was first attempted by Friedman [22] based on intimacy and commonness. The following greeting types were mentioned: smile; wave; nod; kiss on mouth; kiss on cheek; hug; handshake; pat on back; rising; bow; salute; and kiss on hand. Greenbaum et al. [23] also performed a gender-related investigation, while [24] contained a comparative study between Germans and Japanese.

Many other contributions do not attempt to list greeting types or to classify them, but to shed light on the factors that influence greeting types. In order to have a comprehensive view, the choices that influence not only gestures, but also greeting words, have been included in this study.

As Spencer-Oatey pointed out [25], authors often use the same terms with different meanings, or different terms with the same meaning. We will try to keep the terms consistent. For instance, context is a word that is sometimes used, but its actual meaning denotes location (private or public). As Sugito [24] and Firth [26] mentioned, location influences intimacy and greeting words; we will use the word ‘location’ instead, and use ‘context’ to refer to the whole list of factors. There is also sometimes a confusion between intimacy and the degree of contact. In fact, intimacy can be intended to denote closeness in contact, or a closeness of acquaintanceship: we will use the term ‘intimacy’ to represent the closeness in contact, while closeness of acquaintanceship will be described by ‘social distance’. According to the literature, intimacy is influenced by physical distance, eye contact [27], gender [28,29], location [22], and culture [30].

Politeness [31,32] is a key concept in sociology: Brown and Levinson were the first to create a formula for calculating it. Even though they did not numerically define a coefficient, they represented politeness as a function of power balance in a relationship, social distance, and as a cultural factor [31]. Affect (by Slugoski [33]) can be included in this formula, too, but it is usually comprehended within social distance. Other factors that influence politeness were defined by Ferguson [34]: the number of individuals and the time passed since the previous interaction. Kern and Eichmueller [35] mention the same factors and some others, including age, which directly influence the choice of greeting words. Some more factors described by Li [36] influence only greeting words: time, regionality, setting, and content.

‘Time’ is a factor distinguishing the use of greetings, e.g. in case of seasonal greetings, introductory greetings, and ceremonial greetings. In particular, time of the day is important for the choice of words [26,36,37]. ‘Setting’ indicates greetings conducted though telephones, TVs, or other devices, while ‘content’ refers to the use of personal greetings (either direct like “How are you?” or indirect “Your picture is beautiful, isn't it?”) or non-personal (“Nice weather”).

The resulting graph of the current terms used in sociology (Figure 1) will be used to develop a comprehensive greeting selection model.

OPEN IN VIEWER

Figure 1.

Overview of factors that influence greeting choice. The names on the arrows indicate the authors of relevant publications. Factors coloured in grey are omitted from our study.

2.2 Model of greetings

It is clear that as it is, the graph we made is too complex to be usable. It needs to go through a process of simplification: in Figure 1, the factors to be cut are greyed out.

The simplification was guided by the following assumptions:

2.3 Greeting selection system

After the simplifications described in the previous paragraph, the resulting factors could be summarized in Figure 2. Among them, ‘culture’ can be considered a discriminant for switching among different mappings between the other factors and the outputs. All the other factors are then considered features of a mapping problem. They are categorical data, as they can assume only two or three values.

OPEN IN VIEWER

Figure 2.

Features, mapping discriminants, classes, and their possible states

The outputs can also assume only a limited set of categorical values, the classes of a mapping problem. The greeting gestures list has been defined from the relevant sources mentioned above [22–24]. Originally, the set contained six gesture types, including ‘kiss’, which was dropped because it was not possible to implement in the robot ARMAR-IIIb, which does not have a mouth. Waving and raising a hand were also considered as broadly the same type of gesture. The greeting words list has been defined by selecting the most common greeting words and getting information from relevant studies [24,37].

Figure 3 contains the overview of the greeting model. It takes context data as input and produces the appropriate robot posture and speech for that input. The context is the set of features shown in Figure 2. The mapping is updated by an algorithm that will be described in Section 2.5. Two different mappings are made, one for gestures and one for words. Both mappings give as an output the most appropriate selection.

OPEN IN VIEWER

Figure 3.

Overview of the greeting selection model

As shown in the right-hand side of the graph in Figure 3, words are turned into speech through a freeware text-to-speech software, and the speech file is then played through the speakers of the robot. The chosen gesture is turned into a robot configuration through the Master Motor Map [38], which will be described in more detail in Section 3.

The two outputs are evaluated by the participants of the experiment through written questionnaires. These training data that we get from the experience are given as feedback to the two mappings, which are originally trained with either data extracted from sociology studies, or in case of words, extracted from text corpora.

This model is generic: it is potentially implementable on any robot. The only robot-specific part in the present experiment is the use of the Master Motor Map, which is a component that could be omitted if robot gestures are programmed manually.

2.4 Greeting selection system training data

Mappings can be trained to an initial state with data taken from the literature of sociology studies. Training data should be classified through some machine learning method or formula; nevertheless, data taken from these studies have some properties that limit the possible choice of classifying methods. An issue with these studies is their incompleteness: the focus of sociology papers is set only on specific aspects, such as gender-related studies, which do not provide any information regarding power relationships, for example. The resulting data, put into a table, has some missing parts. This is true for both gestures and words.

Considering these limitations, we decided to use conditional probabilities: in particular the Naive Bayes formula, to map the data. The Naive Bayes classifier applies Bayes' theorem with the assumption that the presence or absence of each feature is unrelated to other features. This is appropriate for the features of the present problem. Moreover, Naive Bayes only requires a small amount of training data to estimate the parameters necessary for classification. The generic formula of posterior probability is shown in Equation 1 for the class variable C_j and the features x_k from the set X. Our modified version of the classifier also takes into account the possibility of missing data, assigning less weight to them.

p ( C j | X ) ∝ p ( C j ) ∏ k p ( x k | C j )

(1)

While training data of gestures can be obtained from the literature, data of words can also be obtained from text corpora. In linguistics, a corpus is a large and structured set of texts. Sometimes, portions of speech recordings are transcripted into a corpus and then analysed. Corpora are then used to perform statistical analysis and hypothesis testing, such as checking occurrences of a certain word in a certain context for a certain language. Conditional probabilities are calculated, like in [39], where the Suprasegmental Hidden Markov Model is applied to detect emotions in speech.

English corpora, such as the British National Corpus, or the Corpus of Historical American English, are readily available online. Using such online tools, it is possible to analyse greeting words usage depending on the context. For example, counting the occurrence of a greeting word (“hello” or “good morning”) together with some indication of a distant relationship (Mr., Dr.) or a close relationship (“darling”, etc.). In a similar way, analysis of the other features (‘time of the day’, ‘gender’, etc.) can be carried out.

In Table 1, an example of the analysis of these data is shown. The occurrences of two words A and B are counted and their correlation is calculated. In this example, word A is “hello”, and word B is the variable (the cases of “darling” and “love” are shown): each match is shown in the first column. The other columns of the table contain, respectively: the size of the whole corpus in terms of the number of words; the number of occurrences of word A; the number of occurrences of word B; the number of occurrence of both words together (column AB); their span; and the last column contains an index called Mutual Information (MI). ‘Span’ is the range between the two words in order to be accounted as in close proximity to one another: ‘1’ indicates that the word pair is counted whenever the words occur next to one another; ‘2’ indicates that there is one word in between, and so on. Span is also a parameter for the calculation of the index MI, which is defined as in equation 2, as adaptation to the corpora of the generic information theoretic measure [38]. MI assesses the correlation between two words: the higher the value, the higher the strict correlation between the two words. Words to analyse in association with greetings are useful when the context of the corpora cannot be determined a priori precisely.

OPEN IN VIEWER

Table 1.

Example of data extracted from corpora

Words A B	sizeCorpus	A	B	AB	span	MI
Hello darling	8076643	2287	600	27	1	7.31
Hello love	8076643	2287	2553	17	1	4.56

M I = log ( A B ⋅ s i z e C o r p u s A ⋅ B ⋅ s p a n ) log 2

(2)

While English corpora are relatively easy to analyse, Japanese ones are trickier because, due to the lack of spaces between words in the Japanese language, it is often impossible for analysis tools to determine where a word ends and the next word begins. This fact makes calculation of span, and therefore of the MI, tricky or inaccurate. As a manual revision of huge amounts of text would be necessary for solving this problem, leading to a drift away from the scope of this research, we decided to not rely on corpora for Japanese language. Conversely, training data of Japanese greeting words were extracted from relevant Japanese sociology studies [24,37,41–43]. Japanese training data for gestures were extracted from [24,44–46], while the training sets for gestures in other Western countries was made using data from [22,23,47].

In sociology papers, raw data are often reported in the form of percentages. These numbers can be easily converted into weights between zero and one. For words, weights can be obtained from their rate of occurrences.

Features are determined from the characteristics of the sociological study (for example, if the study is on the use of handshakes among men and women, the feature ‘gender’ will be set) or of the context of the dialogue in the corpus (for instance, in a dialogue between two friends, ‘social distance’ will be set as ‘close’). Non-specified information will be left as blank in the training data, and the algorithm will take missing data into account. For example, this would happen in case of extracting data from a study focused on greetings and power relationships, which does not take gender into account.

In the present study, the location of the experiment was Germany. For this reason, the only dataset needed was the Japanese. As stated in the motivations at the beginning of this paper, the robot should initially behave like a foreigner:

ARMAR-IIIb, trained with Japanese data, will have to interact with German people and adapt to their customs.

2.5 Mapping and questionnaires

The mapping is represented by a dataset, initially built from training data, as a table containing weights for each context vector corresponding to each greeting type. We now need to update these weights.

Whenever a new feature vector (representing context) is given as an input, it is checked to see whether it is already contained in the dataset or not. In the former case, the weights are directly read from the dataset; in the latter case, they get assigned the values of probabilities calculated through the Naive Bayes classifier. The output is the chosen greeting, after which the interaction will be evaluated through a questionnaire consisting in the following three questions, to be answered in a five-point semantic differential scale:

Weights of the affected features are multiplied by a positive or negative reward (inspired by reinforcement learning) which is calculated proportionally to the evaluation (will be negative for a rating that equals 1 or 2). A decreasing learning factor also affects the reward.

Mappings stop evolving when the following two stopping conditions are satisfied: all possible values of all features have been explored; and the moving average of the latest 10 state transitions has decreased below a certain threshold.

Thanks to this implementation, mappings can evolve quickly, without requiring hundreds or thousands of iterations, but rather a number comparable to the low number of interactions humans need to understand and adapt to social rules.

3.1 Implementation of gestures

The implementation on the robot of the set of gestures defined in Figure 2 was performed in a way that it is not strictly hardwired to the specific hardware. Rather than manually defining the patterns of the gestures, the Master Motor Map (MMM) was used as an intermediate passage.

The MMM is a reference 3D kinematic model developed in Karlsruhe Institute of Technology, for providing a unified representation of various human motion capture systems, action recognition systems, imitation systems, visualization modules, and so on. This representation can be subsequently converted to other representations, such as action recognizers, 3D visualization, or implementation into different robots. In the framework proposed in [31] and shown in Figure 4, the MMM is the interface for the transfer of motion knowledge between different embodiments. The MMM is intended to become a common standard in the robotics community, to allow the establishment of common benchmarks and the sharing of different software modules.

OPEN IN VIEWER

Figure 4.

Illustration of the Master Motor Map framework

The kinematic model of MMM is expanded with statistic/anthropomorphic data, such as: segment properties (e.g., length, mass, etc.) defined as a function of global parameters (e.g., body height, weight). These data have been discovered and verified by various researchers, including Winter [38]. It is made by setting a maximum number of DoF that might be used by any visualization, recognition, or reproduction module.

The body model of MMM based on Winter's biomechanical model can be seen in the left-hand illustration in Figure 5. It contains some joints, such as the clavicula, which are usually not implemented in humanoid robots. A conversion module is necessary to perform a transformation between this kinematic model and ARMAR-IIIb kinematic model, in the right-hand illustration in Figure 5.

OPEN IN VIEWER

Figure 5.

Body model of Master Motor Map and ARMAR-IIIb configuration

The converter we used [48] is a module that was created for making imitation learning tasks easier. It is based on nonlinear optimization to maximize the similarity between the demonstrated human movement and the imitation by the robot. The simplest and ideal way to reproduce a movement from given joint angles would consist in a one-to-one mapping between an observed human subject and the robot. However, due to the differences in the kinematic structures of a human and the robot (such as measurements of joints and limb), one-to-one mapping can hardly show acceptable results in terms of a human-like appearance of the reproduced movement. In this converter, this problem is addressed by applying a post-processing procedure in joint angle space.

In two stages, the joint angles, given in the MMM format, are optimized concerning the tool centre point position and the kinematic structure of the robot through a non-linear algorithm. A feasible solution is estimated by using the joint configuration of the MMM model on the robot, which serves as an initial solution for a further optimization step. This ensures human-like motion in the robot.

The MMM framework is mainly used for humanoid robots and has a high support for every kind of human-like robot. Using human-like robots, transfer rules can be defined,

which can convert human motion from the MMM reference model to the robot. This can be either the whole body motion of the human or only parts of it, for example only the upper body or only the right arm. A non-human-like robot model with an arbitrary number of DoFs is also supported, however it may not be possible to find a good conversion from the MMM reference model to that specific robot. In that case, however, the motion representation parts of the framework can be used nevertheless.

After programming the postures directly on the MMM model (Figure 6), they were processed by the converter. As mentioned previously, the human model contains many joints, such as the pelvis and clavicula, which are not present in the robot configuration: for instance, ARMAR cannot bend forward (for taking a bow). As there is no direct one-to-one correspondence in the joint, the conversion was not trivial.

OPEN IN VIEWER

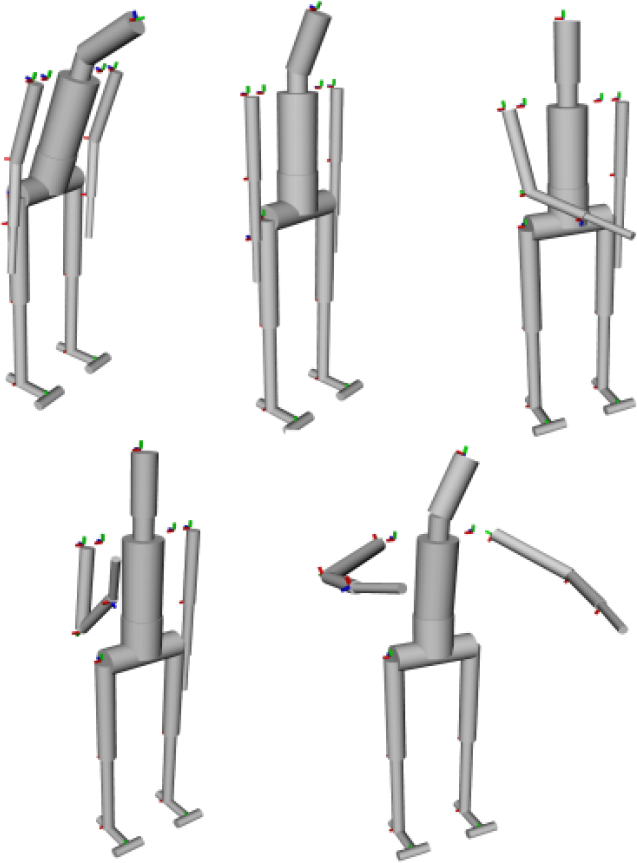

Figure 6.

Output gestures: MMM model. Top row: bow, nod, handshake Bottom row: raise hand, hug.

The results we obtained with this algorithm were quite satisfying, but they needed to be refined, due to some part of the body (e.g., the neck) not being implemented in the algorithm. In Figure 7, the final result is shown.

OPEN IN VIEWER

Figure 7.

Output gestures: implementation on ARMAR-IIIb. Top row: bow, nod, handshake. Bottom row: raise hand, hug.

The postures could be triggered from the MCA (Modular Controller Architecture, a modular software framework) interface, where the greetings model was also implemented. In Figure 8, the list of postures is on the left together with the option “Use Greeting Model”. When that option is activated, it is possible to select the context parameters through the radio buttons on the right.

OPEN IN VIEWER

Figure 8.

MCA Interface for the control of ARMAR-IIIb

3.2 Implementation of words

As seen in Figure 2, the possible options of output words have been defined. This set of greetings has been translated into both German and Japanese, as in Table 2, regardless of the typical usage. For example, in Japan it is common to use a specific greeting in the workplace (“otsukaresama desu”), where a standard greeting like “konnichi wa” would be inappropriate. In German, such a greeting type does not exist, but the meaning of “thank you for your effort” at work can be directly translated into German. In other words, the robot knows dictionary terms, but does not understand the difference in usage of these words in different contexts.

OPEN IN VIEWER

Table 2.

Conversion table of greeting words

Greeting type	Japanese	German
Morning	Ohayō gozaimasu	Guten Morgen
Daylight	Konnichi wa	Guten Tag
Evening	Konban wa	Guten Abend
Informal	Yō!	Hallo!
Workplace	Otsukaresama desu	Vielen Dank für Ihre Mühe
Acquaintance	Hajimemashite	Schön dich kennenzulernen

These words have been recorded through free text-to-speech software into wave files that could be played by the robot. ARMAR does not have embedded speakers in its body: for this reason, we added two small speakers behind the head and connected them to another computer.

4.1 Participants

The experiment was performed in Germany in the room shown in Figure 9. Participants were 18 German people of different ages, genders, workplaces, and knowledge of the robot, in order to ensure that the mapping could be trained with various combinations of context.

OPEN IN VIEWER

Figure 9.

Setup of the room of the interaction experiment

It was not possible to include all combinations of feature values in the experiment. For example, there cannot be a profile with both [‘location’: ‘workplace’] and [‘social distance’: ‘unknown’]. Moreover, the [‘location’: ‘private’] case was left out, because it is impossible to simulate the interaction in a private context, such as one's home: the experiment took place in the laboratory. Some of the participants repeated the experiment more than once. In this way, we could collect more data by manipulating the value of a single feature: for instance, ‘time of the day’, when the experiment is repeated at different times, or ‘social distance’, which becomes ‘acquaintance’ rather than ‘unknown’ during later interactions.

The demographics of the 18 participants were as follows: M: 10; F: eight; average age: 31.33; age standard deviation: 13.16. However, the number of interactions was determined by the stopping condition of the algorithm.

The number of interactions, taking repetitions into account, was 30: M: 18; F: 12; average age: 29.43; age standard deviation: 12.46.

4.2 Experiment setup

The objective of the experiment was to adapt ARMAR-IIIb greeting behaviour from Japanese to German culture. Therefore, the algorithm working for ARMAR was trained with only Japanese sociology data and two mappings M0J were built for gestures and words, respectively. After interacting with German people, the resulting mappings M1 were expected to synthesize the rules of greeting interaction in Germany. A mapping M0G of gestures, made from German sociology data was built but used only for verification. A mapping of German words could not be made as it would have required a study of German corpora, which is out of the scope of this research.

The experiment protocol is as follows:

Step 1. ARMAR-IIIb is trained with Japanese data.

Step 2. Contextual data about the encounter are given as inputs to the algorithm and the robot is prepared. In the meantime, the participant is instructed to enter the room, turn left, and greet the robot naturally with consideration to the current context (e.g., it is morning, in a public space,

they are meeting for the first time, etc.) without having to match the robot's own greeting type.

Step 3. The participant enters the room shown in Figure 9. A curtain (a) covers the location of the robot (b), therefore the participant will find him/herself in the location (c) face-to-face with the robot, about 2 metres distant. In this way, both the possibility of greeting from a distant location and of asynchronous greetings by the two parties are avoided.

Step 4. The robot's greeting is triggered by an operator as the human participant approaches (Figure 10). Both gesture and words get triggered at the same time.

OPEN IN VIEWER

Figure 10.

Viewpoint of the participant face-to-face with ARMAR

Step 5. After the two parties have greeted each other, the robot is turned off, and the participant evaluates the robot's behaviour through a questionnaire.

Step 6. The mapping is updated using the subject's feedback (see Section 2.5). The new mapping will be used in the next interaction.

Step 7. Repeat steps 2–6 for each participant.

Step 8. Training stops after the state changes are stabilized.

4.3 Results

The experiment was carried out through 30 interactions, and all greeting gestures and word types had the chance of being selected at least once. The features ‘gender’ was explored 34 times; ‘location’ 50 times; ‘power relationship’ 56 times; ‘social distance’ 46 times; ‘time of the day’ 39 times.

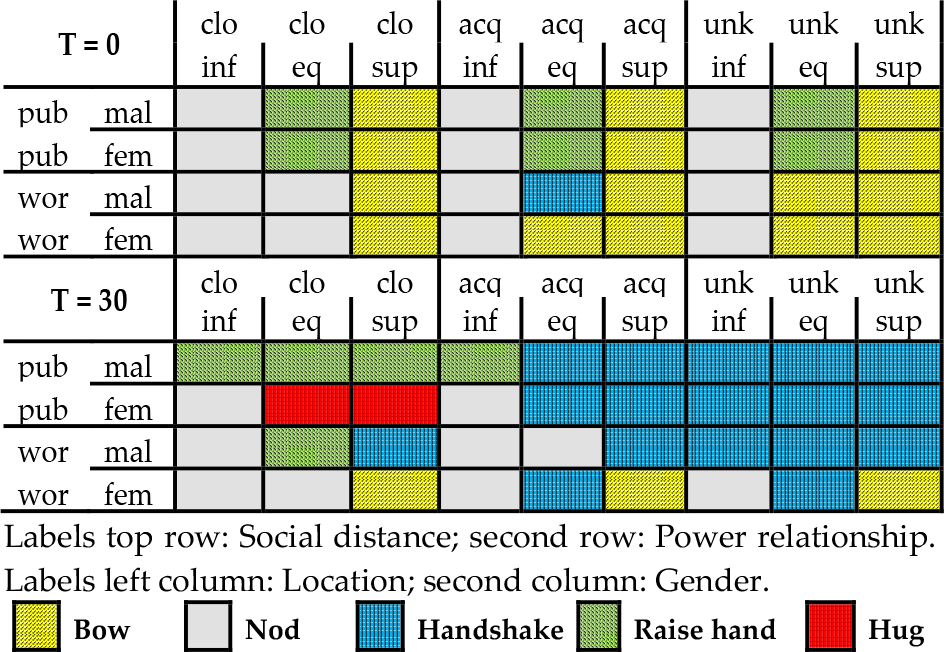

Handshakes, shown in Figure 11, were common after the mapping started to change. In Table 3 it is possible to see the evolution of the maximum likelihood, in the mapping of gestures. The counter T, the current number of learning iterations, corresponds to steps 2 to 6 of the experimental protocol. The algorithm stopped running after 30 iterations, when both the moving averages of state changes decreased below a certain threshold.

OPEN IN VIEWER

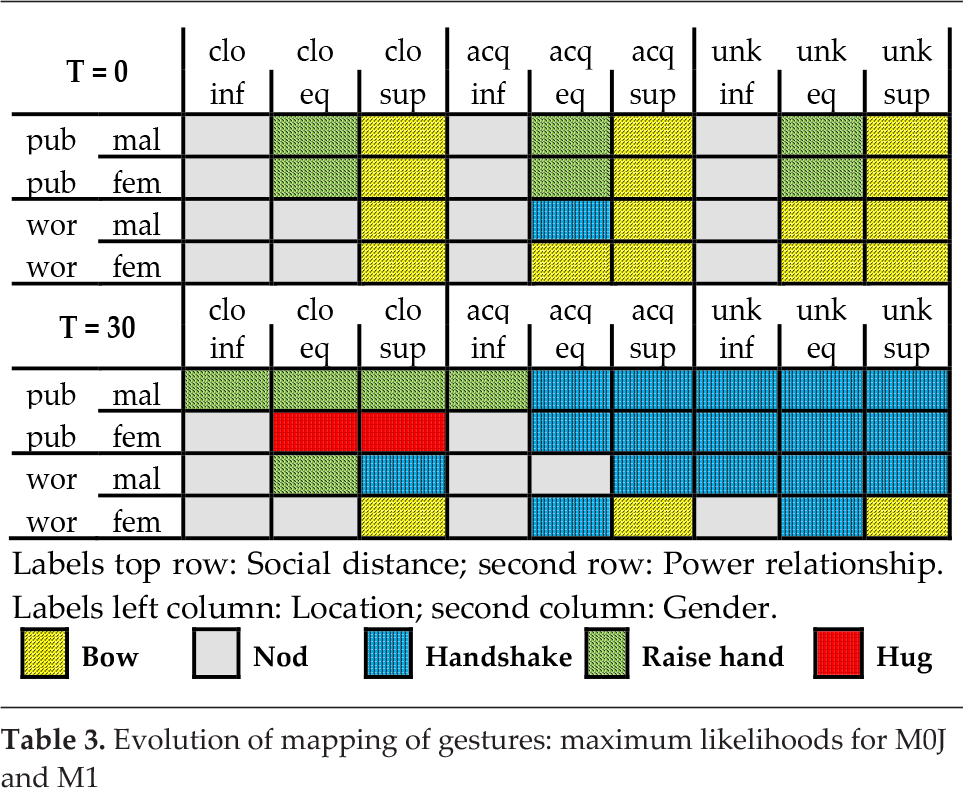

Table 3.

Evolution of mapping of gestures: maximum likelihoods for M0J and M1

OPEN IN VIEWER

Figure 11.

Example of a handshake with ARMAR

The new mapping of gestures was verified through an objective function V described in equation 3, which compares two different mappings M1 and M2.

V = ∑ f ∑ j ( w j ( M 1 f ) − w j ( M 2 f ) ) 2

(3)

The function calculates the sum of the variance between the weights w in the same cell f (namely, every possible input value) in two different mappings M1 and M2. Each variance in the weights is calculated not only comparing the greeting with maximum likelihood, but considering the sum of the variances for each greeting j.

The function applied to M0J (Japanese initial mapping) and M1 (final mapping) gives 0.636 as result. Instead, comparing M1 with M0G (German initial mapping) we get 0.324. The t-test of the variances for each f proves the difference to be significant (p <.05). This result supports the evolution of mapping M1 from M0J towards M0G.

It can also be noted from the evolution of mapping, that after the interactions, the states in which bowing is preferred has greatly decreased, while handshake has become more common. On the other hand, the bow has not disappeared. Hugs, not present in the Japanese mapping, appeared after some participants expressed feedback indicating that hugging would be appropriate.

The evolution of maximum likelihood in the mapping of words is shown in Table 4. The main change is the disappearance of the workplace greeting in German mapping. We also expected other subtle changes to be noticeable. Among them were the more common use of an informal greeting by Germans: however, the changes cannot be considered significant. Conversely, some other patterns can be found in the gestures' mappings: judging from the columns in Table 3 for T = 0, it is clearly visible that a strict categorization is present in the Japanese mapping with regards to social distance, whereas the same pattern is not present in the German mapping.

OPEN IN VIEWER

Table 4.

Evolution of mapping of words: maximum likelihoods for M0J and M1

This fact seems to accord with the more hierarchical view of society that the Japanese have. Both the resulting German and Japanese mappings may not be 100% accurate compared to reality, but they are a simplification that is consistent with German participants' feedback and Japanese sociology literature, respectively.

5.1 On this approach

In Section 1.2 we stated our main contributions. Within our work, the concept of a greeting selection system is novel, and while the comprehensive study of current greeting choice factors is also new in sociology, its modelling and application can be useful in robotics.

In particular, one advantage of the current implementation is that gestures are not robot-specific, since the Master Motor Map framework can be used and converted to any other humanoid robot.

5.2 Impact on people

The work described in this manuscript is the implementation of cultural adaptation during greeting interaction; the need for such cultural adaptation was highlighted in the work in [4], to which we are making a continuation. The results in that cross-cultural experiment support the hypothesis that people from different cultures prefer a robot, and anthropomorphize it more, if it is culturally close to them, whereas the likeability factor and the number of interactions with a robot drop in the case of a culturally distant robot.

As these findings were confirmed by questionnaires as well as participants' reactions and non-verbal behaviour, we do not show in this paper measurements of the impact on participants, which we will do in a future work. Further information can be found in [4].

5.3 Limitations and improvements

In the current implementation, there are also a few limitations. The first obvious limitation is related to the manual input of context data, with no perception from the robot. The integrated use of cameras would make it possible to determine features such as gender (as in [49]), age, and race of the human. Speech recognition system and cameras could also detect the human's own greeting. Estimating whether the robot's own greeting was appropriate or not, without the help of a human supervisor, can be especially tricky. A cost/reward function that takes into consideration the distance of the other party, the timing of the greeting, head orientation, and other cues could suggest whether the reaction to the greeting matched the expected one. However, this information would still be less accurate than an explicit answer collected through a questionnaire.

Another limitation was the choice of using just literature for training data. Through the use of corpora, the set of possible context variables could be expanded, taking into consideration some factors that have been discarded in the simplification that occurred during the definition of the greetings model.

5.4 Different kinds of embodiment

The definition of a set of greeting gestures was based on human-related studies, taking for granted that the humanoid robot has a body that resembles humans and possesses a similar range of motion. However, humanoid robots could vary in shape, size, and capabilities, and this could produce an effect in which greeting types are selected as being more fitting for each robot.

A possible extension of this work could be making a robot discover autonomously the optimal way of attracting the attention and starting an interaction with a human, depending on the characteristics of its own body. Communication channels can in fact rely on visual or auditory aids. For instance, a device such as a mobile phone can initiate communication with a human through vibration, and a robot that can blink its eyes could use lights and colours to communicate in a dark environment.
