A Wearable-Based and Markerless Human-Manipulator Interface with Feedback Mechanism and Kalman Filters

Abstract

The objective of this paper is to develop a novel human-manipulator interface which incorporates wearable-based and markerless tracking to interact with the continuous movements of a human operator's hand. Unlike traditional approaches, which usually include contacting devices or physical markers to track the human-limb movements, this interface enables registration of natural movement through a wireless wearable watch and a leap motion sensor. Due to sensor error and tracking failure, the measurements are not made with sufficient accuracy. Two Kalman filters are employed to compensate the noisy and incomplete measurements in real time. Furthermore, due to perceptive limitations and abnormal state signals, the operator is unable to achieve high precision and efficiency in robot manipulation; an adaptive multispace transformation method (AMT) is therefore introduced, which serves as a secondary treatment. In addition, in order to allow two-way human-robot interaction, the proposed method provides a vibration feedback mechanism triggered by the wearable watch to call the operator's attention to robot collision incidents or moments where the operator's hand is in a transboundary state. This improves teleoperation.

Keywords

Human-manipulator Interface Wearable Watch Markerless Tracking Kalman Filter Adaptive Multispace Transformation Feedback Mechanism

1. Introduction

Human beings cannot play any active role in complex, challenging or risky tasks in highly unstructured dynamic environments where objects are changing shape, but these tasks can often be achieved by robots. It is therefore important to establish an effective human-manipulator interface in such circumstances [1]. Existing human-manipulator interfaces are widely used, and can be roughly classified into three kinds: (1) contacting interface; (2) marker-based interface; (3) markerless interface.

Contacting interfaces [2] usually contain devices like joysticks, inertial sensors, or exoskeleton systems to track human-limb movements as a system input [3, 4]. Although this can fulfil the basic requirements of human-robot interaction, the devices used are not very natural or comfortable, and hinder human-limb movements in some cases.

The marker-based interfaces are non-contacting and thus seldom hinder natural human-limb movements. However, physical markers are rigidly attached to body parts to recognize movement [5]. When the operator's movements are occluded, especially in some dexterous tasks [6], marker-based interfaces are not always practical.

By contrast, markerless interfaces [7, 8] rely on taking pictures of the operator's movements or figuring out the operator's gestures to acquire disparities in the movements of the operator's limbs with the last recorded posture. Obviously, markerless interfaces seem a better option for robot manipulation: they are often less invasive and avoid problems of marker occlusion and identification [9]. Many studies on markerless interfaces have been proposed, but many limitations still exist [10, 11]. The method developed by Kofman et al. enabled the operator to control the robot naturally by tracking the movements of the operator's hand in a 3D space [12]. However, the method needs to satisfy many extreme operating conditions in the initialization state. For example, it requires the operator to operate manipulation on a dark background, with his/her hand higher than the shoulder. As it is also affected by too-bright or too-dark lighting conditions, a precise result is difficult to obtain with the method. Du et al. proposed a markerless human-robot interface which allows the operator to perform human-robot interaction through waving his/her hand within the operating space [13]. However, the method has many potential disadvantages and limitations based on the tracking system and filtering algorithms on which it relies. First of all, one leap motion sensor cannot produce enough redundant data to eliminate the tracking error, and there is no feedback mechanism when the robot is in a collision or the operator's hand is not in the operating space, that is, the method can only be used for one-way human-robot interaction. Besides, a particle filter employed in the method for posture estimation needs to resample and use particles to estimate the conditional mean and covariance matrix. Generally, it is difficult to meet the real-time application requirements. In addition, there is a synchronization correlation whereby position estimation depends on orientation estimation during the posture estimation period, which severely decreases the efficiency of the method.

Figure 1.

Flowchart of the interface

Taking all the factors into consideration, this paper proposes an innovative human-manipulator interface which uses one wearable watch to capture the orientation of the operator's hand, and one leap motion to locate the position of the operator's hand simultaneously. The watch not only assists in solving the problem of edge precision, but also reports system states in the tracking process – robot collision situations, or situations where the operator's hand is in a transboundary state – through a vibration in the wearable watch to attract the operator's attention.

The communication module thus decreases failures and the tracking error of the robot manipulation. Nevertheless, the tracking system also has the following disadvantages:

The measurements obtained by the sensors have white noise and show nonlinearity.

Sometimes the tracking system is not accurate enough, especially when the operator's hand waves around the edge of the operating space.

The operator has to reset his/her hands because of the limited operating space, which brings about unstable and incoherent robot manipulation.

Dual Kalman filters are therefore employed to compensate the measured orientation and position of the operator's hand, respectively. This gets rid of the synchronization question in posture estimation, as Kalman filters work independently to estimate the operator's movements (Fig. 1). Furthermore, the inherent perceptive limitations of humans lead to the operator's incapacity to perform precise and efficient robot manipulation. A velocity control algorithm called adaptive multispace transformation is therefore also introduced. The processed data replace the measurements to drive the robot manipulator.

The remainder of this paper is organized into six sections. Section 2 illustrates the coordinate system and calibration in detail. In Section 3, the Kalman filters for orientation estimation and position estimation are developed. Section 4 describes the vibration feedback mechanism used in collision detection and transboundary detection. Section 5 focuses on the adaptive multispace transformation method for precision and efficiency adjustment. In Section 6, related experiments and results that validate the effectiveness of our interface are presented, followed by concluding remarks in Section 7.

2. Hand Tracking

2.1 Coordinate System

The wearable watch (Geak watch), based on the Android 4.1 system, consists of one three-axis magnetometer and one two-axis gyroscope to track the orientation of the operator's hand [14]. The orientation can be obtained by integrating the angular velocity and quaternion obtained from the magnetometer and gyroscopes, respectively. The leap motion, integrating gesture recognition technology, accesses the position data by integrating the acceleration information [15]. The 3D orientation and position of the centroid on the hand are transmitted to control the robot manipulator.

To define the movements of the operator's hand in 3D space, leap motion frame X_L Y_L Z_L, world-fixed frame X_WY_WZ_W and hand frame X_HY_HZ_H are established, as shown in Fig. 2. Because the watch is rigidly attached to the operator's hand, the watch frame is assumed to coincide with the hand frame. The origin of the hand frame is the centroid on the hand. X_H is collinear with the middle finger and points outward. Y_H is perpendicular to the back of the hand and points upward. Z_H is the multiplication cross of X_H and Y_H. The position of the operator's hand is defined by the translation between the leap motion frame and the hand frame in each axis, and the orientation uses the rotation angles in the yaw-pitch-roll frame. φ, θ and ψ denote the yaw, pitch, roll angles between the hand frame and the world-fixed frame in each axis, respectively.

Figure 2.

Coordinate system

2.2 Coordinate Calibration

Coordinate calibration is very necessary to synchronize the movements between the operator's hand and the robot manipulator. Suppose that a spatial point in the hand frame is [x_h, y_h, z_h], and this spatial point mapped to the world-fixed frame is [x_w, y_w, z_w]. Then, we have:

T \cdot [\begin{matrix} x_{h} \\ y_{h} \\ z_{h} \end{matrix}] = [\begin{matrix} x_{w} \\ y_{w} \\ z_{w} \end{matrix}]

(1)

where T is the transformation from the hand frame to the world-fixed frame. For each transformation, six uncertain parameters can be determined, so three non-collinear points can determine this transformation. In order to find the more precise transformation, the Least Square Estimation (LSE) [15] is adopted using more than three non-collinear points.

3. Orientation And Position Estimation

3.1 The Kalman Filter

The Kalman filter presents an optimal solution of the nonlinear measurements by assuming that the posterior density is Gaussian. The simplicity, recursive structure, and mathematical rigour of the Kalman filter make it well-suited and attractive for nonlinear and Gaussian models. Through recursive update of its finite-dimensional statistics to accurately recover the real measurements, its stochastic model describes the stochastic properties of the system process noise and the observation error. Unlike other filters, such as the particle filter, the Kalman filter is at the basis of the iterative method and minimum variance principle, and completes all the procedures without any interruption. The Kalman filter is therefore more attractive for nonlinear measurements in orientation and position [17].

The Kalman filter model, composed of the system state model and a measurement model, is defined as follows:

x_{k} = Φ_{k} \cdot x_{k - 1} + Γ_{k} \cdot u_{k - 1} + w_{k - 1}

(2)

z_{k} = H_{k} \cdot x_{k} + v_{k}

(3)

Suppose t_k is the iteration time represented by the subscript k. Hence, x_k and z_k denote the state vector and the measurement vector at time k, respectively. u_k−1 denotes the deterministic input vector, w_k−1 stands for the process noise vector, and v_k denotes the measurement noise vector. Φ_k refers to the system transition matrix from time t_k−1 to time t_k. Γ_k and H_k are the input matrix and the measurement matrix, respectively. Expressing the state vector and the measurement vector in the forms of equation (2) and (3), the posterior density function with mean and covariance can be estimated by the Kalman filter. The Kalman filter is achieved by prediction and update processes [18].

Predicted state:

{\hat{x}}_{k}^{-} = Φ_{k} \cdot {\hat{x}}_{k - 1}^{+} + Γ_{k} \cdot u_{k - 1}

(4)

Prediction covariance matrix:

P_{k}^{-} = Φ_{k} \cdot P_{k - 1}^{+} \cdot Φ_{k}^{T} + Q_{k - 1}

(5)

Kalman gain matrix:

K_{k} = P_{k}^{-} \cdot H_{k}^{T} \cdot {[H_{k} \cdot P_{k}^{-} + H_{k}^{T} + R_{k}]}^{- 1}

(6)

Estimated covariance matrix:

{\hat{P}}_{k} = {[1 - K_{k} \cdot H_{k}]}^{- 1} \cdot P_{k}^{-}

(7)

Estimated state:

{\hat{x}}_{k}^{+} = {\hat{x}}_{k}^{-} + K_{k} \cdot (z_{k} - H_{k} \cdot {\bar{x}}_{k})

(8)

3.2 Orientation Estimation

The factored quaternion algorithm is based on a set of measurements from the magnetometer and the accelerometer. It produces a quaternion output to represent the orientation without singularities. However, the factored quaternion algorithm is used for orientation estimation of a static or slow-moving target with respect to the world-fixed frame [19]; it is not applicable to a dynamic situation with relatively large linear accelerations, unless a complementary or optimal filter is adopted together with angular rate information.

According to Euler's theorem on finite rotations, the conversion from Euler angles to the quaternion is expressed as follows [20]:

[\begin{matrix} q_{0} \\ q_{1} \\ q_{2} \\ q_{3} \end{matrix}] = [\begin{matrix} \cos (\frac{ϕ}{2})cos(\frac{θ}{2})cos(\frac{ψ}{2})+sin(\frac{ϕ}{2})sin(\frac{θ}{2})sin(\frac{ψ}{2}) \\ sin(\frac{ϕ}{2})cos(\frac{θ}{2})cos(\frac{ψ}{2})- \cos (\frac{ϕ}{2})sin(\frac{θ}{2})sin(\frac{ψ}{2}) \\ \cos (\frac{ϕ}{2})sin(\frac{θ}{2})cos(\frac{ψ}{2})+sin(\frac{ϕ}{2})cos(\frac{θ}{2})sin(\frac{ψ}{2}) \\ \cos (\frac{ϕ}{2})cos(\frac{θ}{2})sin(\frac{ψ}{2})-sin(\frac{ϕ}{2})sin(\frac{θ}{2})cos(\frac{ψ}{2}) \end{matrix}]

(9)

where φ is the roll angle around the X_H axis, θ is the pitch angle around the Y_H axis, and ψ is the yaw angle around the Z_H axis. q₀, q₁, q₂ and q₃ are the quaternion components that should satisfy:

q_{0}^{2} + q_{1}^{2} + q_{2}^{2} + q_{3}^{2} = 1

(10)

Because the quaternion can be obtained from the factored quaternion algorithm, the direction cosine matrix from the hand frame to the world-fixed frame is:

\begin{array}{l} M_{H}^{S} = [\begin{matrix} m_{X_{x}} & m_{Y_{x}} & m_{Z_{x}} \\ m_{X_{y}} & m_{Y_{y}} & m_{Z_{y}} \\ m_{X_{z}} & m_{Y_{z}} & m_{Z_{z}} \end{matrix}] \\ \begin{matrix}  \end{matrix} = [\begin{matrix} q_{0}^{2} + q_{1}^{2} − q_{2}^{2} − q_{3}^{2} & 2 (q_{1} q_{2} − q_{0} q_{3}) & 2 (q_{0} q_{2} + q_{1} q_{3}) \\ 2 (q_{1} q_{2} + q_{0} q_{3}) & q_{0}^{2} − q_{1}^{2} + q_{2}^{2} − q_{3}^{2} & 2 (q_{2} q_{3} − q_{0} q_{1}) \\ 2 (q_{1} q_{3} − q_{0} q_{2}) & 2 (q_{0} q_{1} + q_{2} q_{3}) & q_{0}^{2} − q_{1}^{2} − q_{2}^{2} − q_{3}^{2} \end{matrix}] \end{array}

(11)

The differential equation of the quaternion q with respect to time t is written as:

[\begin{matrix} \partial q_{0} / \partial t \\ \partial q_{1} / \partial t \\ \partial q_{2} / \partial t \\ \partial q_{3} / \partial t \end{matrix}] = [\begin{matrix} q_{0} & − q_{1} & − q_{2} & − q_{3} \\ q_{1} & q_{0} & − q_{3} & q_{2} \\ q_{2} & q_{3} & q_{0} & − q_{1} \\ q_{3} & − q_{2} & q_{1} & q_{0} \end{matrix}] \cdot [\begin{matrix} 0 \\ ω_{x} / 2 \\ ω_{y} / 2 \\ ω_{z} / 2 \end{matrix}]

(12)

where ω_x, ω_y, and ω_z are the angular velocity states. Because the orientation state contains the quaternion states and the angular velocity, we define the orientation state as:

x_{k, o r i}^{} =[q_{0, k} q_{1, k} q_{2, k} q_{3, k} ω_{x, k} ω_{y, k} ω_{z, k}]

(13)

The quaternion components at time t_k can be calculated from the angular velocity measurements and the quaternion components at time t_k−1 by using:

[\begin{array}{l} q_{0}_{k}^{} \\ q_{1}_{k}^{} \\ q_{2}_{k}^{} \\ q_{3}_{k}^{} \end{array}] = \frac{1}{2} [\begin{matrix} 2 & - ω_{x, k - 1} \cdot Δ t & - ω_{y, k - 1} \cdot Δ t & - ω_{z, k - 1} \cdot Δ t \\ ω_{x, k - 1} \cdot Δ t & 2 & ω_{z, k - 1} \cdot Δ t & - ω_{y, k - 1} \cdot Δ t \\ ω_{y, k - 1} \cdot Δ t & - ω_{z, k - 1} \cdot Δ t & 2 & ω_{x, k - 1} \cdot Δ t \\ ω_{z, k - 1} \cdot Δ t & ω_{y, k - 1} \cdot Δ t & - ω_{x, k - 1} \cdot Δ t & 2 \end{matrix}] \cdot [\begin{array}{l} q_{0}_{k - 1}^{} \\ q_{1}_{k - 1}^{} \\ q_{2}_{k - 1}^{} \\ q_{3}_{k - 1}^{} \end{array}]

(14)

where Δt is the sampling time of the watch. Using equations (12) and (14), the state-transition matrix will result in:

Φ_{o r i} = [\begin{matrix} 1 & 0 & 0 & 0 & − q_{1, k} \cdot Δ t / 2 & − q_{2, k} \cdot Δ t / 2 & − q_{3, k} \cdot Δ t / 2 \\ 0 & 1 & 0 & 0 & q_{0, k} \cdot Δ t / 2 & q_{3, k} \cdot Δ t / 2 & q_{2, k} \cdot Δ t / 2 \\ 0 & 0 & 1 & 0 & q_{3, k} \cdot Δ t / 2 & q_{0, k} \cdot Δ t / 2 & − q_{1, k} \cdot Δ t / 2 \\ 0 & 0 & 0 & 1 & − q_{2, k} \cdot Δ t / 2 & q_{1, k} \cdot Δ t / 2 & q_{0, k} \cdot Δ t / 2 \\ 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 1 \end{matrix}]

(15)

Γ_ori is a zero matrix because the system has no control inputs. The quaternion states can be estimated by the angular velocity. Define the process noise vector as:

w_{k} =[0 0 0 0 w_{x} w_{y} w_{z}]^{T}

(16)

where w_x, w_y and w_z are the process noise components of the angular velocity. Since the wearable watch is calibrated and initialized to measure the angular velocity, the observation matrix H_ori for orientation estimation can be expressed as:

H_{o r i} {=[0}^{n \times p} I^{n \times n}]

(17)

where n is the number of the angular velocity vector and p is the number of the quaternion. In this paper, n=3 and p=4. Because the orientation is calculated using a unit quaternion, the determined quaternion q_k at time t_k is normalized and written as:

\begin{array}{l} q_{k} =[q_{0, k} /M q_{1, k} /M q_{2, k} /M q_{3, k} /M] \\ M= \sqrt{q_{0, k}^{2} + q_{1, k}^{2} + q_{2, k}^{2} + q_{3, k}^{2}} \end{array}

(18)

3.3 Position Estimation

Assume P(p_x, p_y, p_z) is the coordinate of the centre of the operator's hand in the world-fixed frame. Since the leap motion has access to the three velocity components, according to the direction cosine matrix from the hand frame to the world-fixed frame, the acceleration of the hand with respect to the world-fixed frame can be calculated by the following equation:

\begin{array}{l} \overset{\cdot}{V_{x}} = m_{X_{x}} \cdot A_{x} + m_{Y_{x}} \cdot A_{y} + m_{Z_{x}} \cdot A_{z} \\ \overset{\cdot}{V_{y}} = m_{X_{y}} \cdot A_{x} + m_{Y_{y}} \cdot A_{y} + m_{Z_{y}} \cdot A_{z} \\ \overset{\cdot}{V_{z}} = m_{X_{z}} \cdot A_{x} + m_{Y_{z}} \cdot A_{y} + m_{Z_{z}} \cdot A_{z} {−|g}_{l} | \end{array}

(19)

where |g_l| is the magnitude of the local gravity vector, and A_x, A_y and A_z are the acceleration measurement components in the hand frame. The velocity components V_x, V_y and V_z in the world-fixed frame can be expressed as:

V_{x} = \overset{\cdot}{p_{x}} \begin{matrix} V_{y} = \overset{\cdot}{p_{y}} \begin{matrix} V_{z} = \overset{\cdot}{p_{z}} \end{matrix} \end{matrix}

(20)

Define the position state at time t_k as:

x_{k, p o s}^{} =[p_{x, k} V_{x, k} A_{x, k} p_{y, k} V_{y, k} A_{y, k} p_{z, k} V_{z, k} A_{z, k}]

(21)

According to equations (19) and (20), the state-transition matrix φ_pos will be obtained:

Φ_{p o s} = [\begin{matrix} 1 & t & m_{X_{x}} \cdot t^{2} / 2 & 0 & 0 & m_{Y_{x}} \cdot t^{2} / 2 & 0 & 0 & m_{Z_{x}} \cdot t^{2} / 2 \\ 0 & 1 & m_{X_{x}} \cdot t & 0 & 0 & m_{Y_{x}} \cdot t & 0 & 0 & m_{Z_{x}} \cdot t \\ 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & m_{X_{y}} \cdot t^{2} / 2 & 1 & t & m_{Y_{y}} \cdot t^{2} / 2 & 0 & 0 & m_{Z_{y}} \cdot t^{2} / 2 \\ 0 & 0 & m_{X_{y}} \cdot t & 0 & 1 & m_{Y_{y}} \cdot t & 0 & 0 & m_{Z_{y}} \cdot t \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & m_{X_{z}} \cdot t^{2} / 2 & 0 & t & m_{Y_{z}} \cdot t^{2} / 2 & 1 & t & m_{Z_{z}} \cdot t^{2} / 2 \\ 0 & 0 & m_{X_{z}} \cdot t & 0 & 0 & m_{Y_{z}} \cdot t & 0 & 1 & m_{Z_{z}} \cdot t \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \end{matrix}]

(22)

Since the system has no control input, the acceleration measurements are affected by gravitational force. The Z-axis is also parallel to the gravity vector. Hence, the system input matrix is achieved:

Γ_{p o s} \cdot u_{k − 1}^{′} {=[0, 0, 0, 0, 0, 0, -|g}_{l} | \cdot t^{2} {/2, -|g}_{l} | \cdot {t, 0]}^{T}

(23)

Then, the process noise vector can be written as:

w_{k}^{} =[0, 0, w_{x}^{}, 0, 0, w_{y}^{}, 0, 0, w_{z}]^{T}

(24)

where w_x, w_y and w_z are the process noises of the acceleration in each axis.

Since the leap motion was calibrated and initialized to measure the acceleration of the operator's hand, the observation matrix for position estimation can be expressed as:

H_{p o s} = [\begin{matrix} 1 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \end{matrix}]

(25)

As a result, the estimated position of the operator's hand P_k(p_x,k, p_y,k, p_z,k) is determined.

4. Vibration Feedback

4.1 Collision Detection

If a robot collides with a target, a vibration feedback will appear in the watch by socket communication. To determine the occurrence of collisions, the static K-DOPs collision detection technique [21] is used in our method. If any collision is detected, the sensors will not obtain the operator's movements; otherwise, the path between the starting point and the end point is quartered. Fig. 3(a) shows the system in normal state and Fig. 3(b) shows it in collision state. The collision detection algorithm is as follows.

Build a K-DOPs path bounding box and performing intersection detection of the bounding box.

Detect the bounding box whether there is an intersection or not. If yes, determine whether or not the interval is less than the given threshold and divide this interval into equal halves.

Perform recursive detection. The bounding boxes used in detection are path bounding boxes.

Performing dynamic intersection detection against the leaves bounding boxes. If intersection is found, a collision is detected and a vibration is triggered in the wearable watch.

Figure 3.

Collision Detection

4.2 Transboundary Detection

As shown in Fig. 4(a), transboundary detection is always performed to calculate whether the operator's hand is beyond the operating space or not. When the operator's hand is in the operating space, the measurements can be obtained by the sensors and then transmitted to the robot receiver to drive the robot manipulator. If a transboundary circumstance arises (Fig. 4(b)), the measurements will be neglected, and a vibration feedback in the watch reminds the operator to move his/her hand back.

Figure 4.

Transboundary Detection

5. Amt Method

Due to inherent perceptive limitations related for example to time and distance, as well as physiological tremor, the operator cannot accomplish precise and efficient robot manipulation without assistance. To eliminate the negative influence of these sources and improve the accuracy and efficiency of robot manipulation, a modified version of adaptive multispace transformation is employed to establish a secondary treatment for the measured data [22].

As shown in Fig. 5, two scaling processes are introduced to relate the robot workspace to the operator workspace dynamically. The actions of the hand in the master space (MS) are related to the virtual unit vector of the central axis of the robot manipulator K in the visual space (VS), through scaling variable S; another scaling variable u is used for the robot movements and the virtual unit vector K. Both S and u are scalars whose values are a function of the distance r between the end-effector of the robot manipulator and the target in the robot workspace (WS) [23].

Figure 5.

Representation of the human-interface-robot spaces

When the robot end-effector approaches a target, the virtual unit vector K is affected by S between MS and VS. When S > 1, it accelerates the motion of K. When S < 1, it decelerates the motion of K. The vector K is also affected by u between VS and WS. Since the robot velocity can be dynamically adjusted through such scaling modifications, it is clear that these processes have a direct effect on the accuracy and efficiency of robot manipulation. The task execution time is reduced and performance improved accordingly.

Since the scaling vector S influences the motion of the virtual orientation and position, let S = [S_ori, S_pos], where S_ori scales the virtual orientation and S_pos acts upon the virtual position. Assume that ${\dot{E}}_{M}$ and ${\dot{E}}_{V}$ are the Euler angular velocities in MS and VS, so

{\overset{\cdot}{E}}_{V} = {\begin{cases} S_{o r i} \cdot {\overset{\cdot}{E}}_{M} \begin{matrix}  \end{matrix} {\overset{\cdot}{E}}_{M} \leq δ_{o r i} \\ \begin{matrix} \begin{matrix} \begin{matrix}  \end{matrix} \end{matrix} \end{matrix} \begin{matrix}  \end{matrix} 0 \begin{matrix}  \end{matrix} {\overset{\cdot}{E}}_{M} > δ_{o r i} \end{cases}

(26)

where δ_ori is the orientation threshold value. When ${\dot{E}}_{M}$ exceeds the threshold value, ${\dot{E}}_{V}$ is set as 0 because its value is too large. Define P_M and P_V as the position vectors of the operator's hand and virtual vector K, respectively. P_M’ is the mapping vector of P_M. K_┴ is a vector which is perpendicular to K. Let S_pos =[S_K, S_{K
_┴}], where S_K is the scaling value in the K direction and S_{K
_┴} is the scaling value in the K_┴ direction. In addition, K_┴, K and ${\dot{P}}_{M}^{'}$ are coplanar, and then:

\begin{matrix} \overset{\cdot}{P_{k}} = {\begin{matrix} S_{k} \cdot (| \overset{\cdot}{P_{M}^{′}} | \cdot \cos θ) \cdot K = S_{k} \cdot K \cdot P_{M}^{′} \cdot K \\ 0 \end{matrix} \begin{matrix}  \end{matrix} \begin{matrix} S_{k} \leq δ_{k} \\ S_{k} > δ_{k} \end{matrix} \\ {\overset{\cdot}{P}}_{k_{⊥} =} {\begin{matrix} S_{k_{⊥}} \cdot (| \overset{\cdot}{P_{M}^{′}} | \cdot \sin θ) \cdot K_{⊥} = S_{k_{⊥}} \cdot K_{⊥} \cdot P_{M}^{′} \cdot K_{⊥} \\ 0 \end{matrix} \begin{matrix}  \end{matrix} \begin{matrix} S_{k_{⊥}} \leq δ_{k_{⊥}} \\ S_{k_{⊥}} > δ_{k_{⊥}} \end{matrix} \end{matrix}

(27)

where δ_k and δ_{k
_┴} are the threshold values, and ${\dot{P}}_{k}$ and ${\dot{P}}_{k ⊥}$ are the velocities in the K and K_┴ directions, respectively. Then, the K velocity in VS is as follows:

\overset{\cdot}{P_{v}} = \overset{\cdot}{P_{k}} + {\overset{\cdot}{P}}_{k_{⊥}}

(28)

When S_k=S_{k
_┴}, the velocity ${\dot{P}}_{v}$ can be rewritten as ${\dot{P}}_{v} = S_{k} \cdot {\dot{P}}_{M}$ . When S_k <S_{k
_┴}, the direction of the central axis of the robot end-effector requires greater precision. When S_k > S_{k
_┴}, the direction perpendicular to the central axis of the robot end-effector requires greater precision.

S_ori and S_pos are the functions of the distance r, which results in:

{\begin{matrix} S_{o r i} (r) = \log (r) + C_{1} \\ S_{k_{⊥}} (r) = \log (r) + C_{2} \\ S_{k} (r) = \sqrt{r} + C_{3} \end{matrix}

(29)

where C₁, C₂ and C₃ are constants. Since MS and VS are affected by u, the velocity ${\dot{P}}_{W}$ can be given by:

\overset{\cdot}{P_{W}} = (\overset{\cdot}{P_{V}} + \overset{\cdot}{P_{P}} - (P_{W} - P_{C}) \frac{d u}{d r} \overset{\cdot}{r}) \frac{1}{u}

(30)

where P_W is the position of the robot manipulator in WS, P_C is the position of the zoom centre in VS, and ${\dot{P}}_{P}$ is the panning velocity from VS to WS. In order to keep the target and virtual vector K within VS, ${\dot{P}}_{P}$ and u should satisfy:

{\overset{\cdot}{P}}_{P} = S_{p o s} \overset{\cdot}{P_{M}} + (P_{W} - P_{C}) \frac{d u}{d r} \overset{\cdot}{r}

(31)

u (r) = \frac{C_{1}}{r} + C_{2}

(32)

where C₁ and C₂ are constants. As the increment of C₁ and C₂, the precision standard of the robot manipulation increases while its efficiency decreases, and vice versa. In the initial stage, C₁ and C₂ can be set to 1, which denotes that the velocity and accuracy requirements are equal in each experiment.

6. Experiments

6.1 Environment of Experiment

Three kinds of sophisticated experiment – peg-into-hole, trajectory tracking and screwing bolt – were carried out to evaluate the performance of this method in terms of accuracy and efficiency. In each experiment, the wireless watch was tightly fixed on the operator's hand and the leap motion took place in front of the operator to track the movements. When the operator waved his/her hand, the measurements were obtained; the robot was then able to copy the movements of the hand by means of the inverse kinematics solution [24]. However, considering that the robot workspace is larger than the operating space, a reset gesture was defined in our interface. This meant the leap motion would not track the movements of the operator's hand while it was making a fist, enabling the operator to move his/her hand back and reuse the method. When the operator's hand was not in the operating space, the wearable watch would vibrate to attract the operator's attention.

In experiment 1, 10 peg-into-hole teleoperations were conducted to evaluate our method by comparing the number of failures with operation time. The laboratory environment of the peg-into-hole experiment is shown in Fig. 6. A peg of 14 mm diameter was installed on the robot end-effector and a steel plate with 16 holes was fixed under it. In each test, the local site operator controlled the remote robot to insert the peg into the 16 holes (16 mm diameter). To effectively ensure the security and success rate of the robot teleoperation, a virtual simulation system of peg-into-hole tests was completed for the feedback mechanism. The measurements were not directly transmitted to the robot, but went through a two-step treatment. In the first step, the measurements were transmitted to the virtual robot. If any collision was detected, no more commands were sent to the real robot and the last operation was reset. Otherwise, the measurements were used to operate the remote robot manipulator.

Figure 6.

The peg-into-hole experiment environment

In experiment 2, a trajectory-tracking simulation experiment was carried out according to our method and that presented in [13]. The experiment environment is shown in Fig. 7. A default reference trajectory of 190 mm radius was designed before each test. The operator needed to control the robot manipulator to move along the reference trajectory from left to right using his/her hand, and the tracking error established by comparing the reference and tracking trajectories and the operation time was used to compare our method with that in [13]. When the distance between the reference trajectory and the real-time trajectory exceeded a threshold value of 5 mm, our method triggered a vibration feedback to warn the operator.

Figure 7.

The trajectory-tracking experiment environment

In experiment 3, the leap motion took place in the centre of a table, and the operator's hands – with two watches – were waved over the leap motion (Fig. 8(a)). A bolt with a diameter of 75 mm and a length of 83 mm was installed on the robot end-effector, and a nut with a diameter of 75.5 mm and a length of 91 mm was firmly attached to another robot end-effector (Fig. 8(b)). In the initial stage of the experiment, the distance between the two robot manipulators was 203.7 cm. Since the gap between the bolt and the nut was very narrow, 0.5 mm, the accuracy and efficiency of the method could be evaluated by whether or not the operator could screw the bolt into the nut and the length of operation time. The failures refer to the failures of the operator to screw the bolt into the nut. The operation time refers to the time needed to control the robot manipulator to move close to another manipulator, adjust the orientation and position, screw the bolt into the nut, and separate the dual robot manipulators. To improve the success rate of the experiment, one camera with vision-based technology [25] was attached to the robot end-effector to locate the central axis of the end-effector of another robot. If the distance or the angles between the central axes of two robots exceeded a certain value, meaning that the bolt could not be screwed into the nut, a vibration feedback would immediately attract the operator's attention.

Figure 8.

The screwing-bolt experiment environment

In this paper, two GOOGOT GRB3016 robots were used to conduct the experiments to verify the method. The DH parameters of the robot are listed in Table 1: a represents the length of the common normal, α refers to the angle about the common normal from the old axis to the new axis, d stands for the offset along the previous to the common normal, and θ represents the angle about the previous normal.

Table 1.

The DH parameters of the robot

DH	a (mm)	α (rad)	d mm)	θ (rad)
JOINT
1	a (mm)	α (rad)	d mm)	θ (rad)	150	−π/2	250	0
2	570	−π	0	−π/2
3	150	π/2	0	0
4	0	−π/2	650	0
5	0	−π/2	0	−π/2
6	0	0	−200	0

6.2 Results of Experiments

Table 2 lists the operation time and failures for 10 peg-into-hole tests according to our method and the method in [13]. In each test, the peg was inserted in 16 holes. Since our method introduces a feedback mechanism to improve the probability of successful teleoperation, the failures in our method were minimal, and the mean (0.7), was smaller than in the method in [13] (1.8). The mean error in our method was thus reduced by 1.1. The operation time ranged from 192 s to 221 s, with a mean of 205.1 s. In comparison with the method in [13], the mean operation time decreased by 25.2 s. Therefore, the efficiency and accuracy of our method was higher.

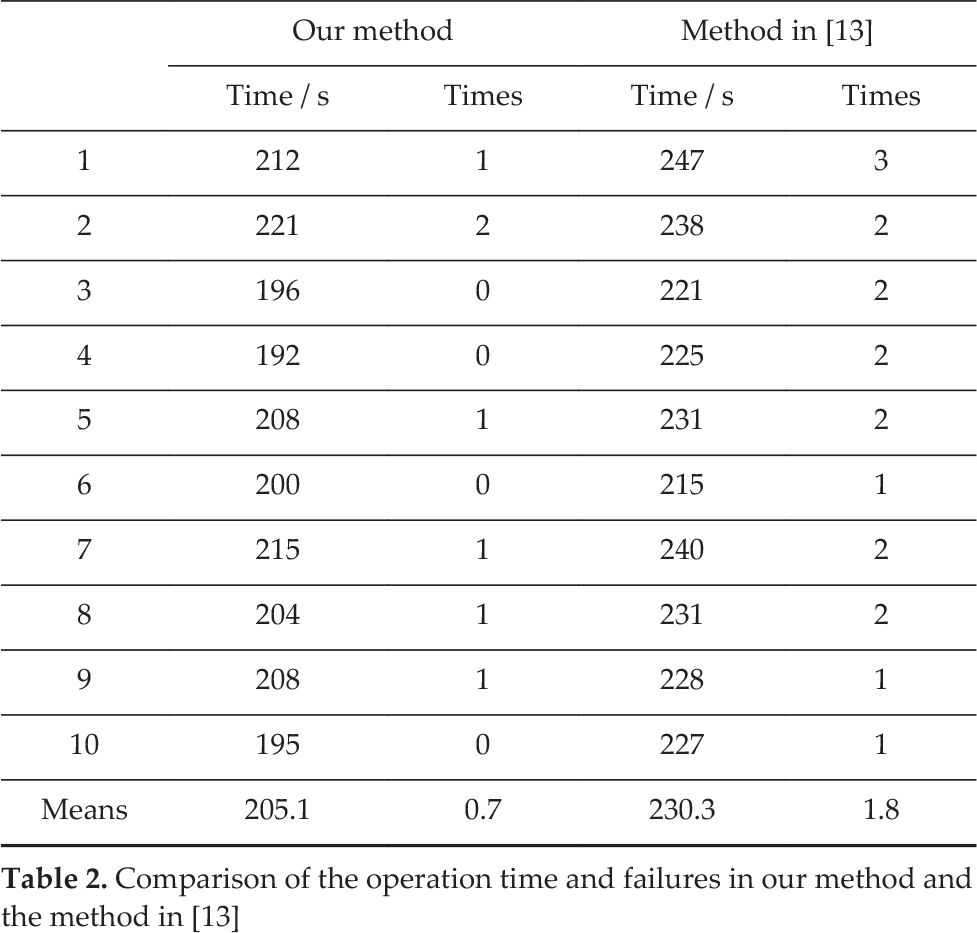

Table 2.
Comparison of the operation time and failures in our method and the method in [13]

Our method Method in [13]

Time / s Times Time / s Times

1 212 1 247 3

2 221 2 238 2

3 196 0 221 2

4 192 0 225 2

5 208 1 231 2

6 200 0 215 1

7 215 1 240 2

8 204 1 231 2

9 208 1 228 1

10 195 0 227 1

Means 205.1 0.7 230.3 1.8

Fig. 9 shows the trajectory-tracking paths in experiment 2. The red line shows the reference path, the blue dotted line is the tracking path of our method, and the light-blue dotted line denotes the tracking path of the method in [13]. Compared with the tracking path of the method in [13], the trajectory of our method seems closer to the reference path. Because our method added a feedback mechanism, the tracking failure is significantly reduced, as shown in Fig. 9. Table 3 makes a comparison of the tracking error and operation time of our method and the method in [13]. The mean error of our method, 1.82 mm, was smaller than that of the method in [13], which was 2.42 mm. Besides this, the mean operation time of our method was 215.8 s, while that of the method in [13] was 243.4 s. Fig. 10 shows the tracking error of our method and that of the method in [13] in the form of a histogram: the blue columns denote the tracking error of our method, while the red columns are the tracking error of the method in [13]. As the figure shows, the tracking error of our method is lower than that of the method in [13].

Figure 9.

Tracking paths

Table 3.

Comparison of the operation time and tracking error

	Our method		Method in [13]
	Time / s	Times	Time / s	Times
1	217	1.67	255	2.68
2	211	1.53	244	2.45
3	206	1.32	232	2.18
4	226	2.02	239	2.32
5	232	2.51	254	2.80
6	211	1.85	232	2.41
7	205	1.70	255	2.73
8	213	1.80	243	2.01
9	216	1.74	239	2.31
10	221	2.06	241	2.30
Means	215.8	1.82	243.4	2.42

In experiment 3, the screwing-bolt was employed to compare our method with the method in [13] in terms of the operation times and failures. Table 4 shows the experimental results of 10 screwing-bolt tests. The operation time of our method ranged from 211 s to 233 s, with a mean time of 221.0 s. By contrast, the operation time of the method in [13] was longer, ranging from 228 s to 261 s, with a mean time of 243.9 s. Besides, the mean failures in our method was 0.9, compared to 1.6 for the method in [13]. Therefore, compared with the method in [13], the mean time decreases by about 21.9 s, and the mean failures decrease by 0.7.

Figure 10.

Tracking error of our method and the method in [13]

Table 4.

Comparison of operation time and failures in our method and the method in [13]

	Our method		Method [13]
	Time / s	Times	Time / s	Times
1	230	2	243	2
2	228	1	261	2
3	215	0	255	3
4	225	1	228	0
5	233	1	248	2
6	211	0	239	1
7	216	1	234	1
8	220	1	239	2
9	212	1	248	2
10	220	1	244	1
Means	221.0	0.9	243.9	1.6

In addition, experiments comparing our method with and without Kalman filters were conducted to show the contribution of the filters. Fig. 11 intuitively shows the measured and estimated results in experiment 3. Figs. 11(a) and (b) show the measurements and estimation in position, respectively. Figs. 11(c) and (d) are the measurements and estimation in orientation. The blue dotted line represents the measured results of the right robot and the red dotted line the estimated results of the left robot in the first 35 seconds. The blue crossed line refers to the estimated results of the left robot and the red crossed line to the estimated results of the right robot. Although the full task has a duration in the range of 211 s to 261 s, the results prove that the Kalman filter significantly improves the performance of the method, even if only the results for the first 35 seconds are shown.

Figure 11.

Tracking results of posture measurements and estimations

7. Conclusions

This paper has presented a wearable-based and markerless human-manipulator interface that helps humans engage in natural and human-centred human-manipulator interaction. In the interface, one wearable watch and one leap motion are employed to register the continuous movements of the human operator's hand in real time; the inclusion of collision detection and transboundary detection achieve two-way feedback human-robot interaction and increase the probability of successful teleoperation. Moreover, methods using two Kalman filters and adaptive multispace transformation are developed to improve the performance of robot manipulation. By making full use of the proposed interface, an operator can perform robot manipulation with a sense of immersion, and collaboration with dual robots can be achieved flexibly even by a single operator [26].

The advantages of our method can be summarized as follows. Unlike contacting methods, our method does not interfere with natural human-limb movements. Furthermore, our method does not suffer from limitations related to marker occlusion and identification. It can be used immediately without any initialization [12], even if the operator is not a professional. In addition, unlike the method in [13], our method incorporates a wearable watch and two Kalman filters, leading to greater accuracy and better efficiency, since Kalman filters work independently to estimate the movements of the operator's hand. If the orientation is not very precise, the position estimation will not be affected. Furthermore, a vibration feedback can be triggered to report system states. Our method can be expected to find applications in areas human beings cannot access, such as deep sea and space.

However, as the operating space is very limited, a reset gesture has to be defined in this interface to reconduct robot manipulation. Further research towards multi-sensors and force control [27, 28] is underway to supplement the interface, enabling it to work more flexibly and advantageously.

Footnotes

8.

Project funded by “National Natural Science Foundation of China (Grant No:61403145)”, “Guangdong provincial science and technology project” (2014B090921007), “Guangzhou science and technology project” (20150810068), “Haizhuqu District Guangzhou science and technology project” (2014-cg-02).

References

Zhang

, “Markerless human-robot Interface for dual robot manipulators using Kenect sensor”, Robot and Computer-Integrated Manufacturing, vol. 30, pp. 150–159, 2014.

Cho

K.B.

Lee

B.H.

, “Intelligent Lead: A Novel HRI Sensor for Guide Robots”, Sensors, vol. 12, no. 6, pp. 8301–8318, 2012.

Hirche

and Buss

, “Human-oriented control for haptic teleoperation”, Proceedings of the IEEE, vol. 100, no. 3, pp. 623–647, 2012.

Kiguchi

Kariya

Watanabe

, “An exoskeletal robot for human elbow motion support-sensor fusion, adaptation, and control”, IEEE Trans. Cybern., vol. 31, no. 3, pp. 353–361, 2003.

Kofman

Luu

Verma

, “Teleoperation of a robot manipulator using a vision-based human-robot interface”, IEEE Trans. Ind. Electron., vol. 52, no. 5, pp. 1206–1219, 2005.

Ueda

Matsumoto

Imai

Ogasawara

, “A hand-pose estimation for vision-based human interfaces”, IEEE Trans. Ind. Electron., vol. 50, no. 4, pp. 676–684, 2003.

Peng

K.C.C

Singhose

Frakes

D.H.

, “Hand-Motion Crane Control Using Radio-Frequency Real-Lime Location Systems,” IEEE/ASME Trans. Mechatronics, vol. 17, no. 3, pp. 464–471, 2012.

Suau

Ruiz-Hidalgo

Casas

J.R.

, “Real-Lime Head and Hand Tracking Based on 2.5D Data”, IEEE Trans. Multimedia, vol. 14, no. 3, pp. 575–585, 2012.

Khezri

Jahed

, “A Neuro–Fuzzy Inference System for sEMG-Based Identification of Hand Motion Commands”, IEEE Trans. Ind. Electron., vol. 58, no. 5, pp. 1952–1960, 2011.

10.

Bogdan

Coquin

Lambert

, and Buzuloiu

, “Dynamic and gesture recognition using the skeleton of the hand” Journal on Applied Signal Processing, vol. 13, pp. 2101–2109, 2005.

11.

Zhang

, “Human-Manipulator Interface based on Multisensory Process via Kalman Filters”, IEEE Transactions on Industrial Electronics, vol. 61, no. 10, pp. 5411–5418, 2014.

12.

Kofman

Verma

X.H.

, “Robot-Manipulator Teleoperation by Markerless Vision-Based Hand-Arm Tracking”, International Journal of Optomechatronics, vol. 1, no. 3, pp. 331–357, 2007.

13.

Zhang

“A Markerless Human-Robot Interface Using Particle Filter and Kalman Filter for Dual Robots”, IEEE Transactions on Industrial Electronics, vol. 62, no. 4, pp. 2257–2264, 2015.

14.

Geak Watch. Available: http://www.igeak.com/. Accessed on 10 Feb 2015.

15.

Motion

Leap

. Available: https://www.leapmotion.com/. Accessed on 17 Aug 2014.

16.

Wang

Zhang

Gui

, “Position Estimation Error Reduction Using Recursive-Least-Square Adaptive Filter for Model-Based Sensorless Interior Permanent-Magnet Synchronous Motor Drives”, IEEE Transactions on Industrial Electronics, vol. 61, no. 9, pp. 5115–5125, 2014.

17.

Ding

Wang

Rizos

, “Improving Adaptive Kalman Estimation in GPS/INS Integration”, The Journal of Navigation, vol. 60, no. 3, pp. 517–529. 2007.

18.

Won

S.P.

Golnaraghi

Melek

W.W.

, “A fastening tool tracking system using an IMU and a position sensor with Kalman filters and a fuzzy expert system”, IEEE Trans. Ind. Electron, vol. 56, no. 5, pp. 1782–1792, 2009.

19.

Yun

X.P.

Bachmann

E.R.

McGhee

R.B.

, “A Simplified Quaternion-Based Algorithm for Orientation Estimation From Earth Gravity and Magnetic Field Measurements,” IEEE Transactions on instrumentation and measurement, vol. 57, no. 3, 2008.

20.

Saucan

, “Euler's Theorem as the Path towards Geometry”, Nexus Network Journal, vol. 7, no. 1, pp. 111–118, 2005.

21.

Zhao

, “Improved K-DOPs collision detection algorithms based on genetic algorithms”, IEEE International Conference on Electronic & Mechanical Engineering & Information Technology, pp. 338–341, 2011.

22.

Munoz

L.M.

Casals

, “Improving the Human-Robot Interface Through Adaptive Multispace Transformation”, IEEE T. Robot, vol. 25, no. 5, pp. 1208–1213, 2009.

23.

Thrun

Burgard

Fox

, Probabilistic Robotics, Cambridge, MA: MIL Press, pp. 125–177, 2005.

24.

Kucuk

Bingul

, “The inverse kinematics solutions of industrial robot manipulators”, IEEE International Conference on Mechatronics, pp. 274–279, 2004.

25.

Zhang

Wang

, “Human-Manipulator Interface Using Particle Filter”, Scientific World Journal, vol. 2014, no. 1, pp. 95–104, 2014.

26.

Marin

Sanz

P.J.

Wirz

, “A Multimodal Interface to Control a Robot Arm via the Web: A Case Study on Remote Programming”, IEEE Trans. Ind. Electron., vol. 52, no. 6, pp. 1506–1521, 2005.

27.

Gibo

L.L.

Deo

D.R.

Zhan

DQ.F.

Okamura

A.M.

, “Effect of load force feedback on grip force control during teleoperation: A preliminary study”, IEEE Trans. Robot. Autom., vol. 10, no. 1, pp. 379–83, 2014.

28.

Cipriani

Segil

J.L.

Clemente

Weir

R.F.

Edin

, “Humans can integrate feedback of discrete events in their sensorimotor control of a robotic hand”, Experimental brain research , vol. 232, no. 11, pp. 3421–9, 2014.
