Performance Improvement of CH 3 NH 3 PbI 3 Perovskite Solar Cell by CH 3 SH Doping

1. Introduction

With the aim of producing environmental friendly and energy efficient energy at low cost, various materials and methodologies have been proposed for related sustainable development. Among the measures to address energy shortages faced nowadays, solar cells have been proven to be an attractive approach towards producing green energy [1-4, 5-7]. Specifically, organic-inorganic lead halide perovskite solar cells are particularly promising for the next generation of solar devices owing to their high power conversion efficiency [8, 9]. For instance, metal halide perovskites (CH₃NH₃PbI₃ and its analogue) are currently among the most competitive candidates in the fabrication of mesoscopic solid state solar cells with record-breaking efficiencies [10, 11]. Methylammonium (CH₃NH₃+) was proposed by Dieter Weber to make the first three-dimensional organic–inorganic hybrid perovskites in 1978 [12], while the successful integration of organic-inorganic metal halide perovskites into solar cells was firstly reported by Miyasaka et al. in 2009 [13]. An organic-inorganic lead halide perovskite is the material that crystallizes into an AMX₃ (where A is an organic ammonium cation, M is metal, which is typically Pb or Sb, and X is a halide anion) structure. When realized, the size of cation A is critical to the formation of a close-packed perovskite structure, which means cation A must fit into the centre of the unit cell, as shown in Figure 1. Methylammonium was demonstrated to be an ideal candidate for cation A and, consequently, methylammonium lead iodide (MAPbI₃) has been intensively used in solar cells with an average efficiency of around 16%-17% (and, so far, up to 19.3%) in planar device architecture, but also due to its superior band gap of about 1.5–1.6 eV and a light absorption spectrum up to a wavelength of 800 nm [13,14].

OPEN IN VIEWER

Figure 1.

Illustration of the perovskite-structured films, where A stands for organic cation B stands for Pb atom and X stands for halide anion (Cl, Br or l)

In spite of these promising successes, there have already been considerable efforts utilizing other organics as well as cation A [15-19], in order to tune the band gap of the formed perovskite architecture and the light absorption wavelength to get more overlap with the sunlight. As expected, exciting discoveries were witnessed when slightly larger formamidinium (HC(NH₂)⁺, here denoted as FA, was confirmed as stabilizing a perovskite structure [20-22]. The band gap of FAPbI₃ was estimated to be 1.45 eV; therefore, broader absorption is expected for FAPbI₃ compared to MAPbI₃, which indicates that a higher PCE is expected due to a higher photocurrent. For example, an average PCE of 18.4% in an FAPbI₃ solar cell was reported by Seok et al. [8], while a stable FAPbI₃ perovskite structure owing 16% PCE was easily fabricated by Park et al. [20]. In addition, perovskites solar cells are required to be robust during structural transition, which may induce changes of band structures or other physics properties [21, 22]. Typical CH₃NH₃PbI₃ perovskite films undergo reversible phase transition between tetragonal and cubic symmetry at temperatures ranging from 300 to 400 K [10], which exactly correspond to a solar cell operating temperature. Based on these considerations, methanethiol (CH₃SH) was chosen and doped into the conventional CH₃NH₃PbI₃ perovskite structure, with the aim not only to explore the stability enhancement of the perovskite films, but also to tune the band gap of formed perovskite structures for efficient light-harvesting. By utilizing SEM and in situ GIXRD, we were able to probe the surface/interface morphology and the structures of doped perovskites. Based on the mixture of (CH₃SH₂)_x-CH₃NH₂PbI₃, where x varies between 0.5% and 10%, the enhancement of device performance was discovered for a certain doping of CH₃SH₂.

2. Experimental Details

2.4 Structure characterization of perovskite film

SEM images were obtained from a field emission scanning electron microscope (FEI Quanta 200), while the GIXRD measurements were performed at BL14B1 beamline in the Shanghai Synchrotron Radiation Facility (SSRF), as shown in Figure 2. The two dimensional GIXRD (2D-GIXRD) patterns were acquired by a MarCCD mounted vertically at a distance of around 223 mm from the sample with exposure times of less than 20 seconds, while the grazing incidence angle of the X-ray was 0.2 ° with respect to the surface plane. The 2D-GIXRD patterns were analysed afterwards using the Fit 2D software and displayed in scattering vector q coordinates with q = 4πsinθ/λ, where θ is half of the diffraction angle and λ is the wavelength of the incident X-ray [25,26,27], which was chosen to be 0.142 nm during the measurement at BL14B beamline.

OPEN IN VIEWER

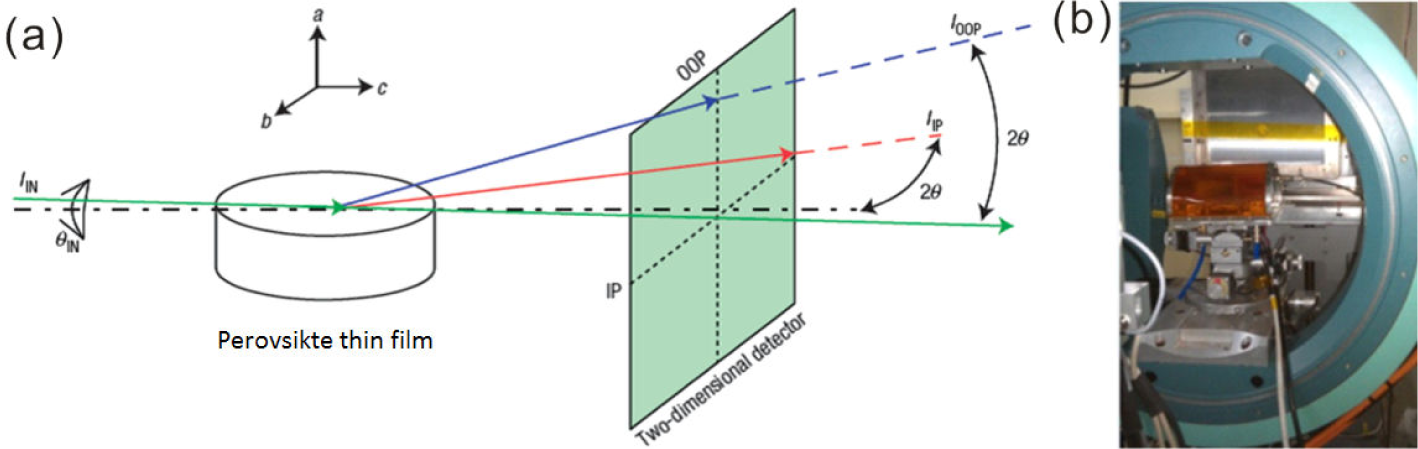

Figure 2.

The 2D-GIXRD experimental set-up at SSRF

3. Results and Discussion

In order to get direct information about how the doping of CH₃SH could affect the optical absorption properties and optical band gap of perovskite films, UV absorption spectroscopy was performed using a varying amount of CH₃SH doped into CH₃NH₂PbI₃ from 0.5% to 5%. As summarized in Figure 3, the absorption peak at the wavelength of around 750 nm for the conventional CH₃NH₂PbI₃ perovskite film was recognized immediately at first glance [3,4]. Besides, another absorption characteristic at around 640 nm can also be identified clearly for the 1% doping of CH₃SH, while more or less doped perovskite films exhibit very weak features around this wavelength. From these comparisons, it can be concluded that the doping of CH₃SH into typical perovskite films indeed served as the tuning of the band gap of hybrid metal halide structures, and that the 1% doping of CH₃SH seemed to be the optimized amount, which was also evidenced by the power convention efficiency measurements in the following section. Therefore, we will choose 1% doped CH₃NH₂PbI₃ as the candidate for further exploration.

Various characterization techniques based on synchrotron radiation light have become powerful tools for materials science and nanoscience, owing to its high flux, high resolution and extreme quasi-monochromaticity. For example, synchrotron based X-ray diffraction can be used to investigate the structure and phase transition during diverse reactions or external treatments, owing to its outstanding ability of fast measurement. As realized, crystallographic data obtained from one-dimensional powder X-ray diffraction provide only limited structural information, in particular for the highly oriented perovskite thin films [28]. To this extent, the 2D GIXRD set-up at beamline BL14B in the SSRF opens a new door to the characterization of planar perovskite structures with the two-dimensional detection capability to probe the crystallographic orientations, as already illustrated in Figure 2.

OPEN IN VIEWER

Figure 3.

UV absorption spectra of varying amounts of CH₃SH doped perovskite films

Figure 4 shows the 2D GIXRD profiles of crystalline perovskite thin films as prepared with CH₃NH₃PbI₃, and 1% doped CH₃NH₃PbI₃ on flat ITO substrate as prepared following the recipe described above. It is easily seen from Figures 4a and 4b that a mixture of scattered secondary spots and rings coexist, which indicates that the crystalline domains are highly oriented in the in-plane direction [28]. Specifically, the 2D XRD patterns for CH₃NH₃PbI₃ perovskite are highly ordered and uniformly distributed, with the scattering peak clearly showing at q=10 nm⁻¹, which can be assigned to the (110) plane of CH₃NH₃PbI₃ perovskite structure [2,8]. Moreover, distinct 2D XRD patterns present other q values, which are also manifest in the formation of high quality perovskite structure in our study; for example, the ring at q=20 nm⁻¹ corresponding to the (220) plane and the ring at q≈25 nm⁻¹ corresponding to the (310) plane [28]. Interestingly, visible changes were found when 1% CH₃SH₂ was doped into the CH₃NH₃PbI₃ perovskite thin film, as seen in Figure 4b. While the pristine perovskite structure was surprisingly preserved, additional diffraction spots were resolved as well around the original (220) or (310) scattering rings. The emergence of new scattered spots herein can only be attributed to the introduction of CH₃SH organic, since no other treatments or dopants were utilized. Surprisingly, the CH₃SH dopant not only broke the original perovskite film, but also led to a new crystallike structure [29]. The originality of these new scattered spots may be related to the fact that the CH₃SH dopant is distributed on top of the original perovskite nanostructures, while nanocrystalline was also formed by the template effect from perovskite substrate. Such a hypothesis is also confirmed by SEM measurements in the following section. In the end, it is worth pointing out that, although distinct peaks were observed, which enable us to determine the predominant sample structure in real time, the broad GIXRD scattering rings do not allow for precise structural assignments. The broadening (around 0.8 nm⁻¹) of scattered rings may be related to the nanocrystalline structure or porous microstructure [28]

OPEN IN VIEWER

Figure 4.

2D GI-XRD profiles of CH₃NH₃PbI₃ (panel a) and 1% doped perovskite films with CH₃SH (panel b) on planar substrate. It can be recognized that new scattered spots were introduced after doping (marked with white arrows), which is related to the doping of CH₃SH organic. All the patterns are shown in q space.

Meanwhile, SEM measurements were also conducted in order to explore the morphology and structural differences between the original and doped CH₃NH₃PbI₃ films. The planar and cross-sectional view are both depicted in Figure 5, with visible changes in film morphology and microstructures found within the SEM measurements. At a first glance, porous morphology and porous nanostructures can be identified from both perovskite films. Detailed analysis with zoom-in view (the inset in panel a) shows that the hole of porous nanostructure has an average size around 300 nm, which is probably the origin of the broadening of the scattered rings in Figure 4. Interestingly, the porous nanostructures are connected in some areas by the CH₃SH organic chains, with the average length more than 500 nm (panel b), while the perovskite film gets much denser. As a result, the size of the pore was reduced considerably, such that it can be concluded that the filling factor was increased to some extent by the doping. The schematic illustration of a fabricated solar cell is shown in Figure 5c, and the cross-sectional view is presented in Figure 5d. The thickness of each individual layer was measured as follows: ITO, 150nm; PEDOT: PSS, 30 nm; Perovskite layer, 180nm; PCBM, 40 nm; ZnO, 120nm; Al electrode: 150 nm.

OPEN IN VIEWER

Figure 5.

SEM micrographs of perovskite crystallization in thin films: (a) and (b) in-plane view for CH₃NH₃PbI₃ and CH₃SH doped perovskite film respectively, (c) the schematic structure of perovskite solar cell, and (d) the corresponding cross-sectional view

Since the UV absorption spectrum indicates the tuning of the band gap of perovskite film by CH₃SH organic and the optimized doping around 1%, with the perovskite structures clearly resolved by the 2D GIXRD measurements for the mixture of 1% CH₃SH and CH₃NH₃PbI₃, one may spontaneously predict that the performance of the perovskite solar cell fabricated from the CH₃SH doped CH₃NH₃PbI₃ film should be enhanced to some extent. Therefore, a series of perovskite solar cells with different CH₃SH doping from 0.5% up to 5% was fabricated and tested. For each certain doping, 10 devices were made and measured. In the end, statistic averaged results were adopted to ensure the reliability. Figure 6 presents the values of the short-circuit current density (Jsc), open-circuit voltage (Voc) and fill factor (FF) of differently doped perovskite solar cells. The increase in the average power convention efficiency from 6.9% for CH₃NH₃PbI₃ to 7.9% for 0.5% doped perovskite and 9.4% for 1% doped CH₃NH₃PbI₃ is encouraging, most probably due to the higher current density and fill factor [2, 6, 11, 26] compared to the original one. As evidenced by the XRD and SEM results, the increase in current density and fill factor can be attributed to the enhanced compact structure of perovskite film after certain doping of CH₃SH; for example, the porous microstructure was covered or filled with CH₃SH organic, while the size of the pore was reduced. As is generally the case, the structure of a certain interface plays a key role in the transport property of corresponding material (for example, the mobility of charge carriers, electrons or holes). As also pointed out by Wiesner et al. [28], it is believed that the enhanced perovskite structure with a complete pore network may facilitate the photo-generated electron generation and collection, enabling more uniform charge transport, which ultimately contributes to improvements in device performance. However, when the doping is more than necessary (it is proved to be 1% in our study), decline of the performance of solar cells was discovered, as in the case of 2% and 5% doped perovskite solar cell with CH₃SH. The degrading of PCE at a higher doping concentration could be related to the breakage of the perovskite structure when too much CH₃SH occupied the perovskite interface [18, 31]. To this extent, we can conclude that 1% doping of CH₃SH is the optimal amount for the improvement in perovskite solar cells' performance in our study. Last but not least, as discovered in our measurement, there is a negligible J–V hysteresis in typical J-V curves. Similar behaviour has also been reported by Yang et al. [30] when using PCBM (PEDOT: PSS/PCBM interface combinations) as the top electron transport layers. While hysteresis is still a largely controversial issue in perovskite solar cells, more and more results have recently proposed that hysteresis originates from ion motion within the perovskite layer [32].

OPEN IN VIEWER

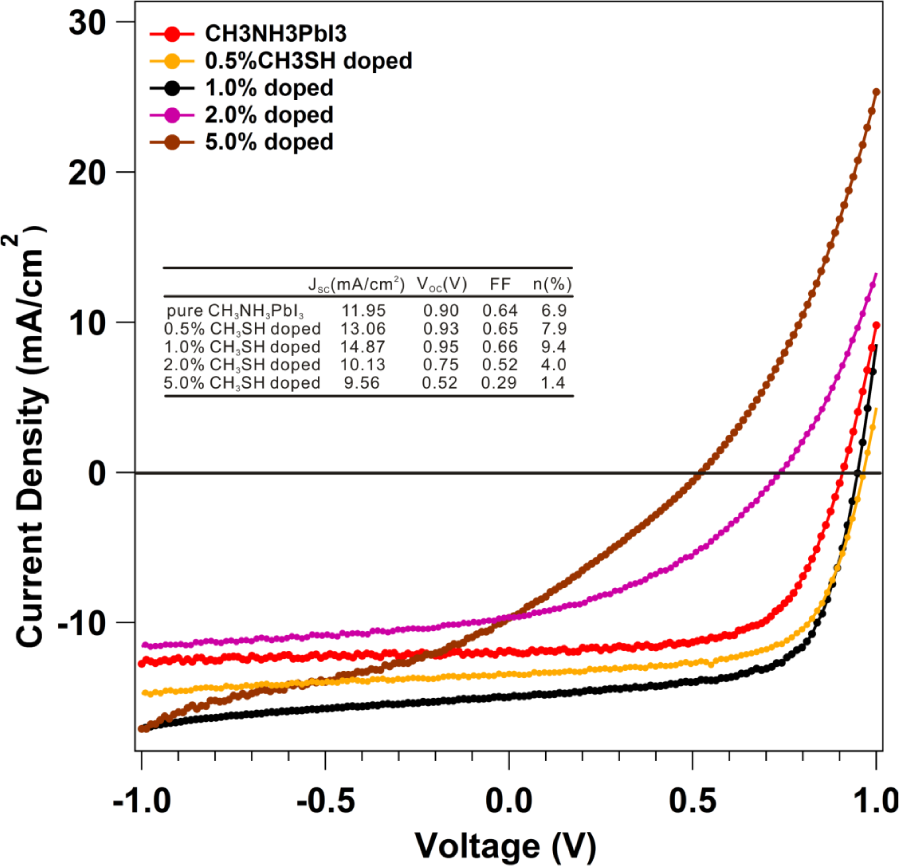

Figure 6.

Current density/voltage curves of average performance of as-prepared CH₃NH₃PbI₃ and varying amounts of CH₃SH doped CH₃NH₃PbI₃ perovskite solar cells

4. Conclusion

We have thoroughly investigated the doping effect of CH₃SH organic on the structure and related performance of CH₃NH₃PbI₃ perovskite solar cells, via in situ synchrotron-based GIXRD, together with SEM. In situ GIXRD investigations clearly illustrated the transformation of perovskite structures induced by the organic, which subsequently led to the enhancement of the power conversion efficiency of fabricated solar cells. With a series of doping of CH₃SH at varying amounts, we found the optimized doping amount to be 1%. In the end, the possible explanation of the performance enhancement was proposed from the comparison of film morphology and nanostructure. Our study may ultimately present itself as an attractive strategy for the fabrication of high performance perovskite solar cells.
